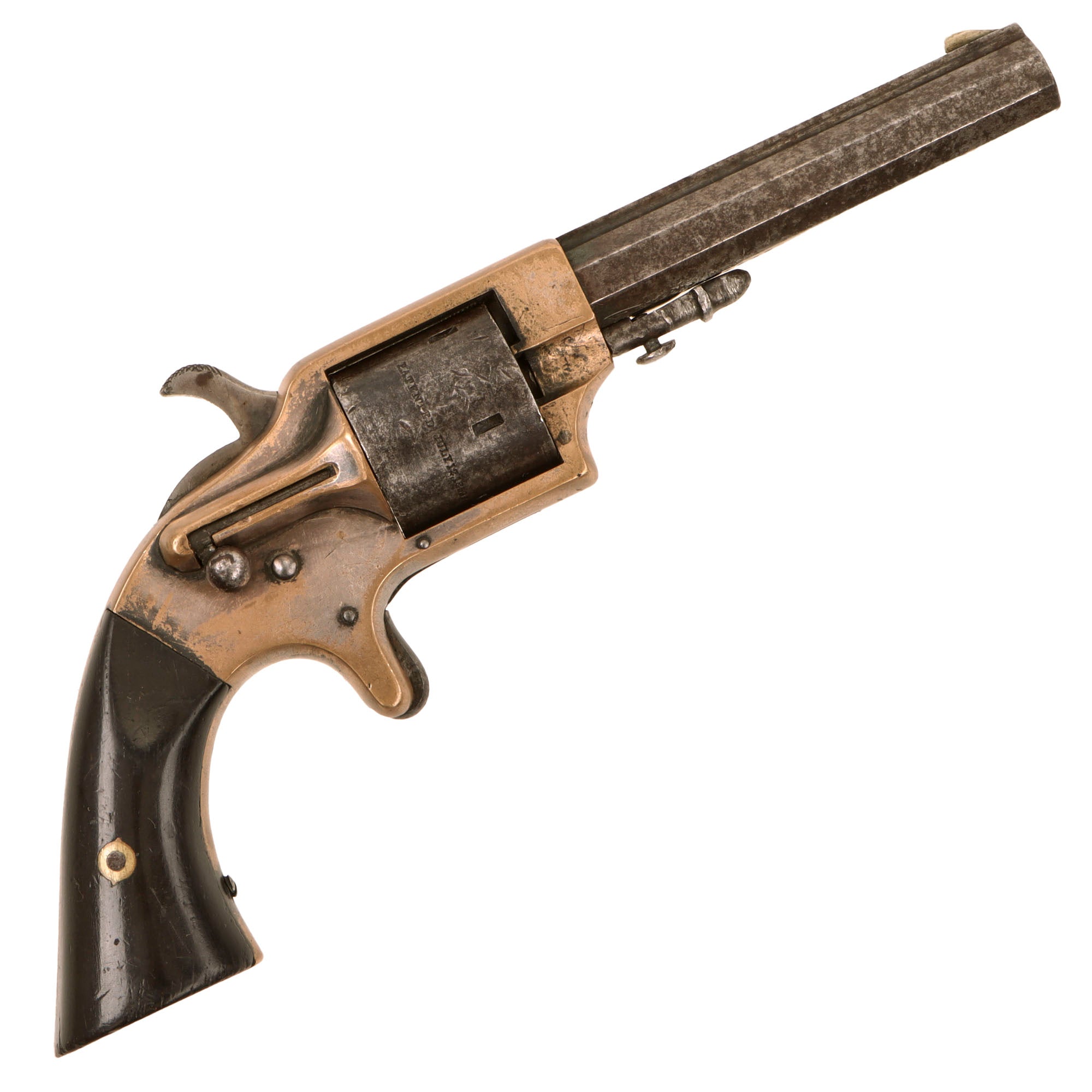

Original Item: Only One Available. Starting life between 1863 and 1873 this is a very rare unconverted Merwin & Bray CUP-FIRE brass frame revolver. Similar to the "Teat-Fire" design, it was one of several ways developed to produce a brass cartridge revolver that would not infringe on the Patents of Rollin White. Licensed and vigorously protected by SMITH & WESSON, this patent covered the use of a bored through revolver cylinder loaded through the rear with a cartridge. Even though these had already been in use in Europe, there was no U.S. Patent, which White exploited with his patent, which also utilized a box magazine to load the cylinder, and was in reality a totally unworkable design.

To infringe on the patent, the cylinder needed to be fully bored through, however, so Plant developed the the CUP FIRE system. This has the chambers reduced in size at the rear, with a lip around the edge. This meant that the system required loading from the front of the cylinder, in reverse so to speak. The cartridges used had a cup shaped base, which gave the system it's name, and were interesting in that the cartridge entirely surrounded the bullet as well. When cycled the firing pin goes into holes in the rear of the cylinder, and sets of the primer in the cupped base of the cartridges.

Plant Mfg. Co began making Cup Fire revolvers based on the Merwin & Bray patents in 1863, manufacturing an "Army" model in .42" Cupfire, which was relatively small in size, but packed much more of a punch than the .32 Smith & Wesson pocket revolvers of the time. They also however manufactured revolvers in the smaller .28" and .30" cupfire sizes. This lovely brass framed revolver has bore measuring about .28, which is actually the correct size for a .30" cupfire gun, as the actual bullets for the two smaller sizes were .26" and .28", respectively.

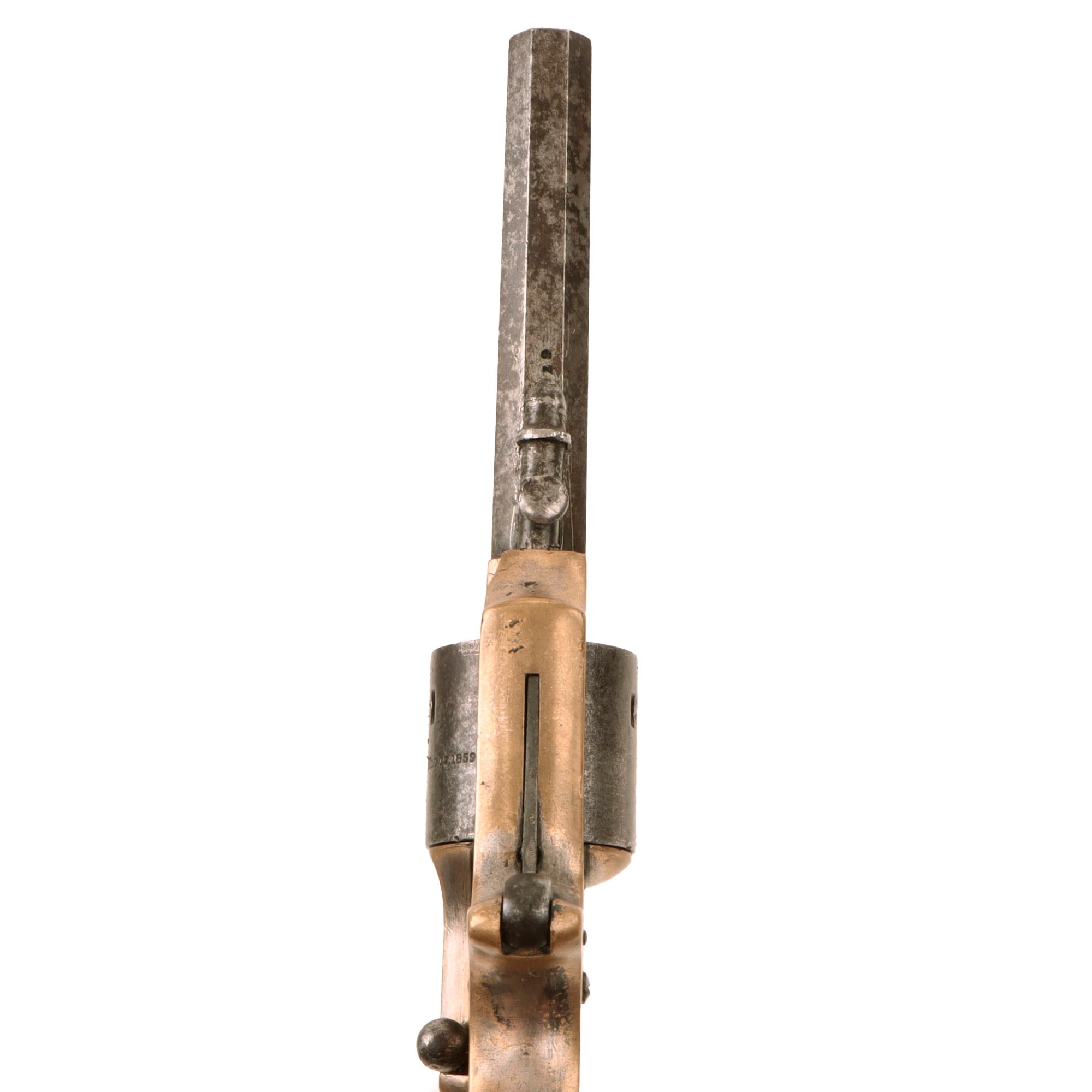

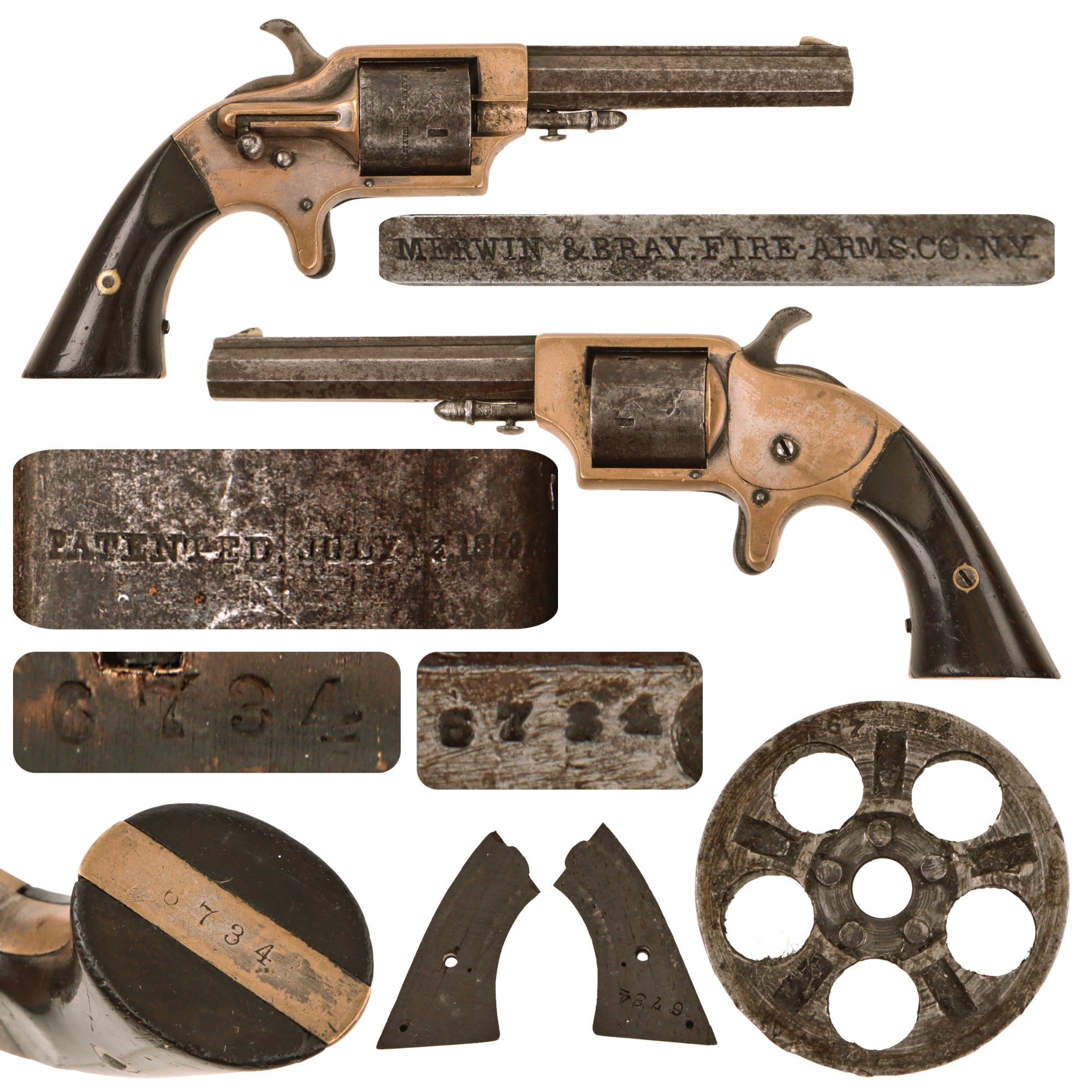

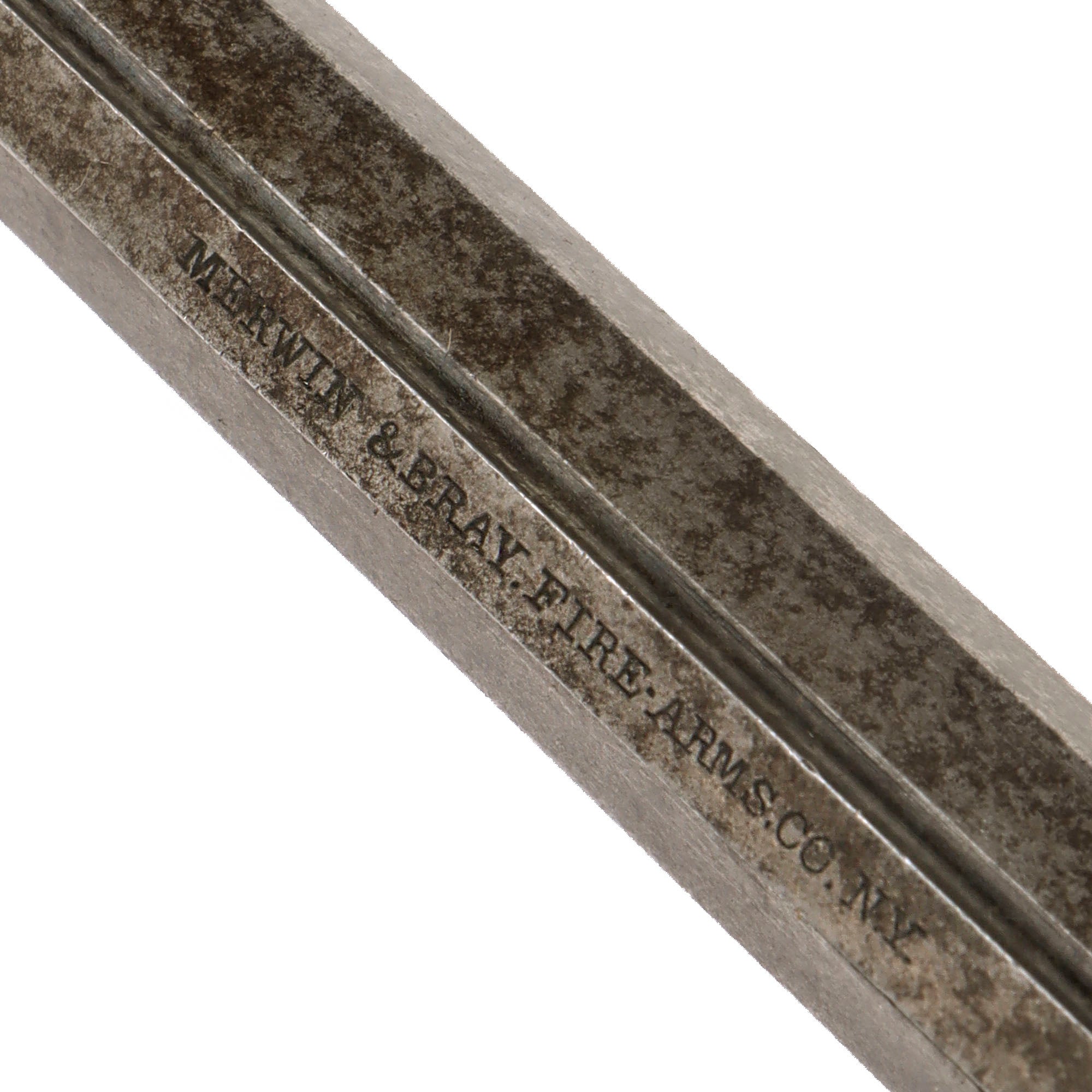

This revolver still has the correct Merwin & Bray address marking easily legible on the top of the barrel rib:-

MERWIN & BRAY. FIRE-ARMS CO. N.Y.

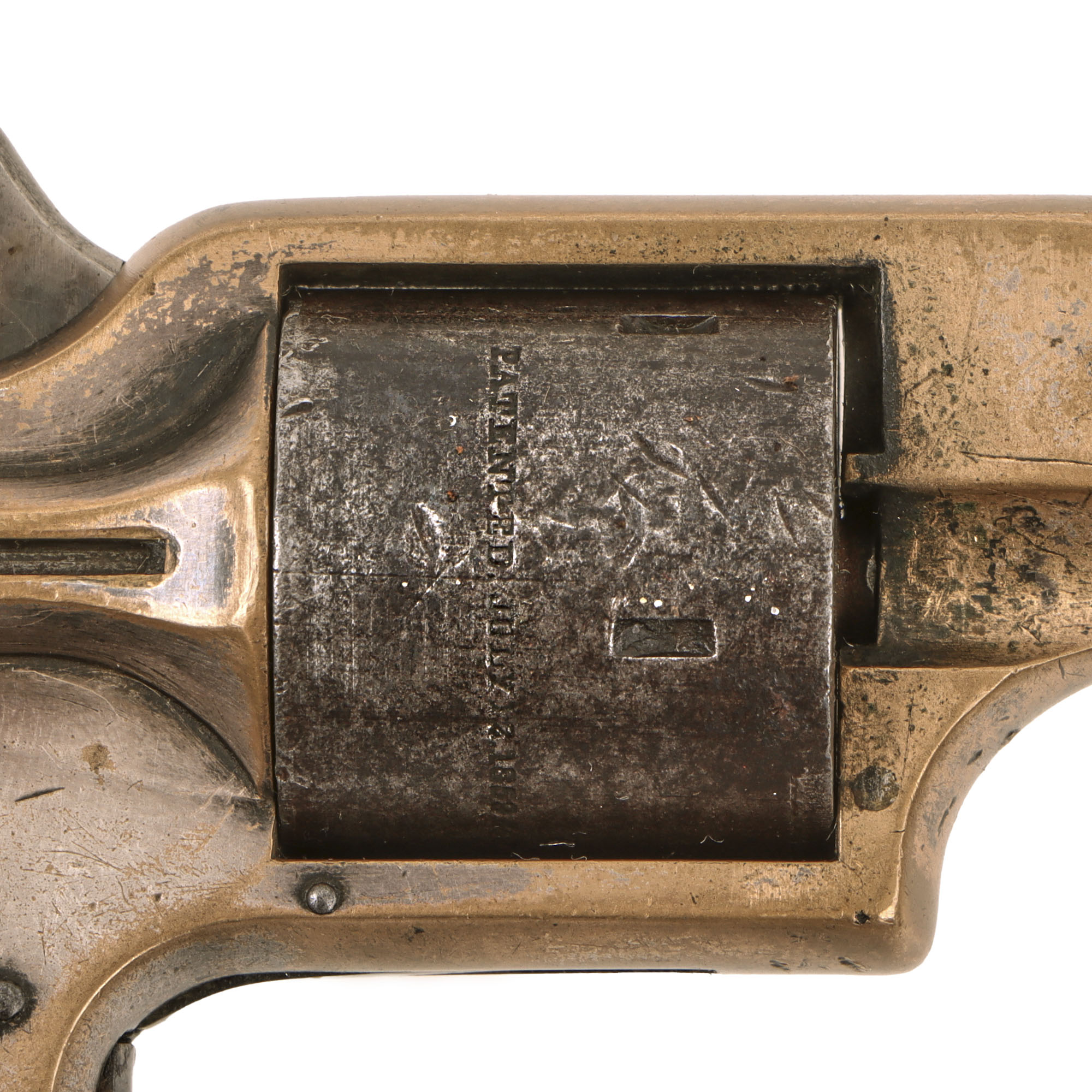

As an added treat, the revolver still has a crisp patent marking going around the cylinder:-

PATENTED JULY 12 1859. & JULY 21 1863.

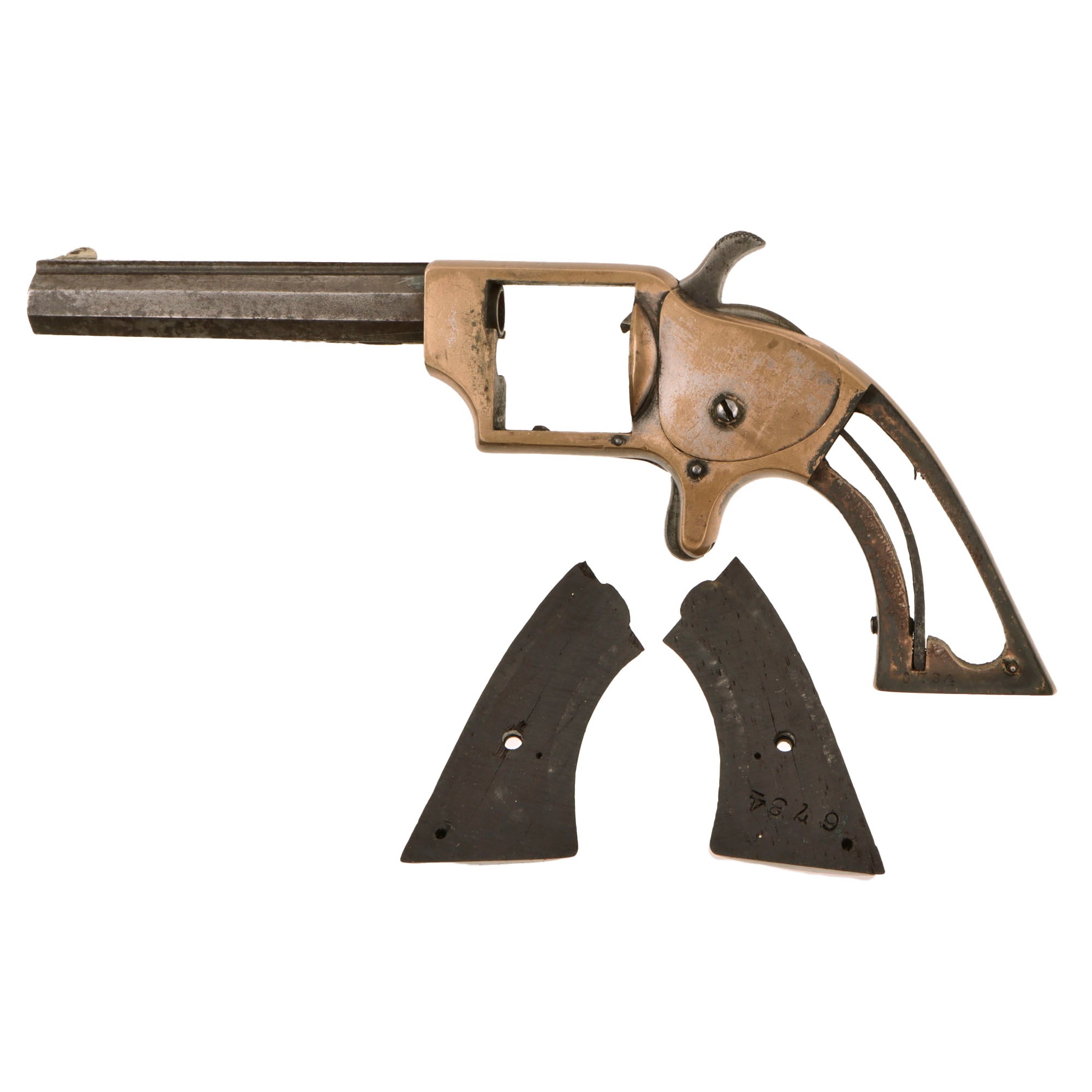

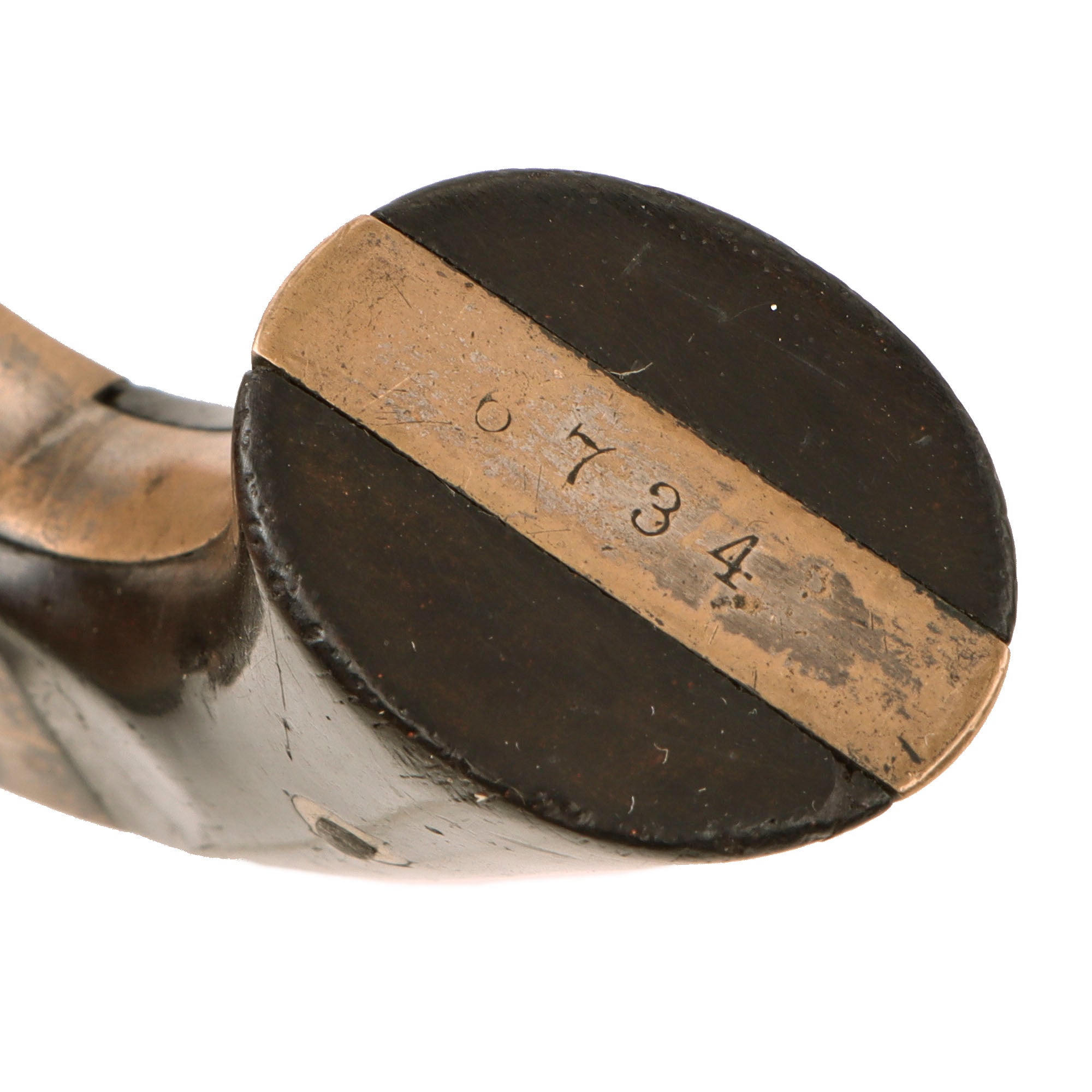

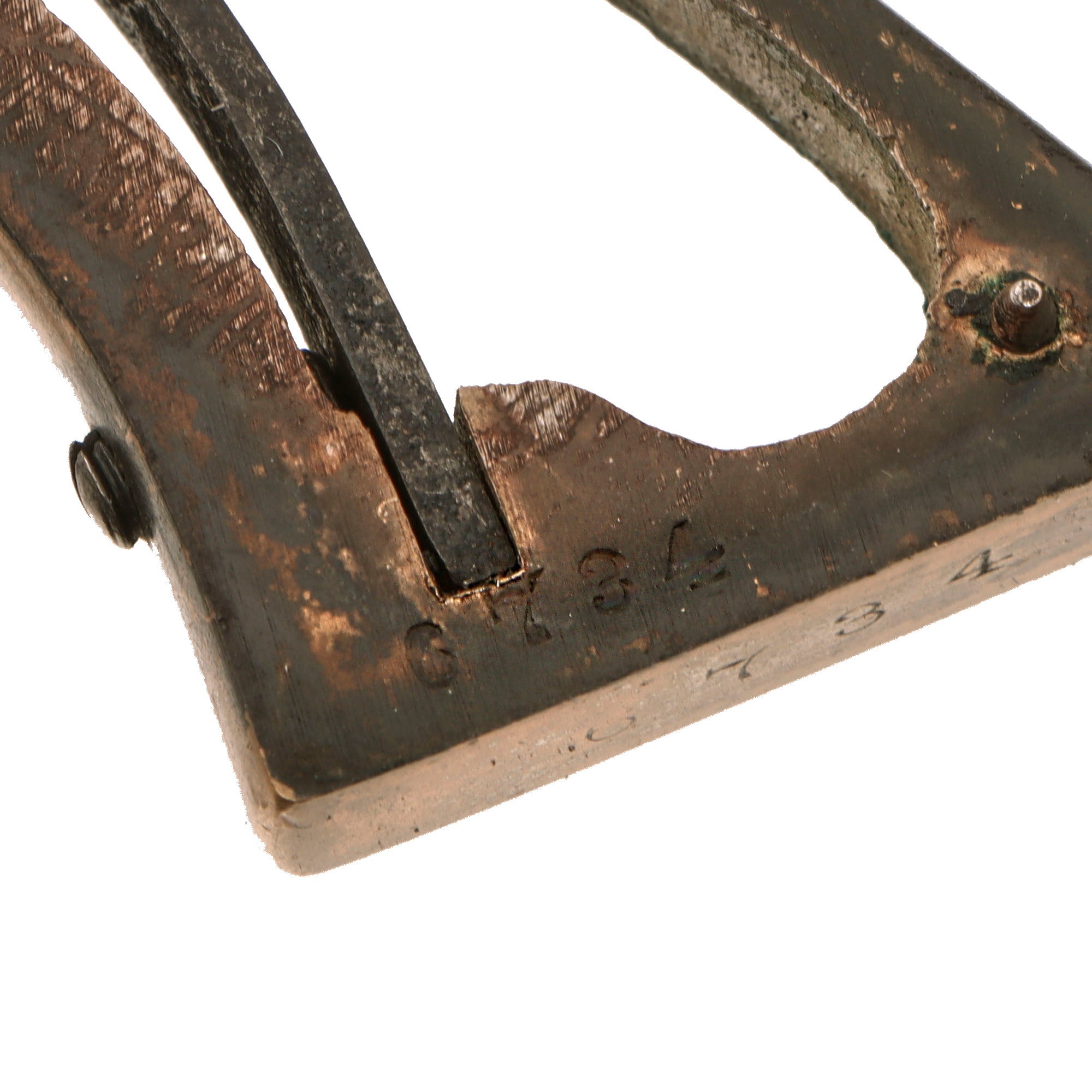

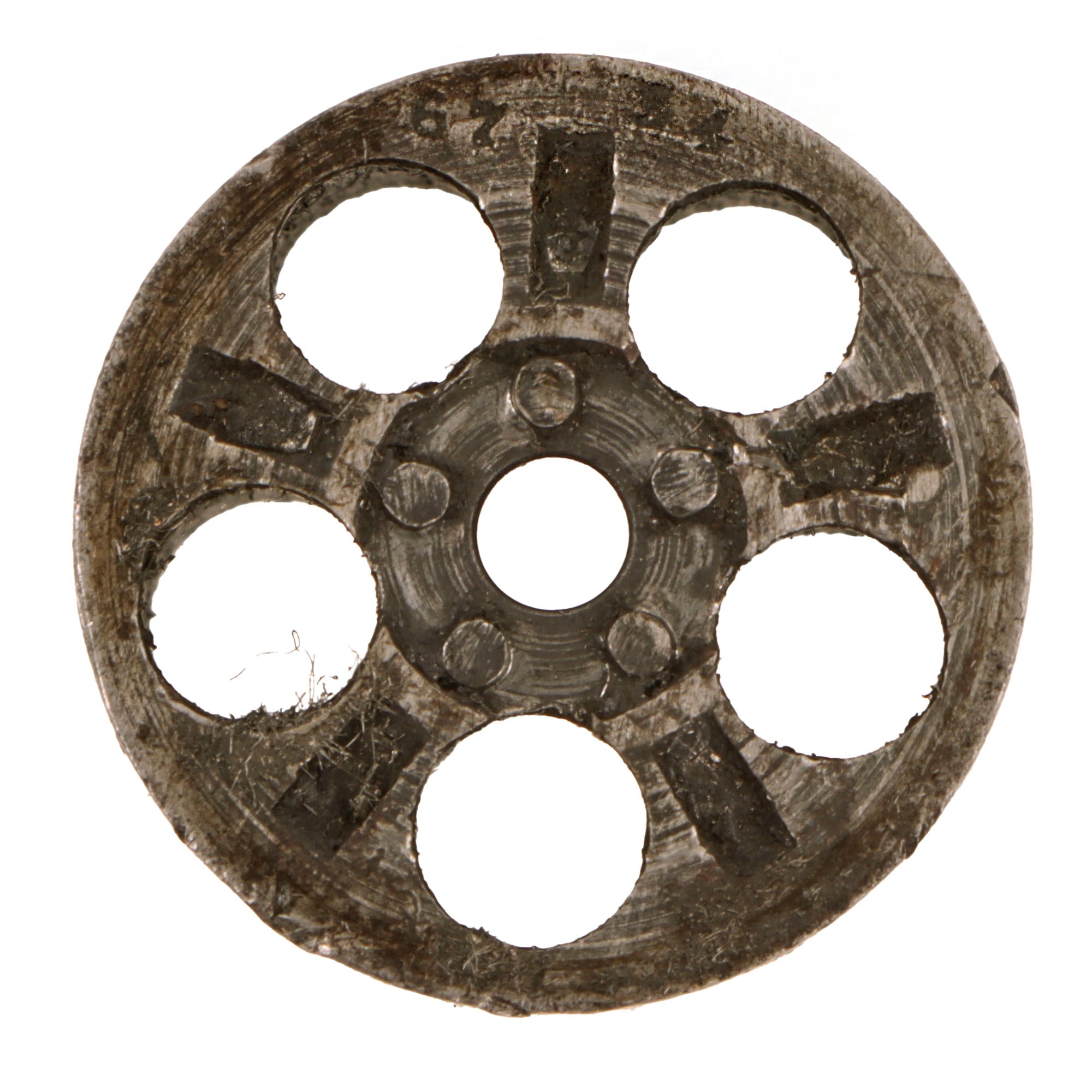

The bottom of the grip frame is marked with serial number 6734, which is also stamped on the bottom of the barrel, the rear of the cylinder, and the cylinder arbor pin. It is also stamped on the right grip scale, and on the left side of the grip frame, but not the left grip scale. We have confirmed this is correct for later production examples, which makes this a great "ALL MATCHING" example, with no major parts swapped out over the years!

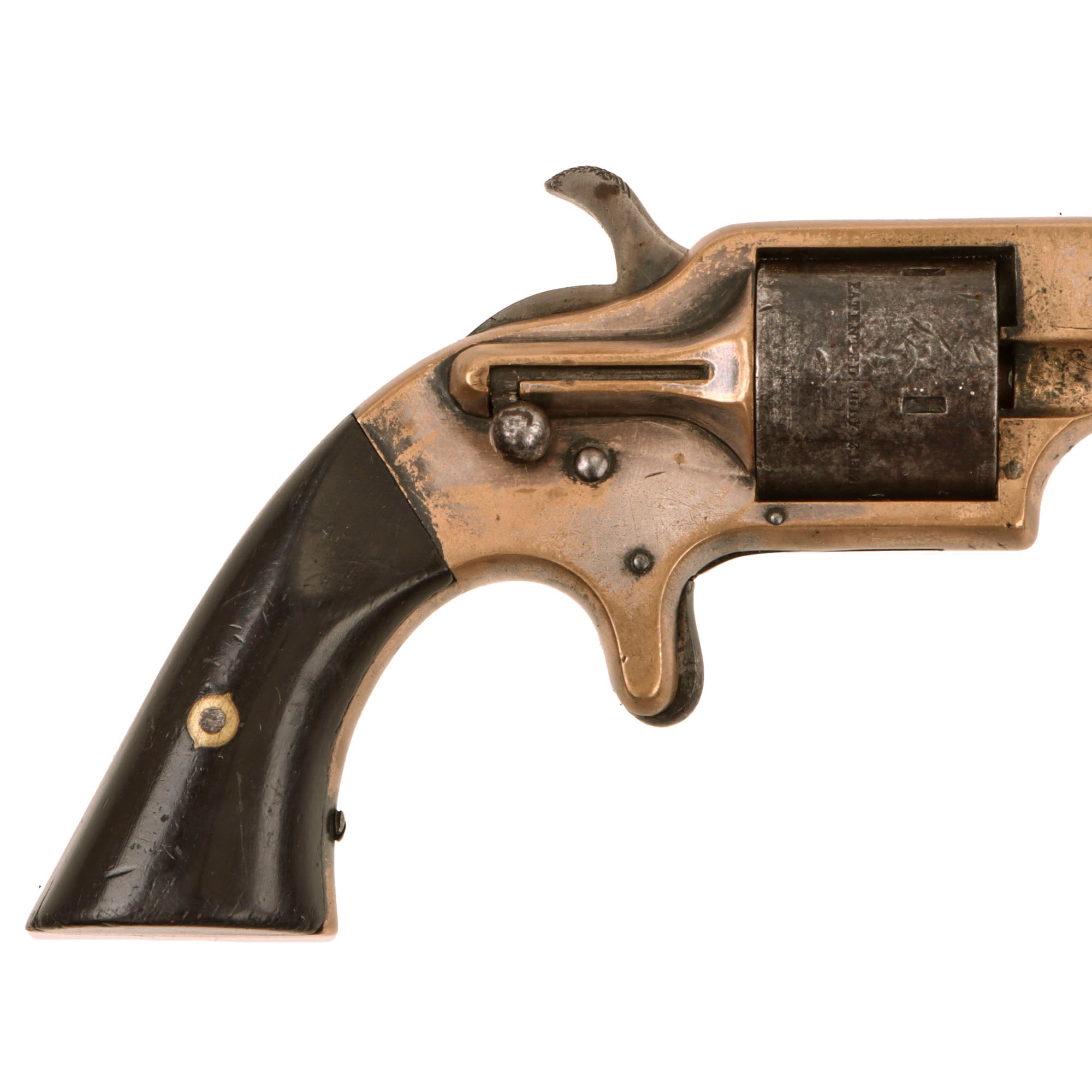

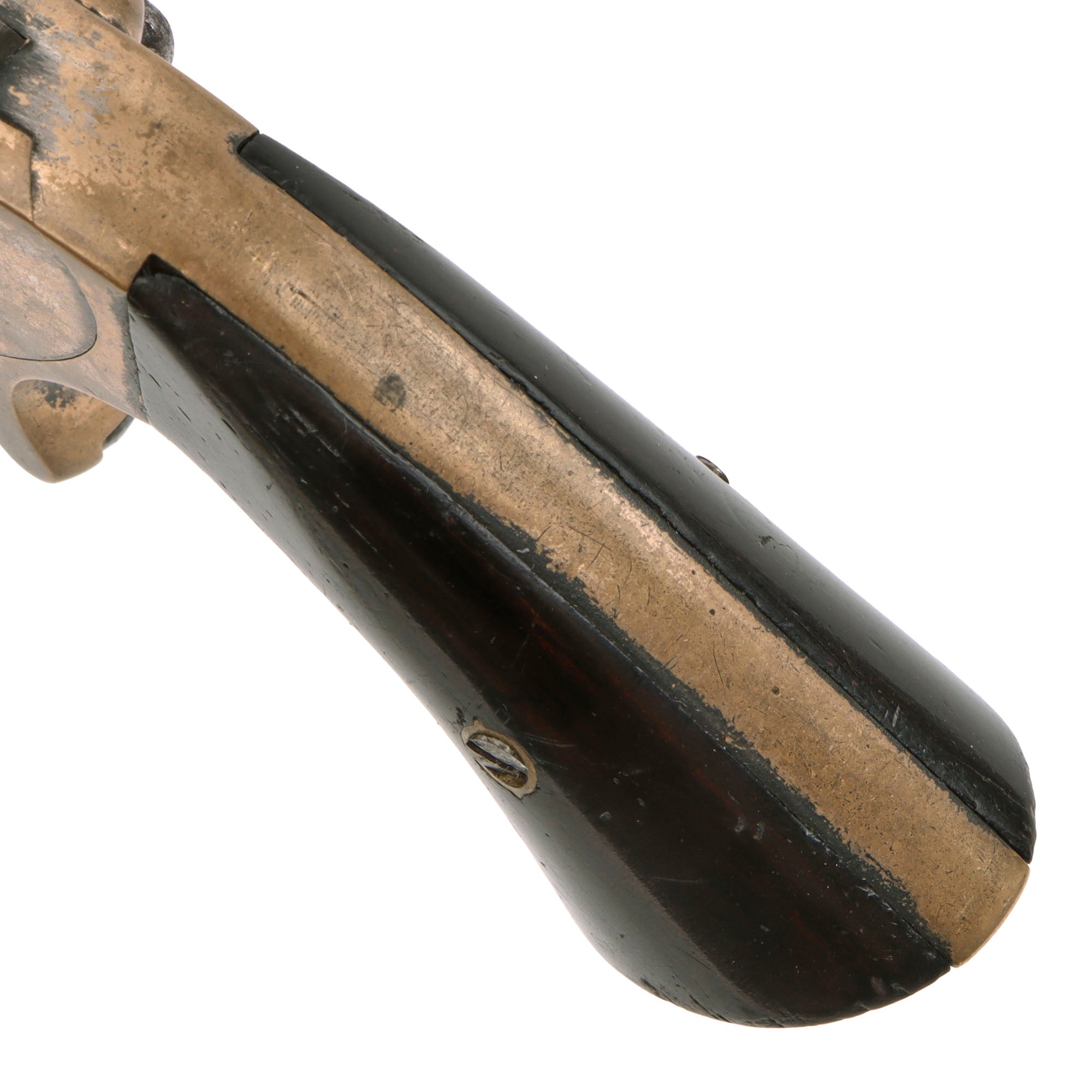

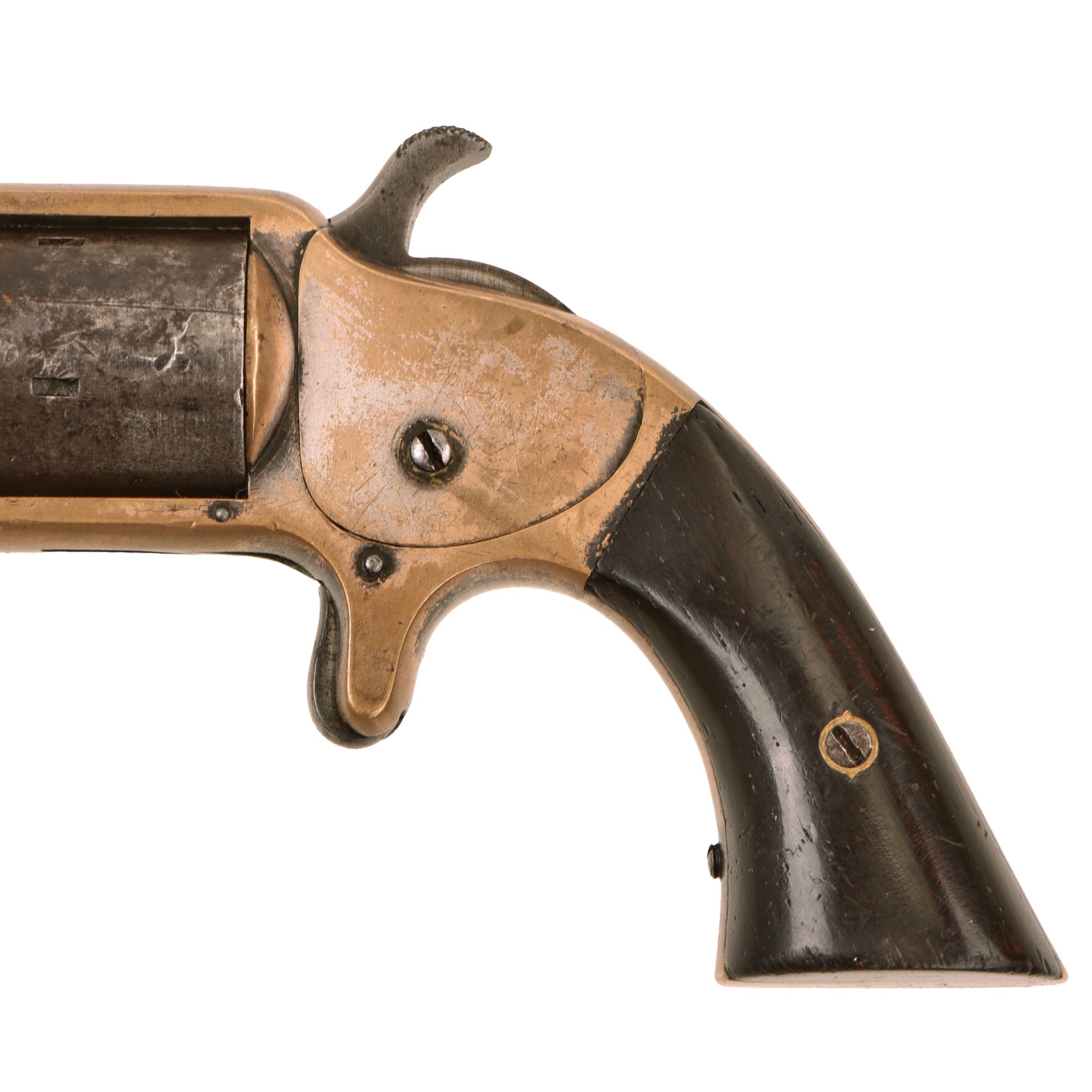

Overall condition of the revolver is just lovely, with a fantastic patina of age. The barrel and steel components show a lovely mottled gray patina overall, with no real past peppering or other major oxidation. Unlike most we see, this example still retains about 25% of the original plating on the sides of the action and on the bottom and sides of the grip frame under the grips. The balance now displays a lovely matured "mustard" patina. The rosewood grip scales are in fantastic condition, showing wear around the bottom, but still retaining almost all of the original factory varnish.

Revolver cycles beautifully, with good indexing and a firm cylinder lockup. It has a functional half-cock loading position, and a crisp dry fire. The ejector rod moves correctly, locking into place in the rear by turning the handle down. The revolver cylinder axis pin still pulls out towards the front correctly when the release button is pushed so that the cylinder can be removed for cleaning. We checked the bore, and it is in excellent condition, showing a bright finish with crisp lands and grooves. It does not look to have seen any significant use, and there is just a bit of oxidation in areas.

A rare revolver seldom seen today, especially in the original "Cup Fire" configuration! Most of these that we have seen were later updated to take standard cartridges in the "Old West". In lovely condition with an excellent bore, ready to display!

Specifications:-

Year of Manufacture: circa 1863-1873
Caliber: .30" - 3 groove rifling
Ammunition Type: "Cupfire" cartridge.
Barrel Length: 3 3/8 inches
Overall Length: 7 1/2 inches
Action: Single Action
Feed System: 5 Shot Revolver

The managing partner in the firm of Merwin & Bray was Joseph Merwin, who would one day go on to produce some of the finest cartridge revolvers in the world, under the name Merwin, Hulbert & Company. Merwin would also go on to be one of the primary shareholders in Hopkins & Allen (formerly the Bacon Firearms Company) and one of the largest investors in the Evans Repeating Firearms Company. Merwin was a firearm visionary and was always on the forefront of repeating cartridge firearms technology during the mid-19th century. Their revolver featured a “cup-primed” and front-loading concept, which was among the best attempts to get around S&W’s 12-1/2 year stronghold on cartridge revolvers. They found relative success with the public rather than with the military.
