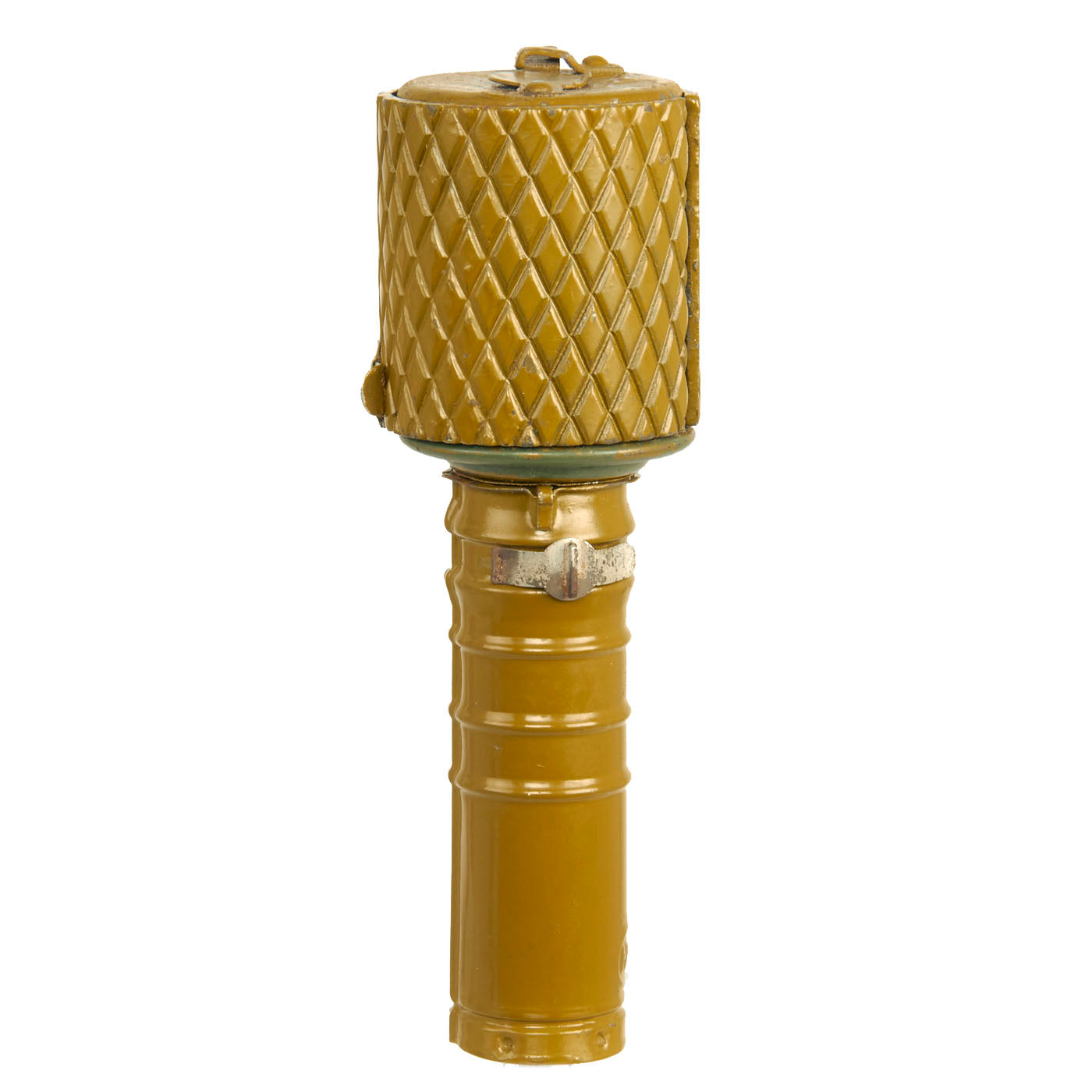

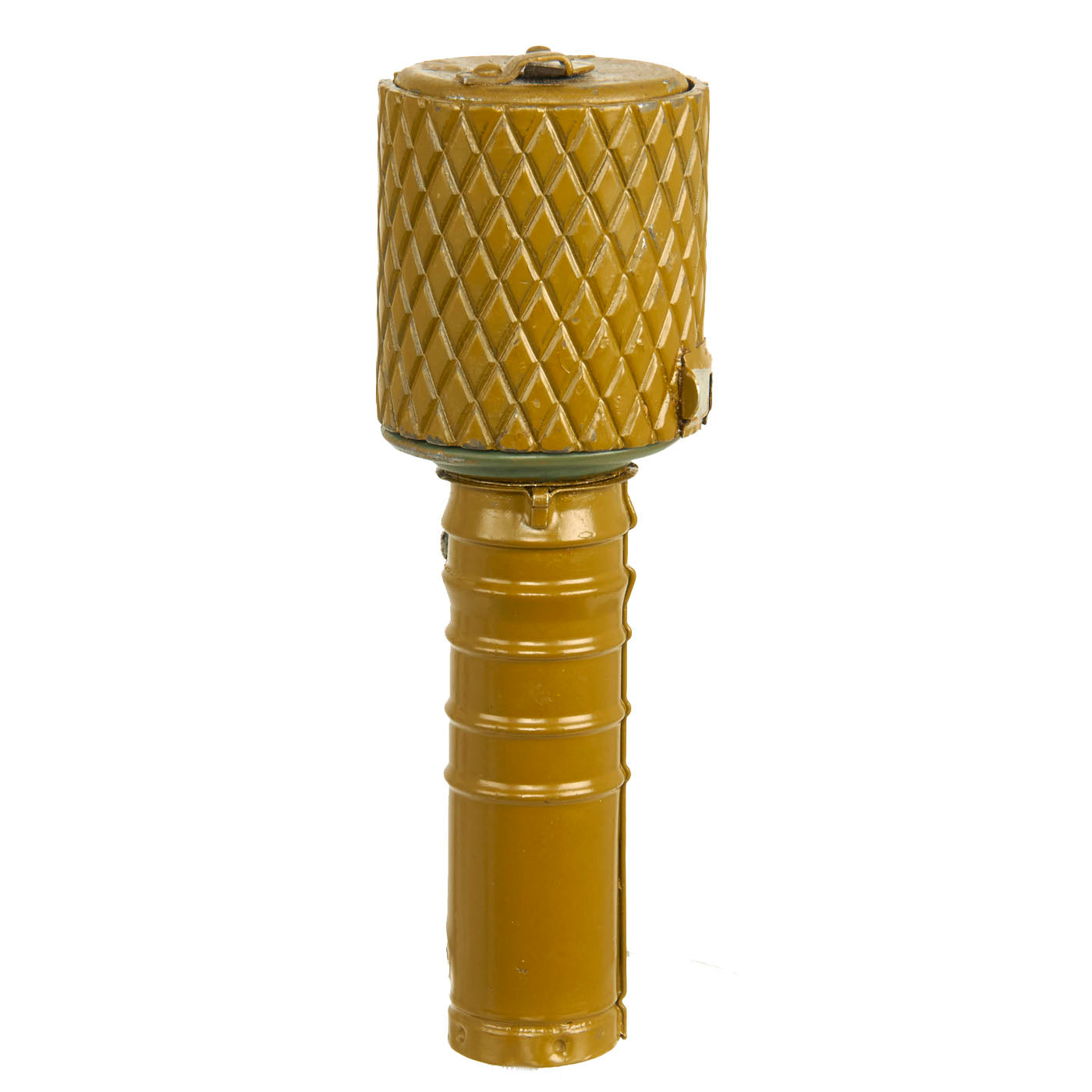

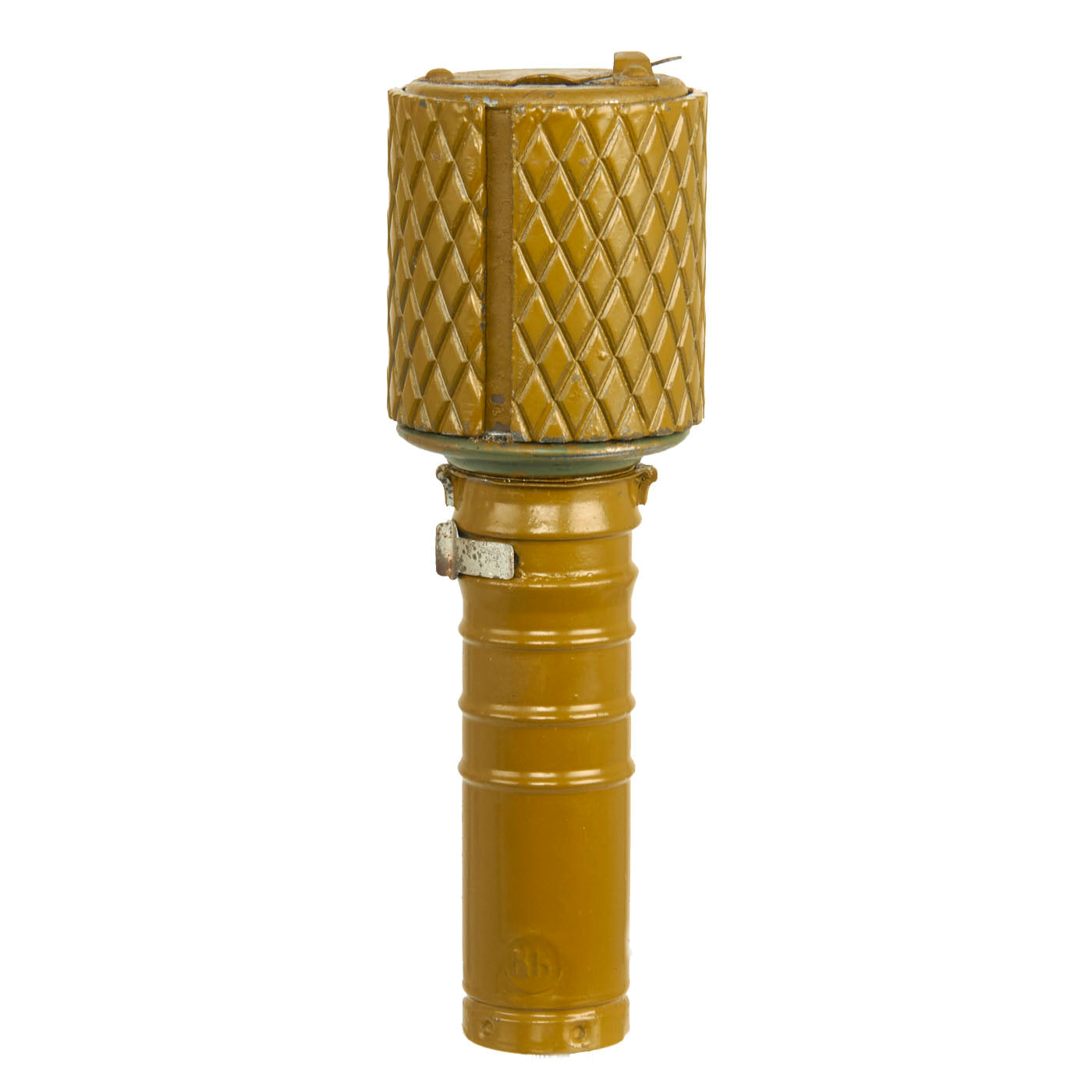

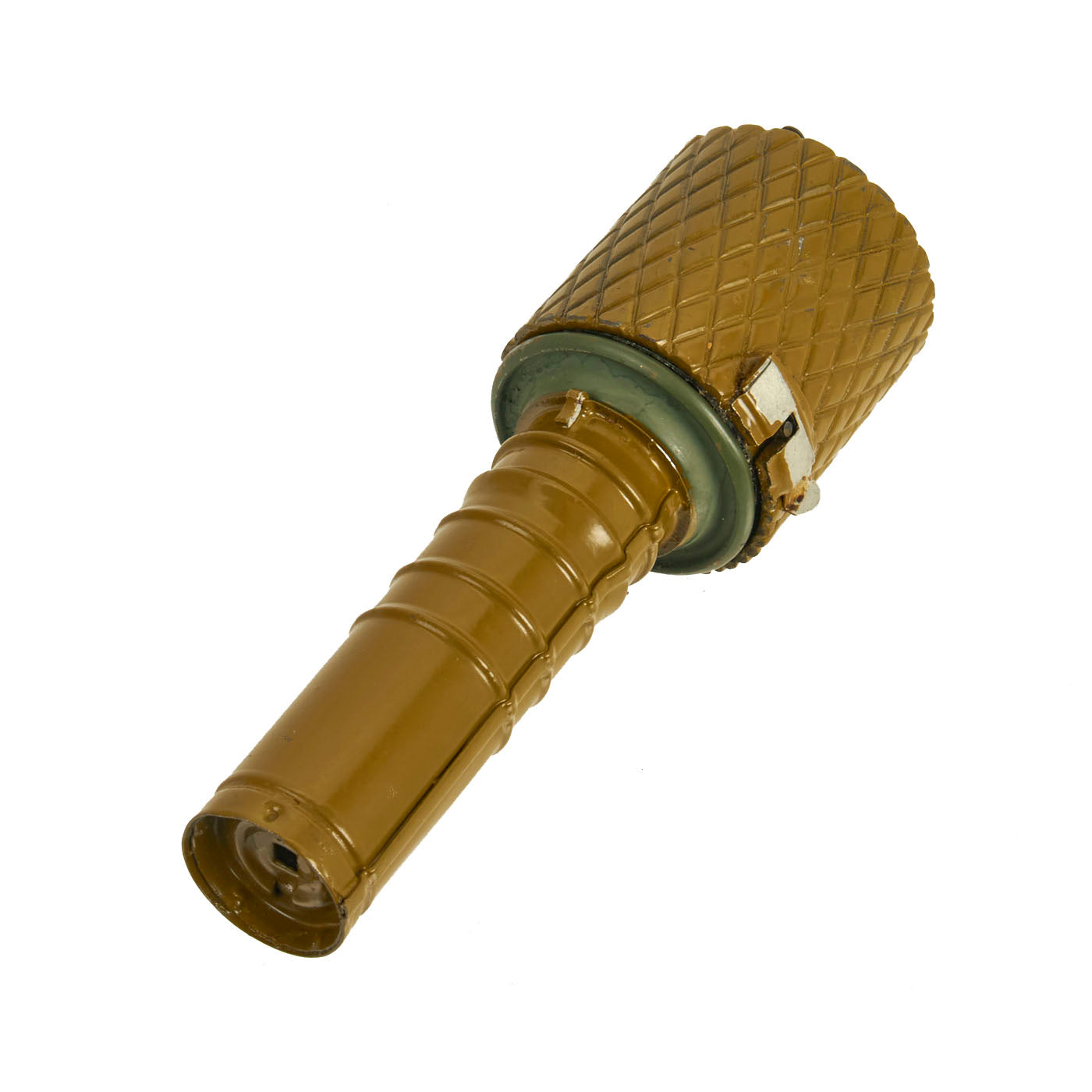

Original WWII Soviet Russian RGD-33 Inert Stick Grenade with Fragmentation Sleeve - Mint Condition
Original Item: Only One Available: This is a genuine mint condition inert example of The Soviet RGD-33 (Ручная Граната Дегтярева образца 33 года) Ruchnaya Granata Degtyareva obraztsa 33 goda, "Hand Grenade, Degtyarev design, pattern year 33") an anti-personnel fragmentation stick grenade developed in 1933.

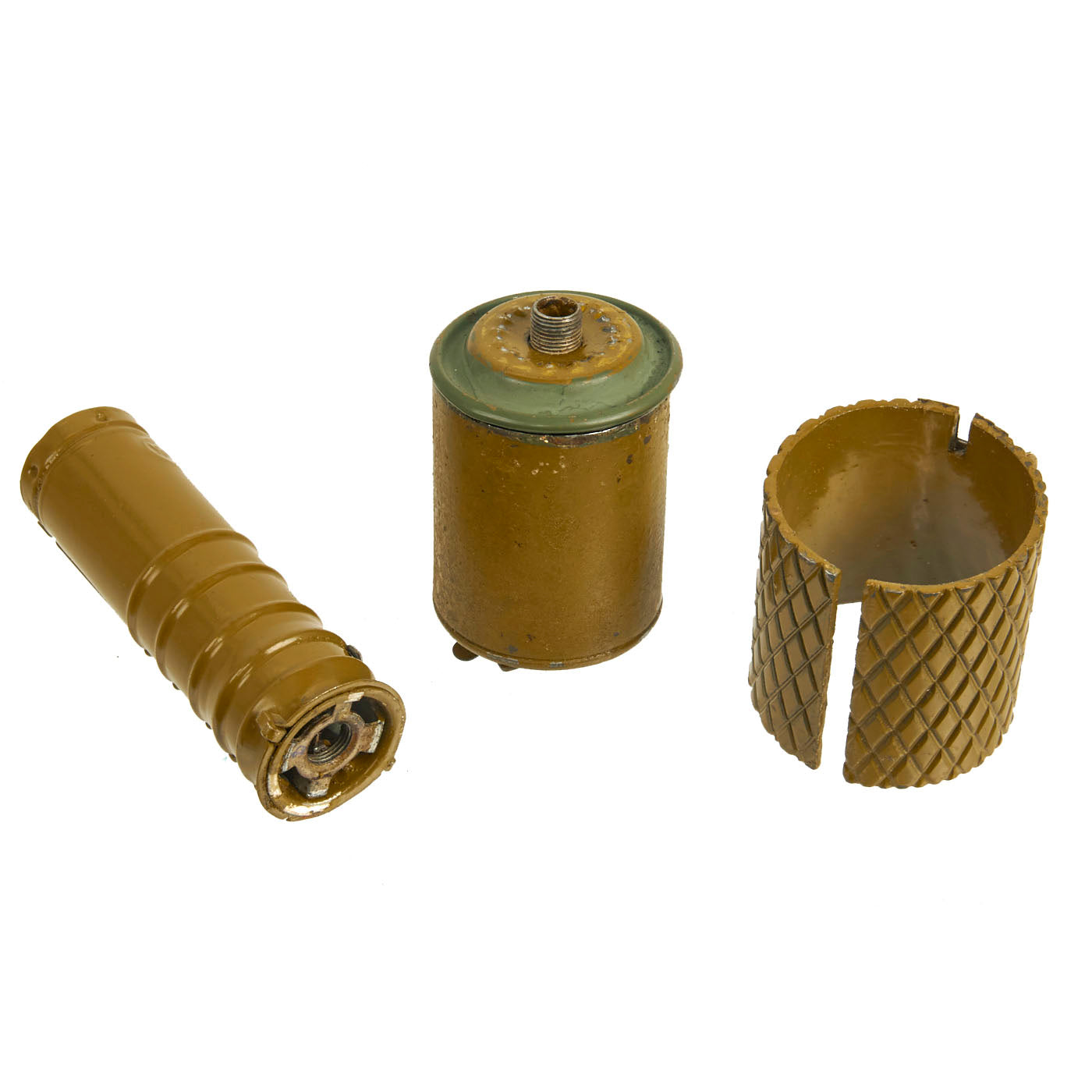

The grenade is composed of three separate pieces that were stored in different crates until use: the warhead and optional sleeve, spring-loaded handle, and fuze tube. They were assembled and issued only before combat. The warhead and handle were screwed together and carried in a grenade pouch and the fuzes were wrapped in waxed paper and carried separately in the pouch's internal pocket. There was a hole in the outer handle to the right of the thumb catch that lined up with bars of paint on the inner handle, making a colored dot - a white dot meant safe and a red dot meant the handle assembly was cocked. It would not be armed unless the fuze tube had been inserted, which would be done only before throwing.
This example is in unissued mint condition, you'll not find one better anywhere.

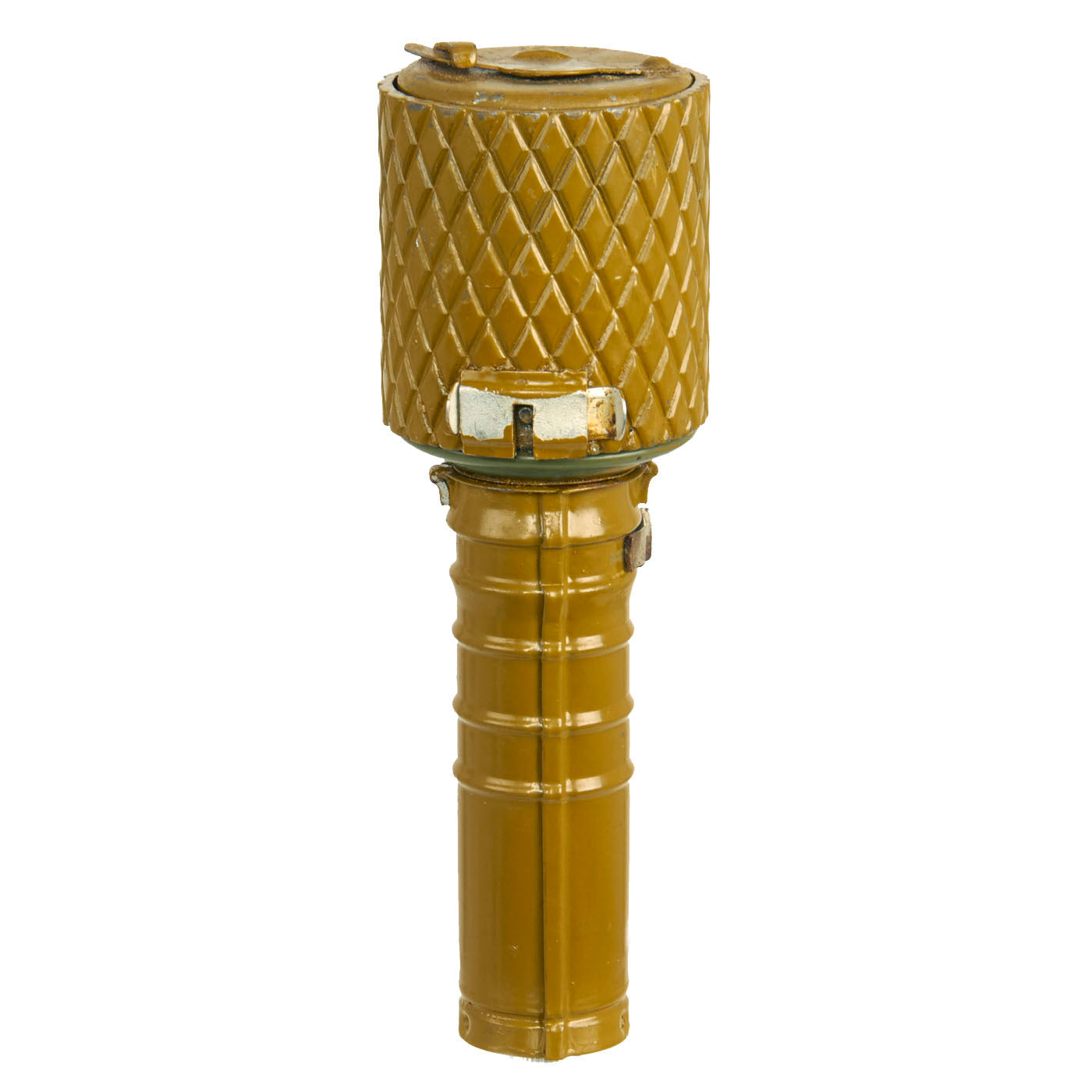

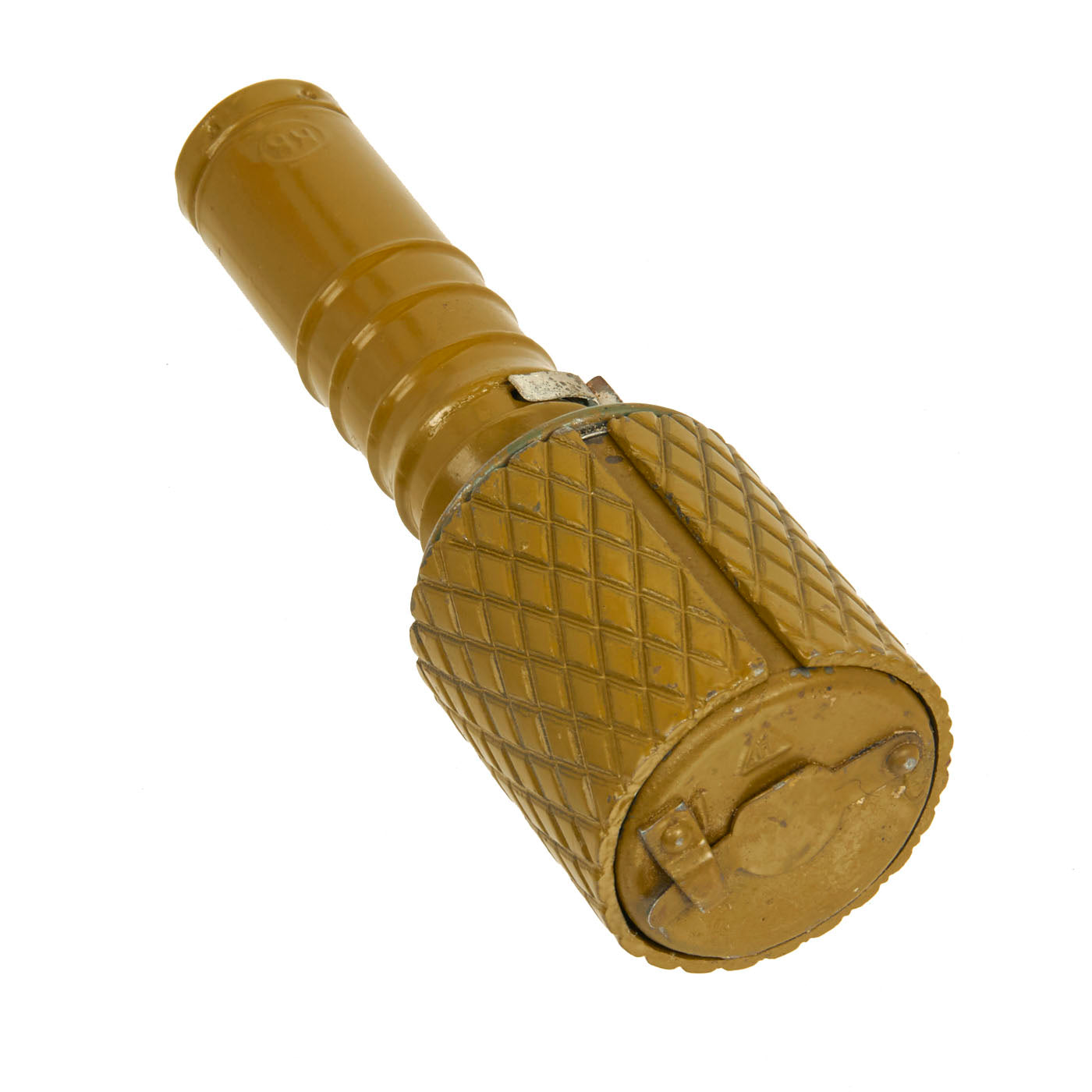

Before arming, a locking catch on the outer handle must be released by flipping it to the left, exposing the white dot in the cutout. (This unlocks the inner and outer handles; the inner handle remains fixed and the outer handle rotates.) The operator then grasps the warhead with their offhand and grips the handle with their throwing hand. The handle is then pulled back, rotated clockwise to the right and pushed in; a red dot will appear in the window to indicate it was now cocked. The thumb safety is now pushed to the right to cover the red dot in the cutout, making it safe. The top of the warhead had a metal cover over the fuze well that was pushed aside, allowing the fuse to be inserted; it is disarmed by pushing the catch open, causing the fuze to pop out and be retrieved.
The operator arms the fuze by flipping the switch to the left, exposing the red dot. The operator then throws the grenade; a good throw could send the grenade 30 to 40 metres. The forward momentum of the head and the spring-loaded handle cause the fuze clip to drop back and then move forward, striking the fuze and beginning the time delay.
Upon detonation the shell fragments in rectangular, thin fragments, which, along with the casing and detonator fragments, decelerate rapidly in air. Due to the fragments' rapid loss of velocity, the kill radius is small, making this grenade an "offensive" type. The fragmentation kill radius was approximately 15 metres with the sleeve and 10 metres without. As with most grenades of this era, there is potential for large fragment projection a great distance further than the throw.
The grenade was unusual but not unique, in that it had an optional "jacket" - a thick metal fragmentation sleeve weighing an average of 270 grams. When fitted over the grenade the sleeve improves the kill radius by producing a number of diamond-shaped, heavier fragments. With the jacket installed the grenade was said to be in "defensive" mode.
- This product is not available for international shipping.
- Totally inert, cannot be converted to an explosive devise, not available for export
This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America. Every display machine gun and machine gun parts set and gun sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).
- Not eligible for payment with Paypal or Amazon
