Original WWII 1944 Dated U.S. Navy 4 Inch Wooden Naval Drill Round

Item Description

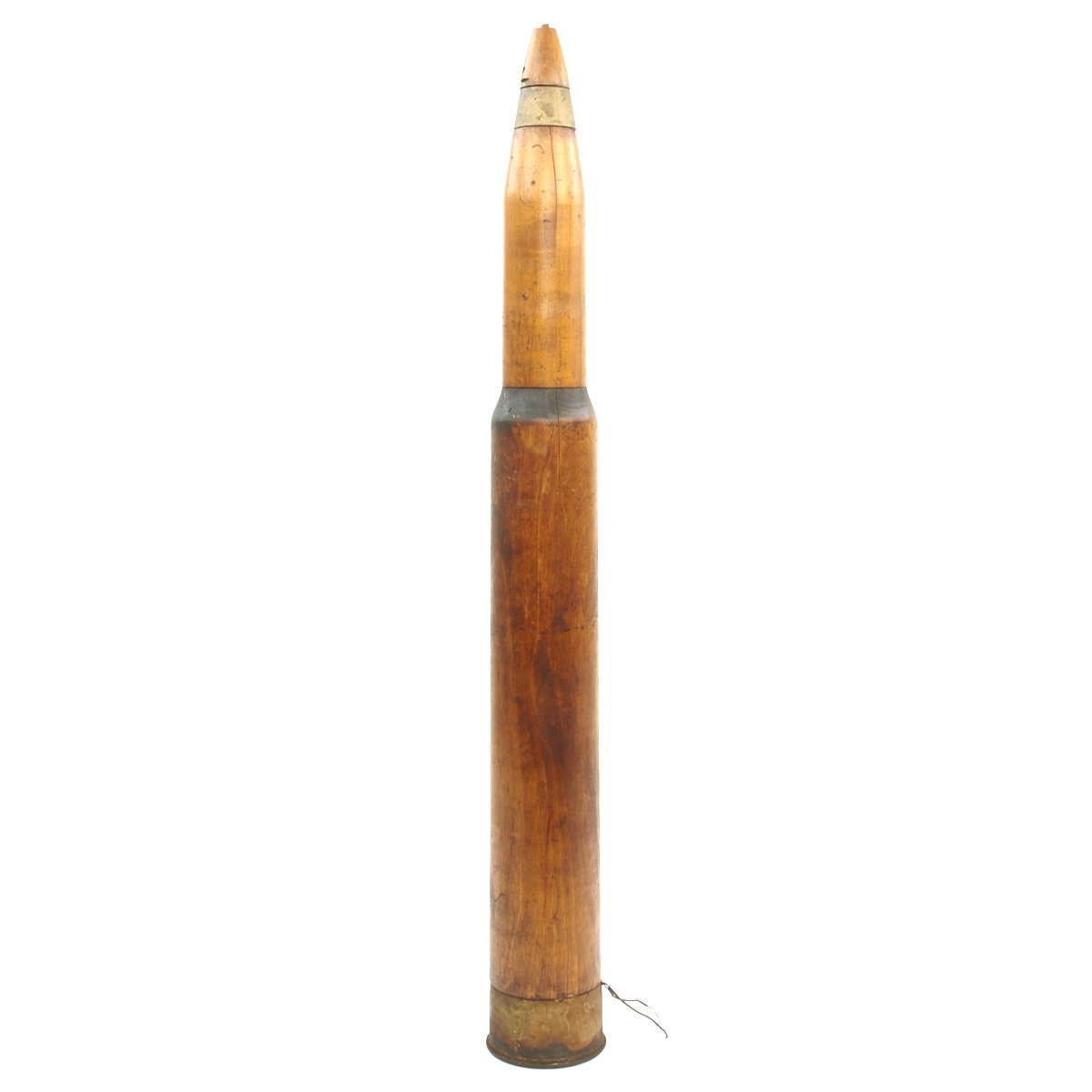

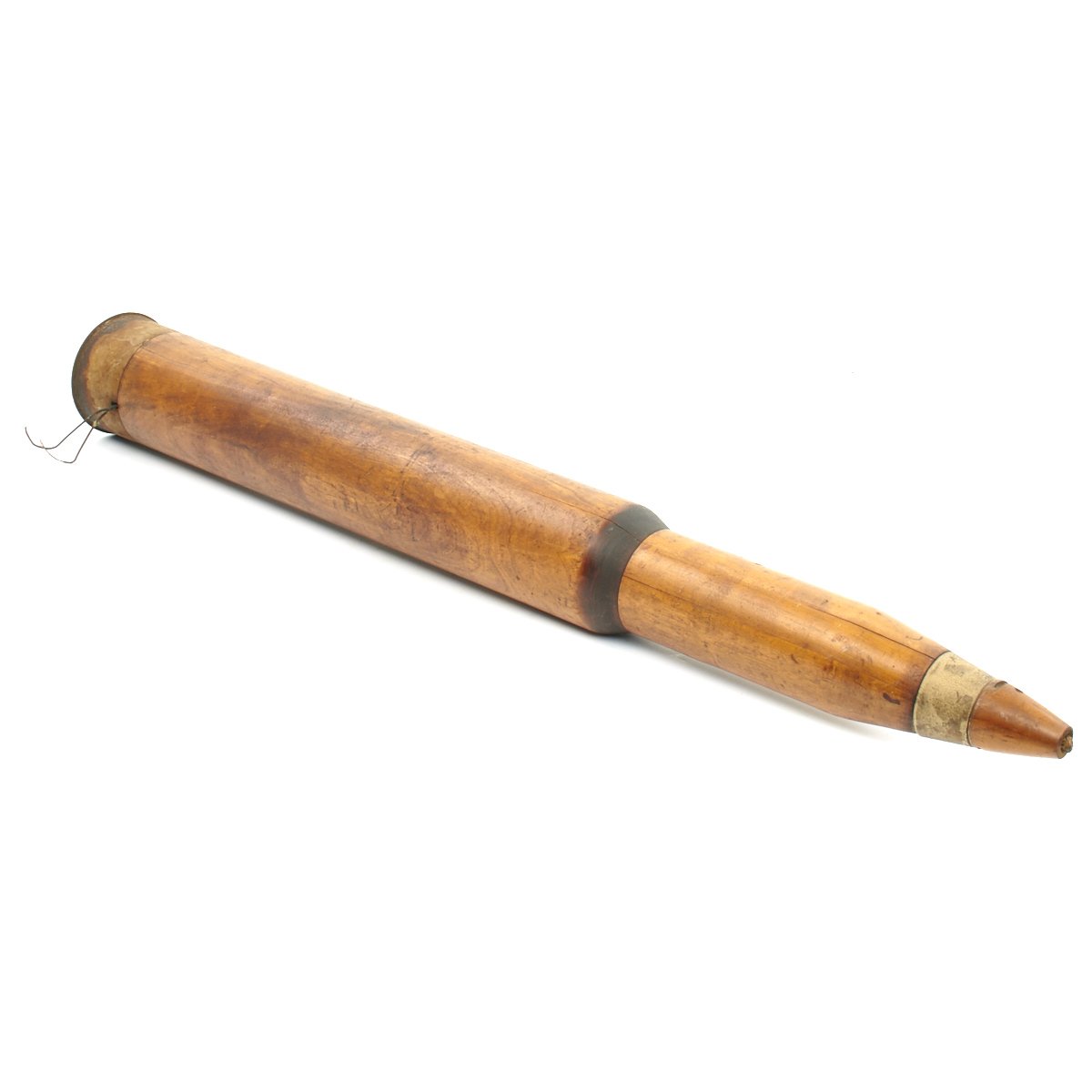

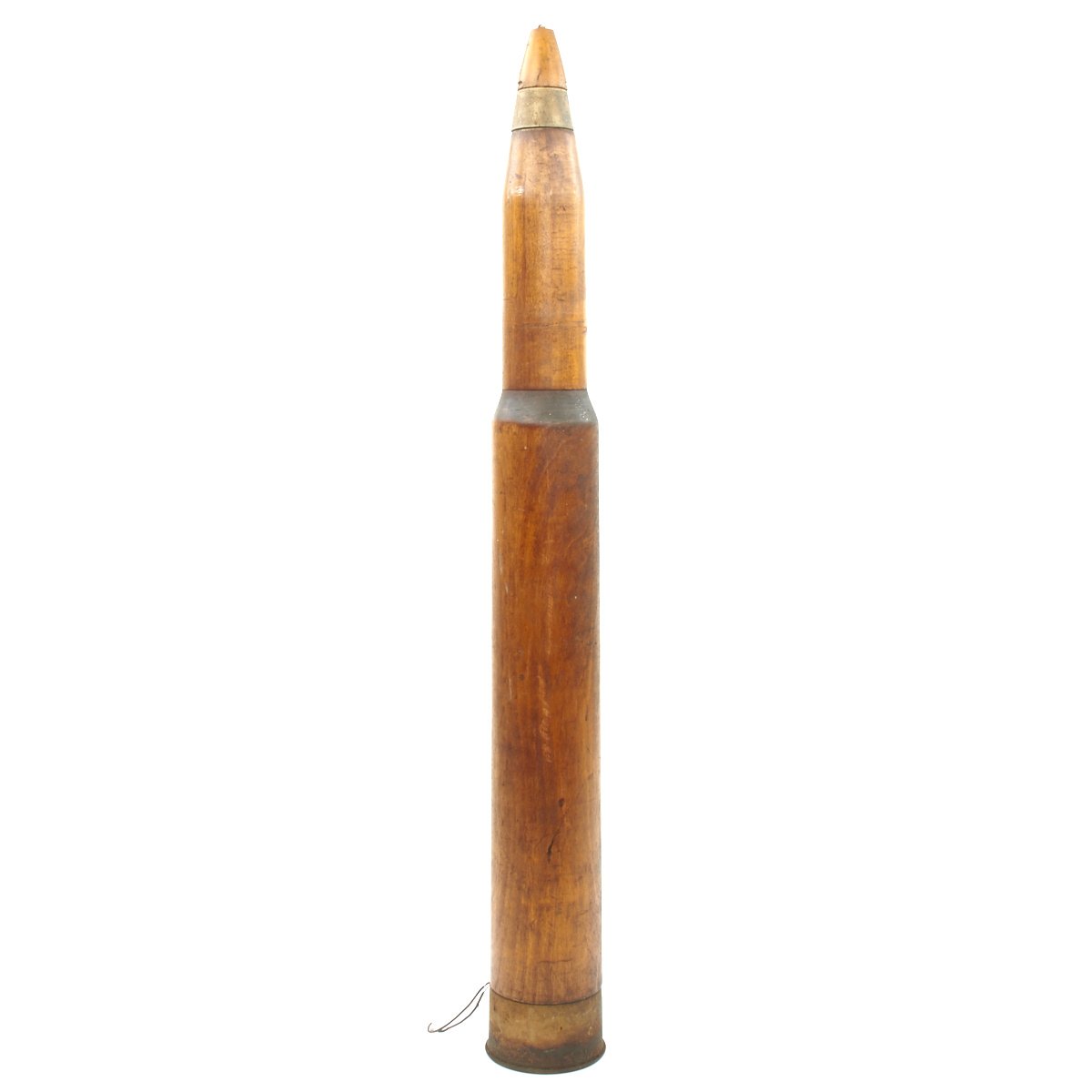

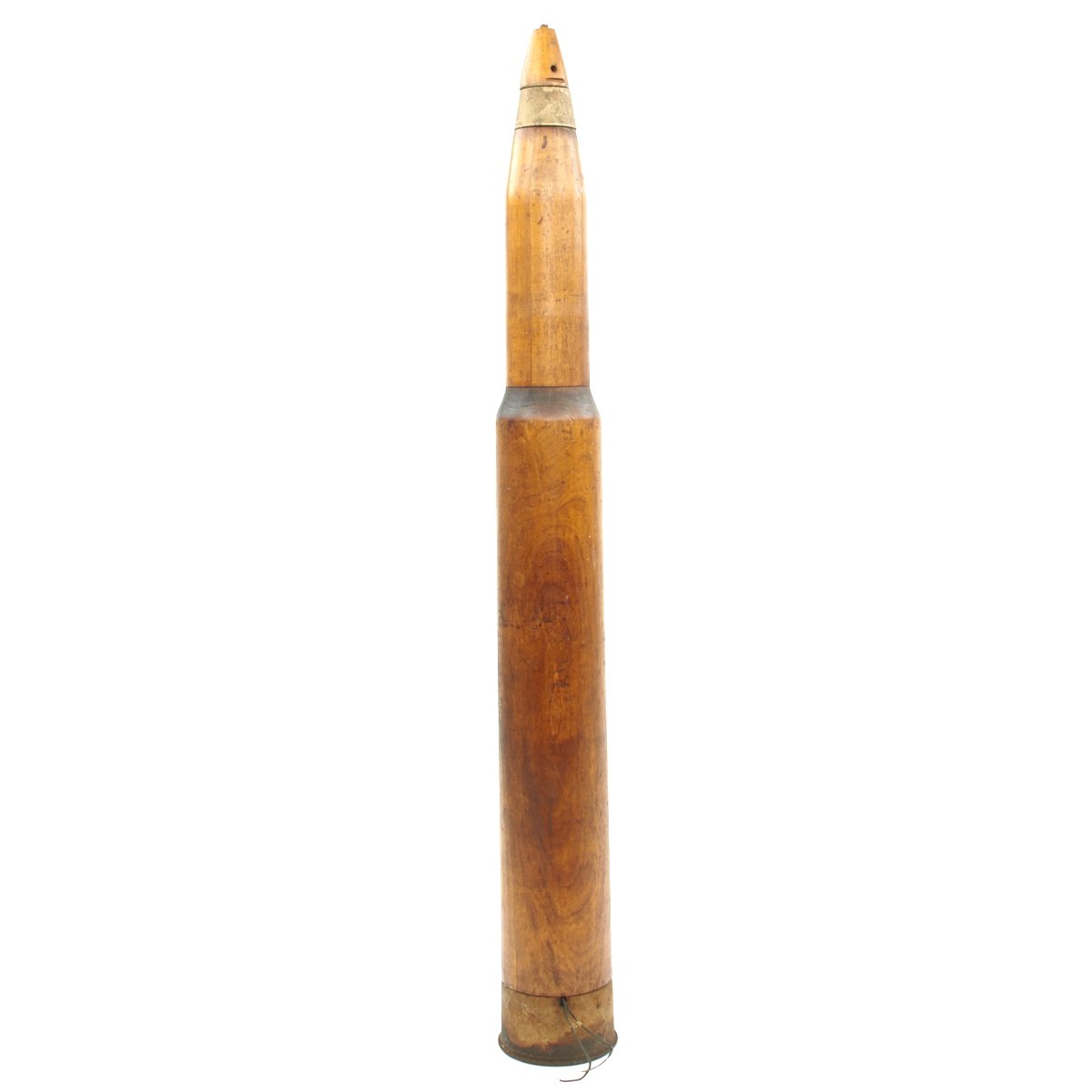

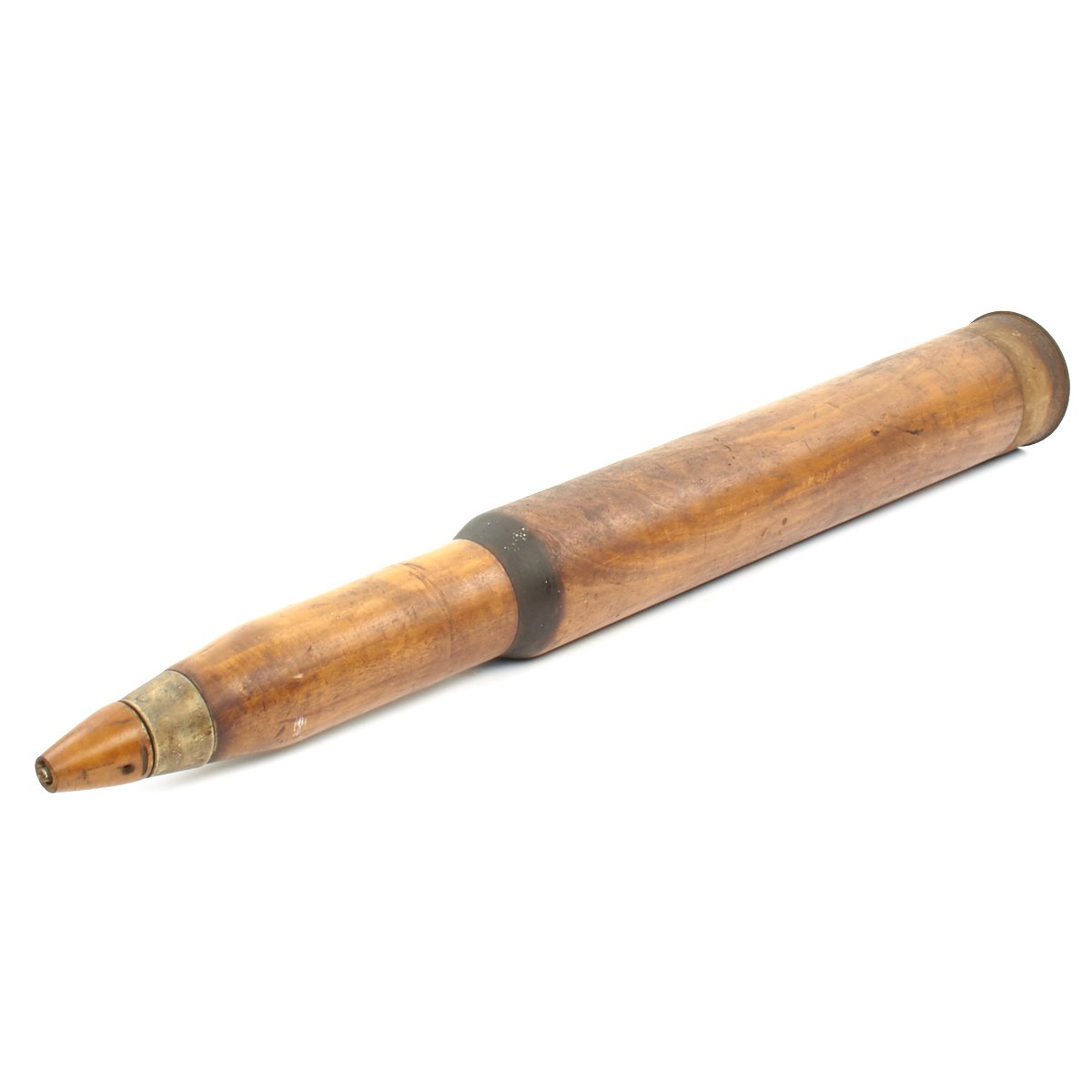

Original Item: Only One Available. This is a huge and fantastic totally inert, wood construction, drill round for the 4"/50 caliber gun (spoken "four-inch-fifty-caliber"). The 4"/50 was the standard low-angle, quick-firing gun for United States, first appearing on the monitor Arkansas and then used on "Flush Deck" destroyers through World War I and the 1920s. It was also the standard deck gun on S-class submarines, and was used to rearm numerous submarines built with 3-inch (76 mm) guns early in World War II. United States naval gun terminology indicates the gun fired a projectile 4-inch (102 mm) in diameter, and the barrel was 50 calibers long. It stands 48" tall and appears to have been wired to be a lamp at some point in time.

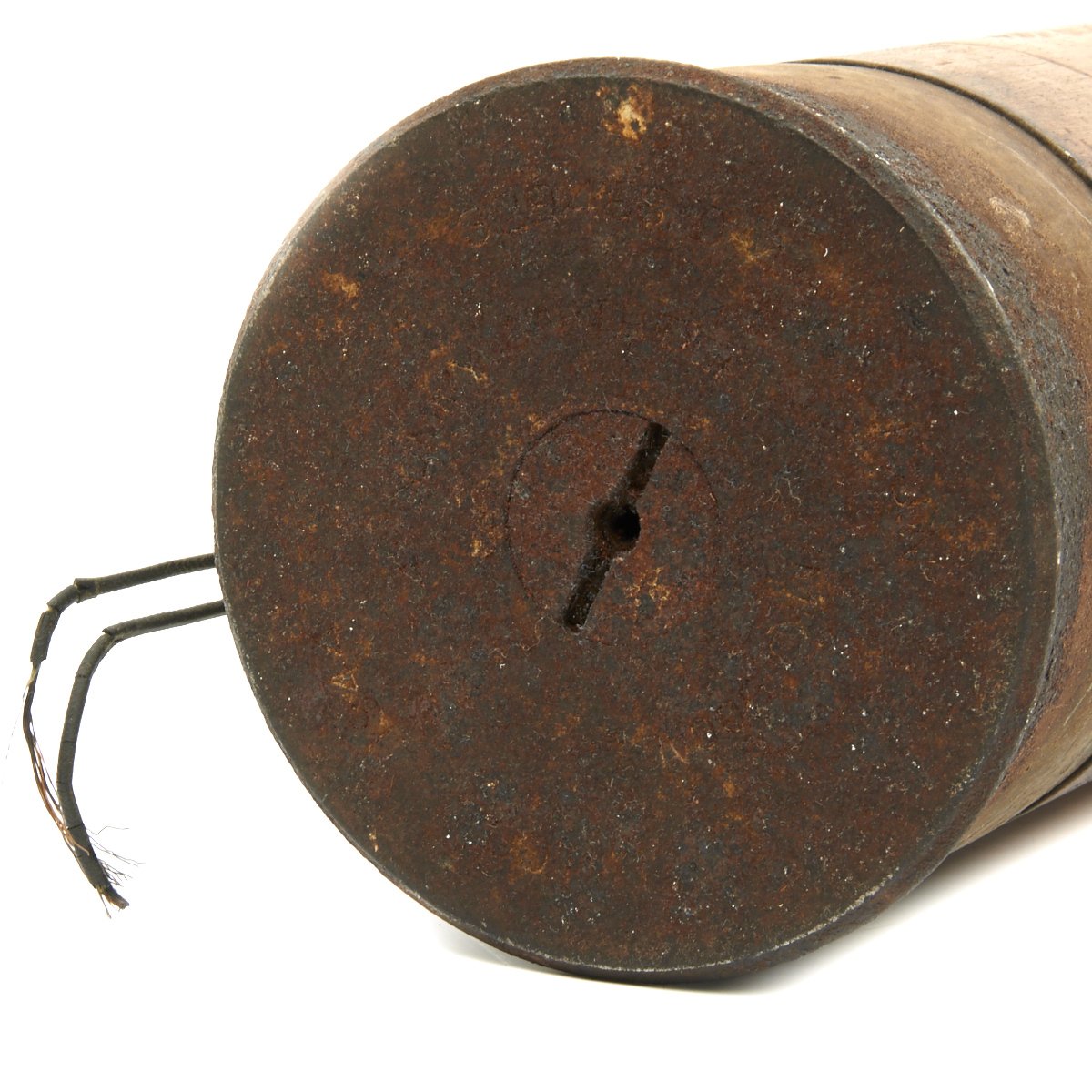

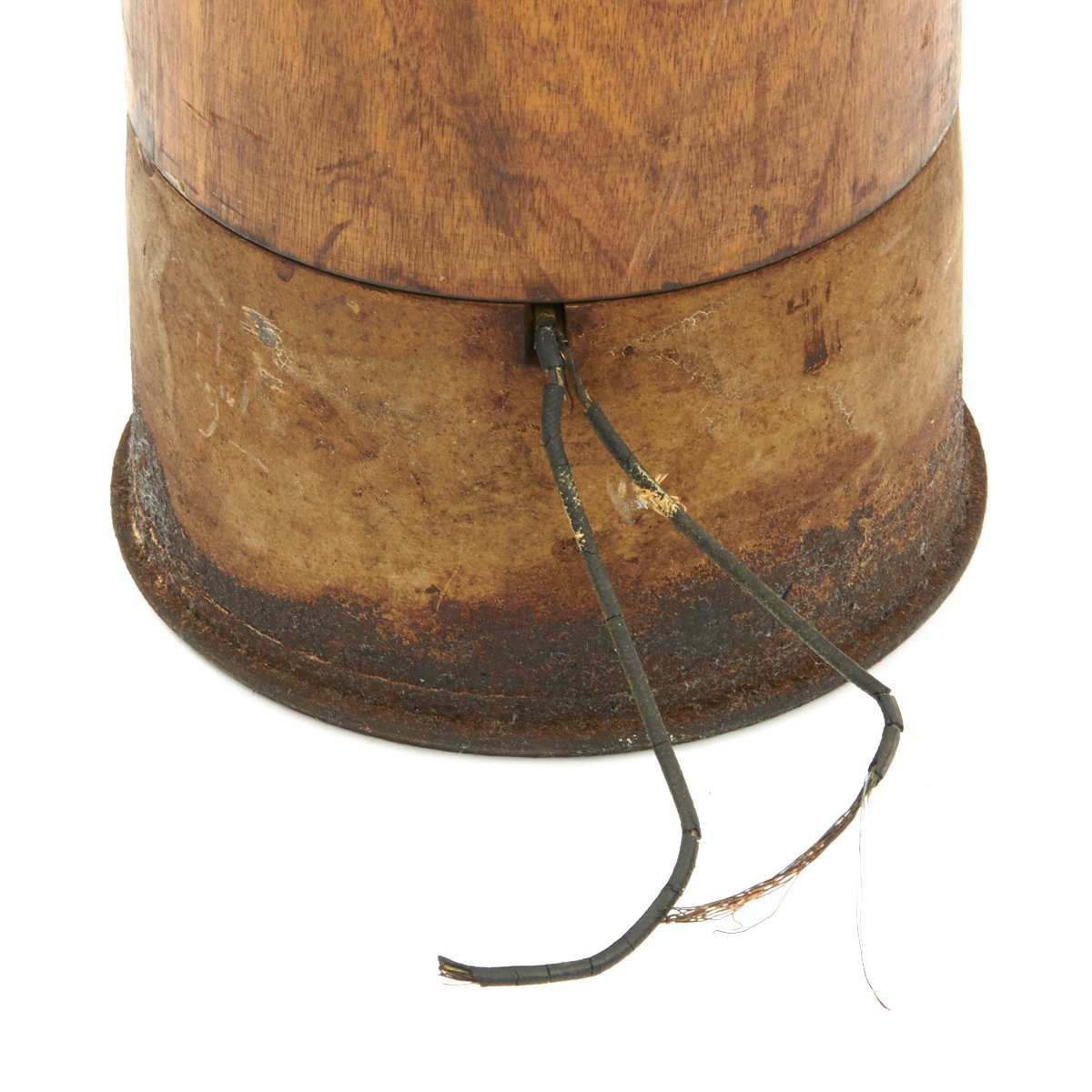

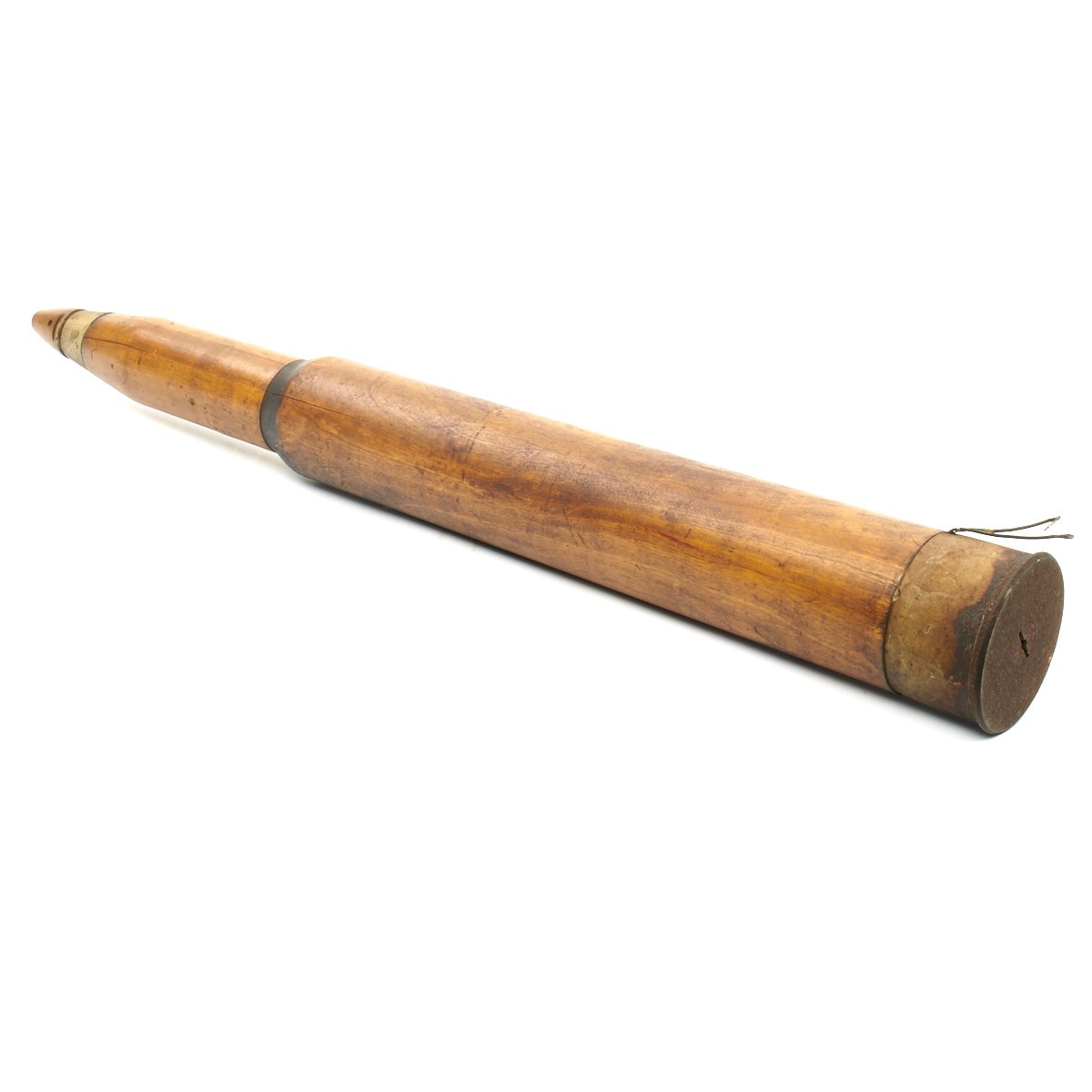

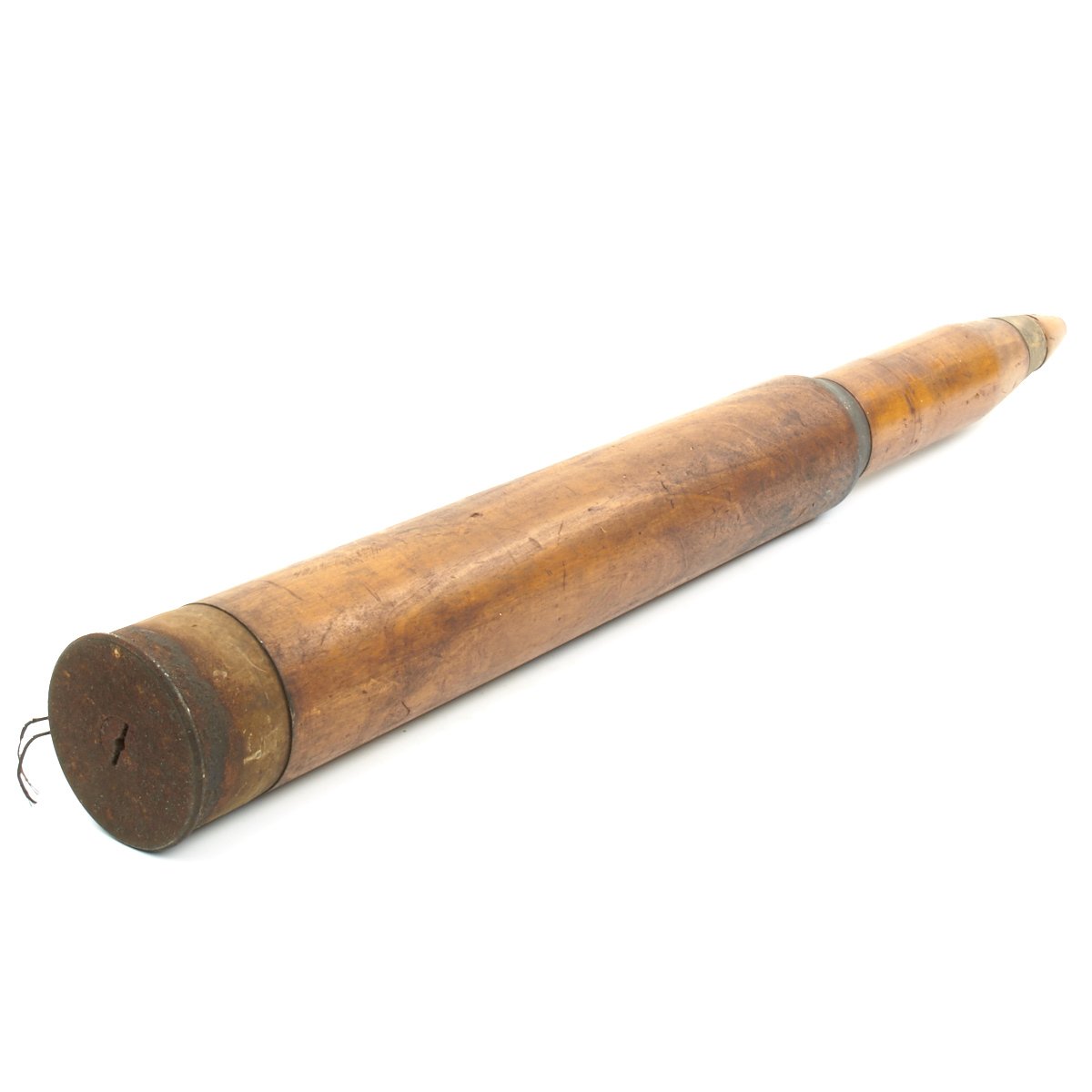

The round is in very good condition the base which is corroded is marked: 4 DUMMY CARTRIDGE MK 4/50 CAL and 1944 (with USN Anchor).

This is an excellent piece of World War II artillery and naval memorabilia which will make a very impressive display!

The original 4-inch/50 caliber Mark 7 gun, M1898, serial nos. 213–254, 257–281, 316–338, was an entirely new high-power design built-up gun with a tube, jacket, hoop, locking ring and screw breech. Gun No. 213 had a liner. The gun was described as a 5-inch (127 mm) gun but with a 4-inch bore in the 1902 handbook, this indicated its higher power and also the fact the barrel was actually more the size of a 5-inch/40 caliber gun than a 4-inch gun. The ammunition was about 7 lb (3.2 kg) heavier than a 4-inch/40 caliber round. The Mod 1 was a Mod 0 that used a conical steel liner and the Mod 2 was either a Mod 0 or Mod 1 that was relined using a conical nickel-steel liner and a shoulder on the breech end.

Gun No. 353 was the prototype of the Mark 8 and was test fired on 22 September 1910. This gun had been ordered 16 June 1907 and delivered in November 1907. The simplified design of the Mark 8 had just a gun tube and jacket. The jacket extended all the way to the muzzle and ended in a muzzle bell. The production run was small with only 12 guns built, Nos. 353–364.

The Mark 9 was a design directly resulting from tests with gun No. 353. It was designed to be light in weight, and would go on to be the standard 4-inch gun used on destroyers and submarines during WW I. The gun would use an A tube, full-length jacket, a muzzle swell with a side swing Smith-Asbury breech mechanism and Welin breech block. The gun weighed about 2.725 short tons (2.472 t). Gun No. 365, the first Mark 9, was ordered from Midvale Steel on 18 October 1911. There were 390 Mark 9s built by four different manufacturers from 1911 until the US entered World War I in 1917. During the war another 1,885 guns were produced, with Root & VanDervoort, American Radiator Company and Poole Engineering joining the pre-war manufacturers. After the Armistice another 713 guns were produced, with orders for 3538 guns cancelled. It was decided after World War I that all destroyers would carry the 4-inch/50 caliber Mark 9 Mod 5 gun; the refits were completed in autumn 1921.

The Mark 10, gun No. 365-A, was order in 1915 but does not appear to have been completed until after WW I. The initial drawings were for a 4-inch/50 caliber anti-aircraft gun dated January and February 1915. It was designed with a vertically sliding breech block on a built-up gun with a tube, jacket, chase hoop and locking ring, all constructed of nickel steel, but it does not appear that the Mark 10 was put into service

Fixed ammunition (case and projectile handled as a single assembled unit) with a 14.5-pound (6.6 kg) charge of smokeless powder gave a 33-pound (15 kg) projectile a velocity of 2,900 ft/s (880 m/s). Range was 9 mi (14 km) at the maximum elevation of 20 degrees. Useful life expectancy was 400–500 effective full charges (EFC) for a non-chrome plated barrel, while a chrome plated barrel was listed at 600 rounds.

Increasing awareness of the need for improved anti-aircraft protection resulted in the mounting of dual purpose guns on destroyers beginning in the 1930s. The dual-purpose 5-inch/38 caliber gun became standard for United States destroyers constructed from the 1930s through World War II. United States destroyers built with 4-inch/50 caliber low-angle guns were mostly rearmed with dual-purpose 3-inch/50 caliber guns during the war. The 4-inch/50 caliber guns removed from destroyers were mounted on Defensively Equipped Merchant Ships of the British Merchant Navy and United States Merchant Marine like SS Stephen Hopkins.[1] As S-boats were transferred from combat patrols to training duties from mid-1942 through 1943, their 4-inch guns were removed and used to re-equip front-line submarines built with 3-inch/50 caliber guns.
