Original U.S. WWII US Navy Ships Morse Code Signal Lamp Shutter Assembly

Item Description

Original Item: Only One Available. A signal lamp (sometimes called an Aldis lamp or a Morse lamp) is a semaphore system using a visual signaling device for optical communication, typically using Morse code. The idea of flashing dots and dashes from a lantern was first put into practice by Captain Philip Howard Colomb, of the Royal Navy, in 1867. Coulomb's design used limelight for illumination, and his original code was not the same as Morse code. During World War I, German signalers used optical Morse transmitters called Blinkgerät, with a range of up to 8 km (5 miles) at night, using red filters for undetected communications.

Modern signal lamps produce a focused pulse of light, either by opening and closing shutters mounted in front of the lamp, or by tilting a concave mirror. They continue to be used to the present day on naval vessels and for aviation light signals in air traffic control towers, as a backup device in case of a complete failure of an aircraft's radio.

Modern signal lamps can produce a focused pulse of light. In large versions, this pulse is achieved by opening and closing shutters mounted in front of the lamp, either via a manually operated pressure switch, or, in later versions, automatically. With hand-held lamps, a concave mirror is tilted by a trigger to focus the light into pulses. The lamps were usually equipped with some form of optical sight, and were most commonly used on naval vessels and in air traffic control towers, using color signals for stop or clearance. In manual signaling, a signalman would aim the light at the recipient ship and turn a lever, opening and closing the shutter over the lamp, to emit flashes of light to spell out text messages in Morse code. On the recipient ship, a signalman would observe the blinking light, often with binoculars, and translate the code into text. The maximum transmission rate possible via such flashing light apparatus is no more than 14 words per minute.

Some signal lamps are mounted on the mastheads of ships while some small hand-held versions are also used. Other more powerful versions are mounted on pedestals. These larger ones use a carbon arc lamp as their light source, with a diameter of 20 inches (510 mm). These can be used to signal to the horizon, even in conditions of bright sunlight.

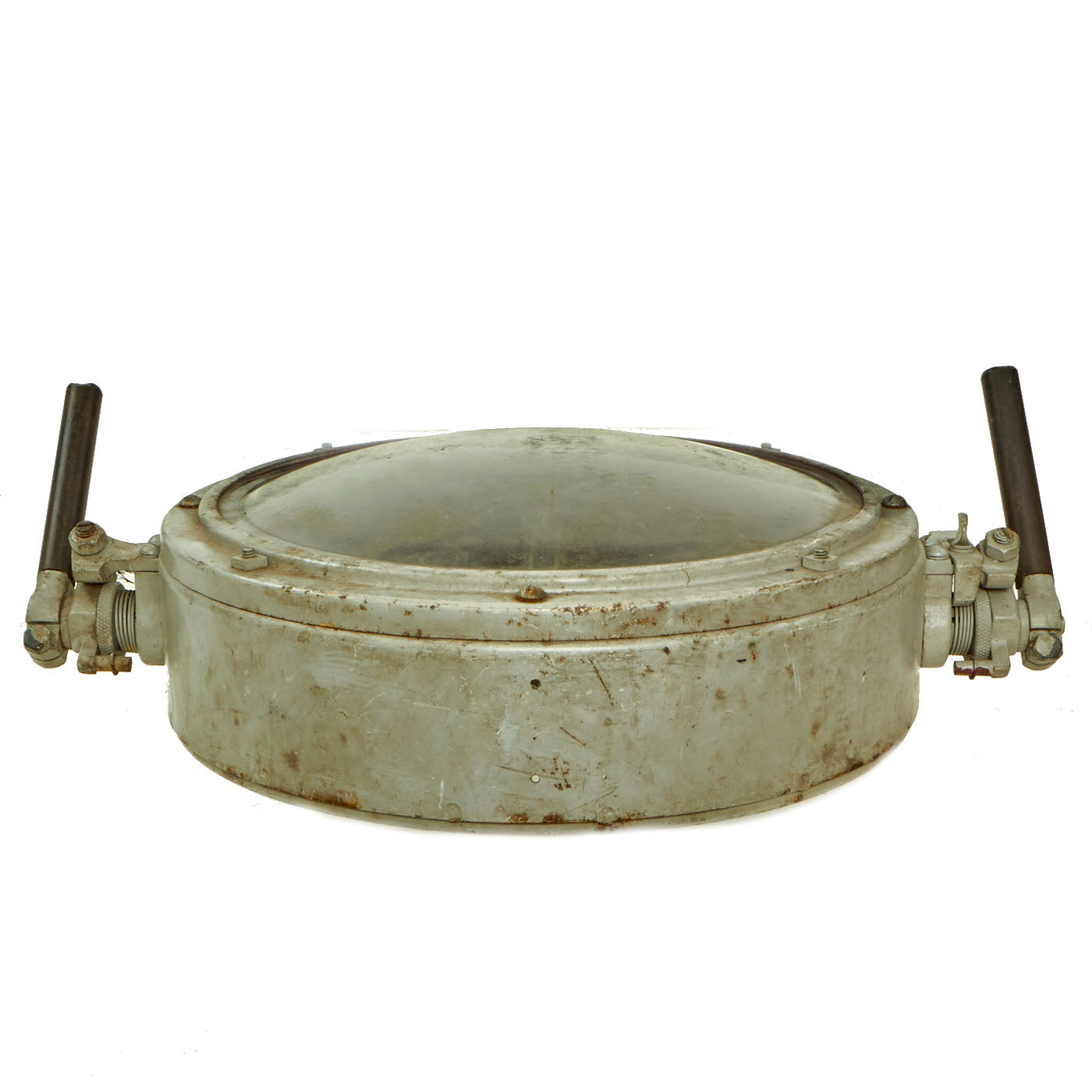

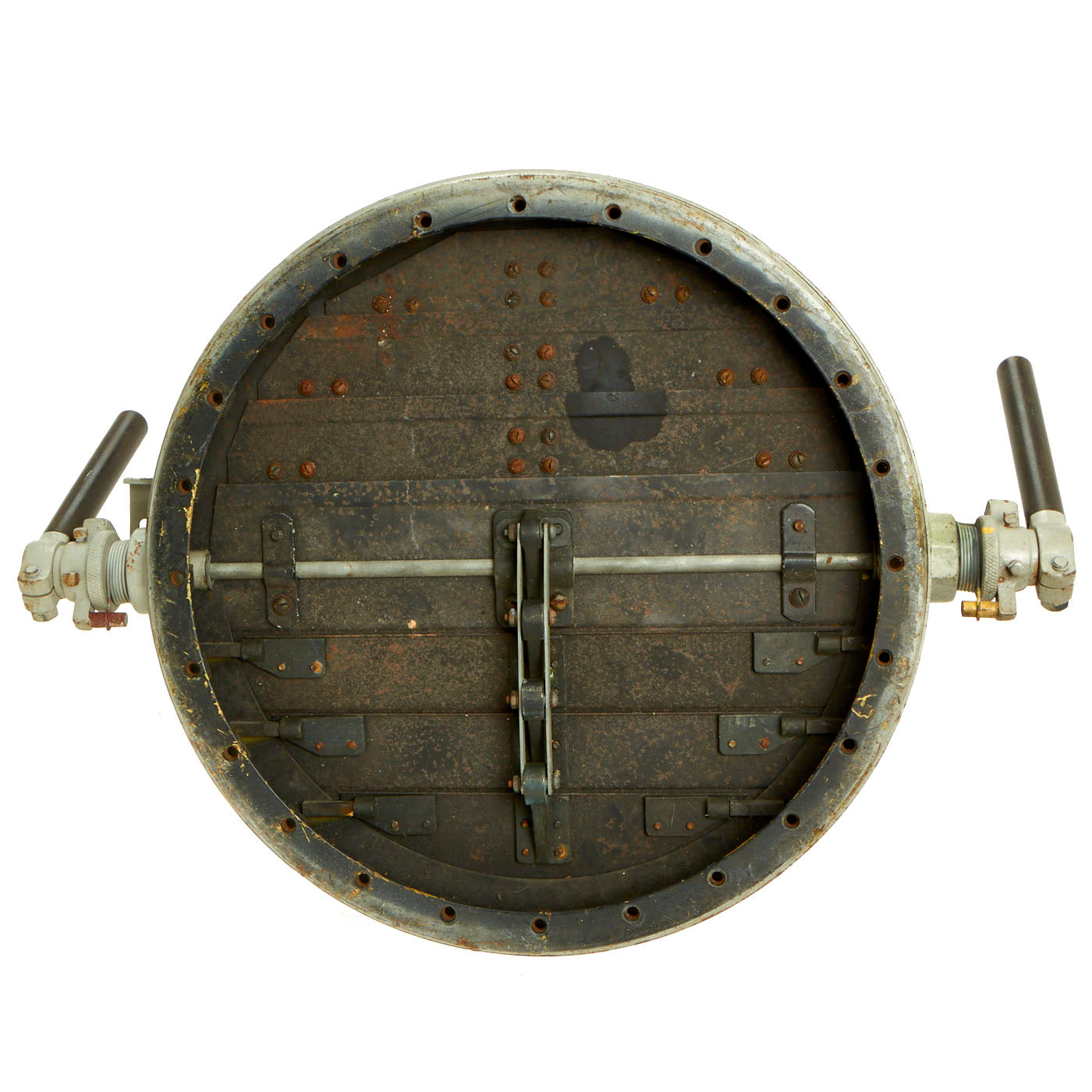

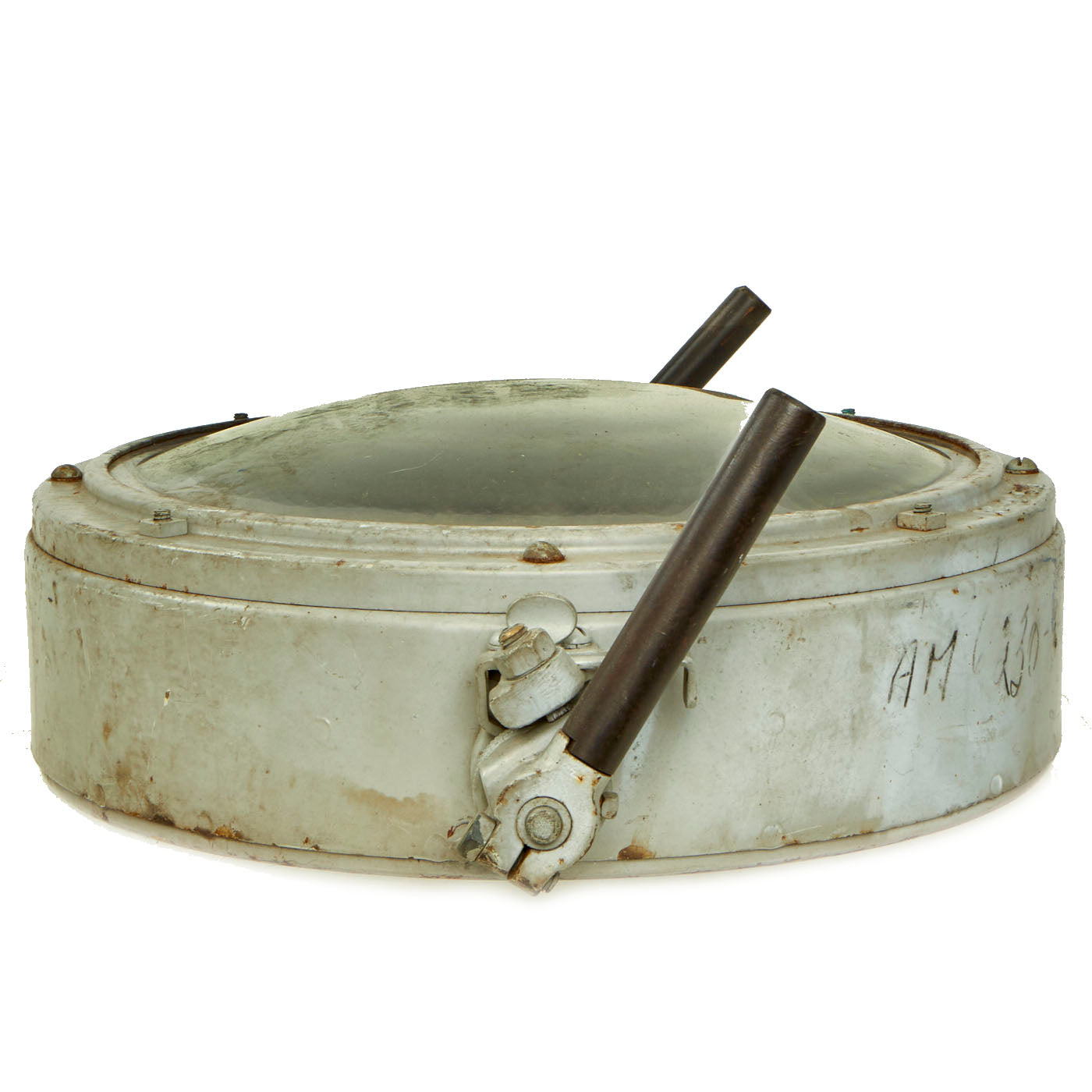

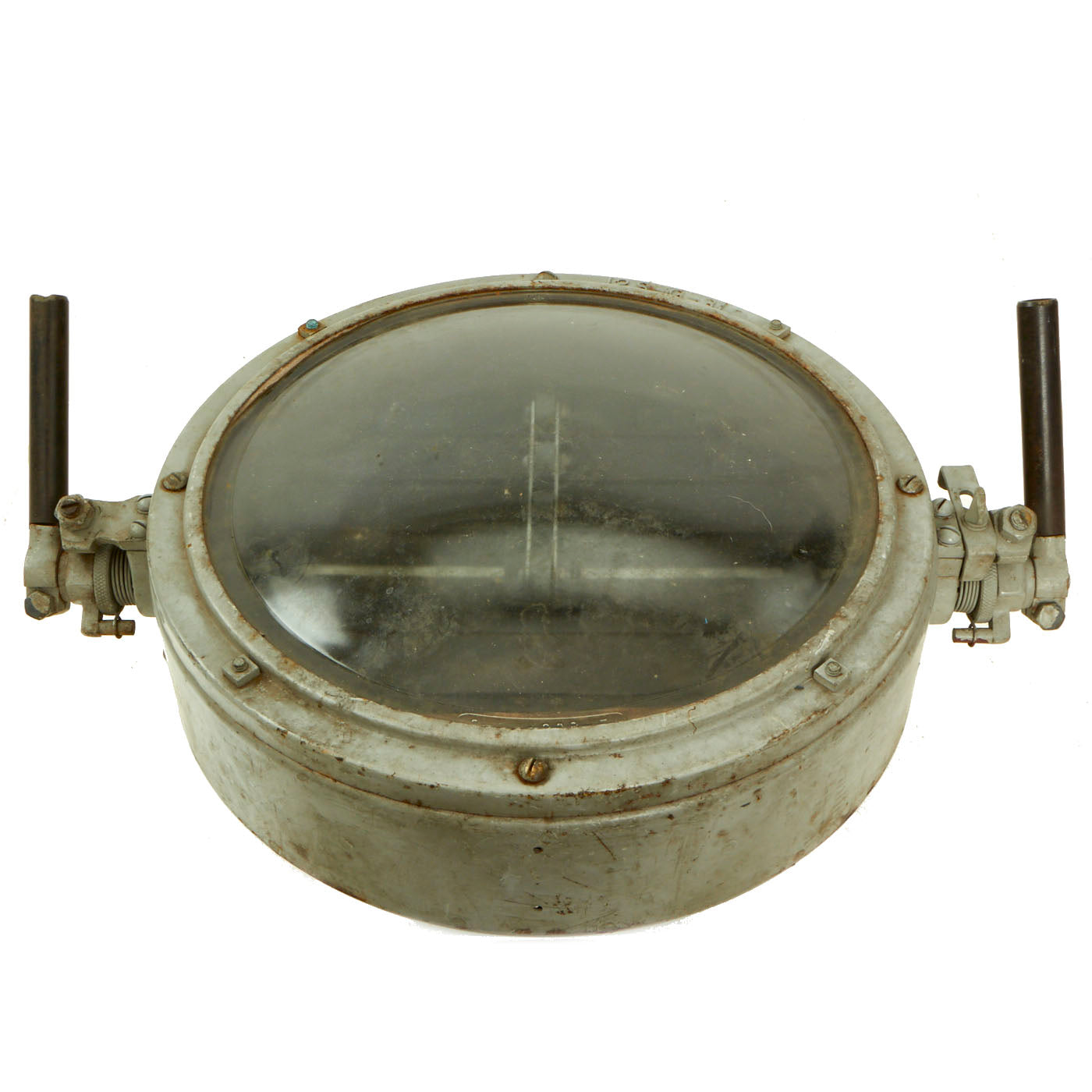

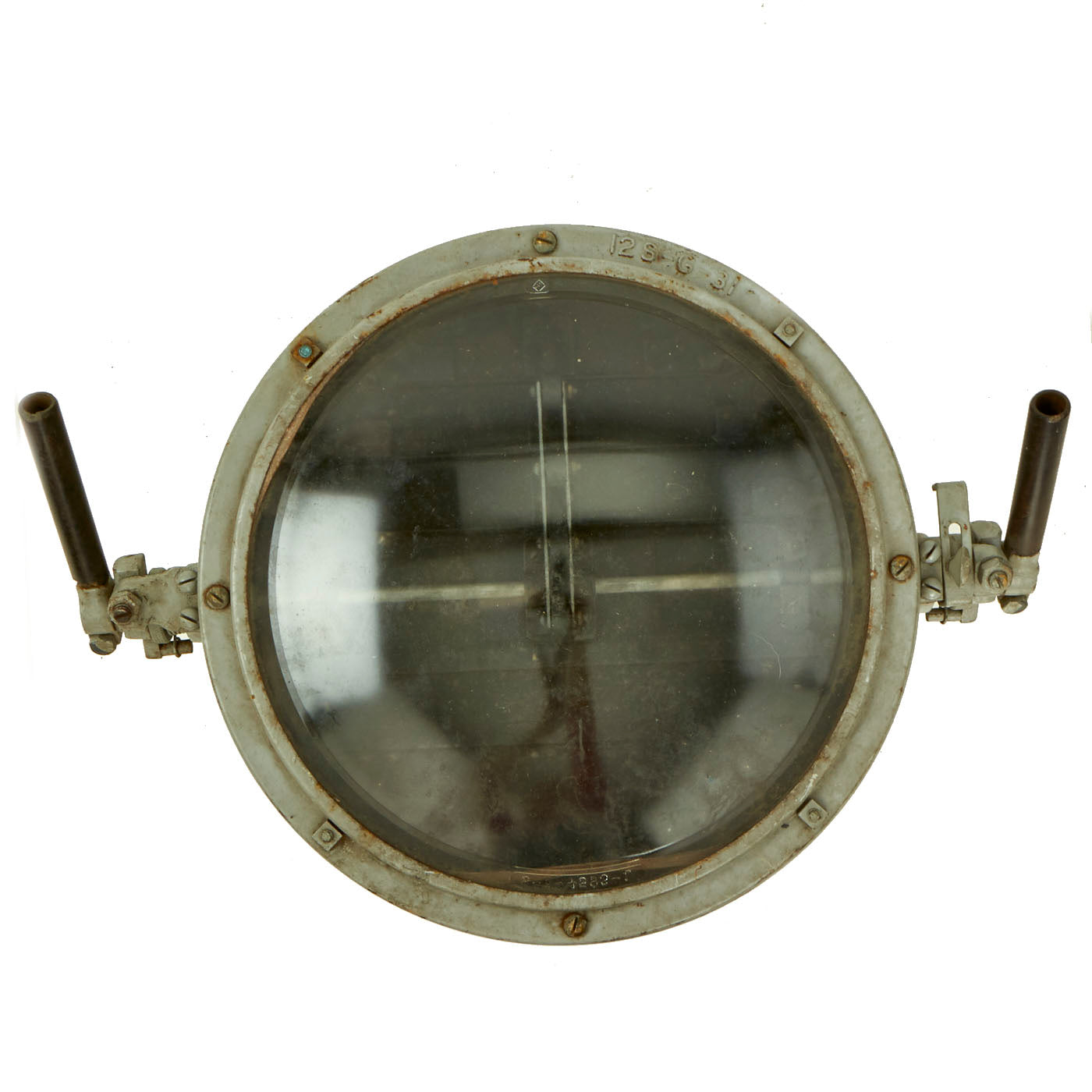

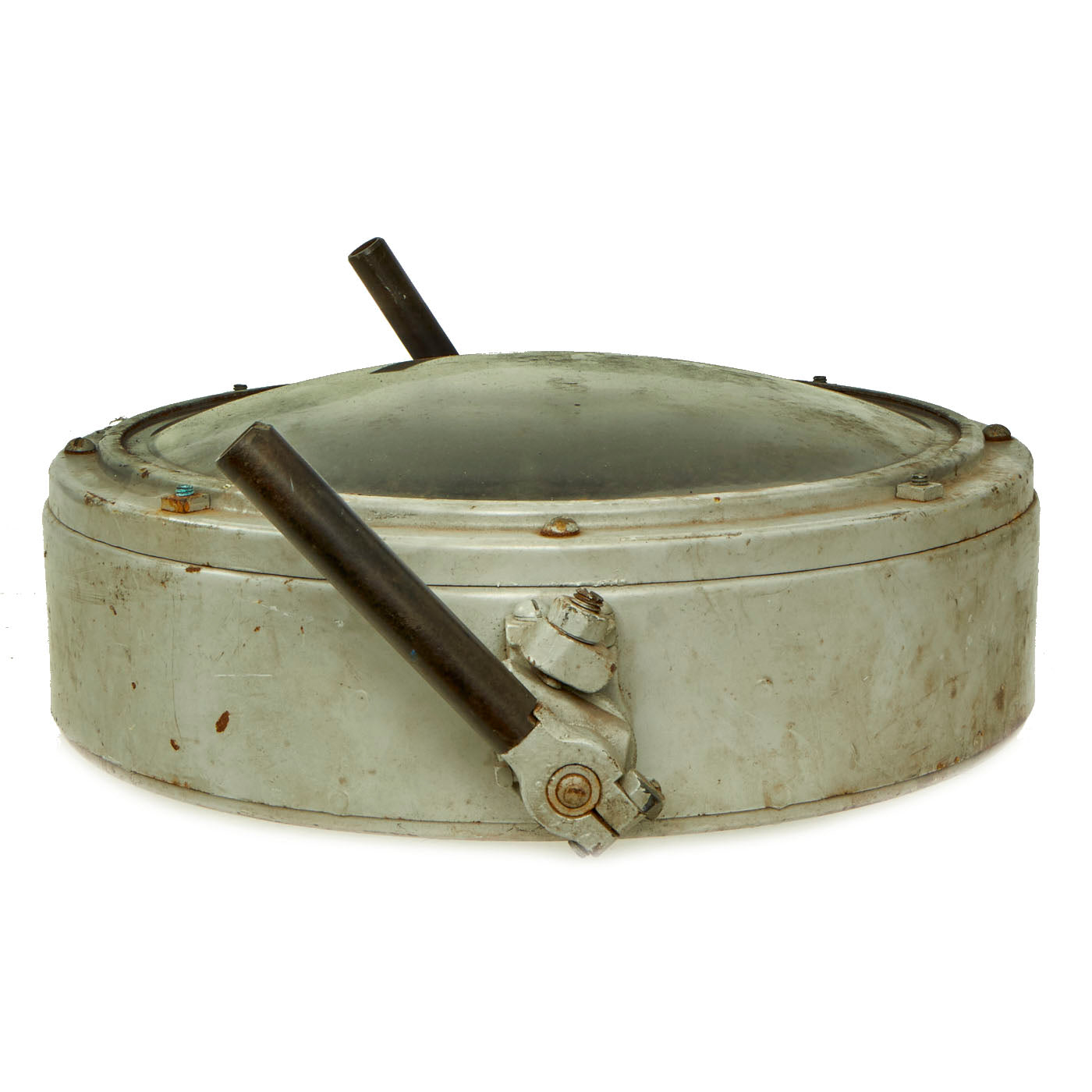

This shutter assembly measures approximately 15” across and would have been used on a pedestal mounted lamp. This is just the shutter assembly that was removed from the actual light, more than likely when the light or ship was decommissioned this was salvaged and saved.

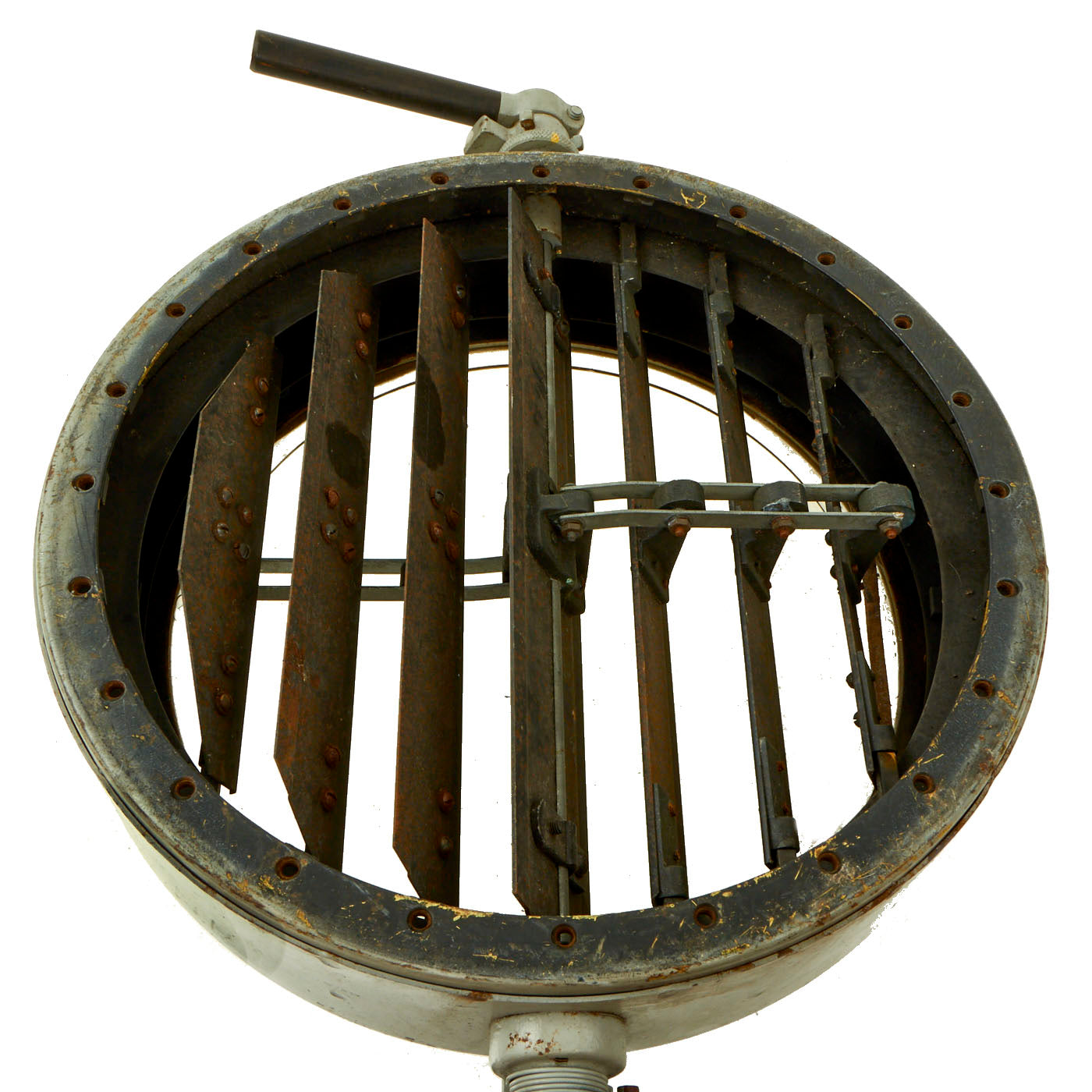

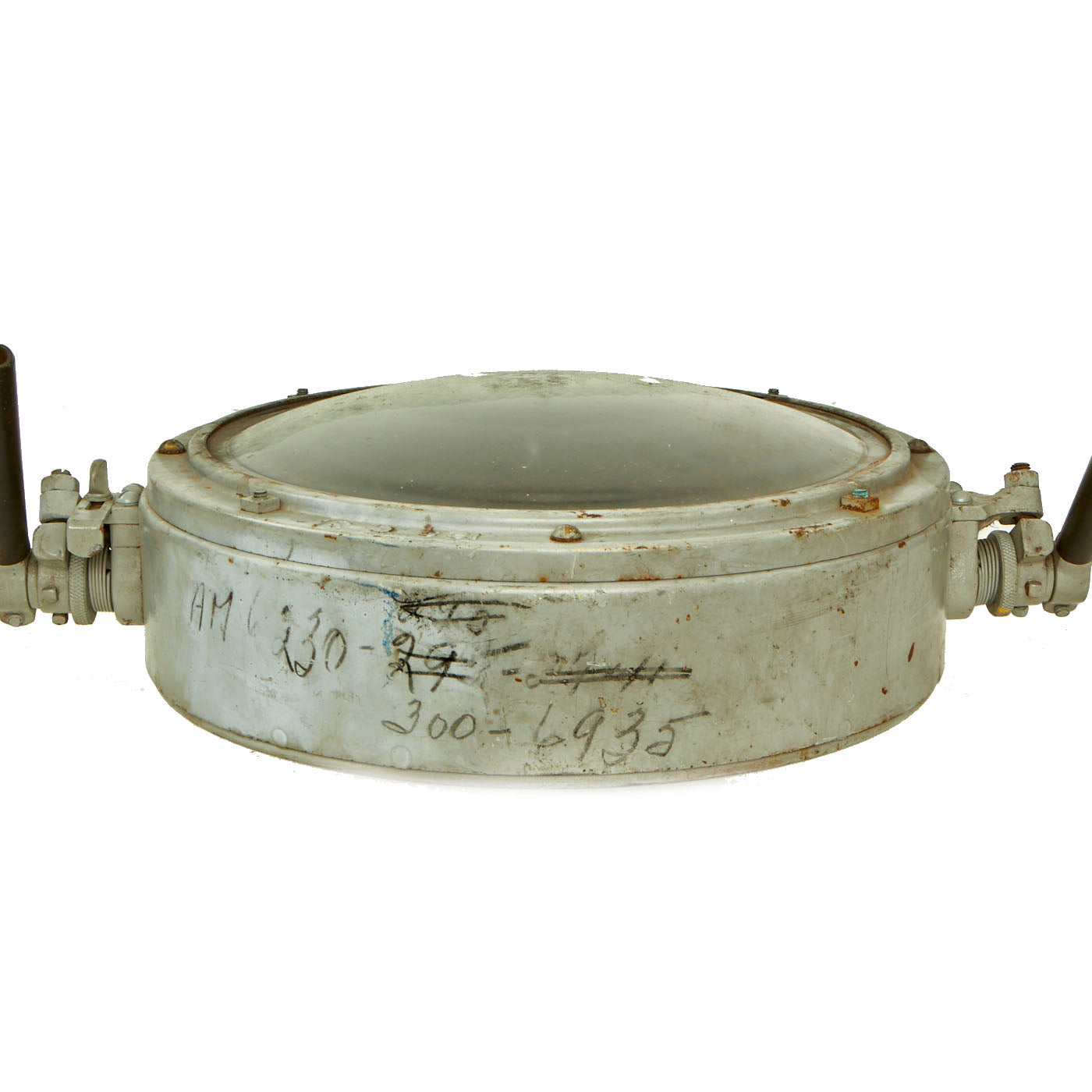

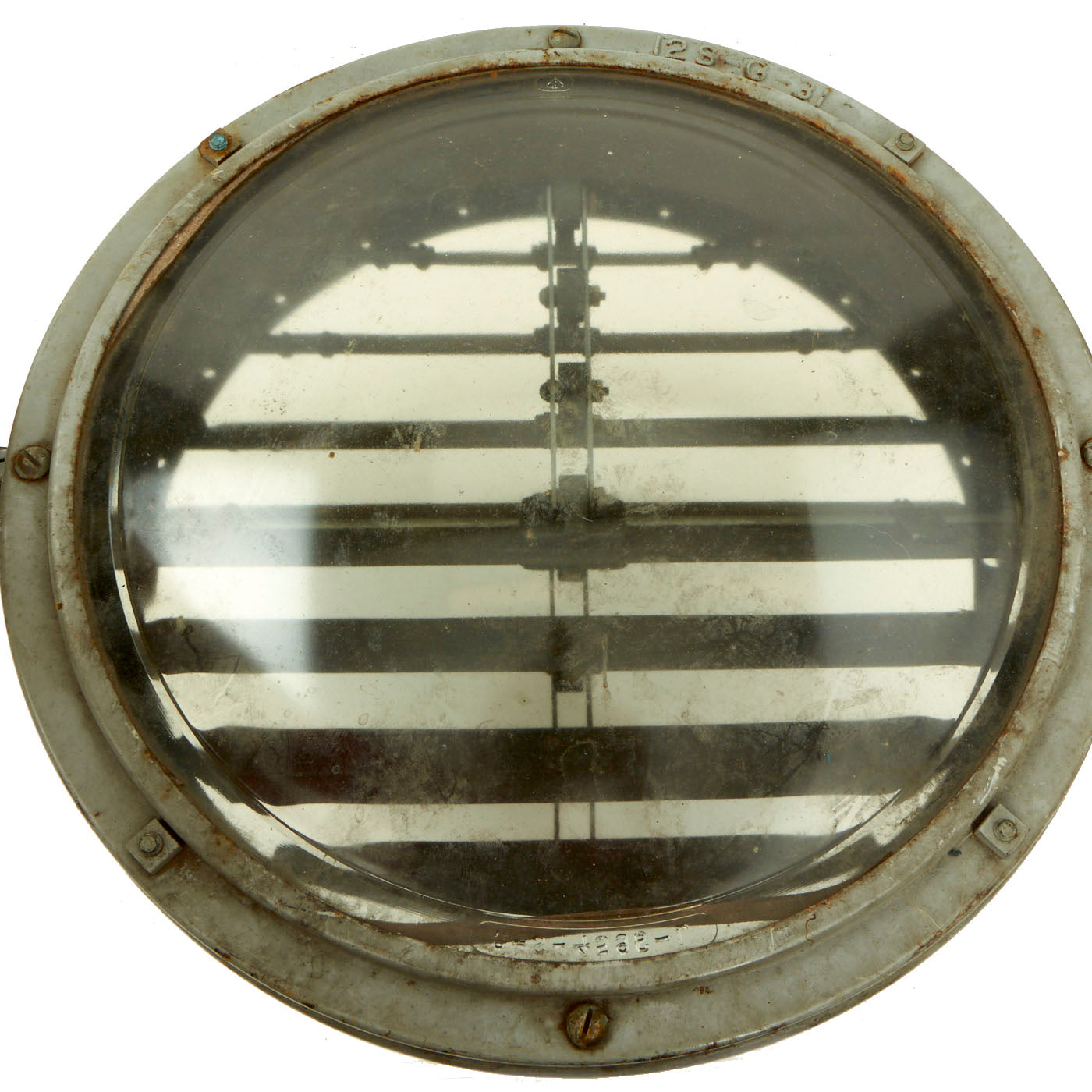

The condition is really good with an unbroken lens and functioning shutters. We can not find any marking stamped into the assembly.

Comes more than ready for further research and display.
