Original U.S. WWII M1941 Johnson Rifle Bayonet with Scabbard

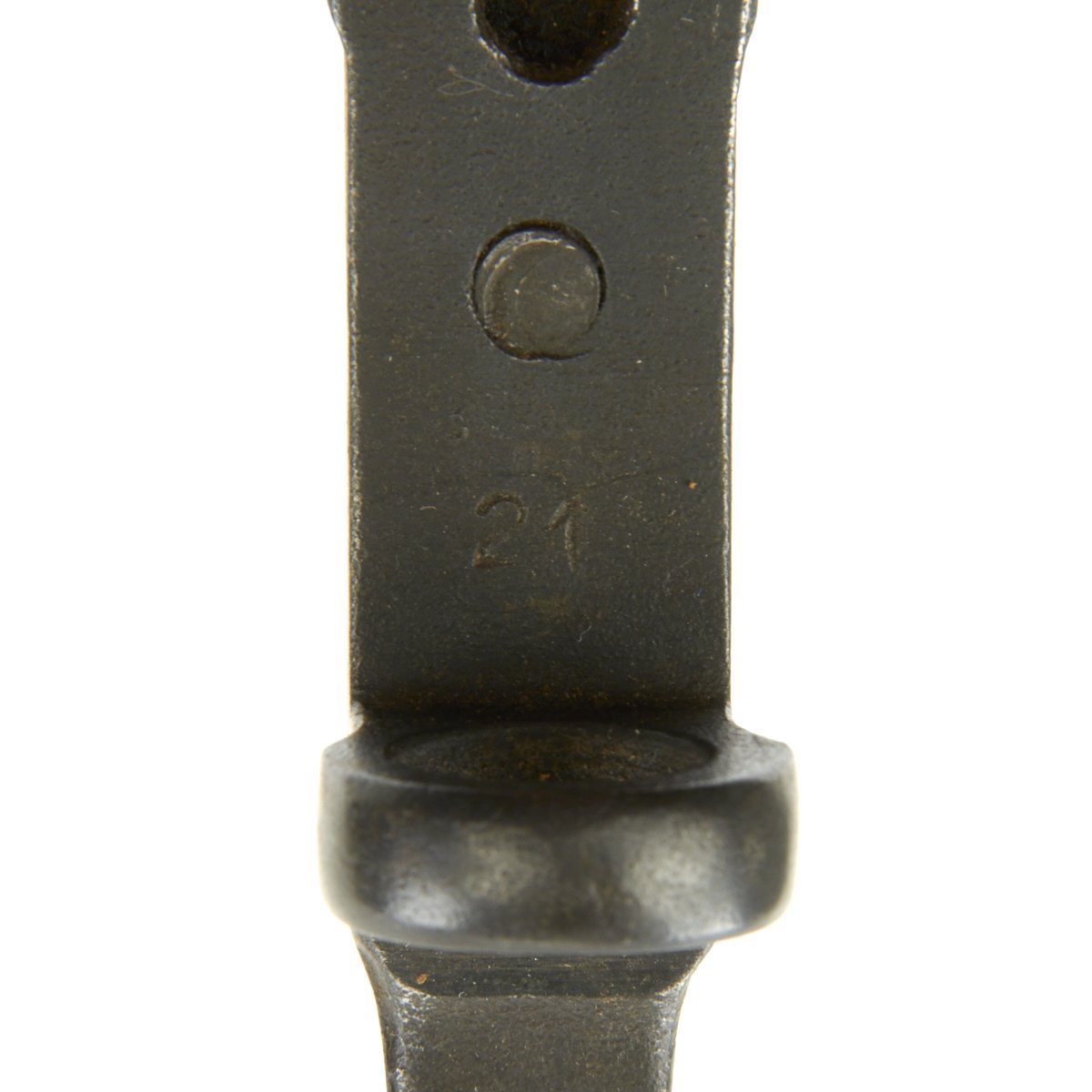

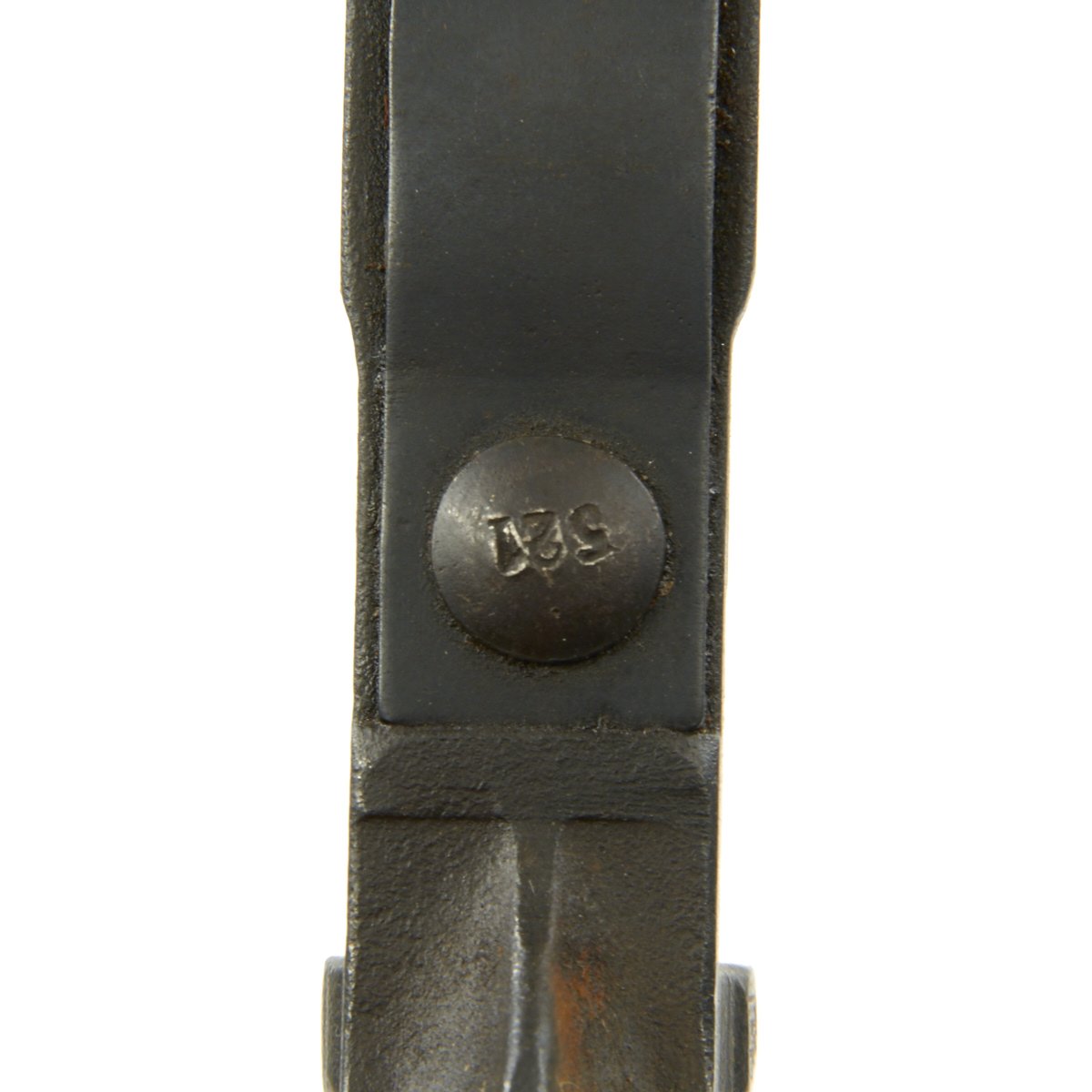

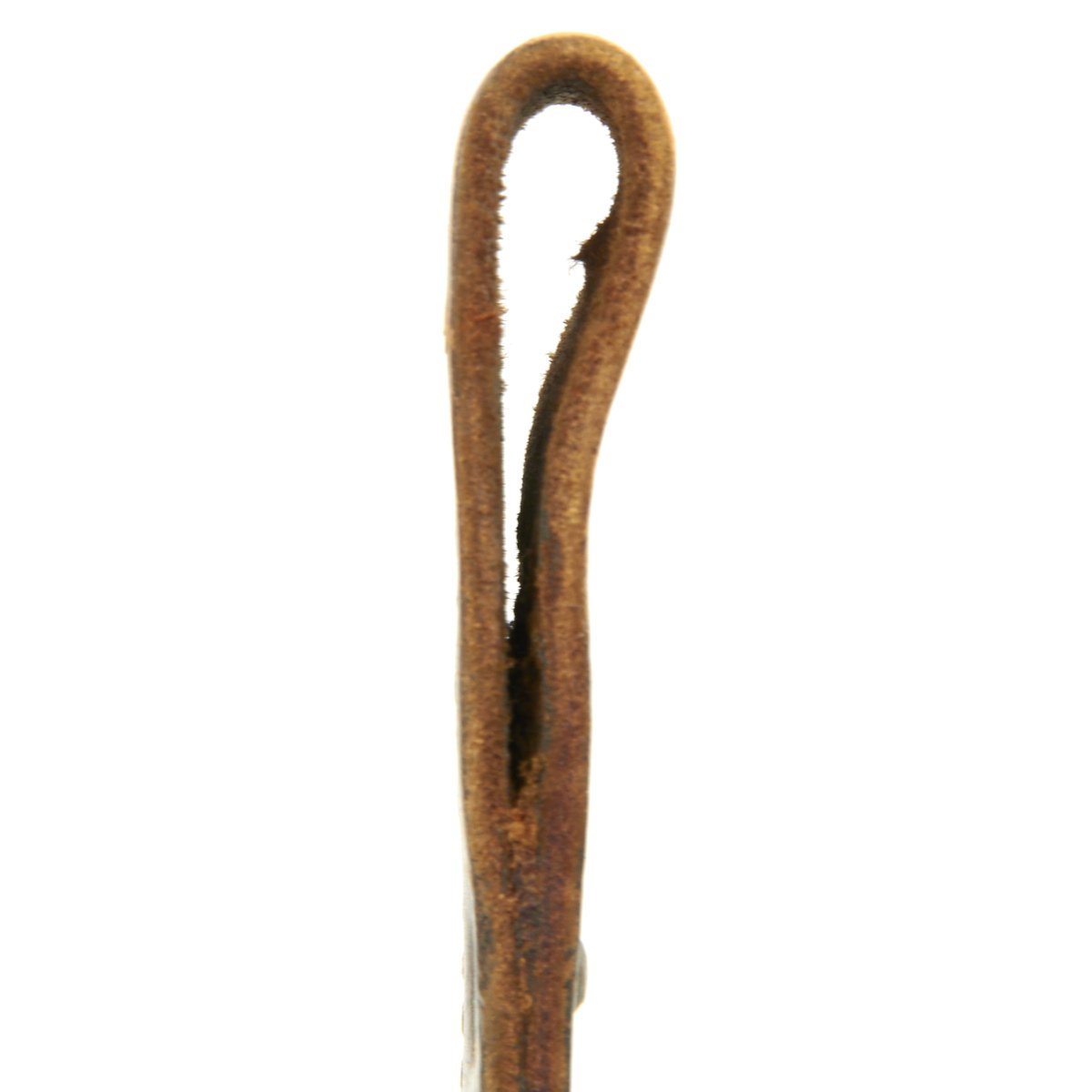

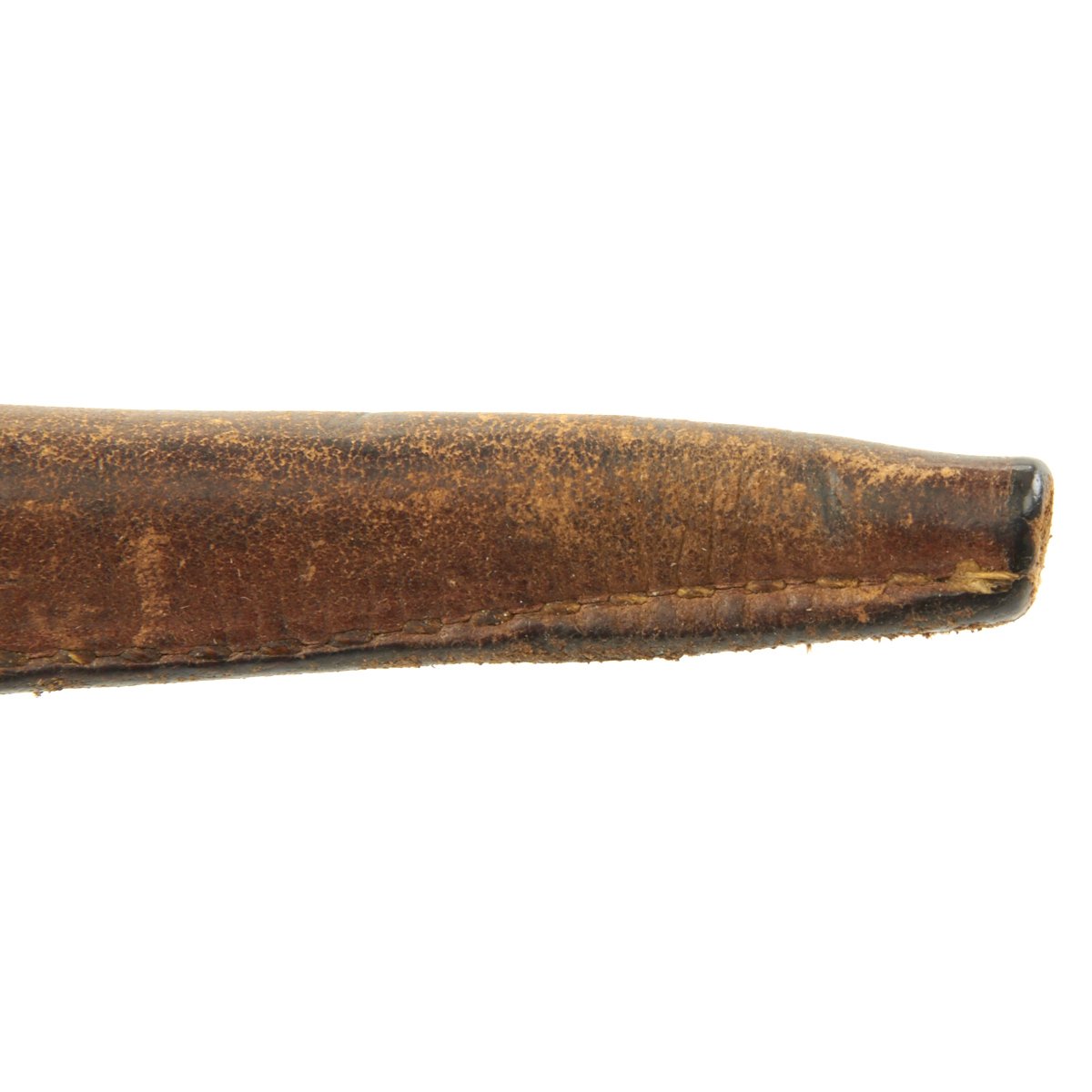

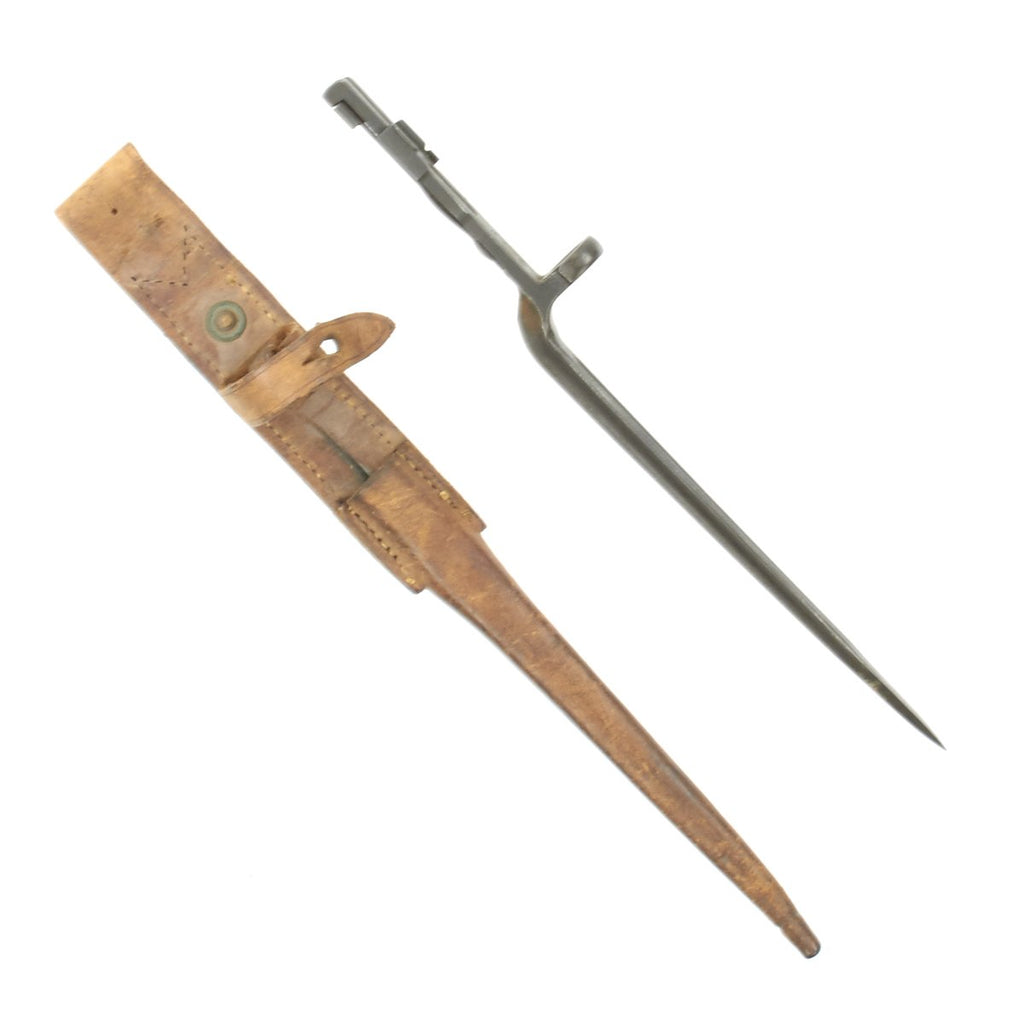

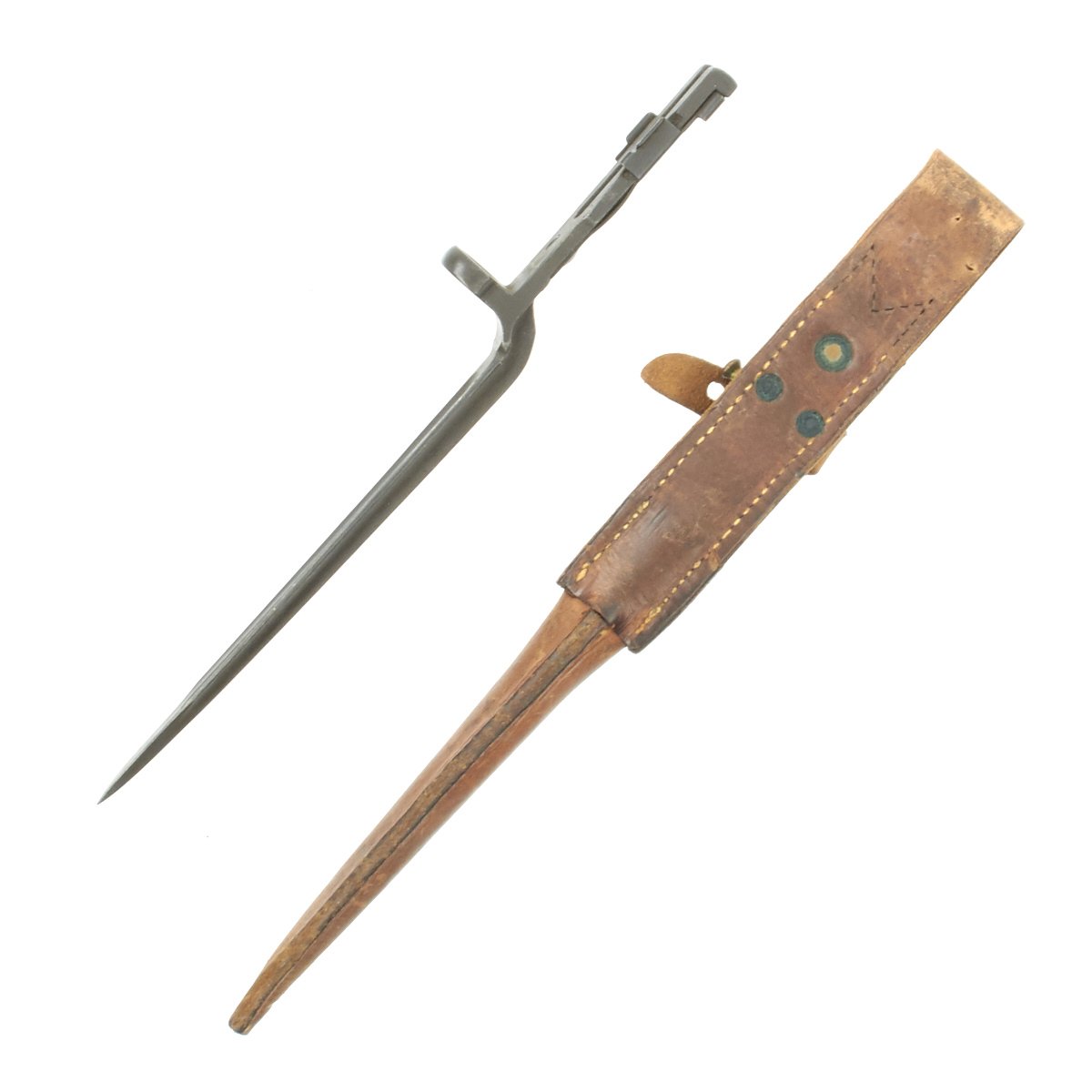

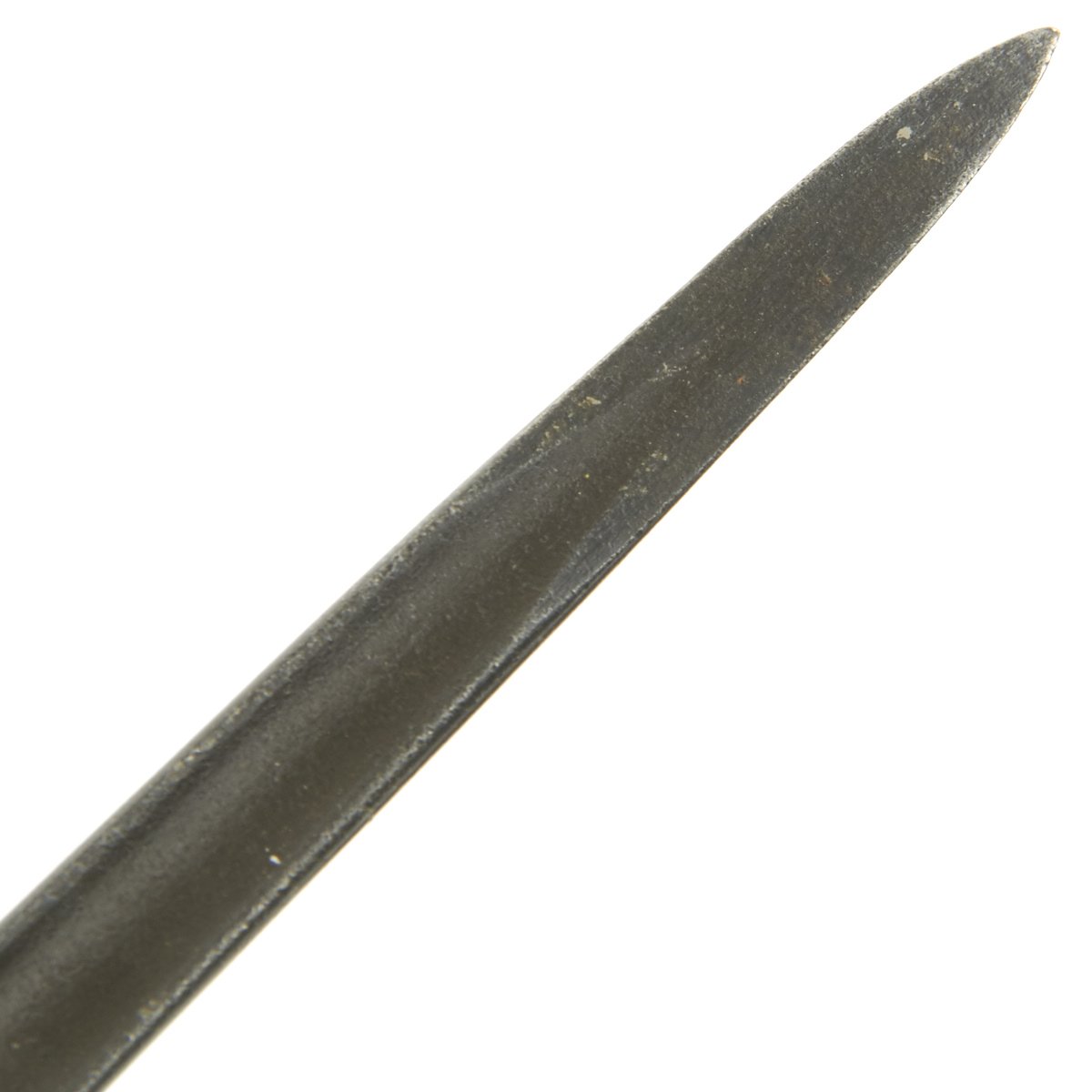

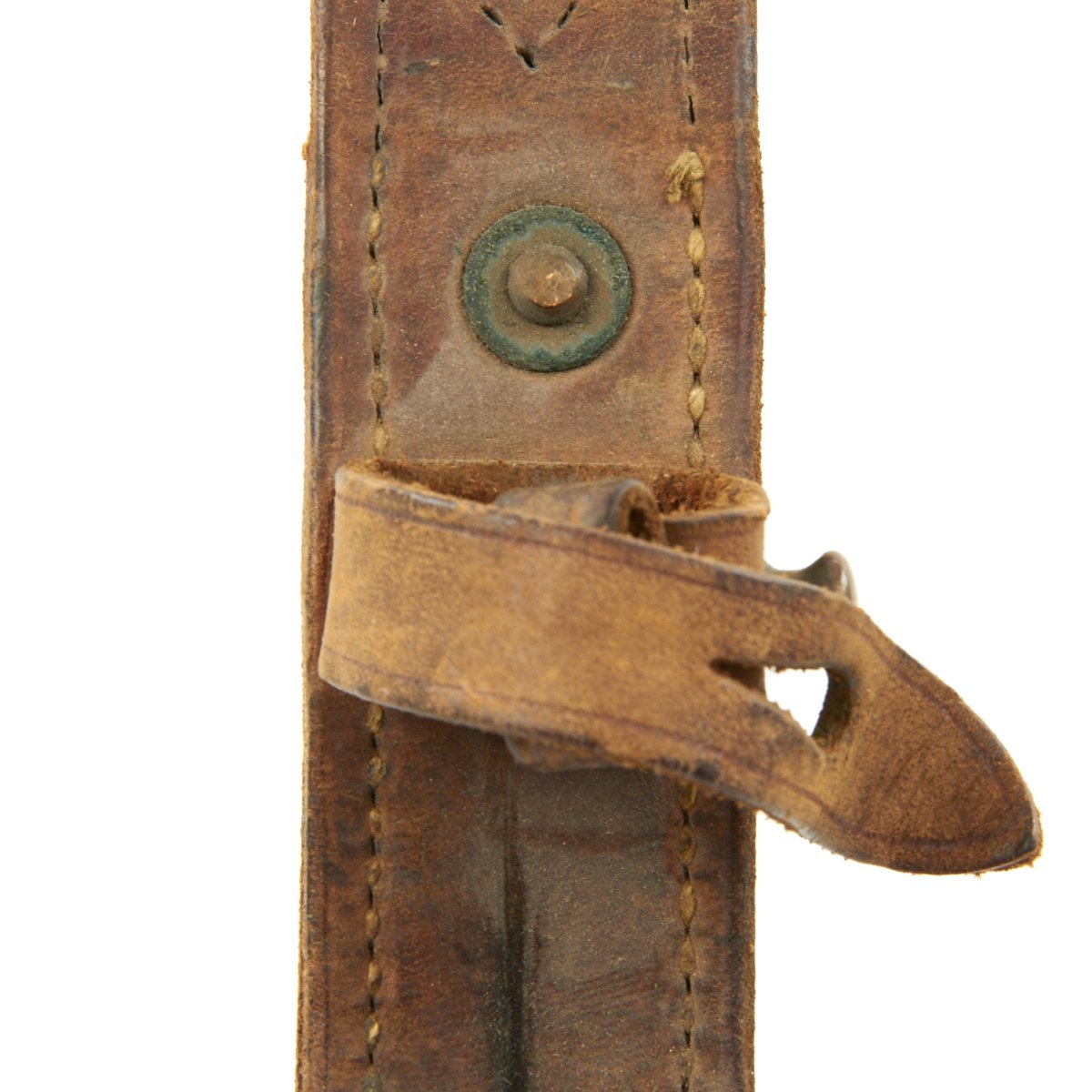

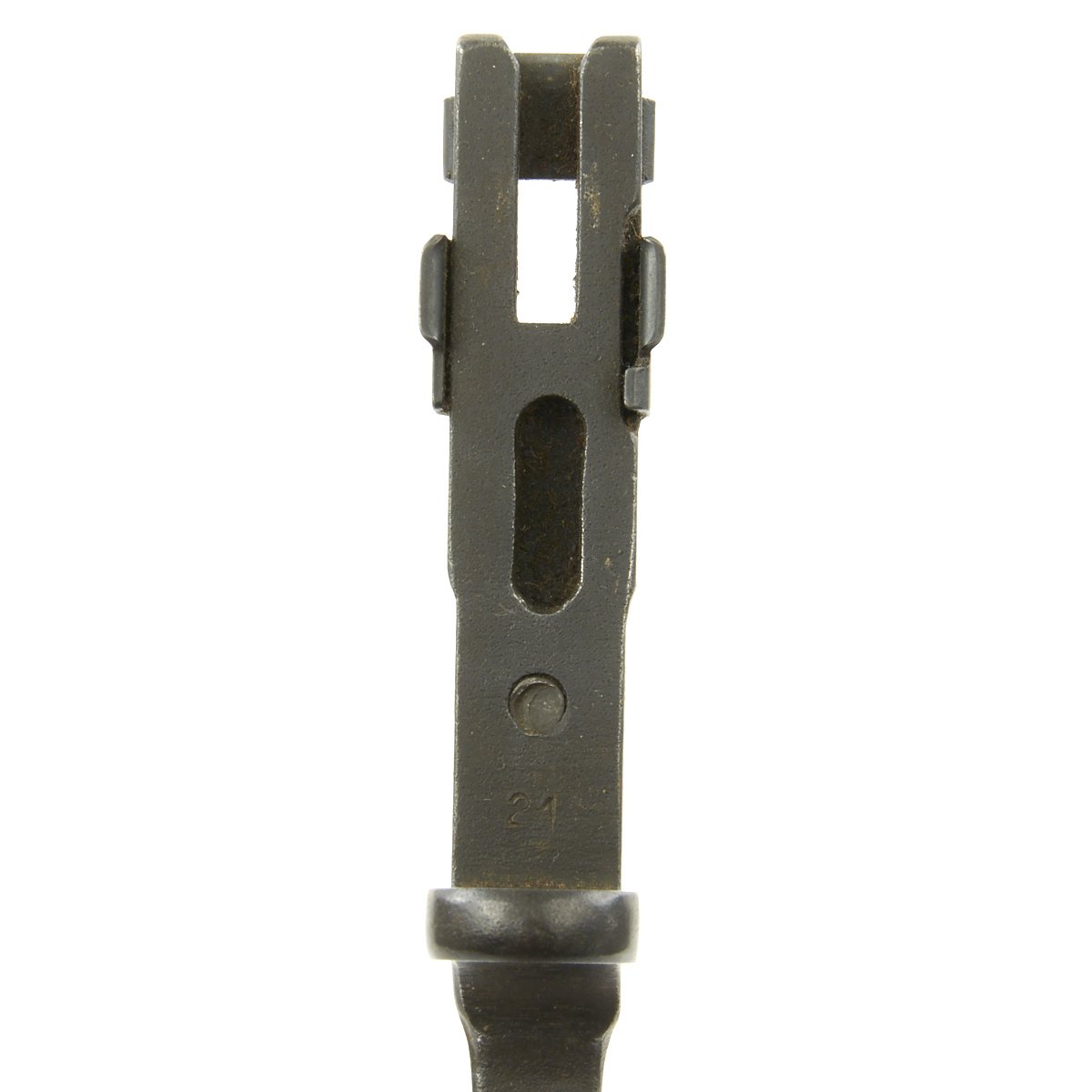

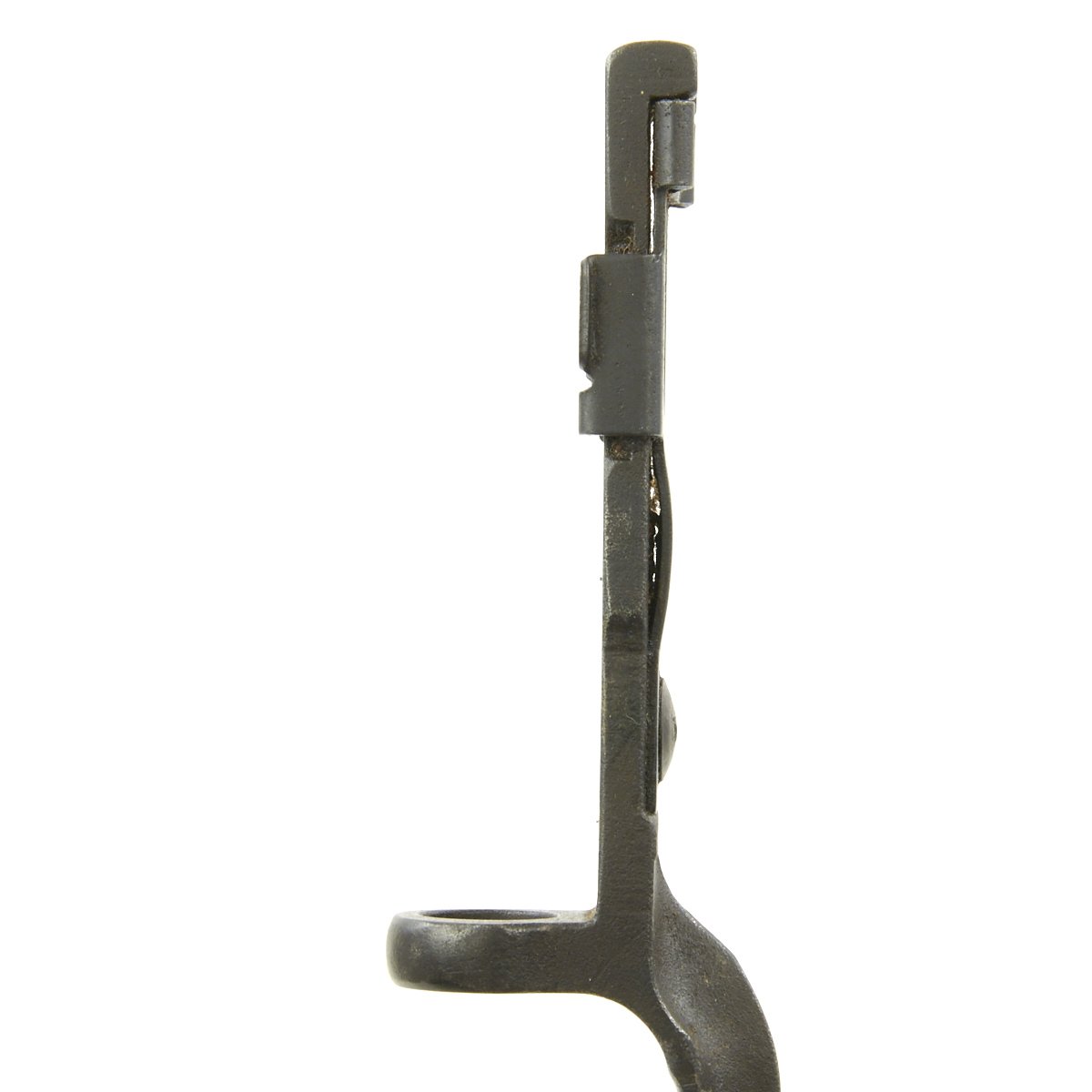

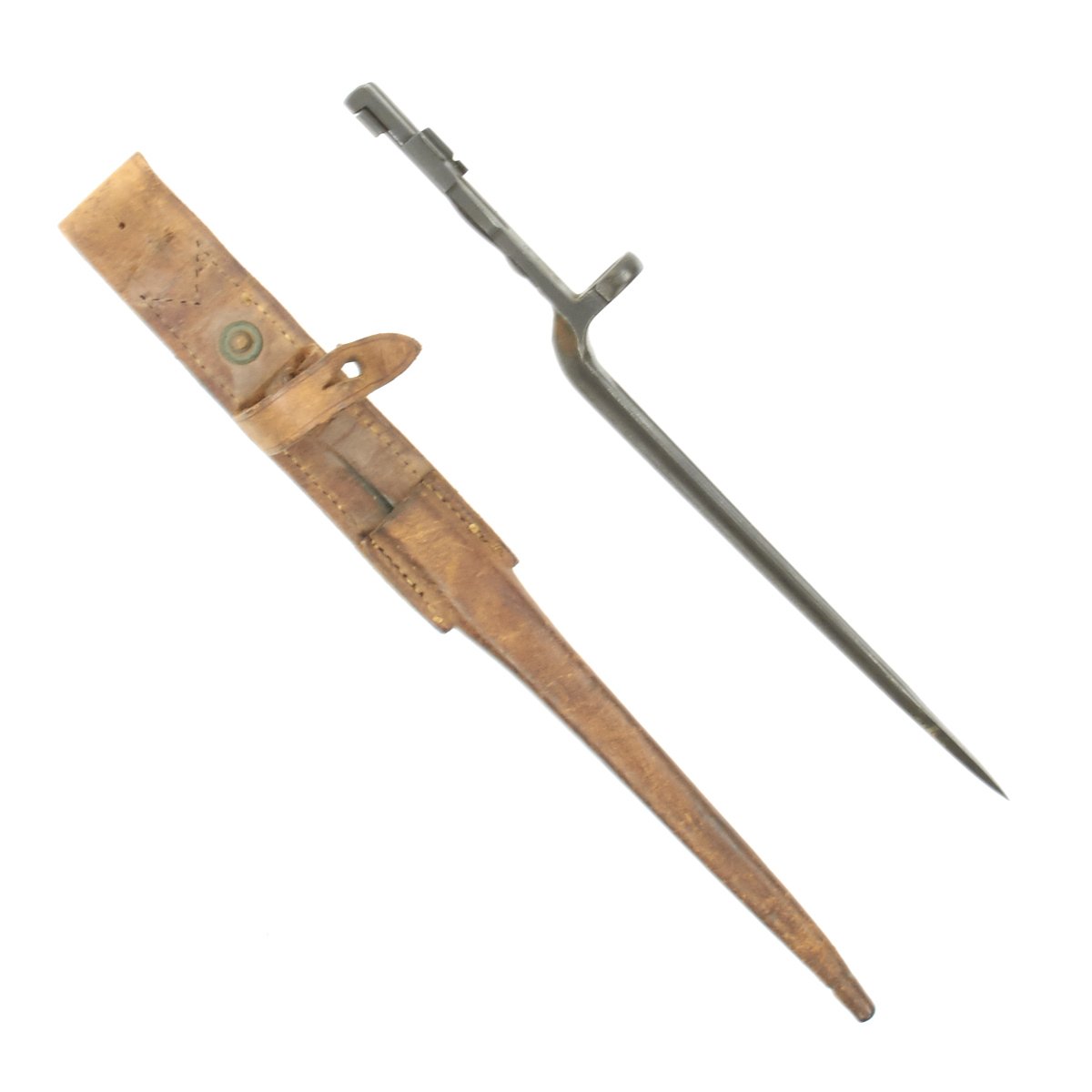

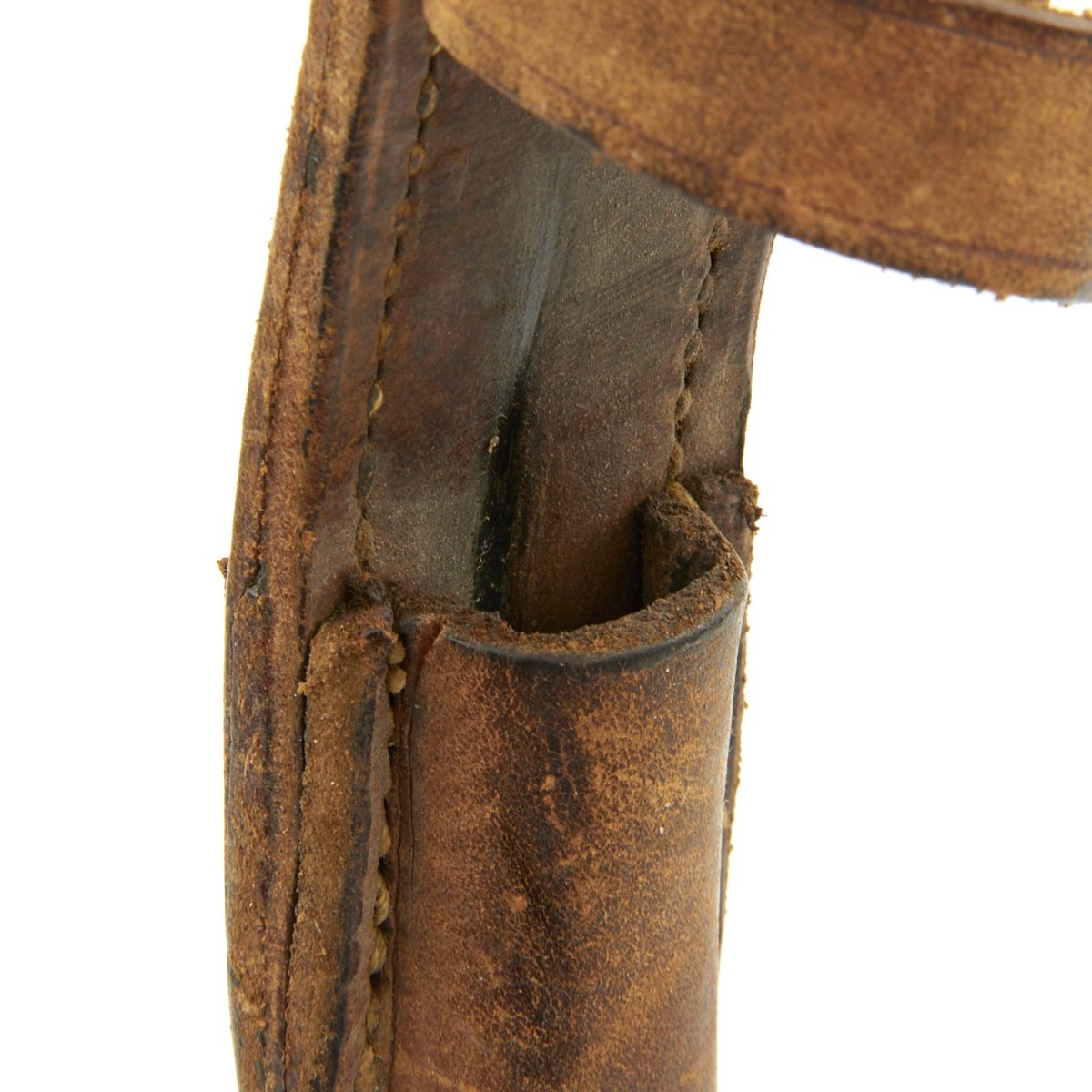

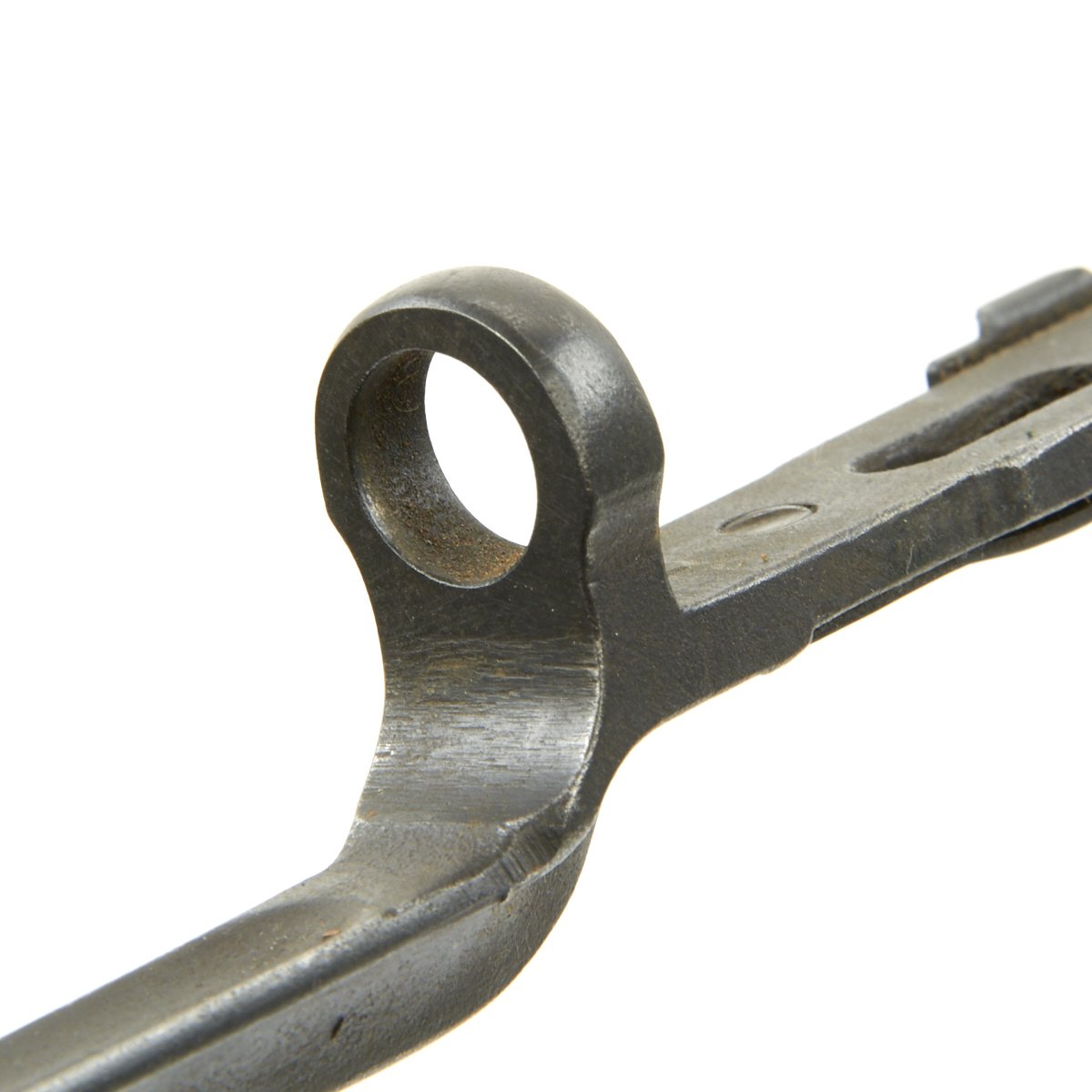

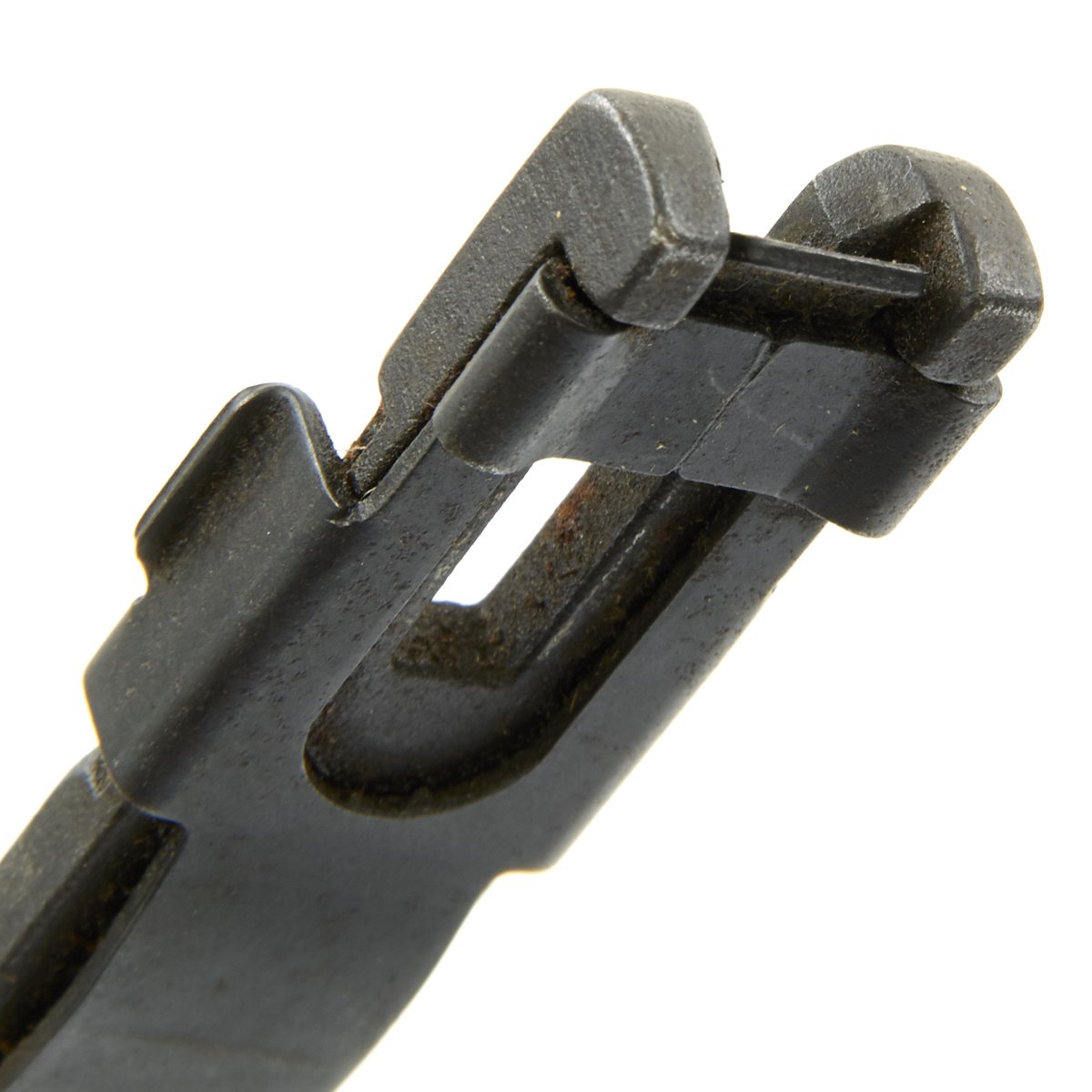

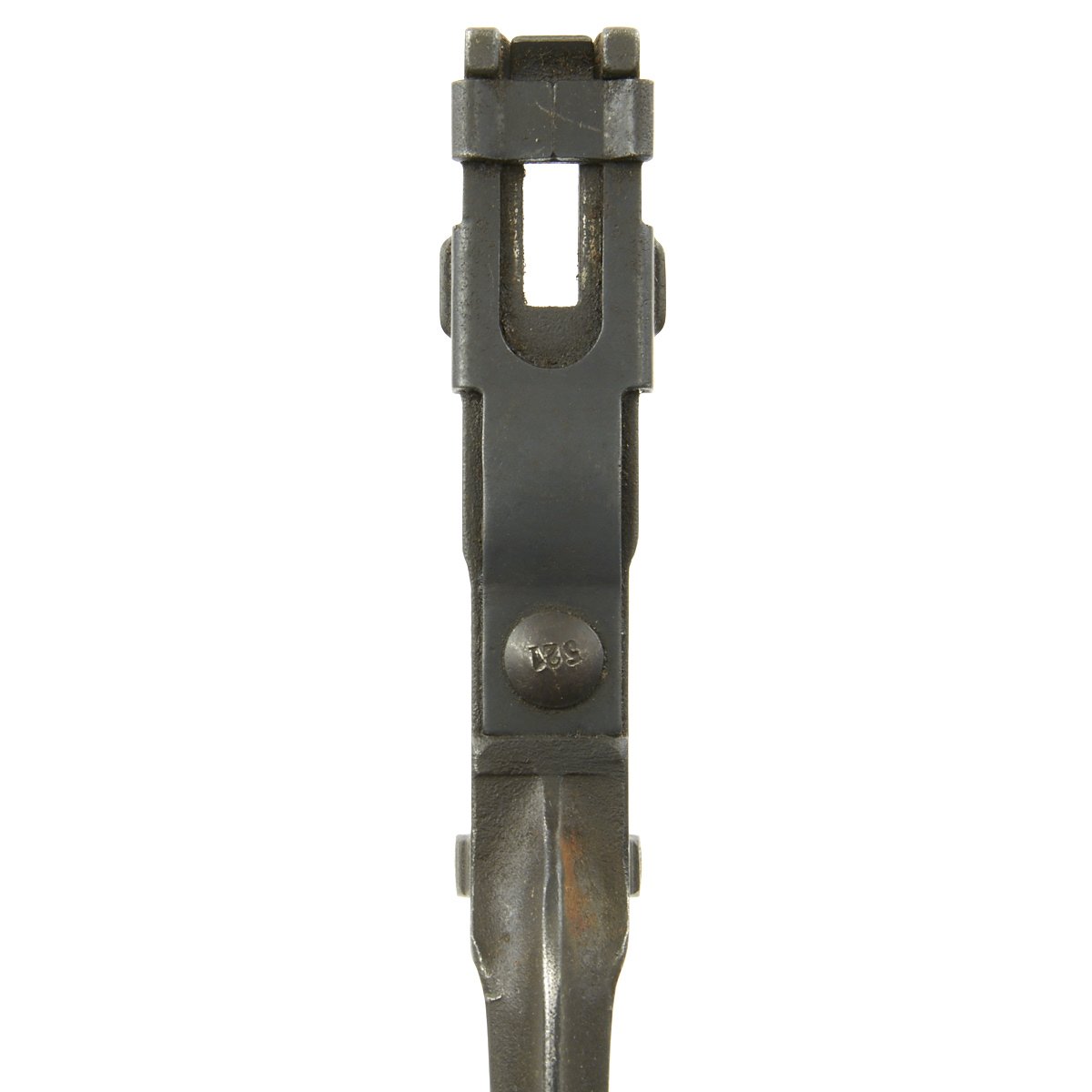

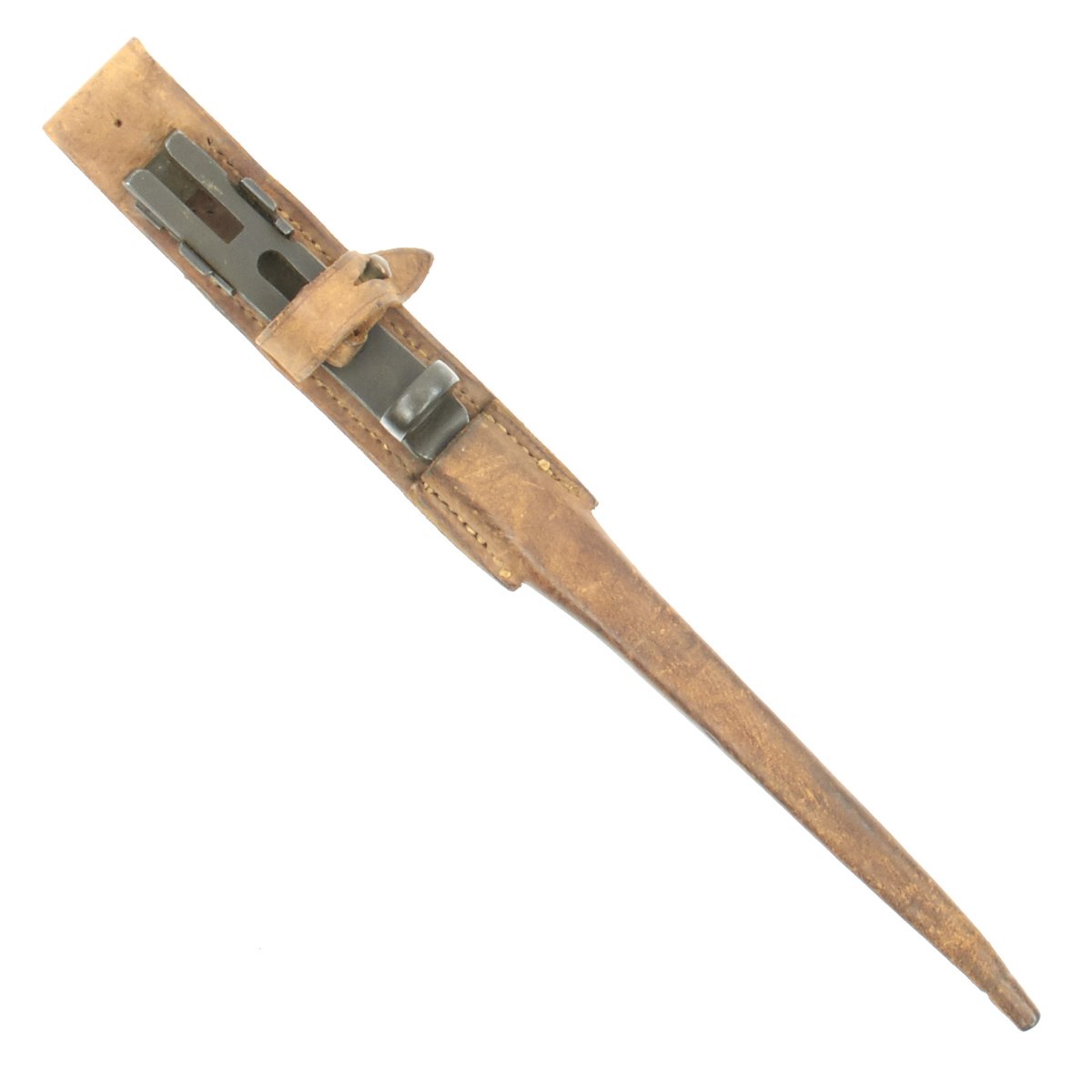

Original Item: Only One Available. This is a fantastic example of a Model 1941 Johnson rifle bayonet complete with original leather scabbard. The bayonet is numbered “21” on the base and “521” on the rivet. The leather scabbard is soft, pliable, and in great condition. Johnson rifles are difficult to find and the bayonets are even harder. This is an excellent piece of U.S. military history.
The M1941 Johnson Rifle is an American short-recoil operated semi-automatic rifle designed by Melvin Johnson prior to World War II. The M1941 competed unsuccessfully with the U.S. M1 Rifle.
The M1941 rifle used the energy from recoil to cycle the rifle. As the bullet and propellant gases move down the barrel, they impart force on the bolt head which is locked to the barrel. The barrel, together with the bolt, moves a short distance rearward until the bullet leaves the barrel and pressure in the bore drops to safe levels. The barrel then stops against a shoulder allowing the bolt carrier to continue rearward under the momentum imparted by the initial recoil stage. The rotating bolt, with eight locking lugs, would then unlock from the chamber as cam arrangement rotates and unlocks the bolt to continue the operating cycle. The Johnson rifle utilized a two-piece stock and a unique 10-round rotary magazine, designed to use the same 5-round stripper clips already in use by the M1903 Rifle.
This system had some advantages in comparison to the M1 Garand rifle, such as a greater magazine capacity combined with the ability to recharge the magazine with ammunition (using 5-round clips or individually) at any time, even with the bolt closed on a chambered round. Finally; that the Johnson rifle did not—unlike the M1 Rifle—eject an en bloc clip upon firing the last round in the magazine, was considered an advantage by some soldiers. A widely-held belief among US soldiers (when surveyed in 1952, 27% of soldiers held this opinion) was that the M1 Garand's distinctive clip ejection sound, the well-known "M1 Ping", presented a danger when fighting an enemy force, as the sound purportedly signaled to the enemy that the solder's M1 Rifle was empty and they could no longer fire in defense. Regardless any anecdotal beliefs and despite the popularity of the story—which persists to this day—there are no verified cases of an enemy using the "M1 Ping" sound to their advantage up through the Korean War. Unfortunately, despite the several advantages the Johnson Rifle design had over the M1 Garand rifle, the existing disadvantages were too great to change US rifle production from the M1 Garand. The Johnson's short recoil reciprocating barrel mechanism resulted in excessive vertical shot dispersion that was never fully cured during its production life, and was prone to malfunction when a bayonet was attached to the reciprocating barrel. Additionally, the complex movements of the barrel required for proper operation would be subject to unacceptable stress upon a bayonet thrust into a target. The Johnson also employed a number of small parts that were easily lost during field stripping. Partially because of lack of development, the M1941 was less rugged and reliable than the M1, though this was a matter of personal preference and was not universally opined among those that had used both weapons in combat.
As was Johnson's practice, he gave all of his weapons a "pet" nickname. Johnson christened his semi-automatic rifle Betsy and the Light Machine Gun Emma.
Melvin Johnson campaigned heavily for the adoption of the Johnson rifle by the U.S. Army and other service branches. However, after limited testing, the U.S. Army rejected Johnson's rifle in favor of the M1 Garand rifle developed by Springfield Armory. The M1941 was ordered by the Netherlands for issue to the KNIL in the Dutch East Indies, but only a few rifles were shipped to the Dutch East Indies before the Japanese invaded. At this time, the U.S. Marine Corps found itself in need of a modern fast-firing infantry rifle, and acquired some rifles from the Dutch East Indies shipment for issue to its Paramarine battalions then preparing to deploy for action in the Pacific theatre. By all accounts, the M1941 performed acceptably in combat with the Marines in the early days of the Pacific fighting.
Weapon serial number A0009 was issued to USMC Captain Robert Hugo Dunlap, of Monmouth, Illinois, and he carried it into combat in the battle for Iwo Jima, beginning 19 February 1945. Captain Dunlap was awarded the Medal of Honor for his actions in that battle, and he retained and displayed the weapon until his death in 2000. He praised the rifle and credited it with saving his life and the lives of others.
Despite repeated requests by the Marine Corps to adopt the rifle, the Johnson rifle lacked the support of US Army Ordnance, which had already invested considerable sums in the development of the M1 Garand and its revised gas operating system, then just going into full production. Johnson was successful in selling small quantities of the M1941 Johnson Light Machine Gun to the U.S. armed forces, and this weapon was later used by both Paramarines and the Army's First Special Service Force. Additionally, in April 1944, the United States War Department offered the Free French military the use of approximately 10,500 Johnson rifles and 1,500 Johnson light machine guns; these guns were from undelivered Dutch/Netherlands contracts taken over by the United States Government in 1942. The French accepted them and issued them to their "Sovereignty troops" (i.e. units composed mainly of Europeans).
In late 1946, Argentina expressed an interest in Johnson's arms, and Johnson fabricated a prototype, the Model 1947 auto carbine, a semi automatic rifle variant of the light machine gun with the 10 round cylindrical magazine. While specific details are sketchy, it apparently bore little resemblance, but shared some features with the Johnson M1941 light machine gun. Argentina apparently declined to purchase any, and the M1947 auto carbine never went into production. In any event, the post-war years were not kind to the Johnson organization. The entity filed for bankruptcy and was liquidated in early 1949.
