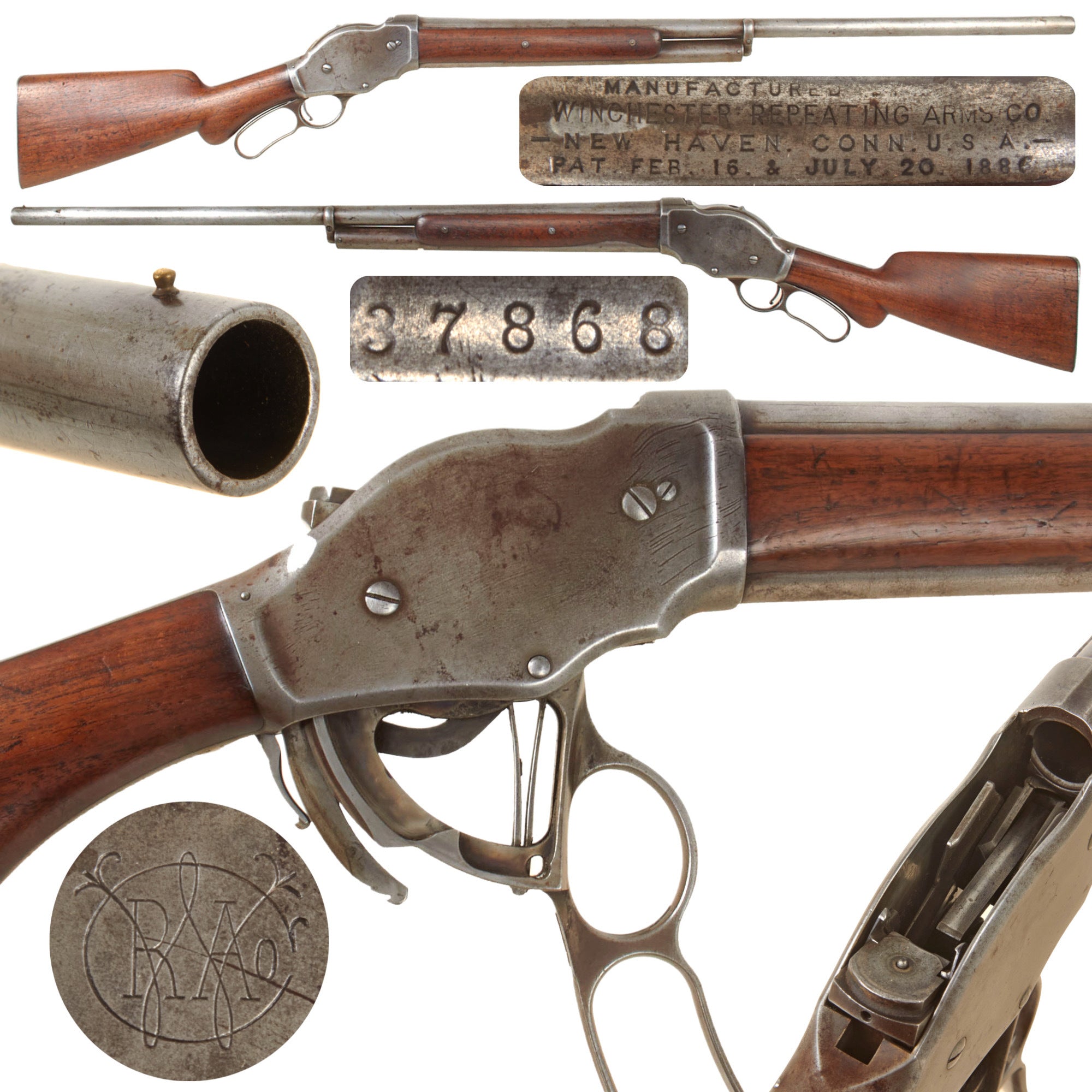

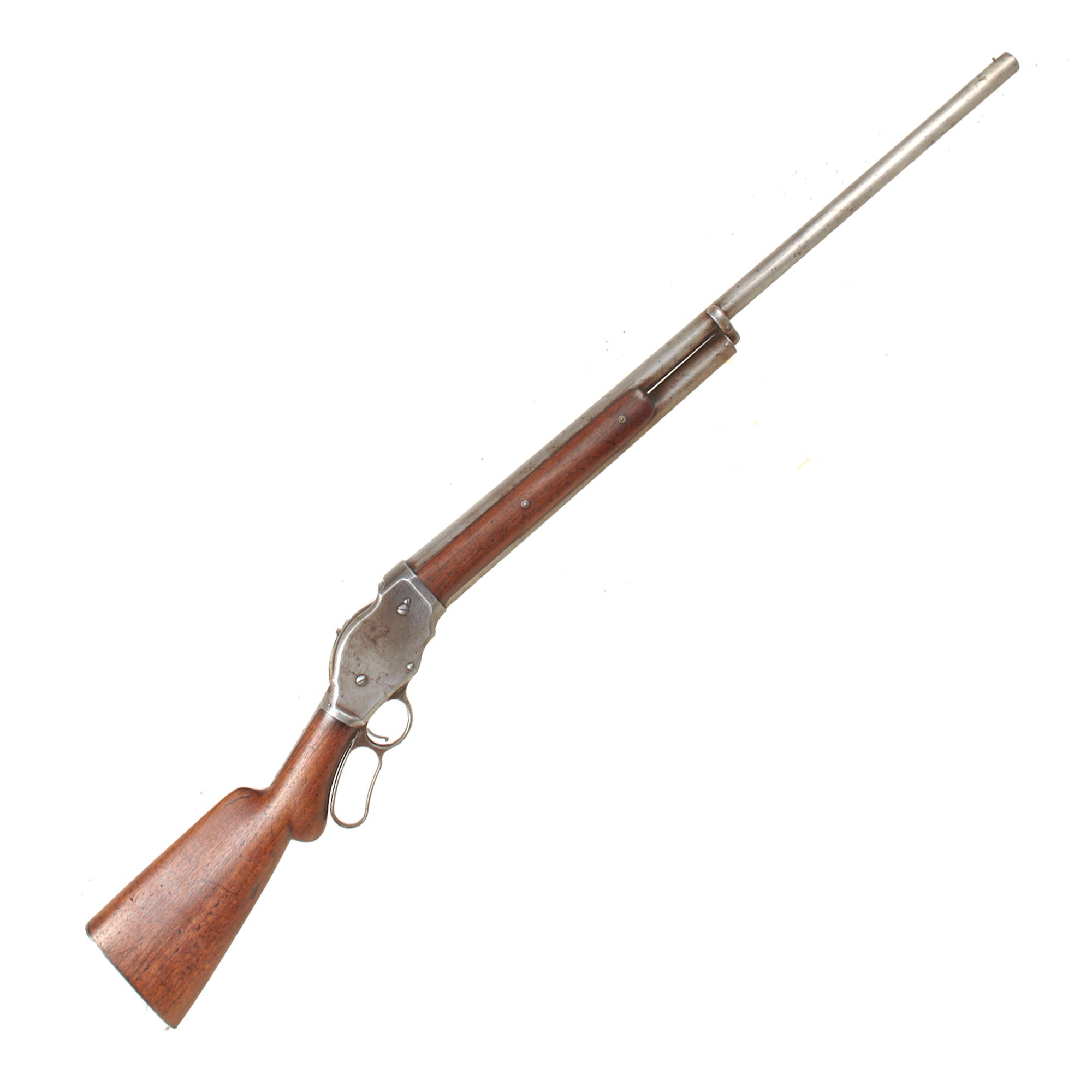

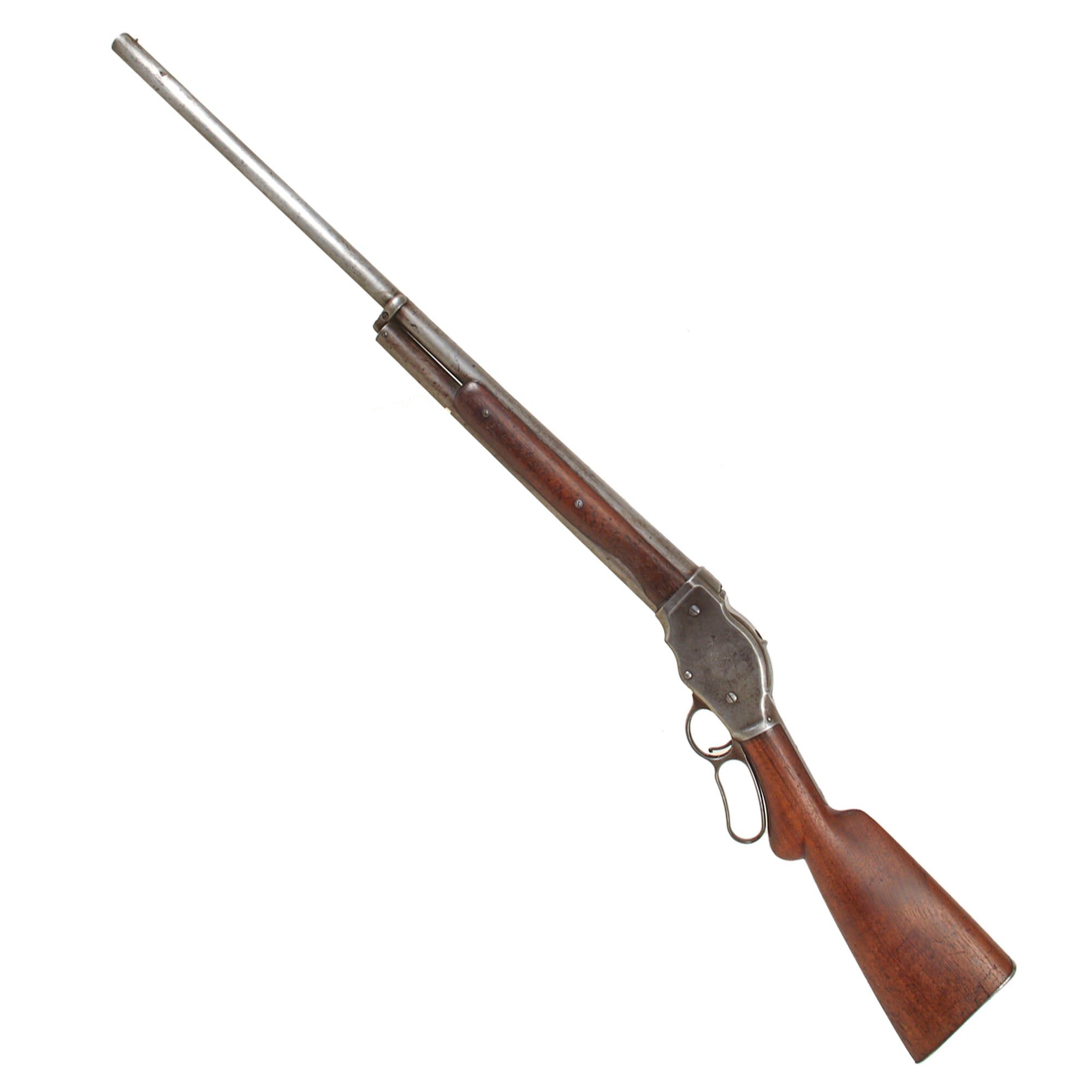

Original Item: Only One Available. This is an original U.S. Winchester Model 1887 lever action repeating shotgun, serial number 37868, chambered in 12 gauge and fitted with a 30" barrel. Designed by John M. Browning, the Model 1887 was one of the earliest successful repeating shotguns and remains immediately recognizable for its large operating lever, exposed hammer, tubular magazine, and substantial receiver.

This is an antique black powder firearm manufactured before 1899. Under federal law, it may generally be owned within the United States without a special license or permit and does not require transfer through a Federal Firearms Licensee. However, state and local laws may vary. This firearm is sold solely as a historical collector’s item and has not been test fired or inspected for firing safety by a professional gunsmith. Any mechanical or bore observations provided below describe only its present condition and should not be interpreted as confirmation that the firearm is safe to load or fire. The purchaser is solely responsible for complying with all applicable federal, state, and local laws.

The Model 1887 was developed by John M. Browning during the late 19th century as Winchester sought to apply its successful lever action concept to a repeating shotgun. Its large operating lever lowers the breechblock, ejects the chambered shell, raises a fresh round from the carrier, and closes the action in one sweeping motion. Although later slide action designs eventually became more popular, the Model 1887 established an important place in the history of repeating shotguns.

This example is chambered in 12 gauge and fitted with a 30" barrel. A very faint:

12

marking is present on the barrel immediately forward of the receiver.

The left side of the barrel carries an oval:

W P

mark. The exact significance of this marking on this individual shotgun is uncertain from the supplied information. It has been associated by collectors with Winchester work or modification in some contexts, but a factory letter or other period documentation would be required to determine whether this 30" barrel was original when first shipped or was later installed or altered by Winchester.

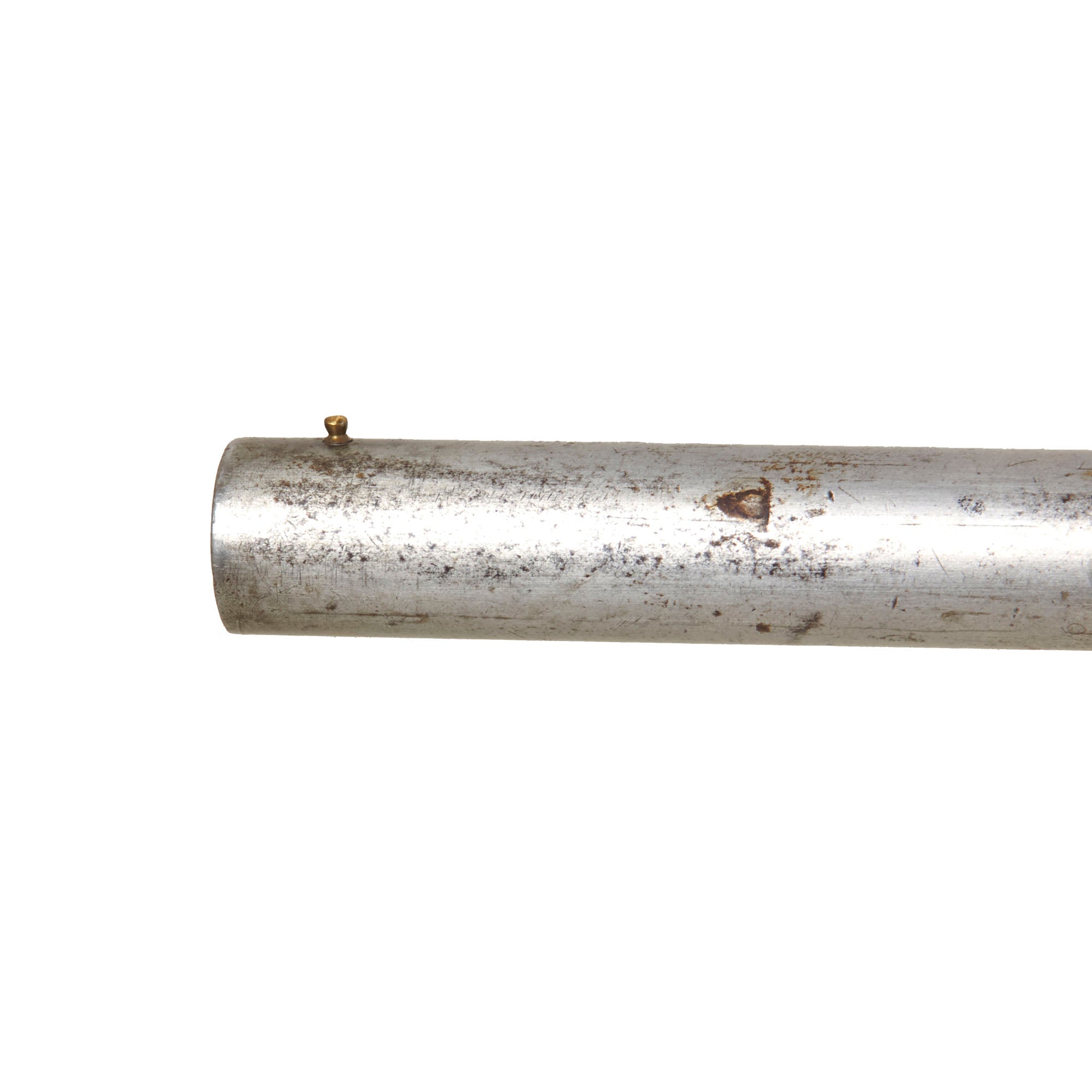

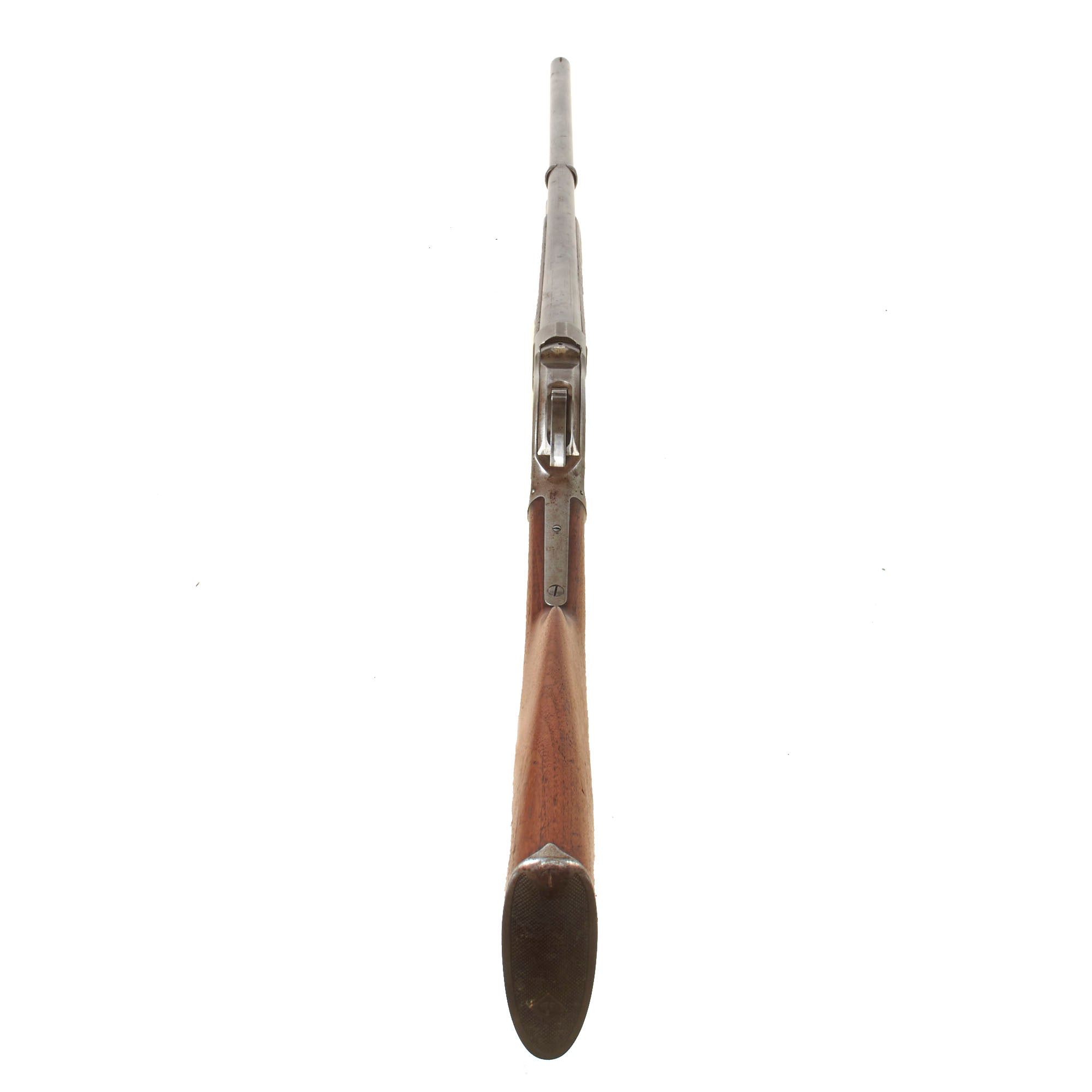

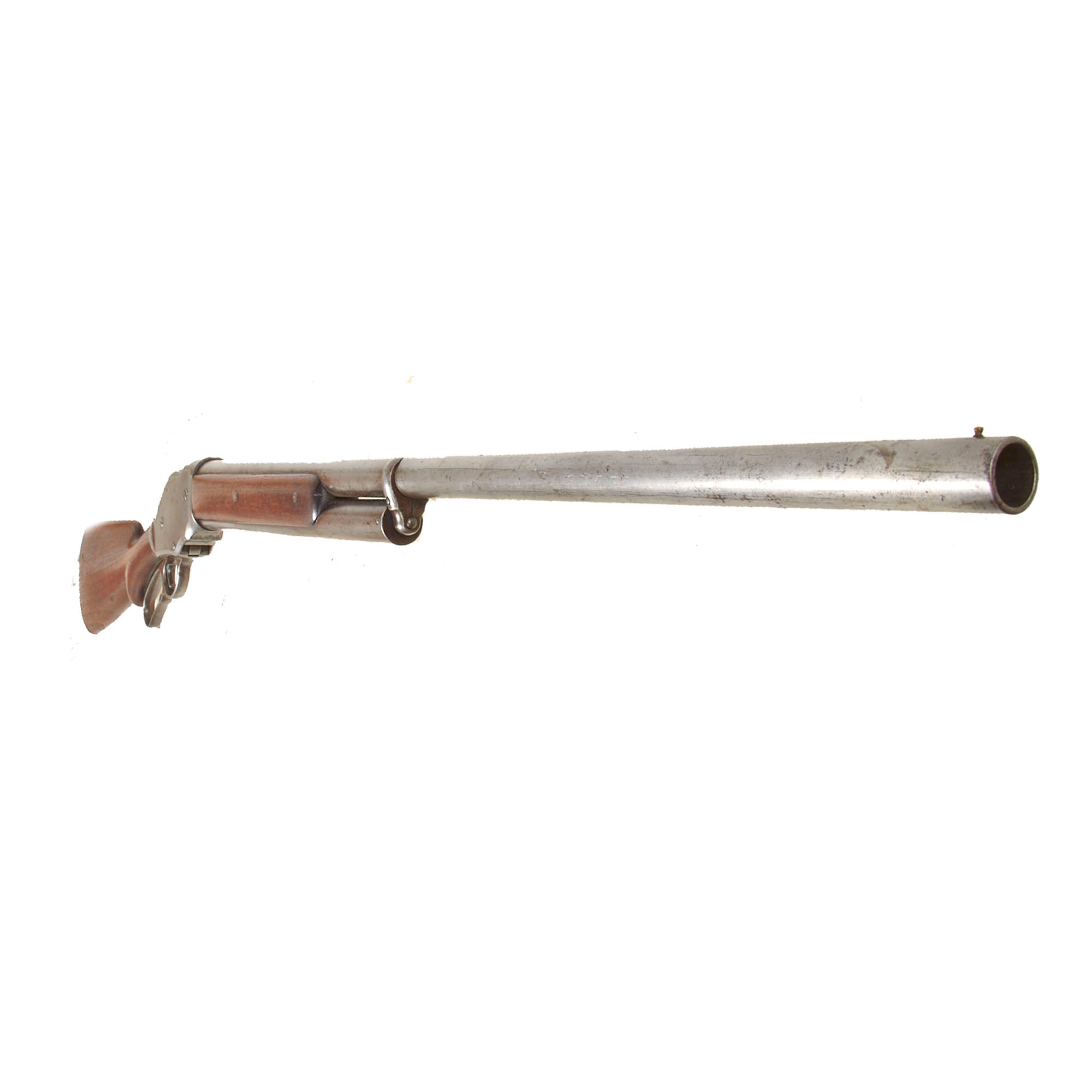

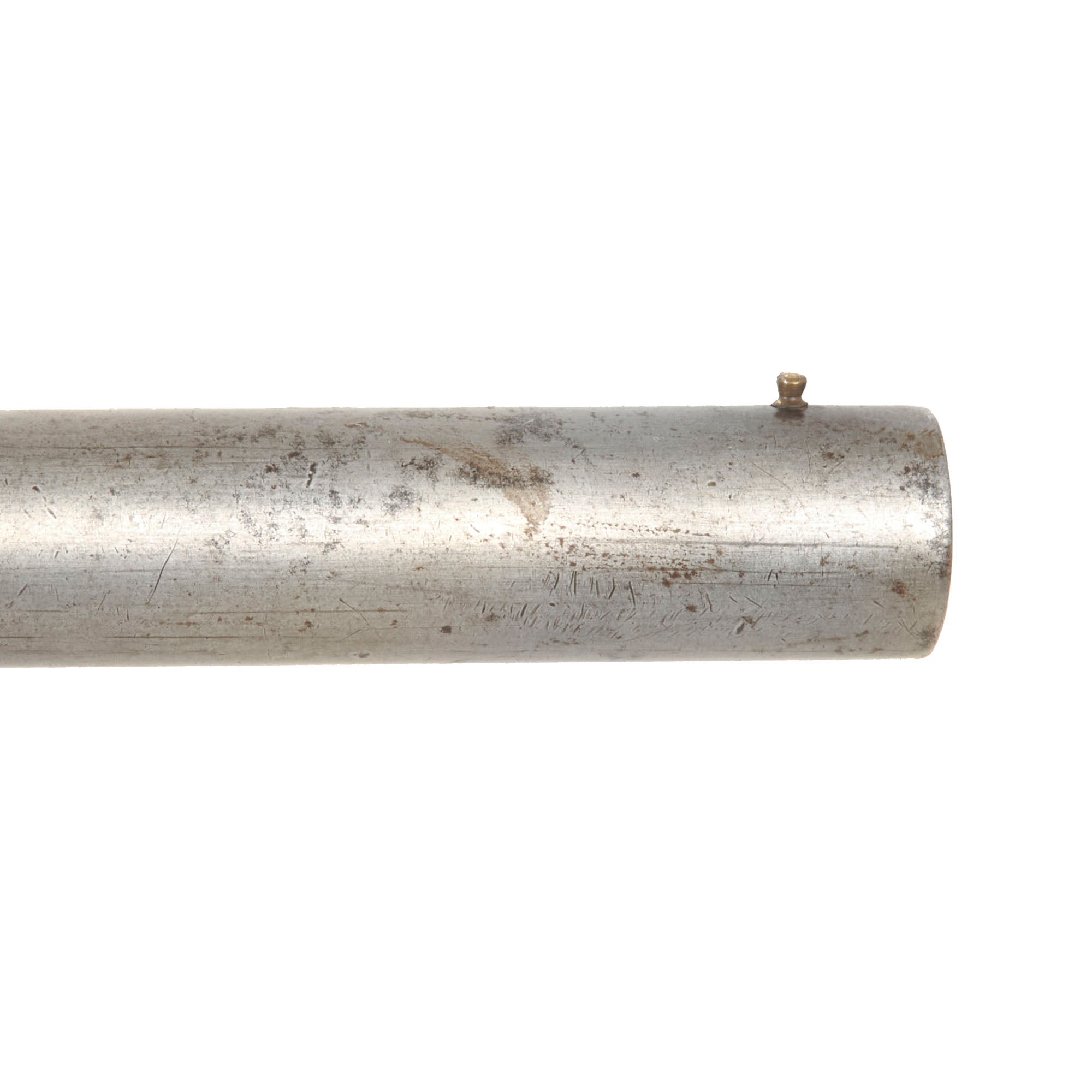

The barrel retains its brass bead front sight. Rear sighting reference is provided by the groove along the top of the receiver.

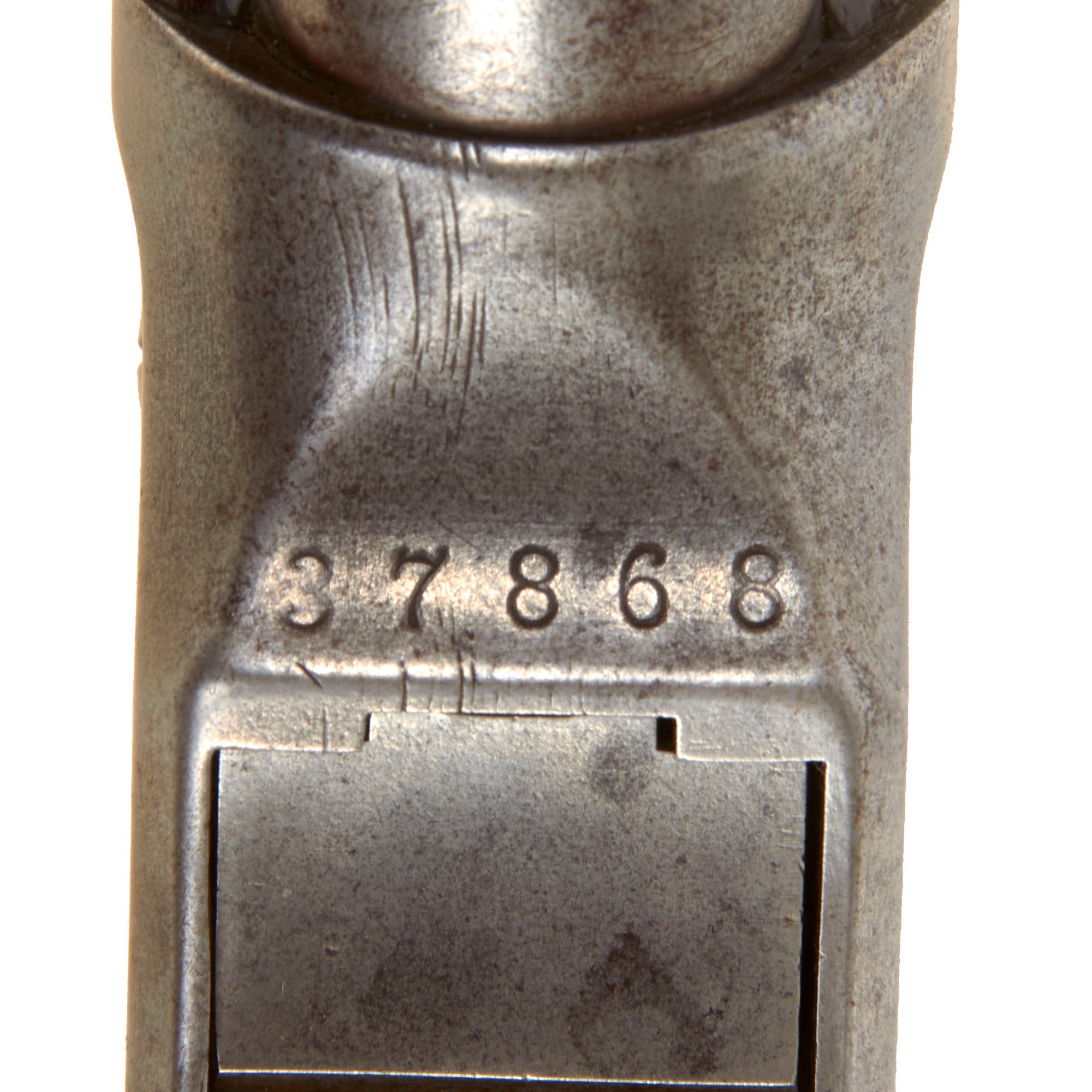

The serial number is stamped on the underside front of the receiver:

37868

which the supplied production information from Winchester dates to 1891.

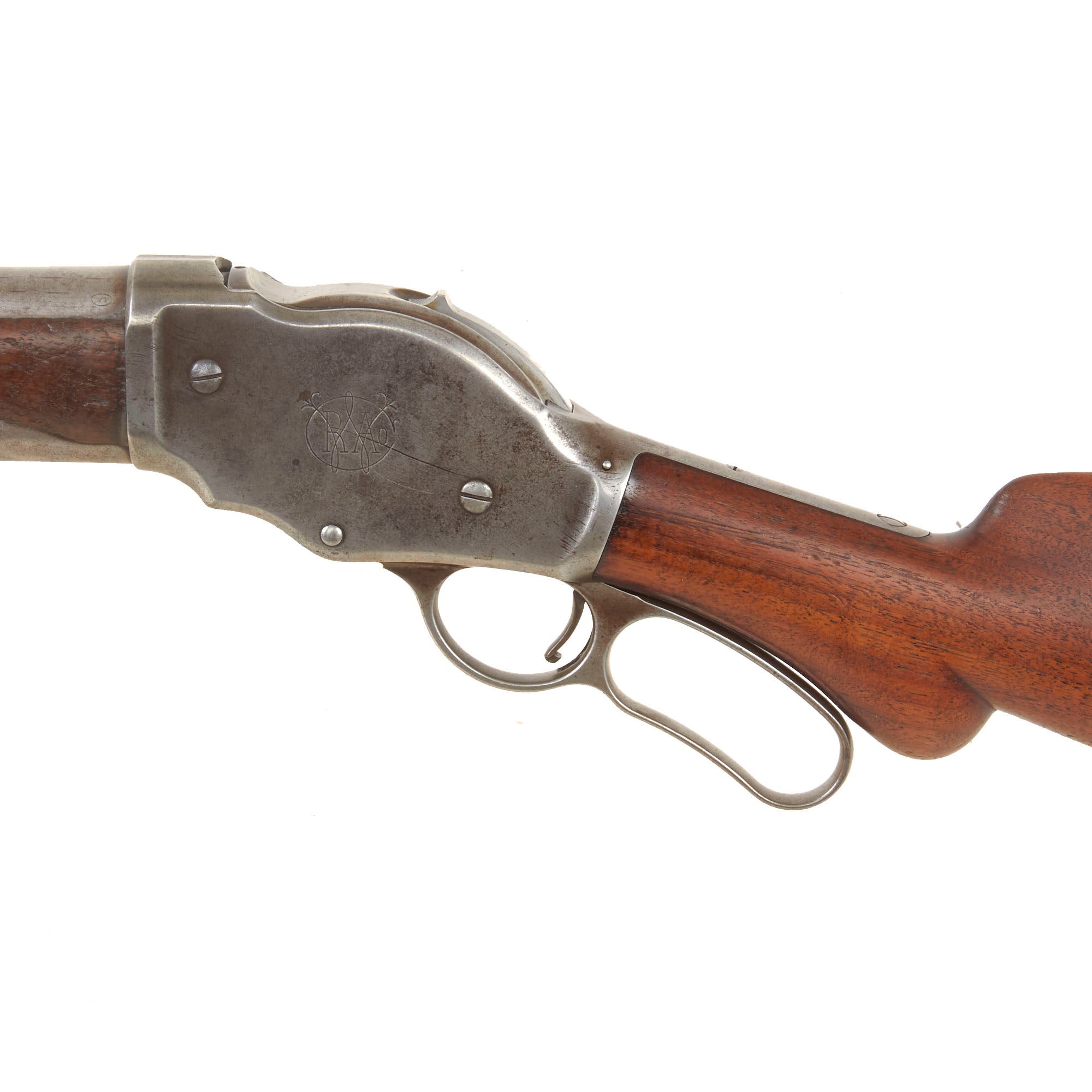

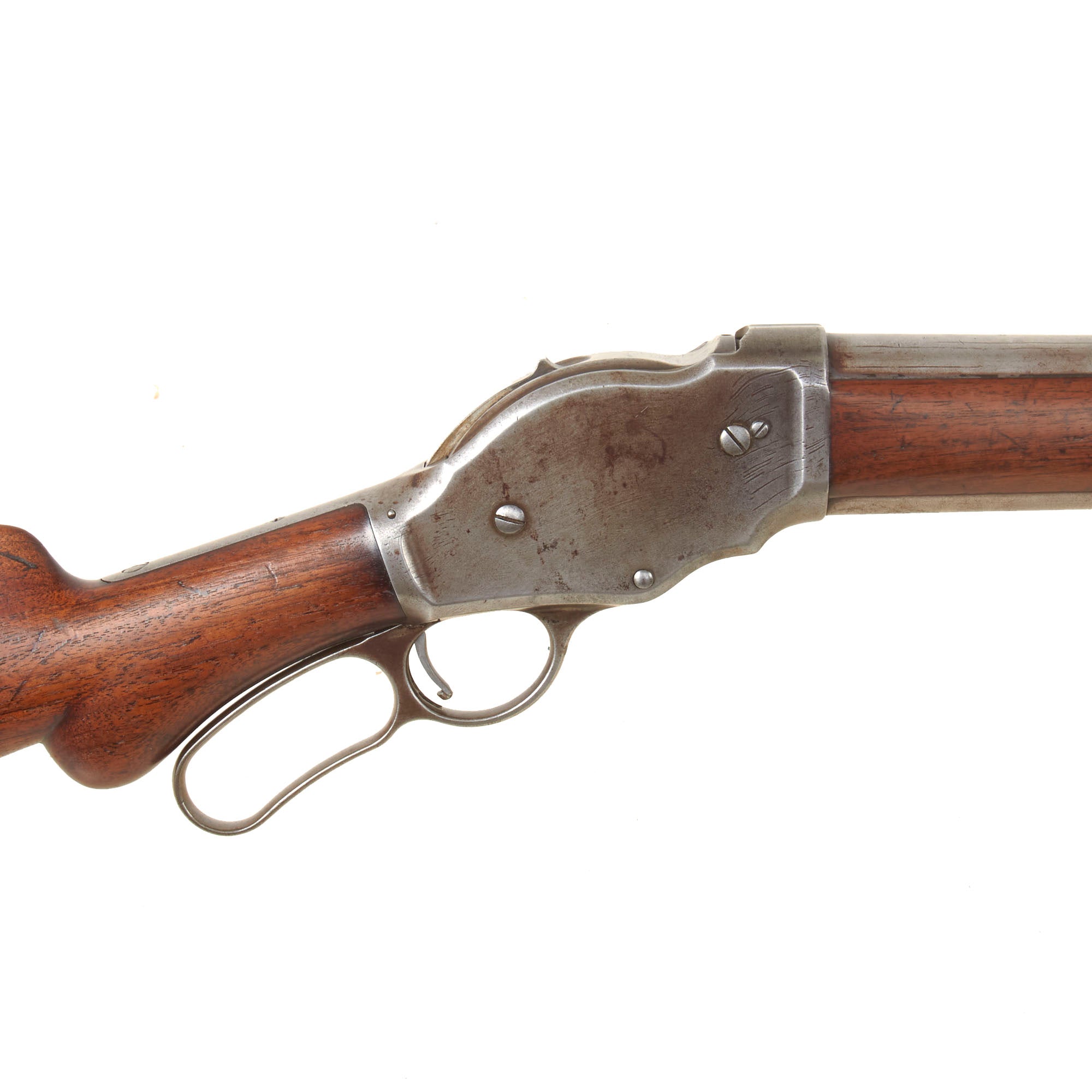

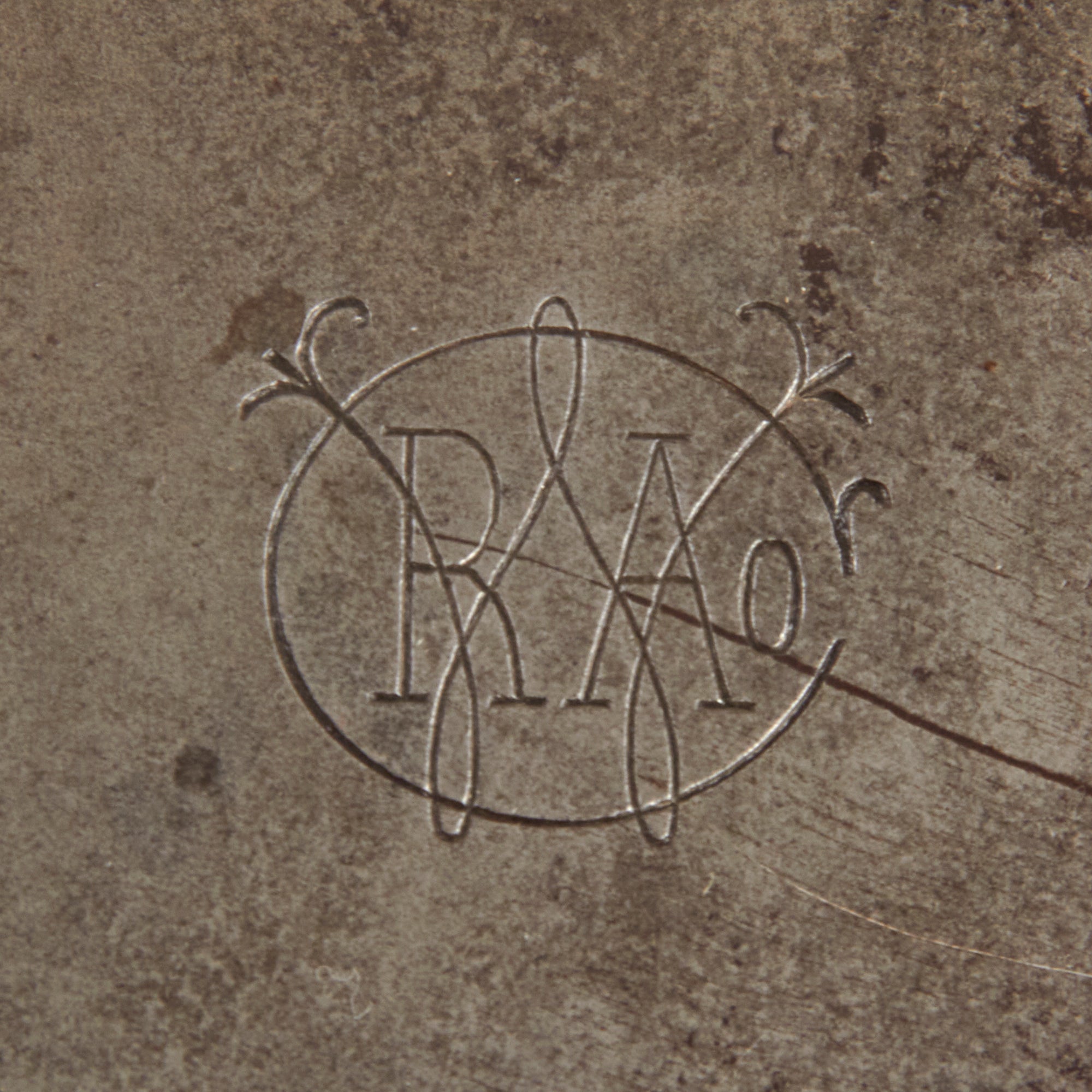

The left side of the receiver carries the overlapping:

W R A Co

monogram.

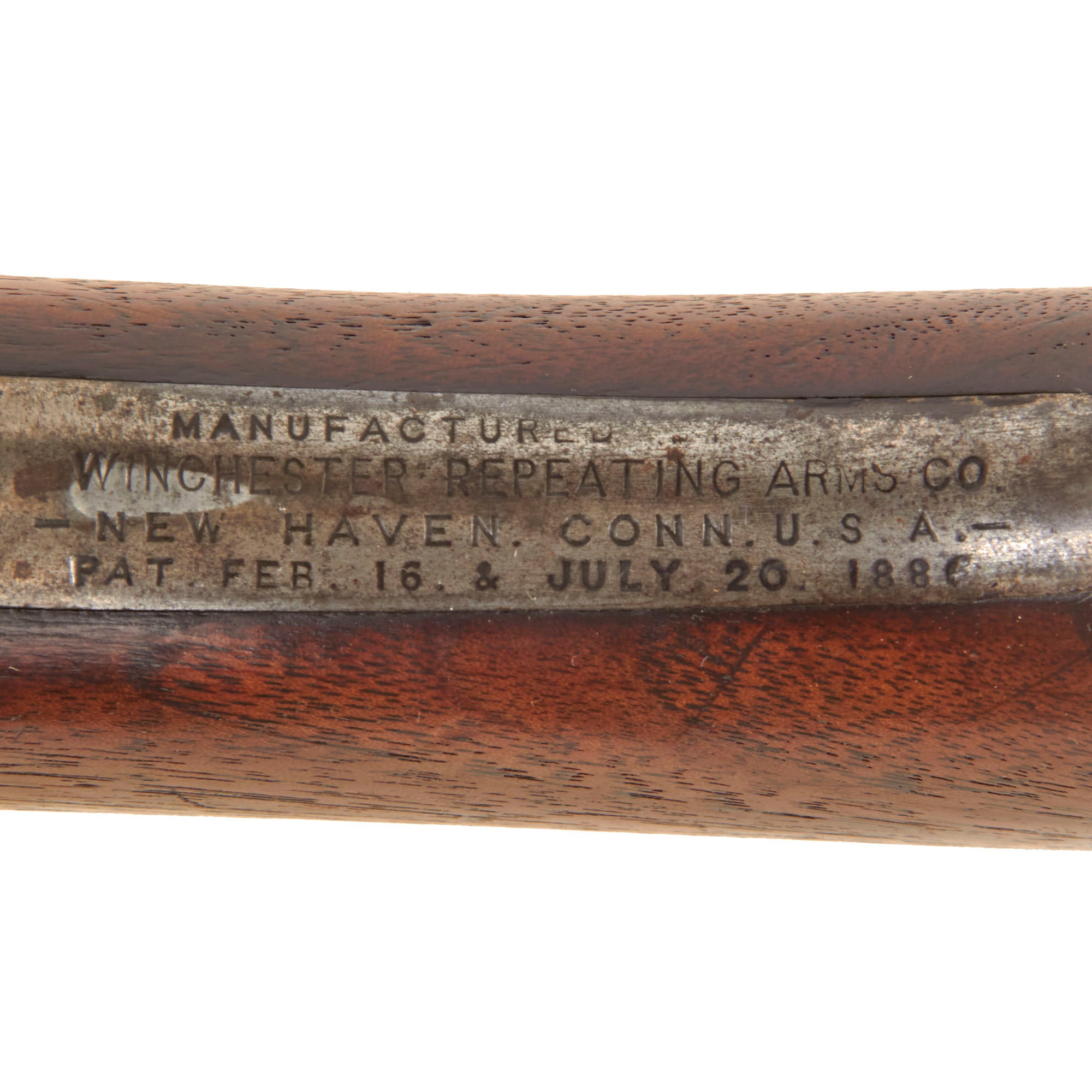

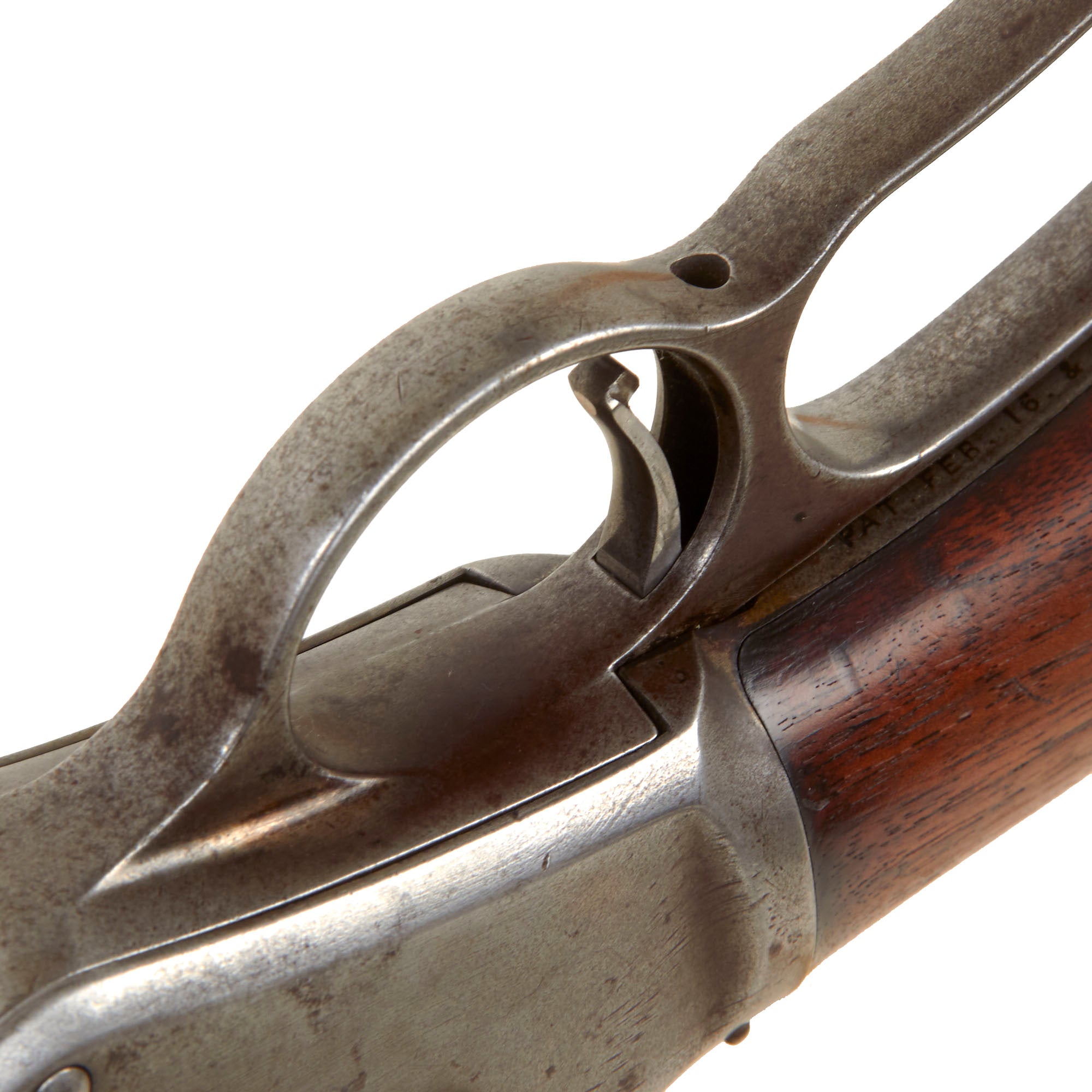

The lower receiver tang is clearly marked:

MANUFACTURED BY THE
WINCHESTER REPEATING ARMS CO.
🡒 NEW HAVEN. CONN. U. S. A. 🡐
PAT. FEB. 16 & JULY 20. 1886.

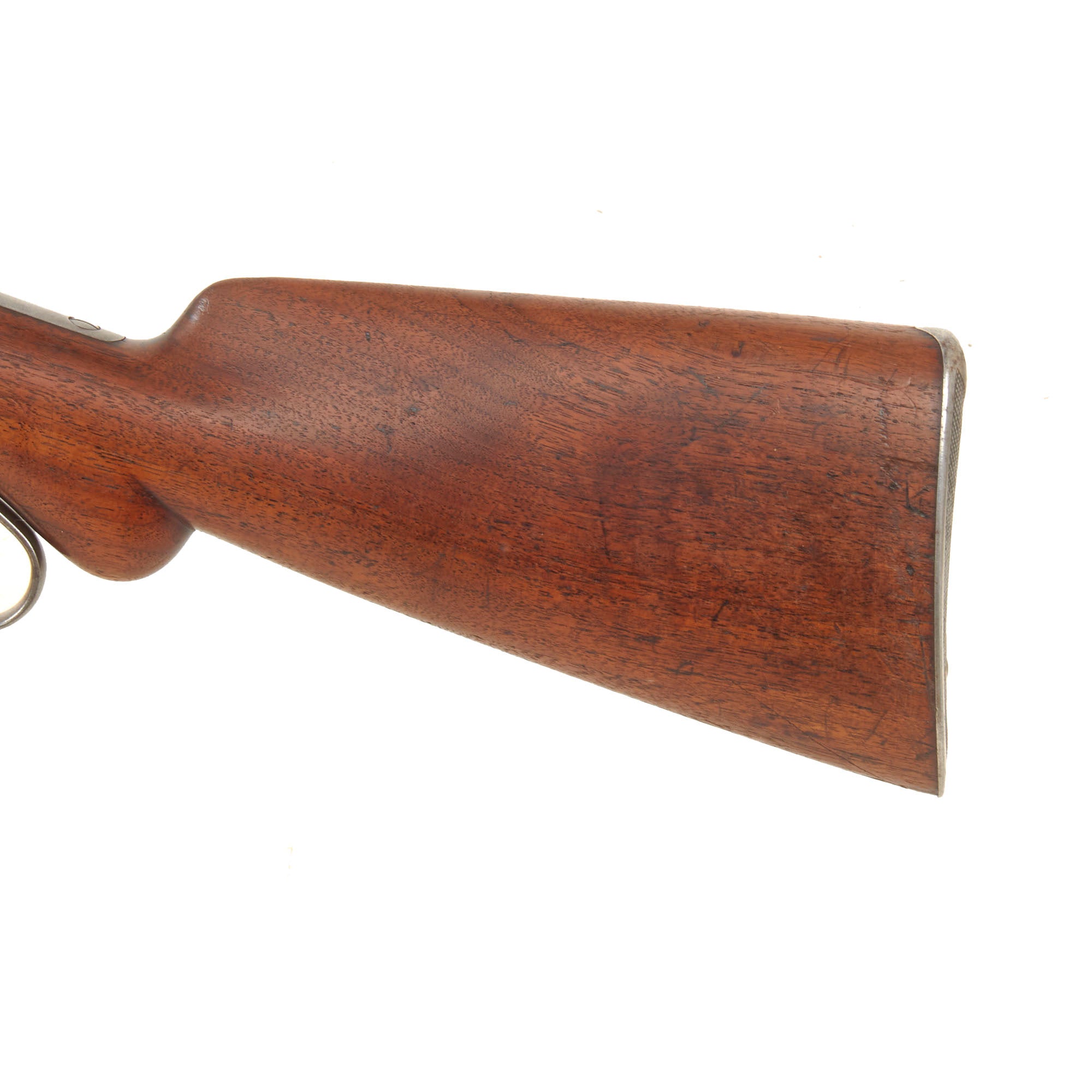

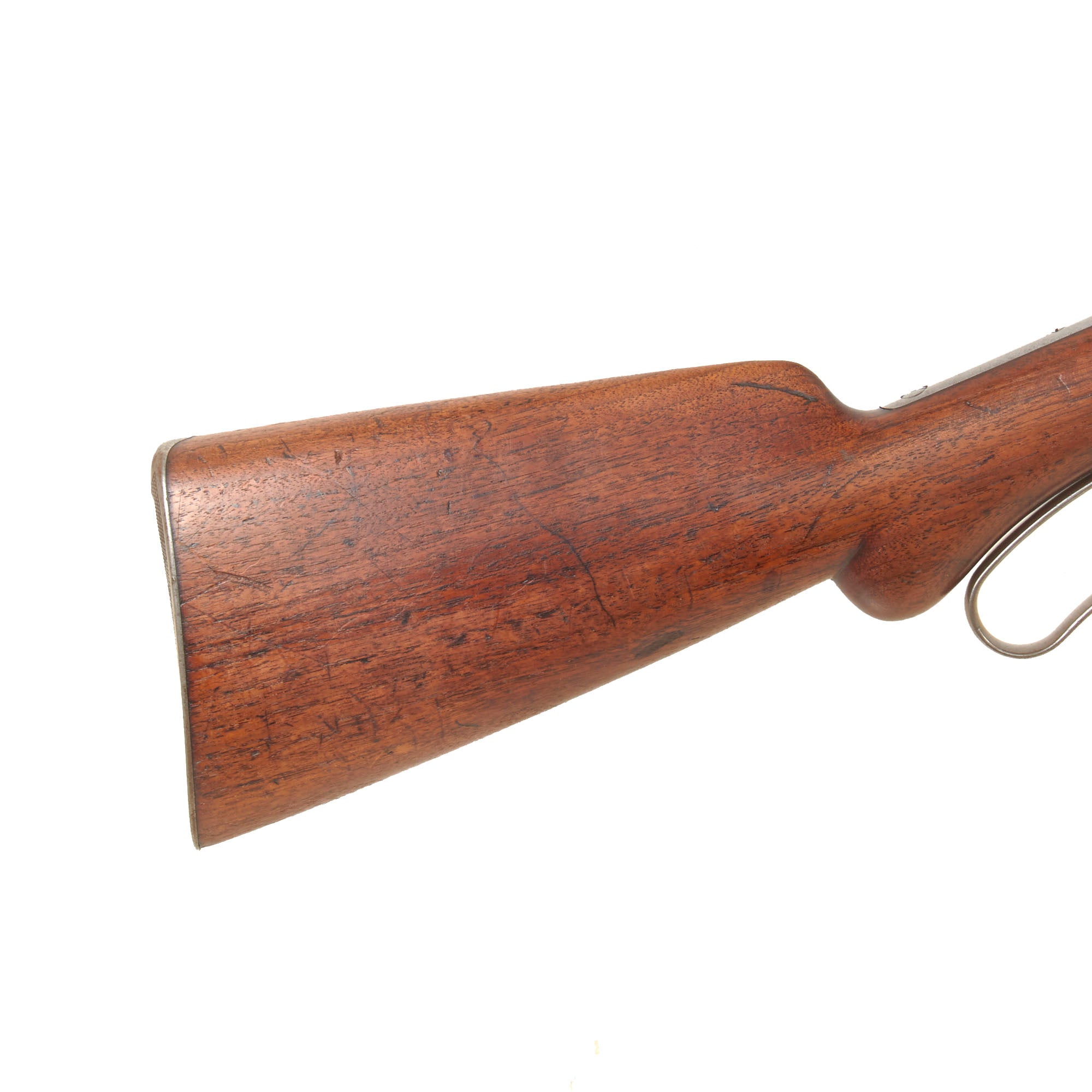

The walnut buttstock has an attractive red brown color and appears to retain an oil and wax type finish. It shows the expected scratches, dents, and handling marks of a well used period shotgun, but no major structural cracks or repairs are described.

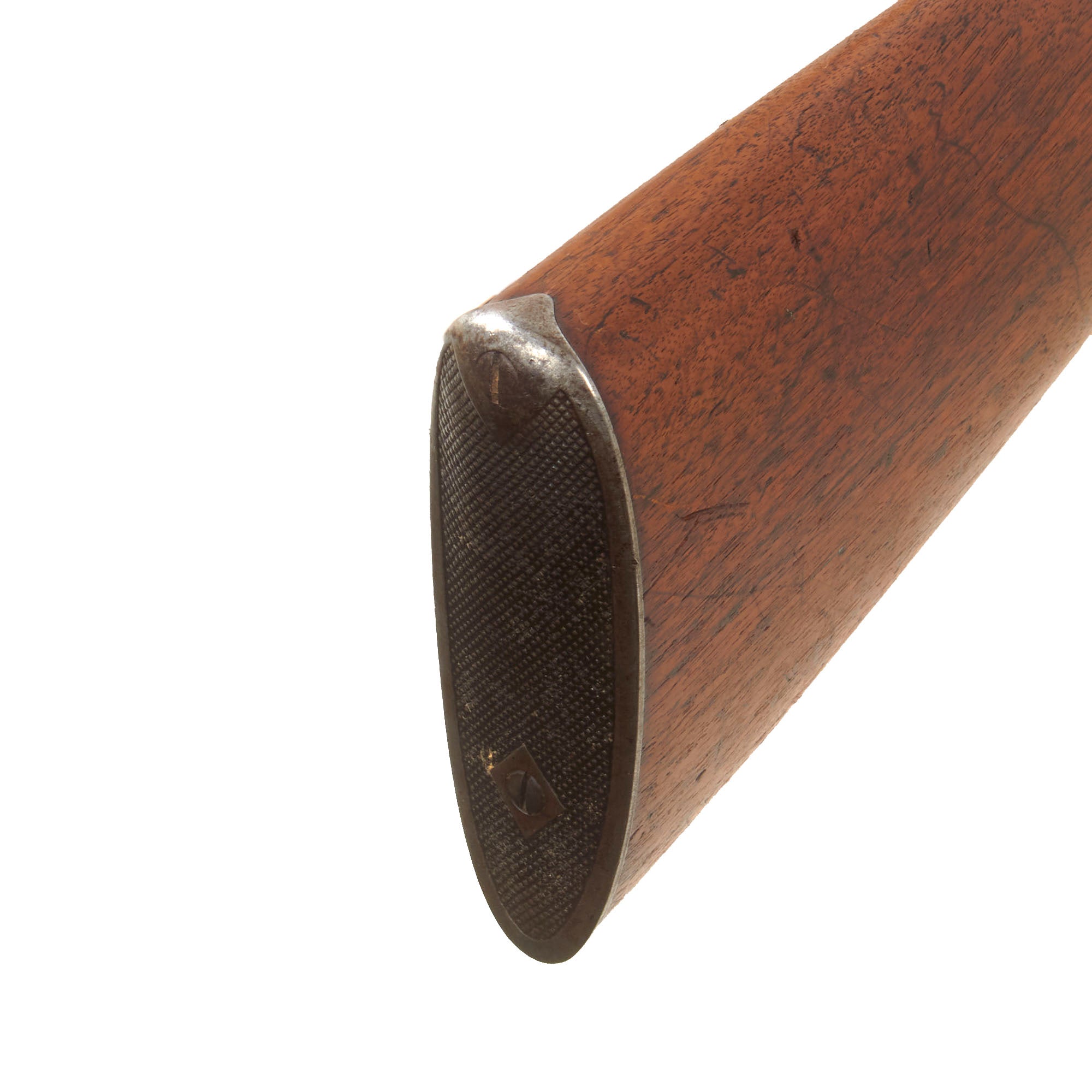

The buttstock has a carved pistol grip profile and is fitted with a factory checkered metal buttplate. The wood sits slightly below the level of the receiver where the two meet, indicating some loss of wood at the wrist over time. The buttplate also stands slightly proud of the surrounding stock surface.

The fore stock shows more pronounced service wear, particularly on the left side immediately adjacent to the receiver, where the wood has eroded from repeated handling. There are also what appear to be scratched finger marks in this area. These may reflect the habits of a previous user, though they are not sufficient by themselves to establish left handed use with certainty.

The metalwork has matured to an attractive light matte gray patina. Small remnants of original finish survive in protected areas between the barrel and magazine tube. The surfaces show evidence of repeated light polishing over the years, but no aggressive modern refinishing or heavy grinding is described.

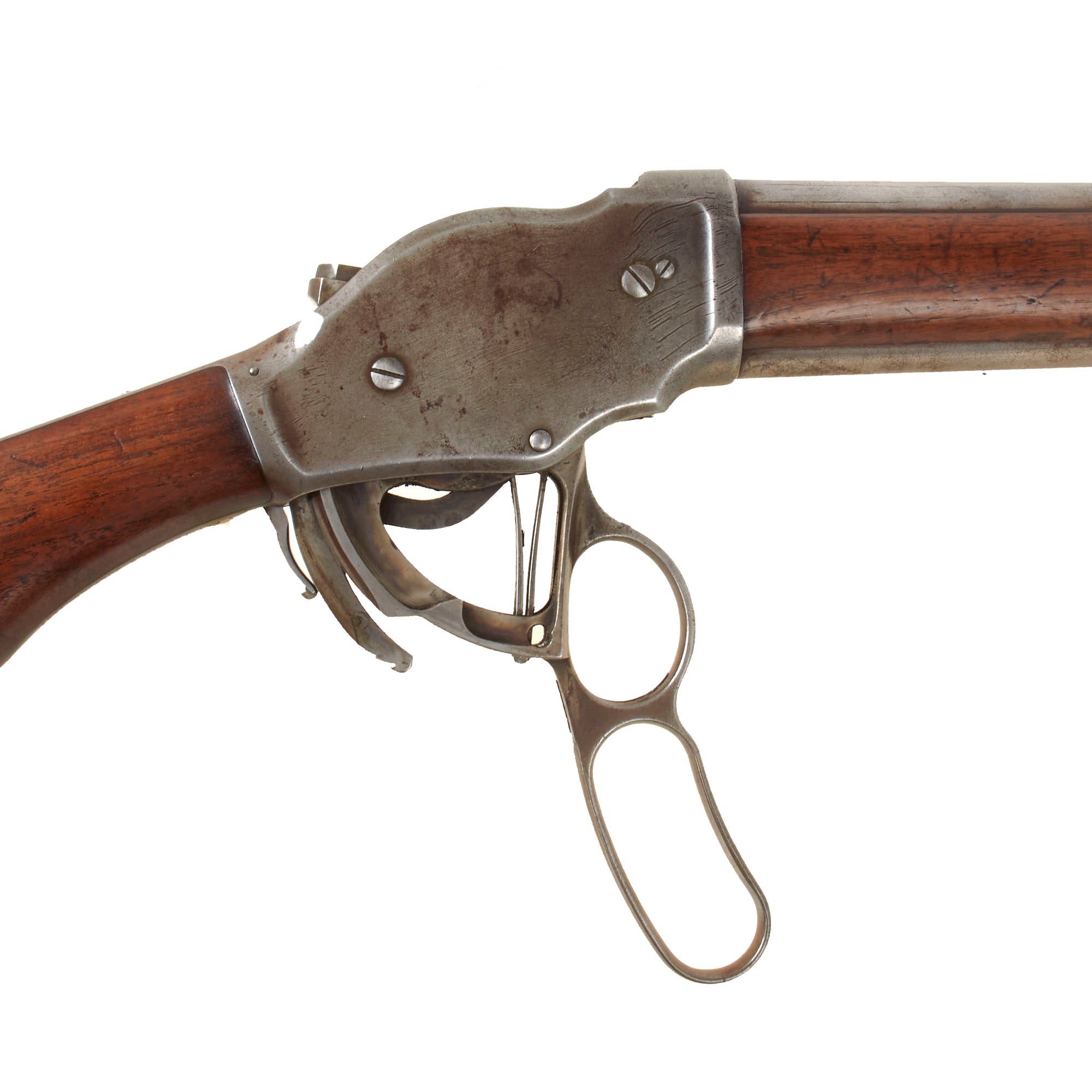

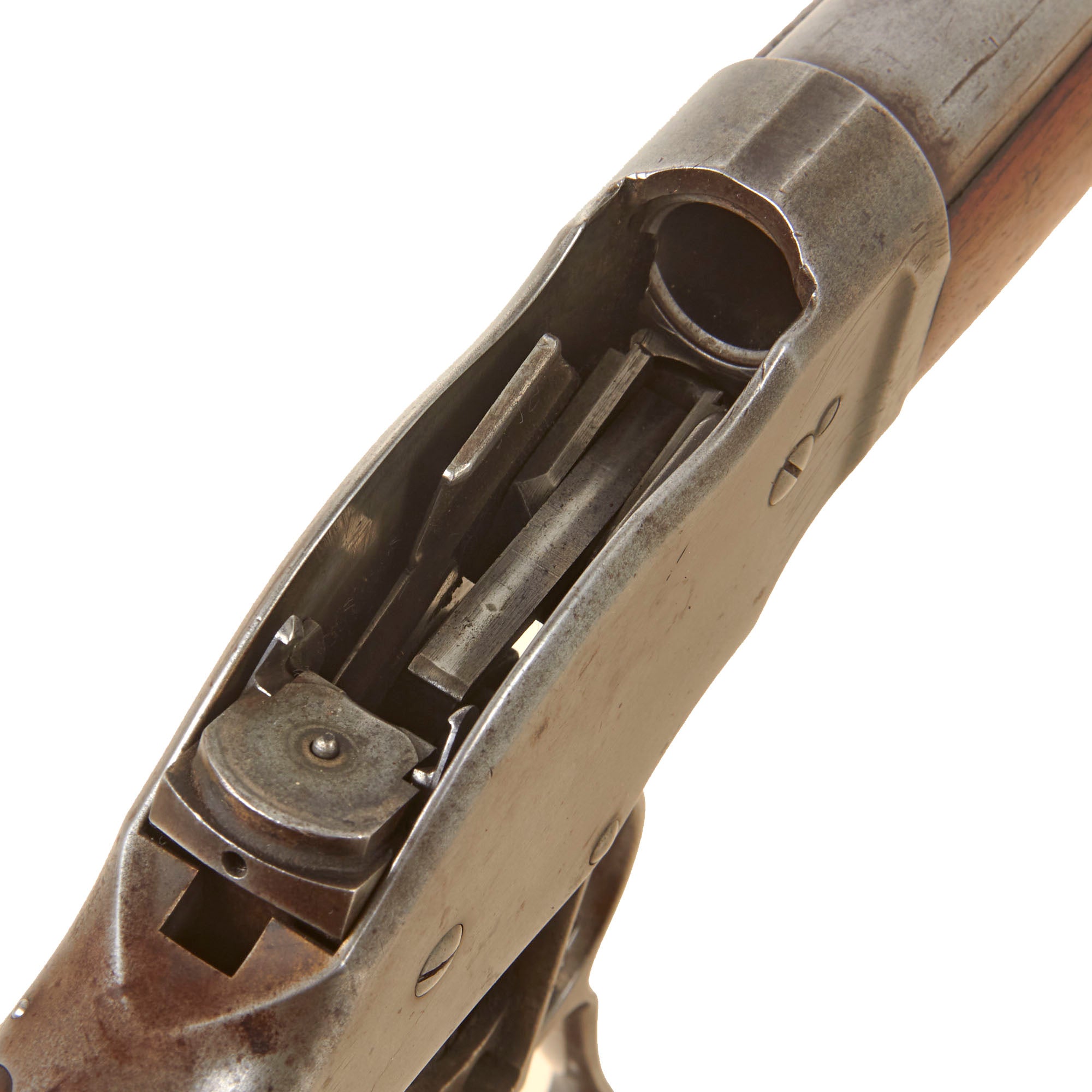

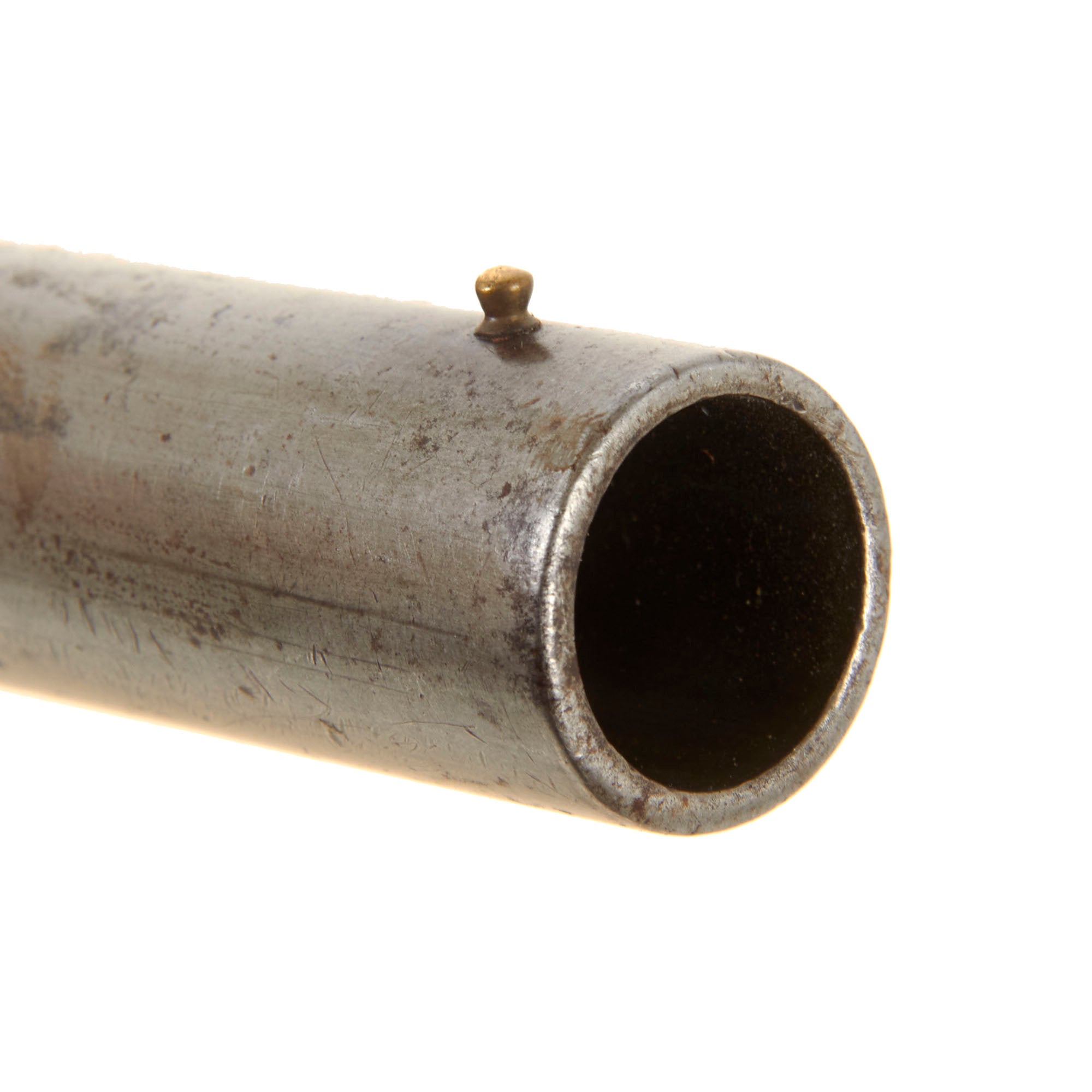

When operated by hand, the lever action cycles correctly in its present condition, and the hammer and trigger operate with a crisp release. These observations describe only the current mechanical state and were not made during live fire. The bore is unobstructed and shows evidence of old fouling and oxidation that has since been cleaned, leaving the appearance of a well used black powder shotgun bore.

With its 1891 production serial number 37868, 12 gauge chambering, 30" barrel, John M. Browning lever action design, original Winchester receiver and tang markings, walnut stocks, and honest service used patina, this is a particularly appealing Winchester Model 1887. The uncertain significance of the oval WP barrel mark, possible factory or later barrel history, stock wear at the receiver and buttplate, heavily handled fore stock, light polishing, and cleaned bore oxidation are all fully disclosed. It would display especially well in a Winchester lever action, John M. Browning design, early repeating shotgun, black powder sporting arm, or advanced 19th century American firearms collection.

Specifications-

Year of Manufacture: 1891
Manufacturer: Winchester Repeating Arms Company
Model: 1887
Serial Number: 37868
Caliber: 12 gauge
Cartridge Type: Centerfire Cartridge
Barrel Length: 30 Inches
Overall Length: 46 3/4 Inches
Action type: Lever Action Repeater
Feed System: 5 + 2 magazine (5 in the tube, one in the chamber, one in the carrier)
Federal Classification: Pre-1899 Antique

The Winchester Model 1887 (Dellosso Shotgun) is a lever-action shotgun originally designed by famed American gun designer John Browning and produced by the Winchester Repeating Arms Company during the late 19th century. It was a black-powder design, and was replaced by the similar Model 1901, which was designed to handle smokeless powder, but was otherwise identical.

The Model 1887 was one of the first successful repeating shotguns. Its lever-action design was chosen at the behest of the Winchester Repeating Arms Company, best known at the time as manufacturers of lever-action rifles such as the Winchester Model 1873. Designer John Browning suggested that a pump-action would be much more appropriate for a repeating shotgun, but Winchester management's position was that, at the time, the company was known as a "lever-action firearm company", and felt that their new shotgun must also be a lever-action for reasons of brand recognition. Browning responded by designing a breech-loading, rolling block lever-action. To Winchester's credit, however, they later introduced a Browning designed pump-action shotgun known as the Model 1893 (an early production version of the model 1897), after the introduction of smokeless powder.

Shotgun shells at the time used black powder as a propellant, and so the Model 1887 shotgun was designed and chambered for less powerful black powder shotshells. Both 10 and 12-gauge models were offered in the Model 1887; 12-gauge variants used a 2 5/8" shell, 10-gauge variants fired a 2 7/8" shell. The standard barrel length was 30" with 32" available as a special order. In 1888 a 20" barrelled version could be ordered and Winchester offered the shotguns with Damascus barrels.
