Original item: One of a Kind. The Model 1795 was the first musket to be produced in the United States by Springfield and Harper's Ferry Arsenals, as well as contractor Eli Whitney. It was based heavily on the Charleville musket, Model 1763/66, which had been imported in large numbers from the French during the American Revolution, and which at the time comprised the largest number of muskets in U.S. arsenals at about 20,000 muskets. Several differences between the Springfield Model 1795 and the Harpers Ferry Model 1795 have led many to label the Harpers Ferry version as a significantly different model. The Model 1795 was used in the War of 1812, after which shortcomings in both the design and manufacturing process of the Model 1795 led to the development of the Model 1812 Musket at Springfield only, and eventually the Model 1816 Musket muskets at both armories.

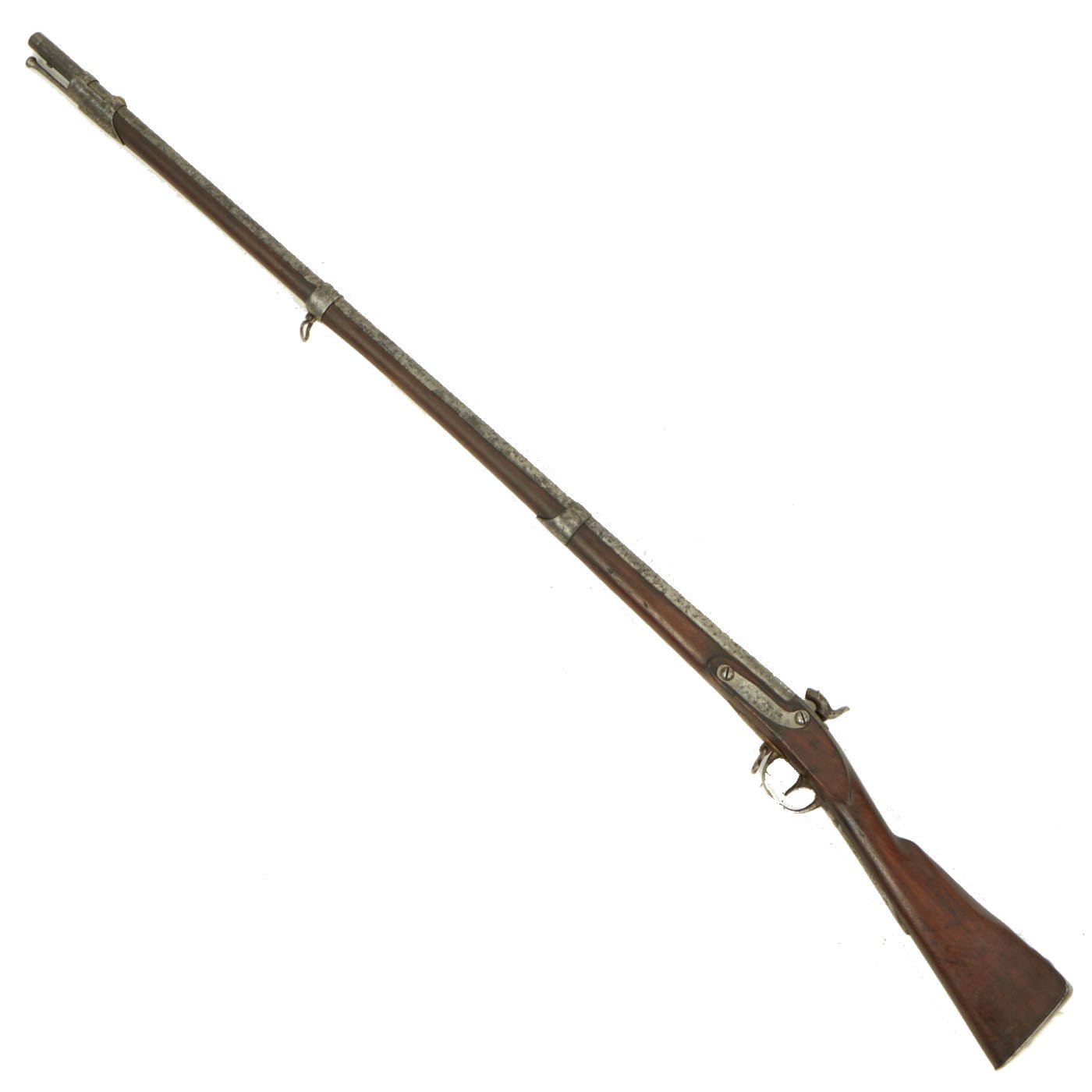

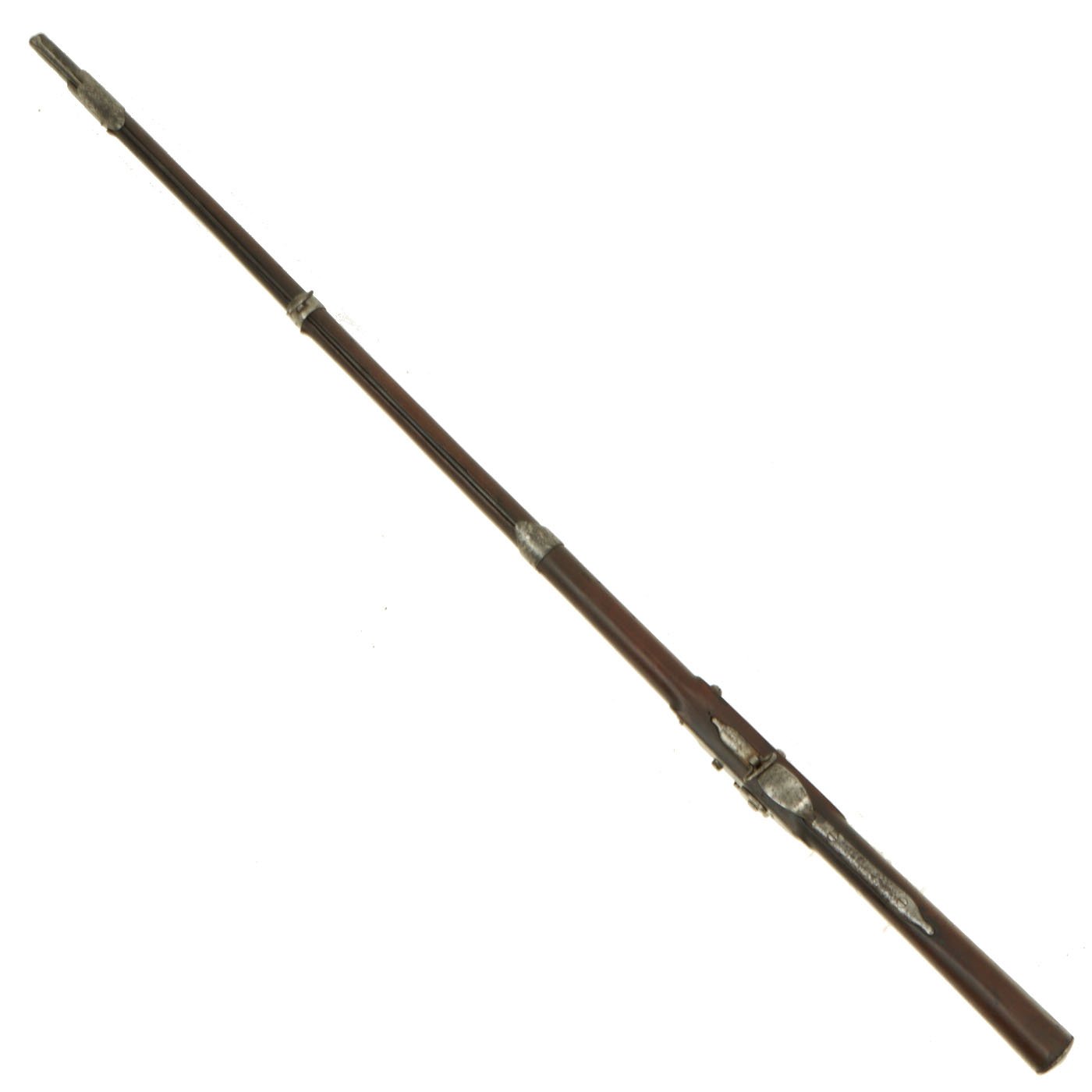

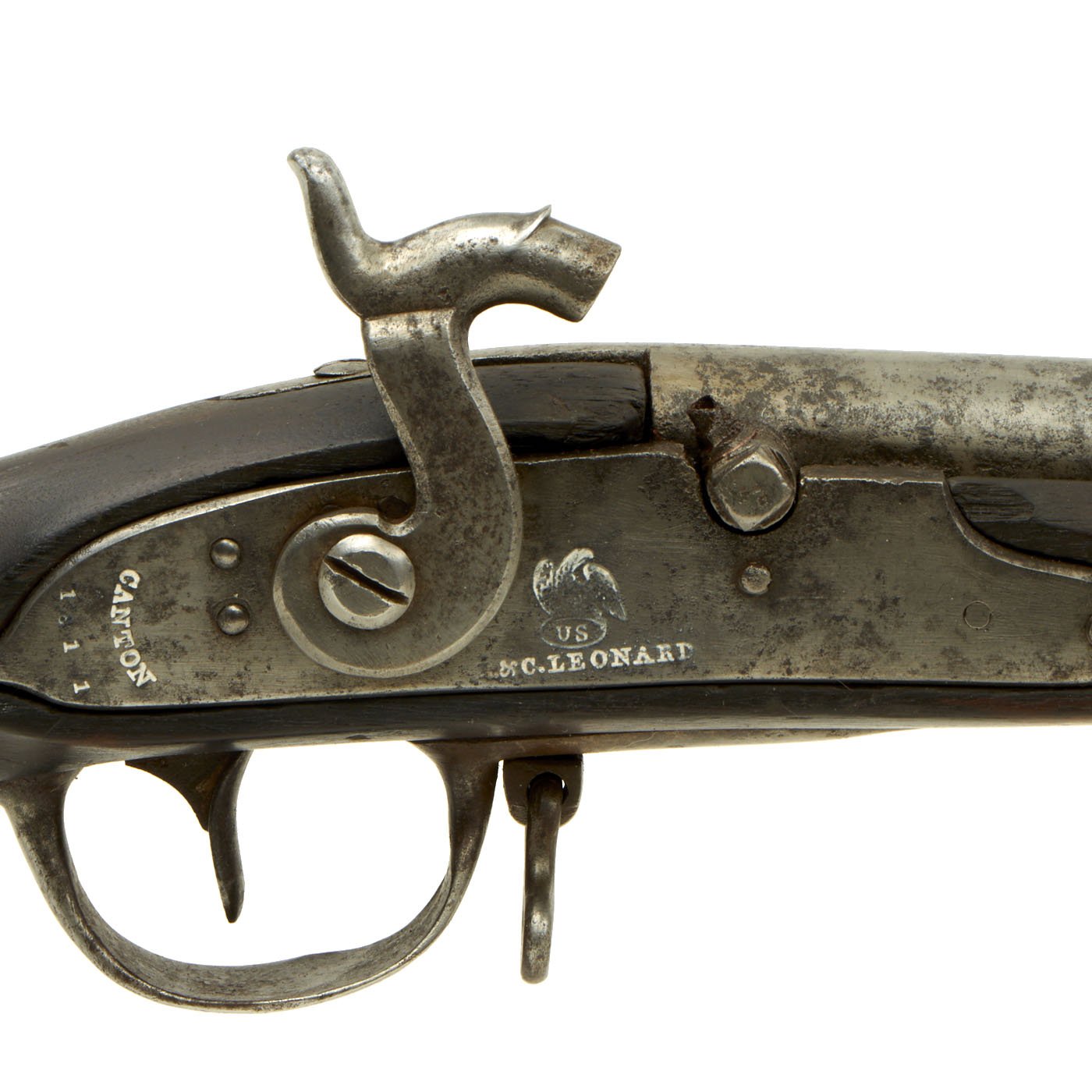

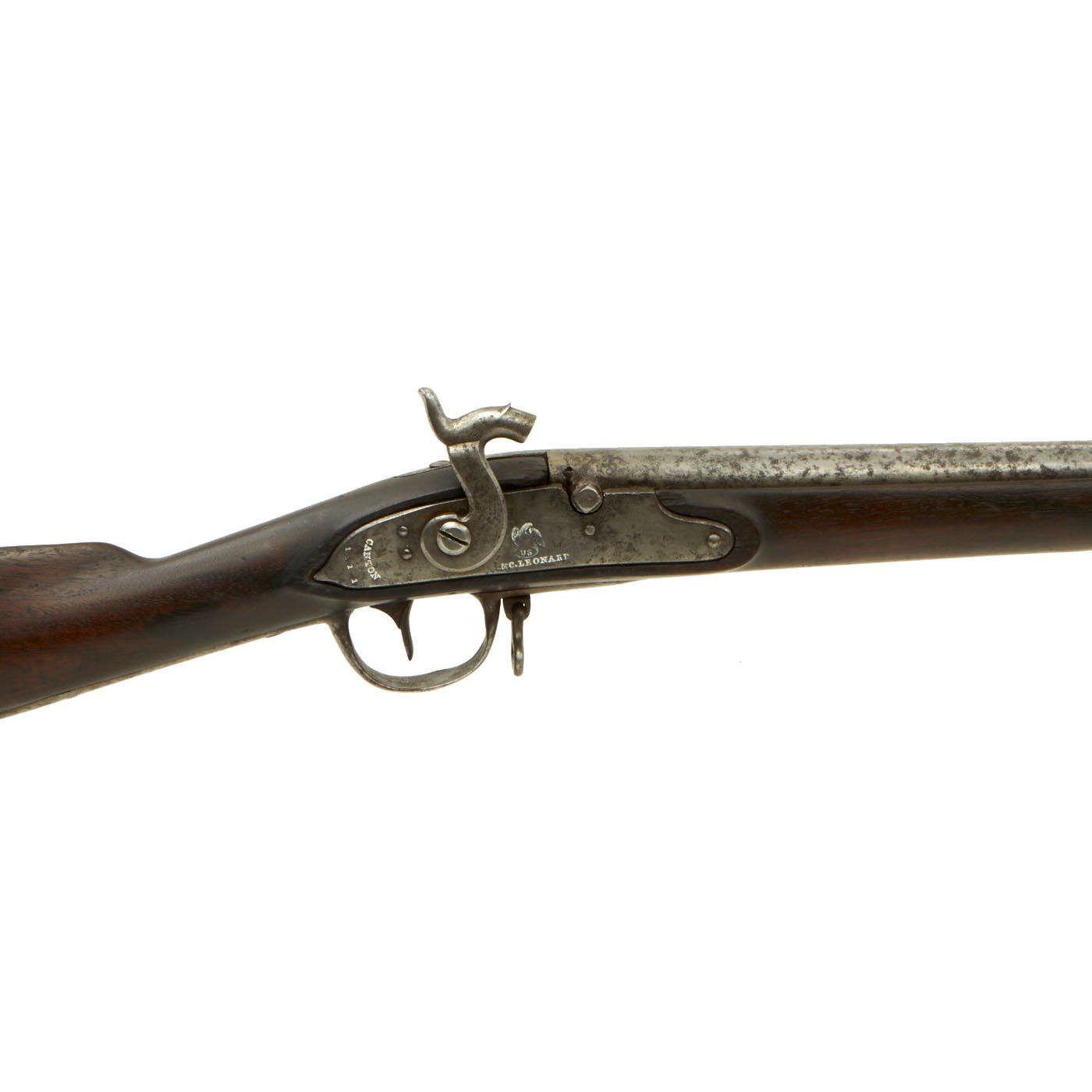

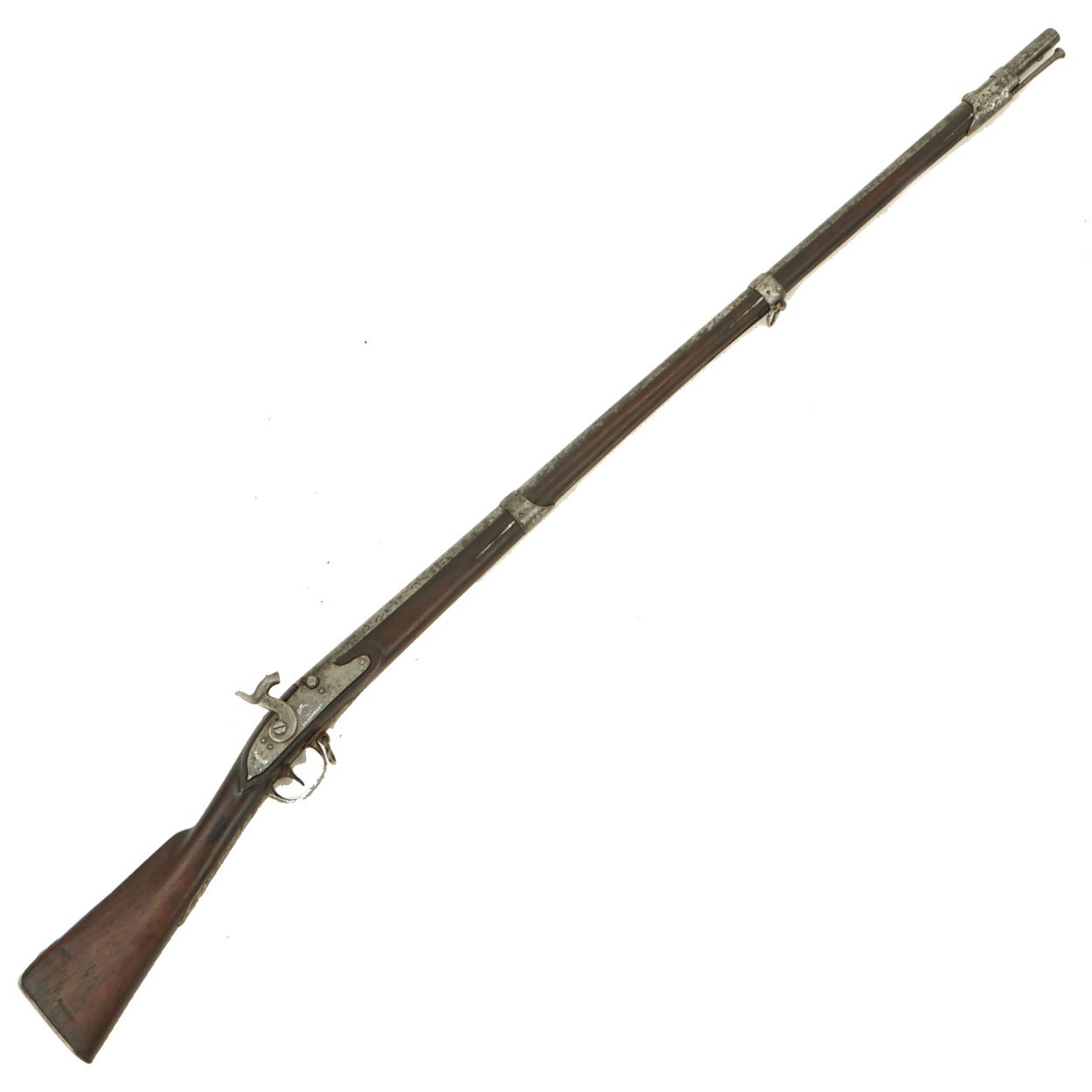

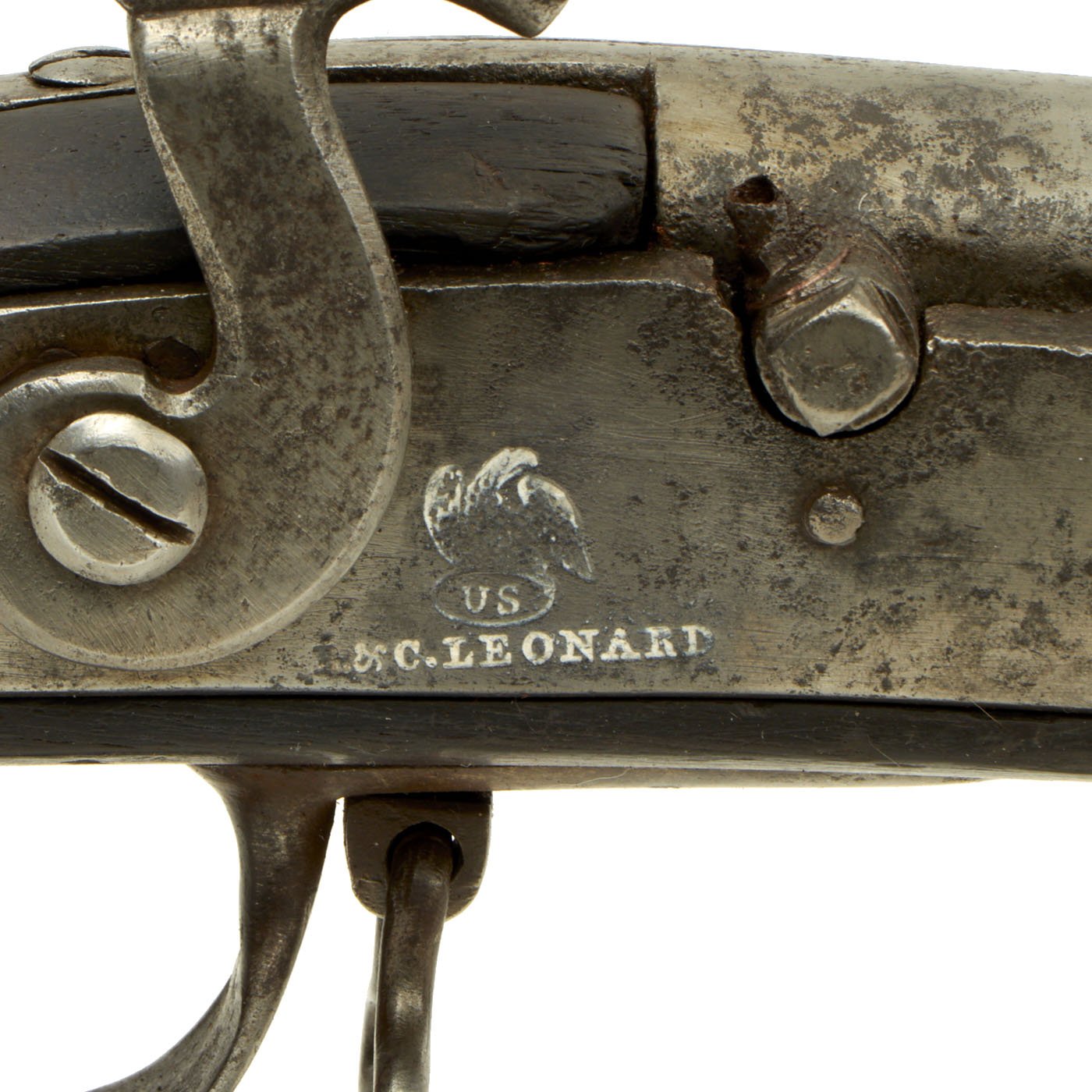

Later on, many U.S. Flintlock muskets were converted to Percussion, both at local and national level, as it was a far more reliable ignition system, which also took less time to load. Here we offer a very nice U.S. Model 1795 .69 Caliber Percussion Converted Infantry musket, made under contract, as many were. The lock plate is still clearly marked:

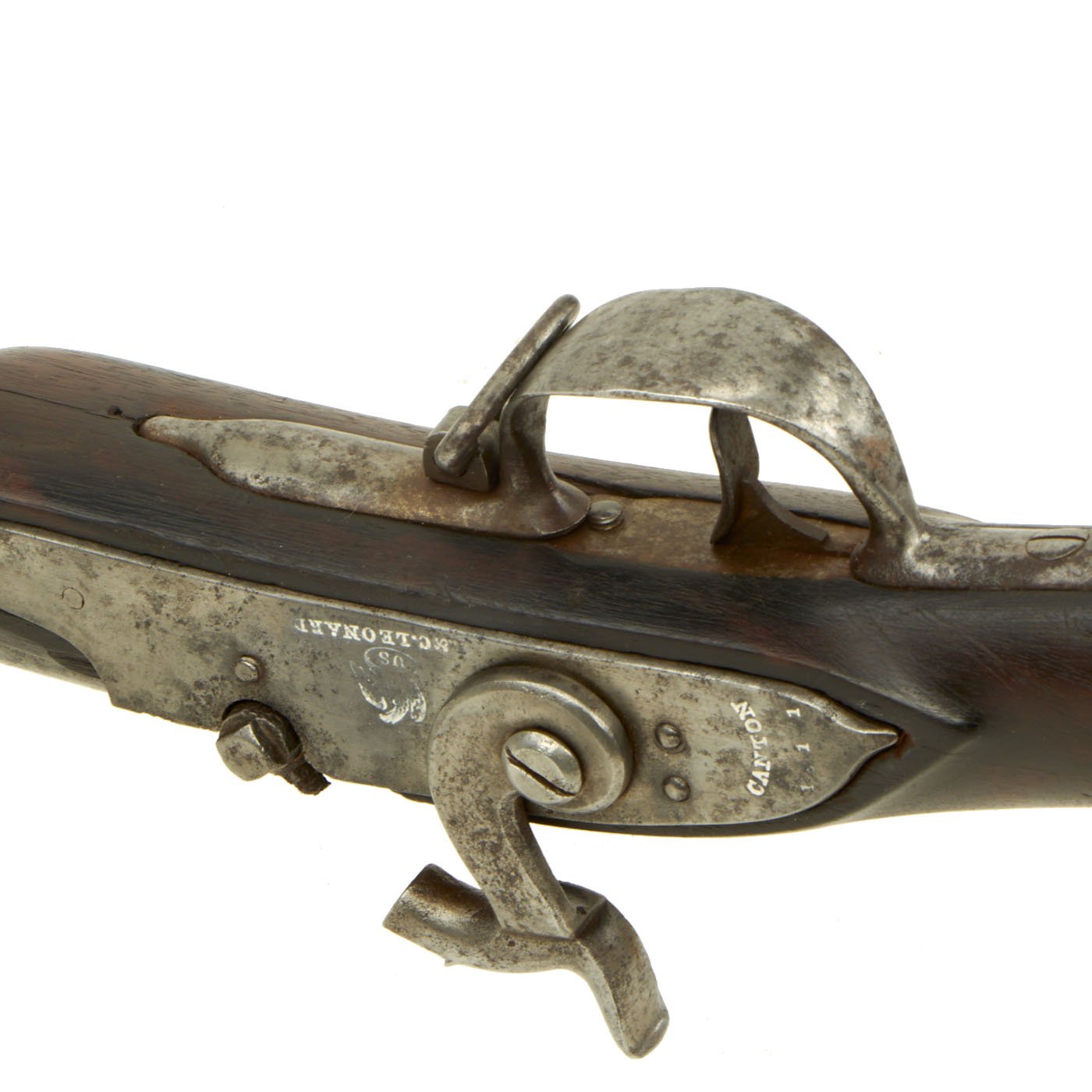

Additionally, the lockplate tail is marked:

This musket was contract made by Rudolph and Charles Leonard of Canton, Massachusetts. They manufactured 4,208 Harpers Ferry pattern Model 1795 muskets between 1808 and 1814, which are sometimes referred to as the Model 1808. These are quite rare to find from this maker, even percussion converted examples.

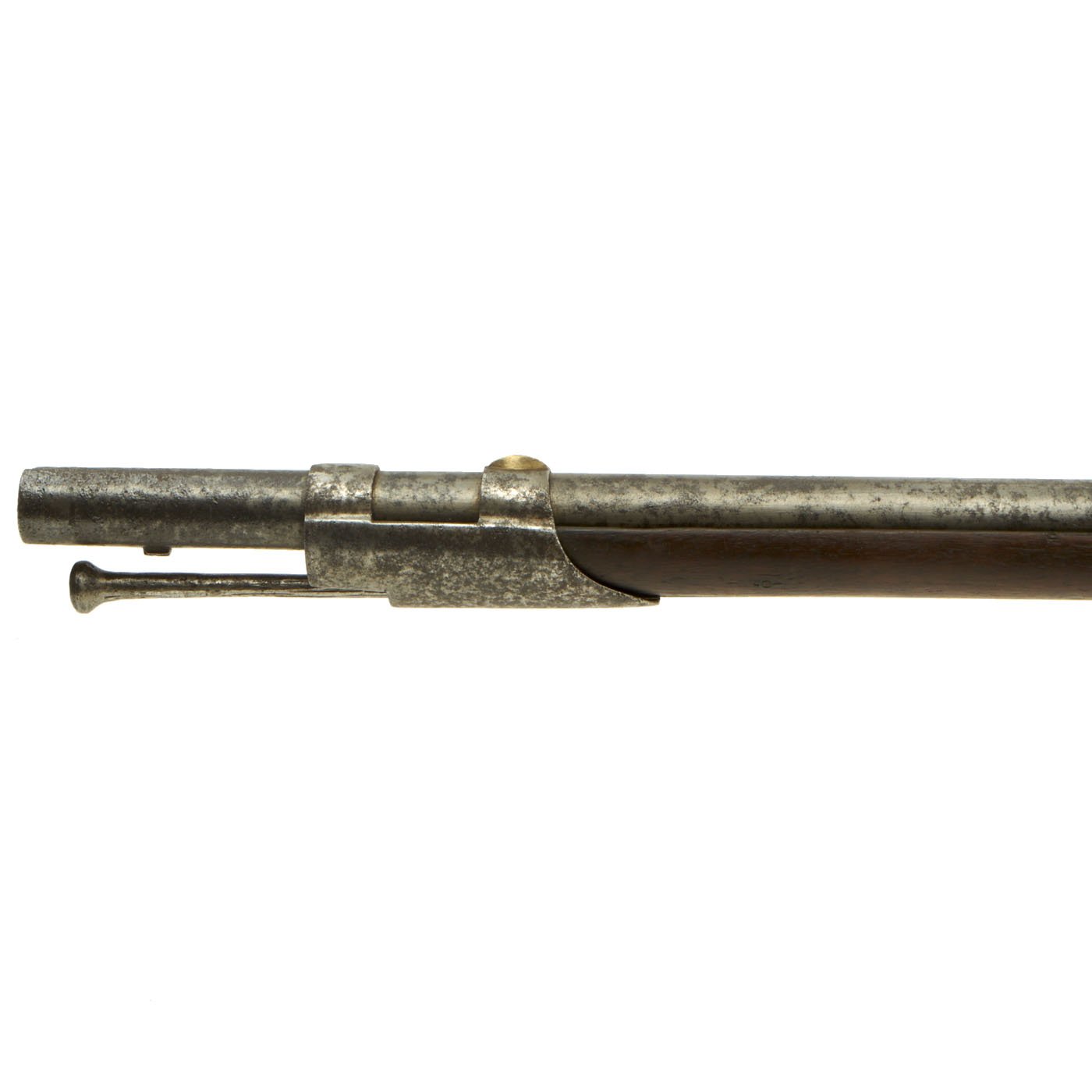

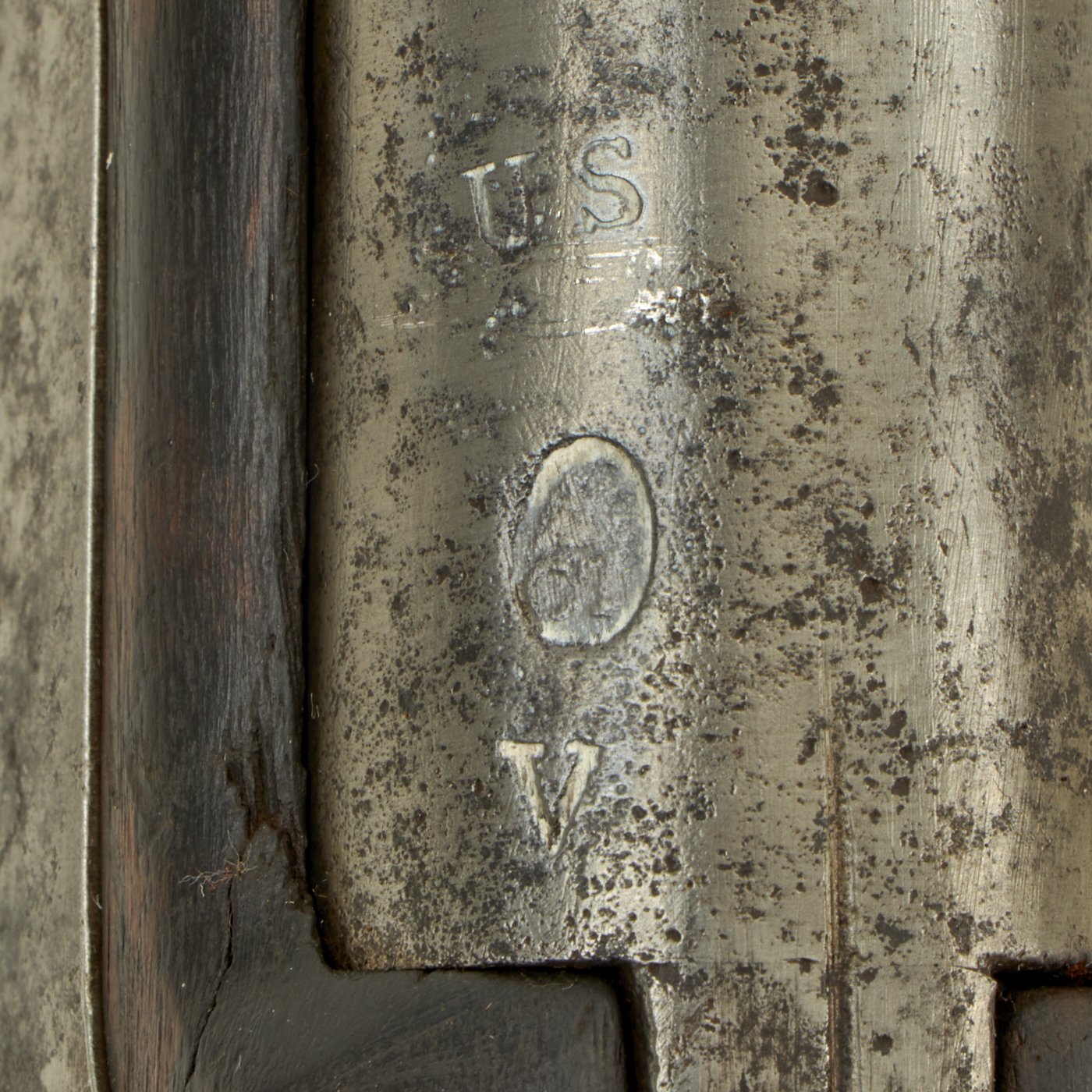

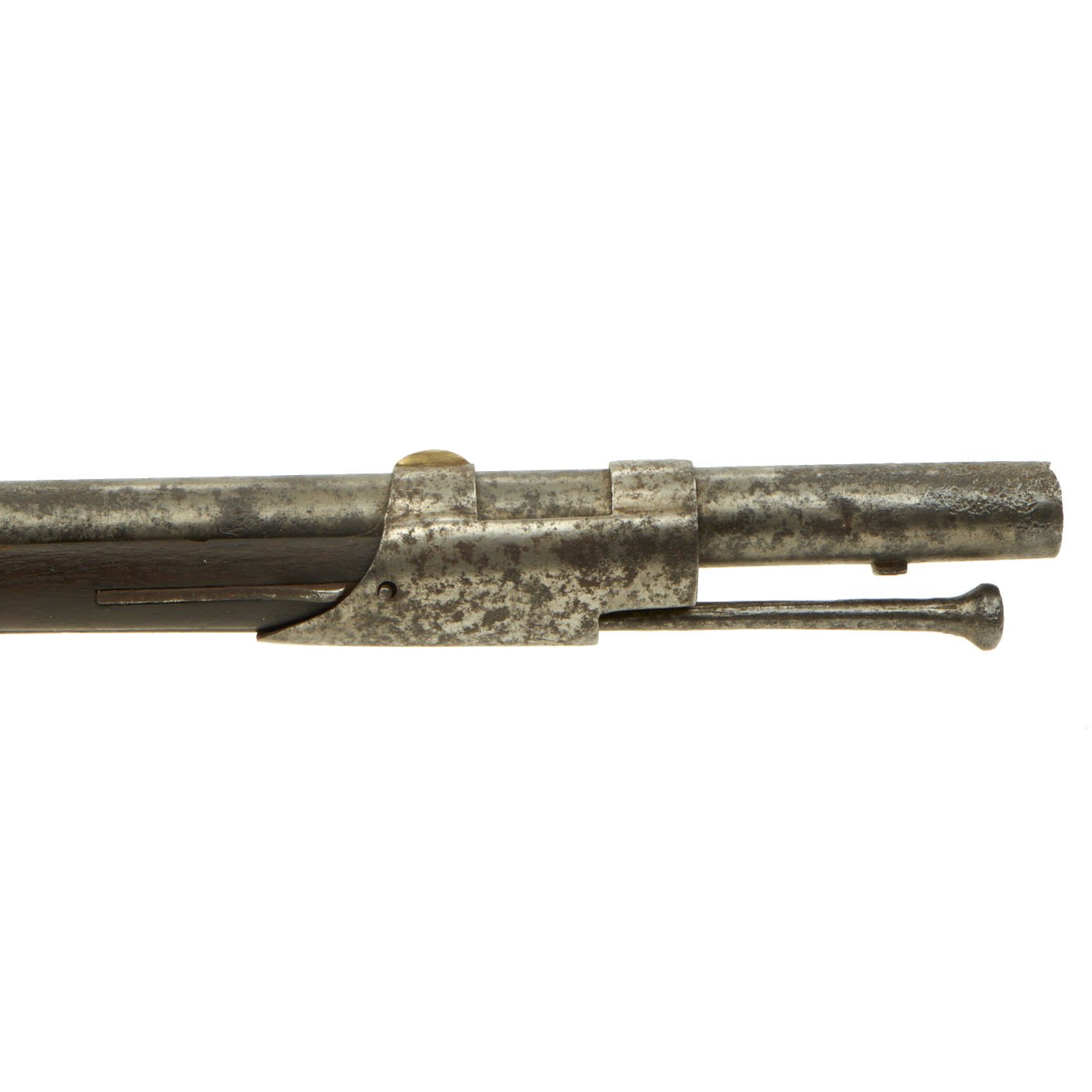

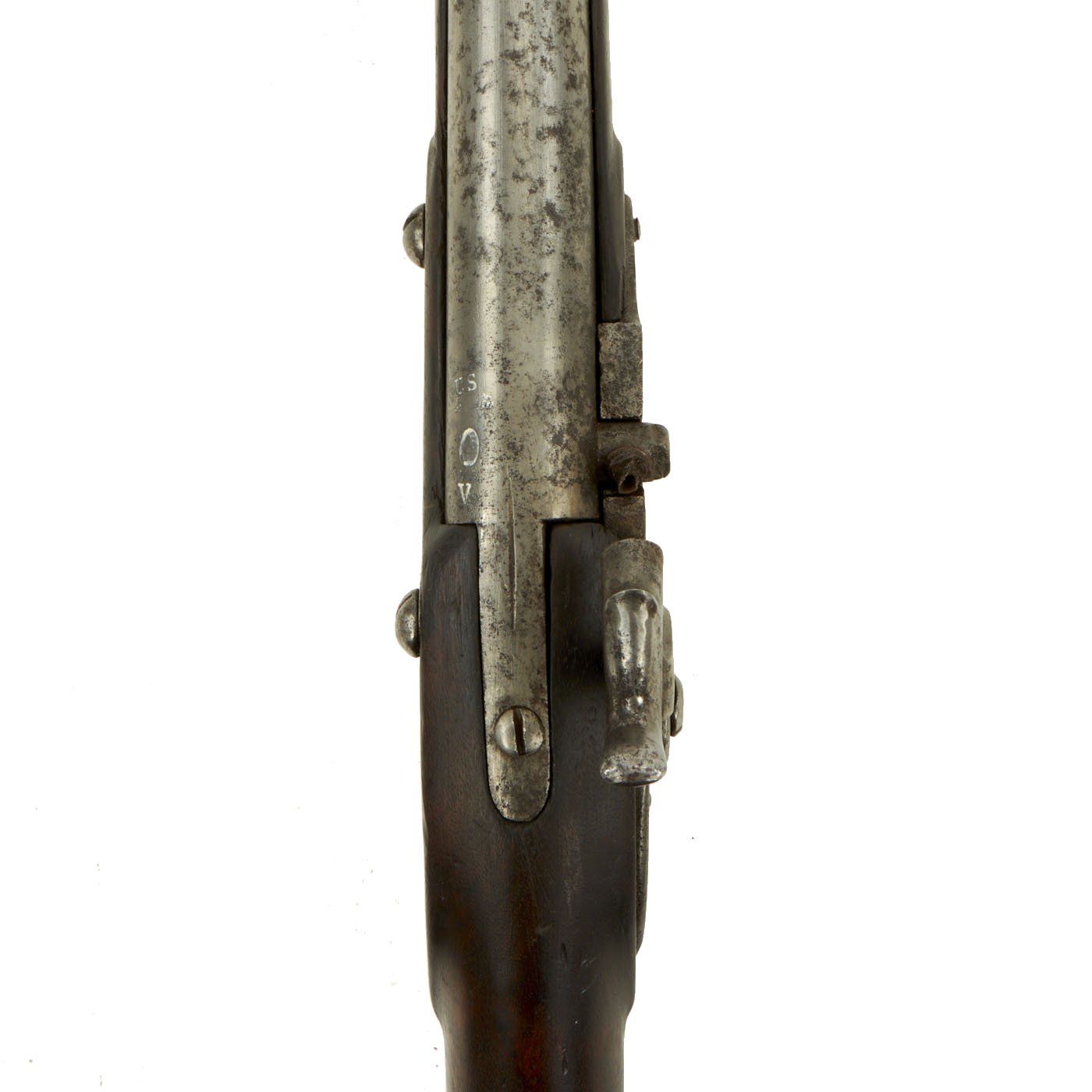

There is another U.S. marking over proof marks of an Eagle's Head over V on the left side of the barrel. These markings had been introduced in 1799, replacing the earlier "Liberty Cap" marking. The barrel length is 44 1/2 inches, which is a bit different from the later models. There was no official specification of barrel length for the model 1795, so the lengths varied from roughly 42 to 45 inches. As is correct there is no rear sight, just a notch in the barrel tang, with a brass front sight on the nose cap / muzzle fitting.

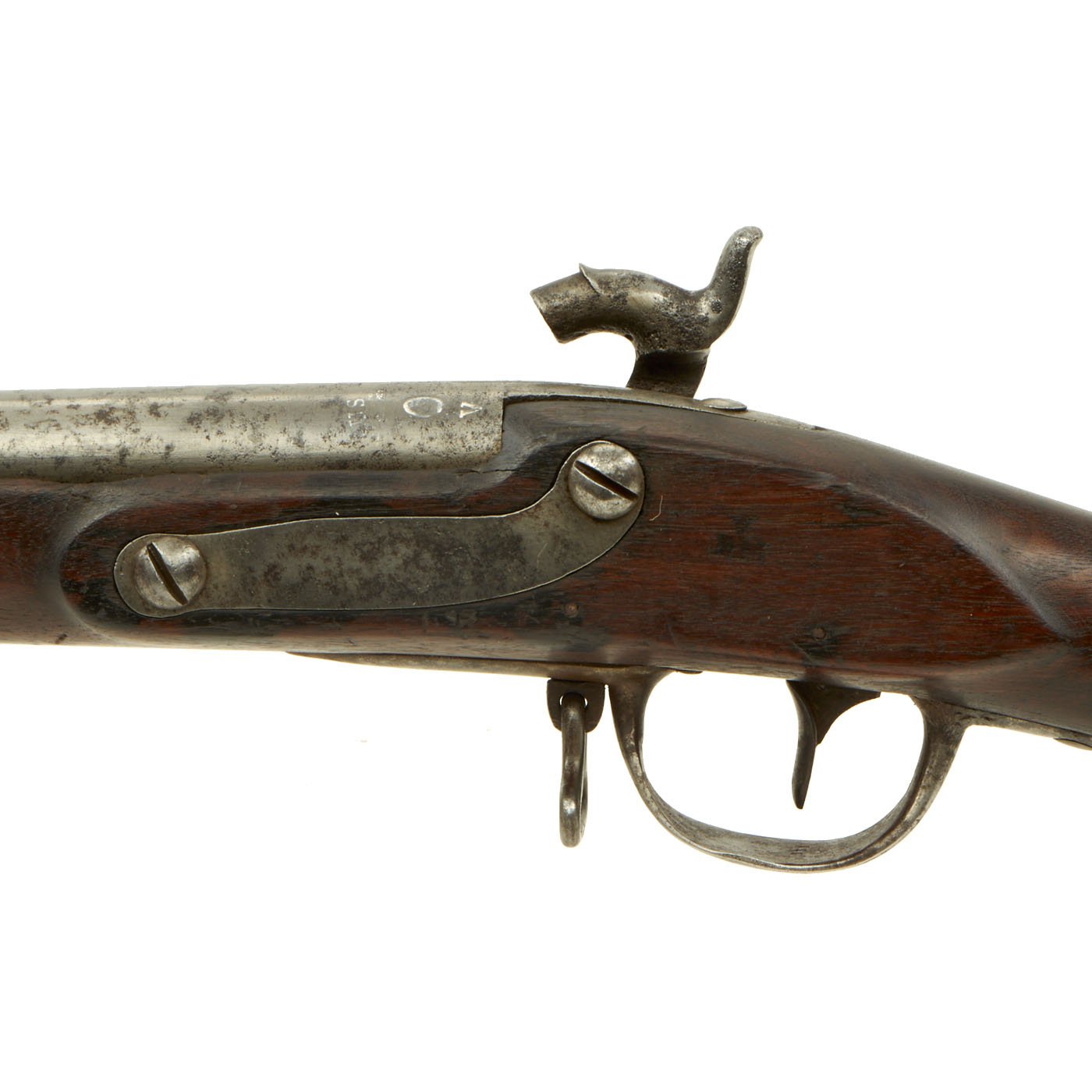

The condition of this rifle is very good, with lovely patina from age and use. There are definitely some areas of past pitting on the barrel, particularly towards the muzzle. The lock functions correctly, holding at half cock and firing at full. We checked the bore, and it is clear, with a bit of dirt and fouling, but no major corrosion we can see past the muzzle area. This musket most likely saw service against the British in the War of 1812, and possibly even during the U.S. Civil War. Now fully cleaned and in a great display condition it is ready to join another U.S. Martial Collection.

Chance to own such a nice example of U.S. History do not come by often. This wonderful musket is ready to display!

History of the Model 1795 Musket:

The Springfield Model 1795 Musket was a .69 caliber flintlock musket manufactured in the late 18th century and early 19th century at both the Springfield and Harper's Ferry U.S. Armories.

The Model 1795 a very elongated musket, retained many of the characteristics of the Charleville on which it was based. It had a 44 inches (110 cm) long .69 caliber barrel, a 56 inches (140 cm) stock, and a total length of 60 inches (150 cm). The original version had the bayonet lug on the bottom of the barrel but this was later moved to the top. Minor changes were made throughout production inclusive of a shorter barrel length of 42 inches (110 cm) on the later Harper's Ferry weapons. Barrels of Harper's Ferry 1795s were serial numbered up to some point in 1812: Springfield Model 1795's were never serial numbered. Springfield began the Model 1812 improvements in 1814, but Harper's Ferry continued on with the production of the Model 1795 until at least 1819 (early 1819 examples still used the M1795 lockplate) and never produced the Model 1812. Eventually, both armories incorporated improvements into the Model 1816 flintlock which were after a few years virtually identical. Most, but not all, parts will interchange on the Model 1816 muskets but the hand-crafted parts, and lack of set standards and patterns on the earlier Model 1795 weapons often means parts will not interchange easily.

Typical of smoothbore muskets, the M1795 had an effective range of about 50 yards (46 m) to 75 yards (69 m). The Model 1795 fired a smaller round than the British .75 caliber Brown Bess, but the Model 1795 also had both a slightly longer range and slightly better accuracy than the Brown Bess musket. This gave the American forces an advantage of range when they faced British forces in the War of 1812.

The War of 1812 had revealed many weaknesses in American muskets. The Model 1812 Musket was created in an attempt to improve both the design and manufacture of the musket. The Model 1816 made further improvements, and replaced the Model 1812. The Model 1812 had borrowed heavily from the design of the French Charleville model 1777 musket, and this design was retained for the Model 1816. The Model 1816 had a 42 inch long .69 caliber smoothbore barrel, similar to the Model 1812, but had a longer lock plate, a shorter trigger guard, and a longer bayonet than the Model 1812. The Model 1816 also had a more straight lined stock. The overall length of the weapon was 58 inches.

Specifications-

Year of Manufacture: 1811
Caliber: .69"
Cartridge Type: Ball and Powder
Barrel Length: 44 1/2 Inches
Overall Length: 59 3/4 Inches
Action type: Side Action Percussion Lock
Feed System: Muzzle Loading
