Original Item. Only One Available. The M16 mine is a United States-made bounding anti-personnel mine. It was based on captured plans of the World War II era German S-mine and has similar performance. The mine consists of a cast iron body in a thin steel sleeve. A central fuze well on the top of the mine is normally fitted with a pronged M605 pressure/tension (tripwire) fuze. Sufficient pressure on the prongs or tension on an attached tripwire causes the release of a striker. The freed striker is forced into a percussion cap which ignites a short pyrotechnic delay. The purpose of this delay is to allow the victim to move off the top of the mine, to prevent its upward movement from being blocked. Once the delay has burned through, a 4.5-gram black powder charge is ignited, which launches the inner iron body of the mine up into the air (leaving behind the steel outer sleeve). The charge also ignites a second pair of pyrotechnic delays.

Unloaded or dummy grenades, artillery shell casings, and similar devices, which are cut or drilled in an BATF-approved manner so that they cannot be used as ammunition components for destructive devices, are not considered NFA weapons. This example is in total compliance and is NOT AVAILABLE FOR EXPORT.

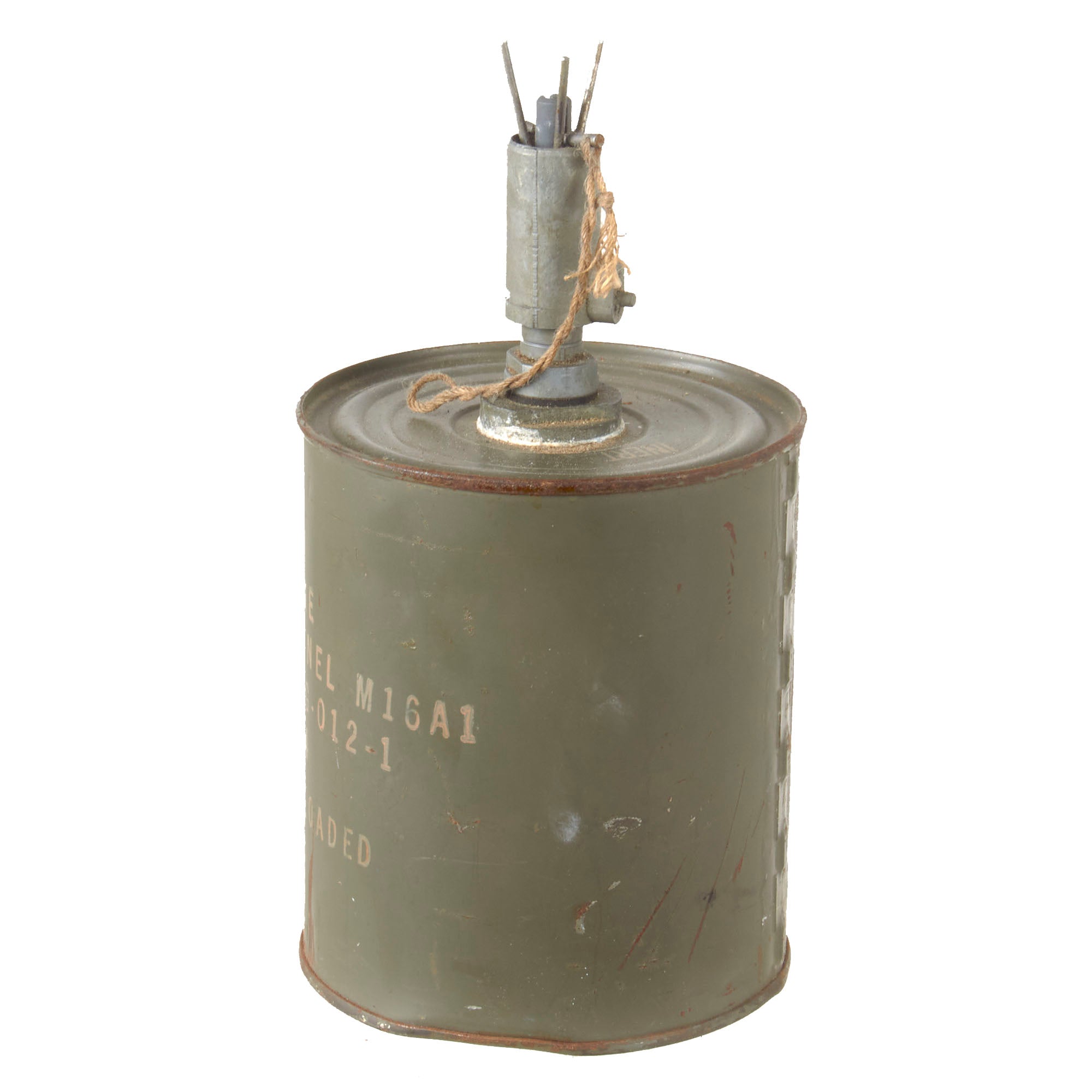

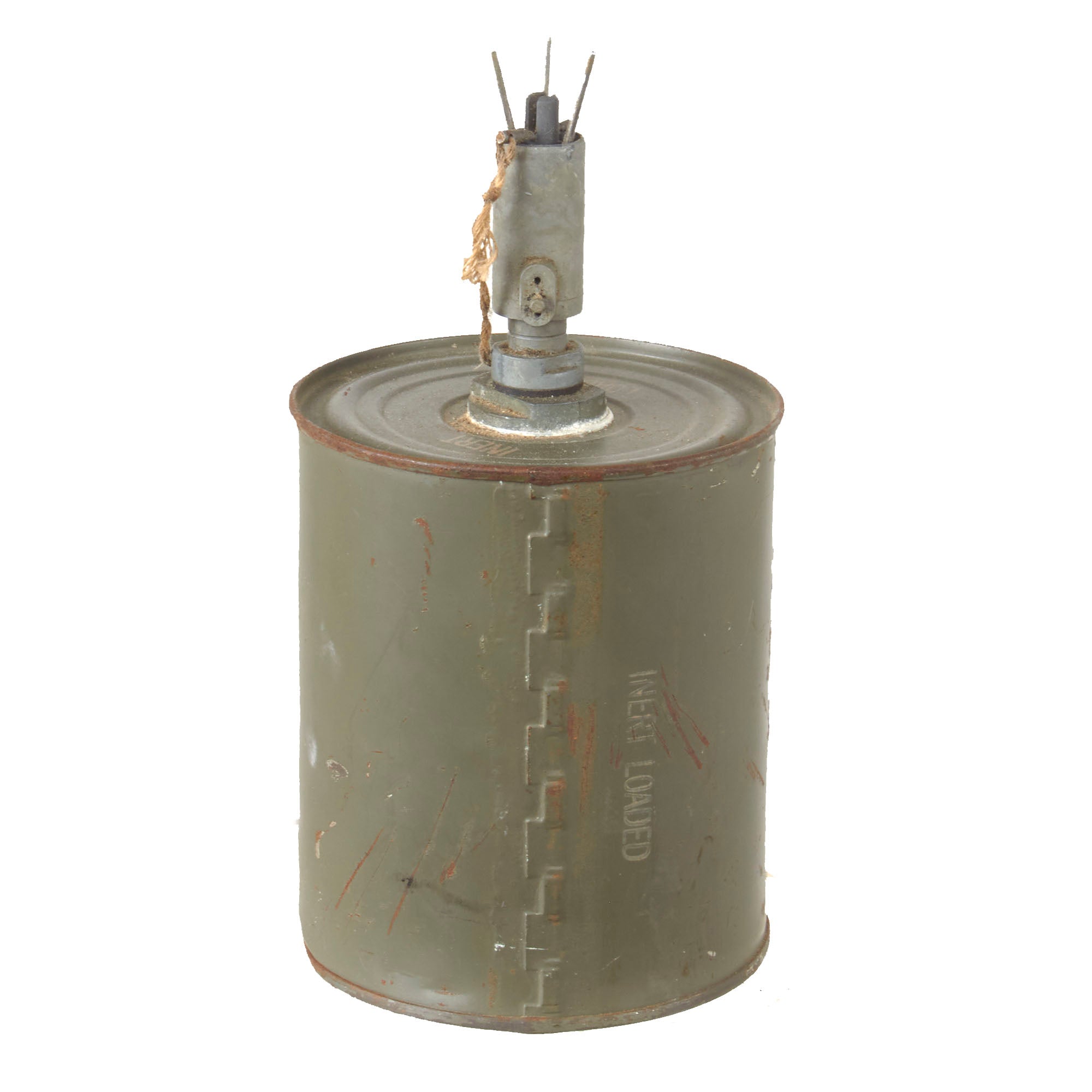

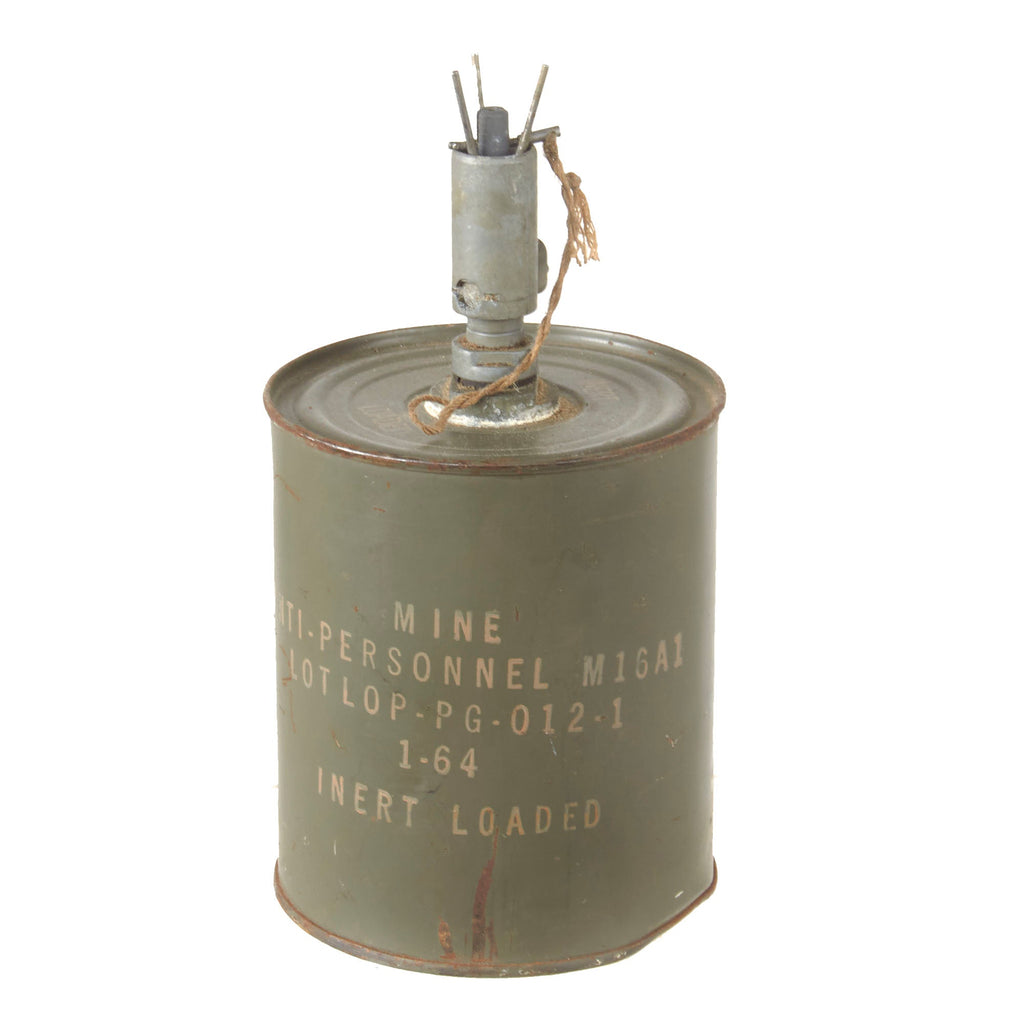

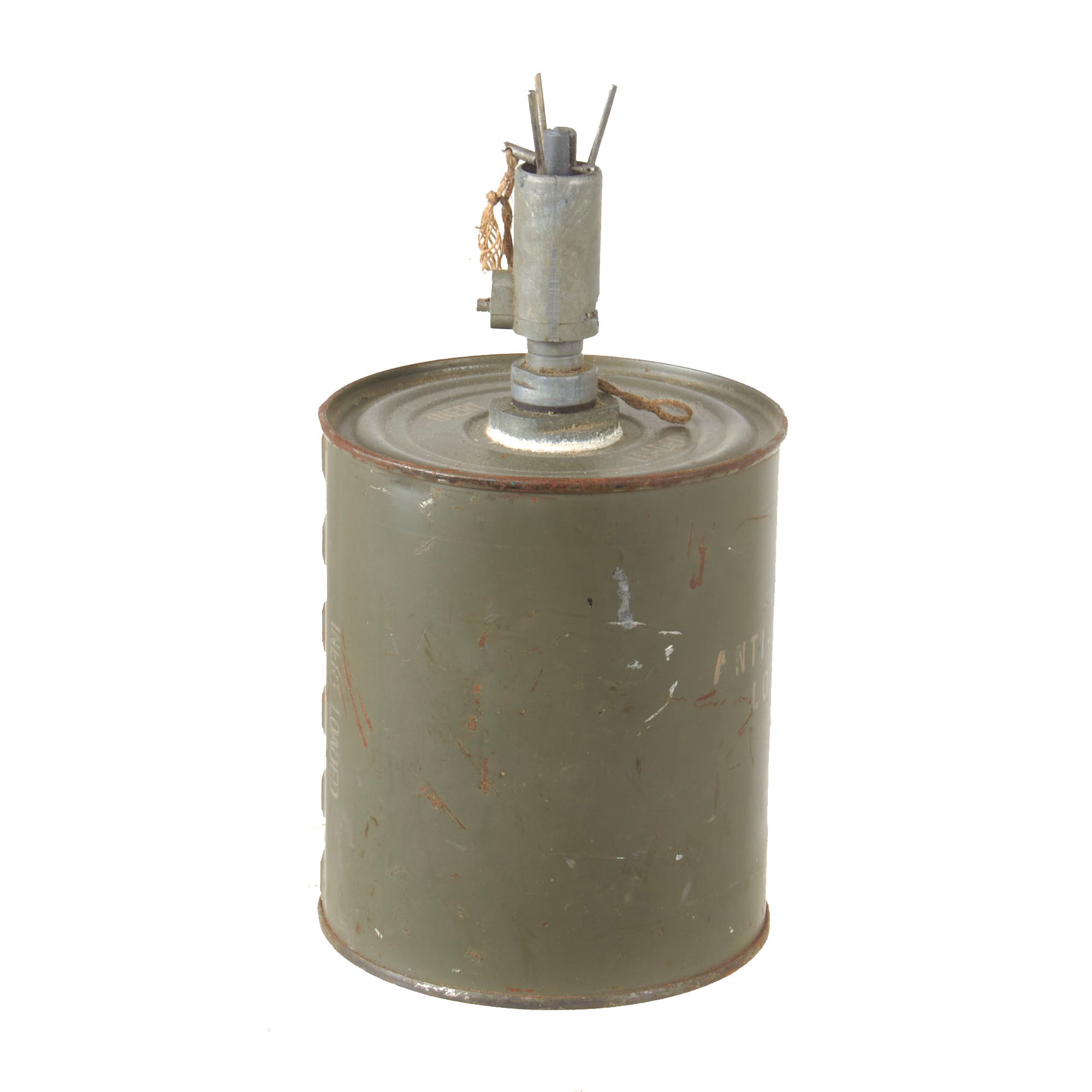

This is a great example of the M16A1 Anti-Personnel Mine in great condition with all three blades of grass intact. The side of the mine retains its markings:

MINE
ANTI-PERSONNEL M16A1
LOT LOP-PG-012-1
1-64
INERT LOADED

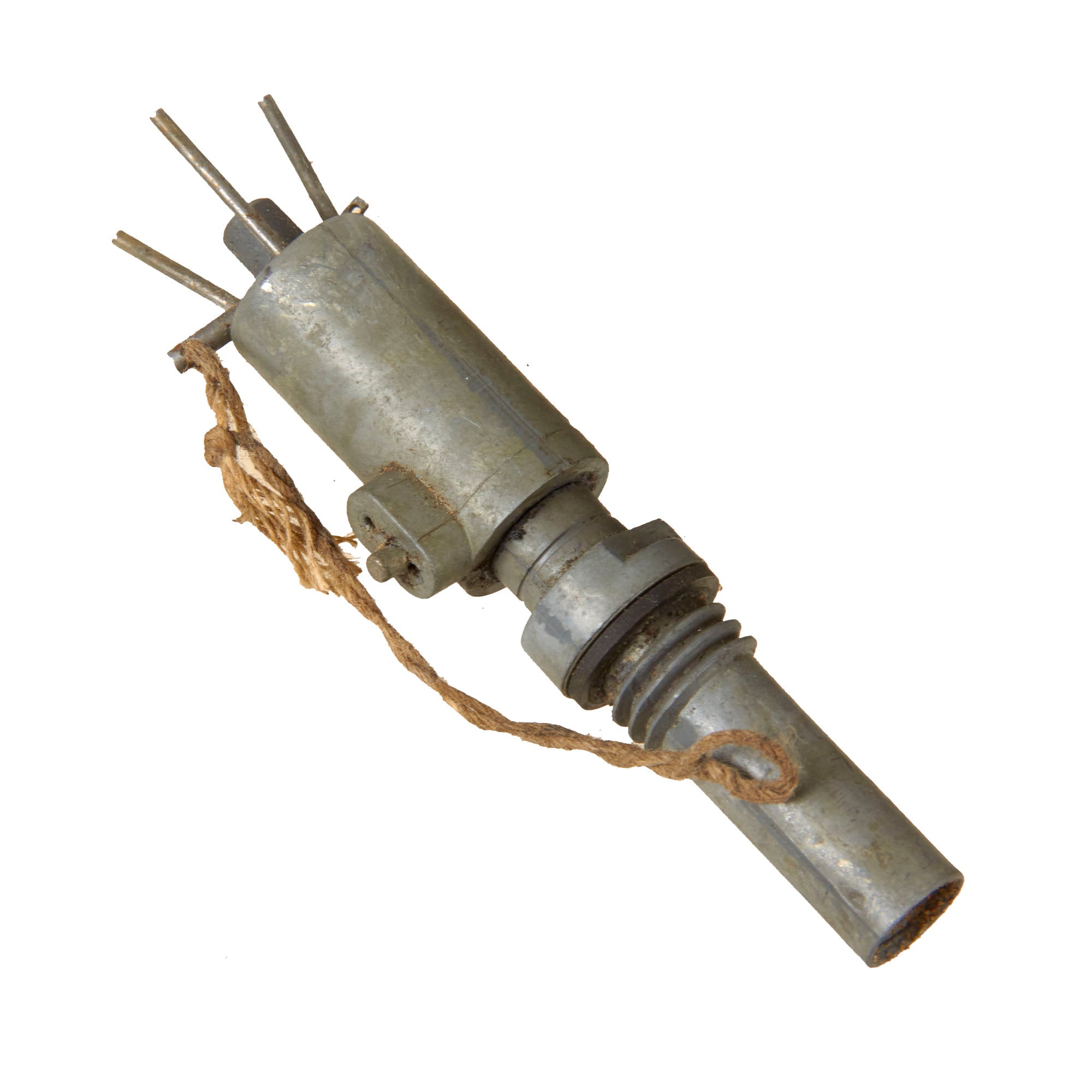

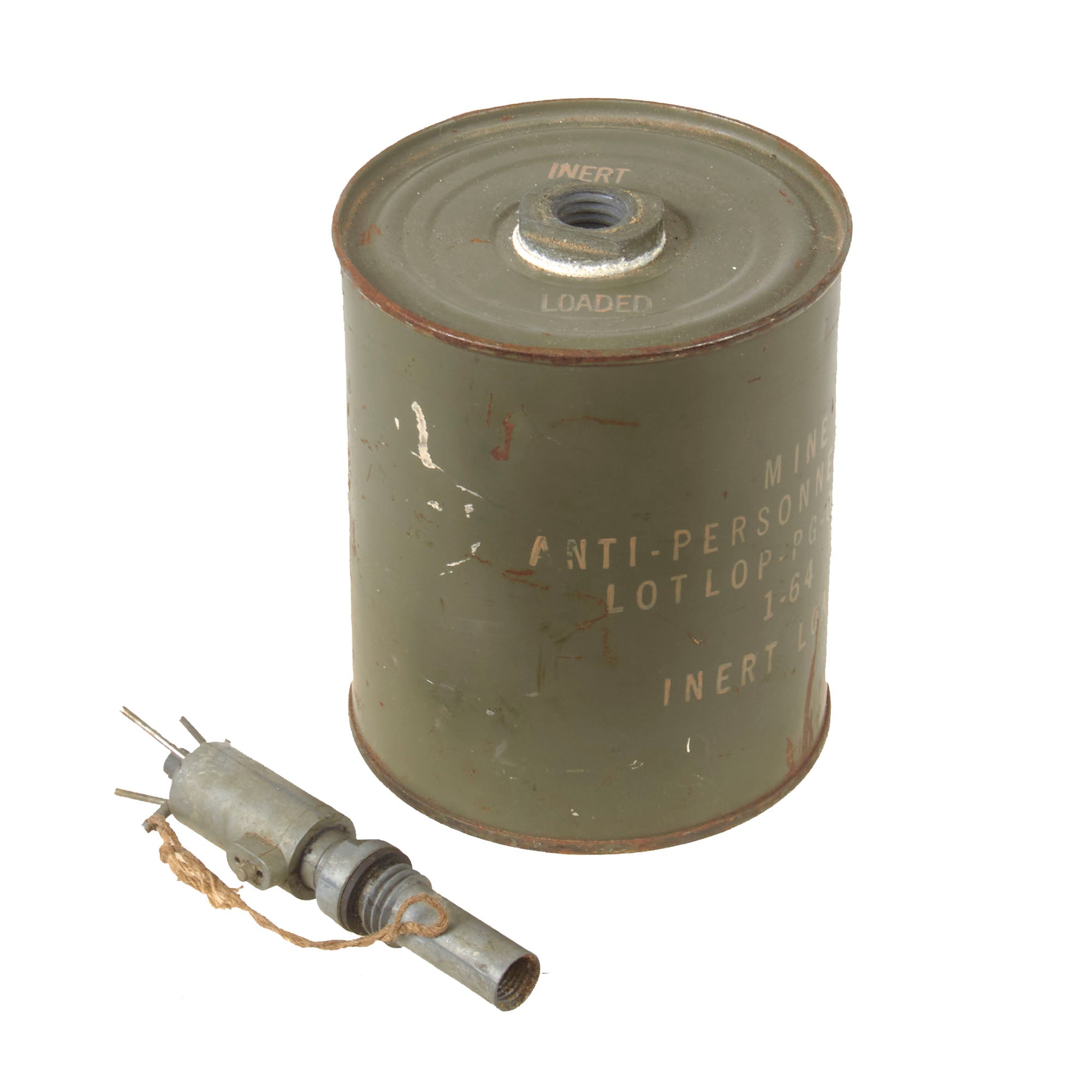

1-64 denotes a manufacture date of January 1964. The mine is in great shape and the fuze can be unscrewed for inspection of the interior.

A fantastic example, the first we’ve ever offered. Ready for display!
