Original U.S. Vietnam War Era Set of (3) RESIN M16A1 Bounding / Fragmentation Training Mines in Crate - Bouncing Betty
Original Items: Only One Set Available. This is a fantastic set of original all resin M16A1 Bounding Mines. These mines were used for training and schoolhouse purposes to familiarize the users on appearance as well as proper emplacement. These were never filled with explosive content, nor can they be used as an explosive device. The M16A1 bounding mines are completely inert and in compliance with the current BATF standards on ordnance.
Not Available For Export

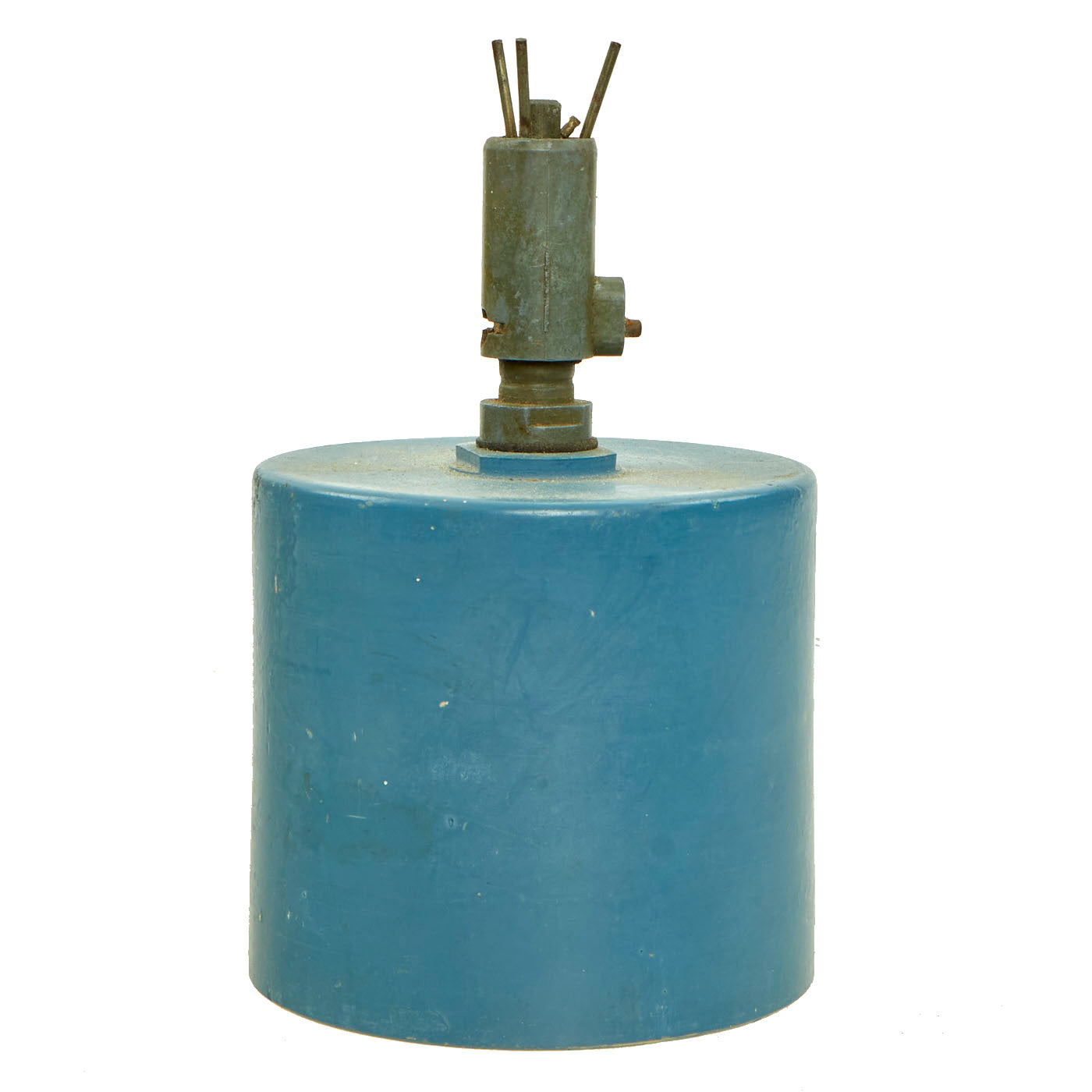

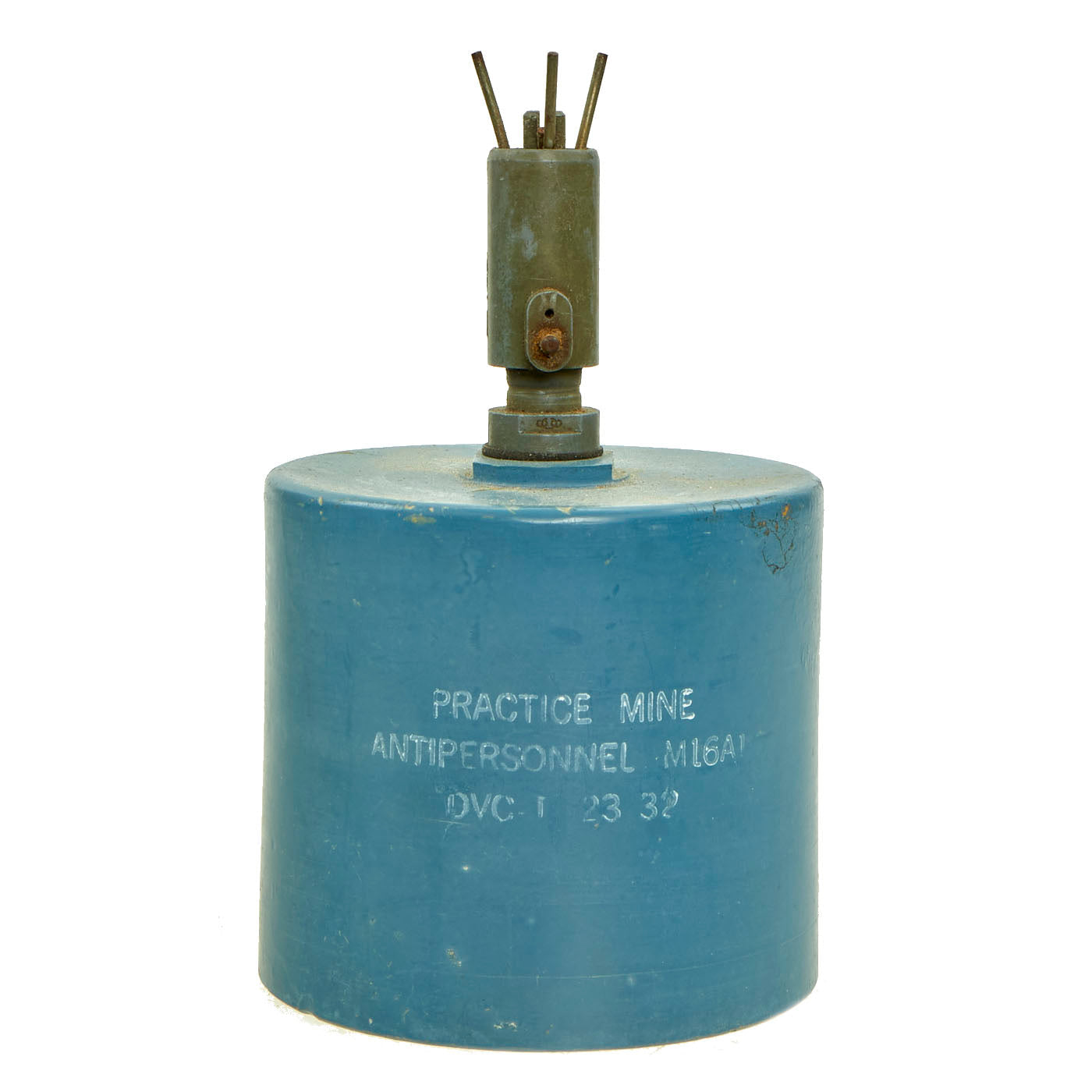

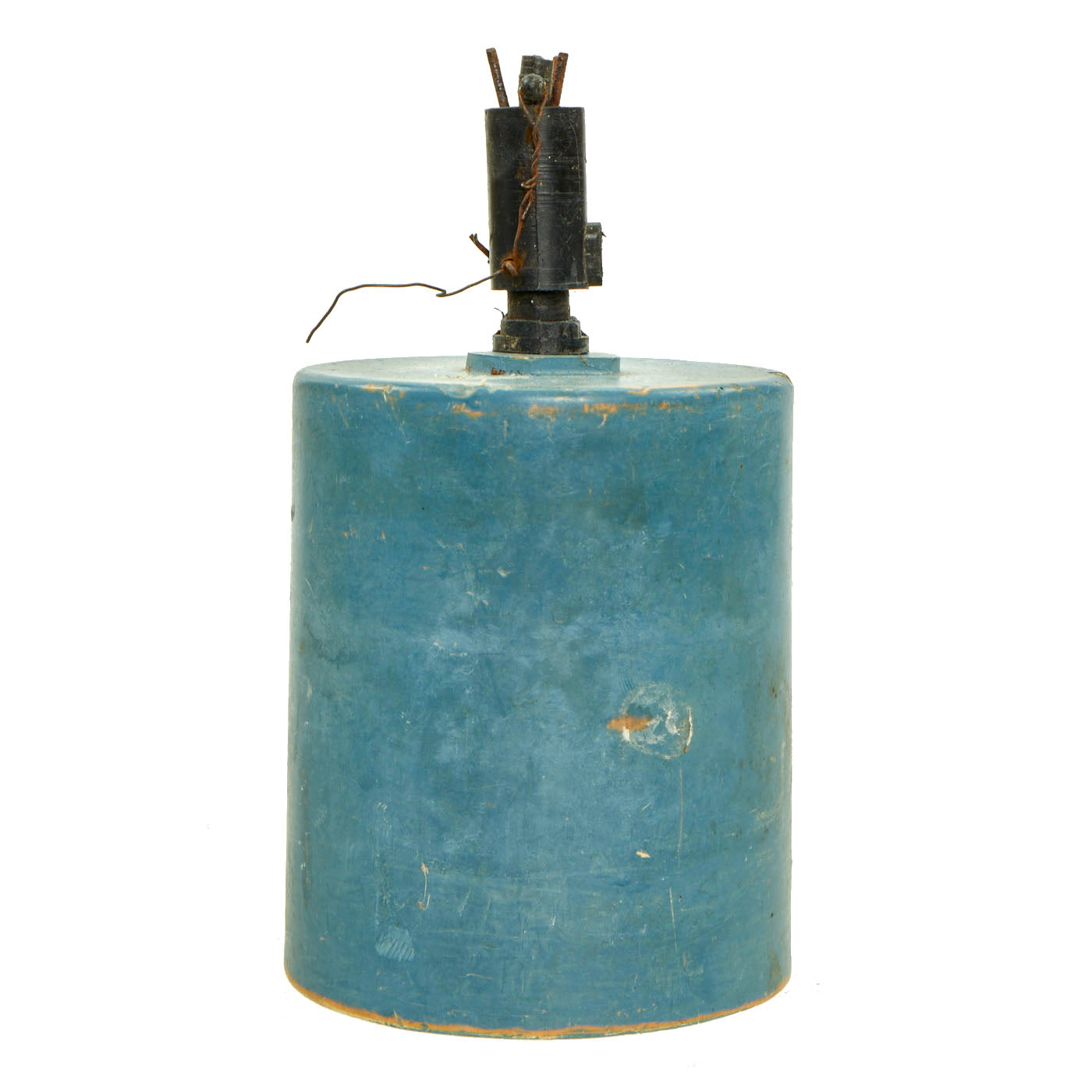

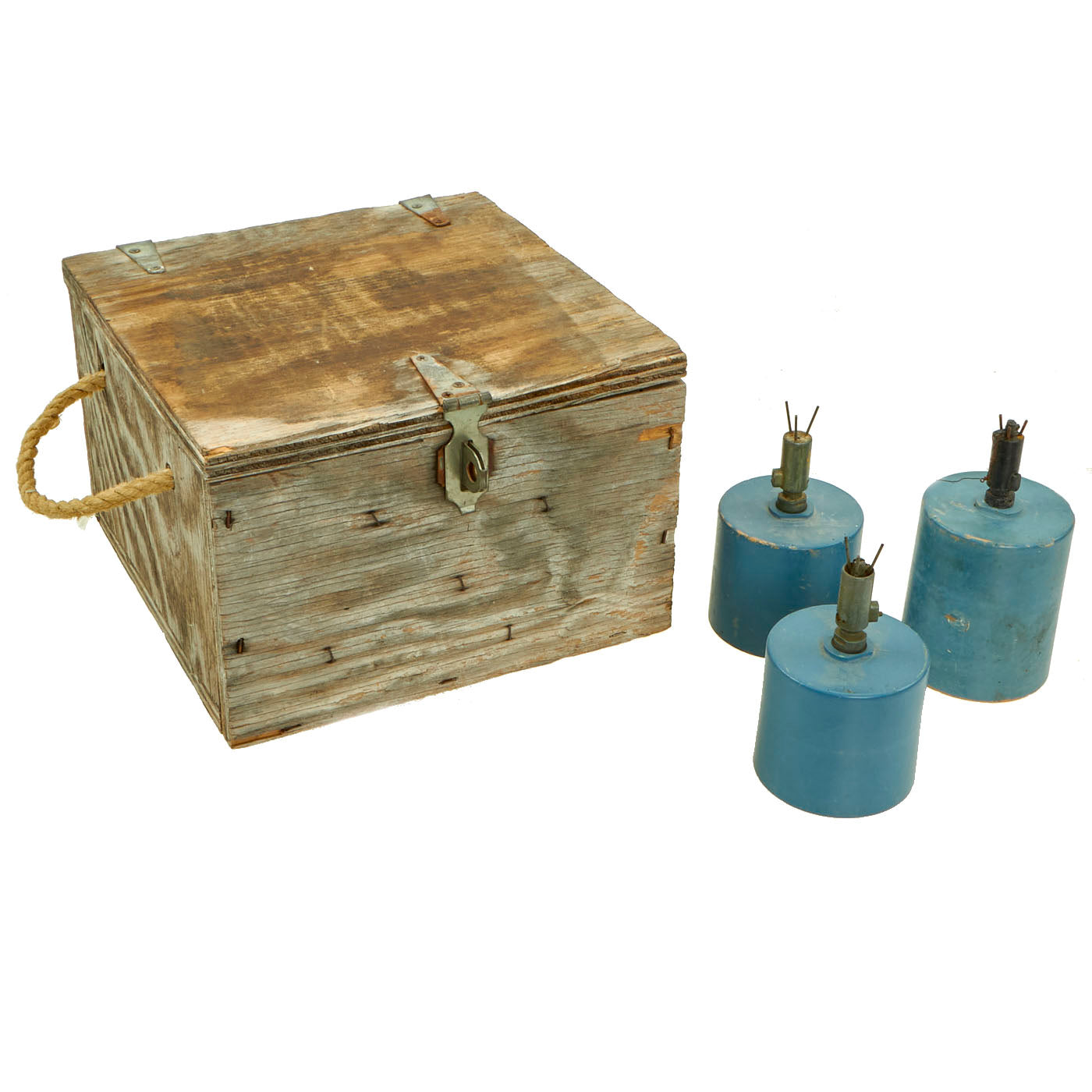

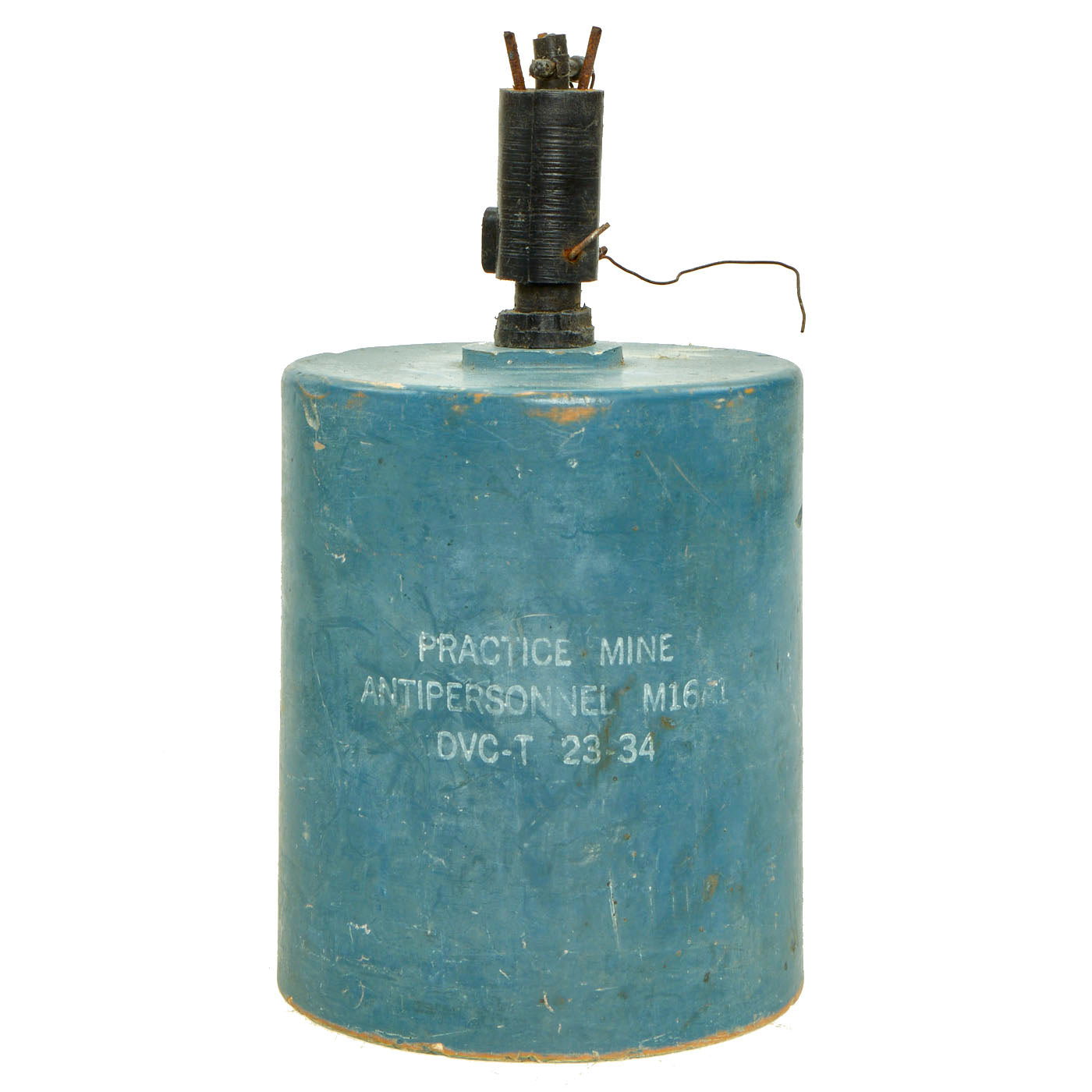

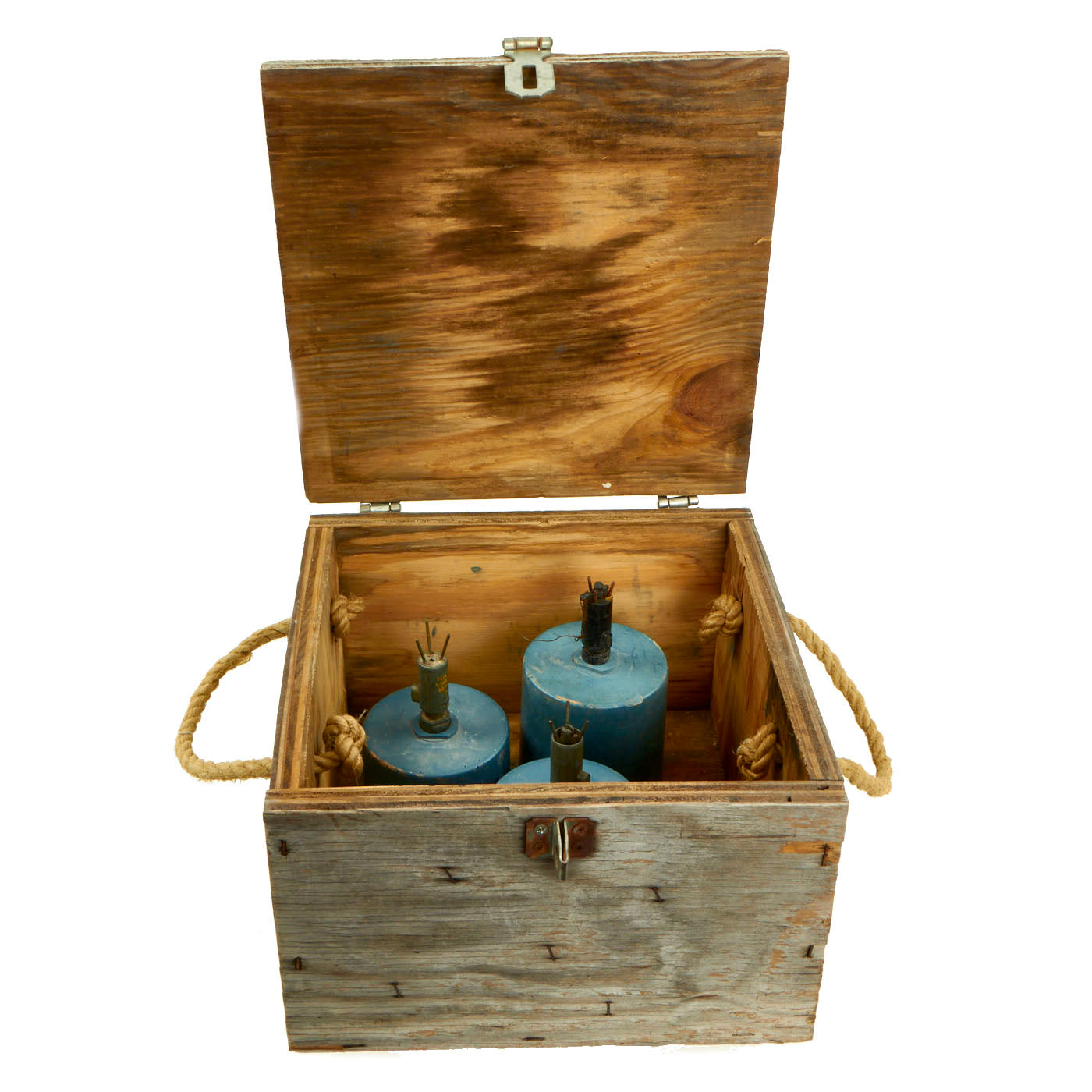

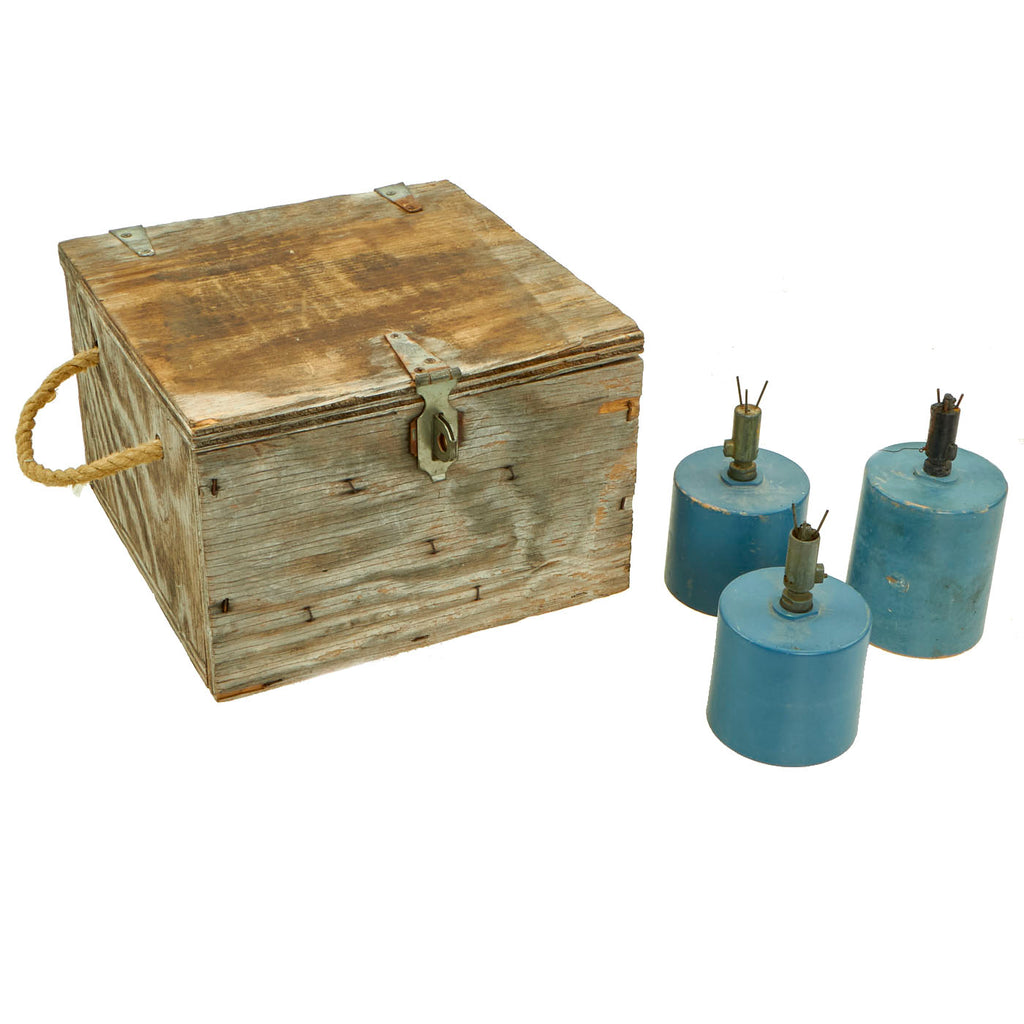

There are a total of (3) mines with (3) fuses. Two of the three fuses are original examples that have been rendered inert for training purposes. One of the fuses is dated 1971. All three mines range in height from 3 ½” to 4 ⅝” and still retain most of their original blue paint as well as stenciling. All 3 mines have the same following information on them:
DVC-T 23 32

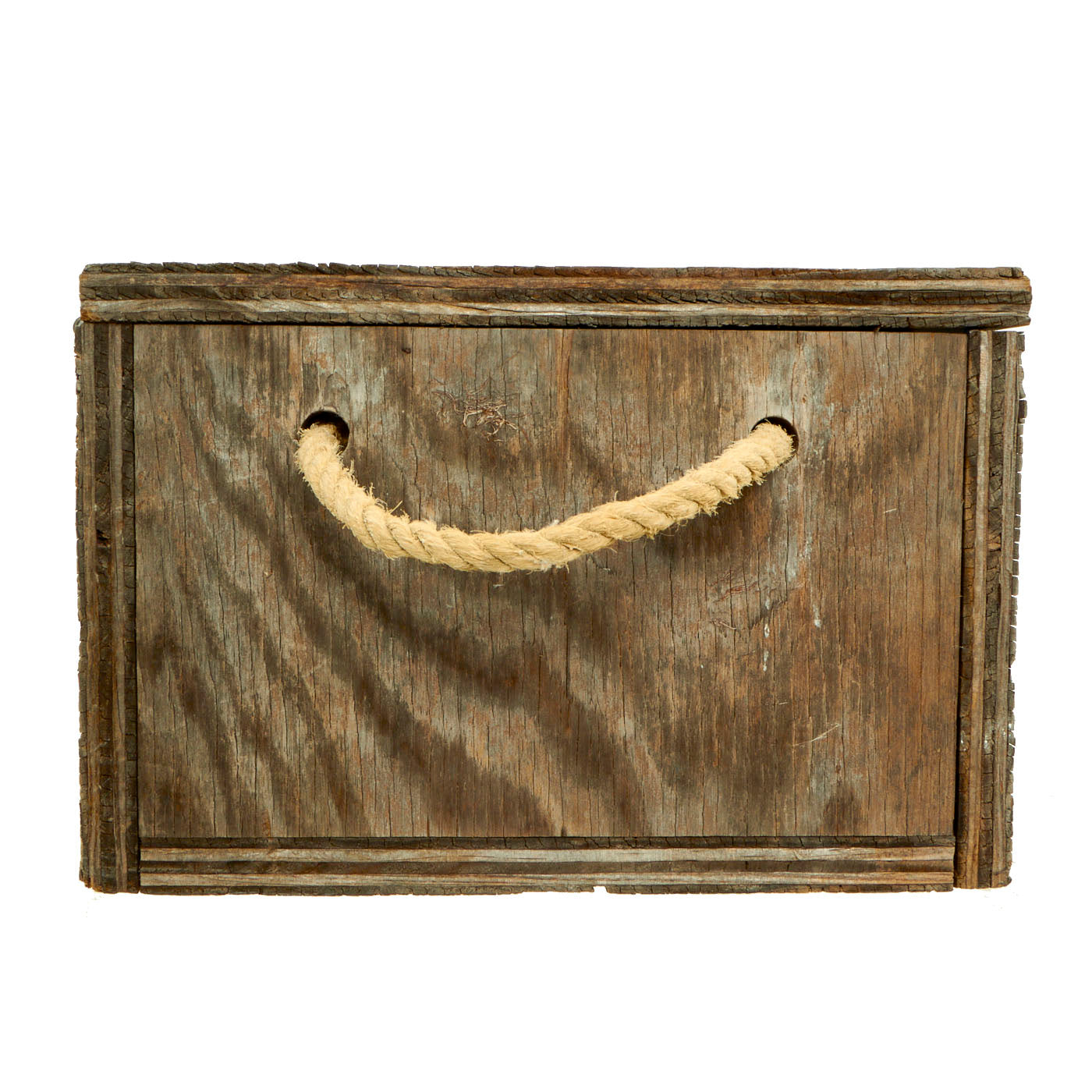

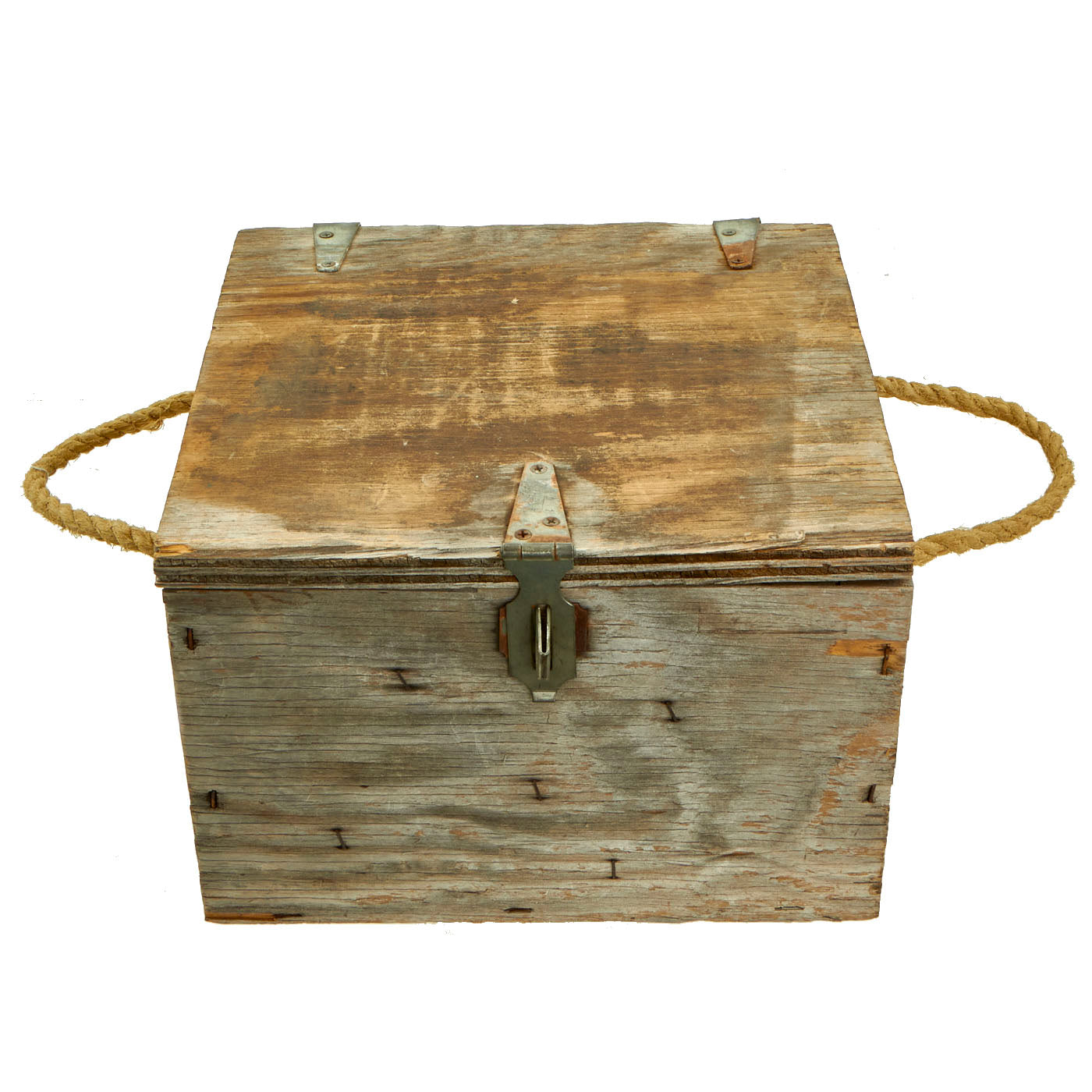

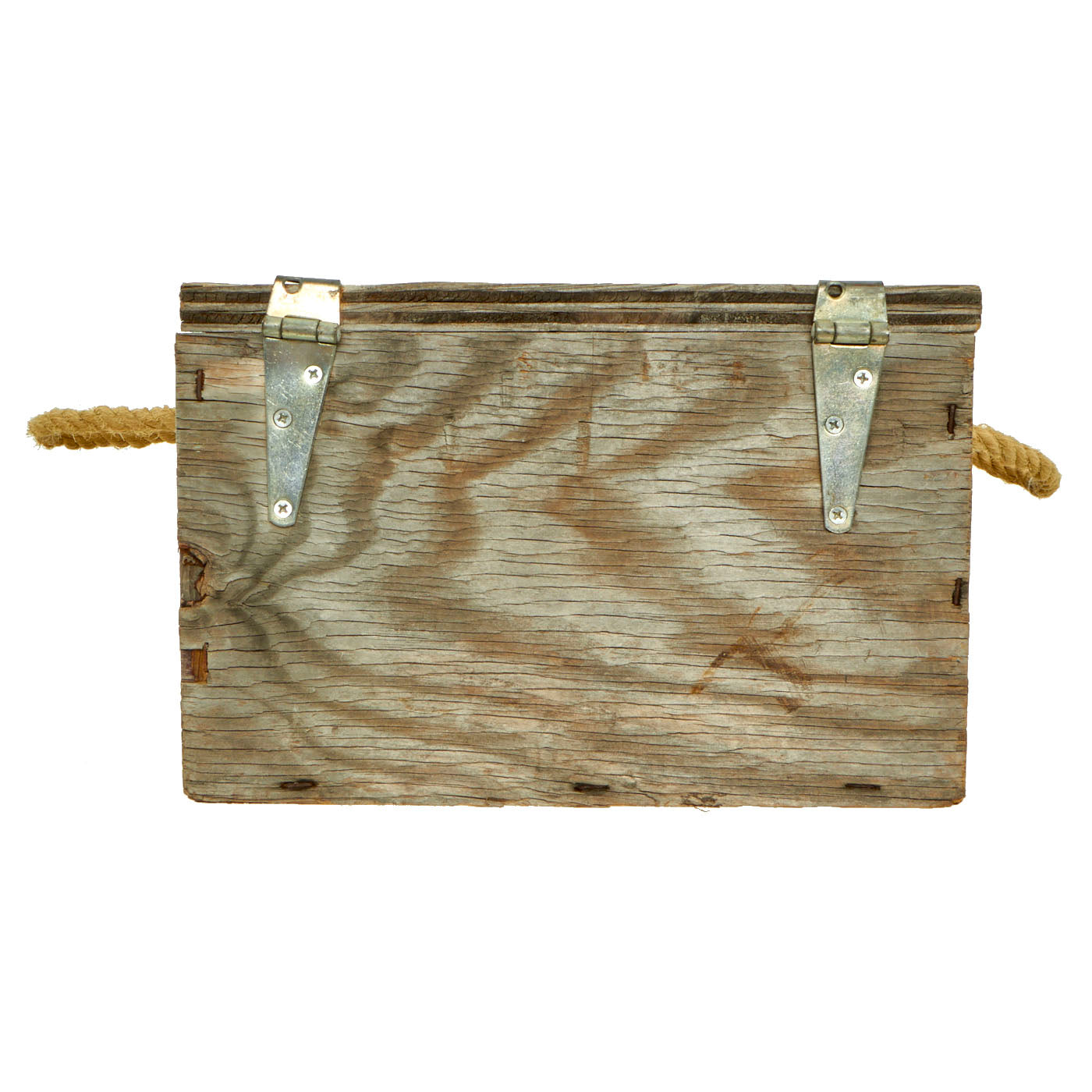

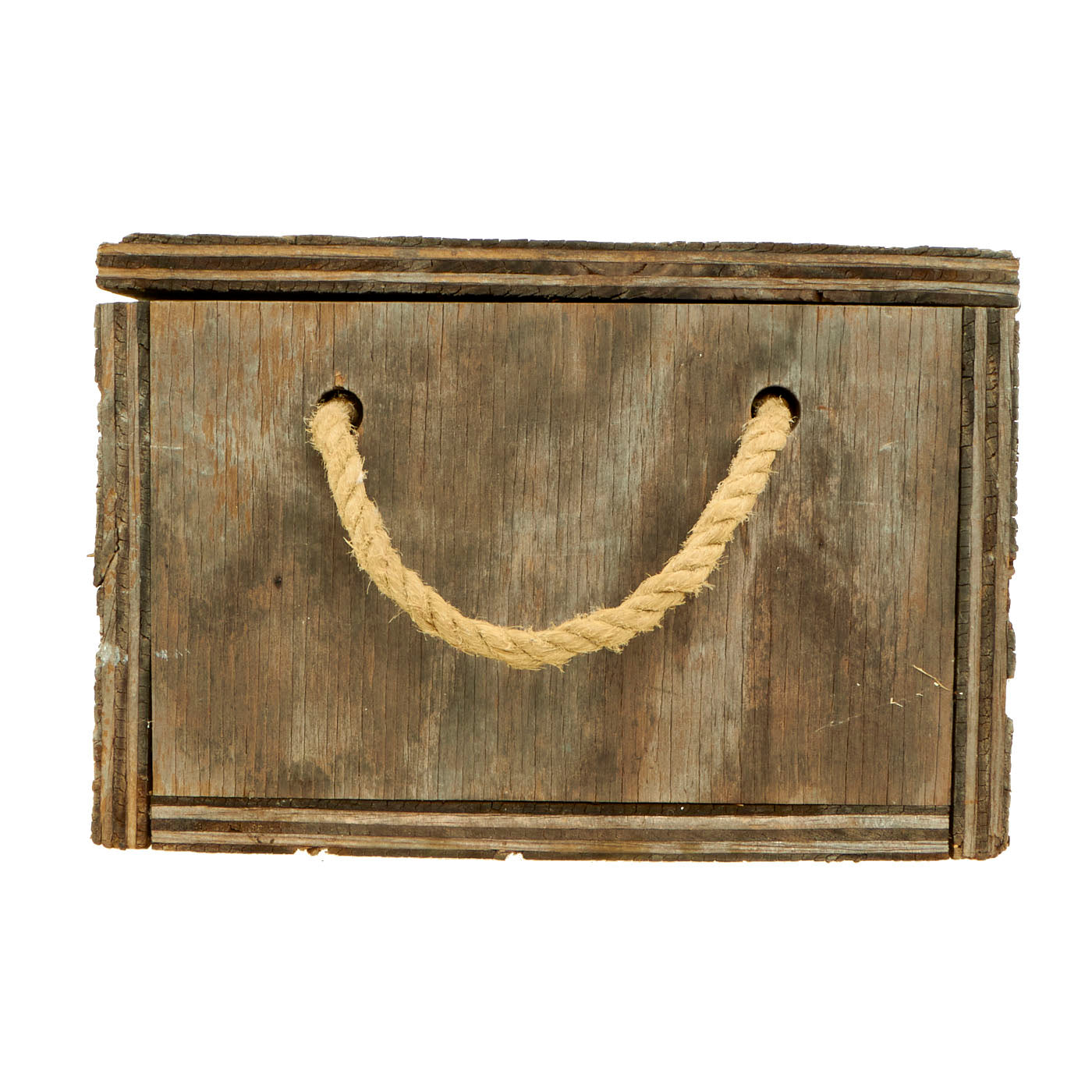

The storage crate appears to be period original and not a newer replacement. There are faint arsenal markings on the top lid but are unfortunately too faded to read properly. The handles are still intact and in solid condition as well as the hinges and latching mechanism.
This is a wonderful opportunity to add lovely examples of the M16A1 practice mines to your collections. Tools such as these were vital for military operations even though it may not seem like it.
Comes more than ready for display!
Dimensions of Box: 12” x 12” x 8”
Weight (With Contents): 22 ½ Pounds
The M16 mine is a United States-made bounding anti-personnel mine. It was based on captured plans of the World War II era German S-mine and has similar performance. The mine consists of a cast iron body in a thin steel sleeve. A central fuze well on the top of the mine is normally fitted with a pronged M605 pressure/tension (tripwire) fuze. Sufficient pressure on the prongs or tension on an attached tripwire causes the release of a striker. The freed striker is forced into a percussion cap which ignites a short pyrotechnic delay. The purpose of this delay is to allow the victim to move off the top of the mine, to prevent its upward movement from being blocked. Once the delay has burned through, a 4.5-gram black powder charge is ignited, which launches the inner iron body of the mine up into the air (leaving behind the steel outer sleeve). The charge also ignites a second pair of pyrotechnic delays.
The mine rises to a height of 0.3 to 1.7 meters before one or both of the pyrotechnic delays detonates the main charge of the mine, which sprays high-speed metal fragments 360° around the point of detonation. These metal fragments have an expected casualty radius of 27 meters for the M16 and M16A1 mines, and out to 30 meters for the M16A2 mine.
The M16 and M16A1 mines are similar; the M16A1 has redesigned detonators and boosters but remains largely the same. The M16A2 is considerably different, having an offset fuse well and only a single pyrotechnic delay element. This change reduces the weight of the mine considerably (2.83 kilograms) while allowing it to carry a slightly larger main charge (601 grams)
According to the United States Army, one platoon of combat engineers assisted by a hauling vehicle was expected to be able to emplace 300 M-16 mines in 120 minutes, creating a minefield 300 meters long and 50 meters wide with a linear density of one mine per meter of front.
When emplaced, most of an M16 mine is buried underground so it can be extremely difficult to spot them visually, particularly in areas of long grass, heavy undergrowth or other debris. The M16 contains large amounts of metal, so is very easy to detect using a mine detector. However, it is important to note that the act of moving the detection head over the ground may strike the prongs and trigger the mine. In any case, other minimum metal mines may have been planted near to an M16 in order to protect it from mine clearance personnel. Additionally, if long tripwires are fitted, the M16 may "see" the deminers before they have a chance to find it. When tracking the path of tripwires fitted to any bounding mine, great care must be taken: it is quite possible that additional antipersonnel blast mines (e.g. the M14) may have been buried beneath its path. An extra complicating factor is that some M16 mines may have been fitted with an anti-handling device e.g. placing an M26 grenade underneath it with an M5 pressure-release boobytrap firing device screwed into it. Deliberately triggering the mines from cover, using some form of grappling hook attached to a long rope, may be useful in some varied situations and provide an initial way into the minefield before further clearance work begins.
