Original U.S. Springfield Trapdoor Model 1884 Round Rod Bayonet Rifle with Tools made in 1891 - Serial No 529615
Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:
In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.
Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.
The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

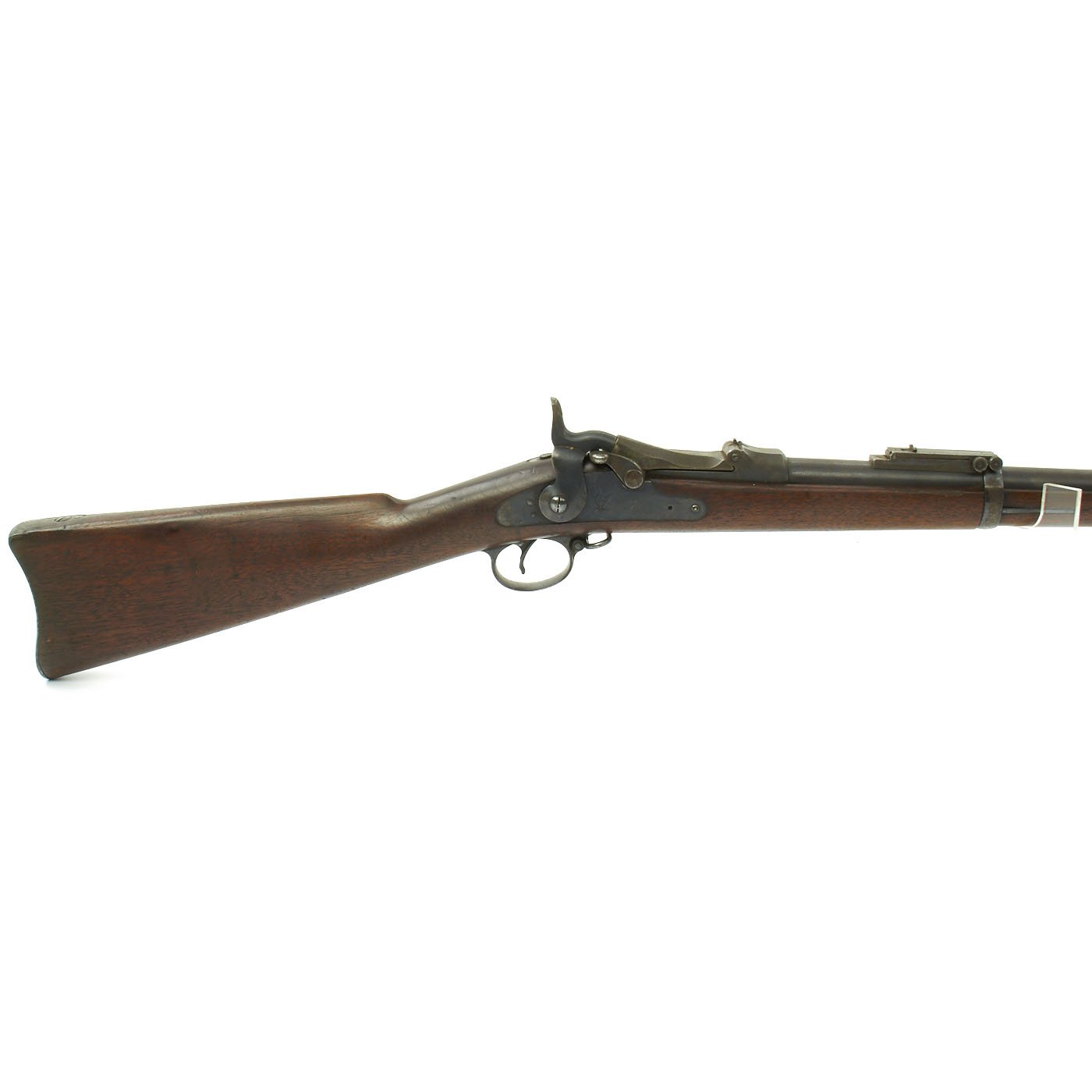

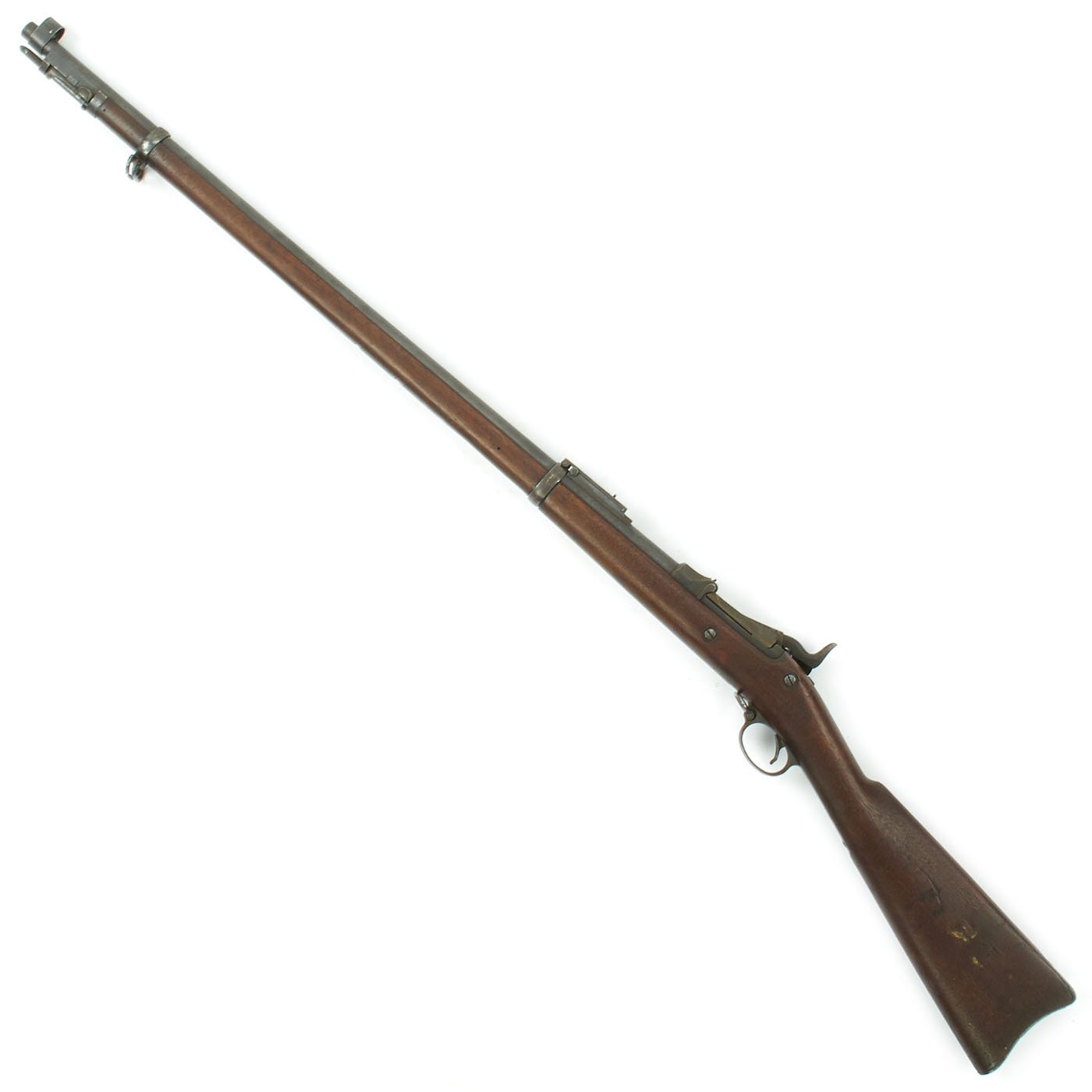

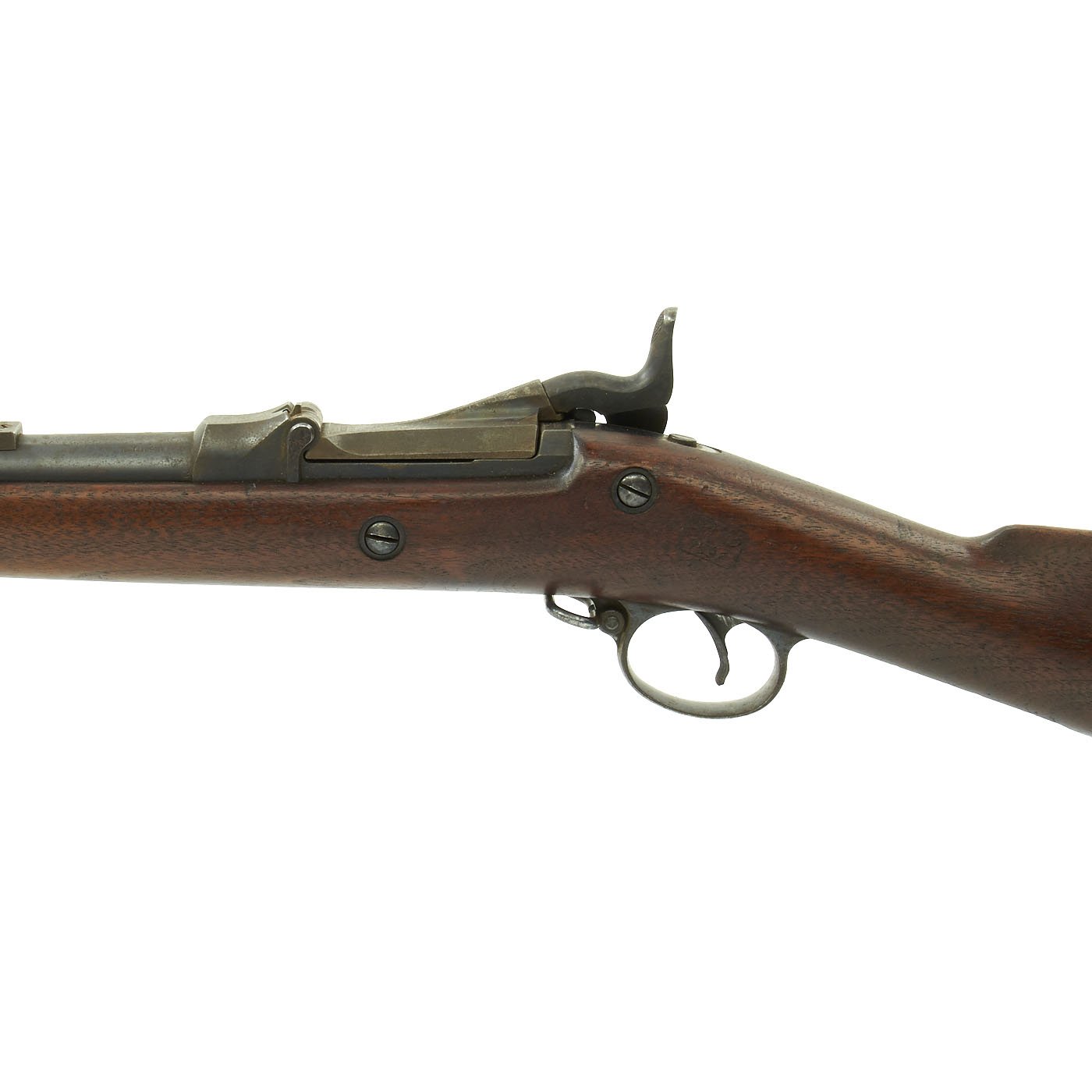

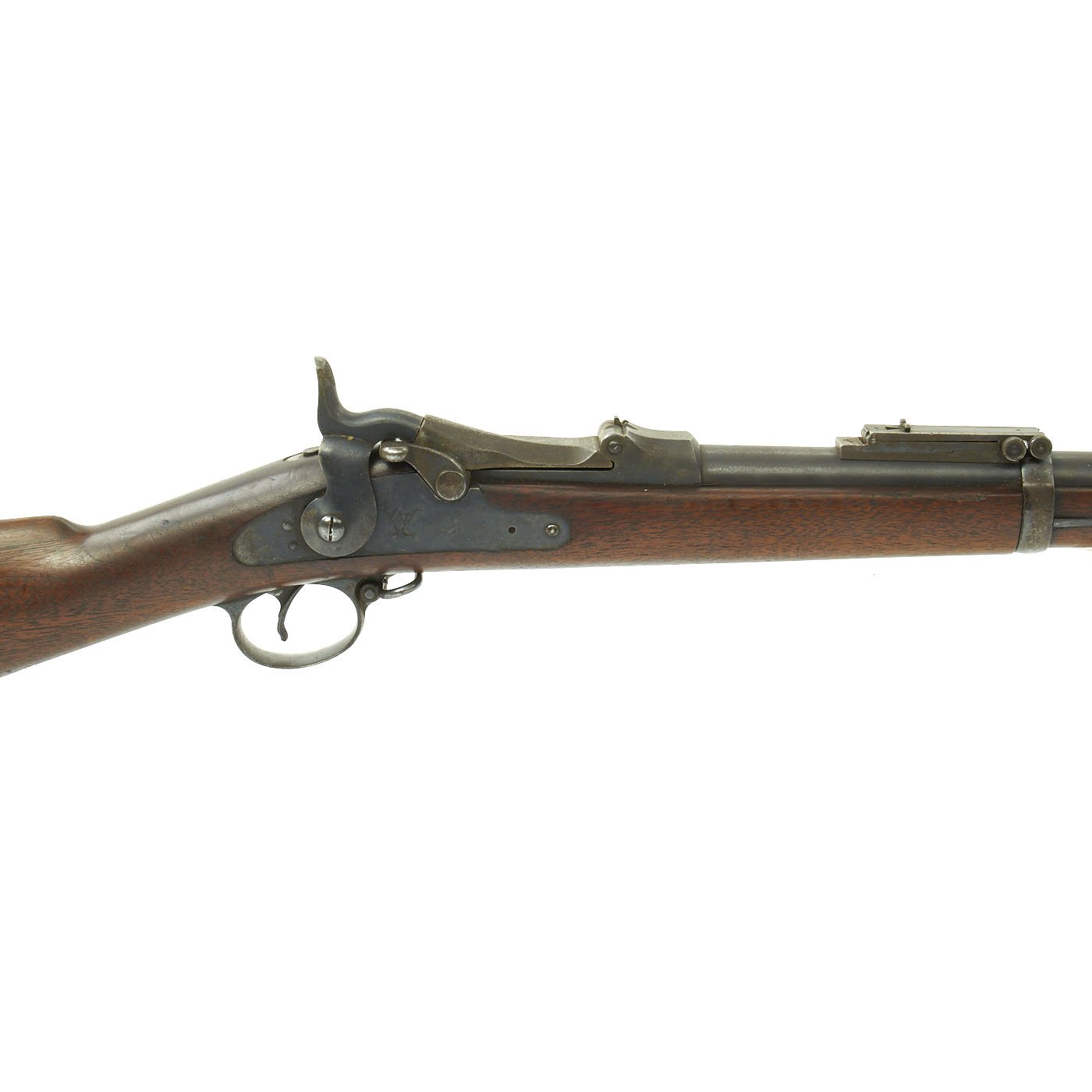

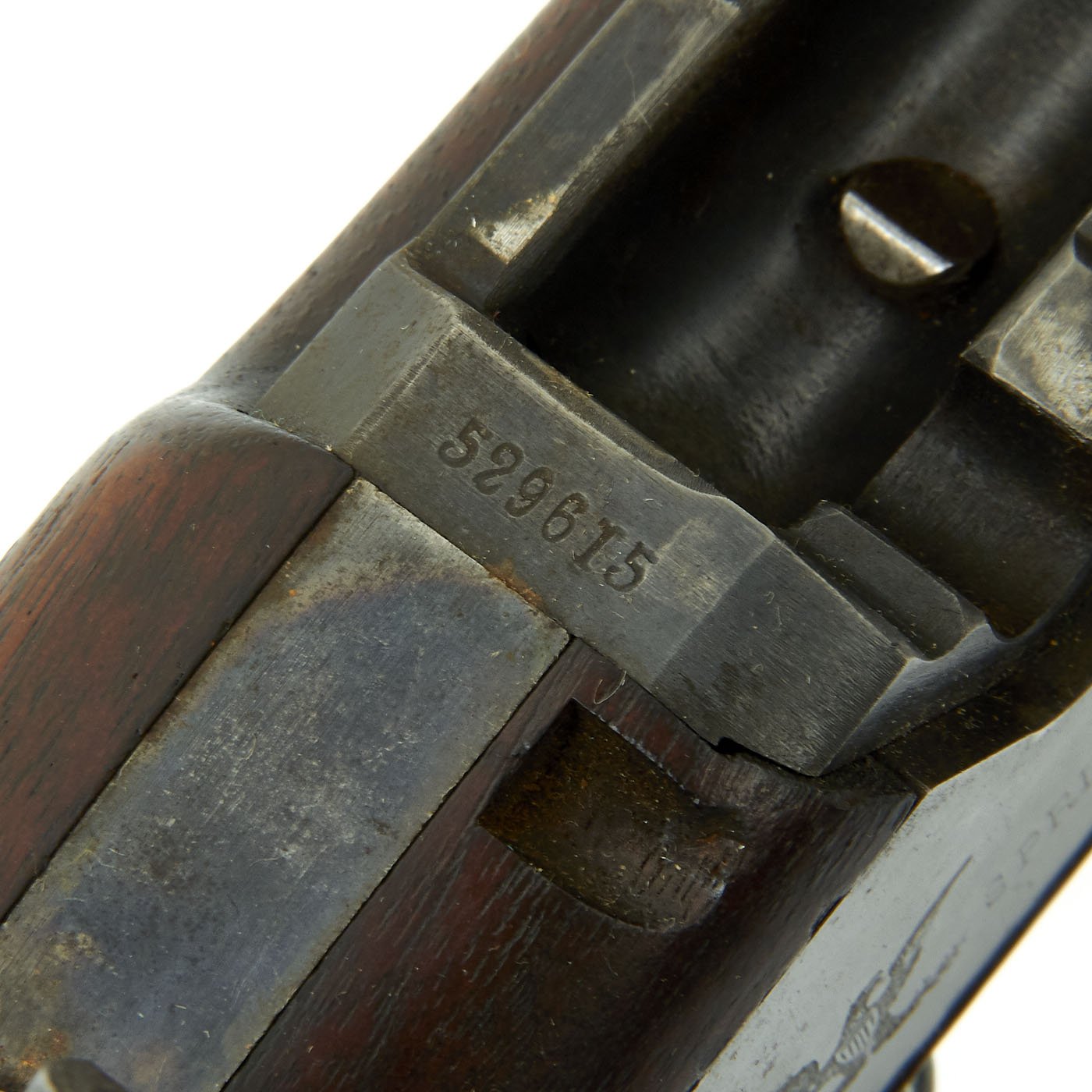

Offered in very good condition is this trapdoor rifle in 45-70 government caliber. Serial #529615 indicates manufacture in 1891, which technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a clear government inspector SWP / 1891 cartouche, indicating final inspection in the same year. Original metal finish has been faded to a nice worn blue patina with all proofs still present, and a bit of peppering in places. The butt plate is marked U.S., and both barrel bands are U marked.

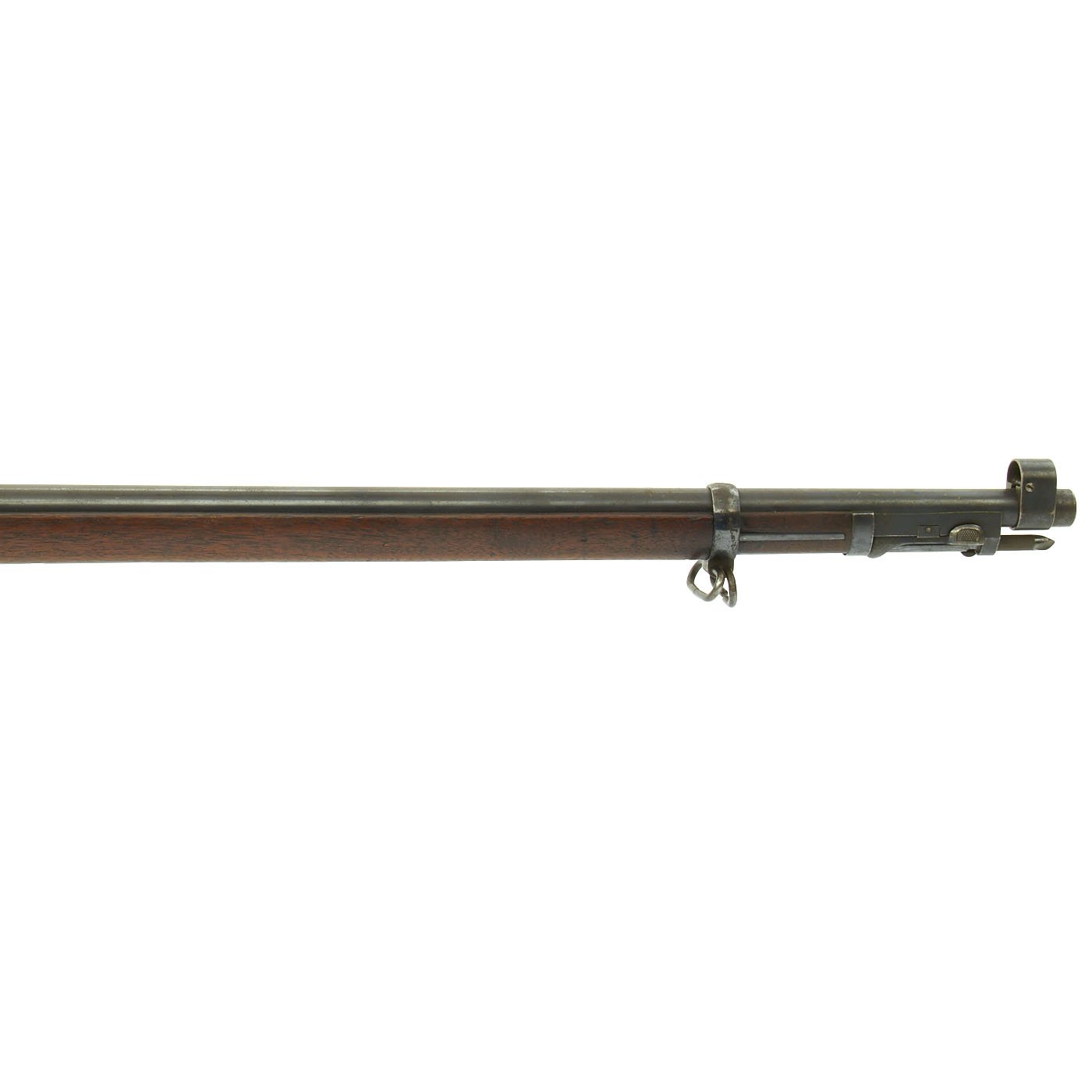

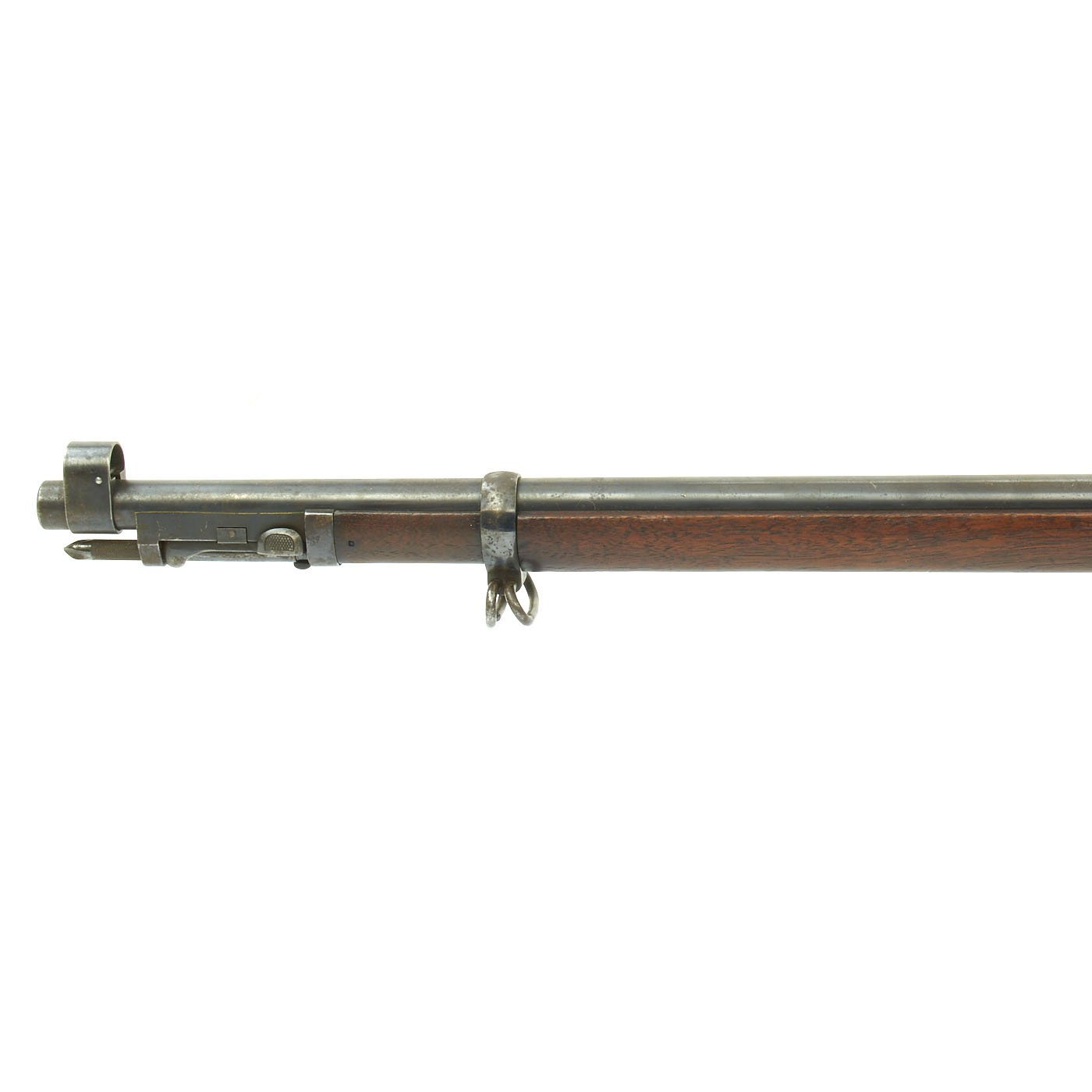

Hardware is in solid condition, with no signs of structural issues. The bore is in very good condition, with clear lands and grooves, and a bright finish with just a bit of haze. The cleaning rod / bayonet is in good shape, with intact threads, and a great finish. This example also has the original fronts sight "hood" protector, something we rarely see.

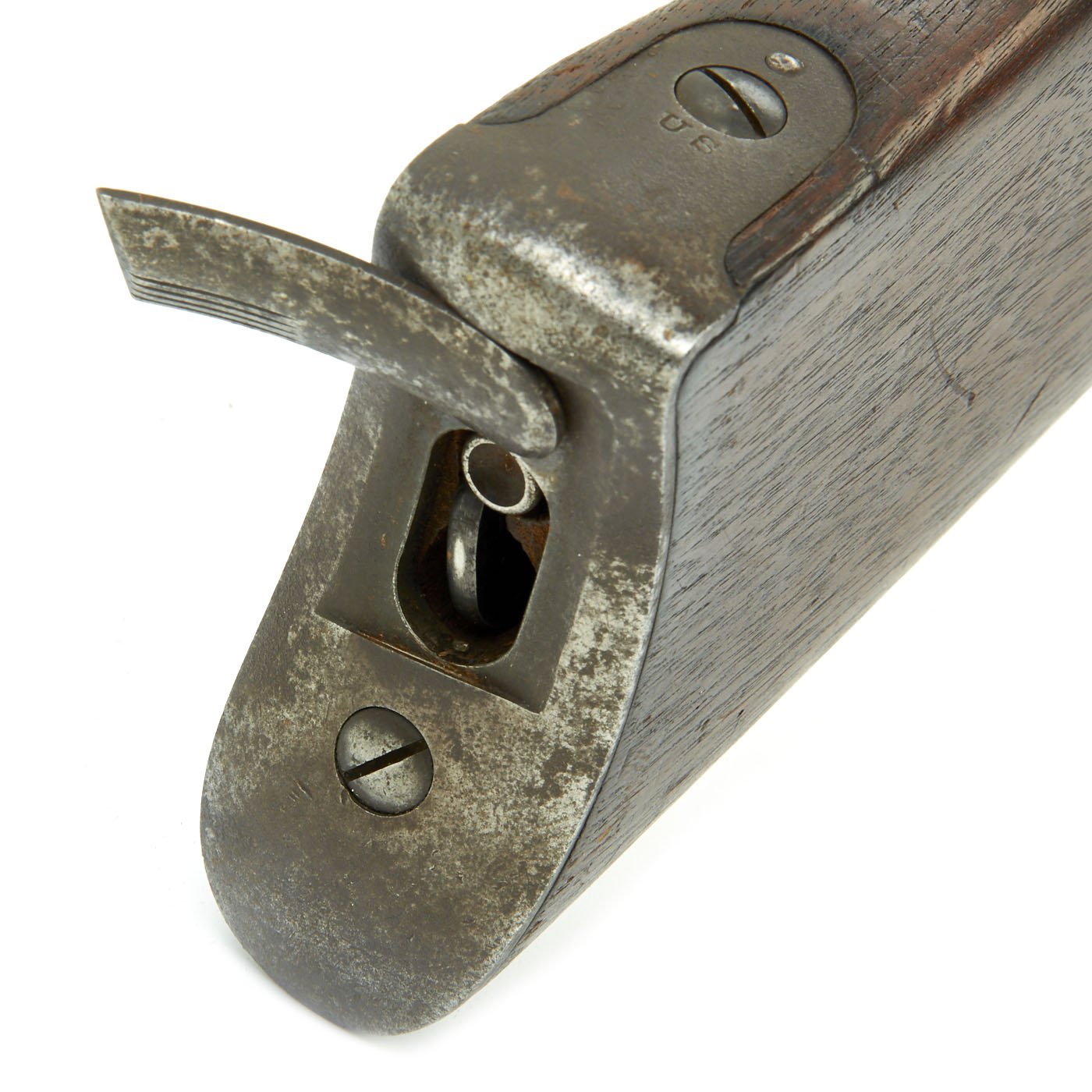

Another excellent and rarely seen feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. Inside are an original Springfield model 1879 Springfield Rifle take down tool, as well as a stuck cartridge extractor, stowed in their correct slots. We've only had a few rifles that still had these!

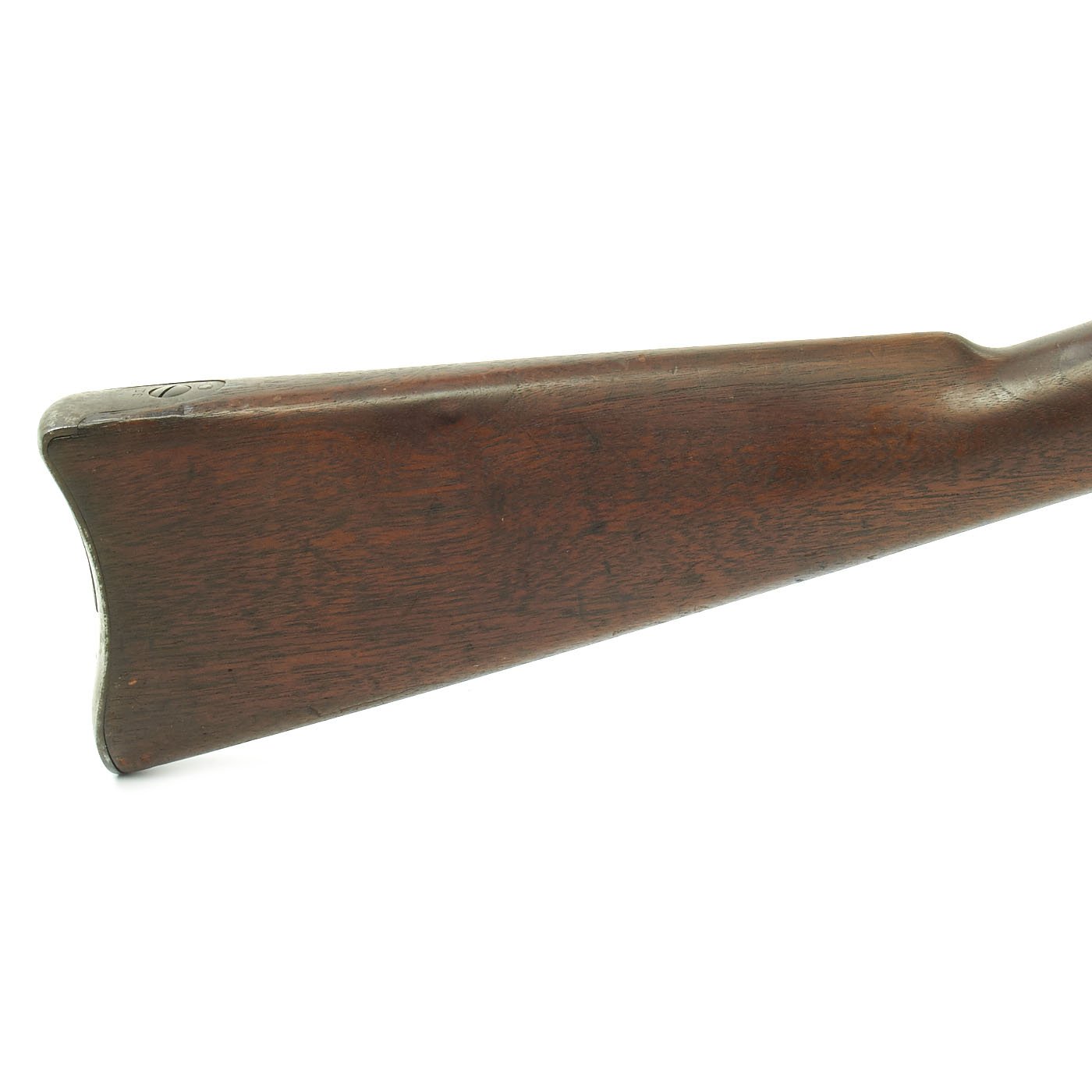

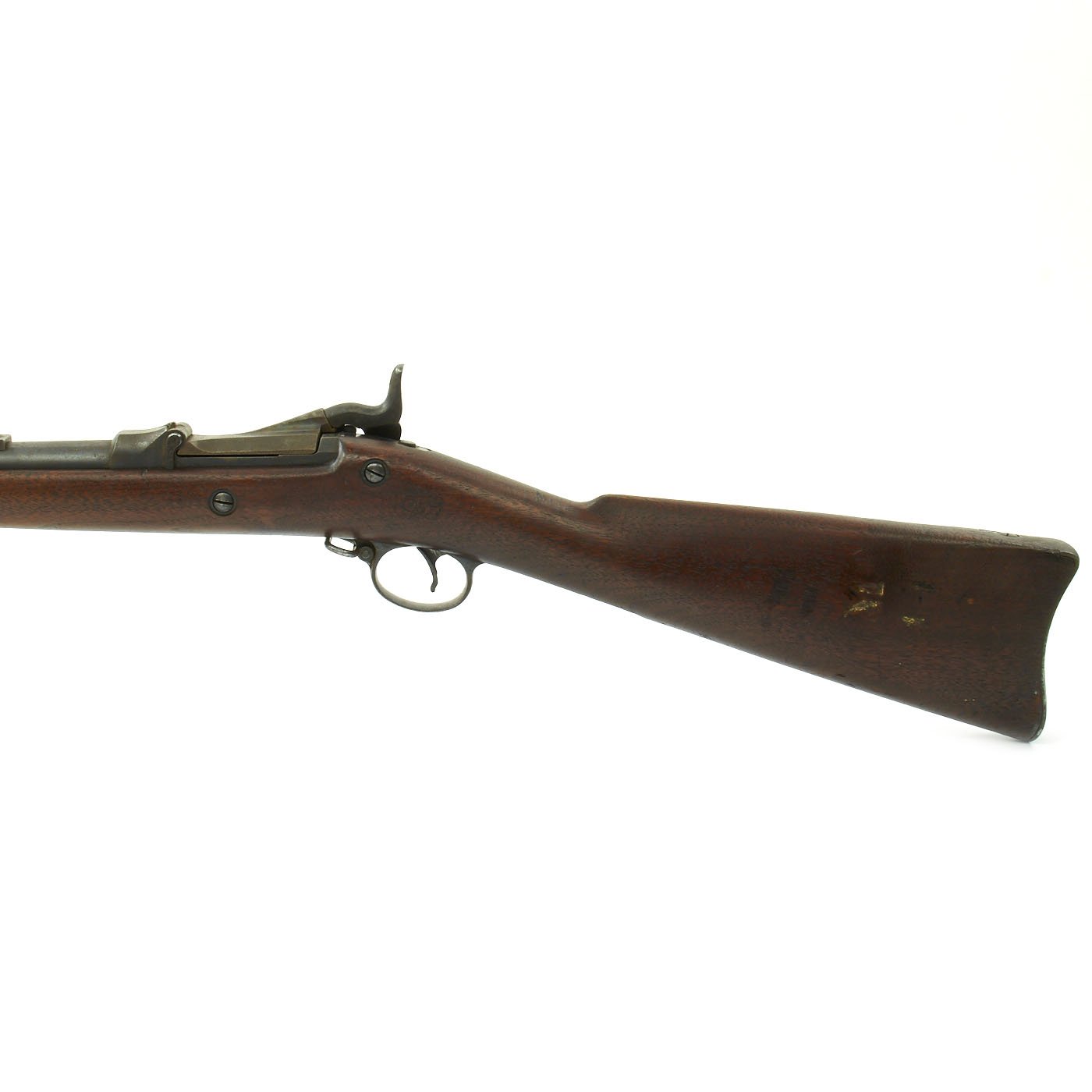

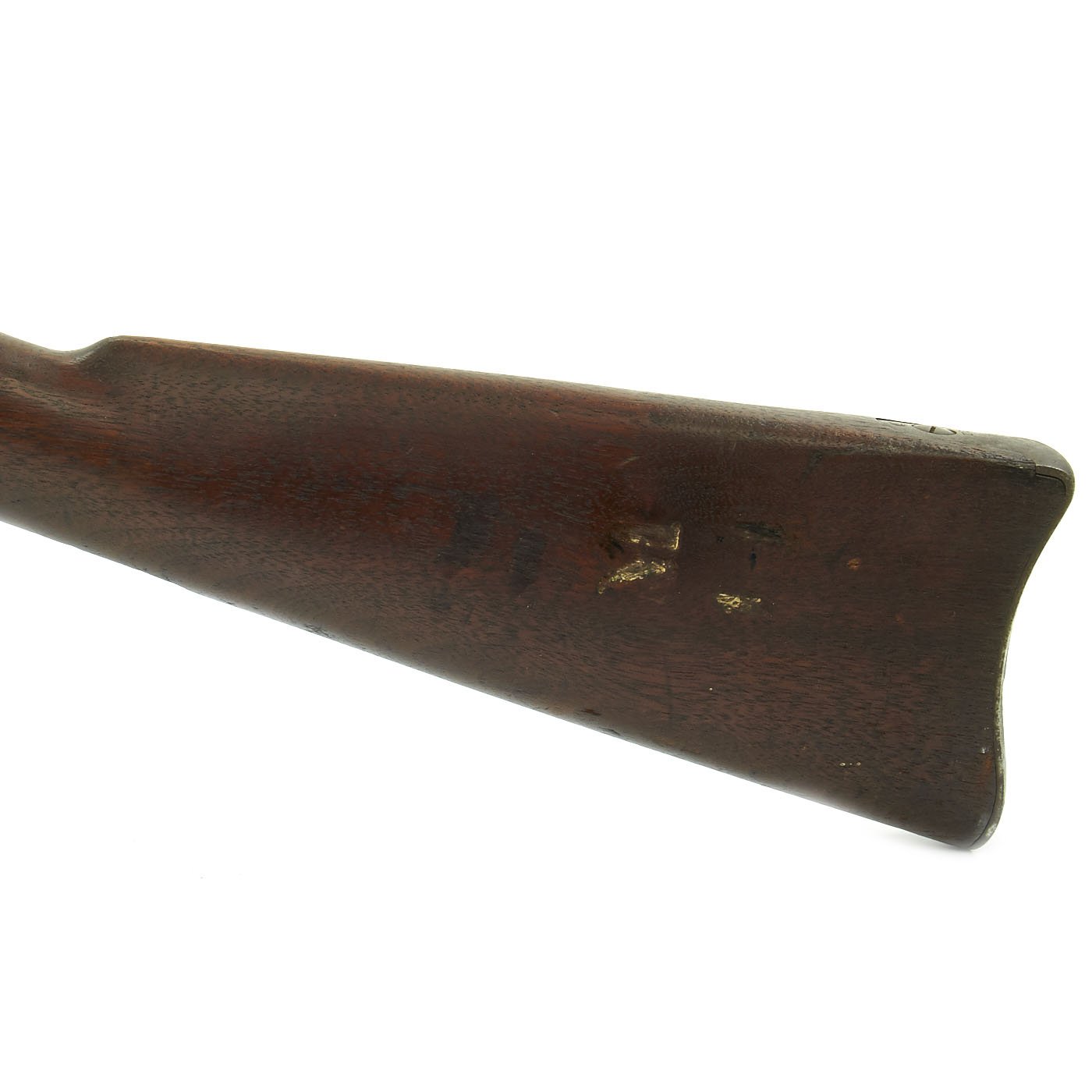

The stock is in good condition, with a great color and no major issues. The very strong grain makes it quite attractive. The stock does have small gouges, scratches and dings from service, as well as some denting on the left butt stock. However the stock is still fully proud over the lock plate, so it has not been sanded down!

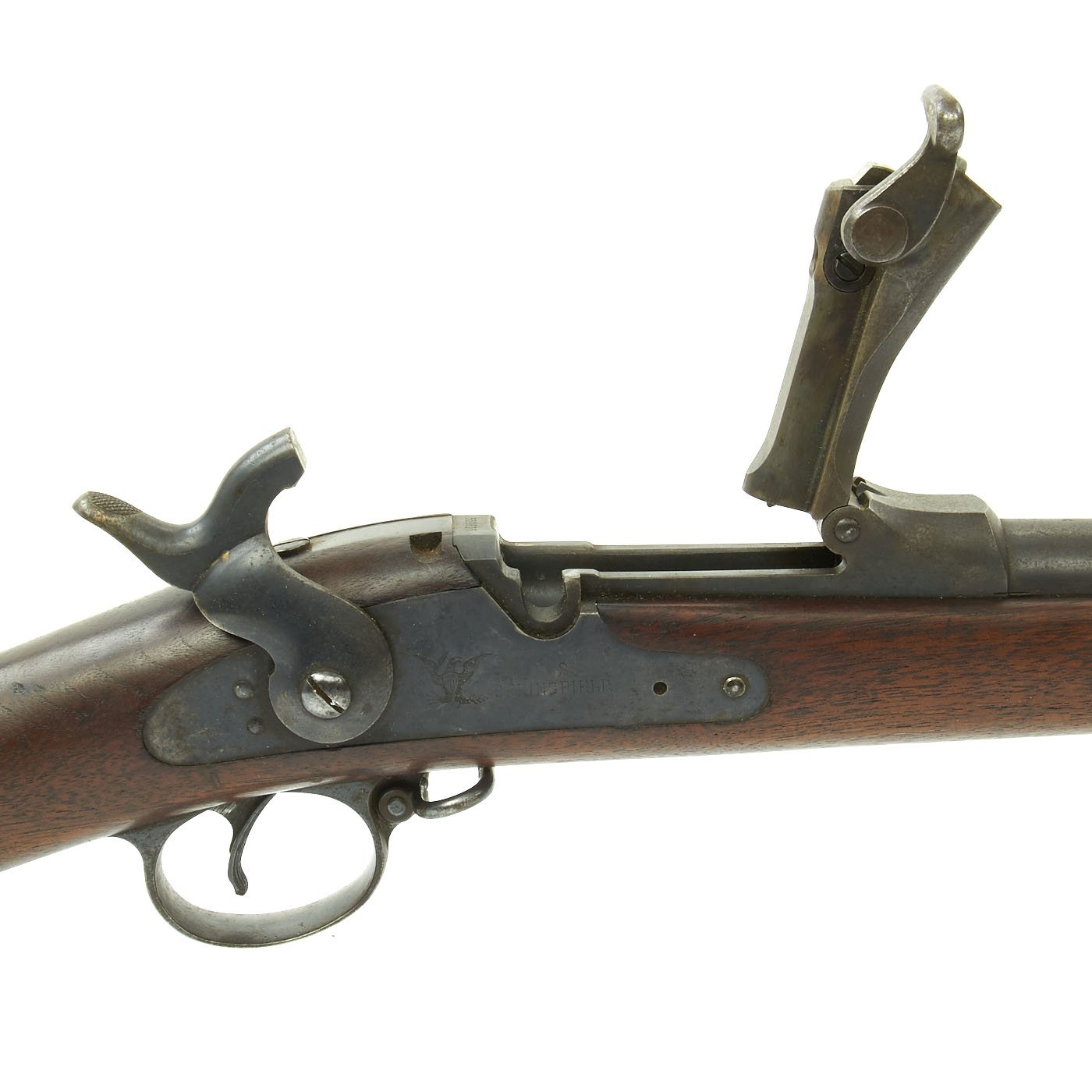

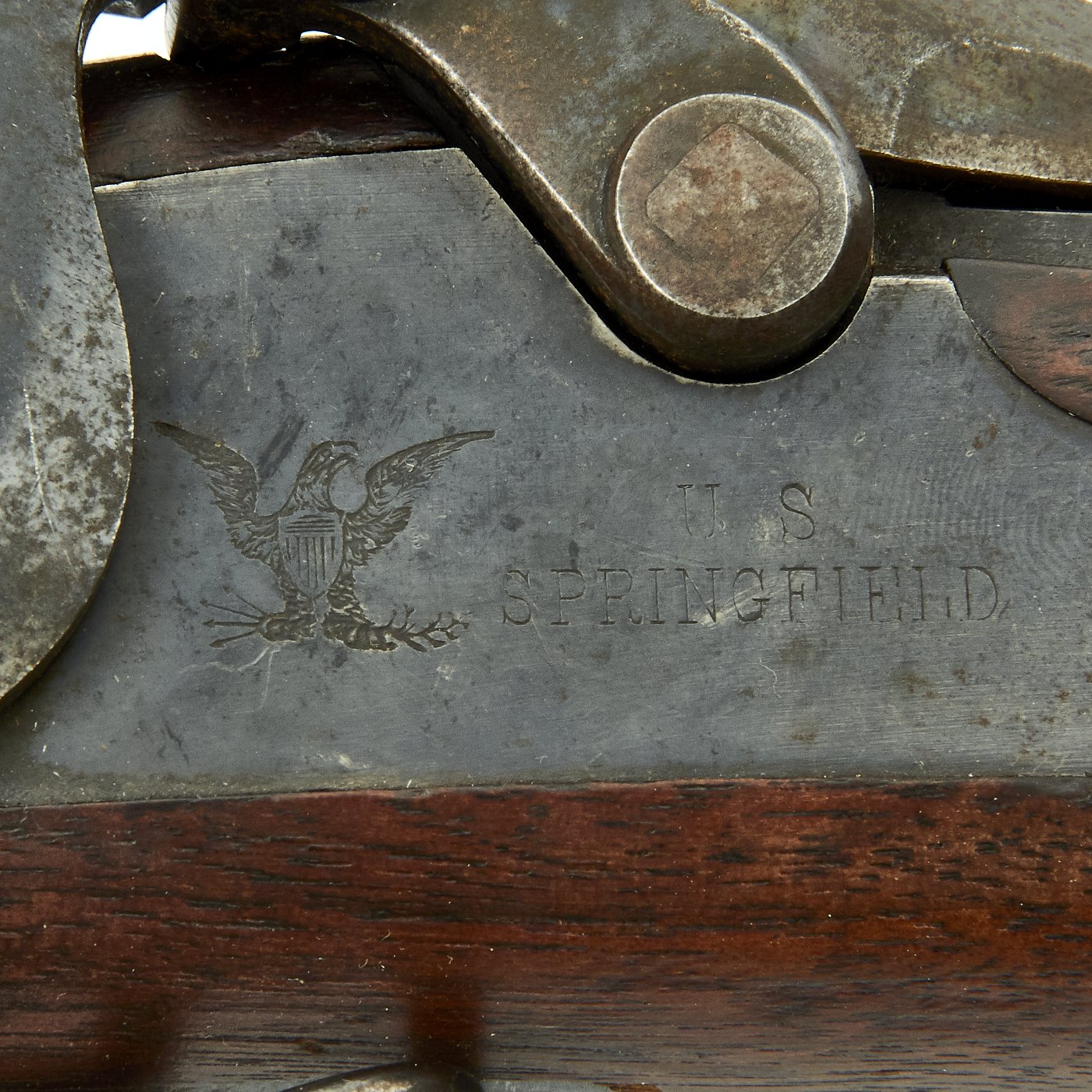

Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD indicating manufacture by Springfield Armory, Springfield Massachusetts.

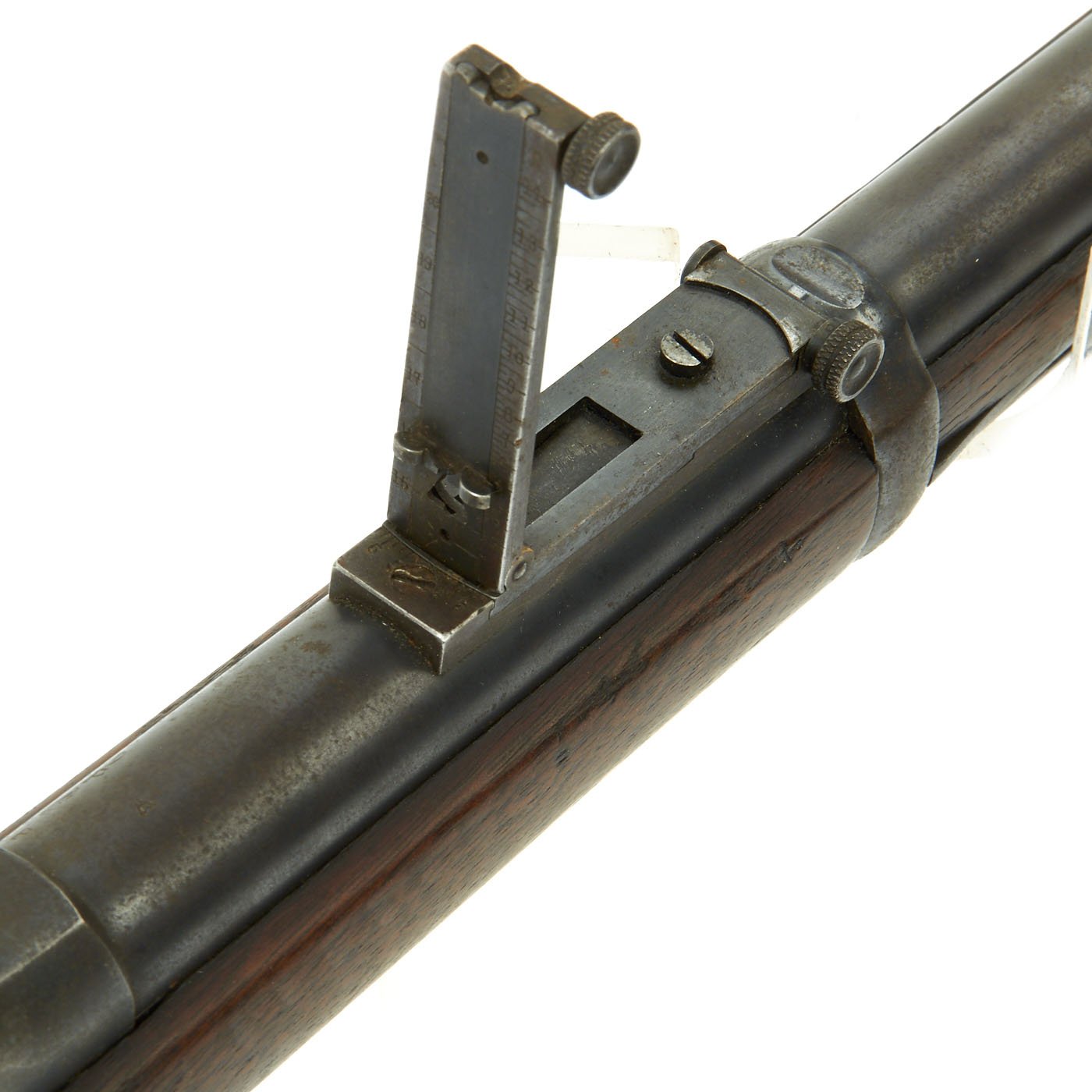

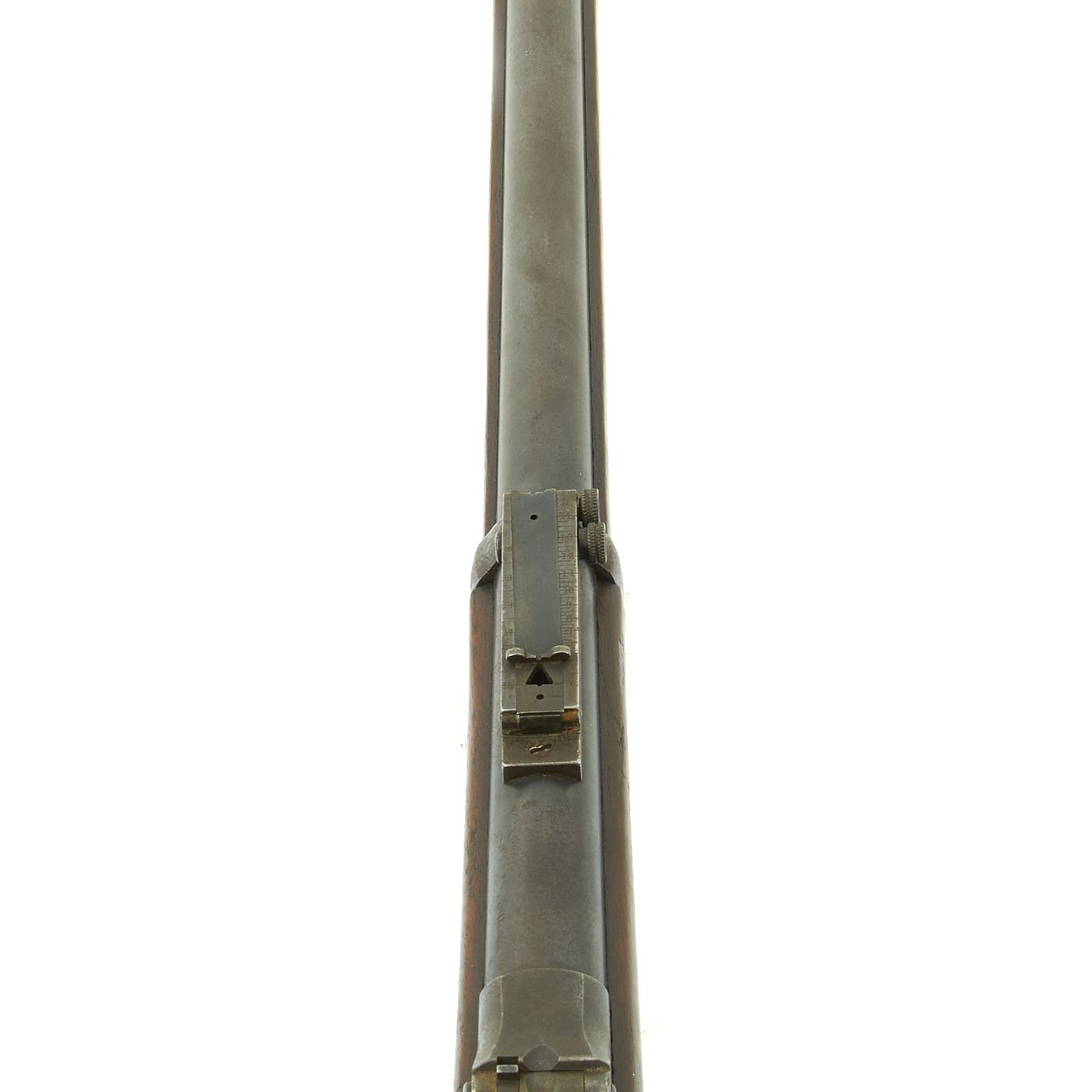

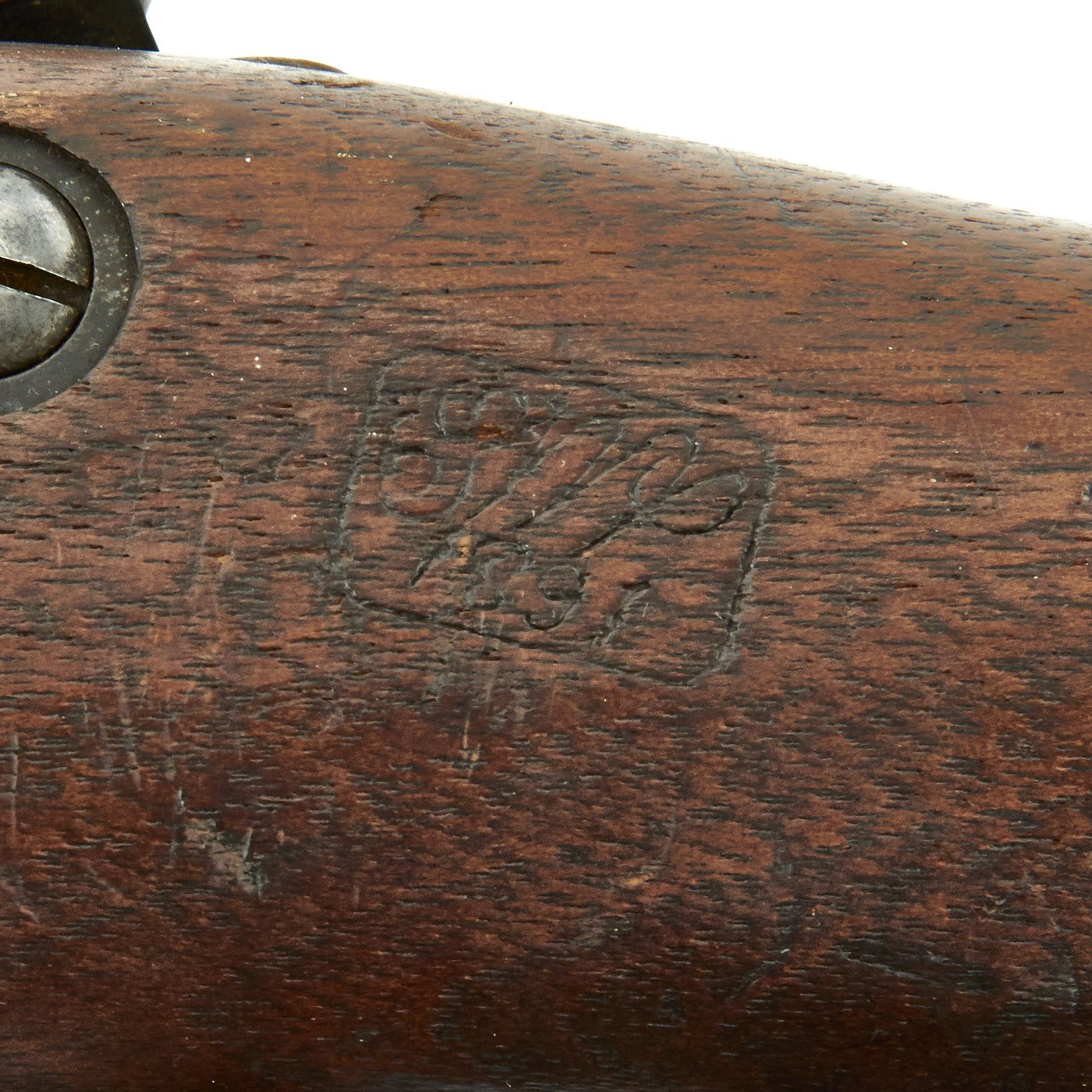

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.
A great chance to pickup an excellent example of the United States last single shot rifle! Ready to display!
Year of Manufacture: 1891
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches

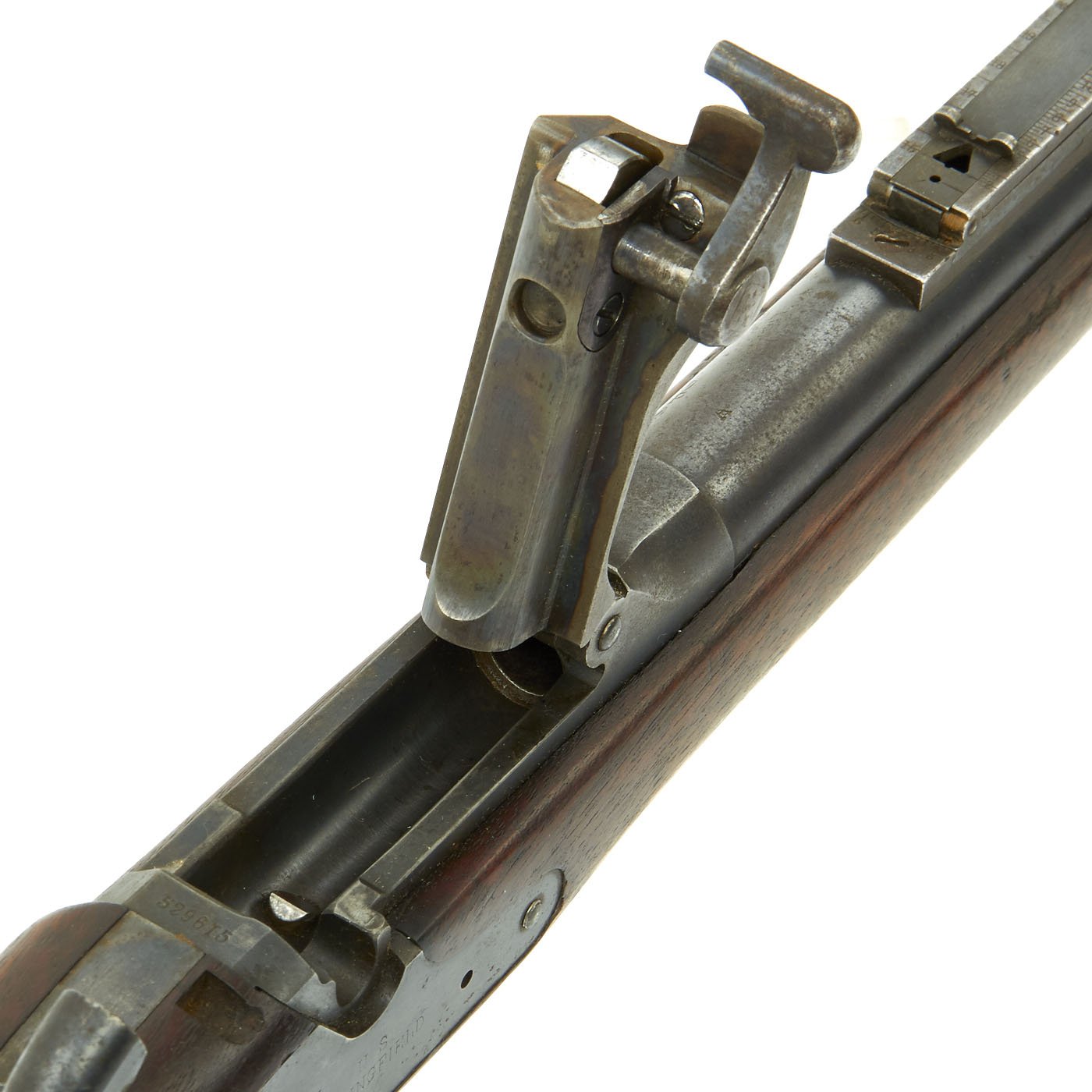

Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
