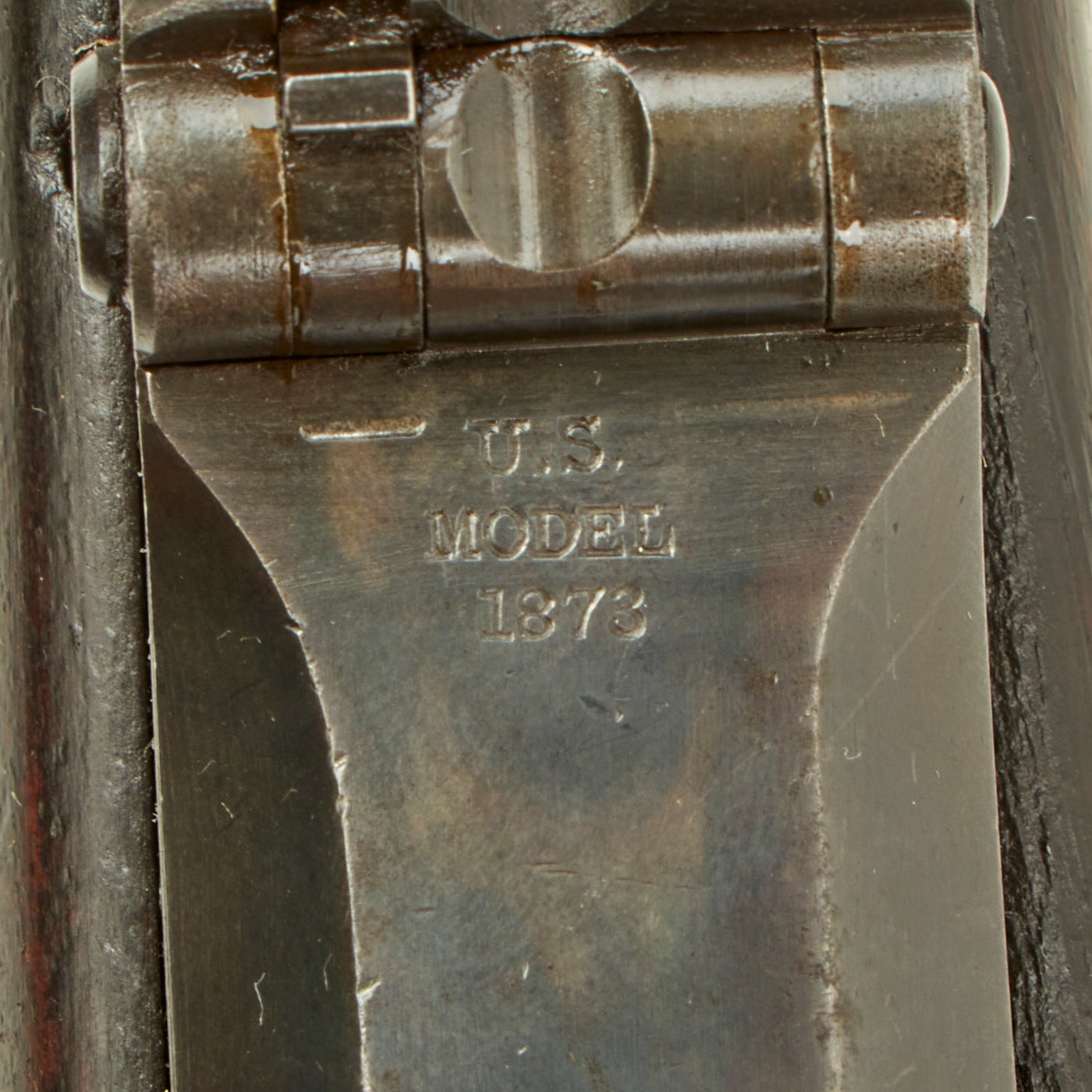

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:

In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

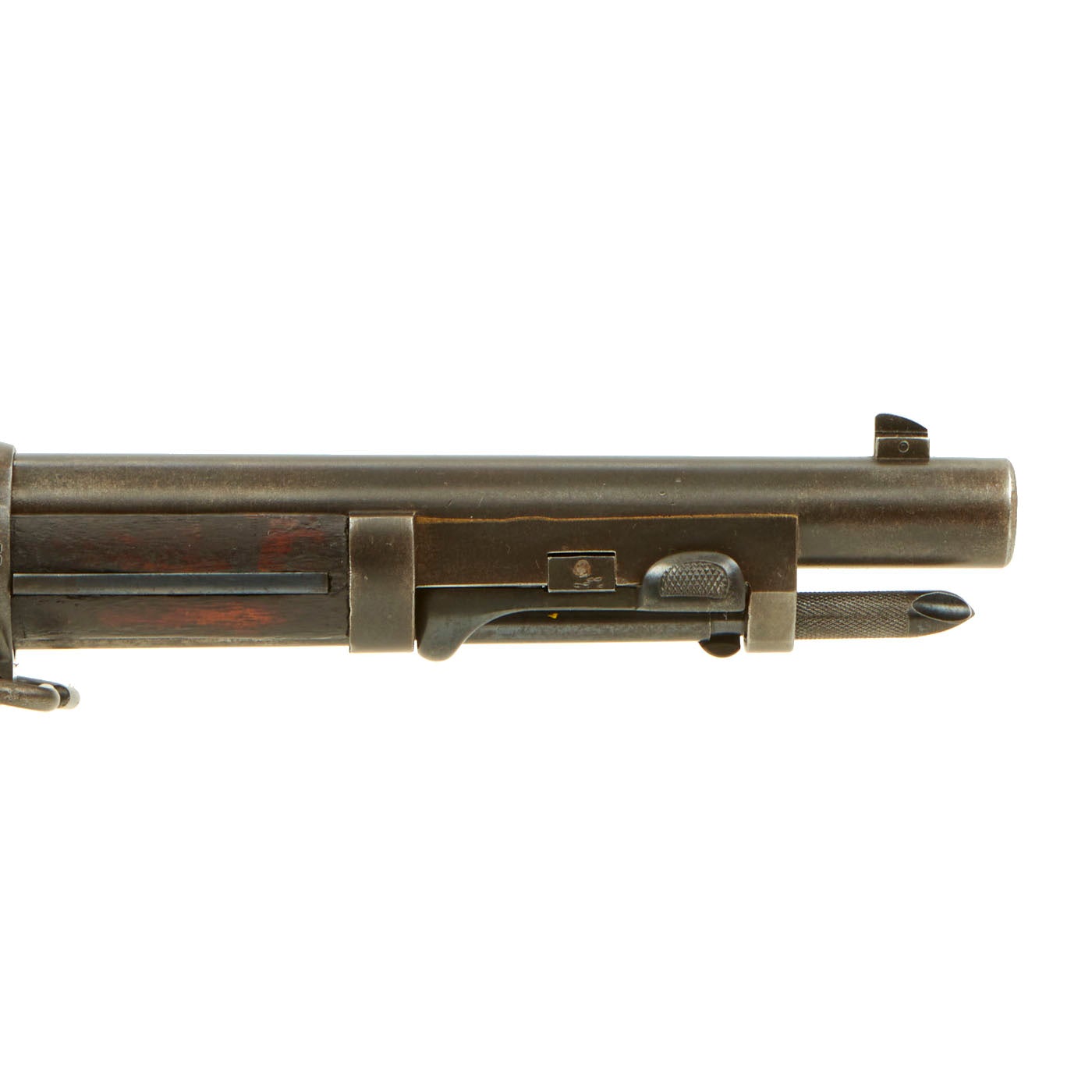

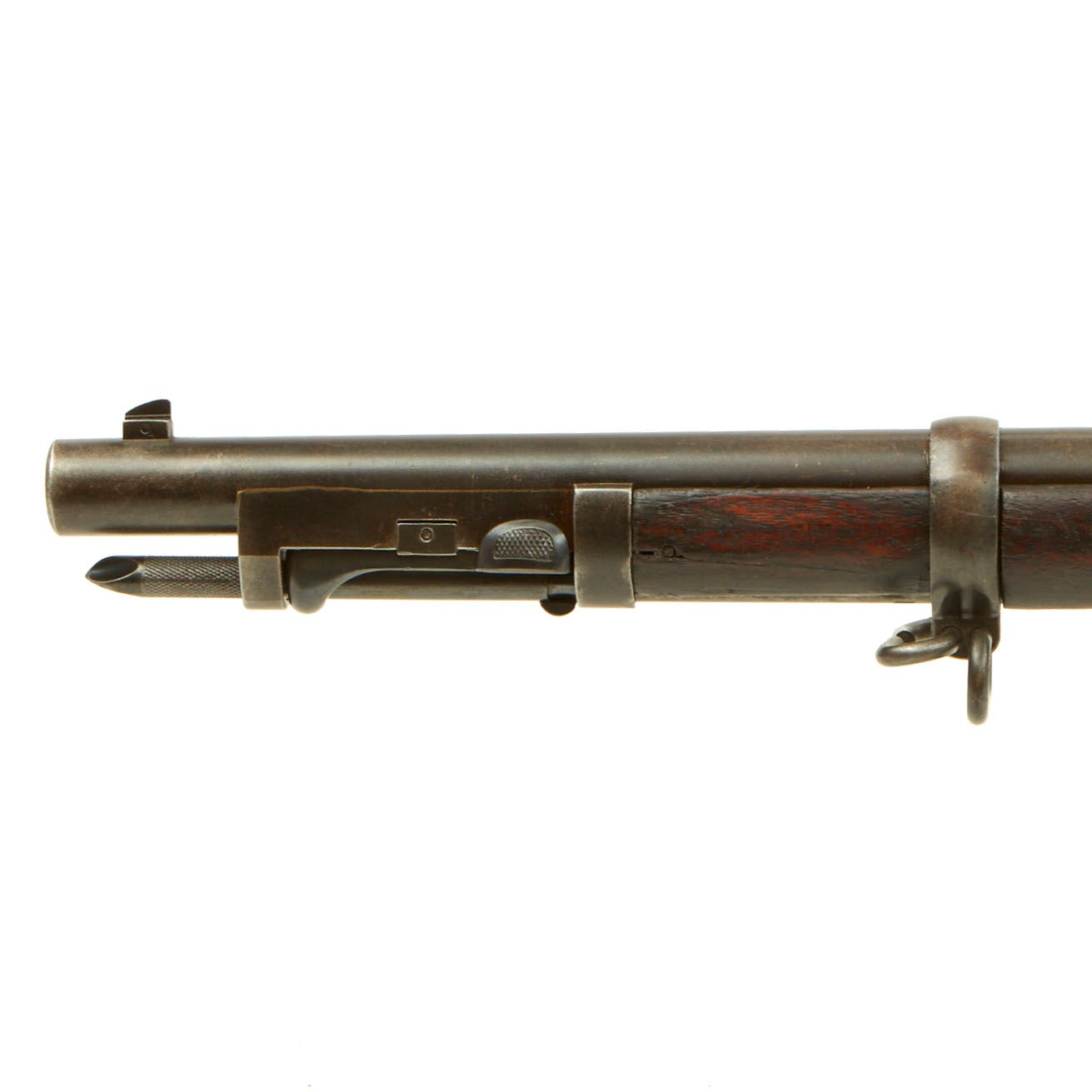

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

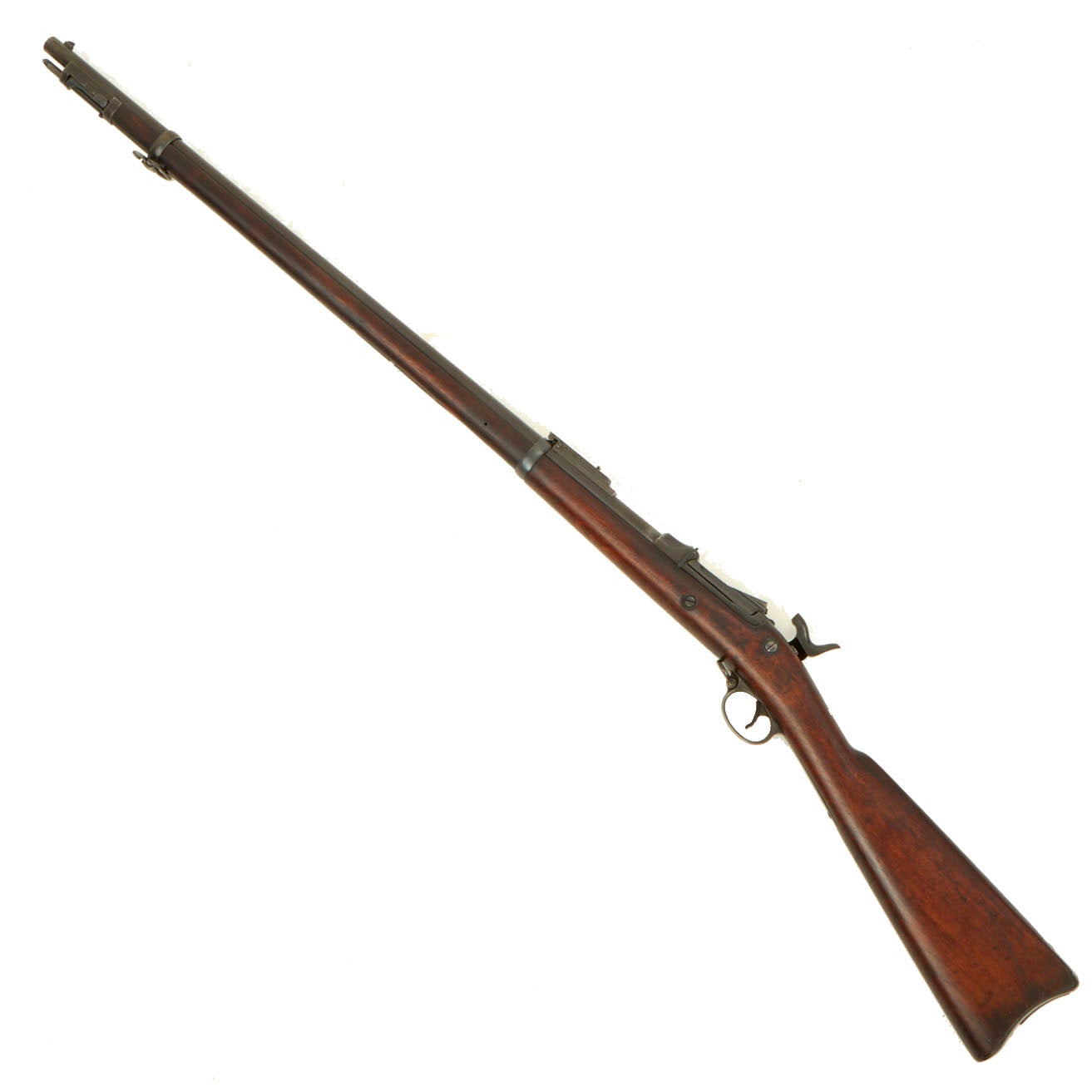

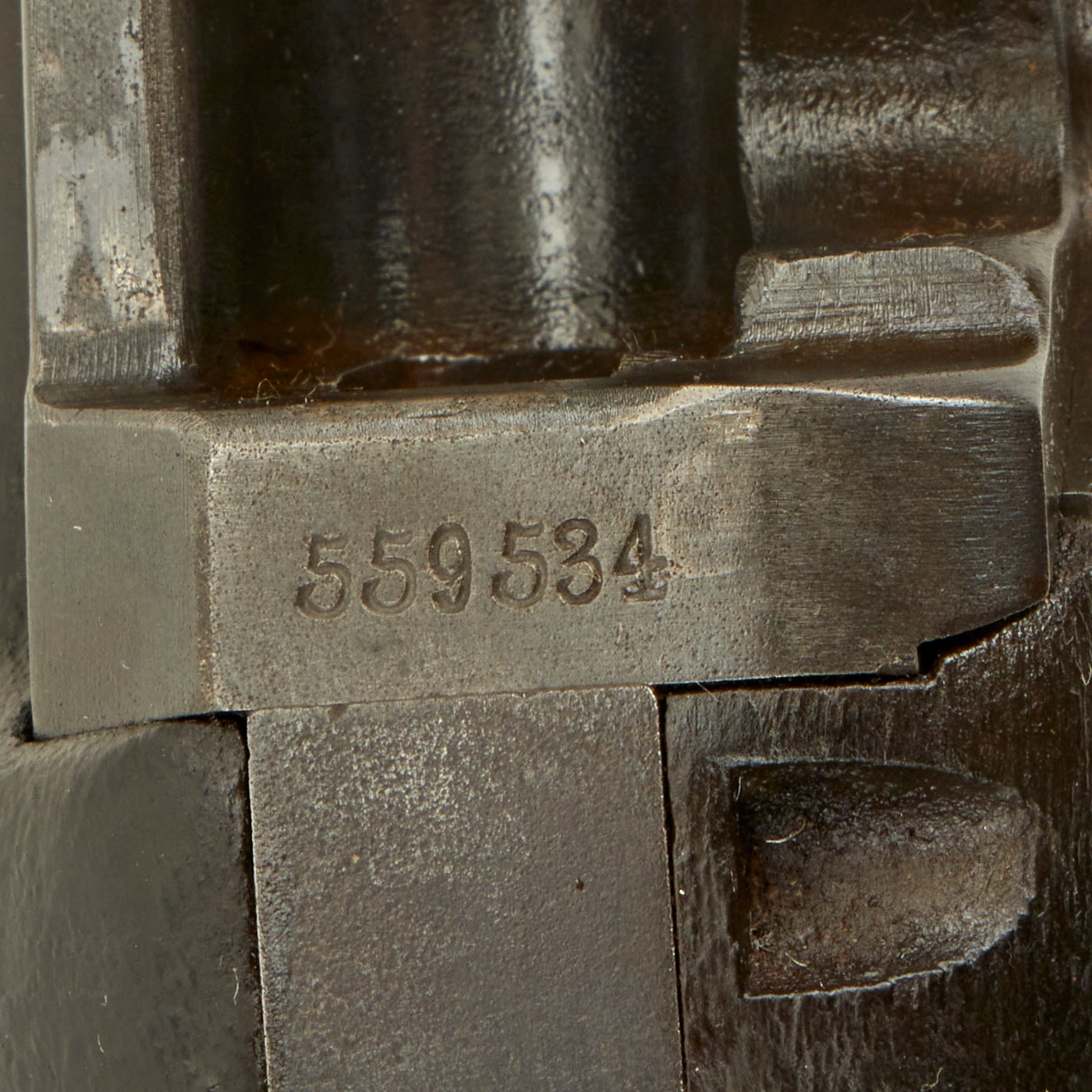

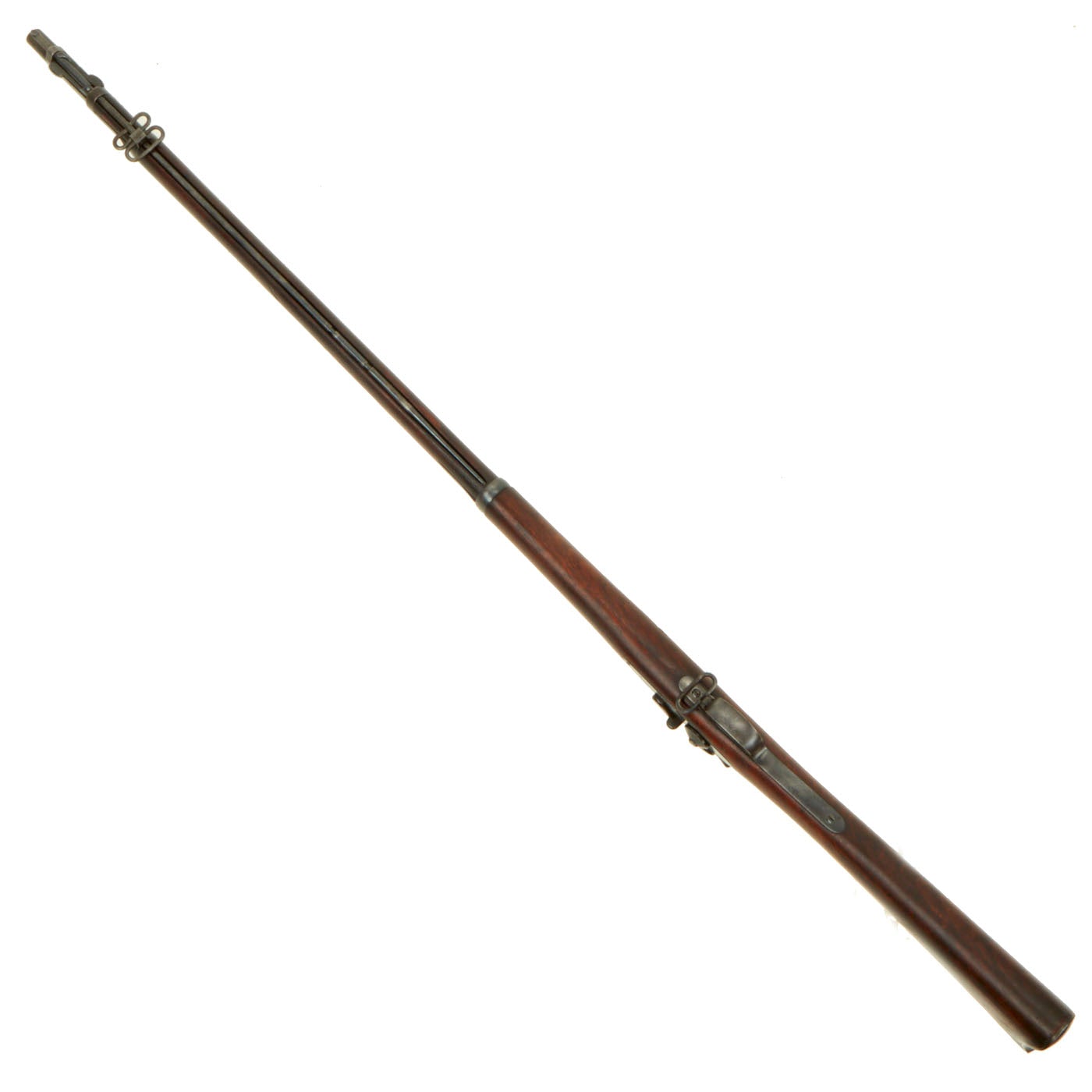

Offered in very good condition is this trapdoor rifle in 45-70 government caliber. Serial #559534 indicates manufacture in 1893, which technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a faint government inspector SWP / [18]93 cartouche, indicating final inspection in the same year, which was the last year the Springfield Trapdoor was officially produced, having already begun work on the Model 1892 Krag-Jørgensen design. Original metal finish is still good, with a lovely aged blue on most surfaces.

Hardware is in very good condition, with no signs of structural issues, and the original finish well retained. The bore is in very good lightly used condition, with clear lands and grooves and a mostly bright finish. There is just a bit of light oxidation and fouling in a few areas. The cleaning rod / bayonet is in good shape, with intact threads, and a worn blued finish. Another nice feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. This was used to store the take down tool and stuck cartridge extractor. Unfortunately this compartment is empty, as they almost always are.

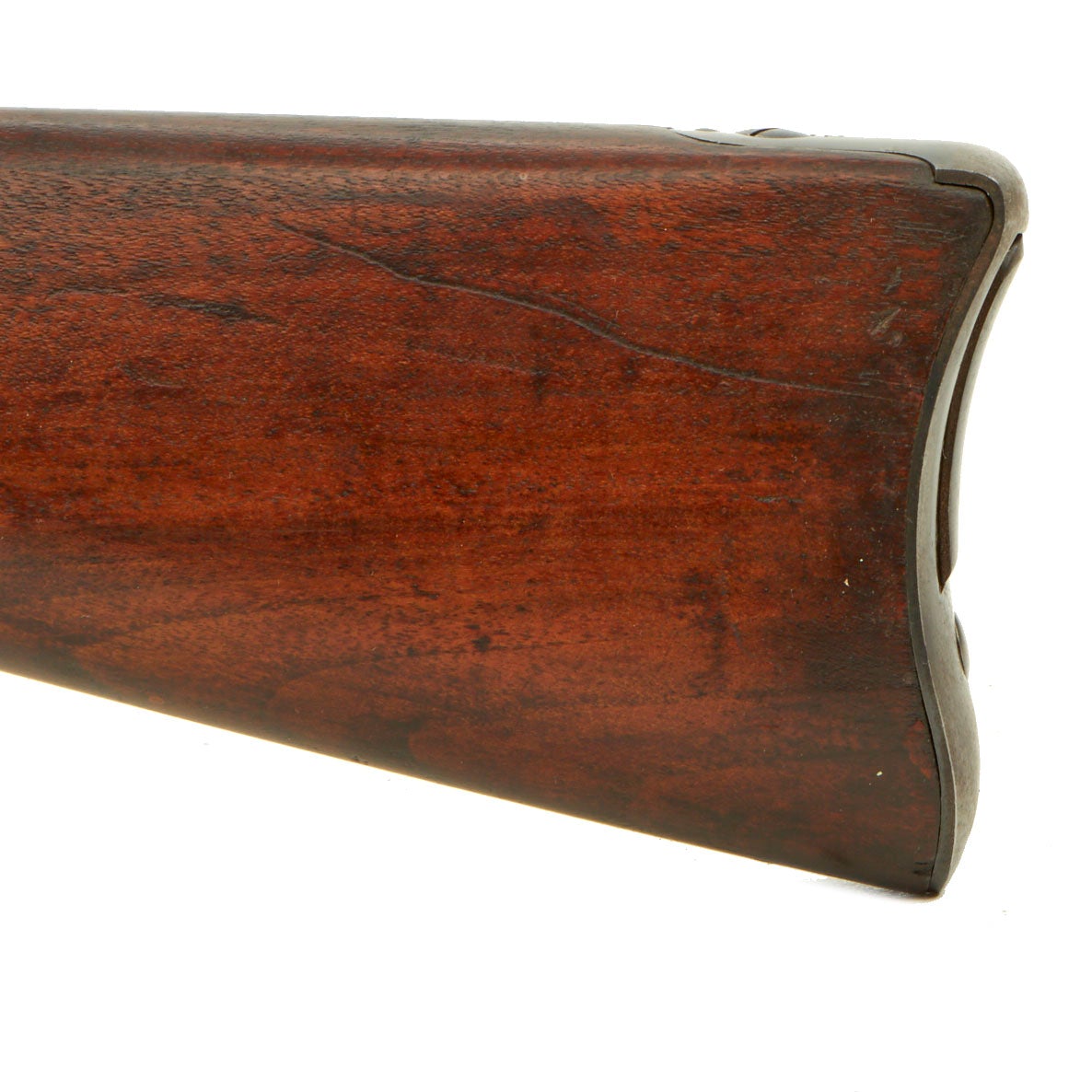

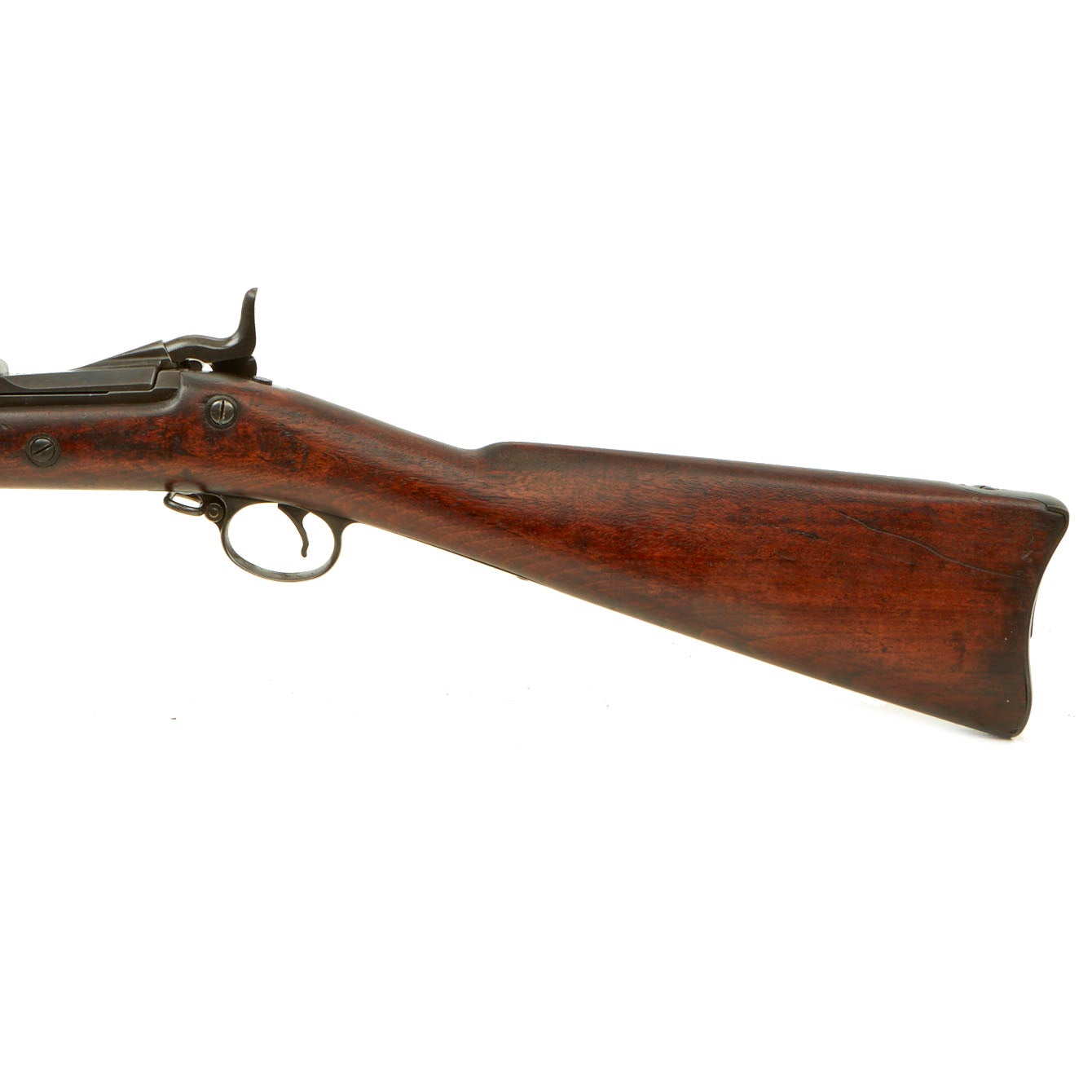

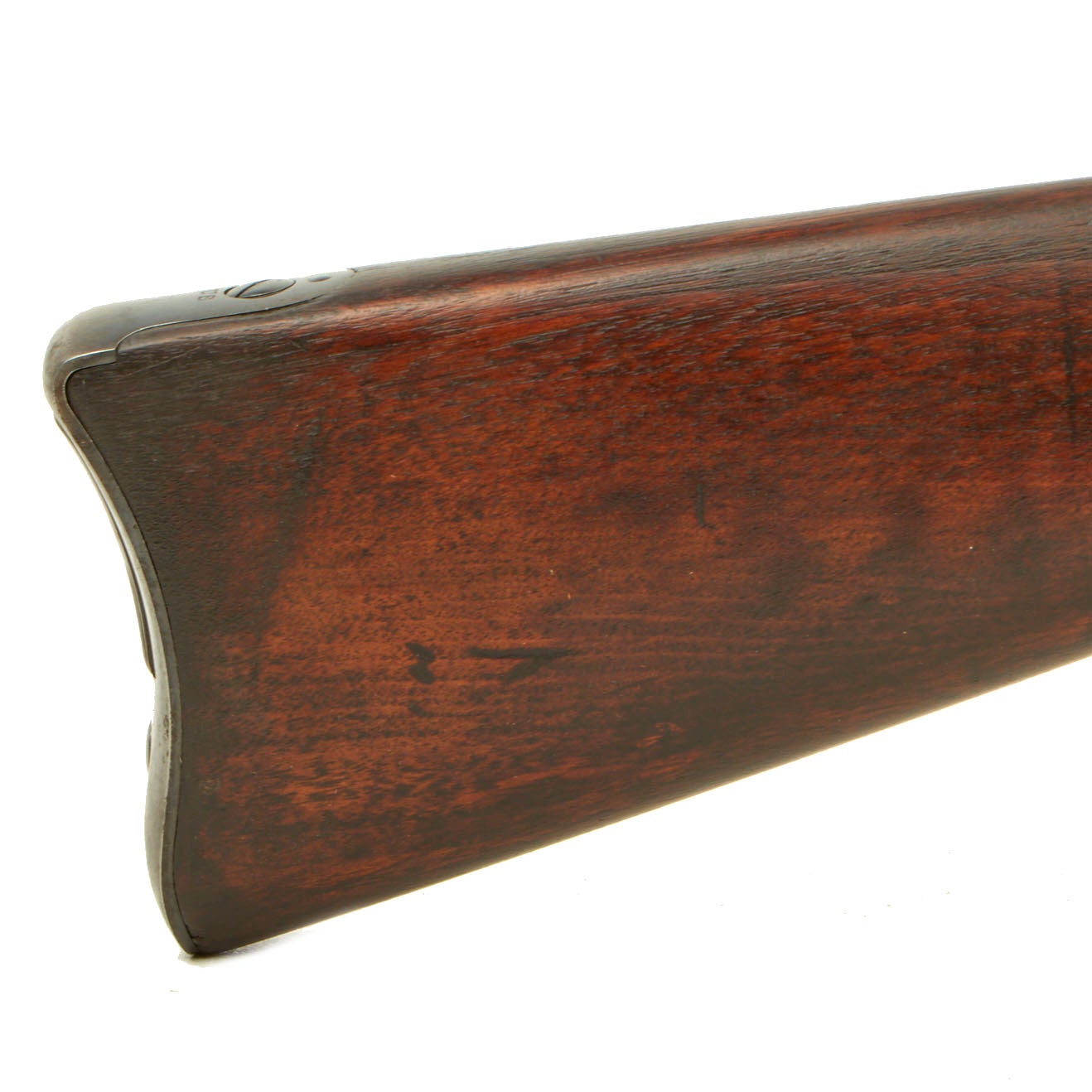

The stock is in very good condition, though it is now below the level of the lock plate, indicating that it has been worn down and most likely reconditioned at arsenal. There are still some dents and dings from long service, as well as some cracking near the nose cap on the left side. However there is no major structural damage or repairs we can see. The wood has a lovely deep brown color, only seen on aged oiled walnut stocks.

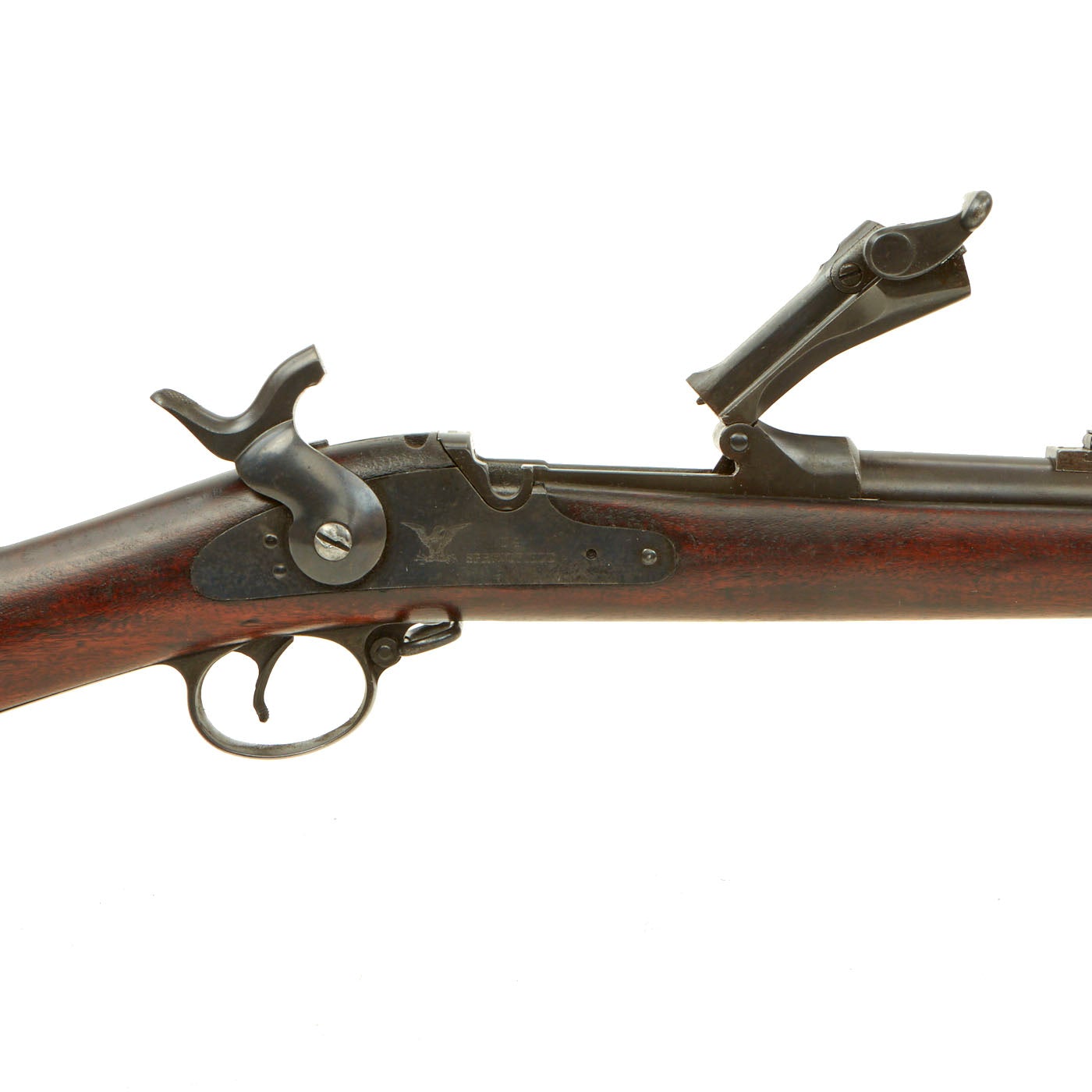

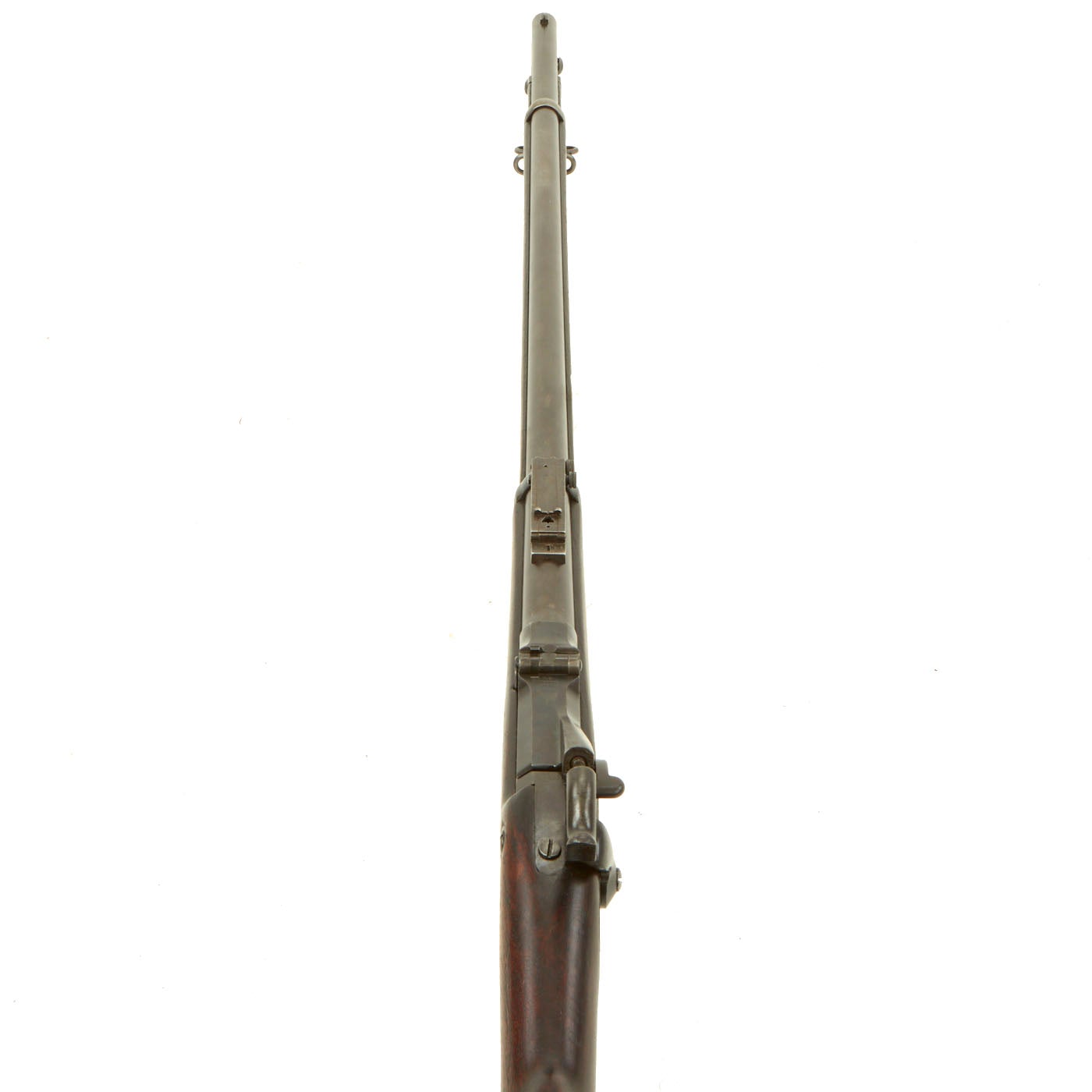

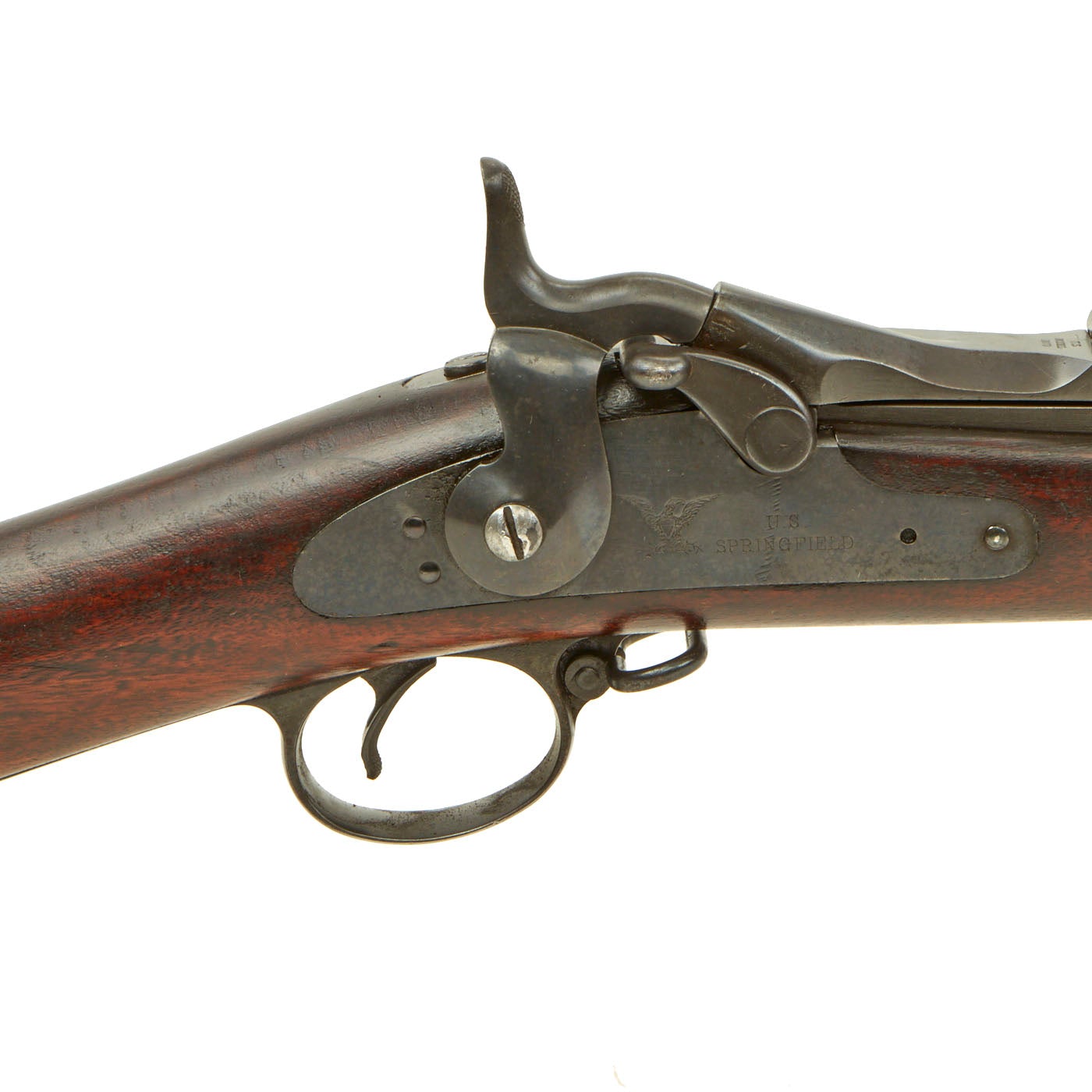

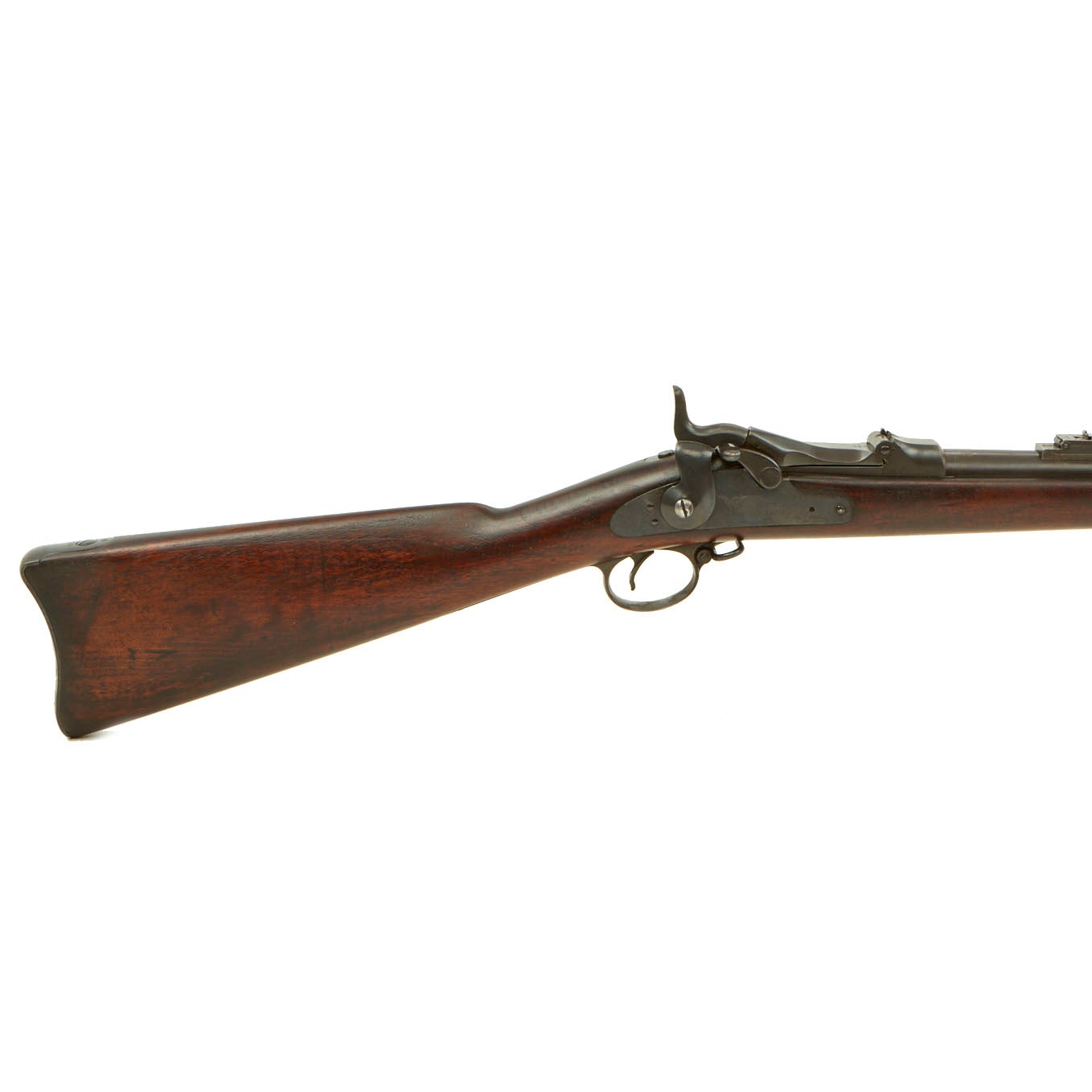

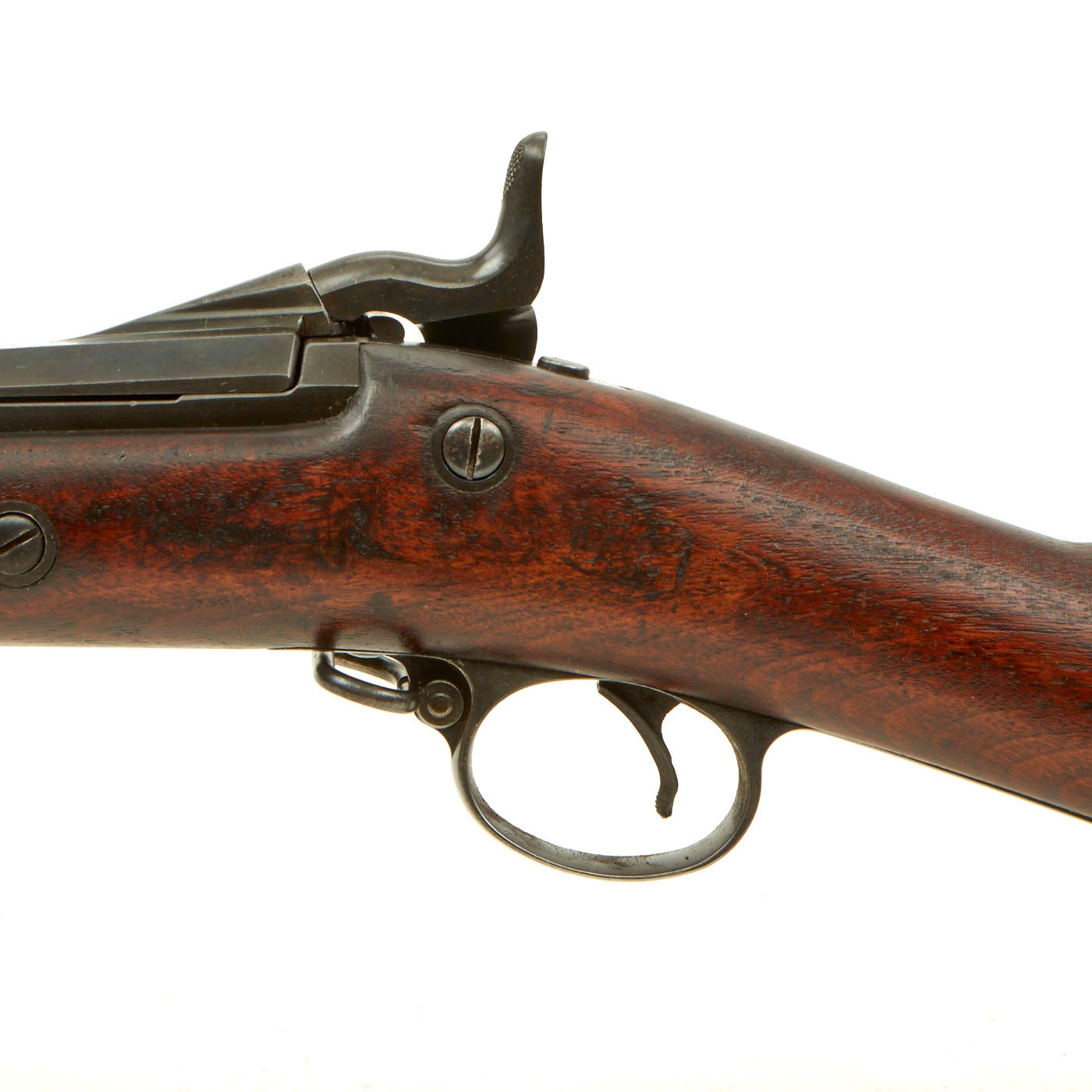

Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD indicating manufacture by Springfield Armory, Springfield Massachusetts. The lock is fully functional, and the cartridge extractor is intact and functional, though we have not tested it on spent brass. The rear sight works well, though the windage adjustment is currently VERY stiff.

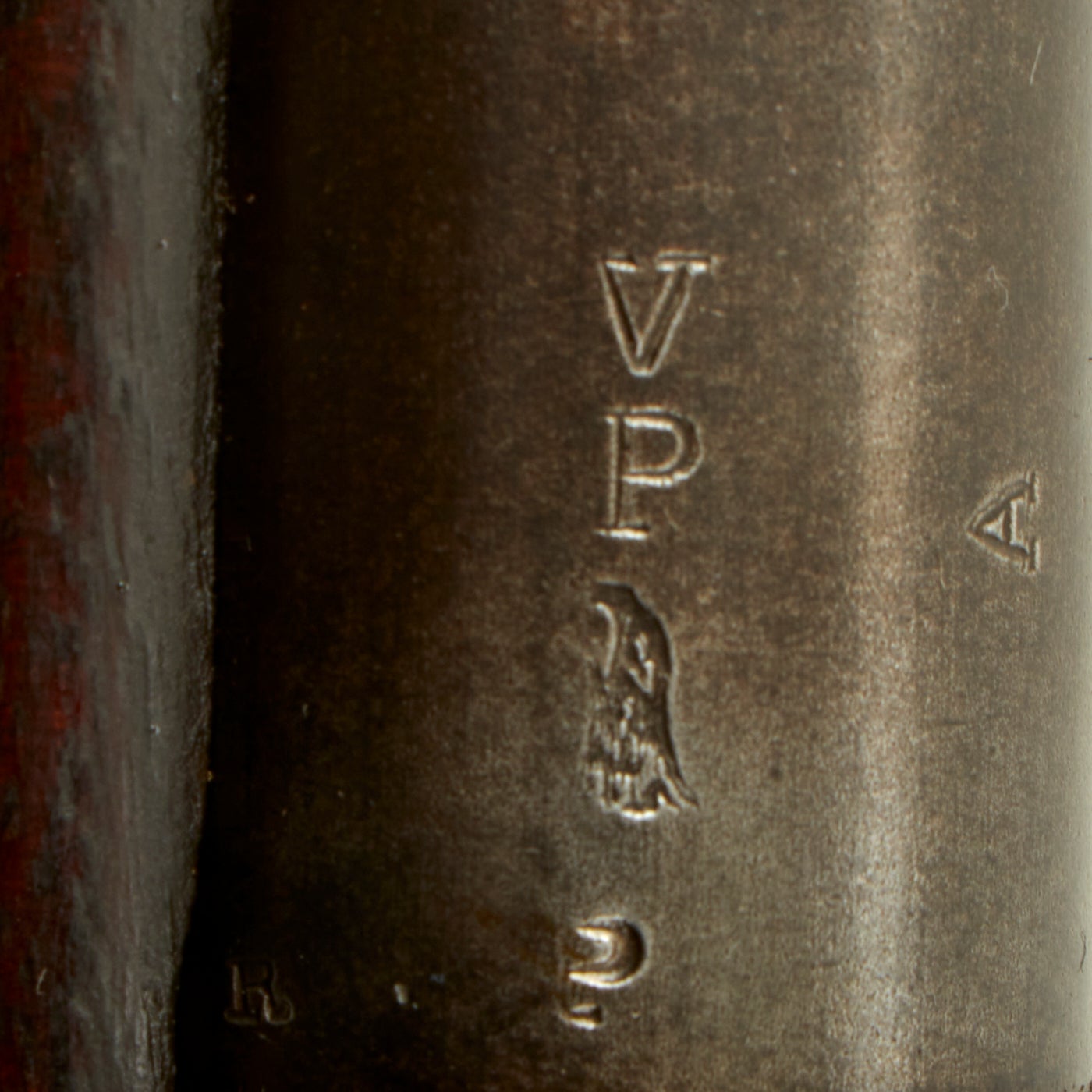

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

A great chance to pickup a great example of the United States last single shot rifle! Ready to display!

Specifications-

Year of Manufacture: 1893
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches

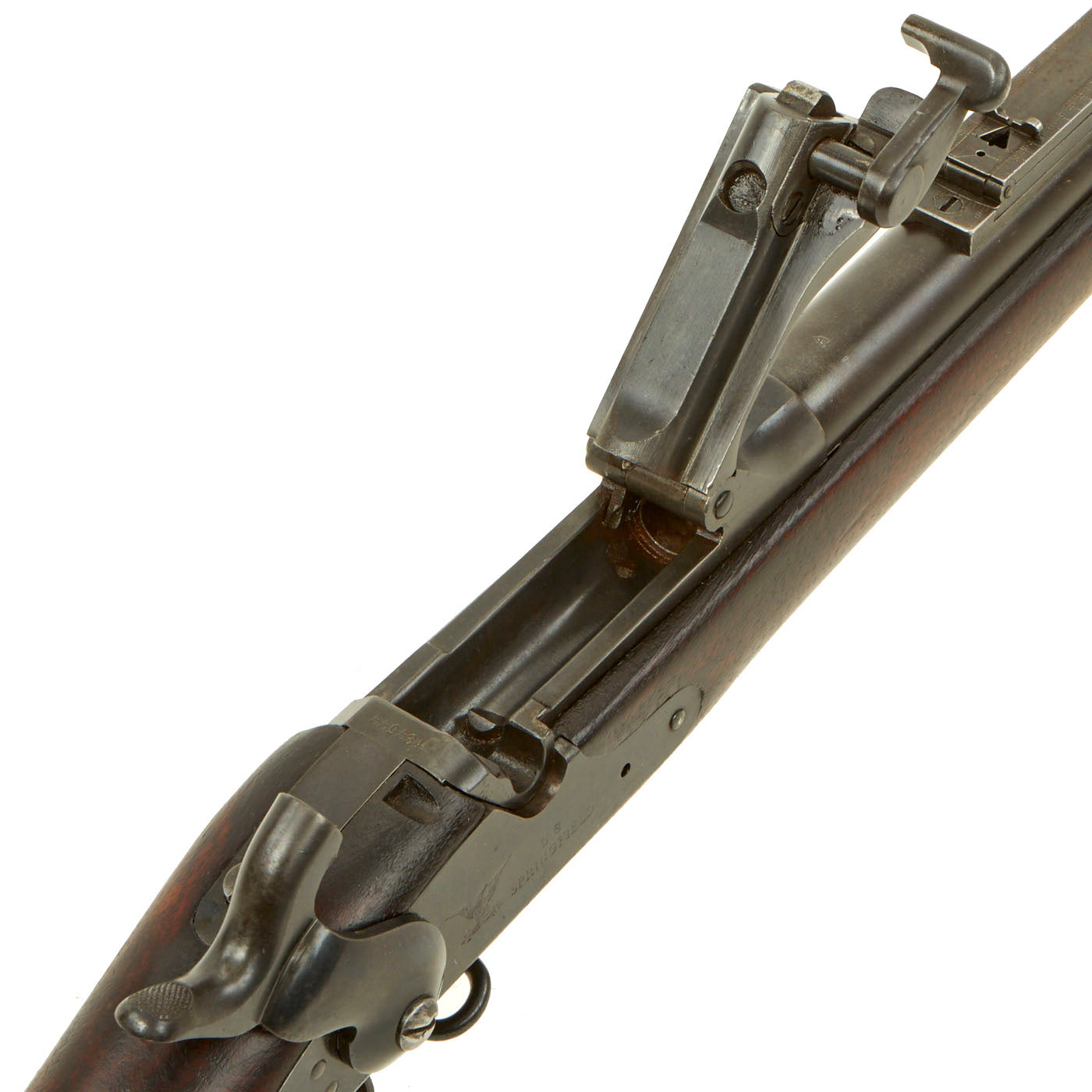

Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
