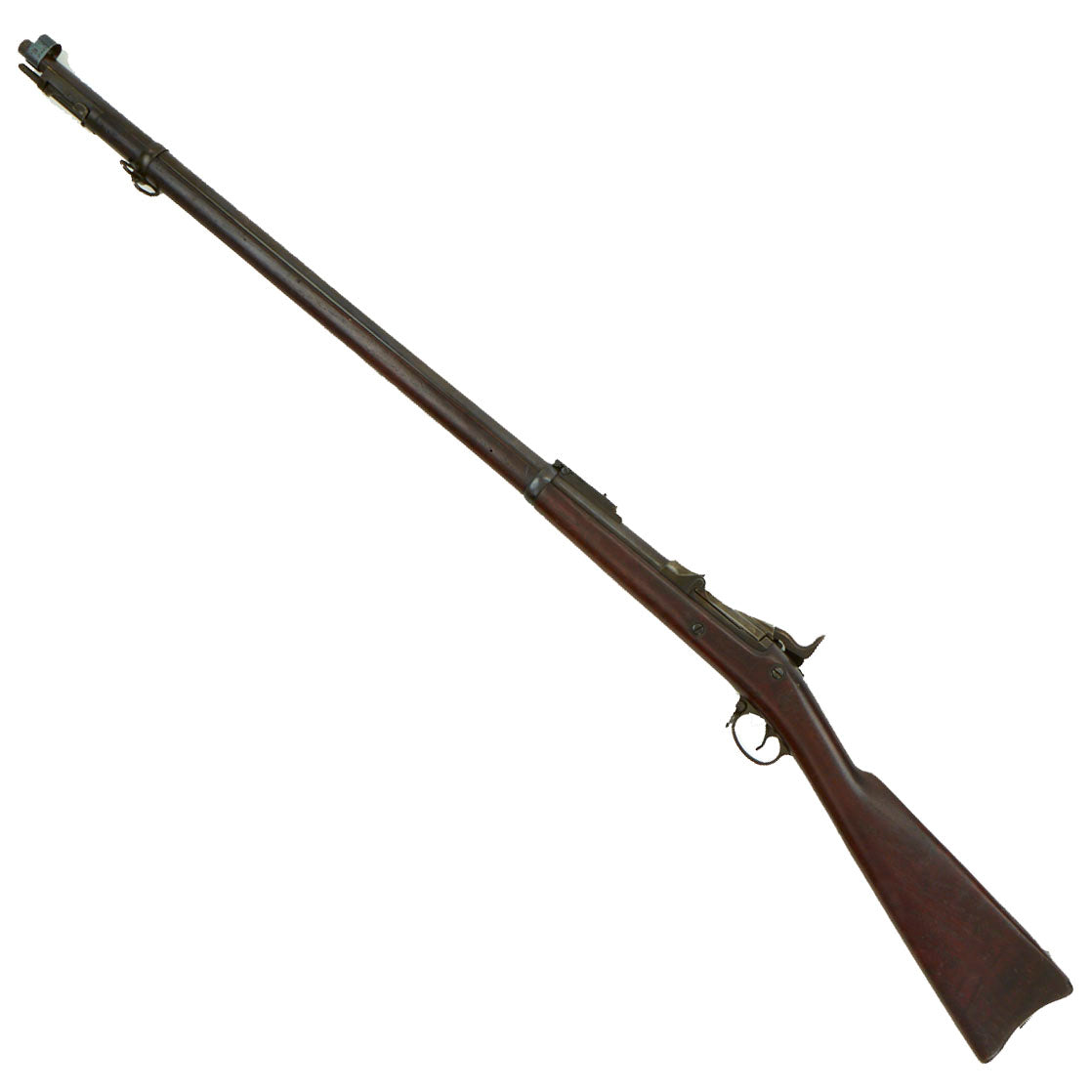

Original U.S. Springfield Trapdoor Model 1884 Round Rod Bayonet Rifle made in 1891 with Sight Hood - Serial 508330

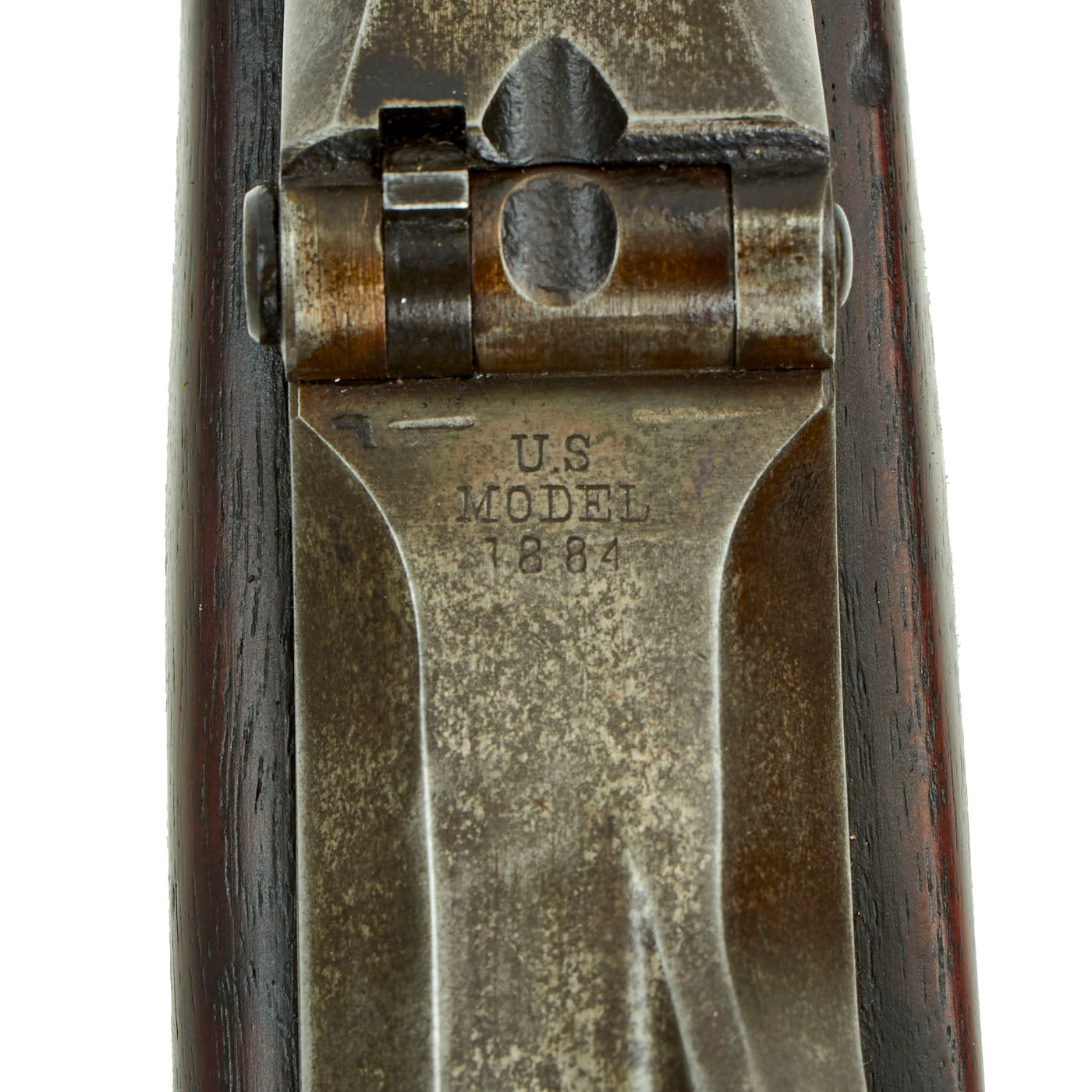

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:
In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.
Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

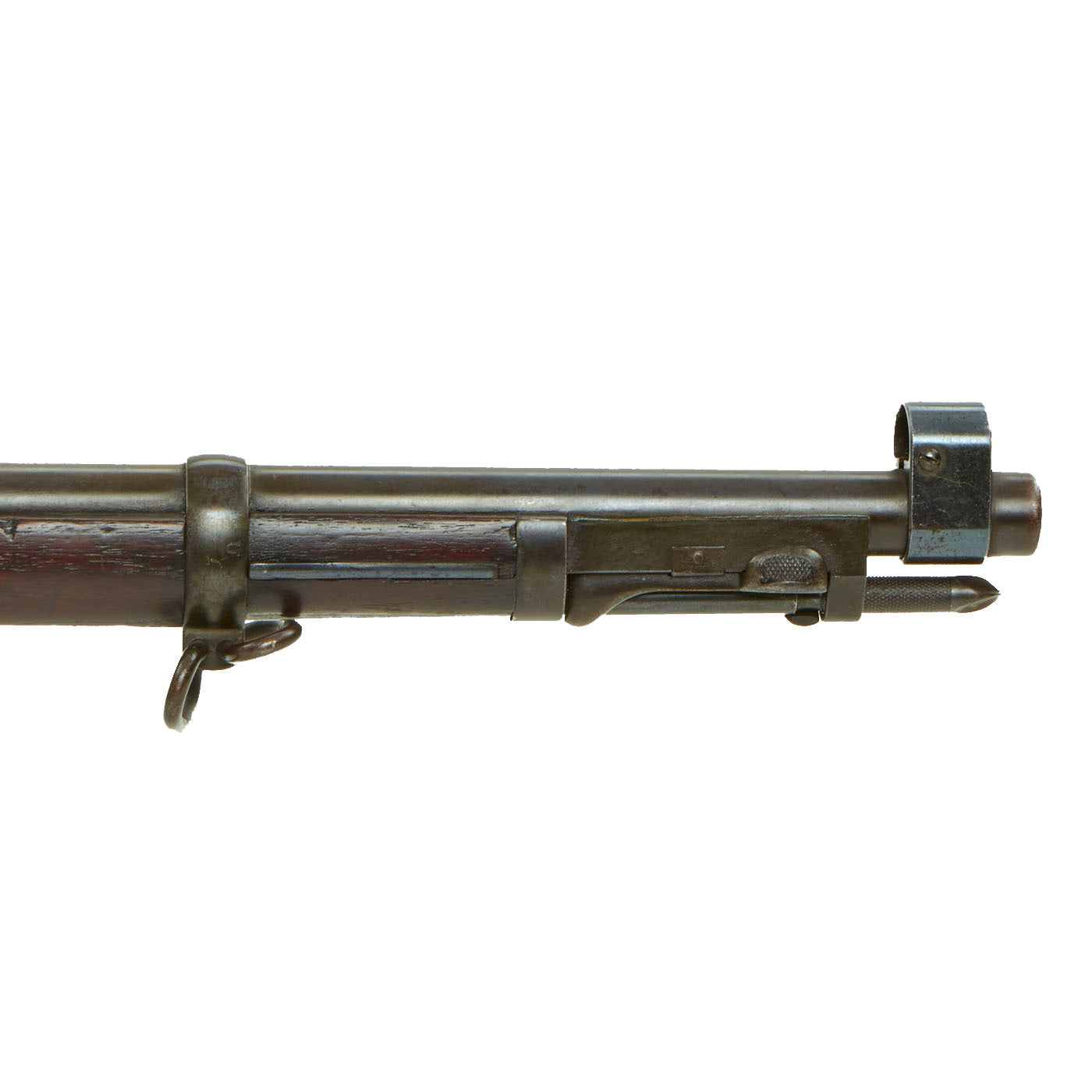

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

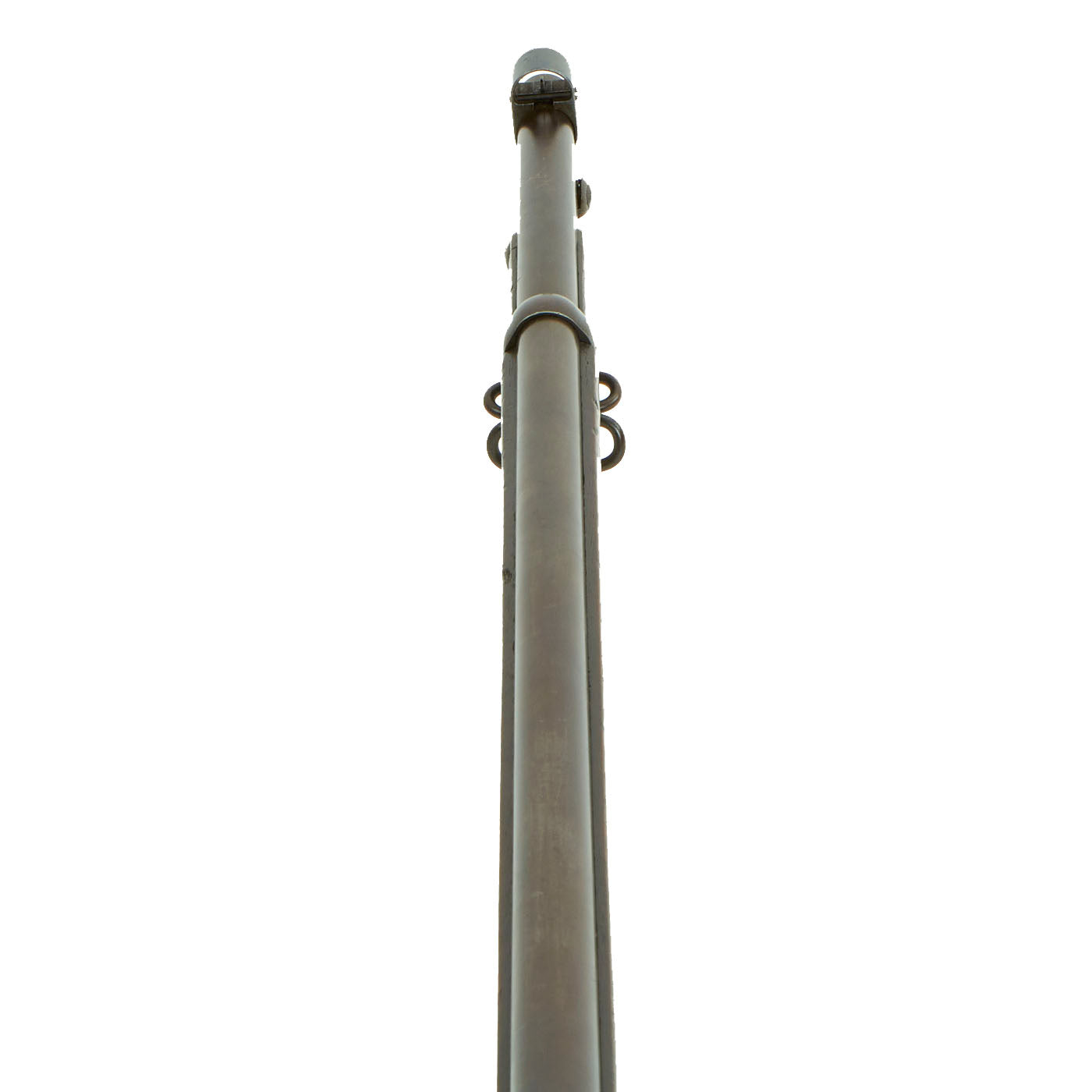

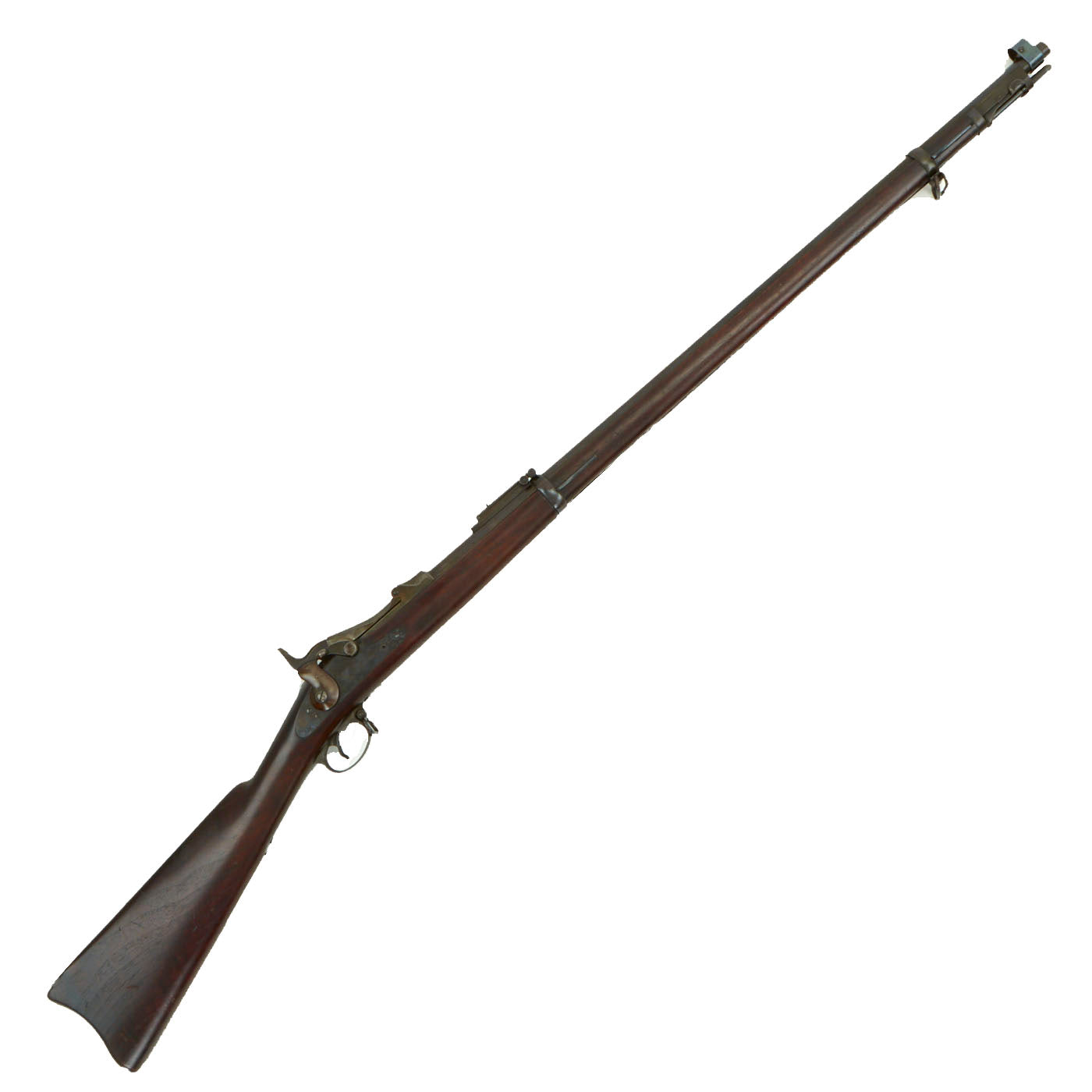

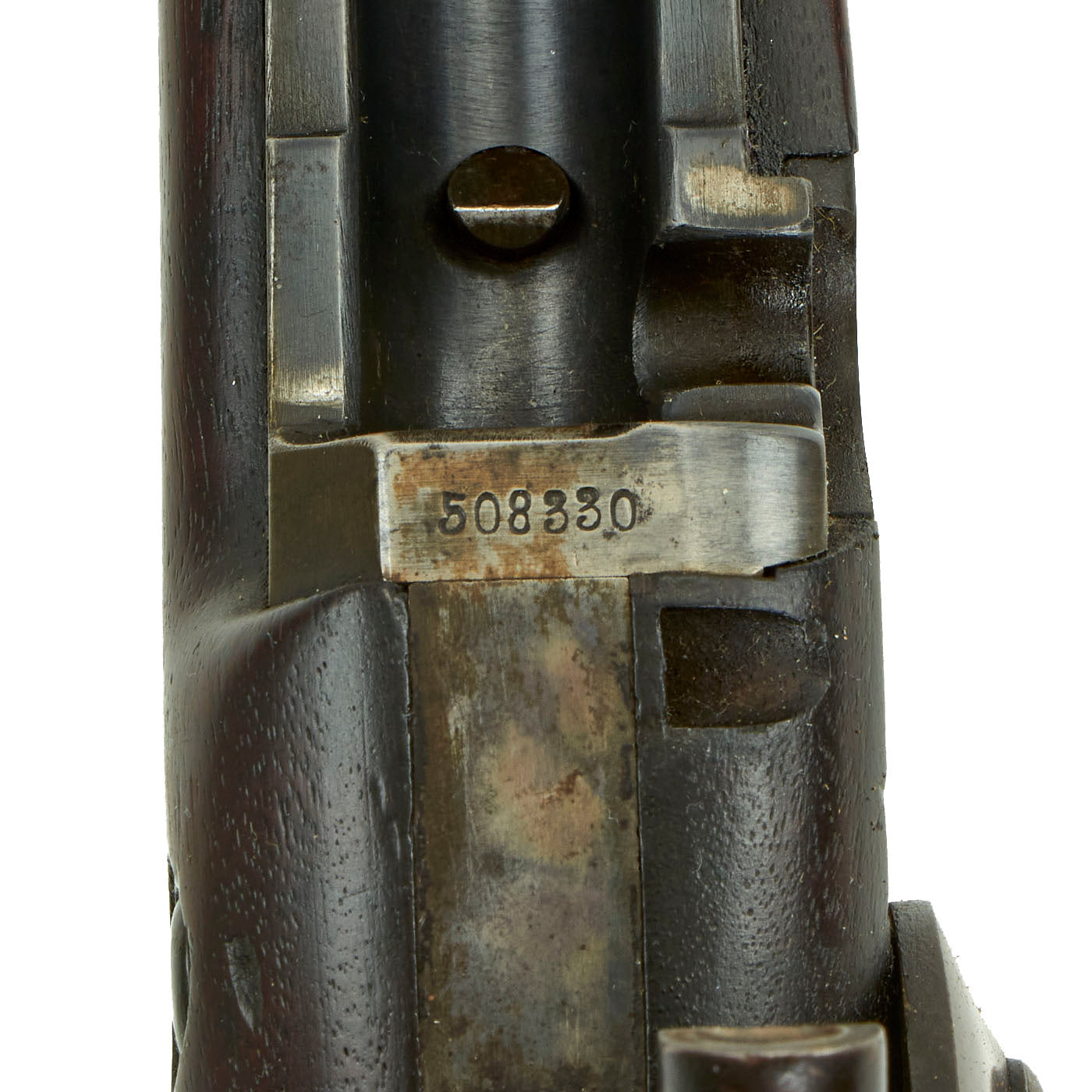

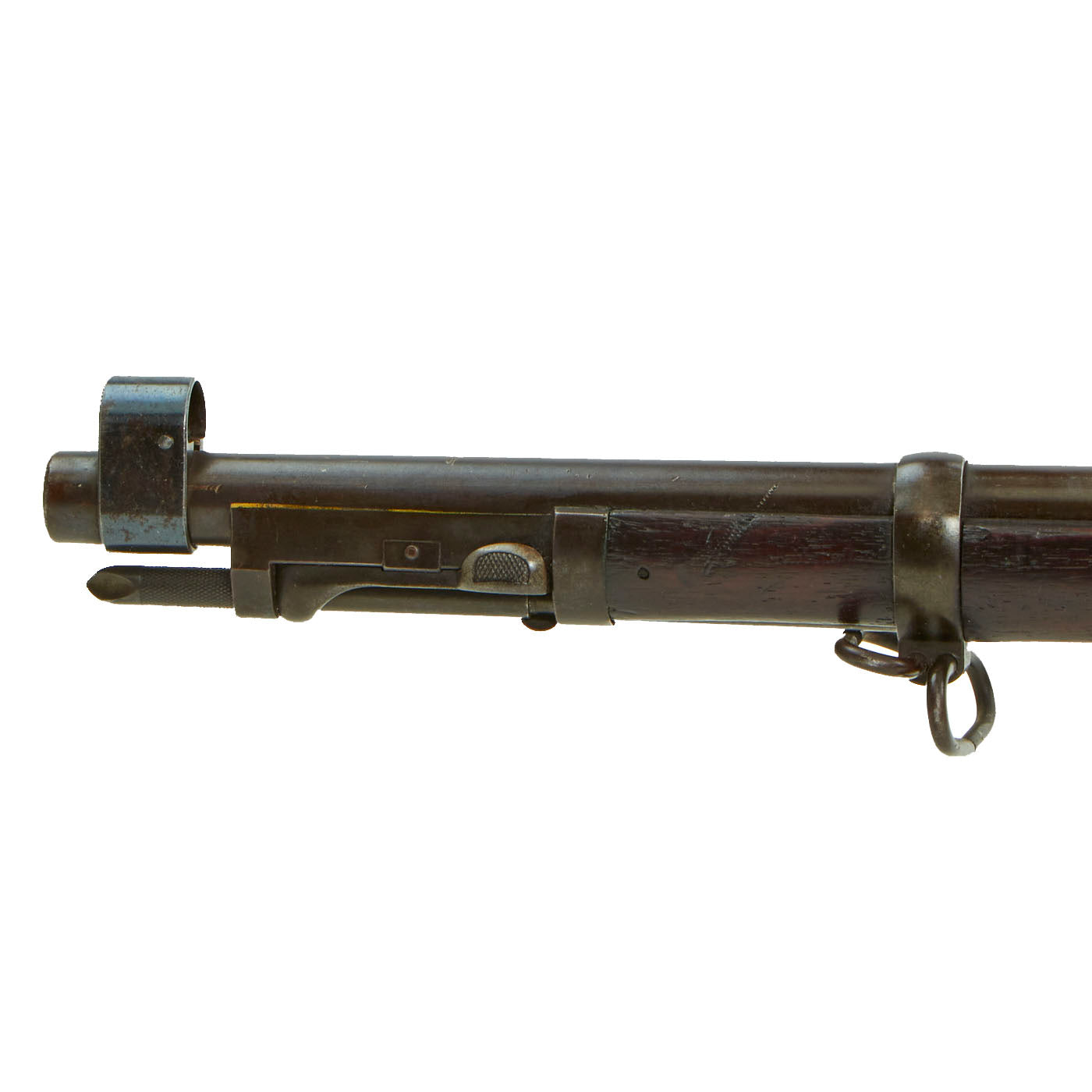

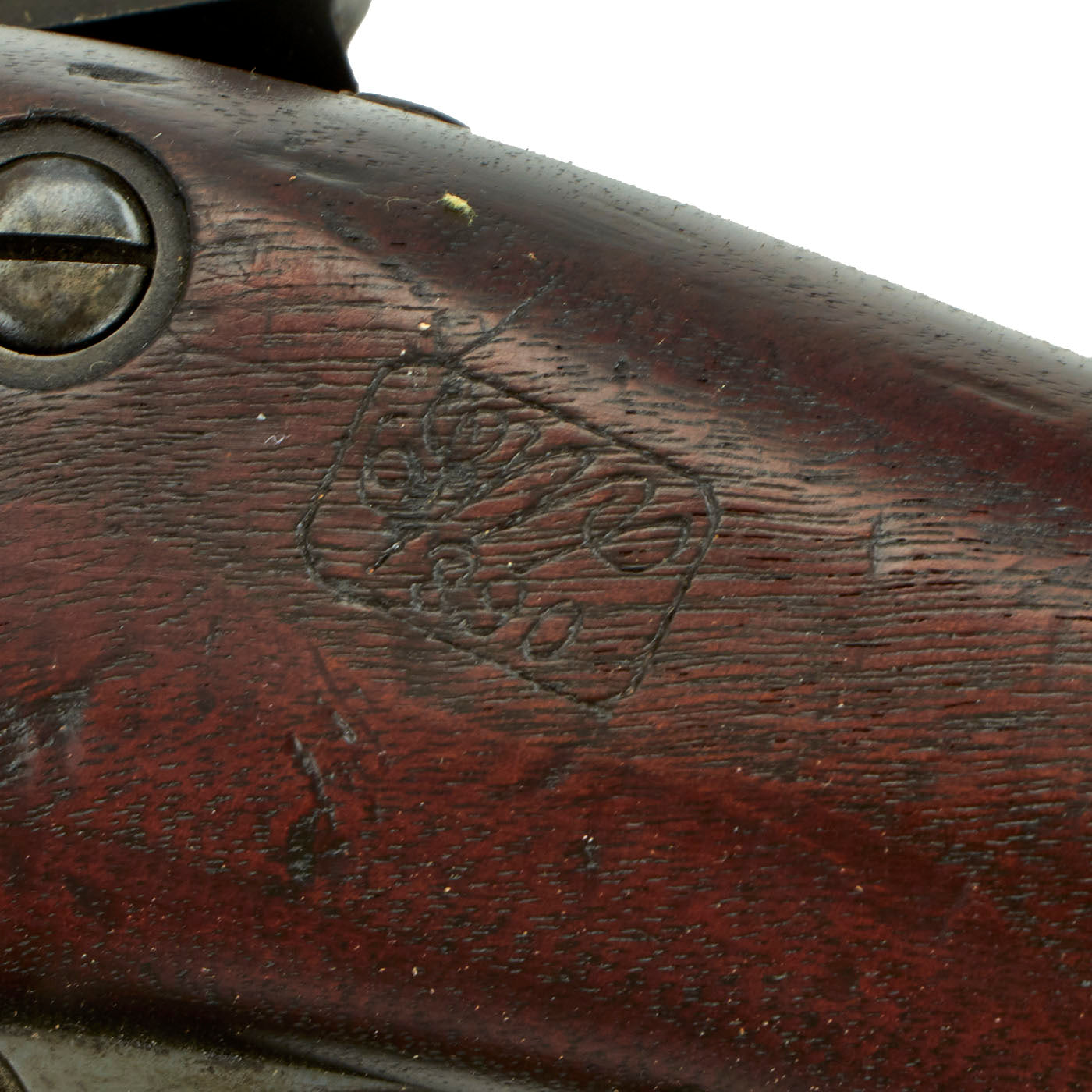

Offered in fantastic lightly used condition is this trapdoor rifle in 45-70 government caliber. Serial #508330 indicates manufacture in 1891, which technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a crisp government inspector SWP / 1890 cartouche, indicating final inspection in the same fiscal year, which often did not match the calendar year. Original metal finish is still very good, with a lovely worn plum patina on most surfaces. As a great bonus, this example still retains the front sight hood, which is almost always missing.

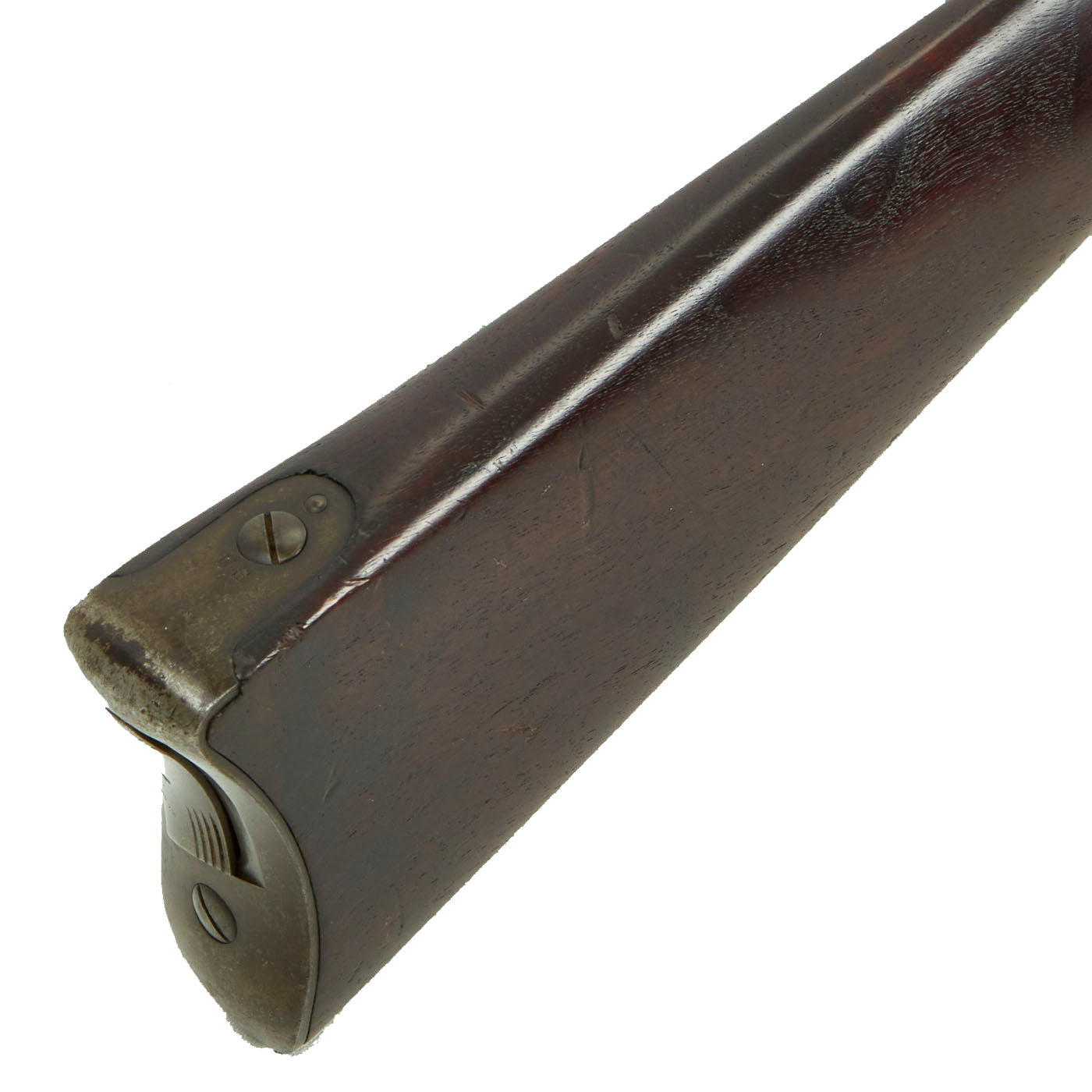

Hardware is in excellent barely used condition, with crisp lands and grooves and a bright finish. There is just the tiniest bit of fouling in the grooves in areas. The cleaning rod / bayonet is in good shape, with intact threads, and a nice worn blued finish. Another nice feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. This was used to store the take down tool and stuck cartridge extractor. Unfortunately this compartment is empty.

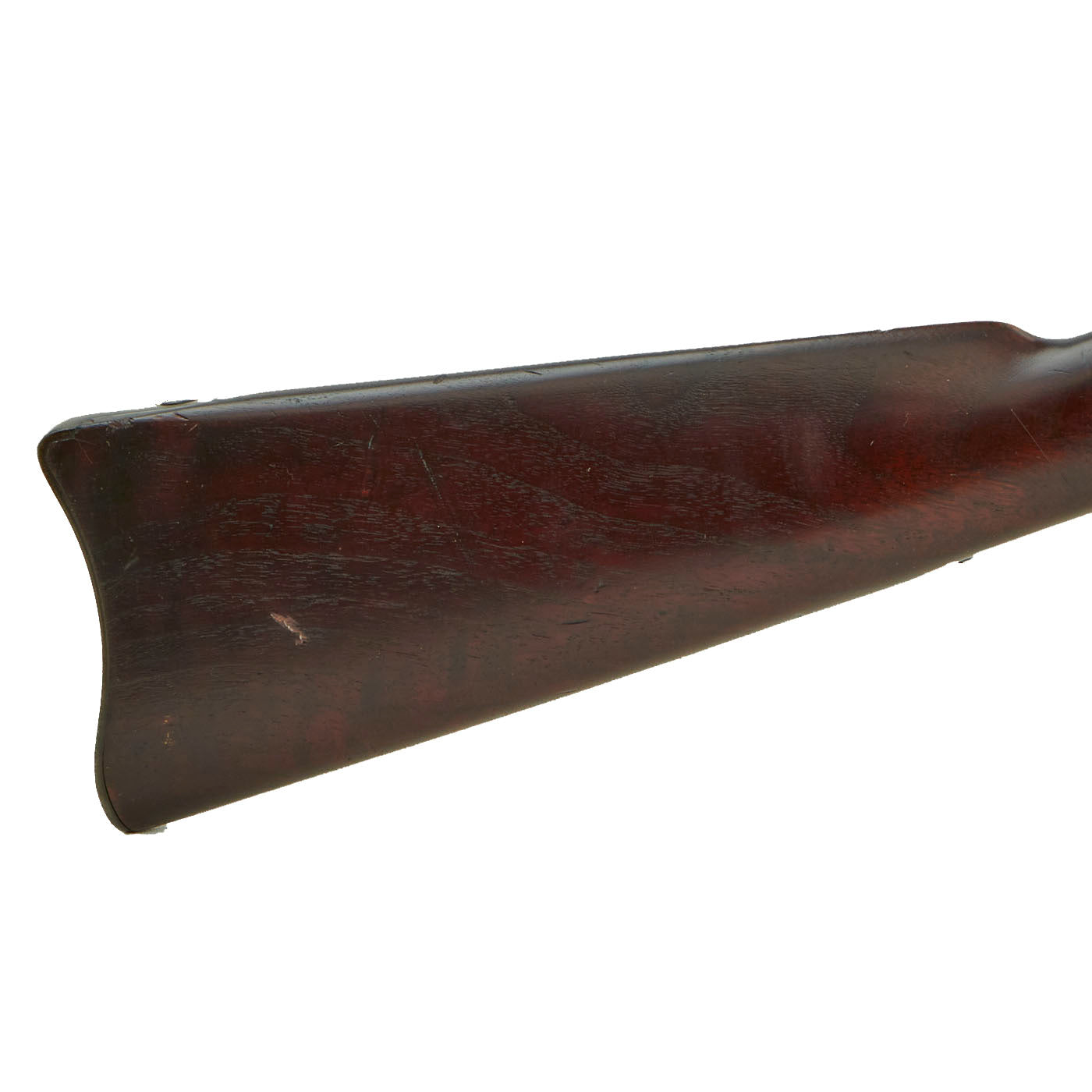

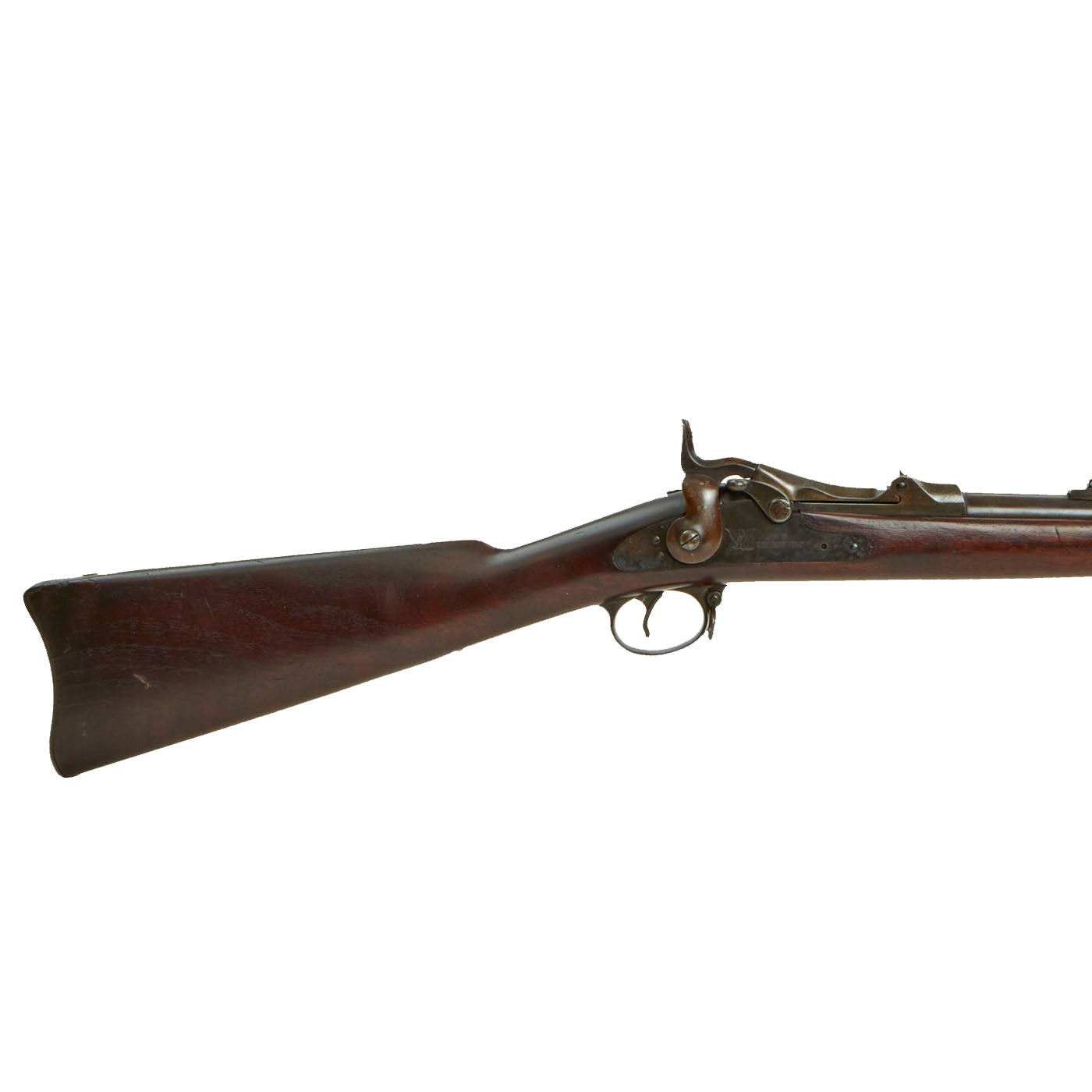

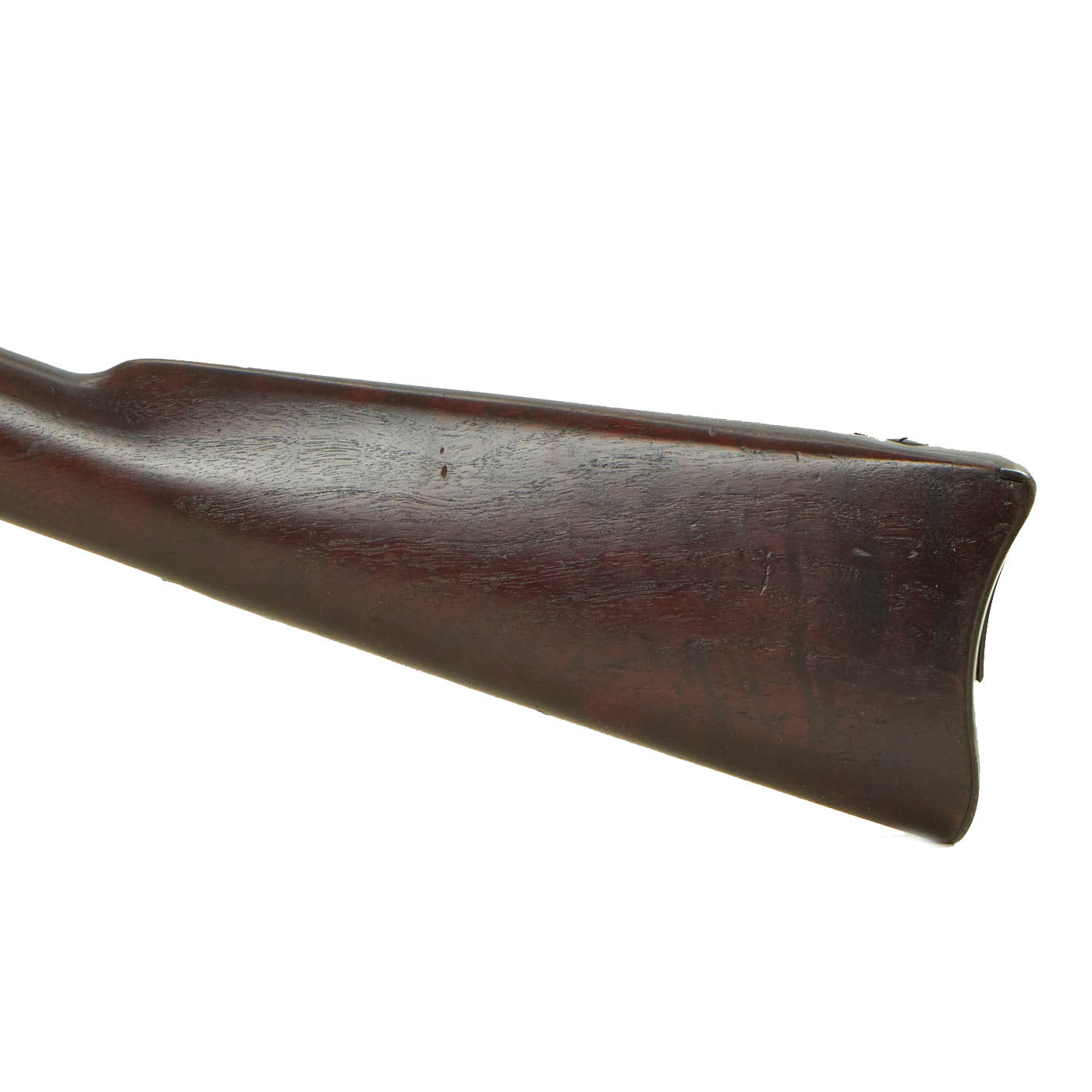

The stock is in excellent condition, fully proud over the lock plate and showing no signs of having been reconditioned. It has a lovely dark red-brown color with a great glow, achieved by decades of careful polishing. This is a rifle that has been very well cared for. There are of course some small dents and such, but this still one of the best examples that we have ever seen.

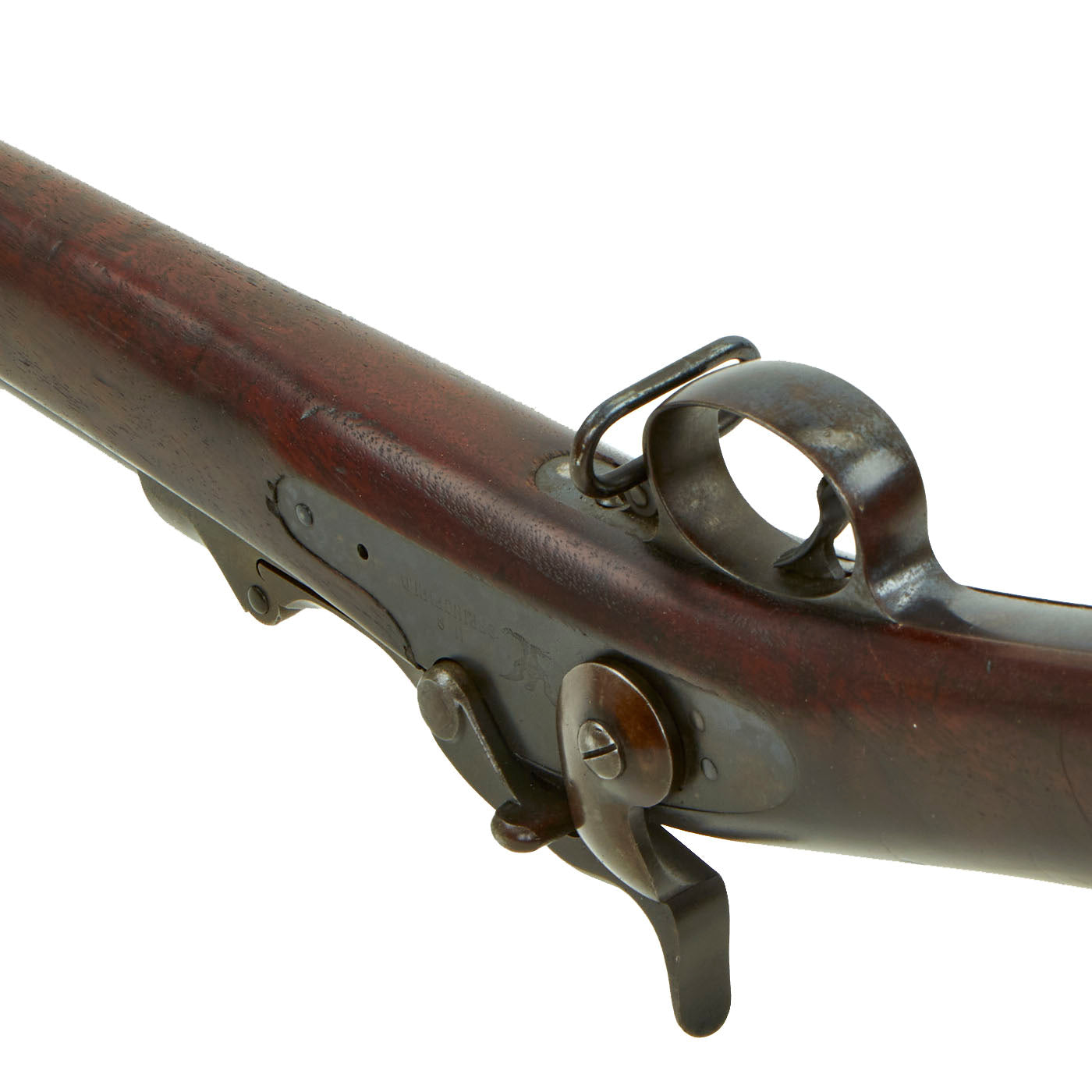

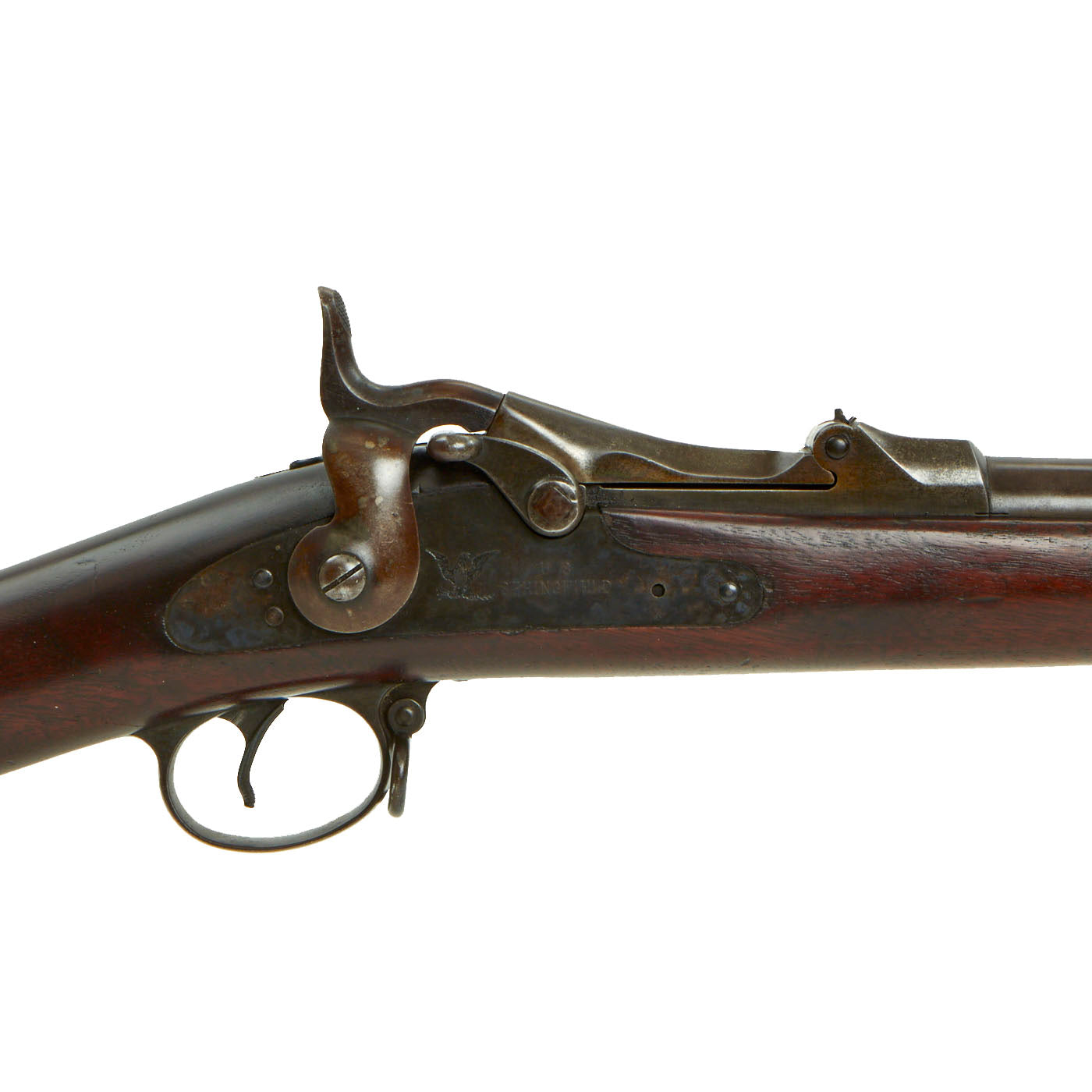

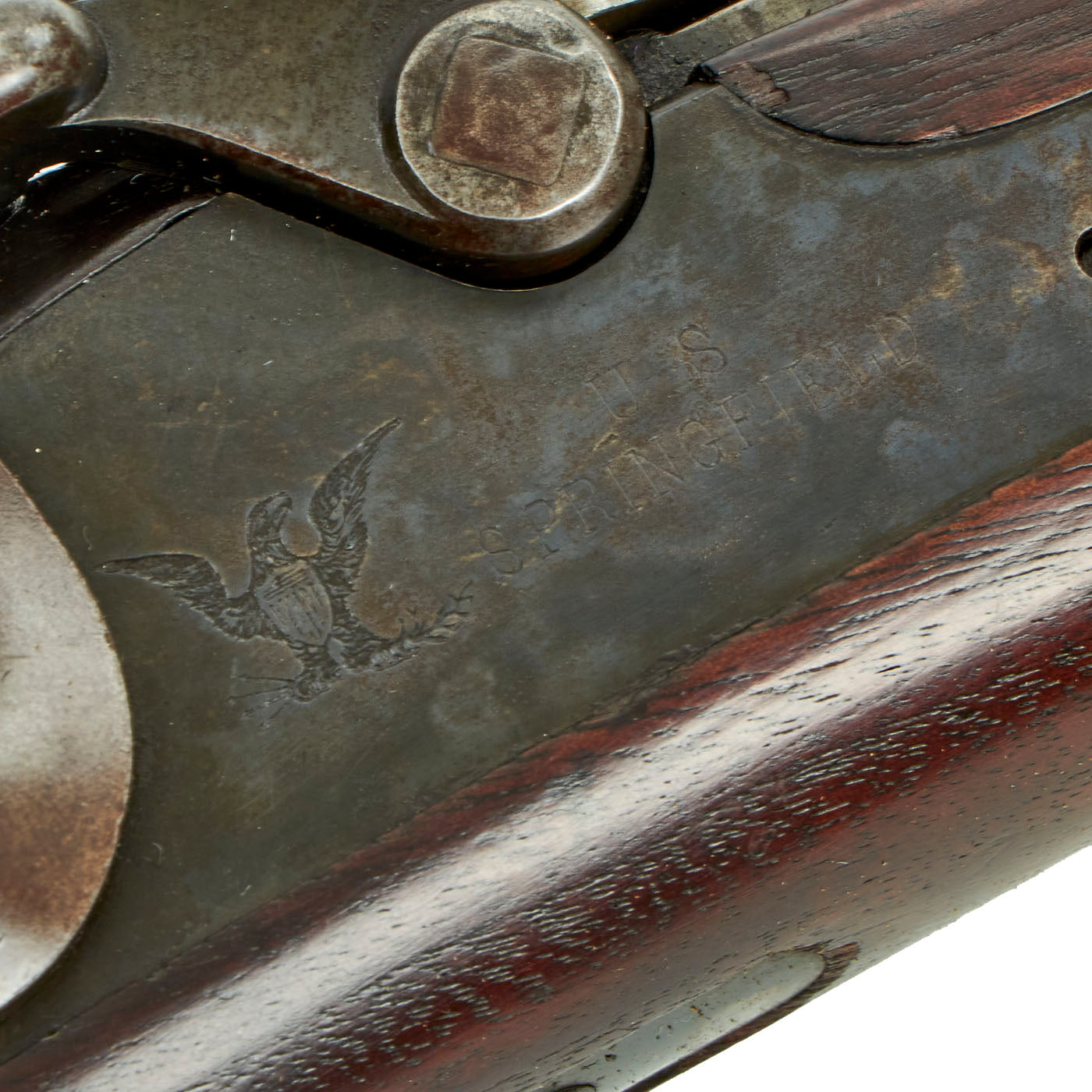

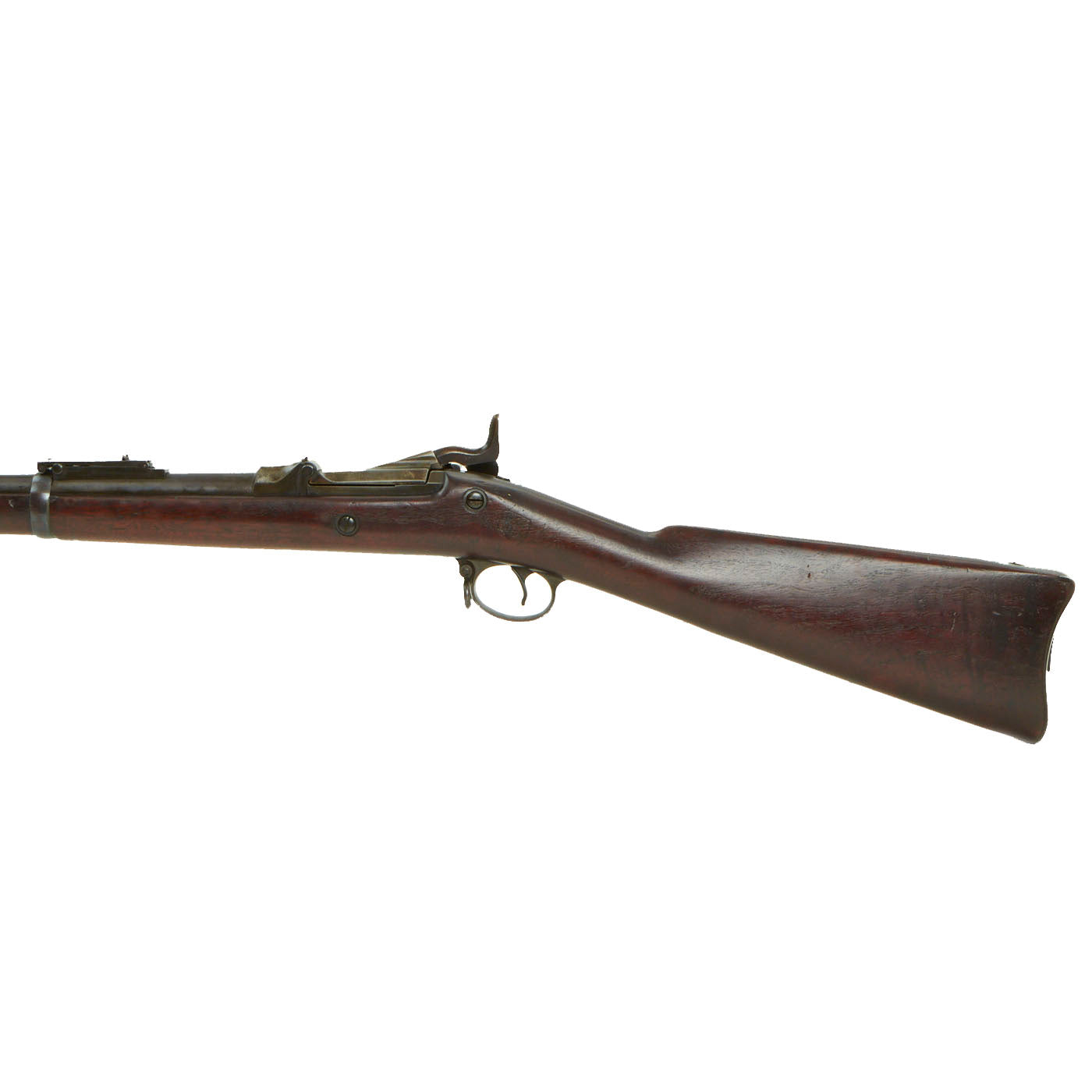

Center fire breechloader, .45 cal., two barrel bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD indicating manufacture by Springfield Armory, Springfield Massachusetts. The lock is fully functional, and the cartridge extractor is intact and functional, though we have not tested it on spent brass.
The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A very faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital I on top; and a V over a P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.
A great chance to pickup a fantastic example of the United States last single shot rifle! Ready to display!
Year of Manufacture: 1891
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
