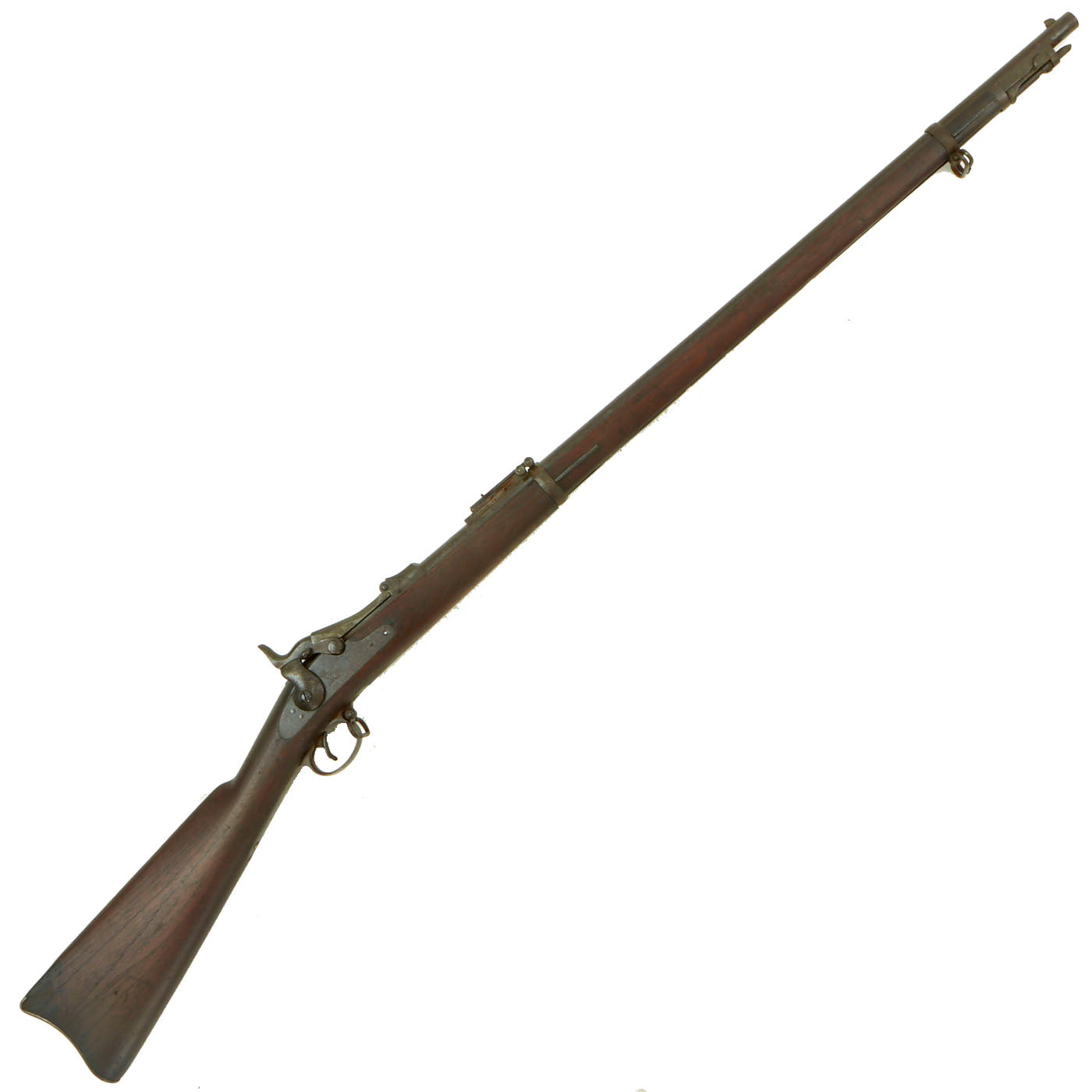

Original U.S. Springfield Trapdoor Model 1884 Round Rod Bayonet Rifle made in 1891 - Serial No 504614

Item Description

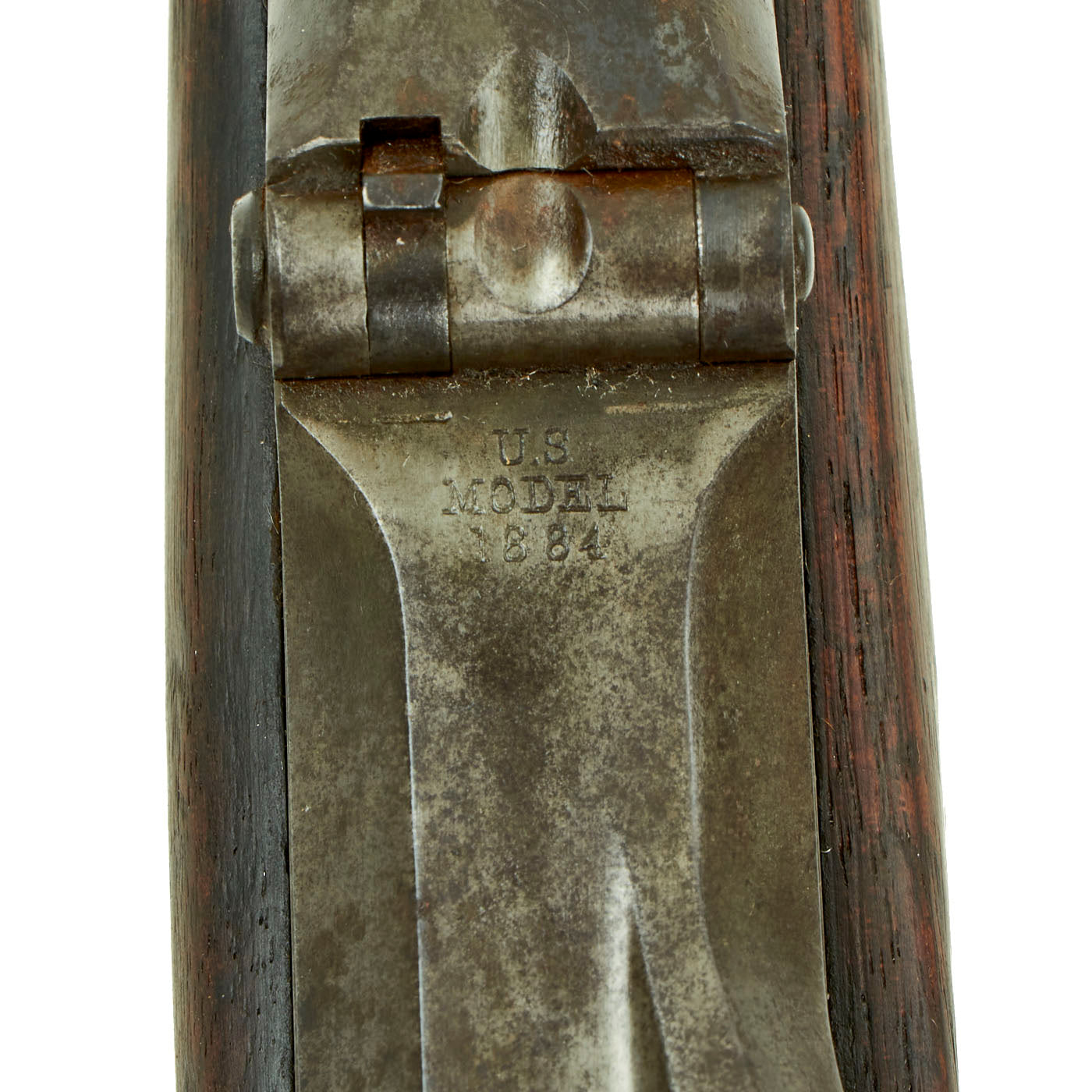

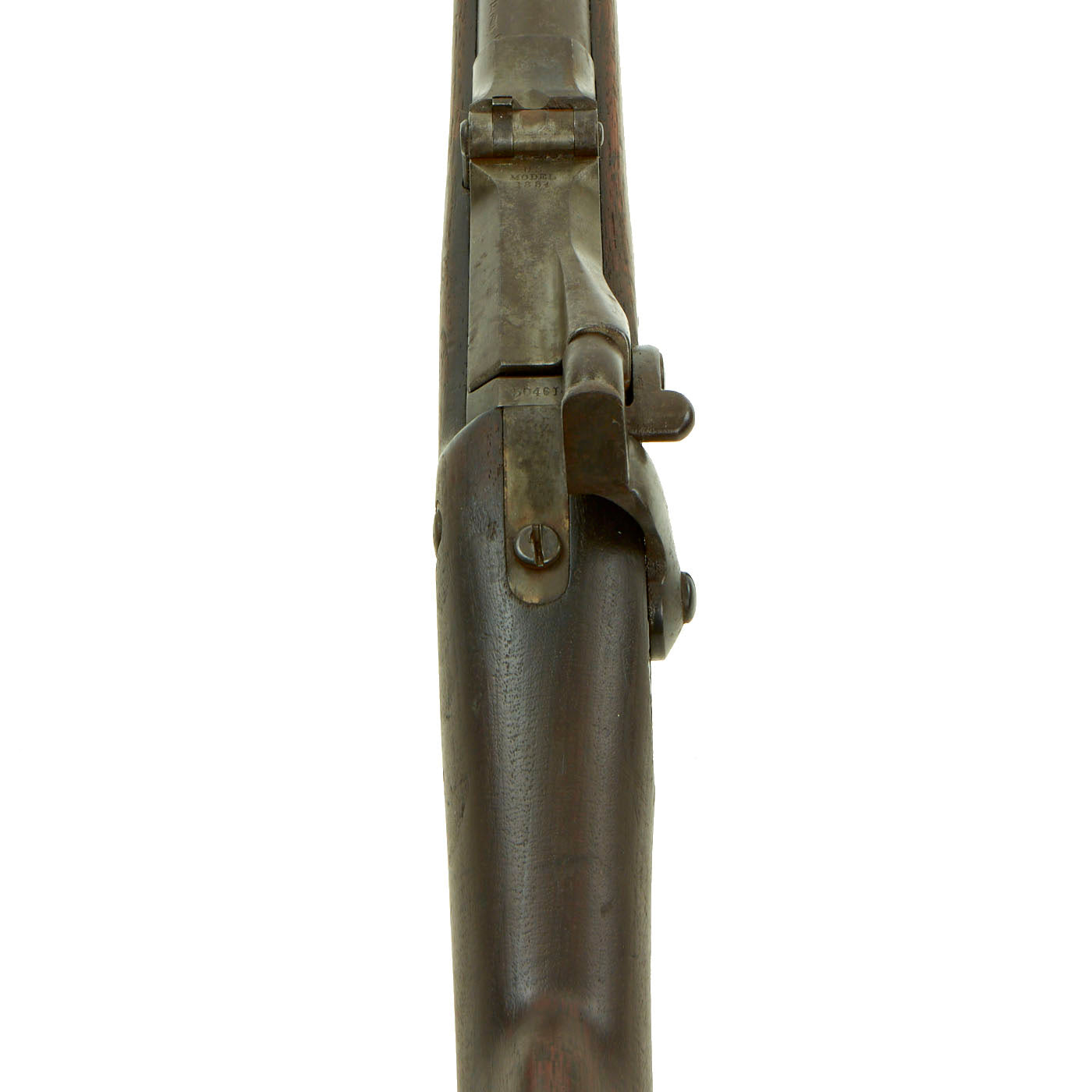

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:

U.S.
MODEL
1884

In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

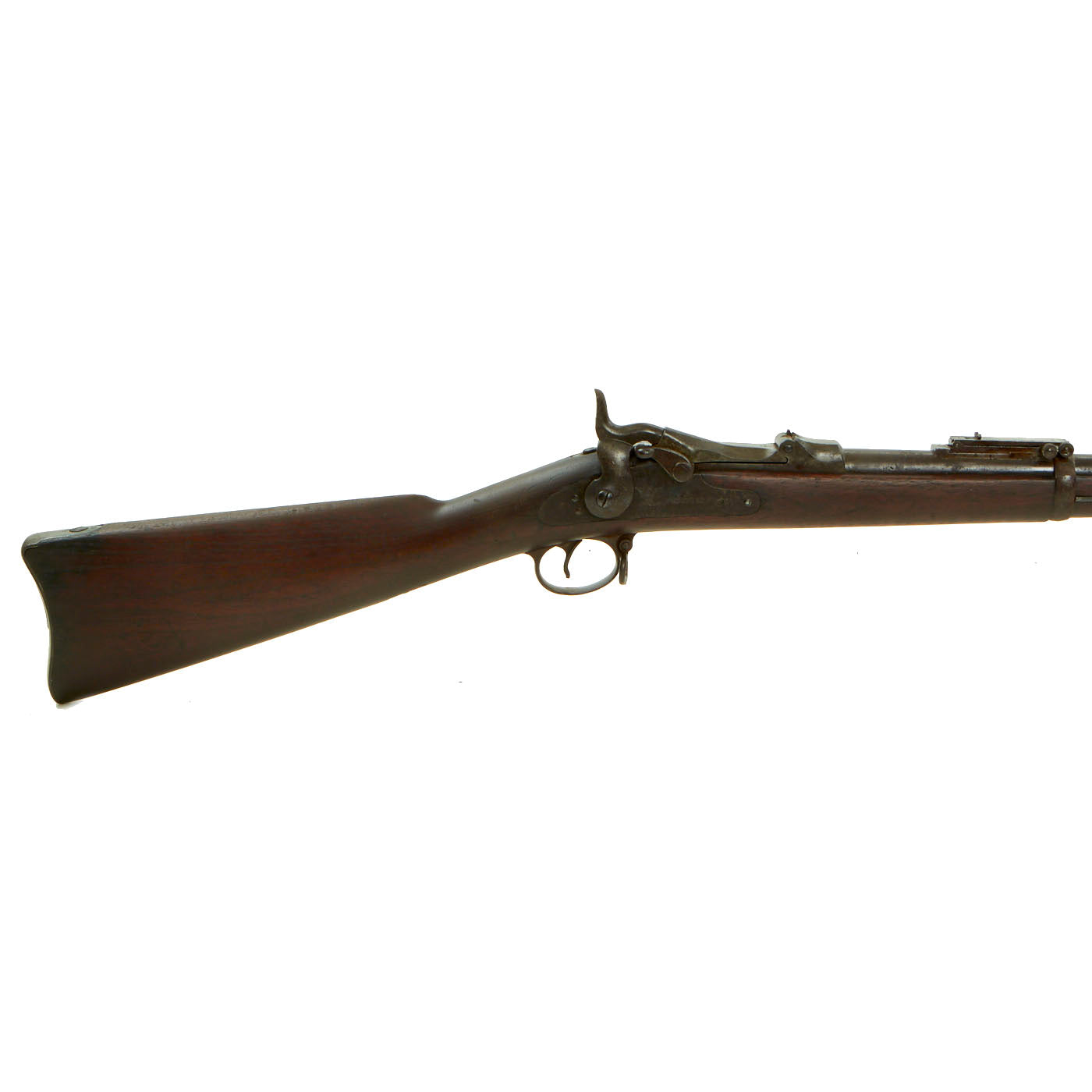

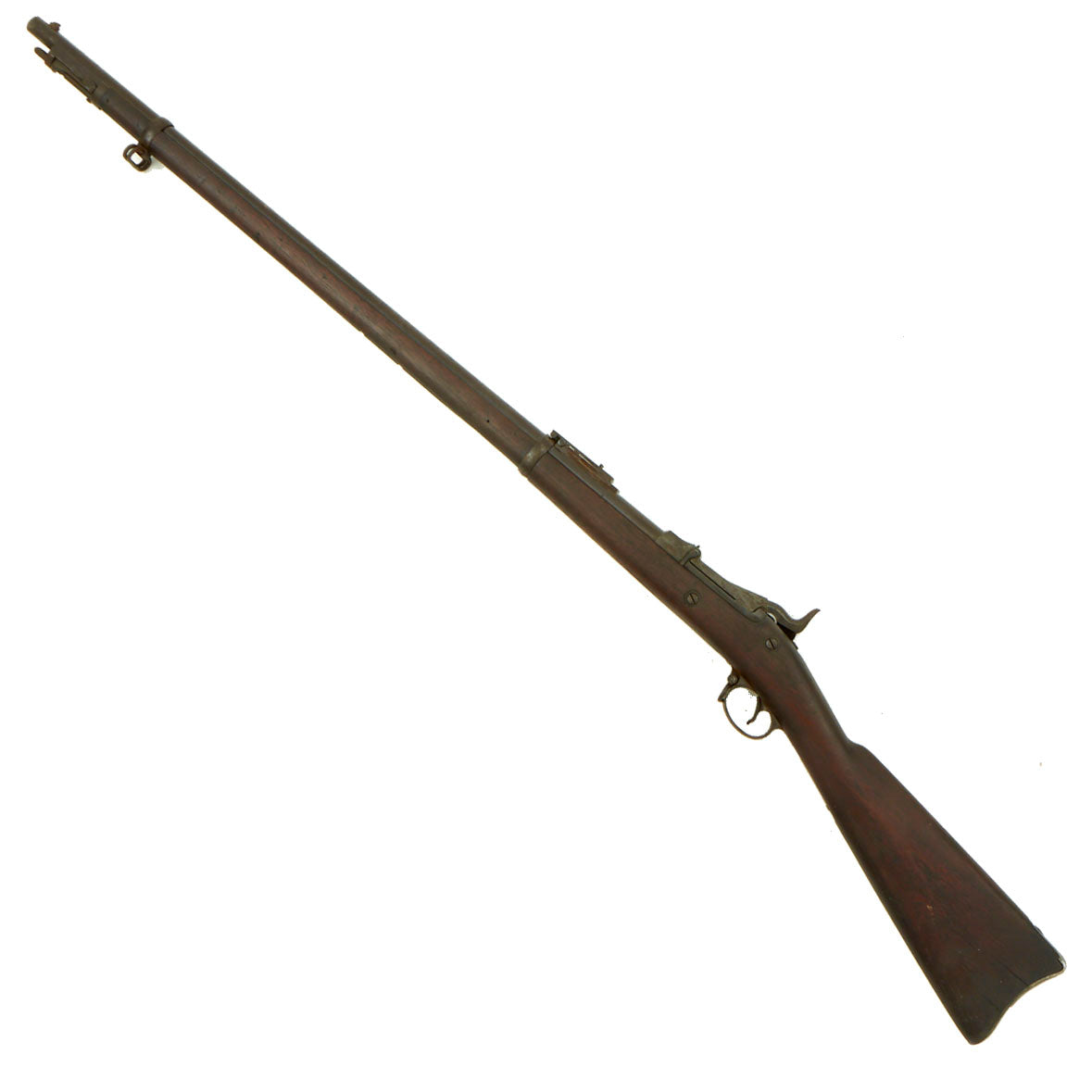

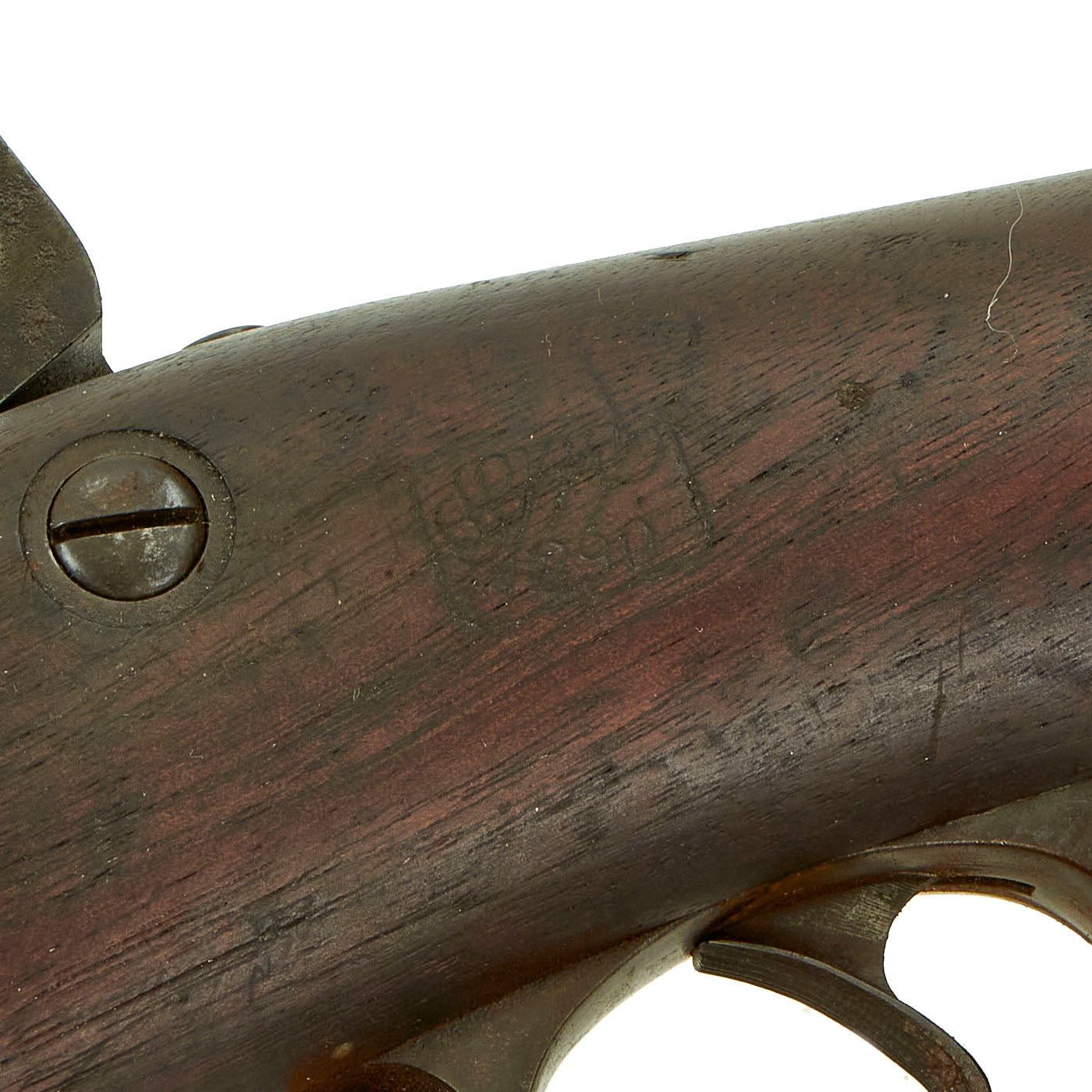

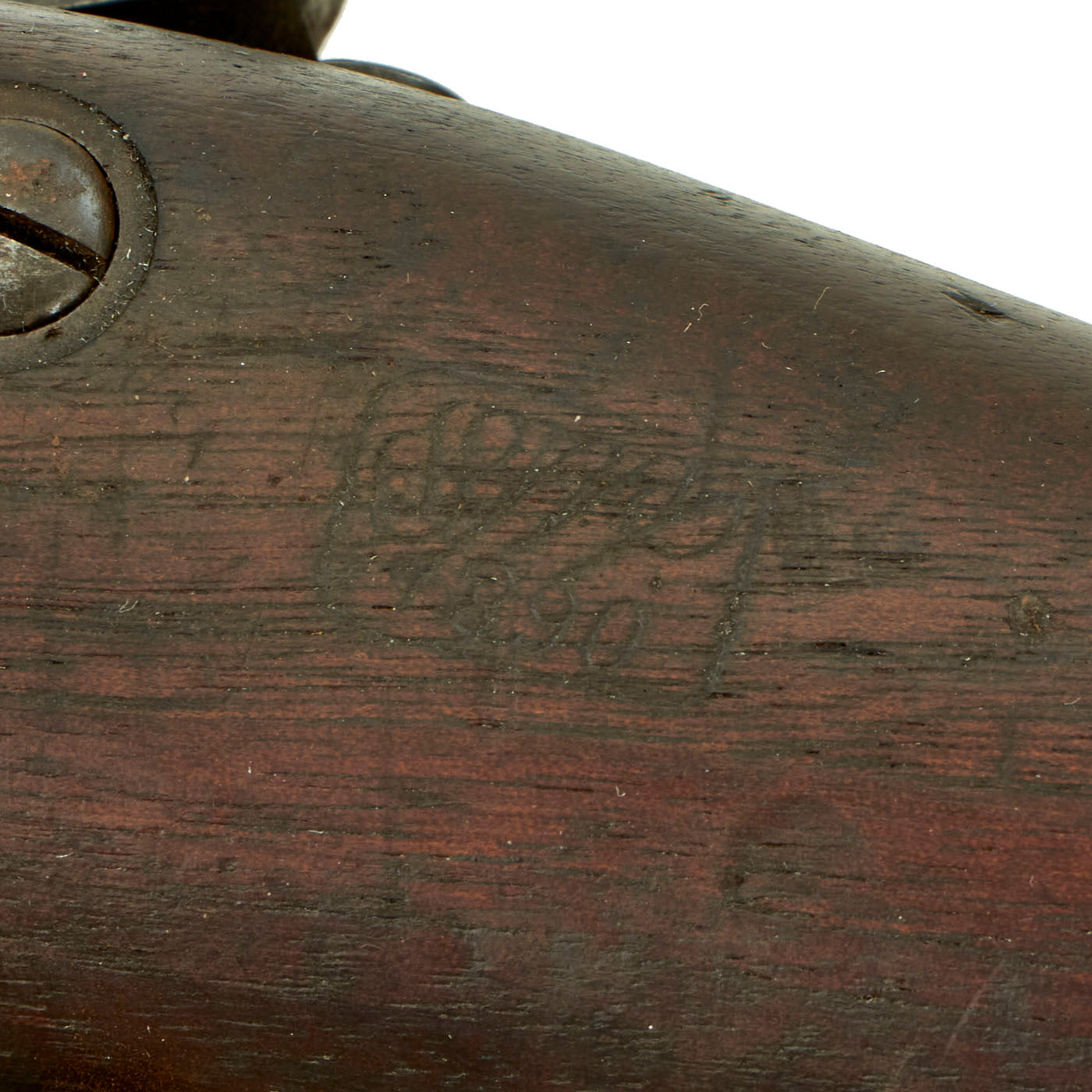

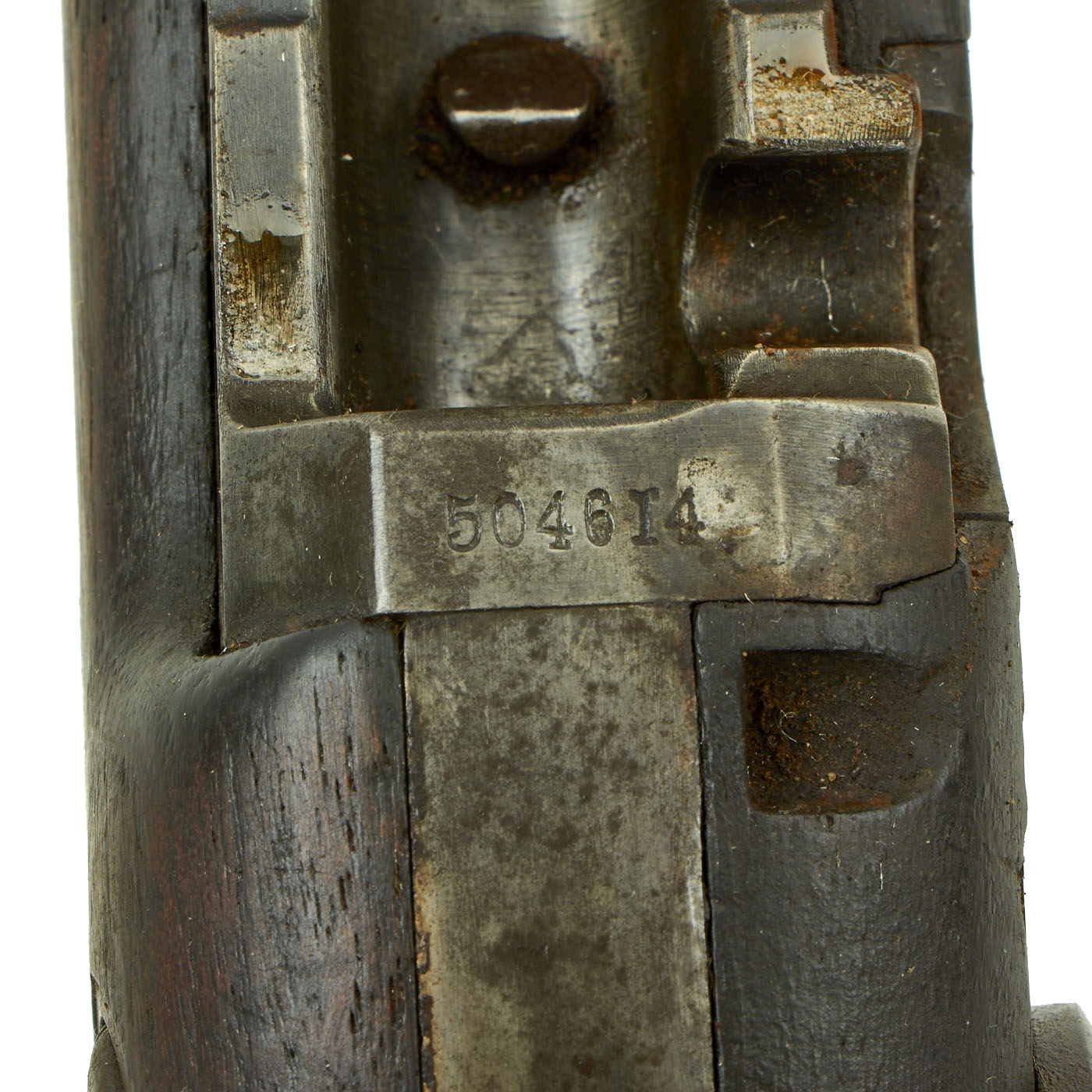

Offered in very good "attic find" condition is this trapdoor rifle in 45-70 government caliber. The serial number is #504614, which indicates production in approximately January 1891, per U.S. Government records. This technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a partially legible government inspector SWP / 1890 cartouche, indicating stock inspection in the preceding year. Original metal finish is still good, with a lovely worn blued patina on most surfaces, and some areas of light corrosion.

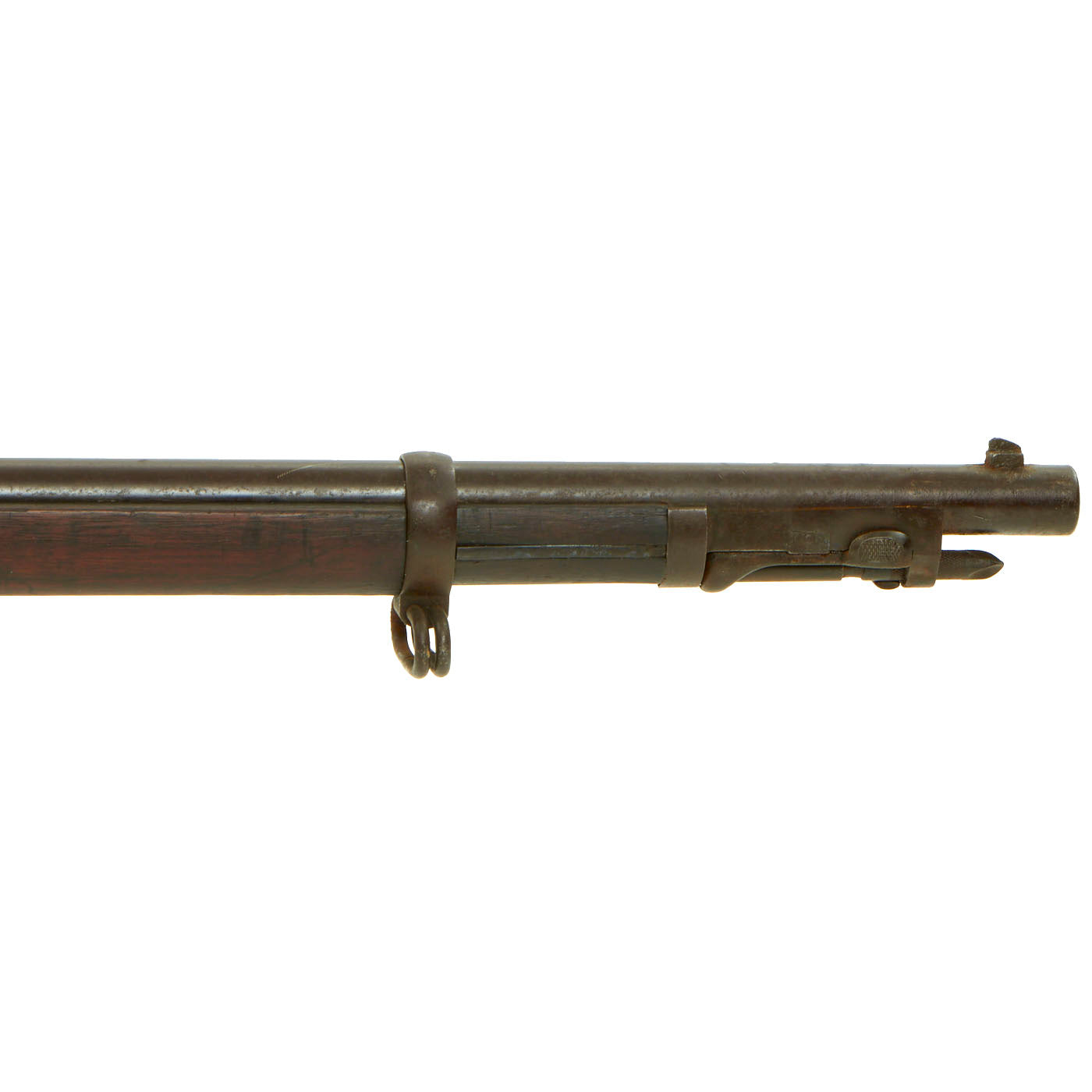

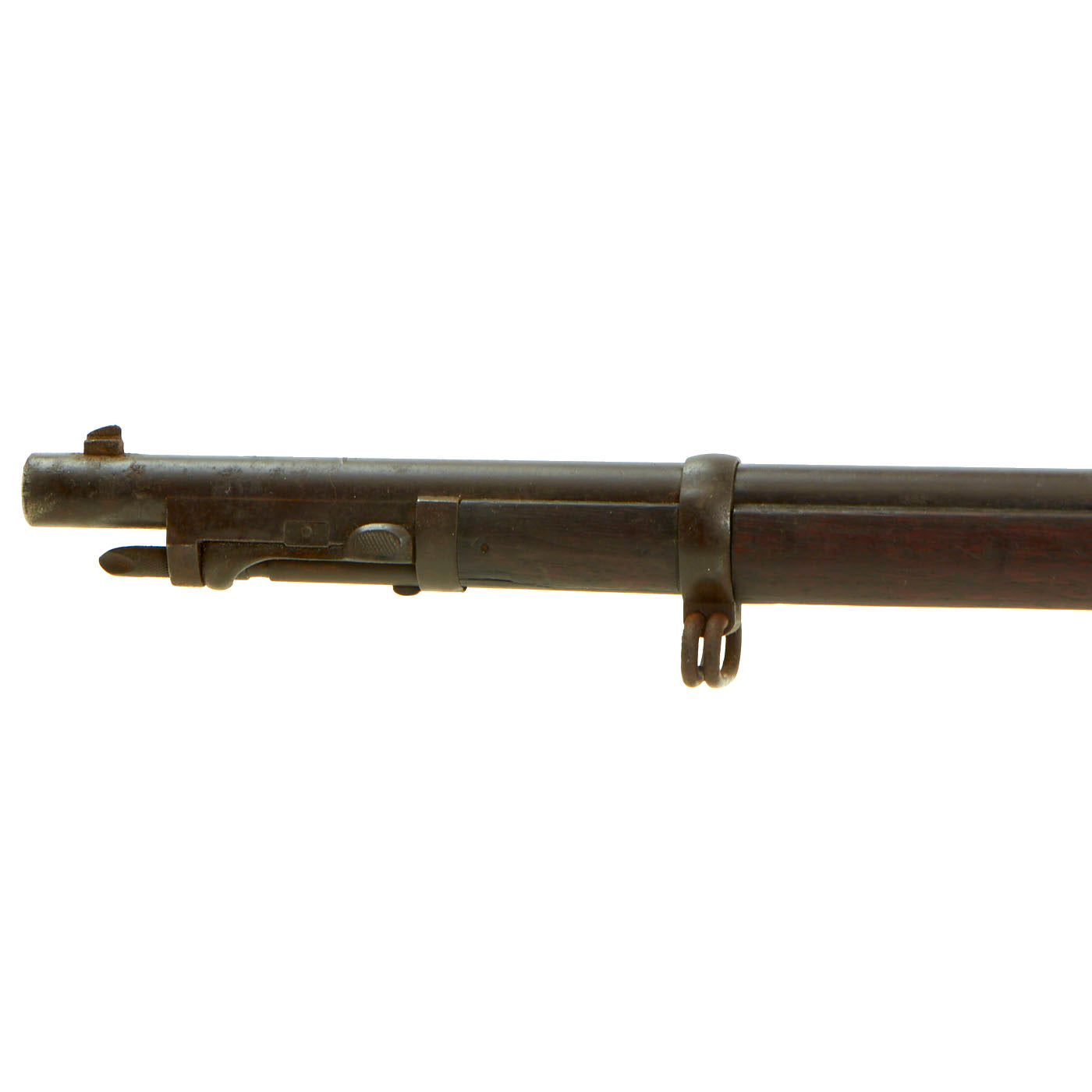

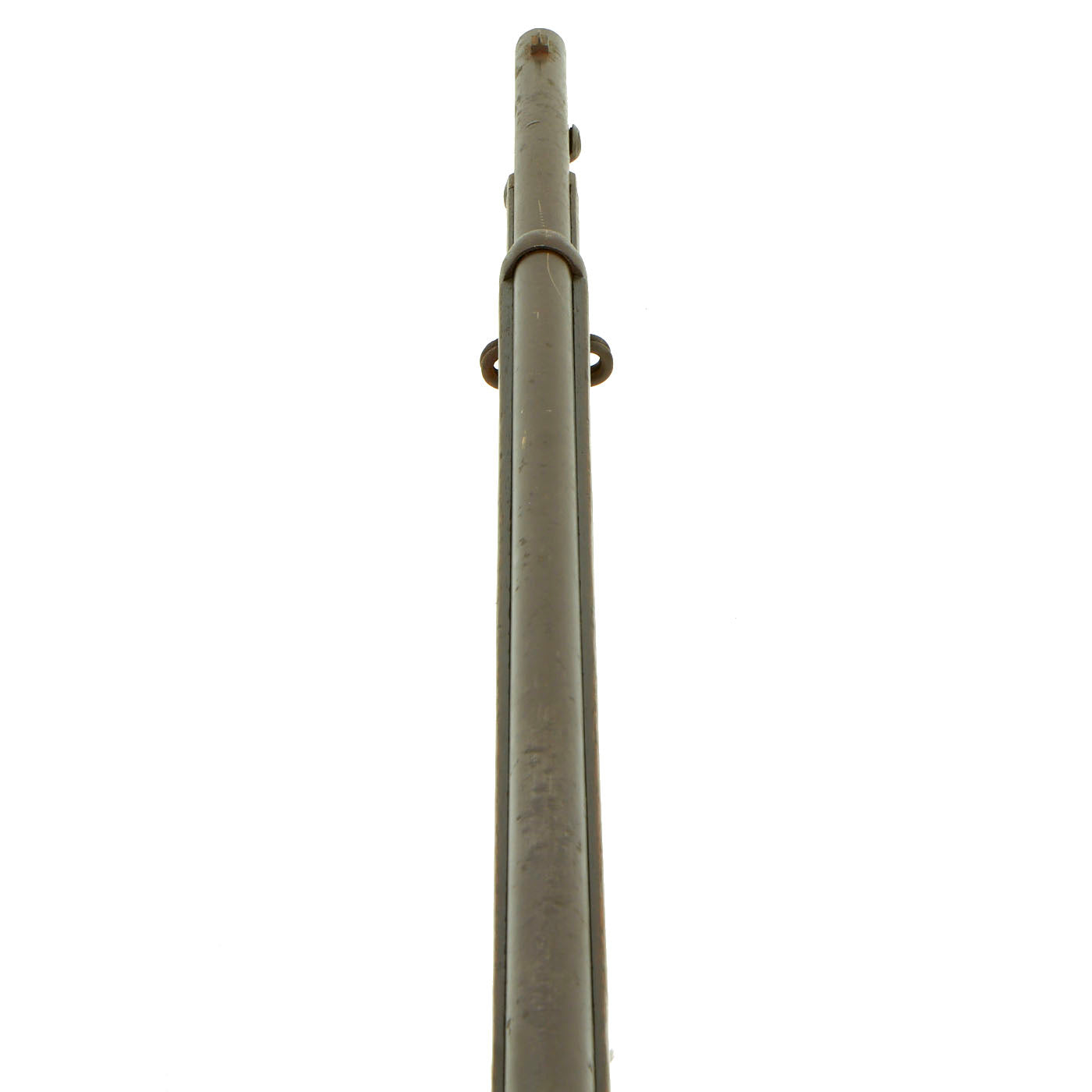

Hardware is in very good condition, with no signs of structural issues, and the original finish well retained. As it was stored in an attic for a long period, there is some minor rust peppering and surface corrosion to the muzzle end and ramrod bayonet. The bore is still in very good condition, with clear lands and grooves and a mostly bright finish. There is just a bit of fouling and oxidation in areas. The cleaning rod / bayonet is in good shape, with intact threads, and surface oxidation in areas due to moisture exposure.

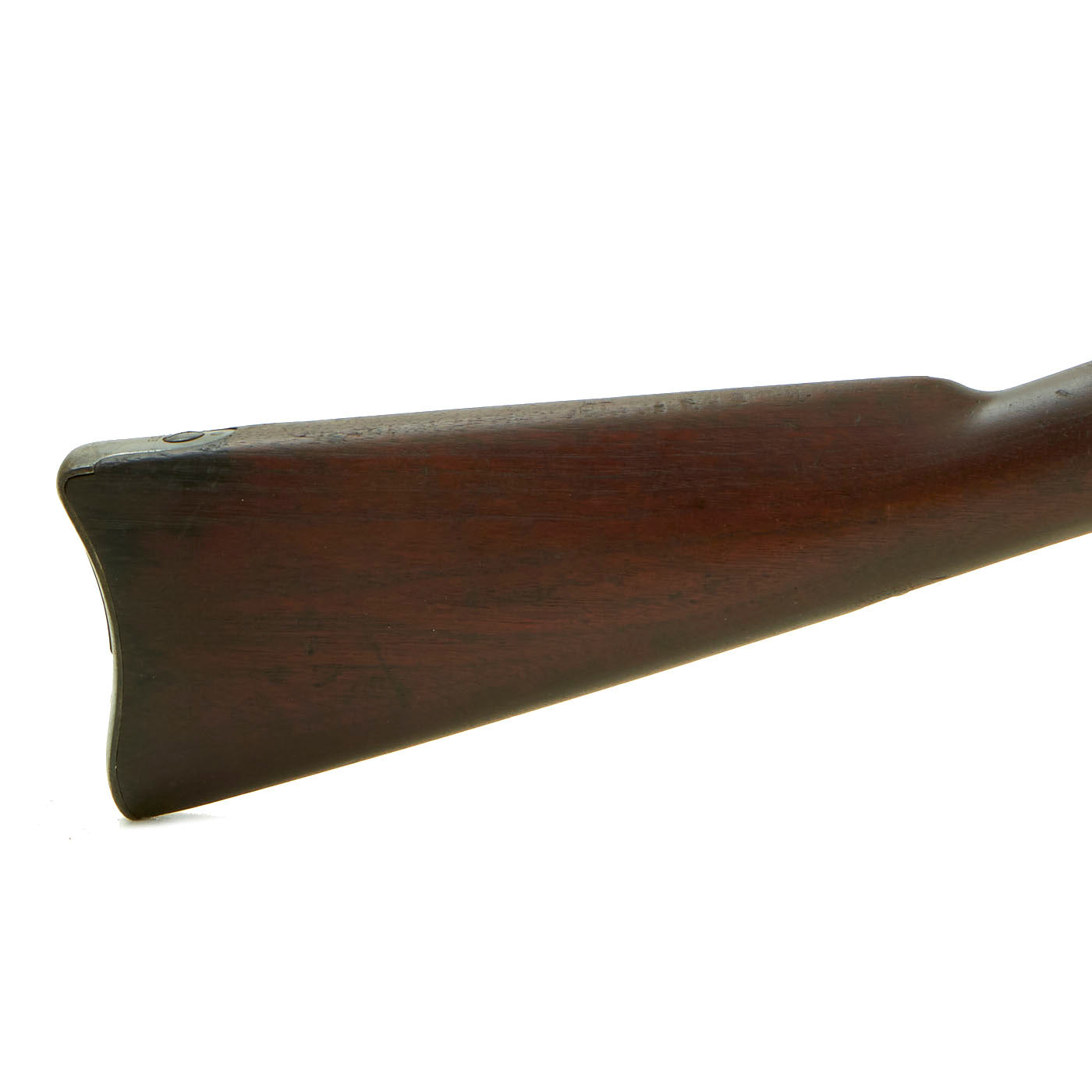

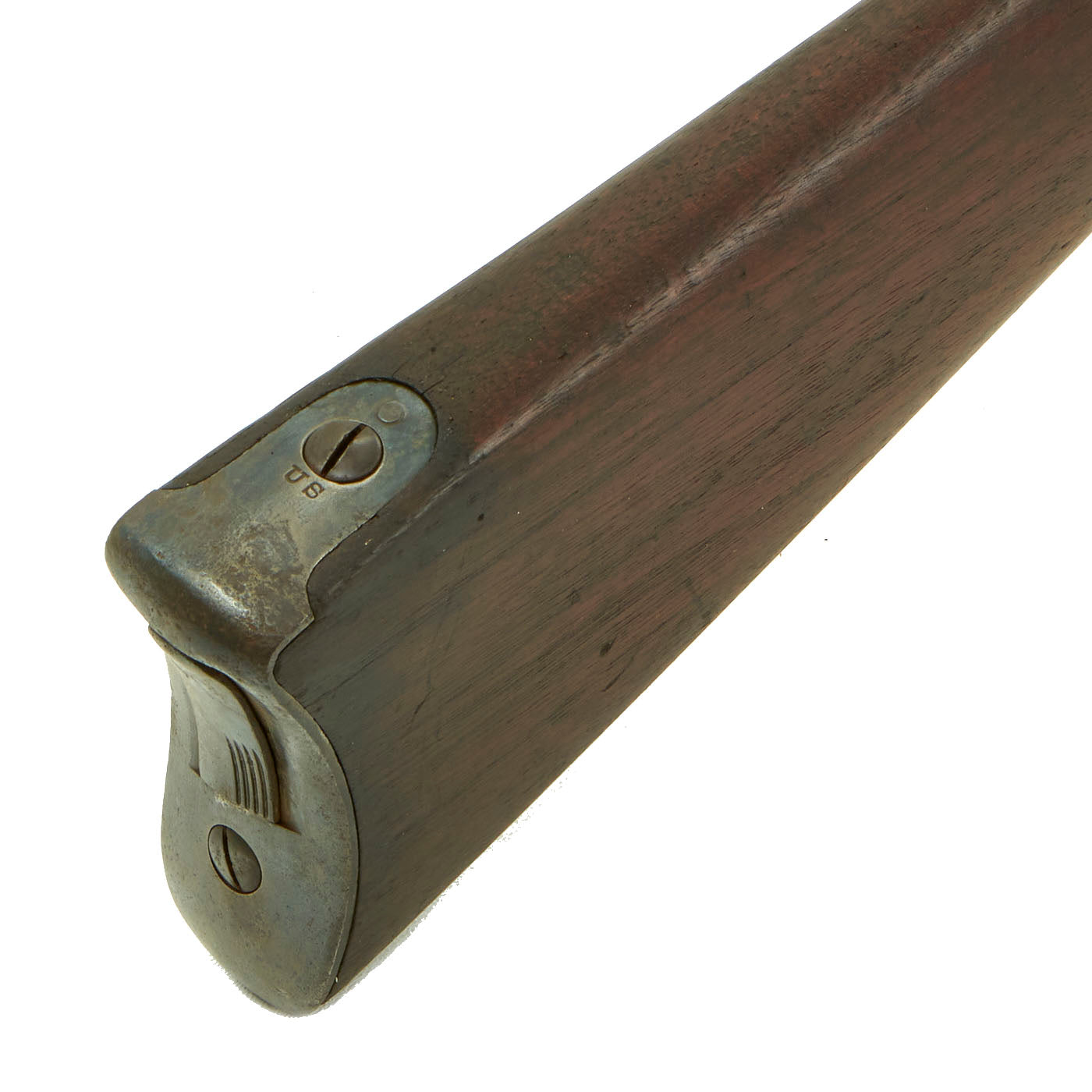

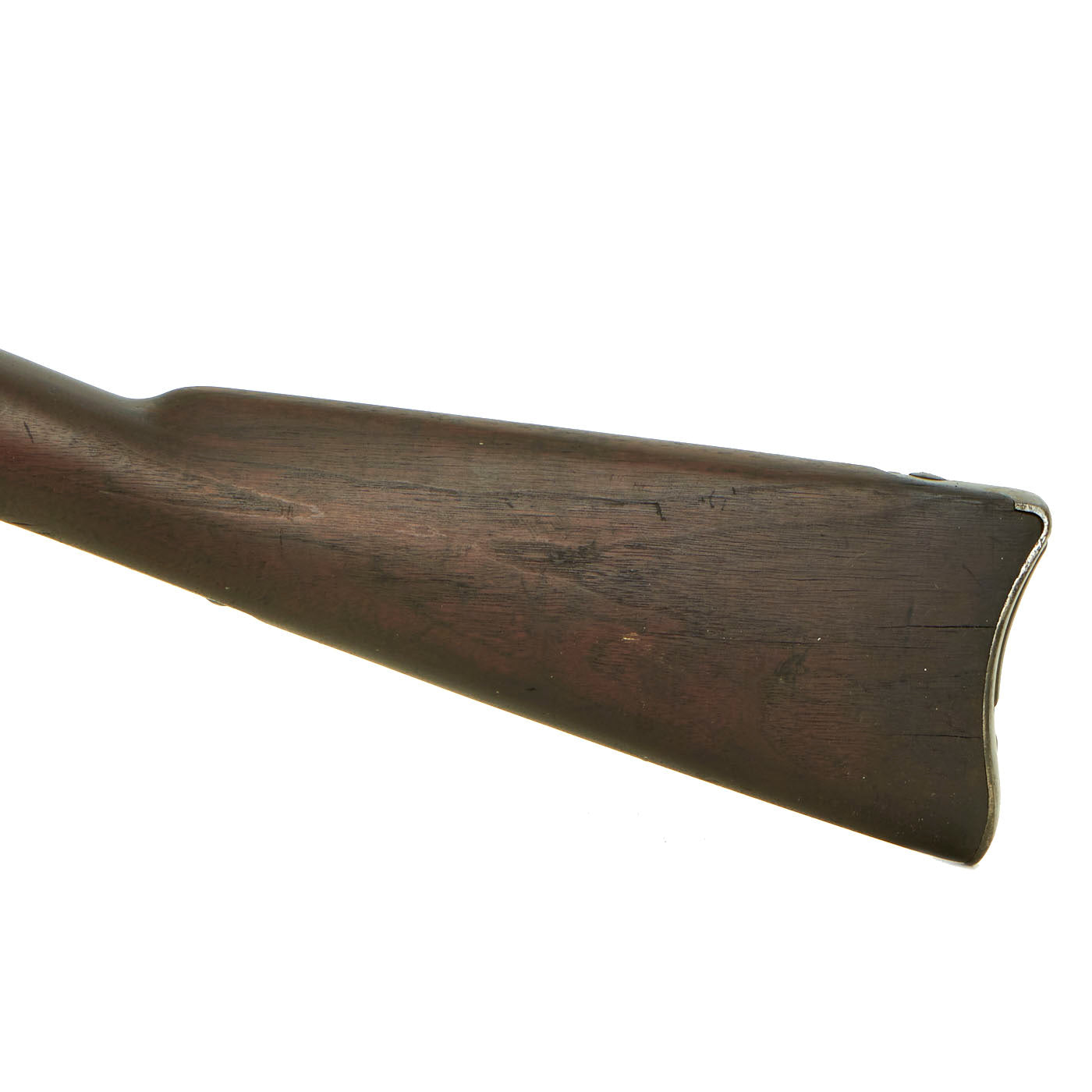

The stock is in very good condition, and is still mostly proud over the lock plate, indicating the stock has not been worn down or reconditioned. There are a few dents and small chips from service, but it's got a lovely red brown color and patina, only achieved from decades of use and cleaning and polishing. There are some stress cracks near the butt plate, most likely from moisture exposure. Another nice feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. This was used to store the take down tool and stuck cartridge extractor. Unfortunately this compartment is empty.

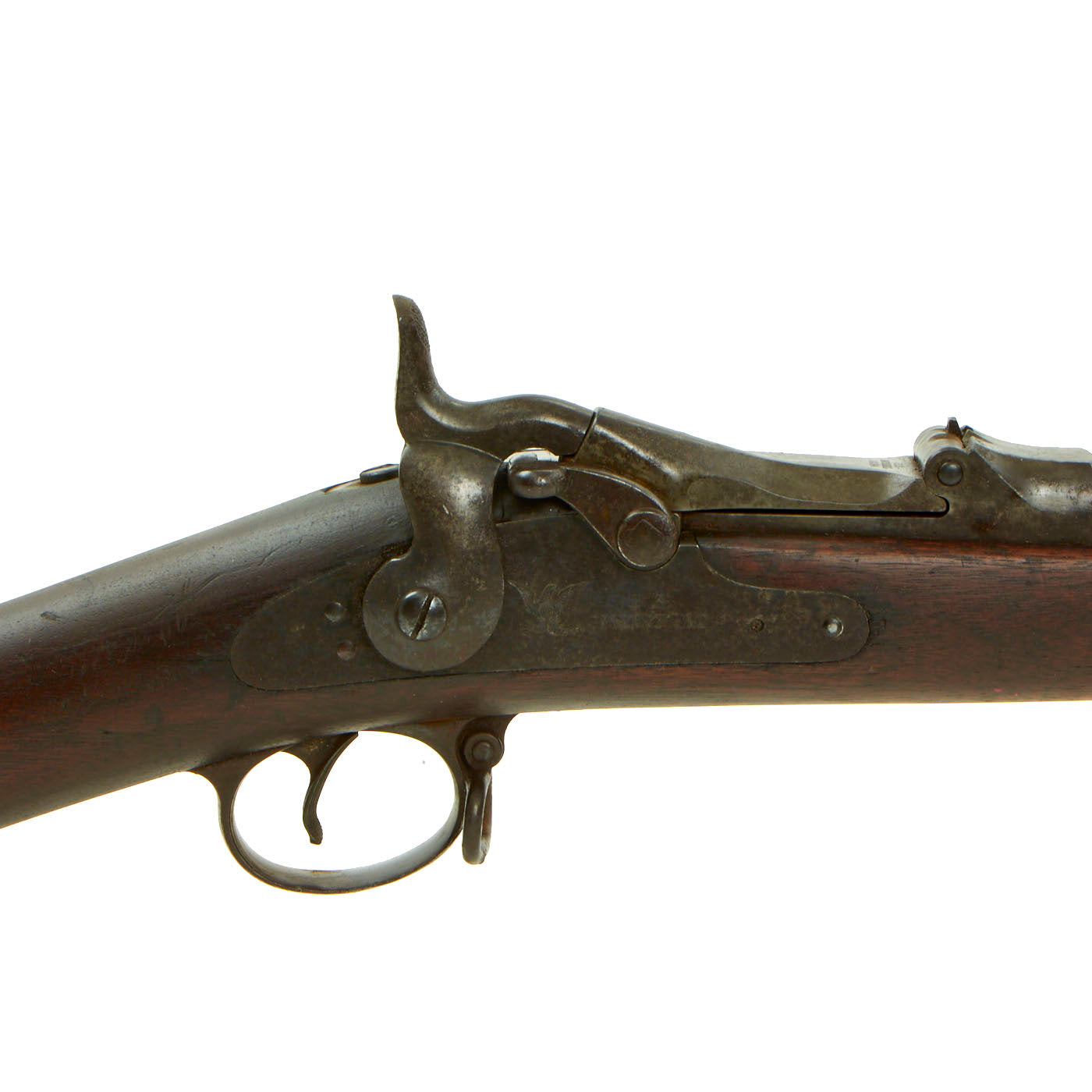

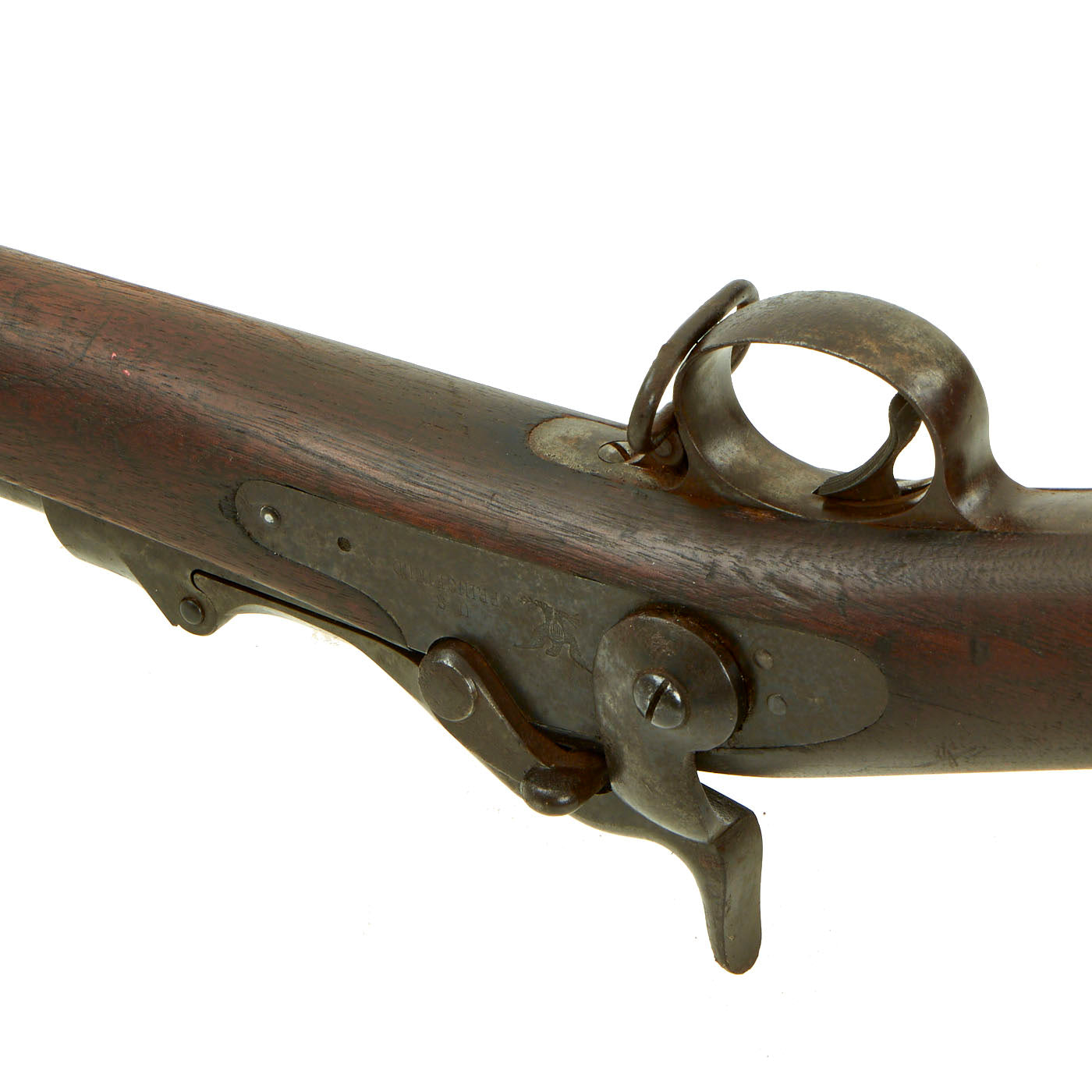

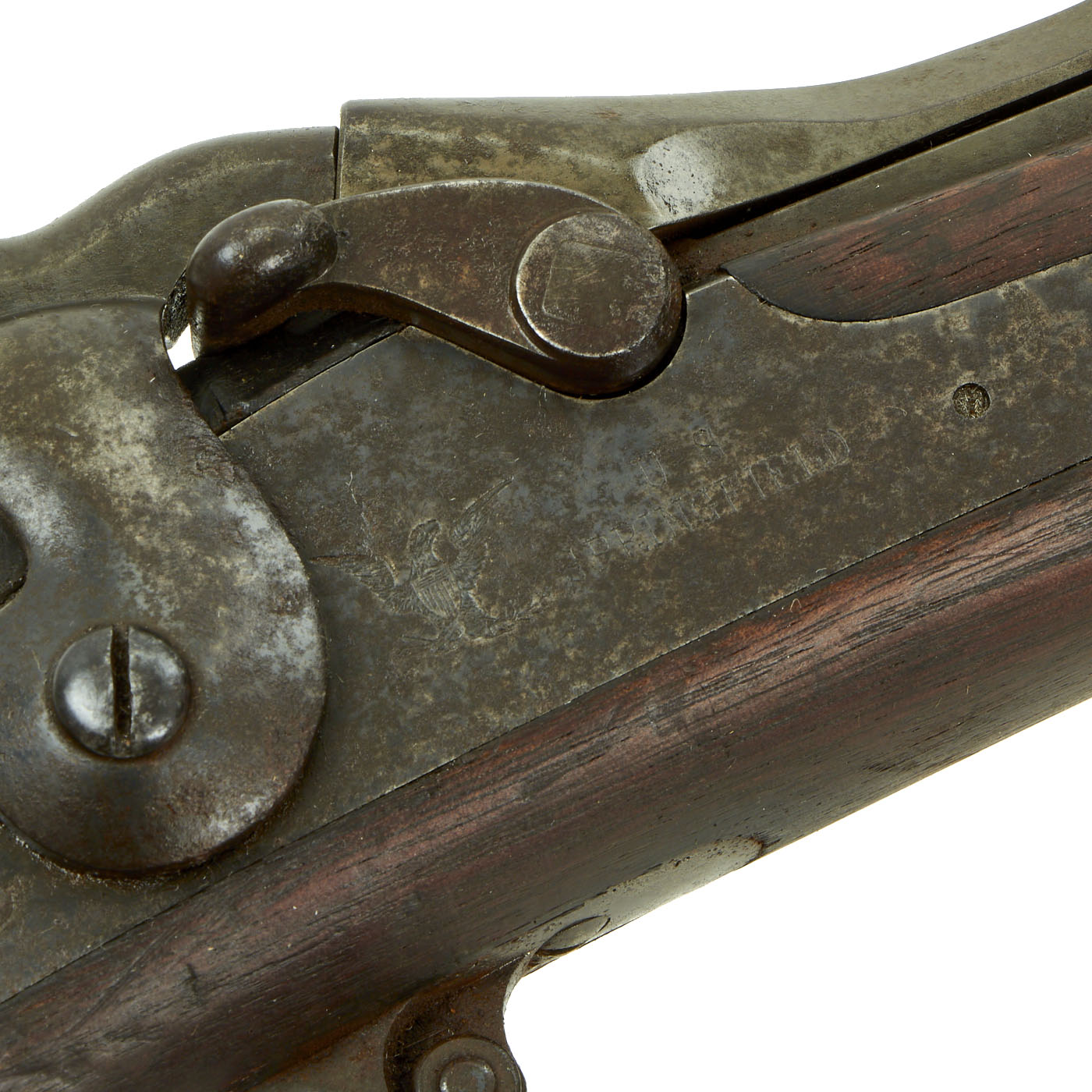

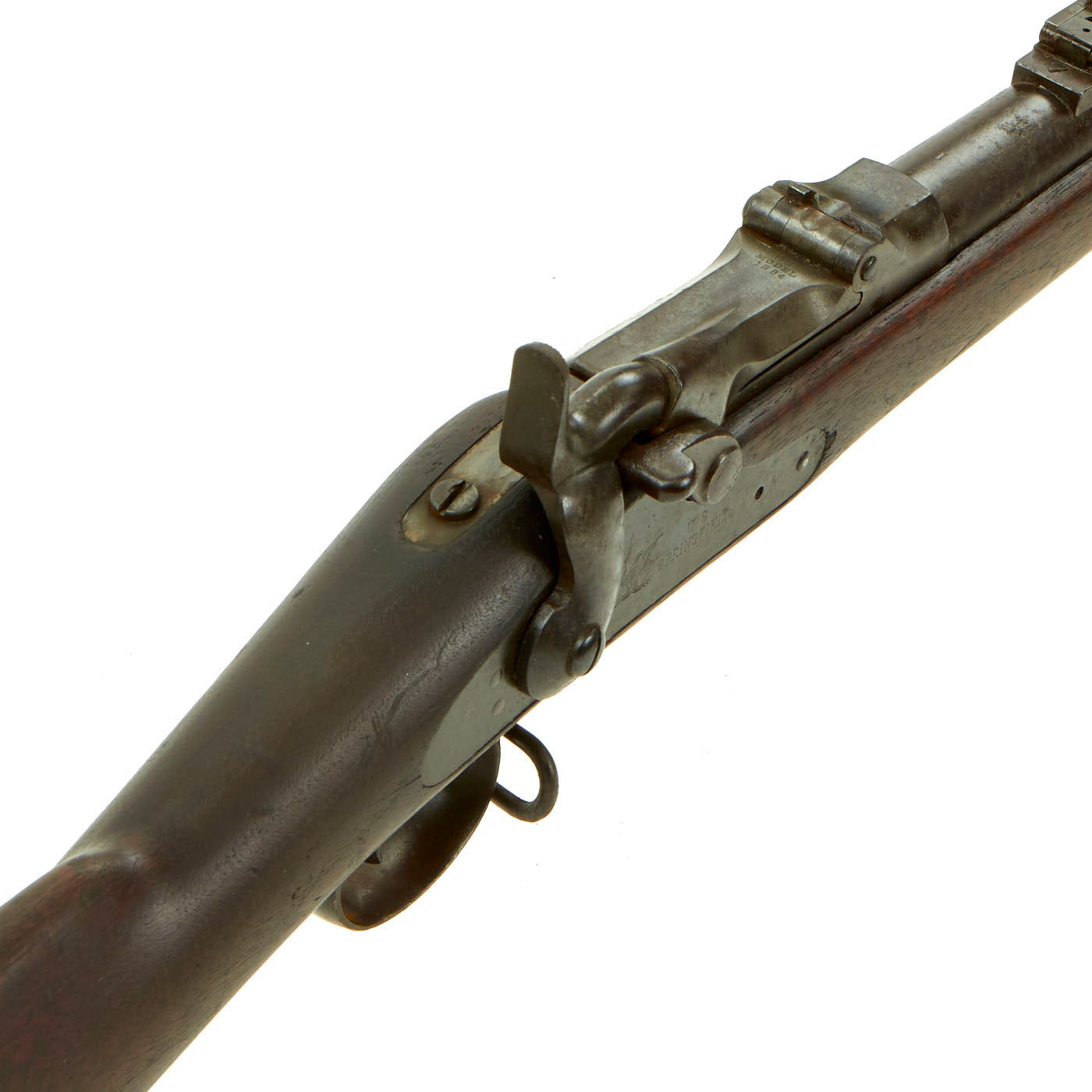

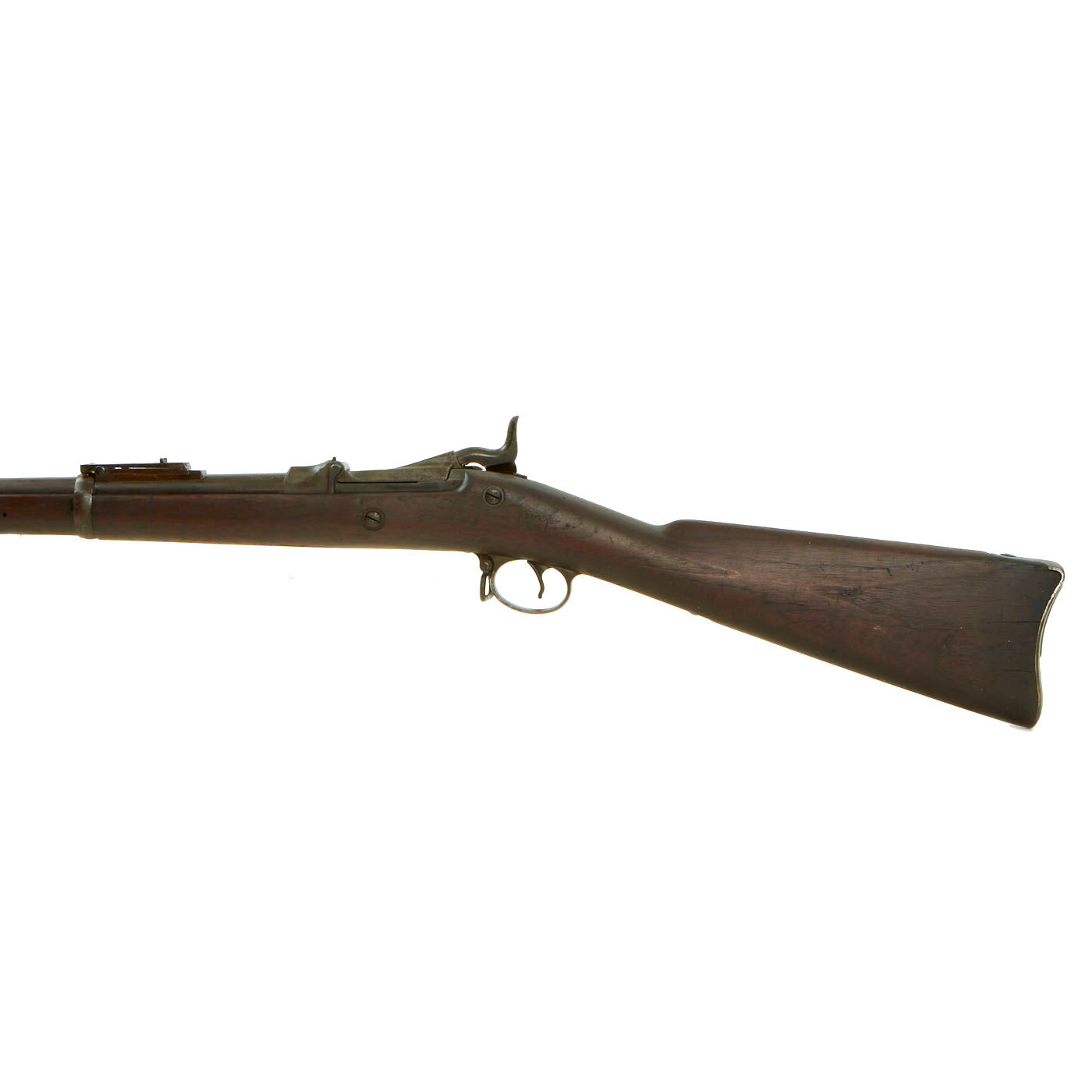

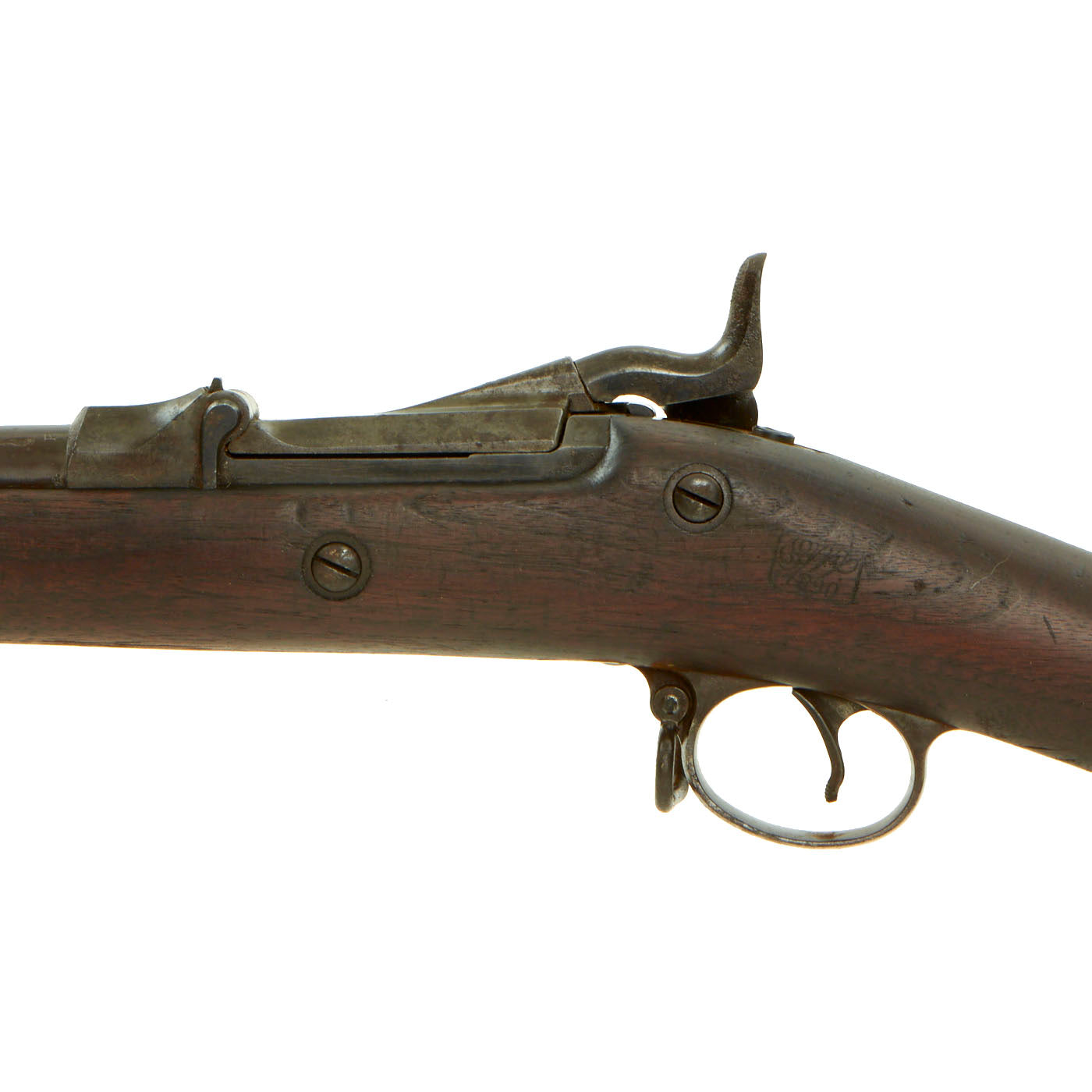

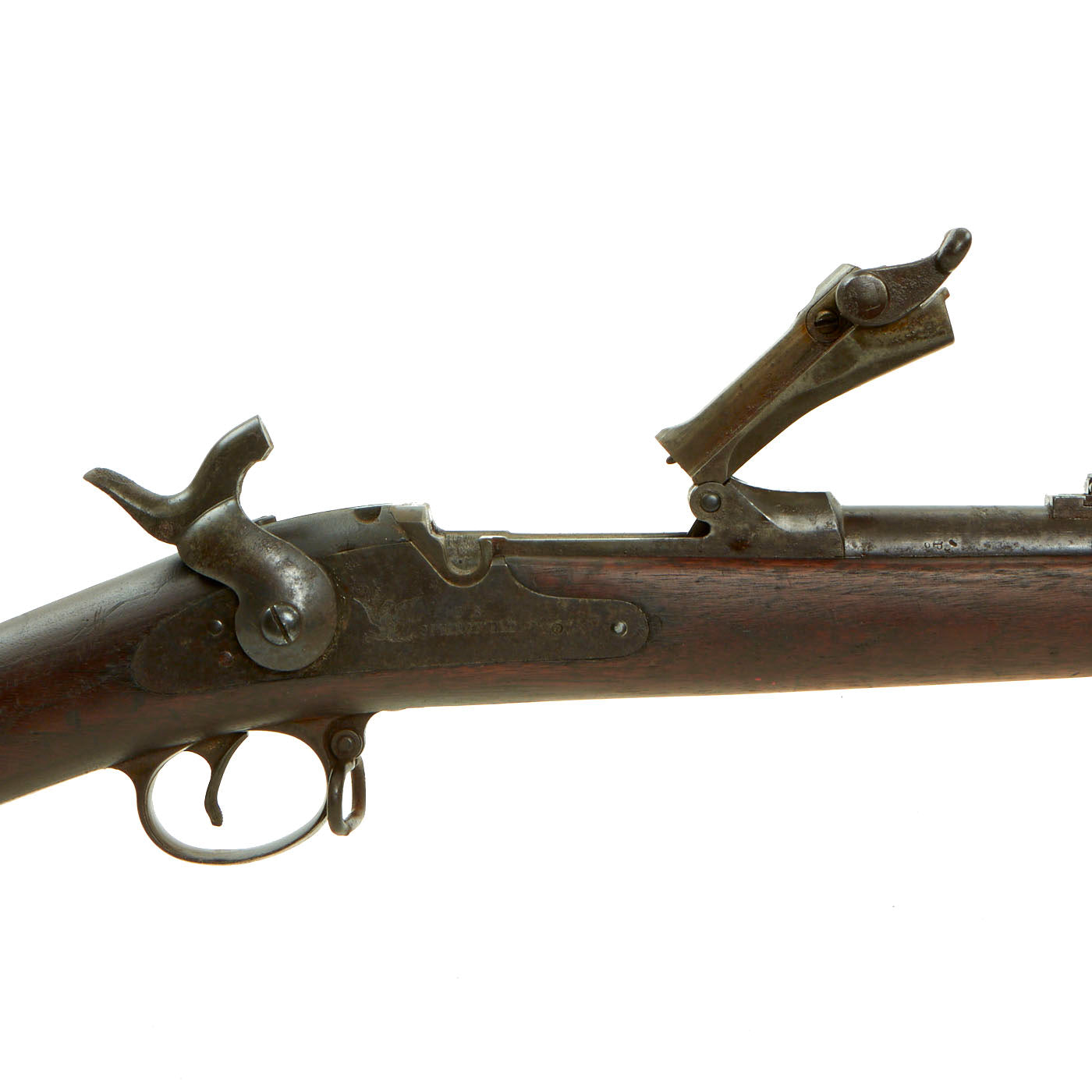

Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD indicating manufacture by Springfield Armory, Springfield Massachusetts. The lock is fully functional, and the cartridge extractor is intact and functional, though we have not tested it on spent brass. The rear sight is unfortunately currently frozen due to oxidation, but could most likely be freed up with some penetrating oil.

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A very faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital I on top; and a V over a P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

A great chance to pickup a very good "attic fresh" example of the United States last single shot rifle! Ready to display!

Specifications-

Year of Manufacture: 1891
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches

Overall Length: 52 Inches

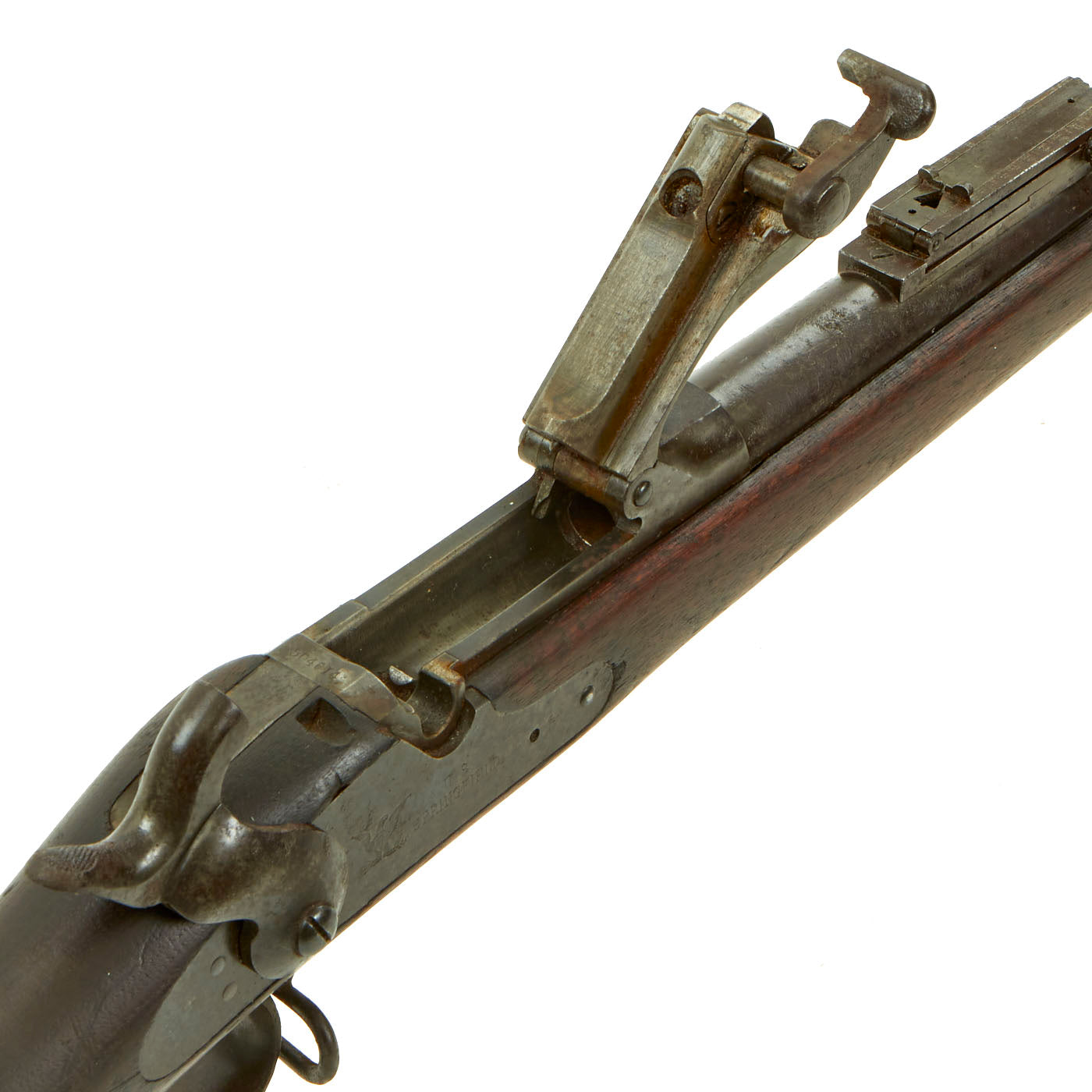

Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
