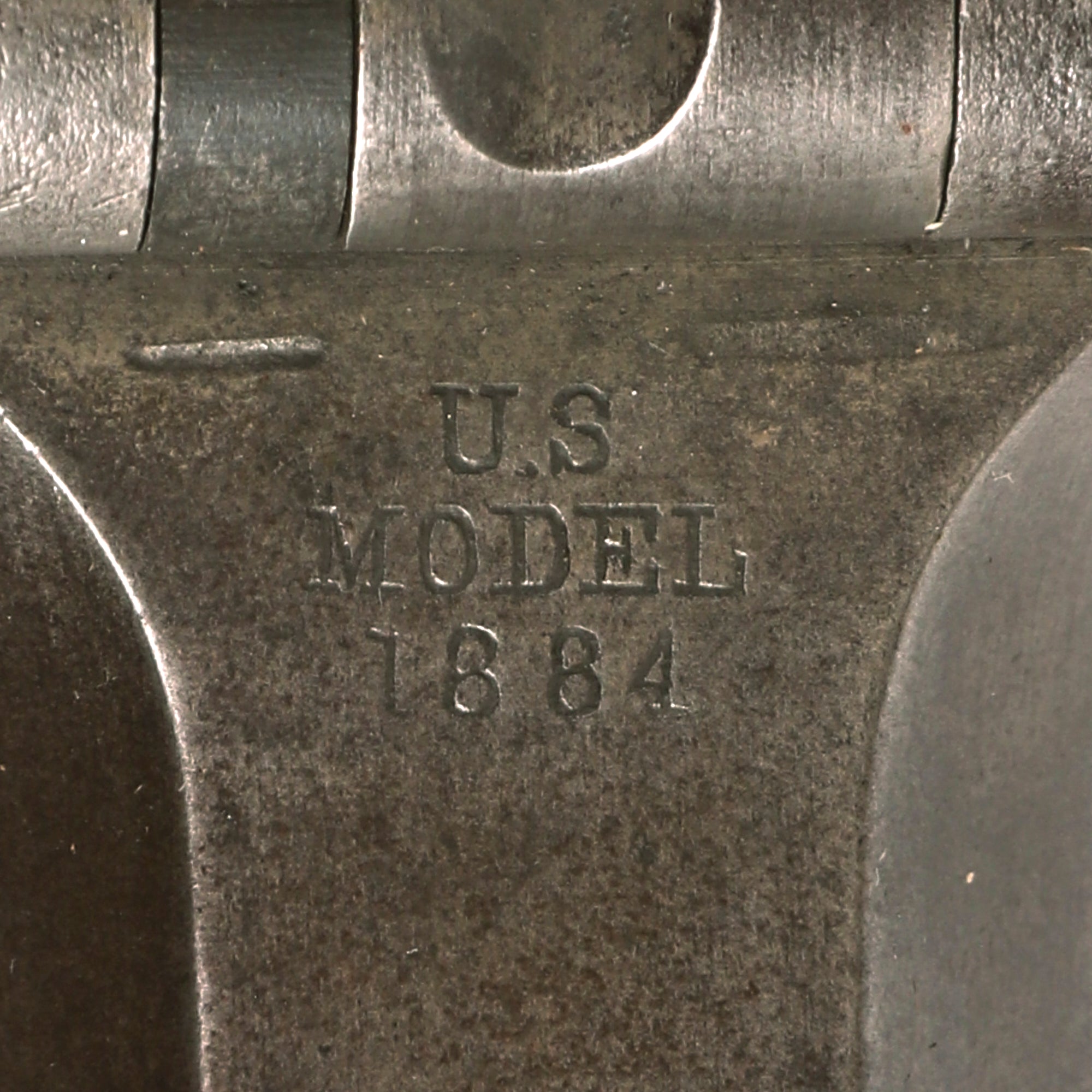

Original Item: Only One available. This is a lovely patinated example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The breech block is marked:

In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

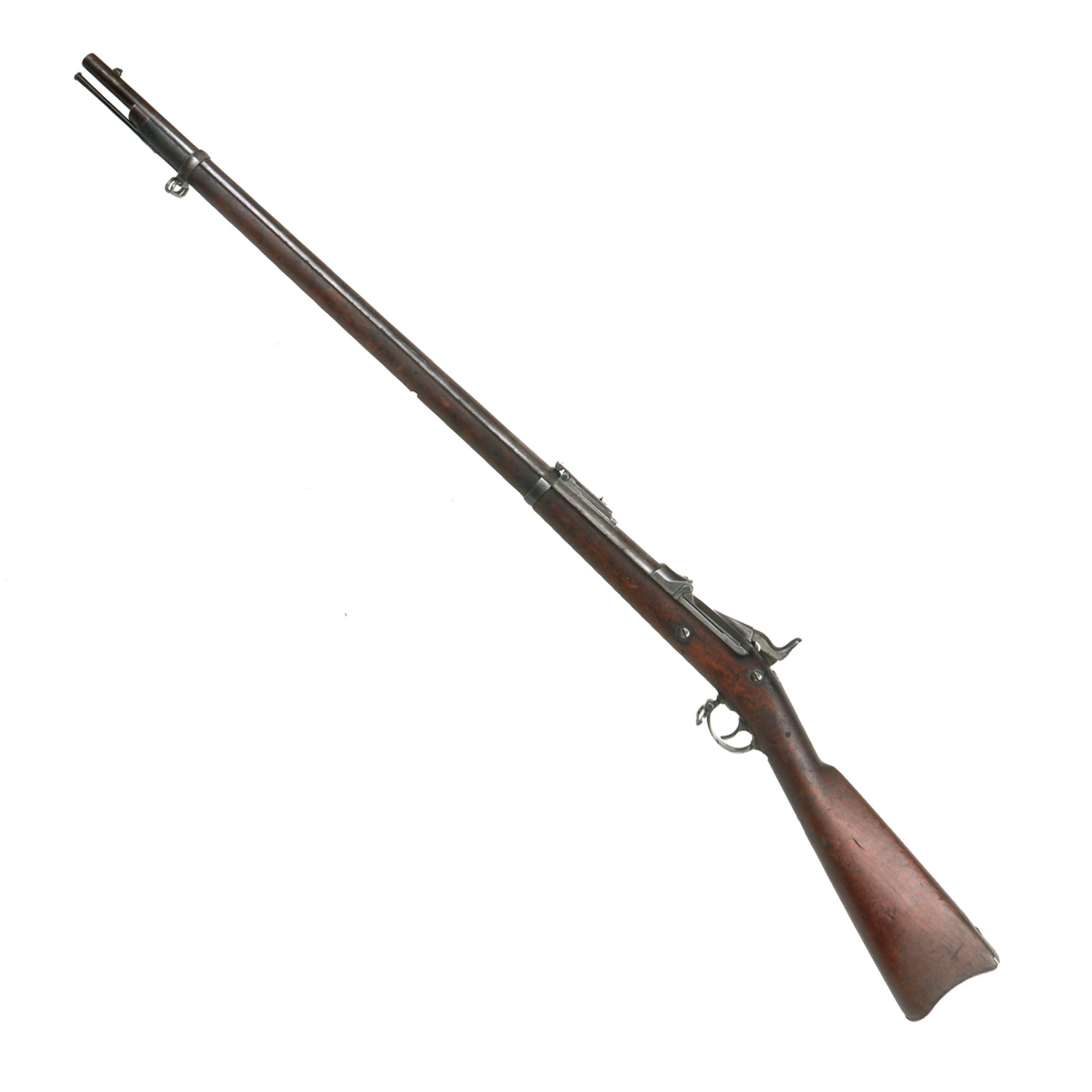

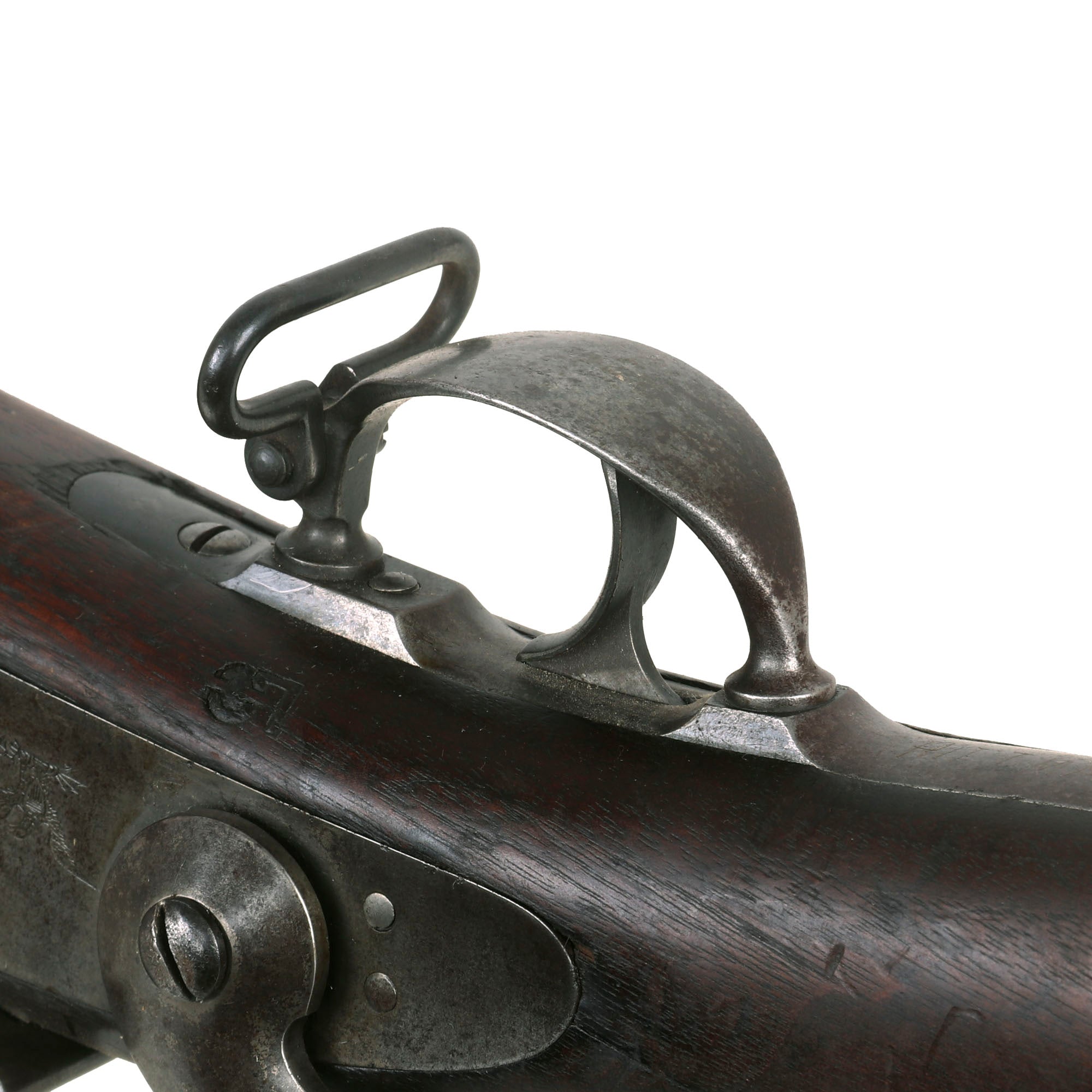

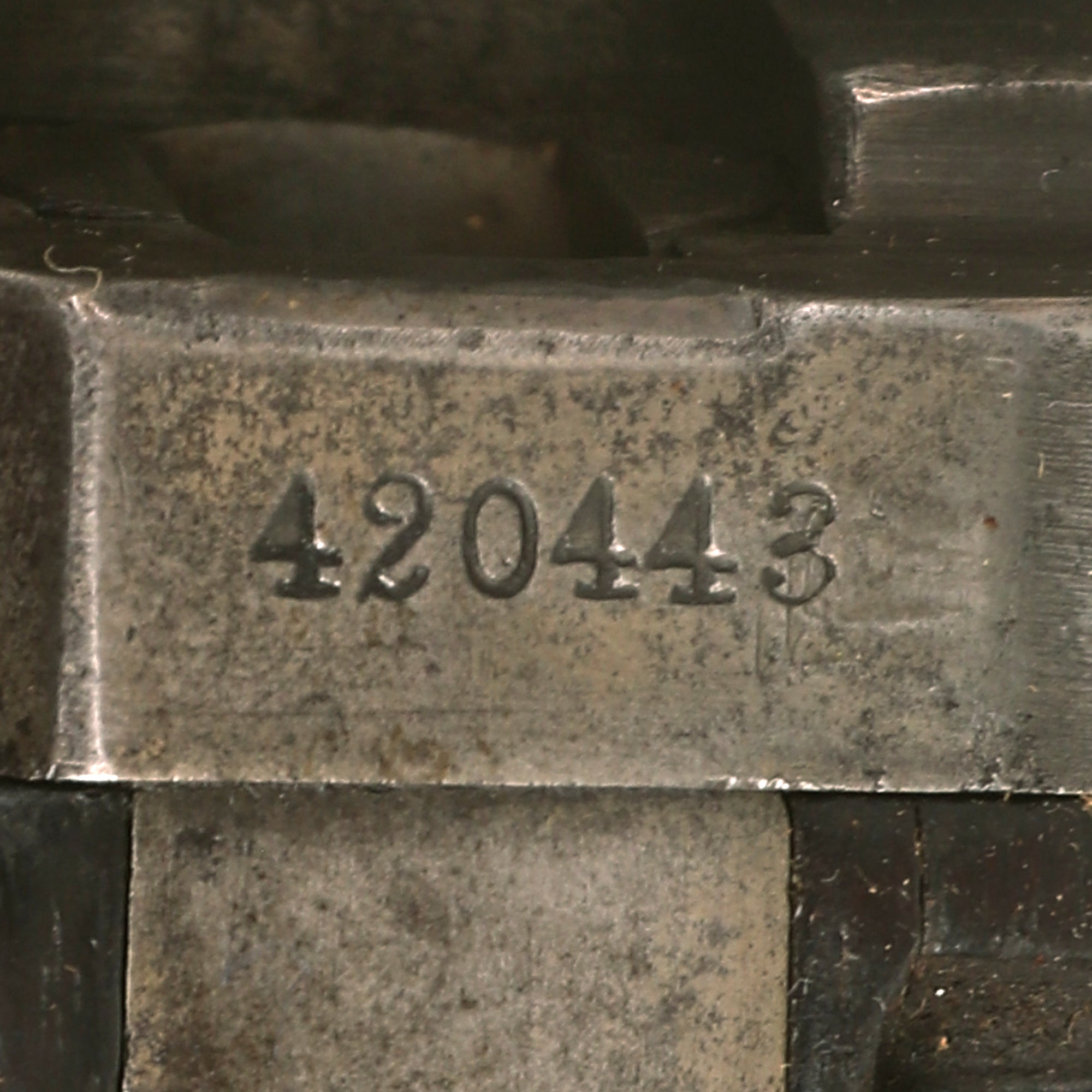

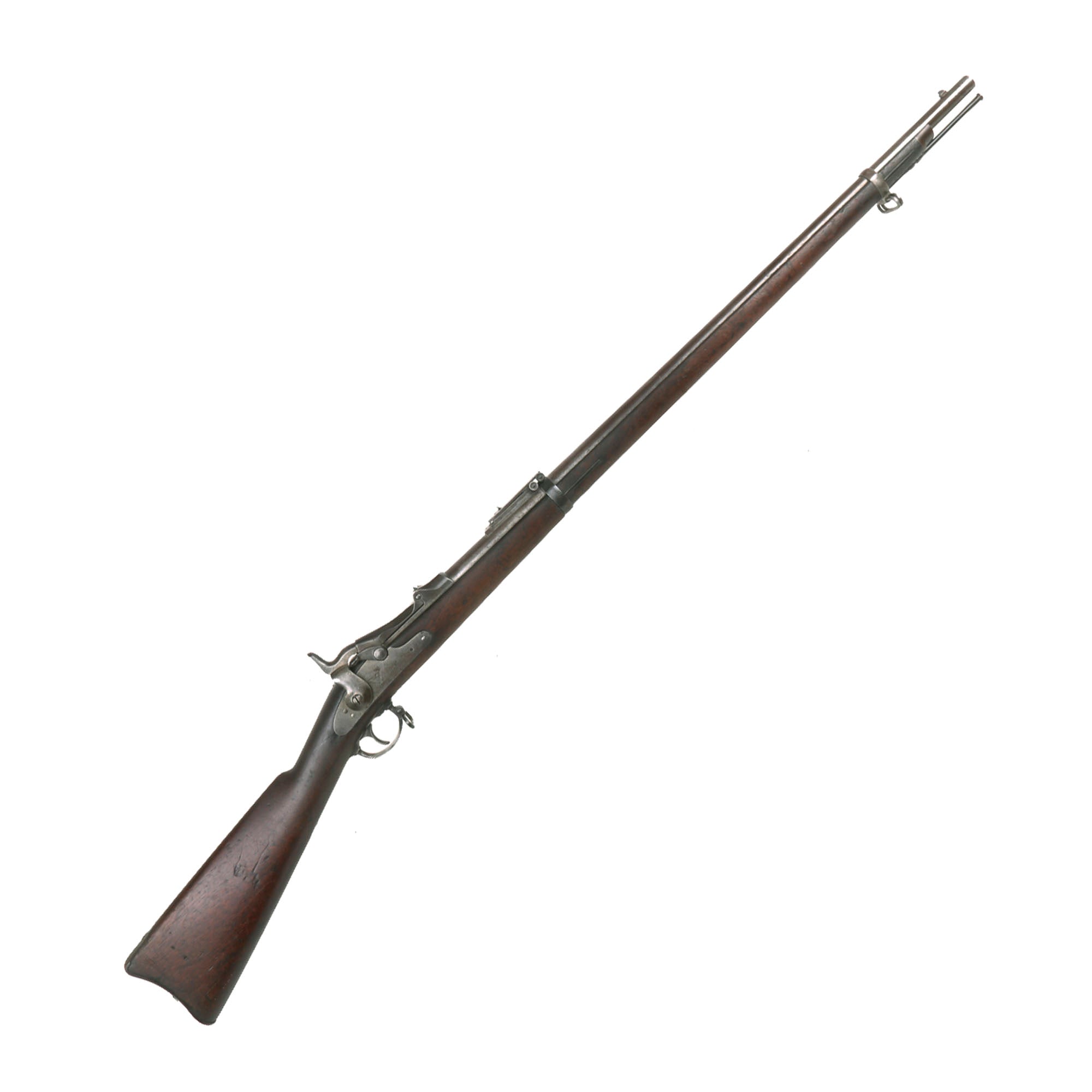

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 420443, which indicates production in approximately October 1888, per U.S. Government records. The left side of the stock bears a worn "boxed" government inspector SWP / 1888 cartouche, for inspection during the same year. It features a standard ramrod, and was not later made in the the "1888" pattern, even though it was produced after it was introduced. The rifle has the "improved" Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod, smooth trigger, and two part trigger guard. This was made during the transitional period, so sometimes older configured trigger guards and stocks were used. Definitely some interesting history to this rifle!

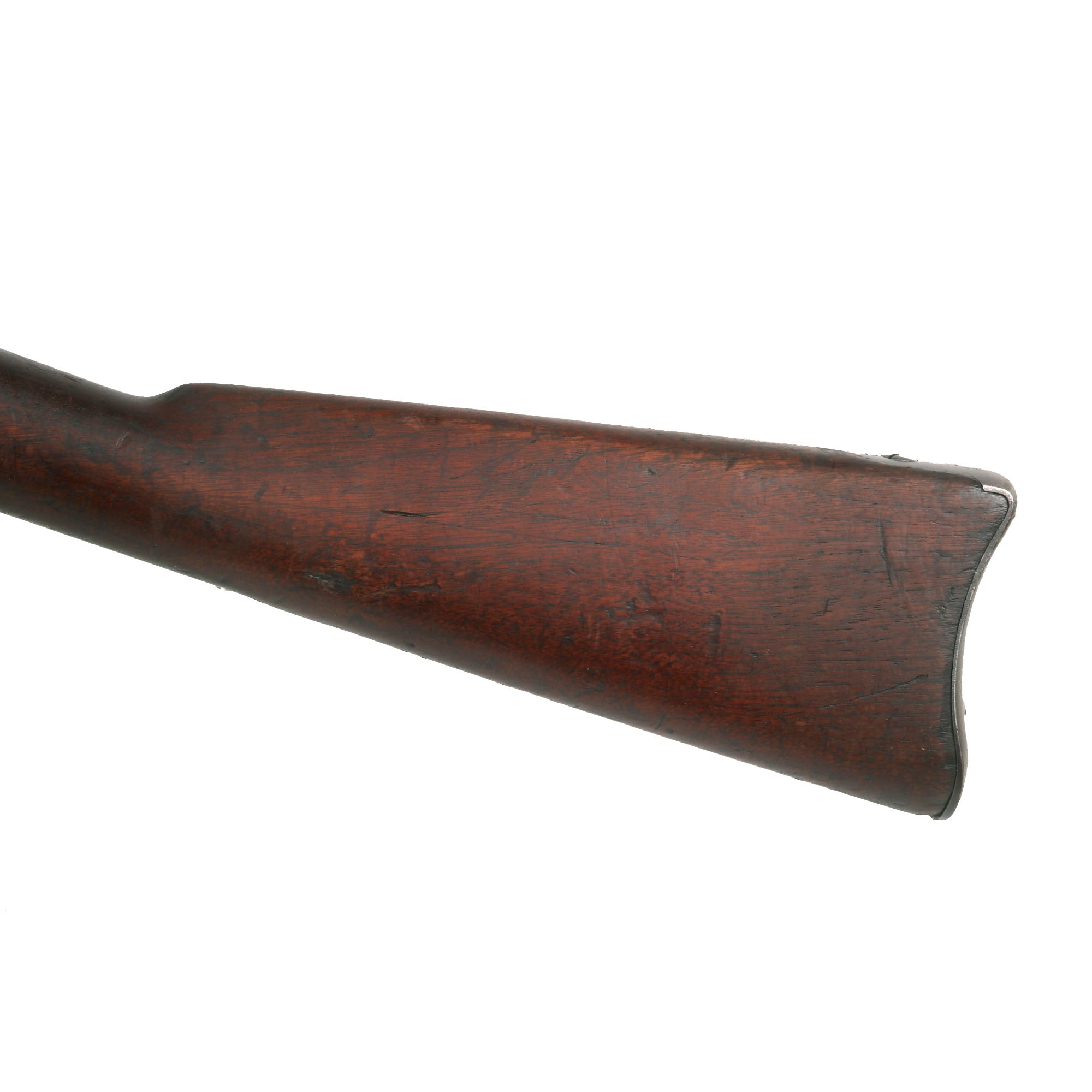

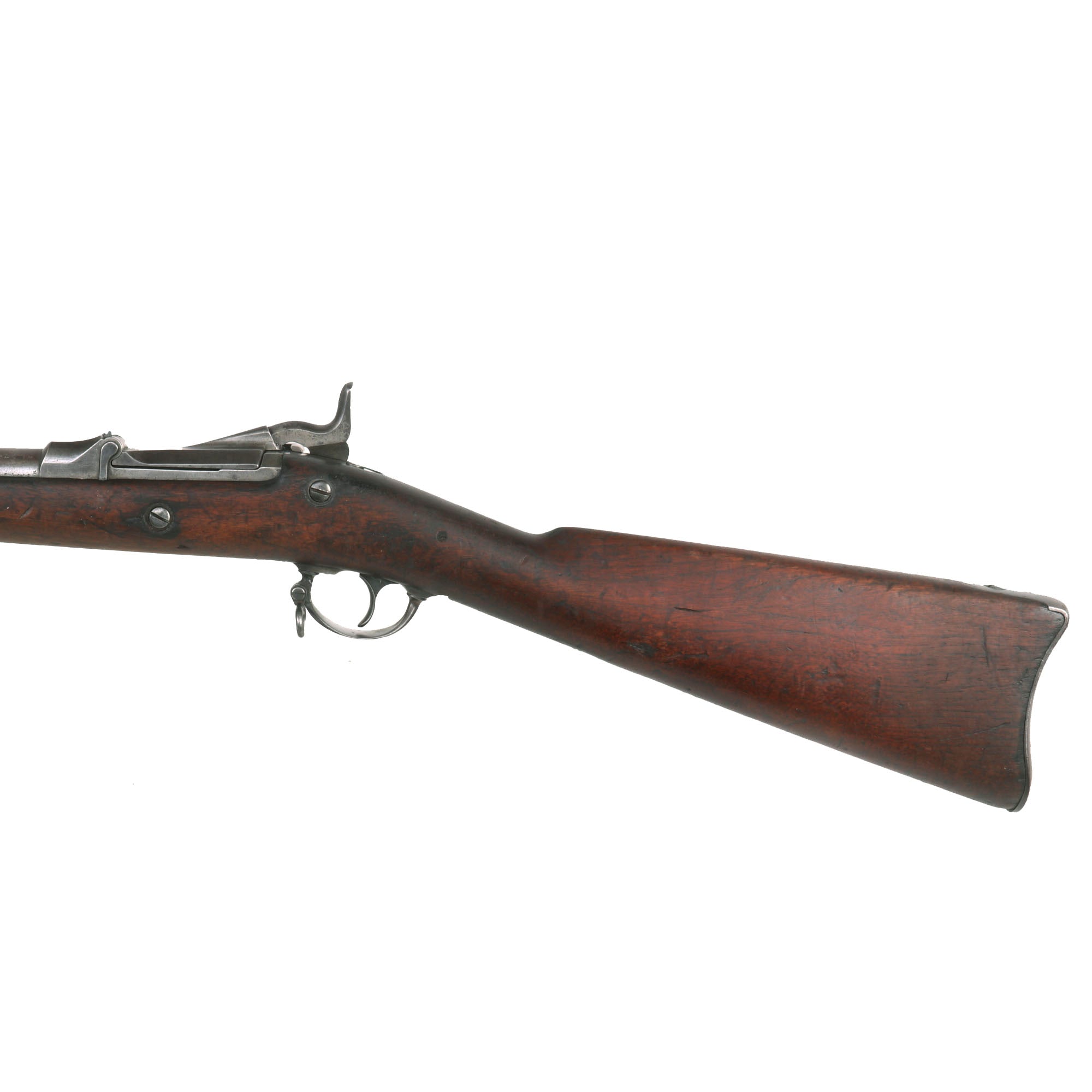

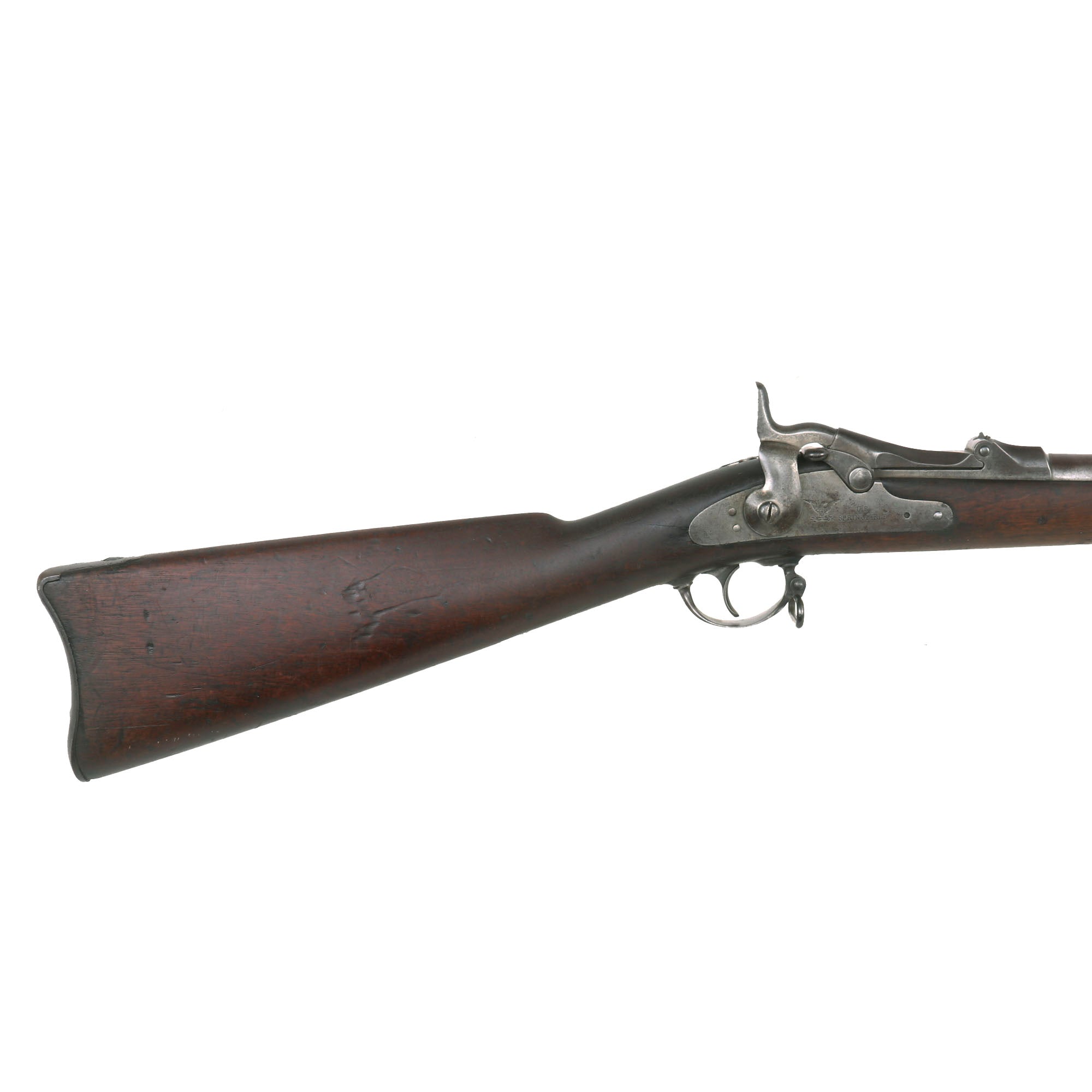

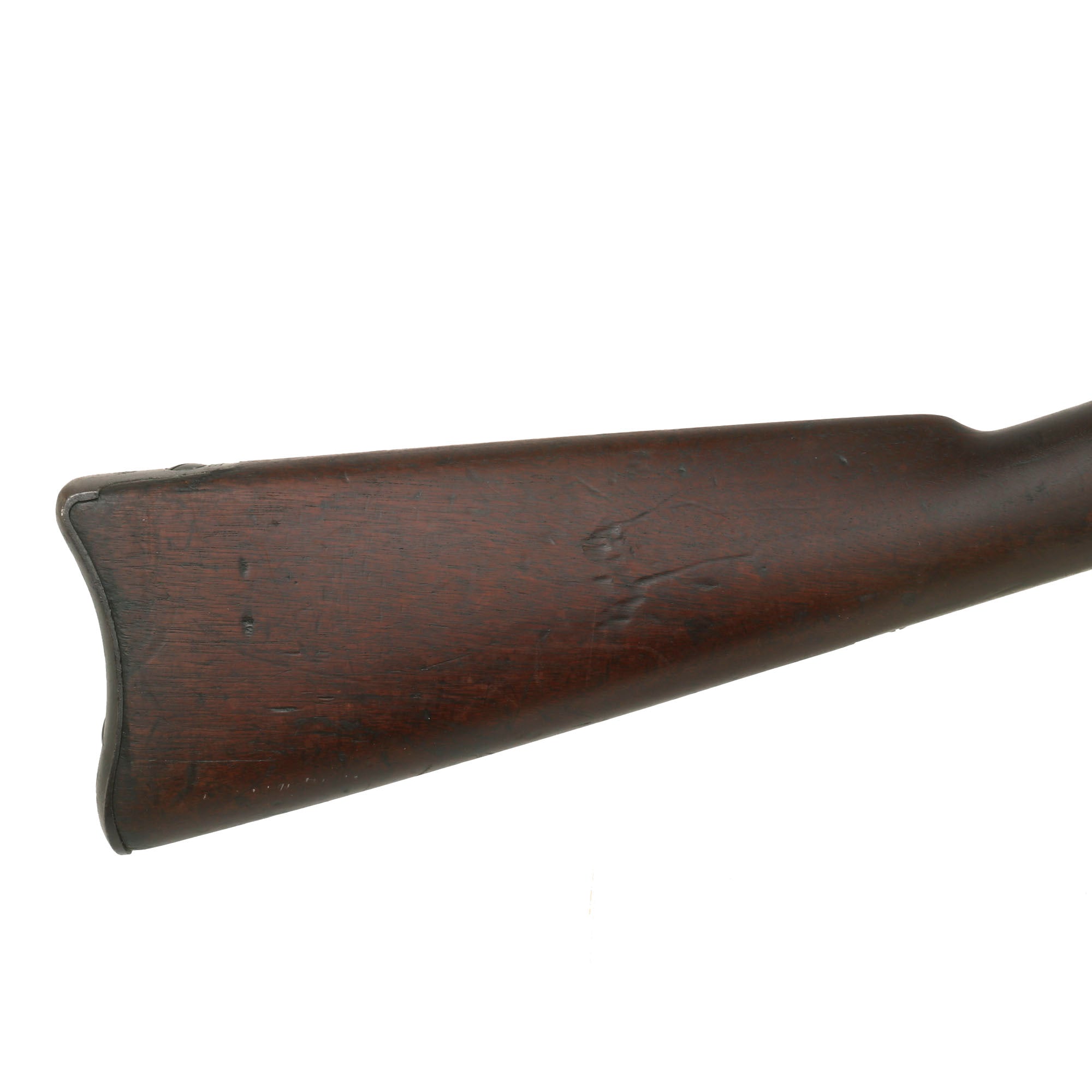

The rifle has overall good metal finish and all metal proofs still present, showing a worn gray patina on the metalwork from years of service and cleaning. There is a bit of light peppering in areas, but no major rust, just wear from long service. The wood stock is in good condition, showing wear and damage commensurate to age and service. There are the usual dents and dings, but no major catastrophic damage. There is a crack near the tail of the lock, which does not look to be structural. The stock is level with the lock plate, so it has been worn down a bit over the years, but not excessively so. Really a lovely honest used stock with a great "broken in" look.

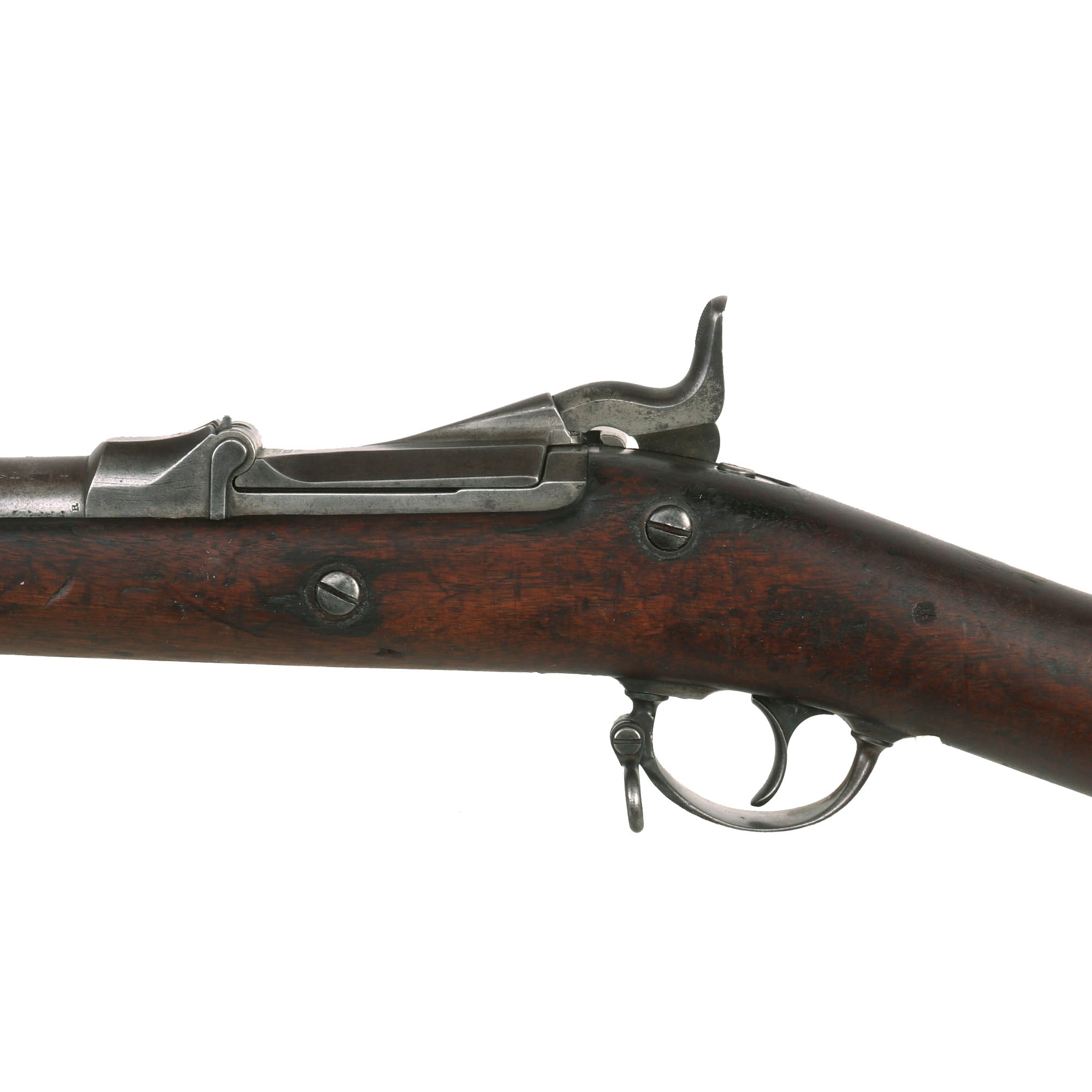

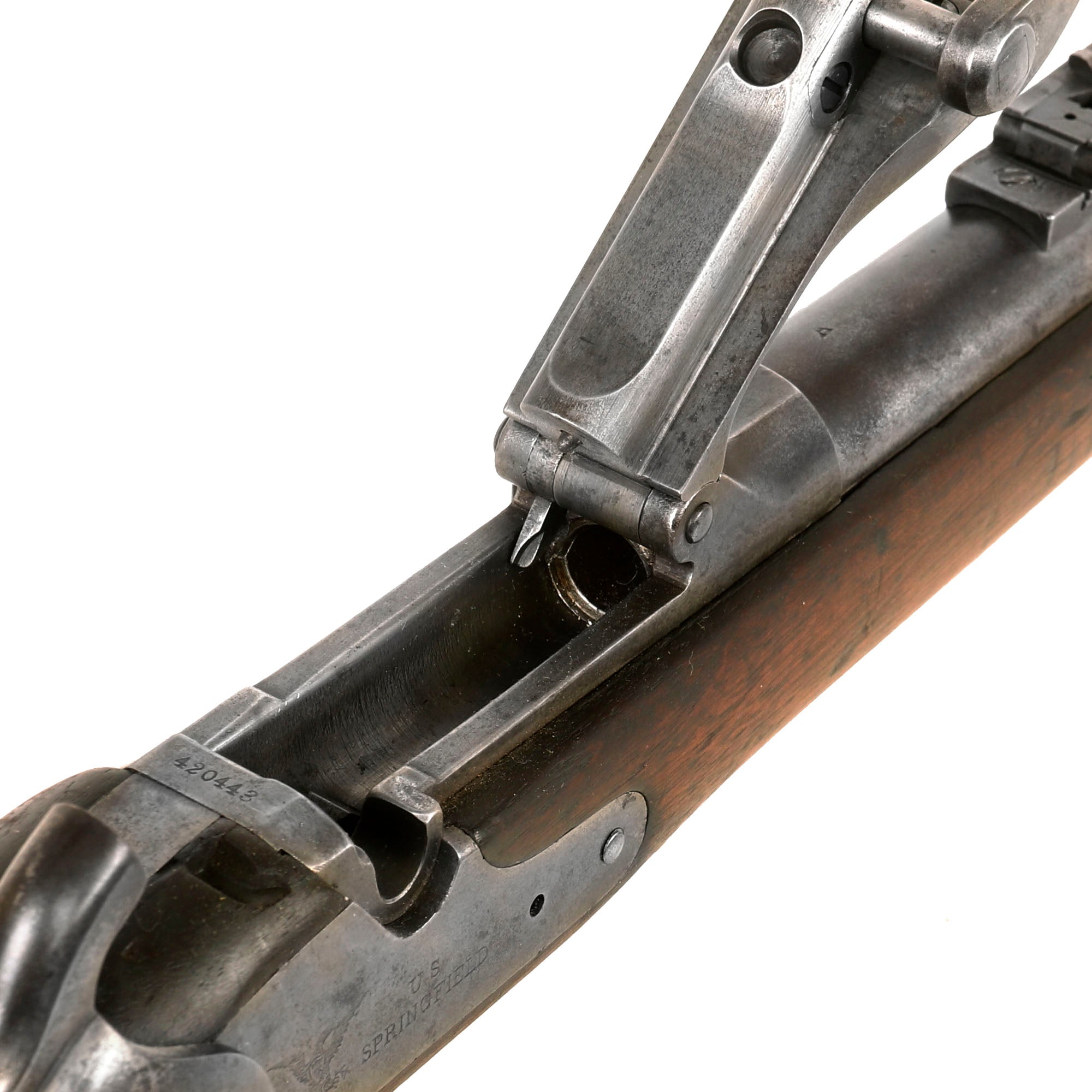

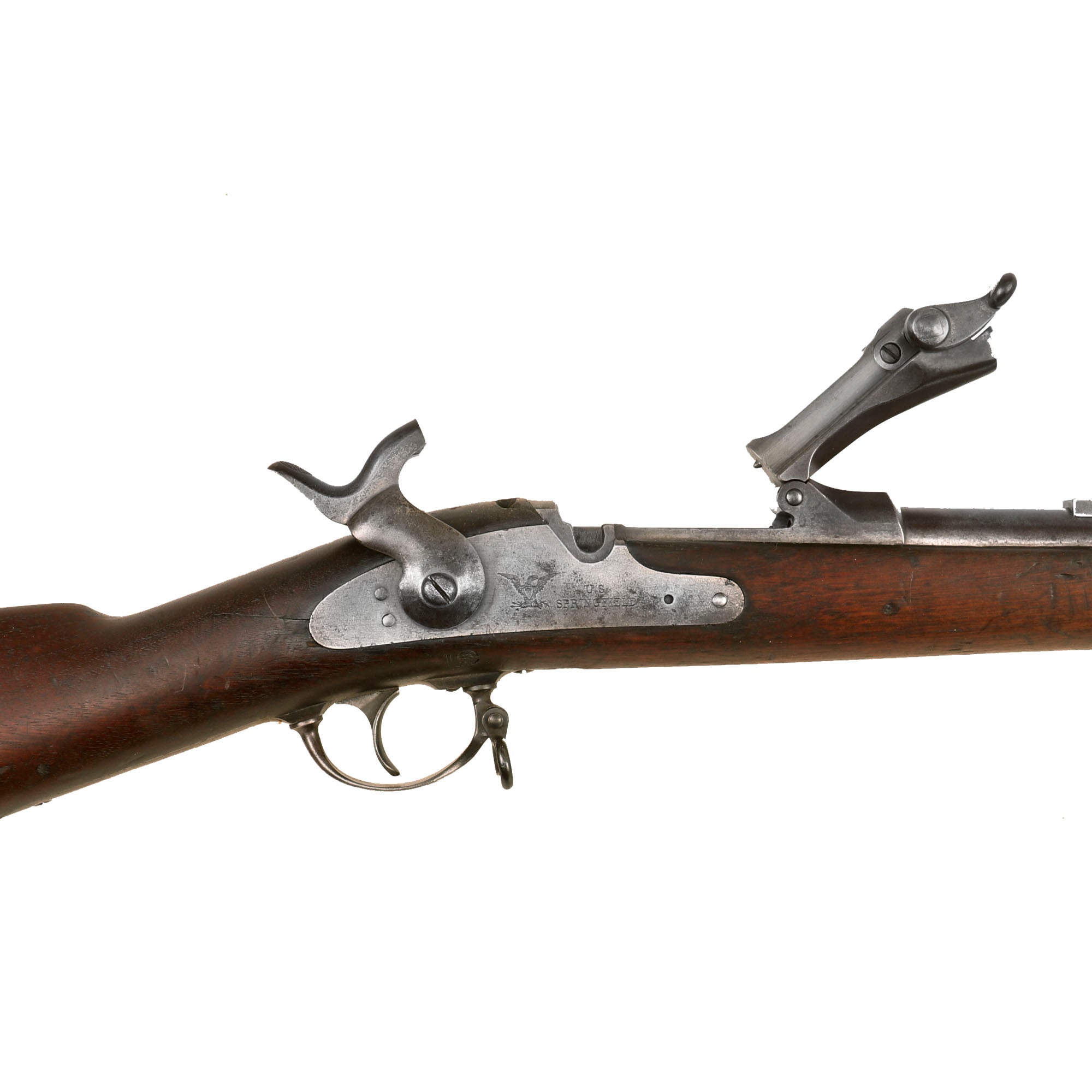

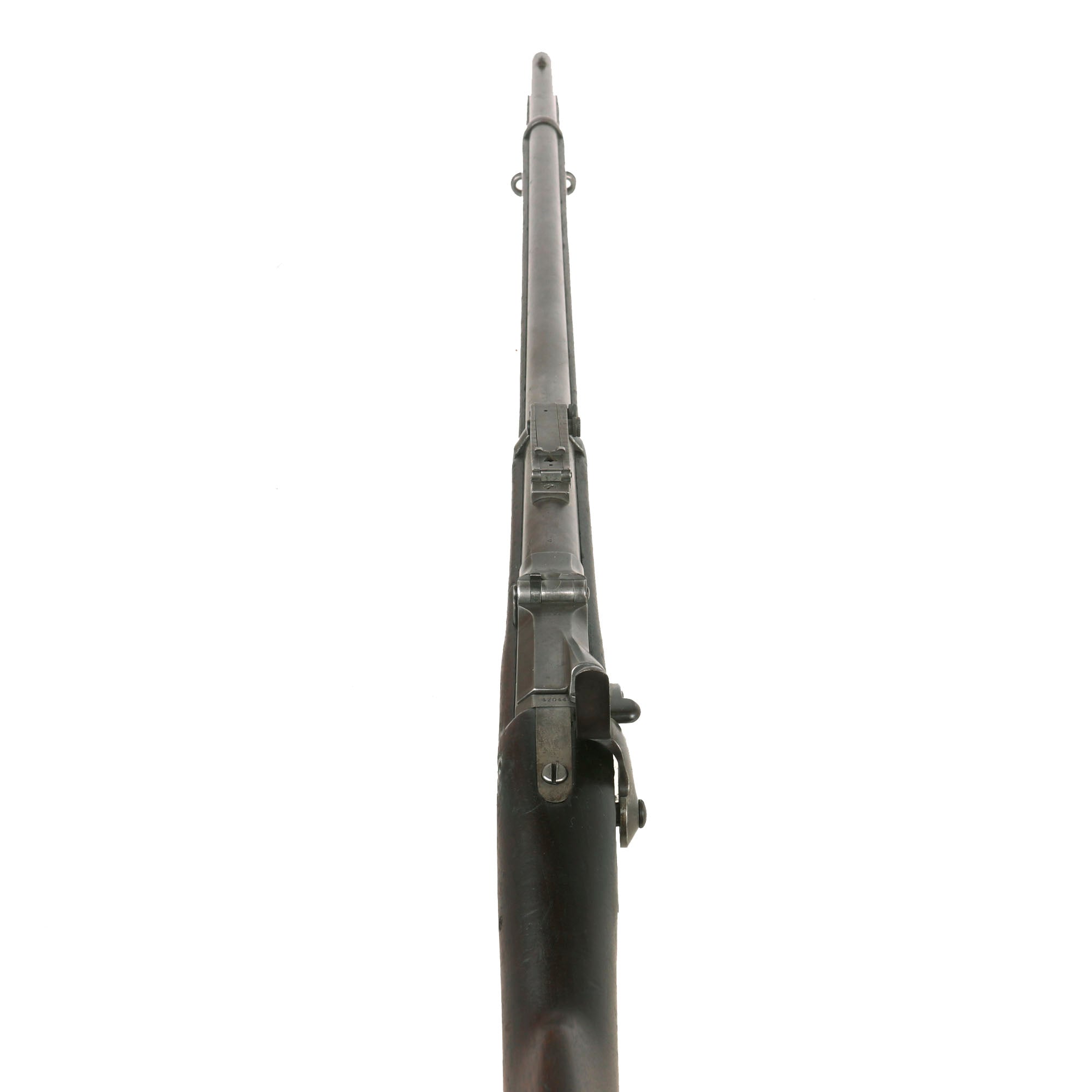

The bore is in very good condition, showing clear lands and grooves with a mostly bright finish. There is some wear to the lands, as well as a bit of past fouling in the grooves, now cleaned away. This was a rifle that did see some level of service, but was well cared for by cleaning the bore after use. The breech block moves correctly, locking closed and with an intact firing pin, and the extractor is still present and functional, though we have not tested it with real brass. The Buffington sight is fully functional, with all of the adjustments moving easily.

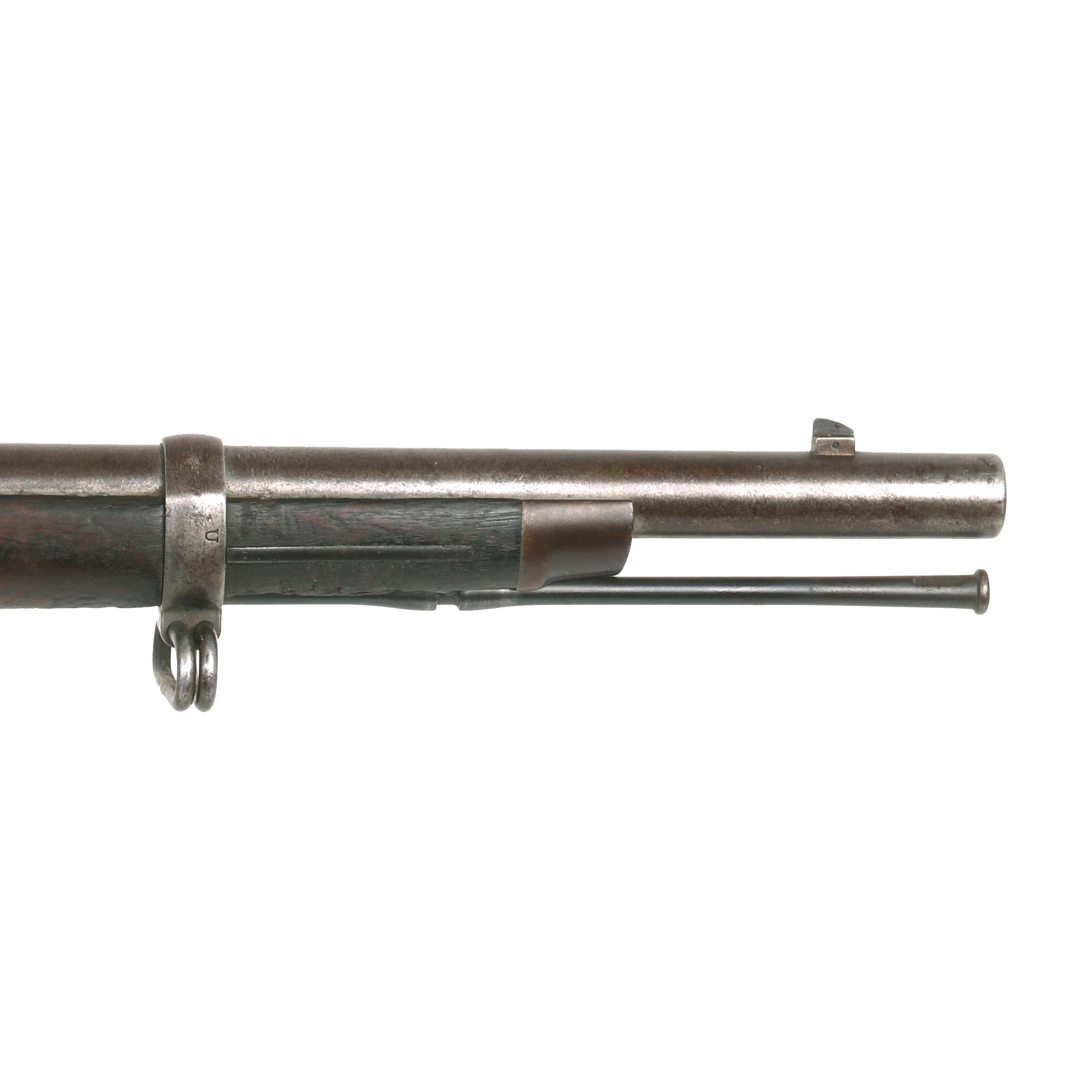

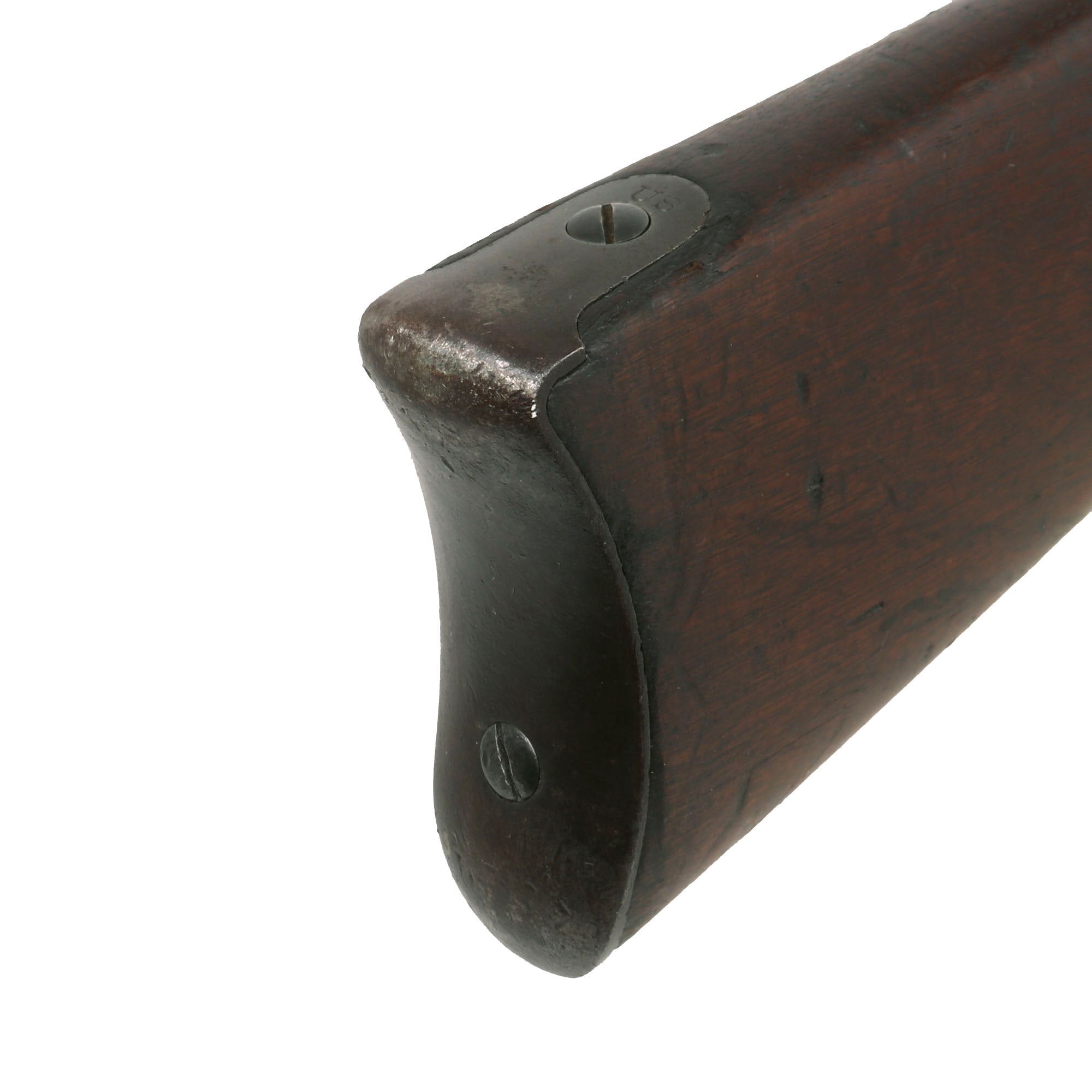

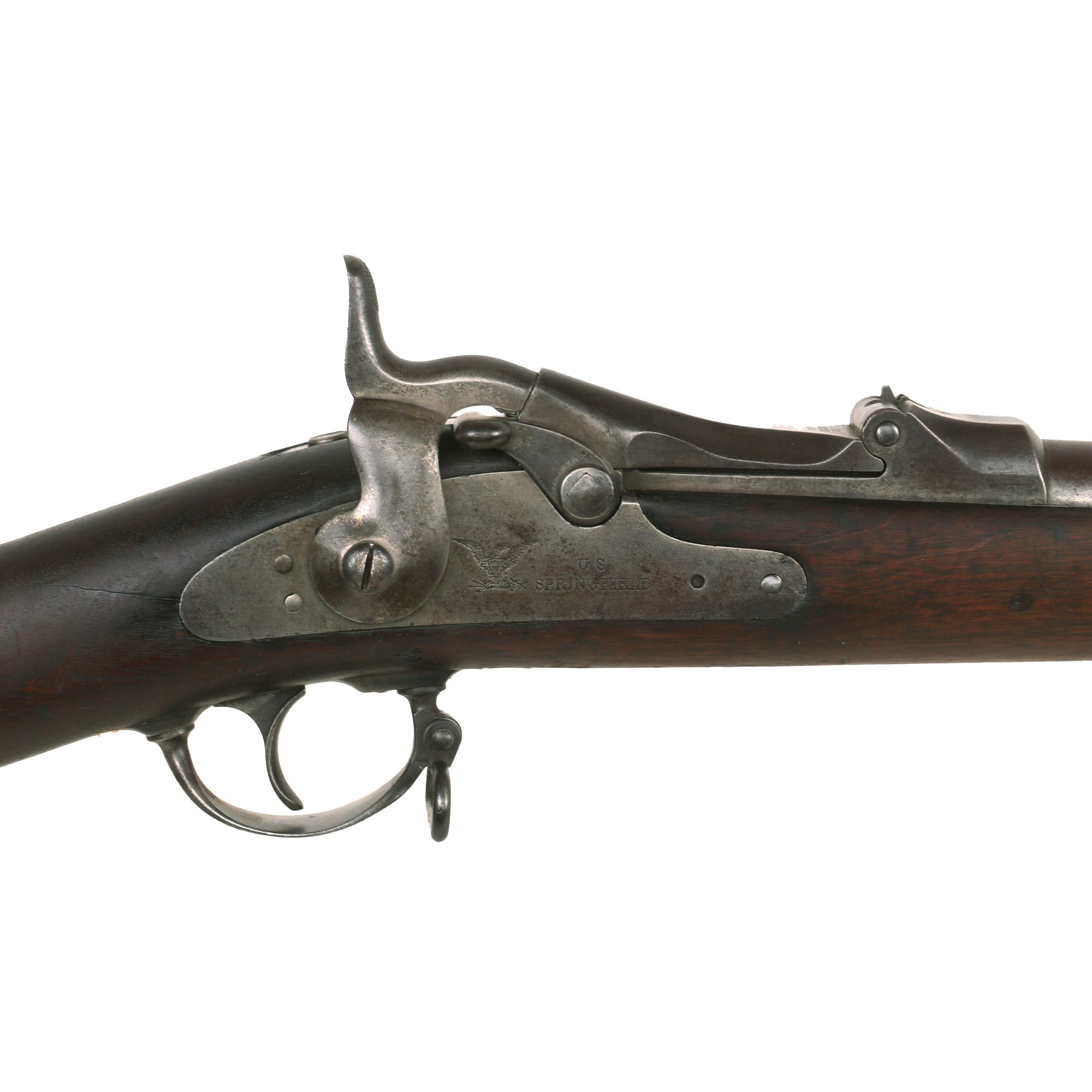

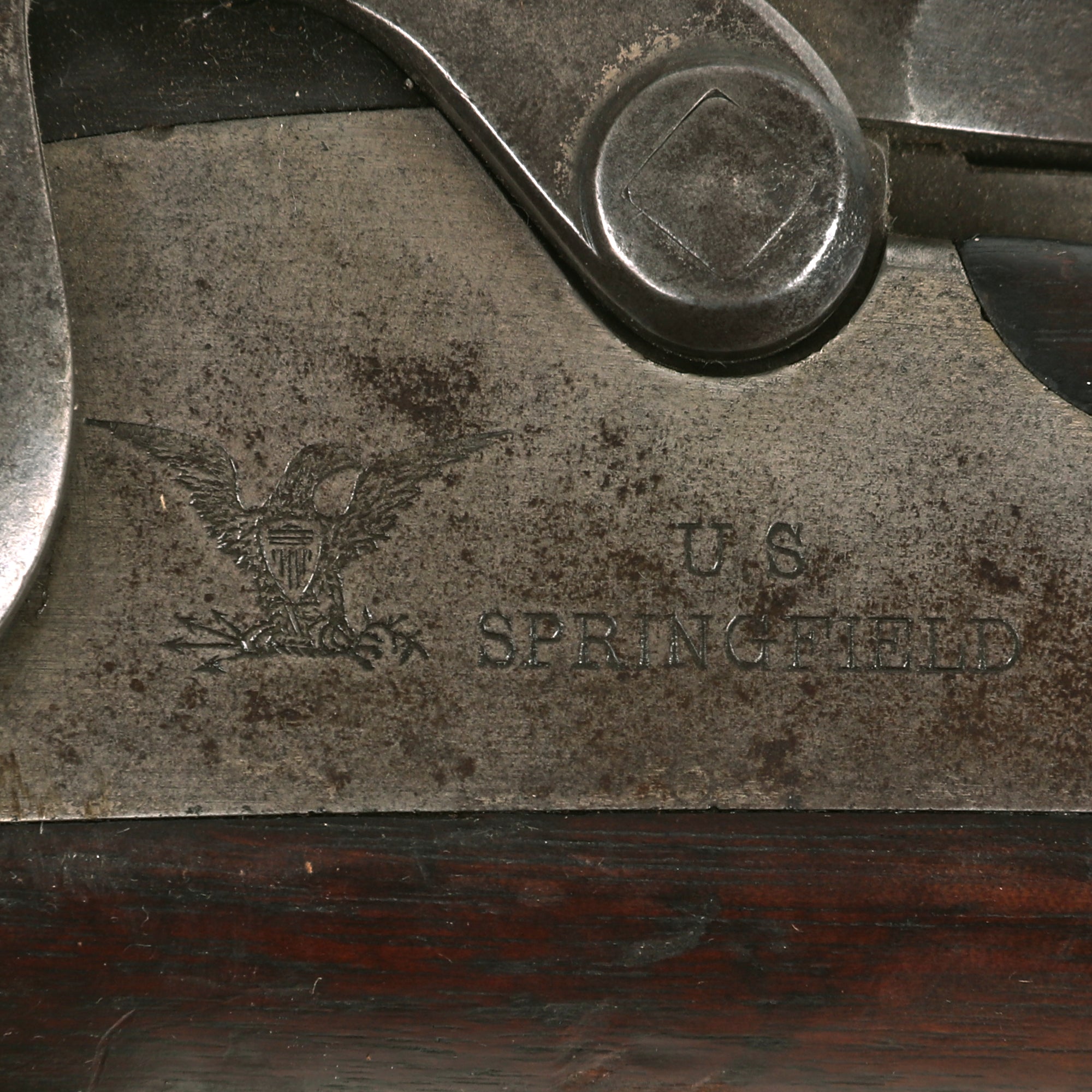

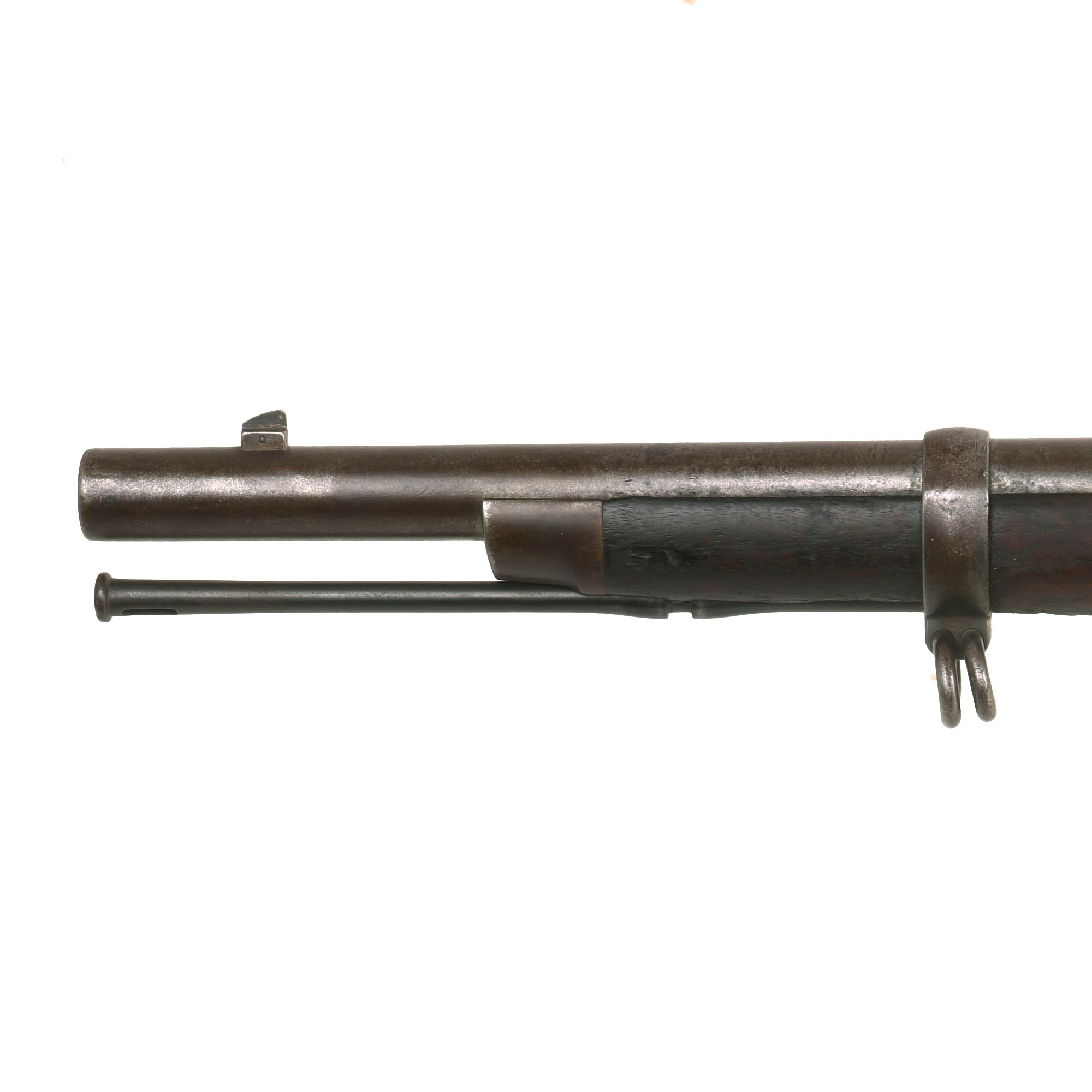

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is a lovely aged gray patina from long service. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with a Federal Eagle to the left of U.S. / SPRINGFIELD, indicating that it was manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

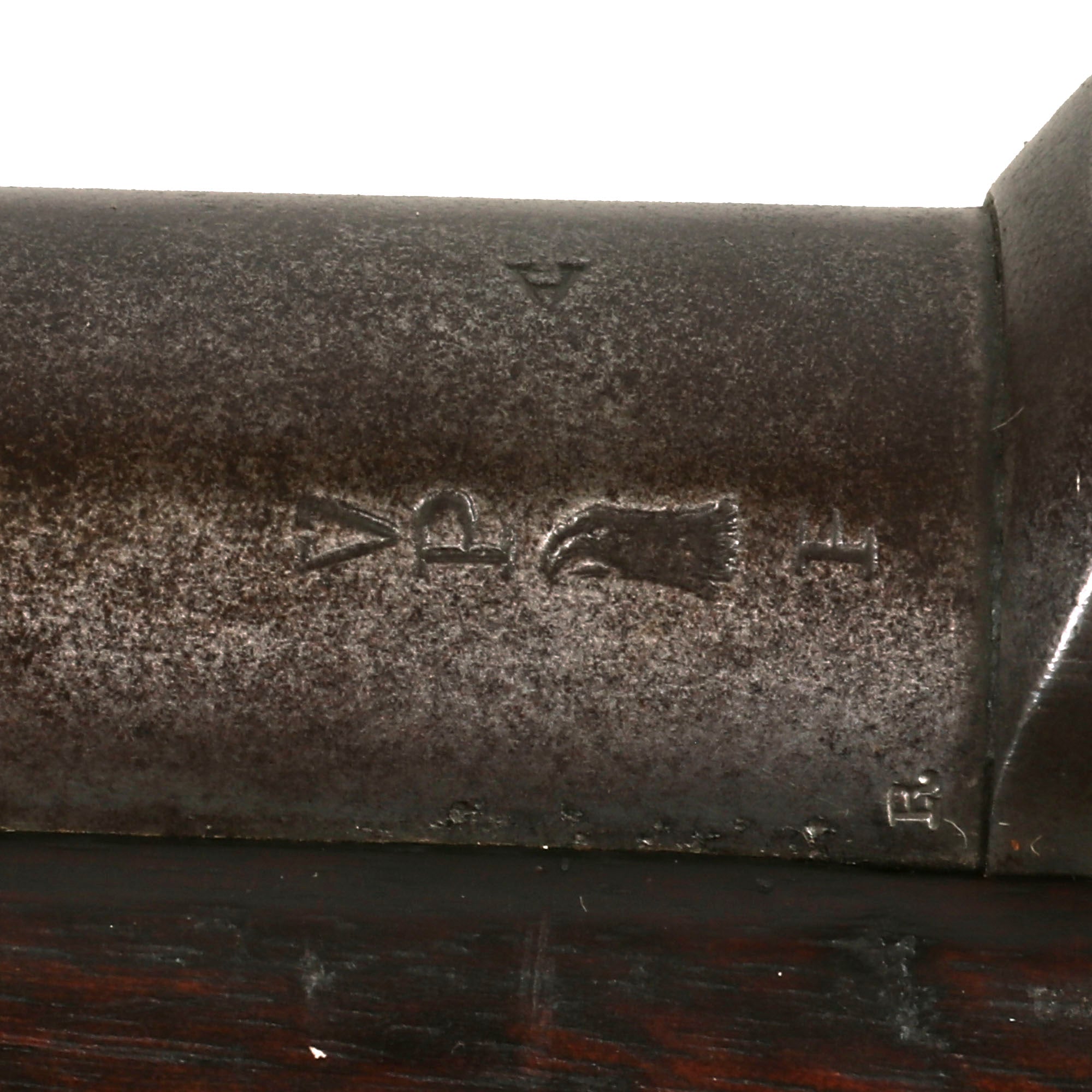

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is a great opportunity to pick up a very nice example of a classic U.S. issue firearm, with a great "been there" look! Ready to display!

Specifications-

Year of Manufacture: 1888
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
