Original U.S. Springfield Trapdoor Model 1884 Rifle with Standard Ram Rod made in 1890 - Serial 501714

Item Description

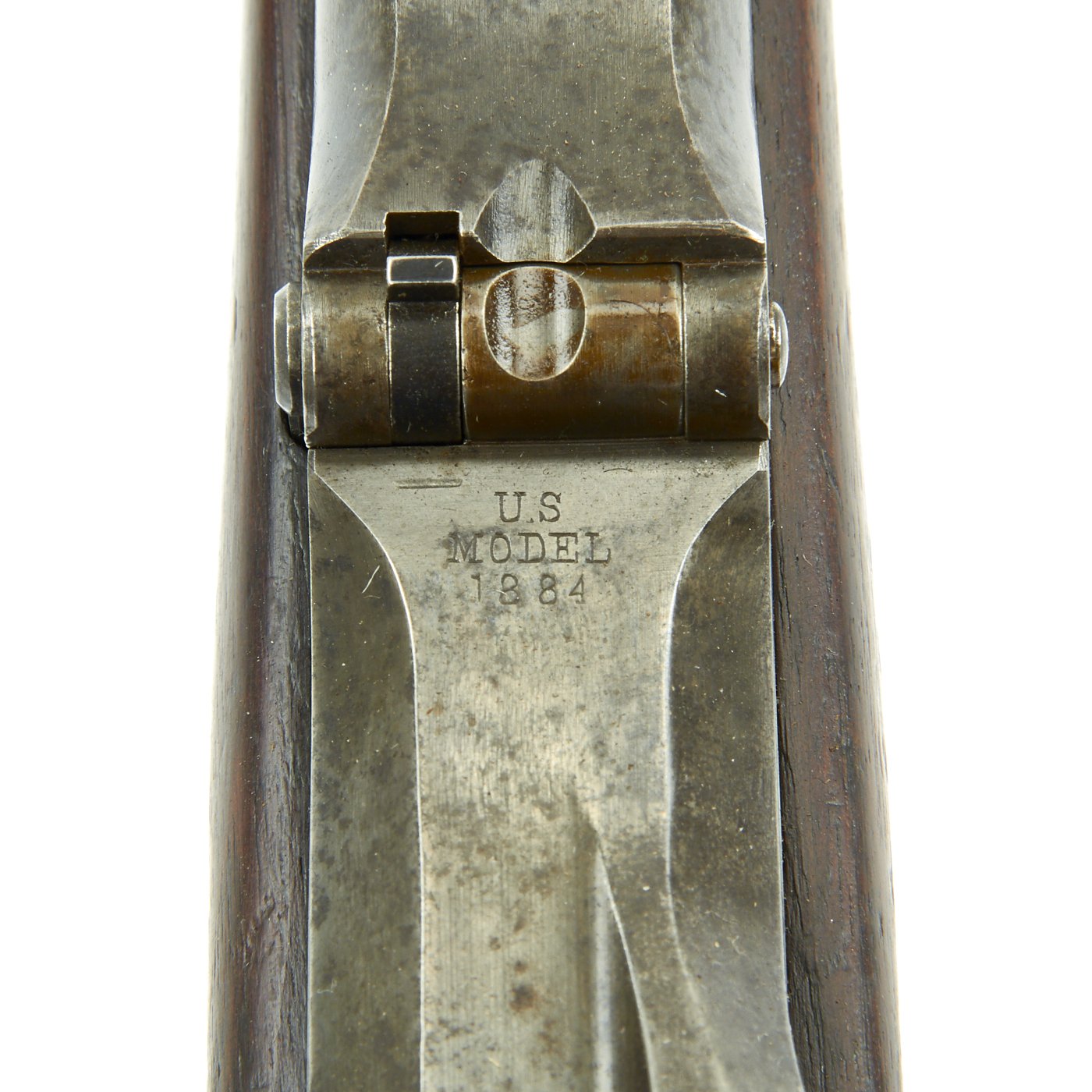

Original Item: Only One available. This is a very nice example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The breech block is marked:


In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all model 1884s. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

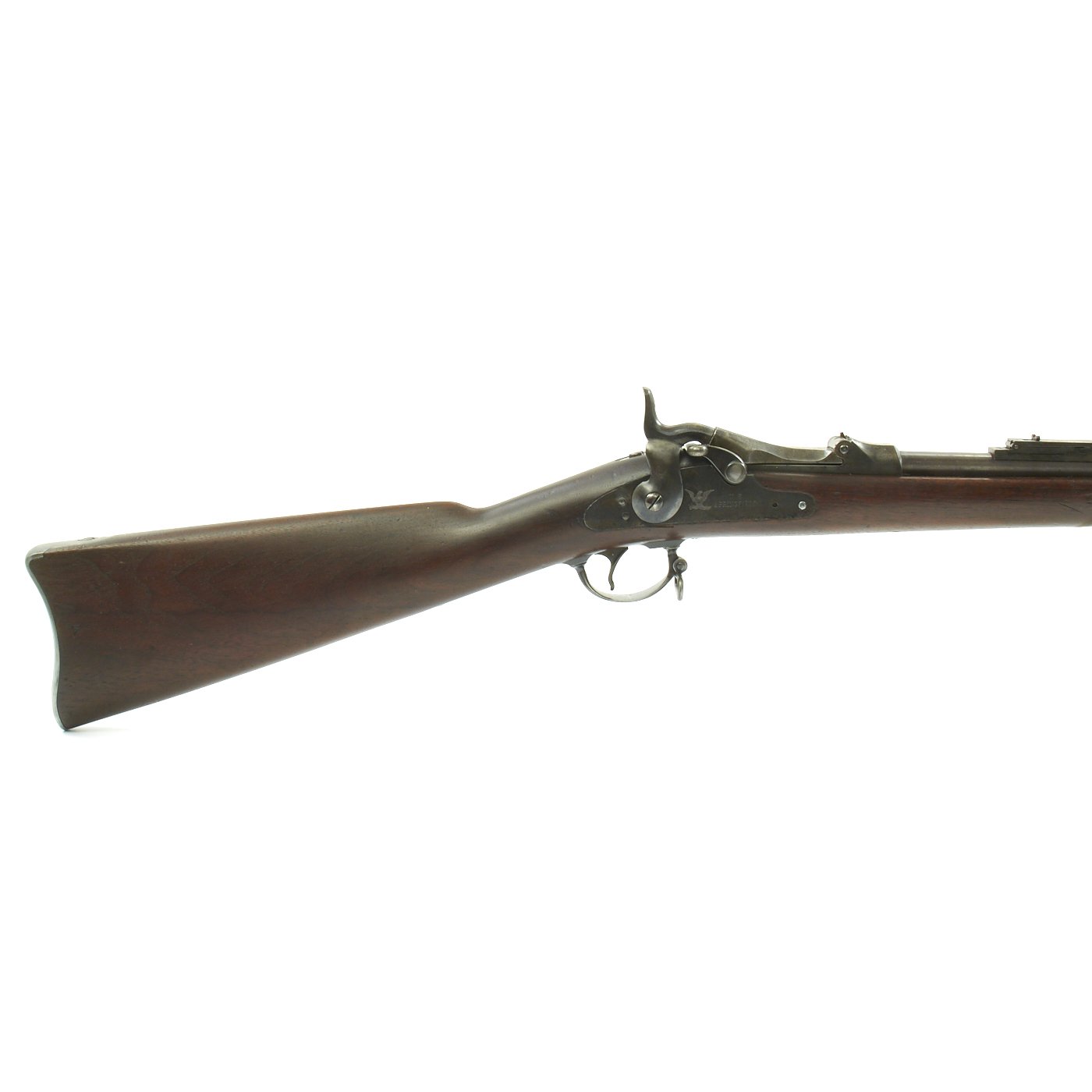

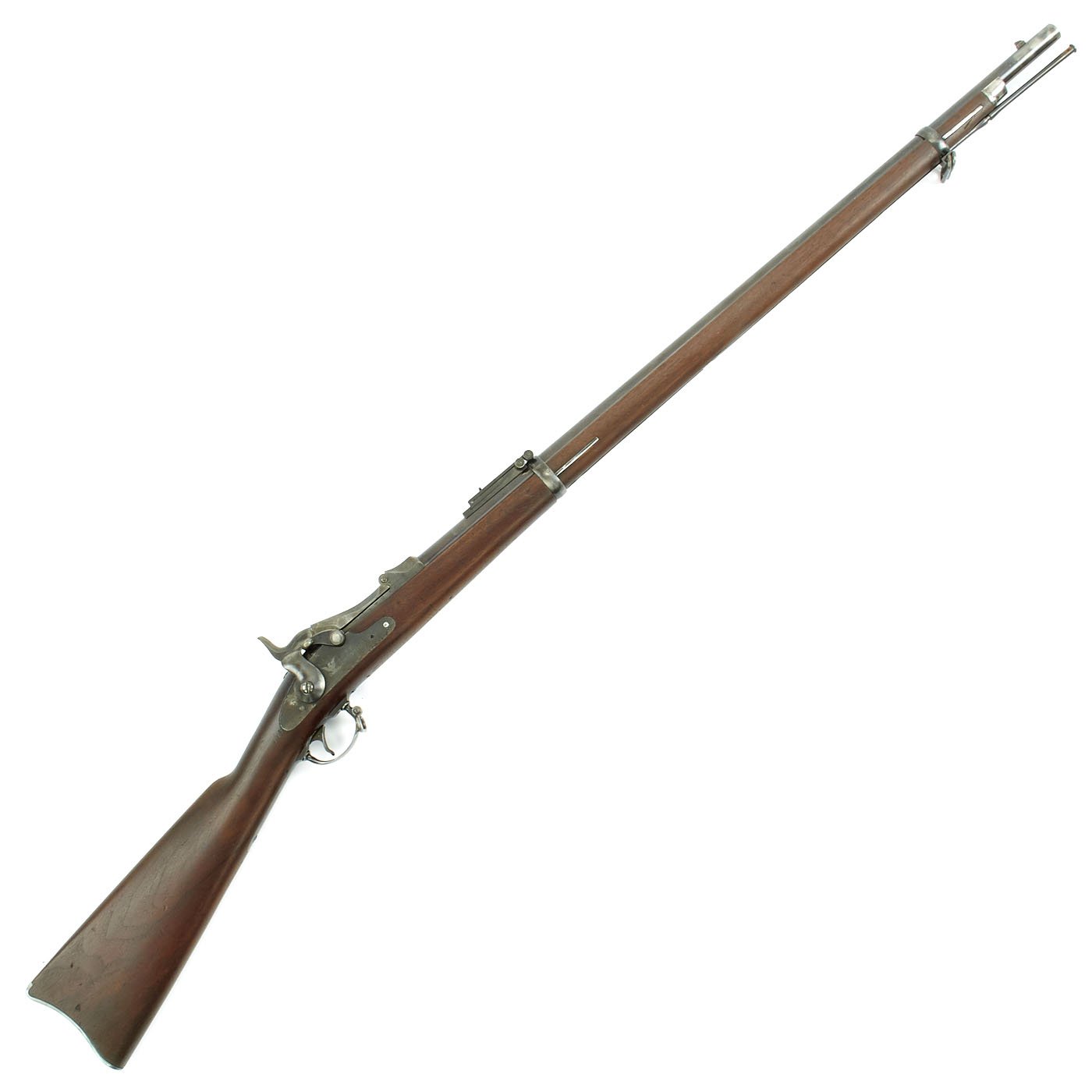

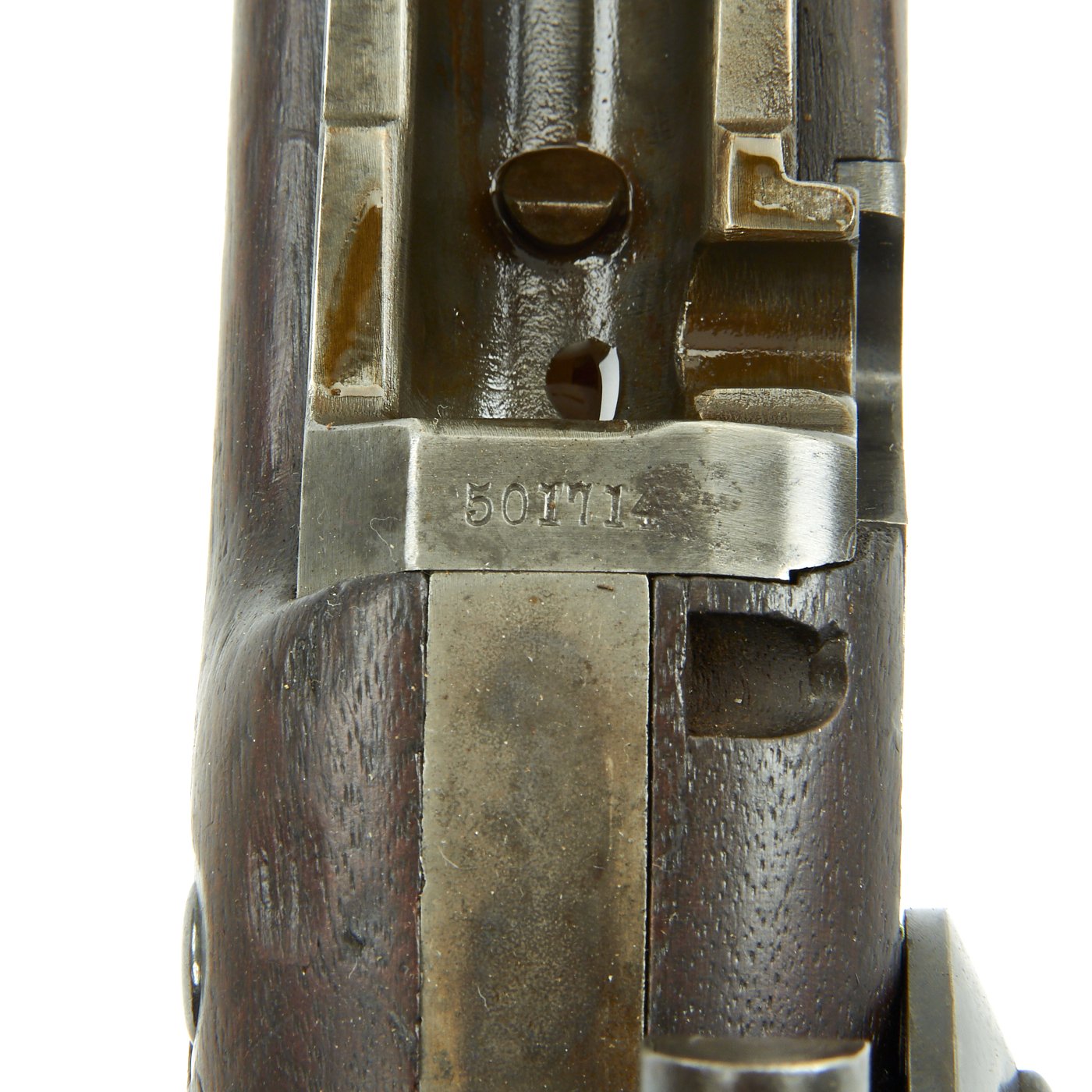

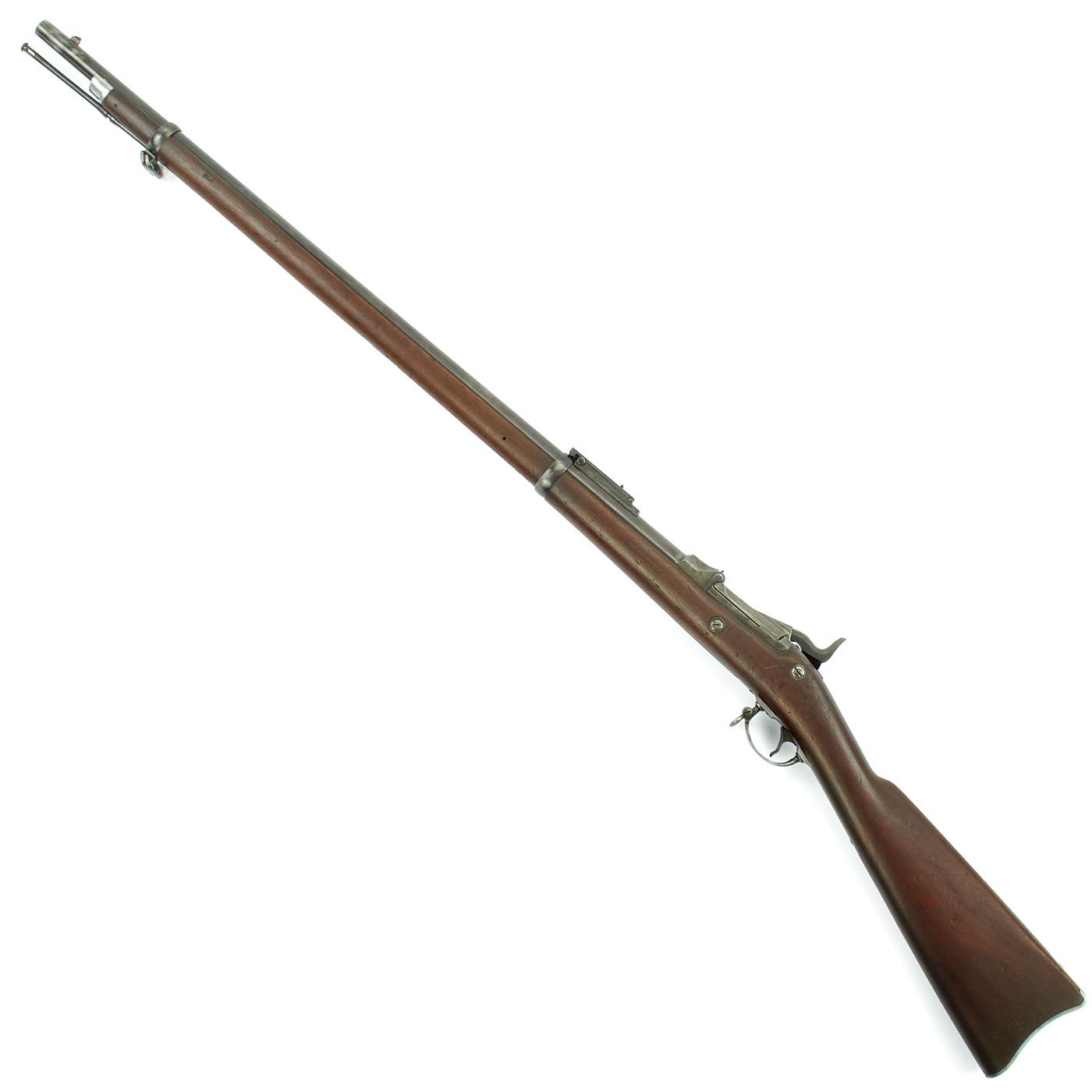

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 501714 with a crisp SWP 1890 cartouche to the rear of the lock screws. The rifle has overall good metal finish and all metal proofs still present, though with a nice aged blue finish. The serial number indicates production in 1890, as does the cartouche. It has the model 1884 serrated trigger and Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod and two part trigger guard.

Most likely, it means that the trigger guard was swapped out at some point, probably due to damage. However there is no butt stock storage compartment or model 1888 round rod bayonet, so it's possible that a left over 1873 stock was used for some reason. We see no evidence that this is not the original stock.

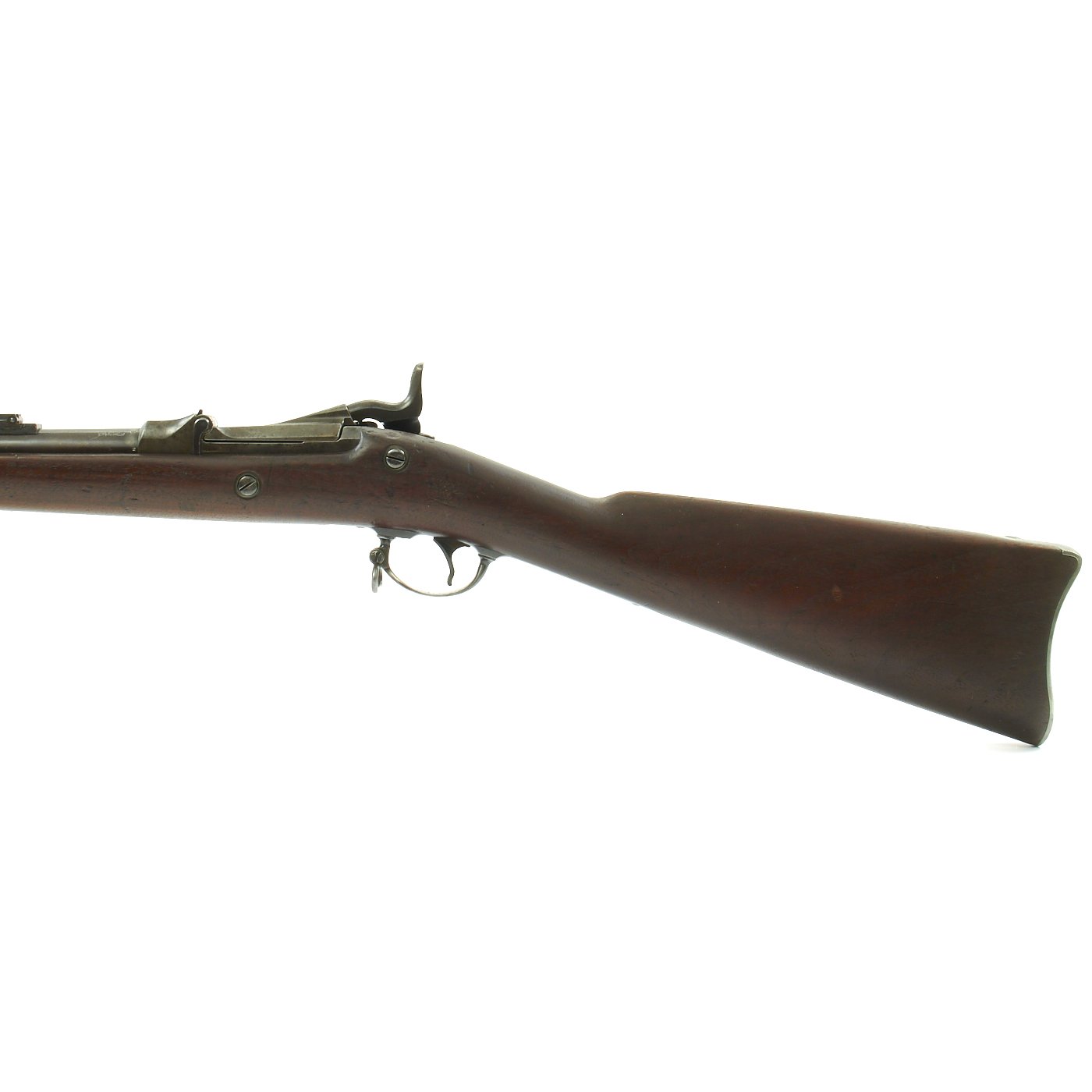

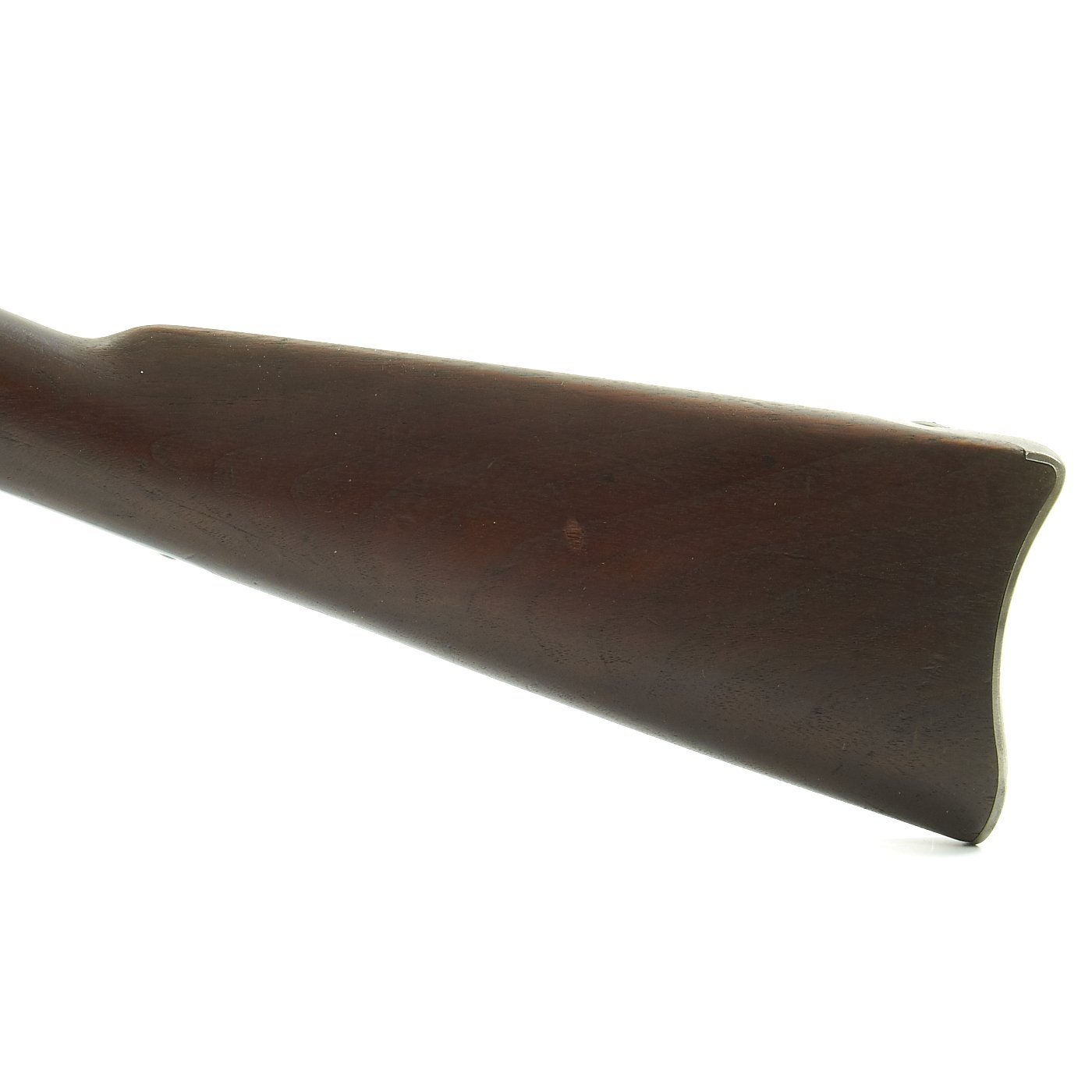

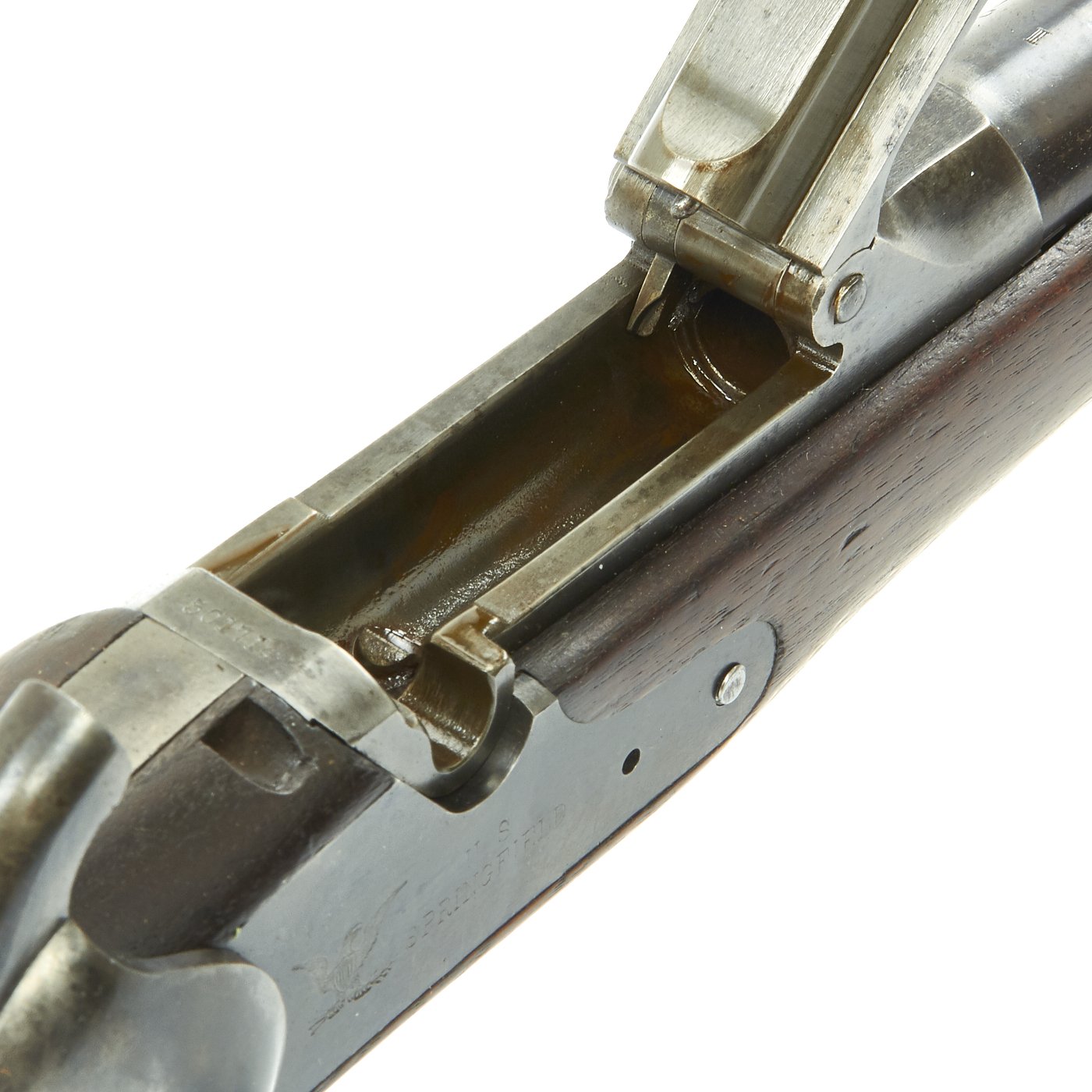

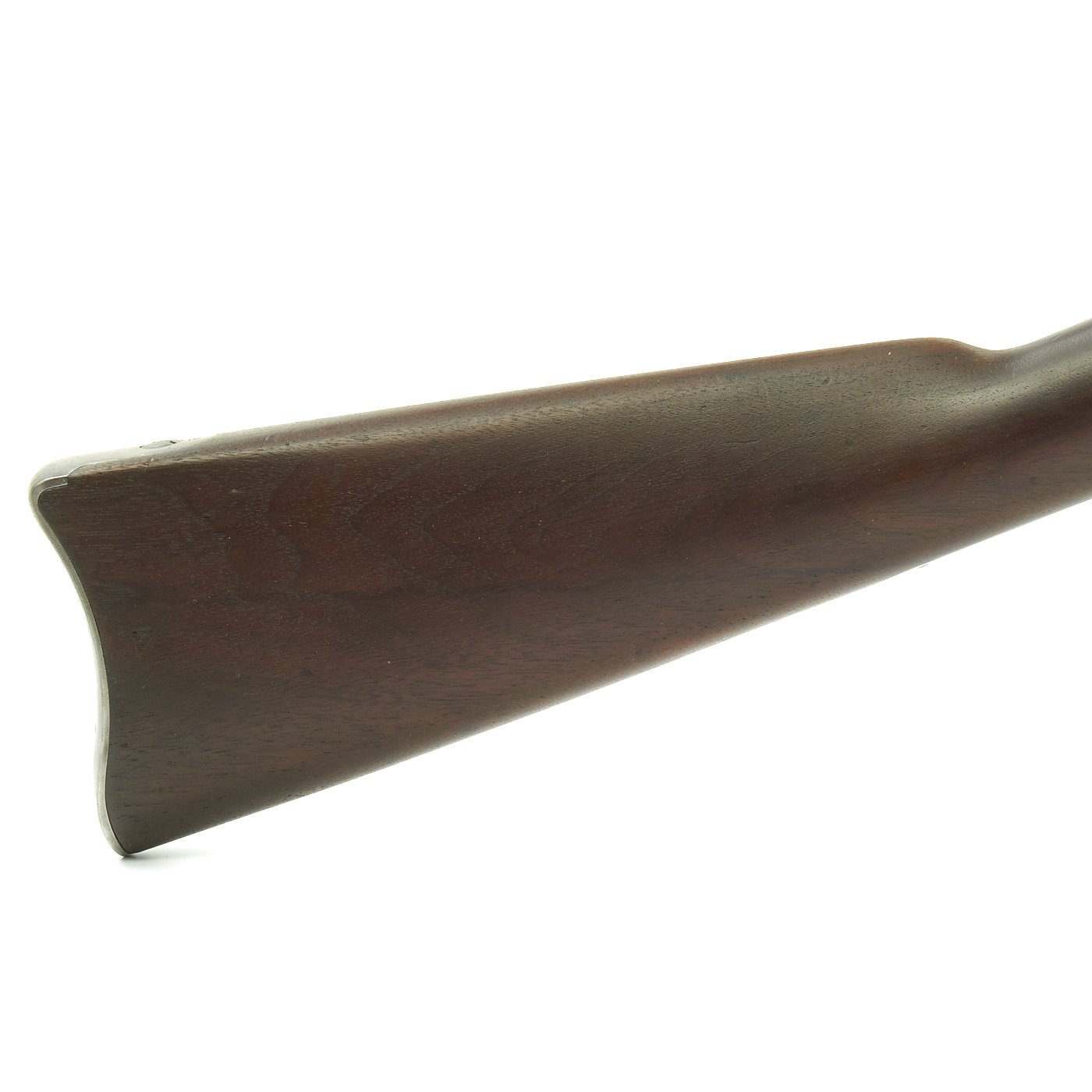

There are some small dents and scratches in the wood, but it still has a great color, and has the lovely color of aged oiled walnut. The stock is still fully proud over the lock plate, so it was not sanded down at all, another great aspect to this wonderful rifle. The bore shows clear lands and grooves, and a mostly bright finish. There is some oxidation in the grooves, so it looks like this rifle was not cleaned correctly at some point.

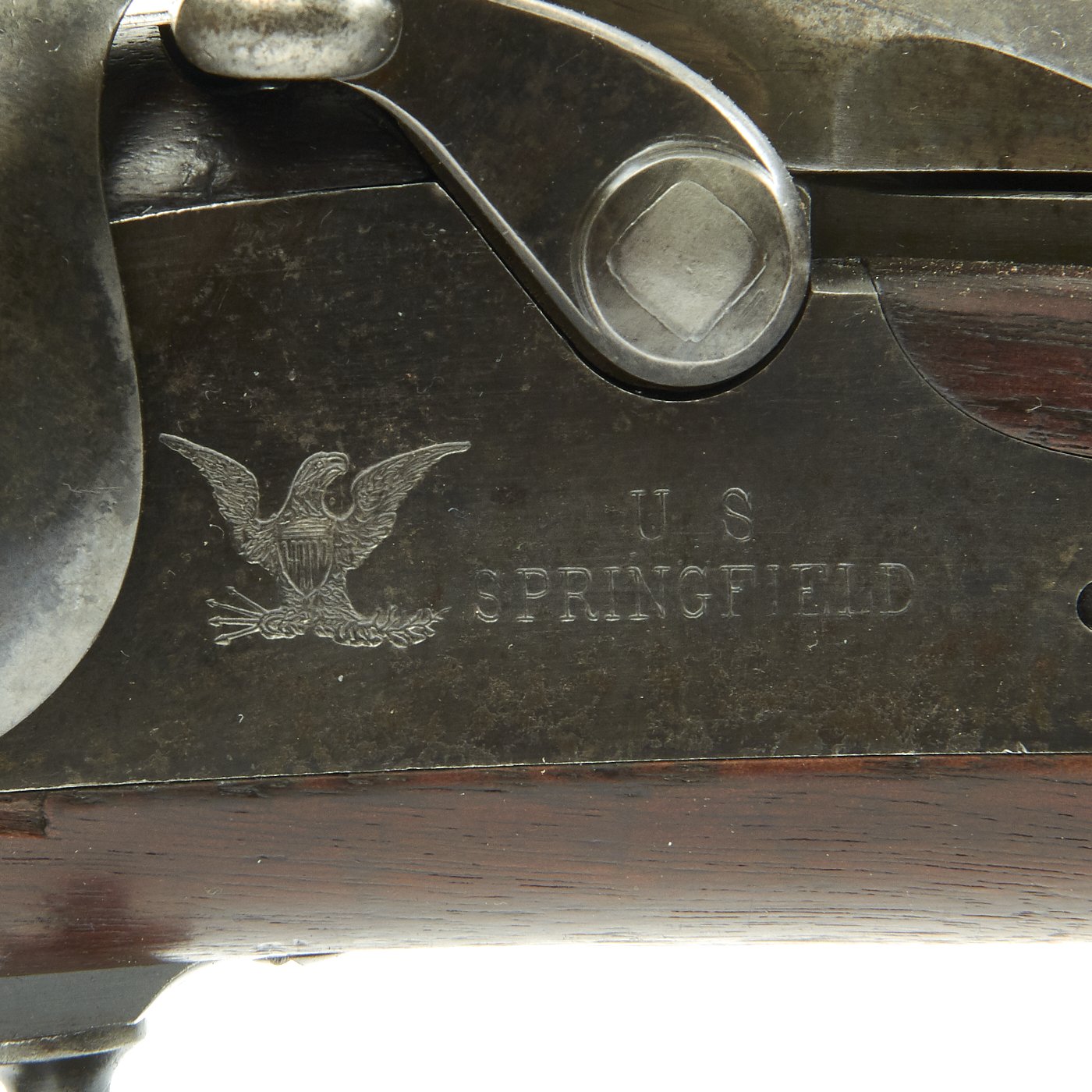

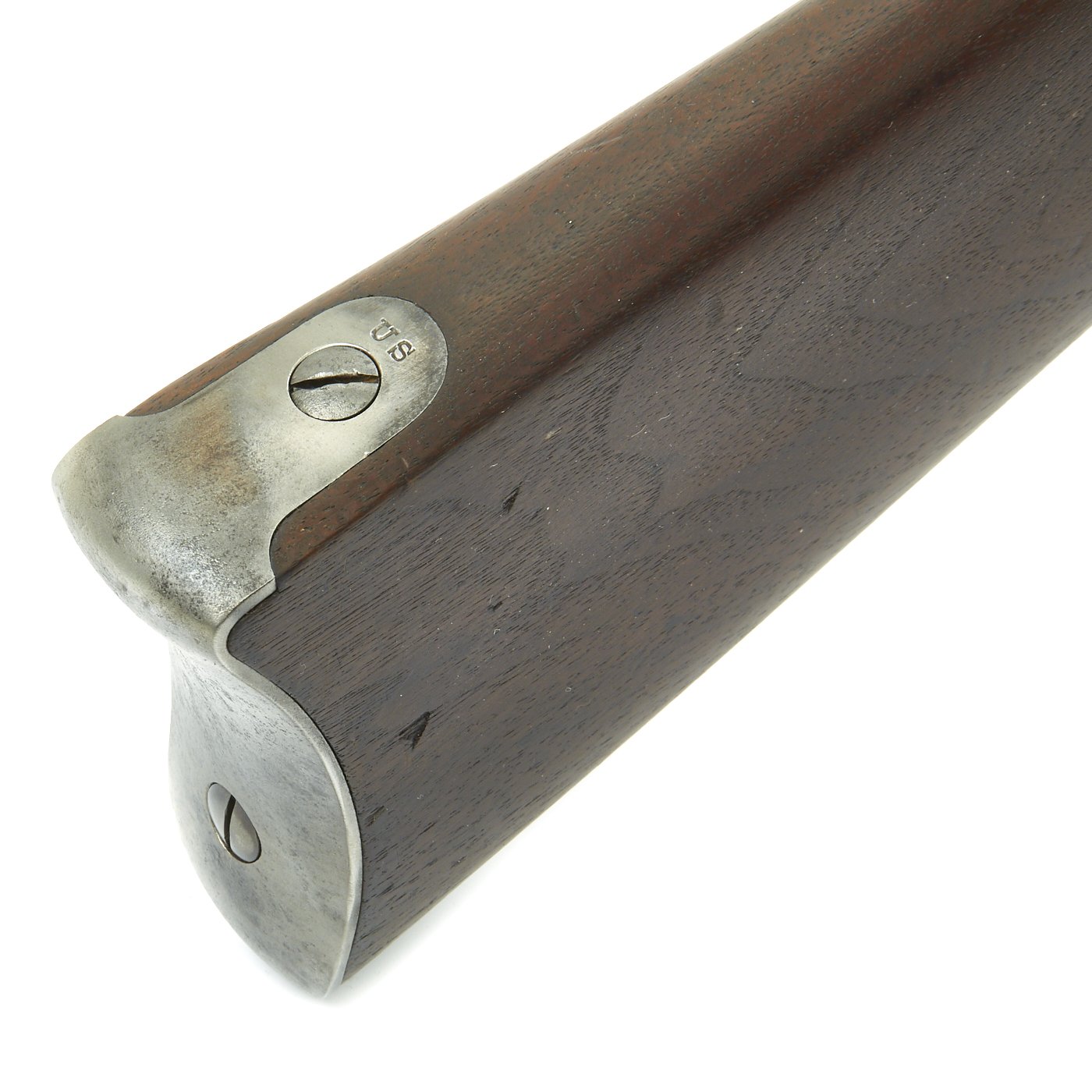

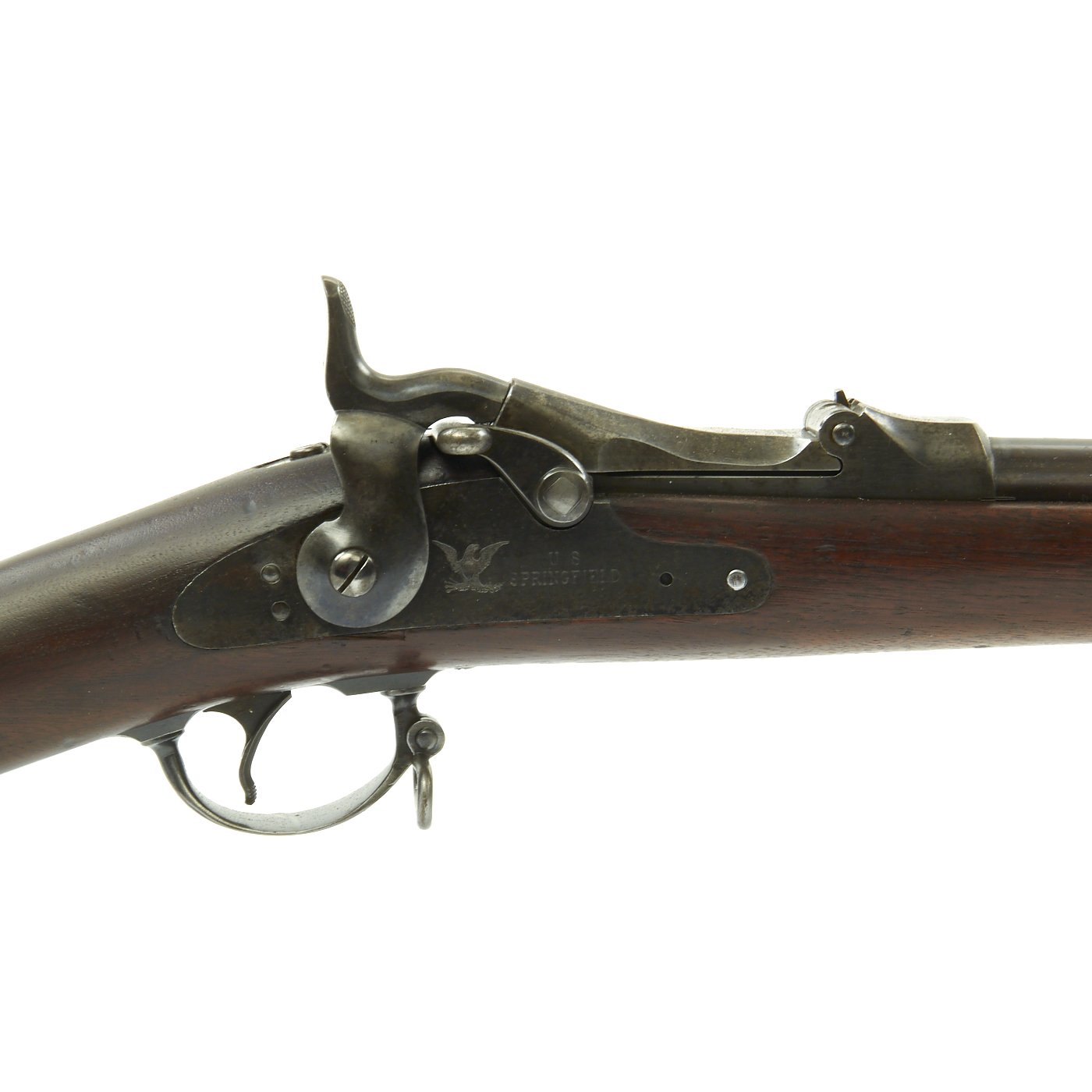

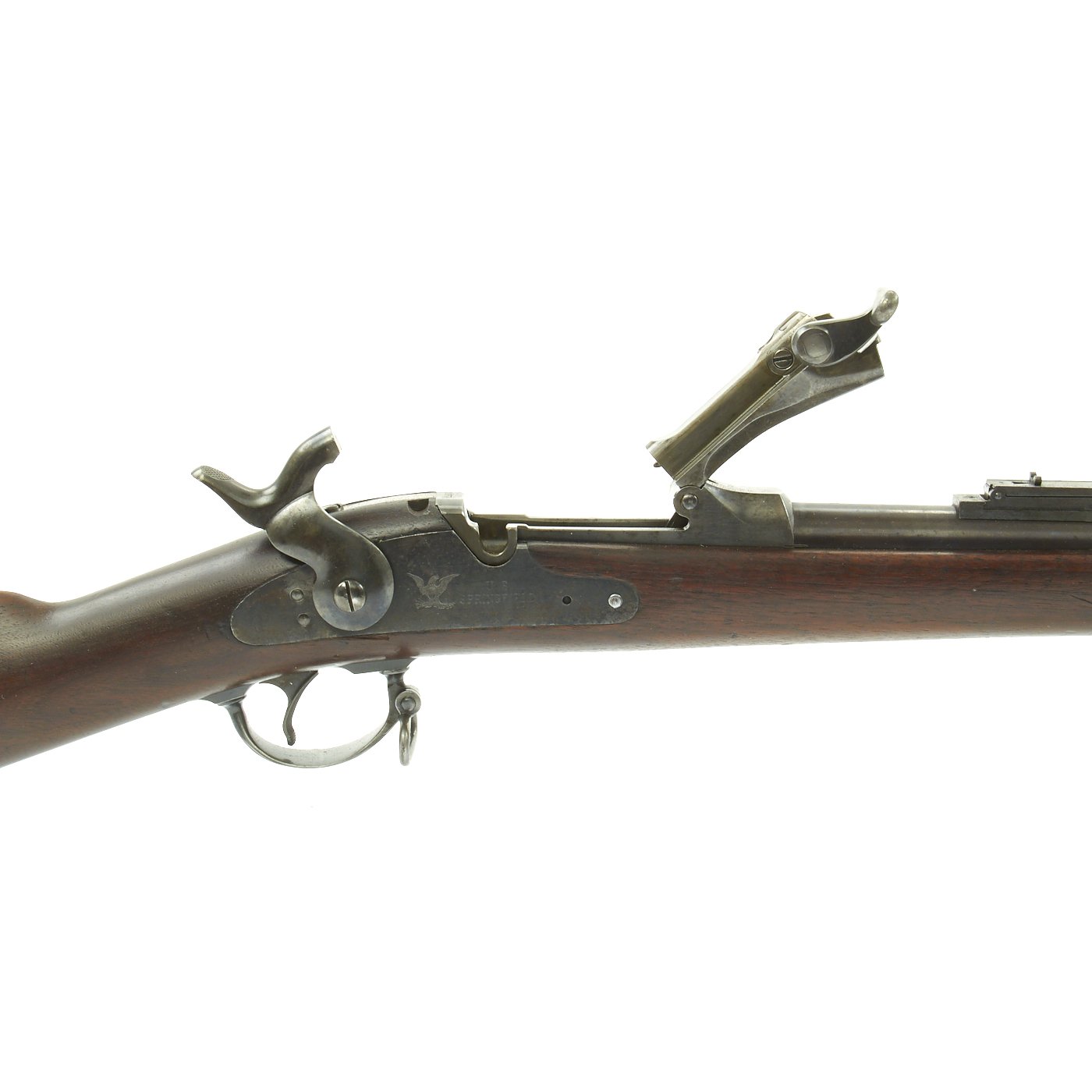

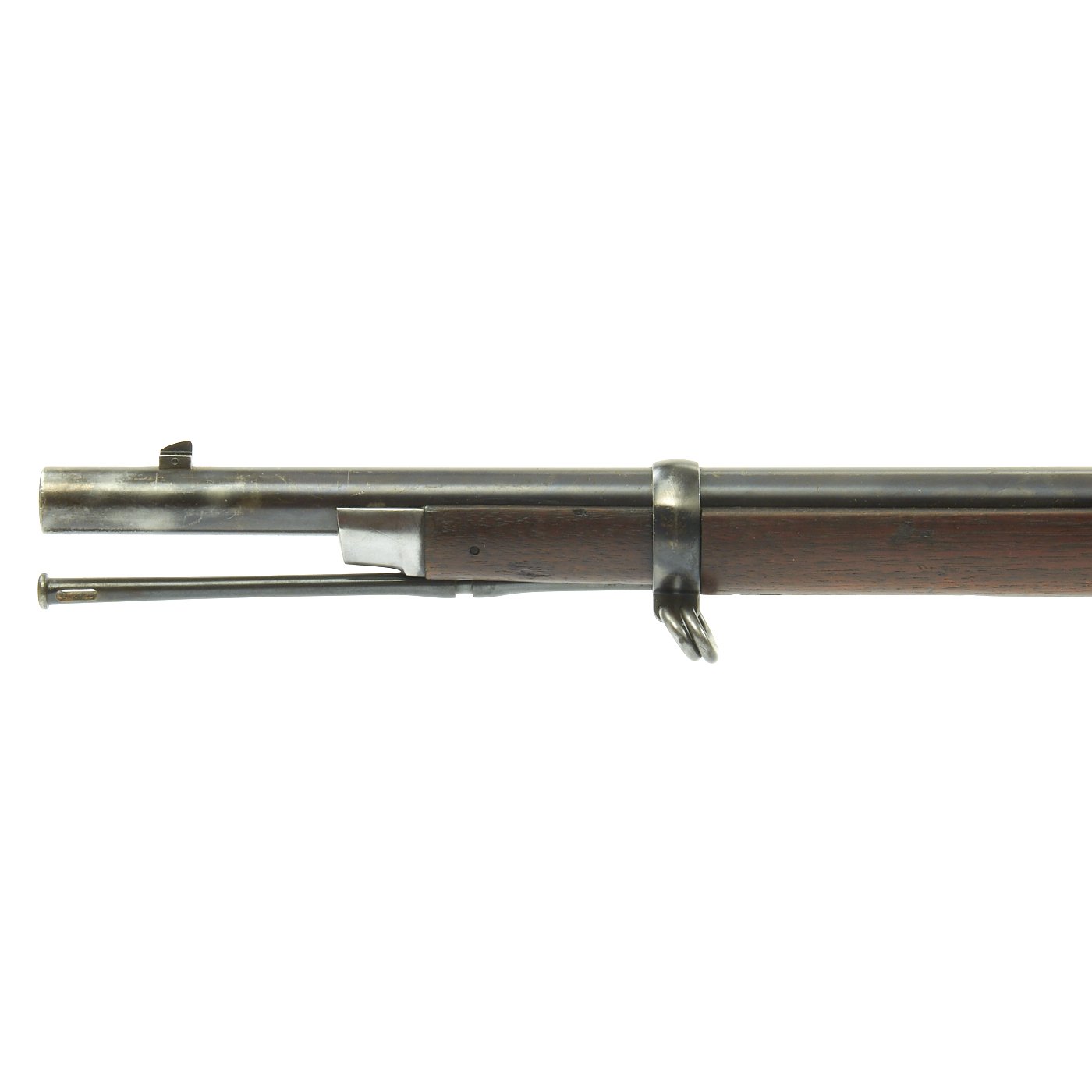

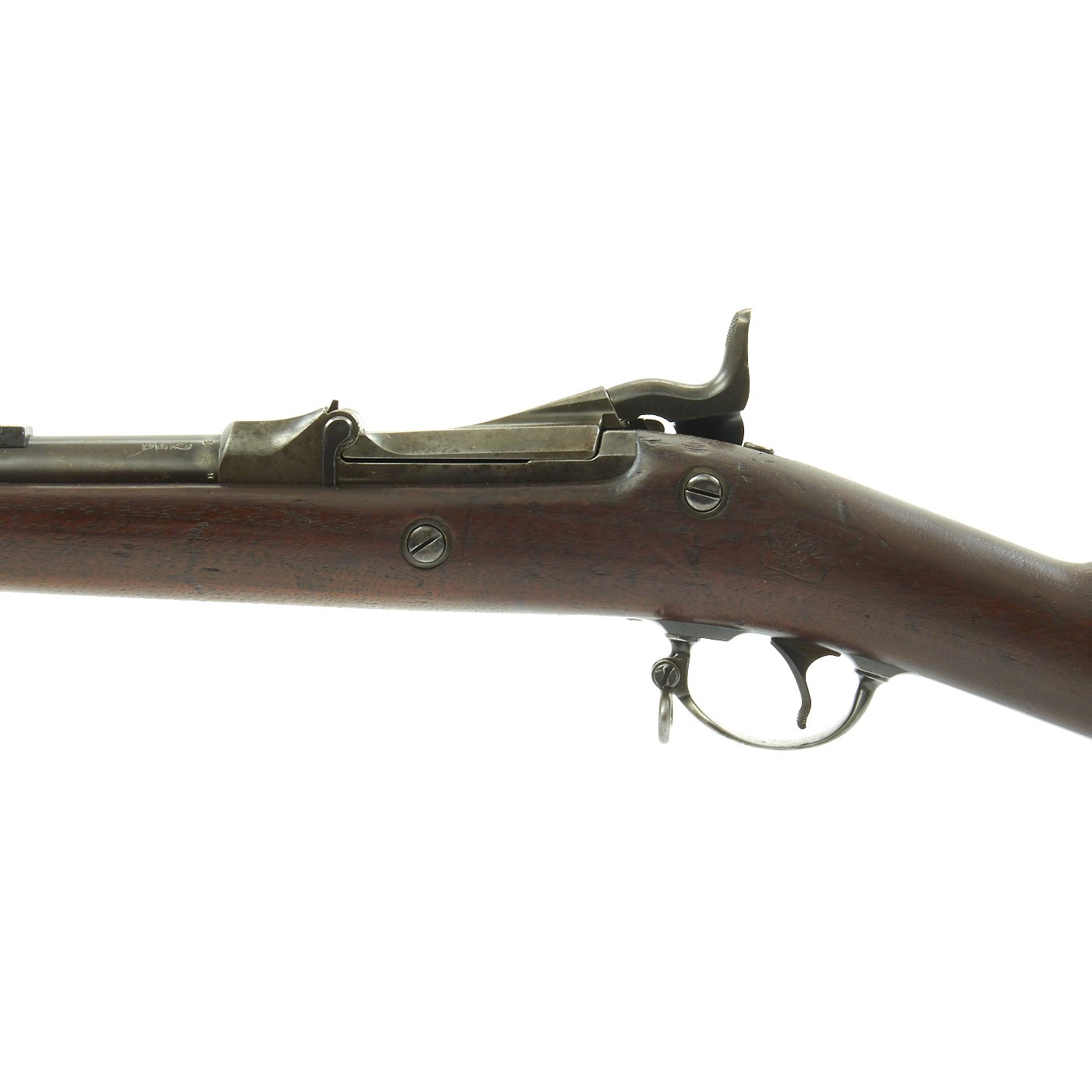

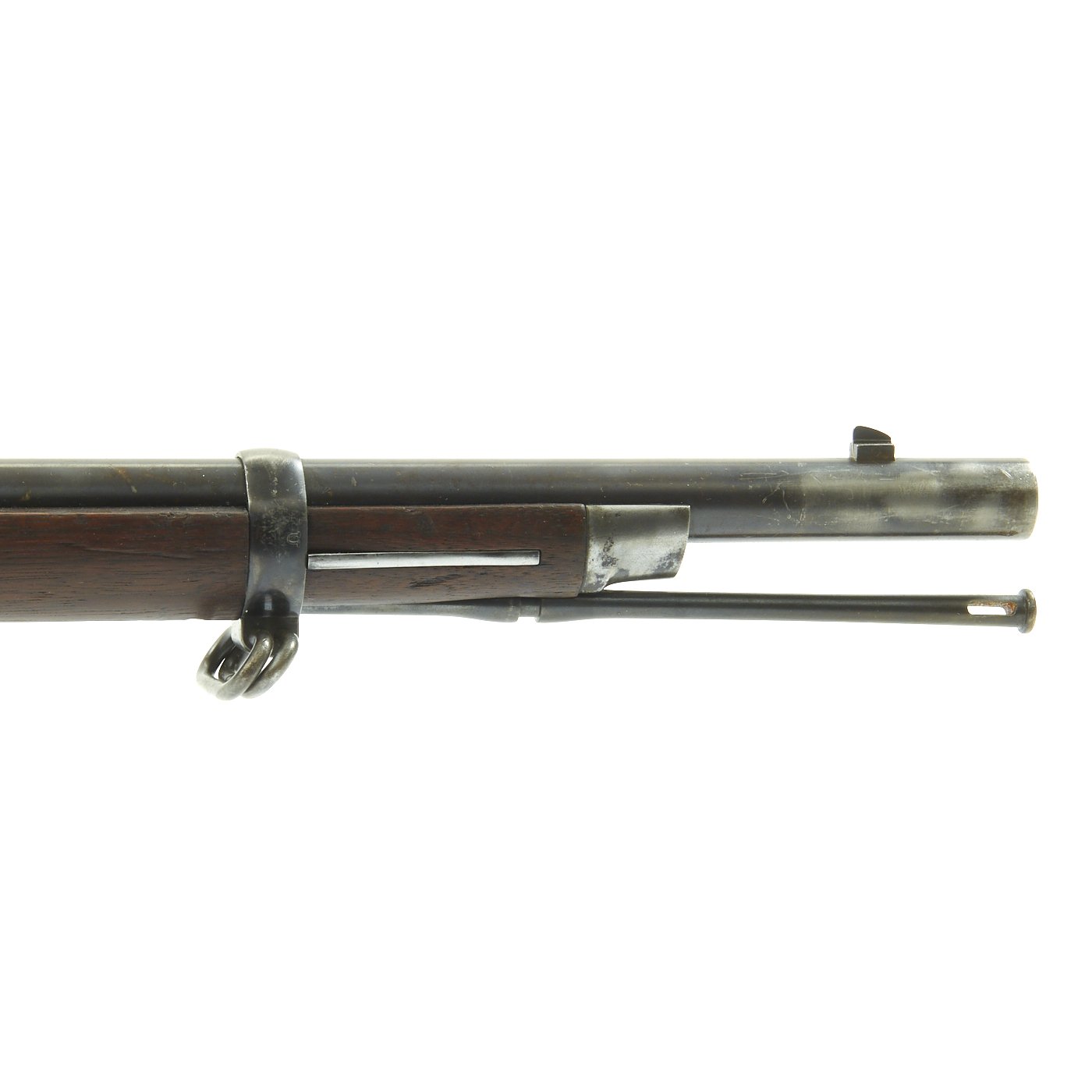

The butt plate is marked U.S. and both barrel bands are U marked. Metal finish is a nice aged blued color, with a bit of light peppering in places, especially on the top of the barrel. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with an eagle and U.S. / SPRINGFIELD, indicating manufacture by Springfield Armory in Springfield, Massachusetts.

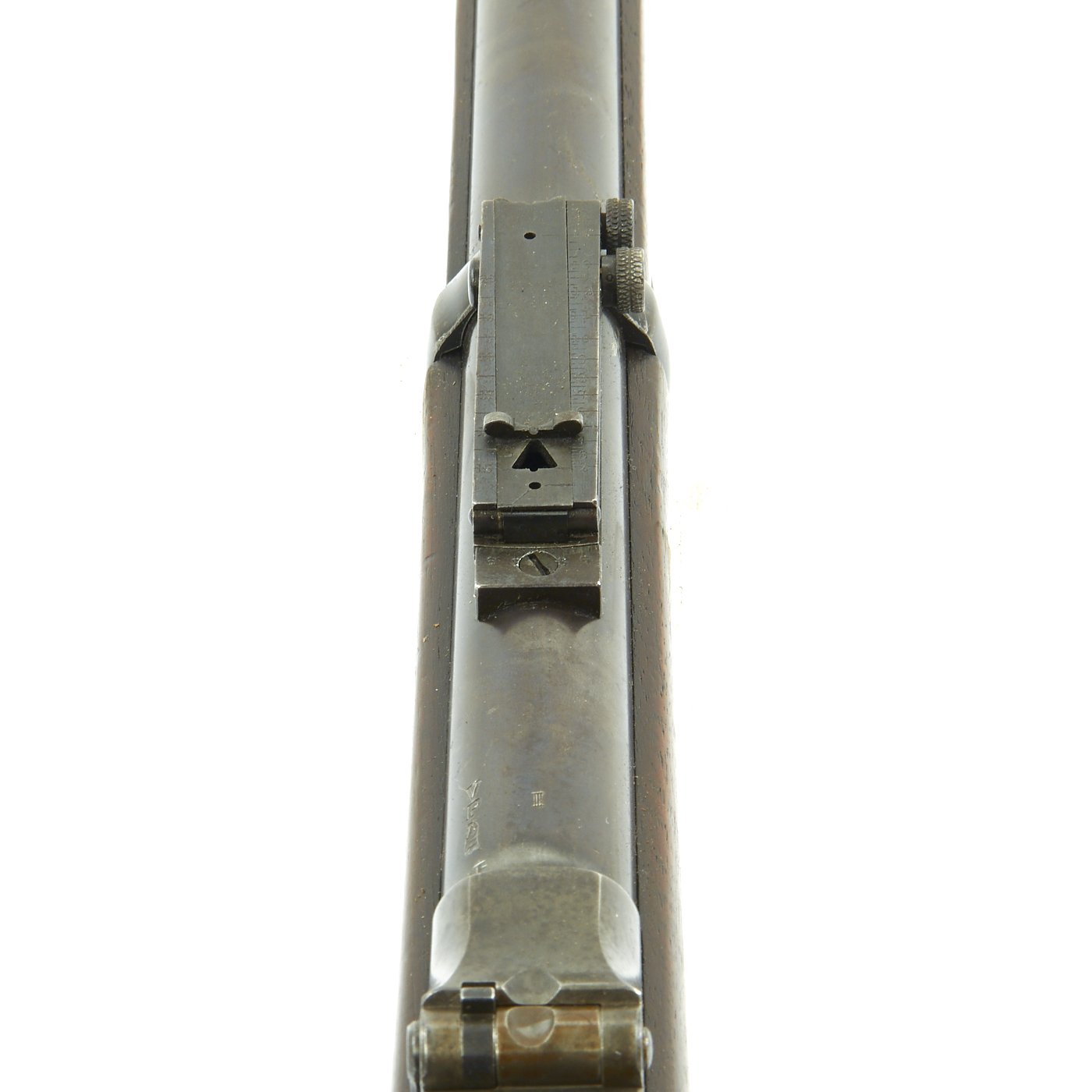

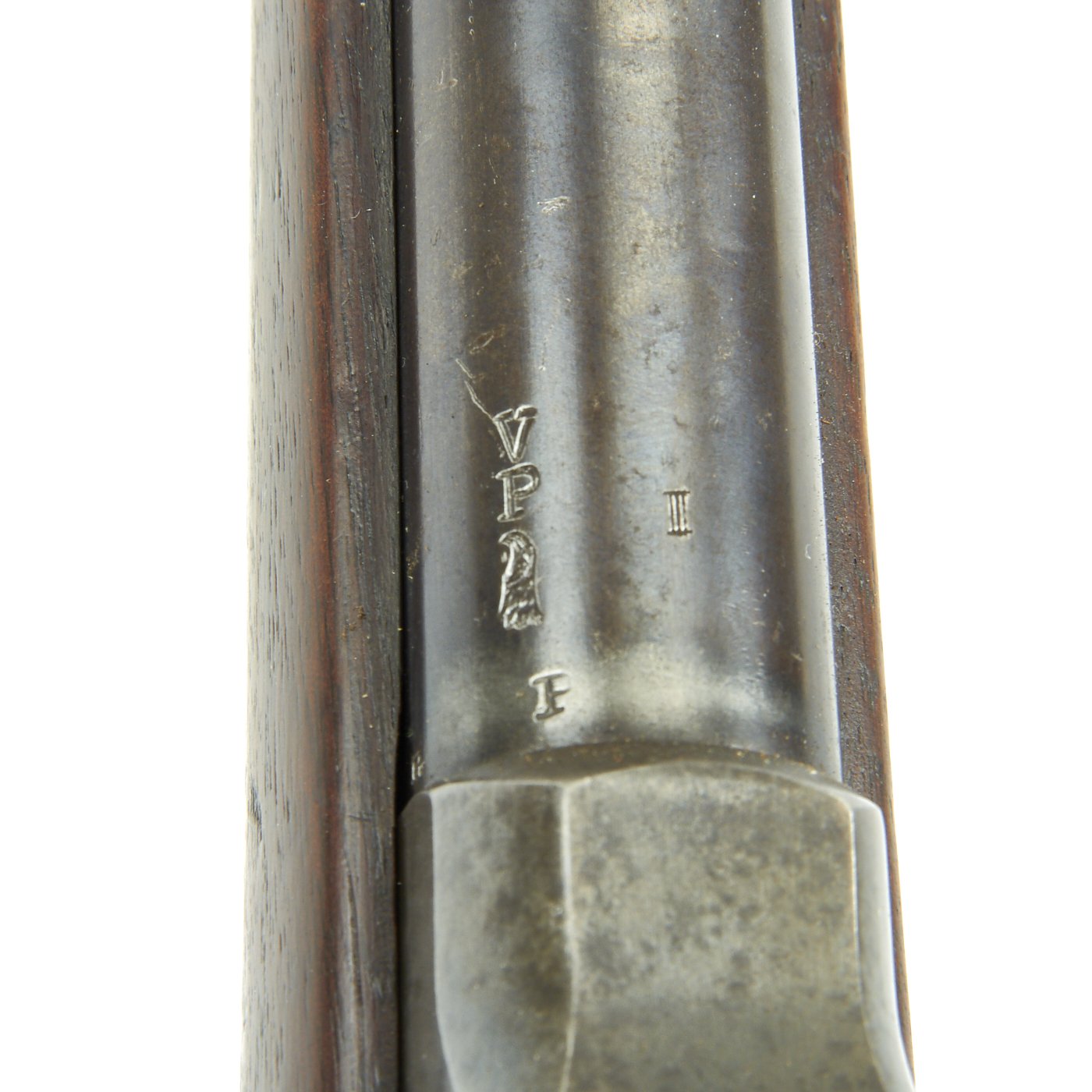

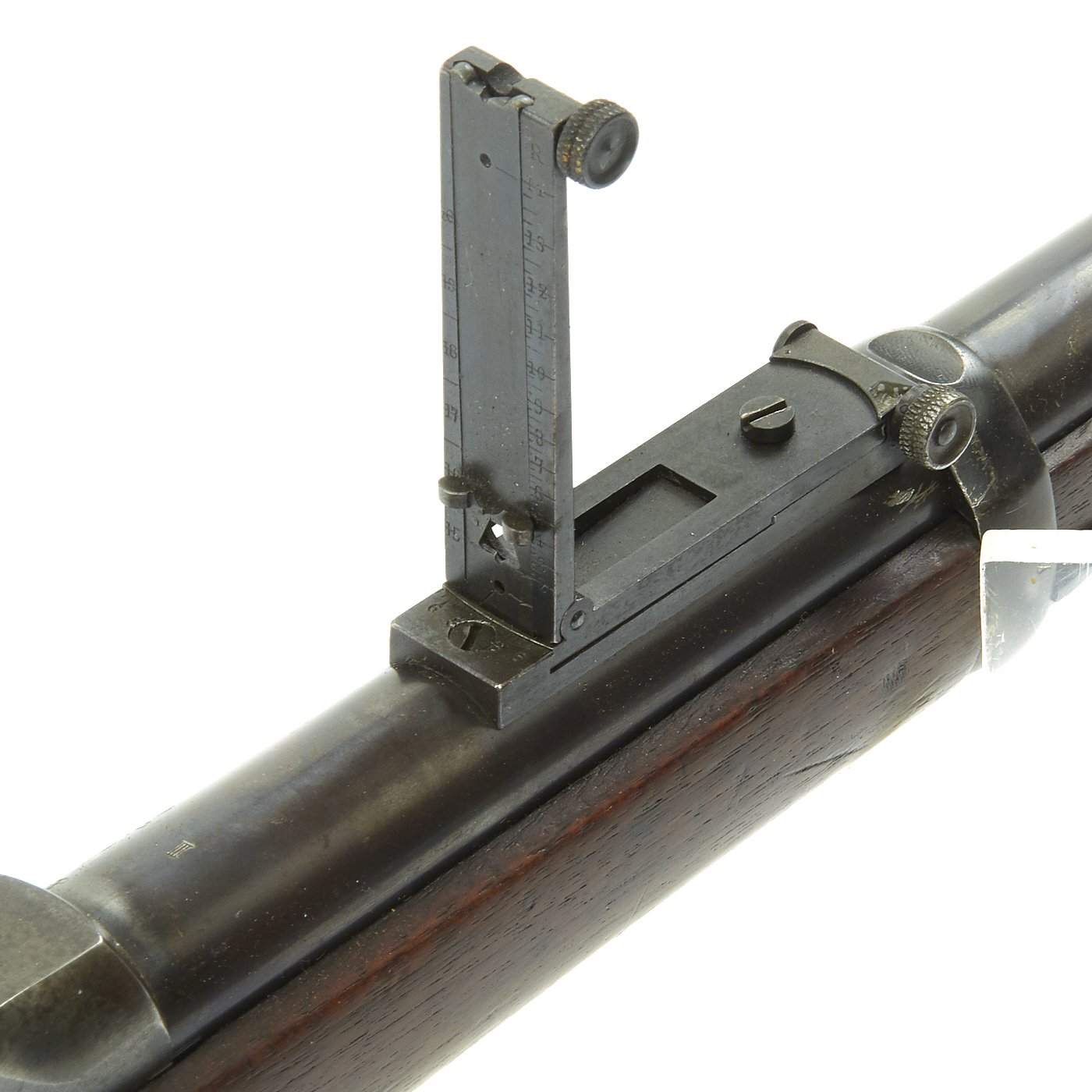

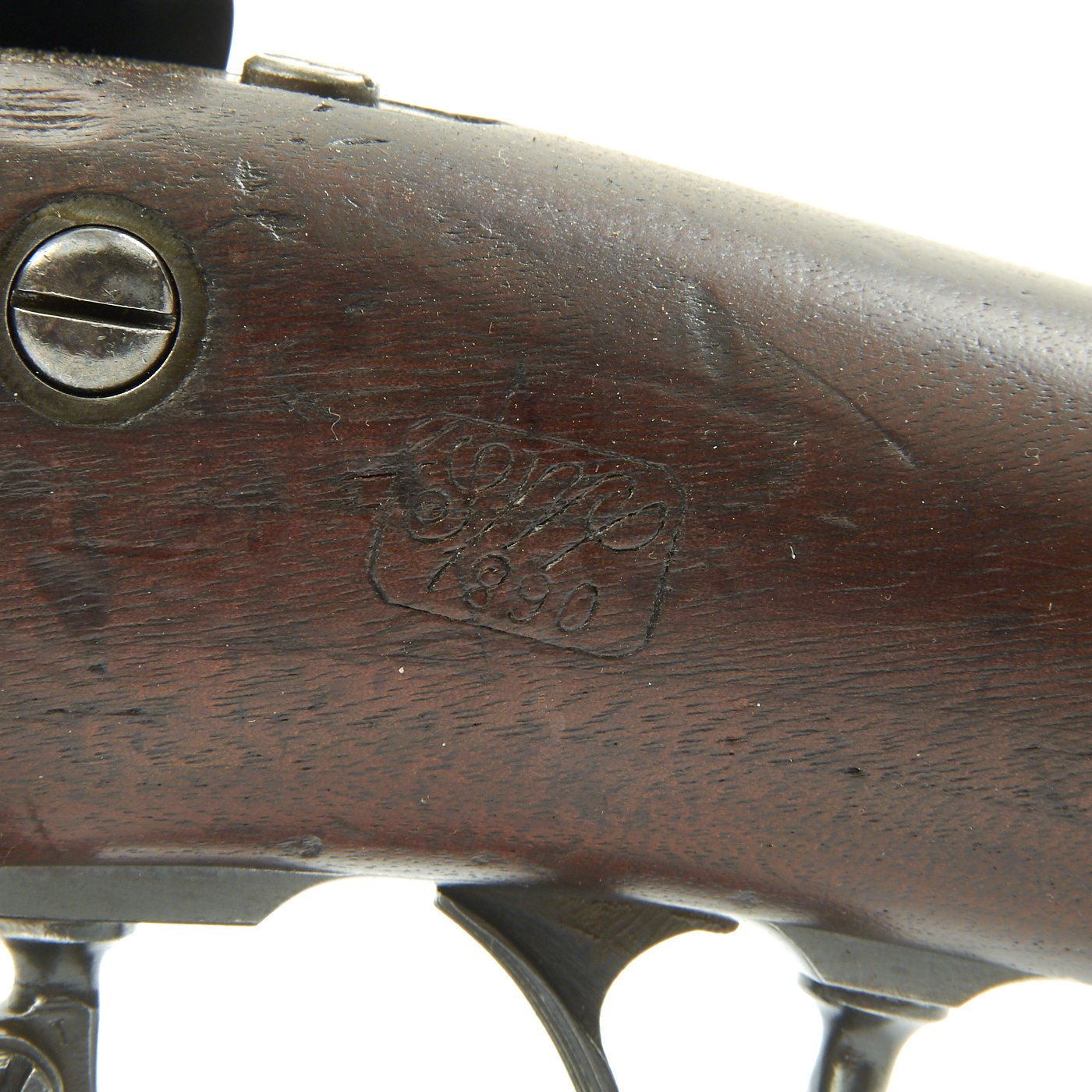

The elegant script "SWP" belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital I on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is an excellent opportunity to pick up a very nice example of a classic U.S. issue firearm. Ready to display!


Year of Manufacture: 1890
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches

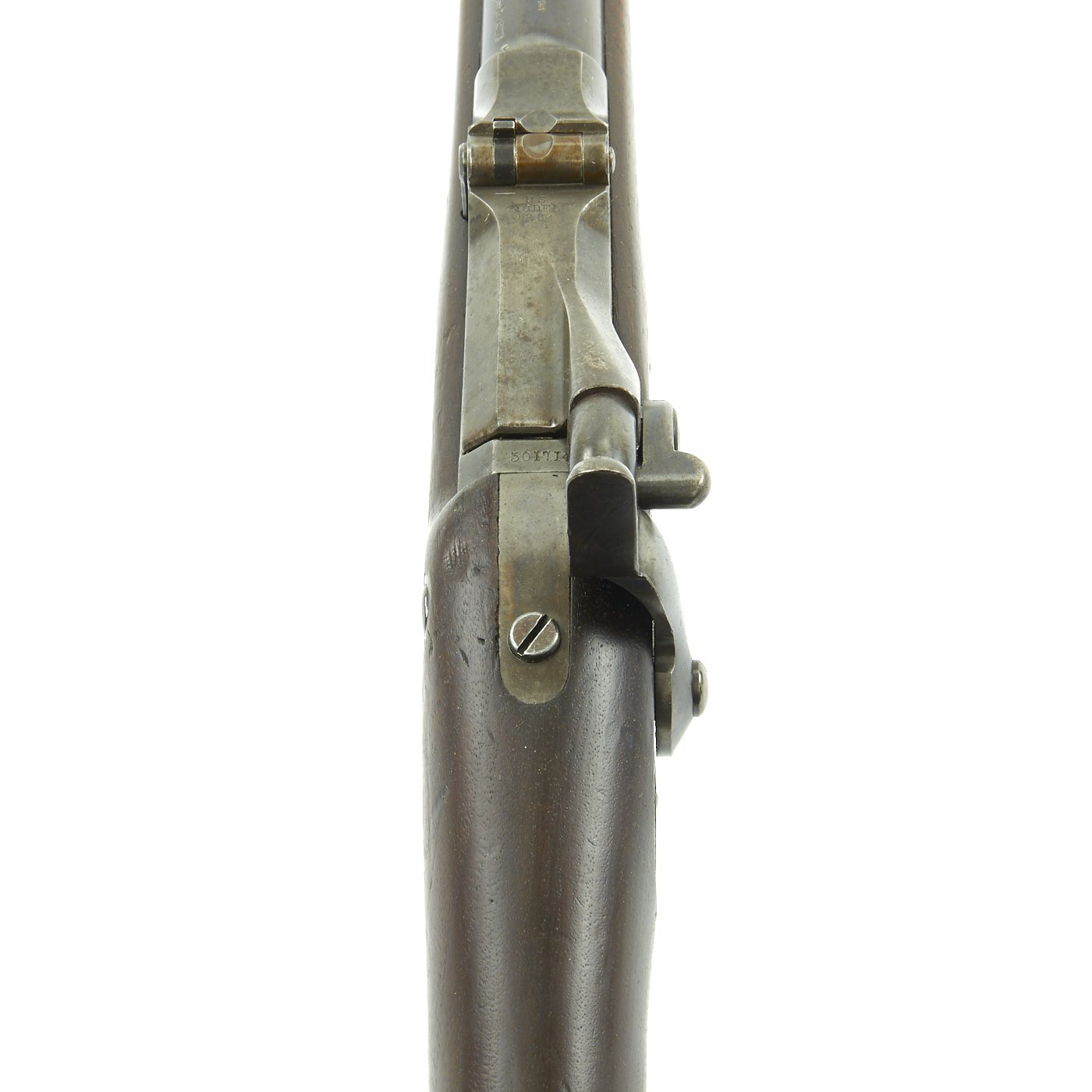

Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot

Note: This gun is NOT considered obsolete calibre, so we are no able to ship to the United Kingdom. Please note that for international shipping, these MUST be shipped using UPS WW Services.

  • This product is not available for shipping in US state(s): New Jersey

    This product is available for international shipping.
  • Not eligible for payment with Paypal or Amazon
