Original Item: Only One available. This is a very nice honest used example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876.

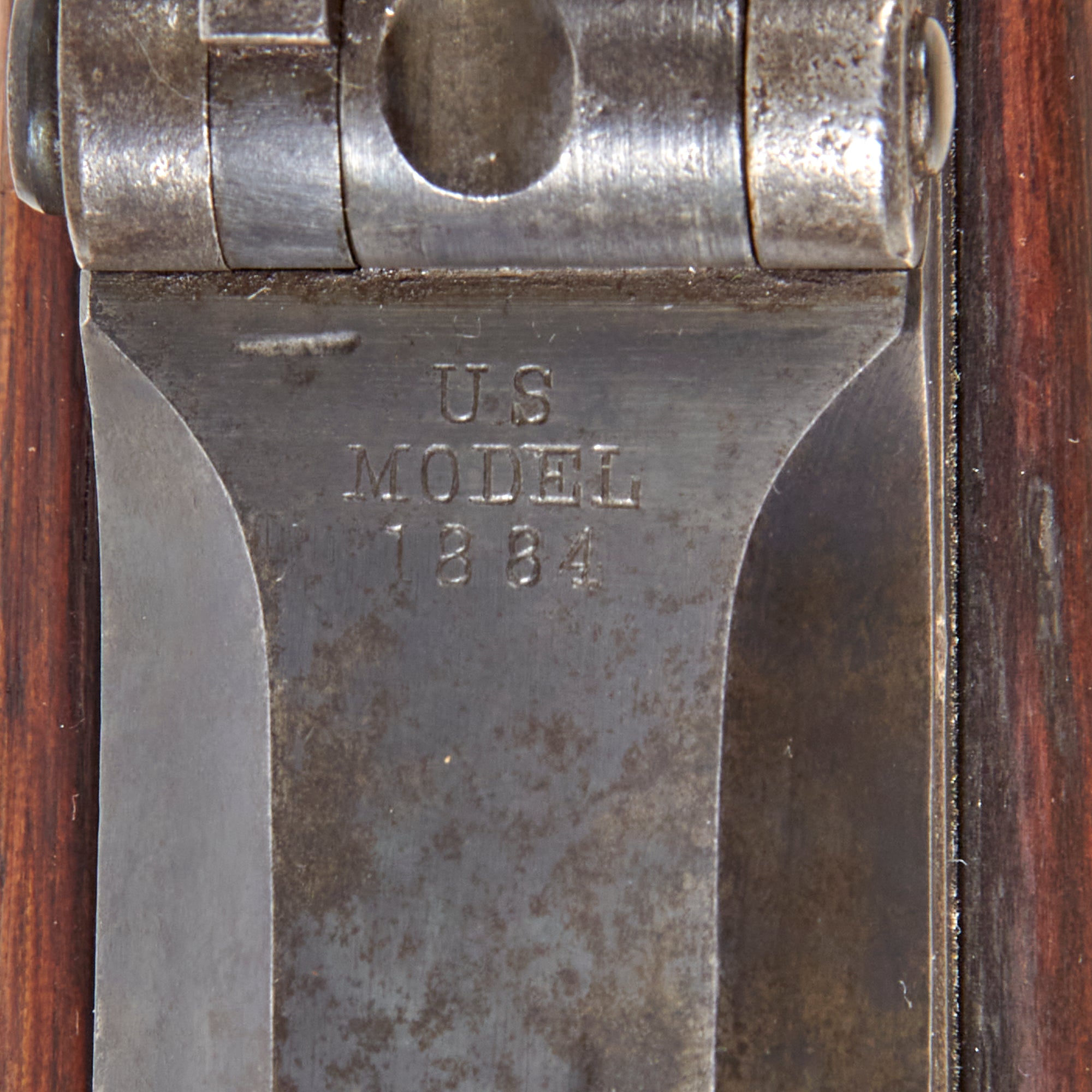

The breech block is marked:

In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

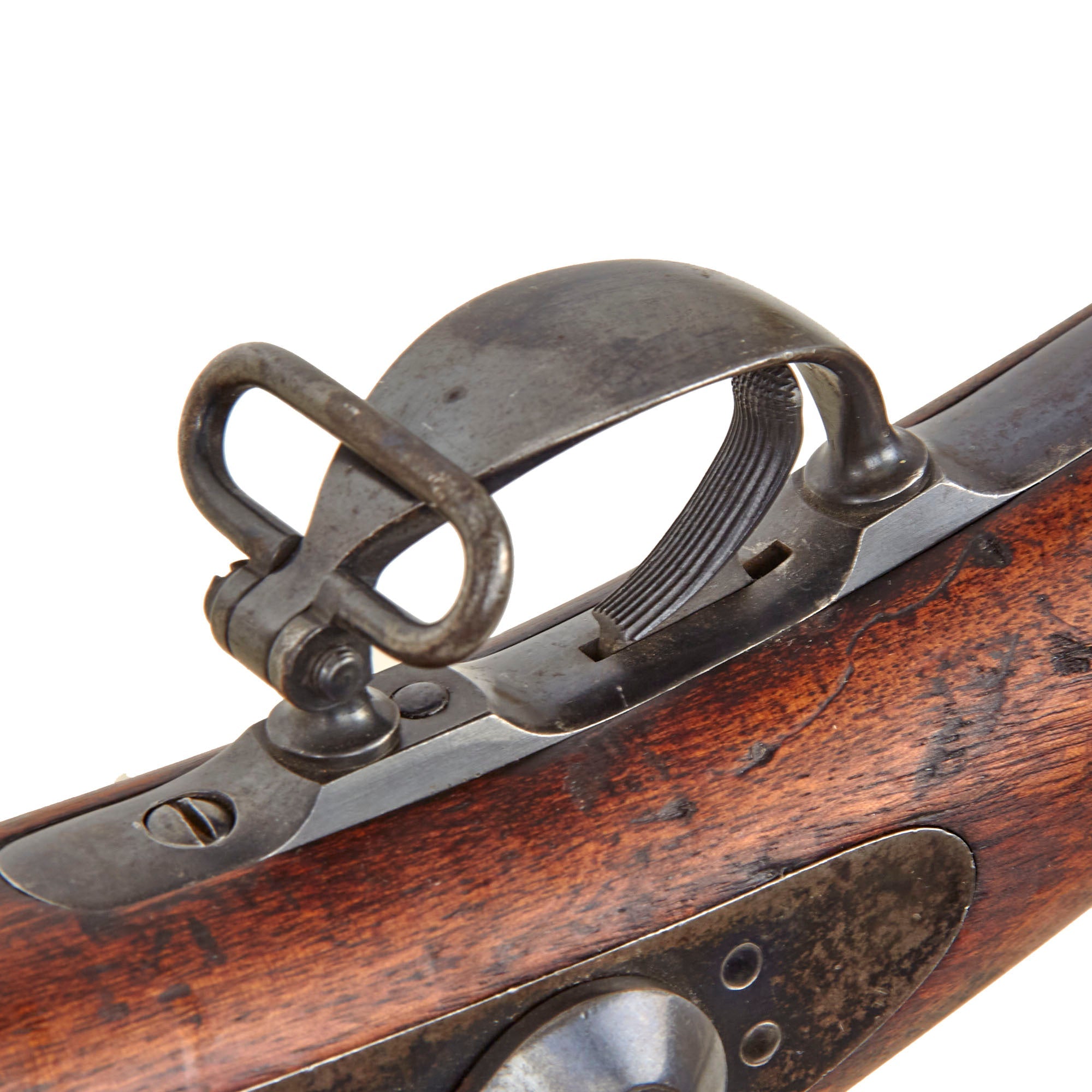

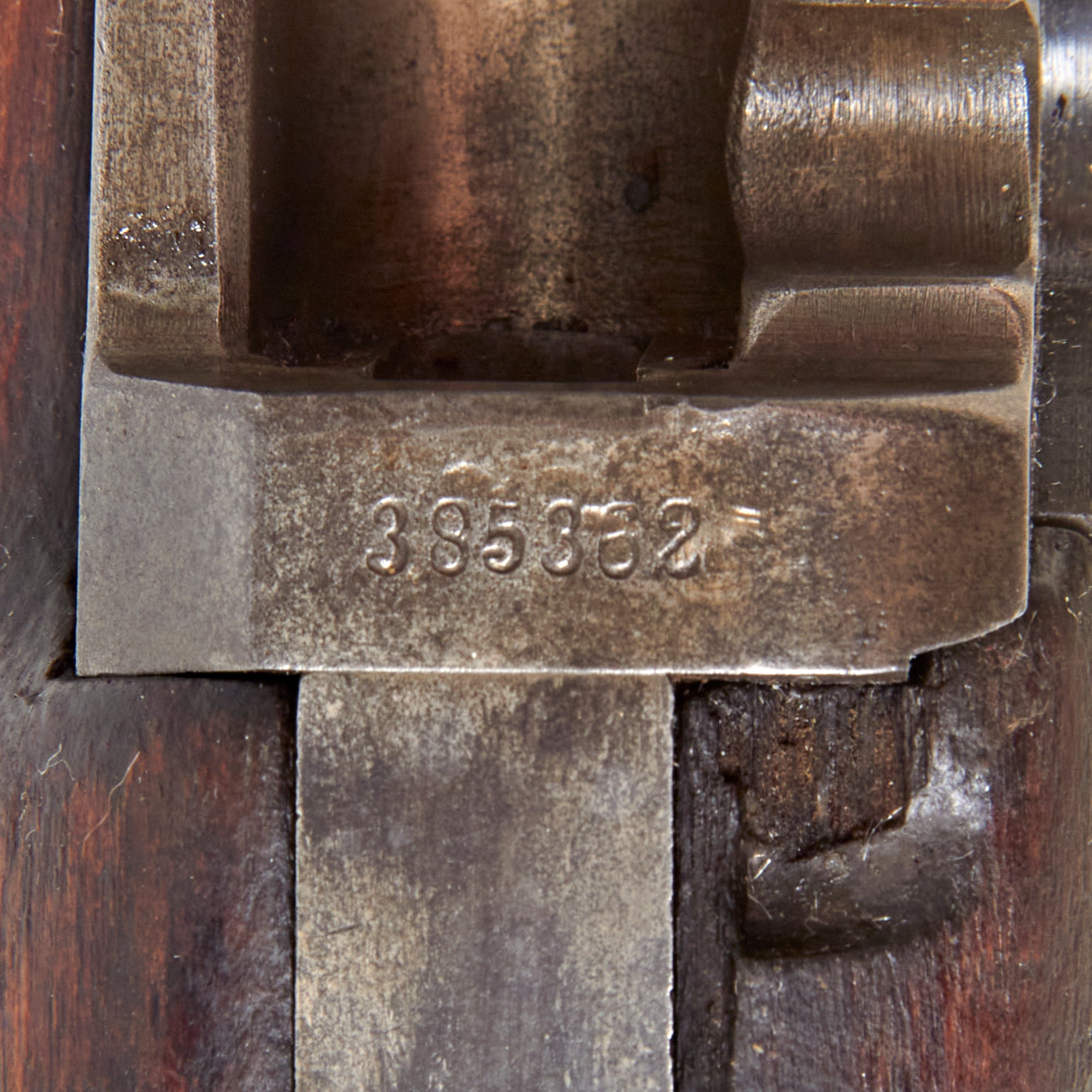

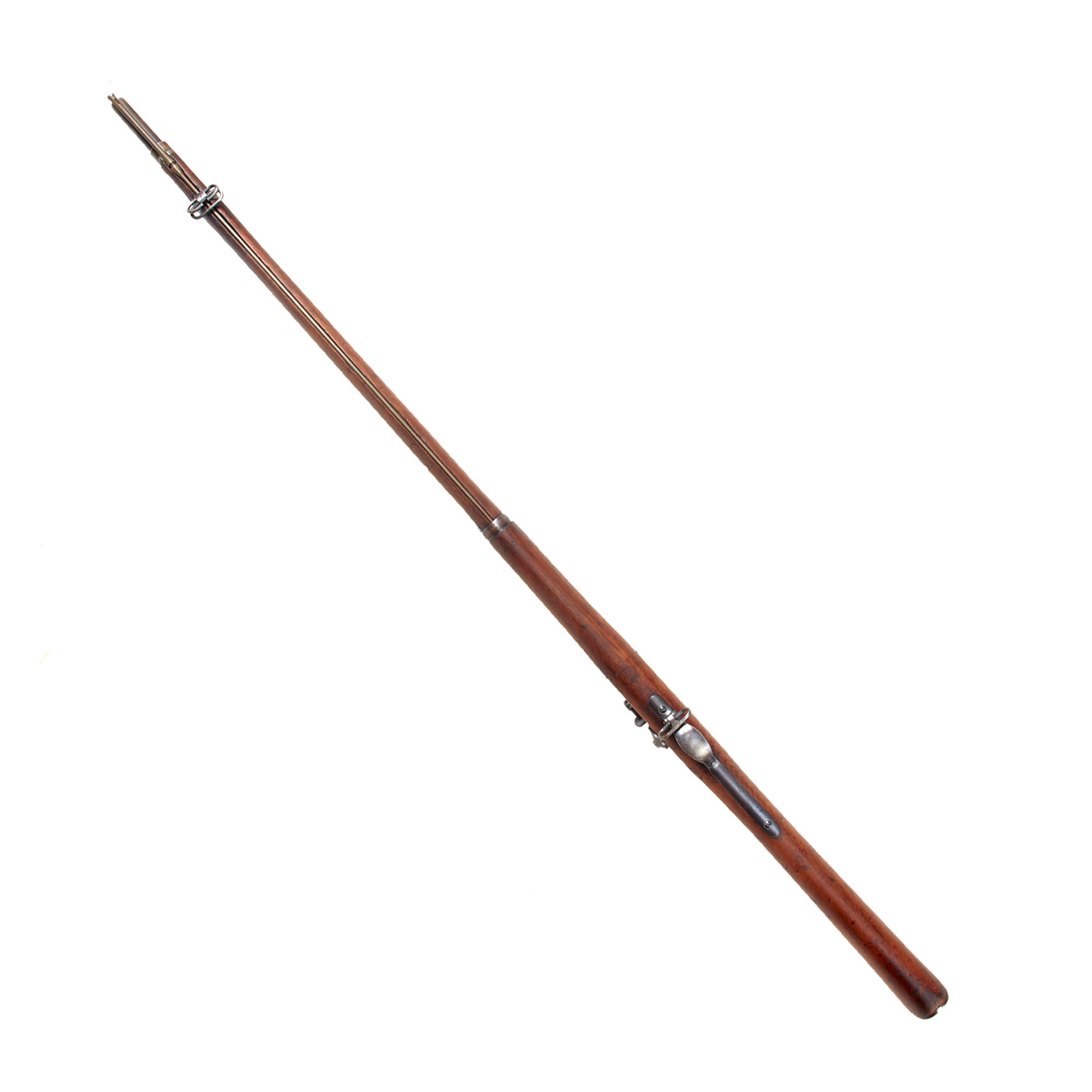

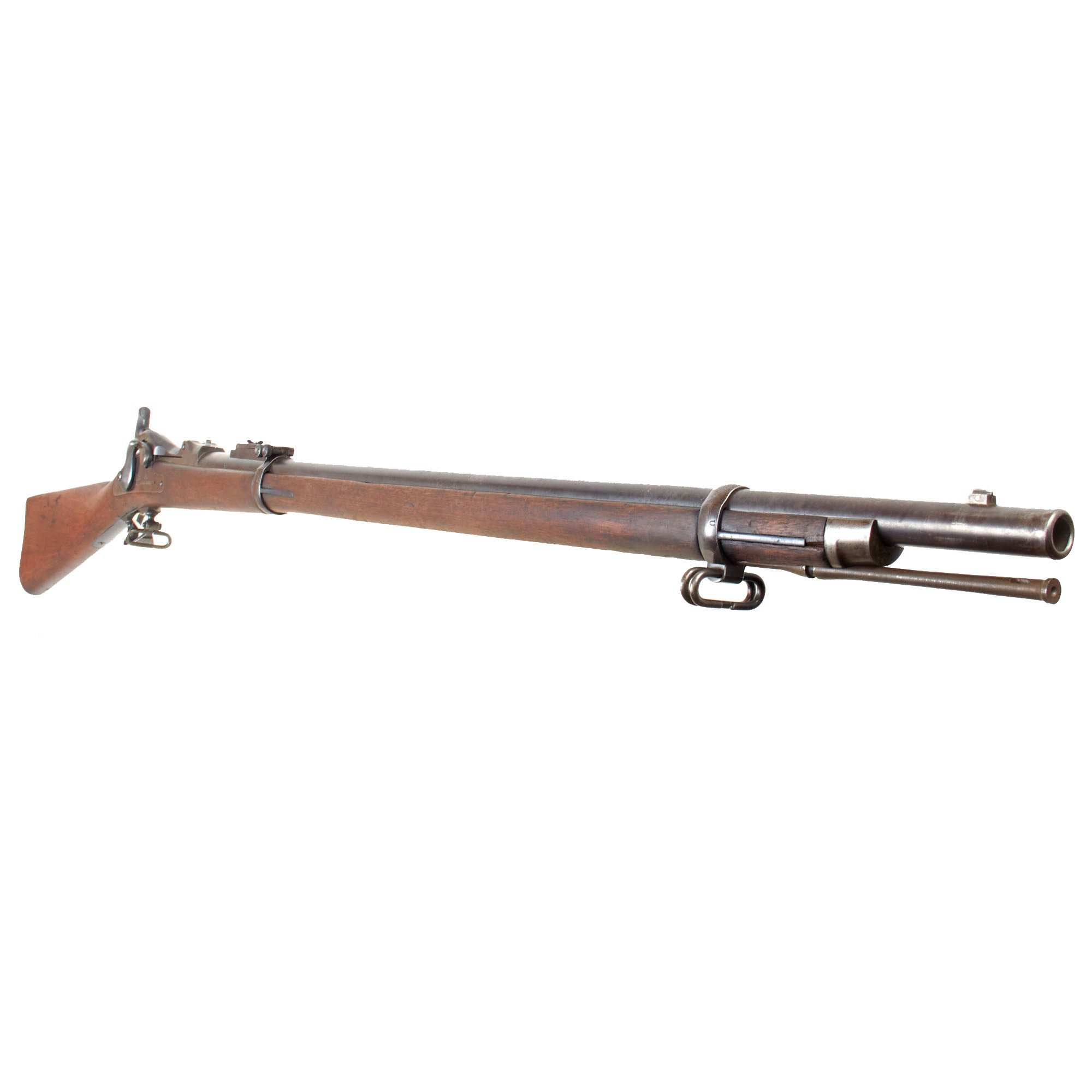

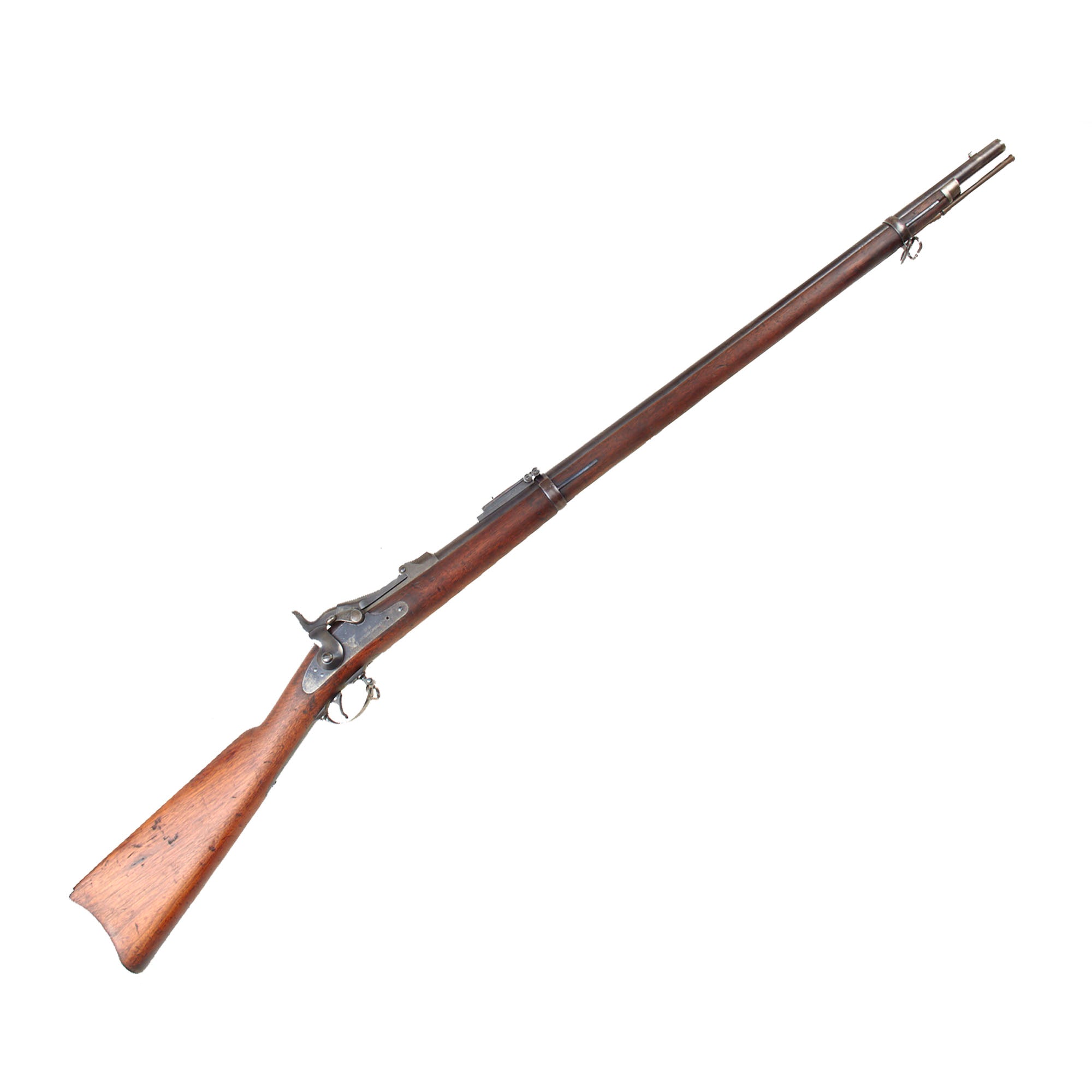

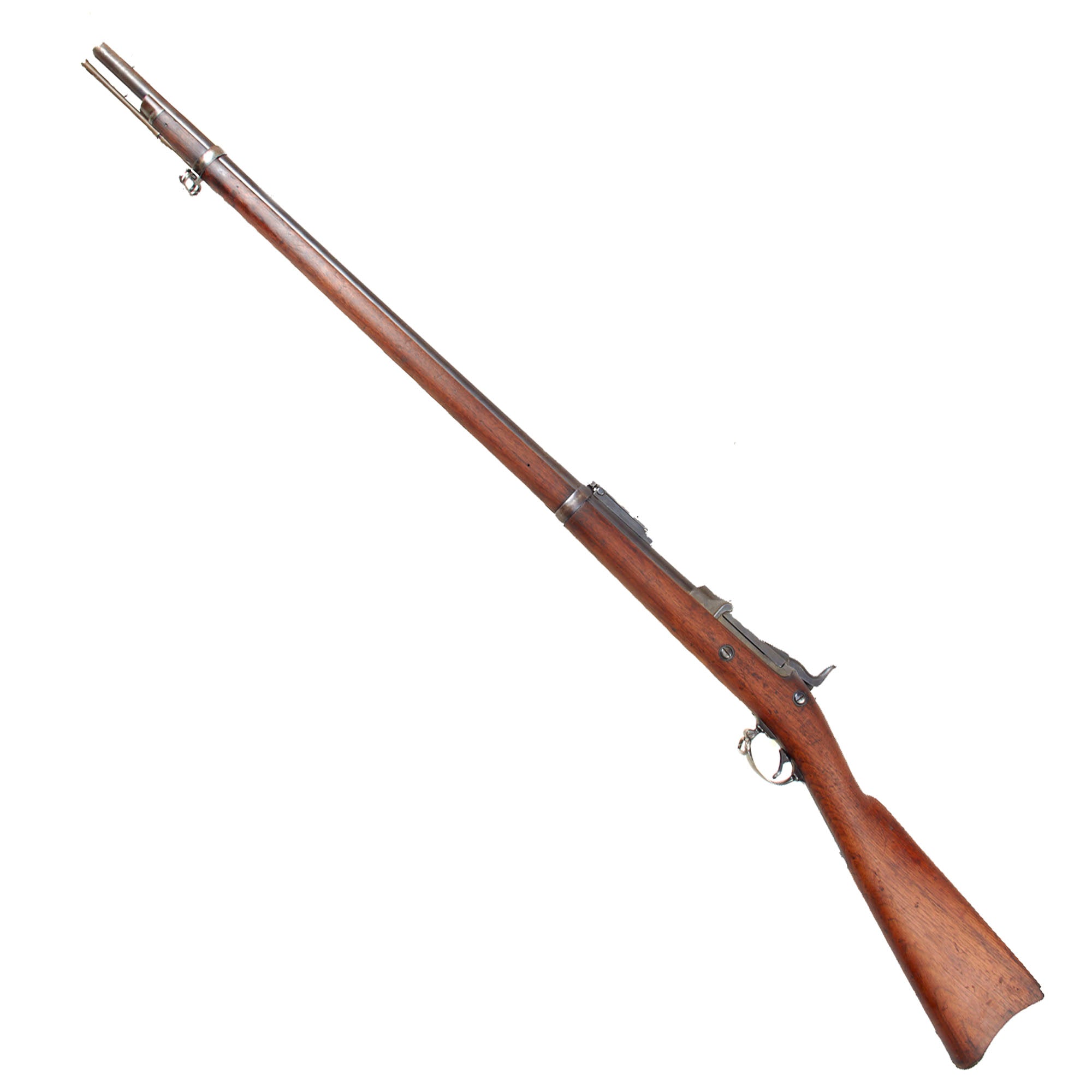

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 385362, which indicates production in approximately December 1887, per U.S. Government records. The stock is a bit worn down from use and possible arsenal reconditioning, so unfortunately the original inspection cartouche is completely worn away. The rifle has the model 1884 serrated trigger and "improved" Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod and two part trigger guard, which could happen normally during the transitional period. It was also not later updated to the 1888 pattern with the cleaning rod bayonet.

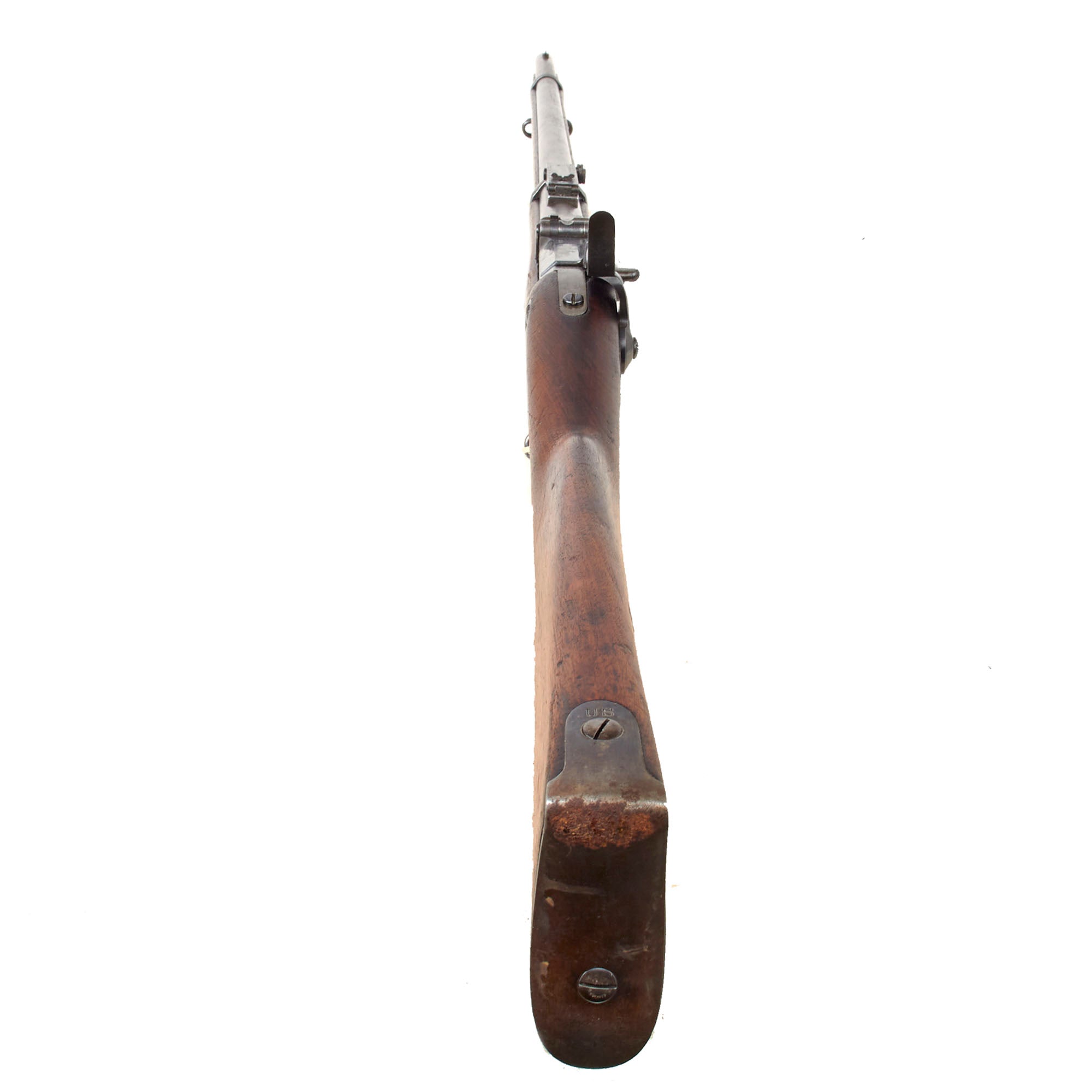

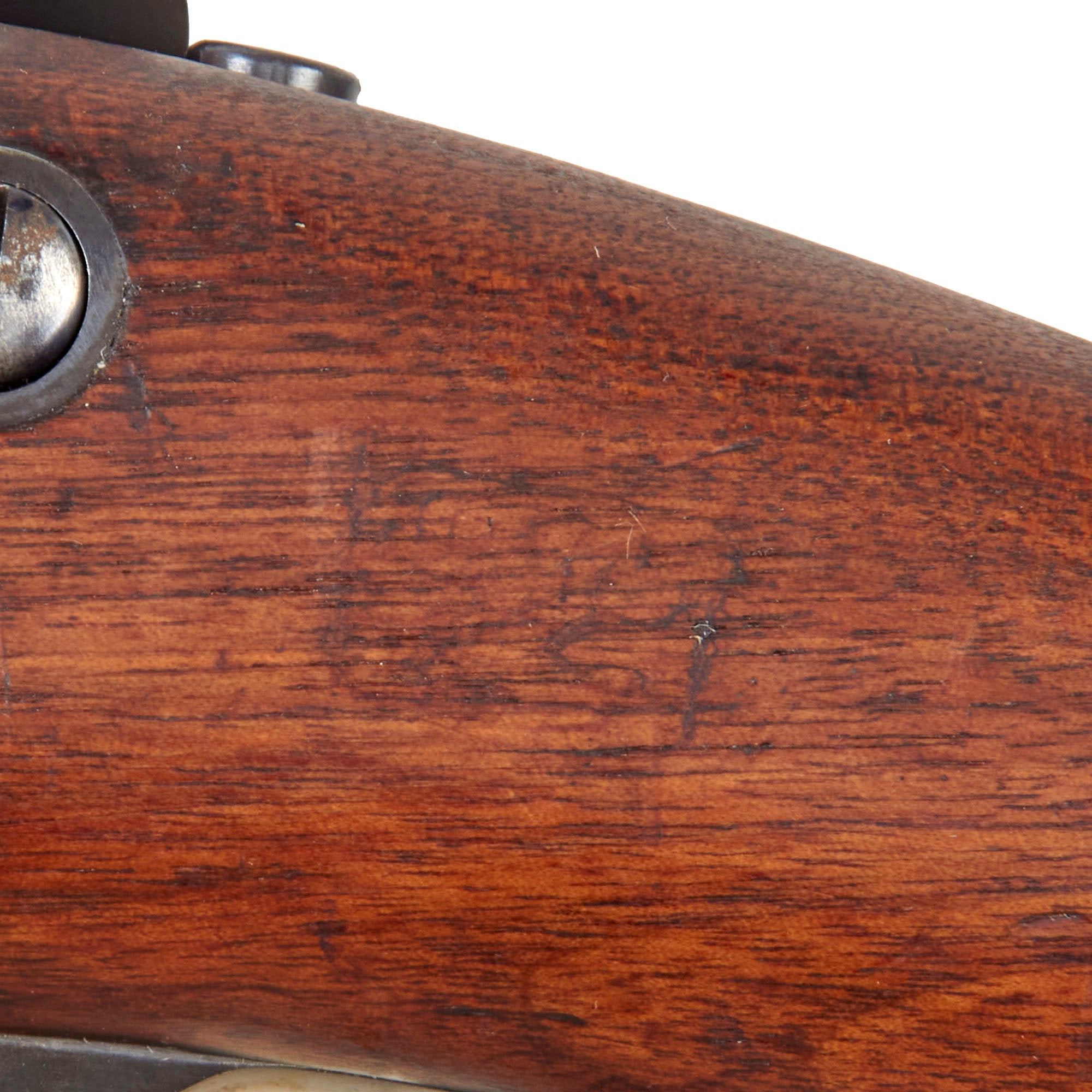

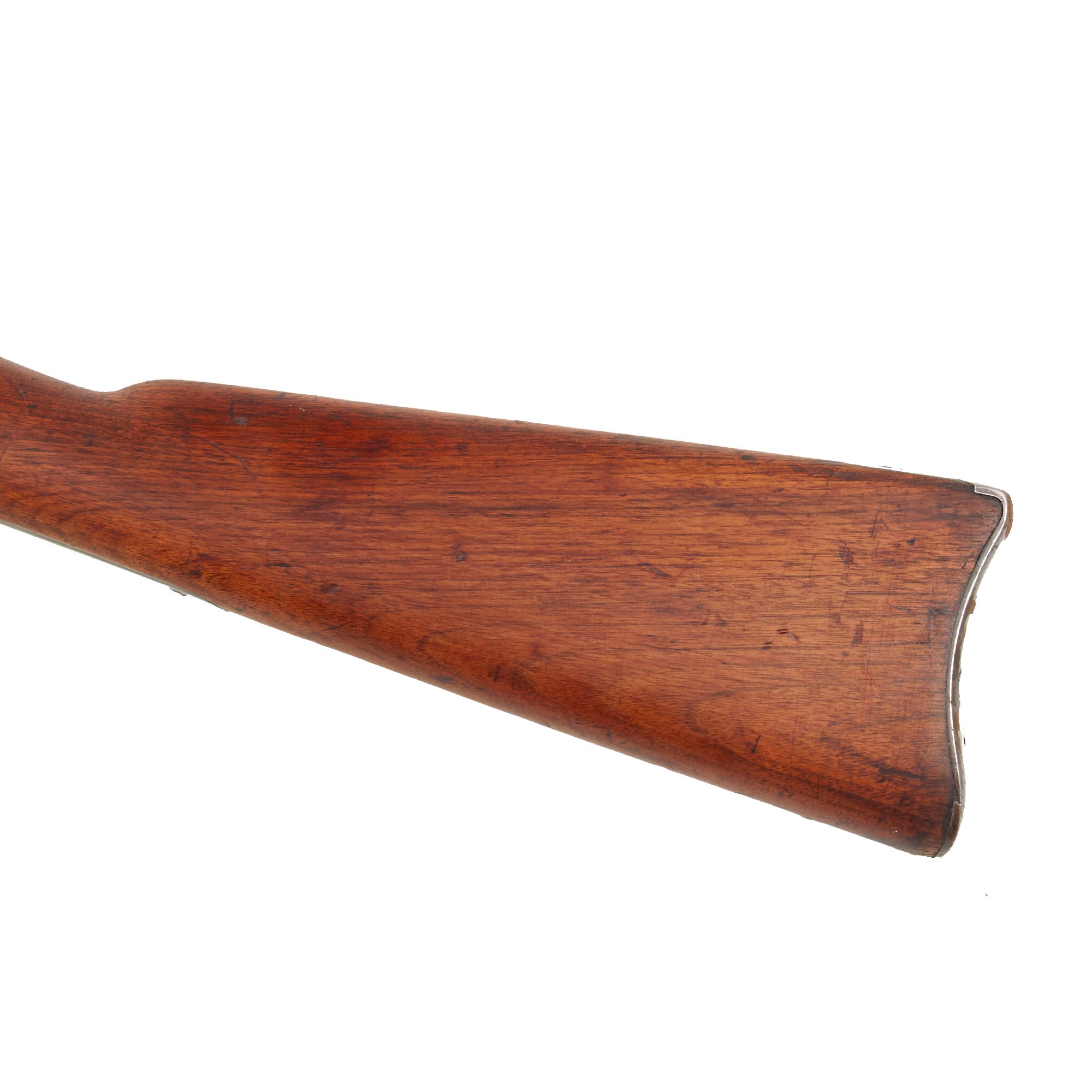

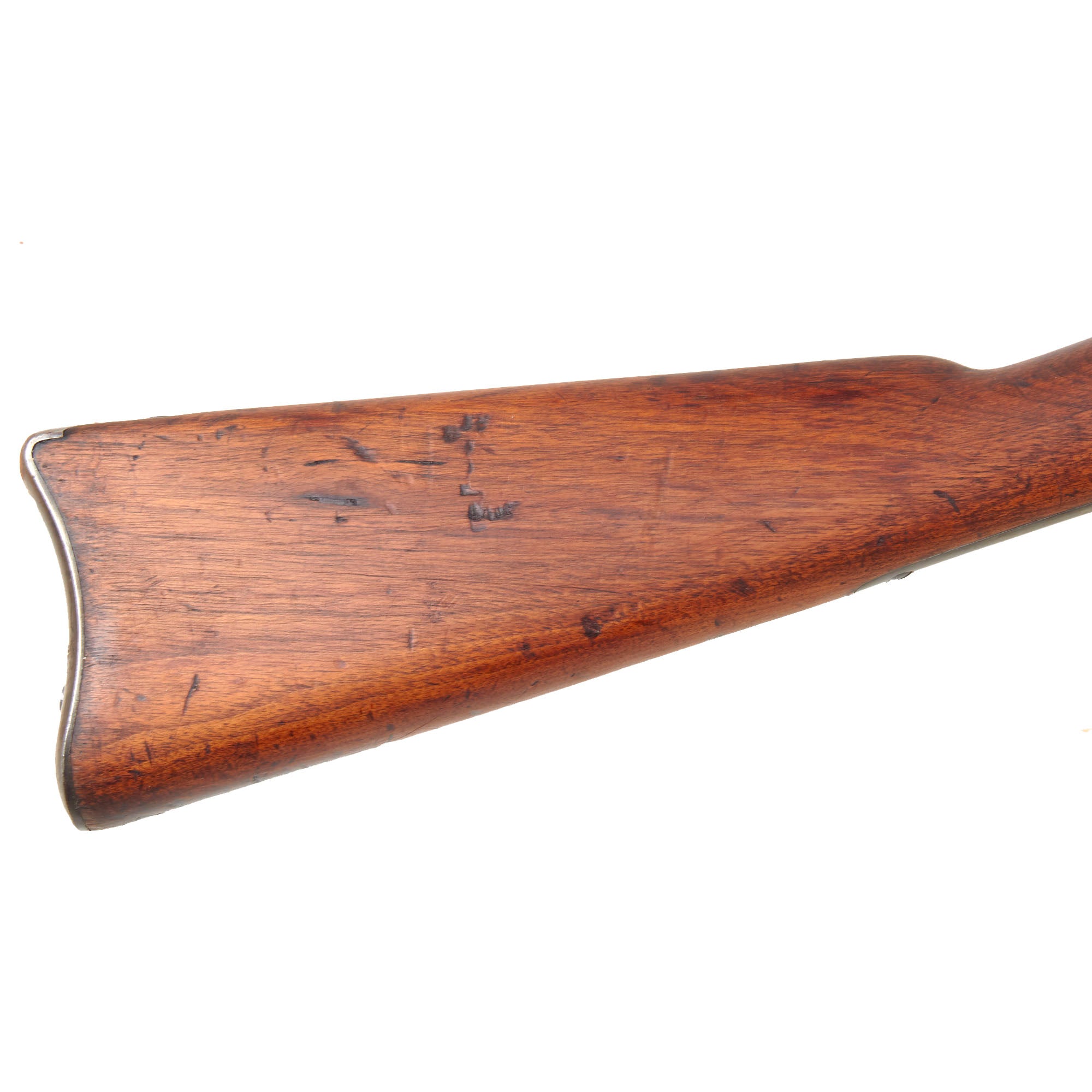

The rifle has overall good metal finish and all metal proofs still present, showing a worn oxidized gray patina on the metalwork from years of service and cleaning, with some evidence of past light peppering on the barrel. The stock is very nice, showing the lovely red-brown color of aged and oiled walnut. It does not look to have been arsenal reconditioned, but there is definitely some wear around the wrist area, which is what wore away the inspection cartouche. The stock is still proud over the lock plate at the front, while it is below it at the rear due to the wrist wear. There are no repairs or past major structural damage we can see any evidence of, just the usual wear from service.

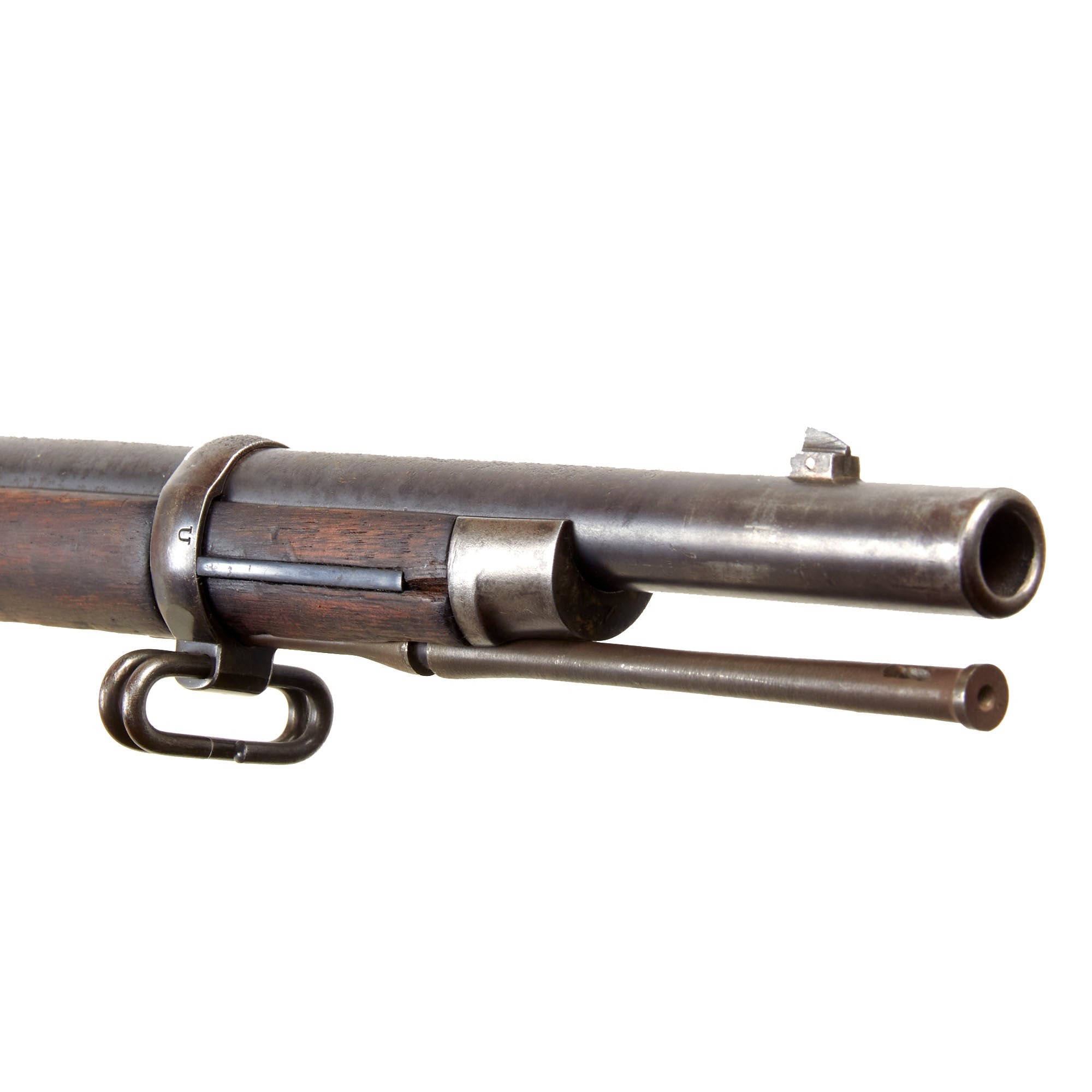

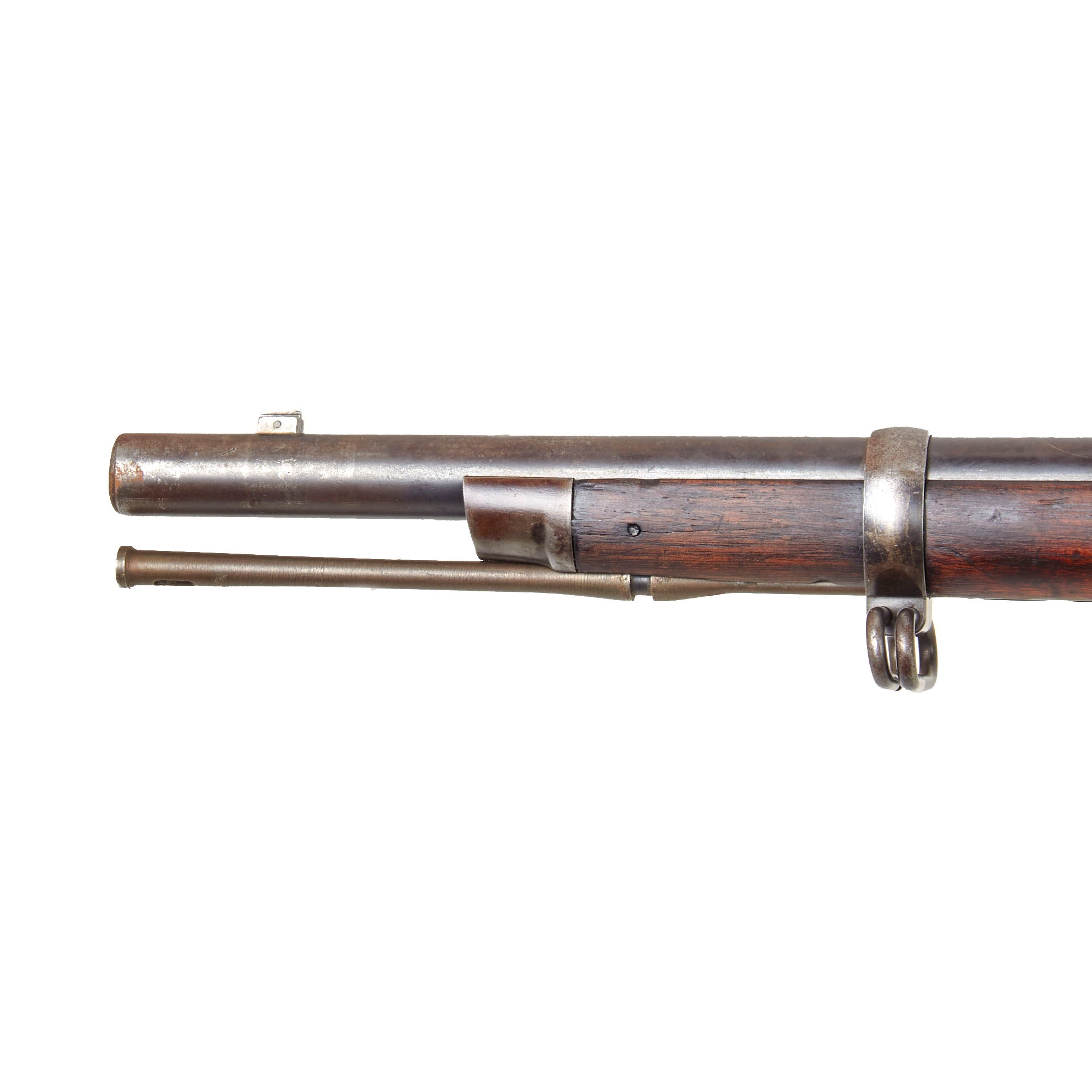

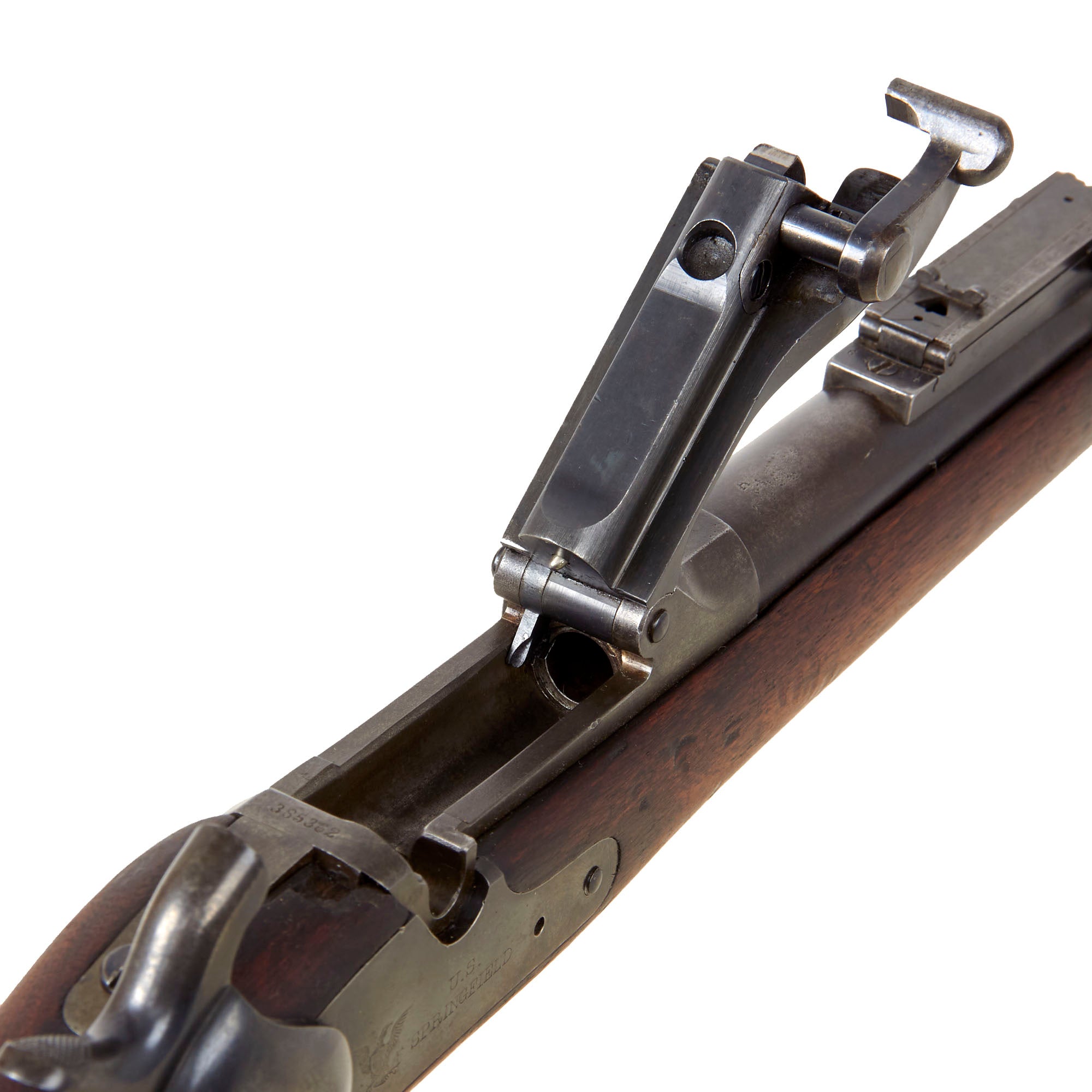

The bore is in very good condition, showing clear lands and grooves with a mostly bright finish, showing some past removed fouling in the grooves. There is also wear to lands, so this definitely looks to have seen use, but was well cared for. We would rate this at a 7-8 out of 10. The breech block has an intact freely moving firing pin and moves correctly, with the extractor still present and functional, though we have not tested it with real brass. The ejector in the bottom of the breech is present as well. The rear sight is present and complete, with the windage and range easily adjustable, though the knobs are a bit stiff. The original cleaning rod is still present under the barrel, however the cleaning jag on the end is missing and the end is instead cut, so it may be a period replacement.

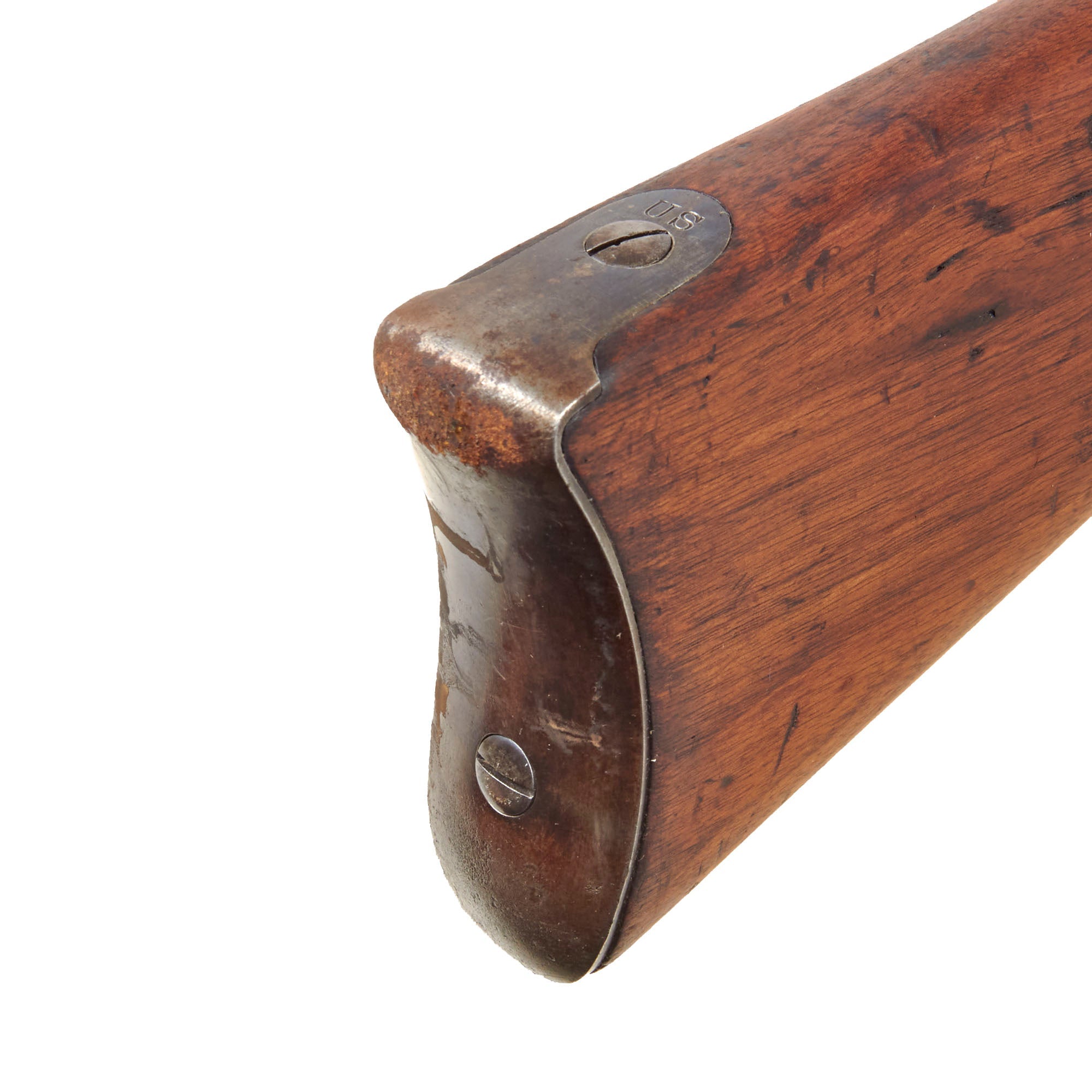

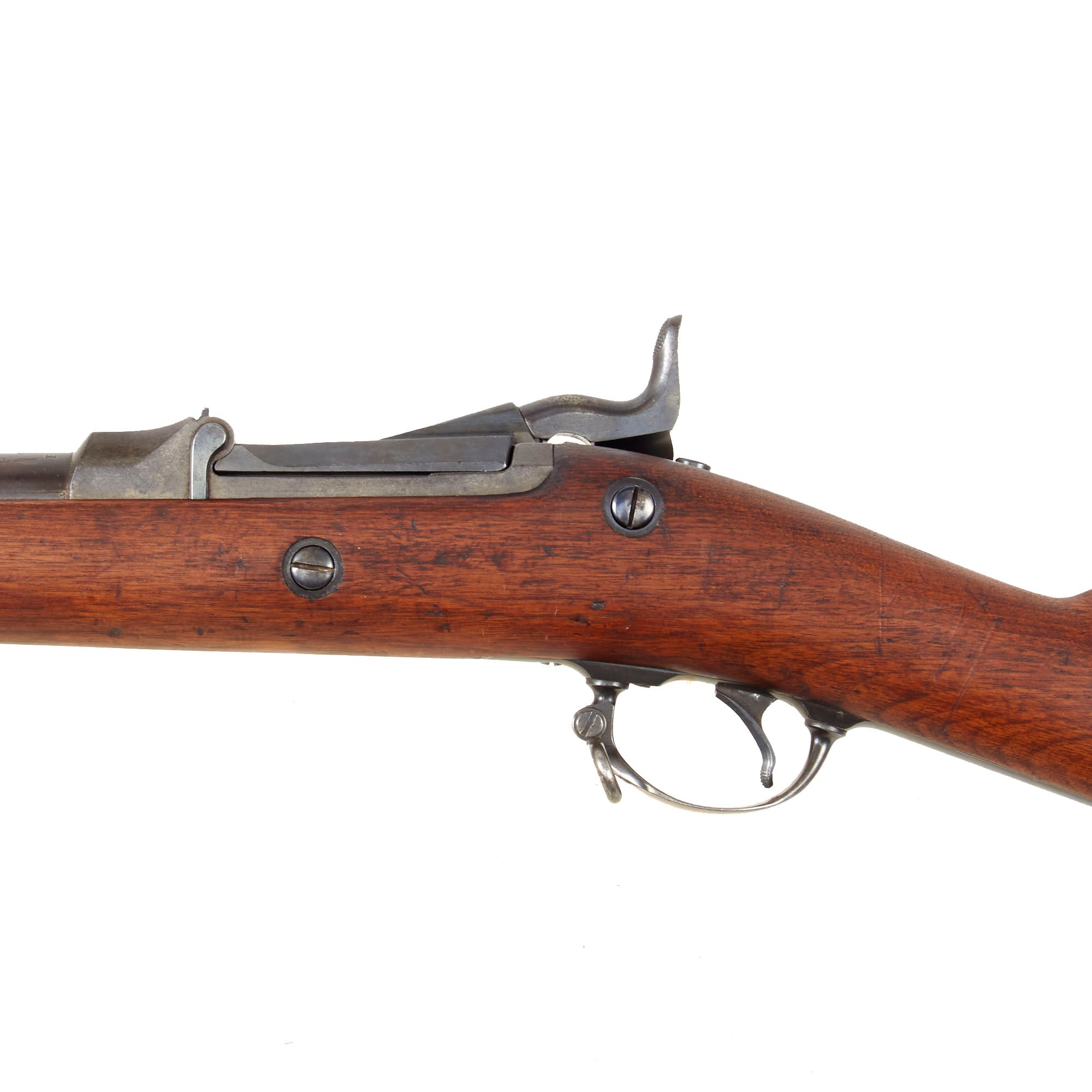

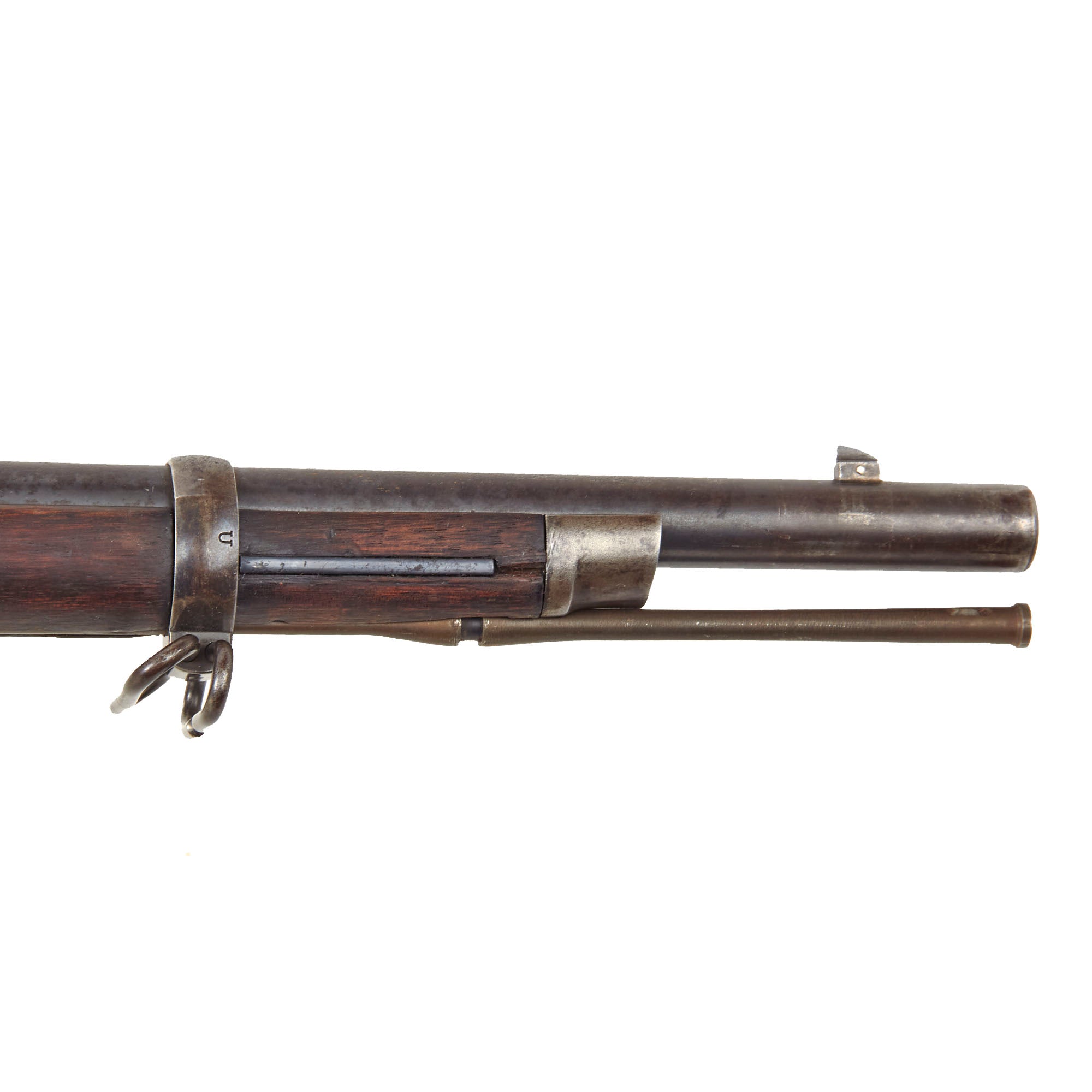

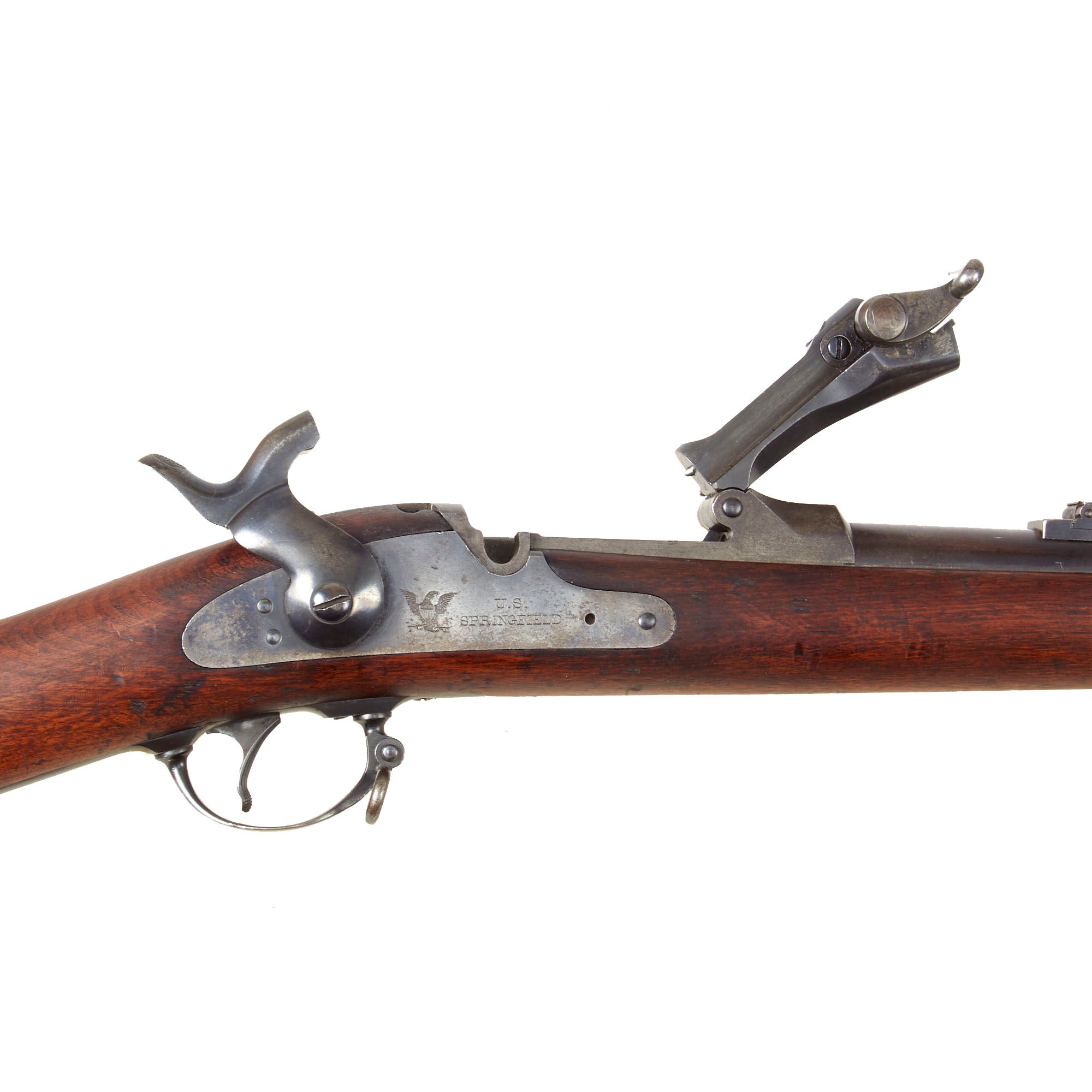

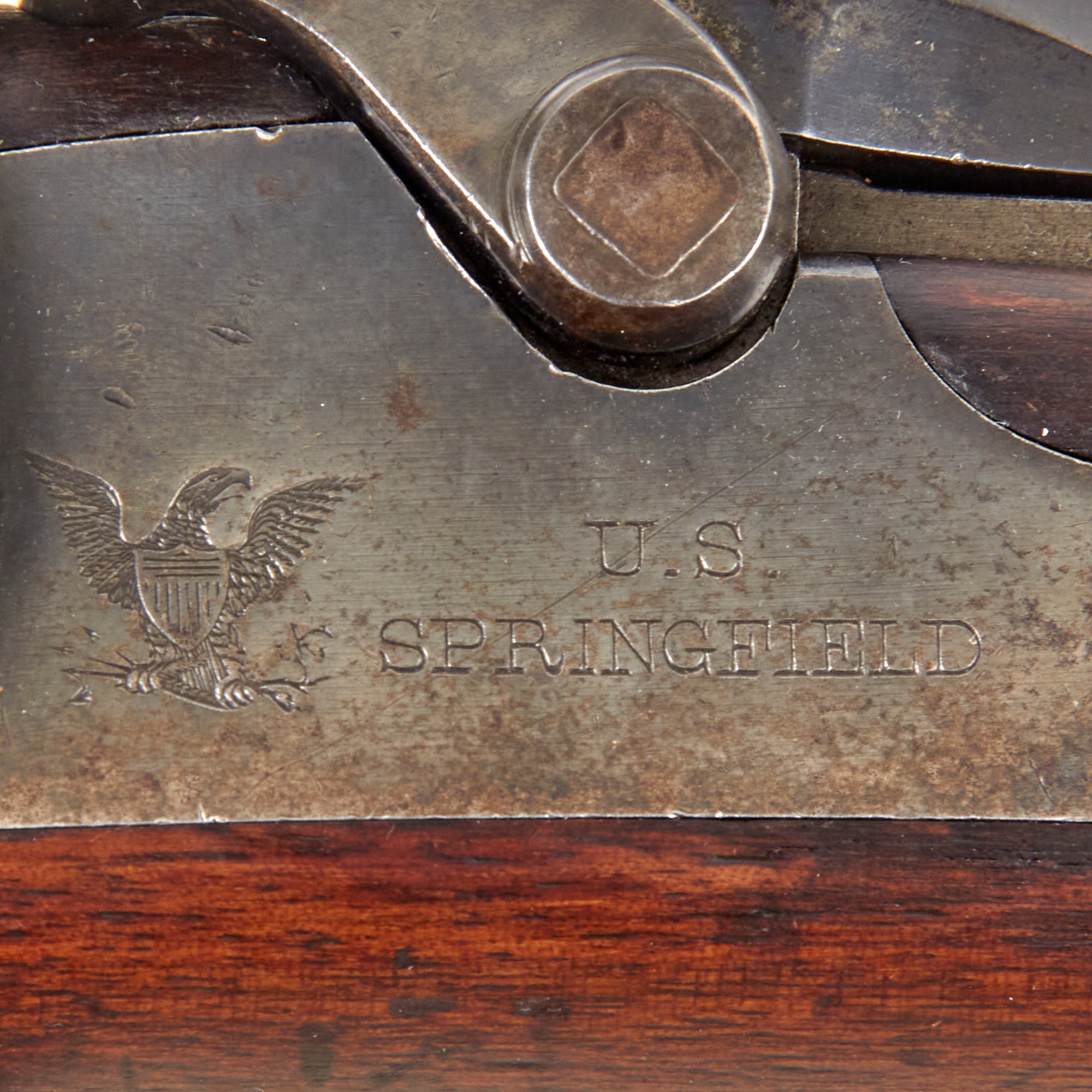

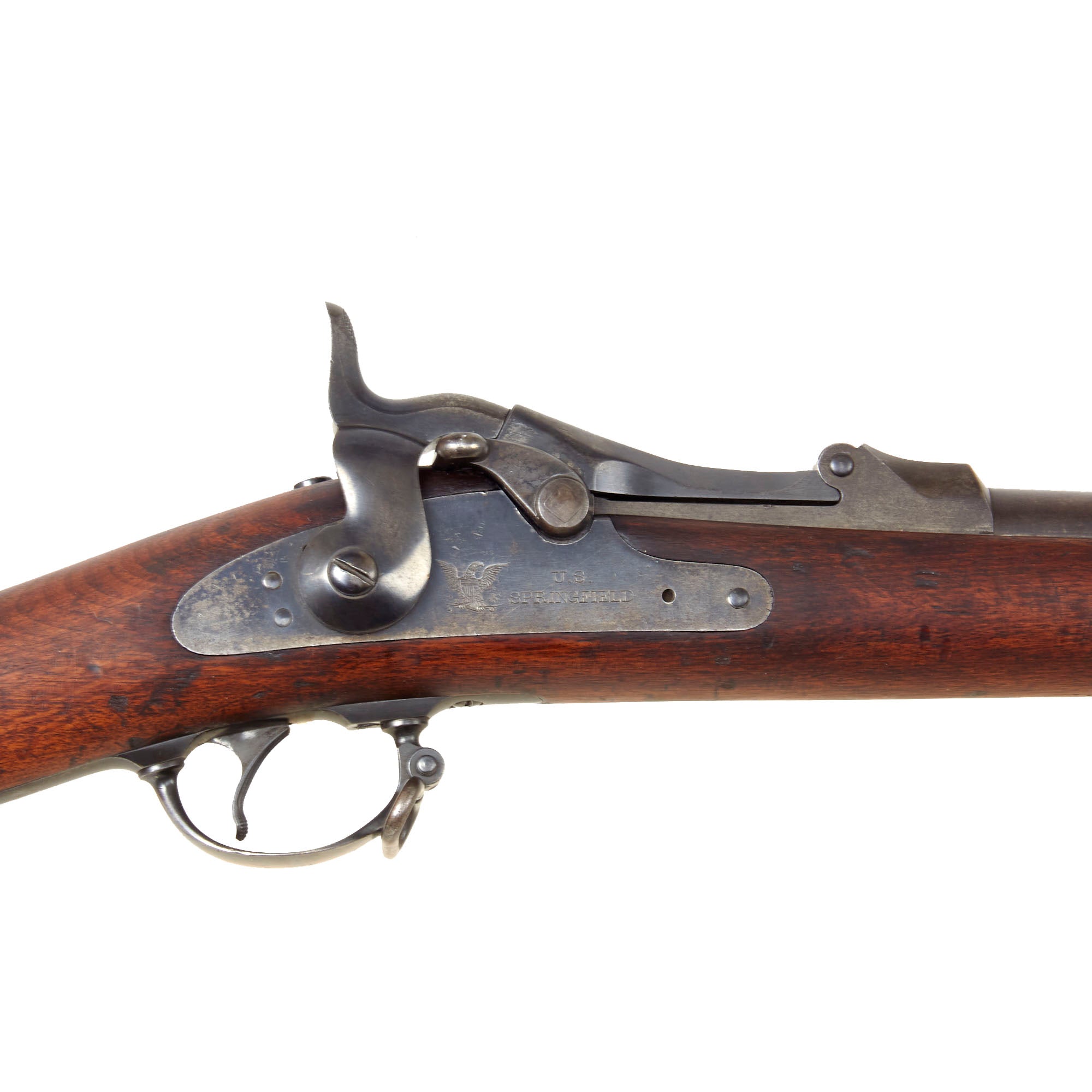

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is a nice aged patina, with a bit of light peppering in places, and a nice gray dark gray color. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with a Federal Eagle to the left of U.S. / SPRINGFIELD, indicating that it was manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is an great opportunity to pick up a very nice example of a classic U.S. issue firearm. Ready to display!

Specifications-

Year of Manufacture: 1887
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot

NOTE: This gun is NOT considered obsolete calibre, so we are not able to ship to the United Kingdom. Please note that for international shipping, these MUST be shipped using UPS WW Services. International customers should always consult their country's antique gun laws prior to ordering.

Note: This gun is NOT considered obsolete calibre, so we are not able to ship to the United Kingdom.

IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.

These antique guns are not sold in "live" condition, and are not tested for the ability to feed or load any type of cartridge. They are sold as collector's items or as "wall hangers" not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services. International customers should always consult their country's antique gun laws prior to ordering.
