Item:
ONSV23CWC11

Original U.S. Springfield Trapdoor Model 1884 Rifle with Sight Hood & Standard Ram Rod made in 1890 - Serial 472909

Item Description

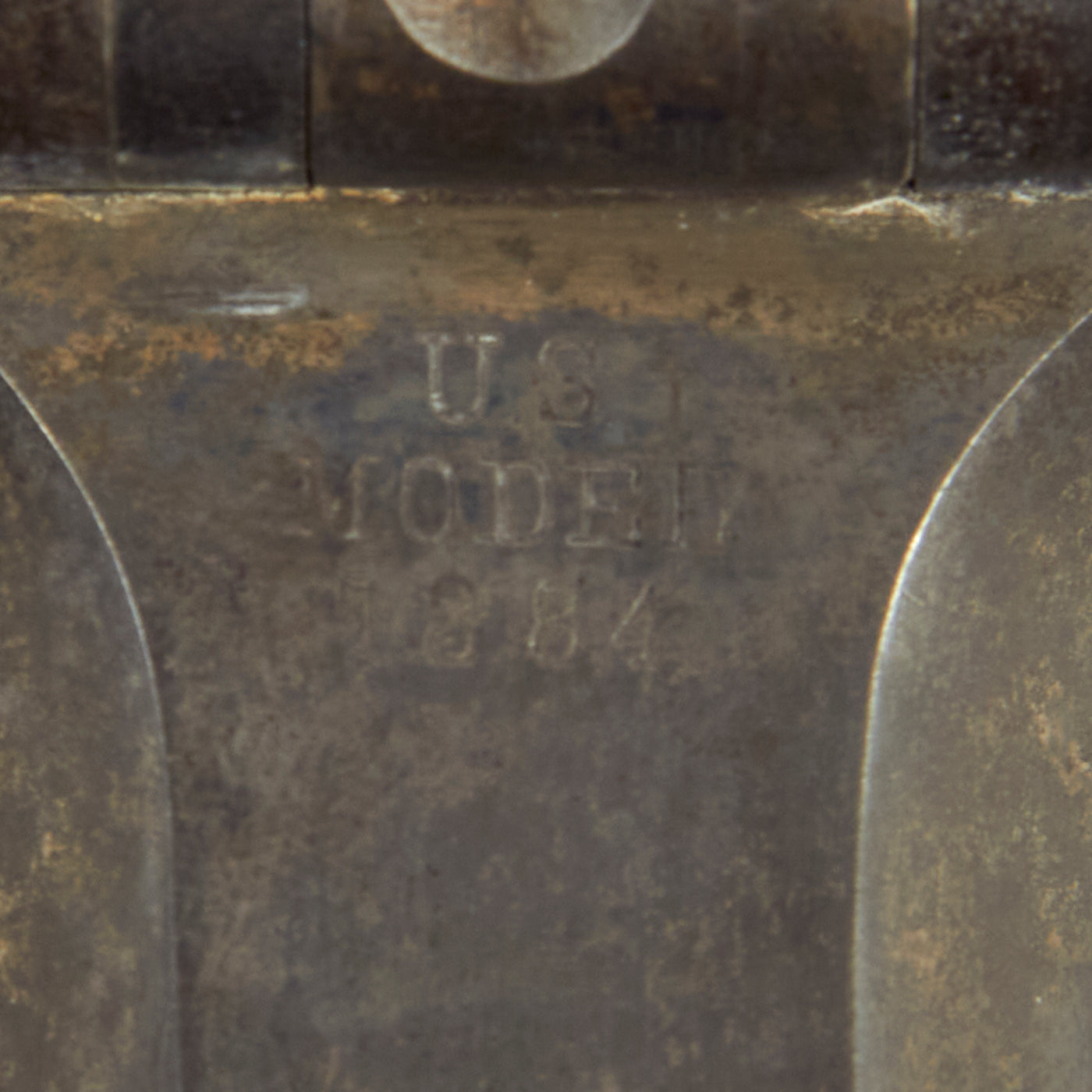

Original Item: Only One available. This is a very nice example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The breech block is marked:

U.S.
MODEL
1884

In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

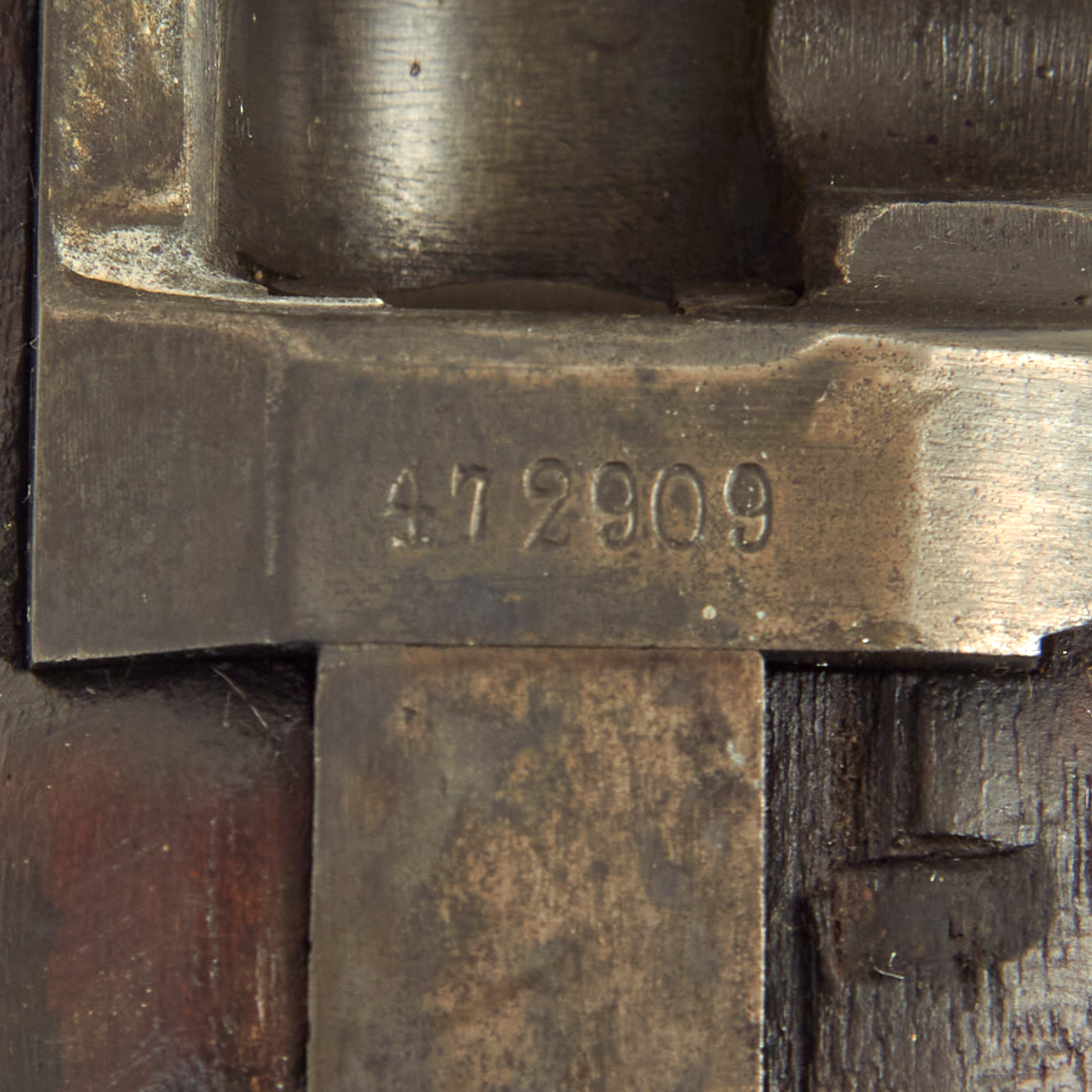

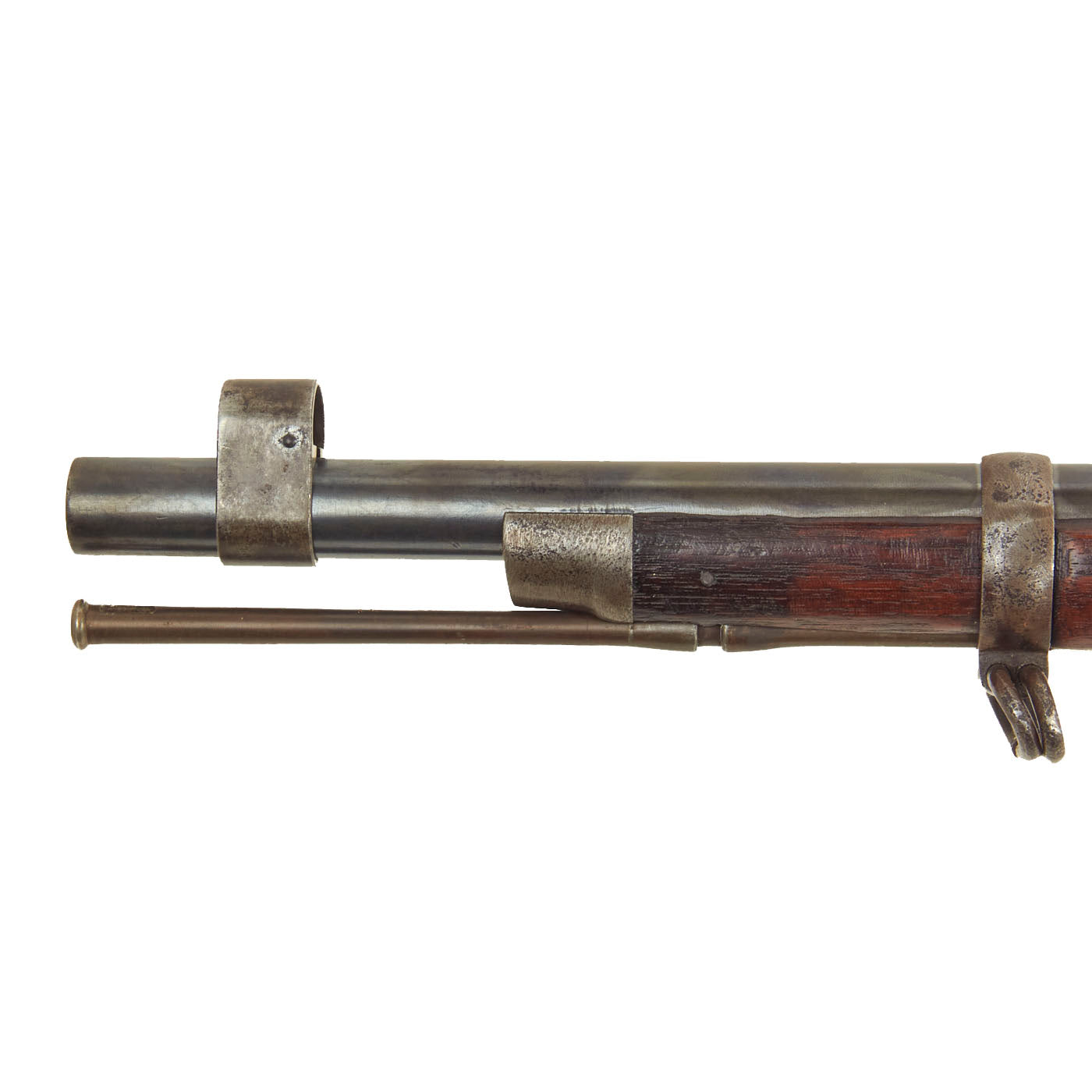

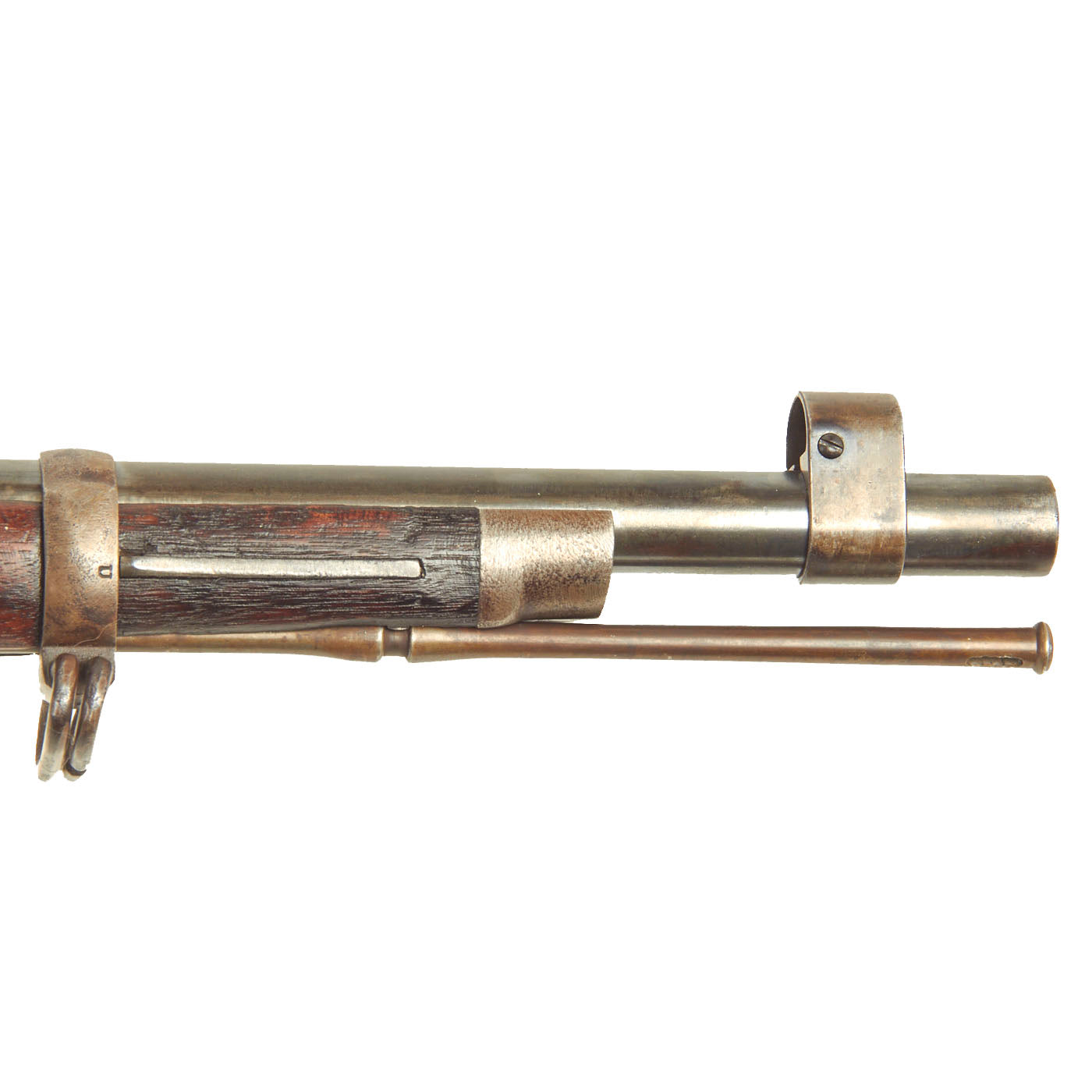

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 472909, which indicates production in approximately January 1890, per U.S. Government records. It features a standard ramrod, and was not later updated do the "1888" pattern. The rifle has overall very good metal finish and all metal proofs still present, with a nice aged blue finish showing just a bit of peppering on one area of the barrel. It also has a very nice milled front sight "hood" cover, one of the rare variations seen. These were usually removed by the soldier, except for sharpshooters, who preferred the sighting ability it gave, in addition to keeping the front sight accurized.

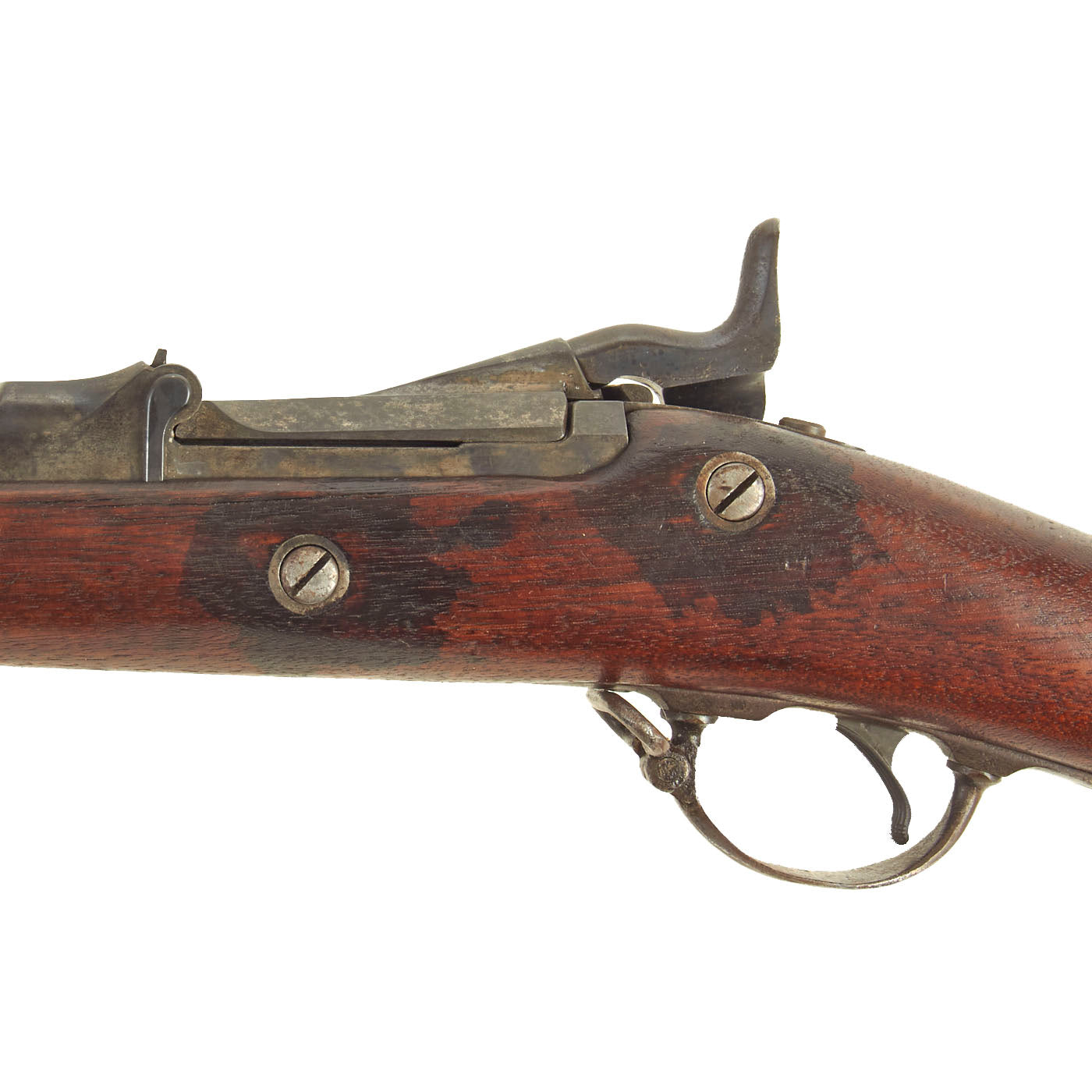

It has the model 1884 serrated trigger and Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod and two part trigger guard. While it was made after model 1888 production started, sometimes older configured trigger guards and stocks were used. Definitely some interesting history to this rifle.

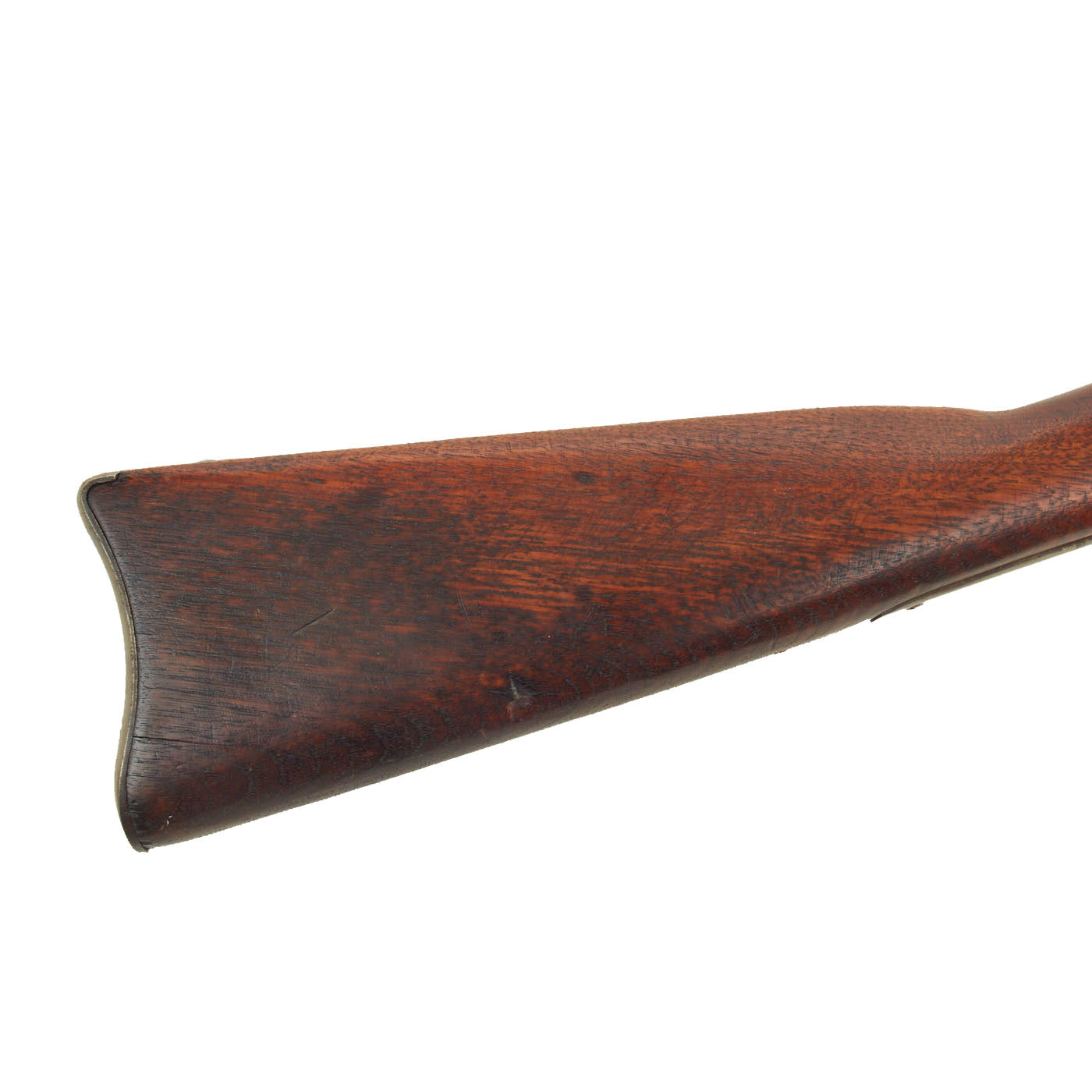

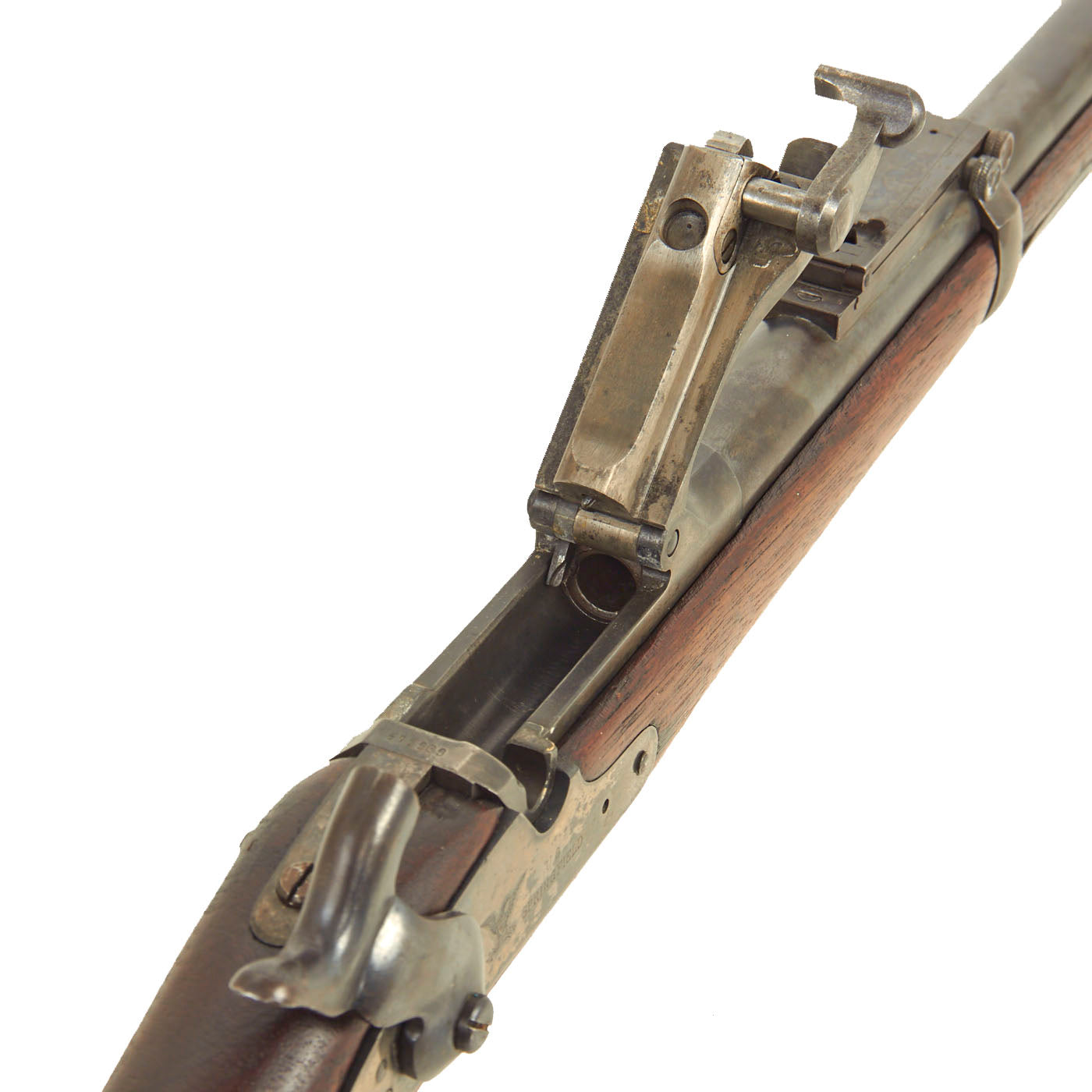

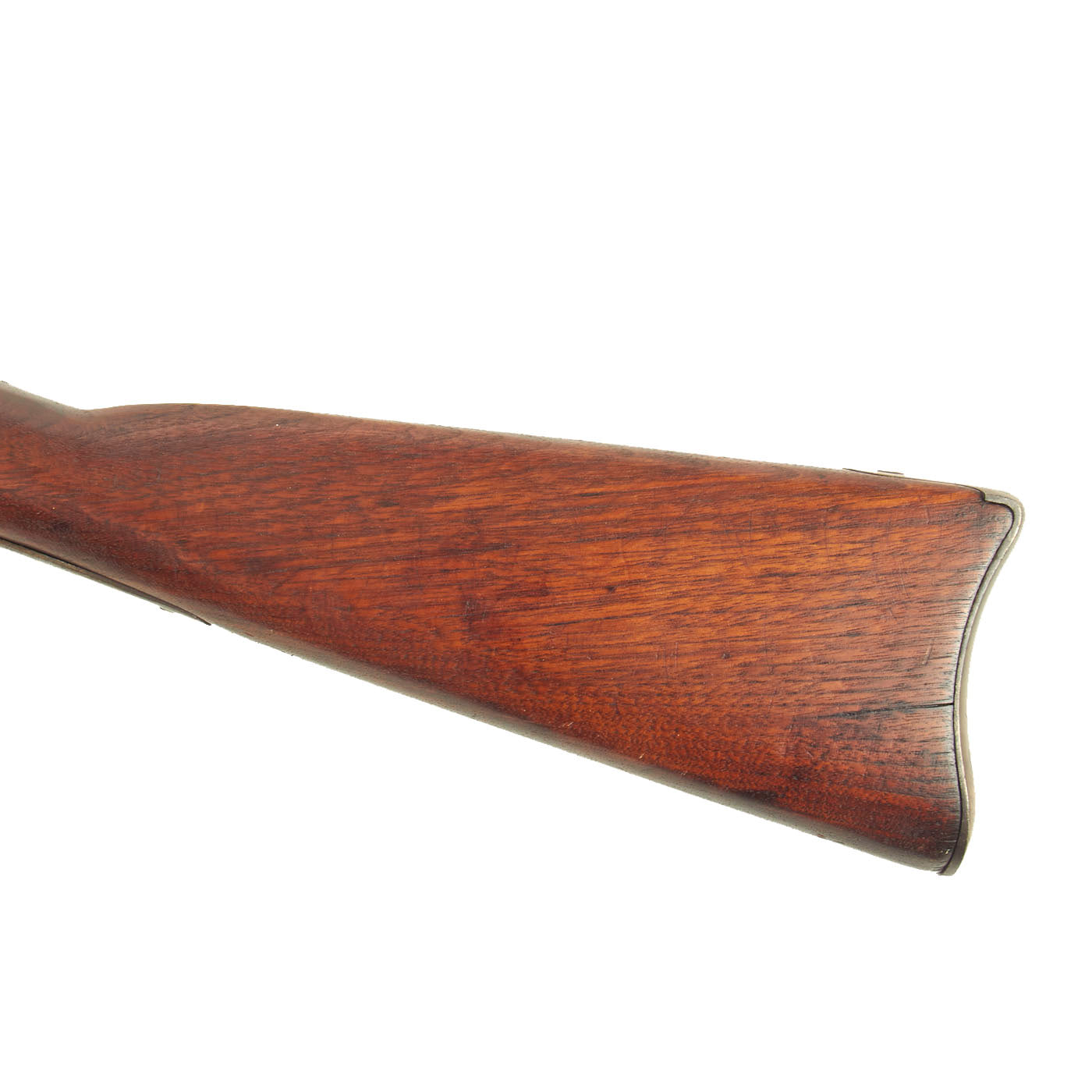

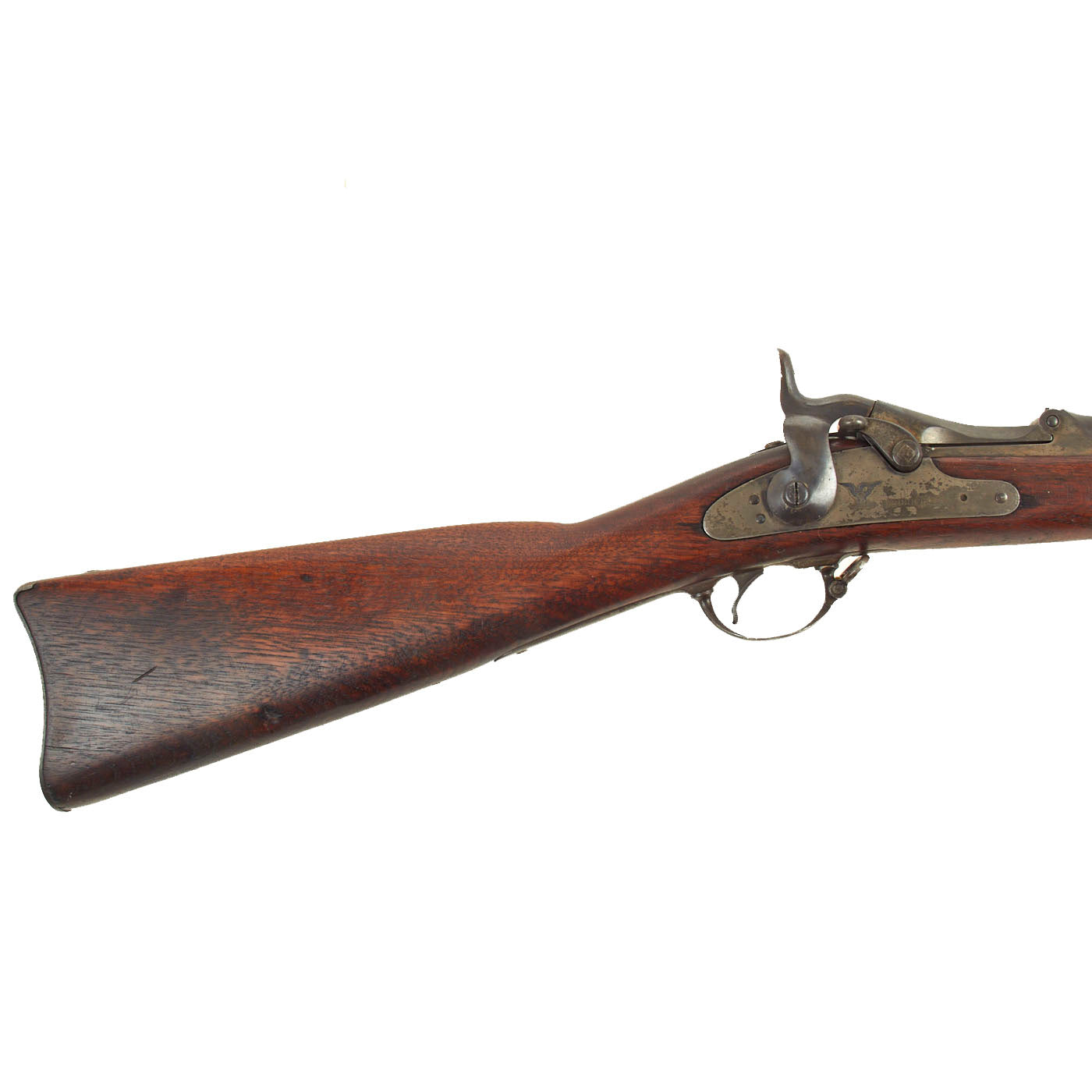

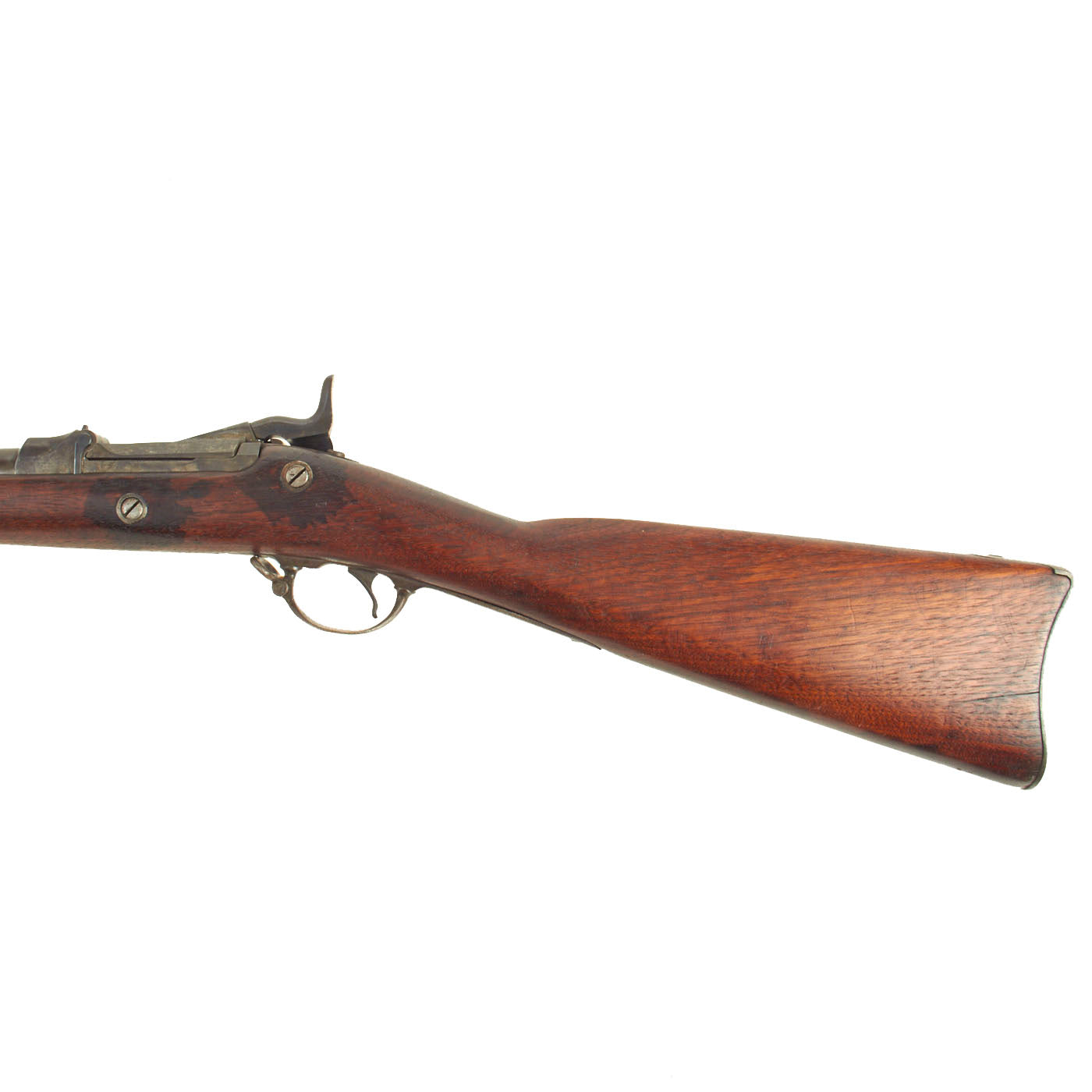

The wood stock does show some wear from service, with the usual dents and small chunks missing, but no major structural cracks or other catastrophic damage. The stock is at or below the level of the lock plate, so it has definitely been worn down a bit, possibly from an arsenal reconditioning, This has removed the dated inspection cartouche and other markings usually on the stock. The bore is in very good condition, with clear lands and grooves and a mostly bright finish. There is overall wear, and just a bit of light haze from powder fouling. The breech block moves correctly, and the extractor is still present and functional, though we have not tested it with real brass.

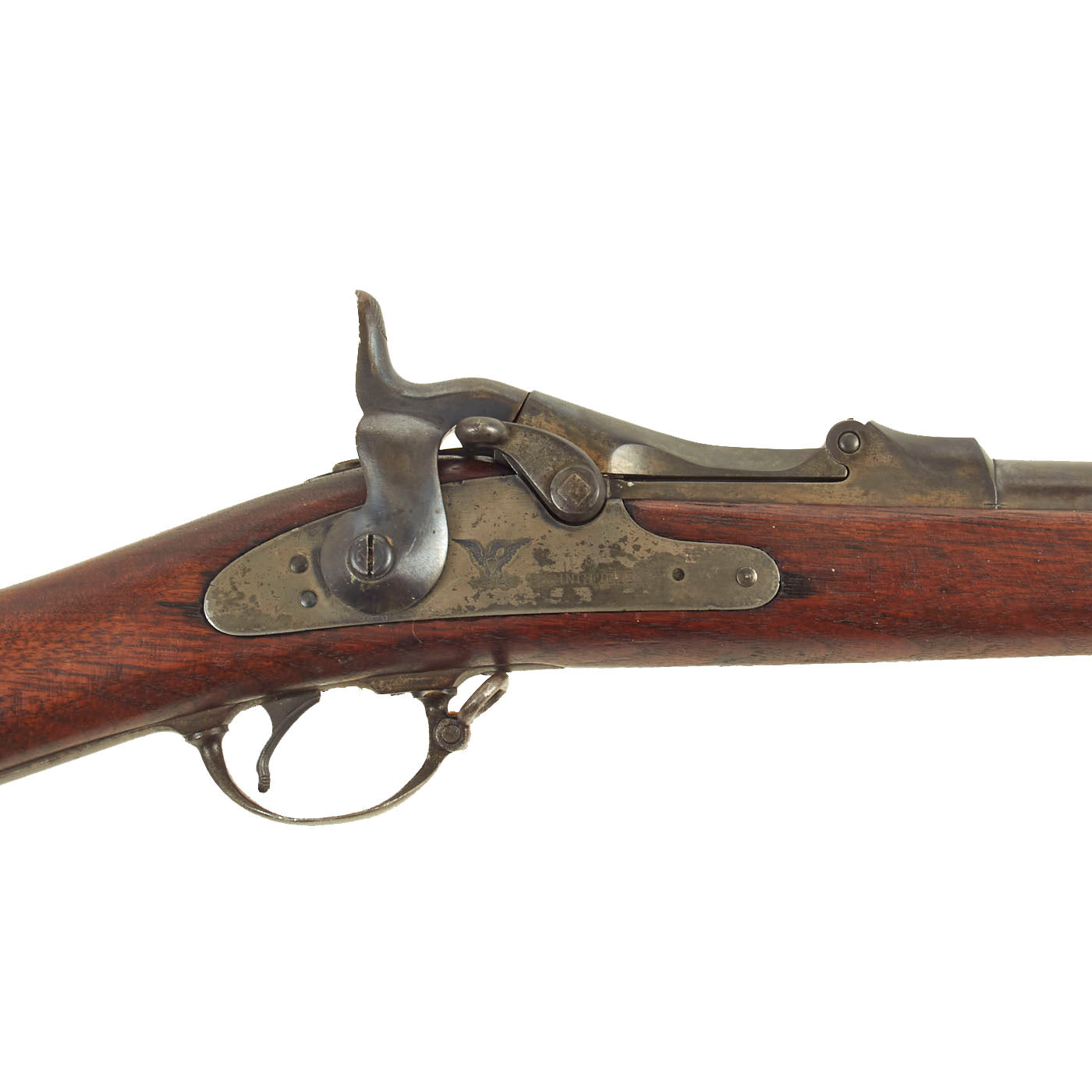

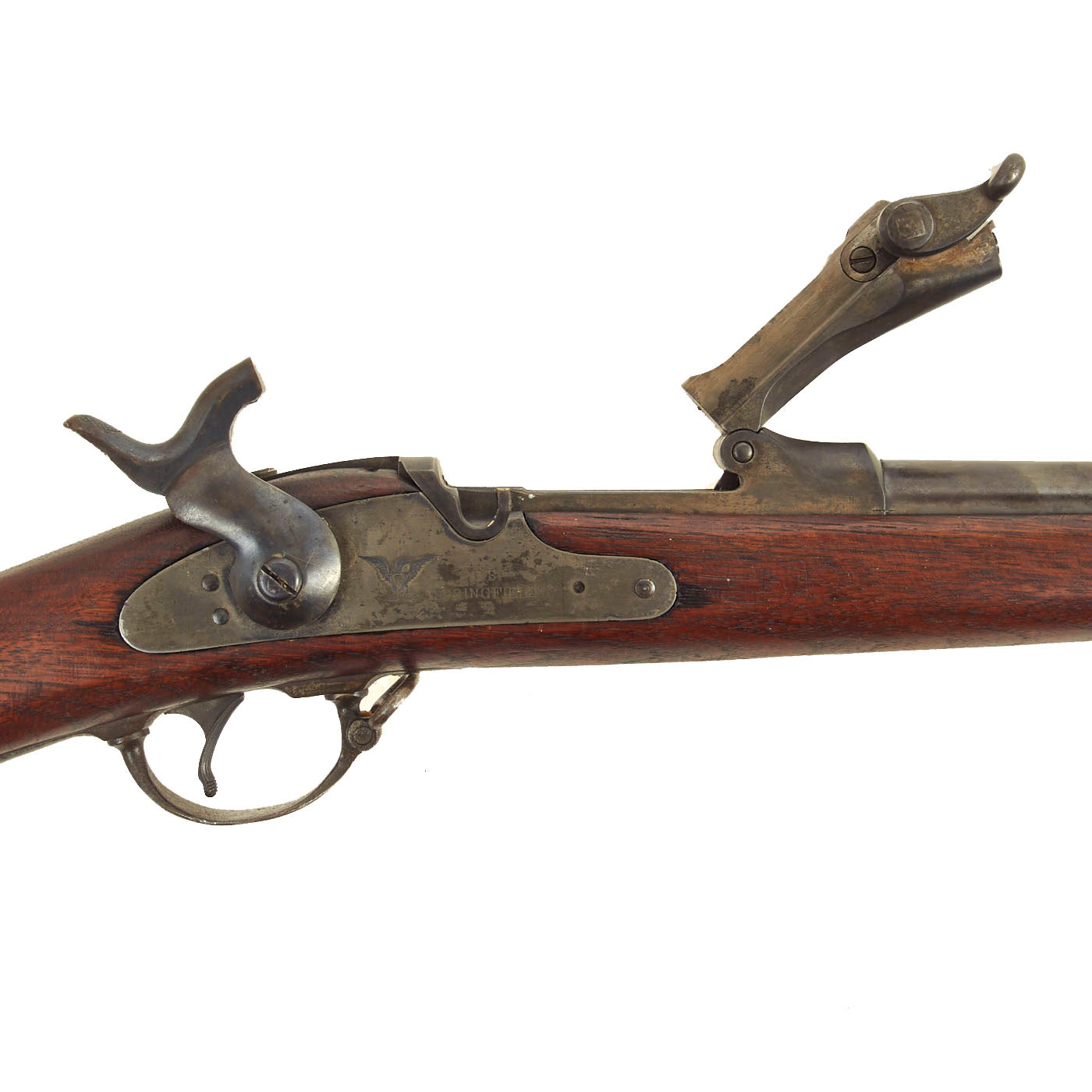

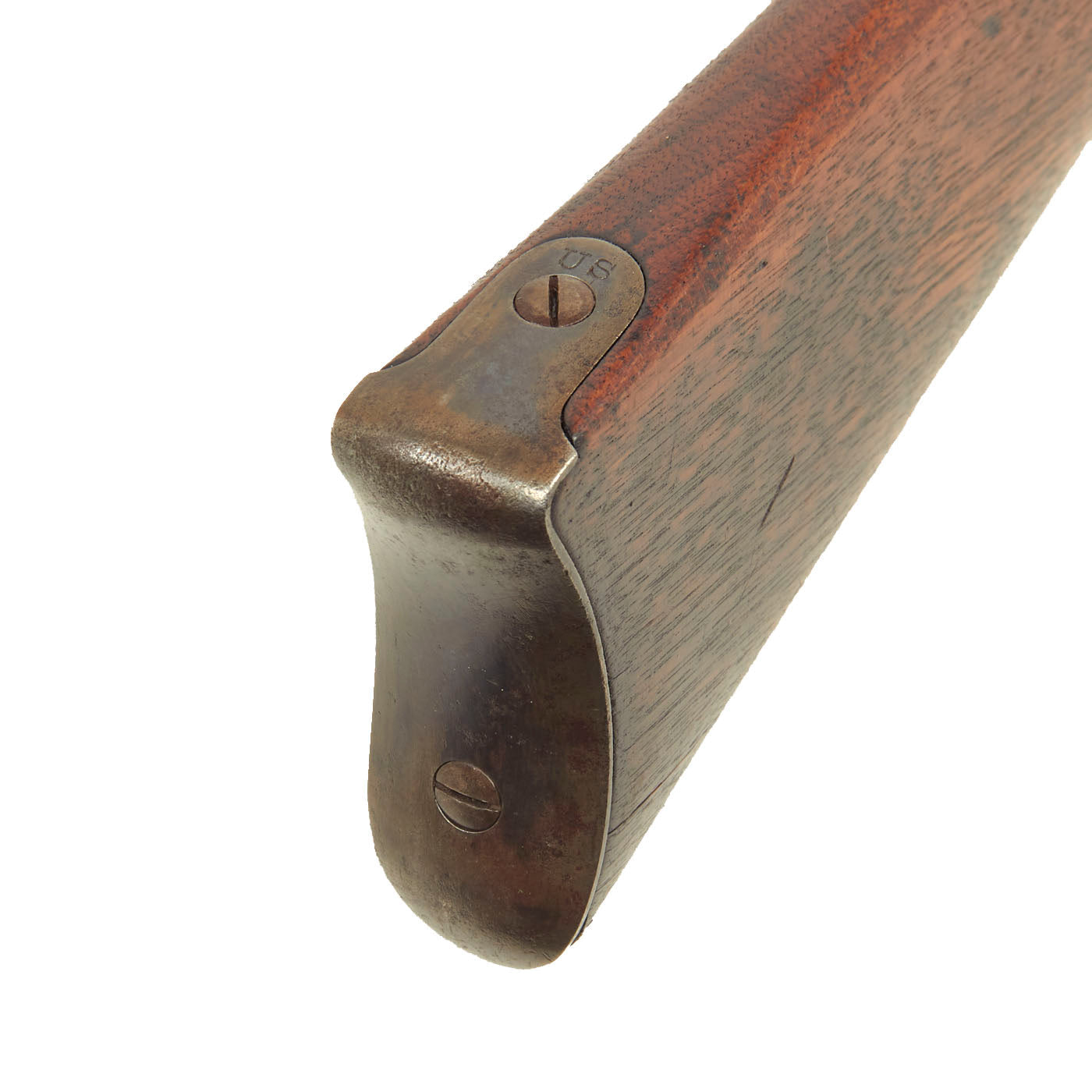

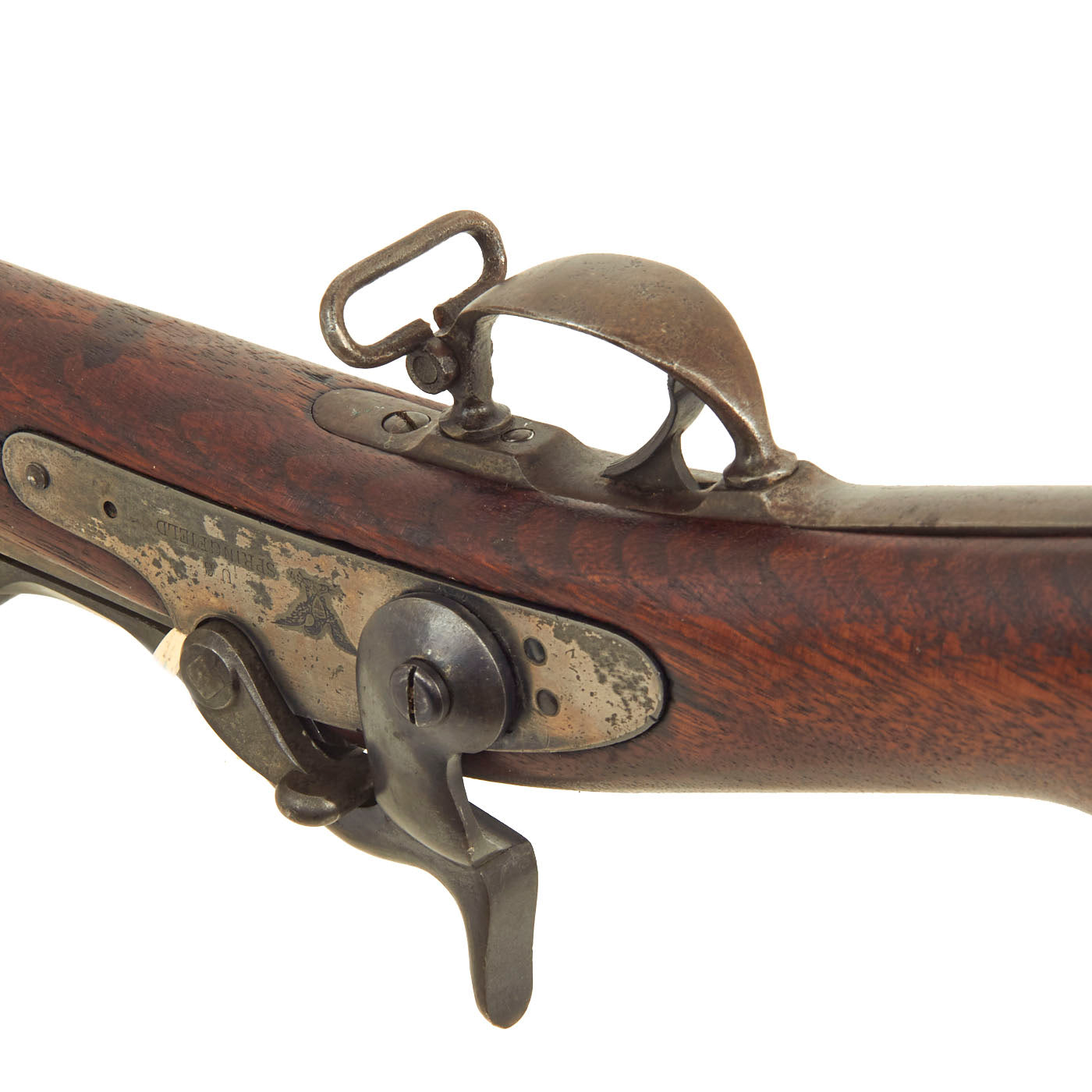

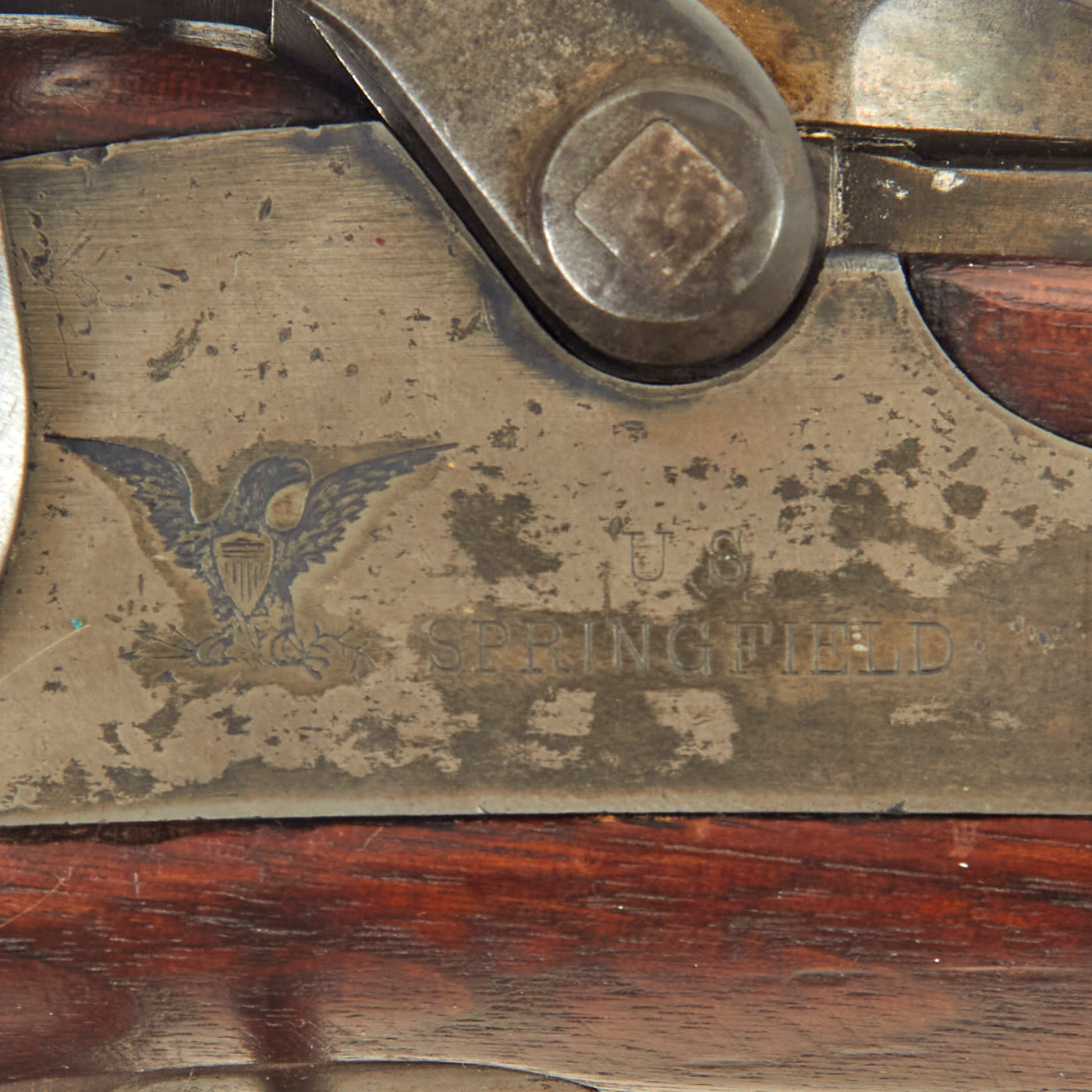

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is very good, an aged blued patina present on most of the barrel and fittings. The receiver and lock plate have faded from the original case hardened finish to a gray patina. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, fully functional Buffington sight, with standard ramrod. The lock is marked with the Federal Eagle to the left of U.S. / SPRINGFIELD marking, indicating manufacture by Springfield Armory in Springfield, Massachusetts.

There is a "ghost" of the stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a V over a P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is an excellent opportunity to pick up a very nice example of a classic U.S. issue firearm. Ready to display!

Specifications-

Year of Manufacture: 1890
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
