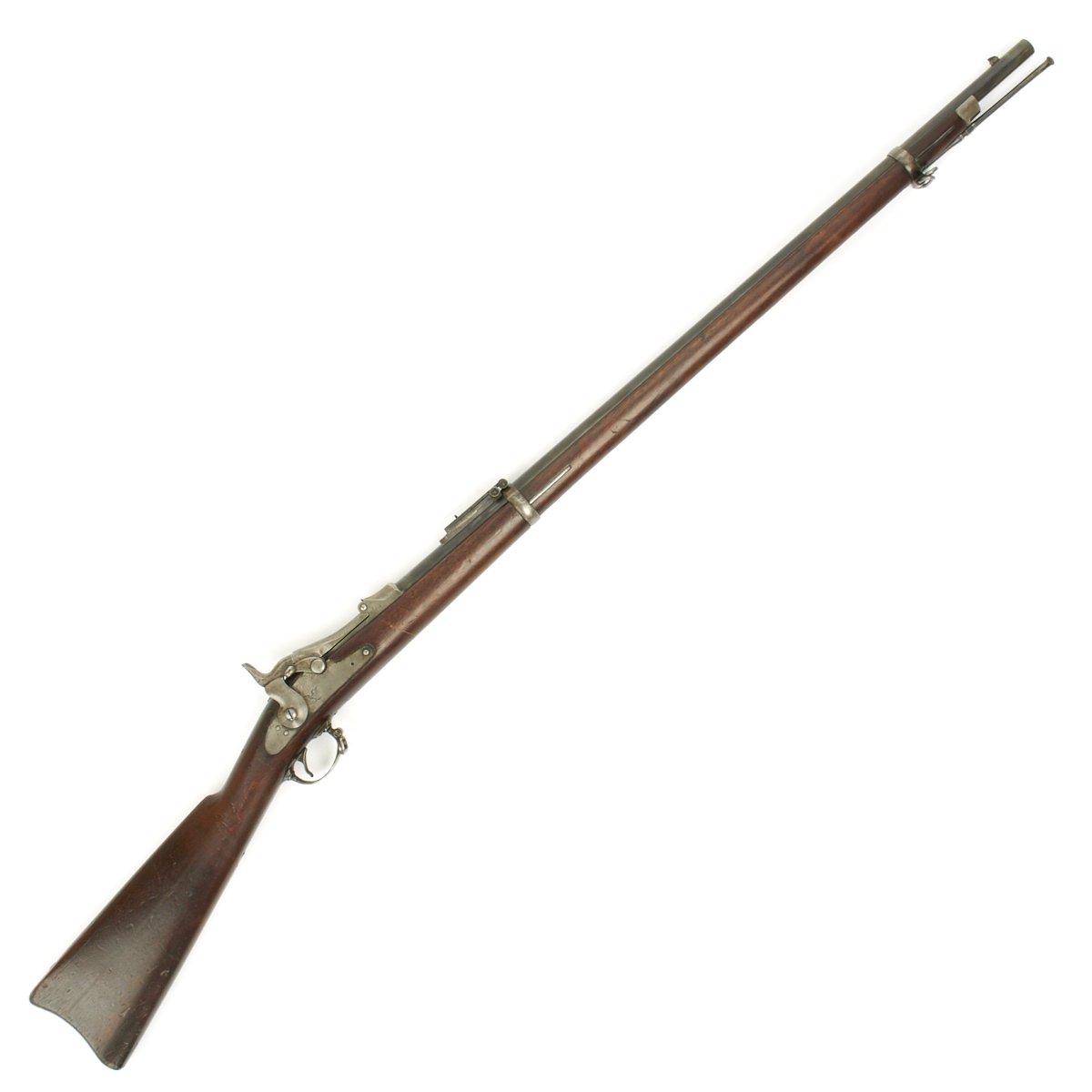

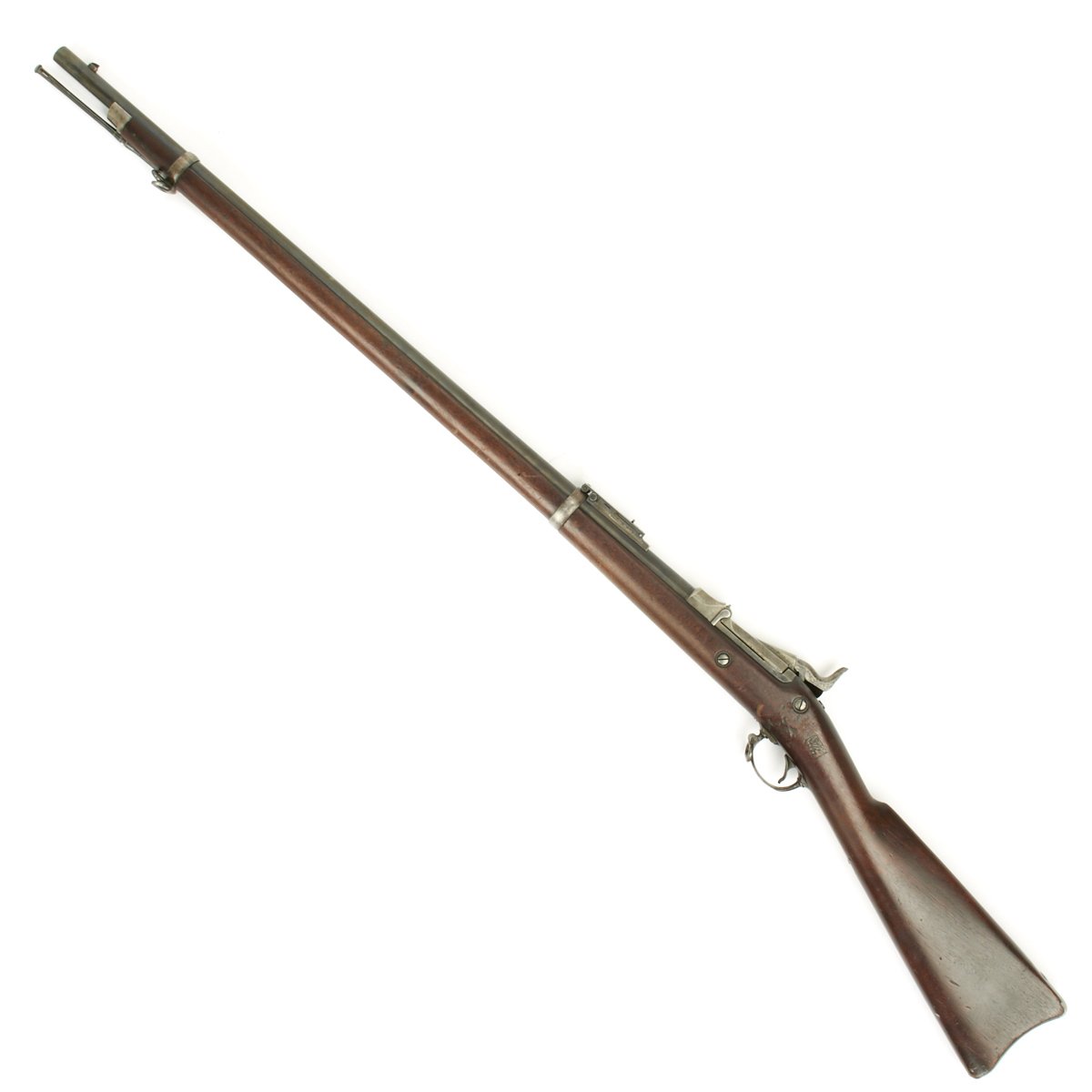

Original U.S. Springfield Trapdoor Model 1884 Rifle Serial No 371372 - Manufactured in 1887

Item Description

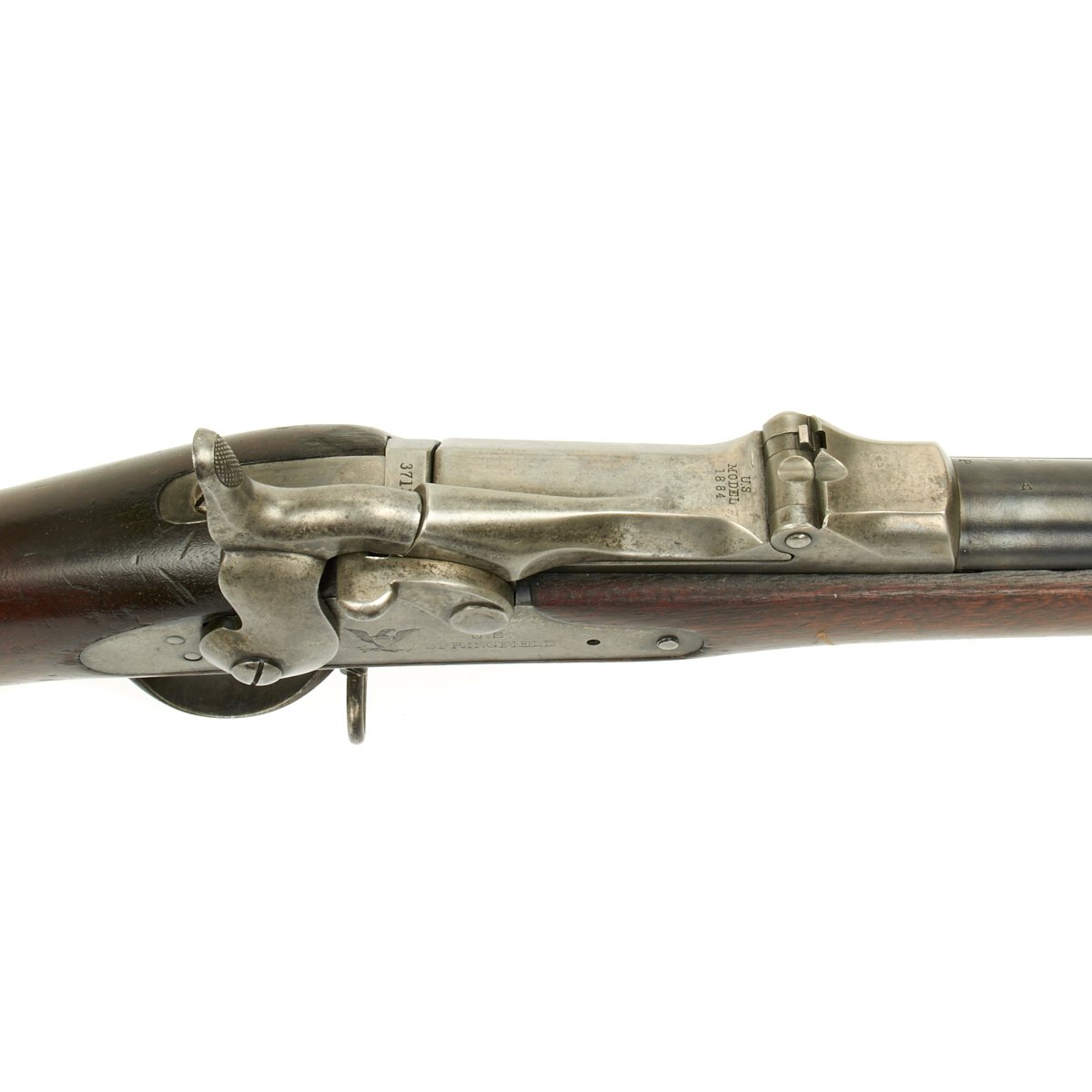

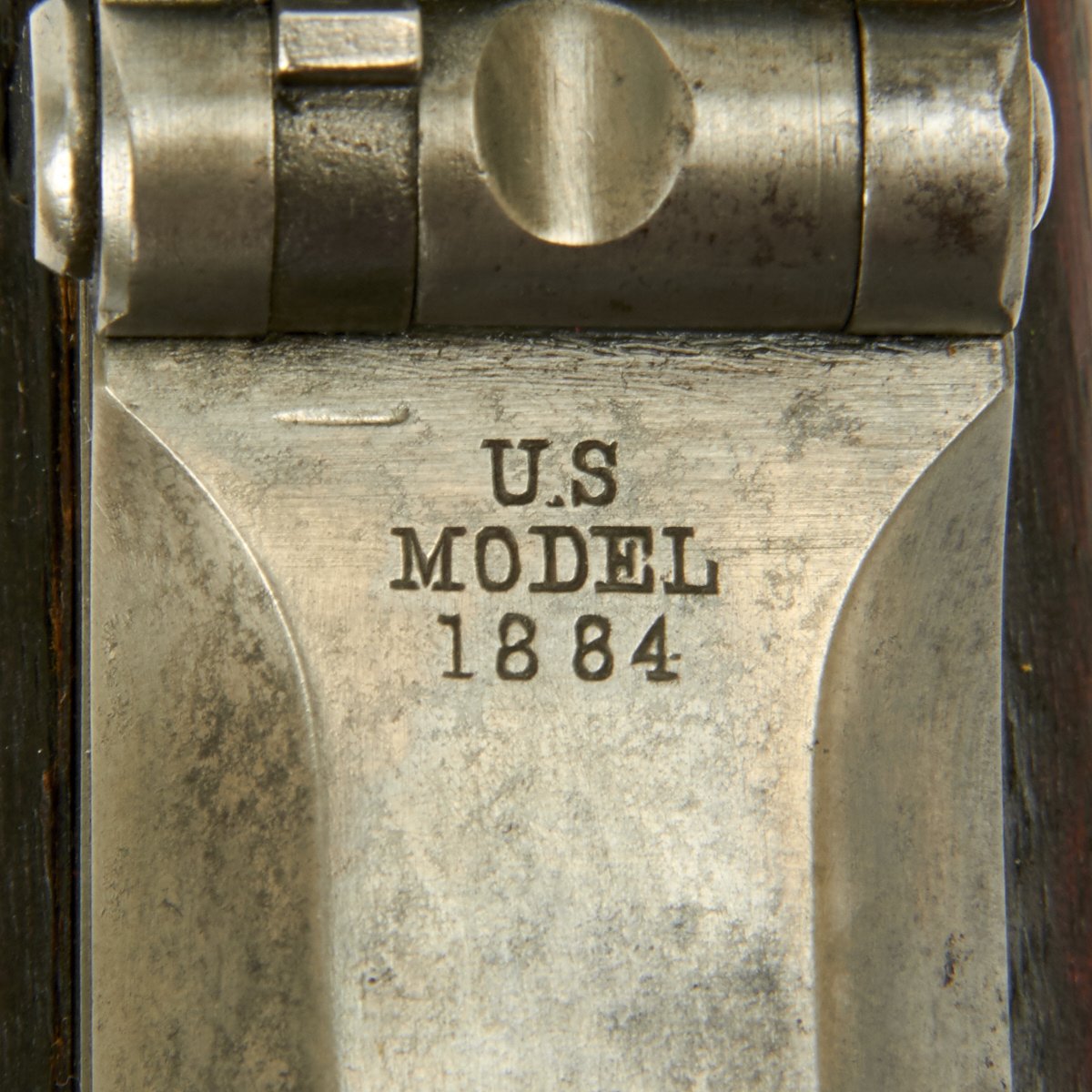

Original Item: Only One available. This is an excellent example of the classic Springfield trapdoor rifle, its breach block is marked:

U.S.
MODEL
1884

The rifle is in excellent condition with great amounts of the original finish remaining. The Springfield Trapdoor rifle was the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876.

This is a real peach and well worth placing in any U.S. Military Collection.

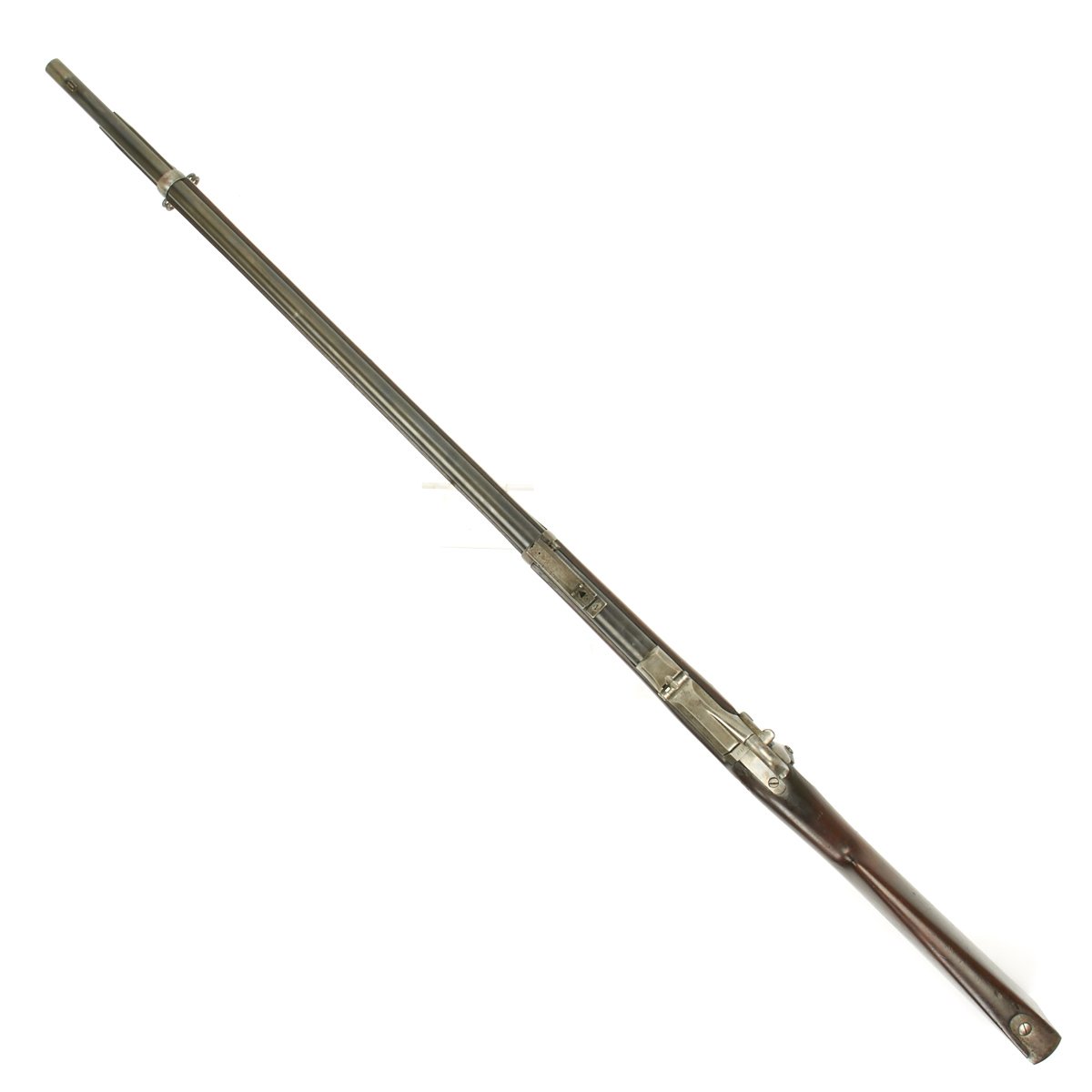

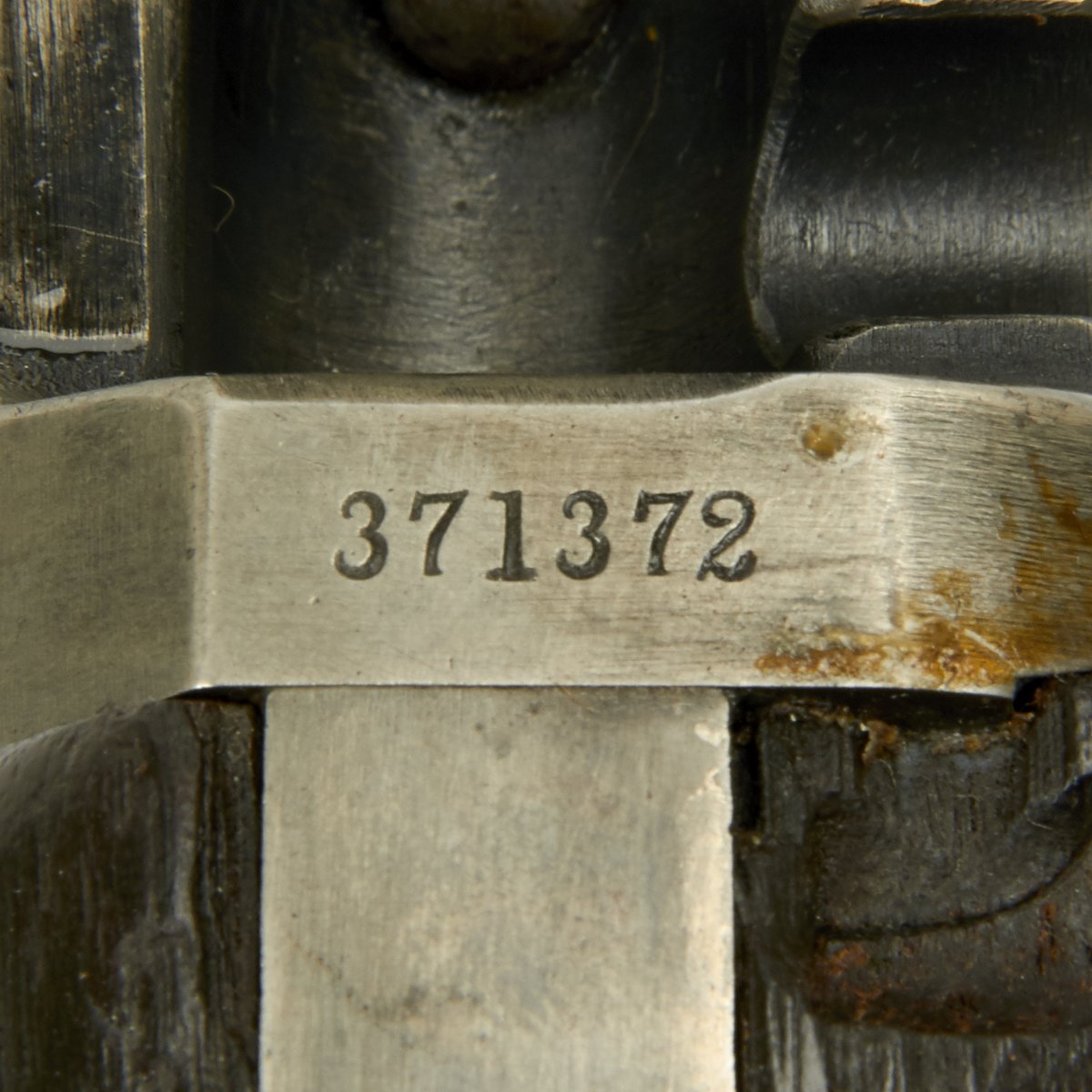

Trapdoor rifle in 45-70 government caliber. Serial # 371372 overall very good metal finish with all proofs still present.

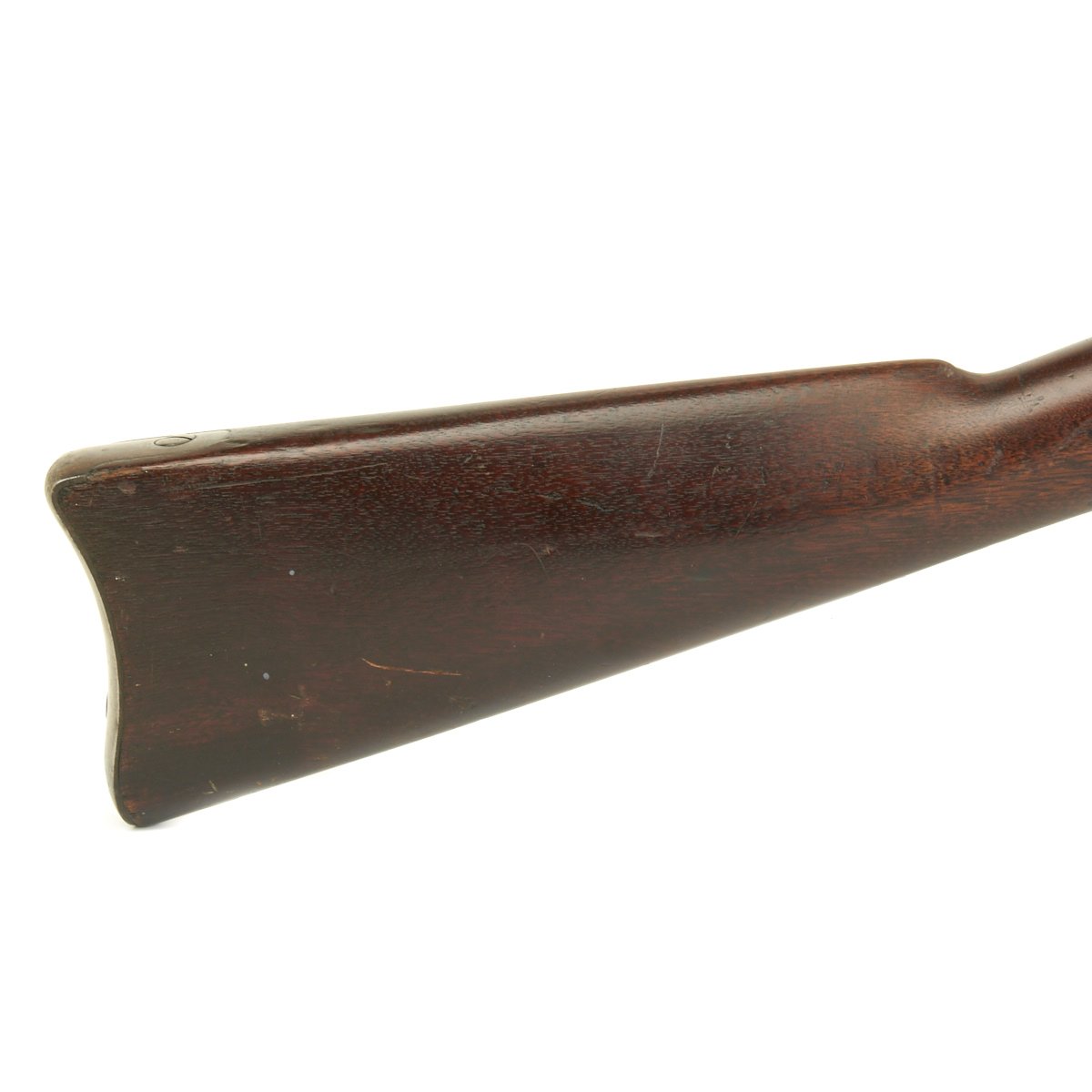

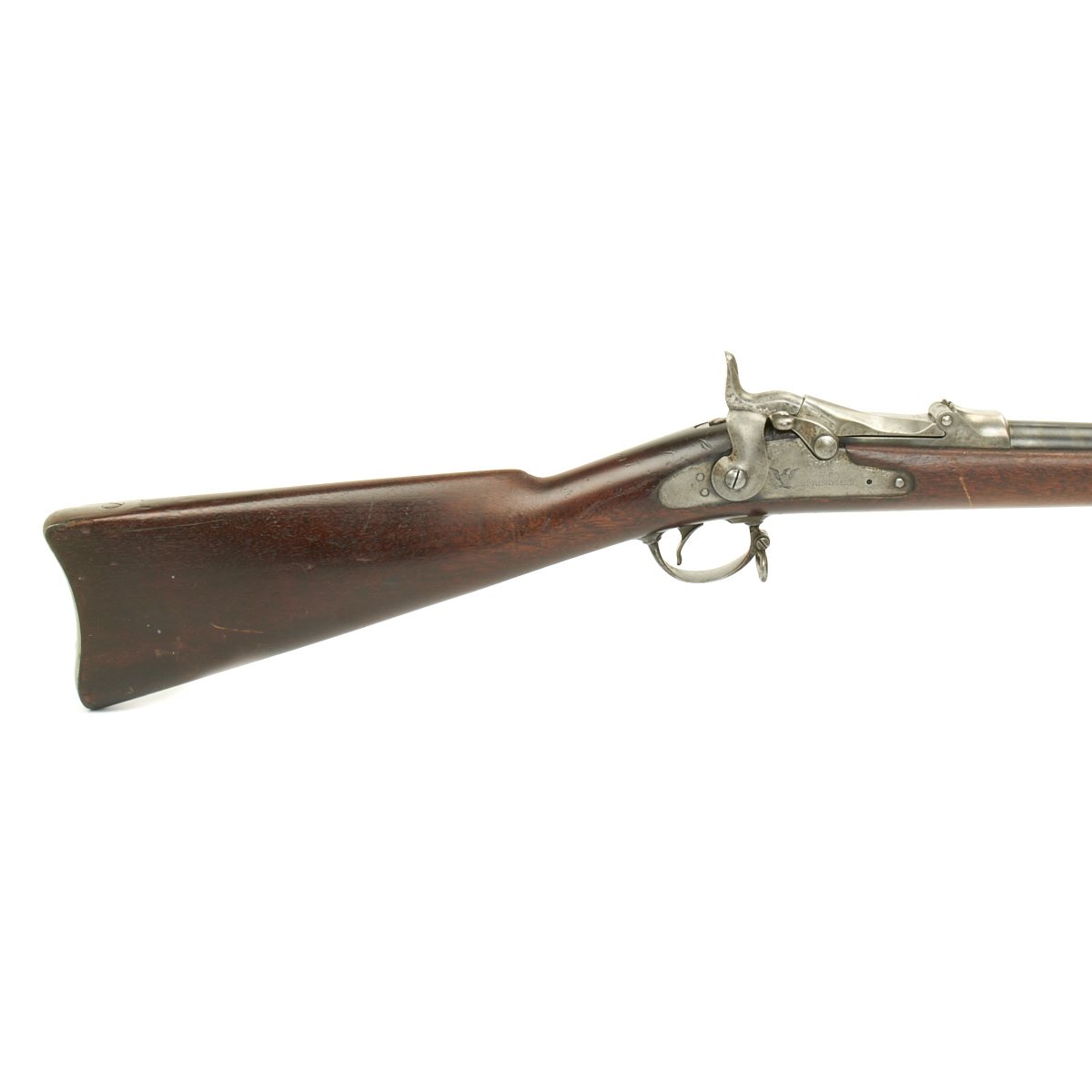

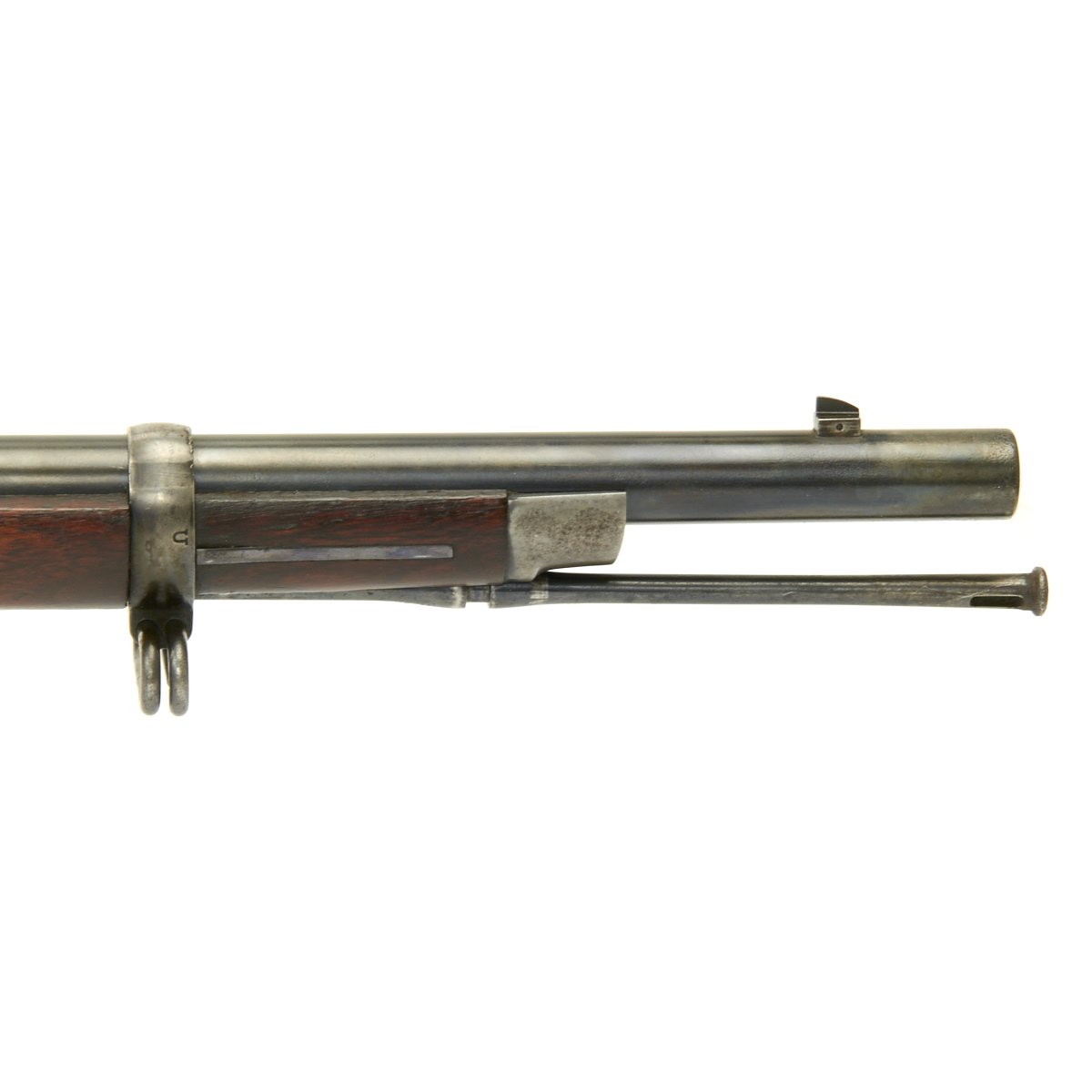

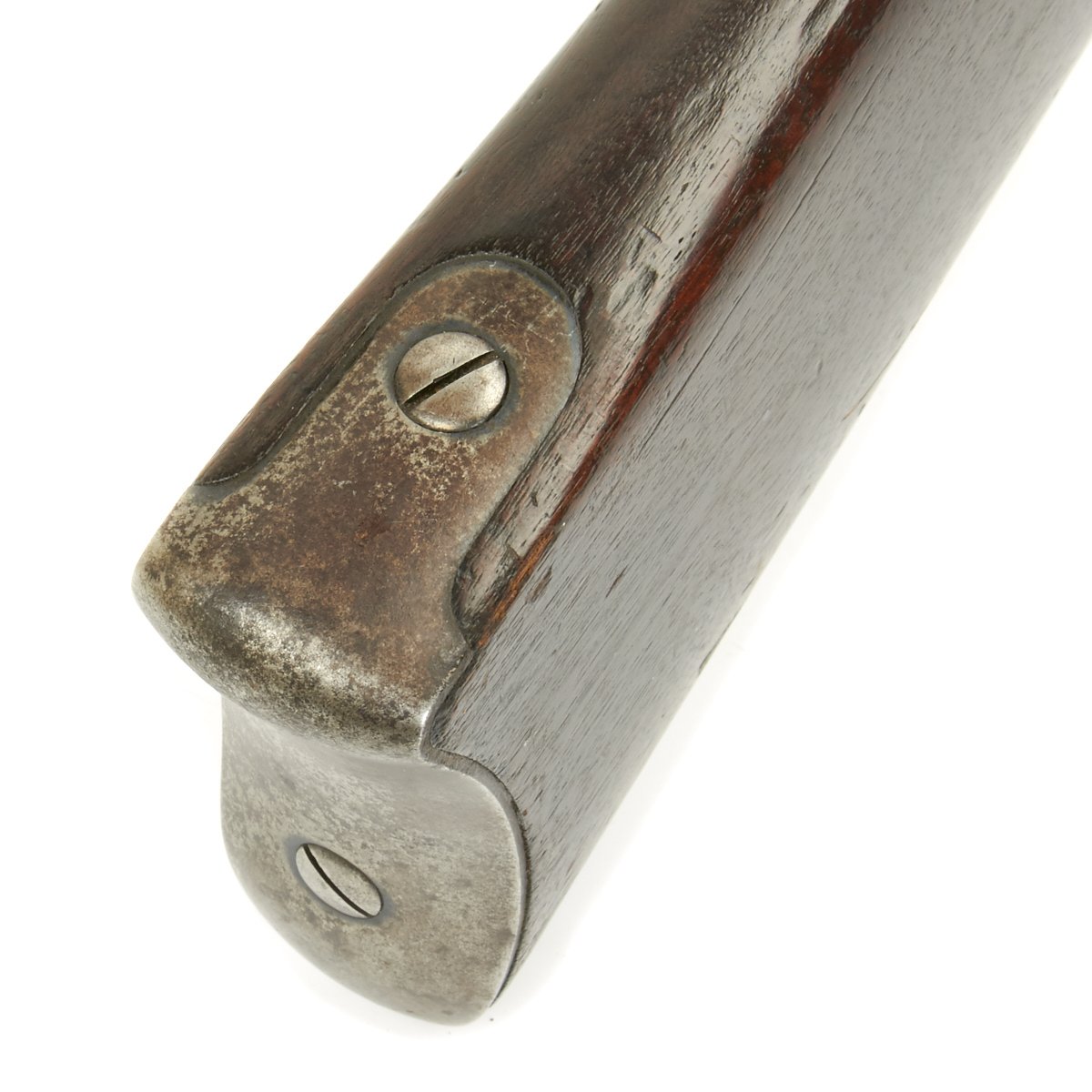

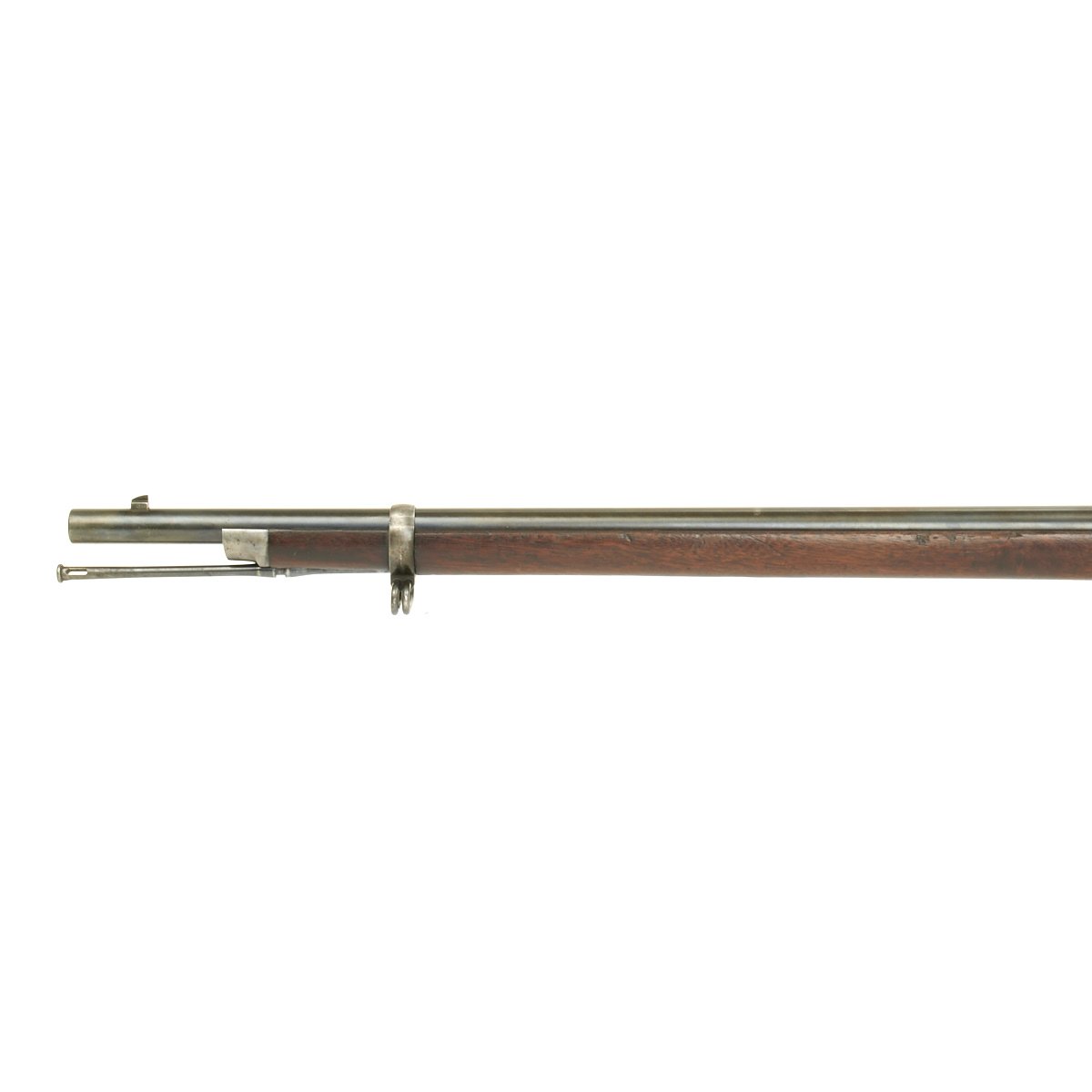

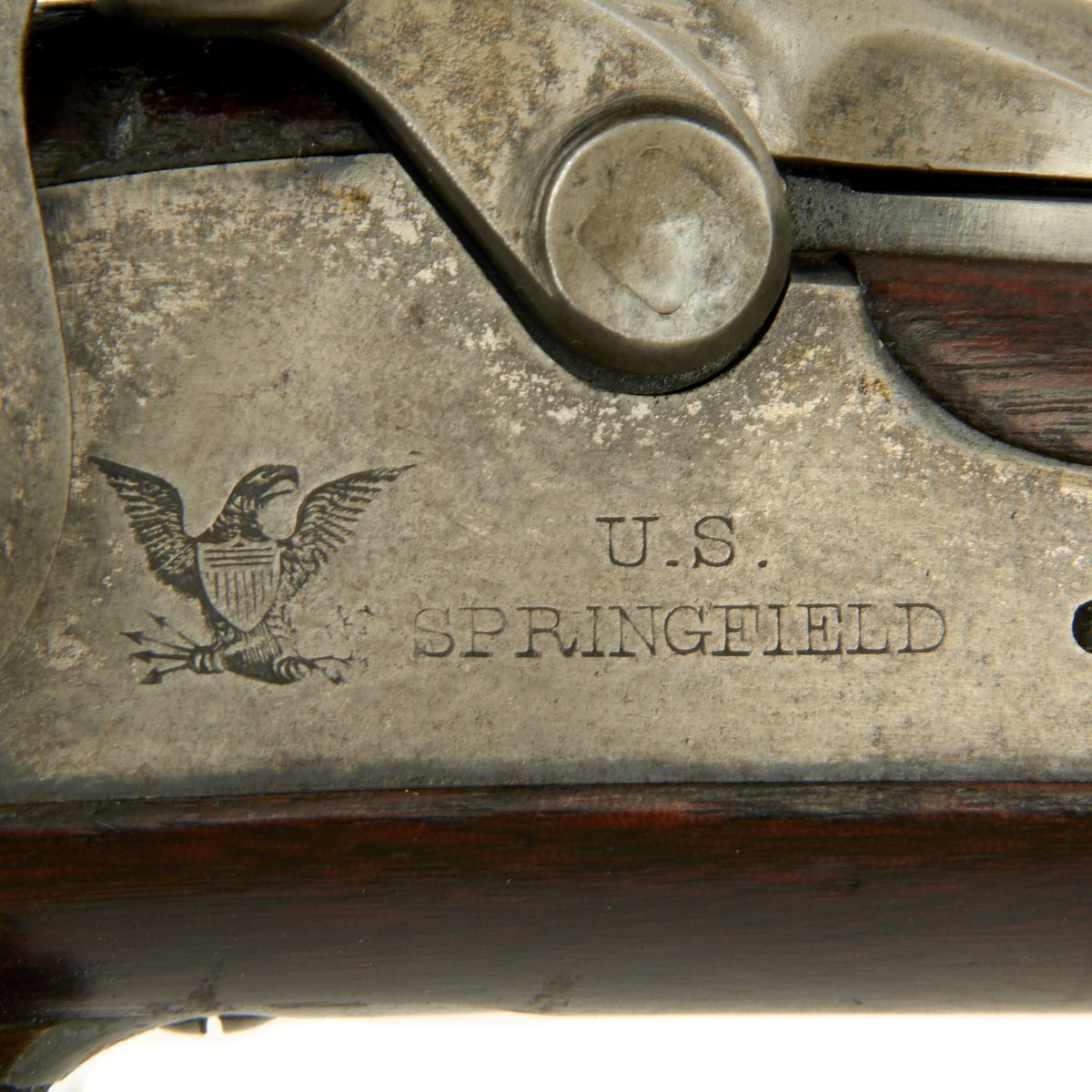

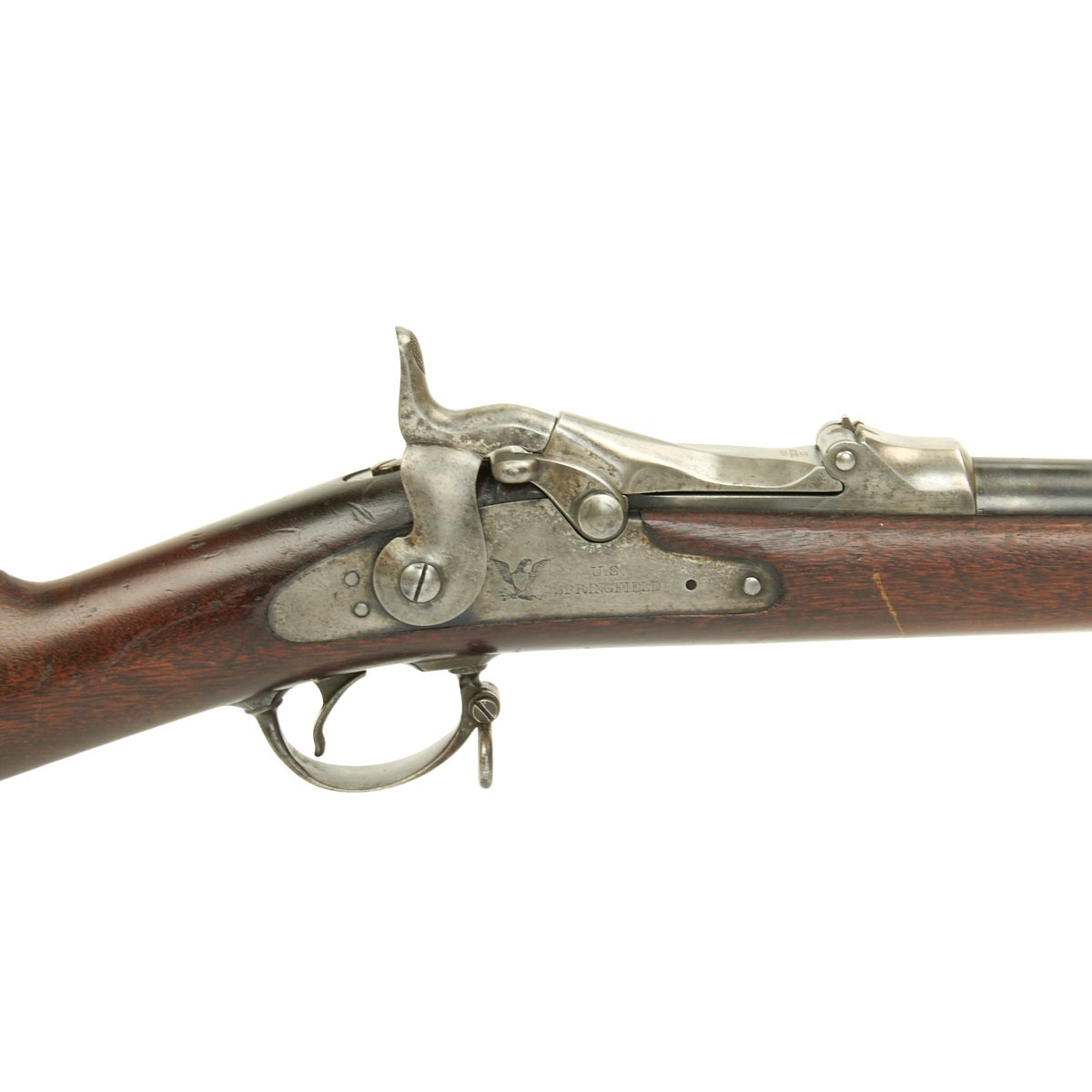

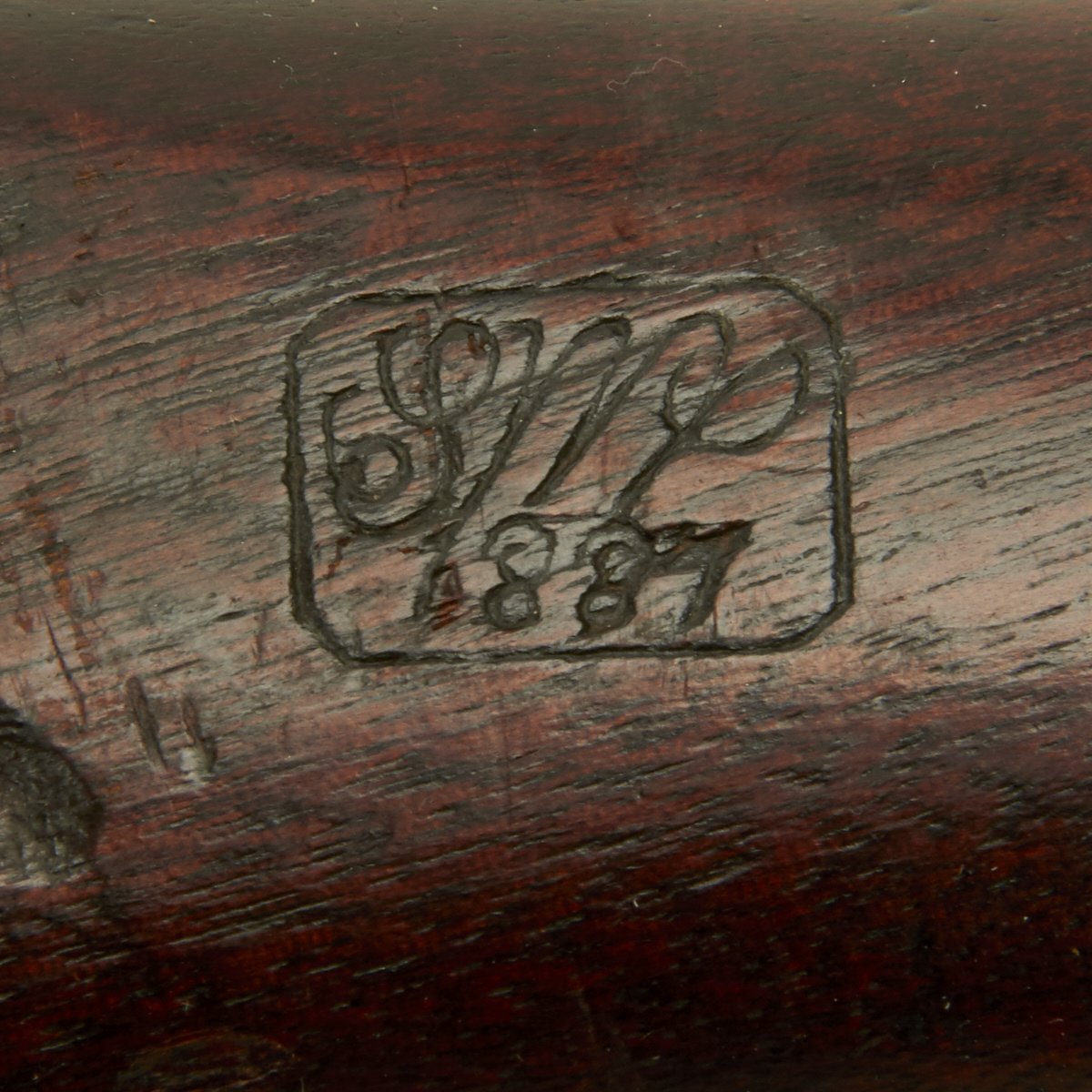

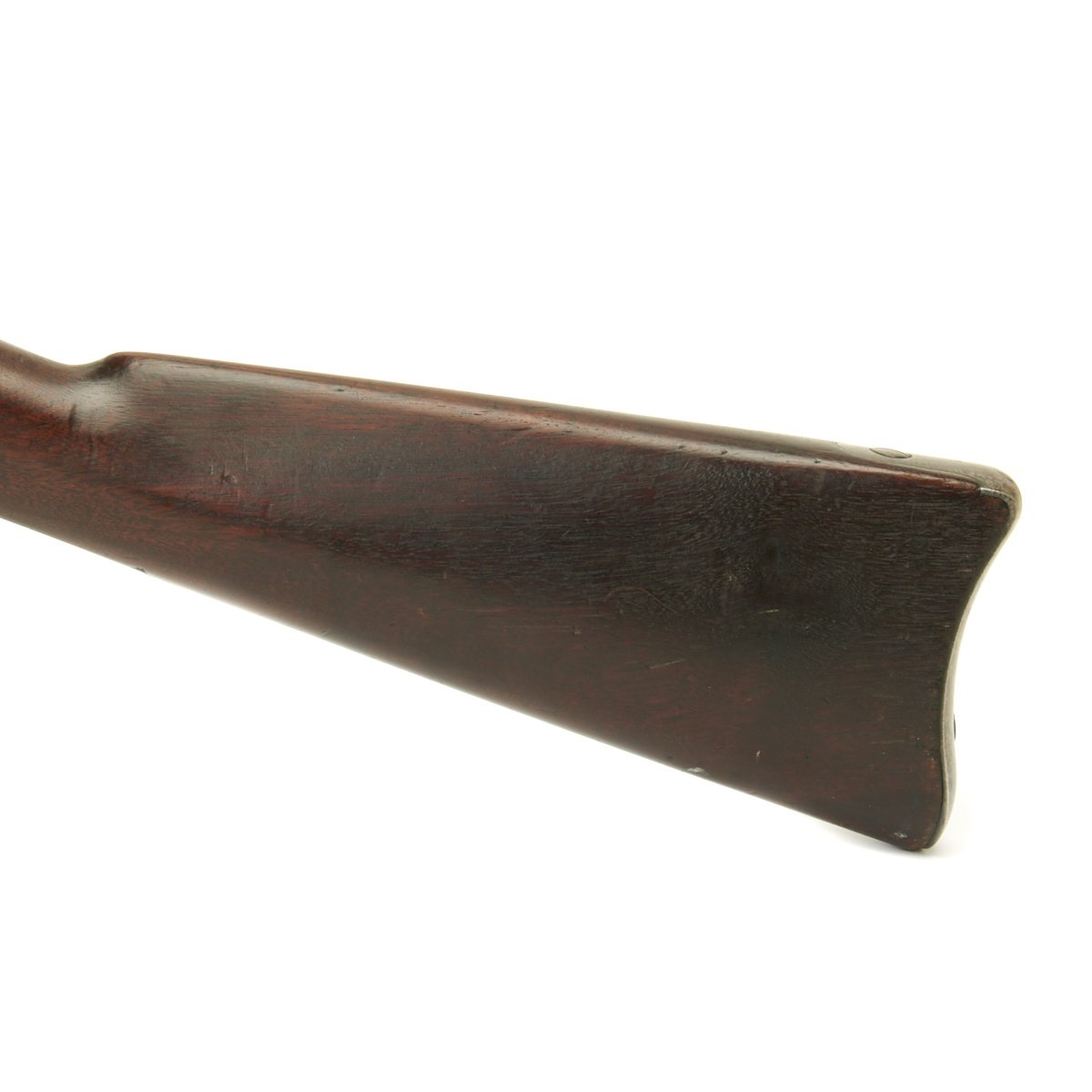

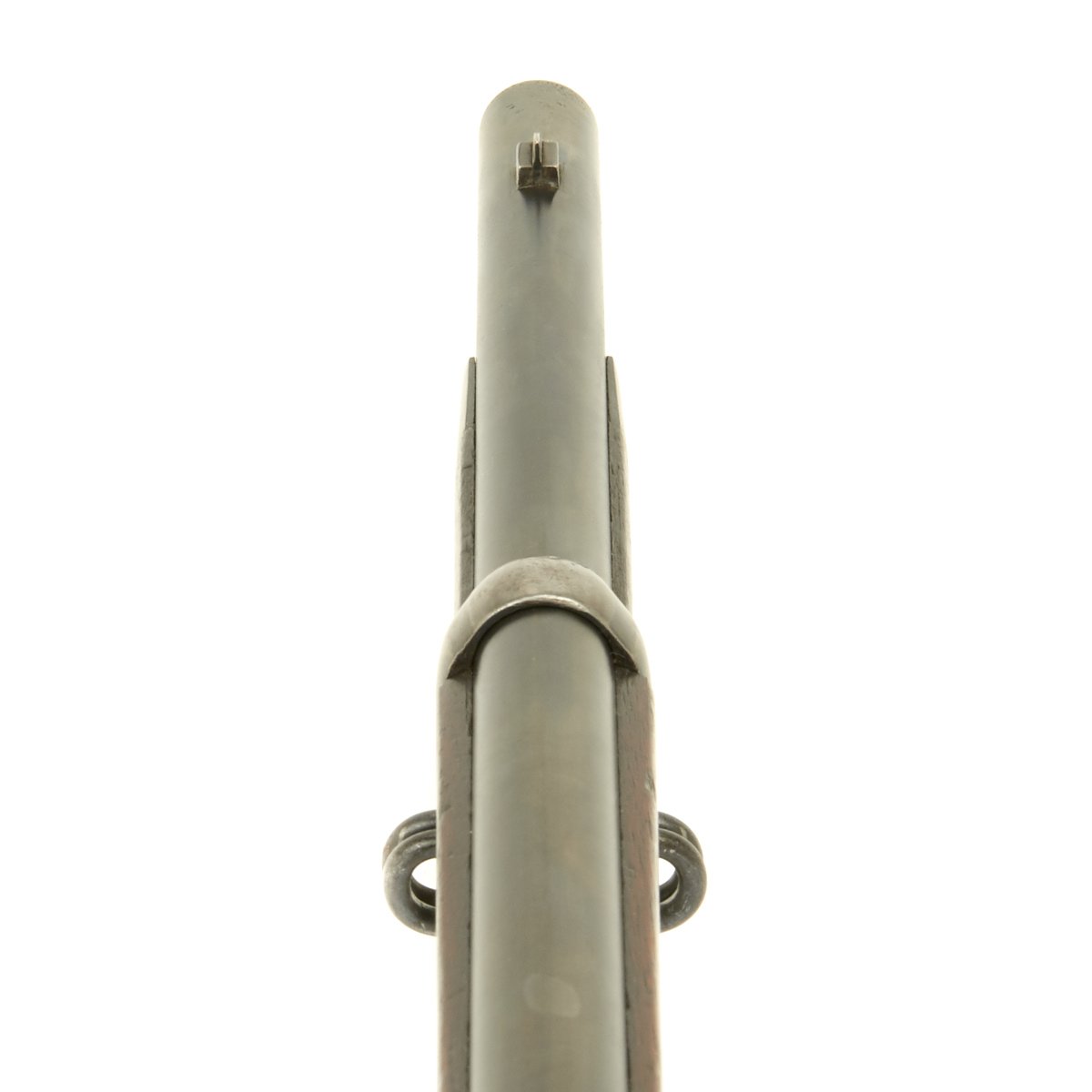

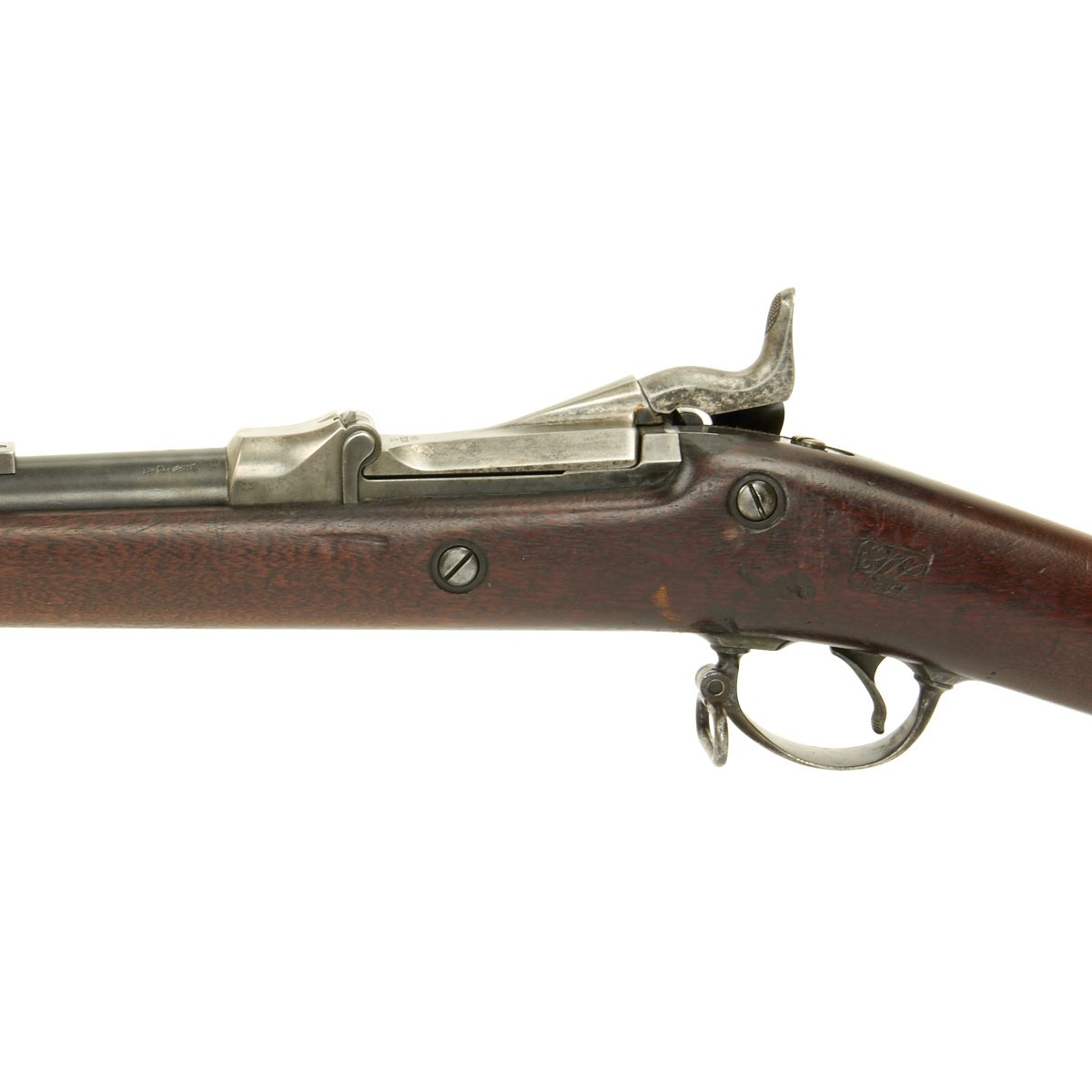

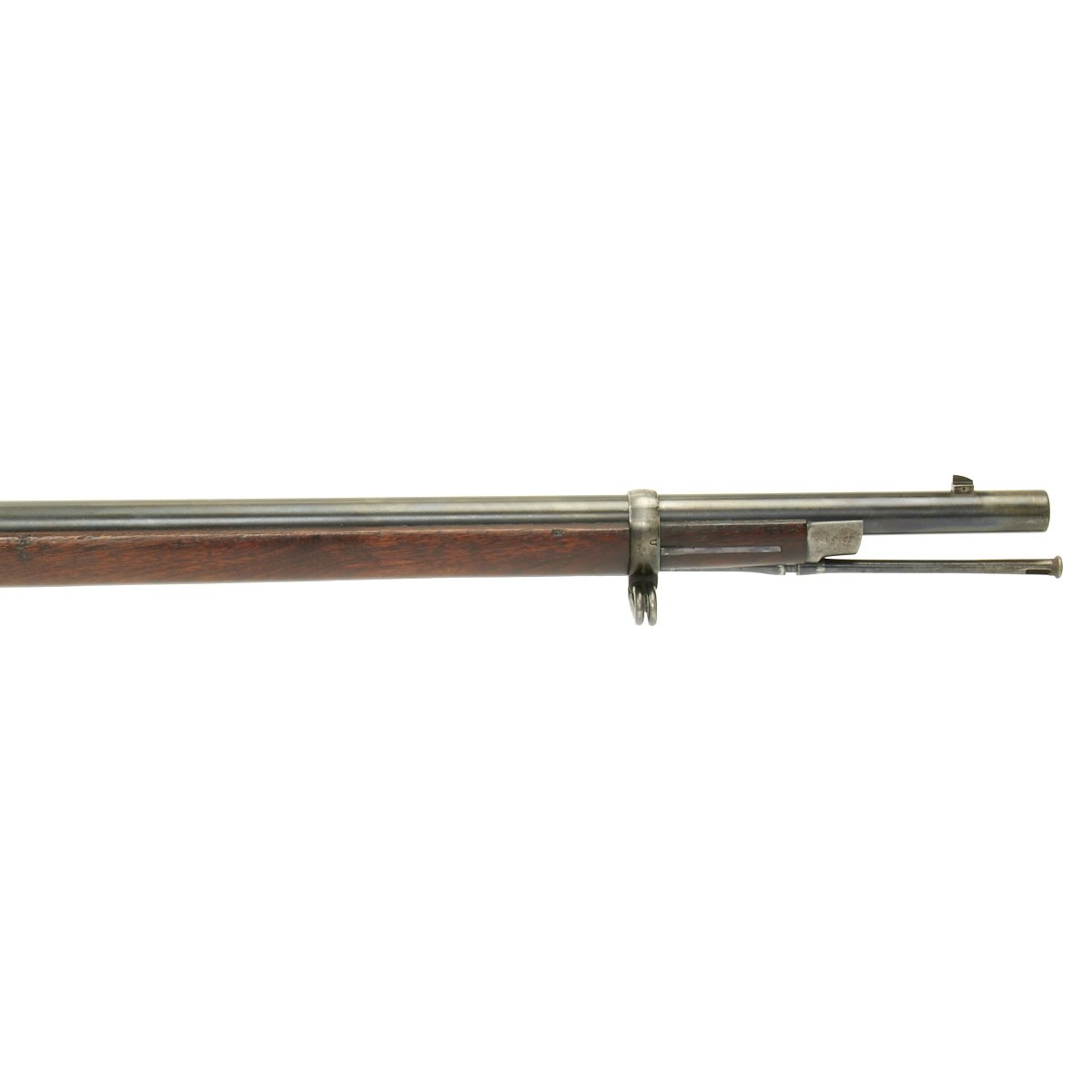

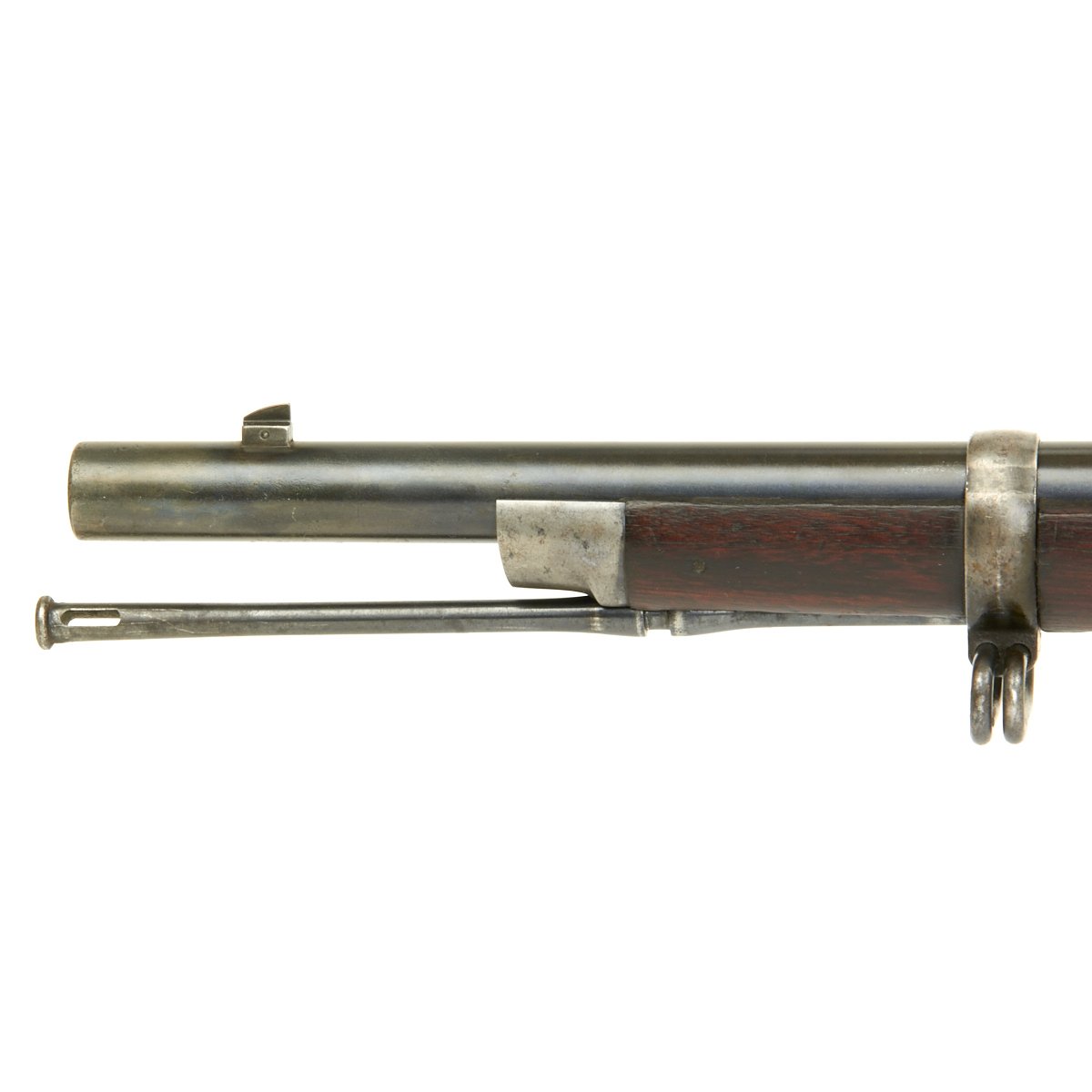

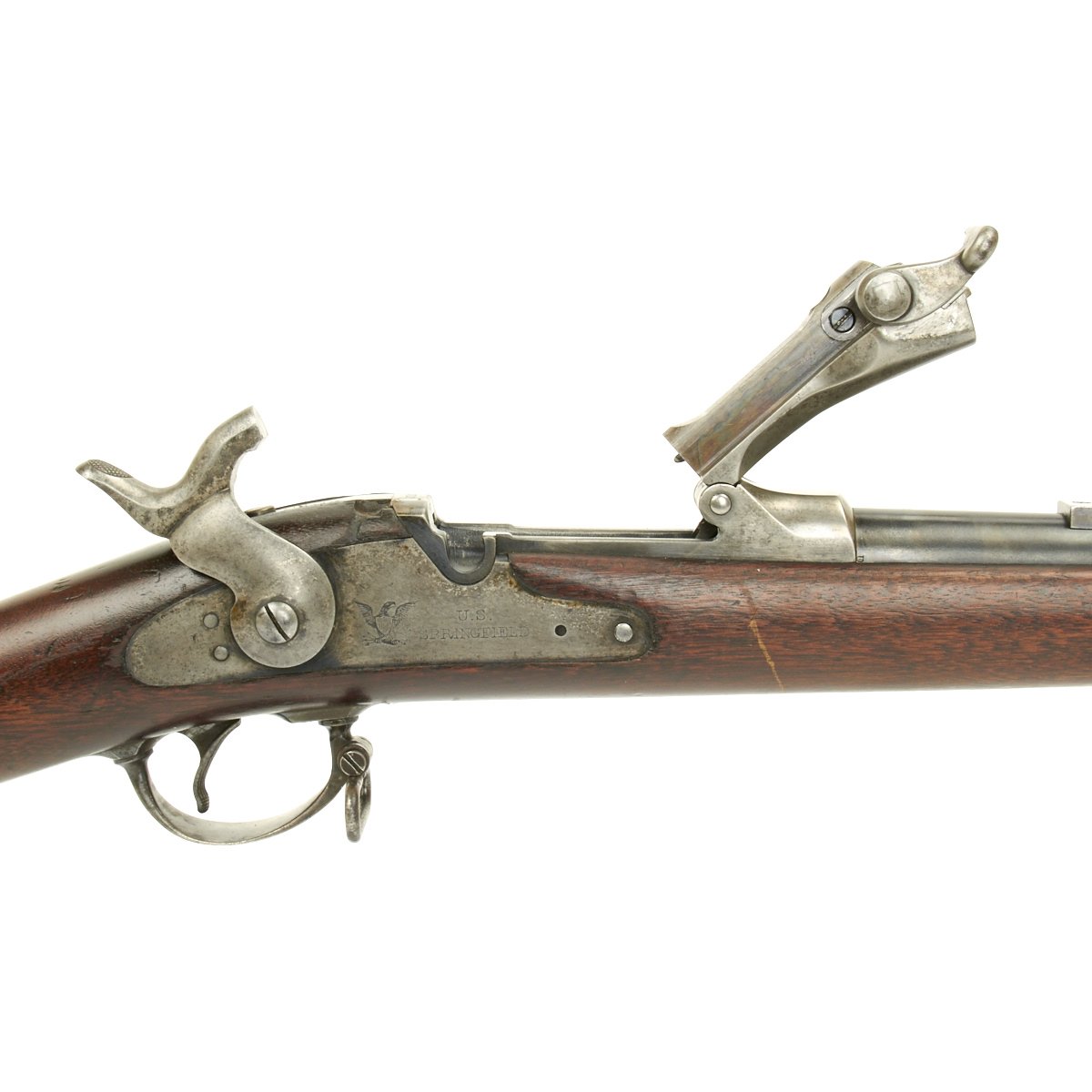

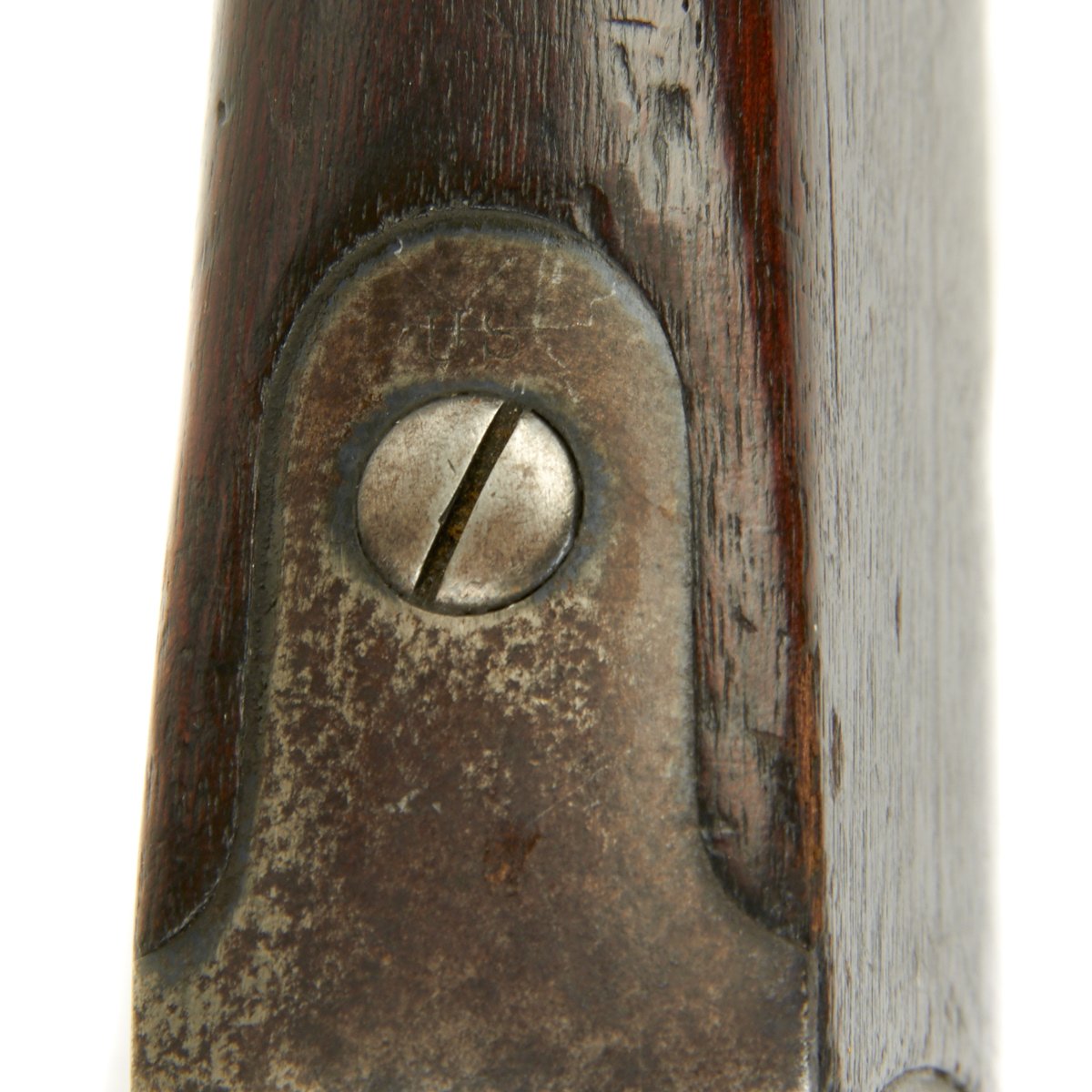

The butt plate is marked U.S. and both barrel bands are "U" marked. The rifle features an excellent un-sanded stock with clearly visible 1887 SWP cartouche. Center fire breechloader, .45 cal., two bands, two sling swivels, Buffington sight, sliding ramrod. Lock is marked with an eagle and "US SPRINGFIELD, manufactured by Springfield Armory, Springfield Massachusetts.

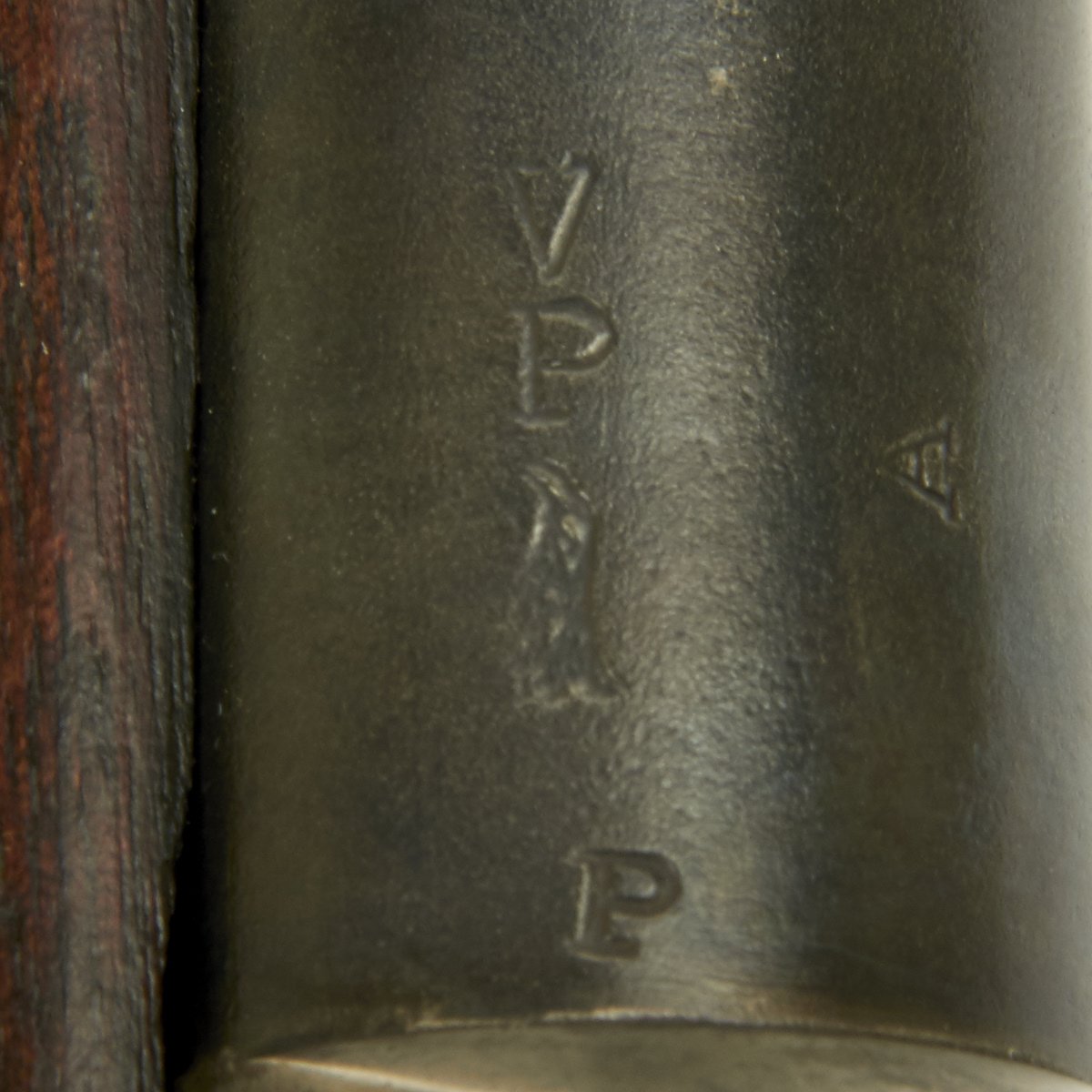

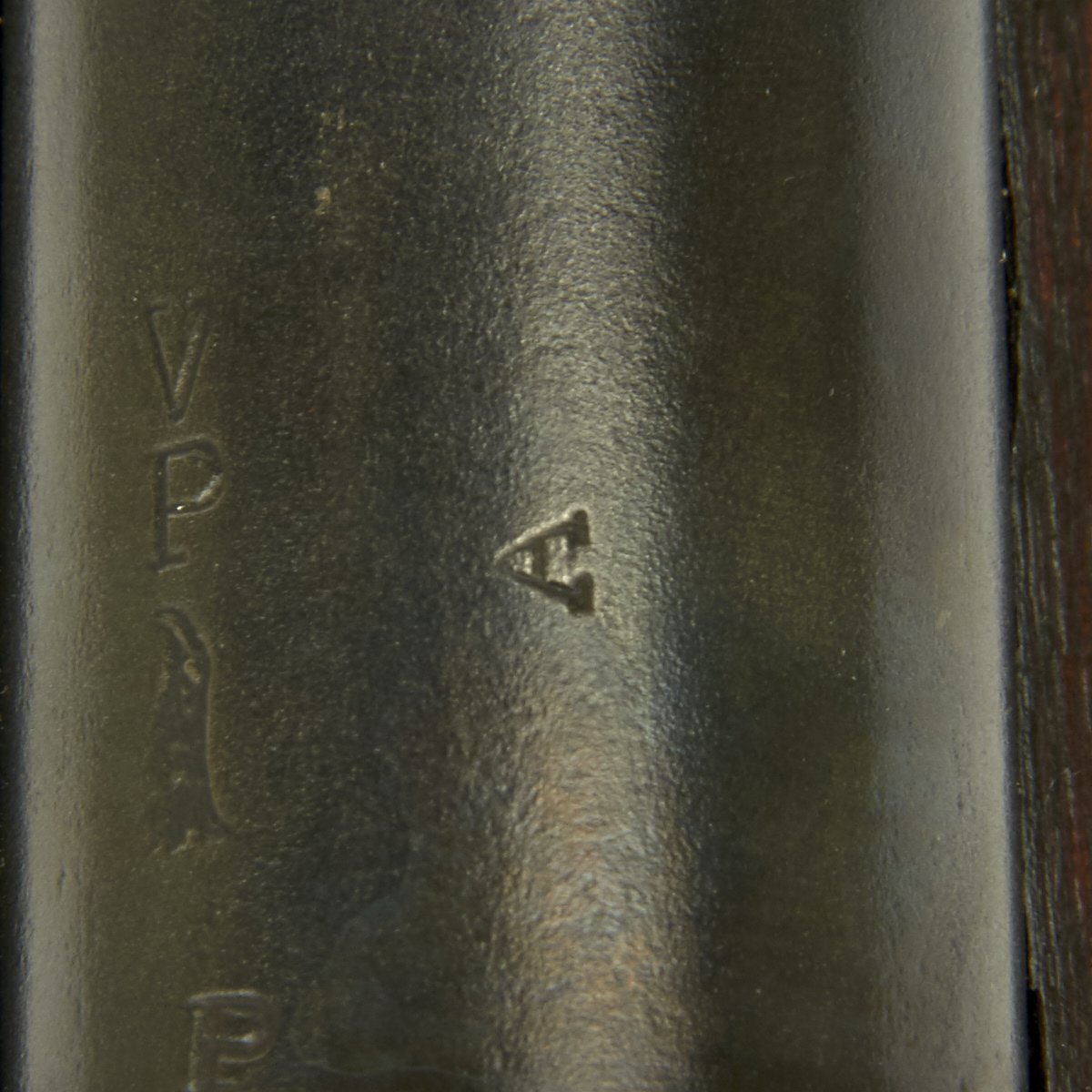

A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. It is also marked "A.L." next to the overpressure proof. Additional marks of interest include inspectors’ and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle’s head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

Note: This gun is NOT considered obsolete calibre in the UK.

History of the Model 1884:

The model 1884 traces its roots back to the design of the Springfield 1873. Most of the changes that identify the model 1884 as a distinct model occurred either before or after 1884. The model 1884 incorporated a significant number of improvements that had been made between 1878 and 1879. It also featured a serrated trigger that had been incorporated into the Springfield rifle design in 1883.

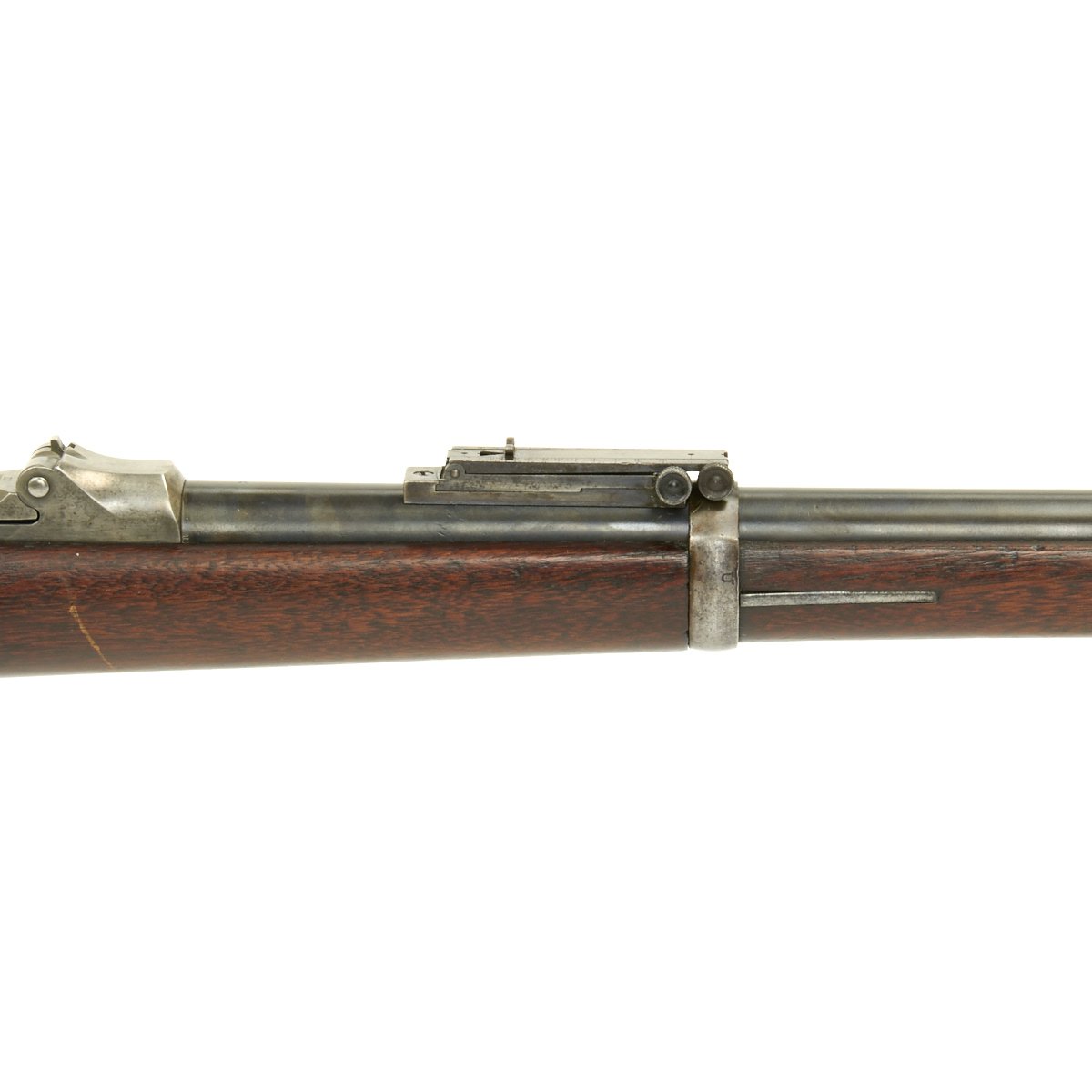

The most dramatic change to the rifle design, which is often considered to be the identifying feature of the model 1884, was a new rear sight which had been designed by Lieutenant Colonel Adelbert R. Buffington of the U.S. Army Ordnance Department. This sight however was not perfected until 1885.

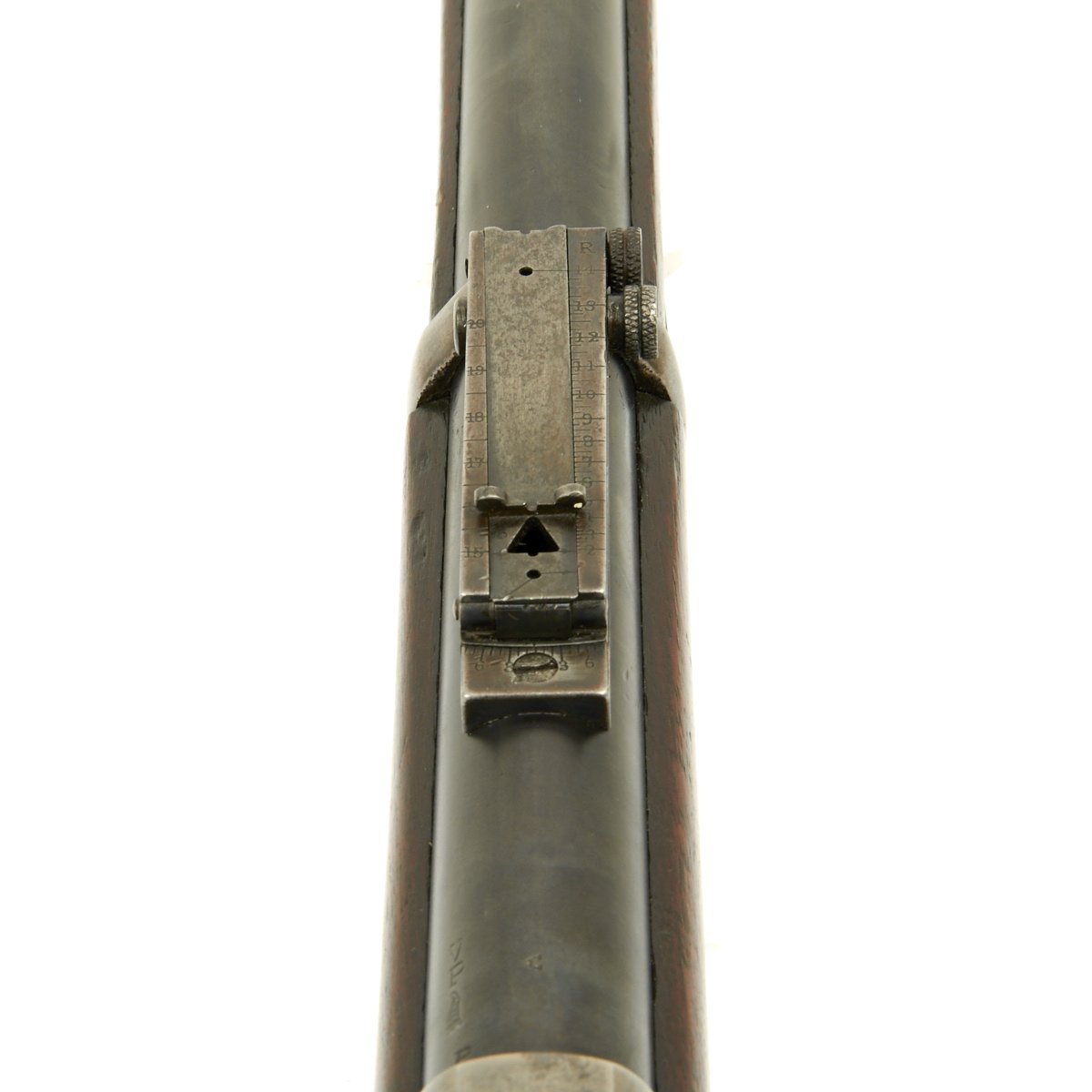

The principal feature of this new sight was a rack and pinion style windage adjustment. Unlike previous sights, the base was not used for any position other than point blank. The raised leaf had graduations from 200 to 1400 yards. A new barrel band was also designed to accommodate this new sight so that it could lie flat in the point blank position.

Marksmen generally favored the new sight, but general troops were less enthusiastic about it and often considered it to be an annoyance.

The model 1884 was also produced in a carbine version. It was found that the rear sight could be easily damaged when removing the rifle from the carbine boot. The rear barrel band was therefore modified in 1890 to include a rear sight protector.

A round-rod bayonet model was also produced. This, like the Springfield model 1880, was an attempt to combine the ramrod (aka cleaning rod) and bayonet into a single unit. The model 1884 version included an improved retaining mechanism, as the model 1880's retaining mechanism had proved to be problematic.
