Item:
ON9442

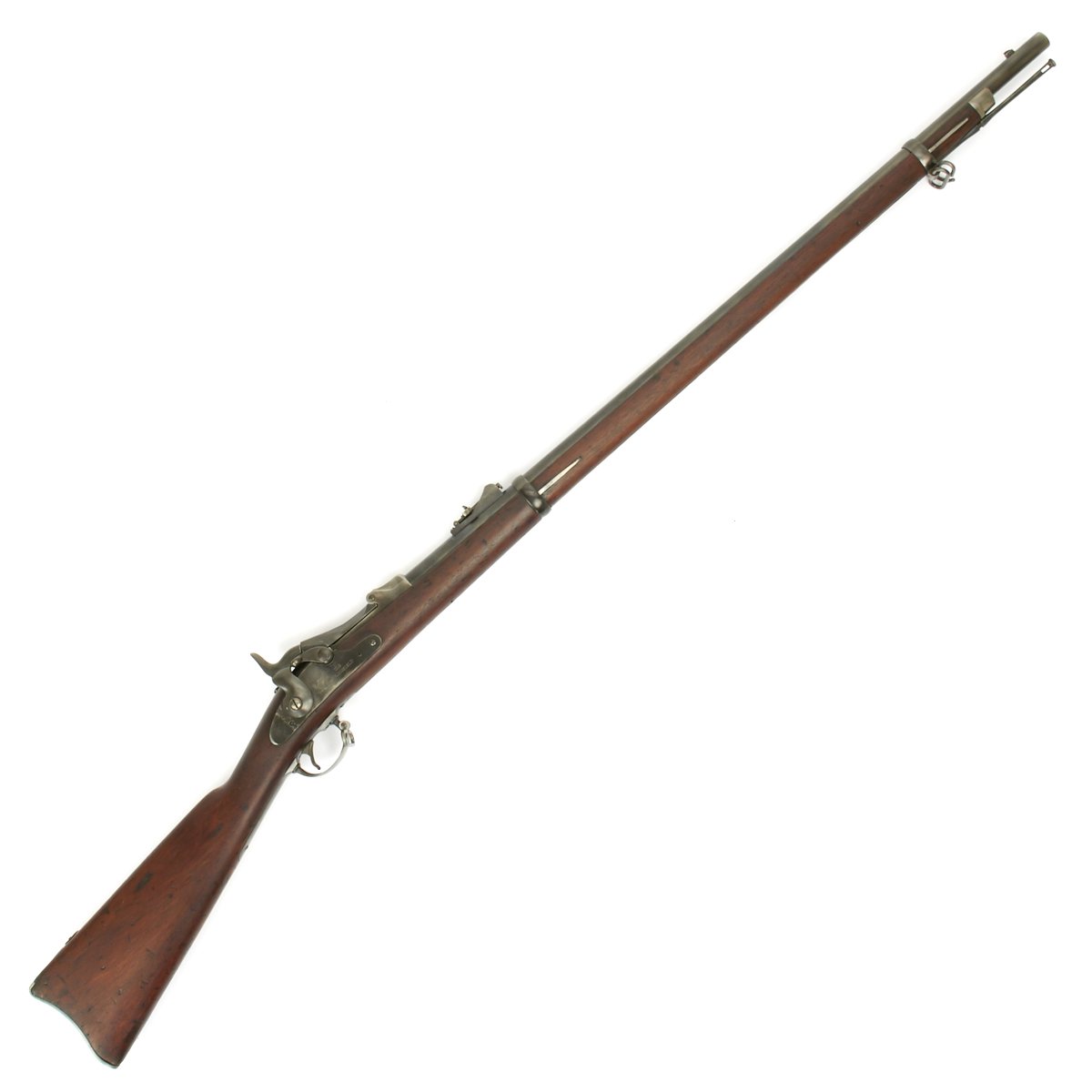

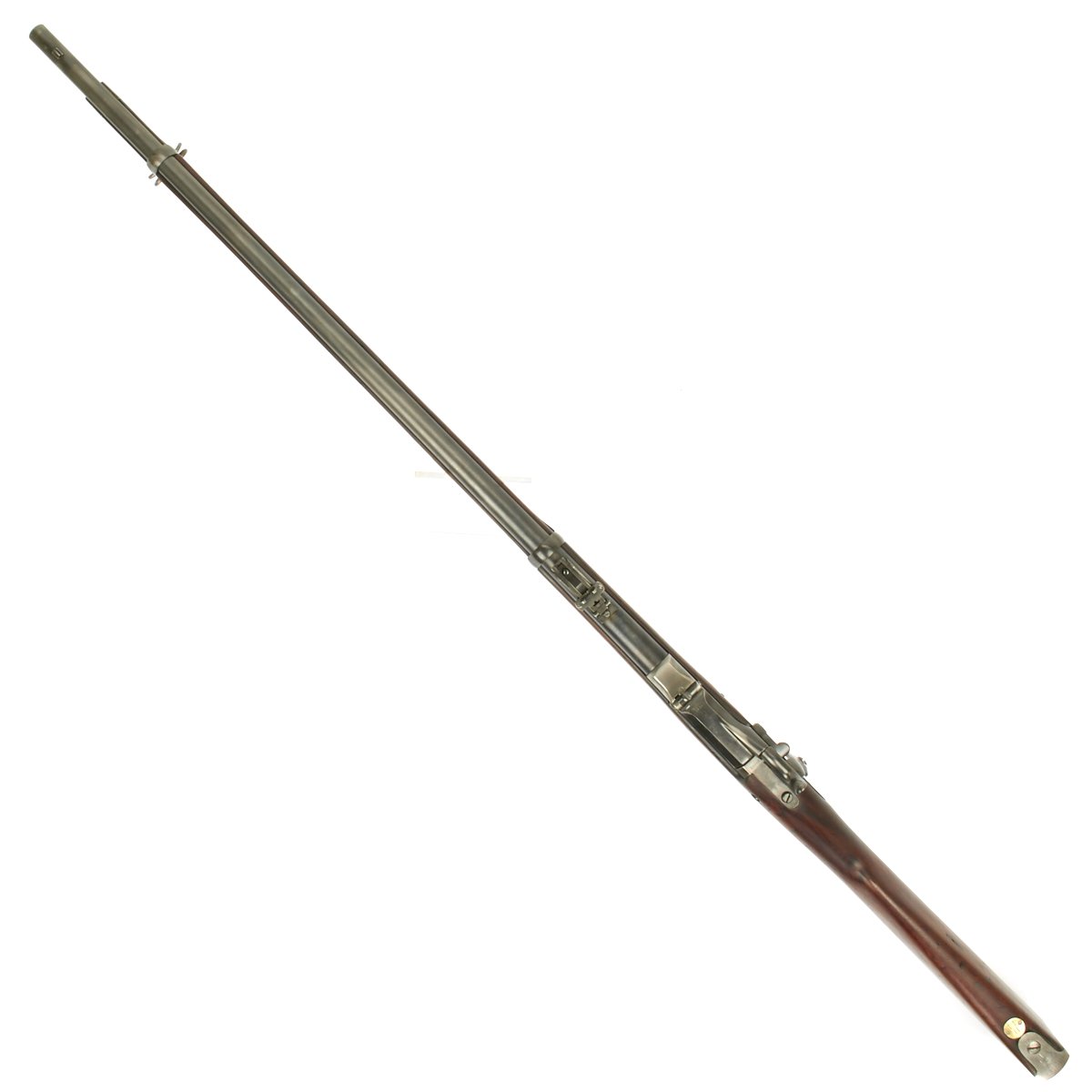

Original U.S. Springfield Trapdoor Model 1884 Rifle Serial No 166681 - Manufactured in 1882

Regular price $995.00

Item Description

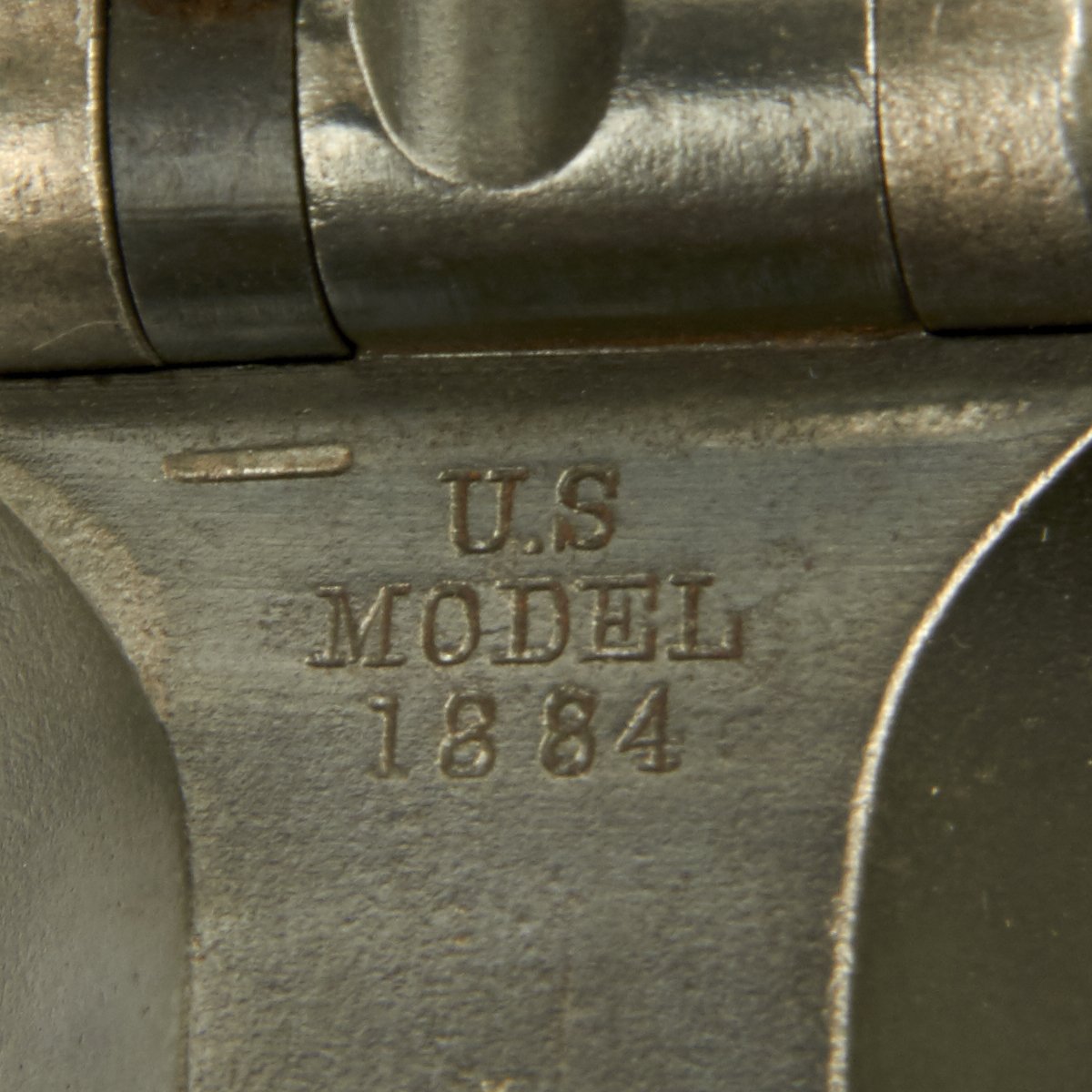

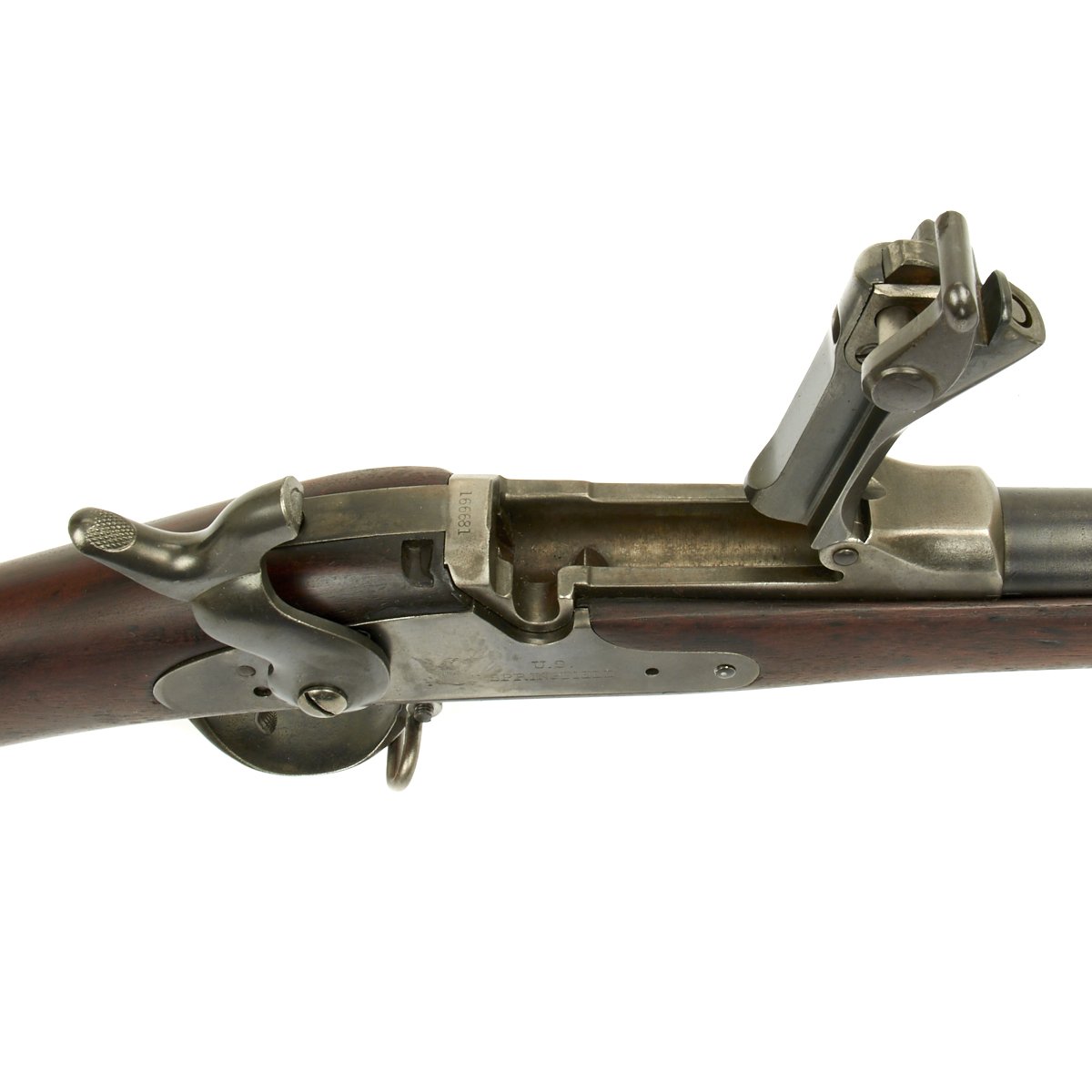

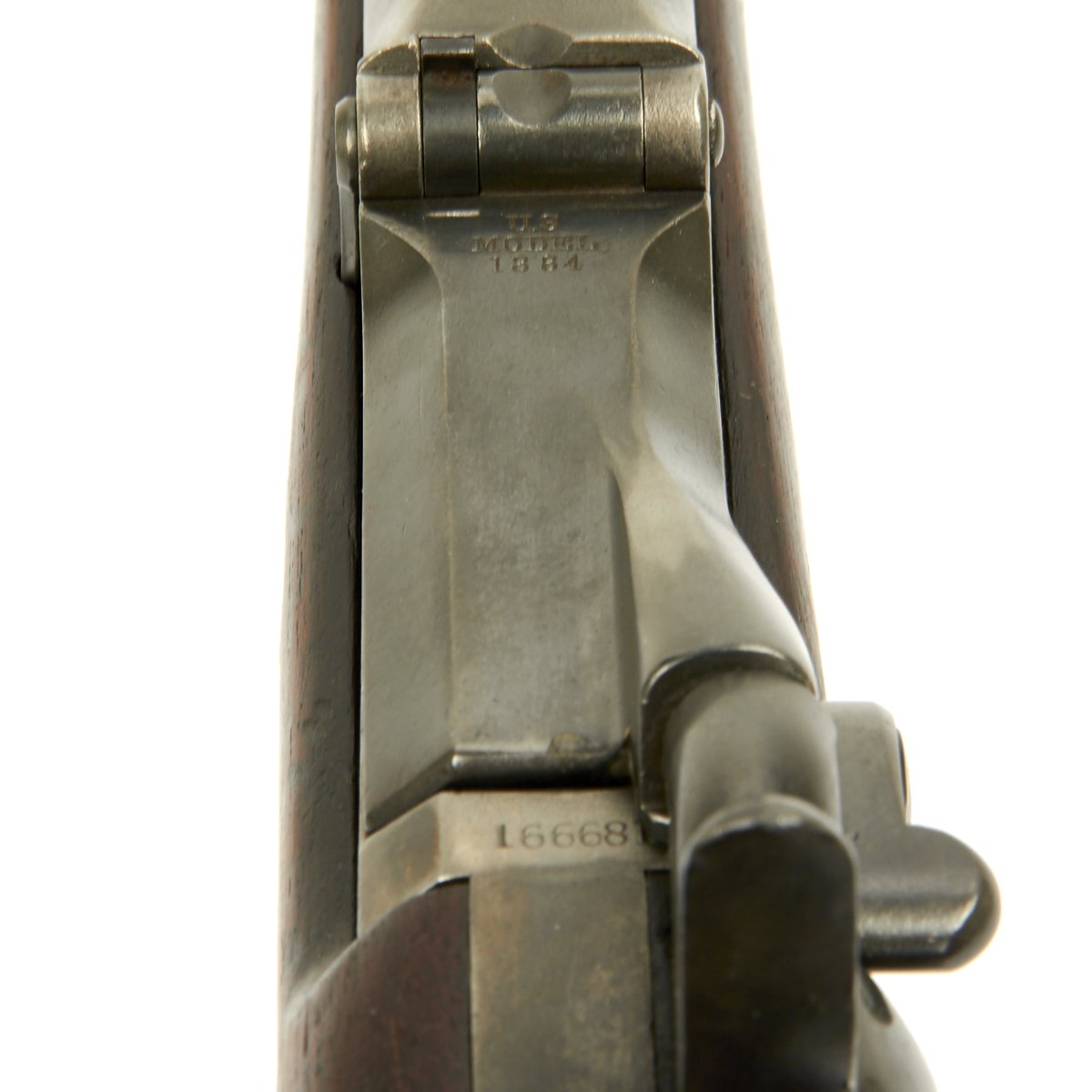

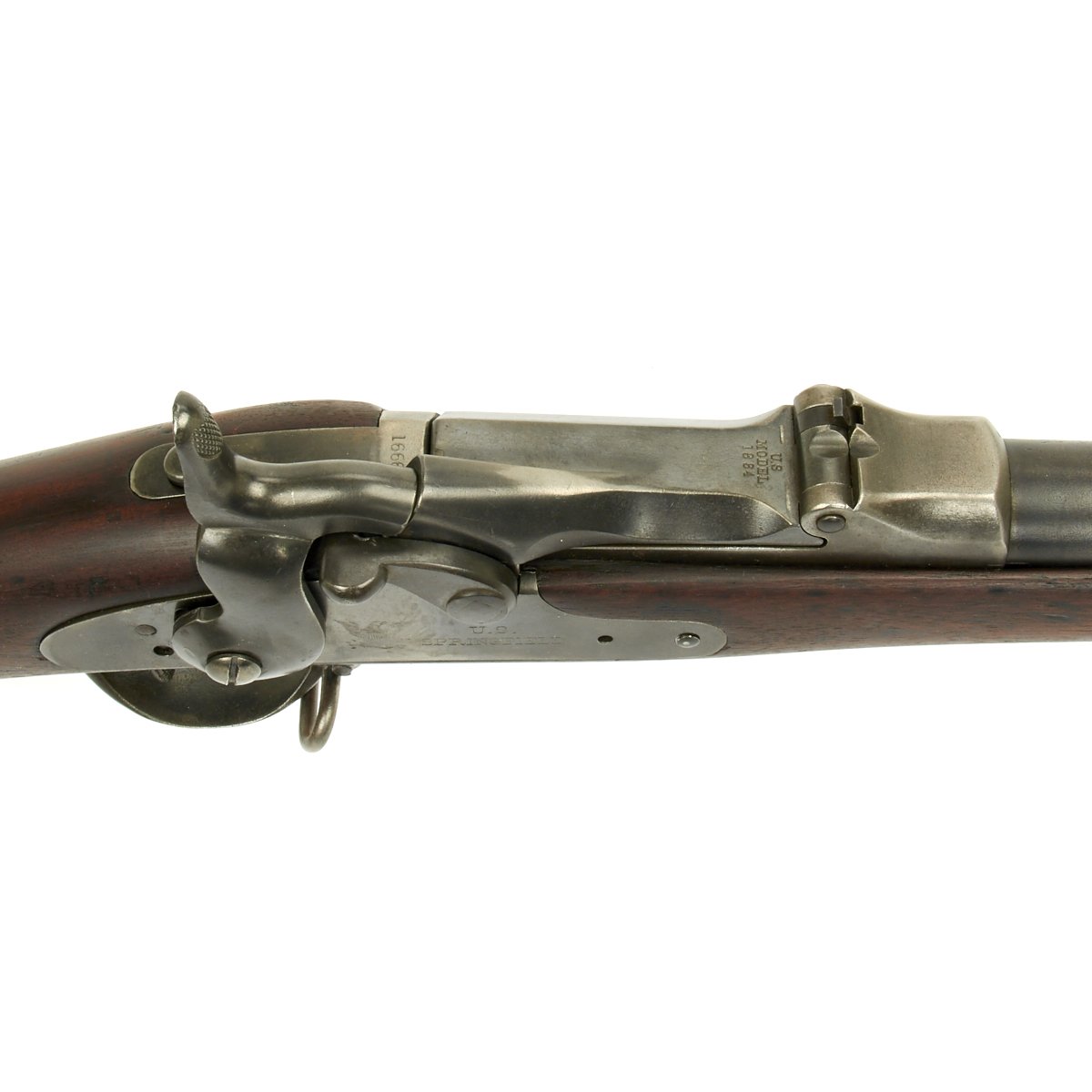

Original Item: Only One available. This is an excellent example of the classic Springfield trapdoor rifle, its breach block is marked:

U.S.

MODEL

1884

The rifle is in excellent condition with great amounts of the original finish remaining. The Springfield Trapdoor rifle was the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876.

This is a real peach and well worth placing in any U.S. Military Collection.

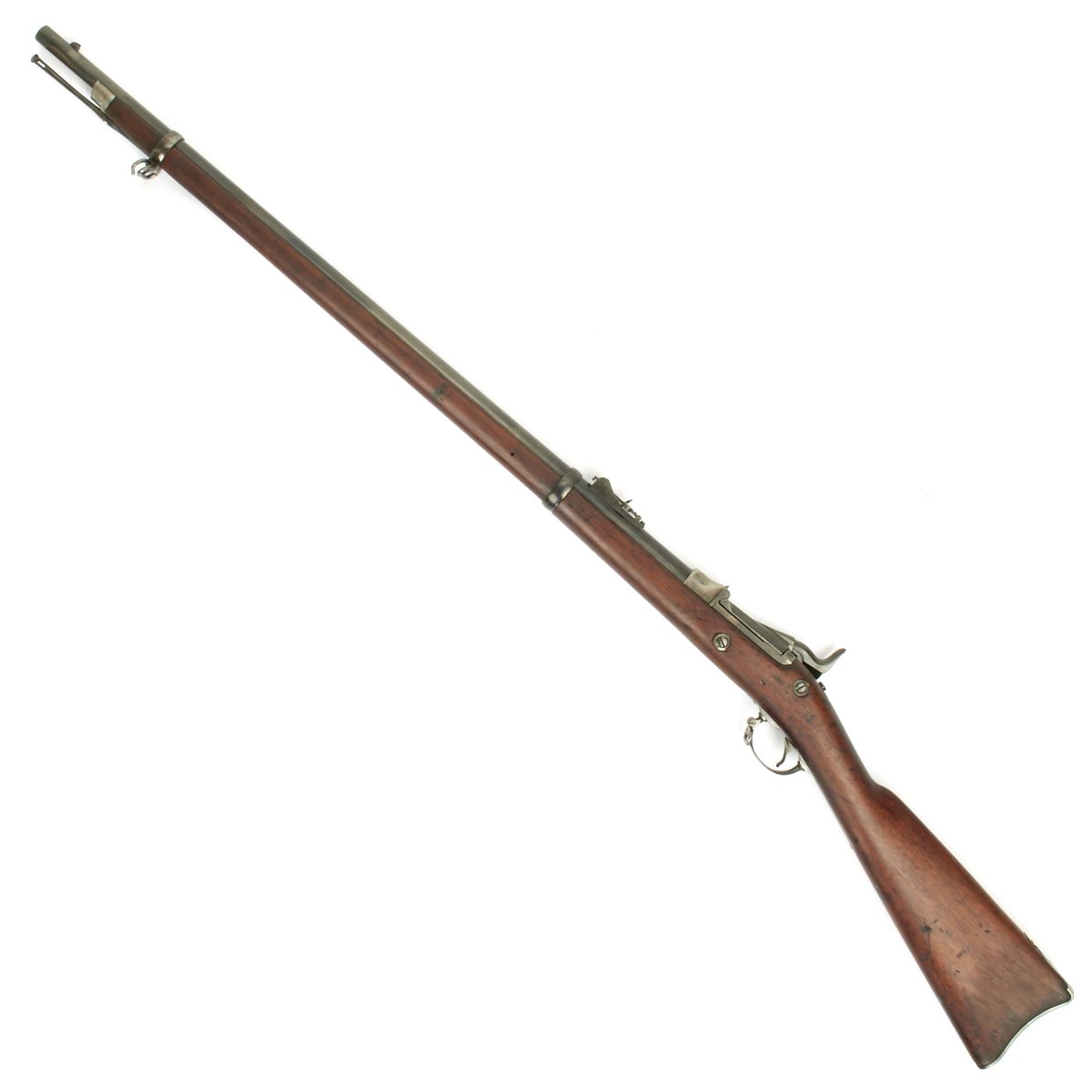

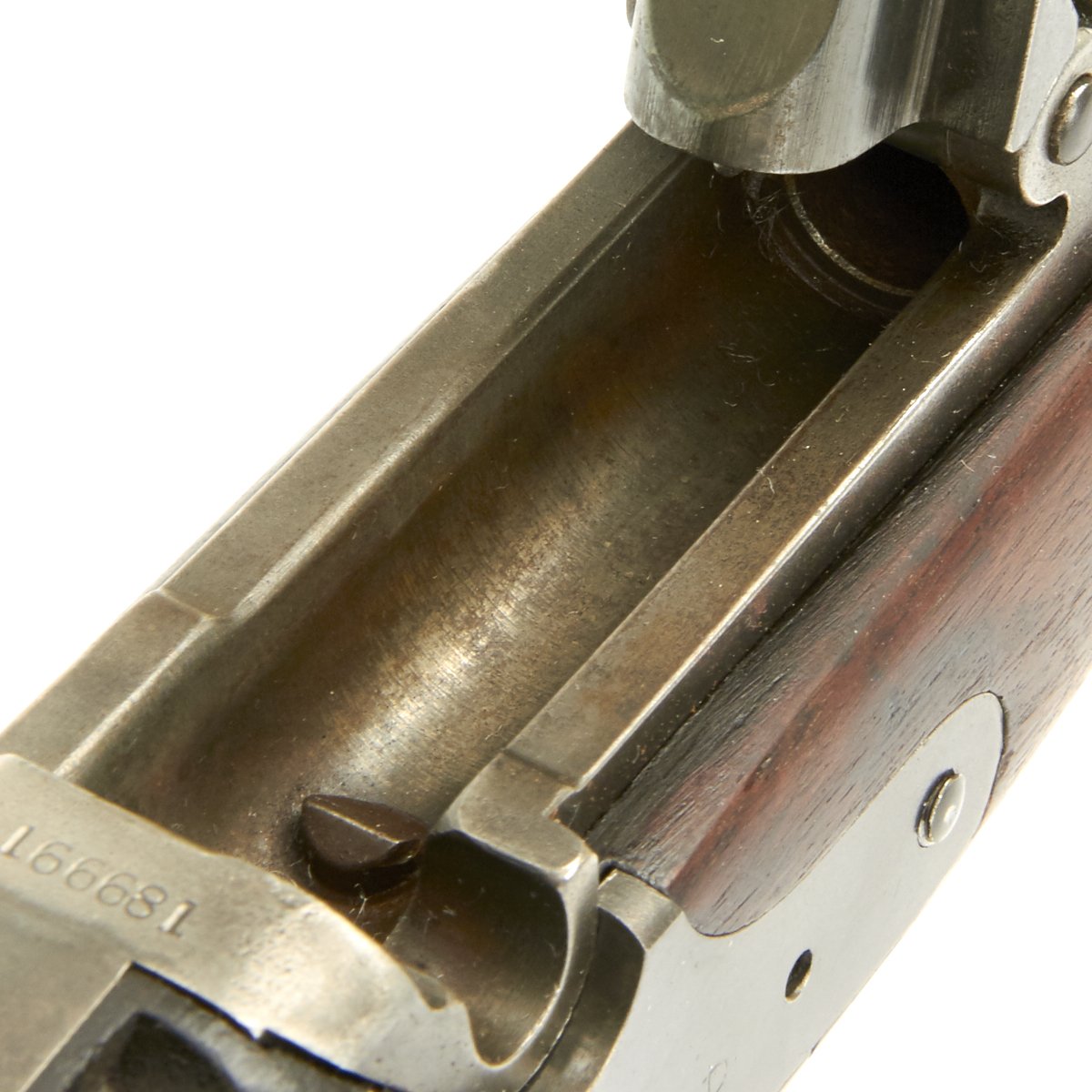

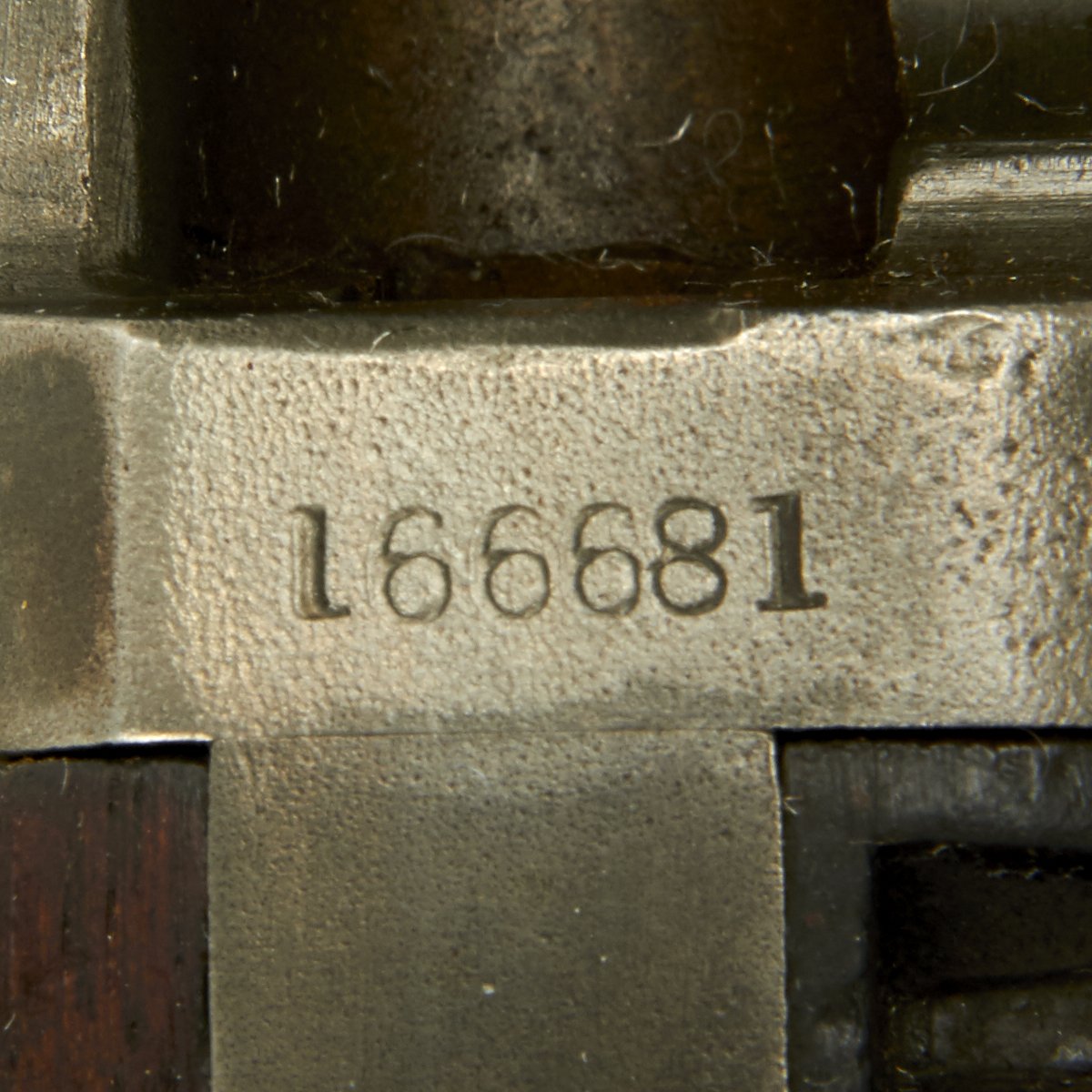

Trapdoor rifle in 45-70 government caliber. Serial # 166681 overall very good metal finish with all proofs still present.

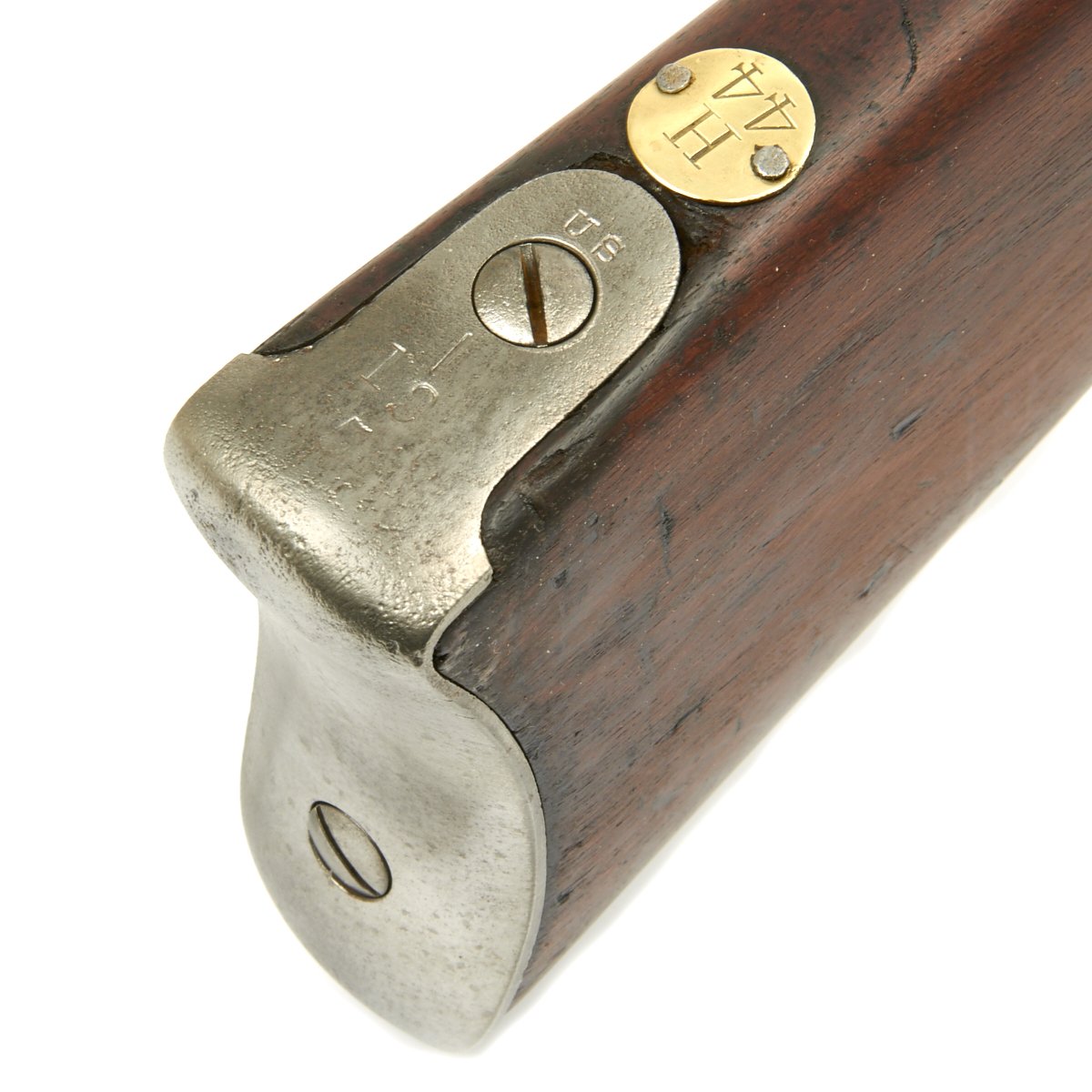

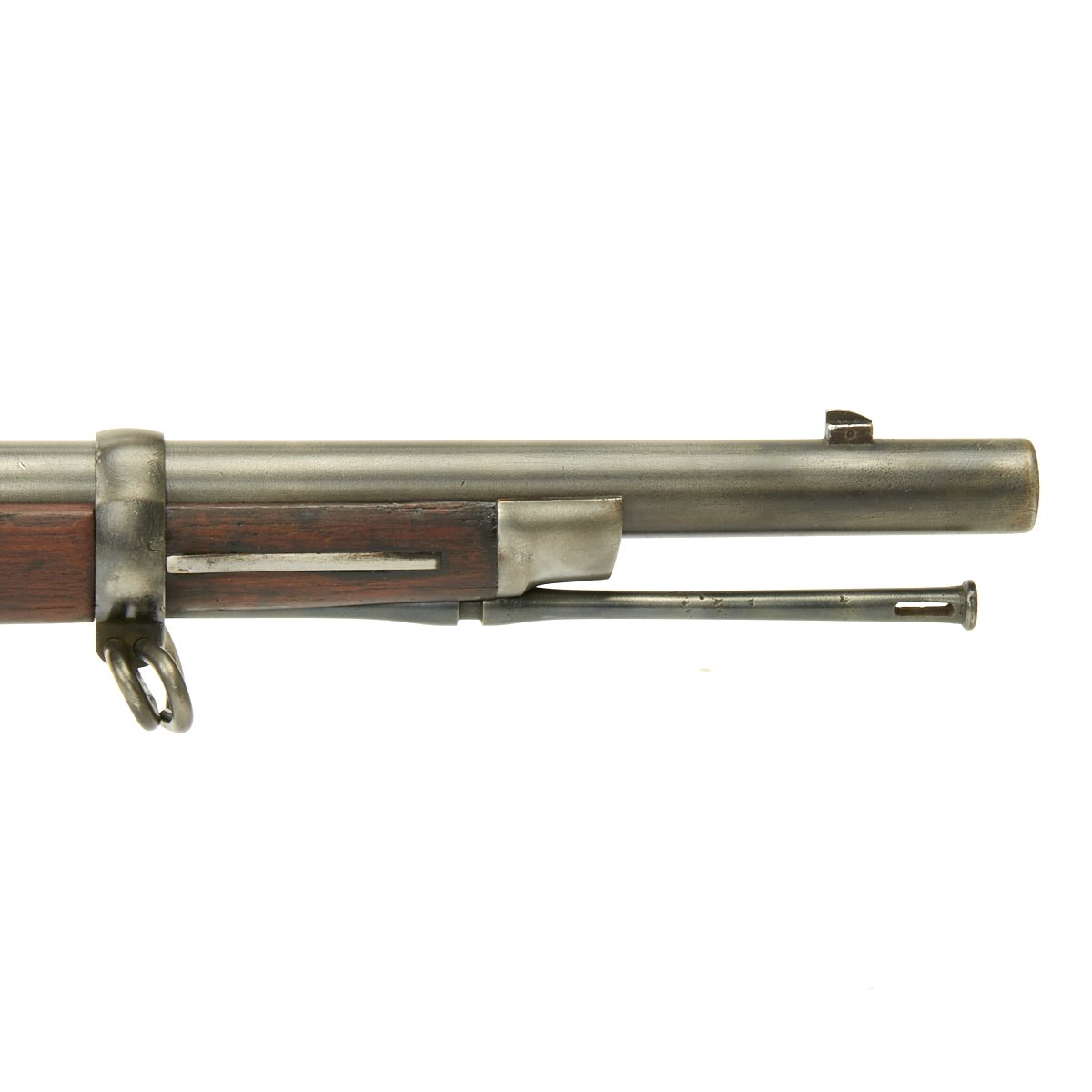

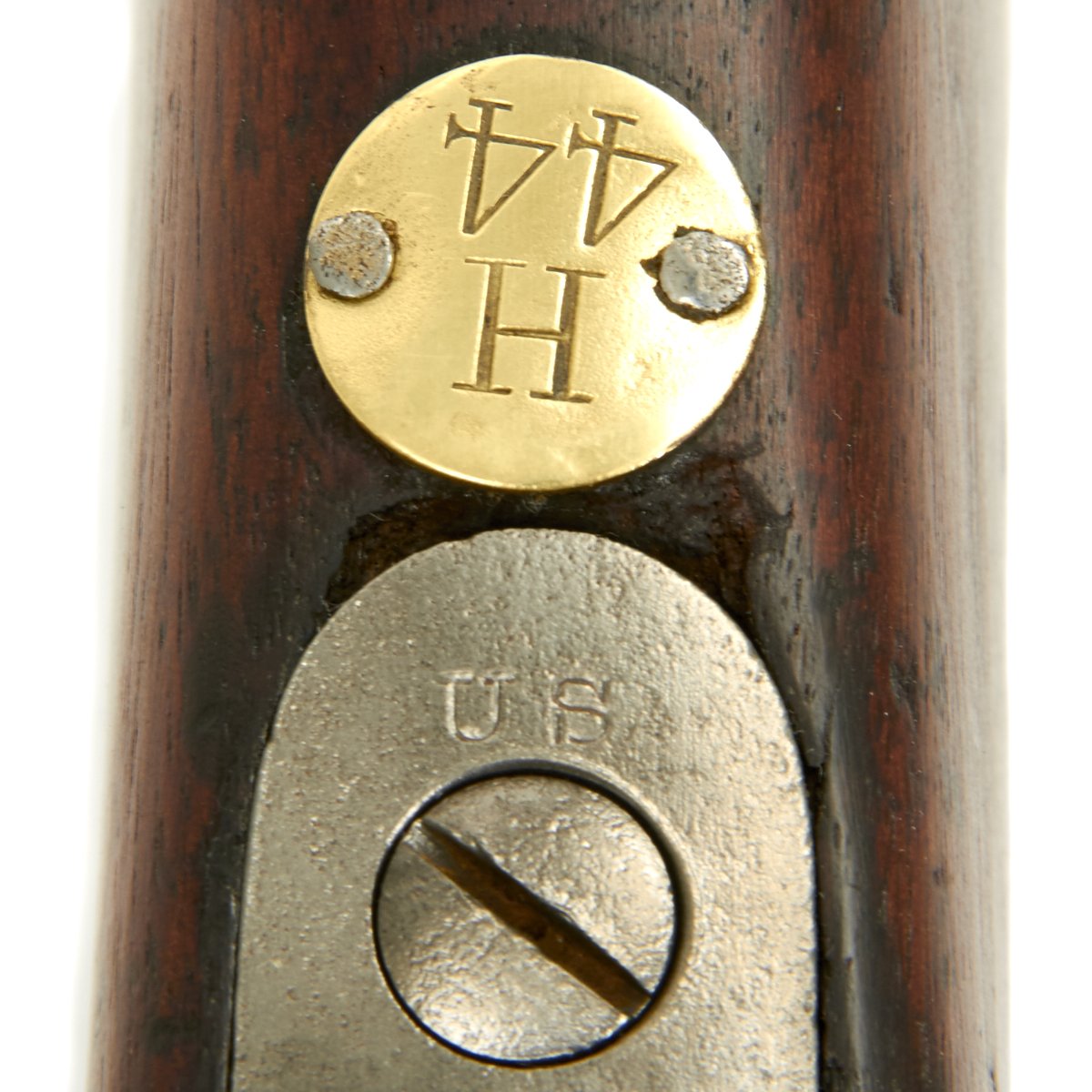

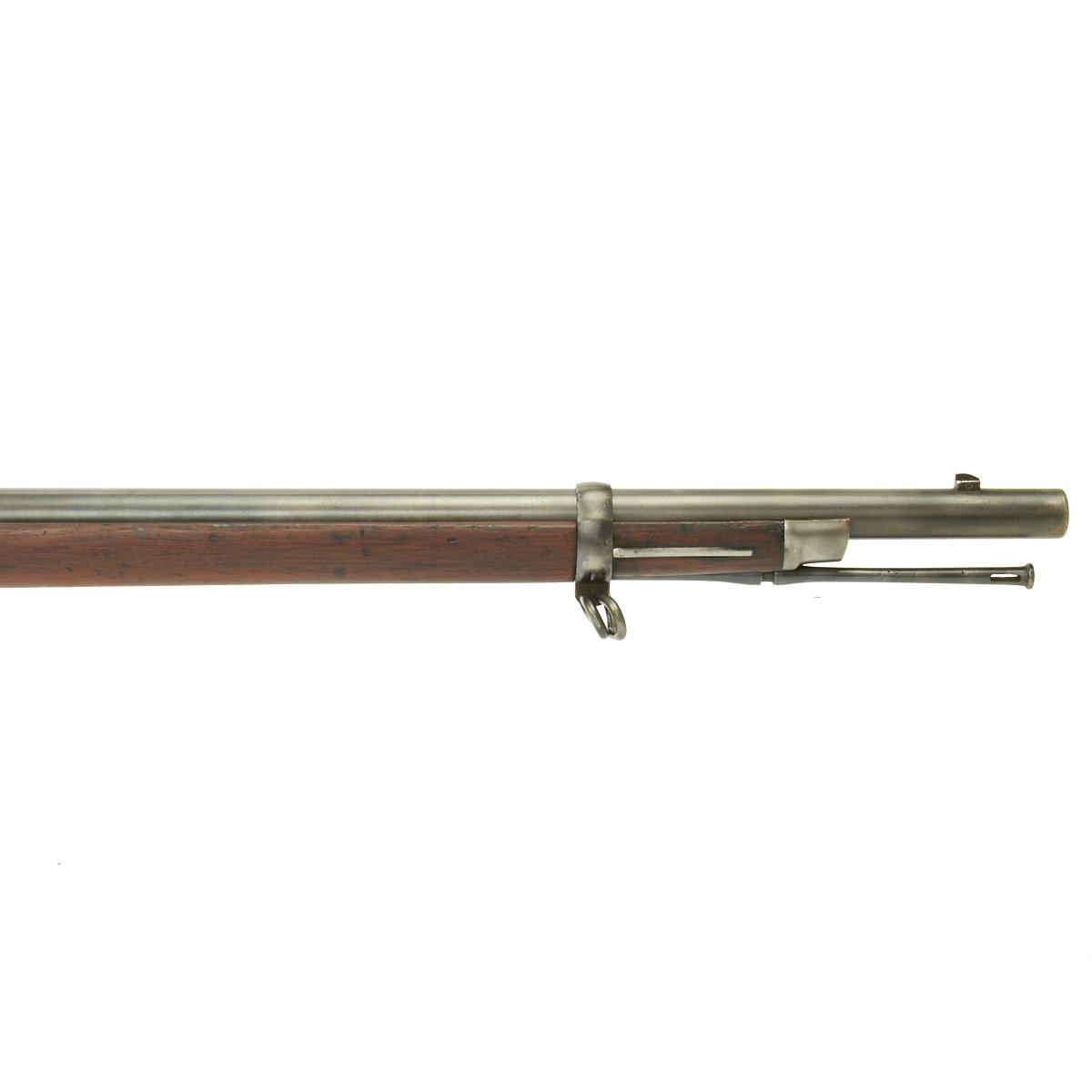

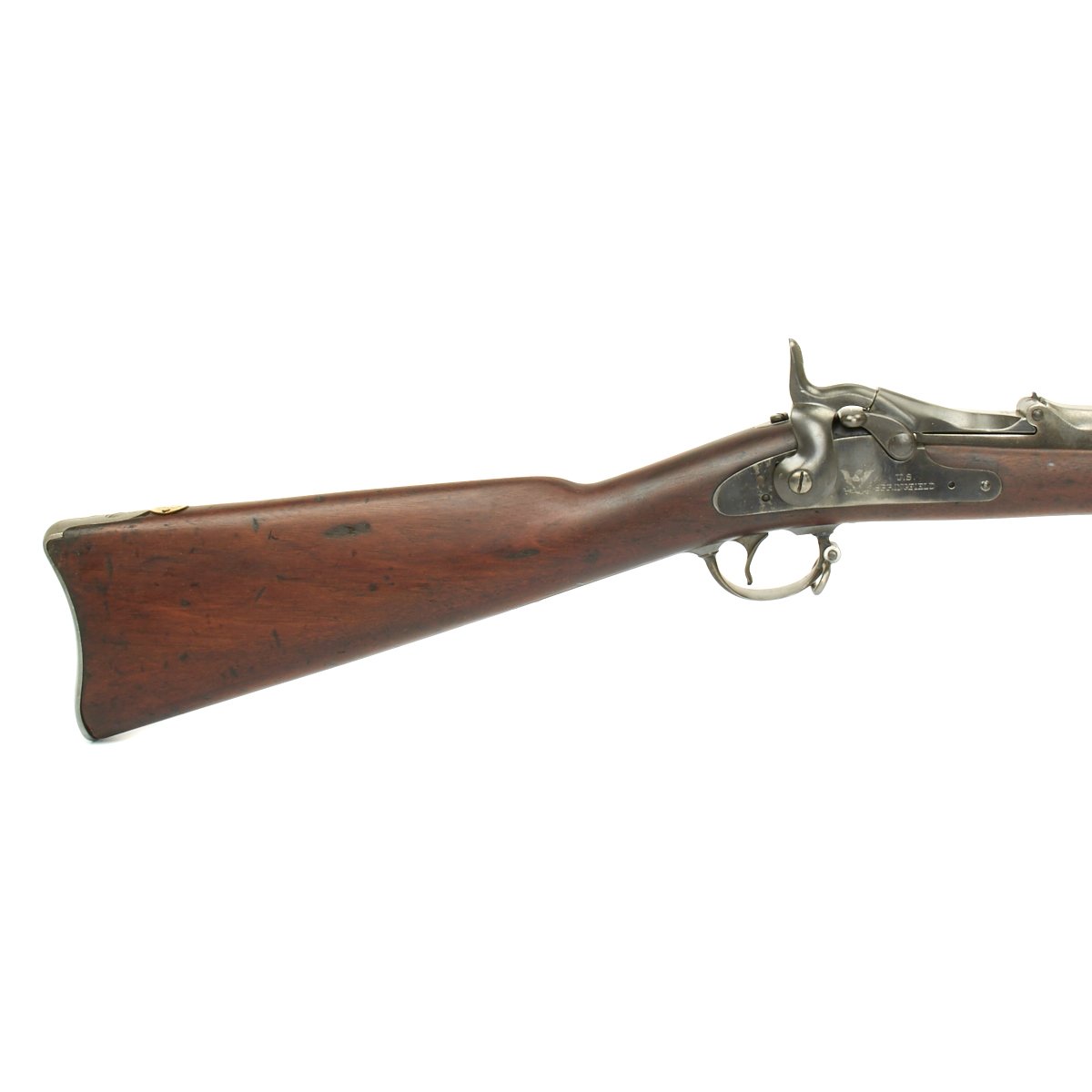

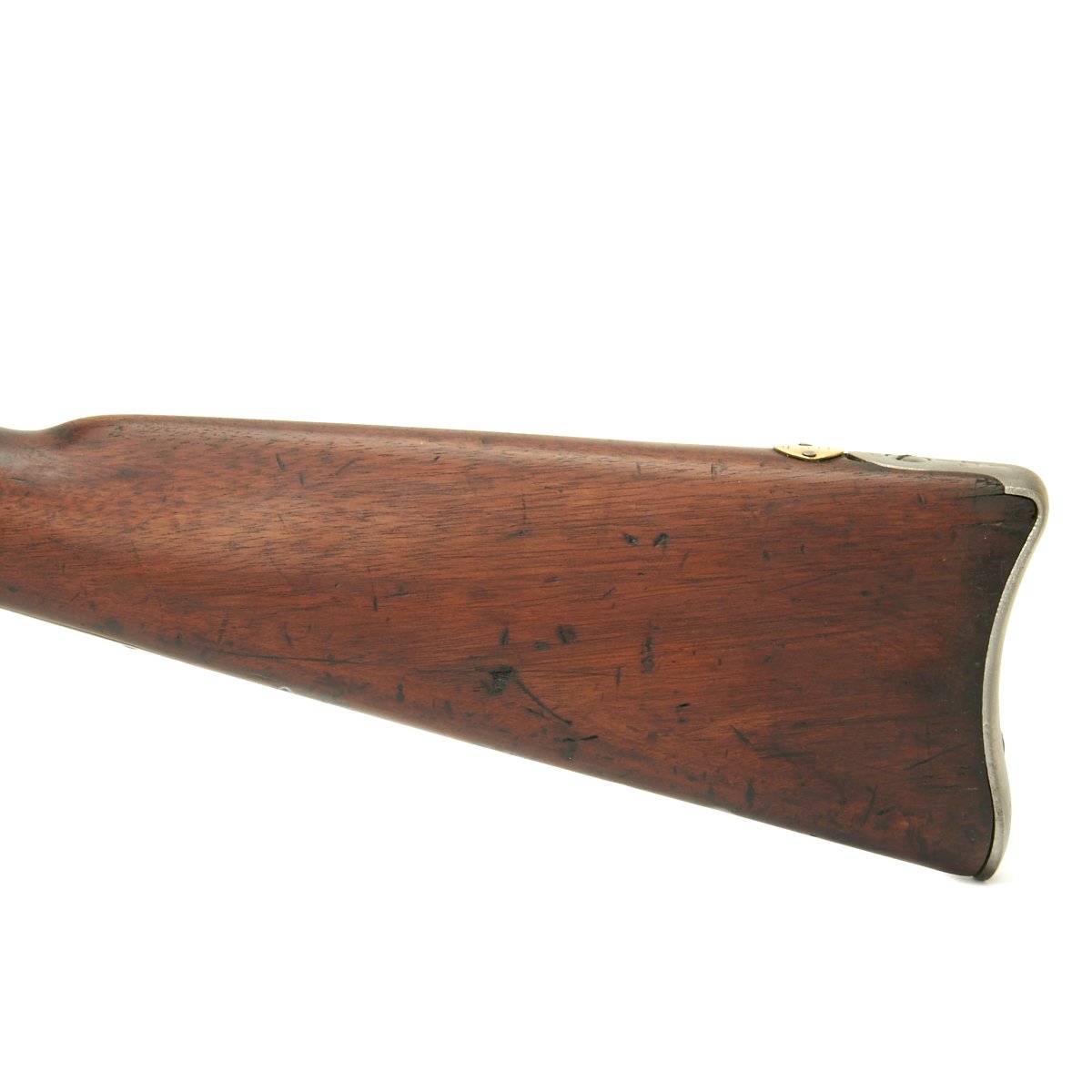

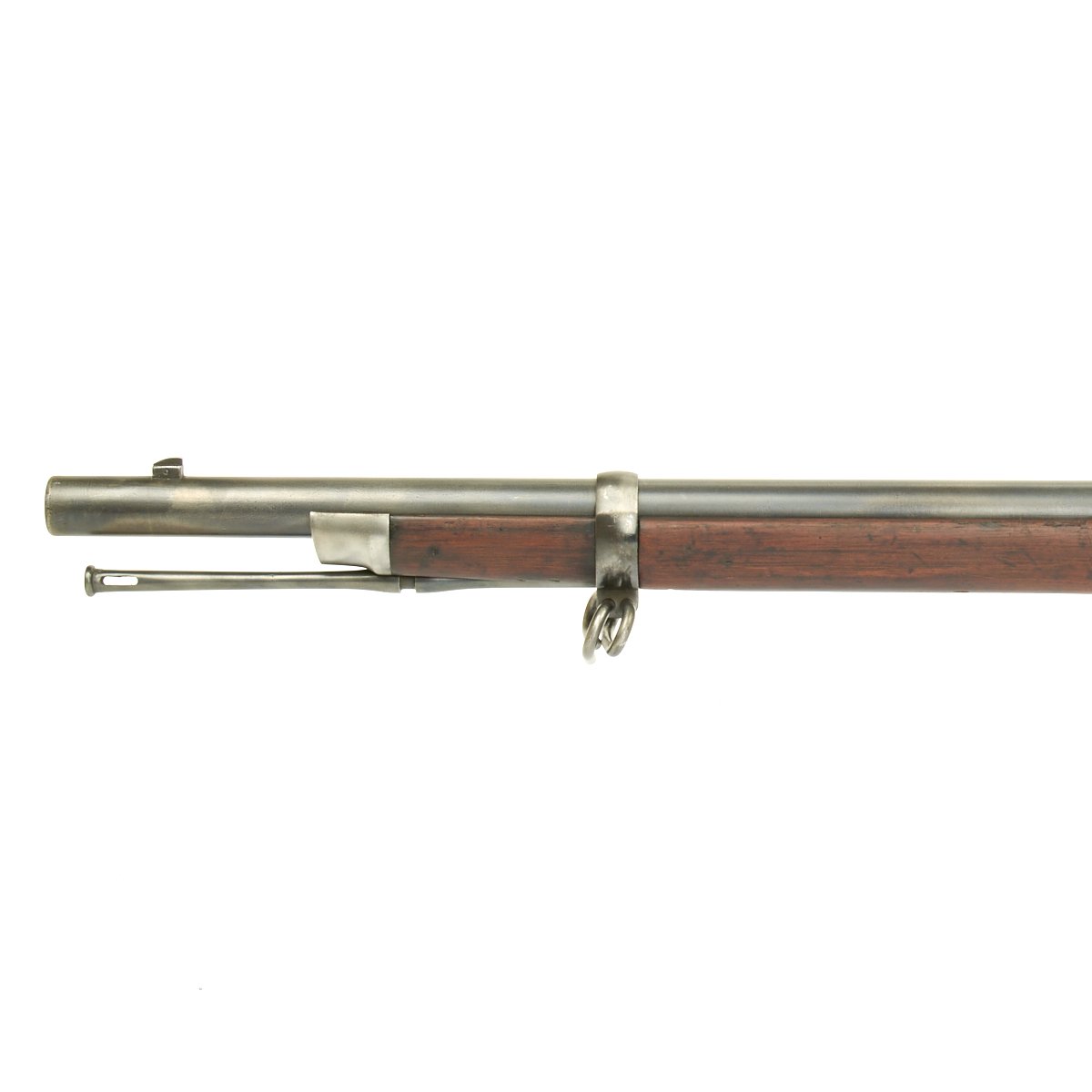

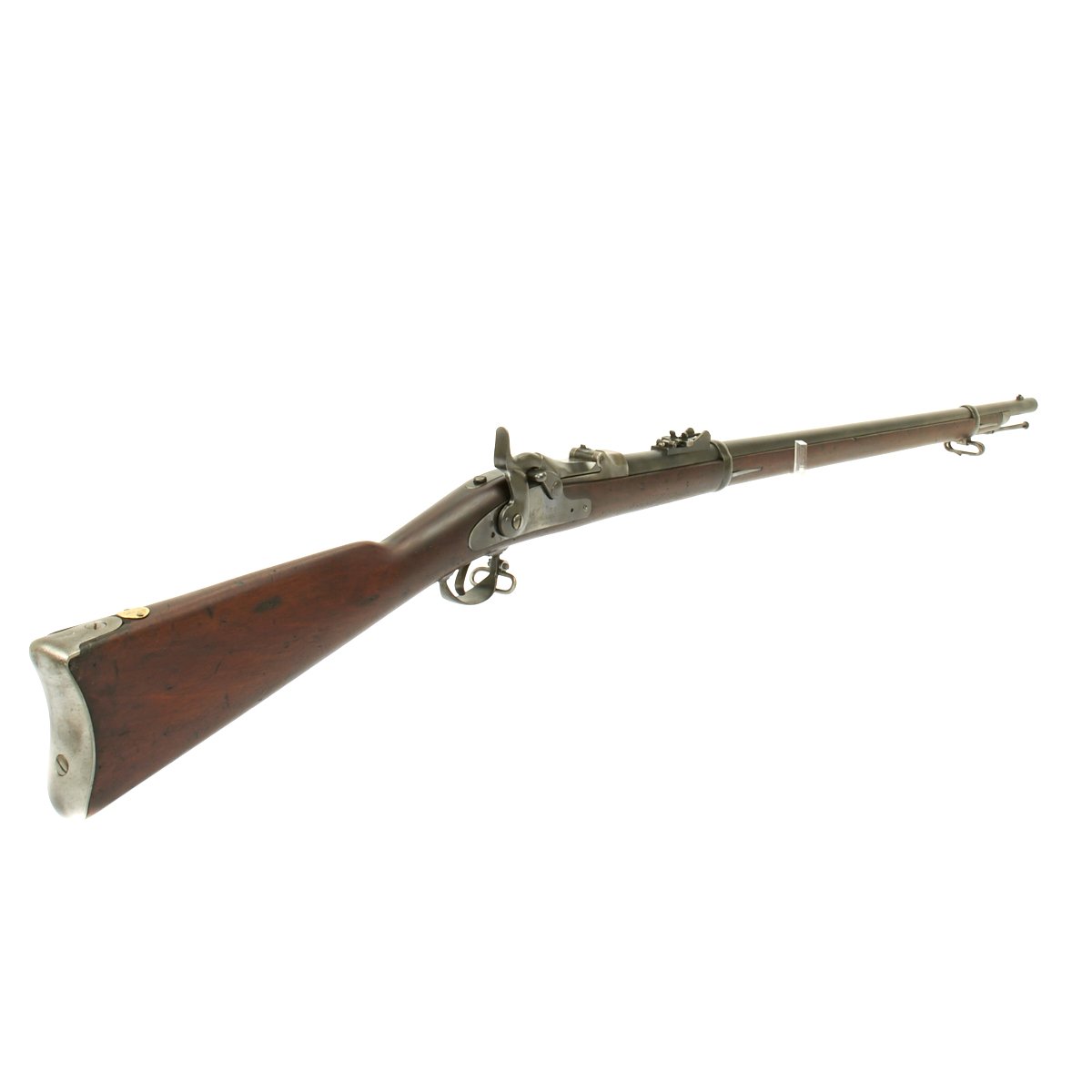

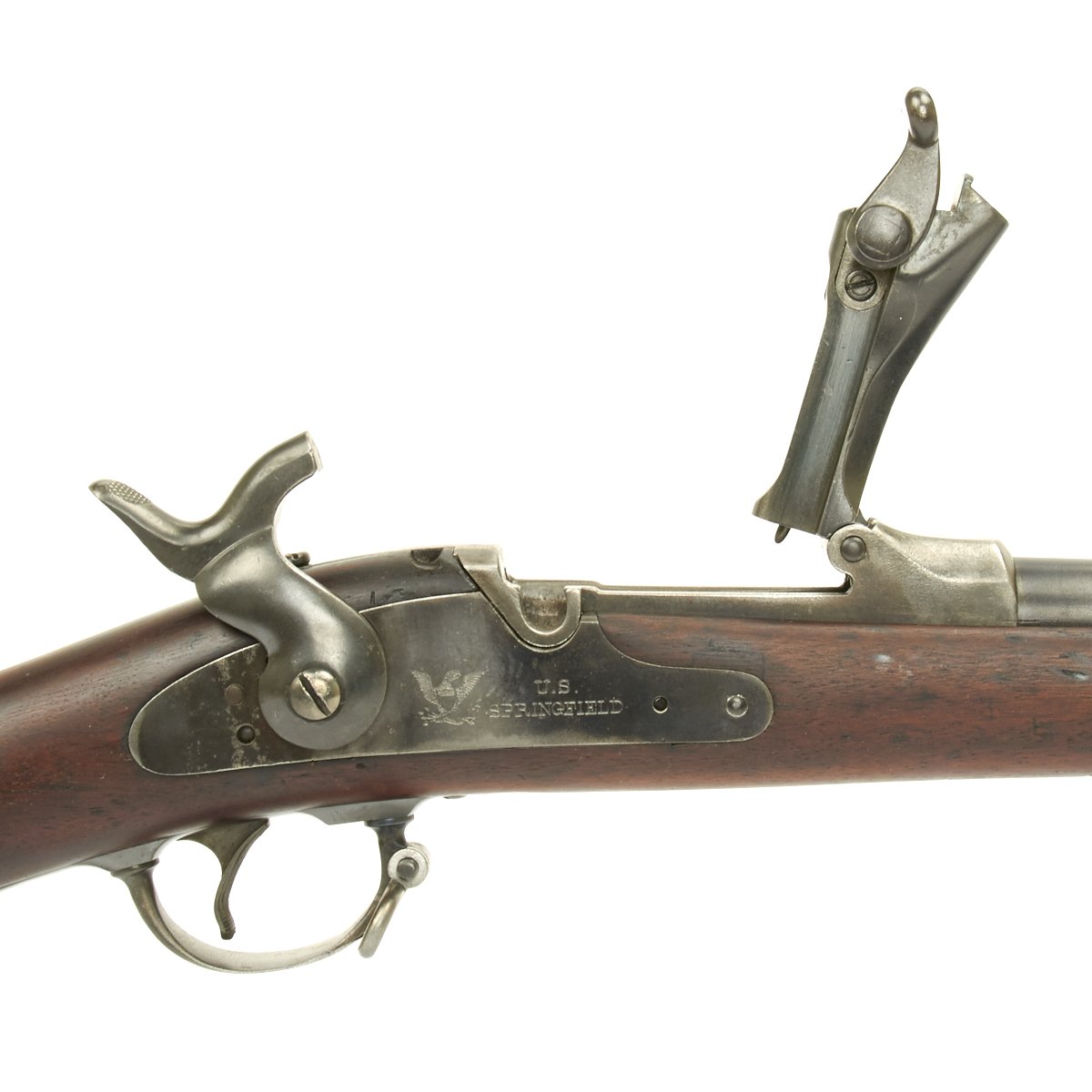

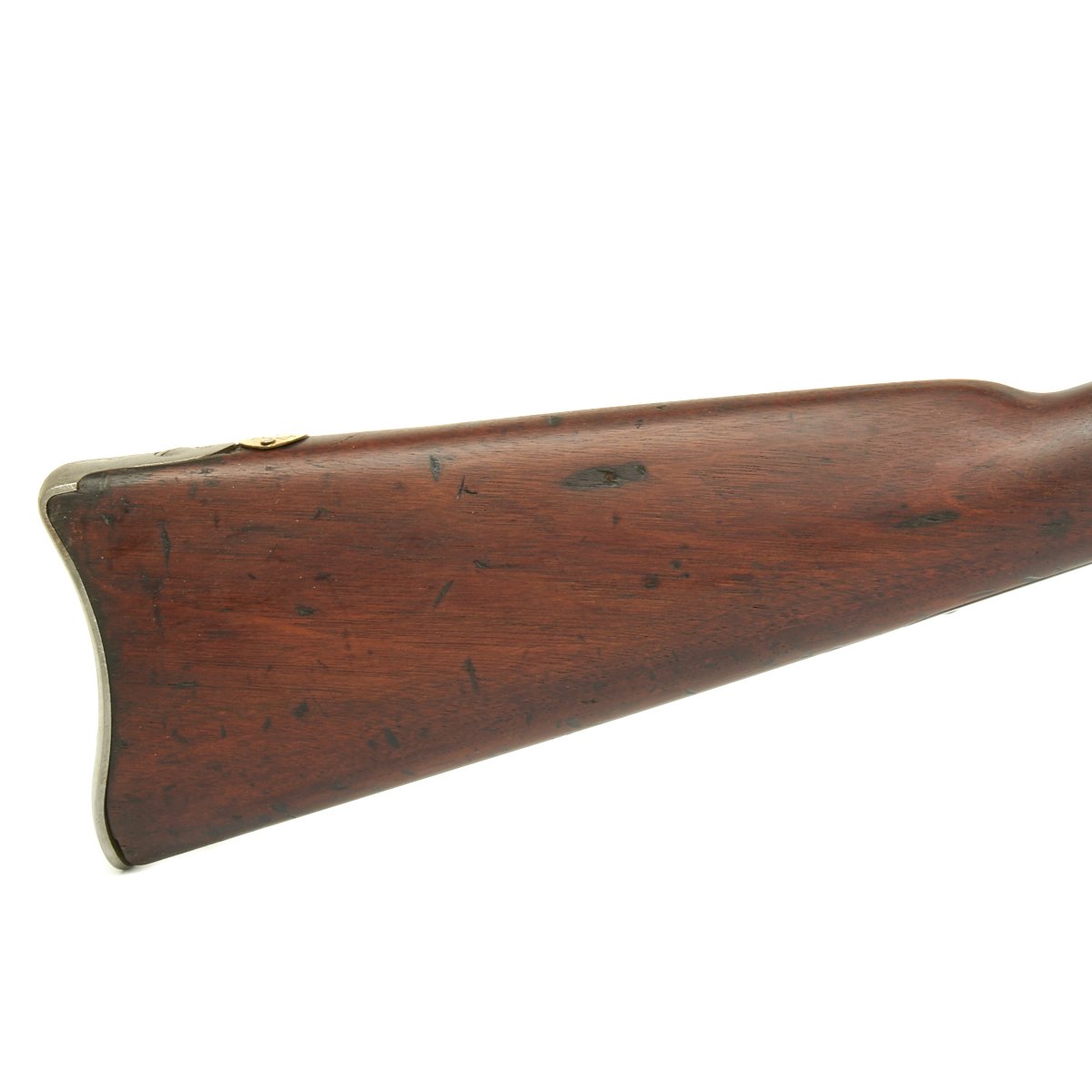

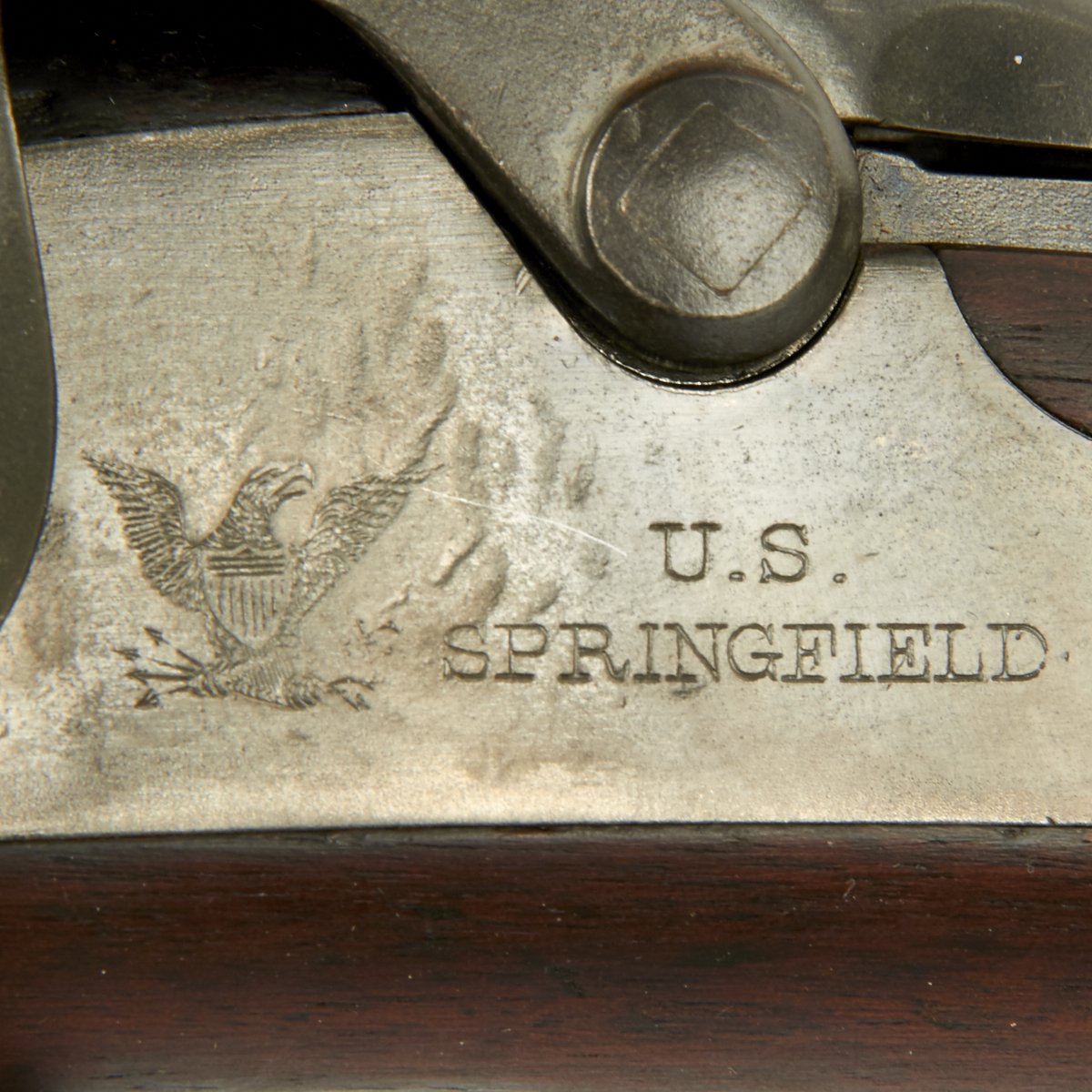

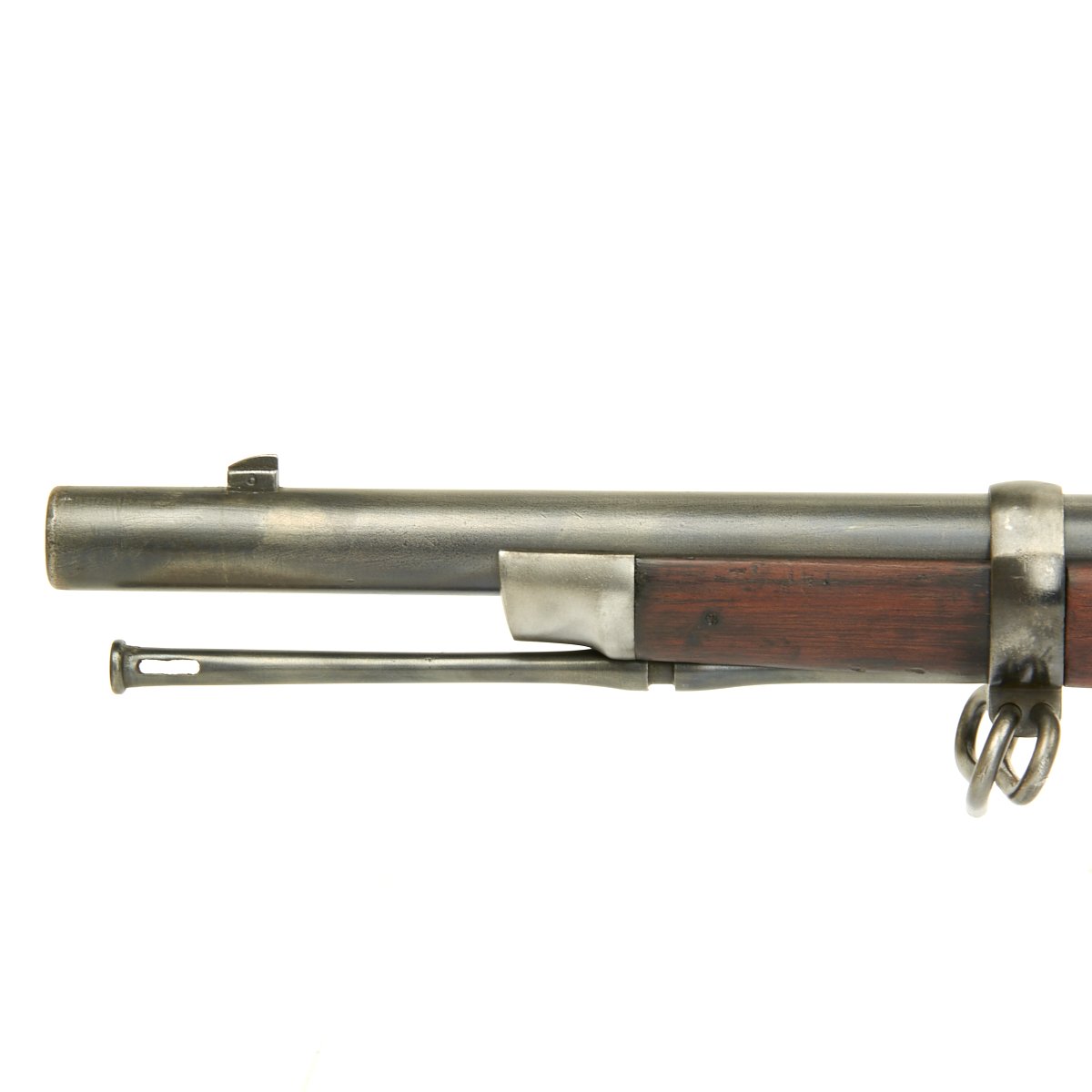

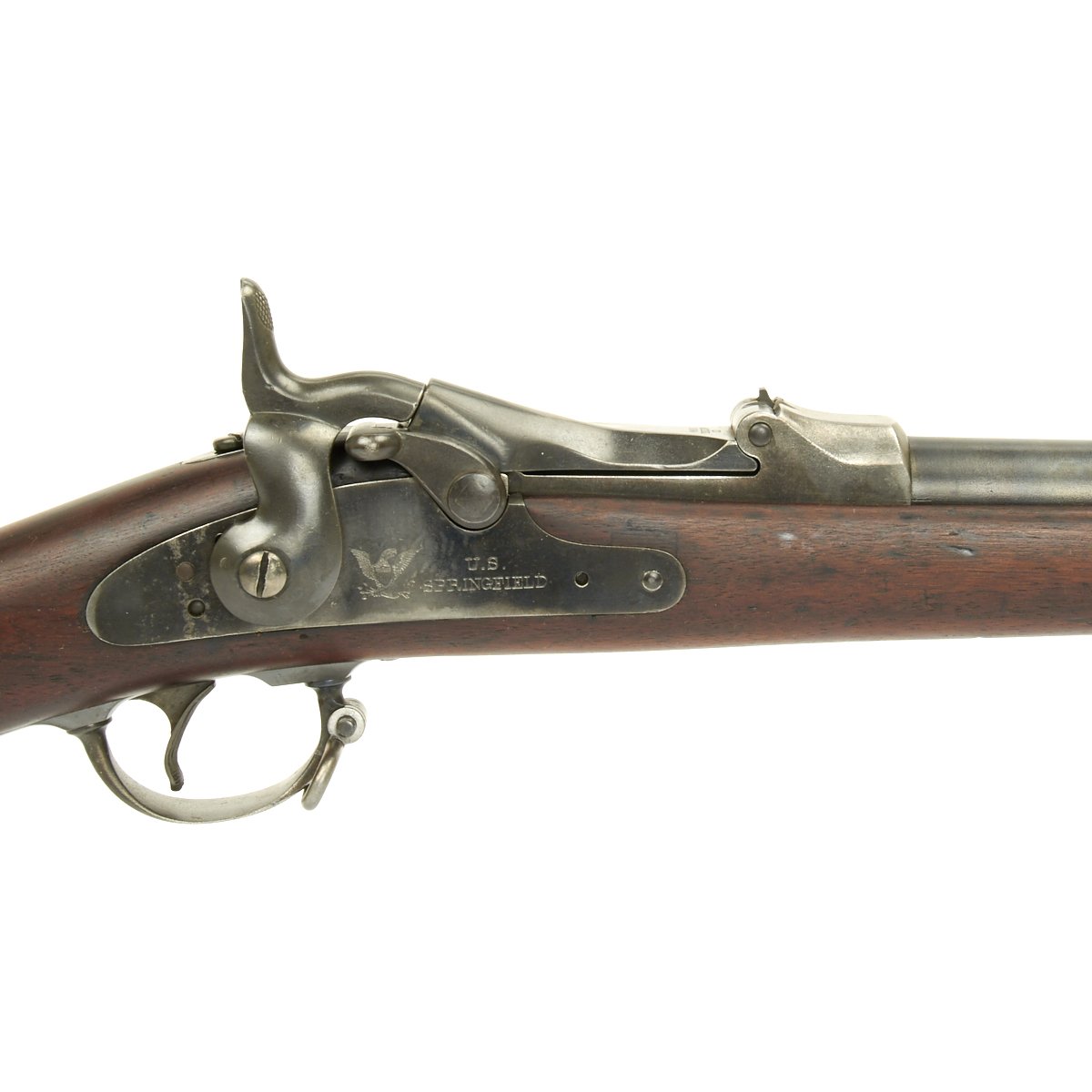

The butt plate is marked U.S. and both barrel bands are "U" marked. The rifle features an excellent un-sanded stock with barely visible SWP cartouche. Center fire breechloader, .45 cal., two bands, two sling swivels, standard adjustable rear sight, sliding ramrod. Lock is marked with an eagle and "US SPRINGFIELD, manufactured by Springfield Armory, Springfield Massachusetts.

A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors’ and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle’s head over another P on the left side just above the stock.

Note: This gun is NOT considered obsolete calibre in the UK.

History of the Model 1884:

The model 1884 traces its roots back to the design of the Springfield 1873. Most of the changes that identify the model 1884 as a distinct model occurred either before or after 1884. The model 1884 incorporated a significant number of improvements that had been made between 1878 and 1879. It also featured a serrated trigger that had been incorporated into the Springfield rifle design in 1883.

The most dramatic change to the rifle design, which is often considered to be the identifying feature of the model 1884, was a new rear sight which had been designed by Lieutenant Colonel Adelbert R. Buffington of the U.S. Army Ordnance Department. This sight however was not perfected until 1885.

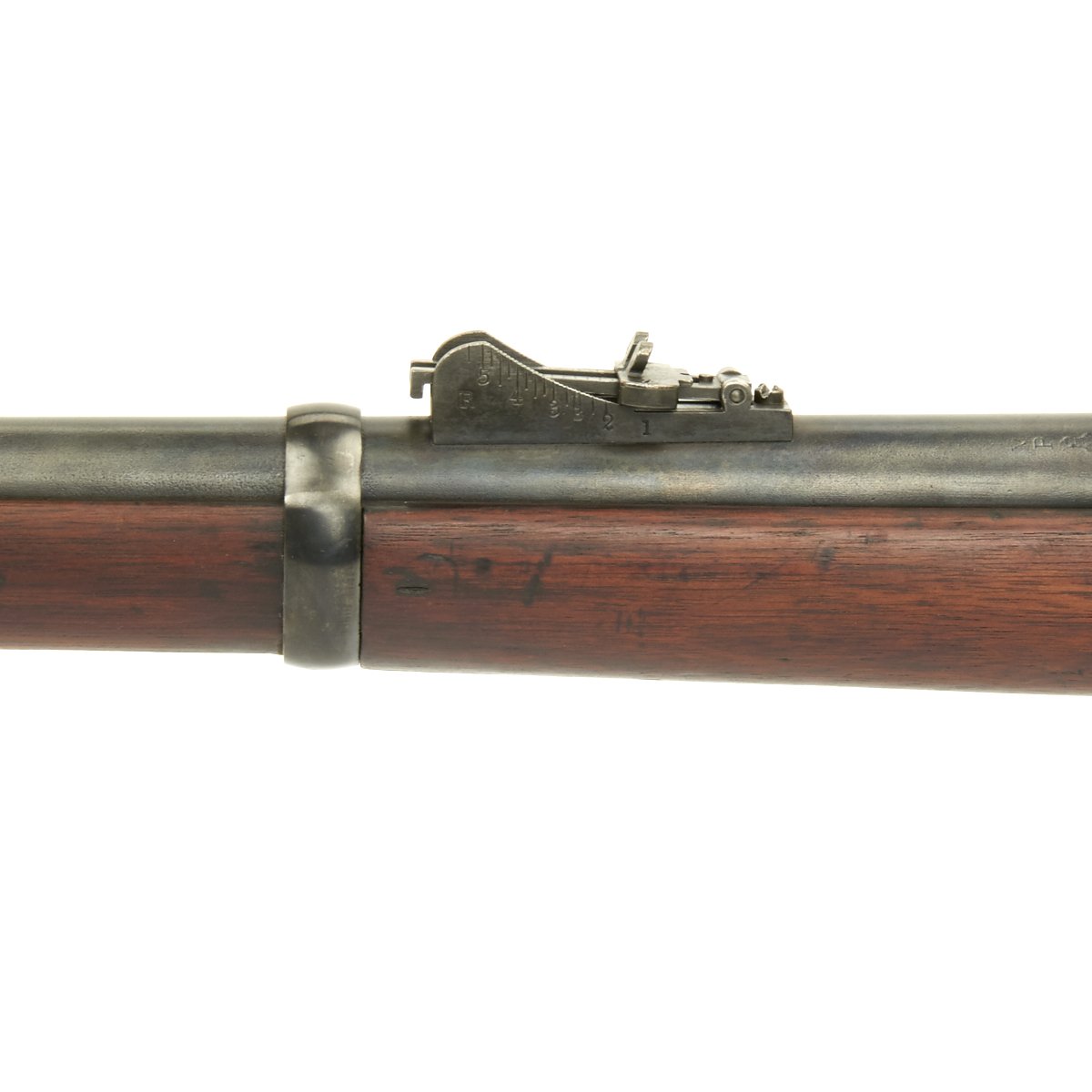

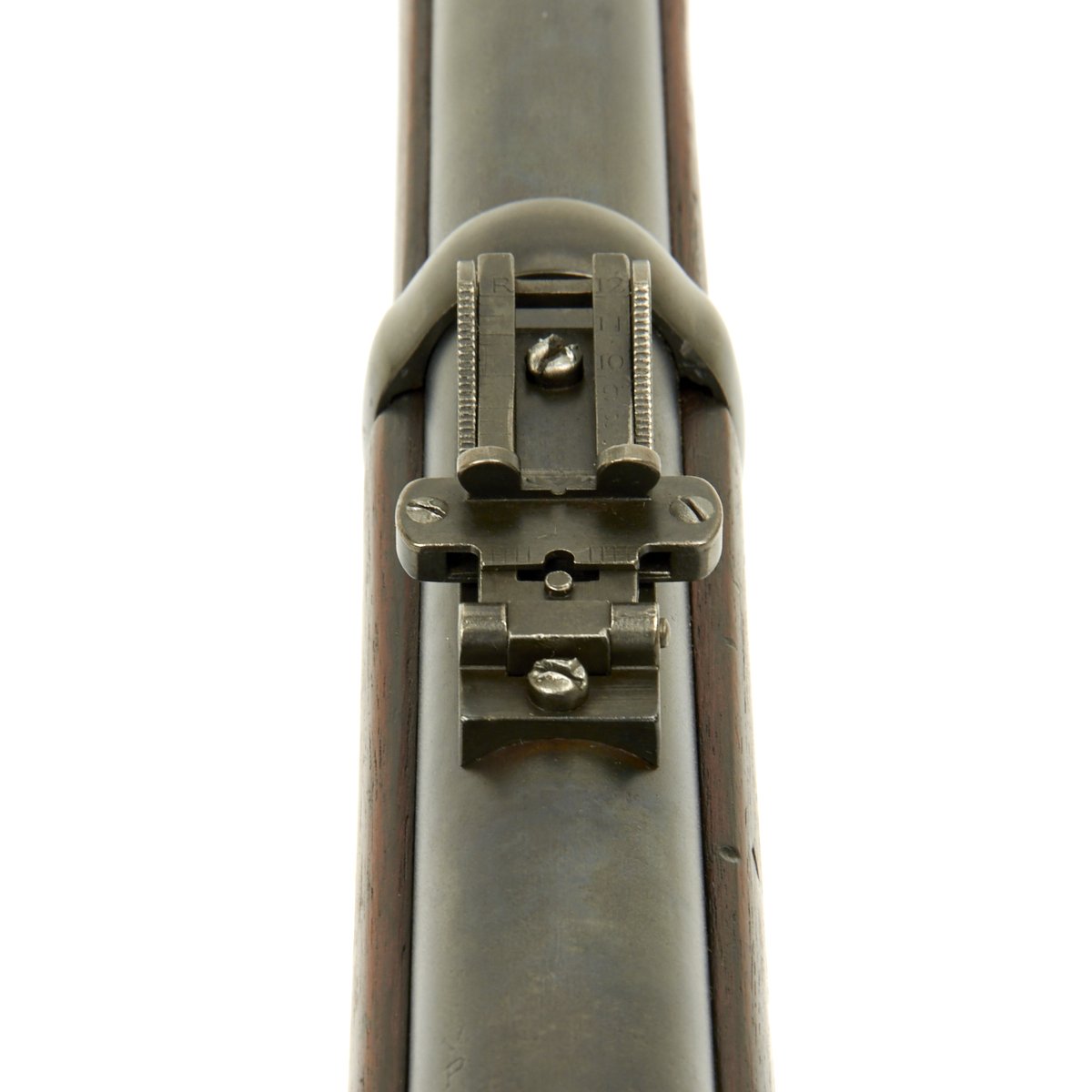

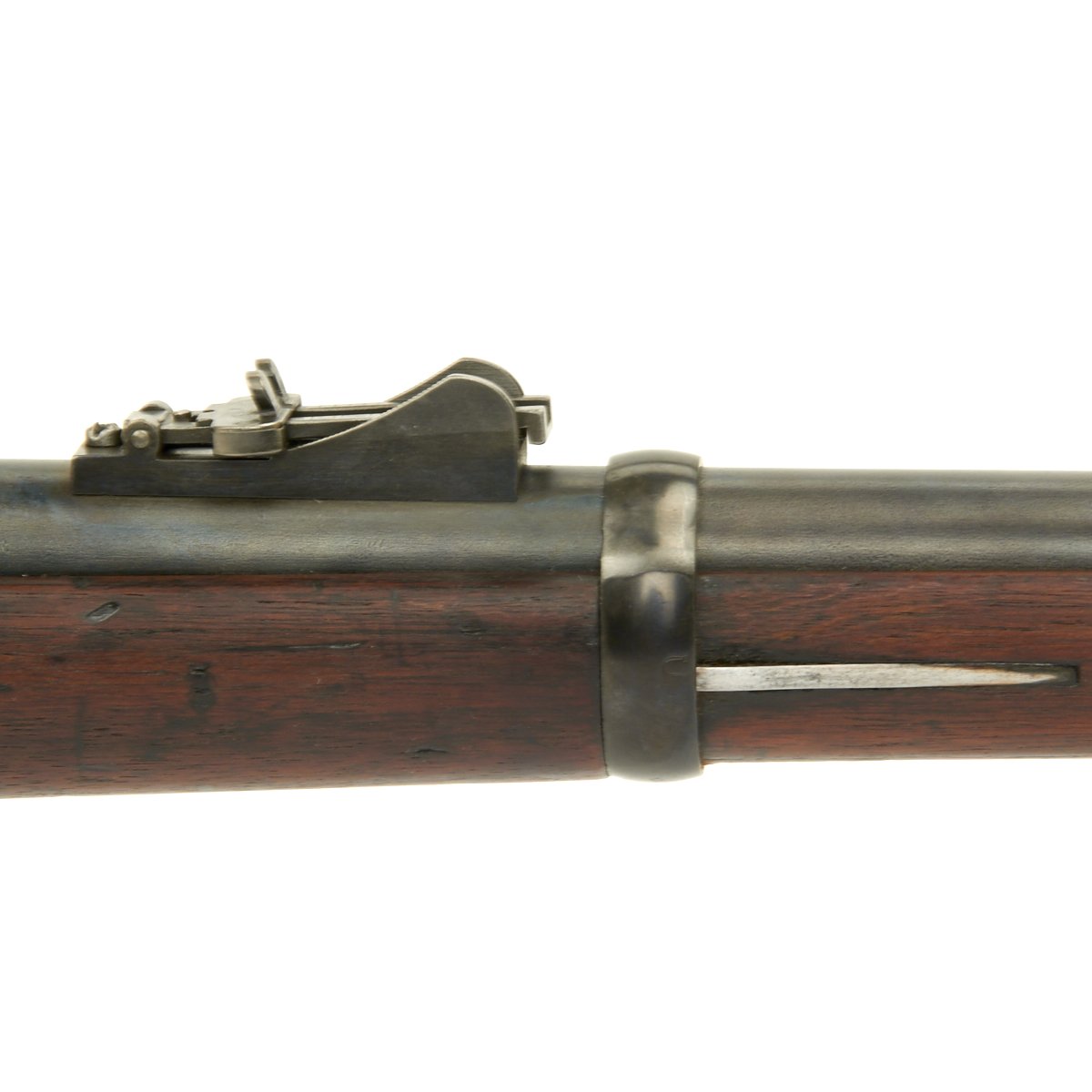

The principal feature of this new sight was a rack and pinion style windage adjustment. Unlike previous sights, the base was not used for any position other than point blank. The raised leaf had graduations from 200 to 1400 yards. A new barrel band was also designed to accommodate this new sight so that it could lie flat in the point blank position.

Marksmen generally favored the new sight, but general troops were less enthusiastic about it and often considered it to be an annoyance.

The model 1884 was also produced in a carbine version. It was found that the rear sight could be easily damaged when removing the rifle from the carbine boot. The rear barrel band was therefore modified in 1890 to include a rear sight protector.

A round-rod bayonet model was also produced. This, like the Springfield model 1880, was an attempt to combine the ramrod (aka cleaning rod) and bayonet into a single unit. The model 1884 version included an improved retaining mechanism, as the model 1880's retaining mechanism had proved to be problematic.

NOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these.This gun is NOT considered obsolete calibre in the UK.

Shipping Restrictions

    This product is not available for shipping in US state(s)
    New Jersey


    This product is available for international shipping.

Legal Information

  • Note: This gun is NOT considered obsolete calibre in the UK.

    IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to posses, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.

    These antique guns are not sold in live condition. They are sold as collector’s items or as wall hangers. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

    Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services.
