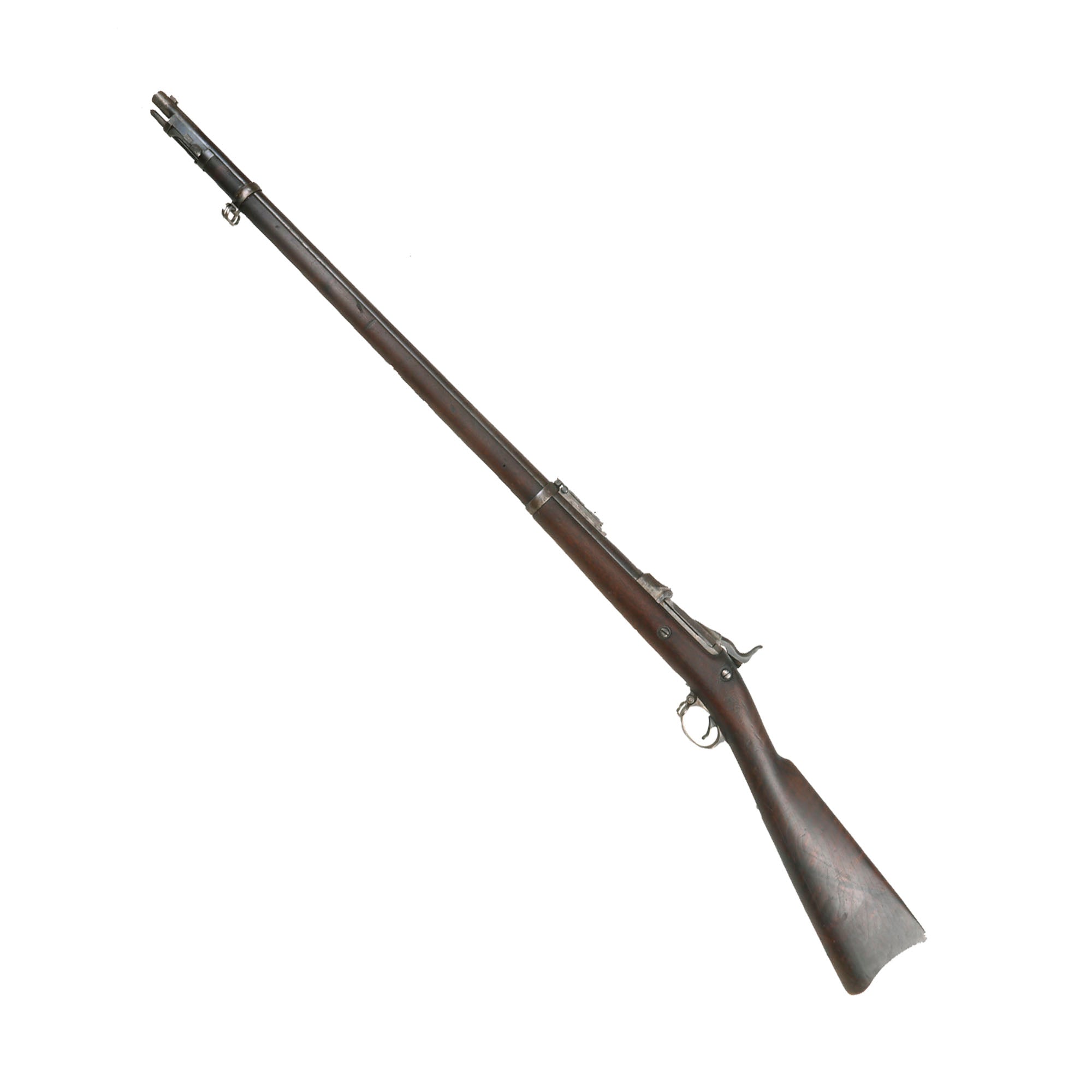

Original U.S. Springfield Trapdoor Model 1884 / 1888 Round Rod Bayonet Rifle made in 1893 - Serial 561532

Item Description

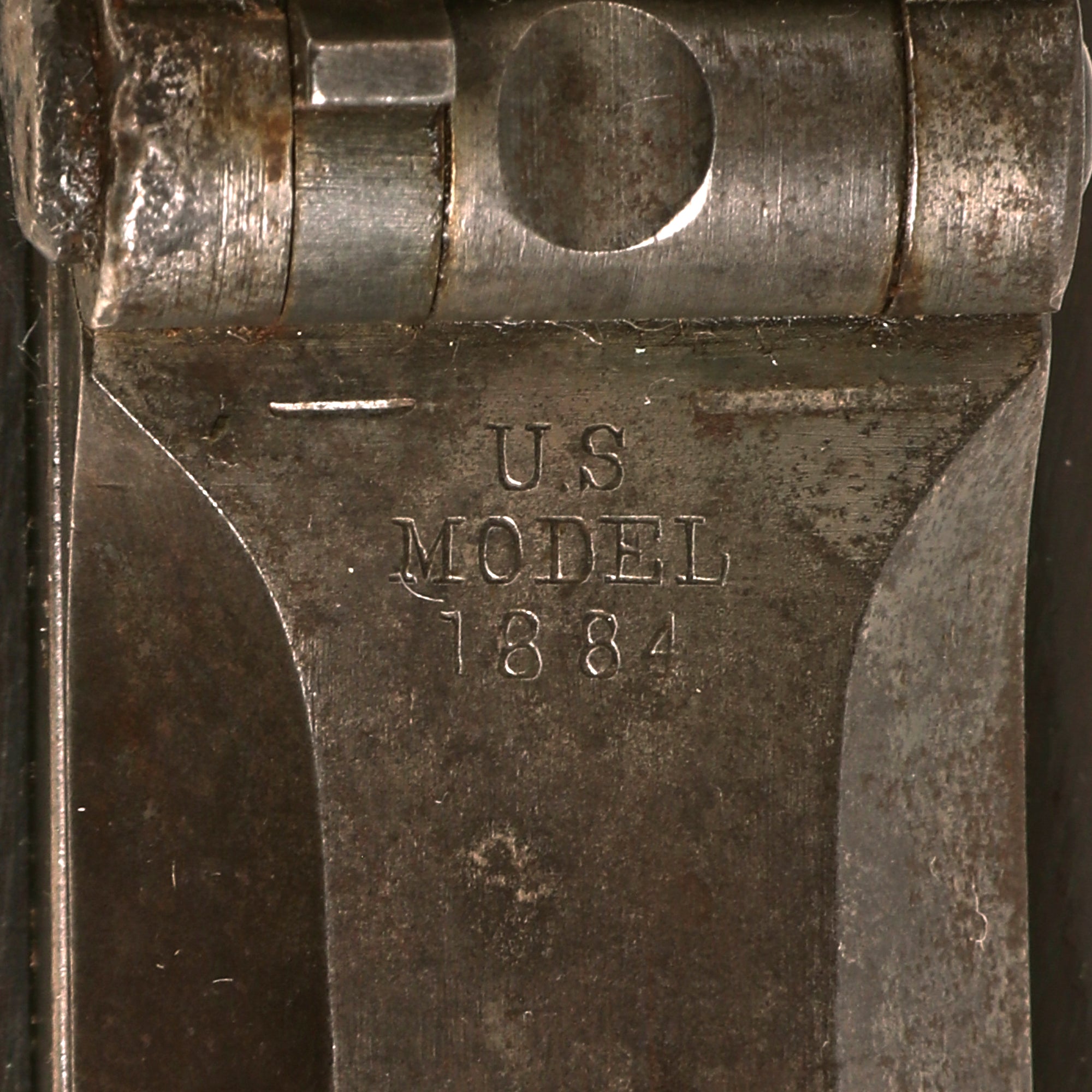

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:

U.S.
MODEL
1884

In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

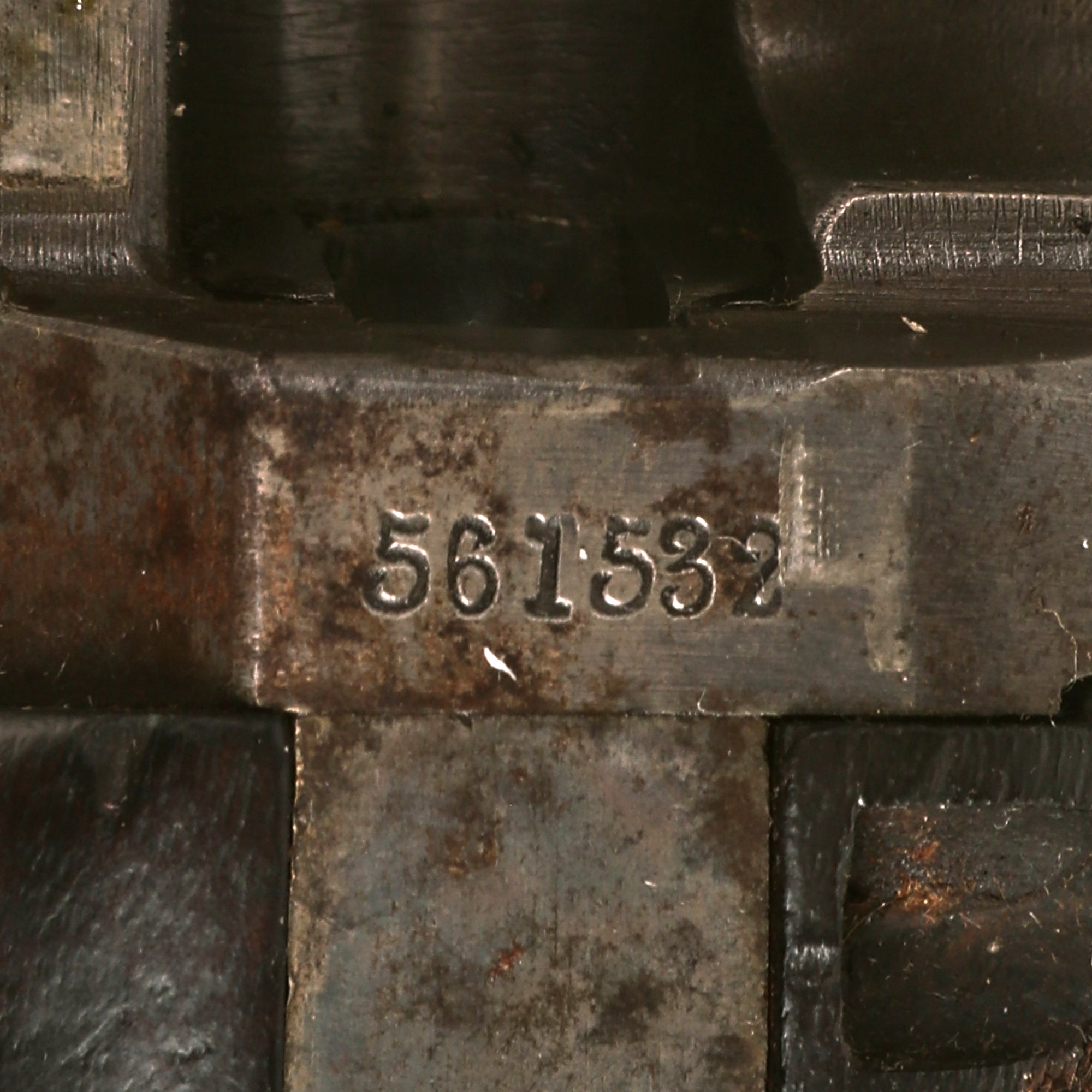

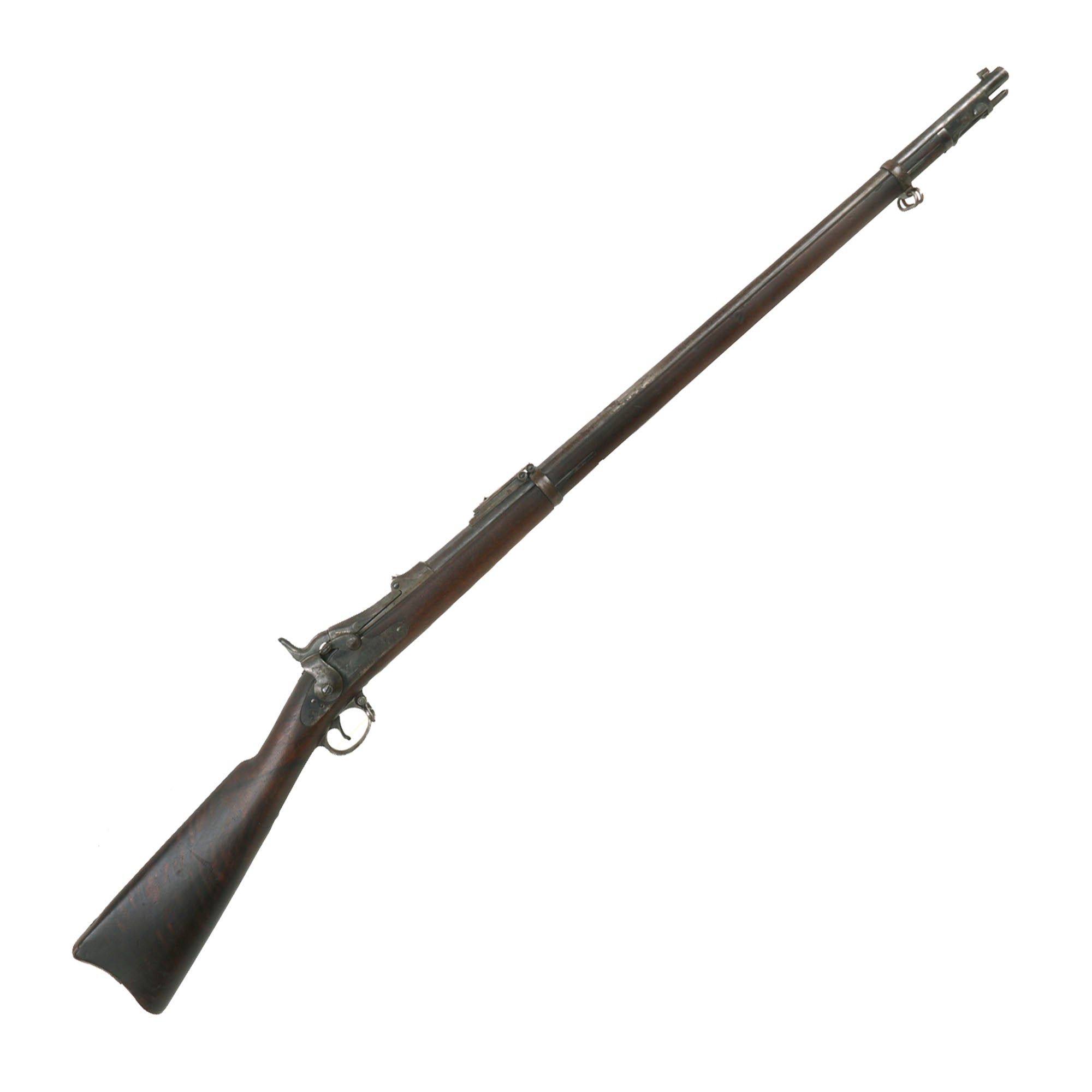

Offered in very good service used condition is this trapdoor rifle in 45-70 government caliber. The serial number is #561532, which indicates production in approximately March 1893, per U.S. Government records. This technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a relatively clear "boxed" government inspector SWP / 1893 cartouche, indicating stock inspection in the same year.

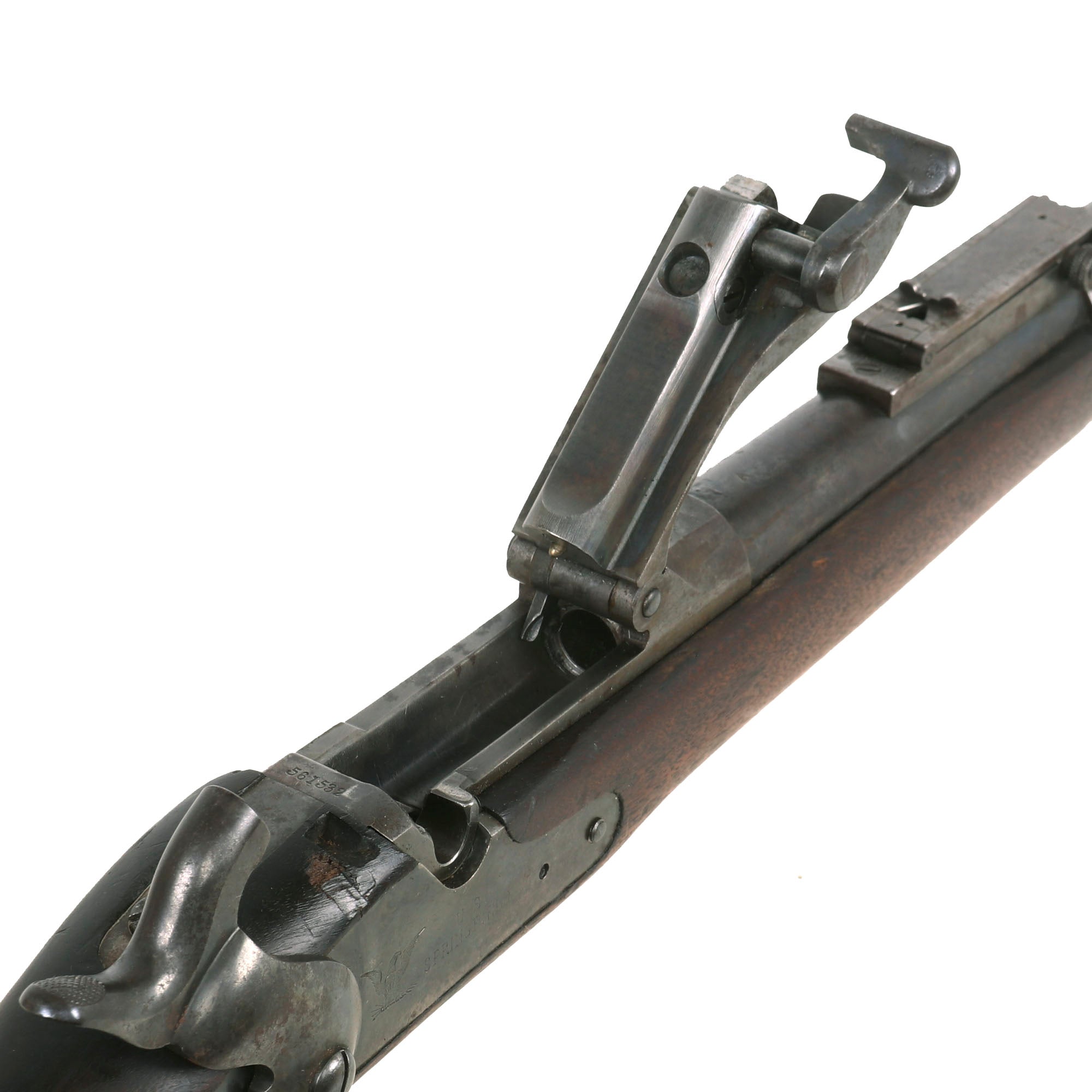

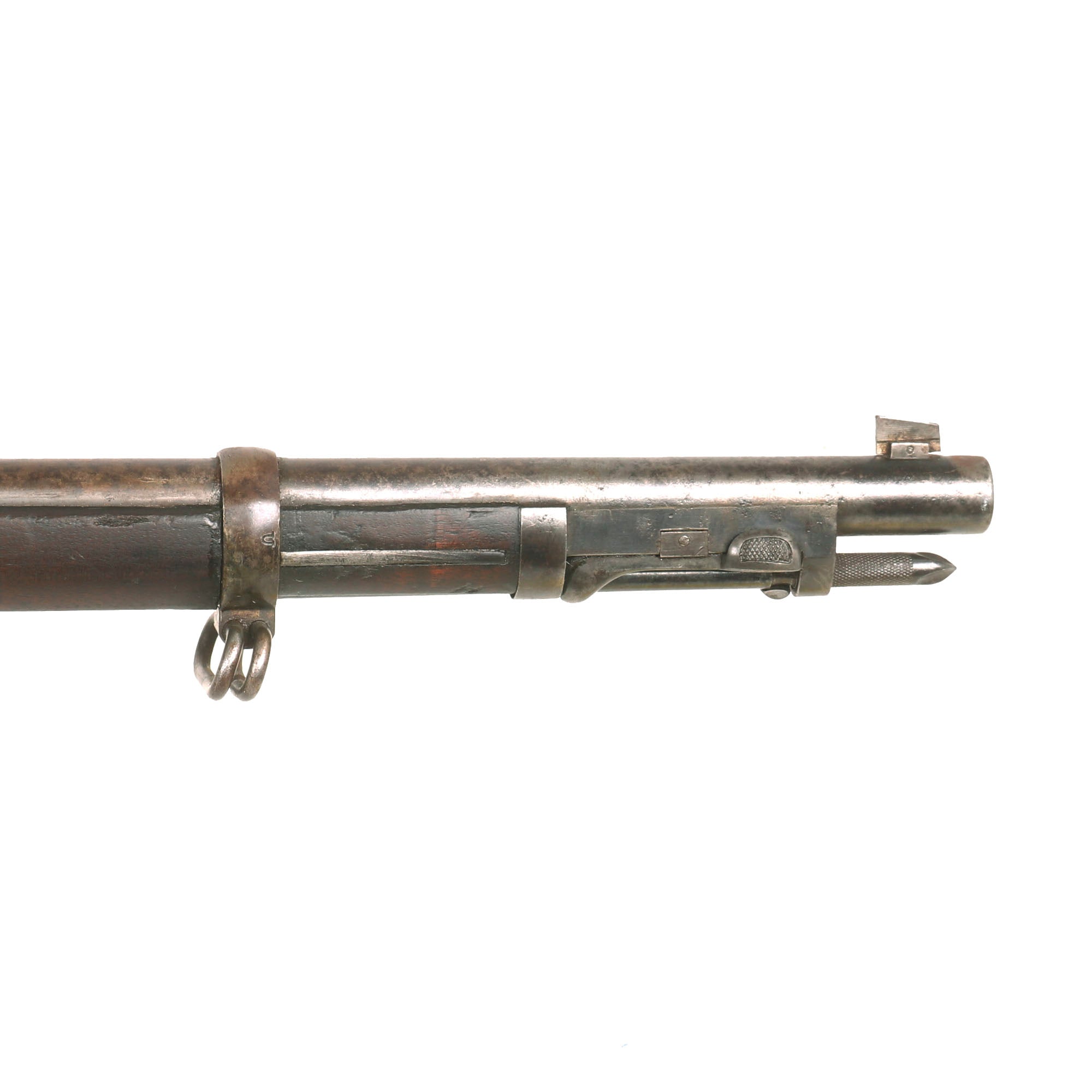

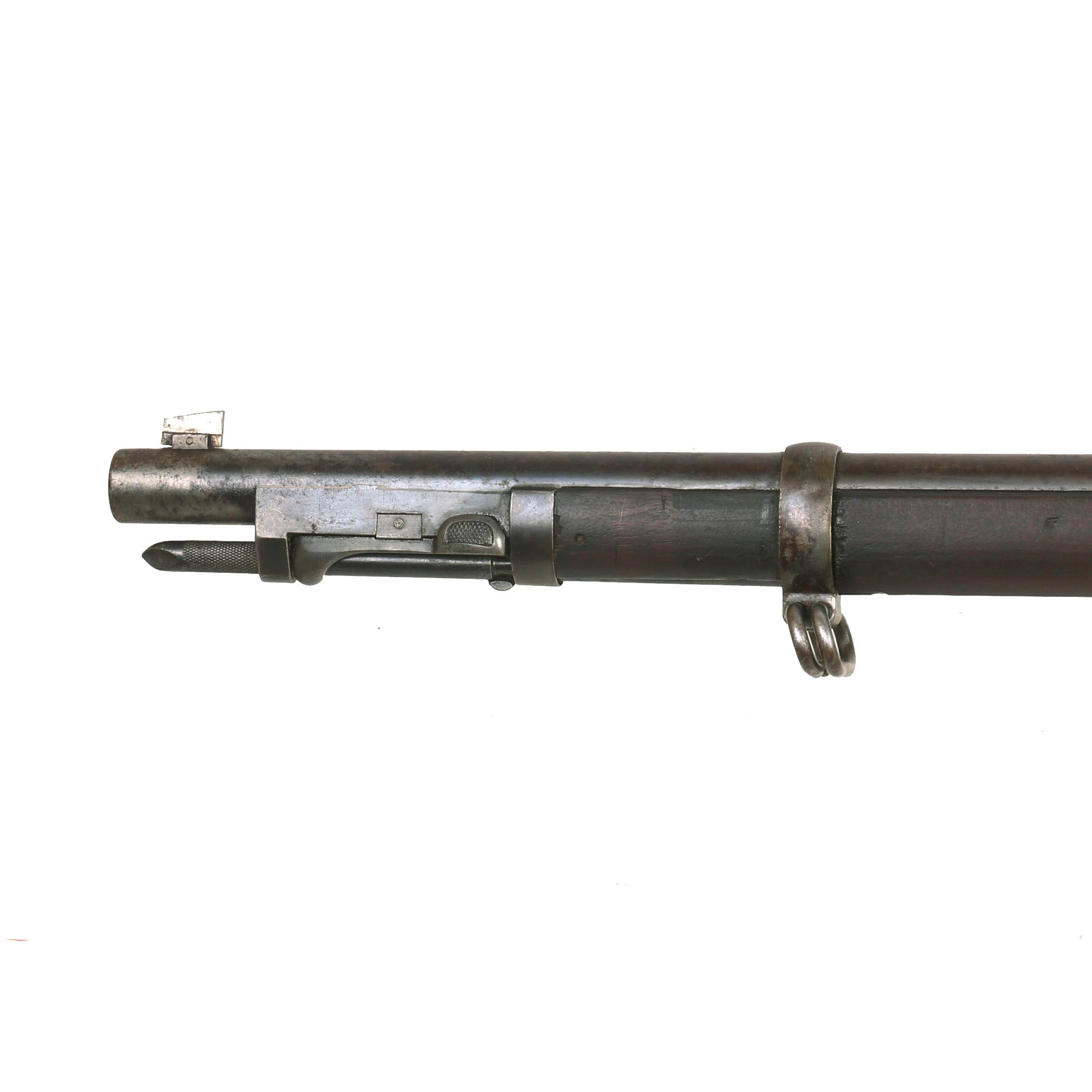

The metalwork on the rifle still shows the original blued finish now faded to a lovely mottled patina overall, with some areas of peppering and light oxidation. We have left intact to preserve the "arsenal fresh" look of the rifle. There are traces of the original case-hardening on the bottom of the breech block, as well as inside the breech. The bore is in excellent condition, showing a bright finish with crisp lands and grooves. There are just a few tiny spots of oxidation that we can see, making this one of the best we have seen lately. The cleaning rod / bayonet is functional, with a worn finish and intact threads on the end, and the locking mechanism by the muzzle is fully functional.

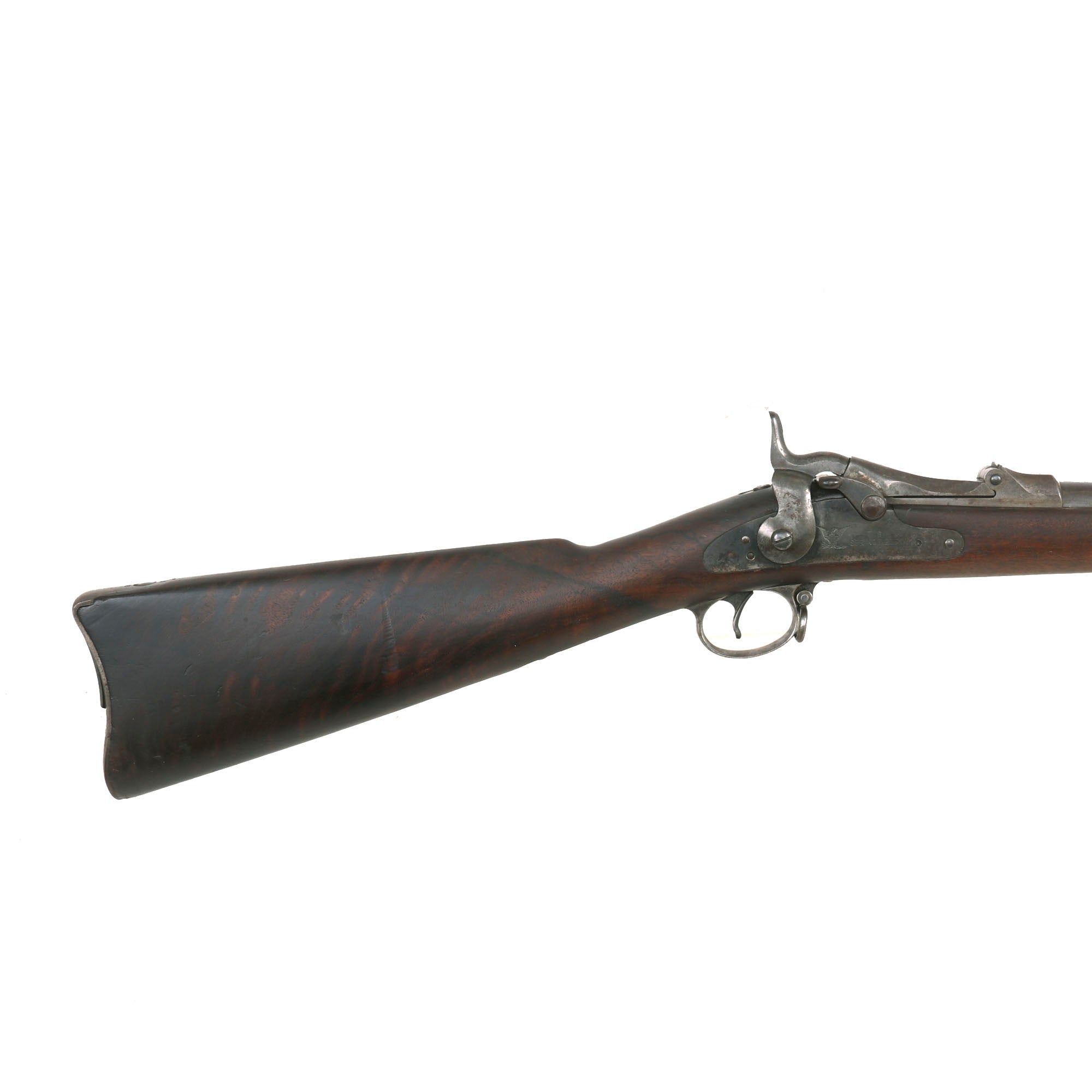

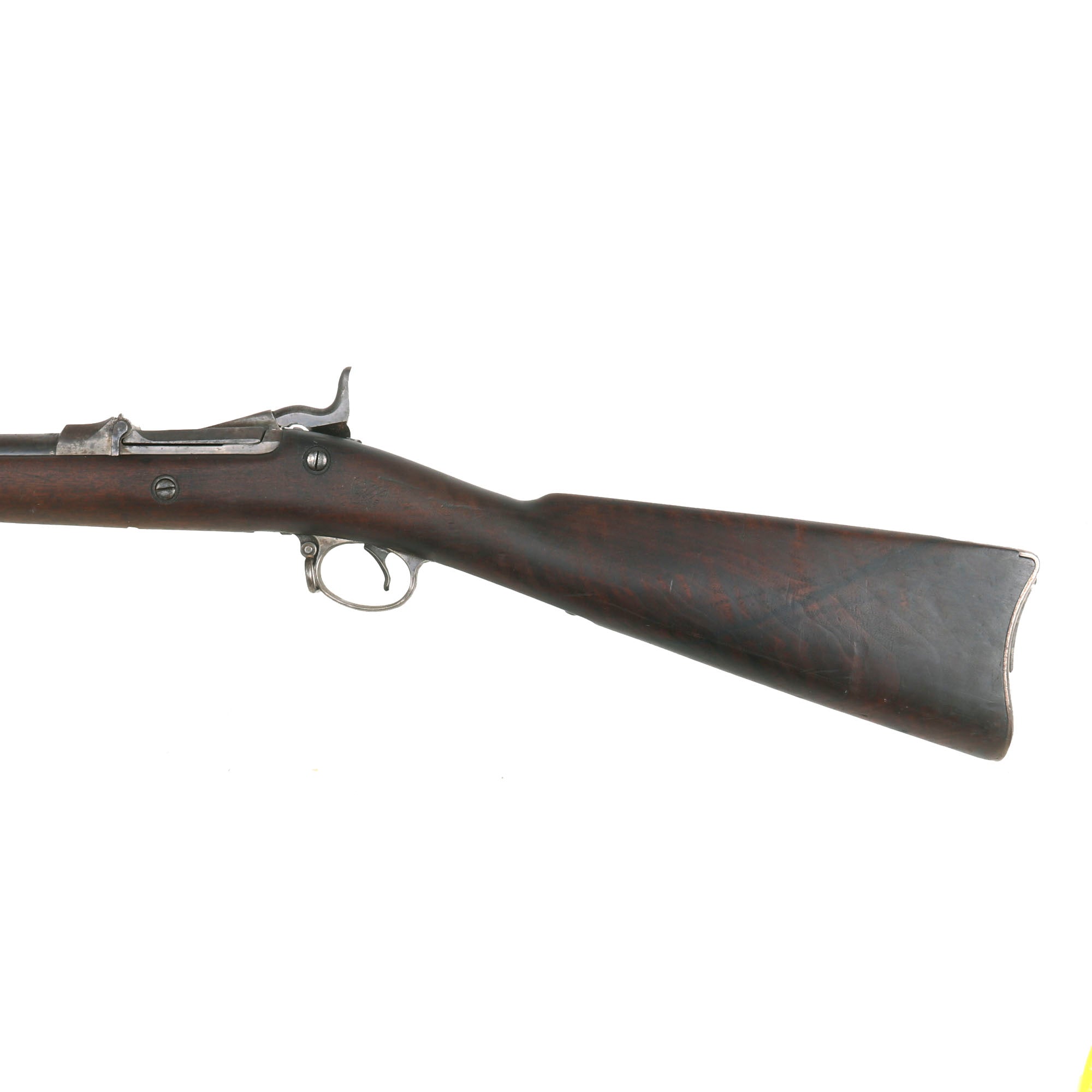

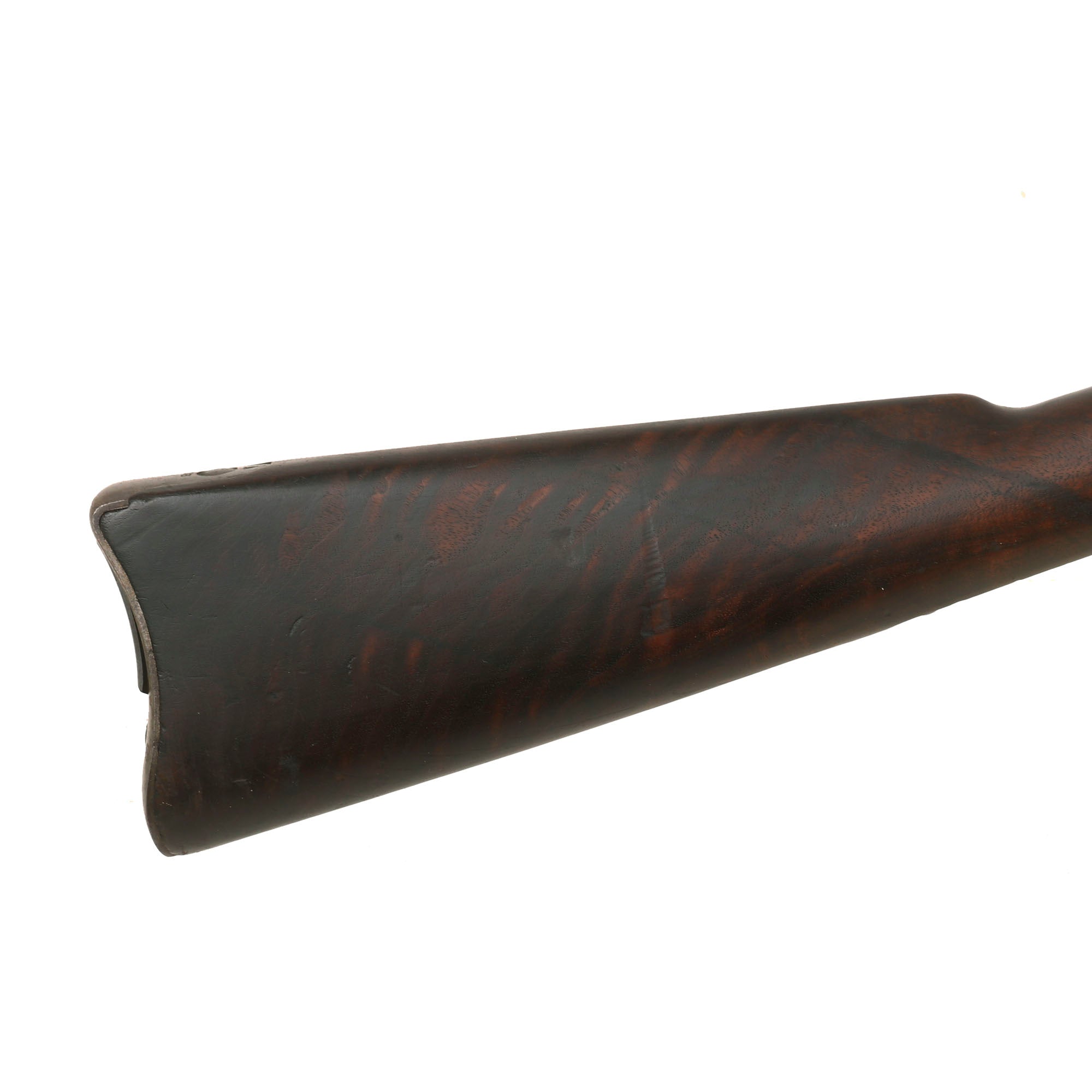

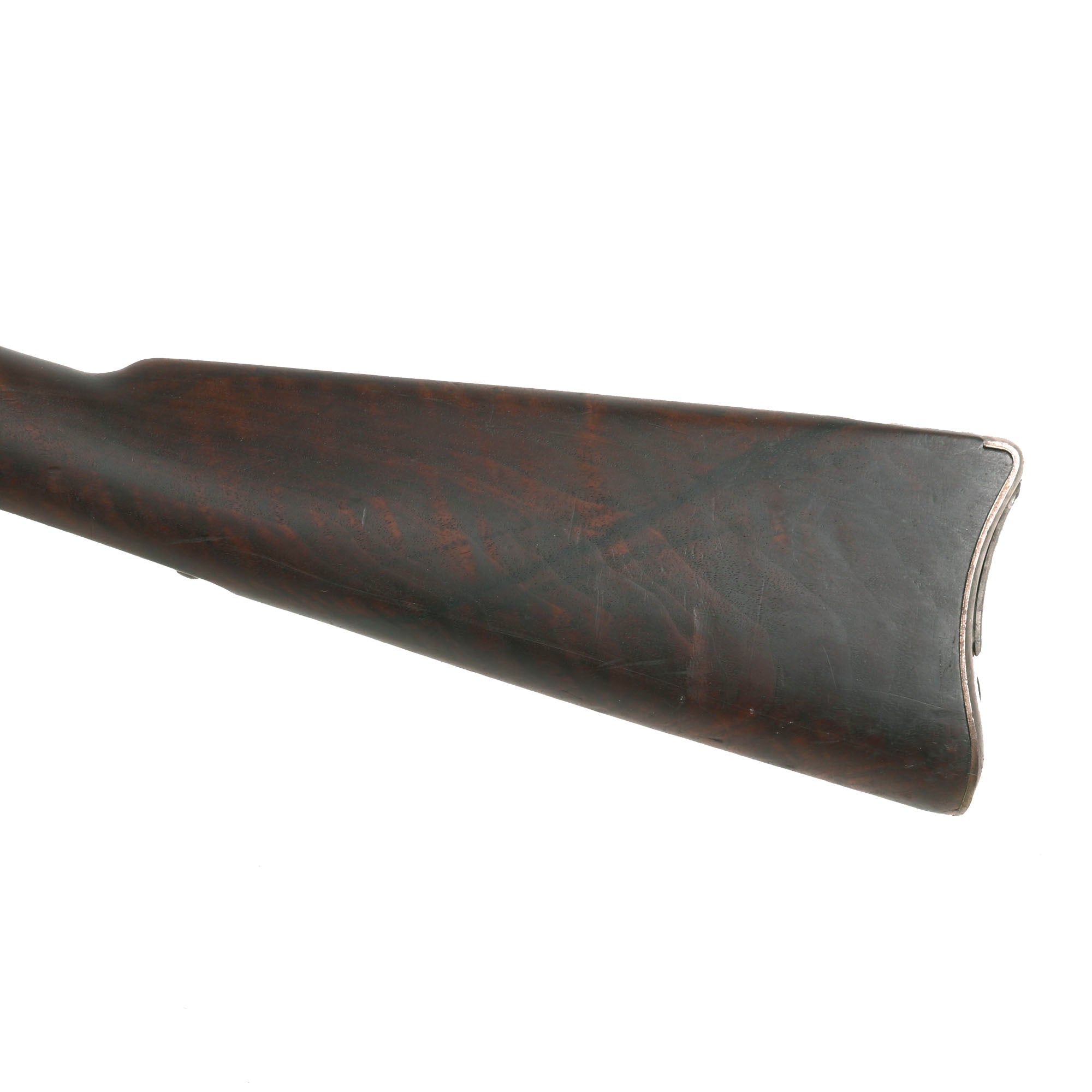

The stock is in very good service used condition, and is still fully proud over the lock plate, indicating the stock has not been worn down or reconditioned over the years. There is overall wear and scattered denting from service, as expected on a rifle that did see actual use in service. It has a fantastic lovely dark red brown color with clear grain, only achieved after decades. Even better, the buttstock area shows a lot of figuring in the grain, almost to the point of being "burl" walnut! A bit of waxing could really turn this stock into a showpiece!

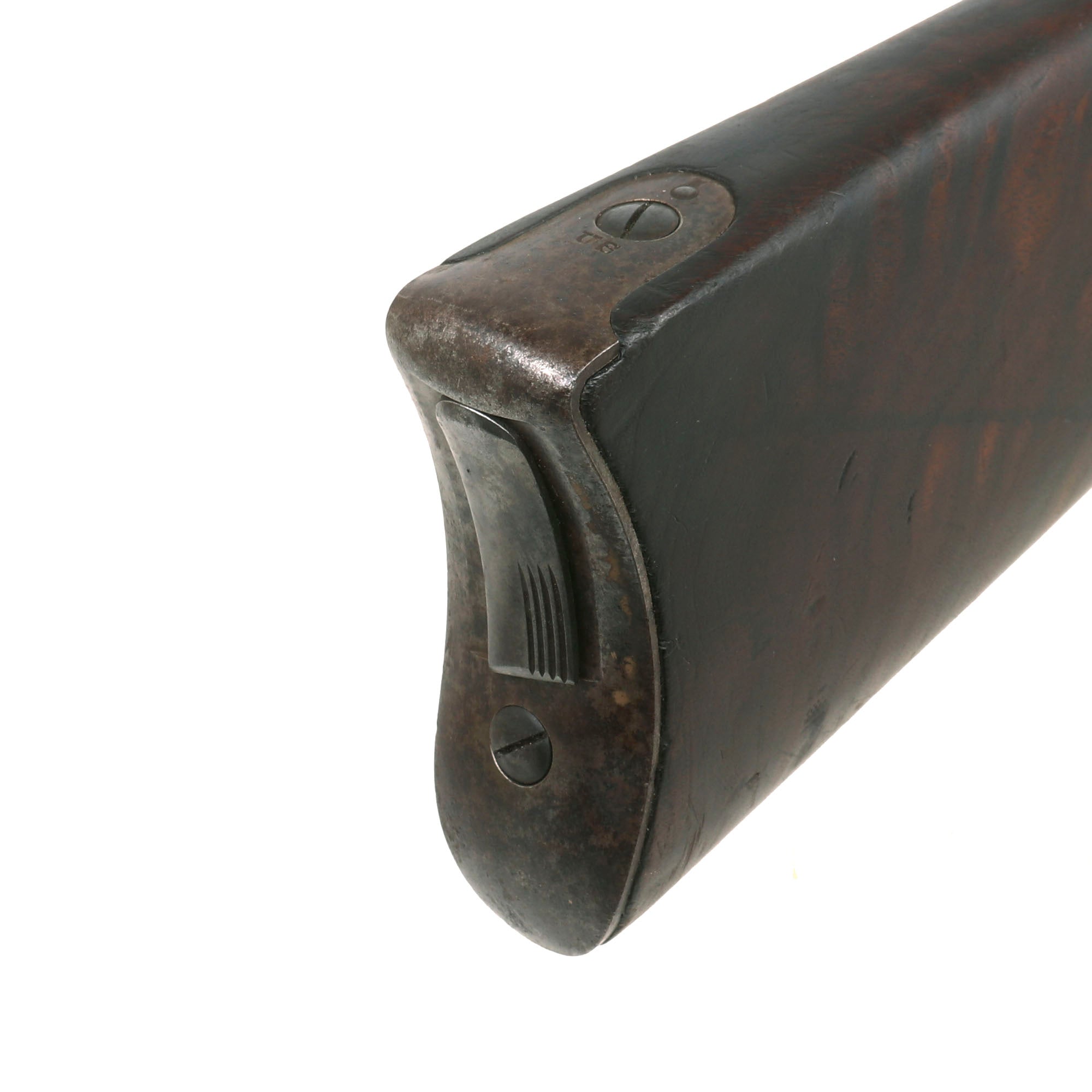

Another nice feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. This was used to store the take down tool and stuck cartridge extractor. Unfortunately this compartment is empty, as we often see.

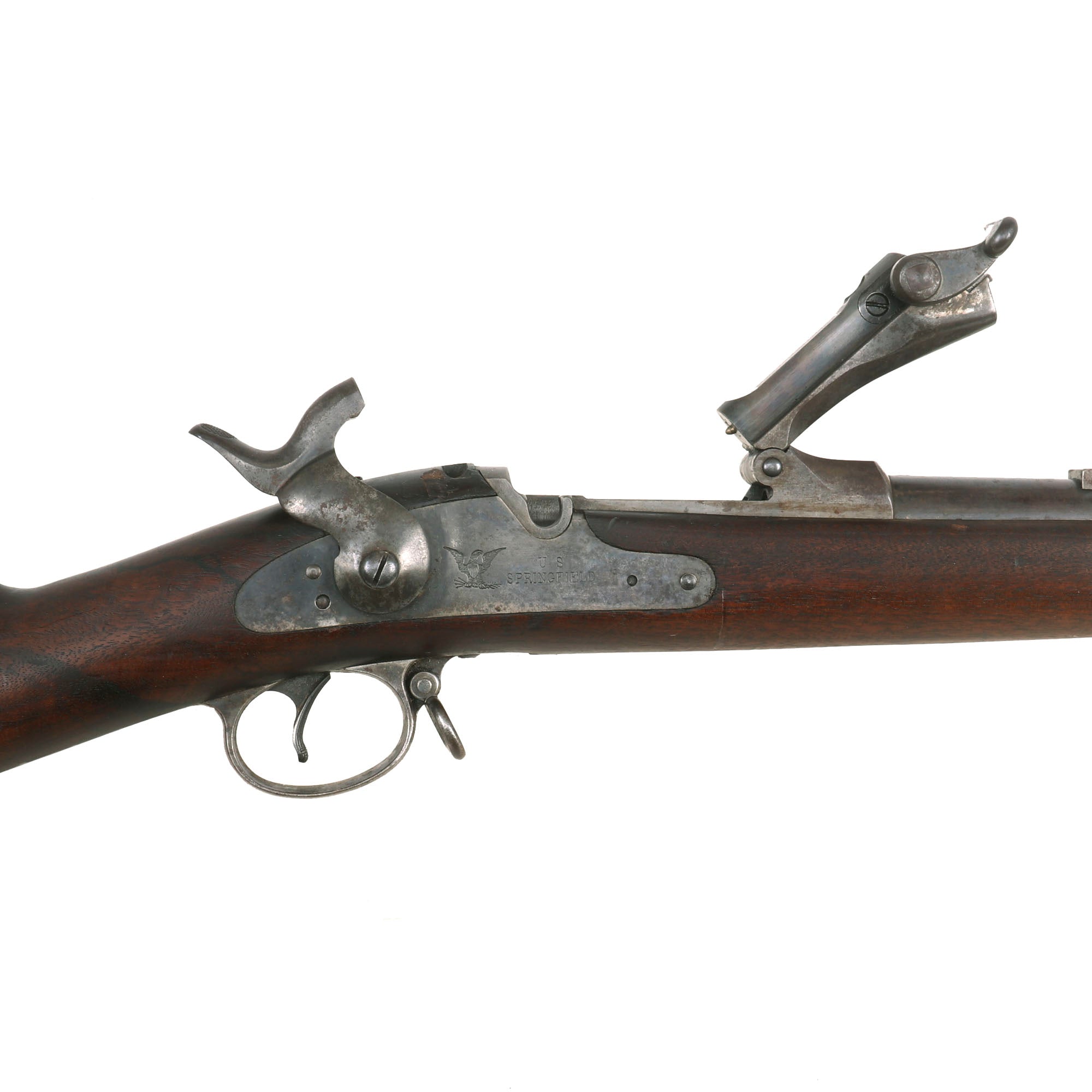

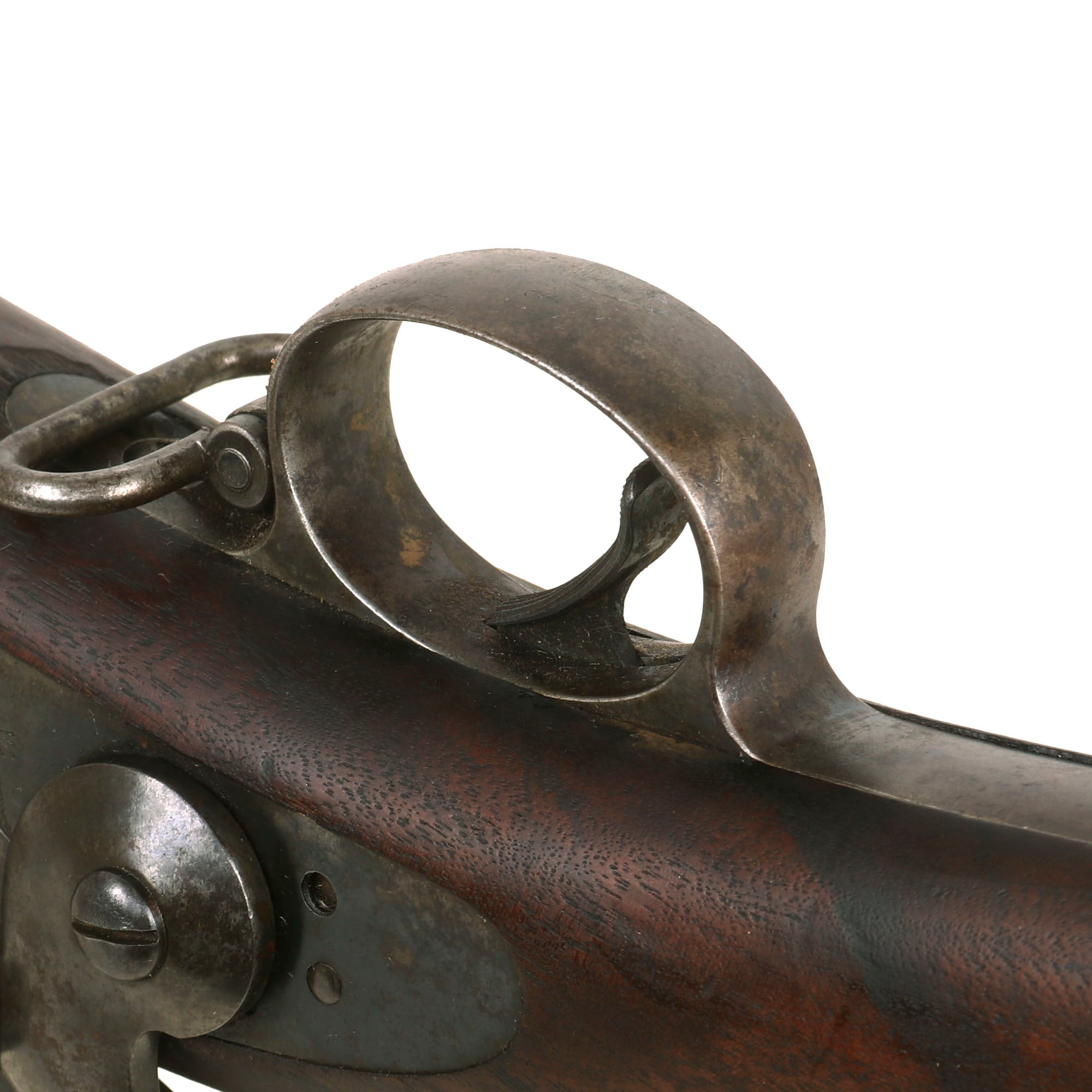

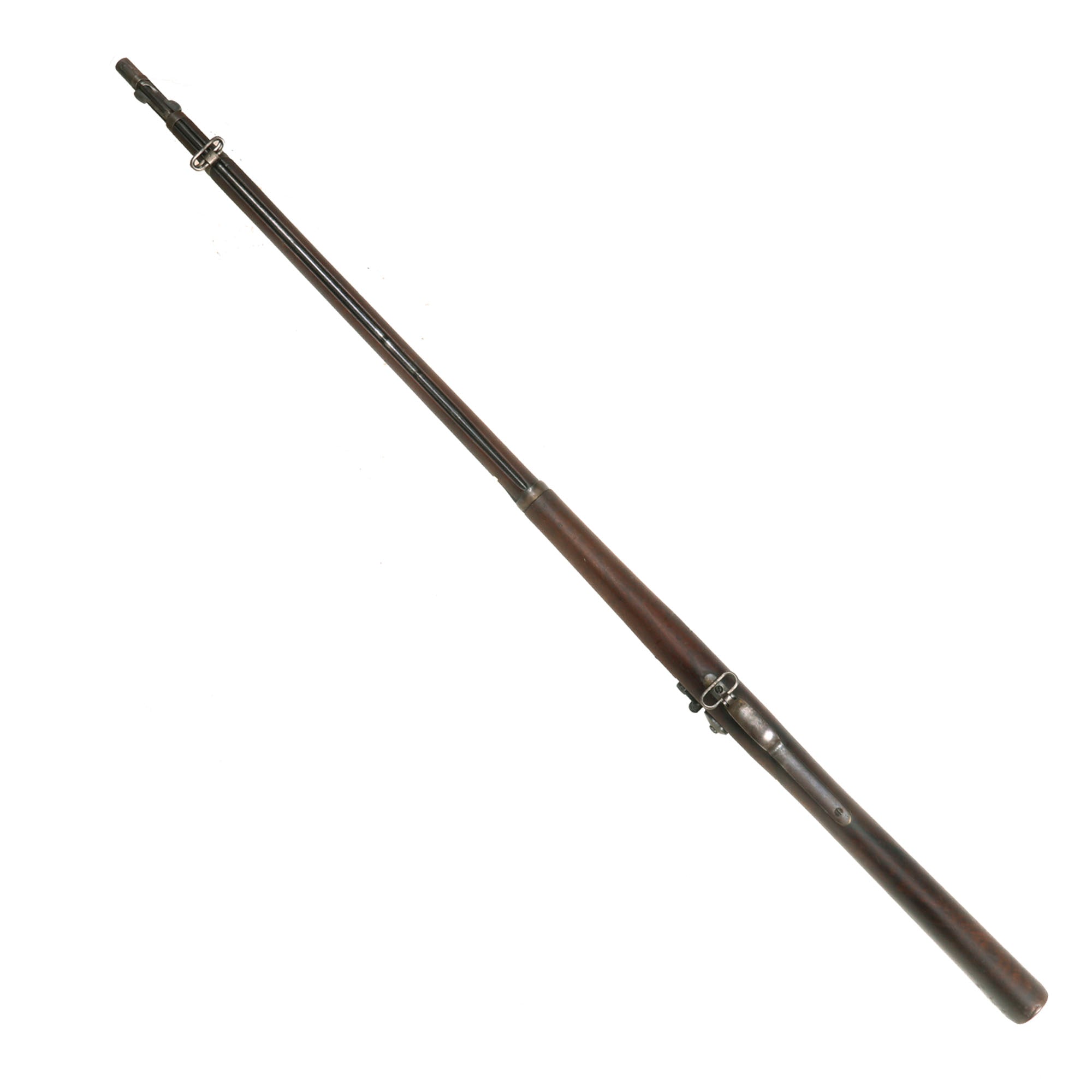

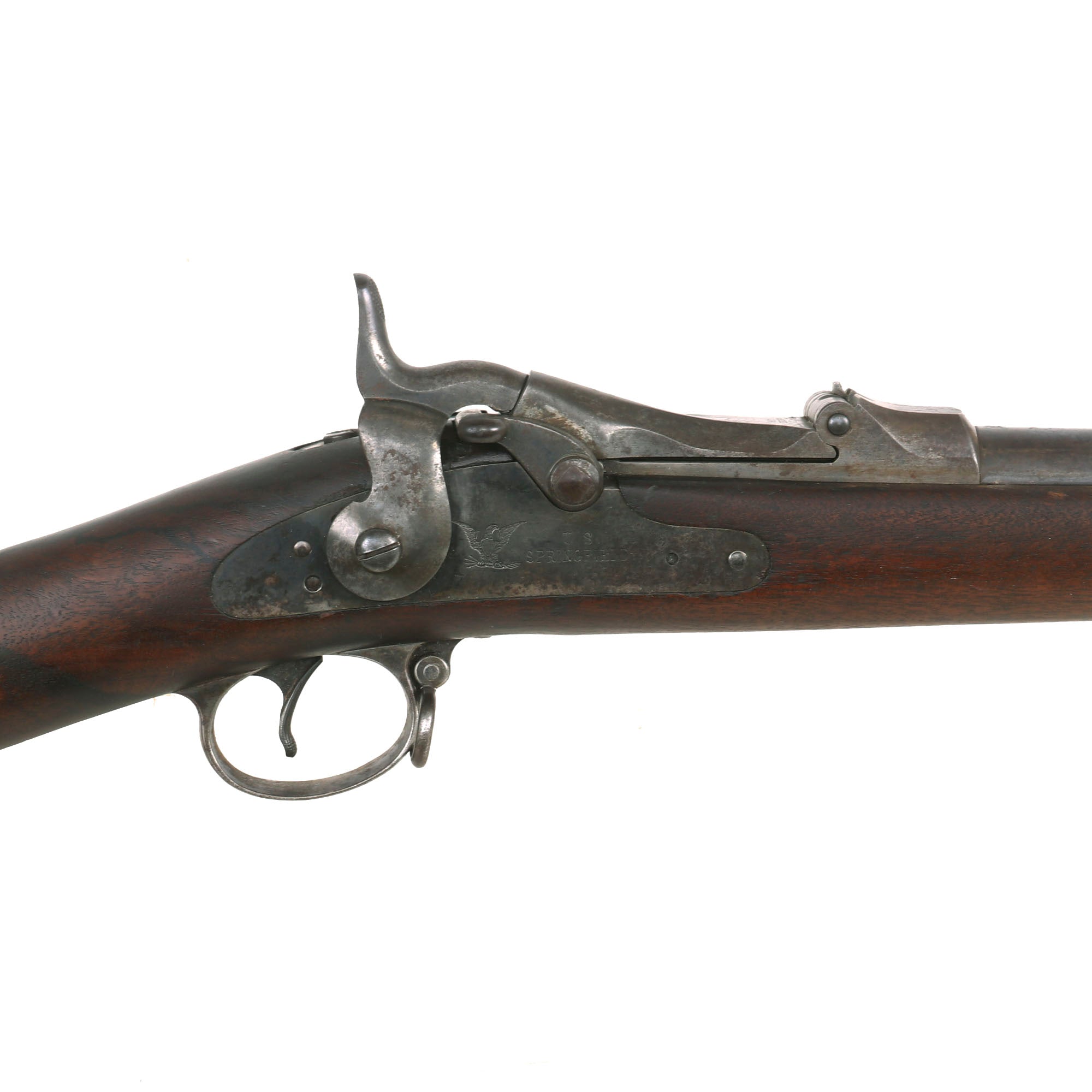

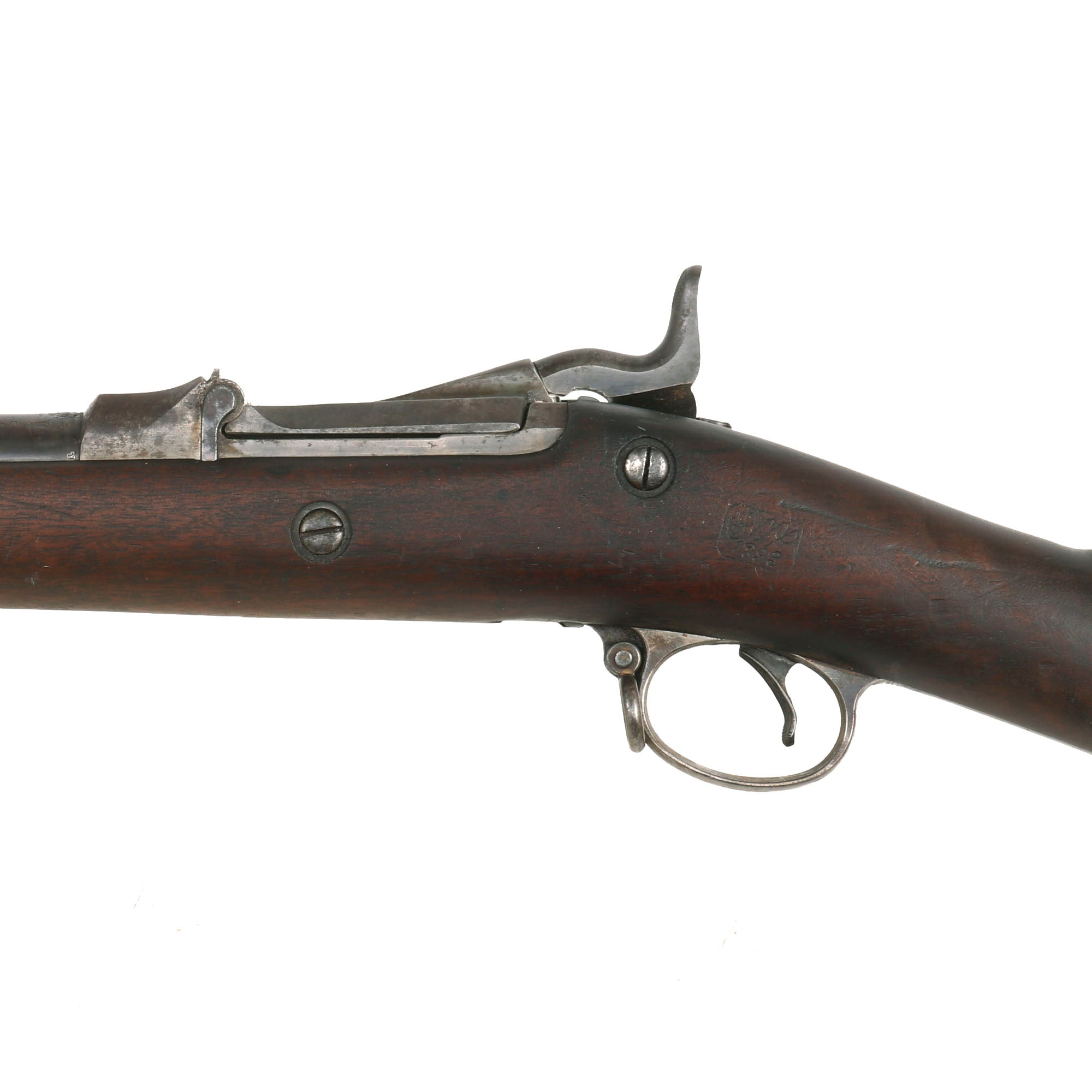

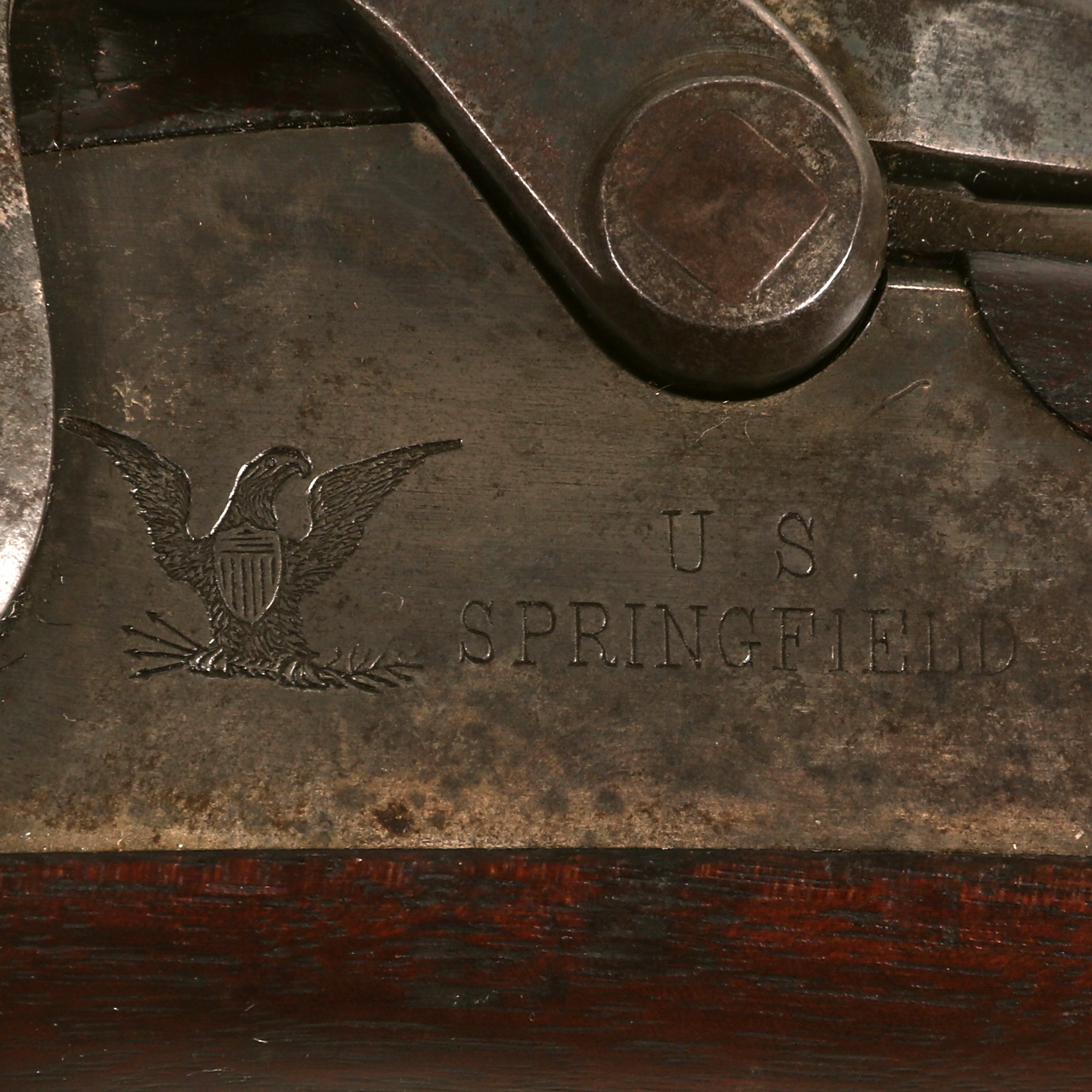

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD, manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. The lock is fully functional, and the cartridge extractor is present and functional, however we cannot guarantee it will work on actual brass. The rear sight is fully intact, with the range and windage easily adjustable.

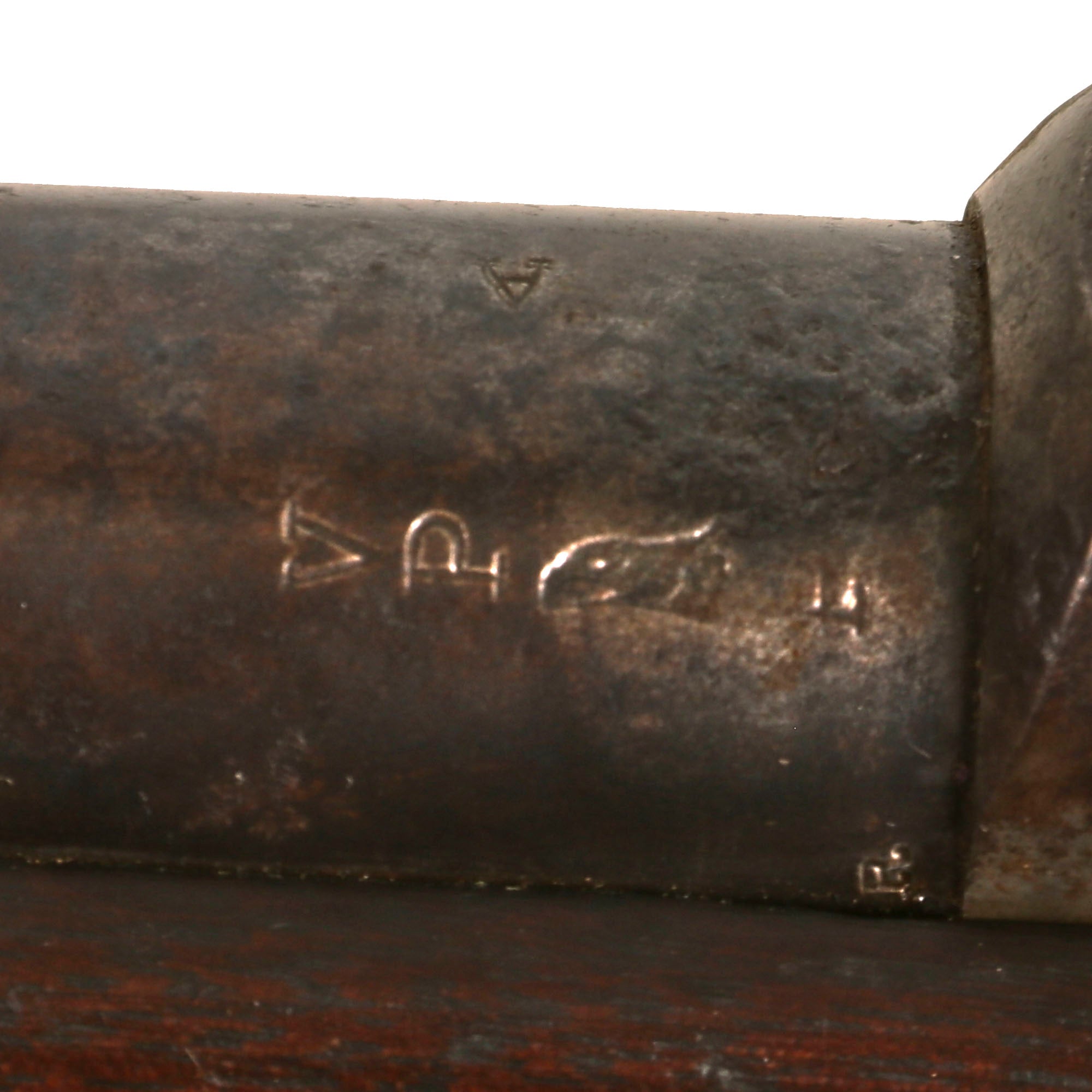

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

A great chance to pickup a very nice example of the United States last single shot rifle with a great bore and fantastic figured butt stock! Ready to research and display!

Specifications-

Year of Manufacture: 1893
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches

Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
