Item:
ON5348

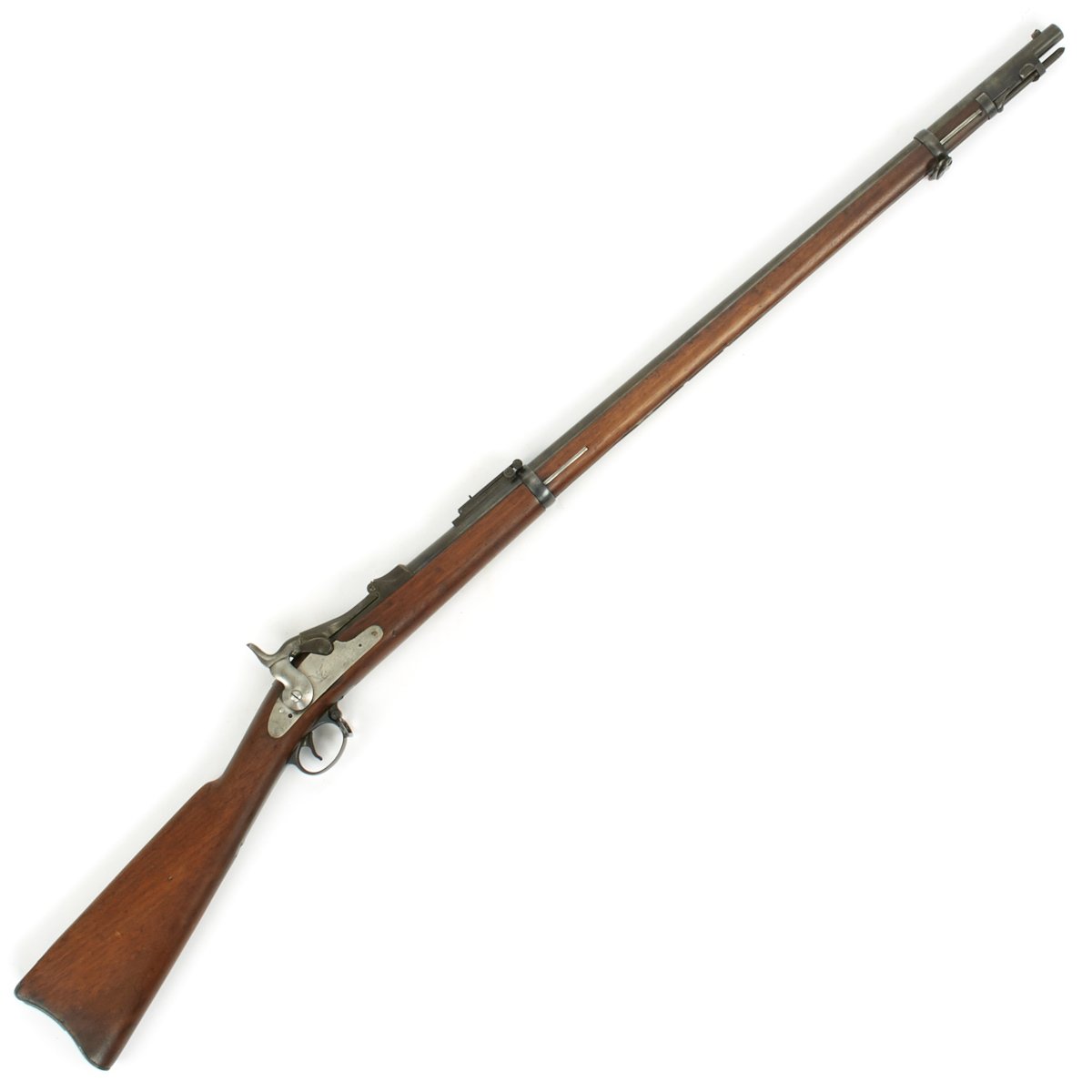

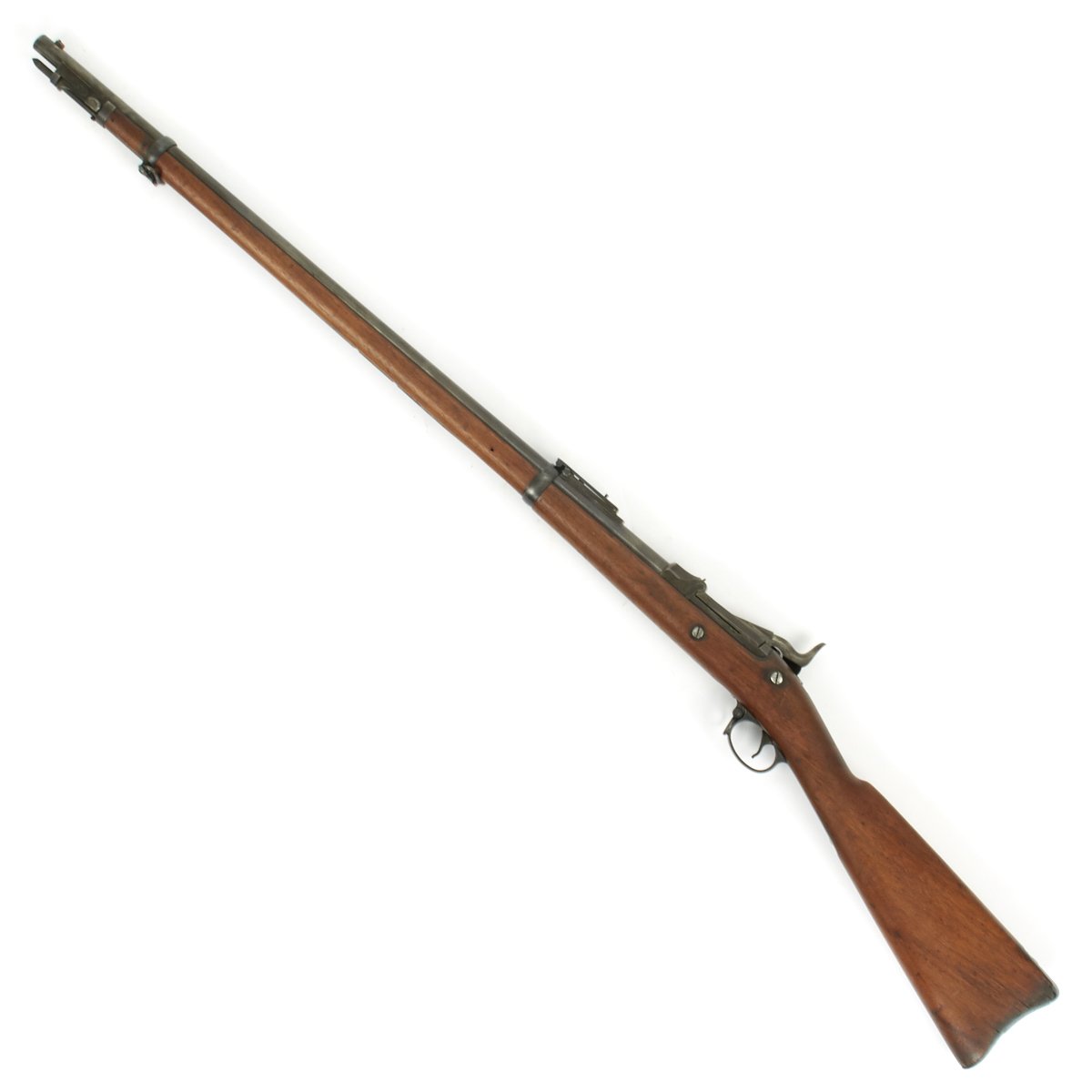

Original U.S. Springfield Trapdoor Model 1873/84 Round Rod Bayonet Rifle made in 1891 - Serial No 522597

Item Description

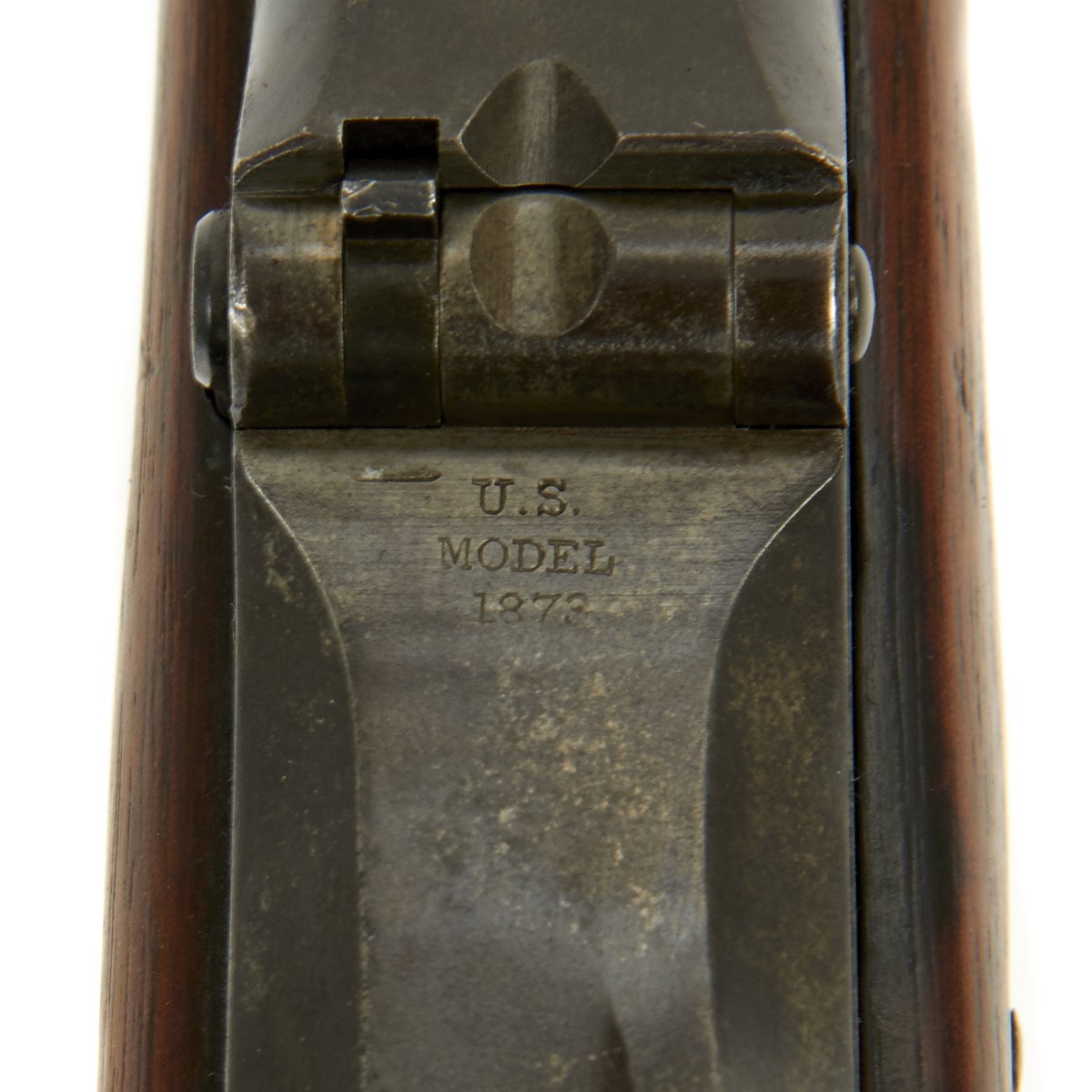

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This excellent example has the breech block marking:

U.S.
MODEL
1873

Most likely, the breech block on this model was replaced at arsenal during service life, as the breech blocks were identical. In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

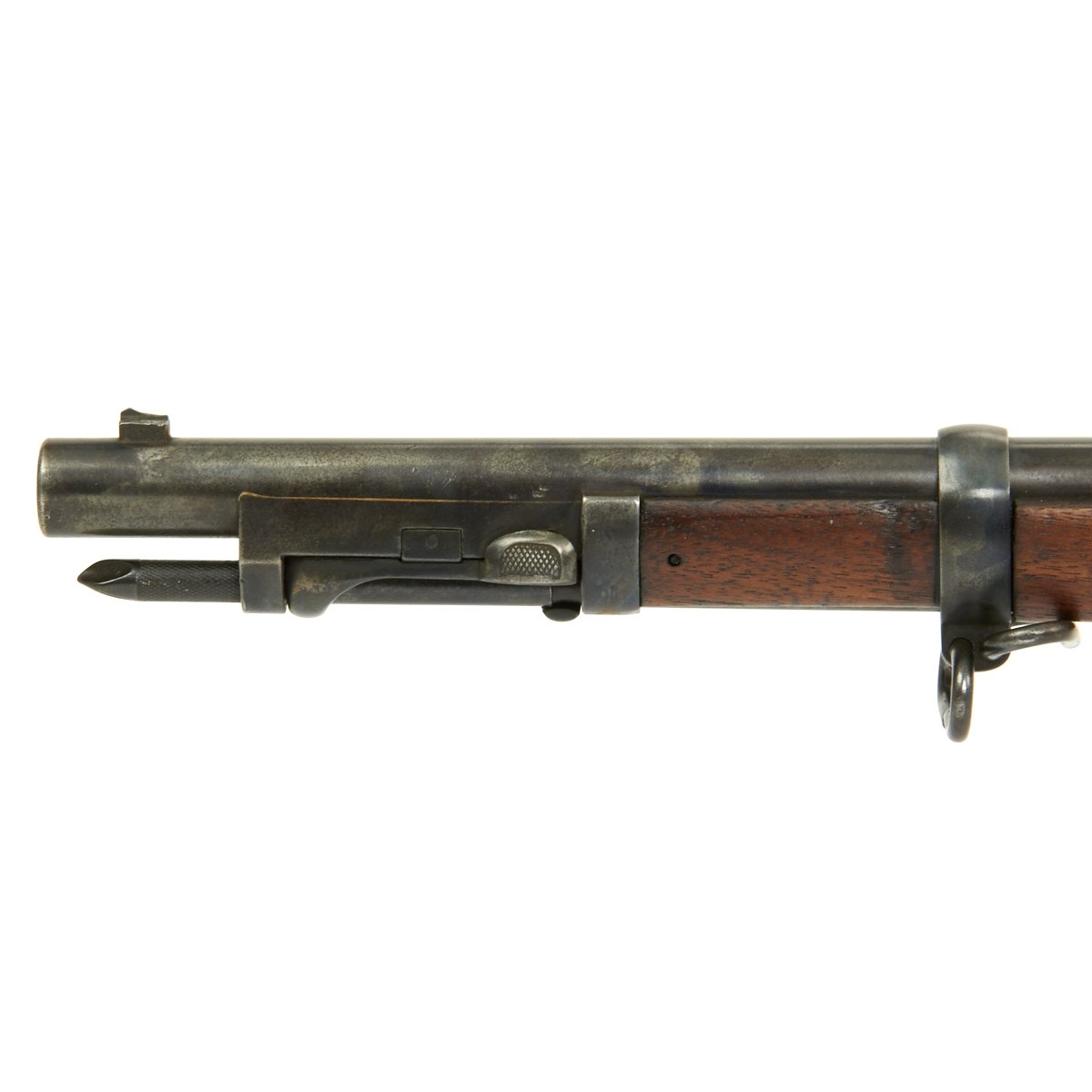

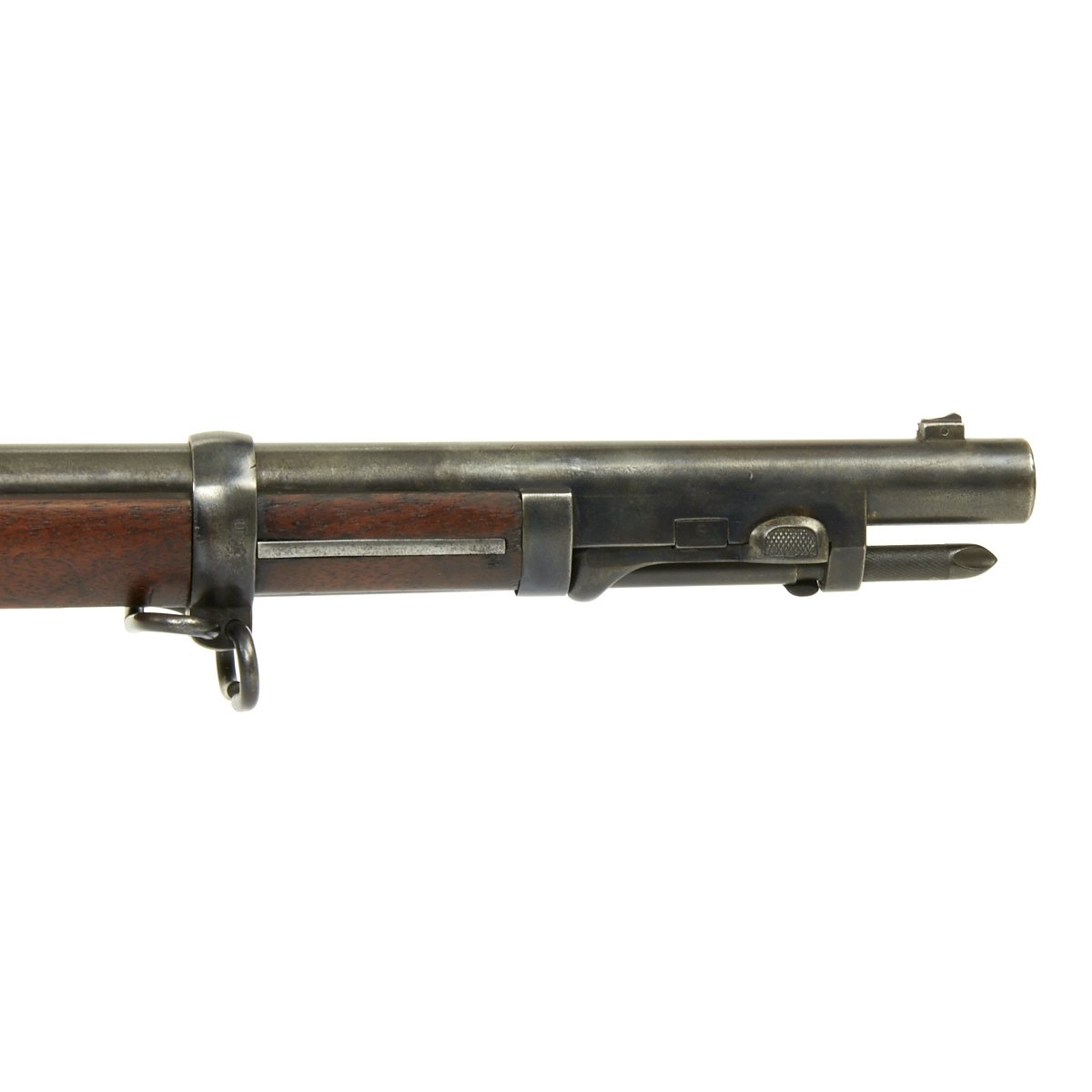

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

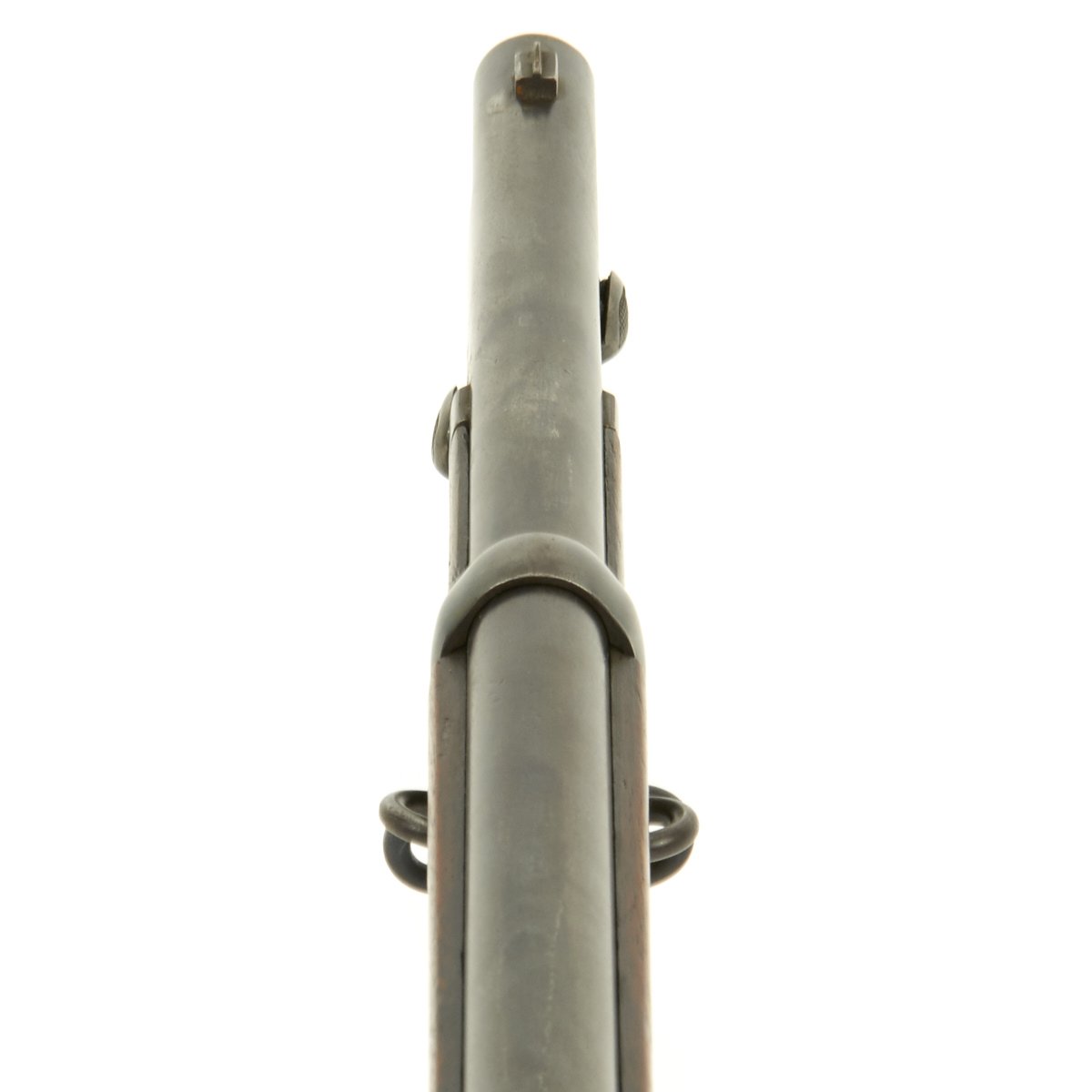

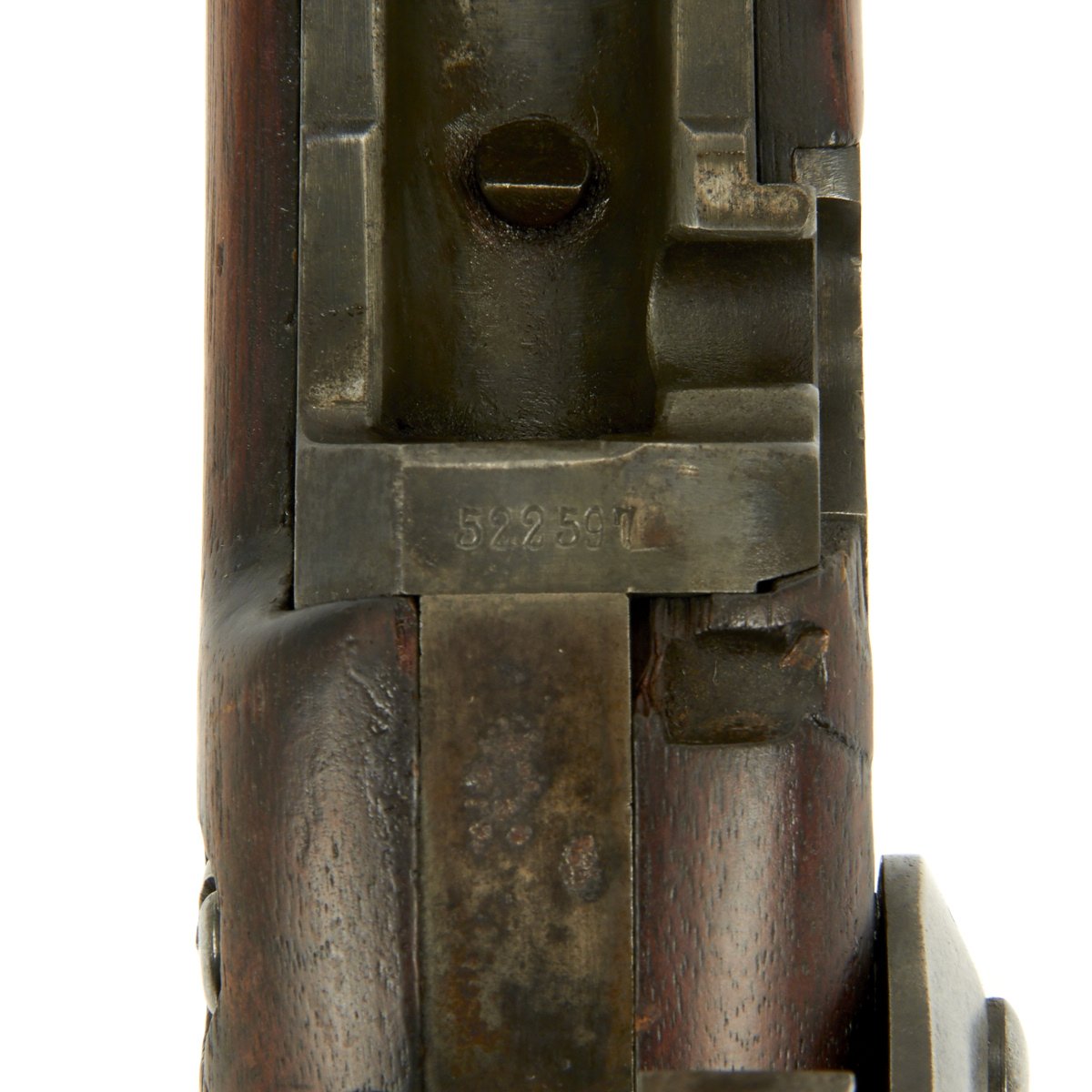

Offered in good condition is this trapdoor rifle in 45-70 government caliber. Serial #5522597 indicates manufacture in 1891, with a faint government inspector SWP / 1891 cartouche, indicating inspection in the same year. Original metal finish with all proofs still present. The butt plate is U.S. marked and both barrel bands are still U marked. Hardware is in solid condition, with some of the original finish remaining.  There is the peppery look of old pitting on parts of the metalwork.  The bore is in excellent condition, with clear lands and grooves and a bright finish. The cleaning rod / bayonet is in very good shape, with intact threads and a good deal of the original finish.

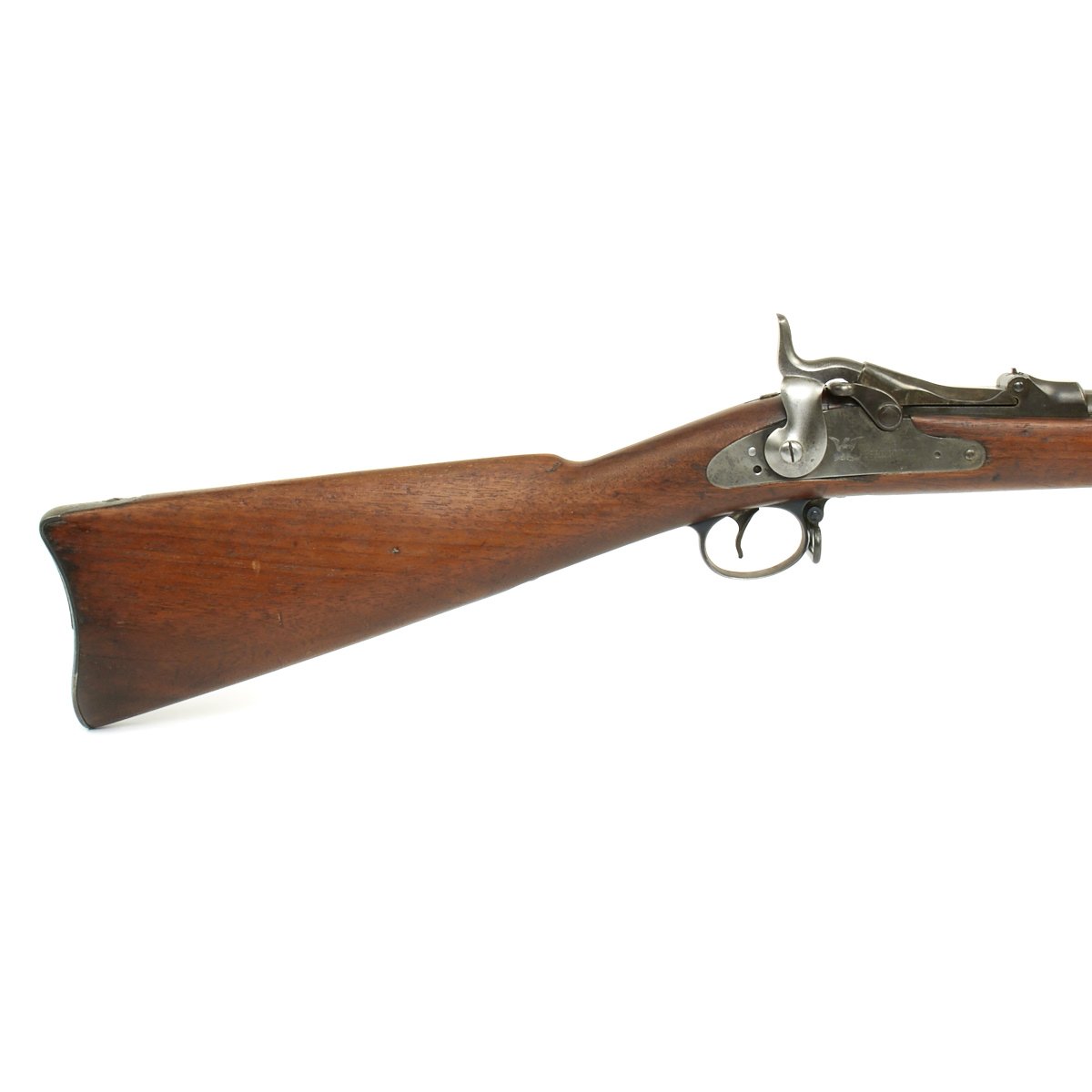

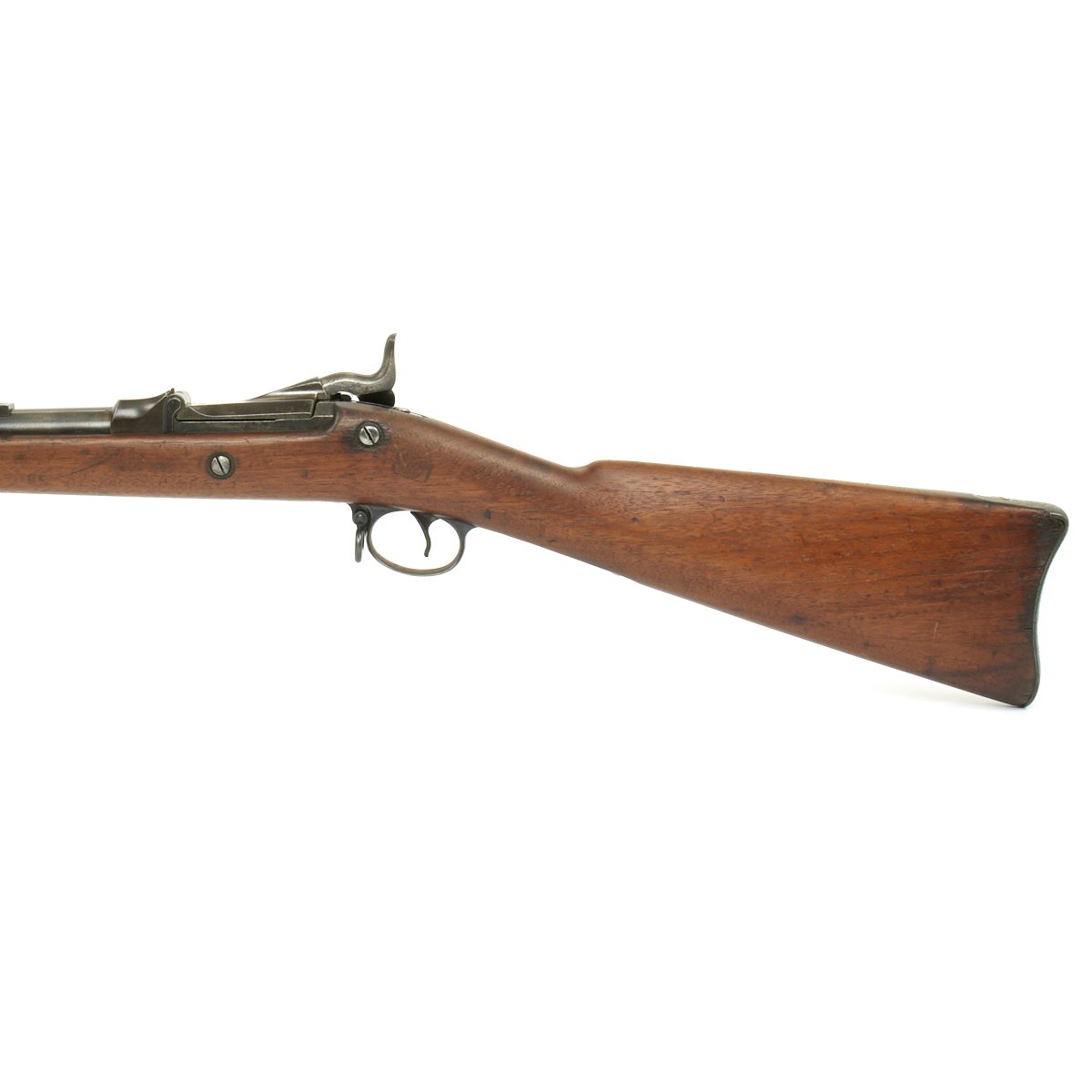

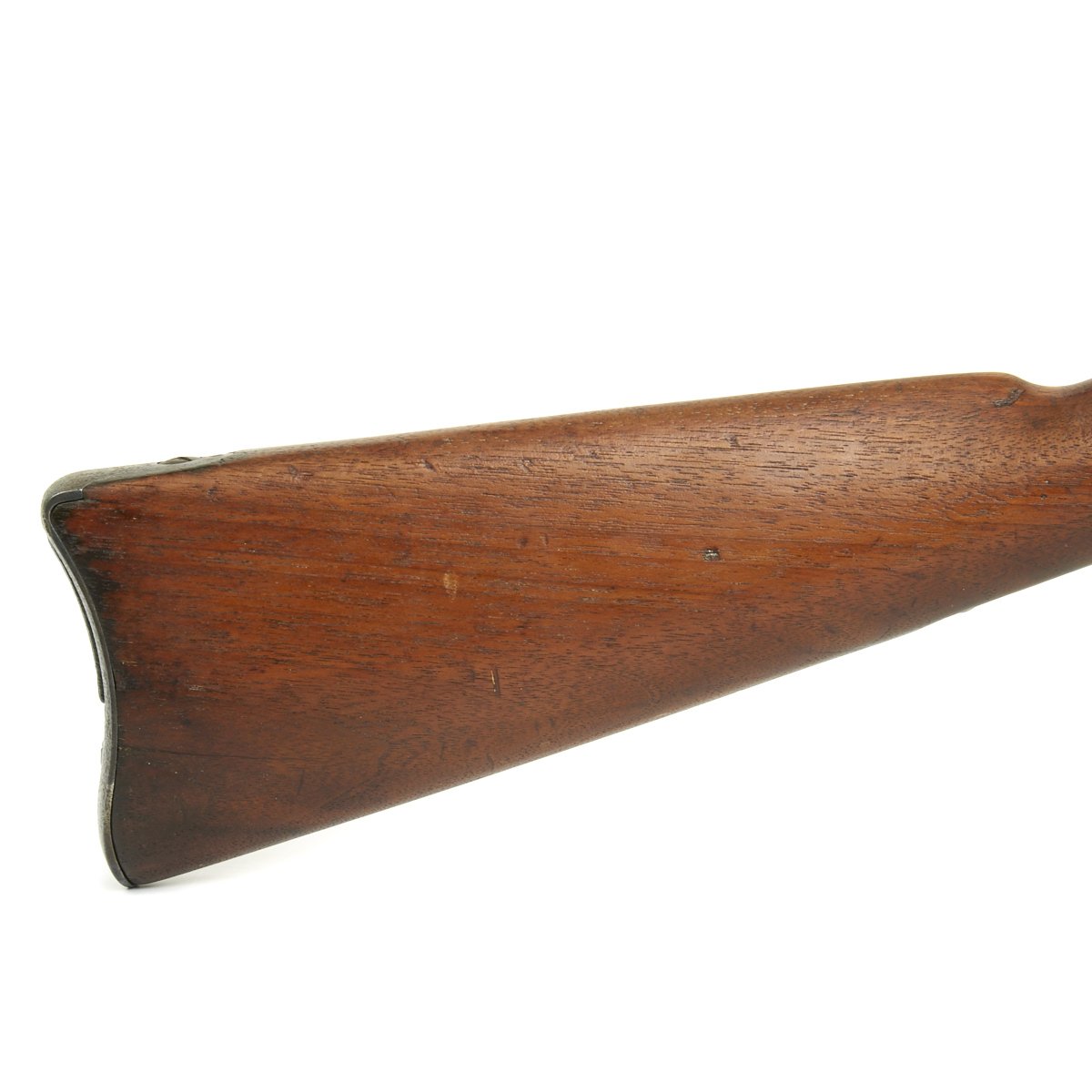

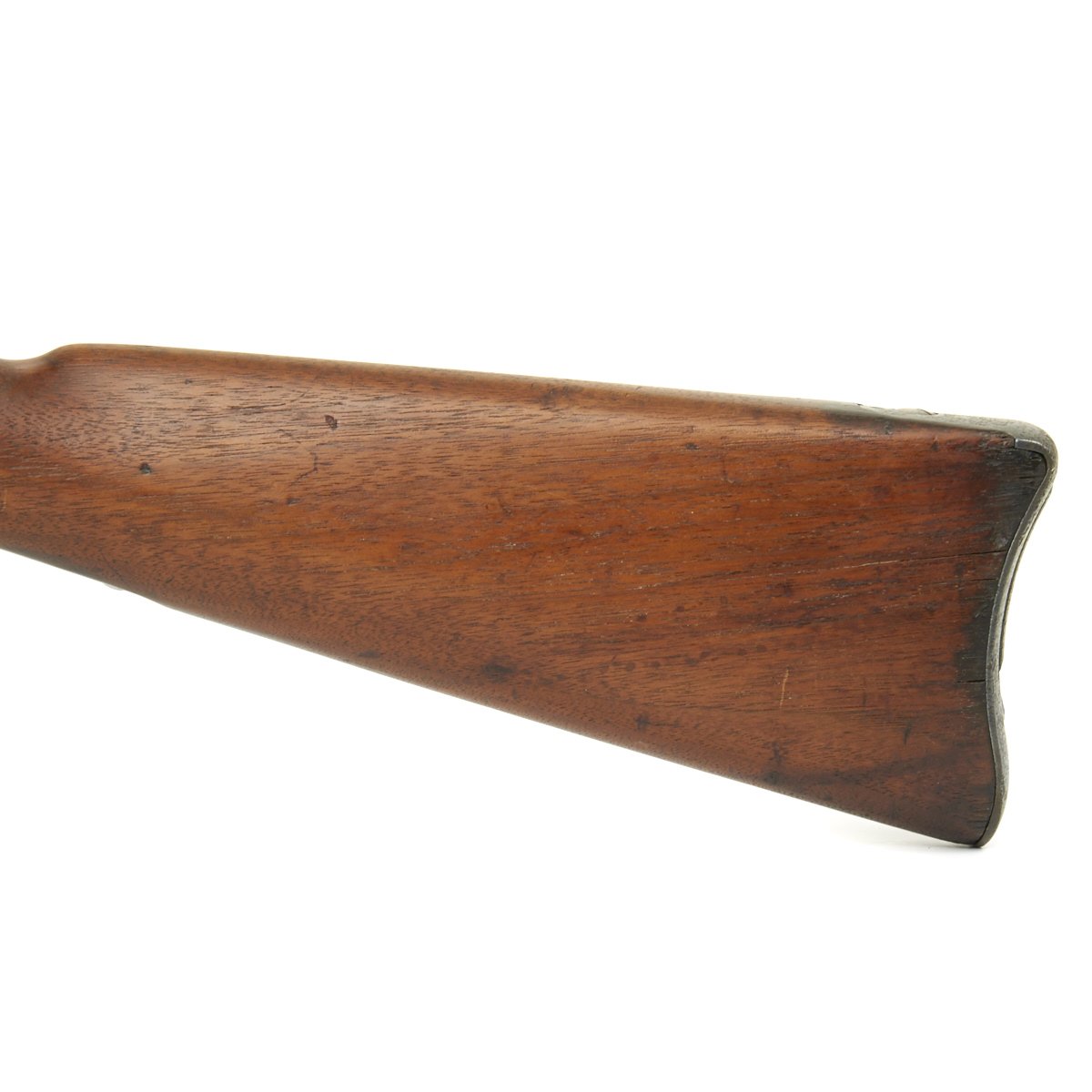

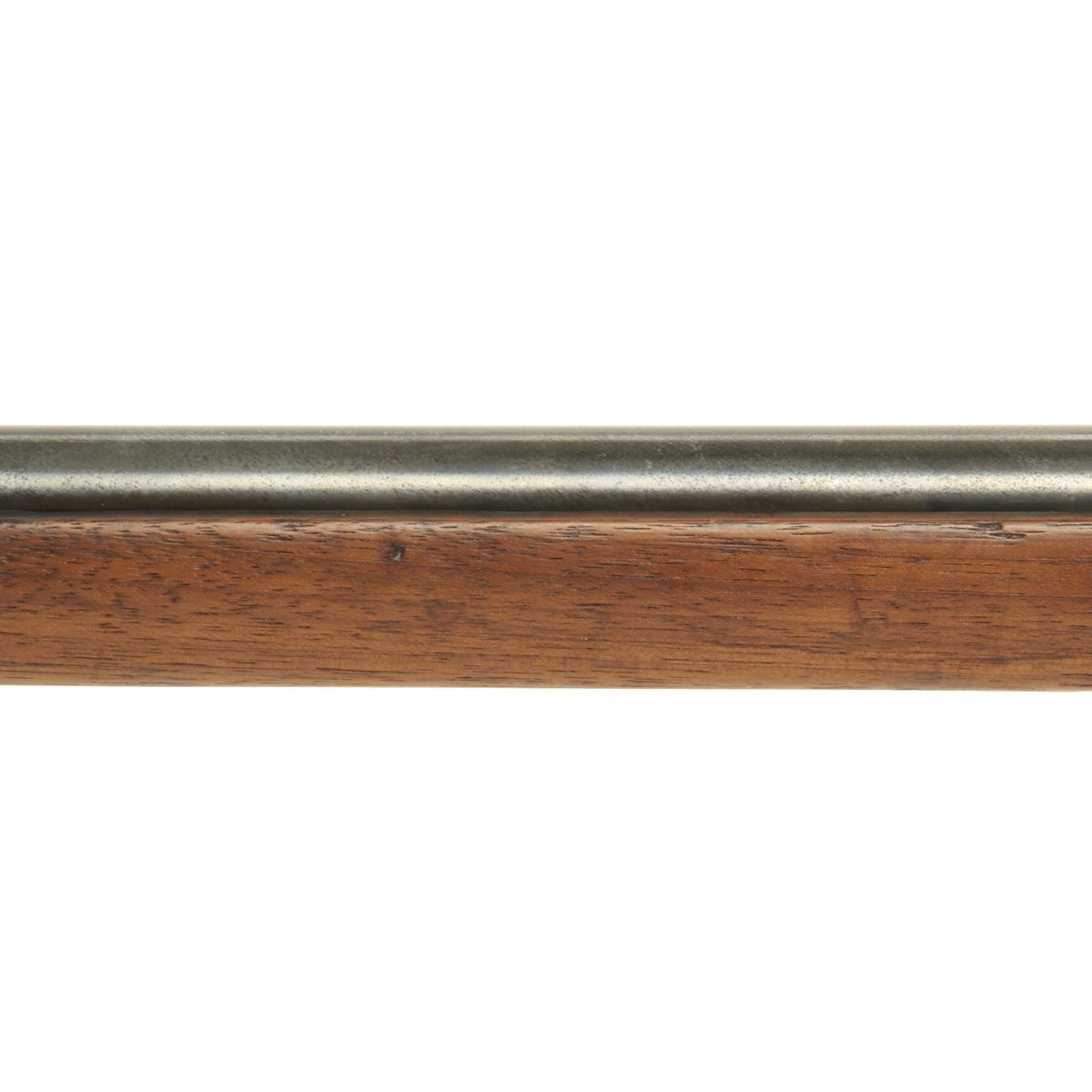

The stock is in good condition, with a great color only small issues There are some age cracks in the butt stock starting at the butt plate. It appears to have been sanded a bit, as the stock is only proud over some areas of the lock plate. There are definitely some small scratches and dings, and stock is missing a small sliver under the lock plate.

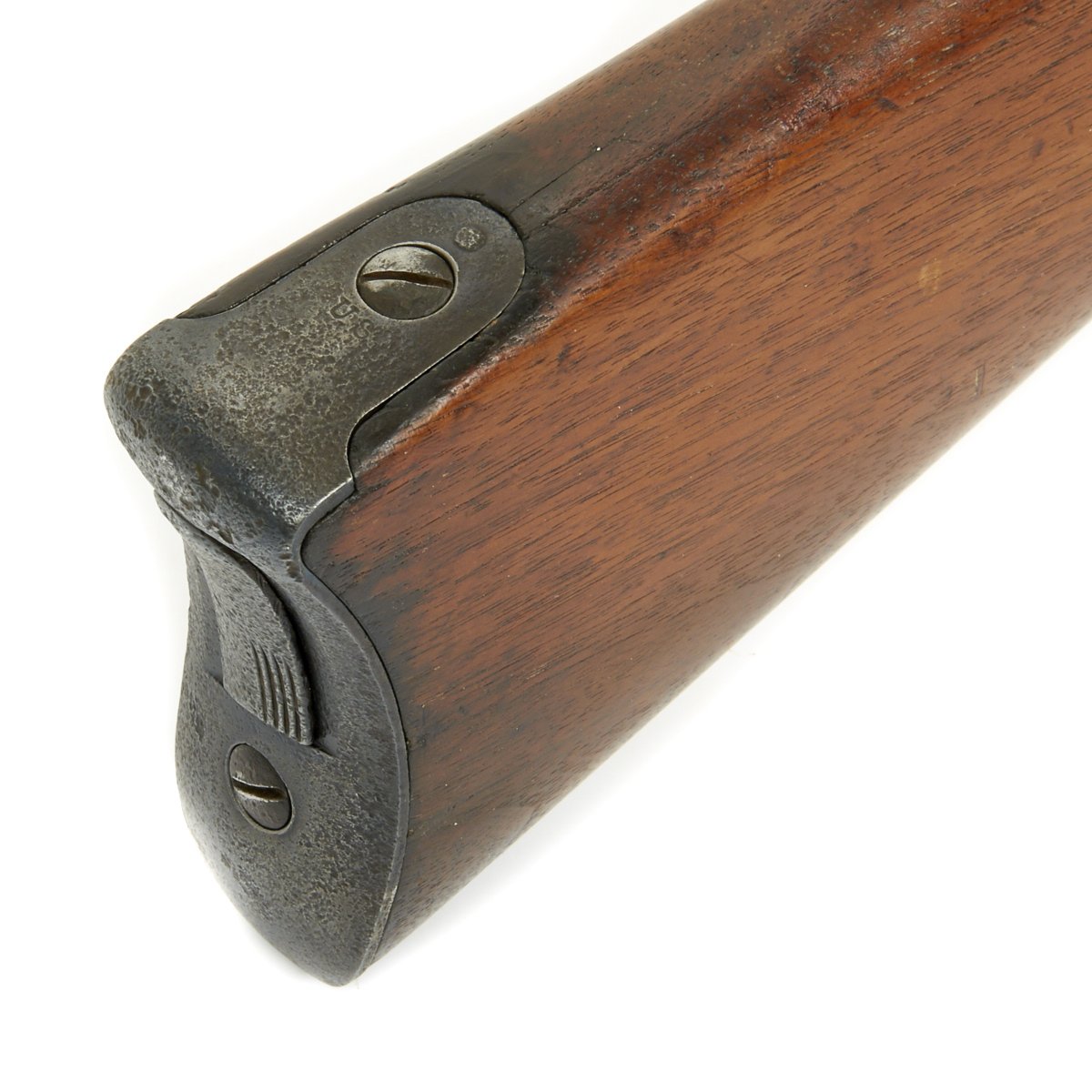

Another excellent and rarely seen feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. We have had many Springfield Trapdoor rifles, but only a few have had this feature.

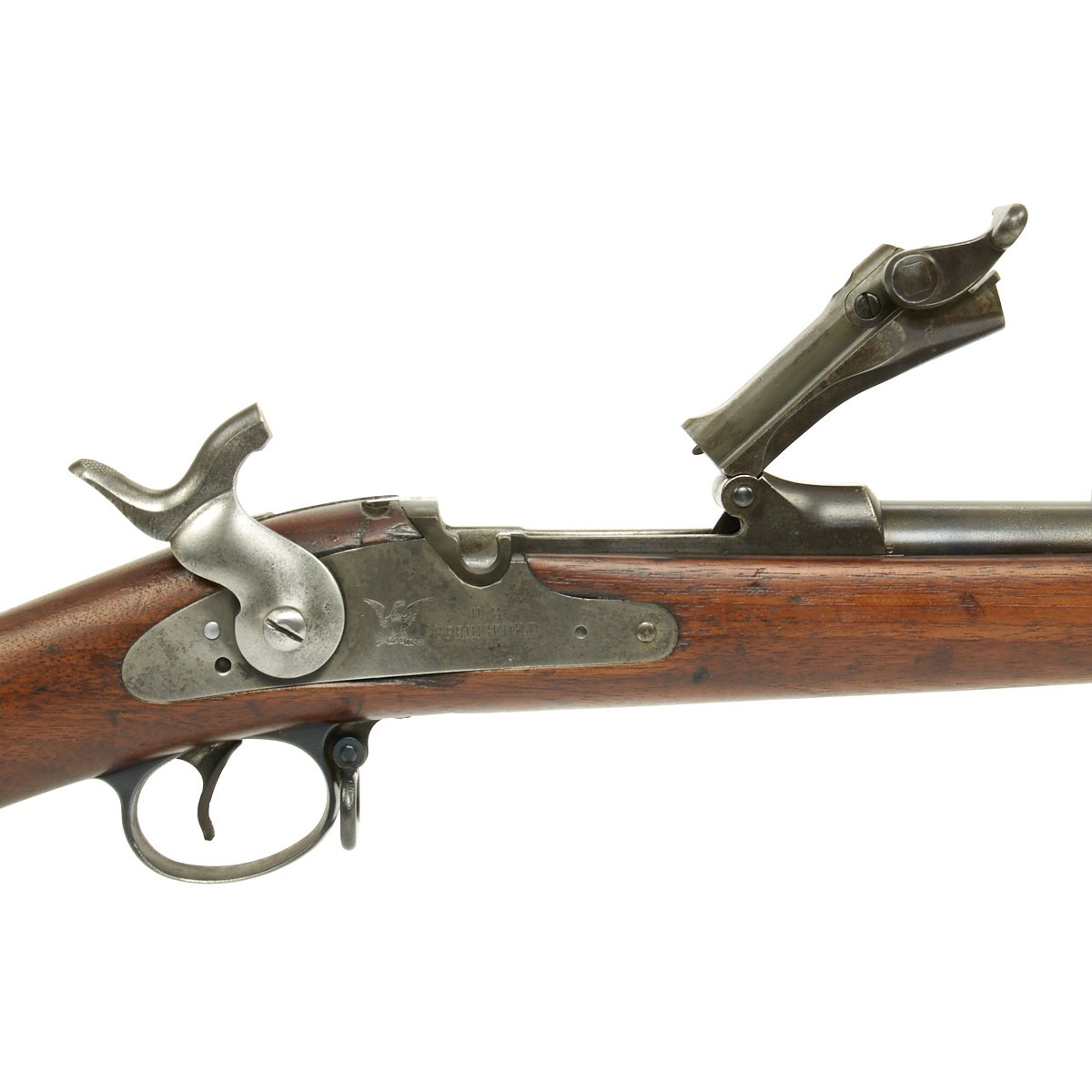

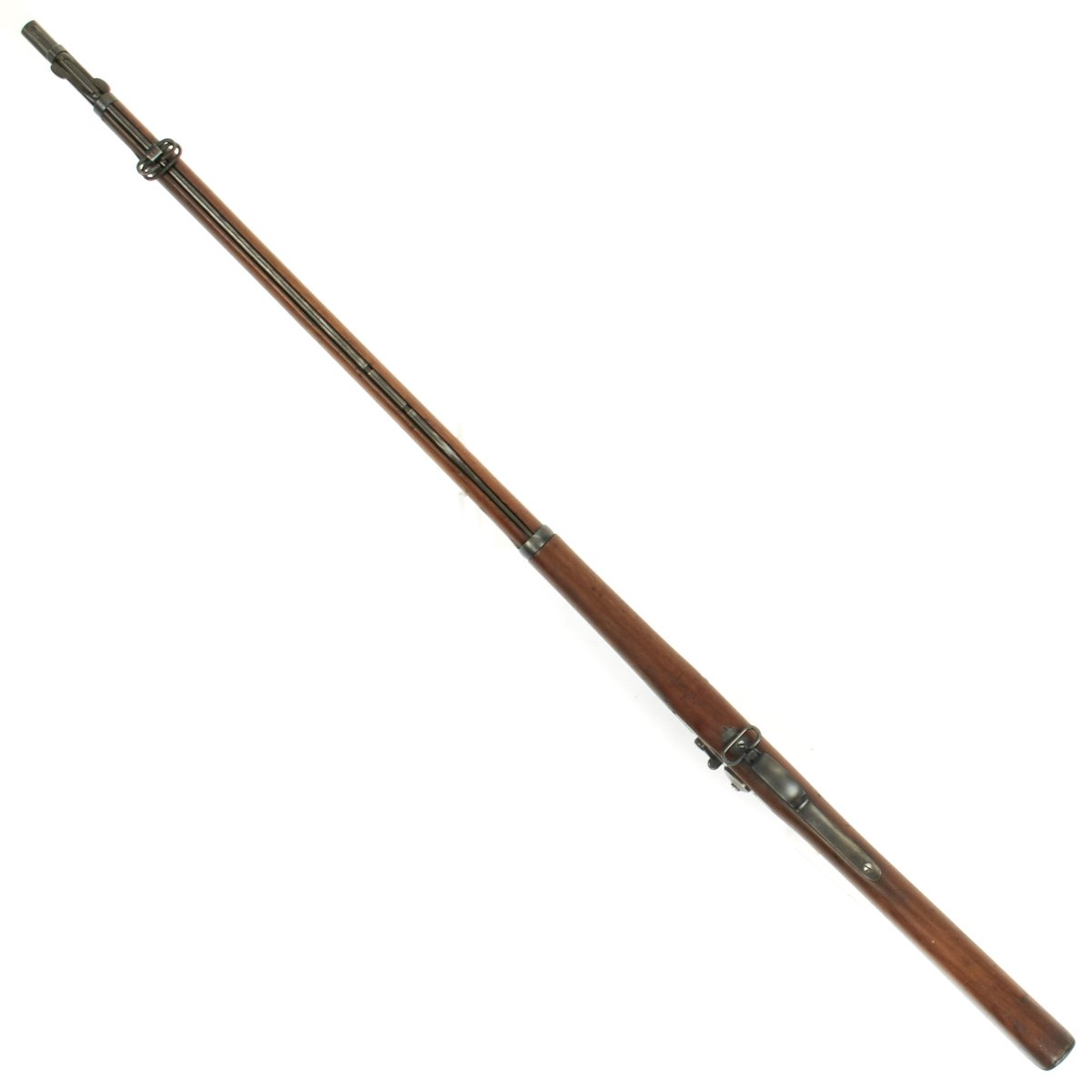

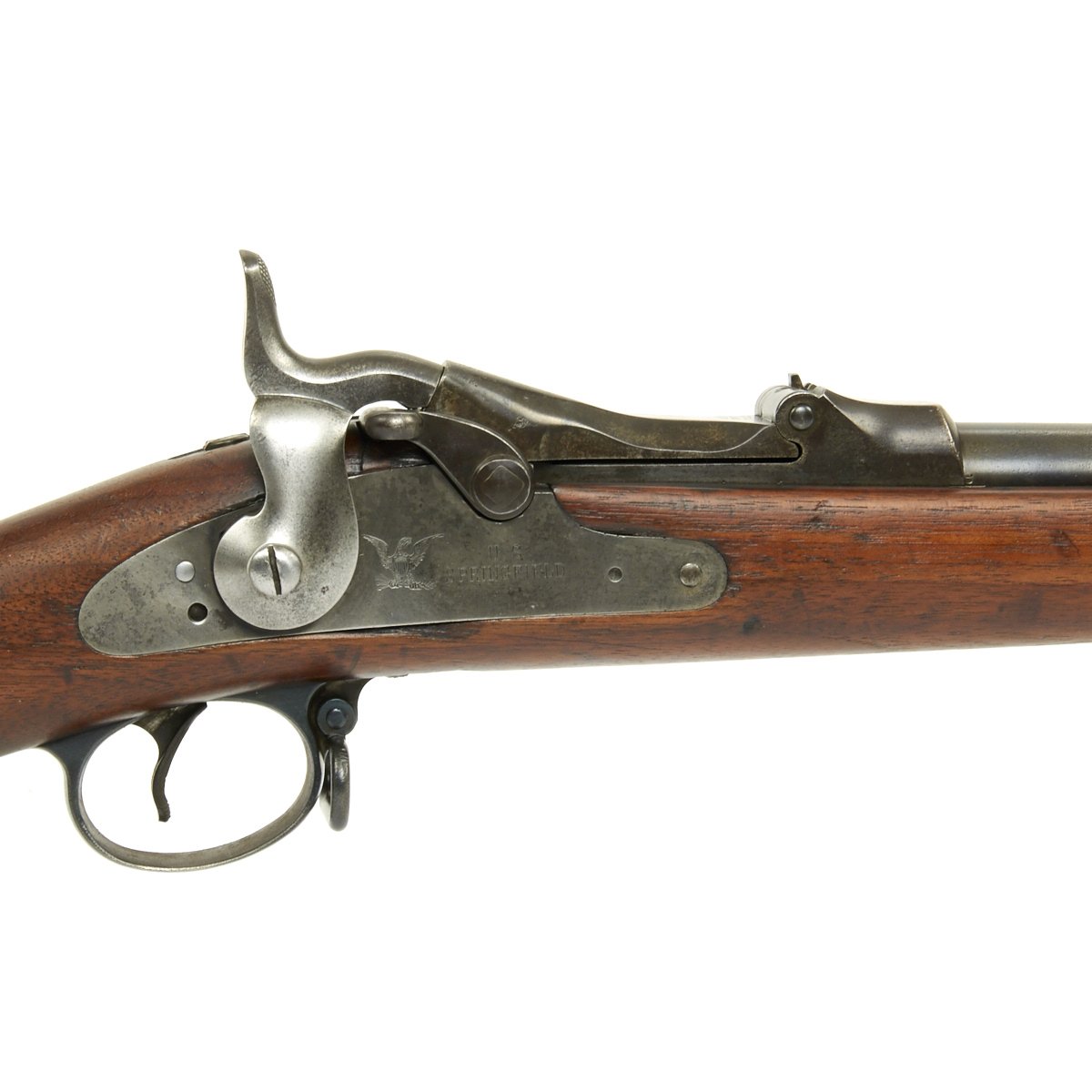

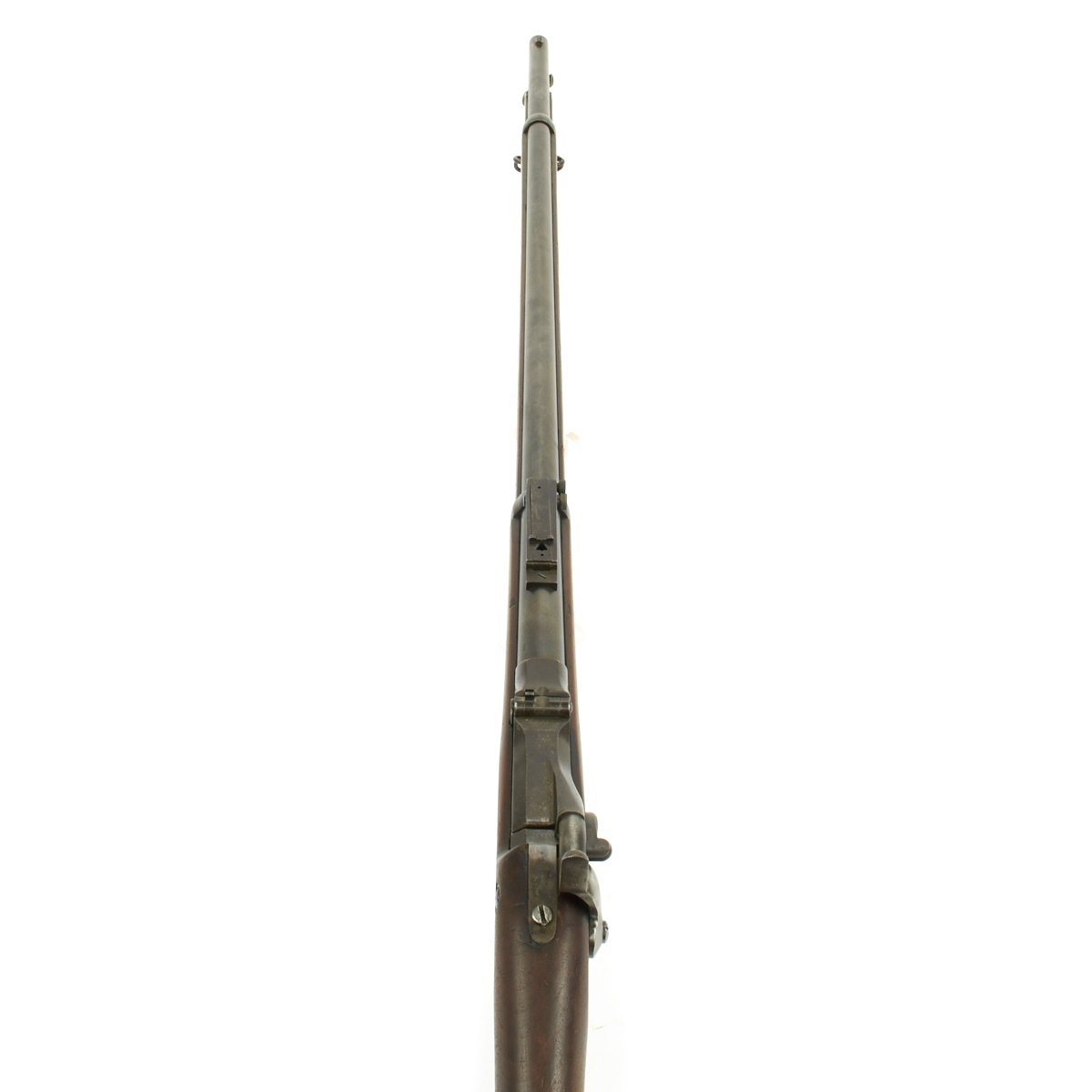

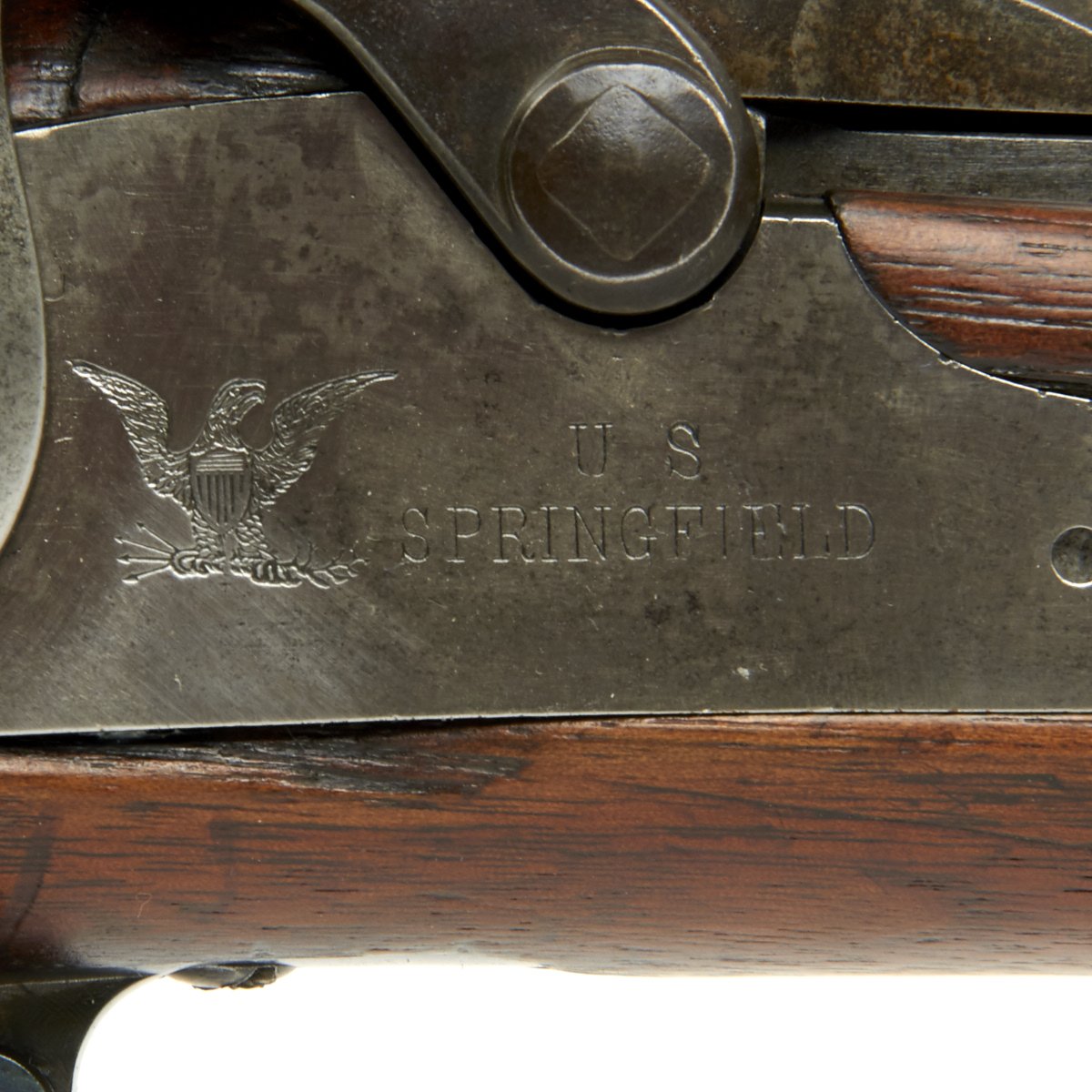

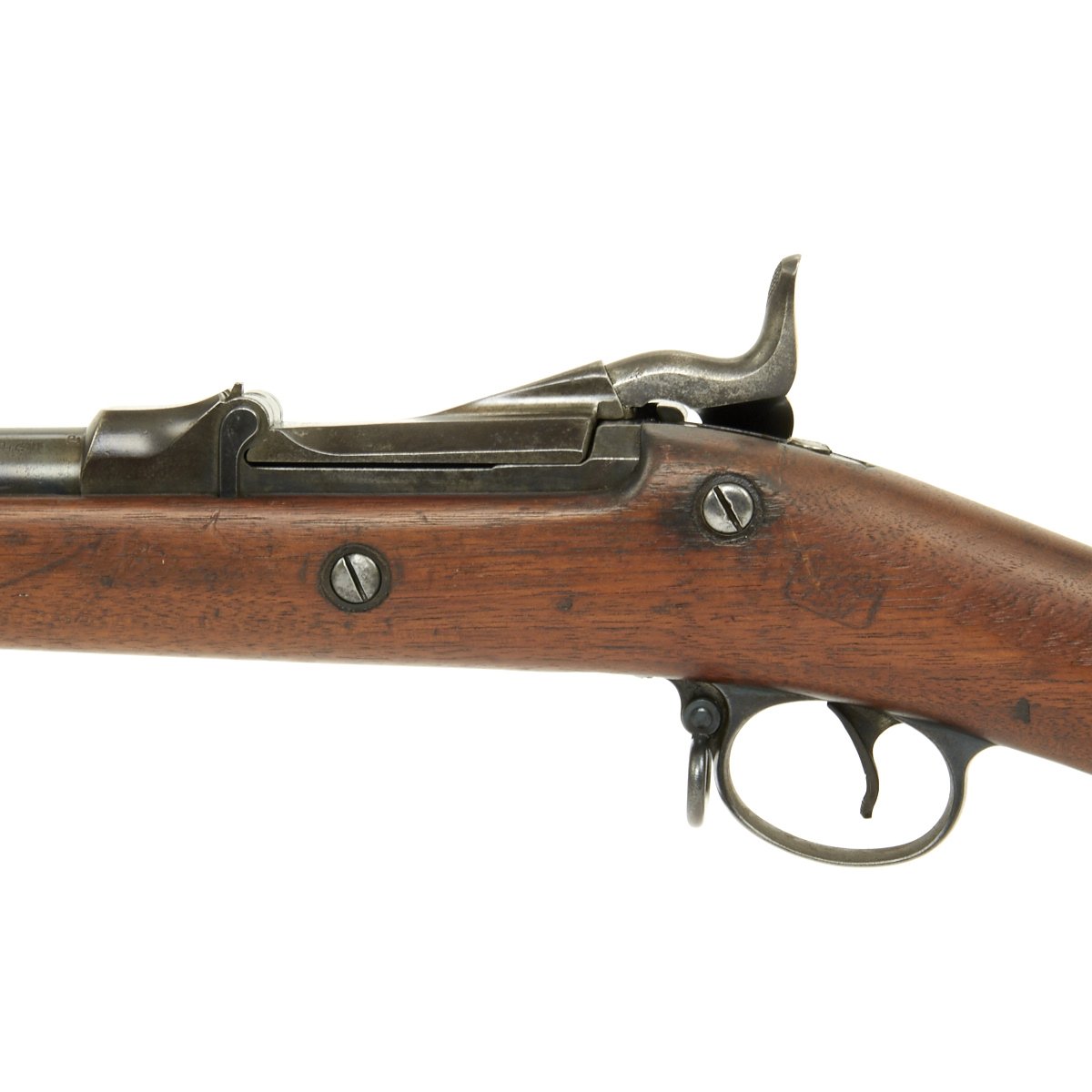

Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. SPRINGFIELD manufactured by Springfield Armory, Springfield Massachusetts.

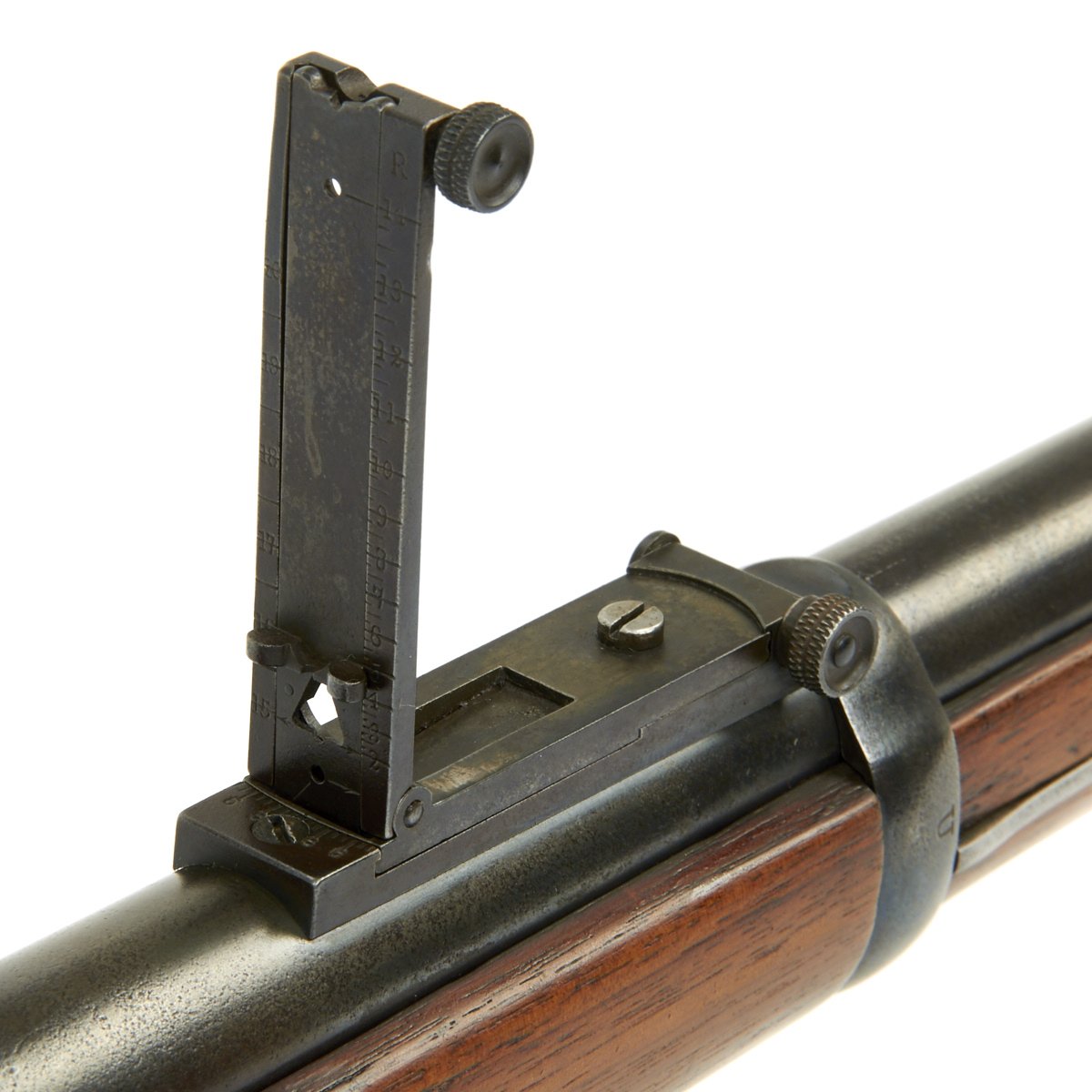

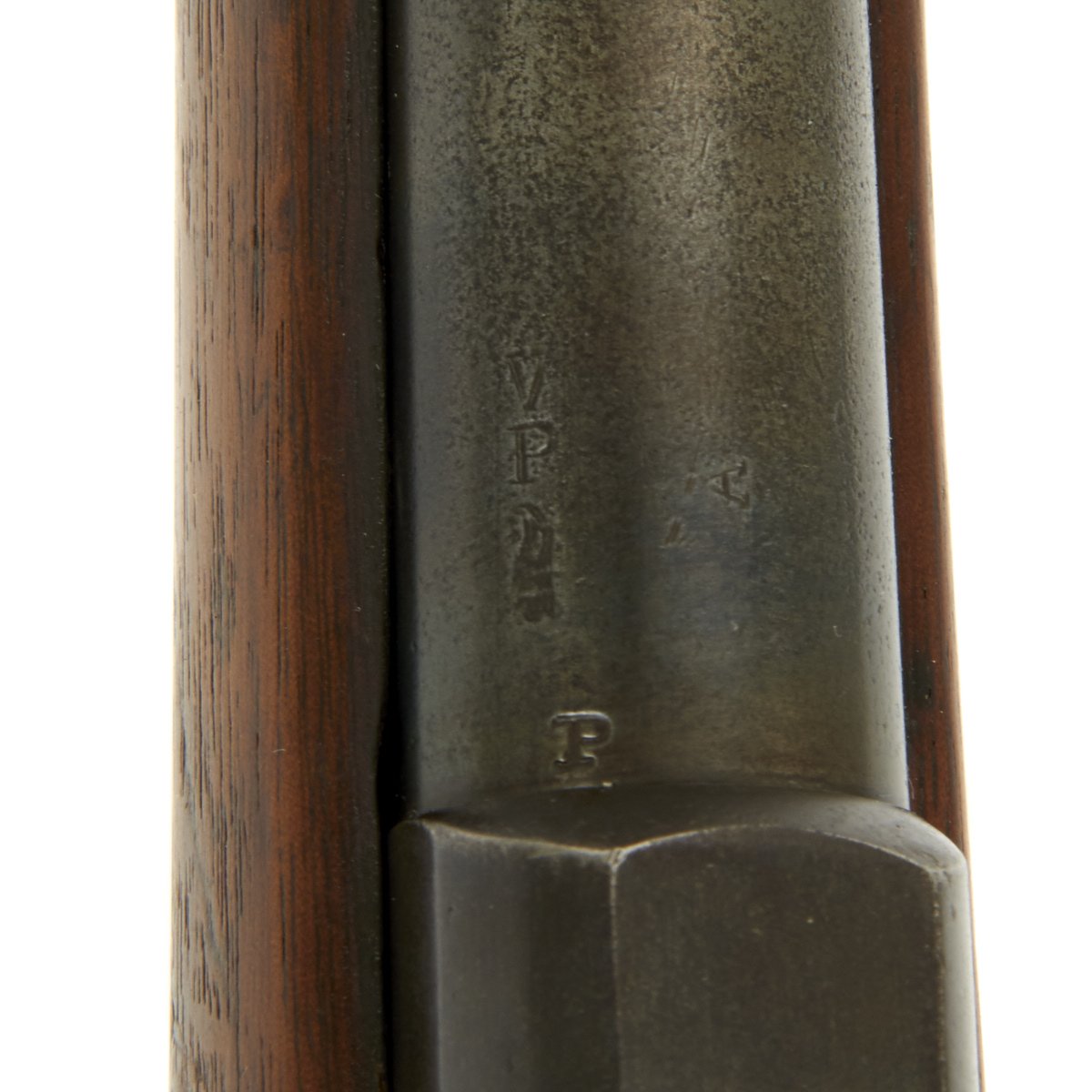

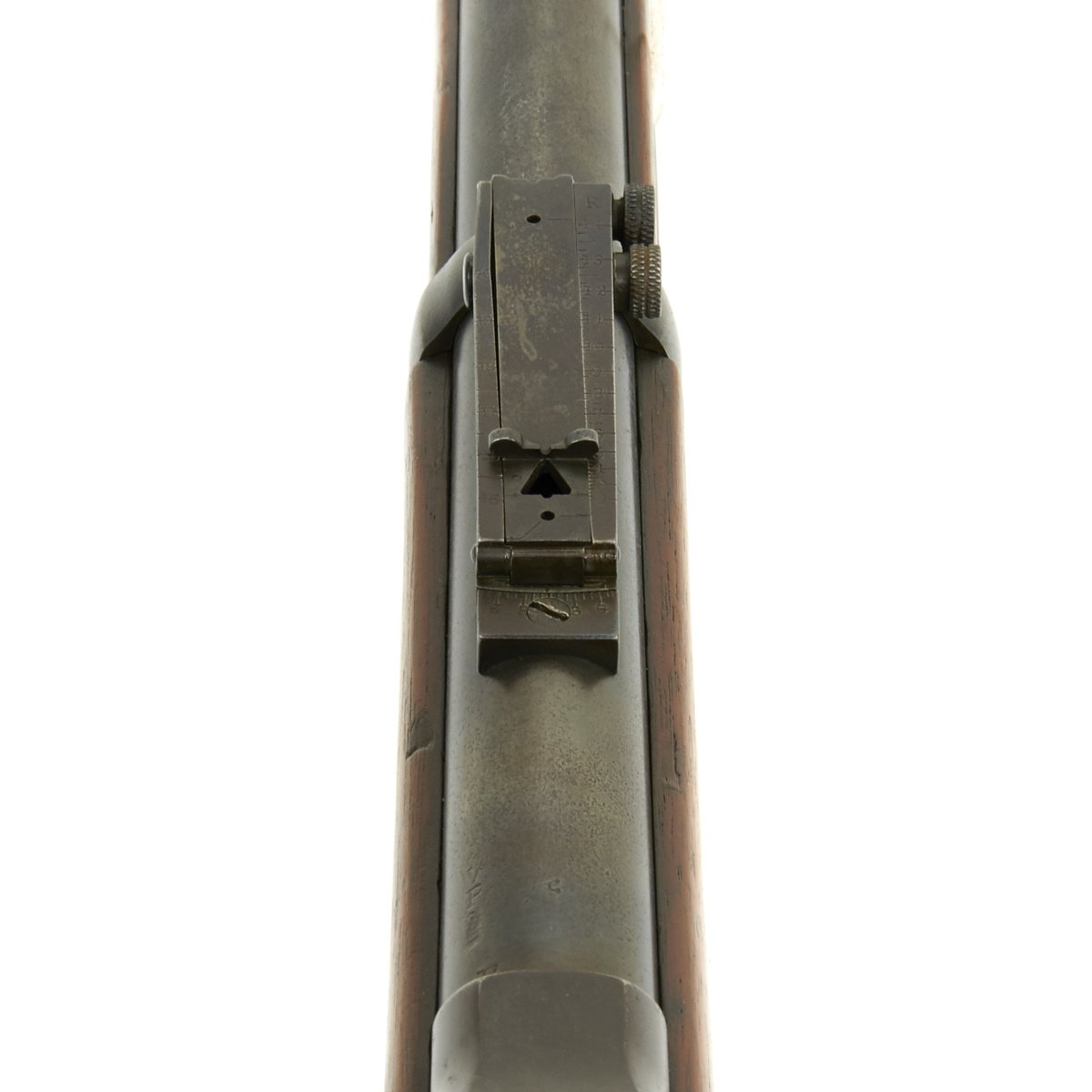

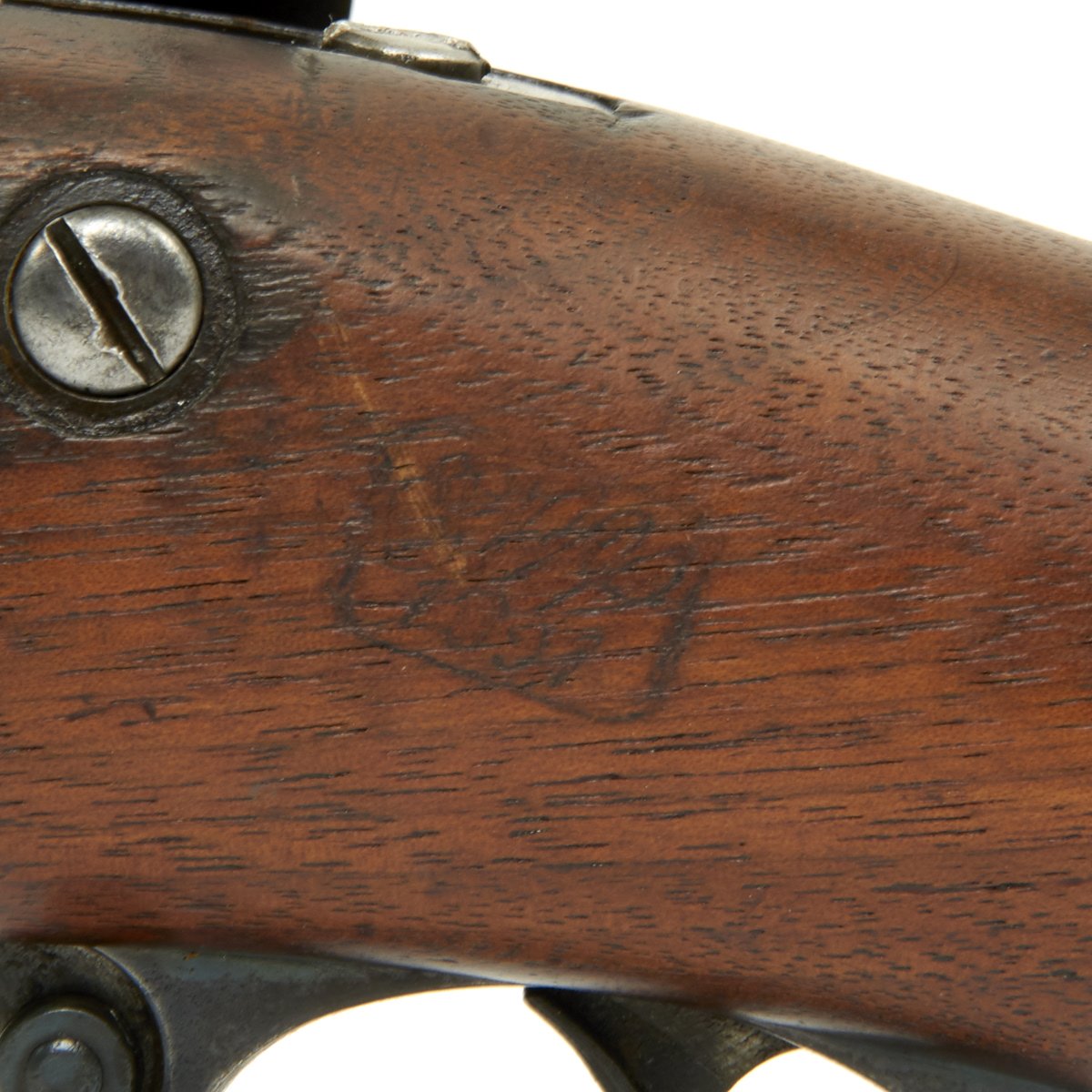

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A stylized P (faint) in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

A very nice example of a Springfield Trapdoor, ready to display.

Specifications-

Year of Manufacture: 1891
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches

Overall Length: 52 Inches

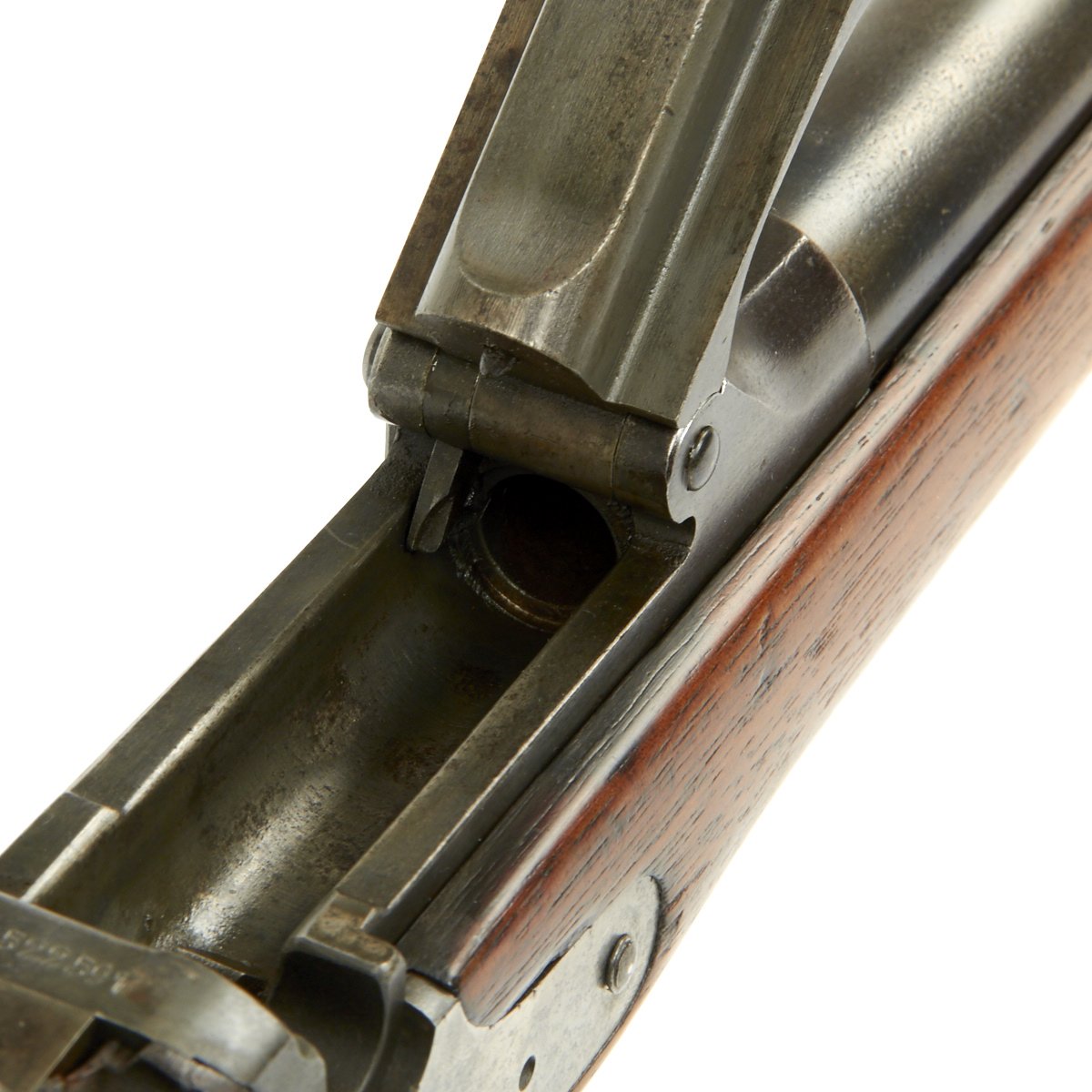

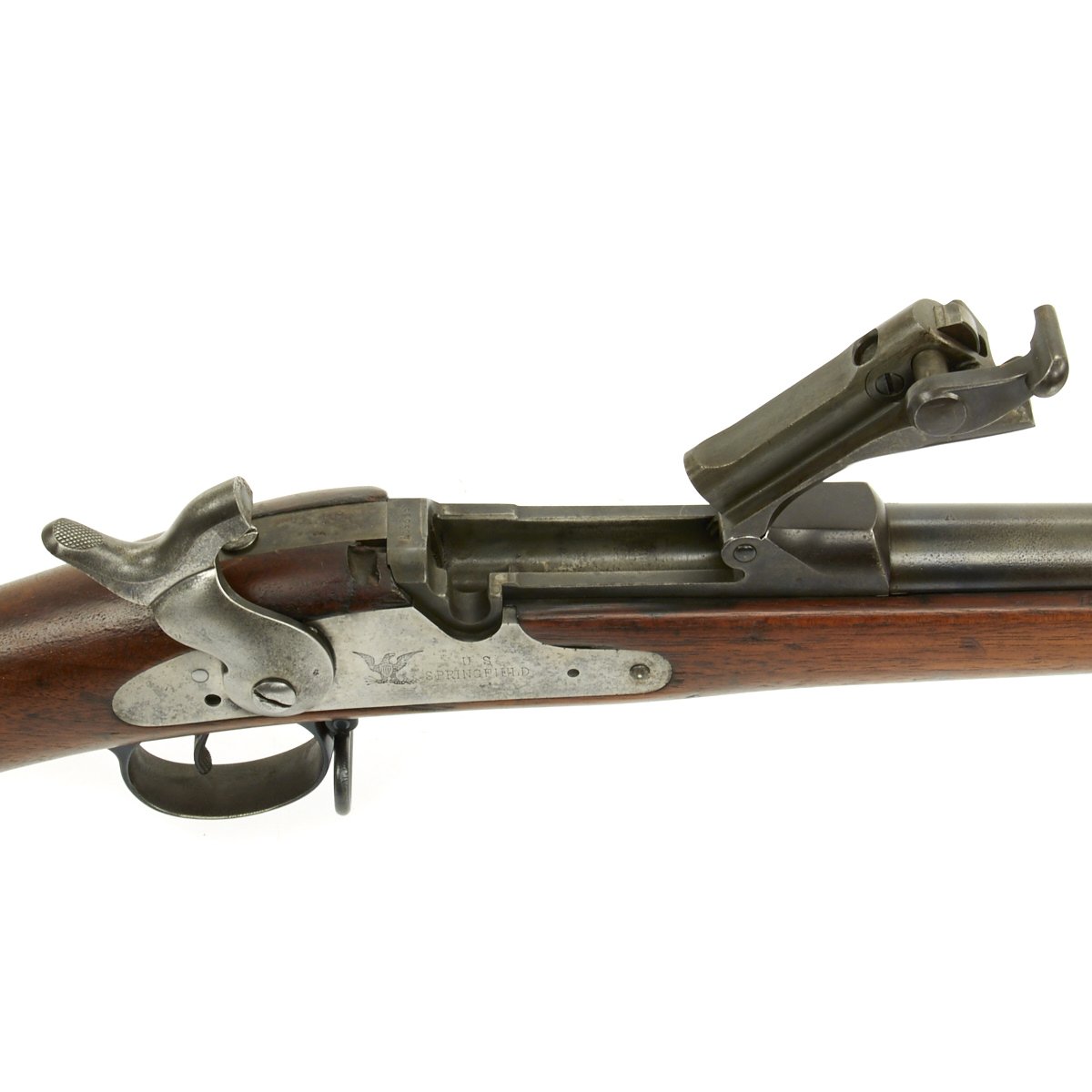

Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot

Note: This gun is NOT considered obsolete calibre, so we are no able to ship to the United Kingdom. Please note that for international shipping, these MUST be shipped using UPS WW Services.
