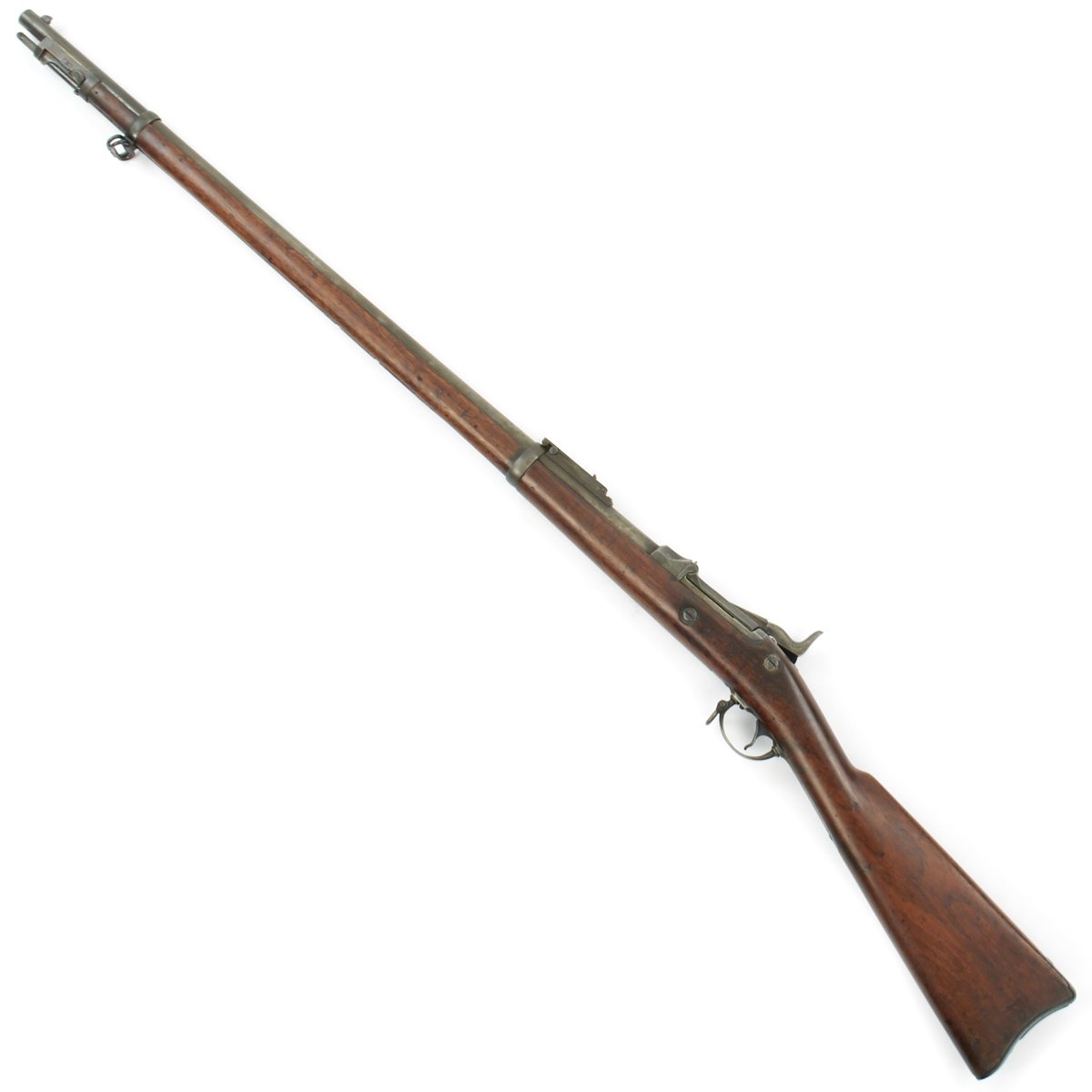

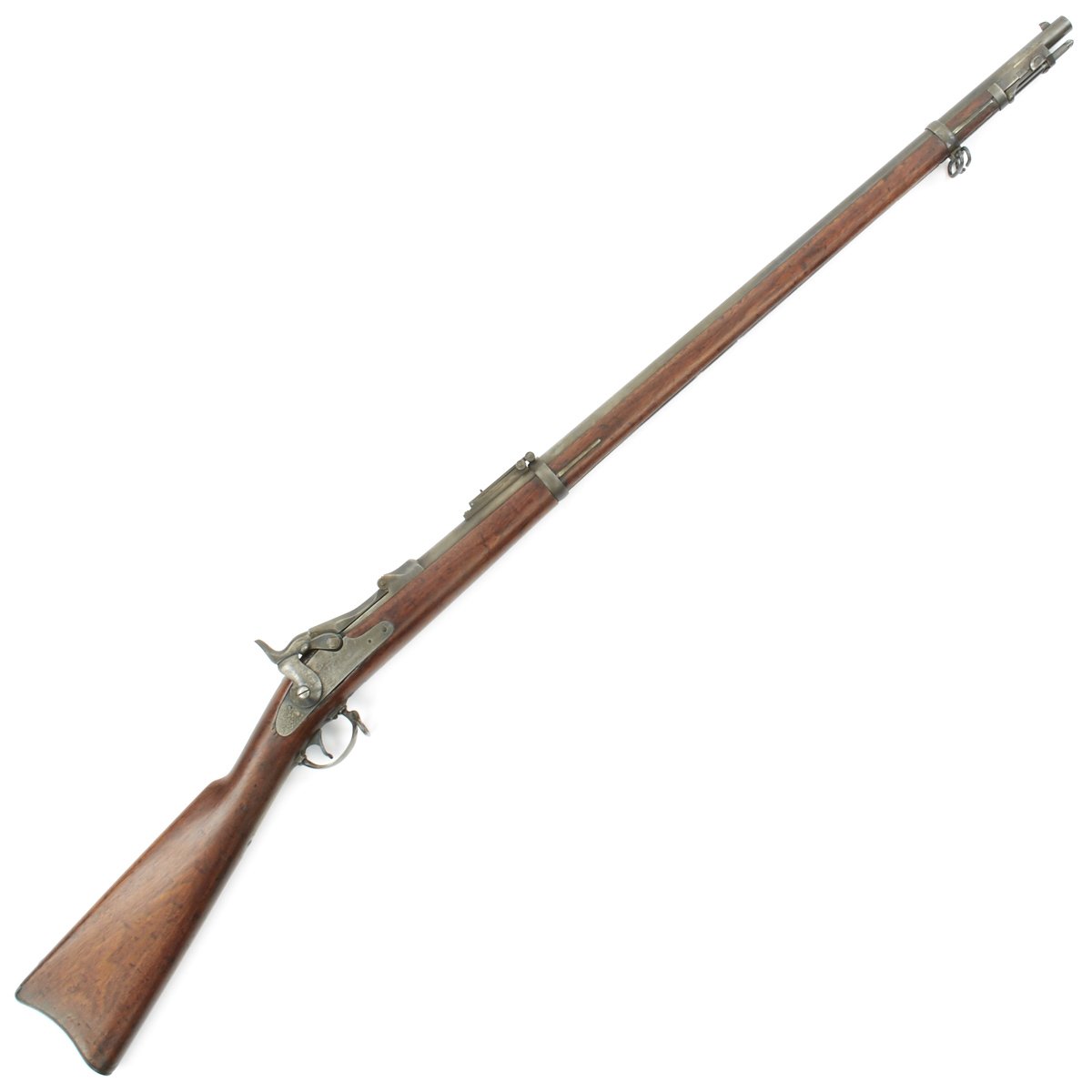

Original U.S. Springfield Trapdoor Model 1873/84 Round Rod Bayonet Rifle made in 1886 - Serial No 314433

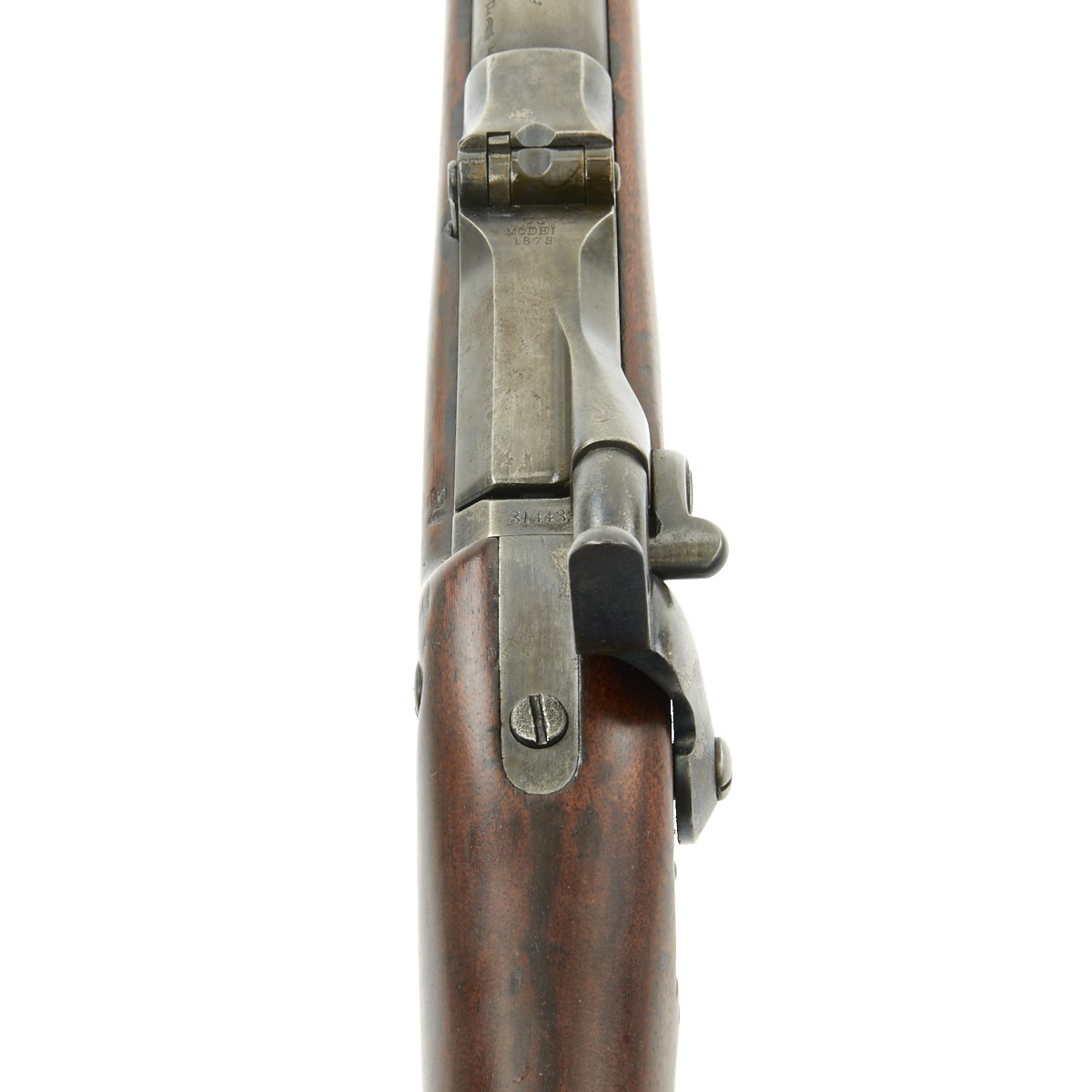

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:
In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.
Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

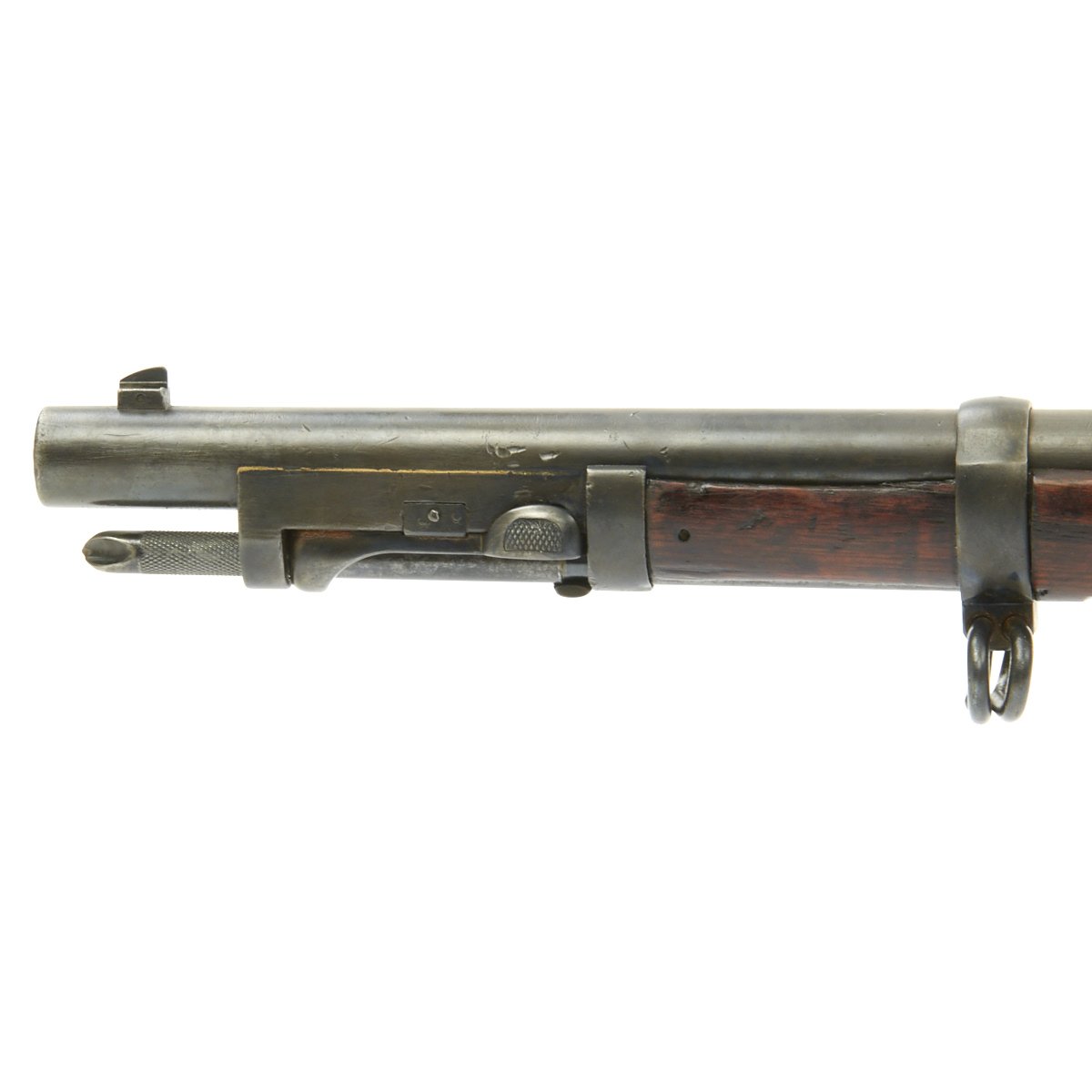

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

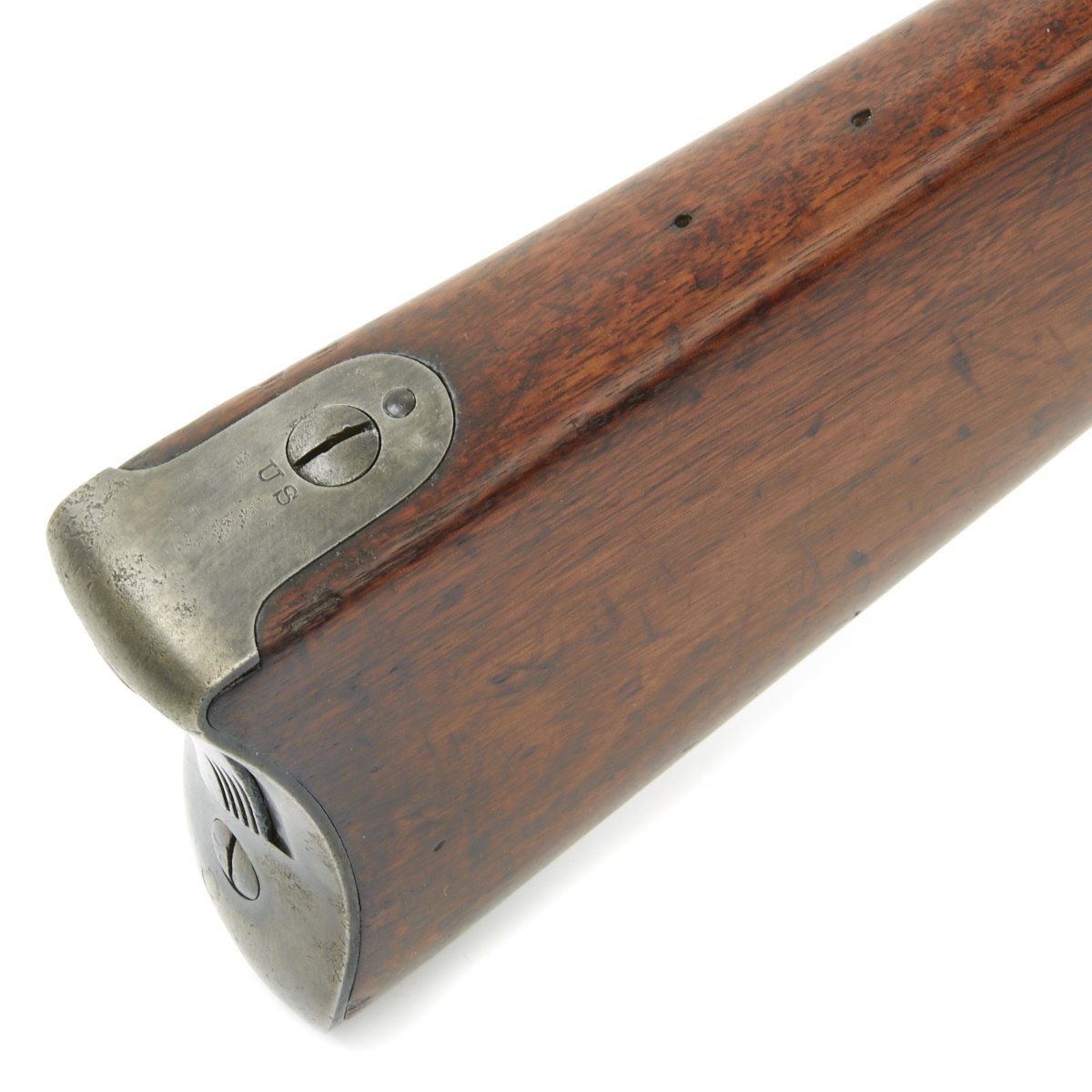

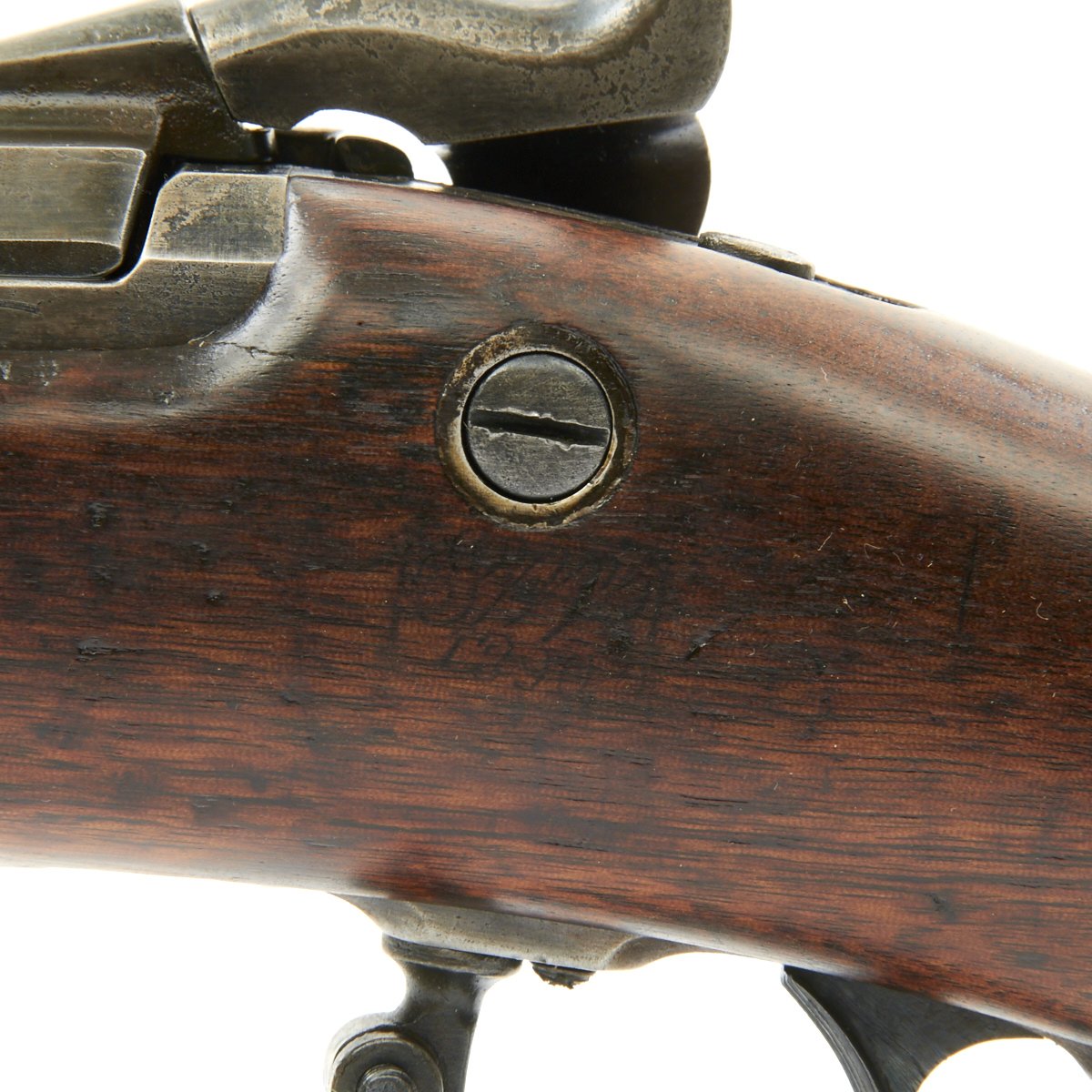

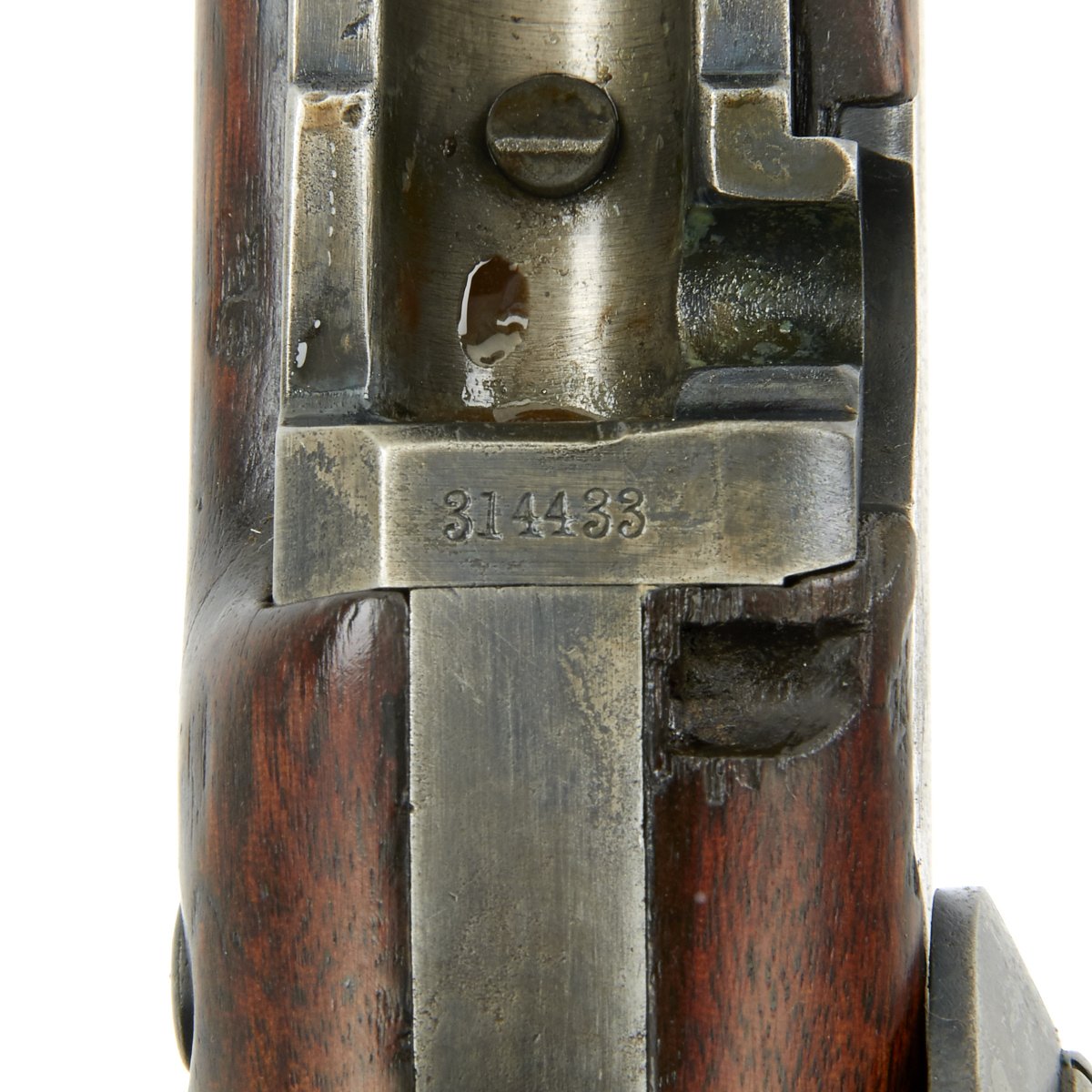

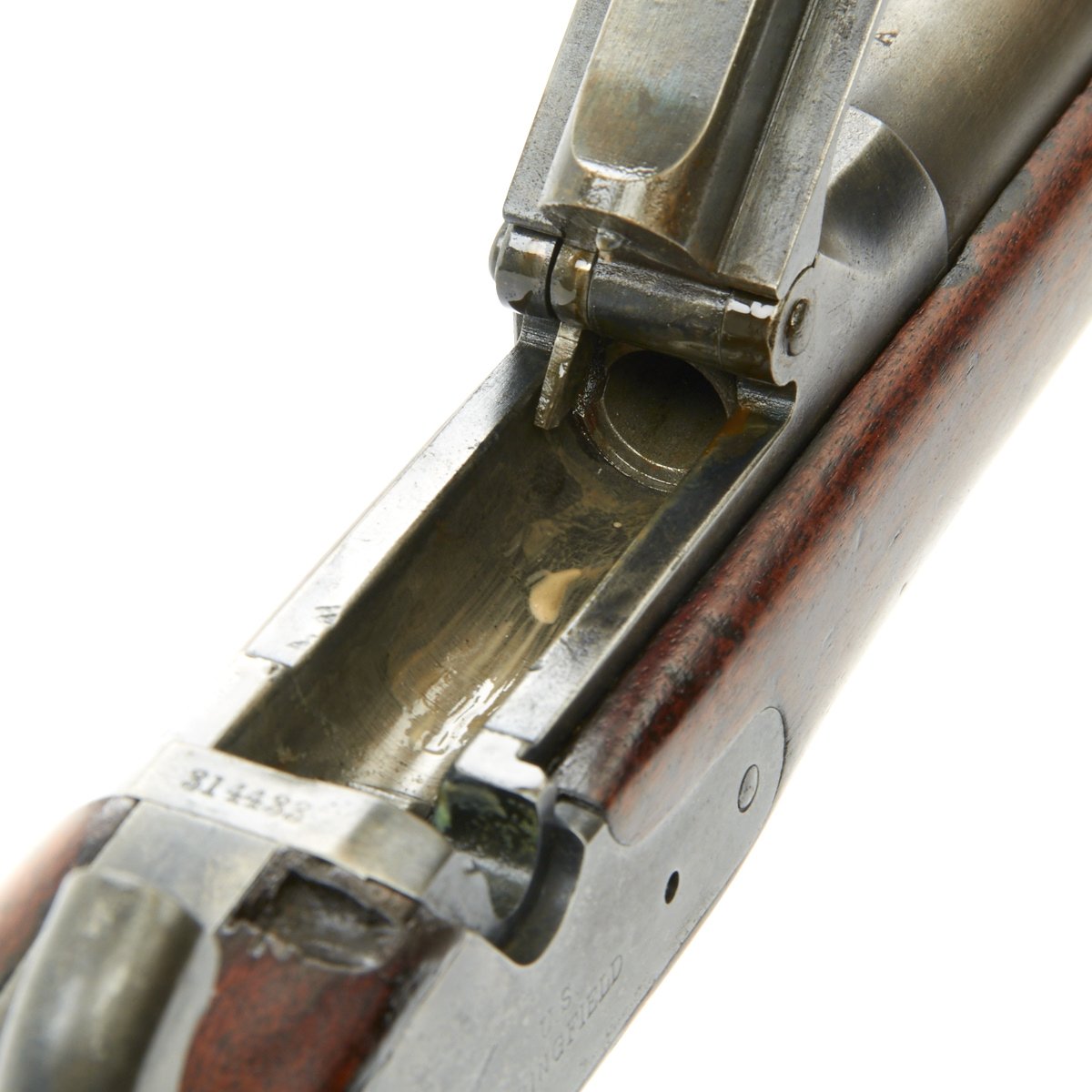

Offered in very good condition is this trapdoor rifle in 45-70 government caliber. Serial #314433 indicates manufacture in 1886, with a faint government inspector SWP / 1890 cartouche, indicating the year the stock was inspected. Original metal finish has been worn to a nice gray patina with all proofs still present, and a bit of light pitting in places. The butt plate is marked U.S., and both barrel bands are U marked.

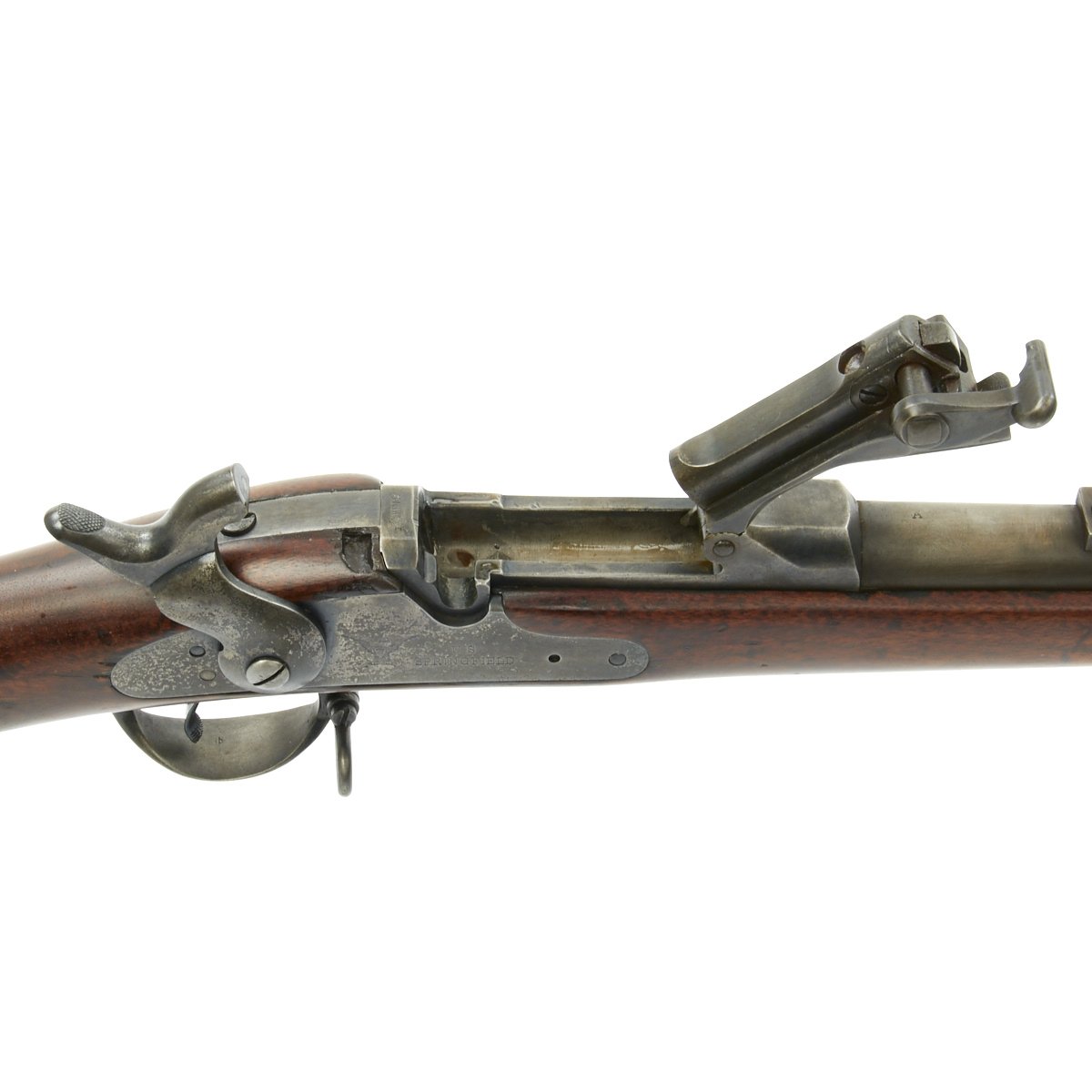

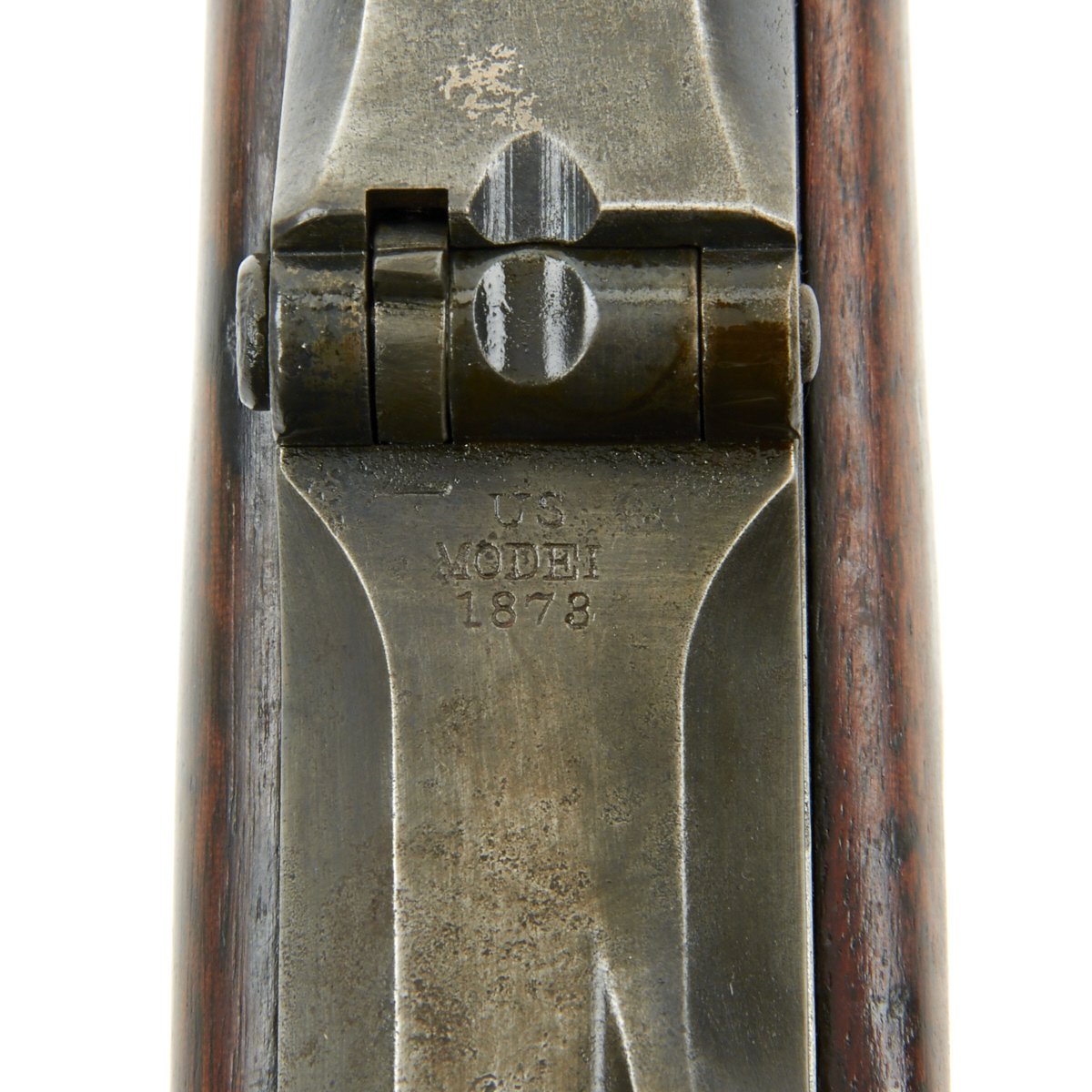

This rifle is definitely one that saw extensive service, and was reworked at arsenal at least once. The changeover from the 1873 to model 1884 was not instantaneous, so many rifles manufactured 1884-1886 still were model 1873s. This rifle most likely started out as an 1873, but was updated to the 1884 specifications in 1890. It has an 1873-dated breech block, and the earlier 1873 type two part trigger guard. However, it has the 1884 serrated trigger, cleaning rod bayonet, and butt stock storage compartment.

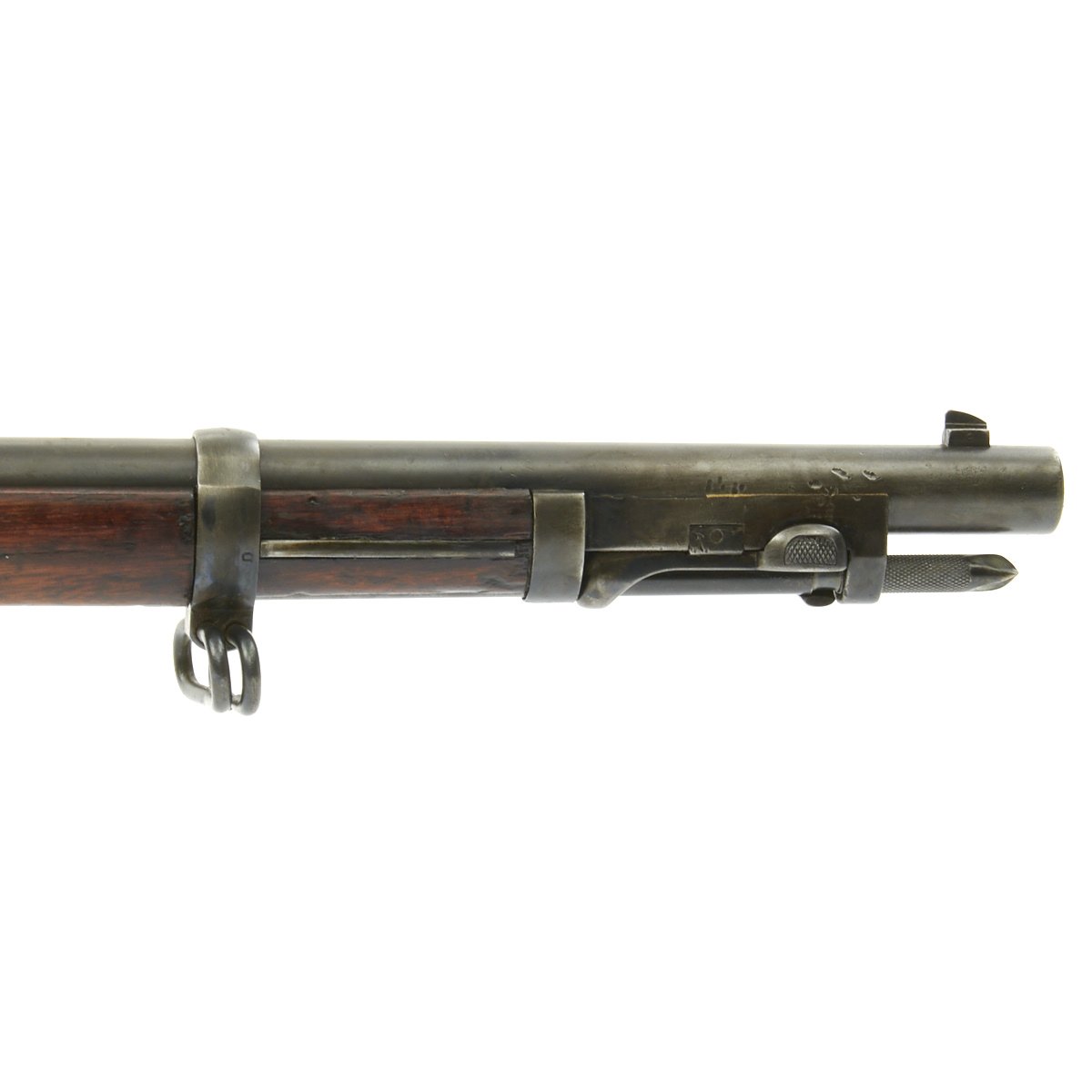

The hardware is in solid condition, with no signs of structural issues. The bore is worn, so the lands and grooves are somewhat hard to see, and there is light corrosion in areas, with a mostly bright finish. The cleaning rod / bayonet is in good shape, with intact threads and a gray patina similar to the rest of the metalwork.

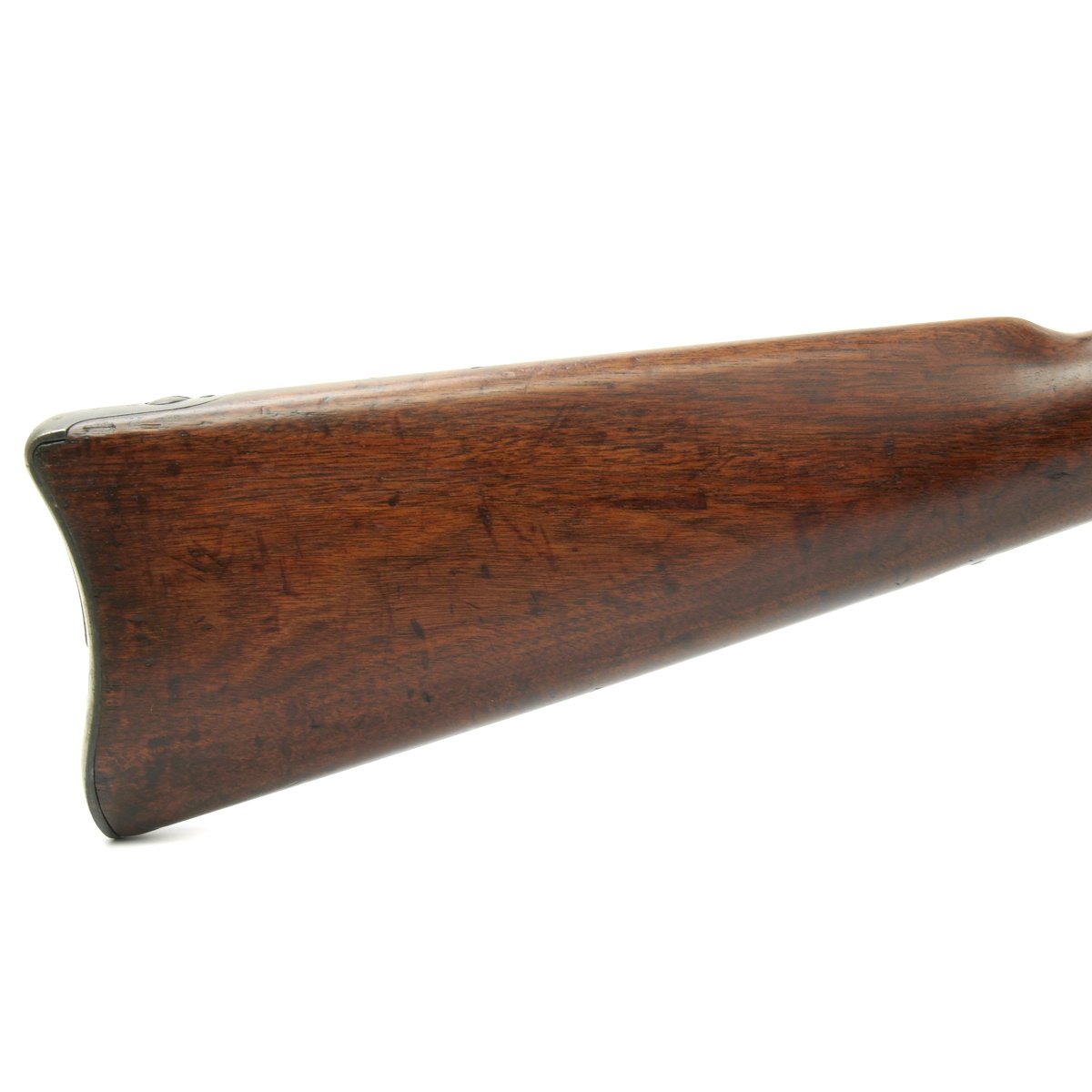

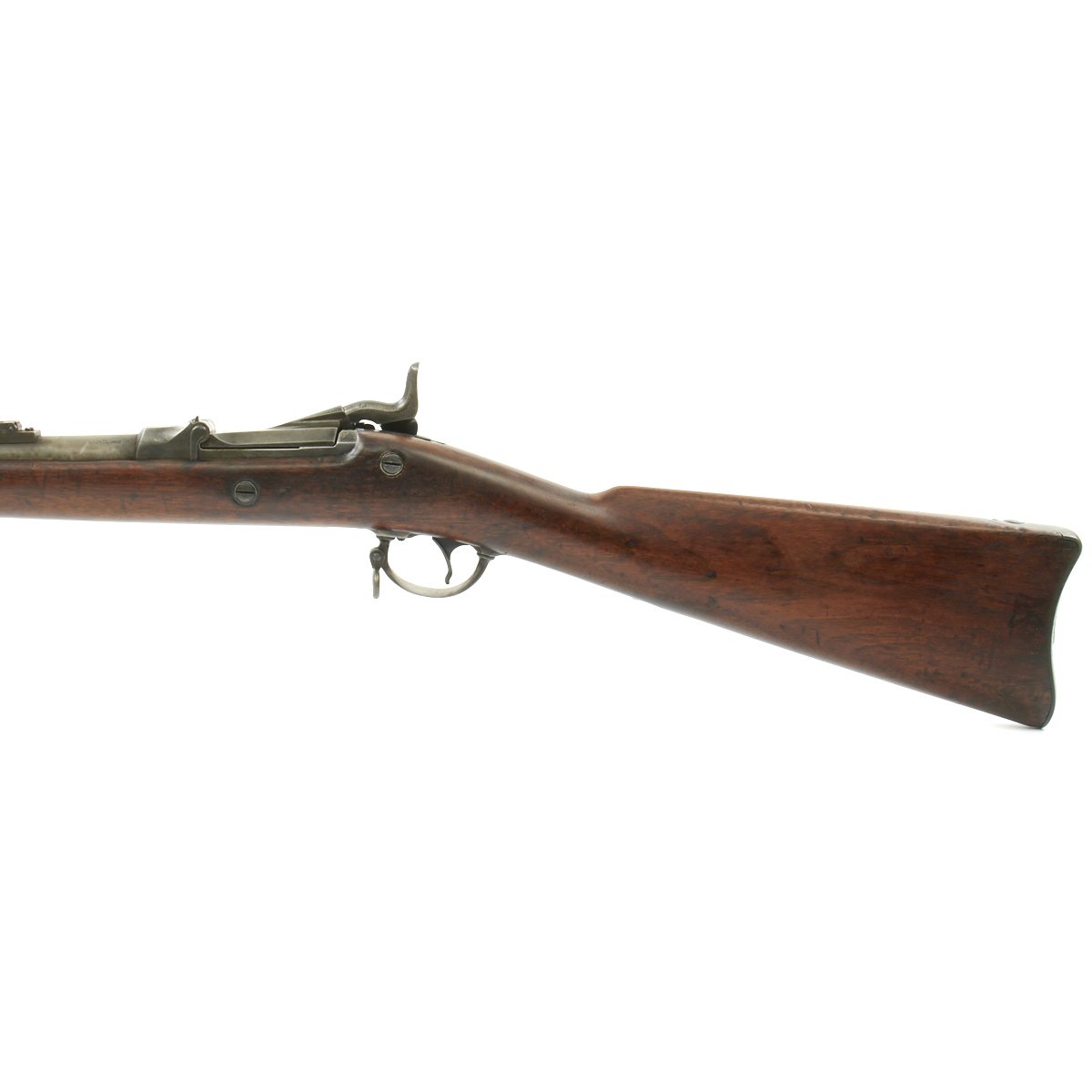

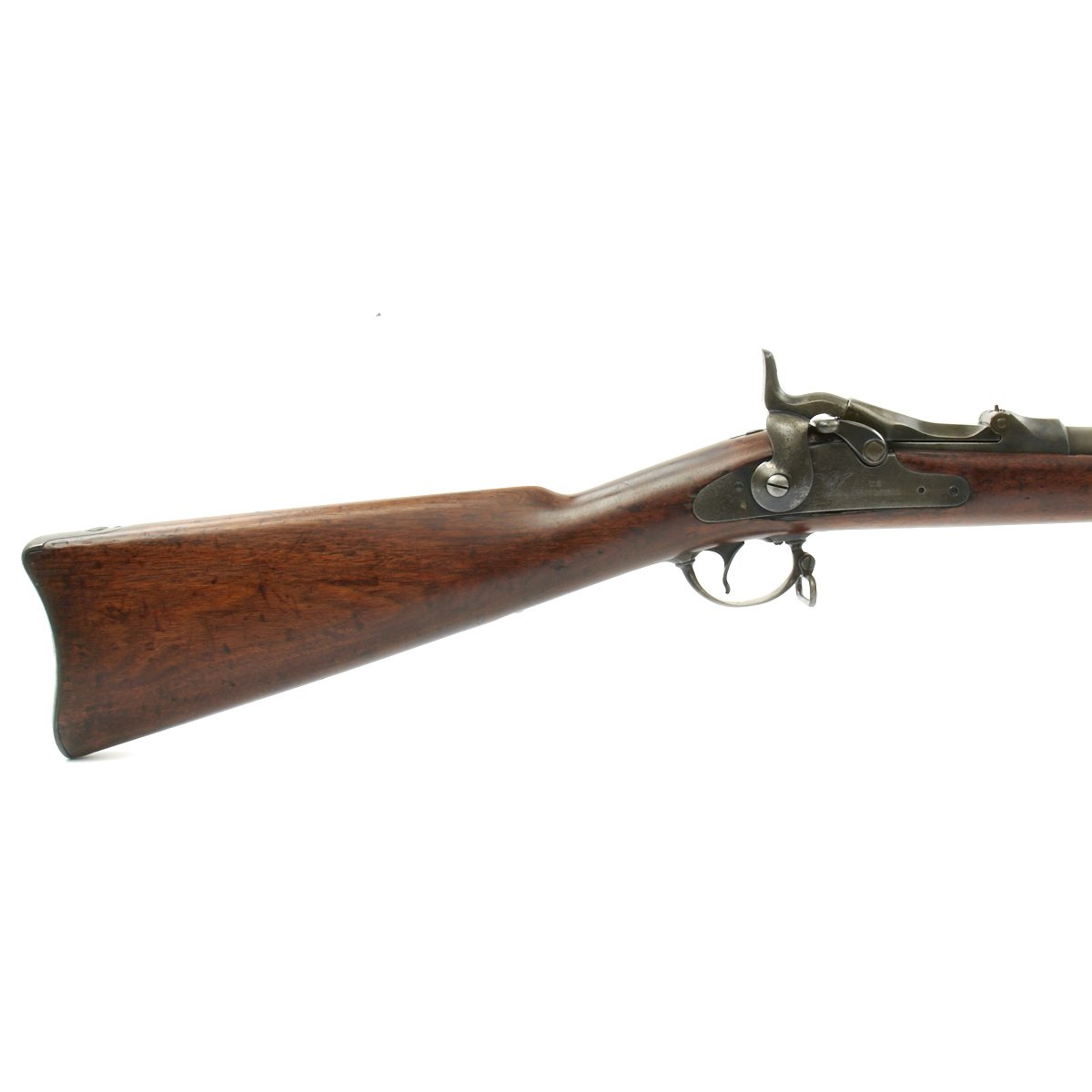

The stock is in good condition, with a nice color and no major issues. The stock does have small gouges, scratches and dings from service. The stock is no longer proud over the lock plate, so it has definitely been sanded and refinished.

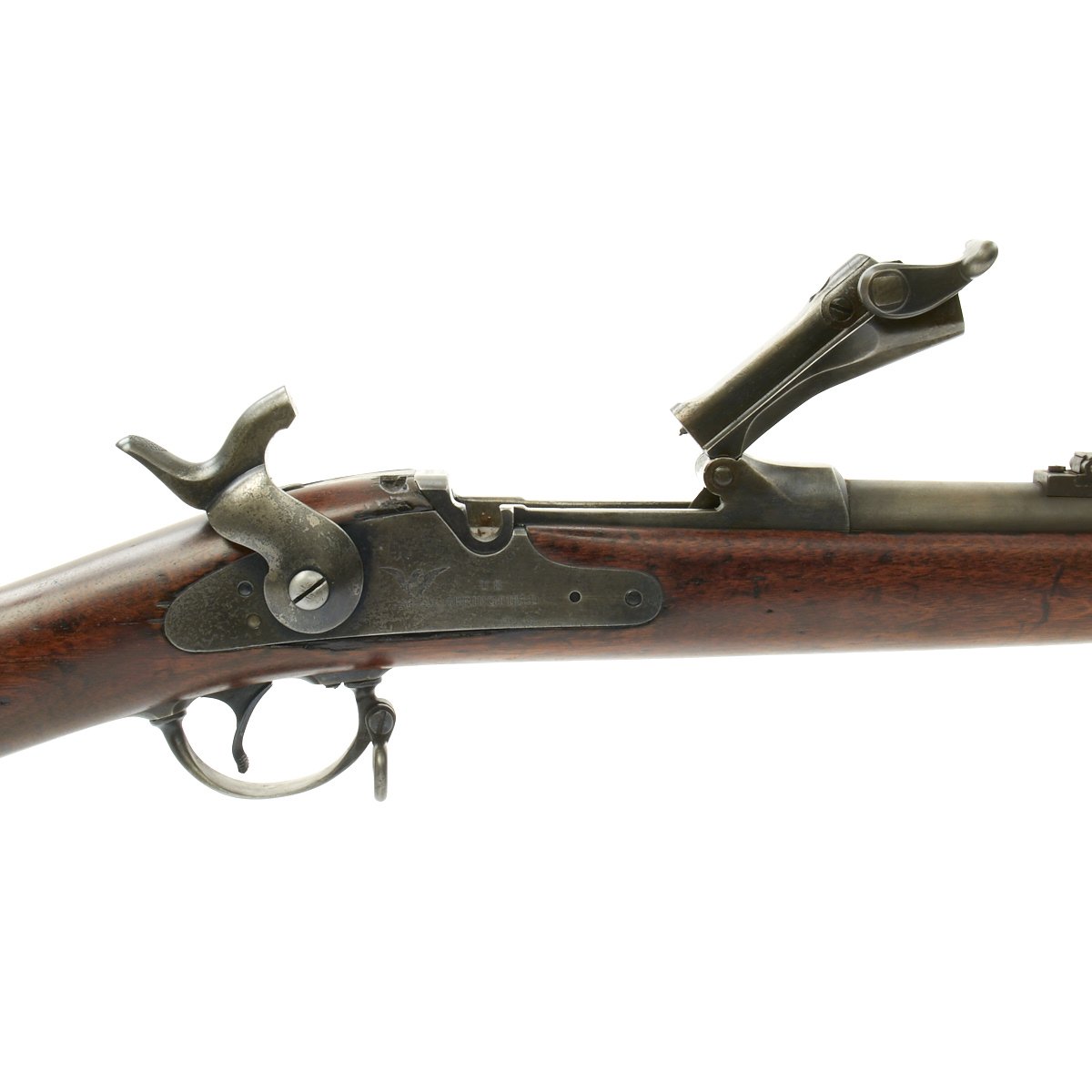

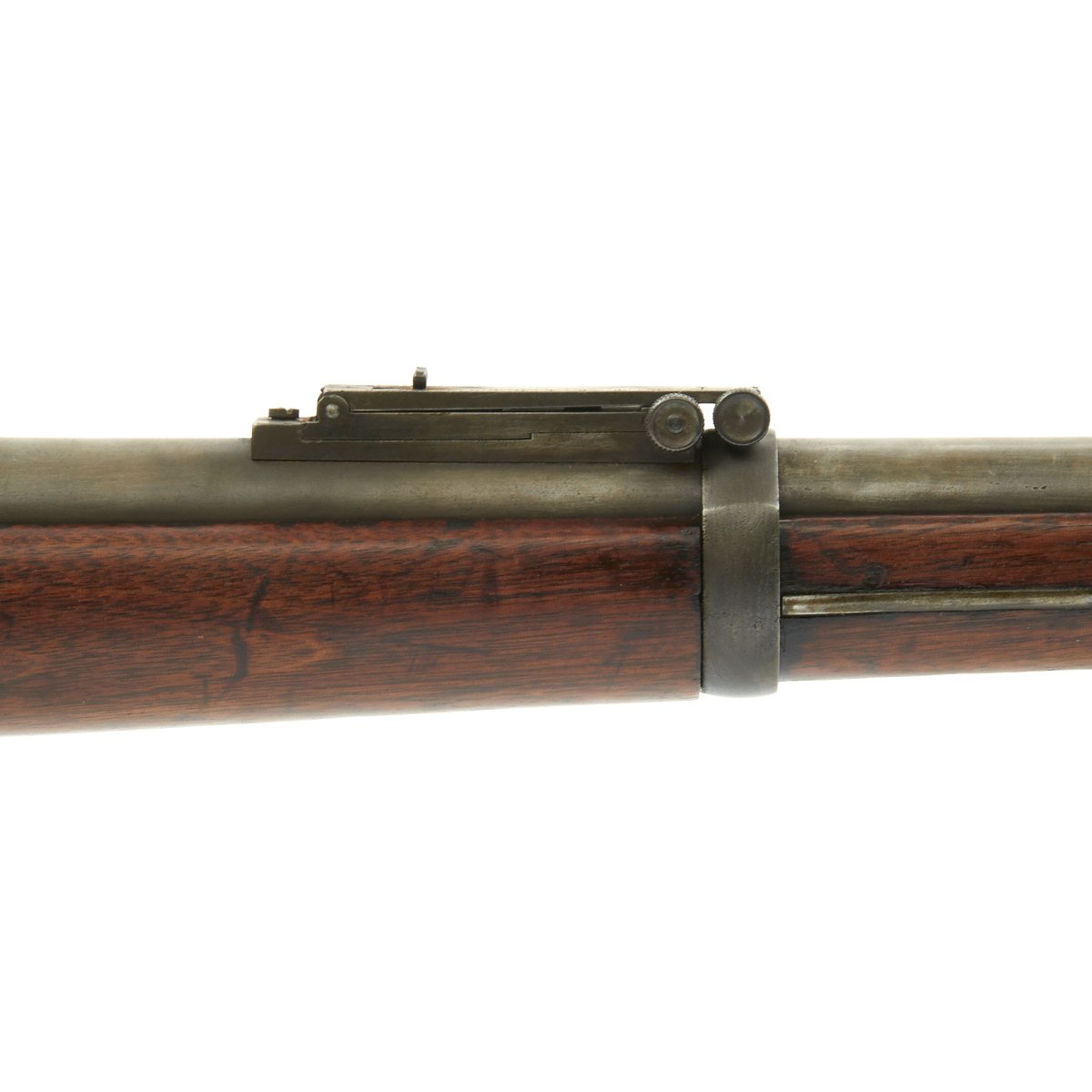

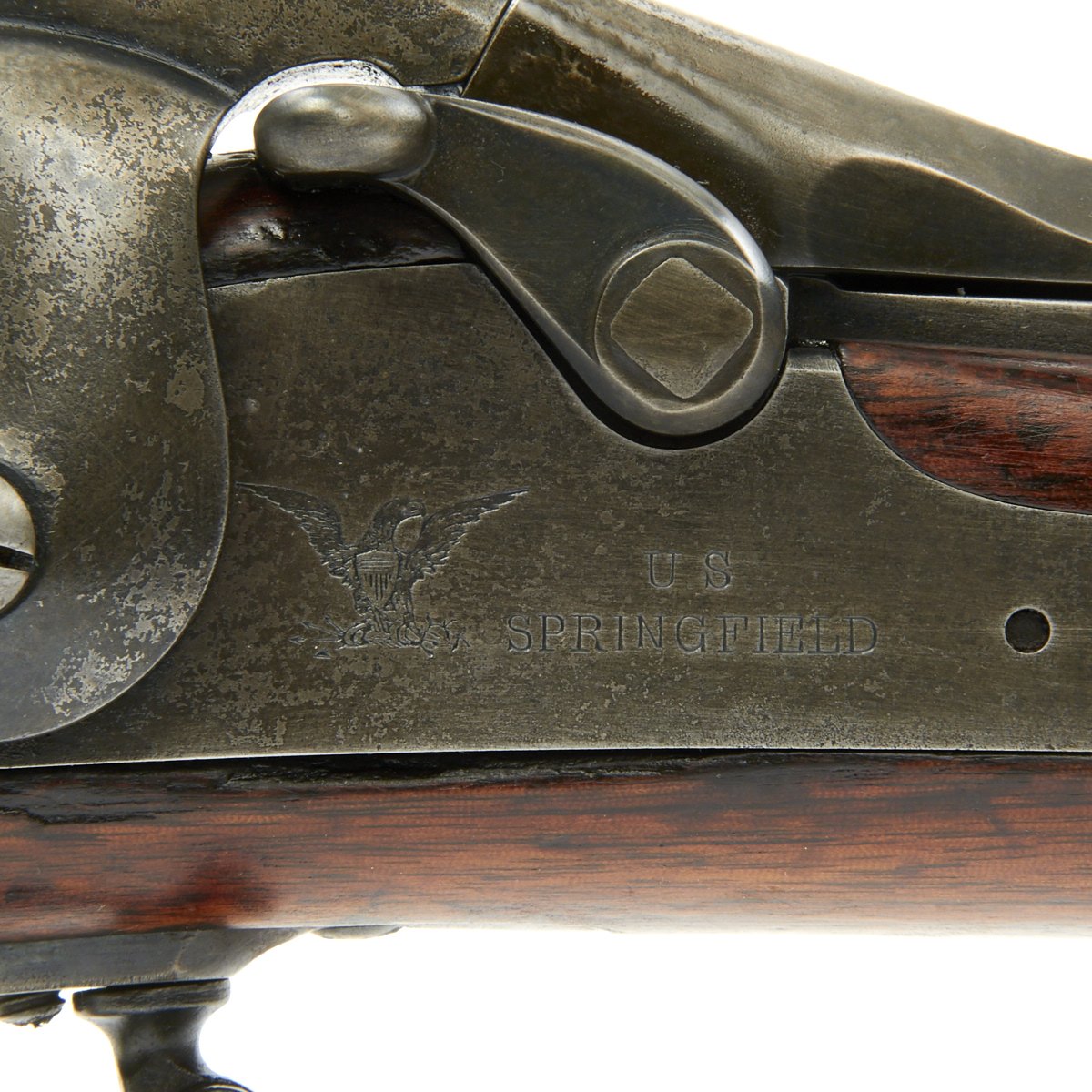

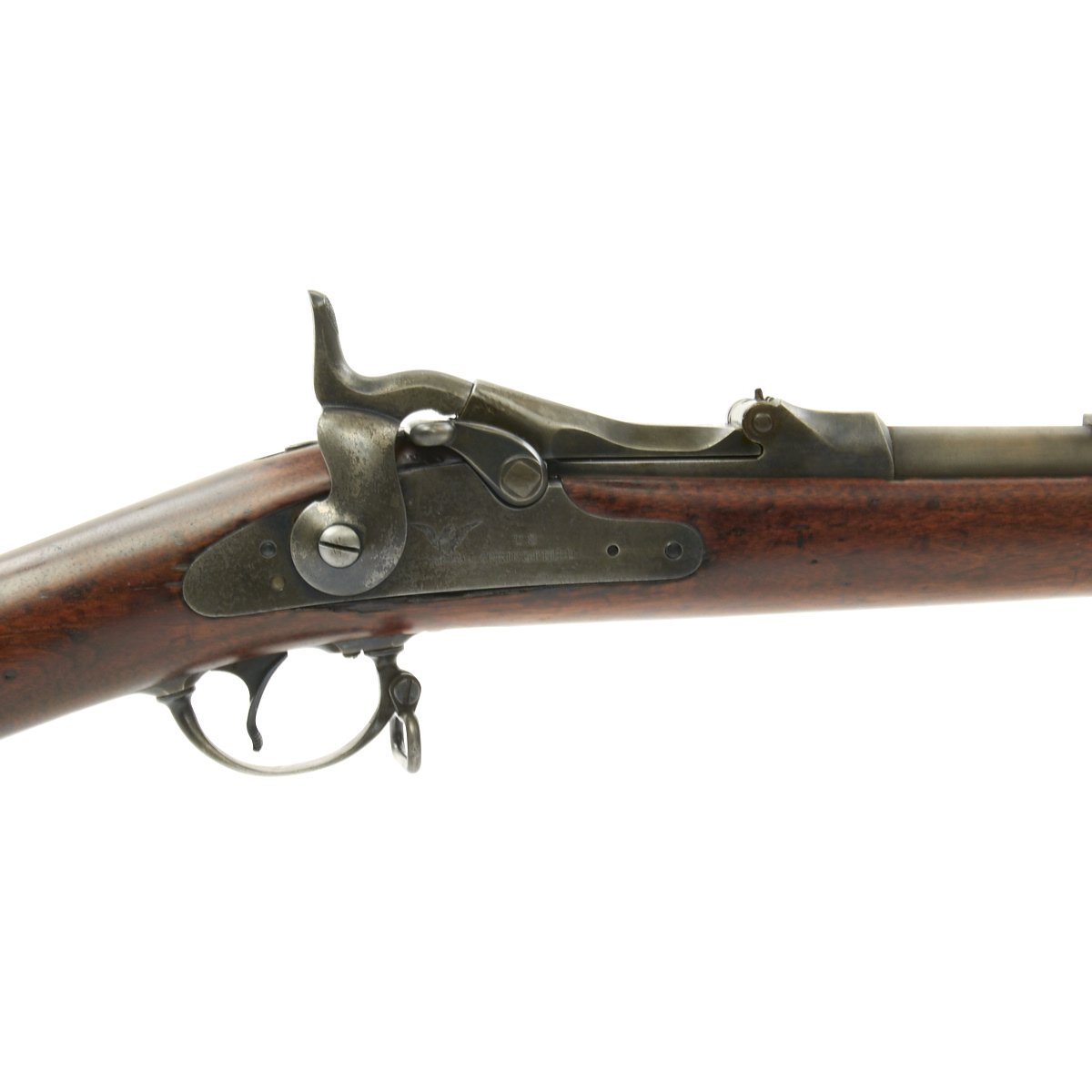

Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. SPRINGFIELD manufactured by Springfield Armory, Springfield Massachusetts.

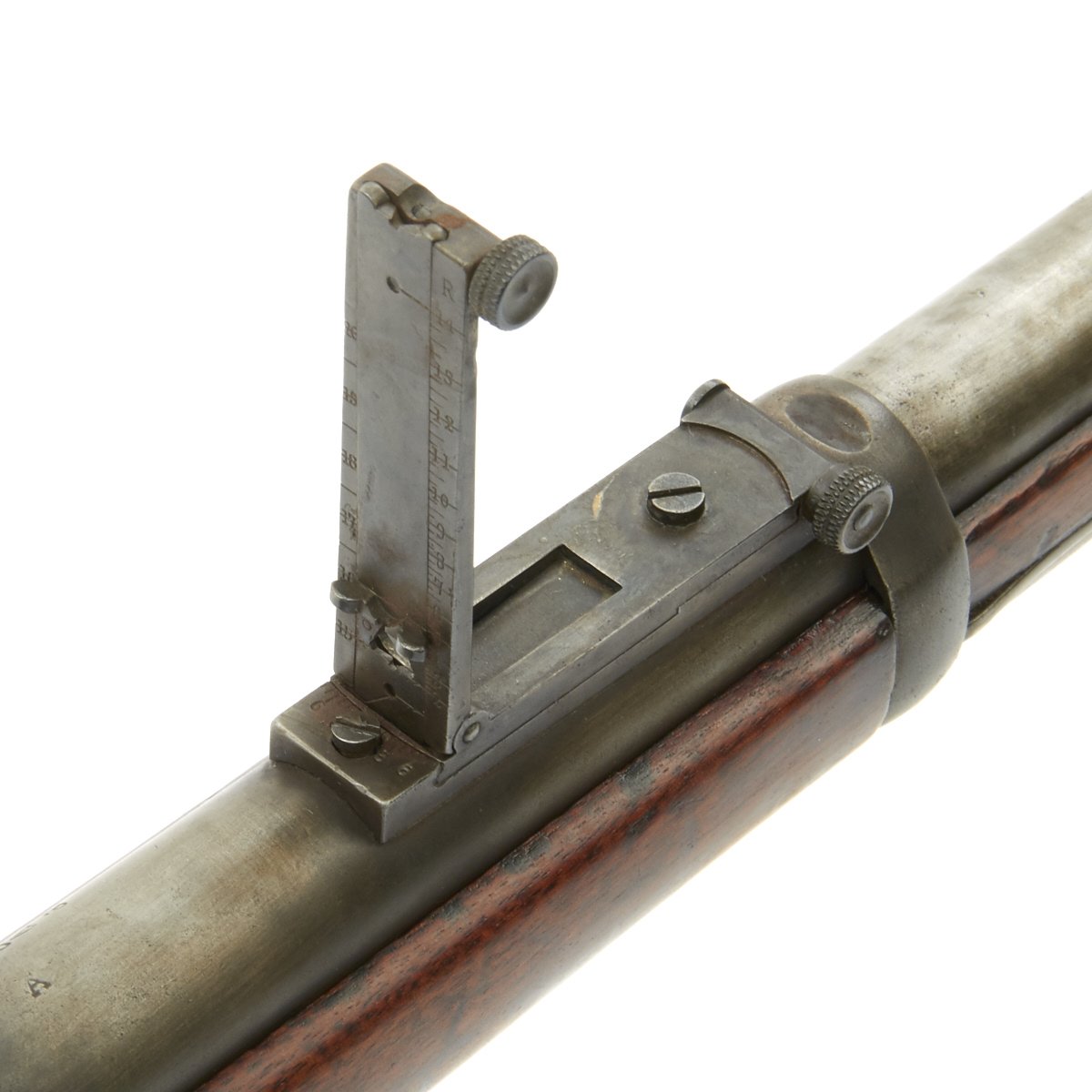

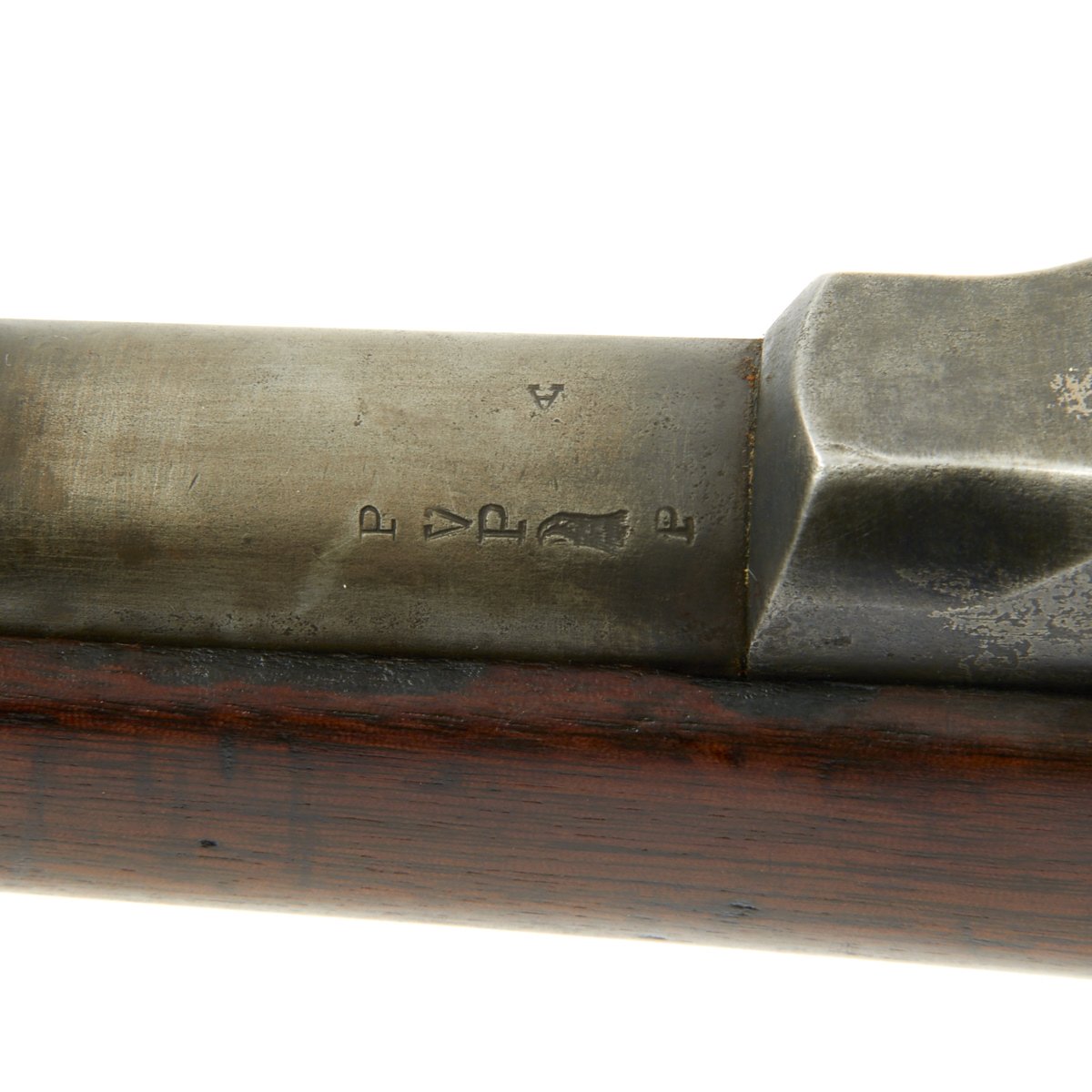

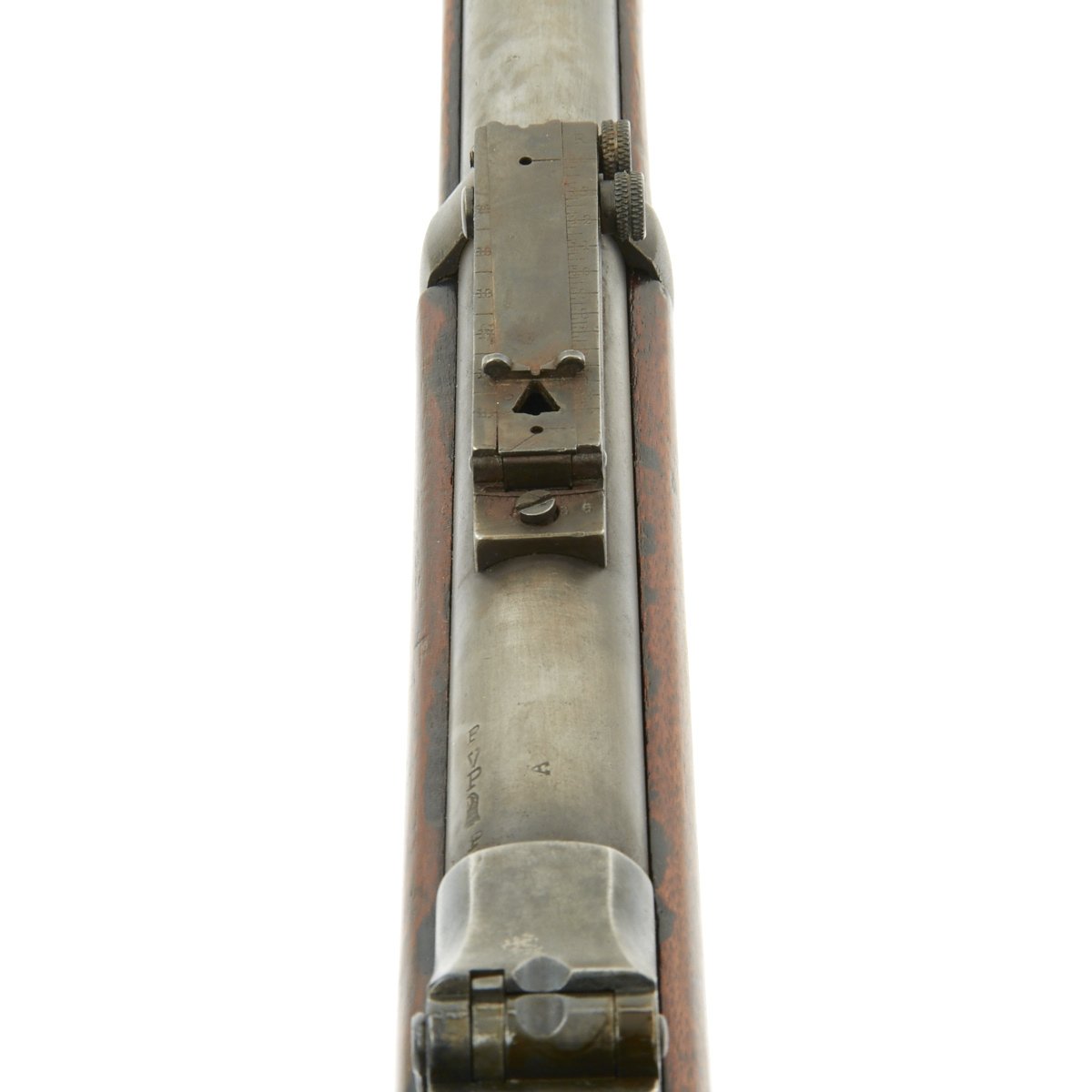

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.
Year of Manufacture: 1886 - refitted 1890
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
