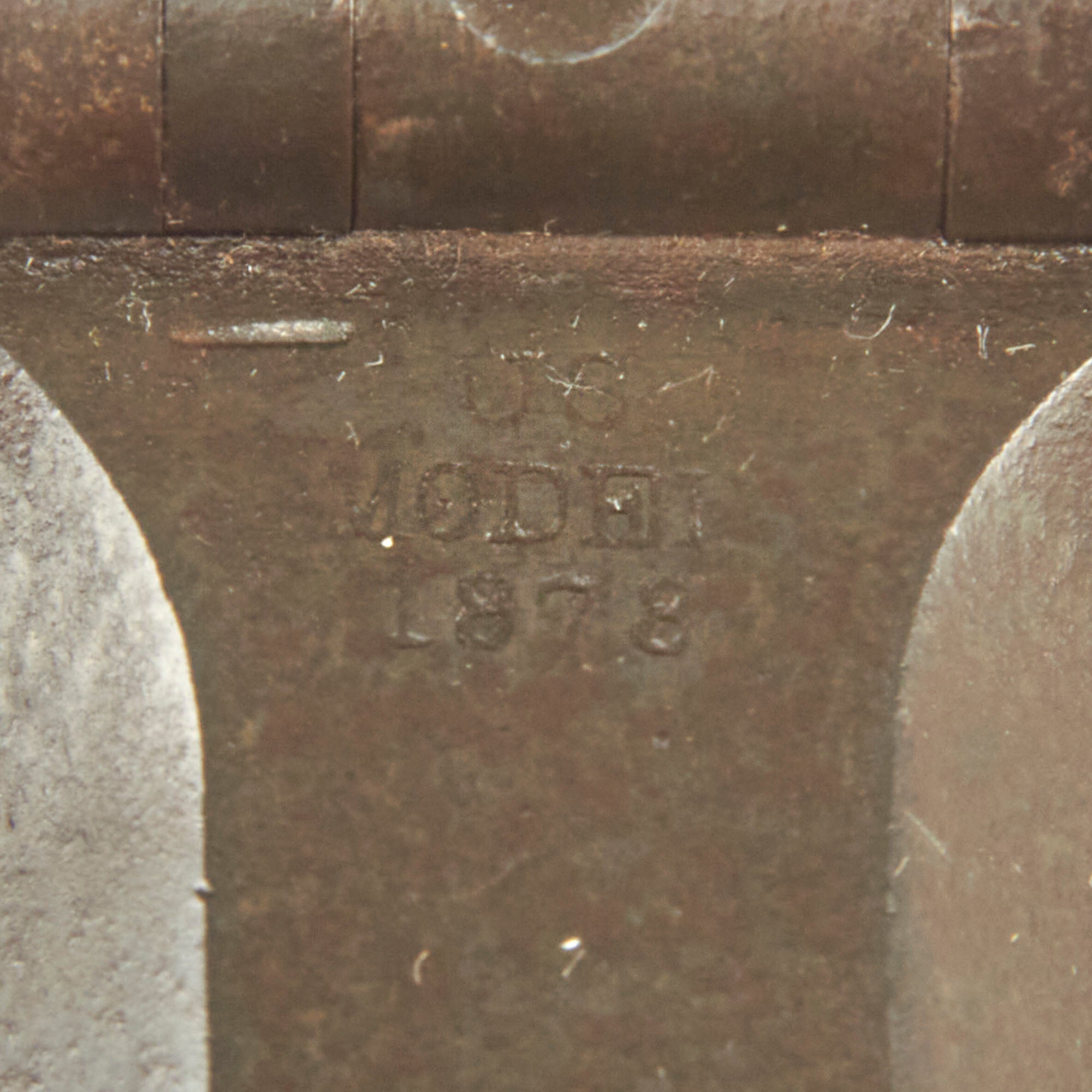

Original Item: Only One available. This is a very nice example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The replacement breech block is marked:
U.S.
MODEL
1873
In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.
Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

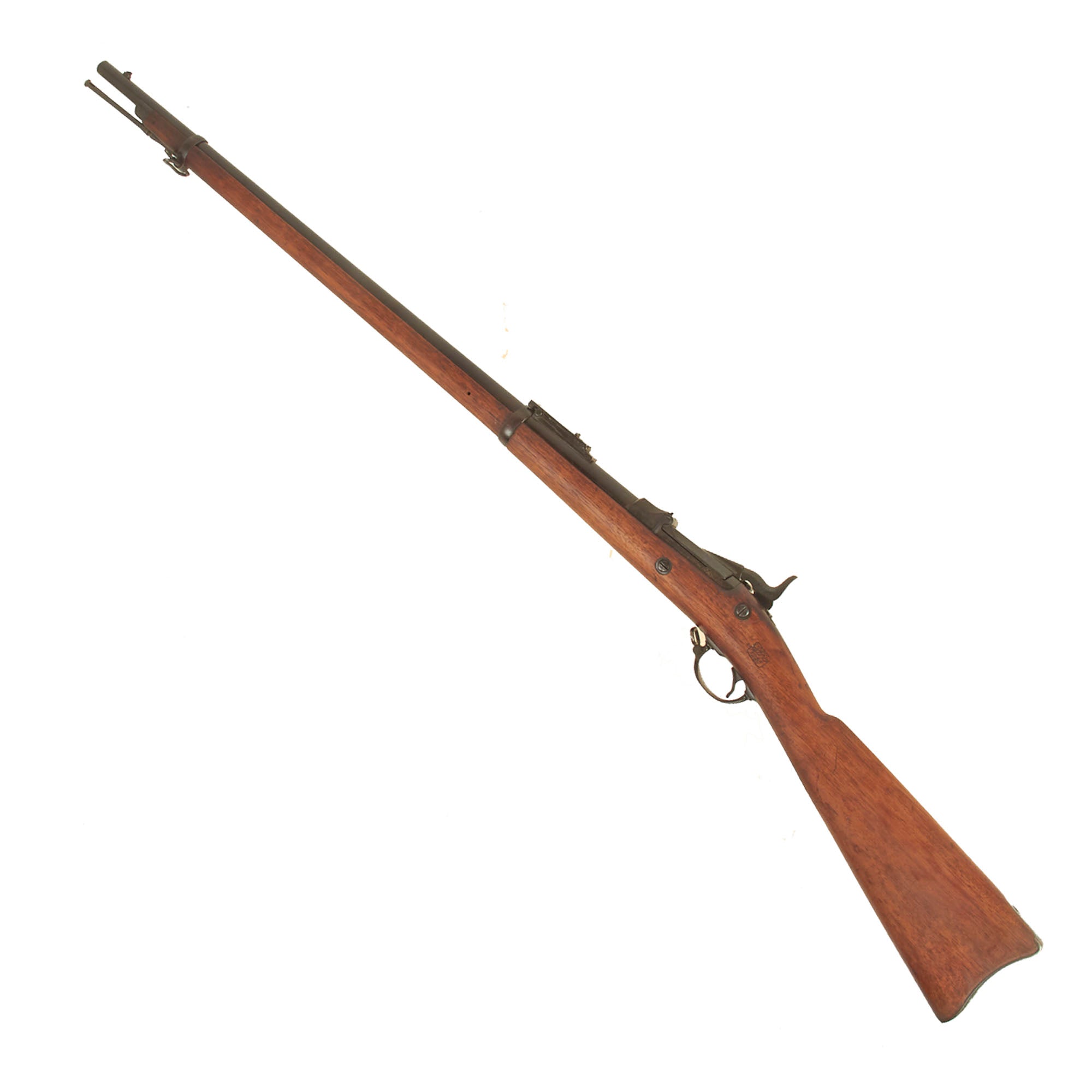

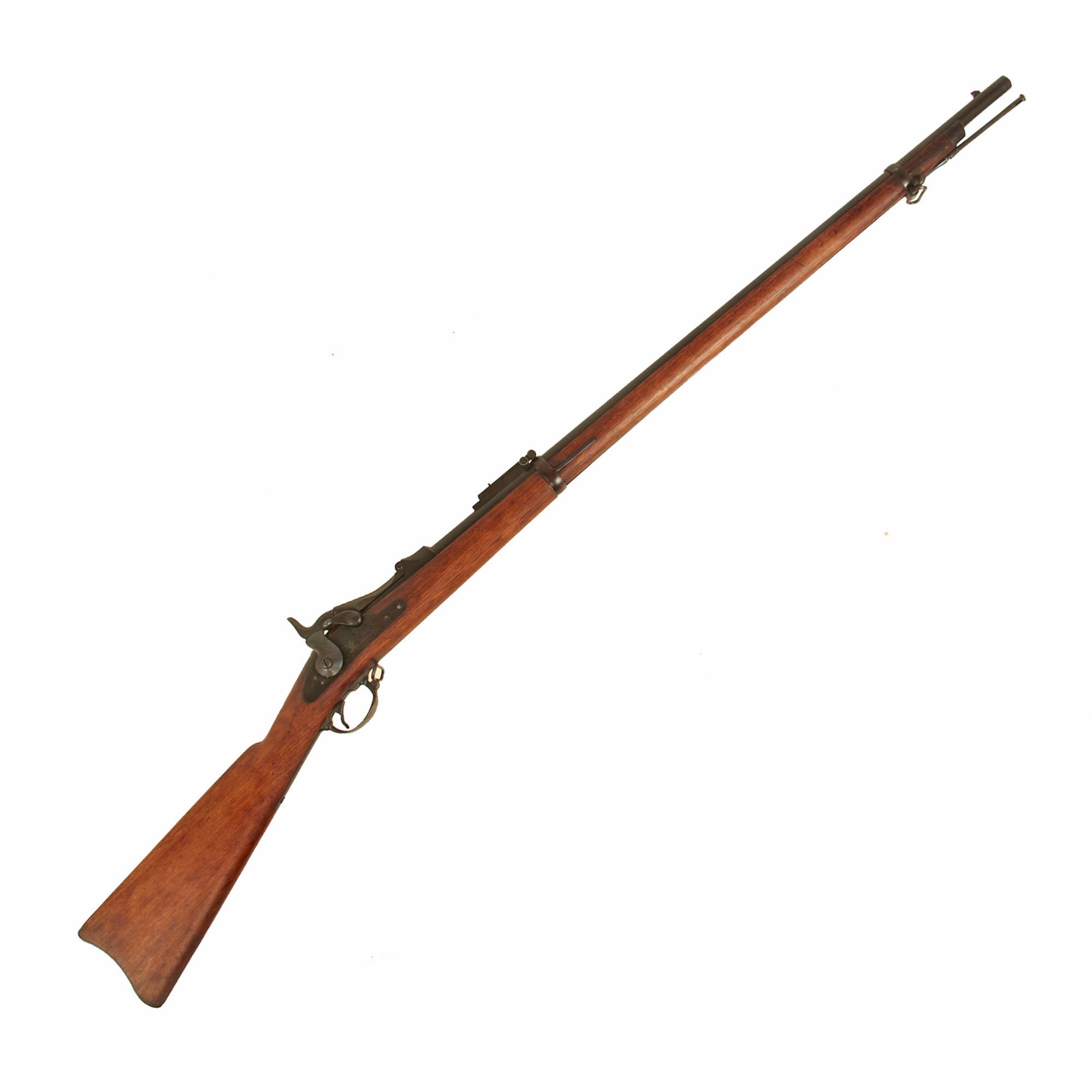

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 419948, which indicates production in approximately October 1888, per U.S. Government records. The left side of the stock bears a clear "boxed" government inspector SWP / 1886 cartouche, for inspection several years previously. Mismatches like this were common during trapdoor production. It features a standard ramrod, and was not later updated do the "1888" pattern. The rifle has overall very good metal finish and all metal proofs still present, with a nice aged blue finish showing just a bit of light overall peppering
The rifle has the "improved" Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod, smooth trigger, and two part trigger guard. It also has a Model 1873 breech block fitted. It is possible that the rifle was assembled using "salvaged" parts attached to a new receiver in 1888. Definitely some interesting history to this rifle.

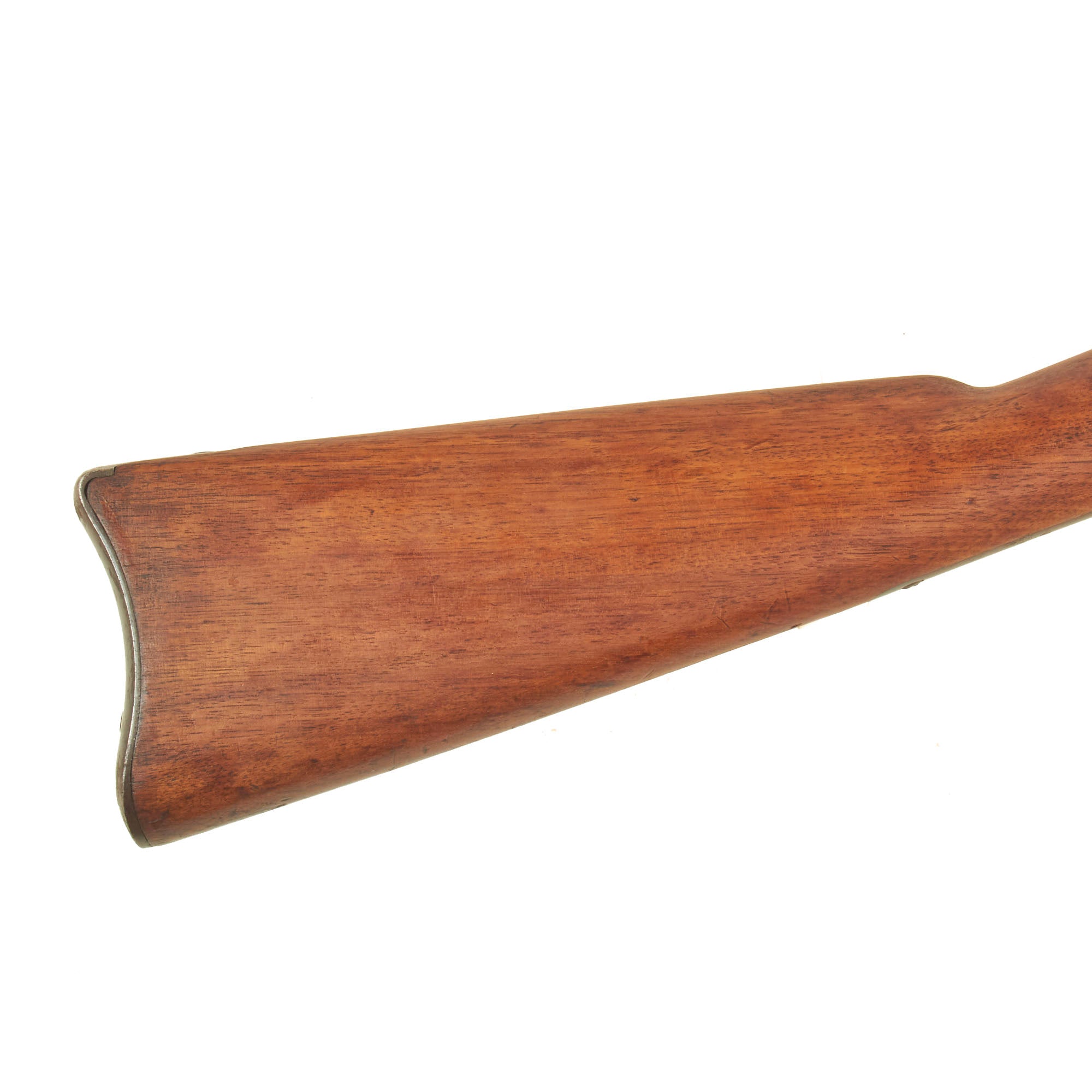

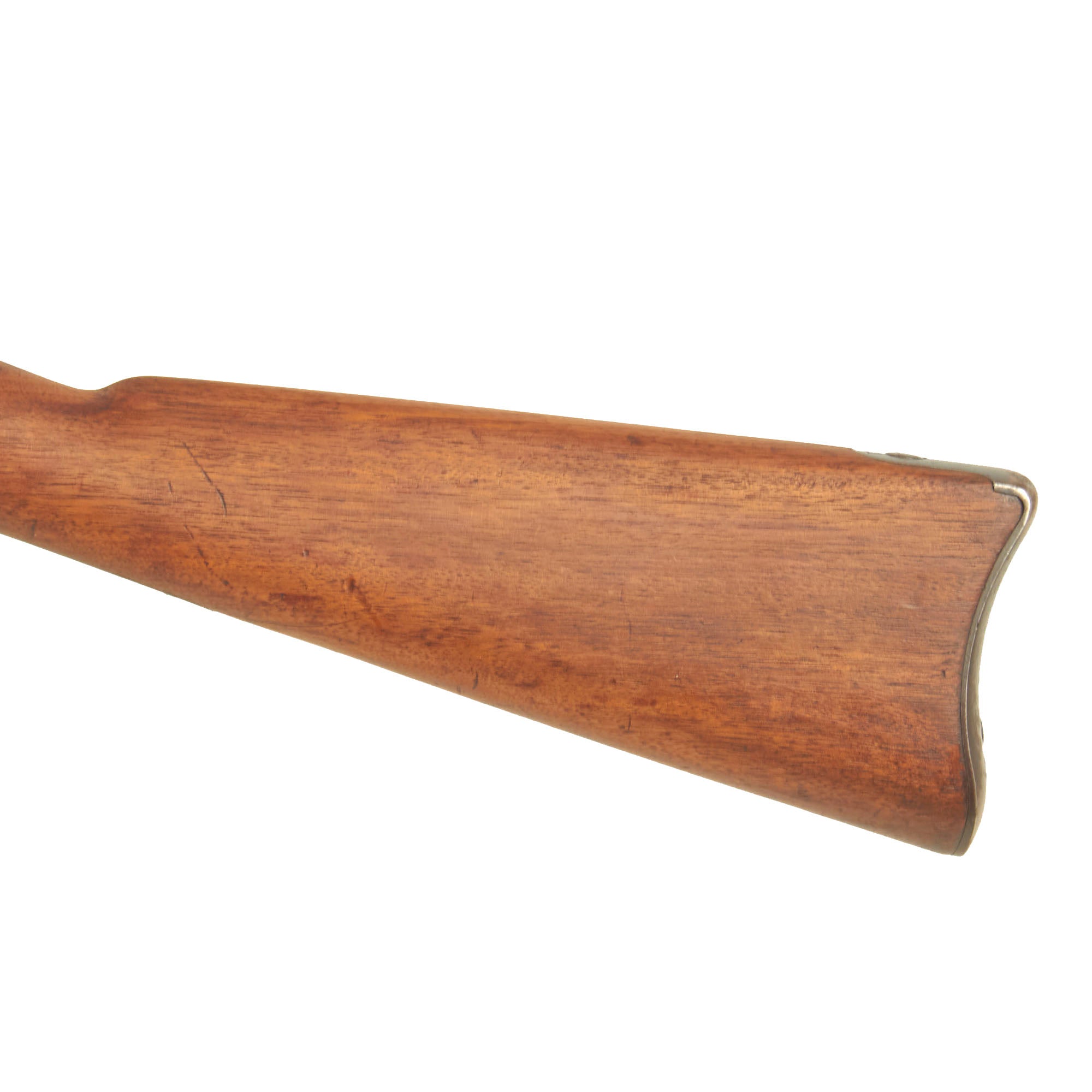

The wood stock is in a very good condition, with the lovely red brown color of oiled walnut. It does show some light wear from service, with the usual small dents, but no major structural cracks or other catastrophic damage. The stock wood is still mostly proud above the level of the lock plate, so it has not been worn down much or reconditioned over the years.
The bore is in good condition, showing clear lands and grooves, however it is definitely worn, with evidence of past fouling and oxidation, now cleaned away. This was definitely a rifle that saw significant use during service, and was probably not properly cleaned for a while. The breech block moves correctly, and the extractor is still present and functional, though we have not tested it with real brass.

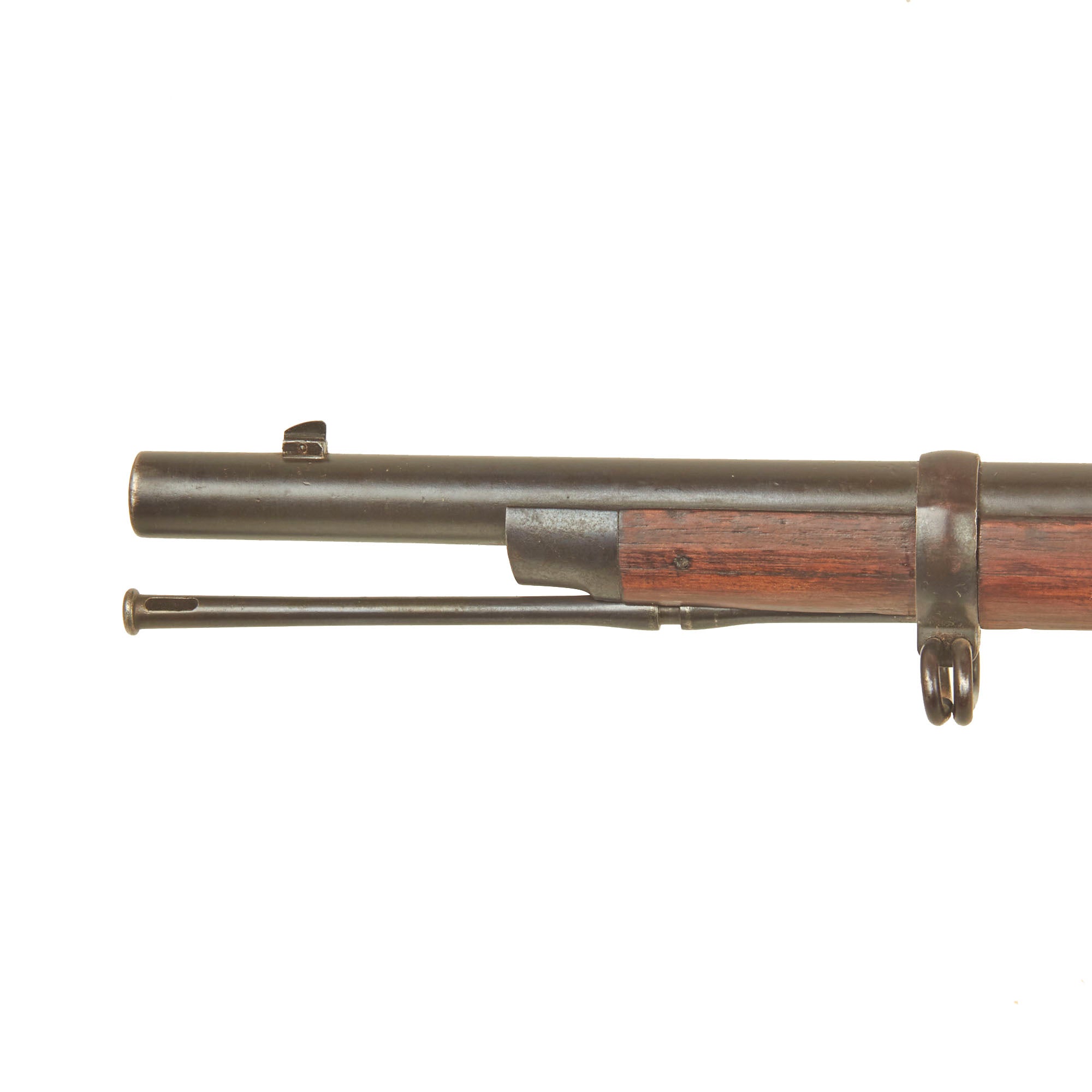

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is very good, an aged gray patina present on most of the barrel and fittings. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with a Federal Eagle to the left of U.S. / SPRINGFIELD, indicating that it was manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.
The elegant script "SWP" belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an Eagle's Head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.
This is a good opportunity to pick up a very nice example of a classic U.S. issue firearm. Ready to display!
Specifications-
Year of Manufacture: 1888
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
