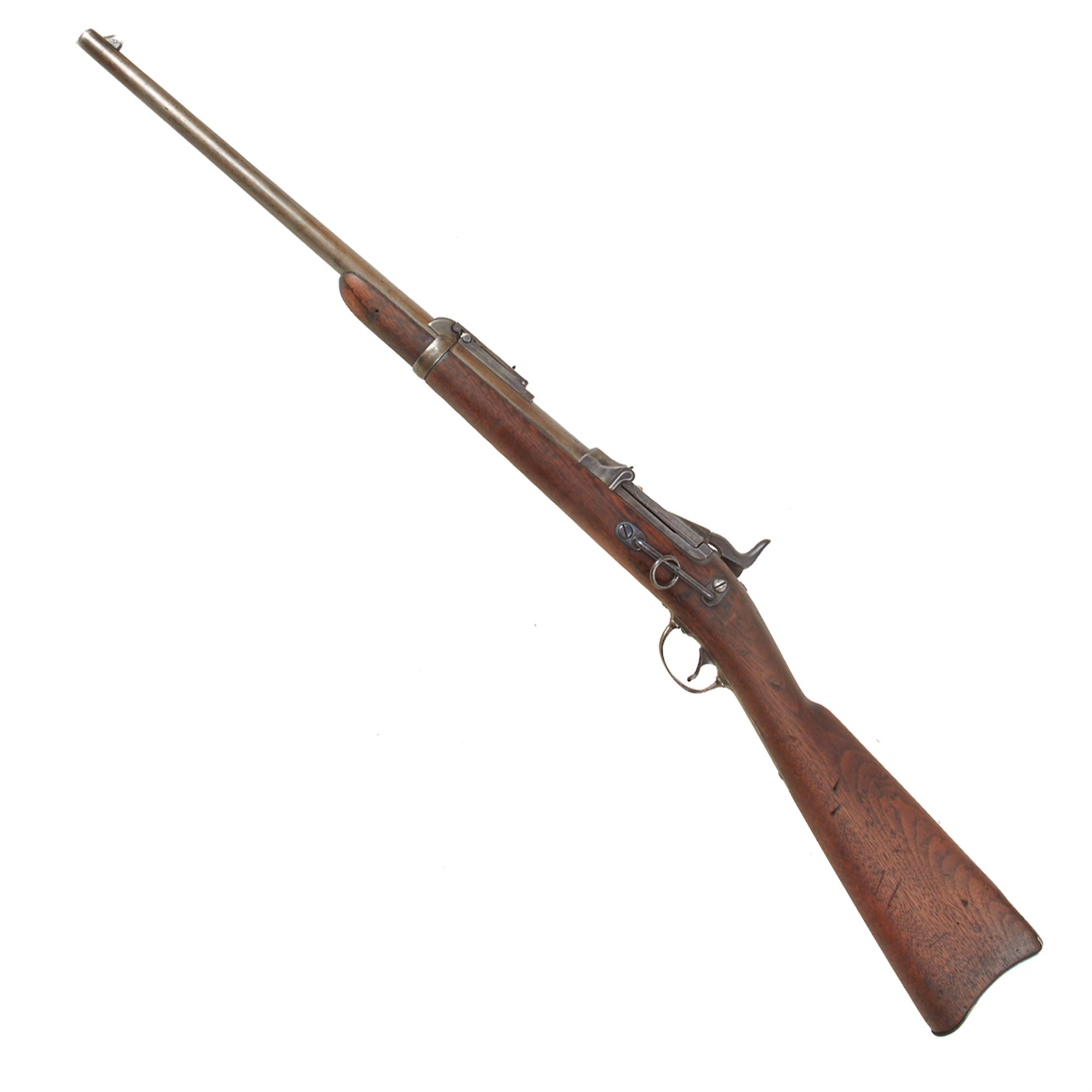

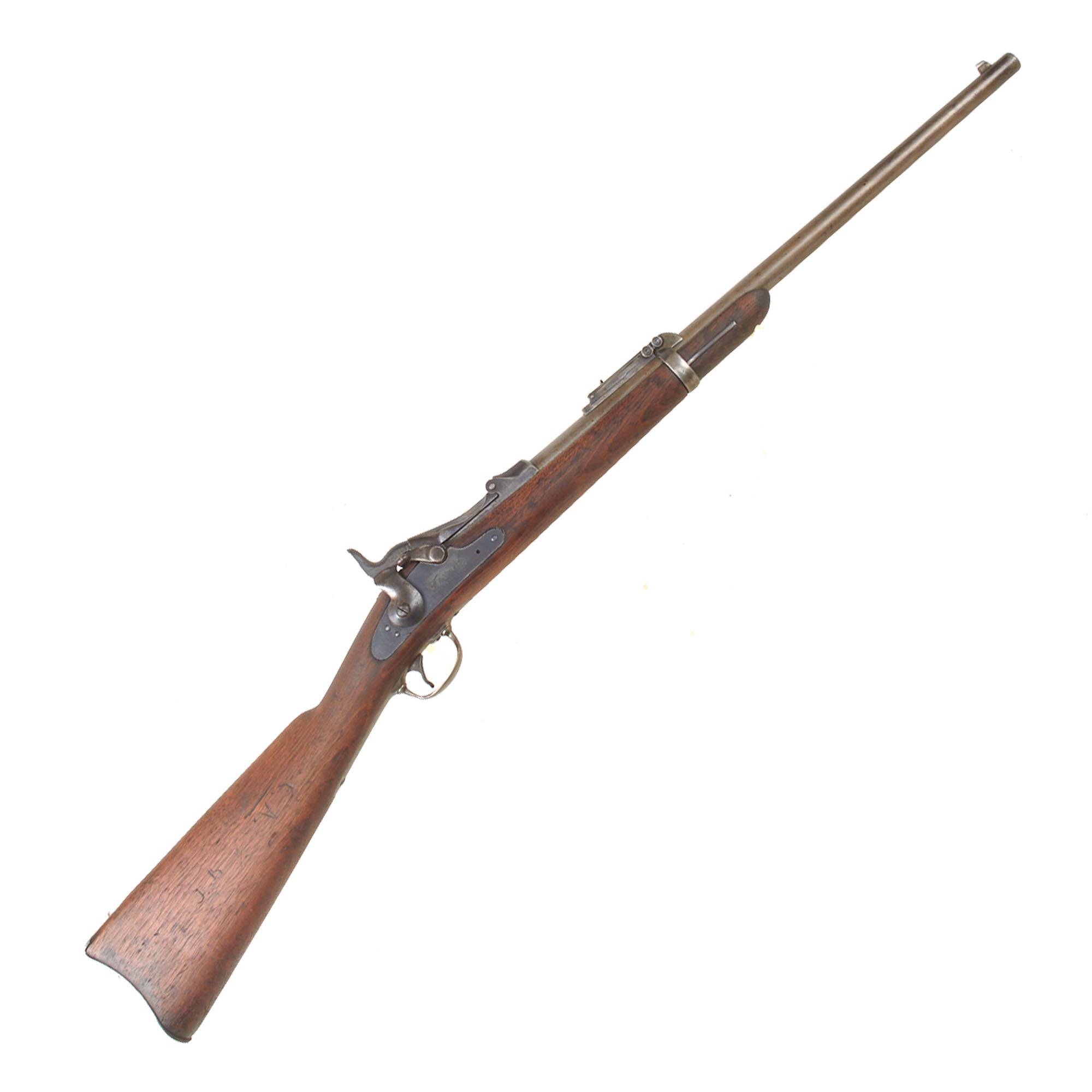

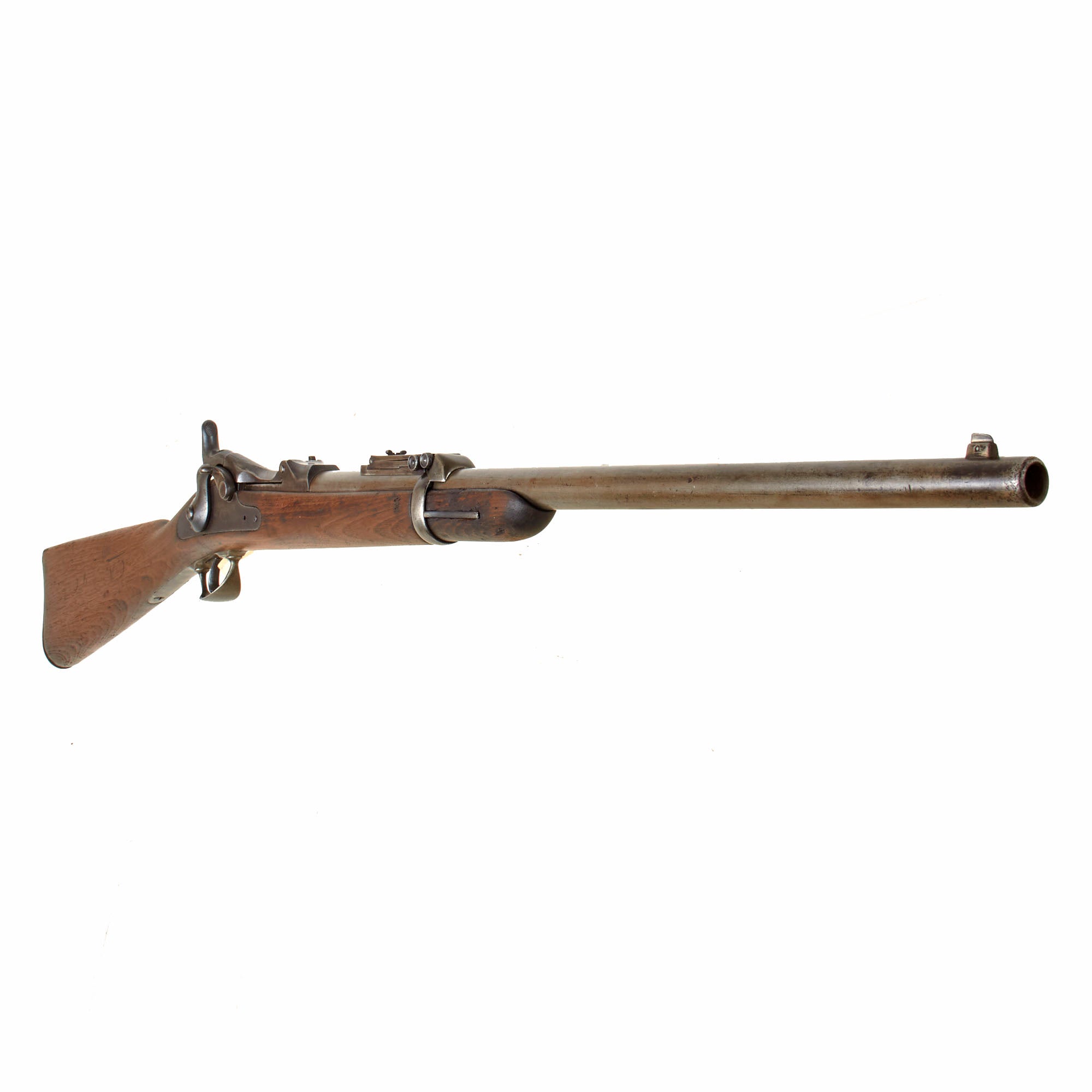

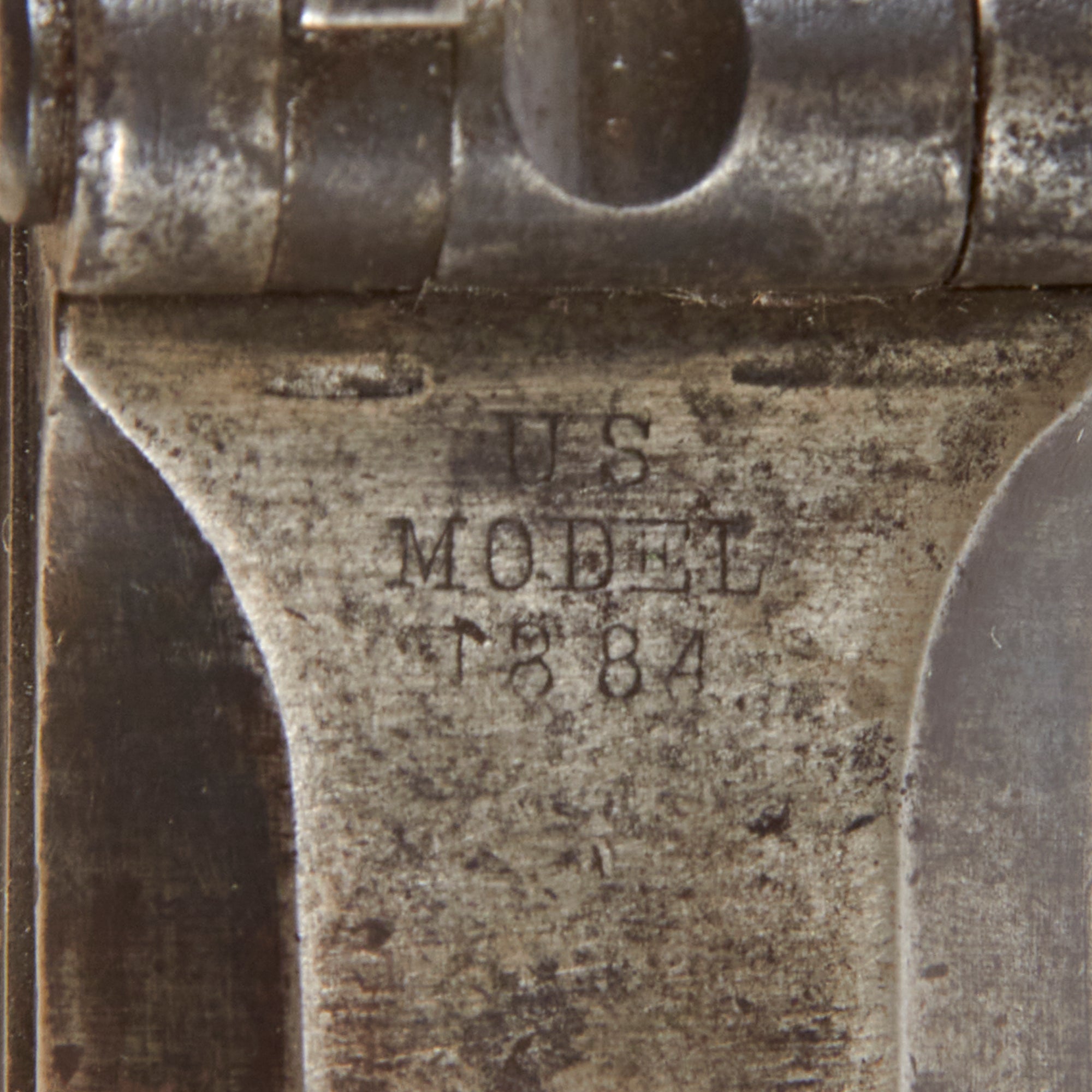

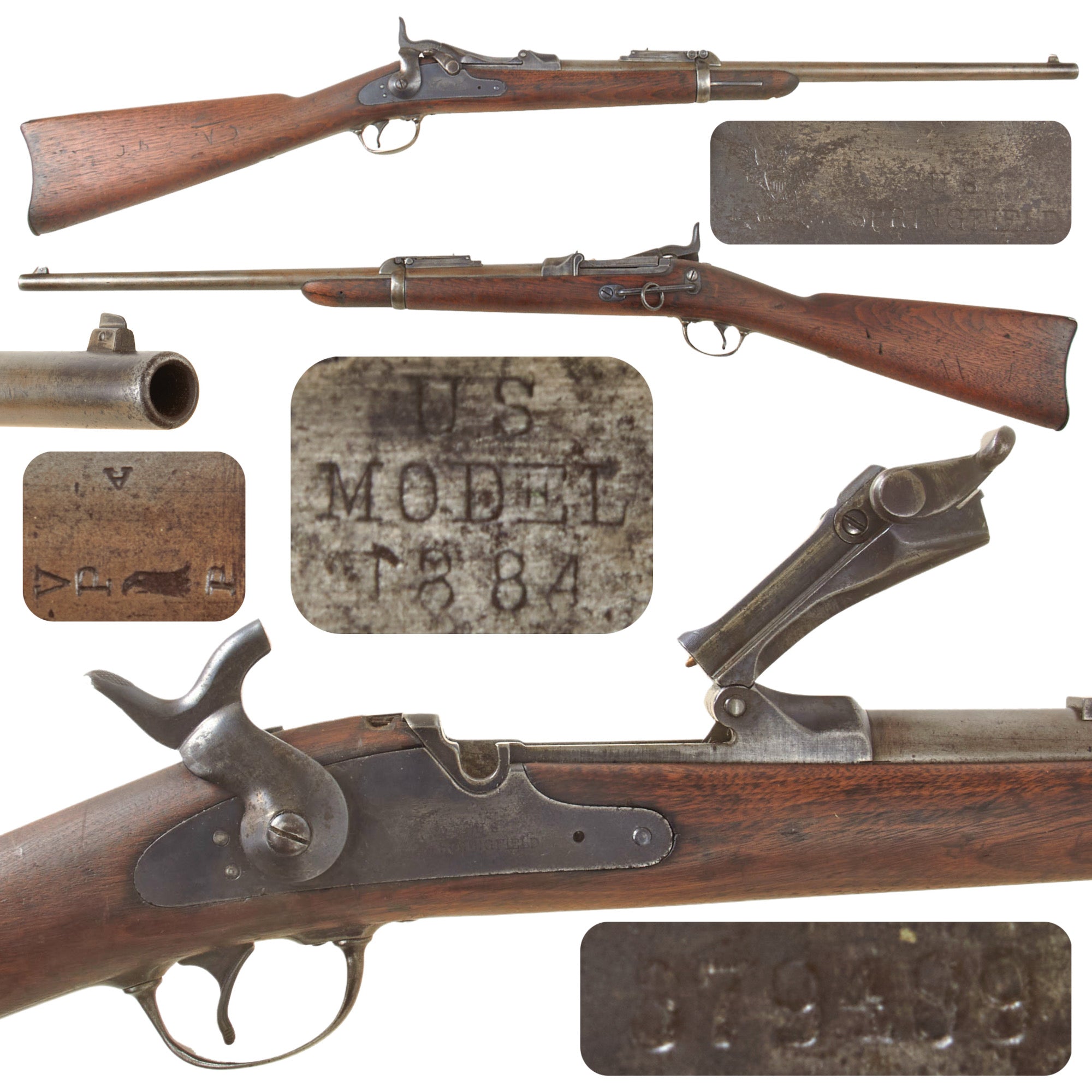

Original Item: Only One available. This is a very nice service used example of the classic Springfield trapdoor Saddle Ring Carbine, the weapon used by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The breech block is marked:

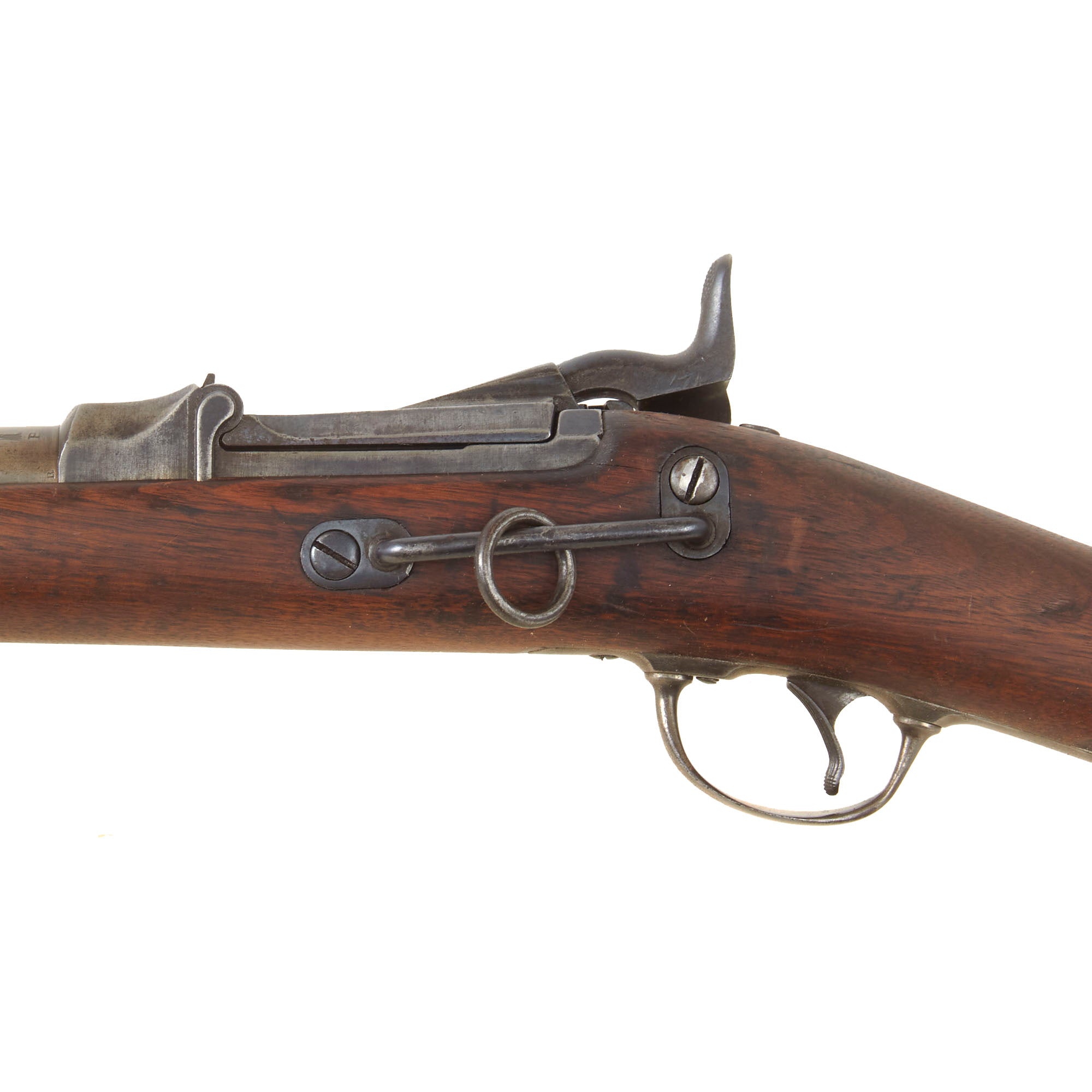

Offered in very good service used condition is this trapdoor rifle in .45-70 government caliber, fitted with the correct Buffington rear sight and original Saddle Ring and Bar on the left hand side of the wood stock. It also includes the correct Saddle Carbine band guard, which cradles the rear sight ladder and prevents it from getting caught in the saddle bucket. Most of the carbines we see do not have these, and they are somewhat hard to find.

Carbines so equipped are considered by many to be "Model 1890" carbines, and many 1873, 1877, and 1884 carbines were altered in a similar fashion. How much modification they received would depend on the current configuration of the carbine when received back at arsenal. Earlier carbines would have the entire stock replaced, while model 1884s would mainly have the rear band replaced with the sight protector, and a front sight protector equipped as well. Details of the aforementioned modifications were referenced from the Joe Poyer and Craig Riesch publication, The .45-70 Springfield, fifth edition.

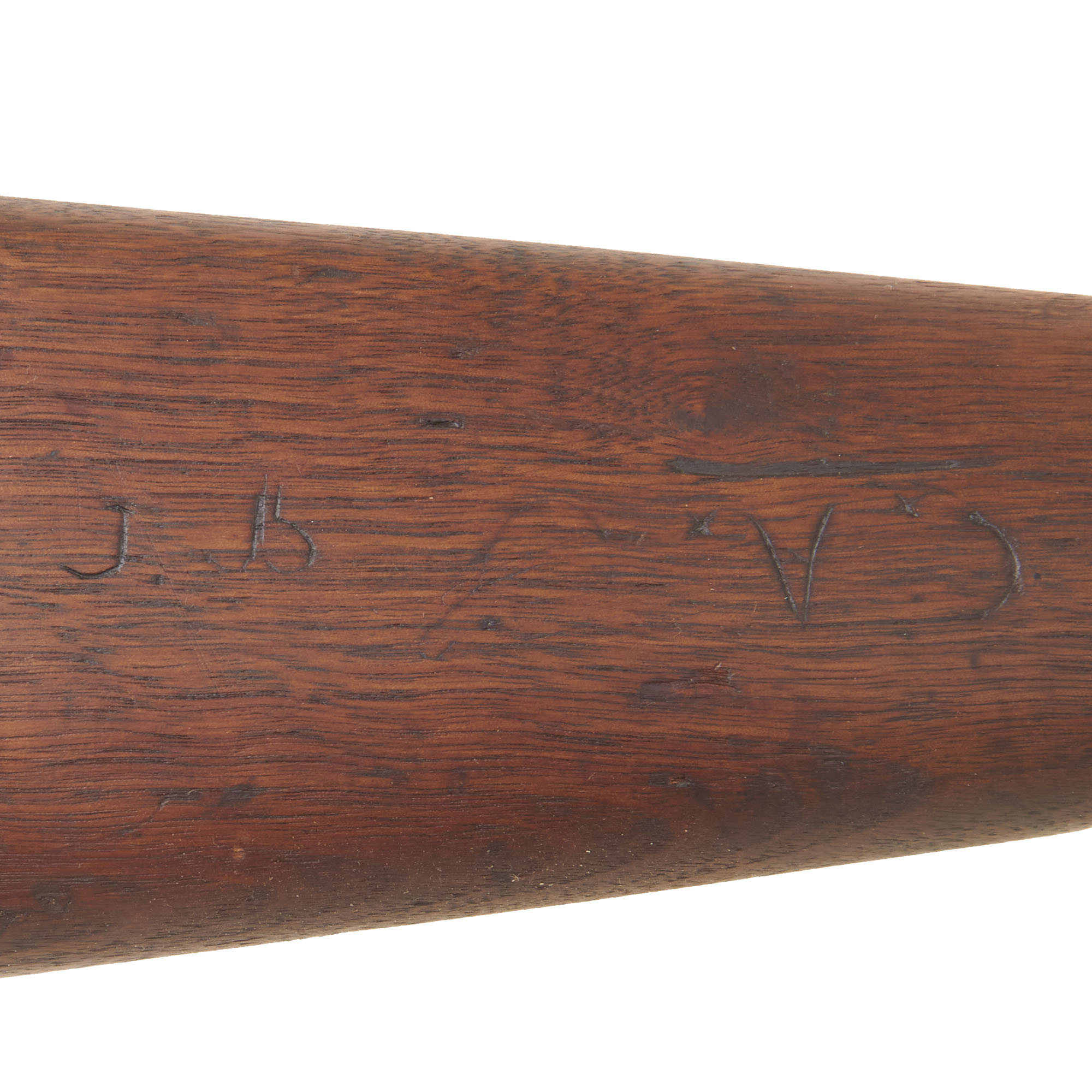

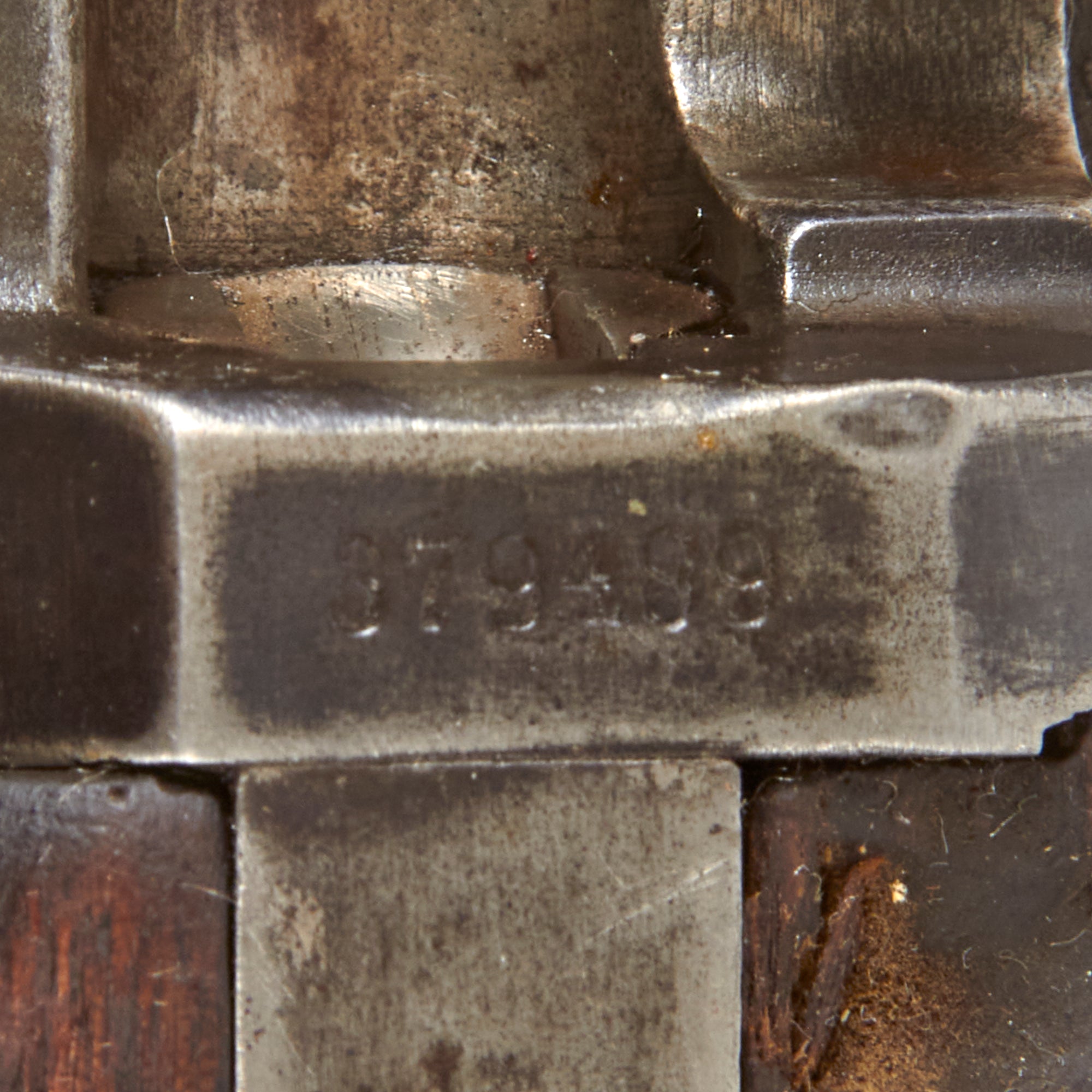

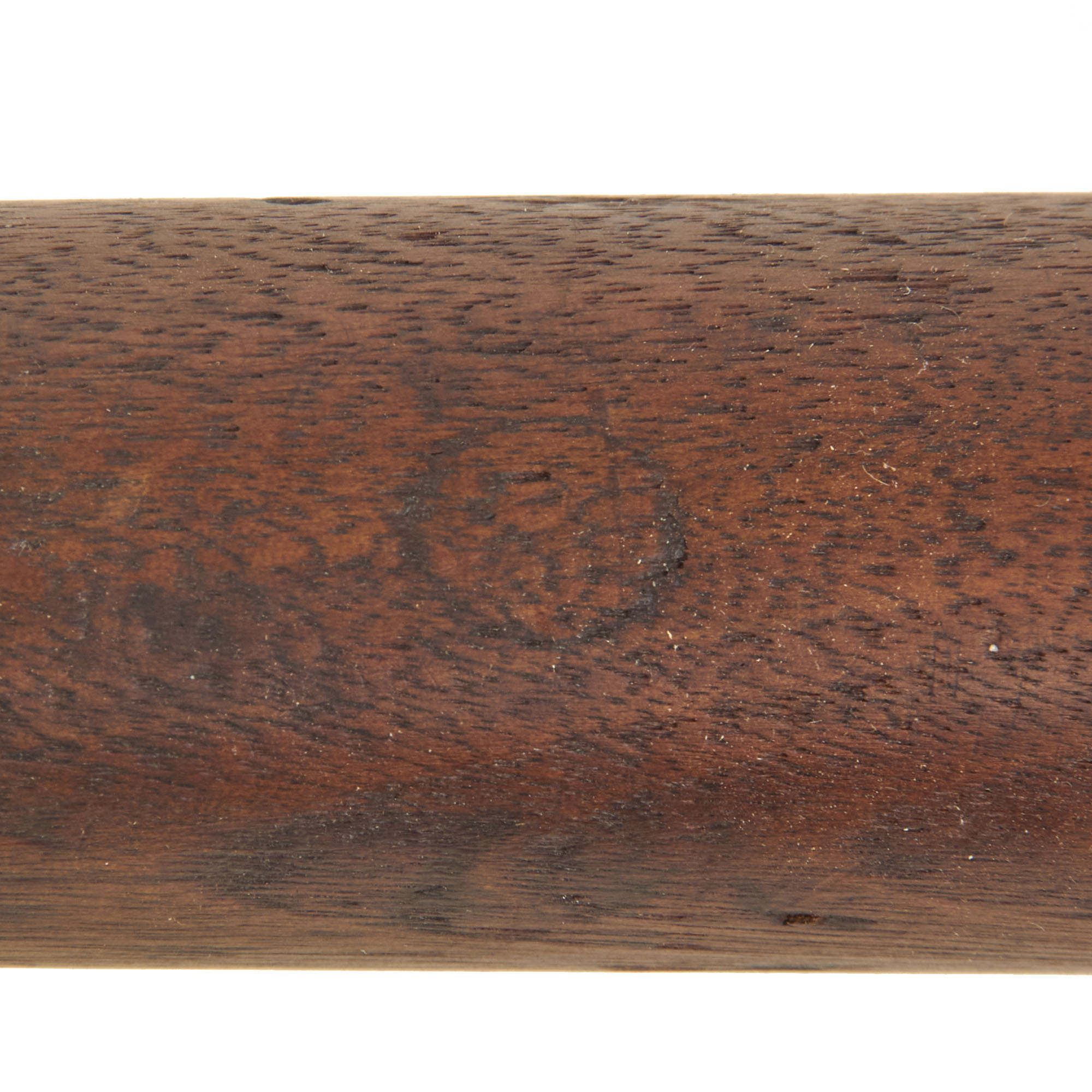

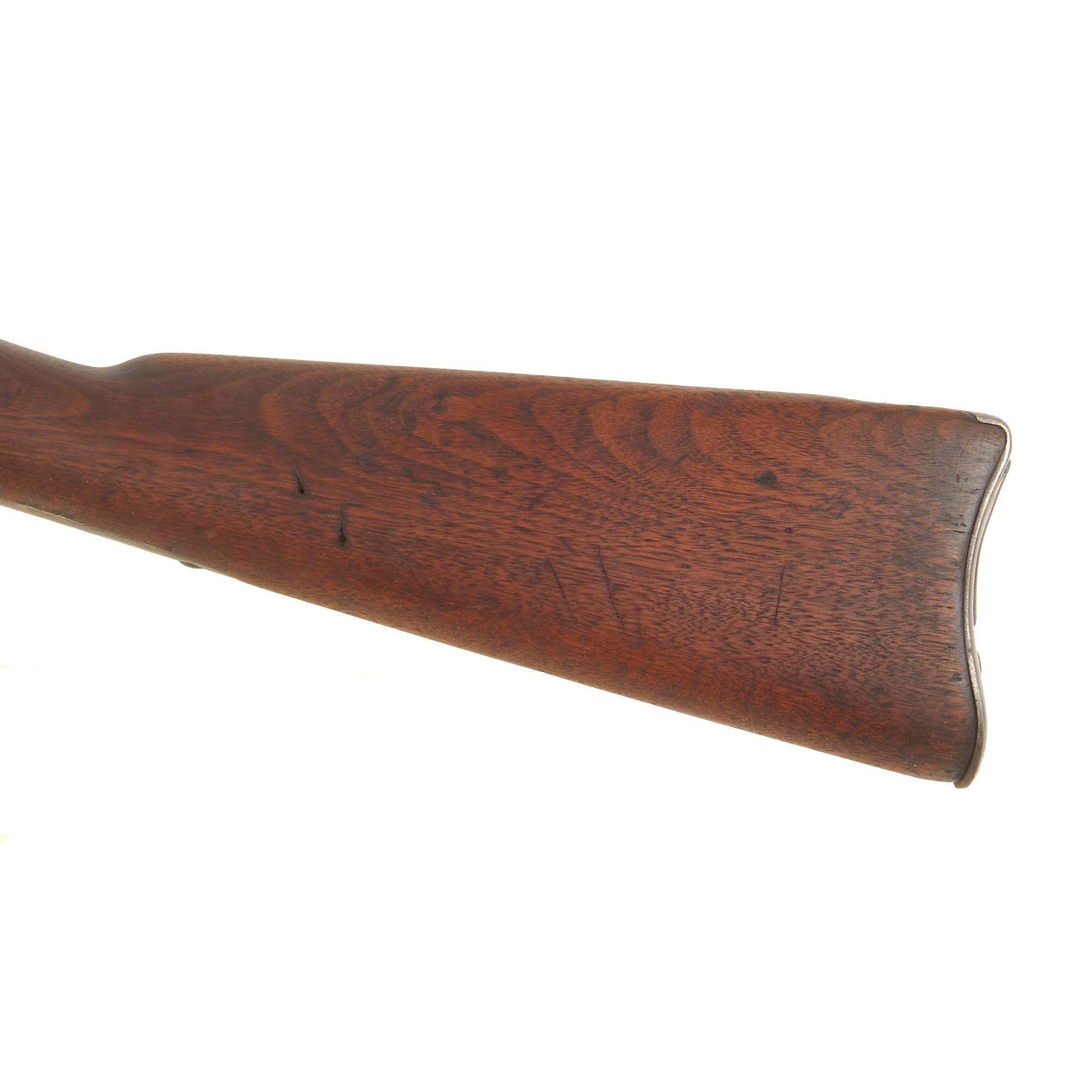

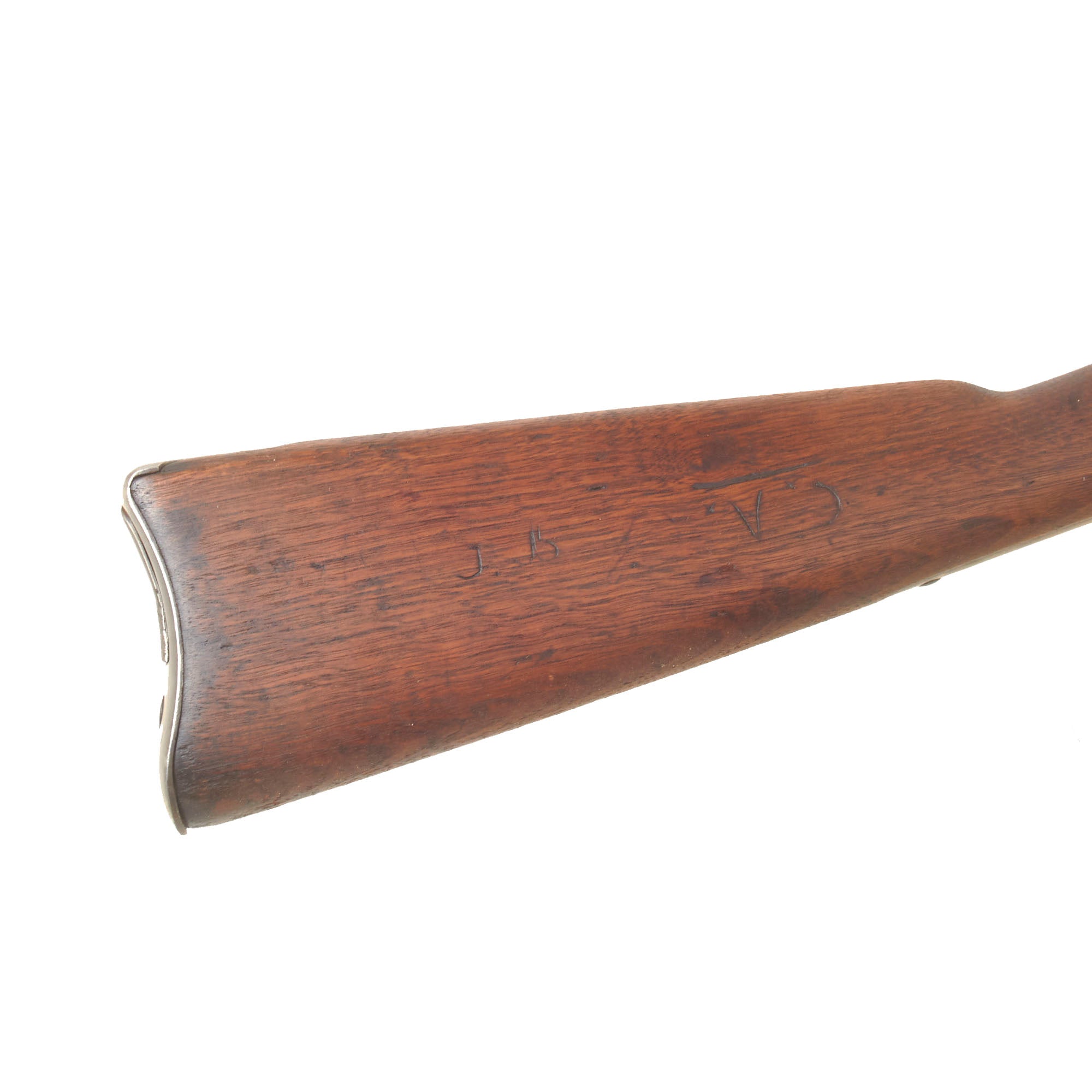

The serial # 379489 on the rear of the receiver indicates production in approximately July 1887, per U.S. Government records. The stock is in good original condition, with the expected wear from age and service. It is still slightly proud over the lock plate at the front, with the rest being at about the same level, so it has not been worn down excessively or reconditioned. It does show some past dents, dings, and scratches, as well as some personalization on the right side of the butt stock. There are also some small holes on the left side that look like they had something attached to previously.

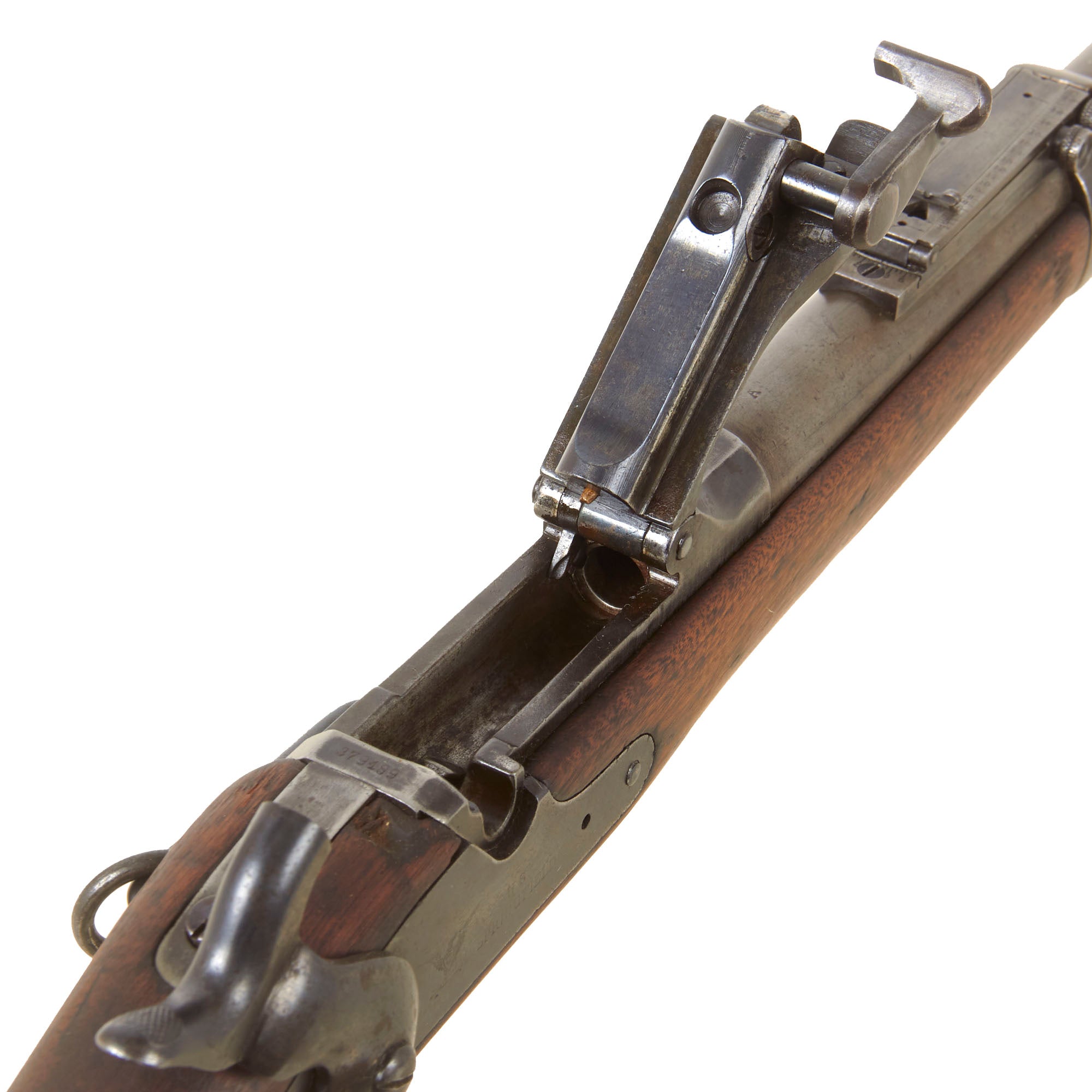

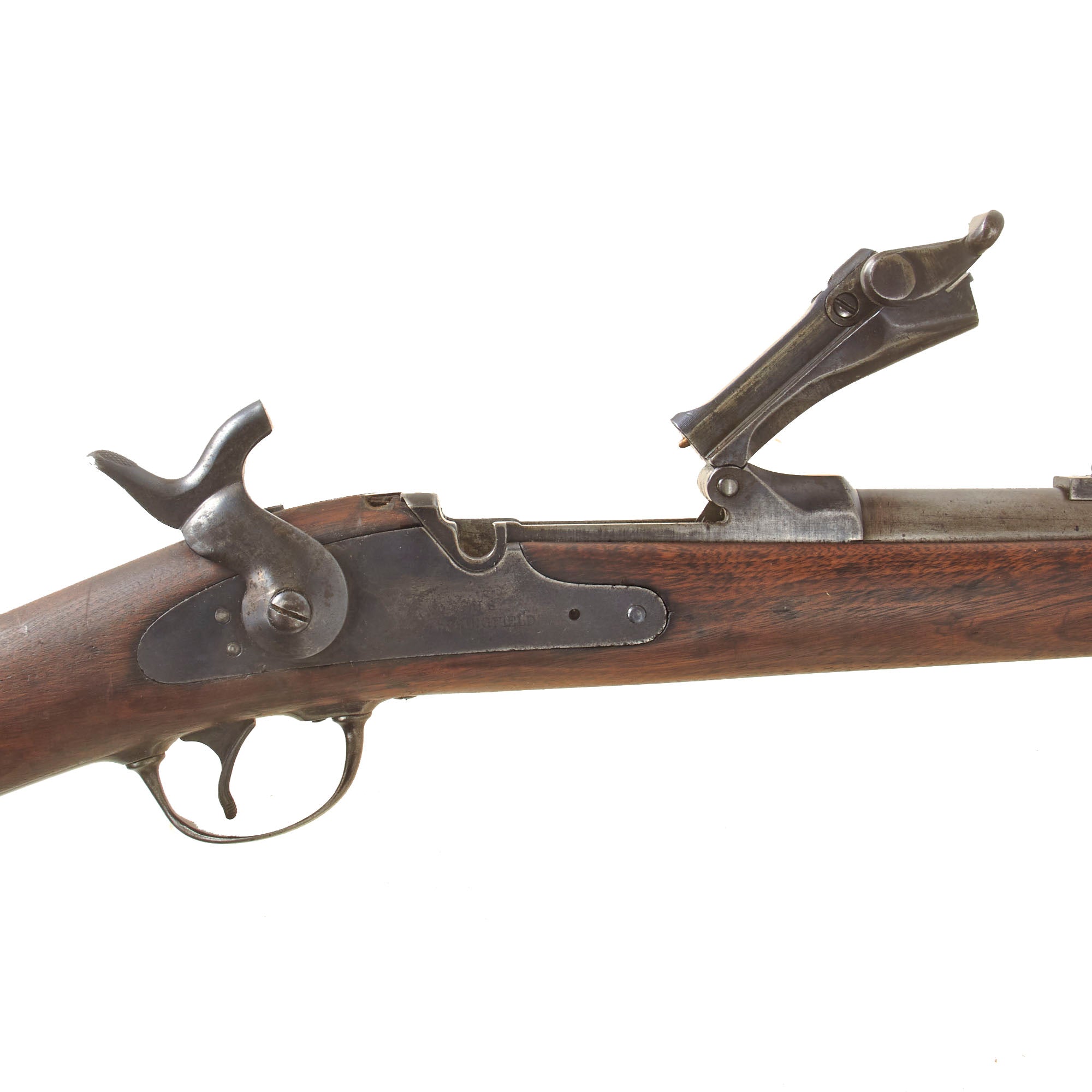

The bore is in very good condition, showing clear lands and grooves with a mostly bright finish. There is some past fouling and oxidation, now cleaned away, but no major oxidation or rust, so we would probably rate this at a 7-8 out of 10. It definitely saw use but was relatively well cared for. The breech block has an intact freely moving firing pin which moves correctly, and the latch keeps it securely closed. The spent cartridge extractor is present and functional, as is the ejector, though we have not tested them on actual brass. This carbine is correctly fitted with the butt stock storage compartment, where a multi-piece cleaning rod and tools would be stored. Unfortunately these are long gone, and it is empty. The carbine has also lost the front sight protector that model 1890s were equipped with.

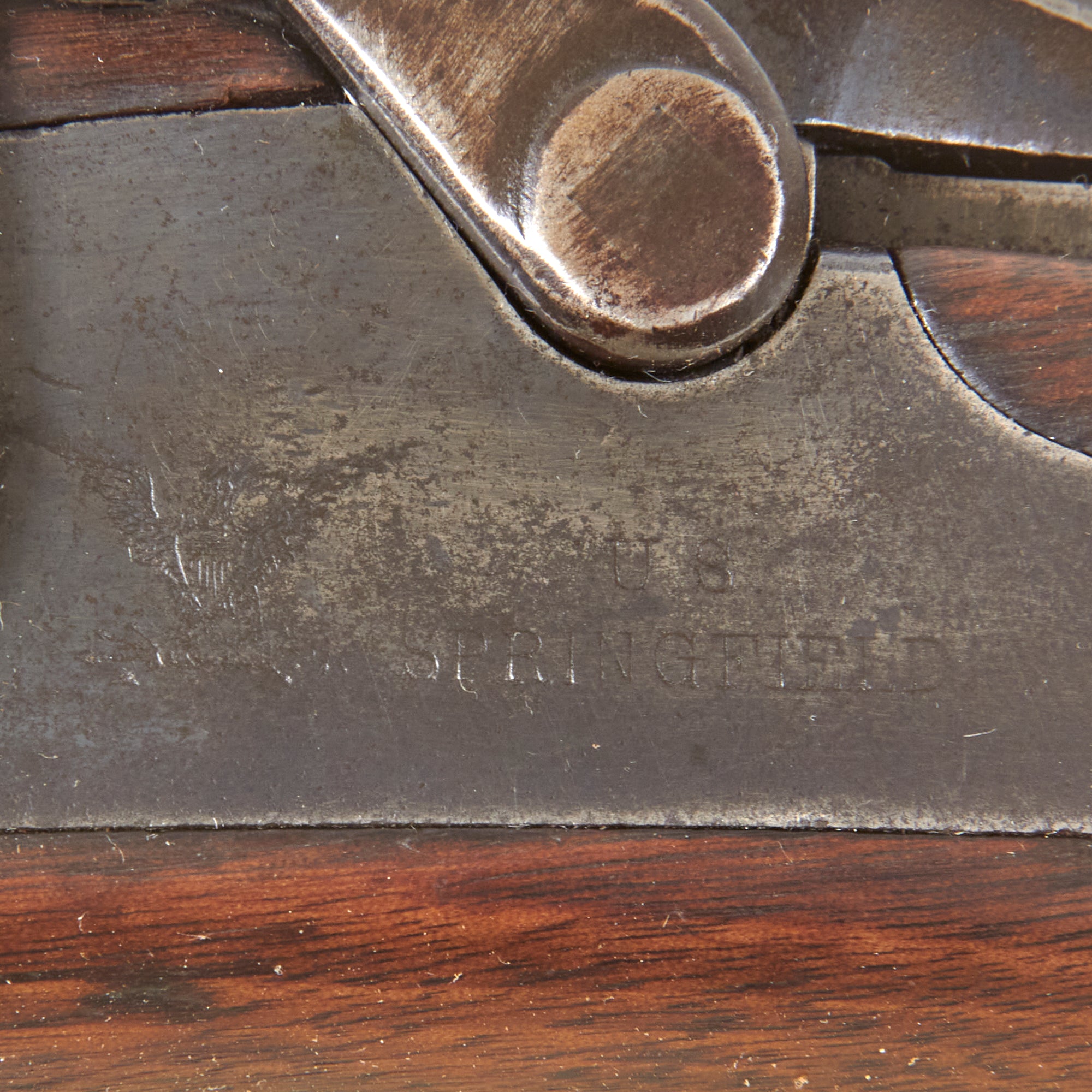

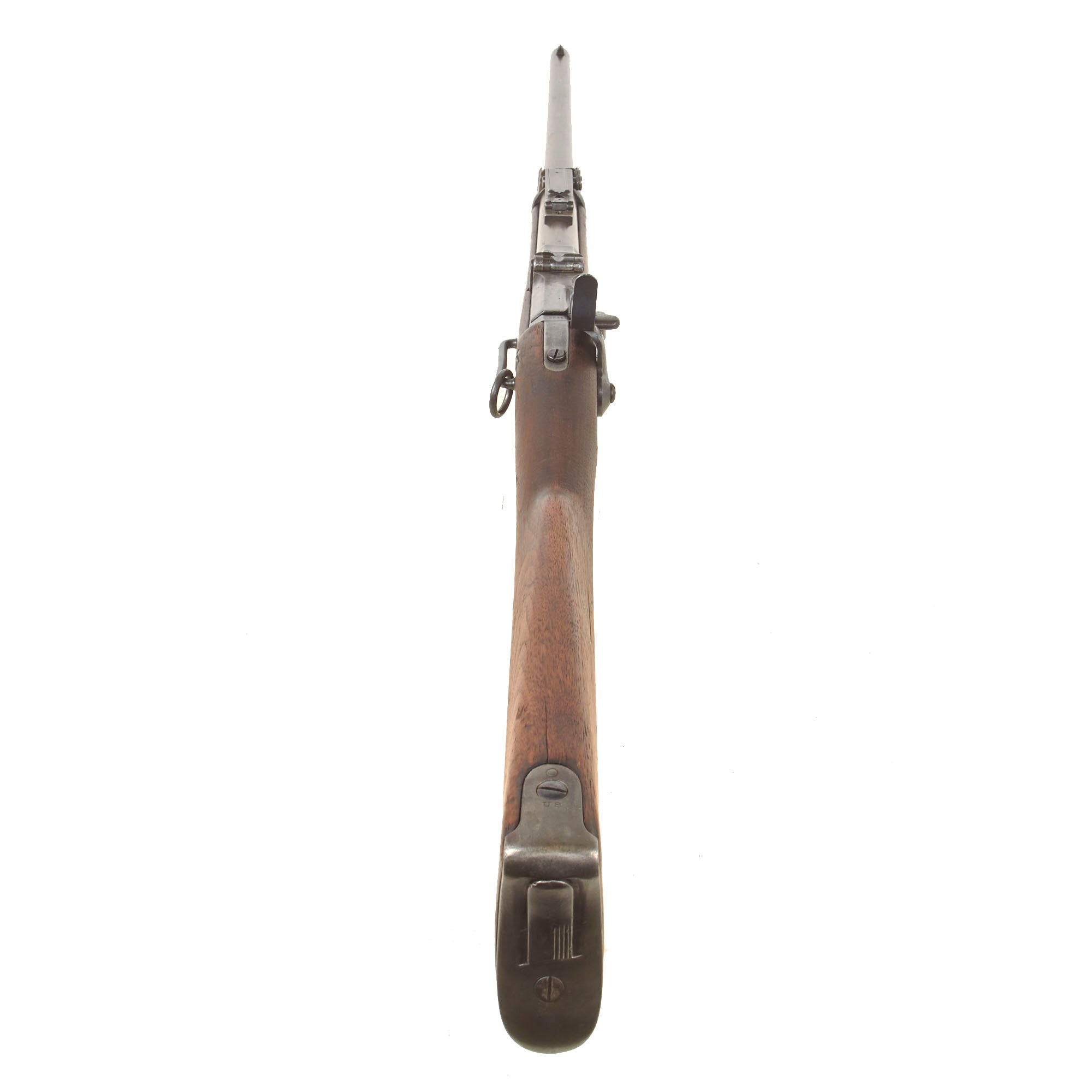

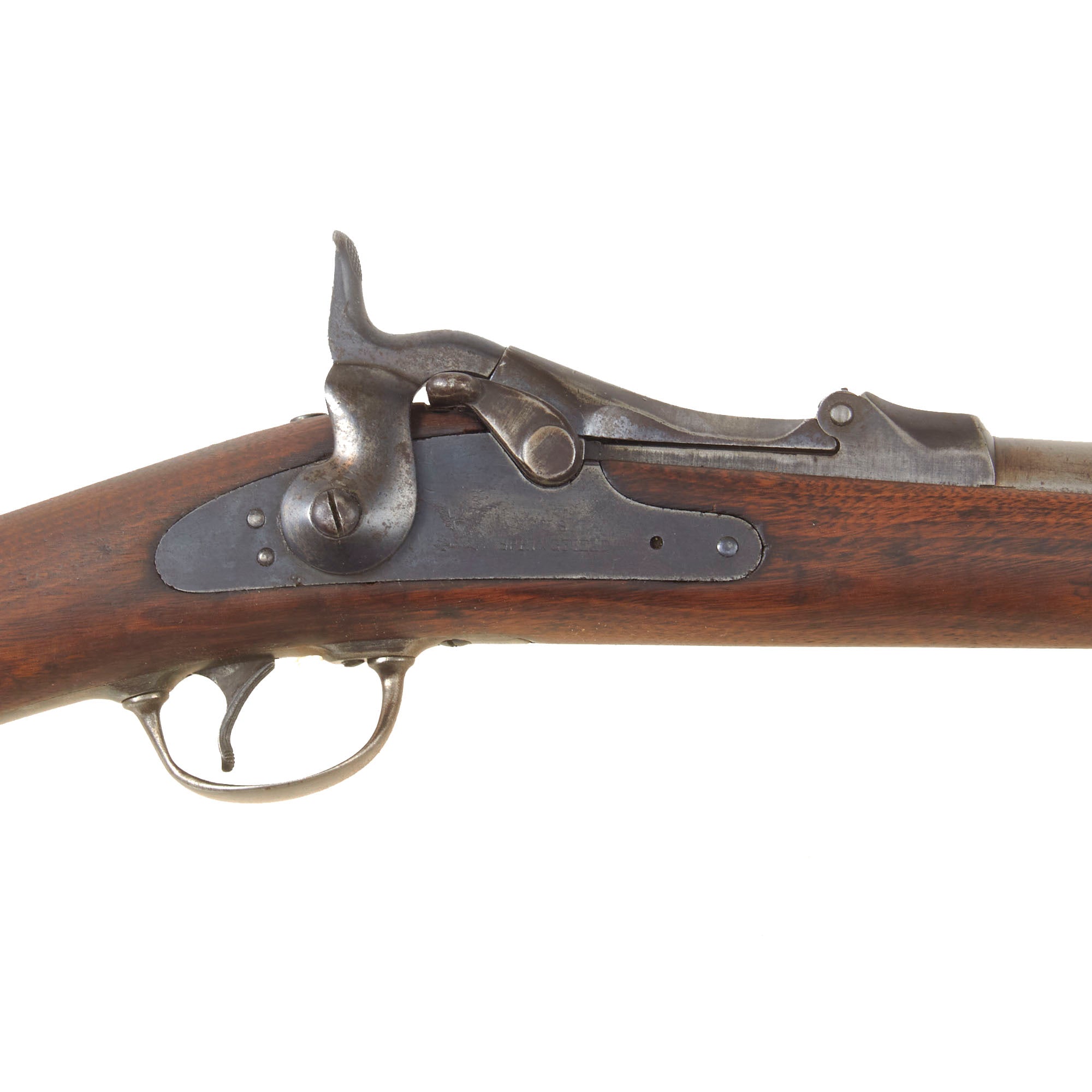

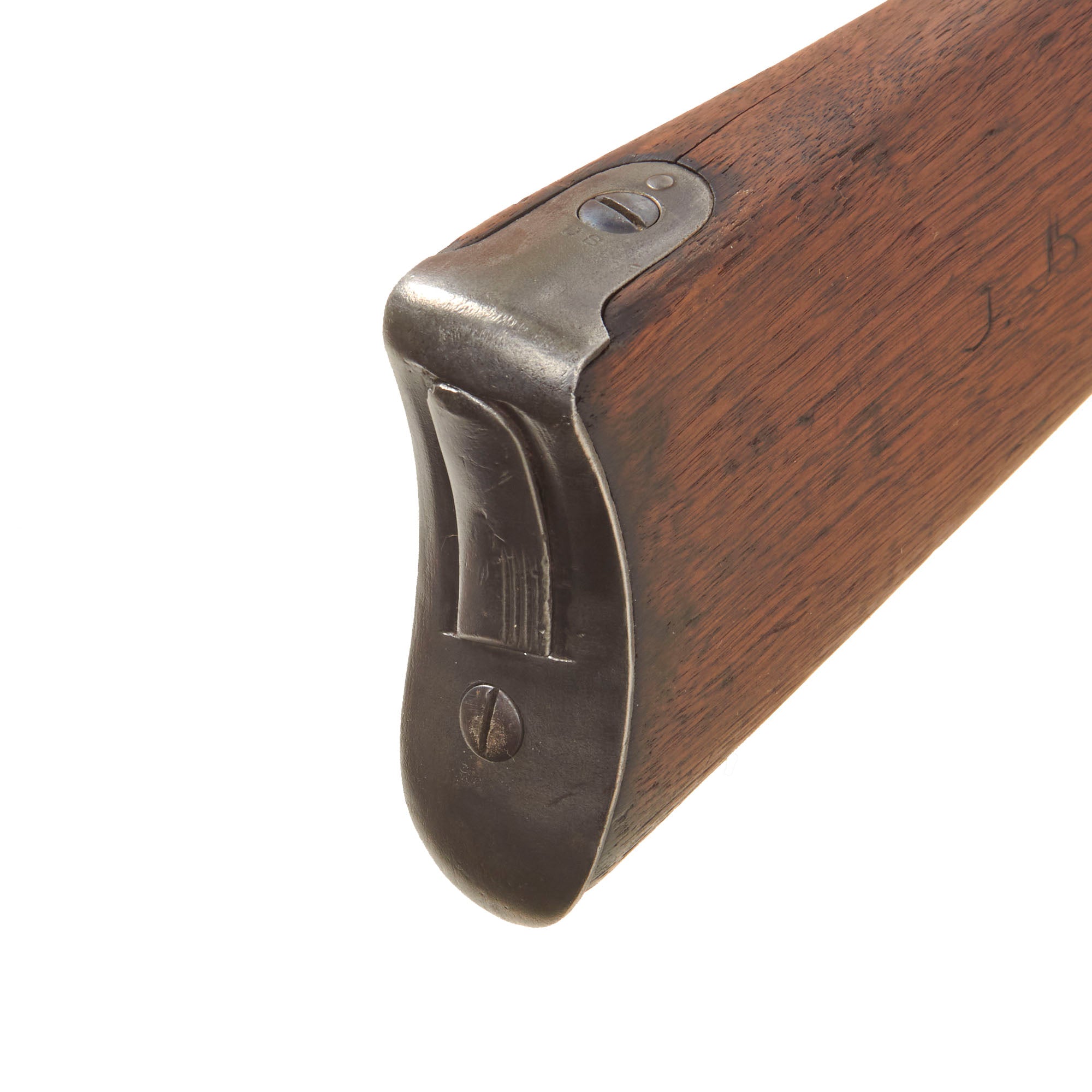

The butt plate is marked U.S. and the front band/guard is unmarked, as is correct. Metal finish has faded to a polished bray patina, with some areas of the original blue maintained. There is not any major oxidation or rust that we can see. Center fire breechloader, .45 cal., single band, saddle-ring on sliding bar, and carbine Buffington sight. Lock is marked with a Federal Eagle and U.S. / SPRINGFIELD, manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

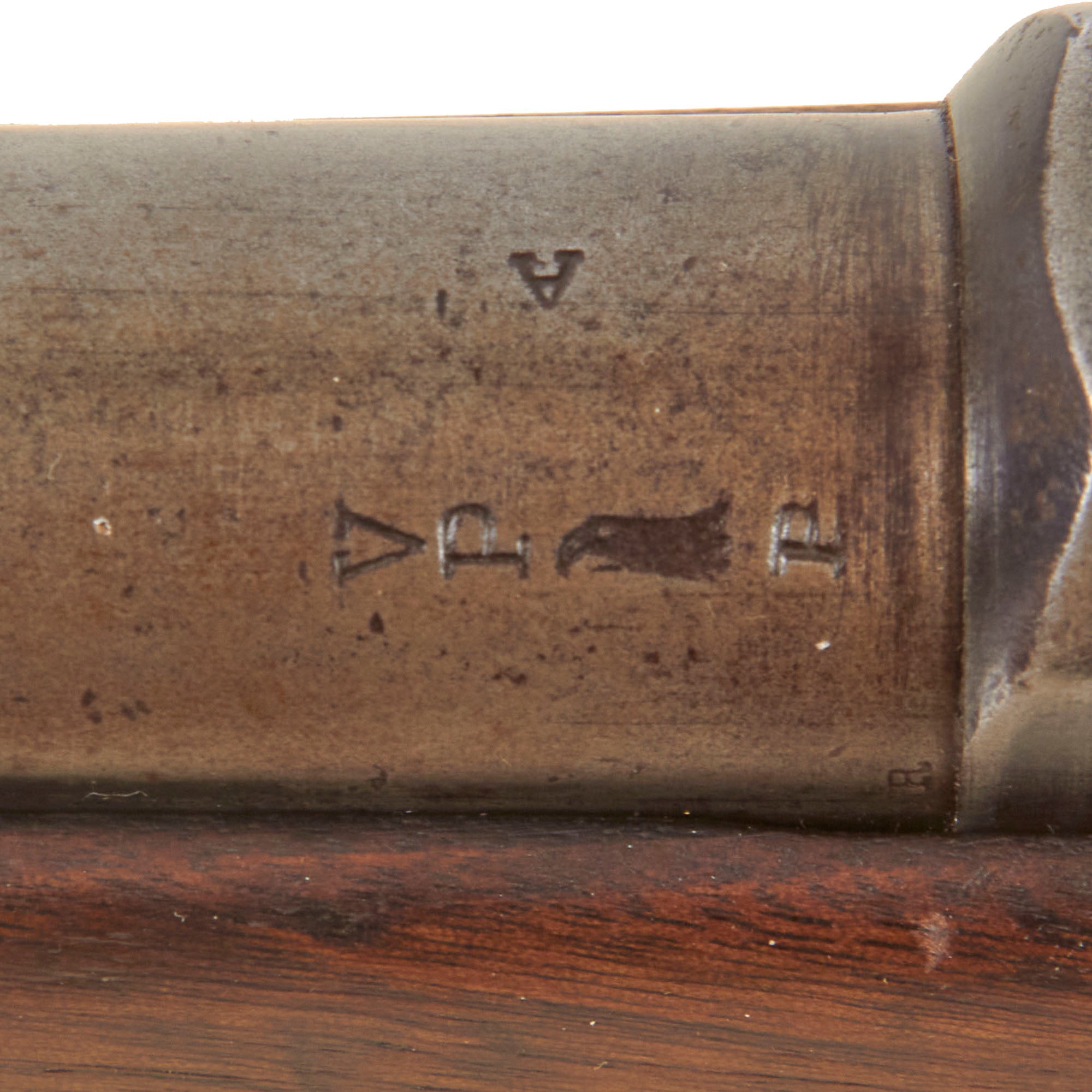

A VERY faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include faint inspectors' and proof marks around the breech end of the barrel: a capital A on top; a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked C to indicate that the sight graduations are for a carbine and not a rifle.

This is an excellent opportunity to pick up a very nice honest used example of a legendary U.S. issue firearm. Ready to display!

Specifications-

Year of Manufacture: 1887 - updated later.
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 22 Inches
Overall Length: 41 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
