Original Item: Only One available. This is a lovely example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876. The breech block is marked:

In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

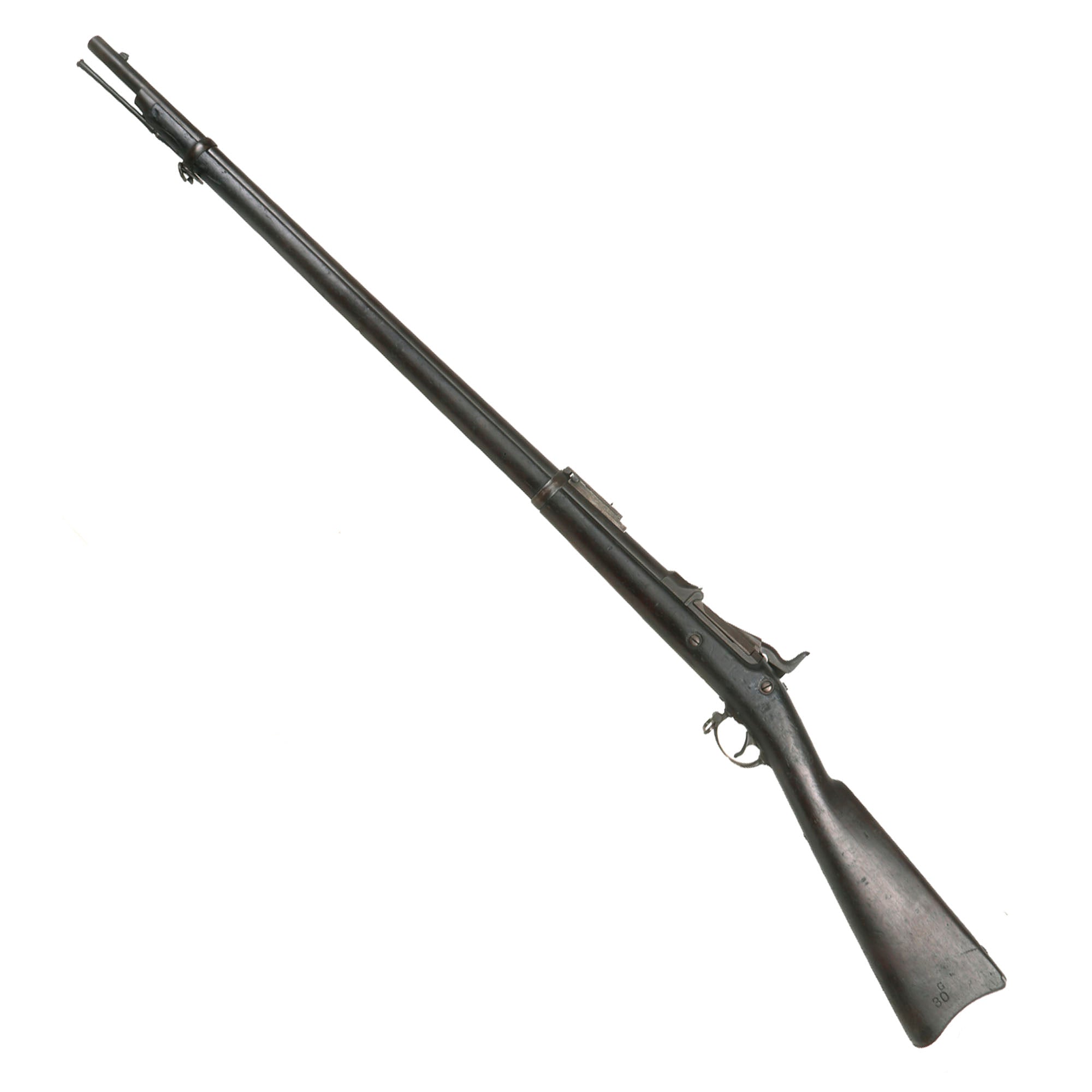

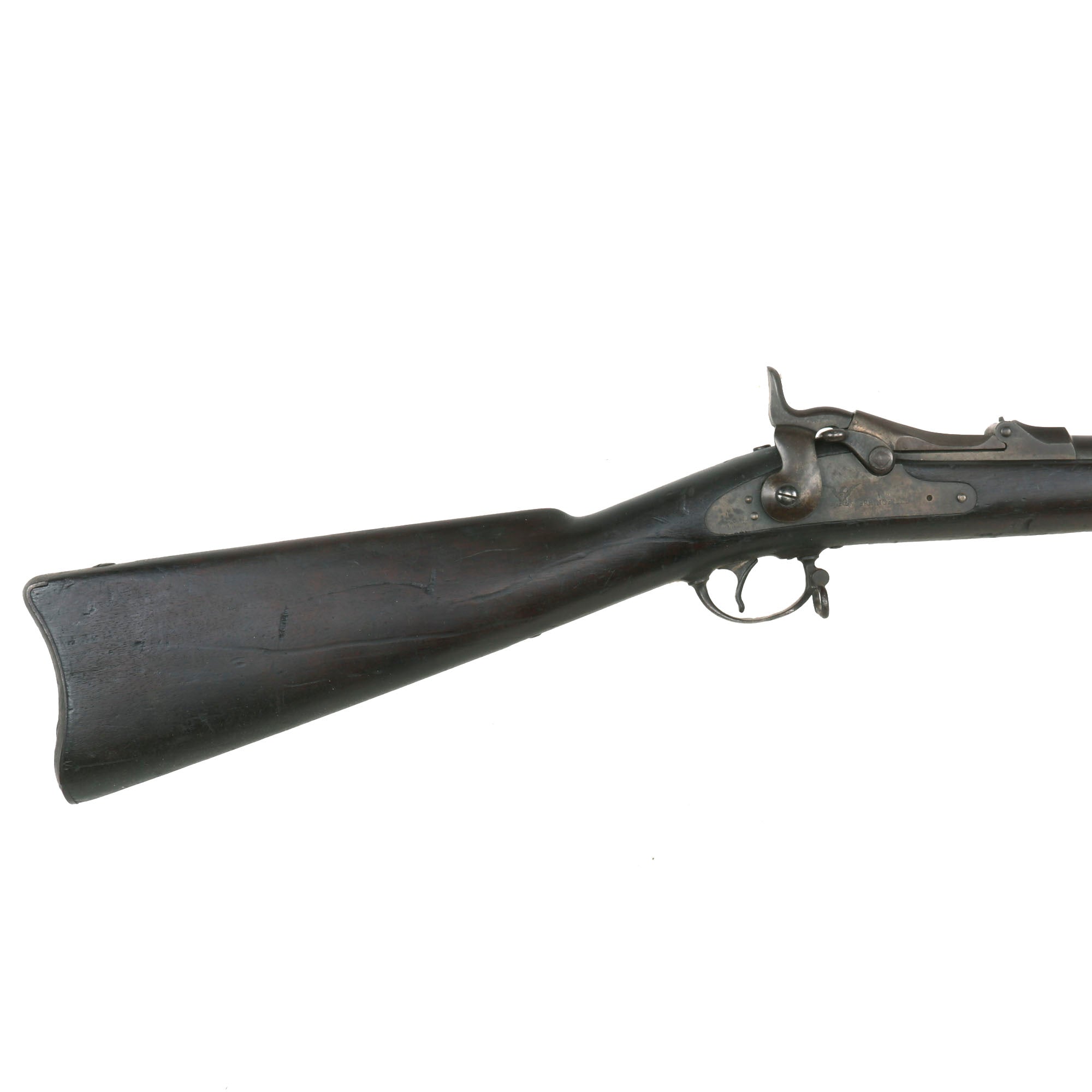

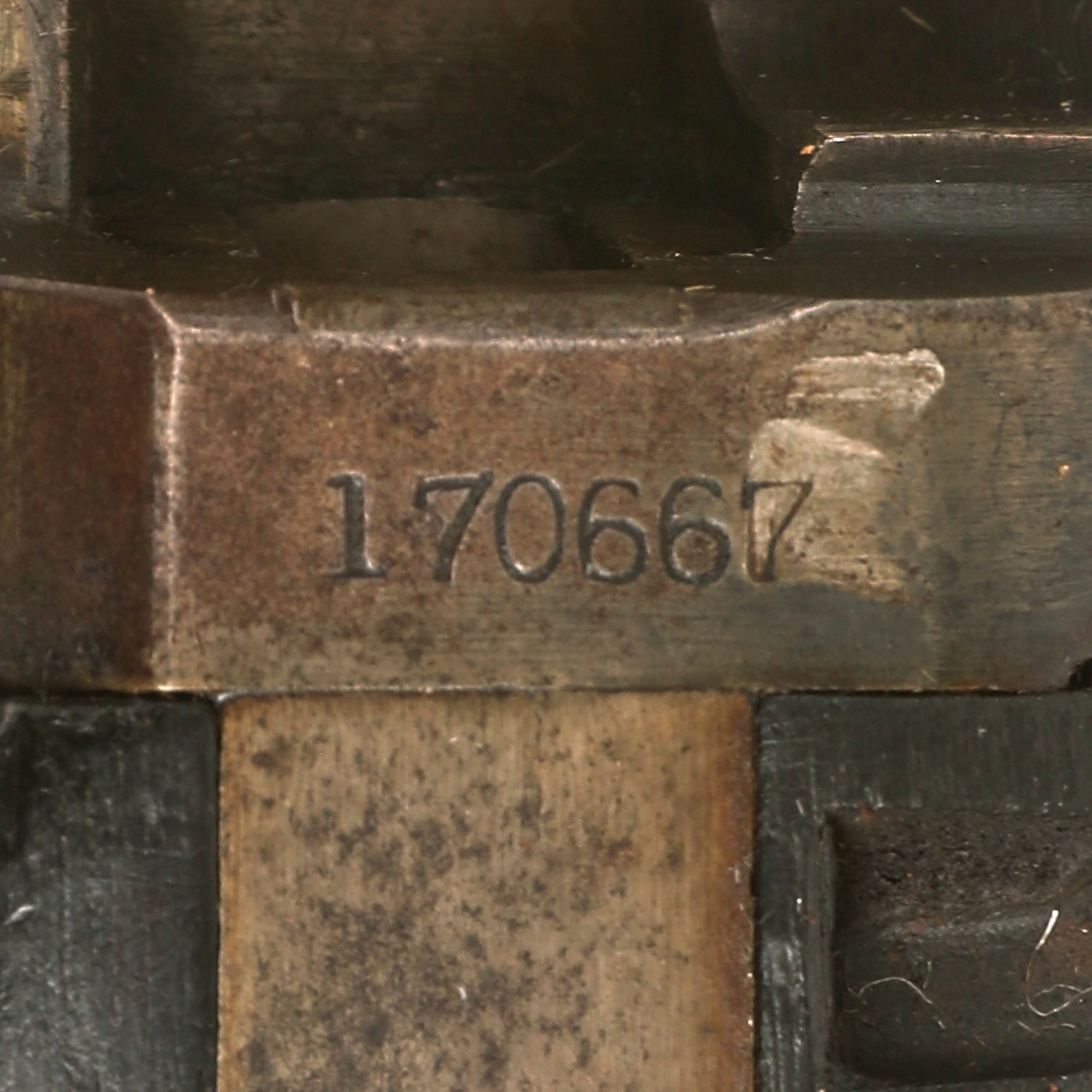

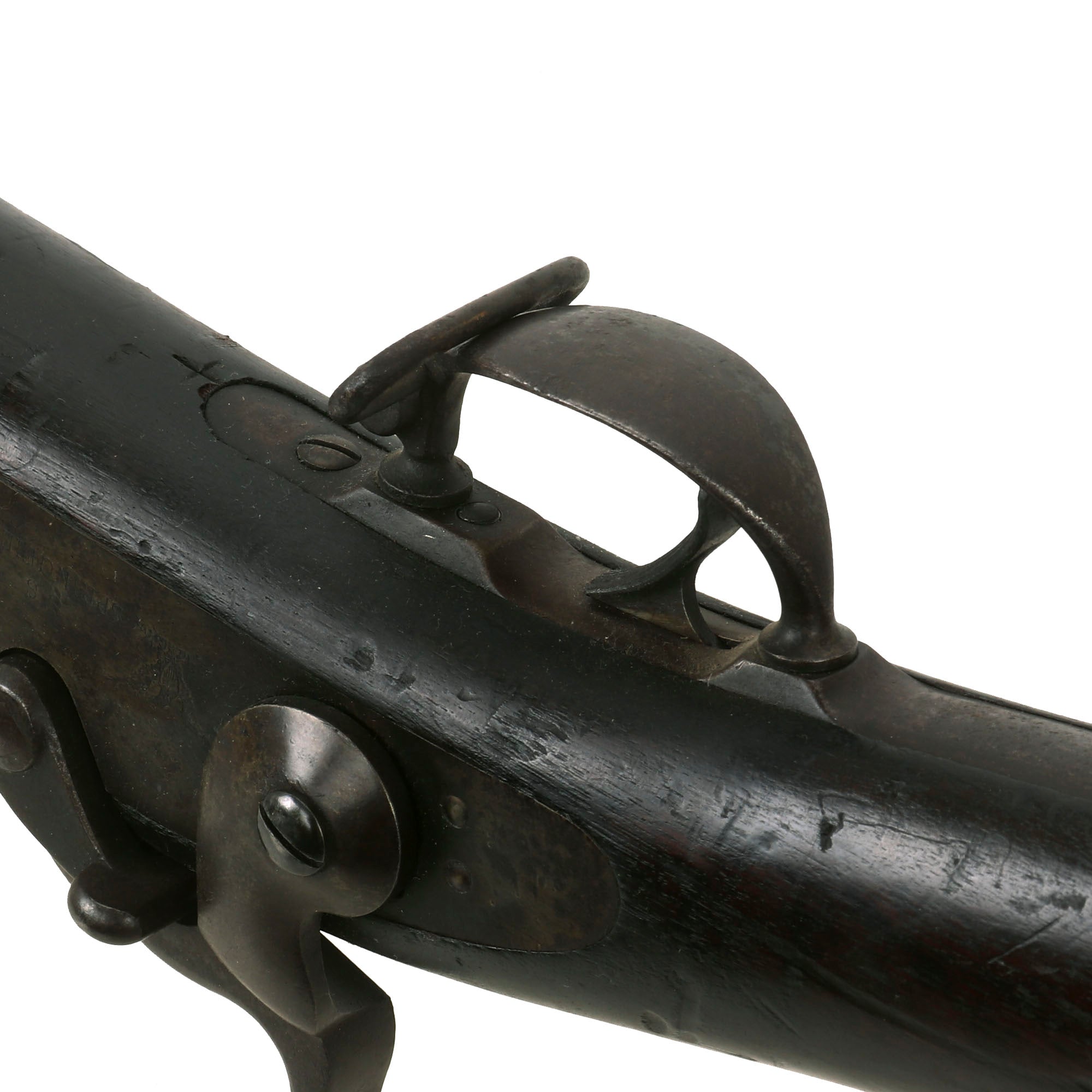

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 170667, which indicates production in approximately April 1882, per U.S. Government records. The left side of the stock bears a worn "boxed" government inspector SWP / 1887 cartouche, which is some years after production. This would indicate that the rifle was sent back to Springfield Armory, and then was updated from the Model 1873 standard to the Model 1884 Standard. The smooth trigger was replaced with a serrated one, and the rear sight was replaced with the new Buffington adjustable sight, complete with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod, smooth trigger, and two part trigger guard.

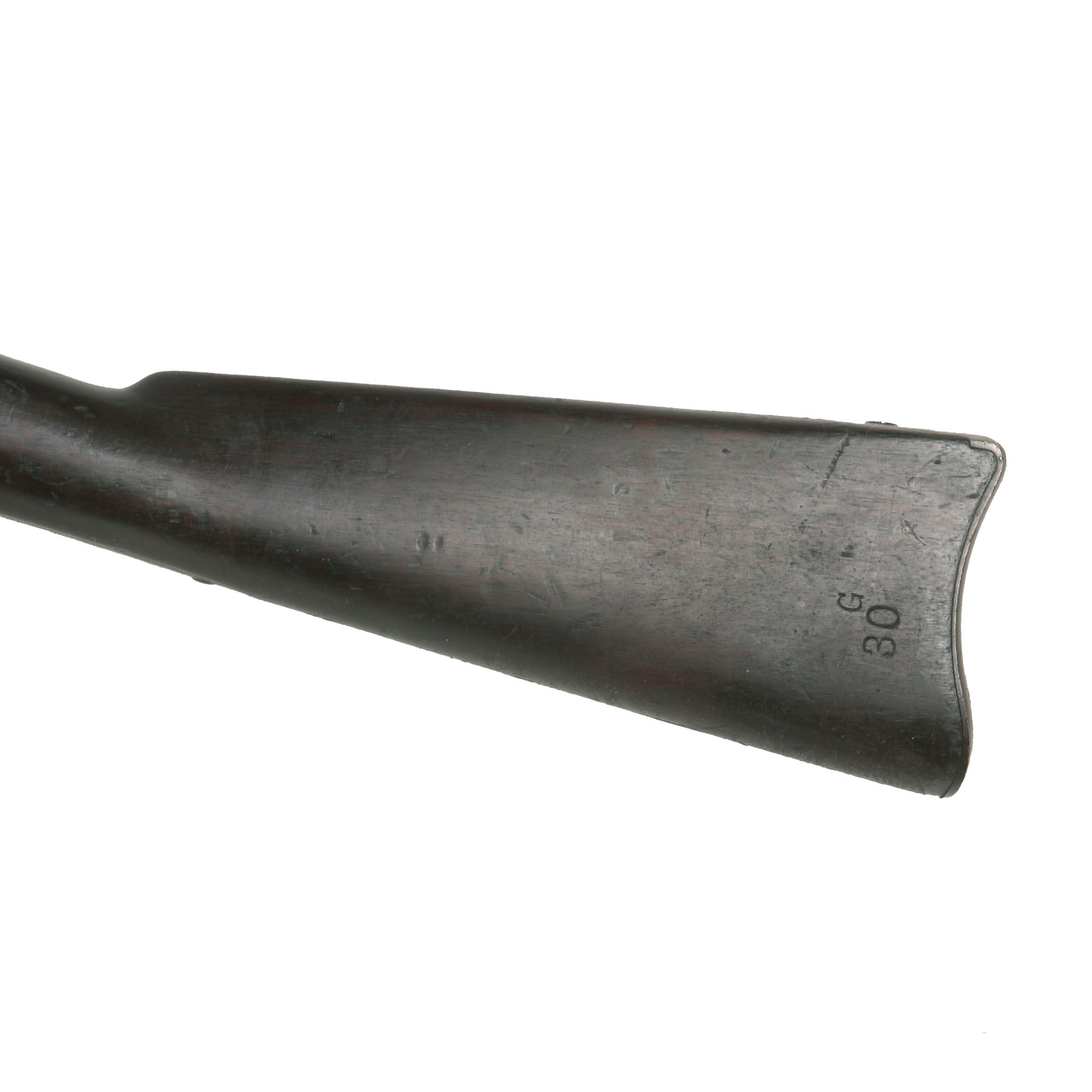

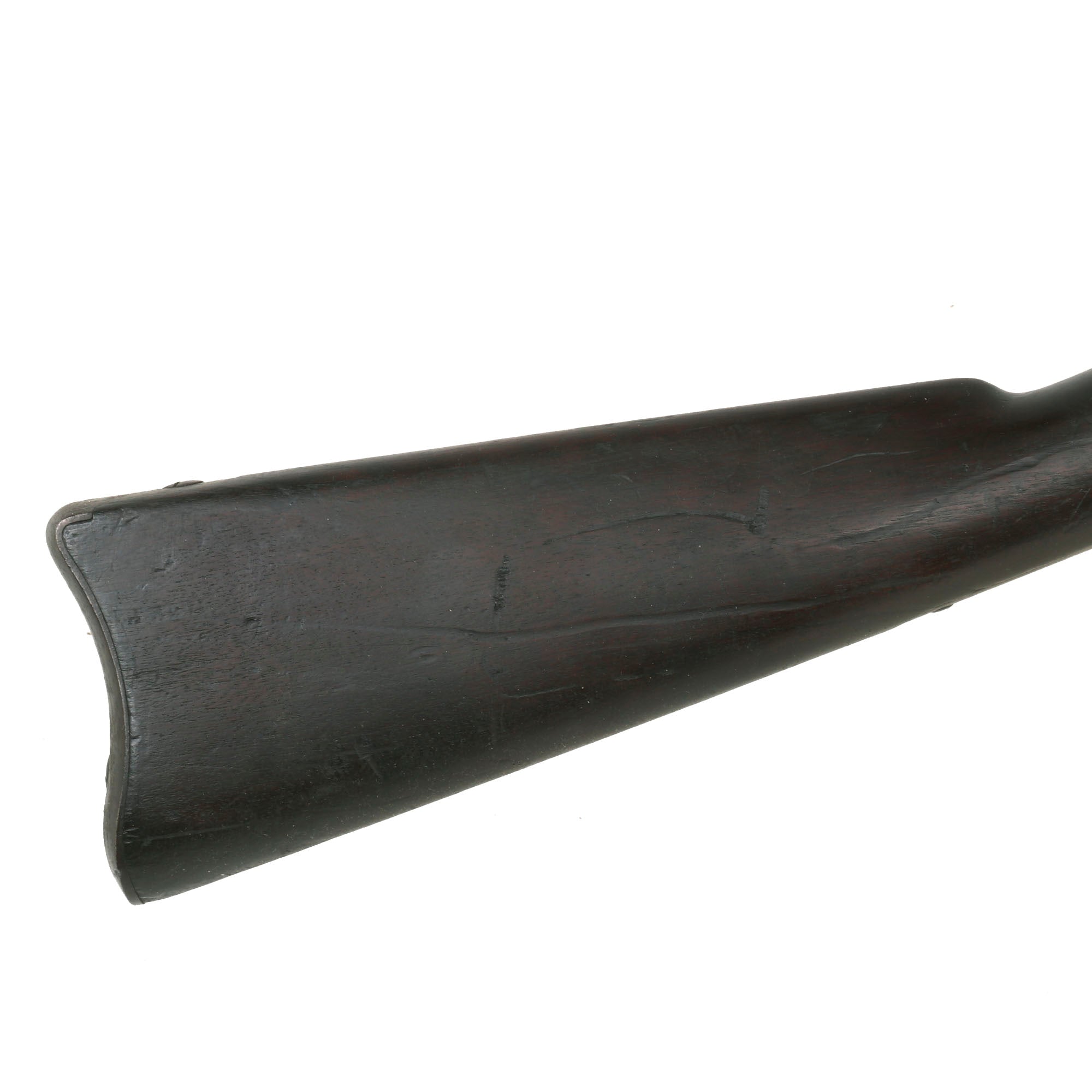

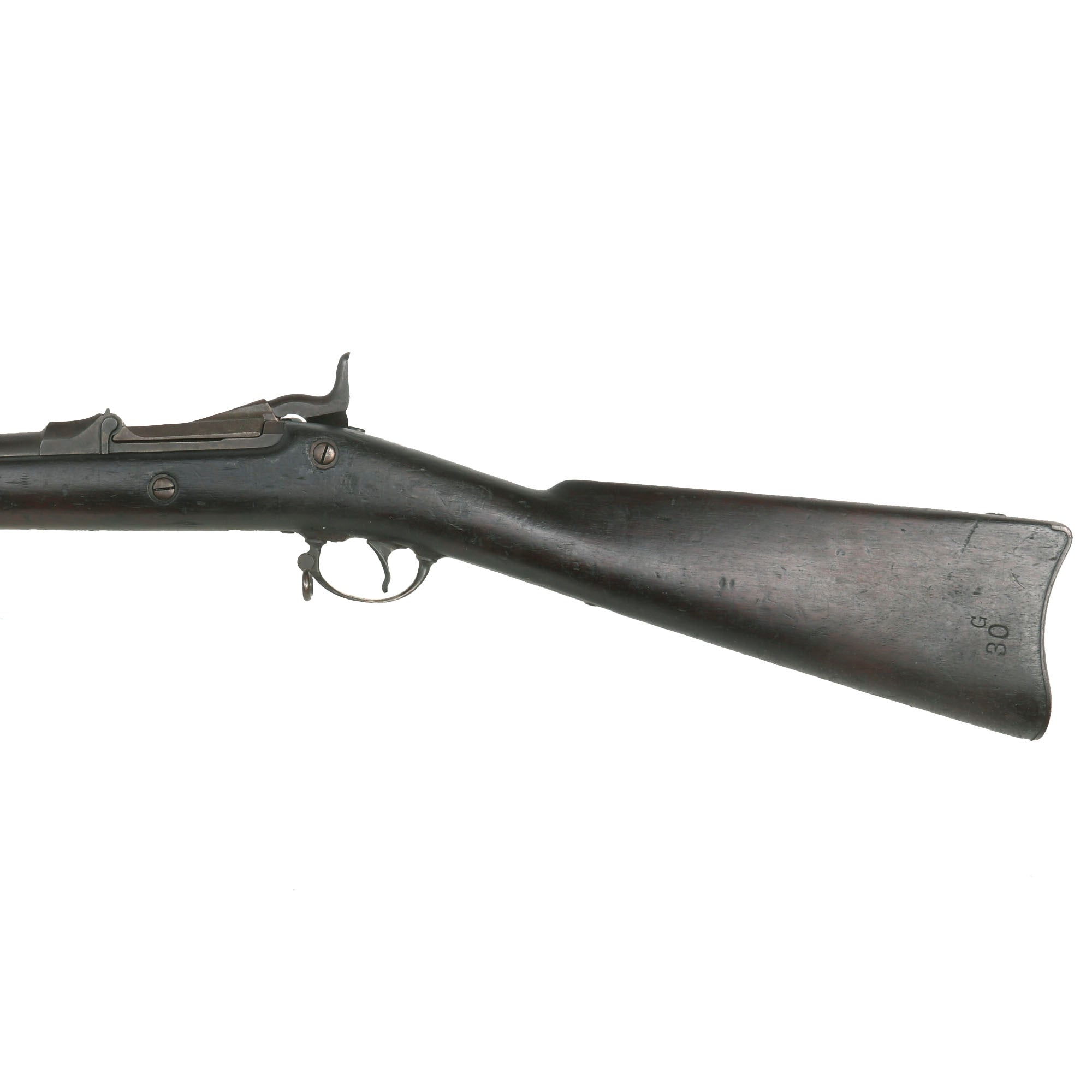

The rifle has overall good metal finish and all metal proofs still present, showing lovely plum / gray patina on the metalwork from years of service and cleaning. There is no real rust peppering that we can see, just some mottled staining in areas. The wood stock is in very good condition, showing wear commensurate to age and service. There are the usual dents, scratches, and dings, but no major catastrophic damage. The stock is also FULLY proud over the lock plate, indicating that it has not been sanded down or majorly refurbished in the past. It has a lovely dark red brown color, only achieved after decades.

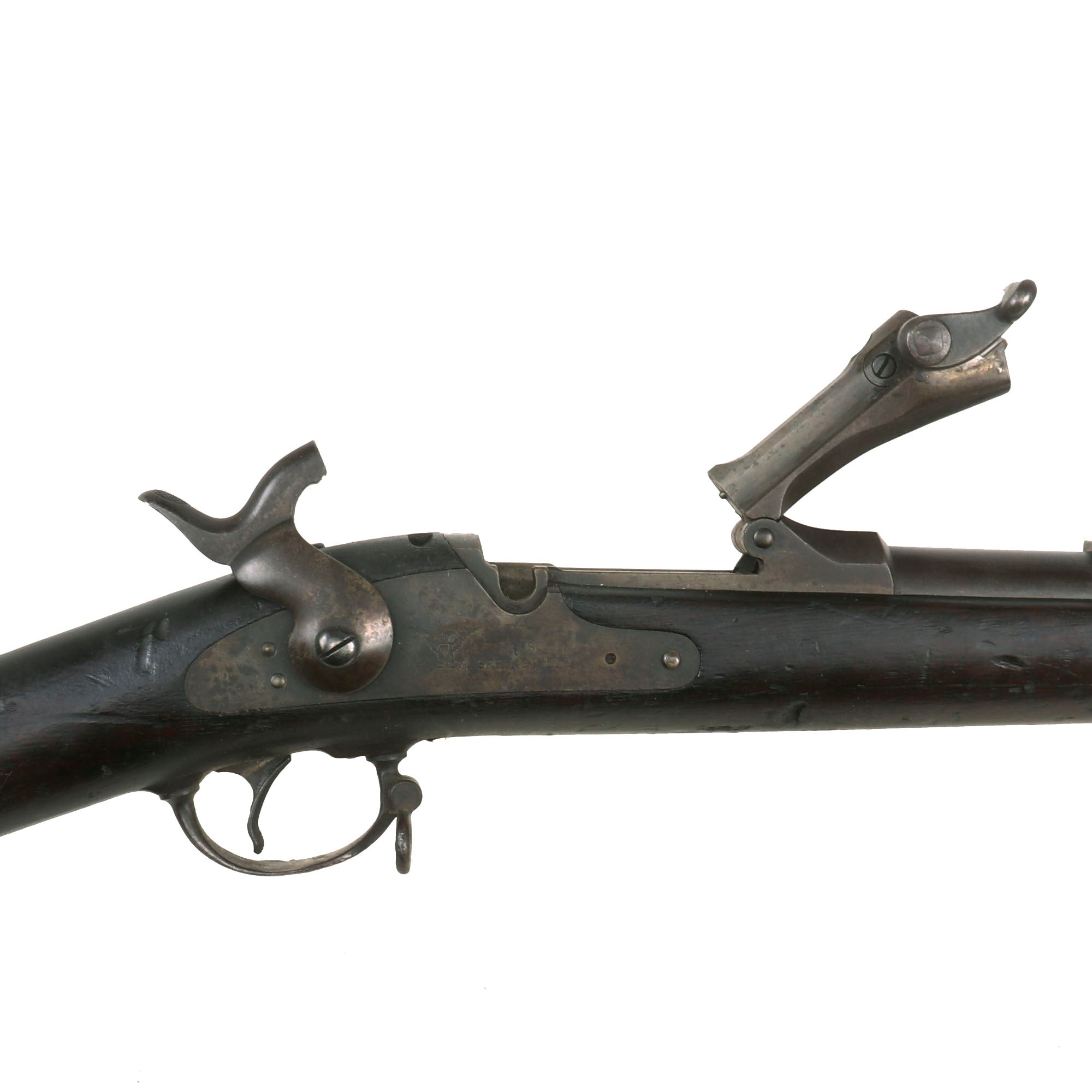

The bore is in excellent condition, showing crisp lands and grooves with a bright finish. There are just a few small spots of light oxidation haze. The breech block moves correctly, locking closed and with an intact firing pin, and the extractor is still present and functional, though we have not tested it with real brass. The Buffington sight is fully intact, though the adjustments are definitely quite stiff, and the sight ladder slide is currently frozen with dried grease. The cleaning rod is in good shape, and the cleaning jag on the end is still fully intact.

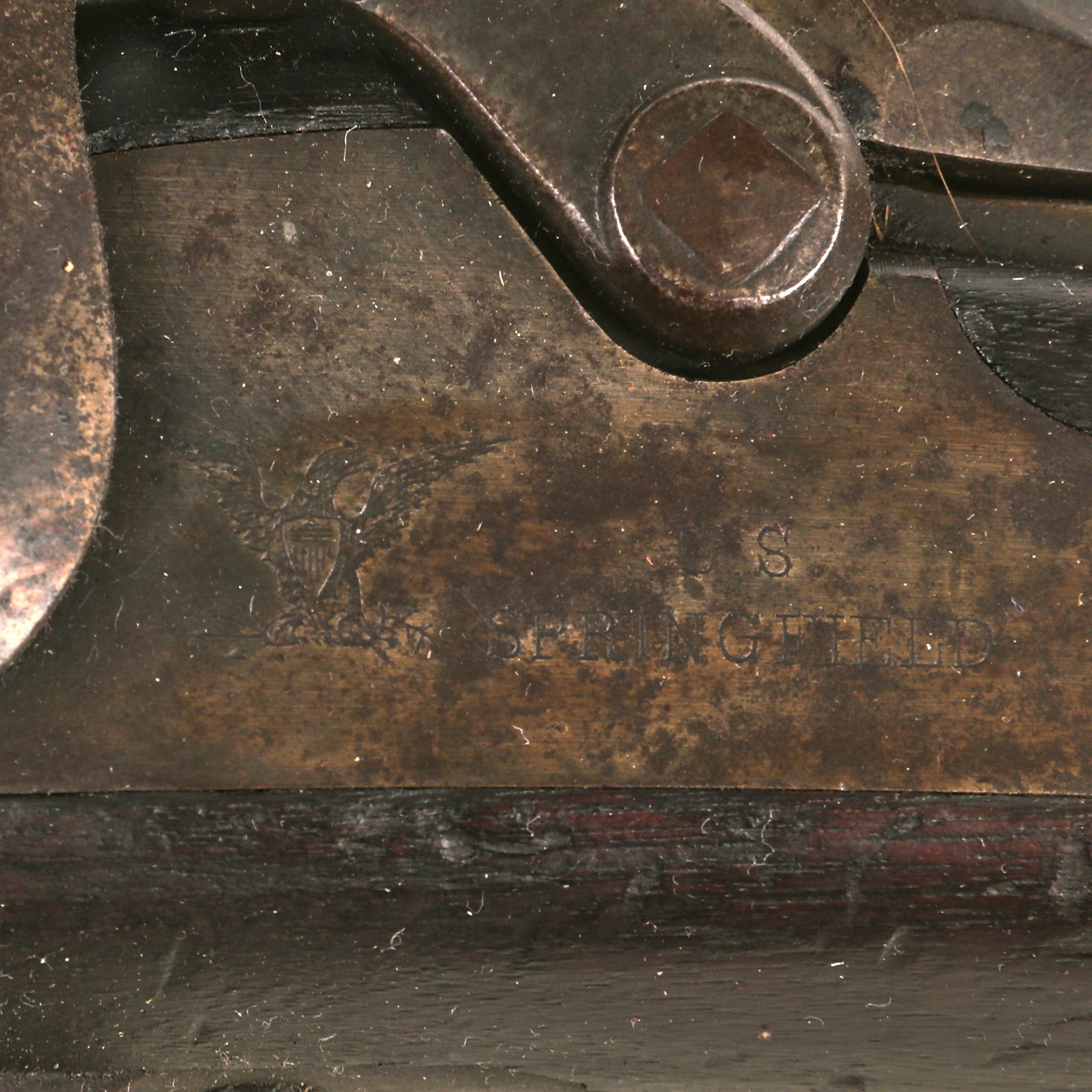

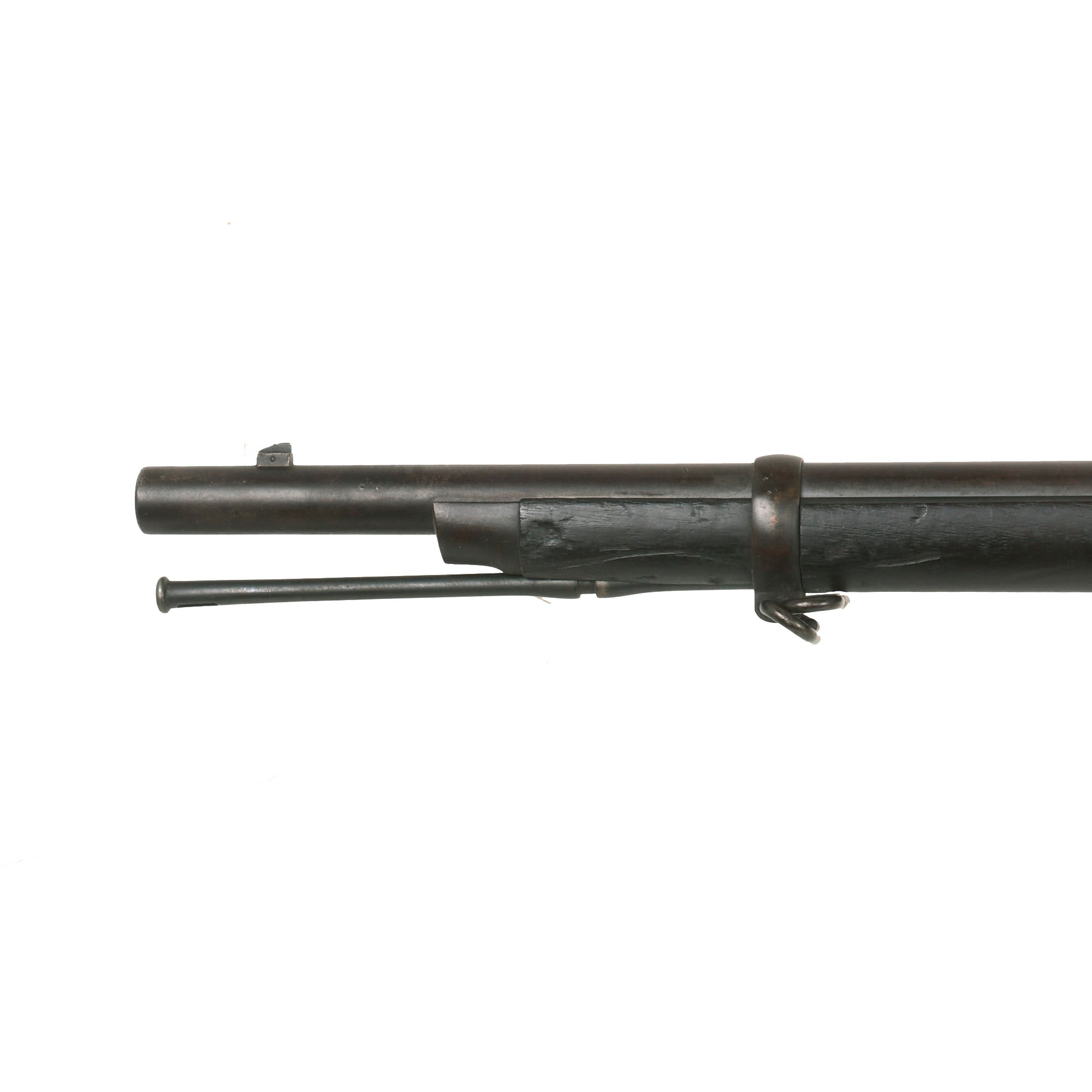

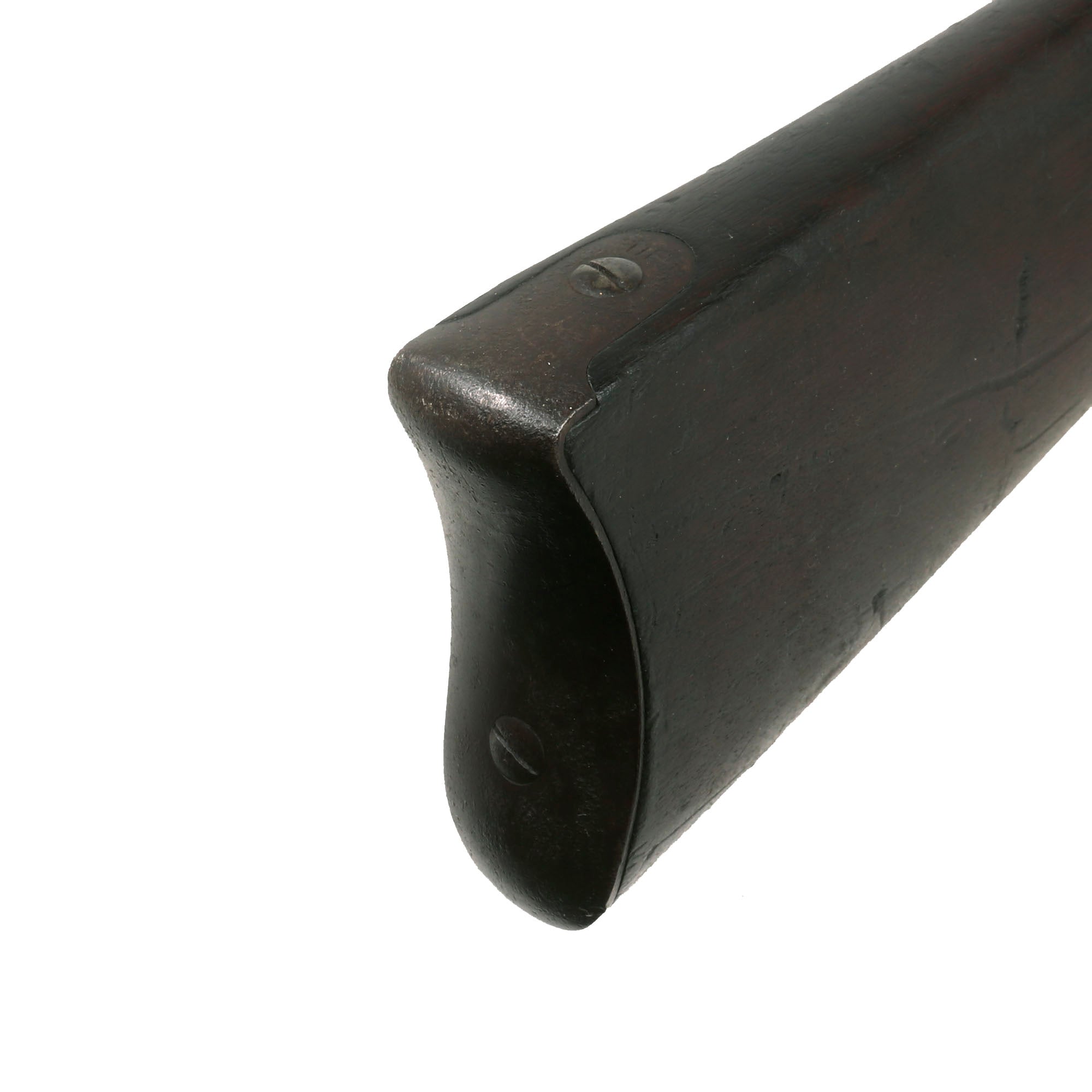

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is a lovely aged plum gray patina. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with a Federal Eagle to the left of U.S. / SPRINGFIELD, indicating that it was manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

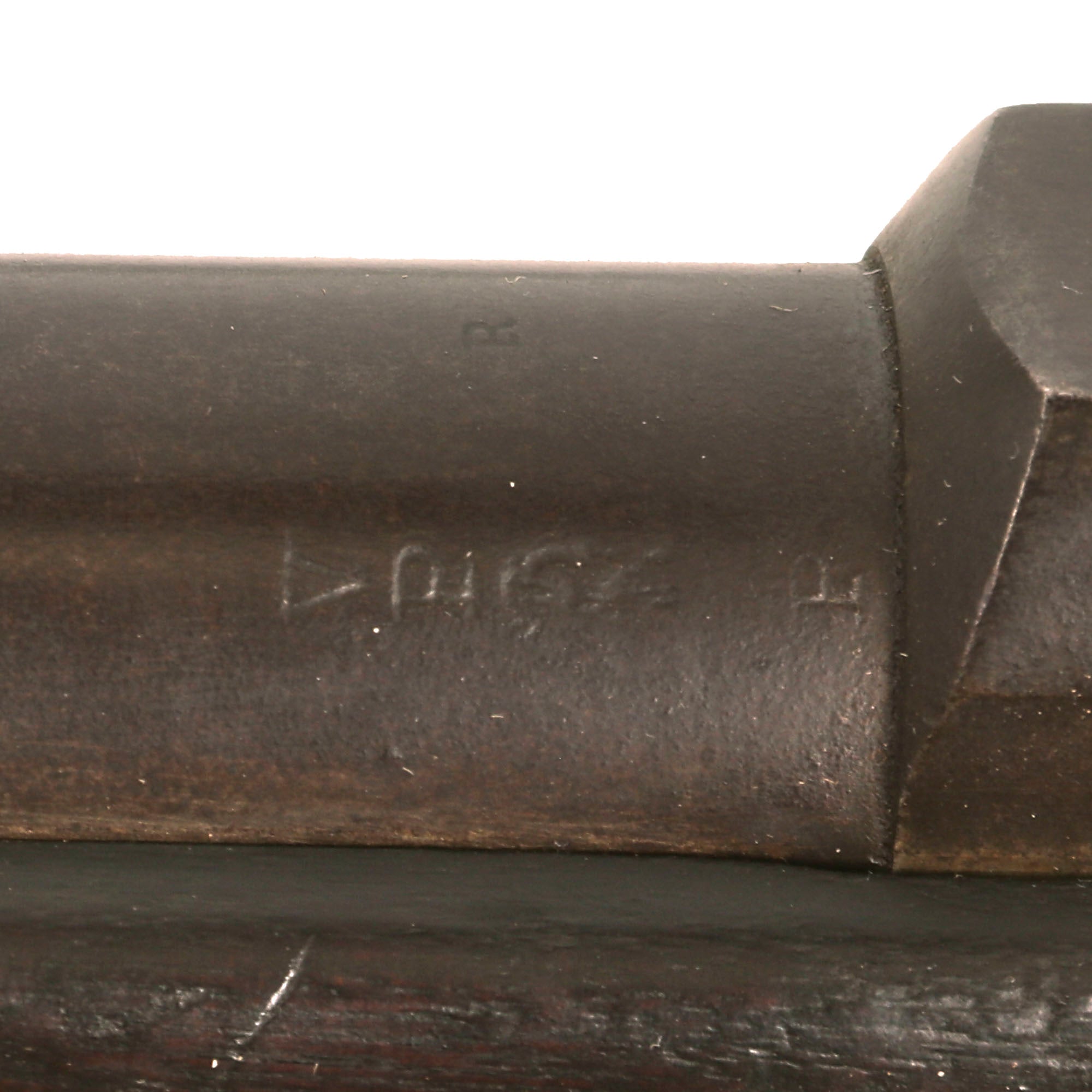

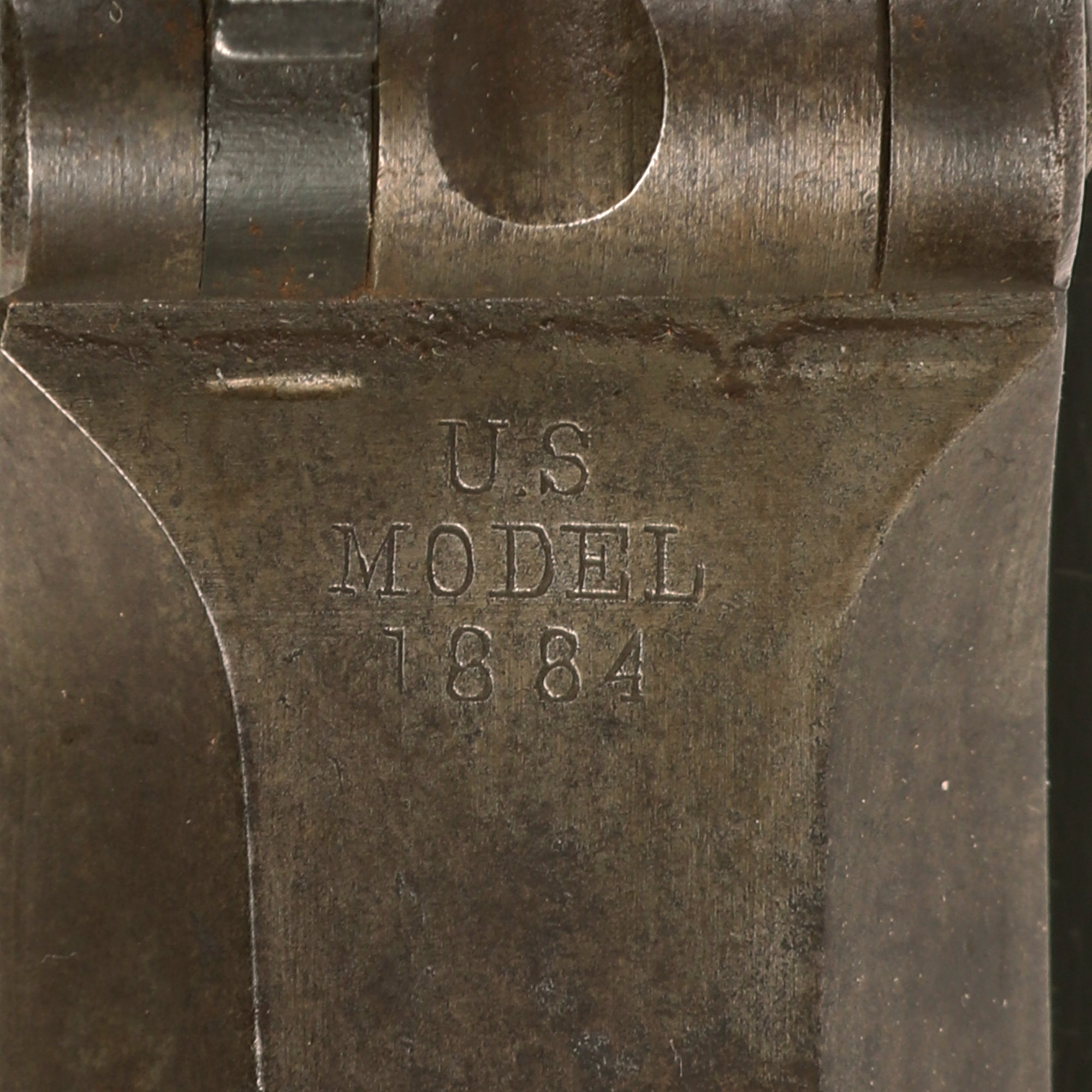

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital R on top and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is a great opportunity to pick up a very nice upgraded example of a classic U.S. issue firearm, with a great "been there" look! Ready to display!

Specifications-

Year of Manufacture: 1882 - upgraded 1887
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
