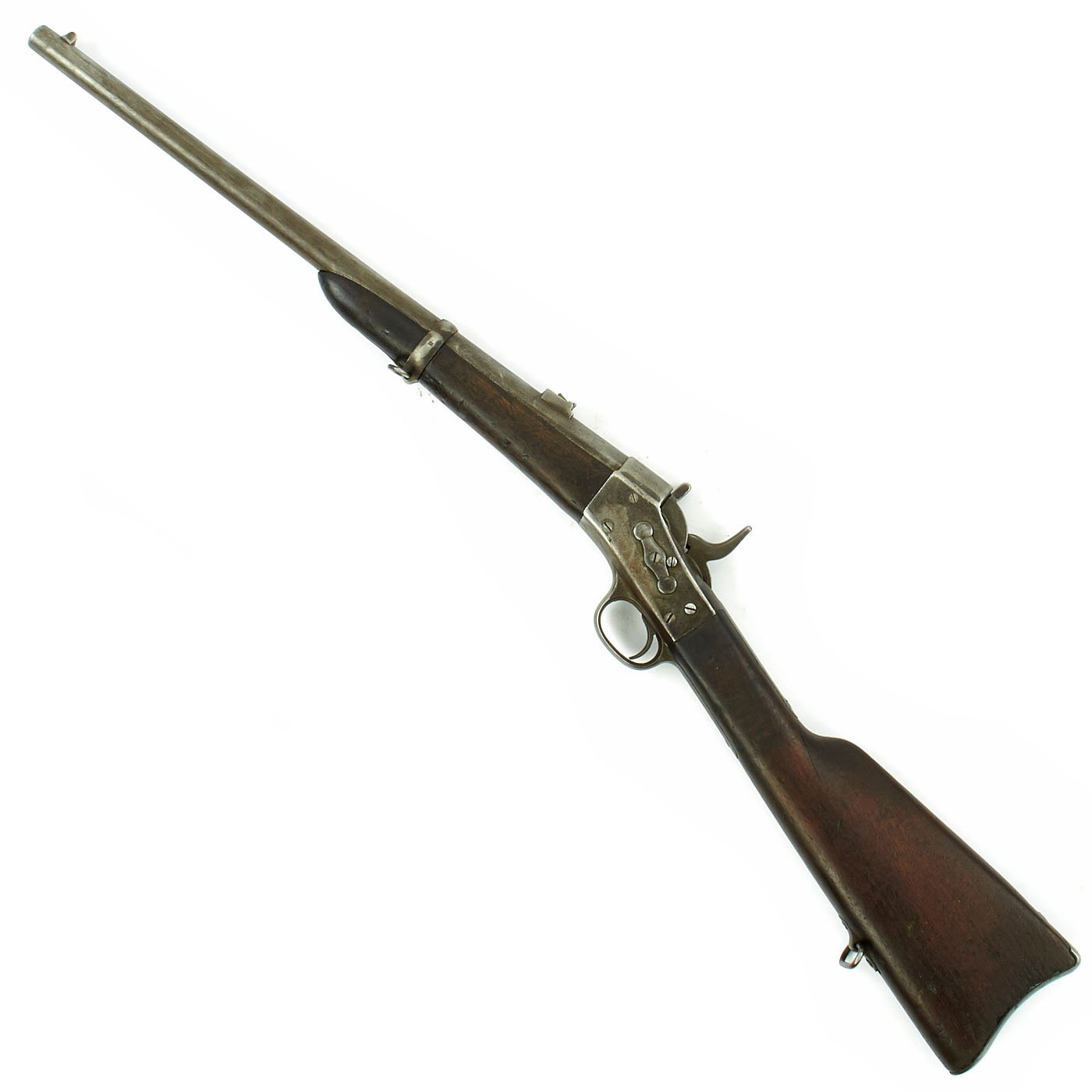

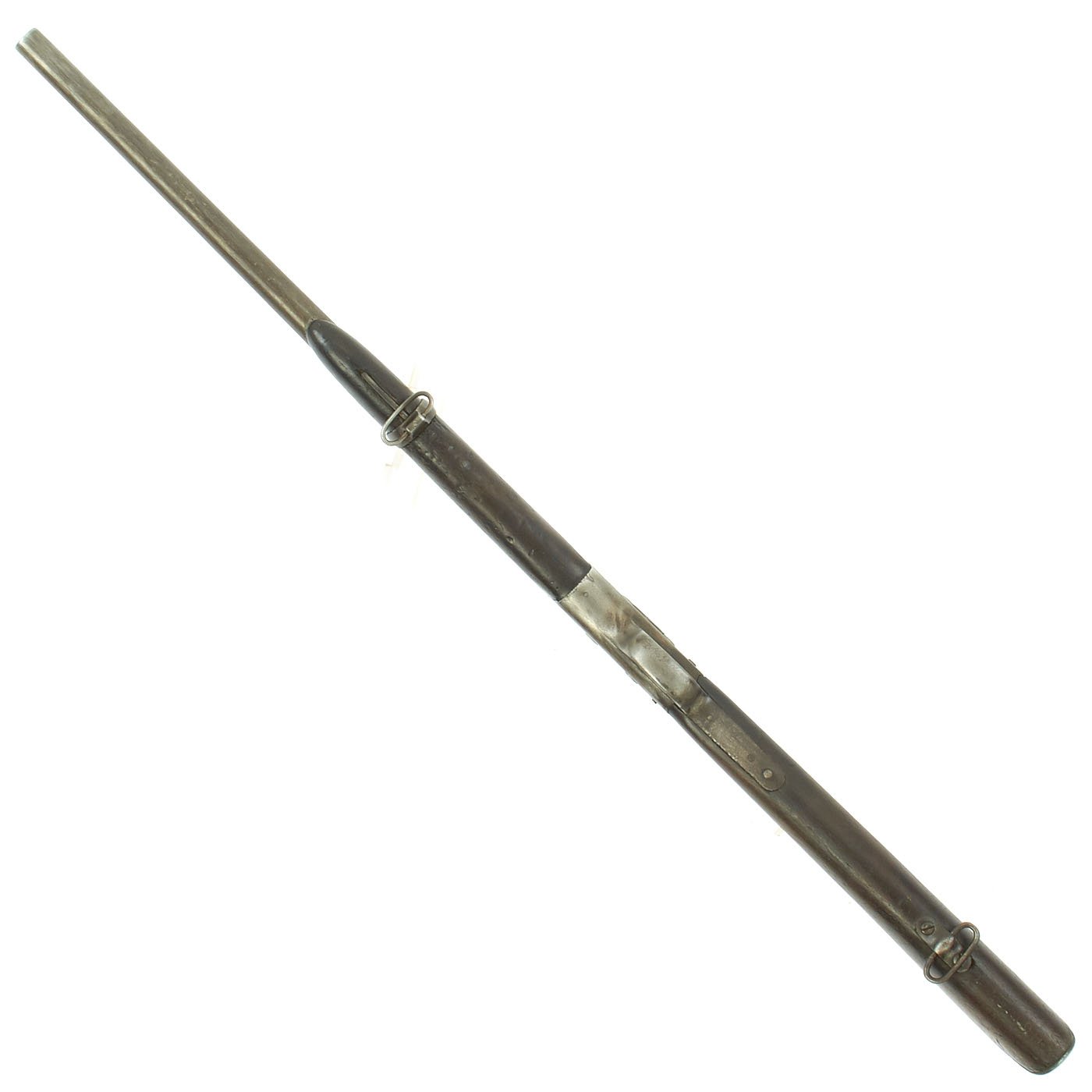

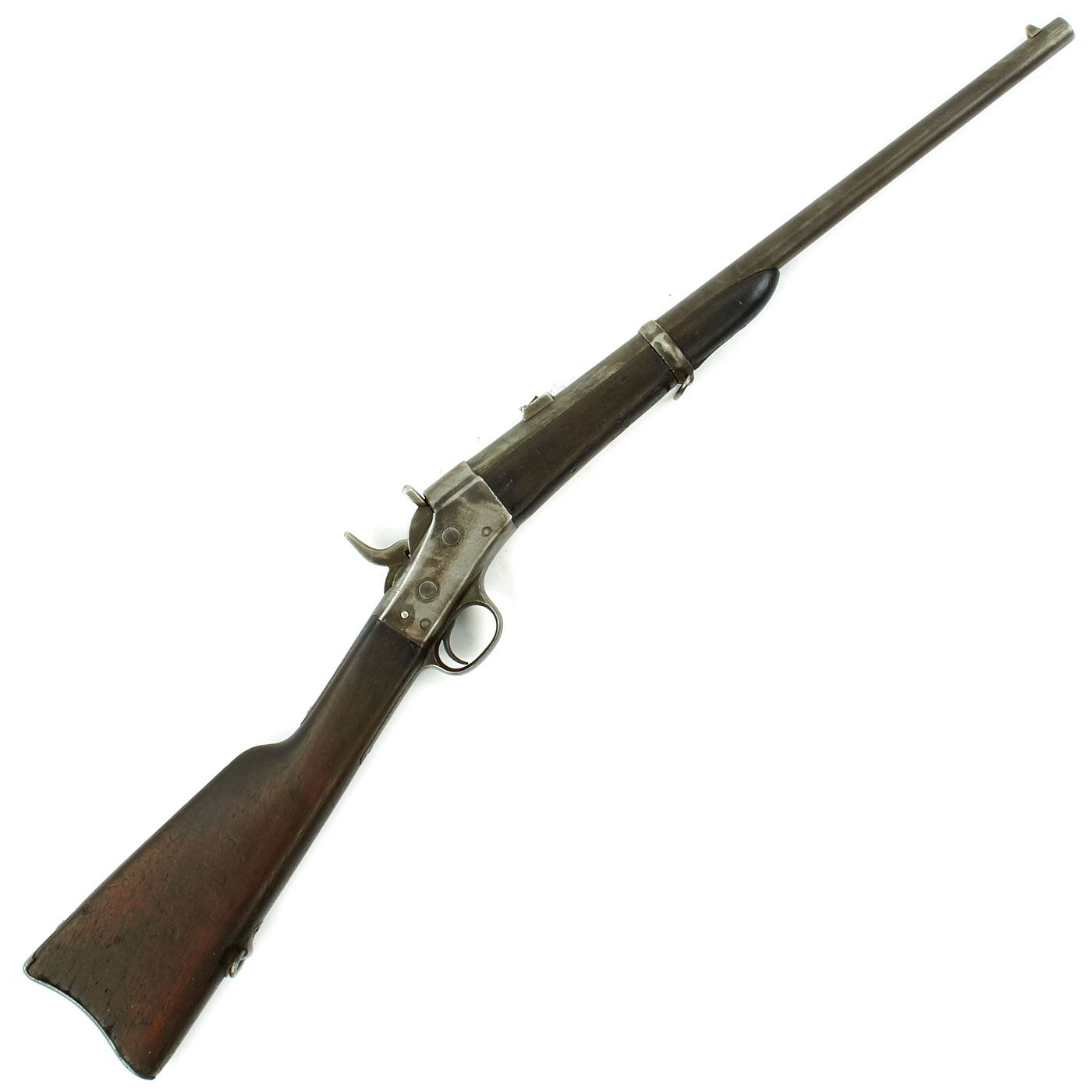

Original U.S. Remington Rolling Block Carbine fitted with Sling Swivels as Preferred by U.S. Navy circa 1875

Item Description

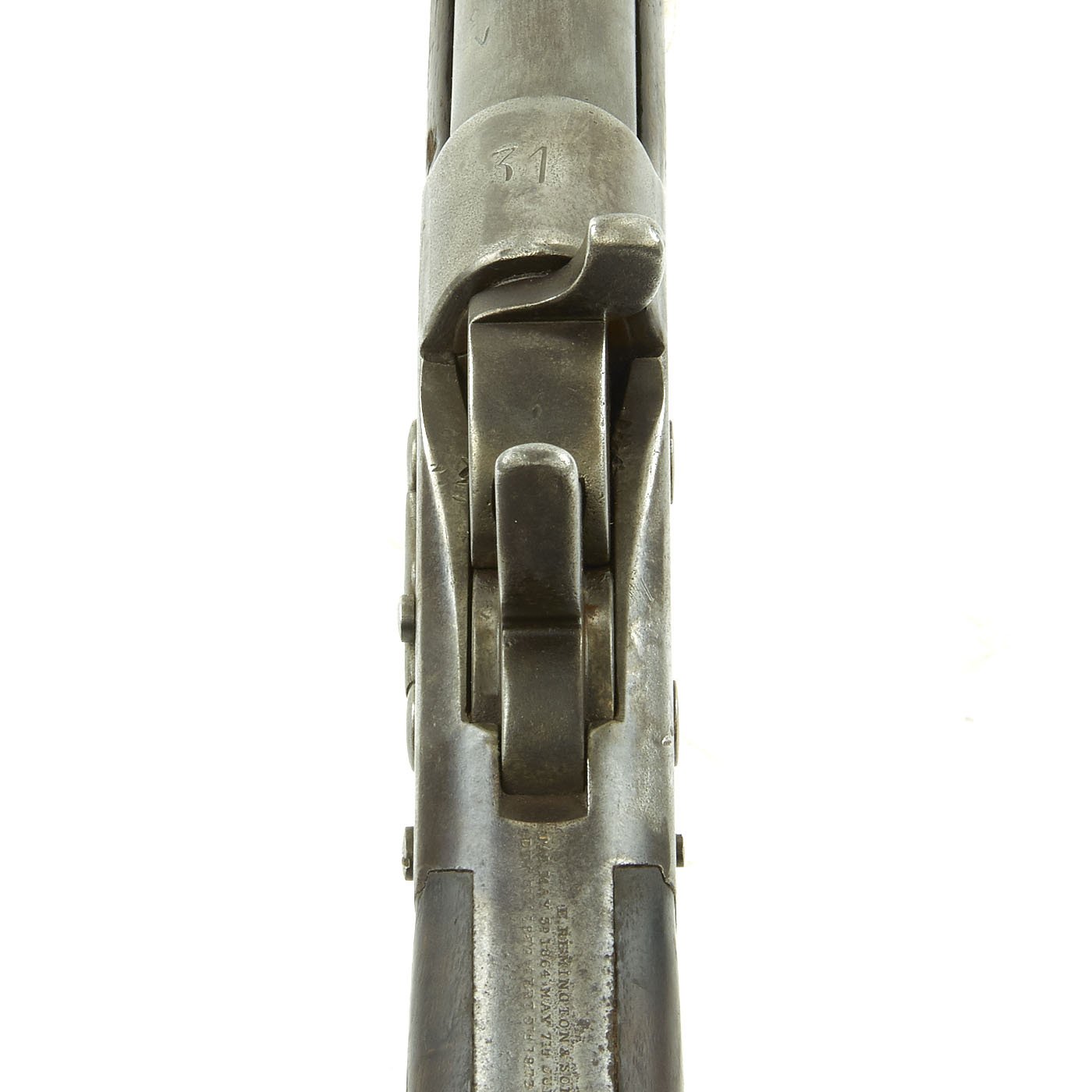

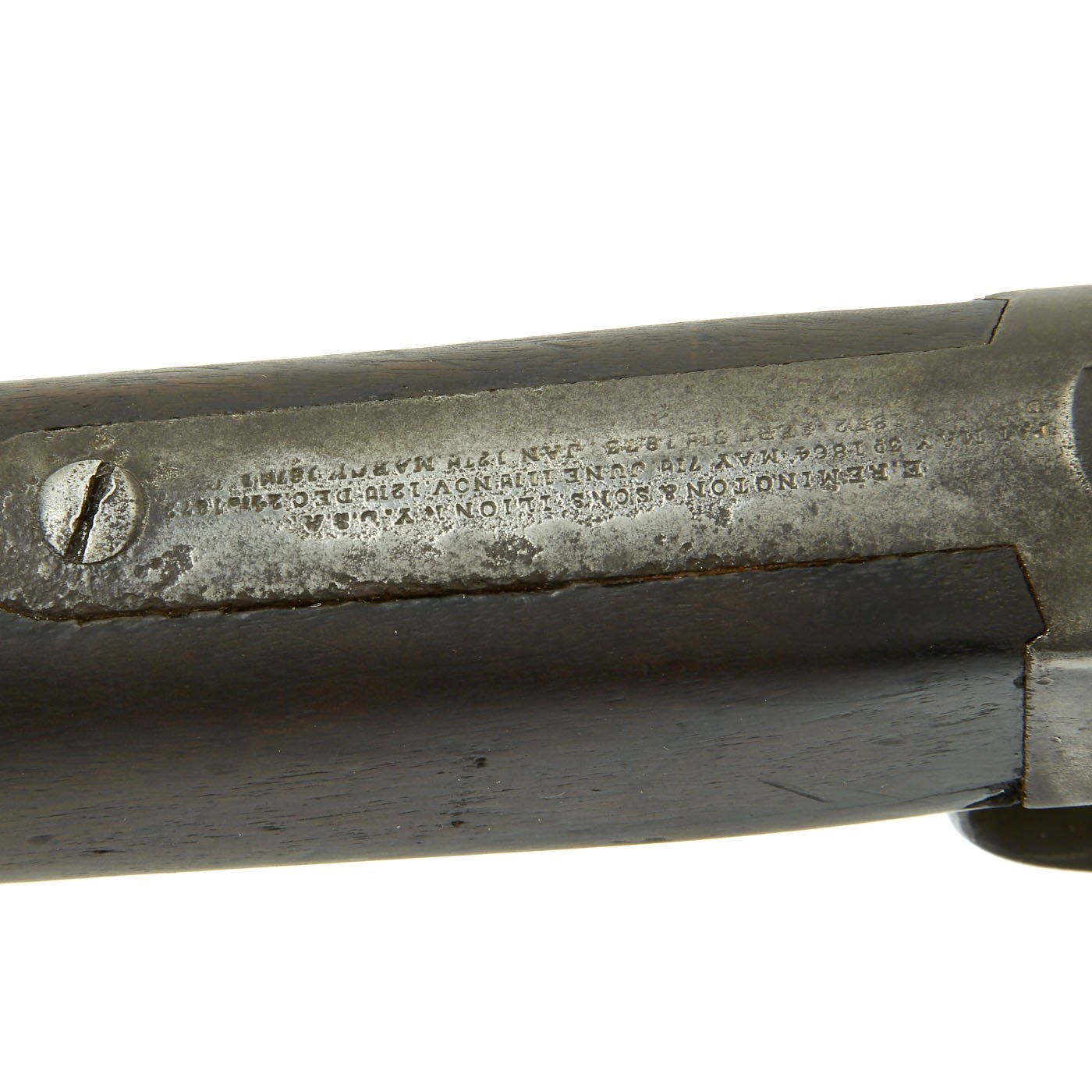

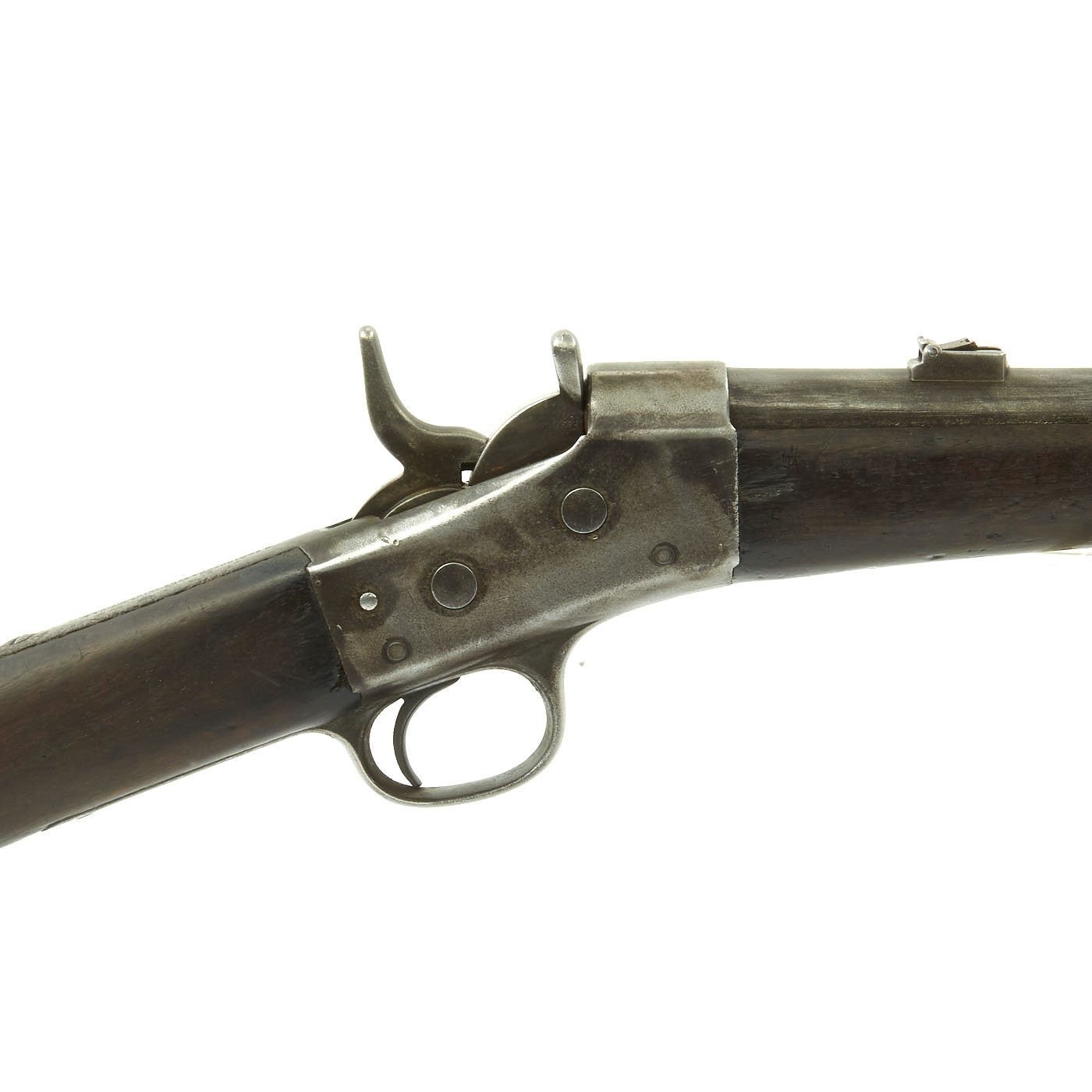

Original Item: Only One available. This is a somewhat unusual U.S. Remington Rolling Carbine, which we have unfortunately been able to fully identify. The receiver tang is marked E. REMINGTON & SONS, ILION, N.Y., U.S.A, along with the three line patent information, with dates up into 1873 and possibly later. These markings are mostly clear, but unfortunately all other markings on the rifle have been worn away.

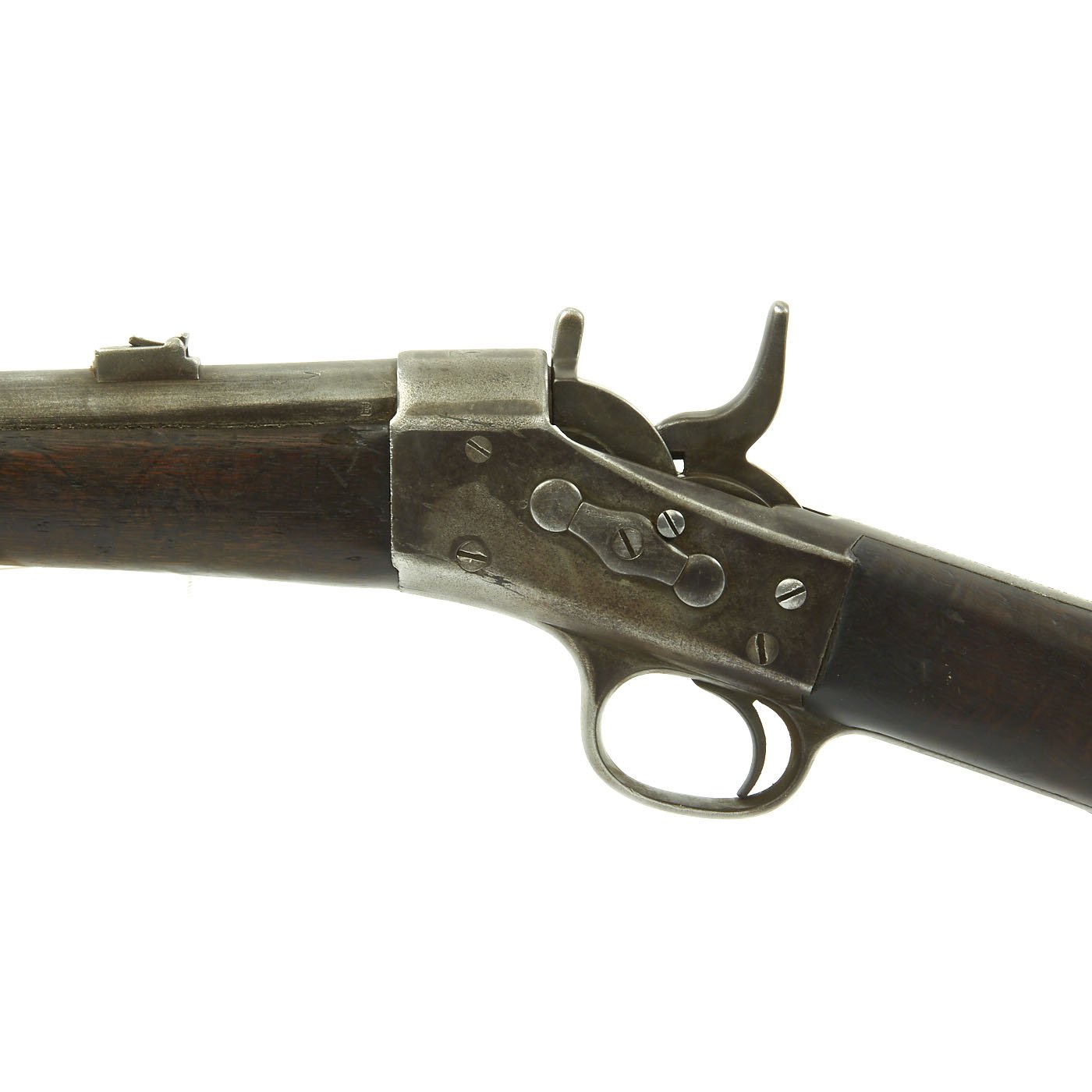

The carbine appears  to be in the larger U.S. .45-70 caliber, however the bore is very worn, so it could be in the usual .43 Spanish, or another caliber. The carbine looks to not have been issued with the expected saddle ring bar on the frame’s left side. This may possibly indicate use by the U.S. Navy, who clearly had no use for horses.

As stated all military markings including the Naval Anchor stamp on the rear of the barrel are no longer evident. The only remaining marking is the "U" stamped on the lower barrel band, and what looks to bet a "B" on the left side of the chamber. The rifle cocks and dry fires, however the firing pin is broken and the remains are seized in the channel.

Most unusual and in nice very good collector's condition,  ready to research and display!

History of the Remington Rolling Block

During the U.S. Civil War, Joseph Rider experimented with several breech loading weapon designs. In 1865, he was issued the first patent for what would evolve into the Remington rolling block action. The Remingtons continued to invest in Rider's work, and met with Ordnance Department officials in the hope of interesting them in this new design. The U.S. Navy Ordnance Department became interested in the design, and purchased several different models of rifles from 1867 through 1869. Field trials of these various rifles yielded mostly positive results.

In 1869, the Navy Bureau of Ordnance tested many different weapons, and settled on the .50 caliber Remington Rolling Block for use by both the U.S. Navy and the U.S. Marines. An order was placed for 10,000 model 1870 rifles. After the rifles were produced, Navy inspectors realized that the rear sights had been positioned incorrectly, and were dangerously close to the chamber, making the weapon unsafe for use. All 10,000 rifles were rejected, and were subsequently sold to France for use in the Franco-Prussian War. The sale of the defective rifles enabled enough funds to be recovered that the Navy Ordnance Department ordered an additional 12,000 rifles.

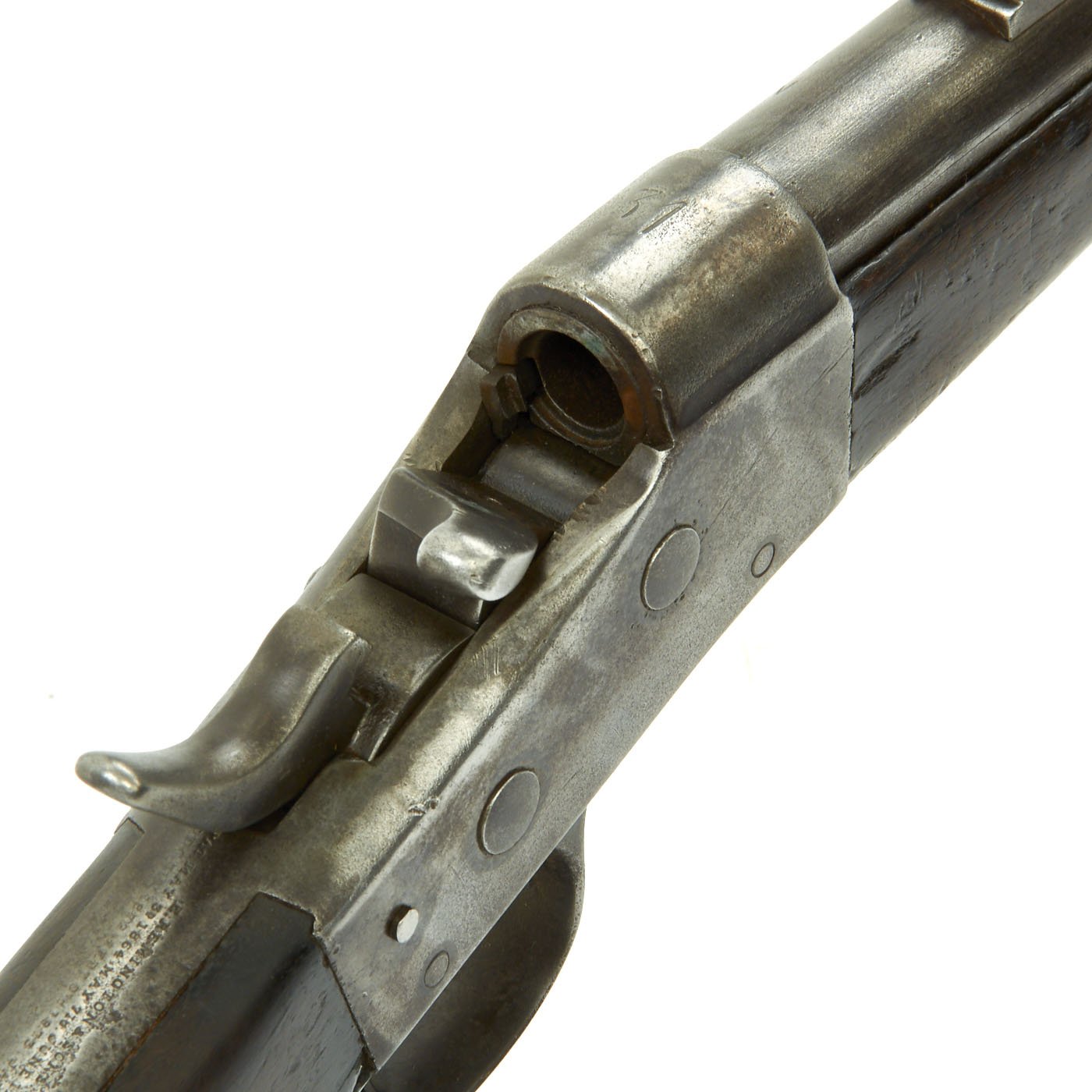

Following the success of the model 1870, the Governor of New York ordered 15,000 Remington rolling block rifles and bayonets for his state's militia. These model 1871 rifles were very similar to the model 1870 rifles, but differed in some details. Field experience with the model 1870 showed that the mechanism jammed too easily in dusty conditions. Users also did not like loading the weapon at full cock. The model 1871 included a locking bolt in the breech mechanism. The user pulled the hammer to the full cock position, retracted the breech block spur to expose the chamber, and inserted the cartridge. When the breech block closed, the hammer automatically fell to the half cock position, and the weapon could not be fired until the hammer was once again pulled to the full cock position.

Over 20,000 model 1871 rifles were eventually purchased by the state of New York. The U.S. Army did not greet the Remingtons with much enthusiasm, despite its superiority to the standard-issue Springfield model 1870. Foreign sales of the weapon were much more successful. Denmark ordered many of the model 1870 and 1871 rifles. In 1873, Spain ordered 50,000 model 1871 rifles, which were delivered in 1875. Numerous other countries, such as France, Chile, Argentina, Cuba, Greece, and Puerto Rico also purchased this rifle


Year of Manufacture: circa 1875
Caliber: .45-70?
Cartridge Type: Centerfire Cartridge
Barrel Length: 20 1/2 Inches
Overall Length: 36 Inches

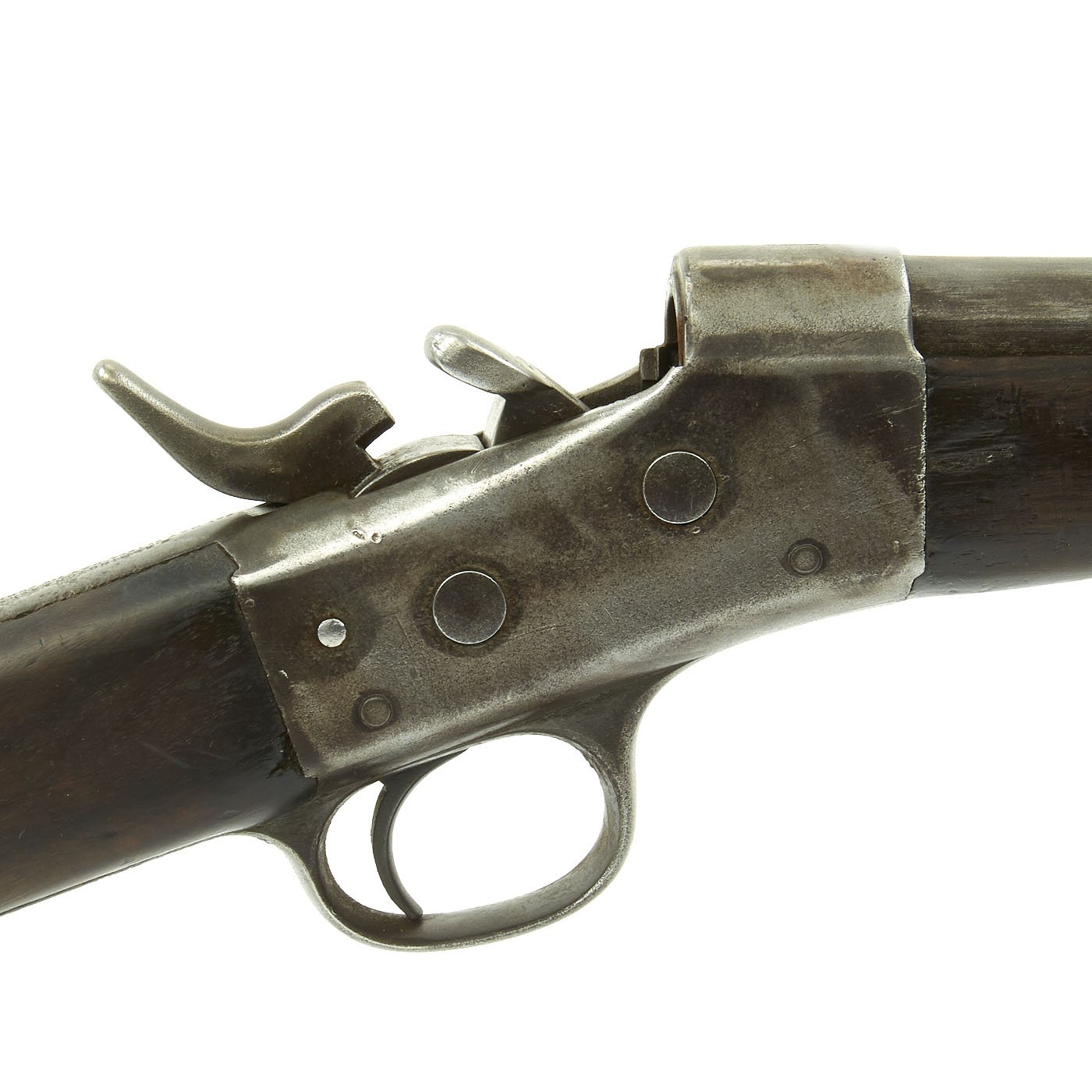

Action type: Rolling Block with Rear Hammer
Feed System: Single Shot

Note: This gun is NOT considered obsolete calibre, so we are no able to ship to the United Kingdom. Please note that for international shipping, these MUST be shipped using UPS WW Services.
