Original Item: Only One Available. This is an exceptionally rare WWII era anti-submarine weapon Mousetrap cutaway training device. This anti-submarine depth charge is totally inert and in compliance with guidelines provided by the BATF. It cannot be converted to an explosive device and is not available for export.

When it comes to designing a training program for military personnel, instructors are faced with several challenges. First, unlike athletes there is no off-season, most units are either preparing for deployment, deployed, or refitting from deployment. Secondly, training facilities vary from location to location and often focus on a single task. These tasks may include muscular strength, cardiovascular endurance, field craft or marksmanship. Each of the above contribute to the success of an operation, however there is one area of training that is deficient. This deficiency is visual training; visual ability plays a larger role in achieving optimum performance than most military personnel realize. The goal of integrating visual training into an already packed curriculum is not to dilute it but to improve tactical performance.

To help users better understand the equipment they are using, examples like this cutaway were made. These were intended to give the users a look at the internal structure of the explosives, showing the different layers as well as where they connect or thread into each other.

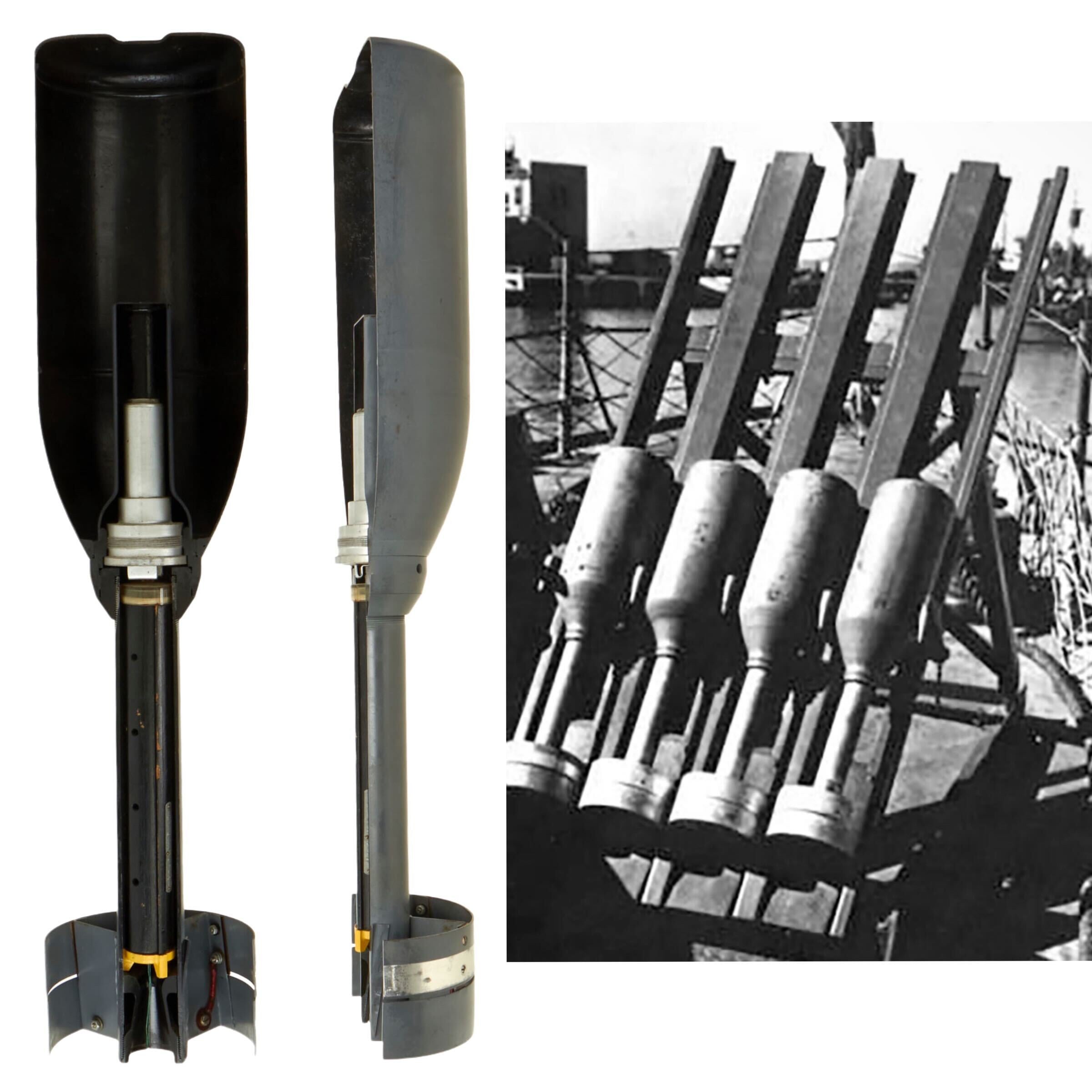

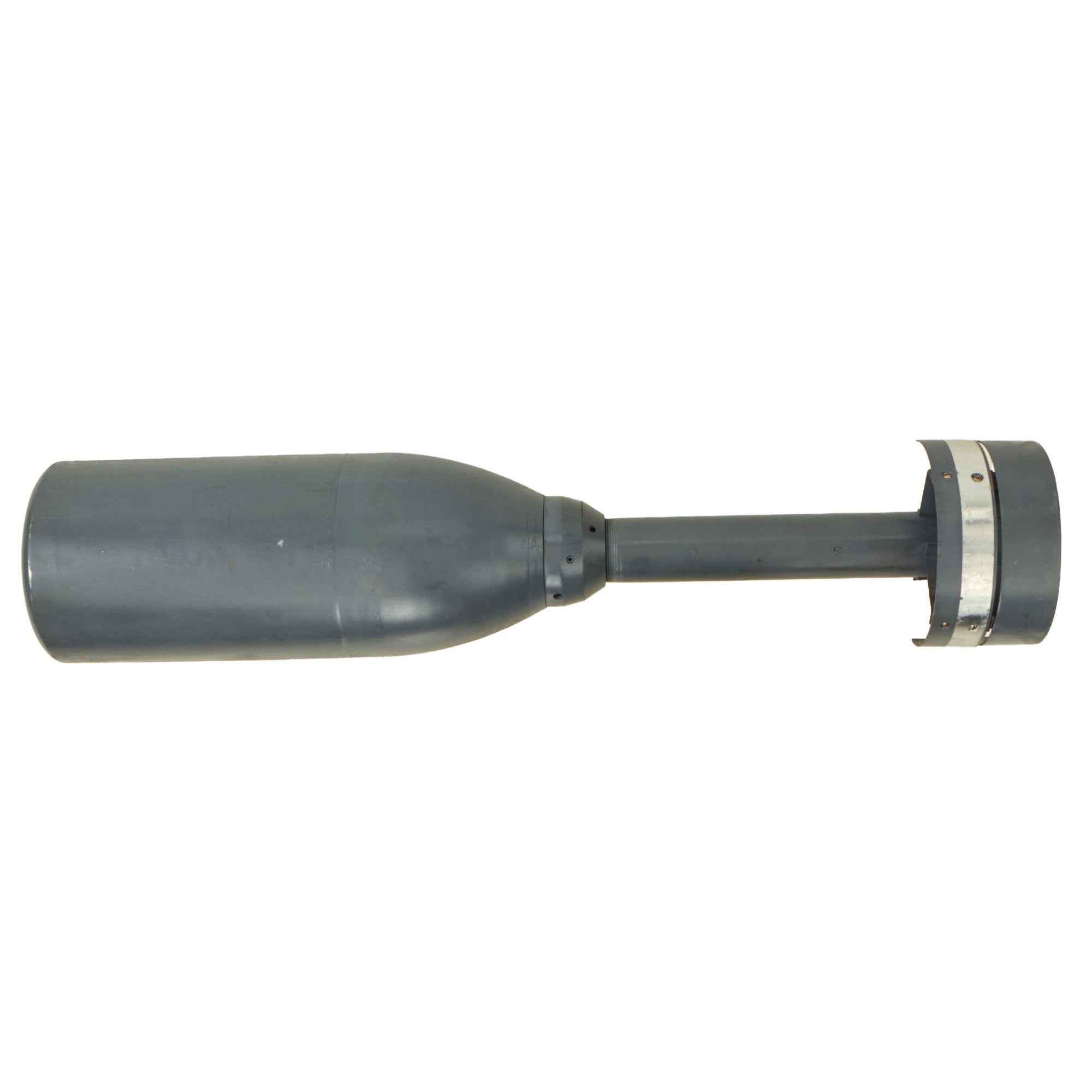

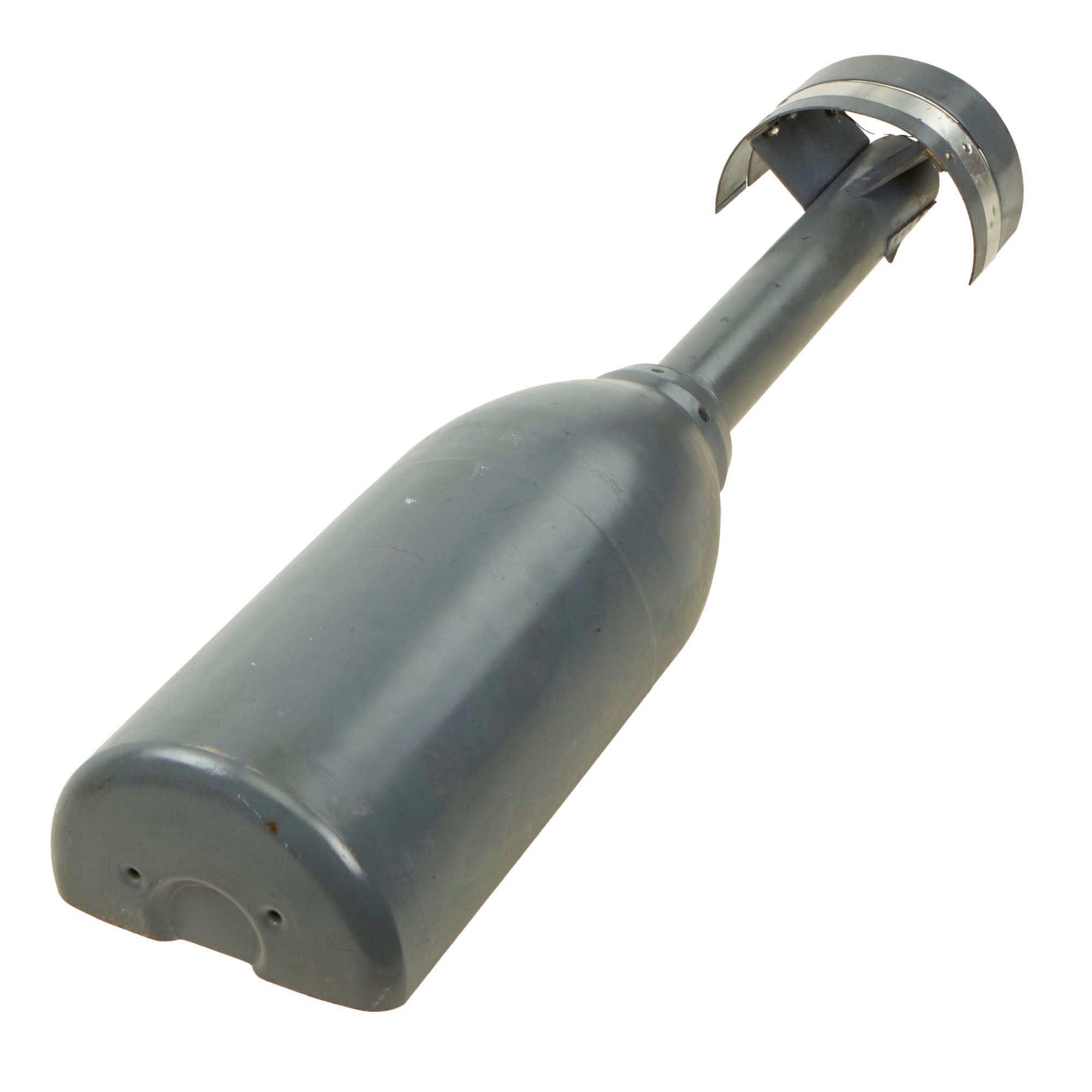

This is a tremendous example of a cutaway, of a Mousetrap bomb. The Mousetrap (ASW Marks 20 and 22) was an anti-submarine rocket used mainly during the Second World War by the U.S. Navy and the U.S. Coast Guard. Its development began in 1941 as a replacement for Hedgehog, a British-made projector, which was the first forward-throwing ASW weapon. Those, however, were spigot-launched, placing considerable strain on the launching vessel's deck, whereas Mousetrap was rocket-propelled. As a result, Mousetrap's four or eight rails for 7.2-inch (183 mm) rockets saved weight and were easier to install.

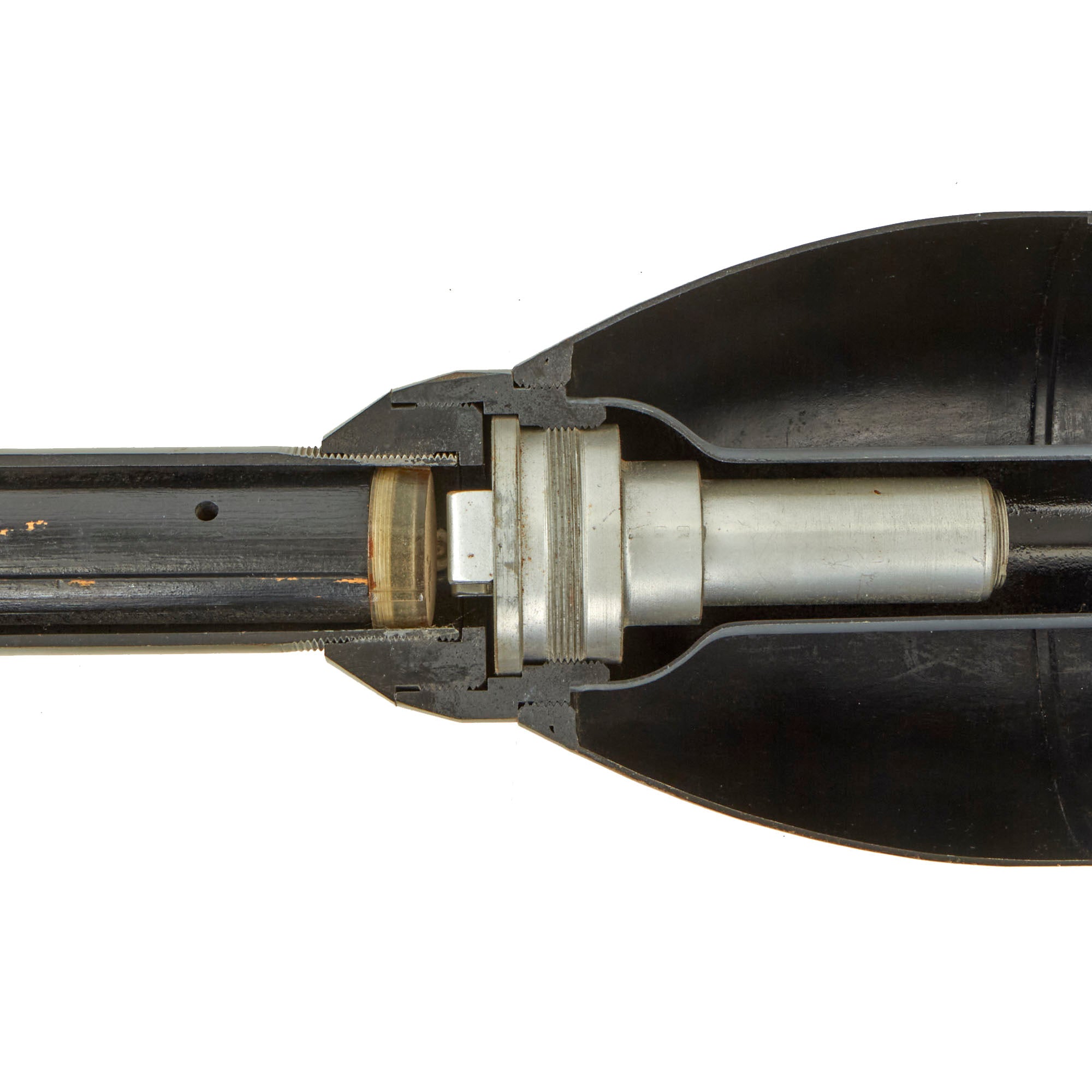

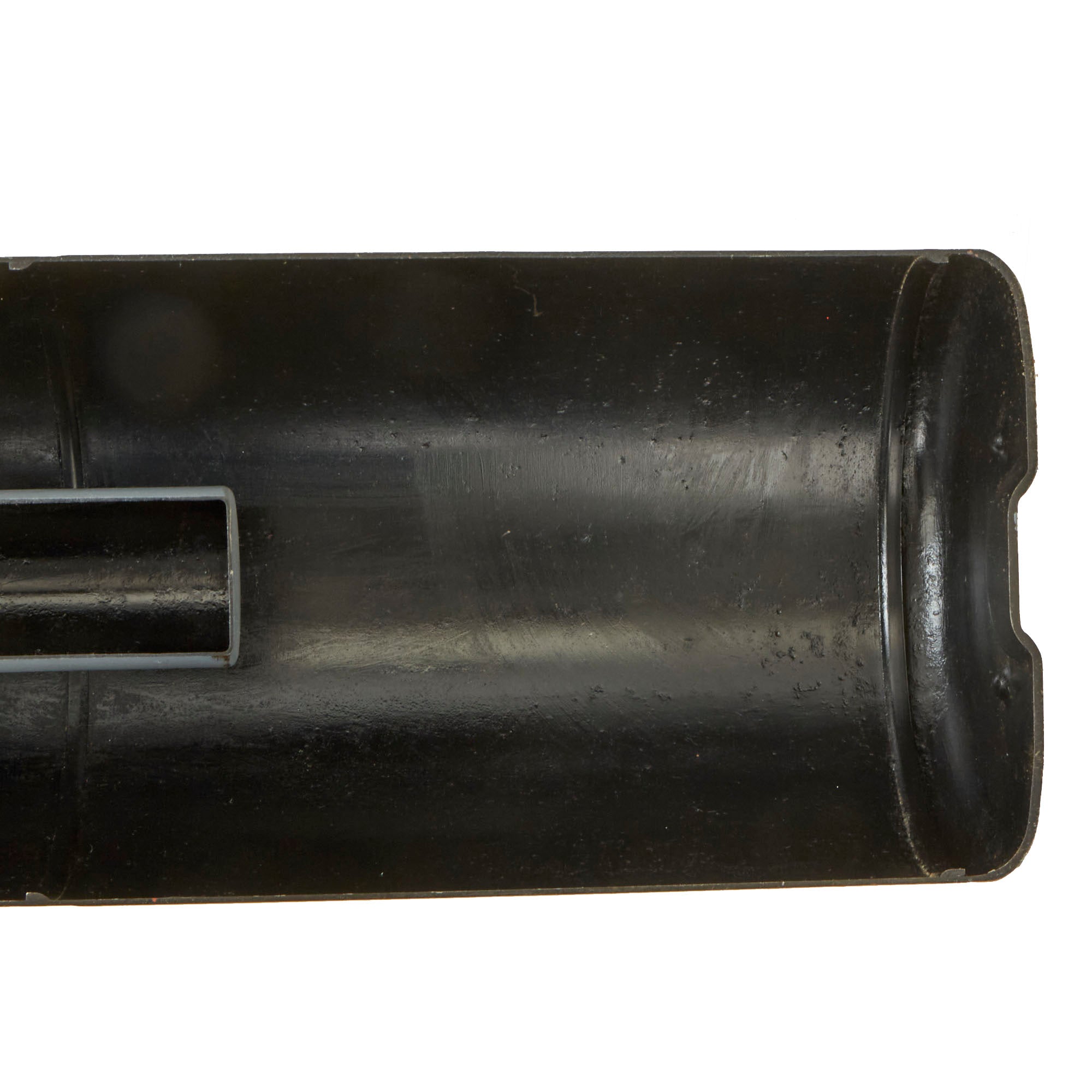

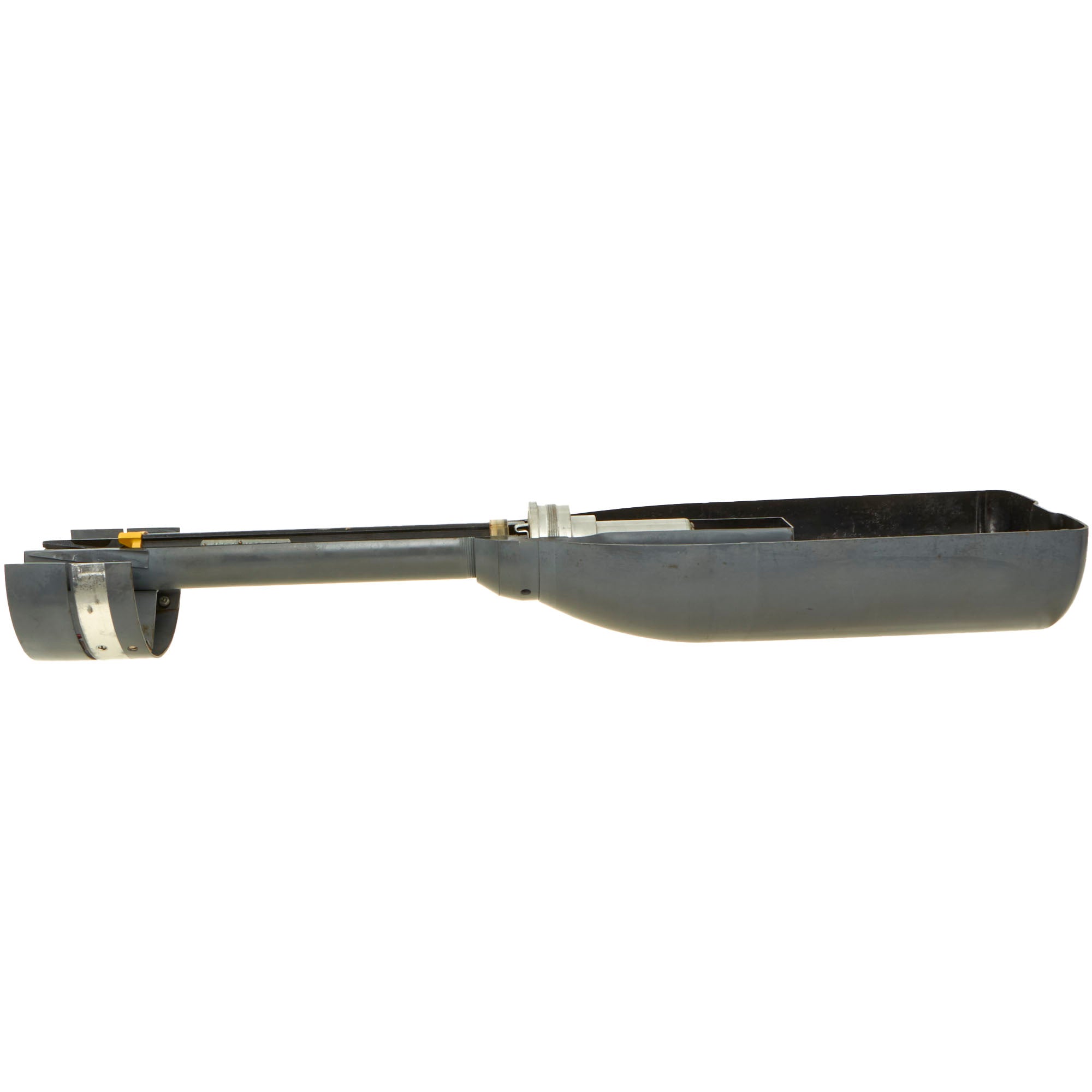

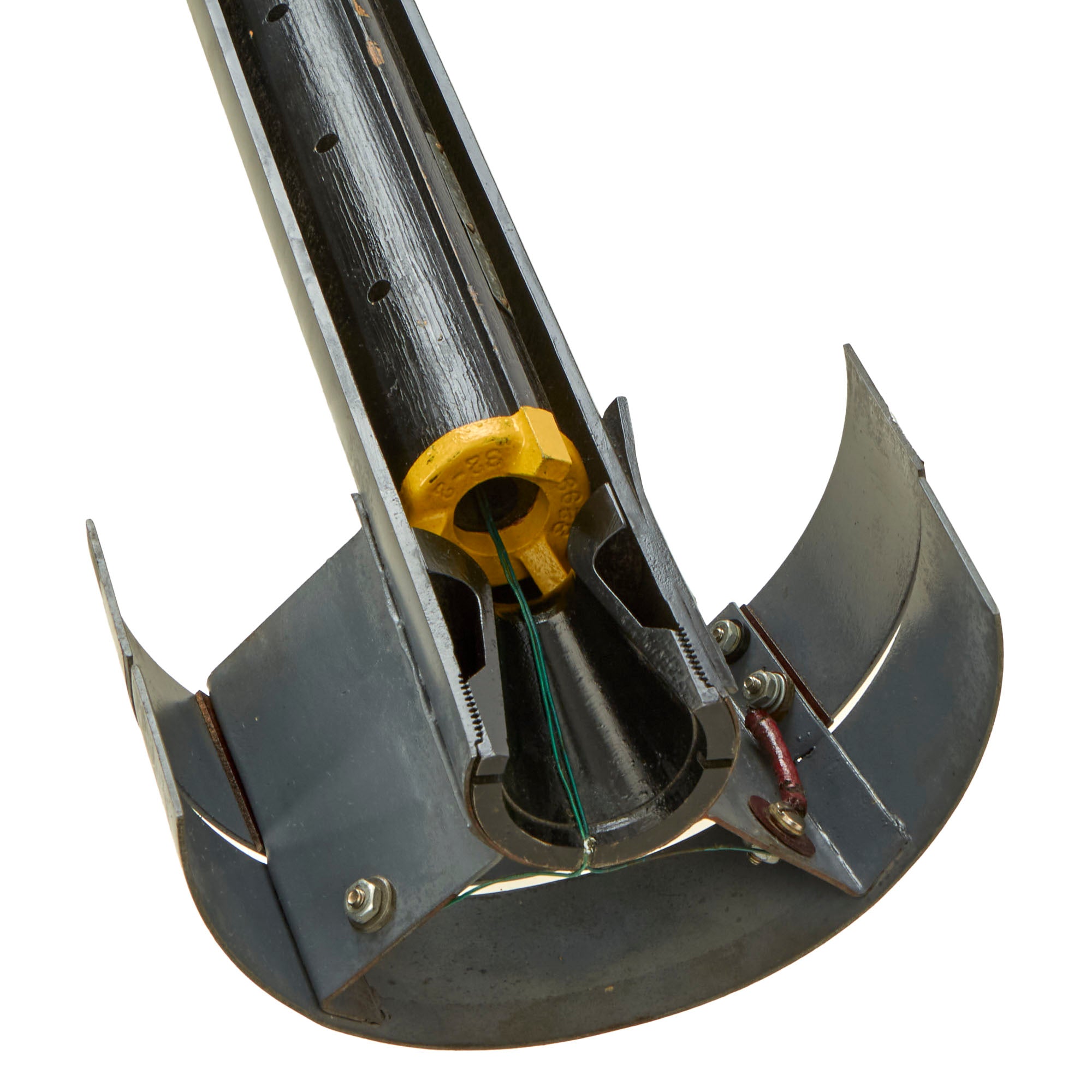

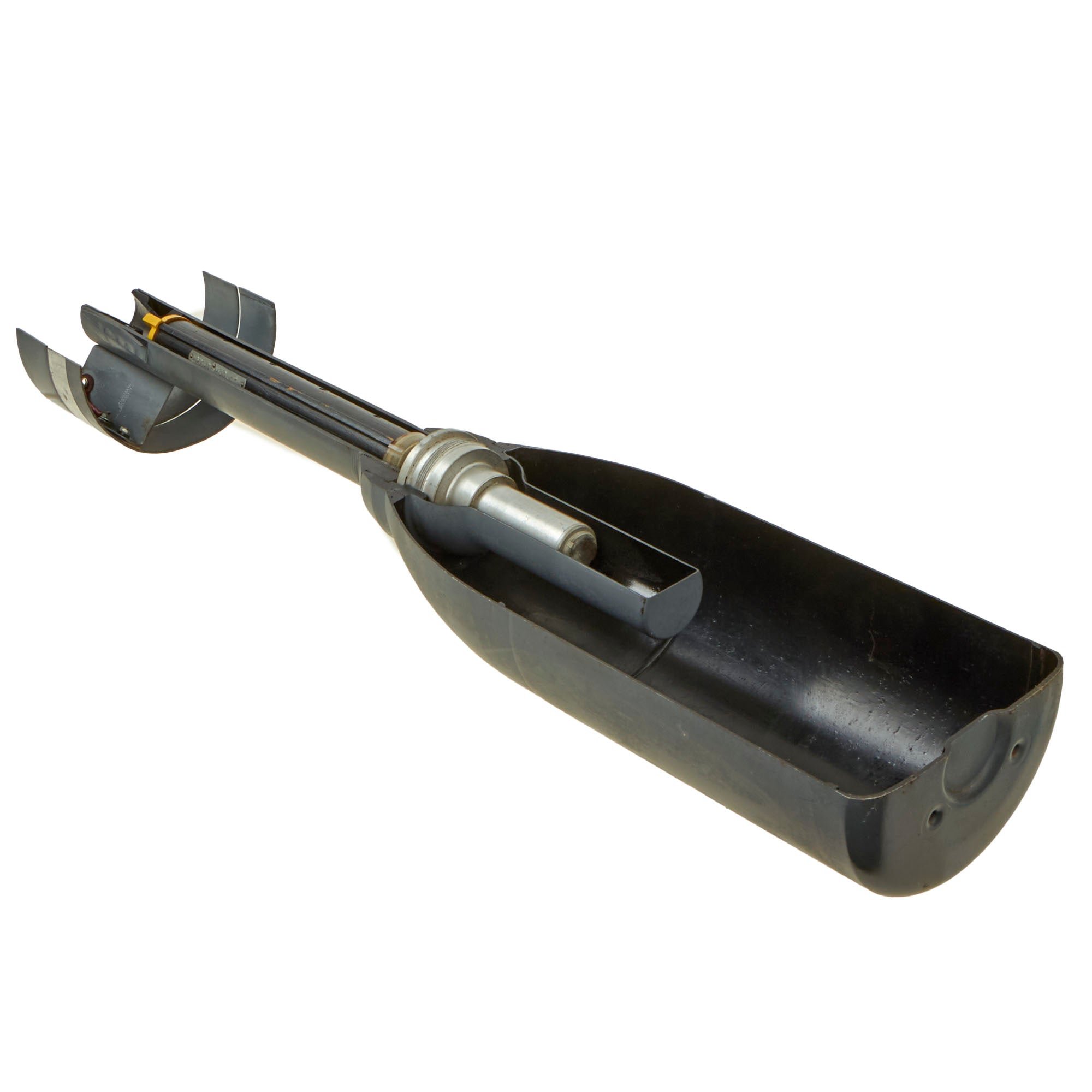

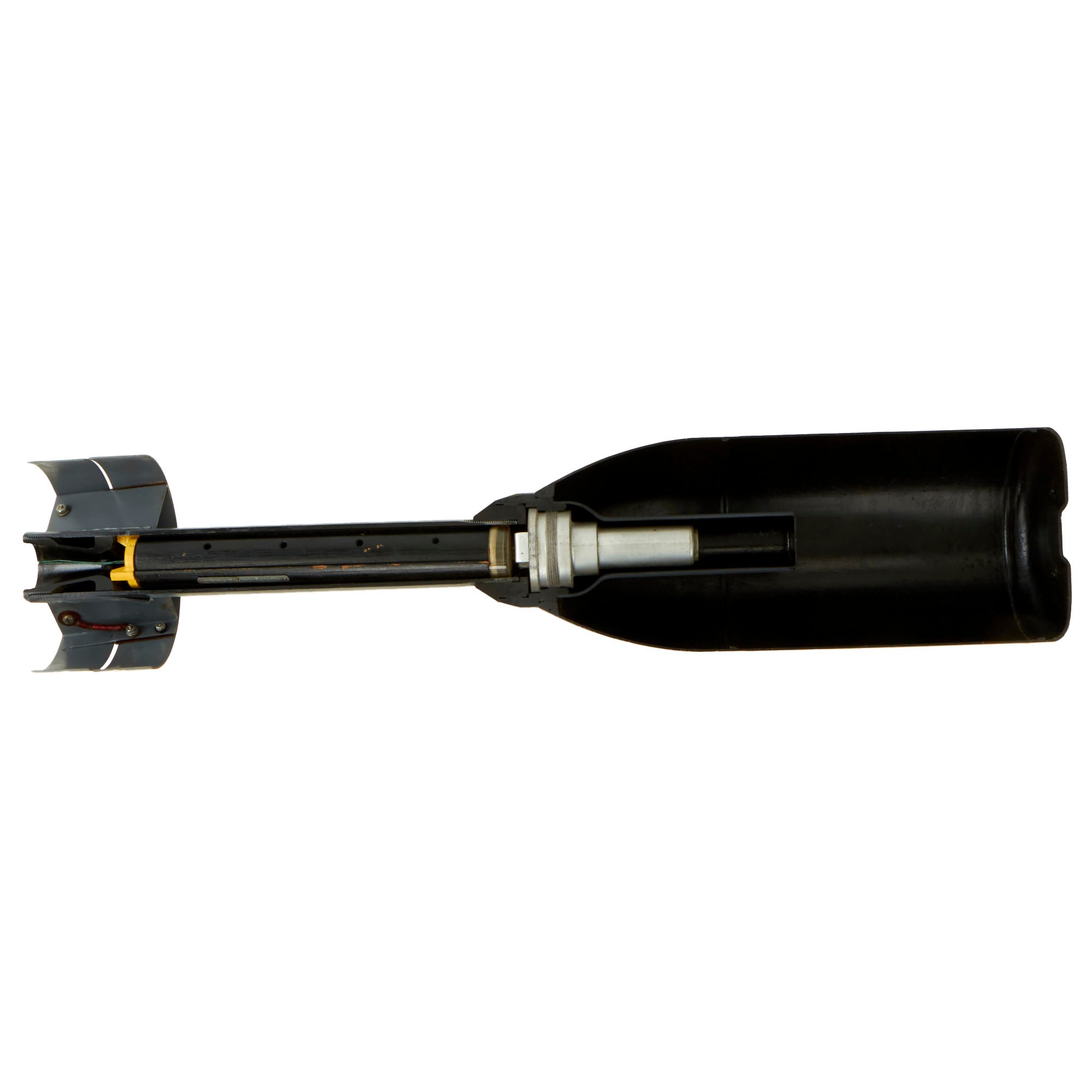

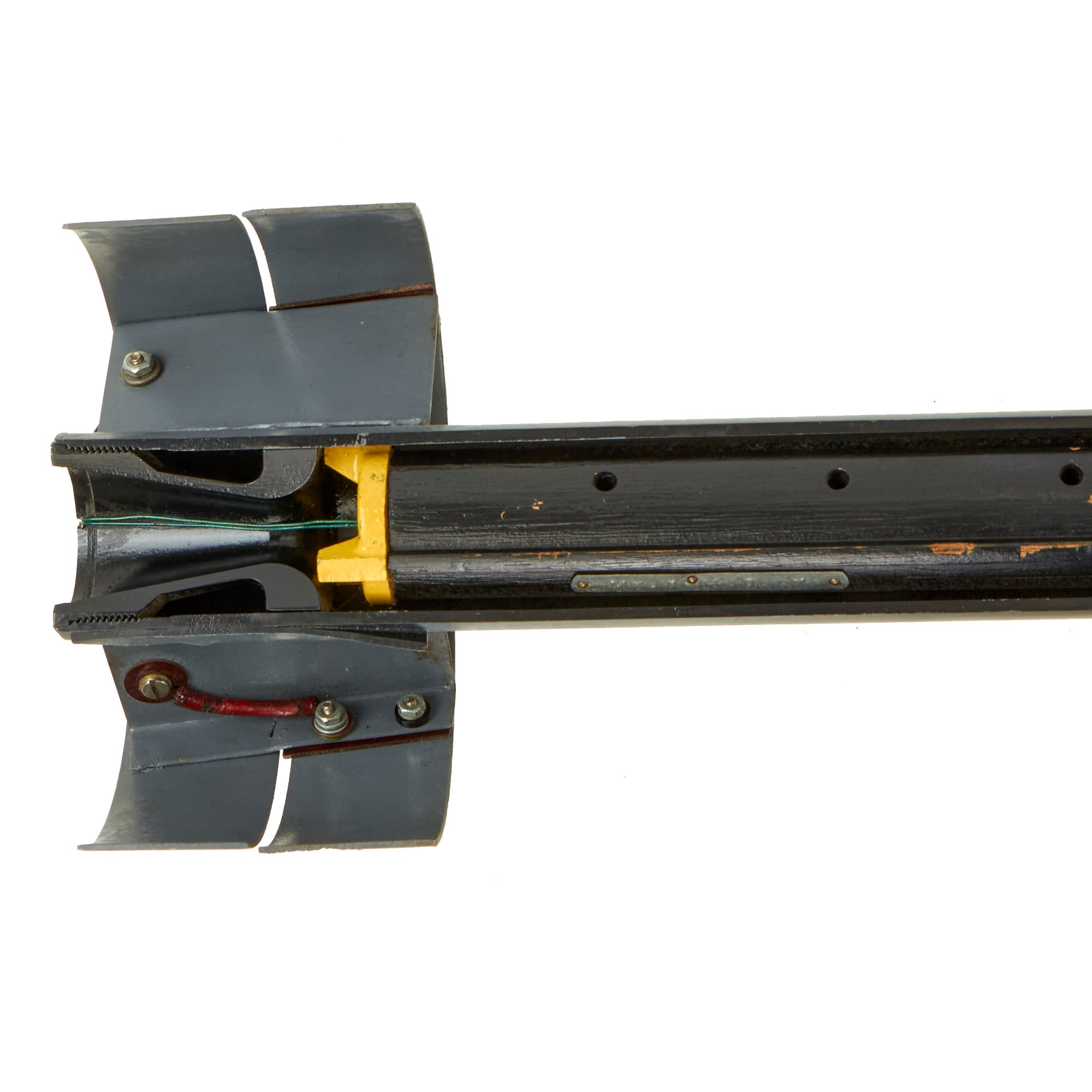

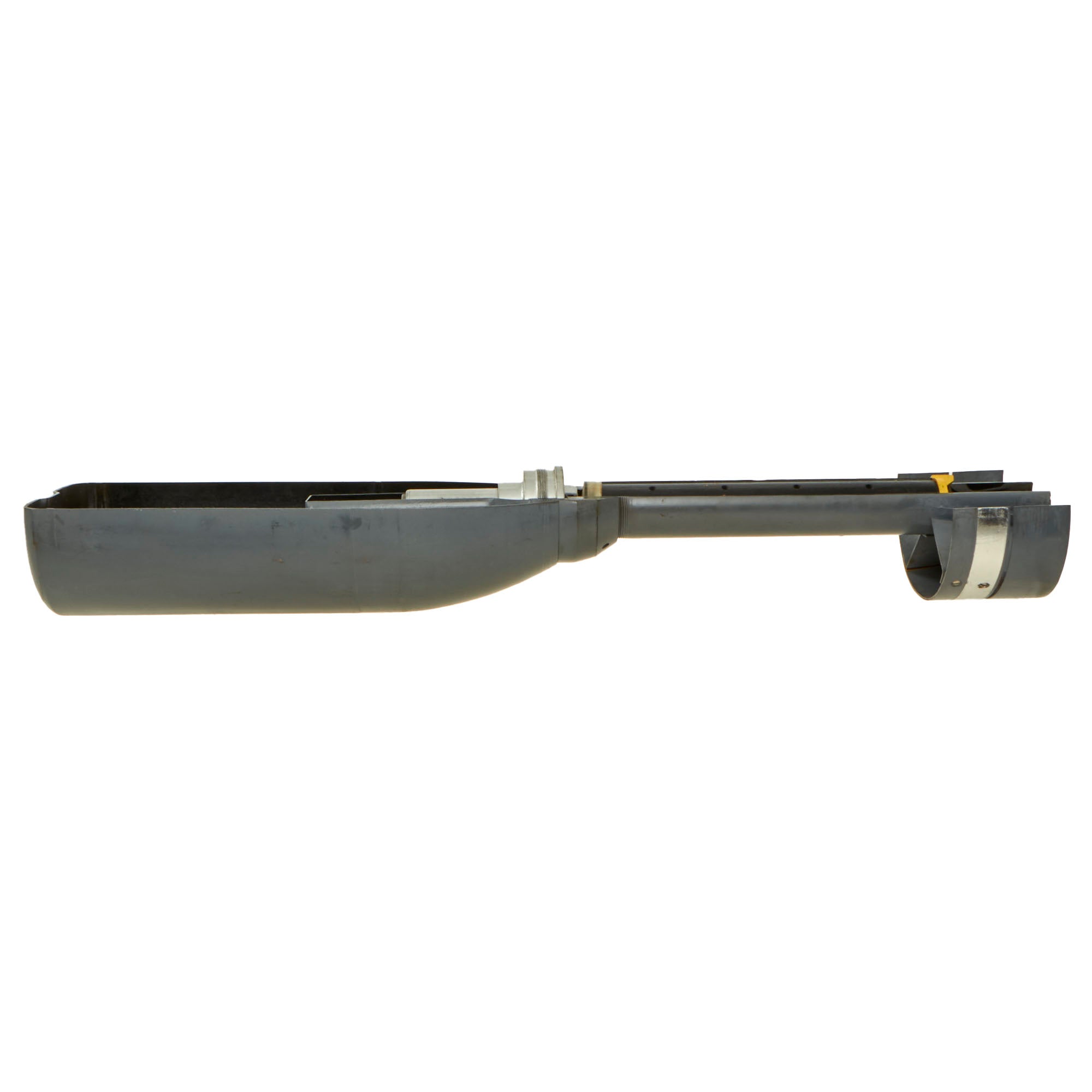

This example was cut in half, as compared to many which only have a 1/4th removed. It shows the internal workings of the bomb and even retains some of the wiring protruding from the bottom near the fins. The tube in the shaft has a small data plate reading Mark I Mod 0. There are some scattered markings across some of the interior pieces. The entire cutaway measures 34½ x 5 x 7”.

The rockets weighed 65 pounds (29 kg) each, with a 33-pound (15 kg) Torpex warhead and contact pistol, exactly like Hedgehog. By the end of the war, over 100 Mousetrap Mark 22s were mounted in U.S. Navy ships, including three each on 12 destroyers, and submarine chasers (usually two sets of rails).

This is a tremendous cutaway, ready for further research and display.

Totally inert, cannot be converted to an explosive device, not available for export. This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America.

All deactivated ordnance sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).
