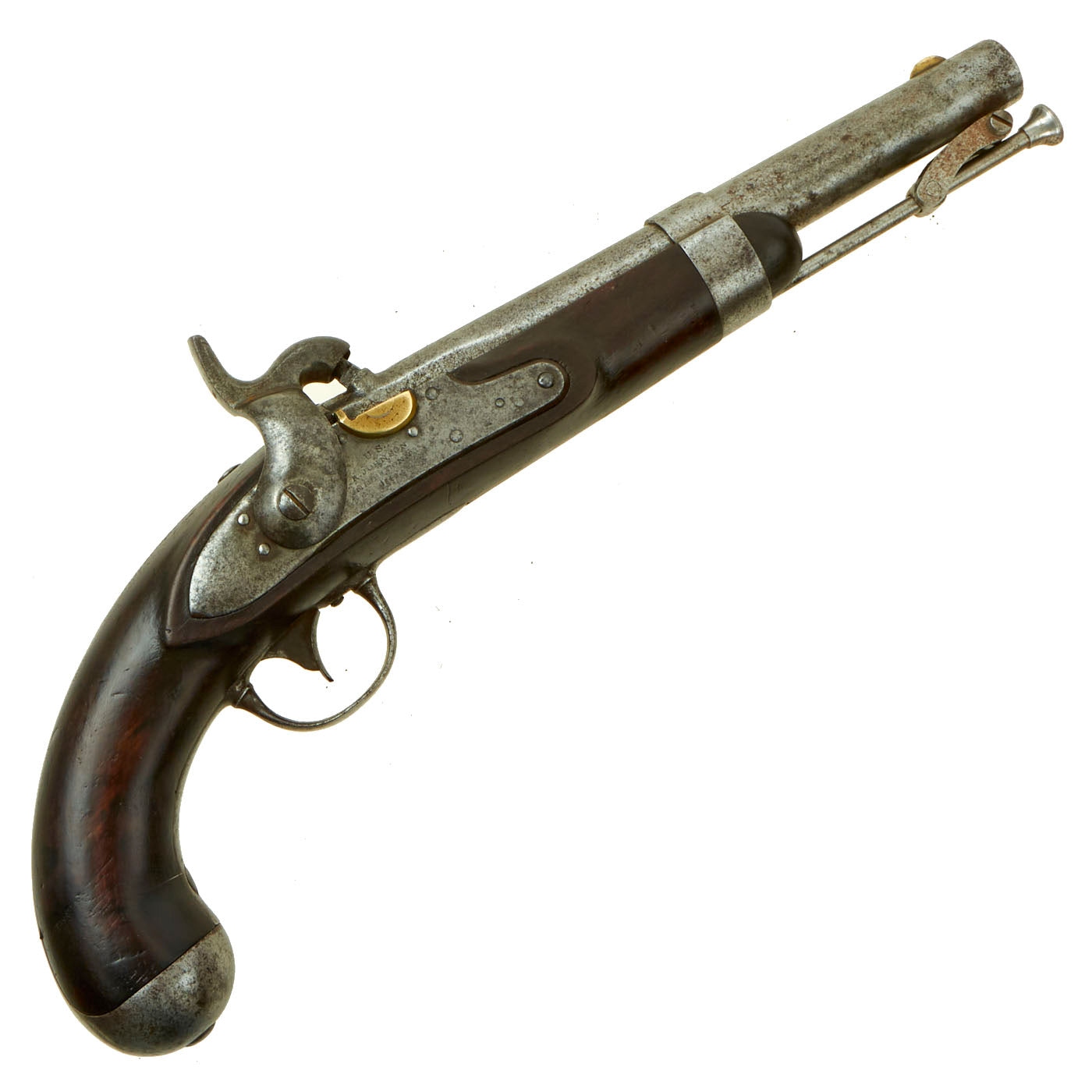

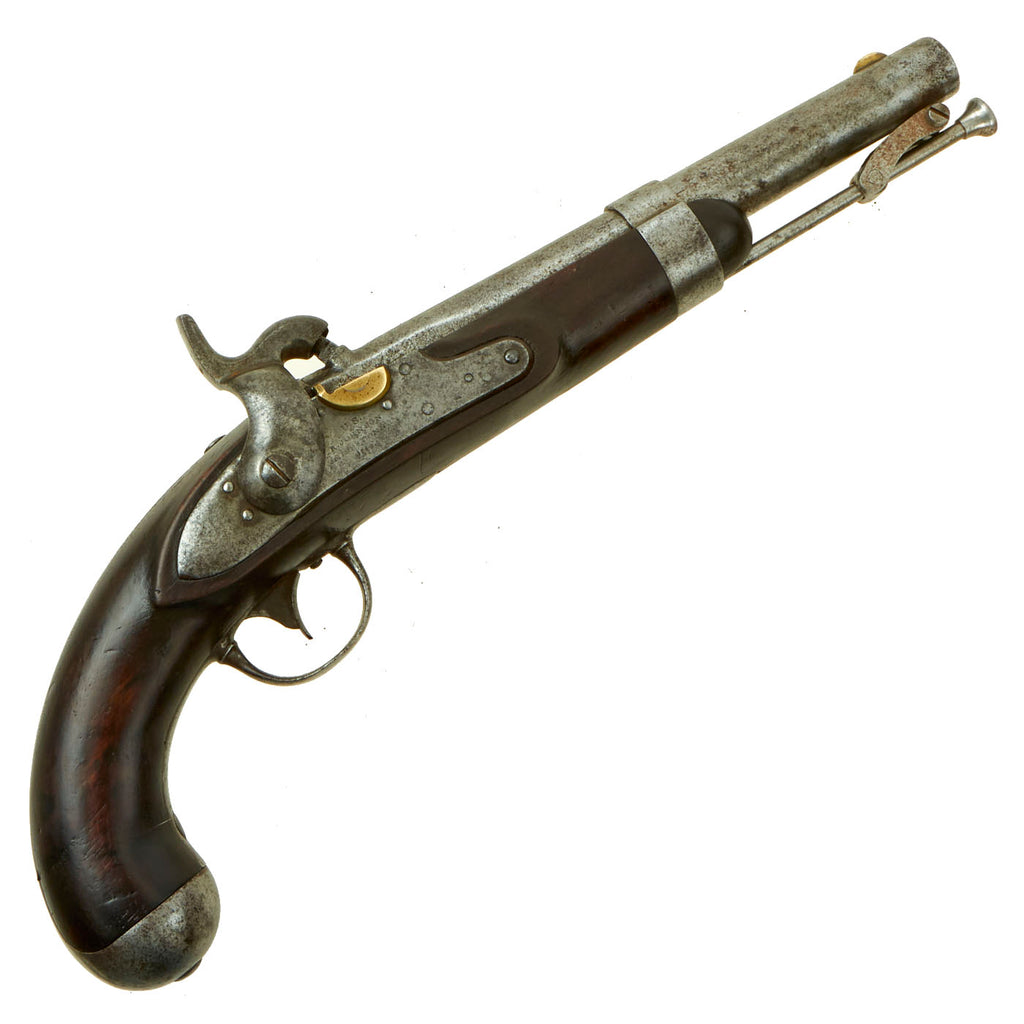

Original Item: Only One Available. Adopted in 1836, the production of this model continued until 1844, and this flintlock pistol intended for Cavalry was widely used in the Mexican/American War. A total of almost 41,000 units were produced before being replaced by the M-1842 Percussion pistol. Many flintlock pistols were later converted to percussion, such as this example.

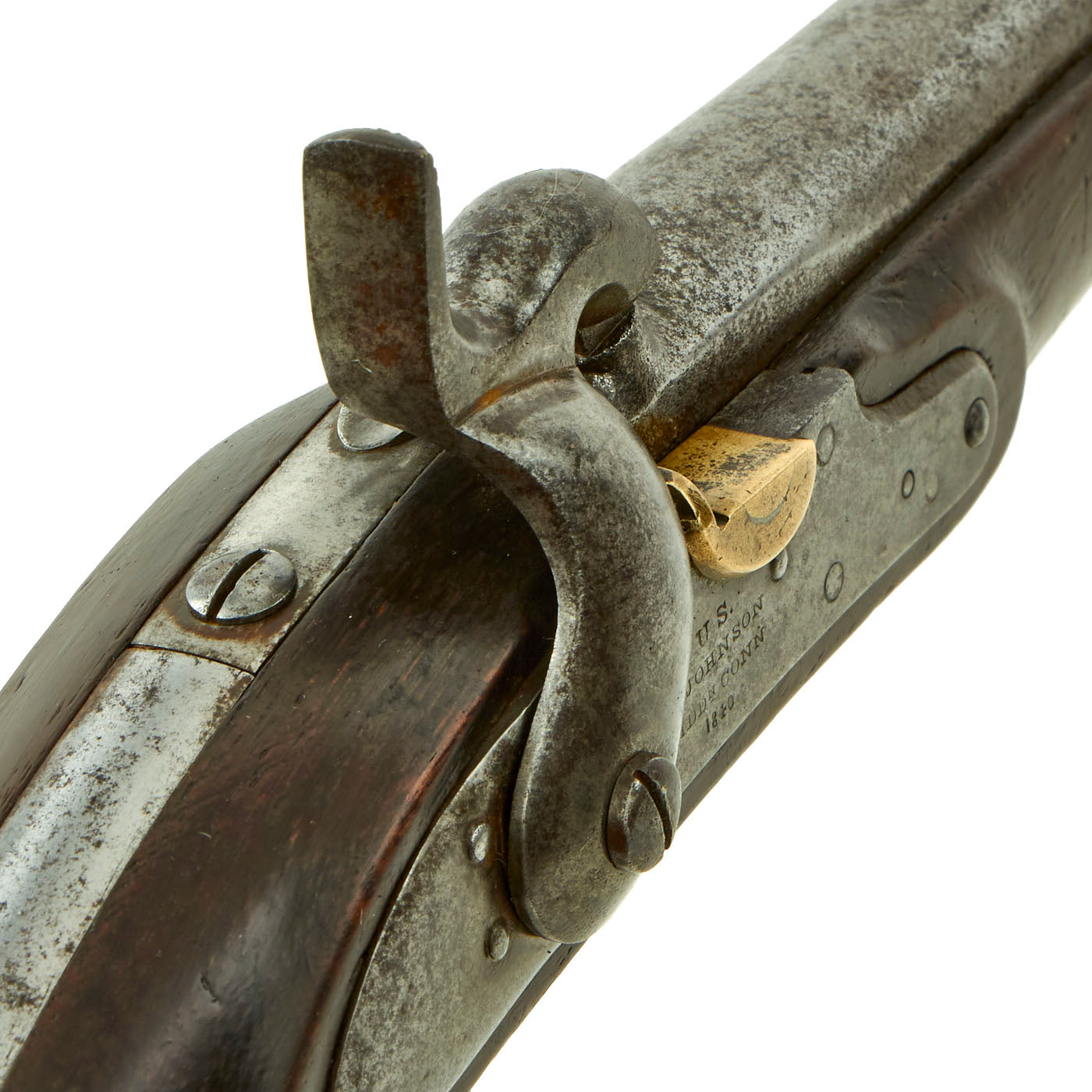

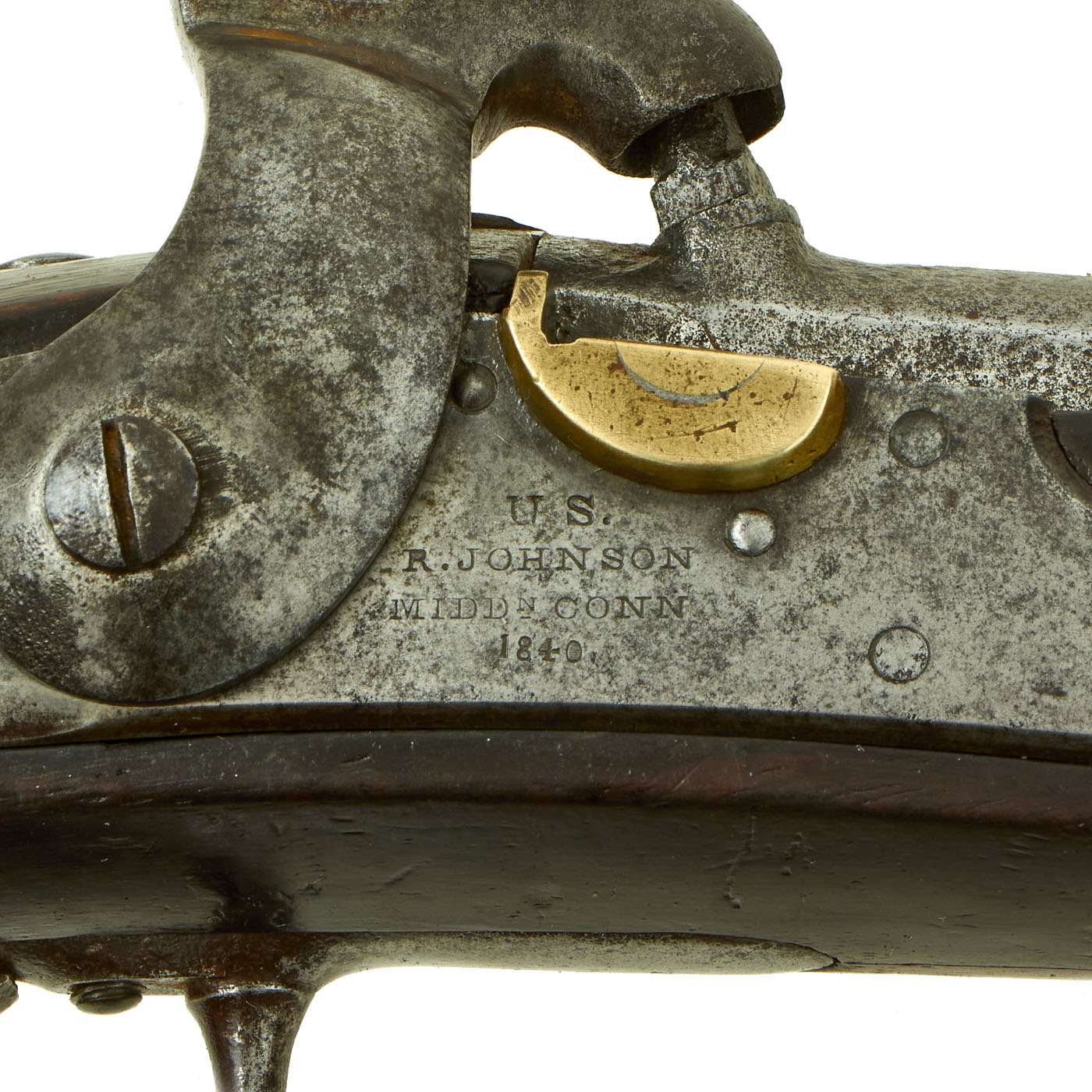

This example was made by Robert Johnson of Middletown Connecticut, and is still marked on the lock:-

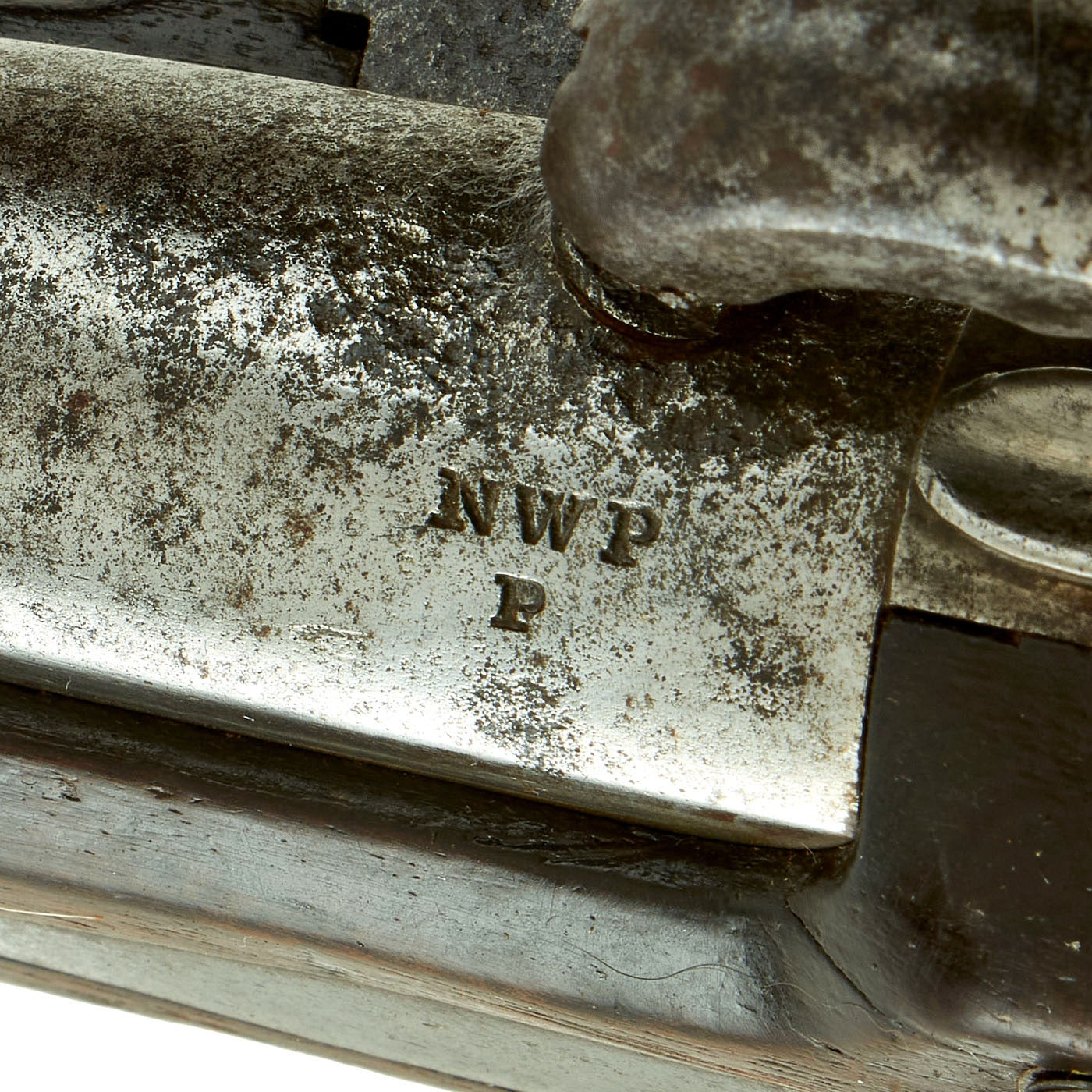

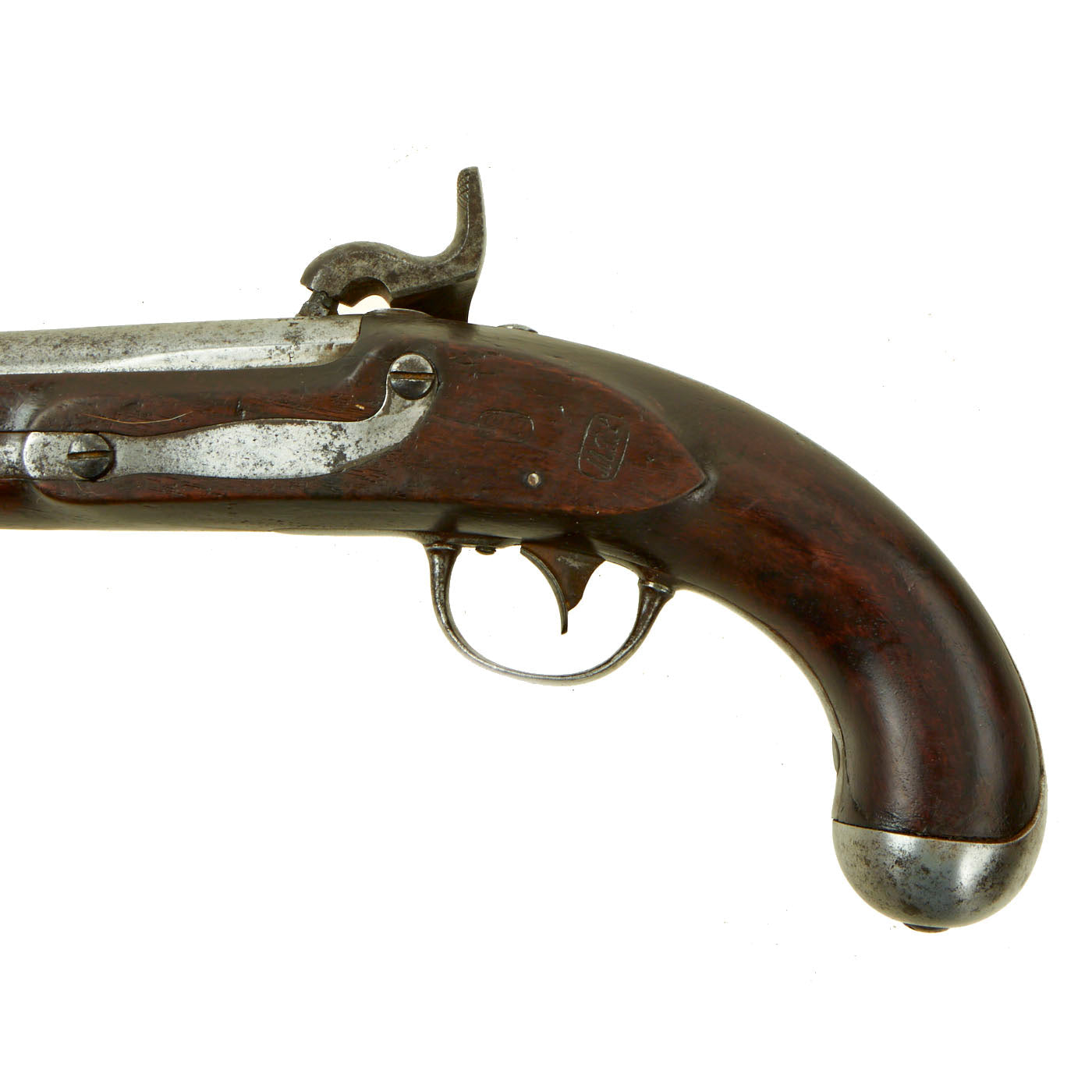

The left side of the barrel breech also still has visible proof marks reading NWP / P. This is the inspector marking for Nahum W. Patch, who is noted for inspecting "Ames & R. Johnson Pistols 1831-1849", among other martial firearms. The left side of the stock also still has TWO visible "boxed" inspection cartouches. MPL is for Major M.P. Lomax, U.S. Army, who inspected "Waters and R. Johnson Pistols and Hall Carbines 1837-1843". The other is EB, for Elizur Bates, who inspected Waters Model 1836 Pistols 1841-1846. It is possible that when the pistol was converted to percussion, the lock was switched at arsenal, as the Waters and Johnson pistols were virtually identical. Definitely some great research potential here!

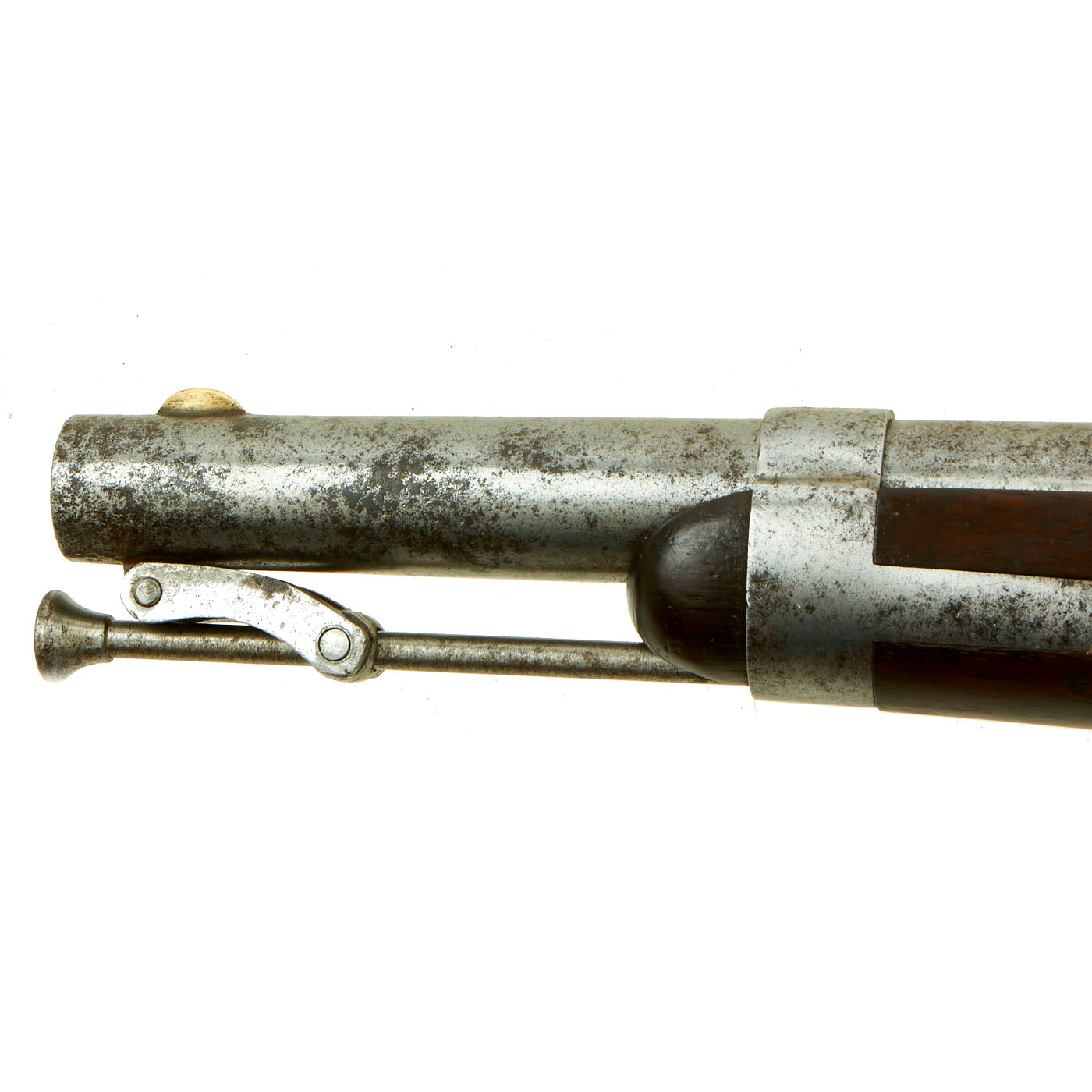

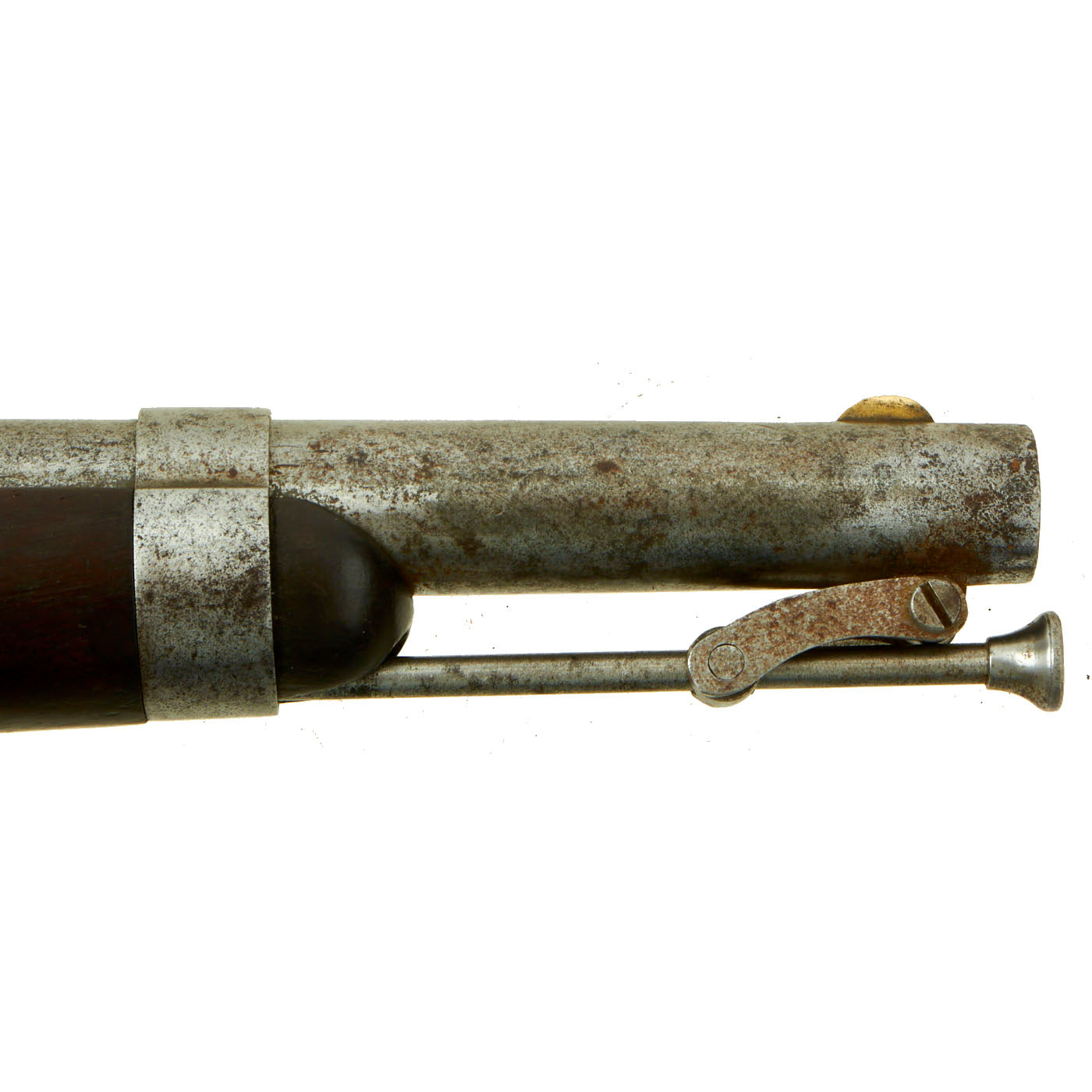

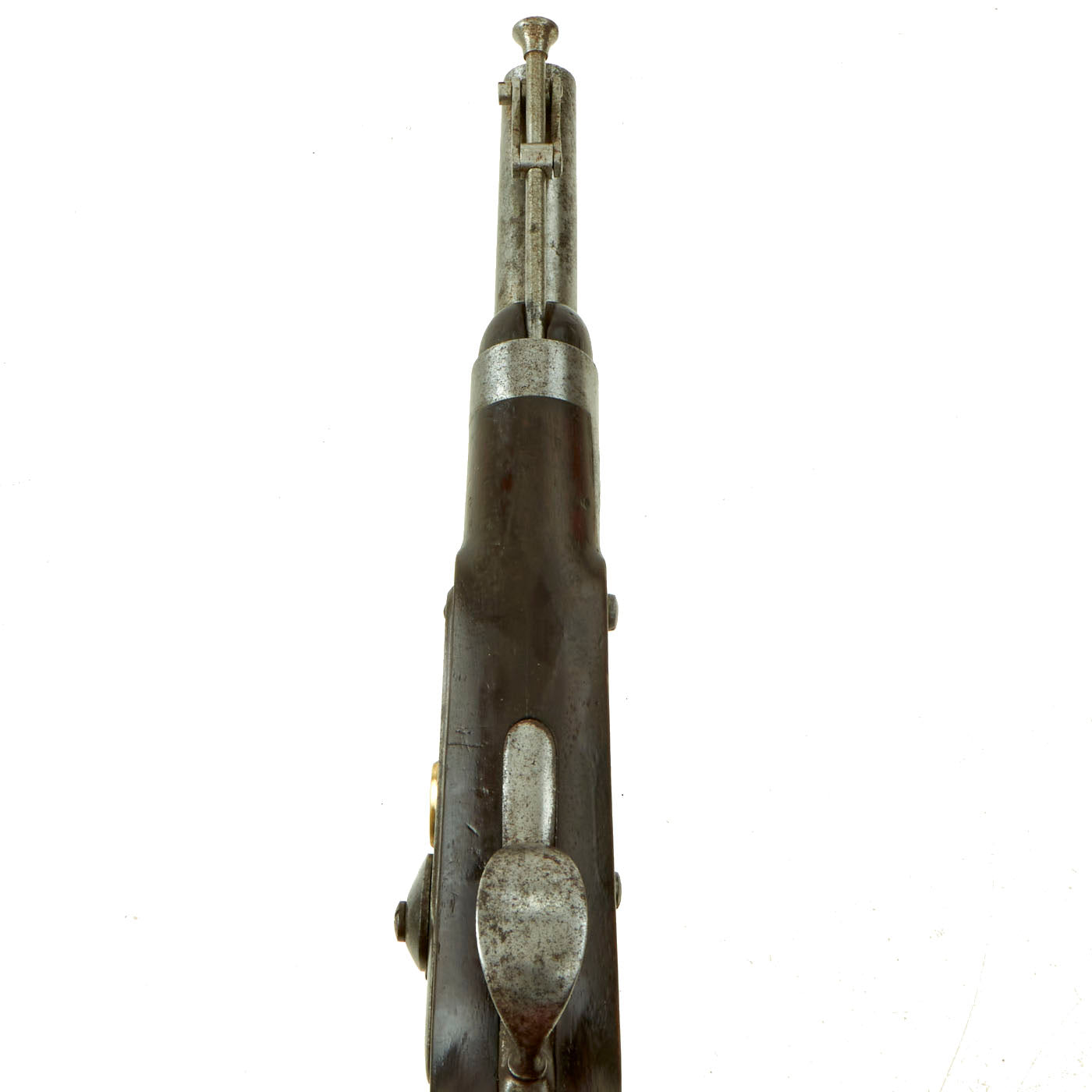

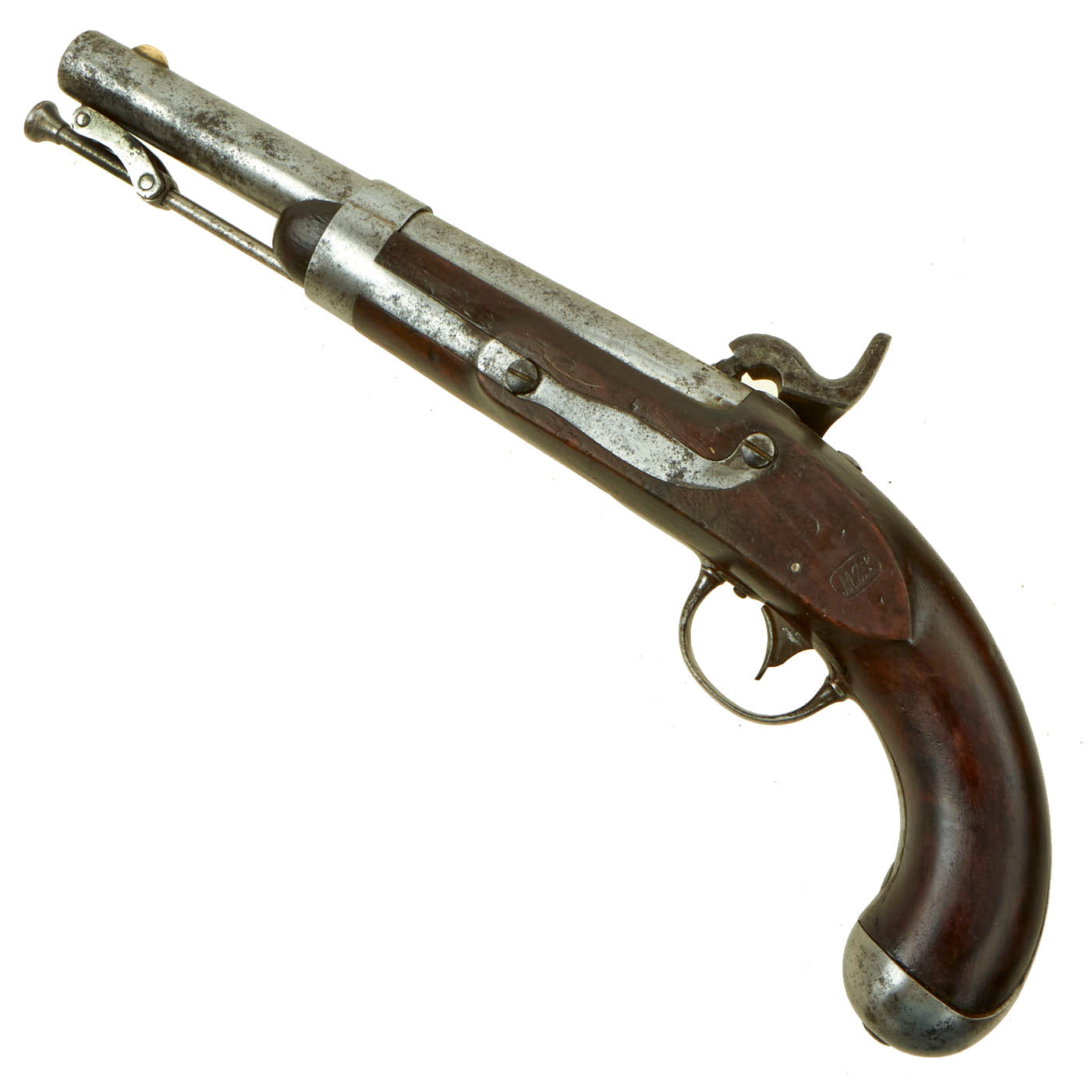

The pistol comes complete with its "trapped" swivel Ram Rod for easier use by mounted cavalry troops when reloading. The pistol measures 14" overall, with a smooth bore barrel of 8 1/2", and was converted to percussion, after which it saw additional use, most likely in the Civil War. There are still the remains of the brass pan attached to the lock plate. Of interest is that when the pistol was converted, the tumbler was replaced with one that has no provision for half-cock. It's not that it wore away, it was simply never there. The lock functions correctly otherwise.

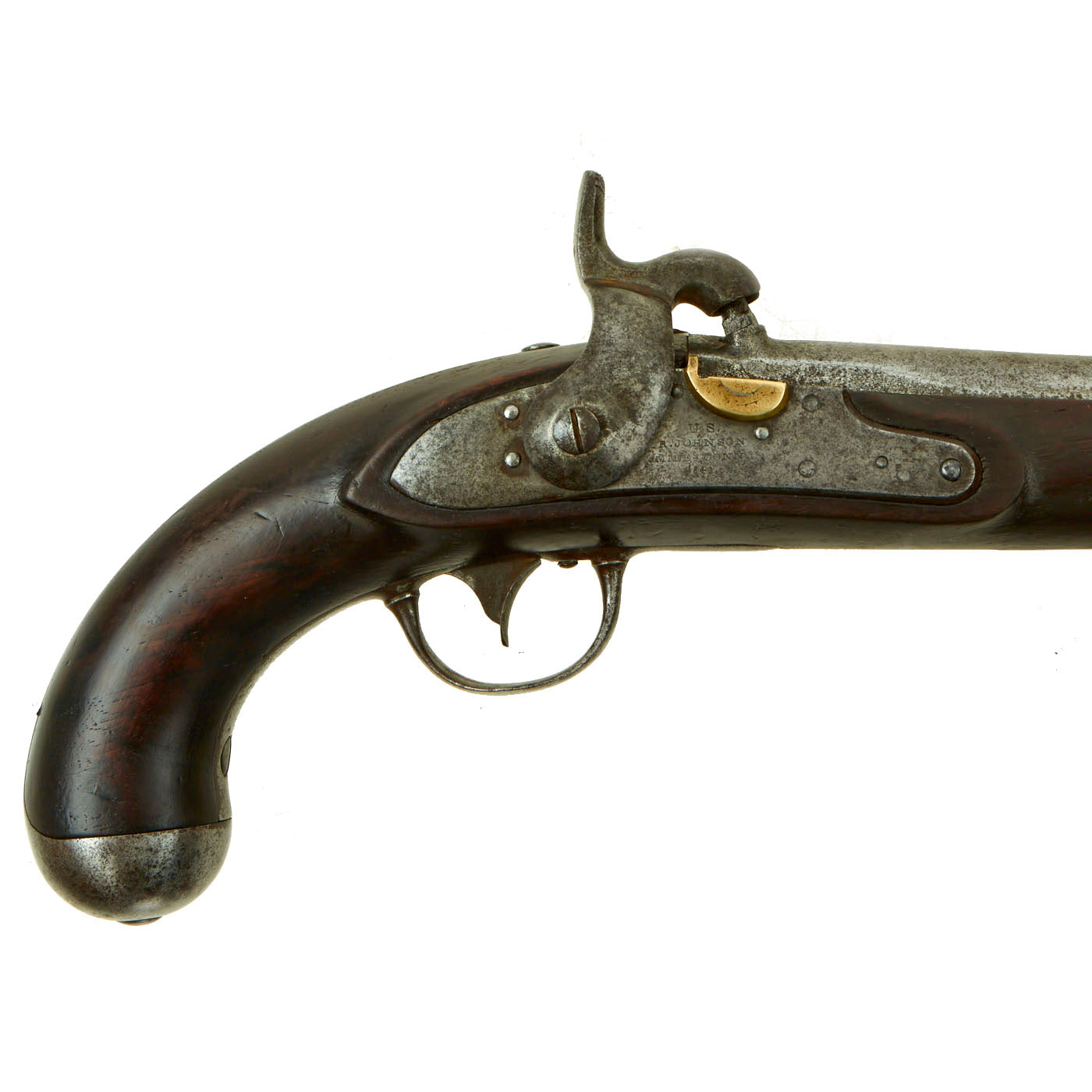

The pistol is all steel mounted, the only brass components are the remnants of the brass powder pan and the brass fore sight. In very nice condition overall, the pistol definitely shows that it saw long service, but was also well cared for, which has resulted in the original markings being well preserved. The stock is in very good condition, with light wear from service. It has been cleaned and polished, and is actually made from some very attractive walnut. There are some repaired cracks in the grip area, a common location to see them.

A very nice attractive example of a flintlock pistol converted to percussion for further service, ready to display!

Specifications:

Years of Manufacture: 1840 - converted later
Caliber: .54" Pistol
Ammunition Type: Lead Ball & Powder
Overall Length: 14 Inches
Barrel Length: 8 1/2 Inches
Action: Flintlock Side Action
Feed System: Muzzle-Loaded
