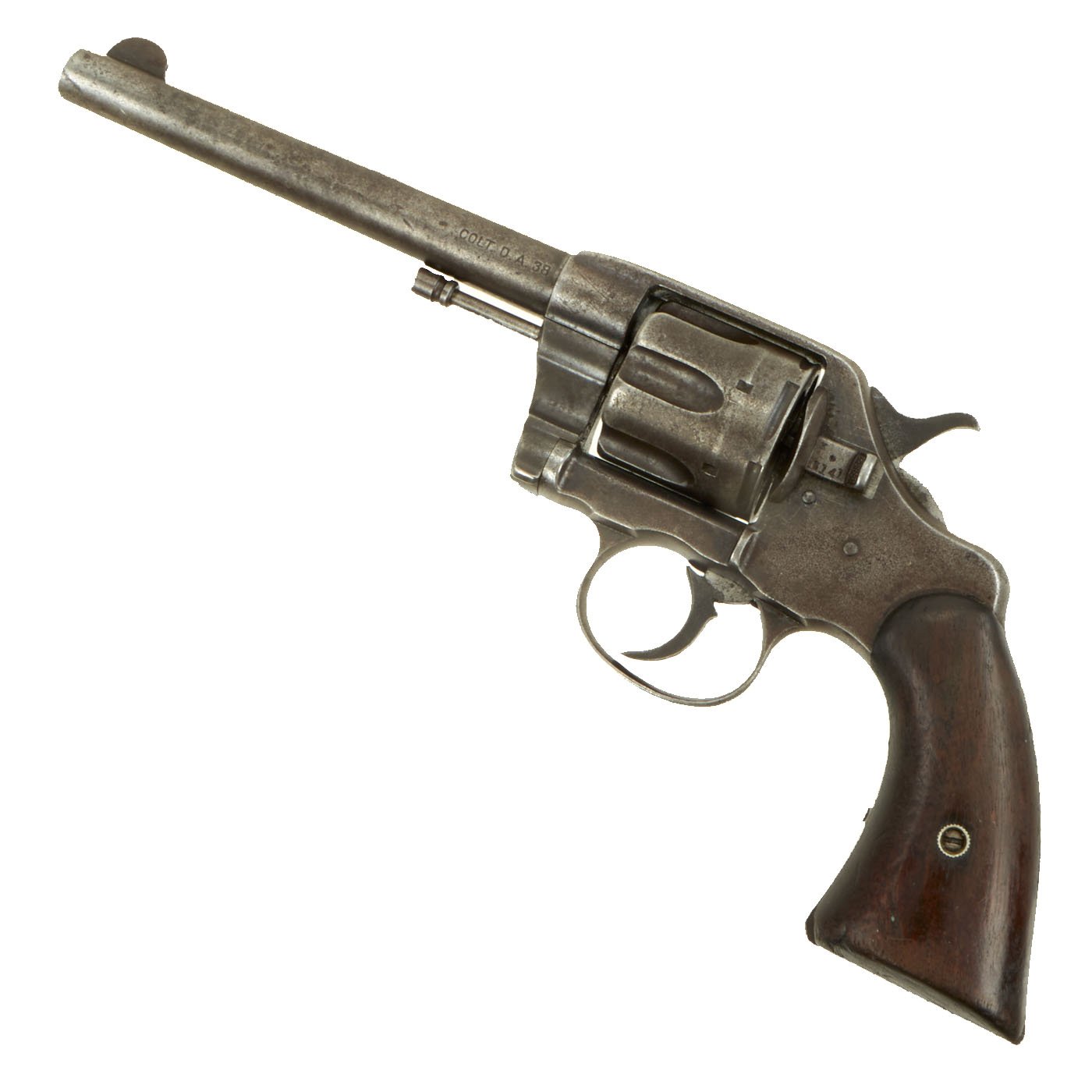

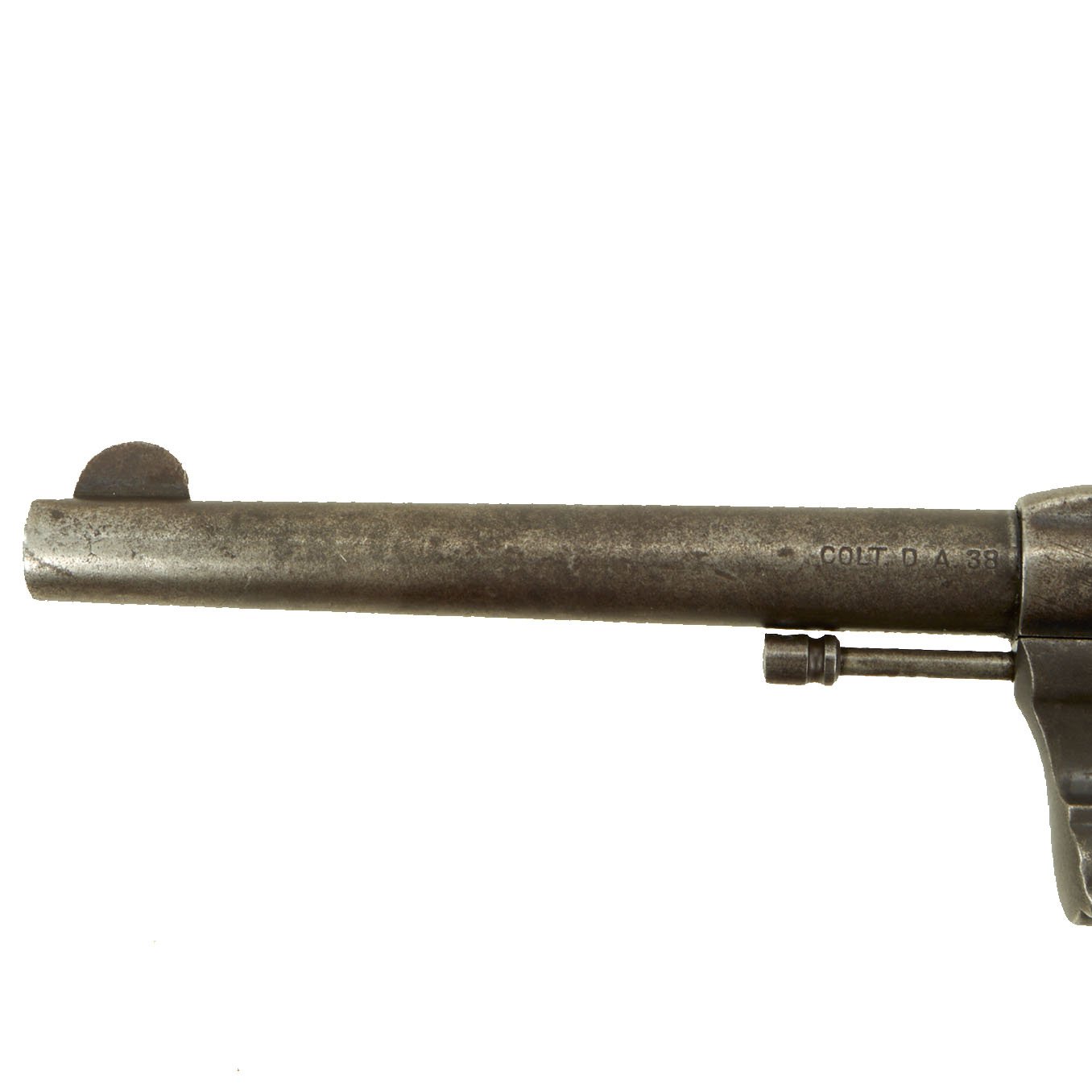

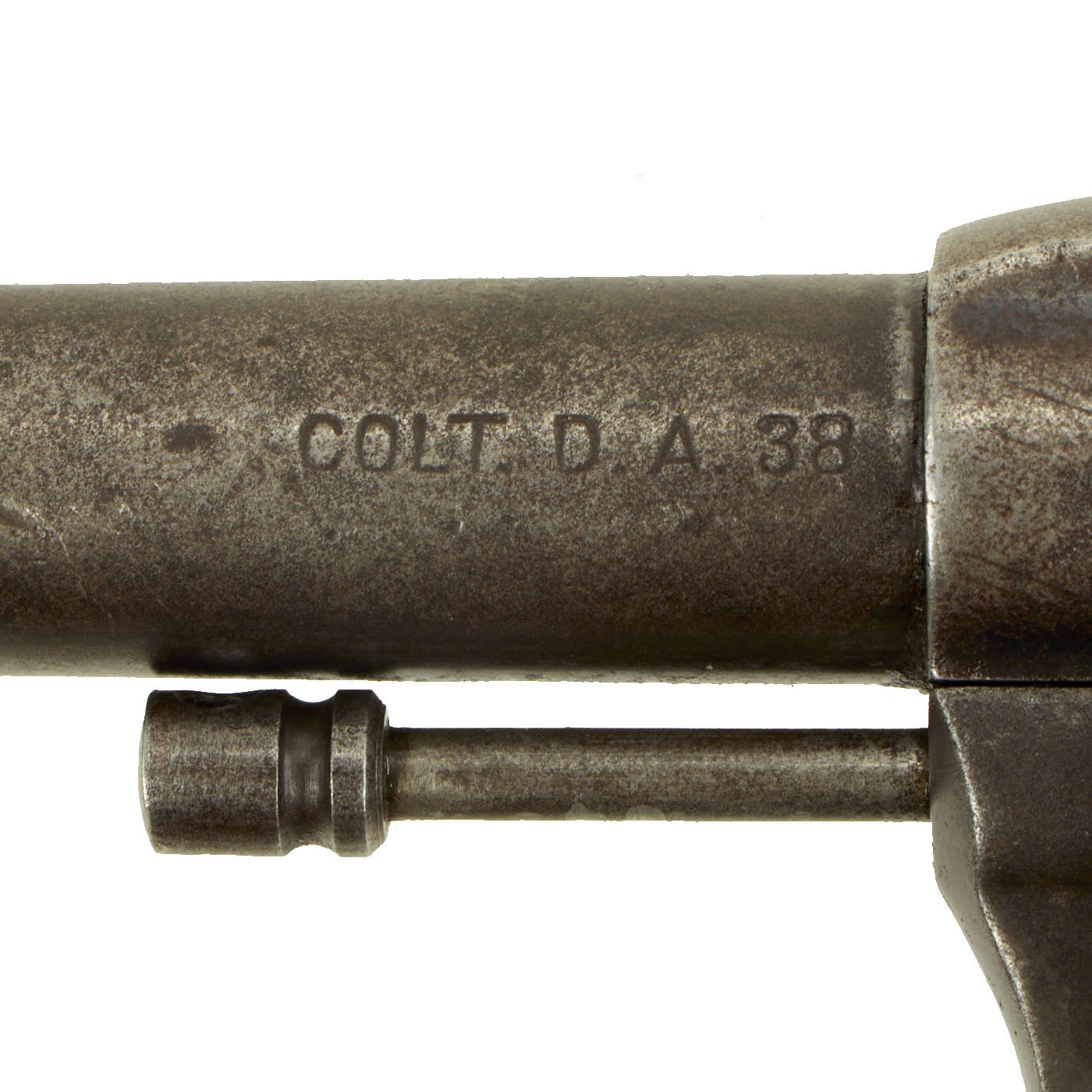

Original Item: Only One Available. The Colt Model 1894 revolver is an important piece of history in the evolution of the modern handgun. This revolver is sometimes called the D.A. 38 for a good reason: they are marked COLT. D.A. 38 on the side of the barrel, as they are a double action revolver chambered for the .38 Long Colt cartridge. There are many similar models of this handgun made by Colt: the Model 1892, 1894, 1895, 1896 and later the Model 1901 and 1903, which represent incremental improvements in the design. The U.S. Navy and the U.S. Army primarily used these models, though there were civilian models as well.

This type of double action revolver represents a significant step in the evolution of the revolver, as it was Colt's first swing out cylinder revolver. It was both double and single action, it utilized the spring-loaded ejector rod, and the later models could fire the new (at the time) smokeless powder cartridges. All of these features appealed to the armed forces. The earlier D.A. 38 guns, such as the 1894, were designed to fire black powder cartridges only.

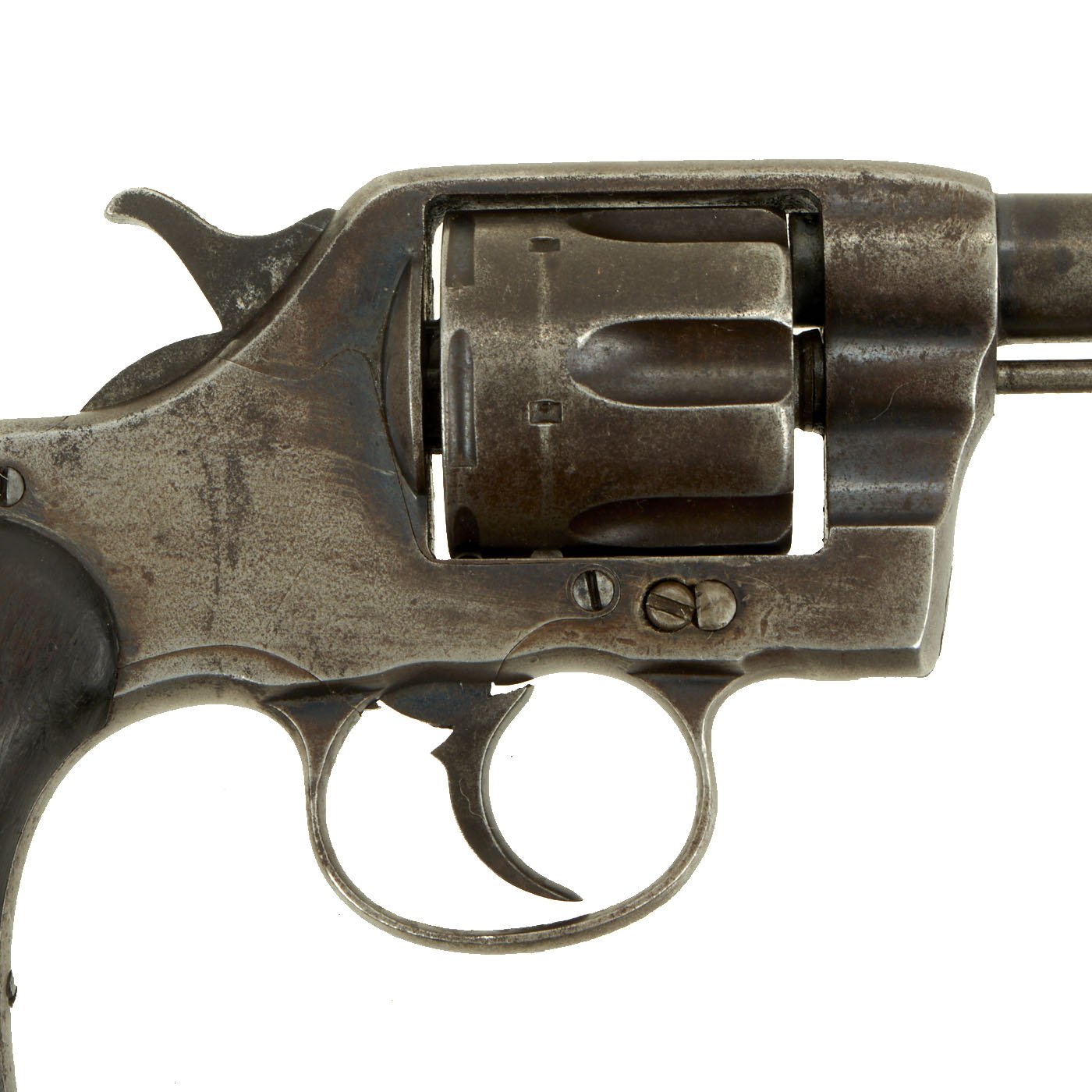

The New Army & Navy model is unique to Colt in that the cylinder rotates counter-clockwise, and the frame's side plate is on the right side. This unfortunately tended to force the cylinder out of alignment with the frame over time, and this was exacerbated by relatively weak lockwork used to "time", or match individual chambers to the barrel. In later Colt revolvers the cylinder rotation is clockwise and the side plate is on the left side of the frame. Also these Colt's have extremely complex actions that get out of order or break easily.

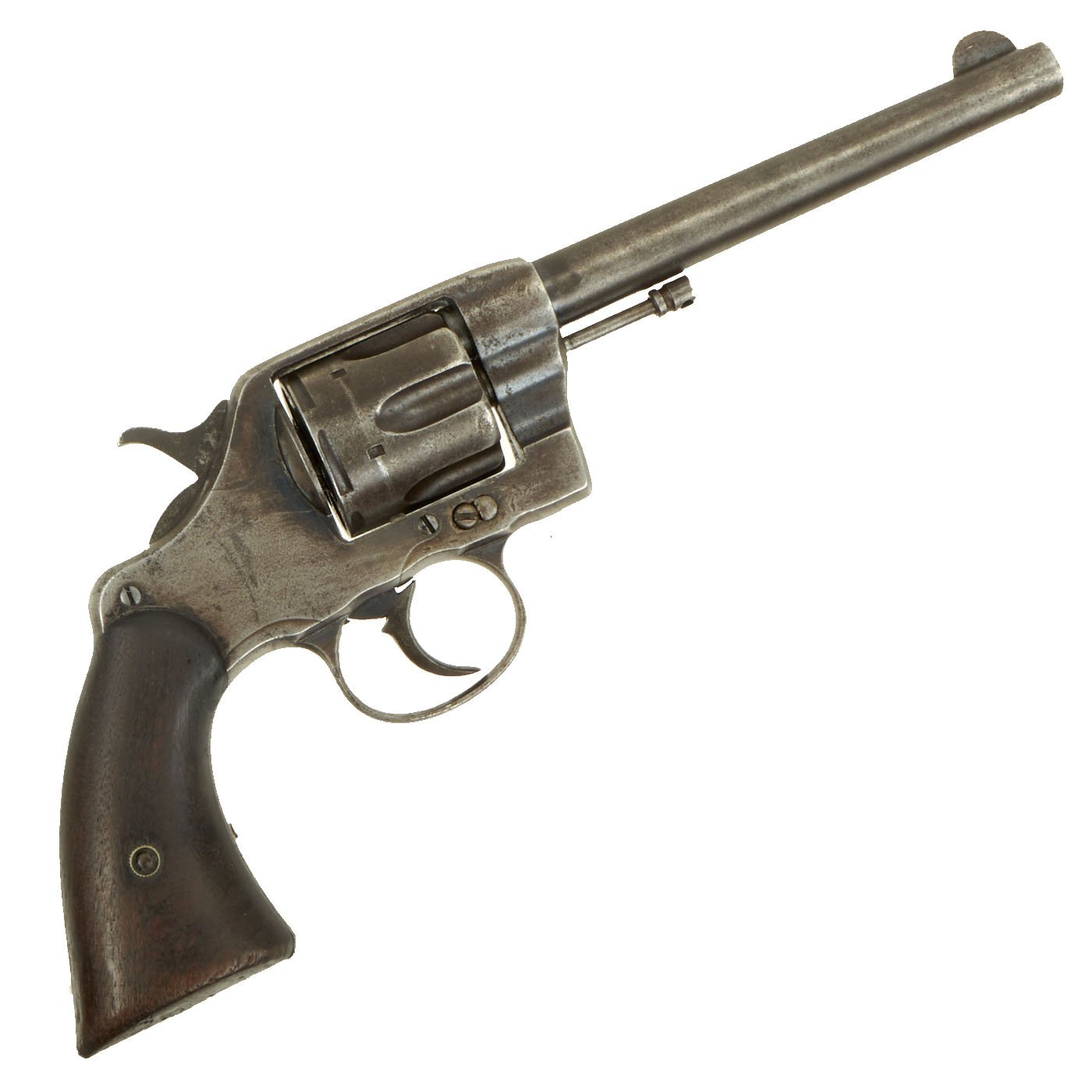

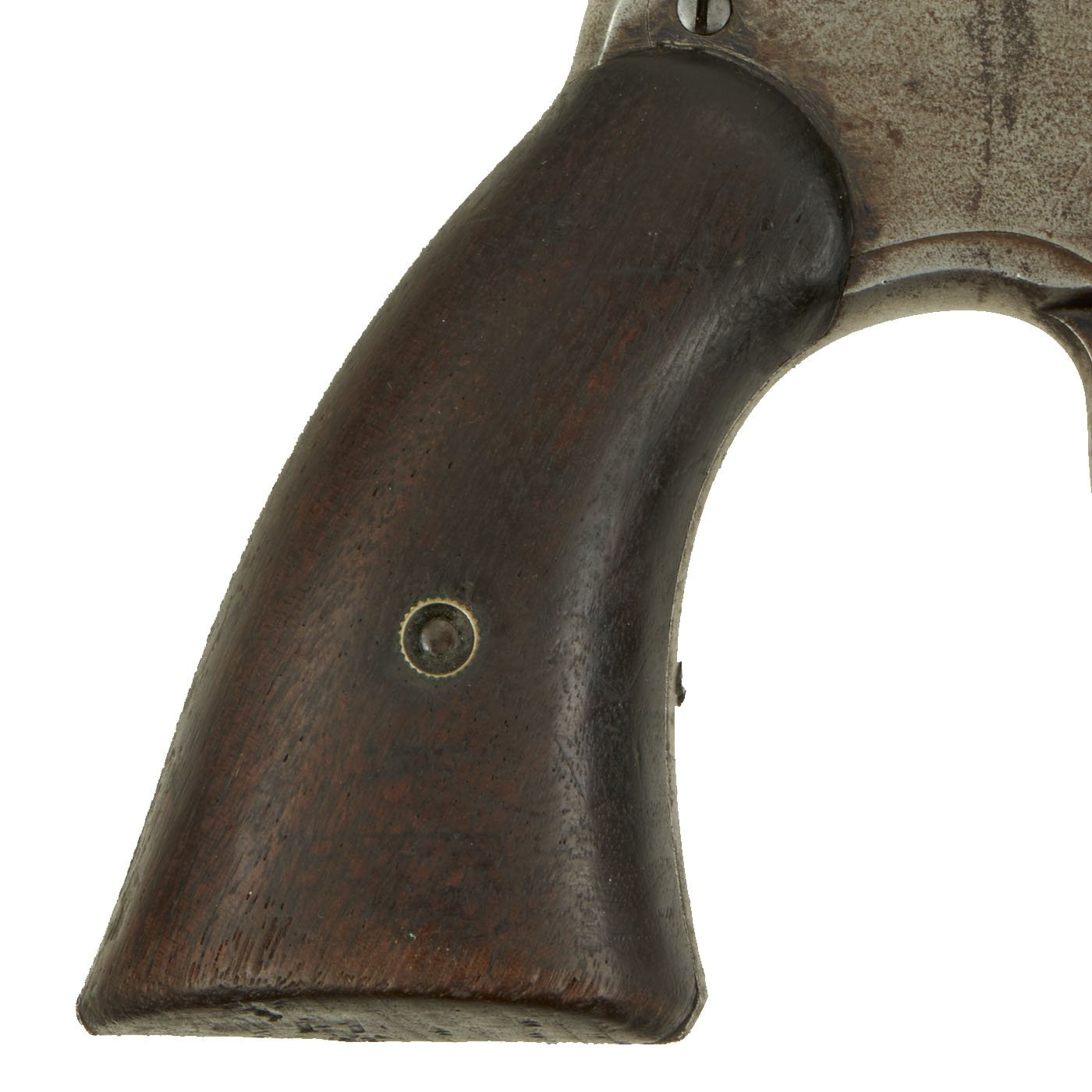

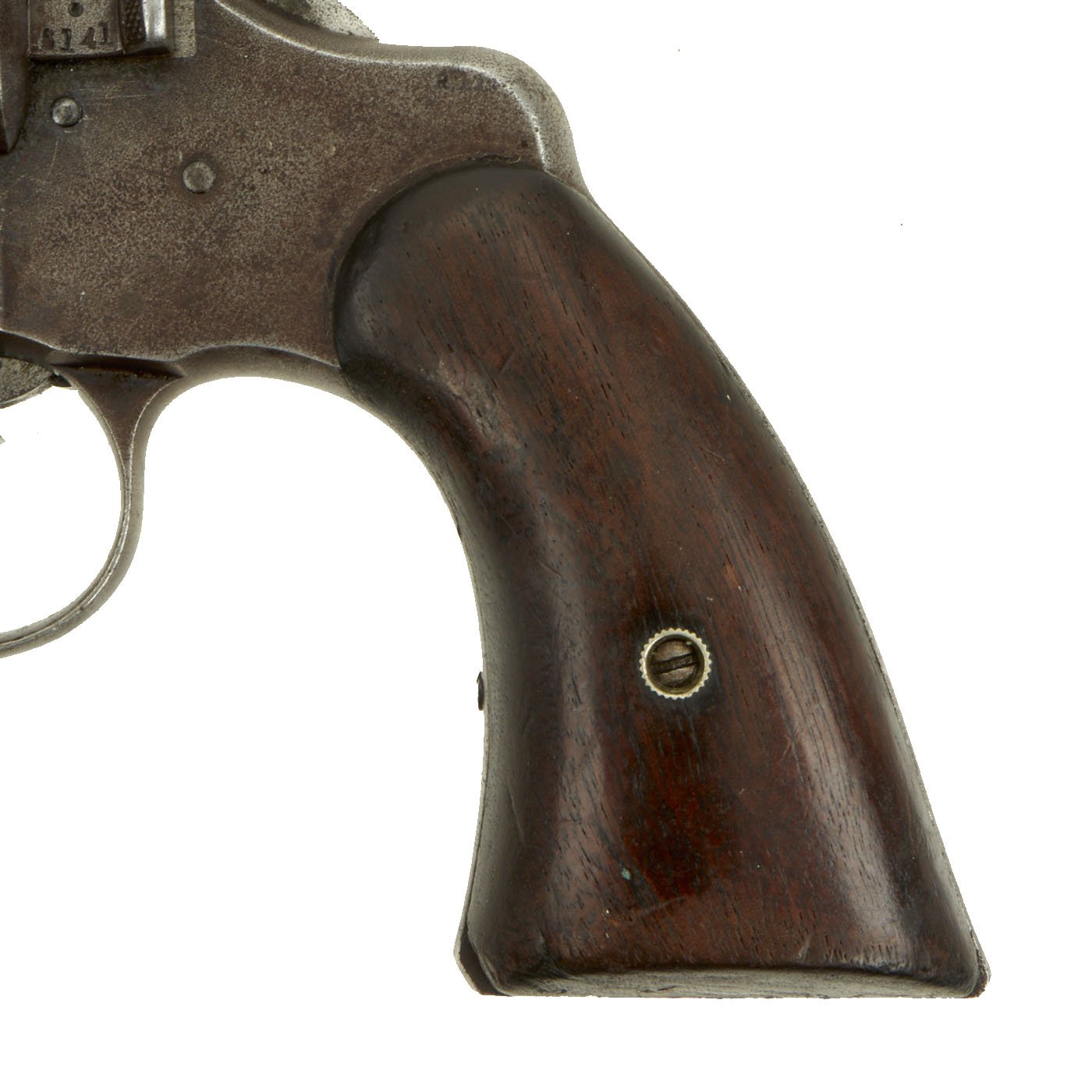

This is a nice Army issue example with military inspectors cartouches on the metal components, and a lovely set of walnut grips. Commercial models had plastic or gutta percha grips that were checkered. The right grip shows a ghost of a cartouche on the side.

The serial number marked on the bottom of the grip is 16141 (first number very faint) indicating production in 1895. Total Army contract production of the Model 1894 was approximately 18,000 revolvers. The serial number ranges for the 3rd and 4th contracts are 60,000 to 68,000 and for the 5th and 6th contracts 100,000 to 110,000. This revolver looks to be from the first contract of Model 1894s received.

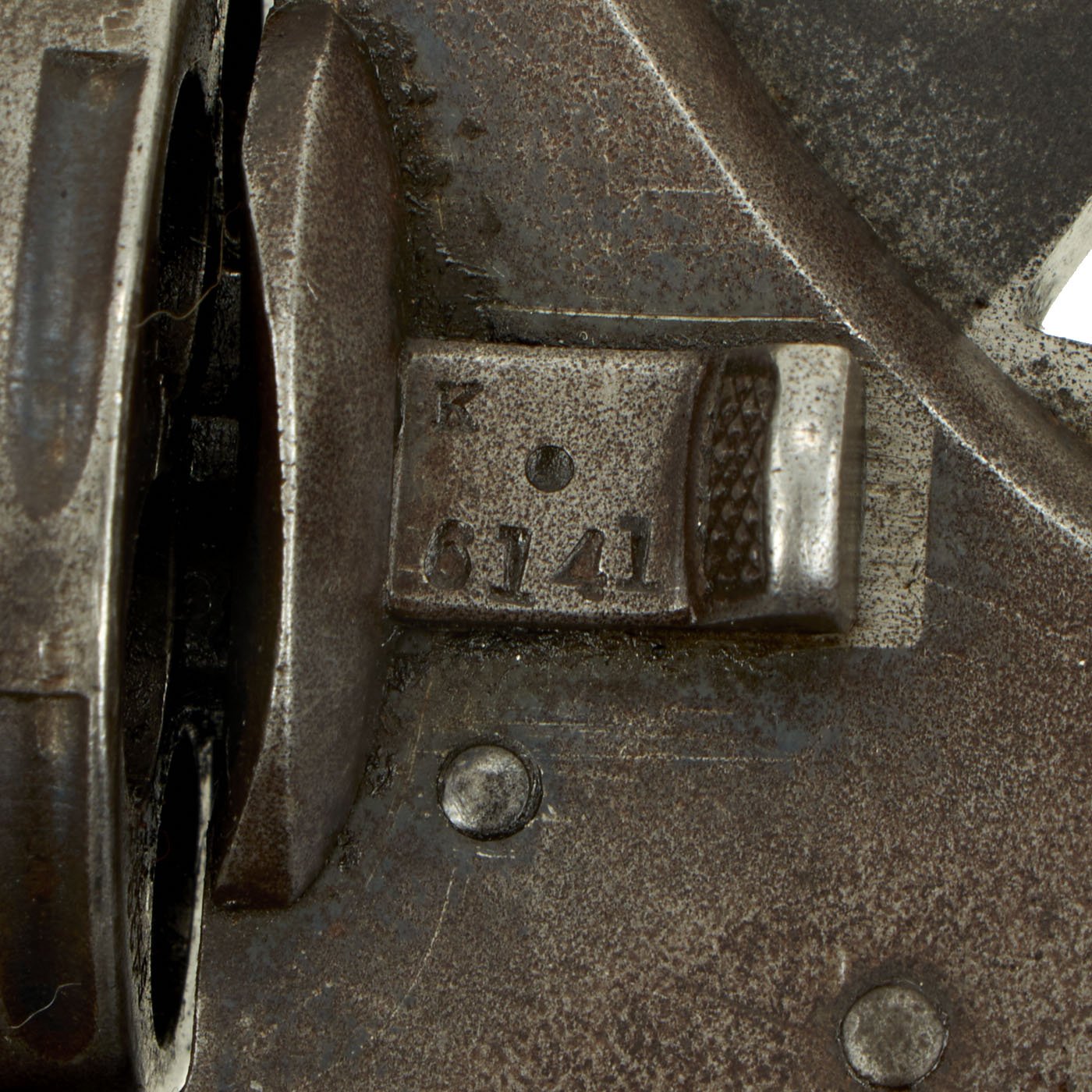

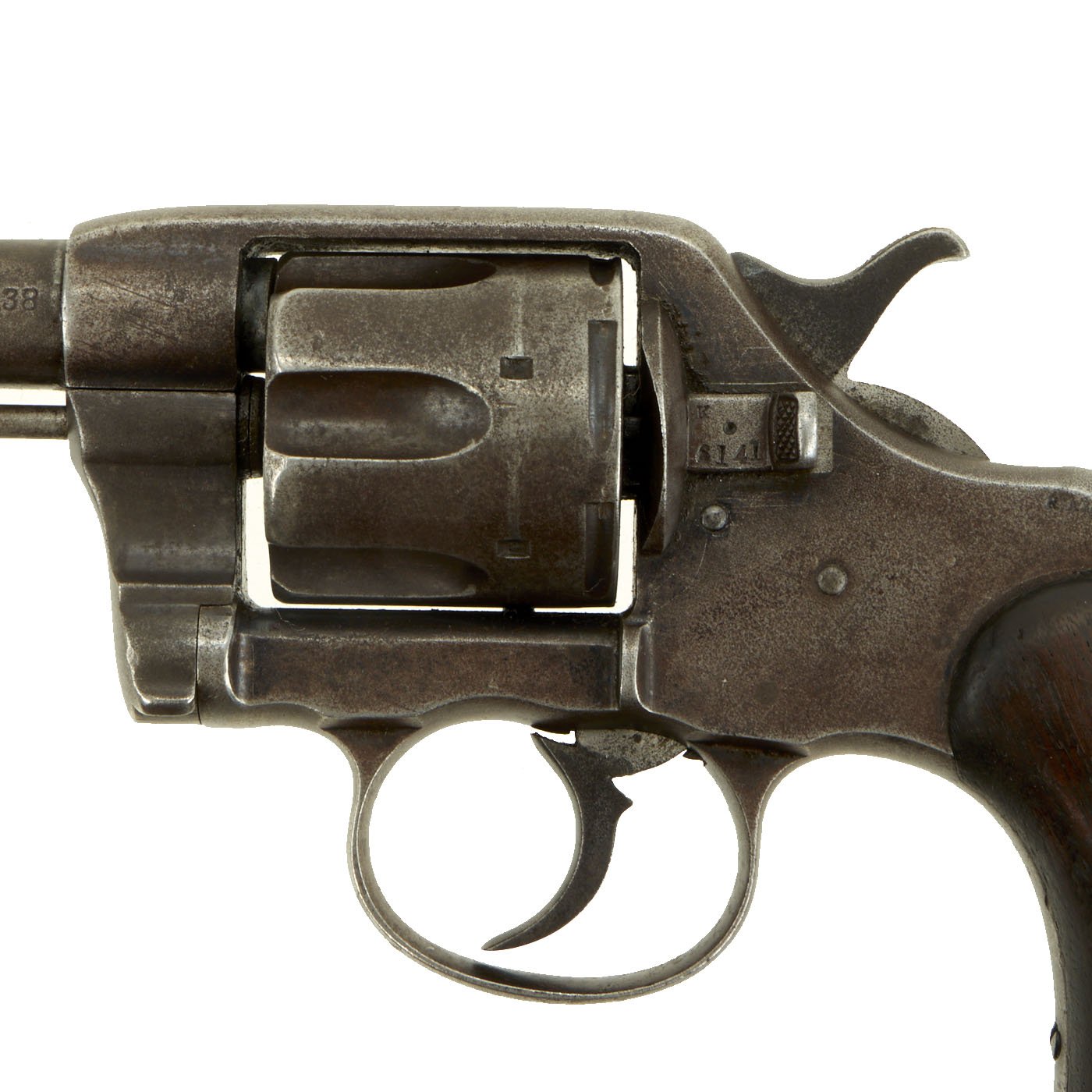

The frame under the cylinder crane, the cylinder crane itself, and the cylinder release are all marked with shortened serial 6141. Early production D.A. 38 revolvers had assembly numbers only on these parts, but later produced examples of this had the serial number, as it was found that the butt frame serial number wore off easily. The cylinder itself is marked with 5433, so it is most likely an arsenal replacement.

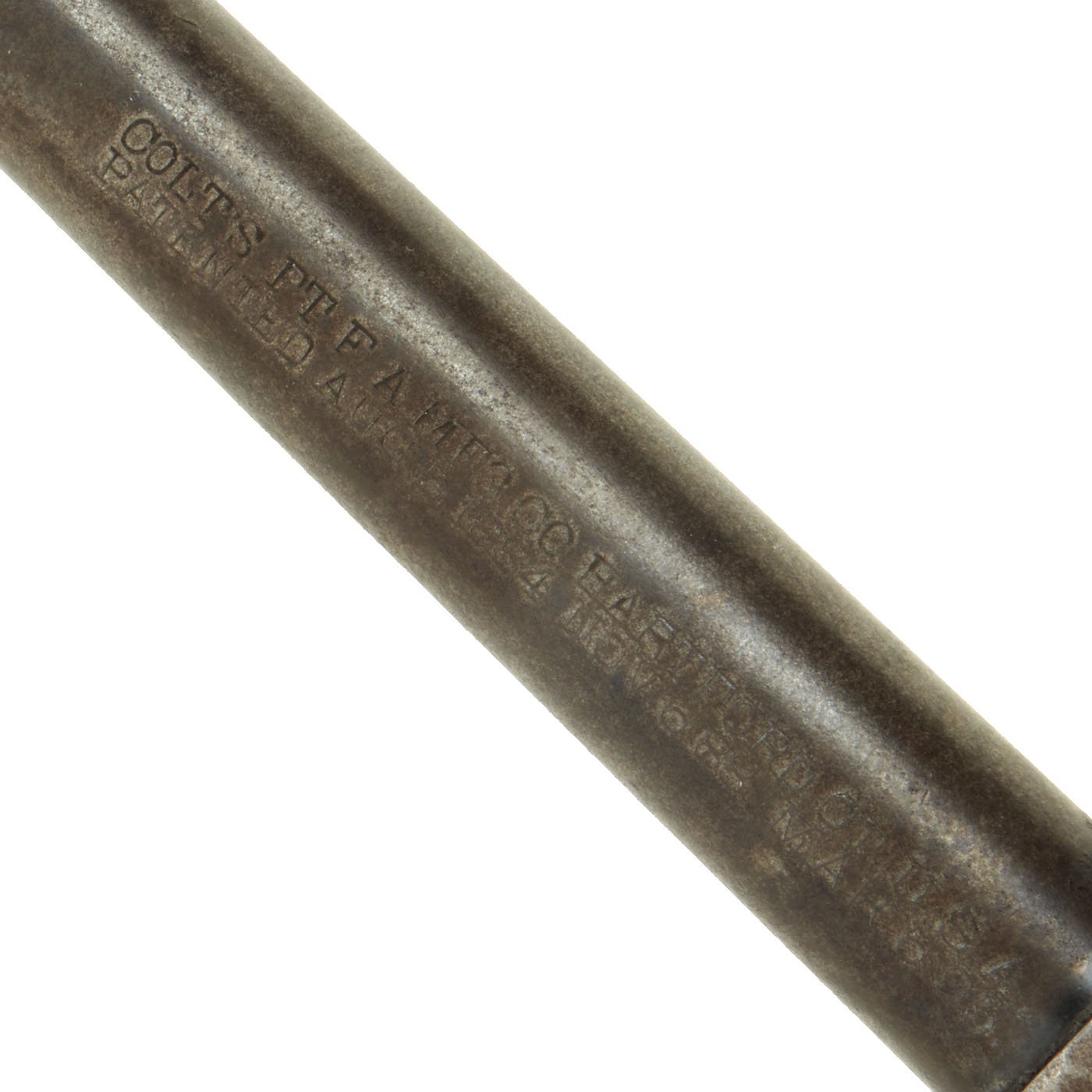

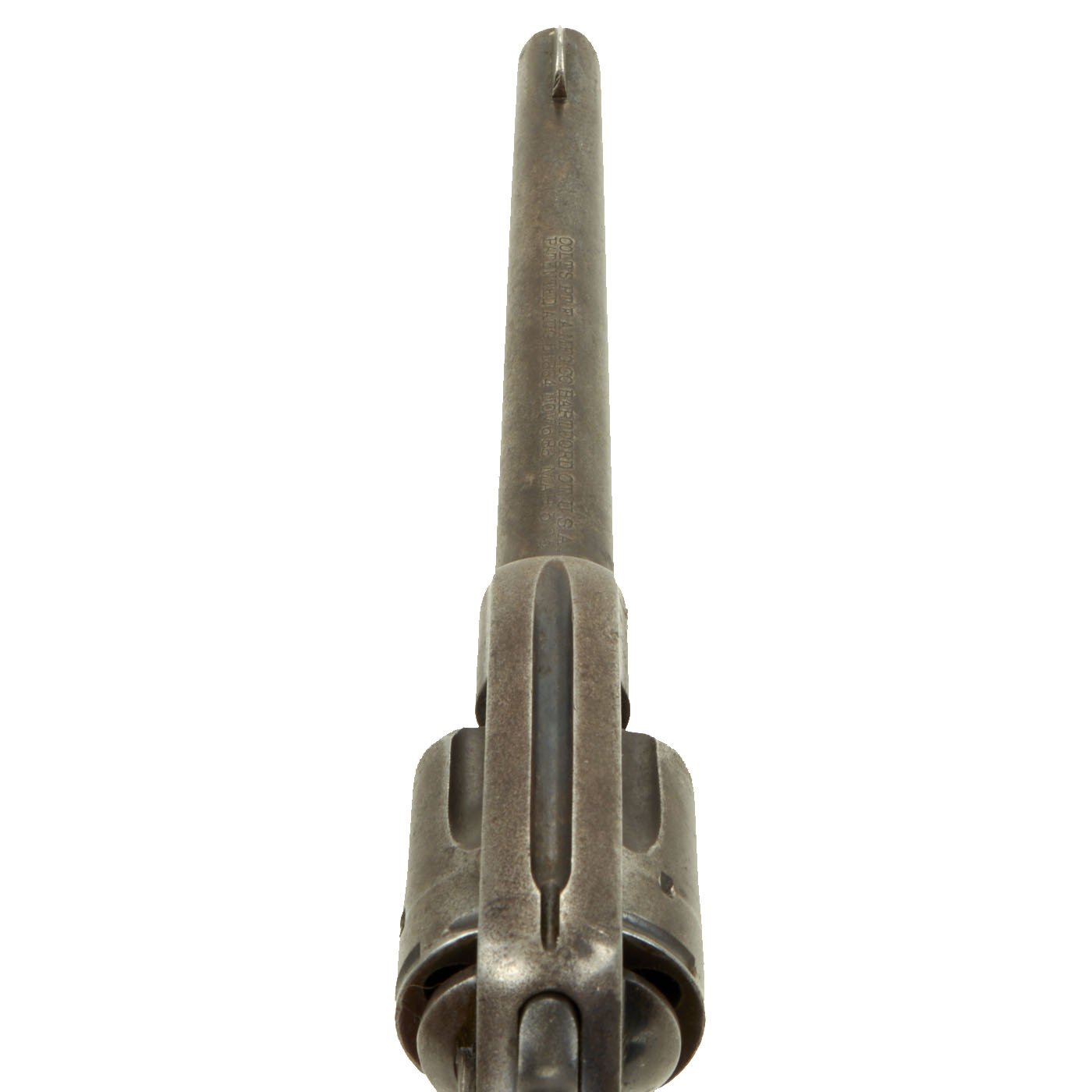

The top of the barrel is still marked with the original manufacture and patent information:

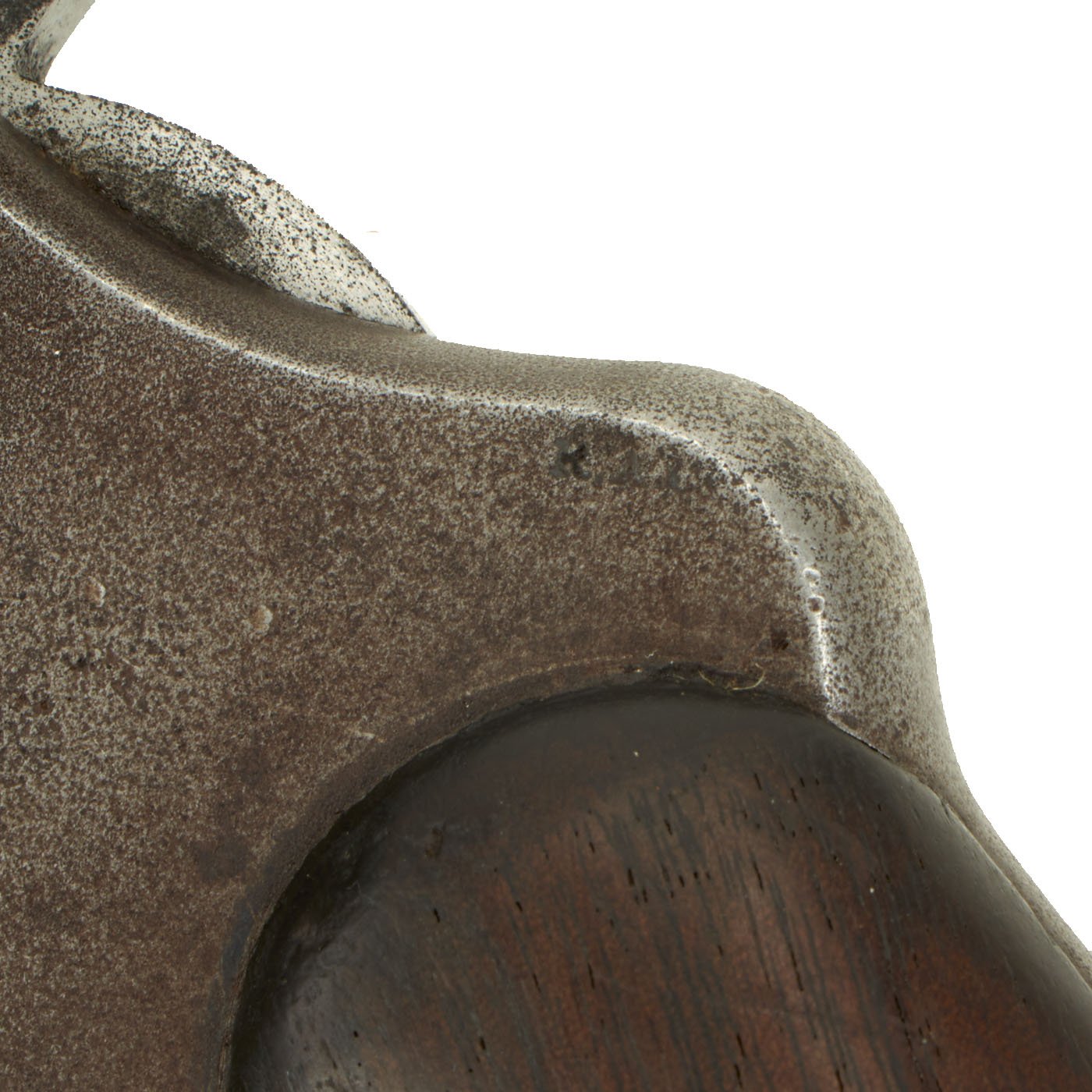

This revolver is stamped with the 1895 patent date, granted for improvements to the revolver. It is stamped above the grip on the frame and on the back of the cylinder with the initials R.A.C., for Rinaldo A. Carr, a civilian employee of the War Department who was the sub-inspector on the revolvers.

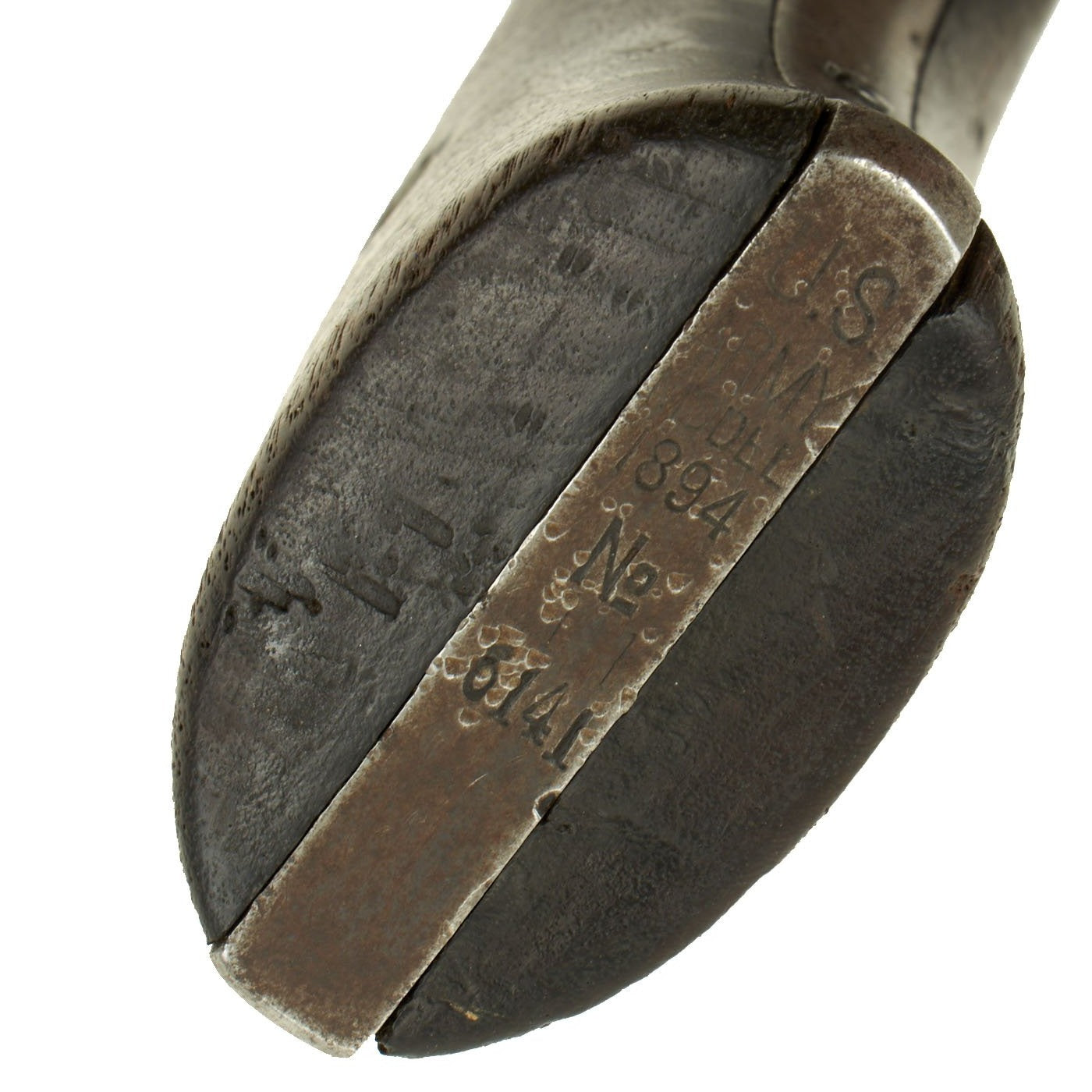

The bottom of the grip frame is correctly stamped:

Condition of the revolver is very good, with a lovely worn finish, and no signs of major rust or other damage. It has a speckled patina in places, but nothing out of the ordinary for a 100 year old revolver. The bore is in very good condition, with a mostly bright finish, showing just a bit of wear in places. The cylinder swings out to the left correctly, with a functional cartridge extractor. We did not notice any issues cycling the revolver in both single and double action.

A very nice U.S. martial revolver that may very well have seen service in the Spanish American War with great markings. Ready to display!

Specifications:

Year of Manufacture: 1895
Caliber:  .38 Long Colt
Ammunition Type: Centerfire Cartridge
Barrel Length: 6 inches
Overall Length: 11 1/2 inches
Action: Double / Single
Feed System: 6 Shot Revolver

IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to most US States and most U.S. territories.

These antique guns are not sold in "live" condition, and are not tested for the the ability to feed or load any type of cartridge. They are sold as collector's items or as "wall hangers" not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

Pre-1899 Manufacture, no licenses required, allowed to ship to most addresses within the United States.
