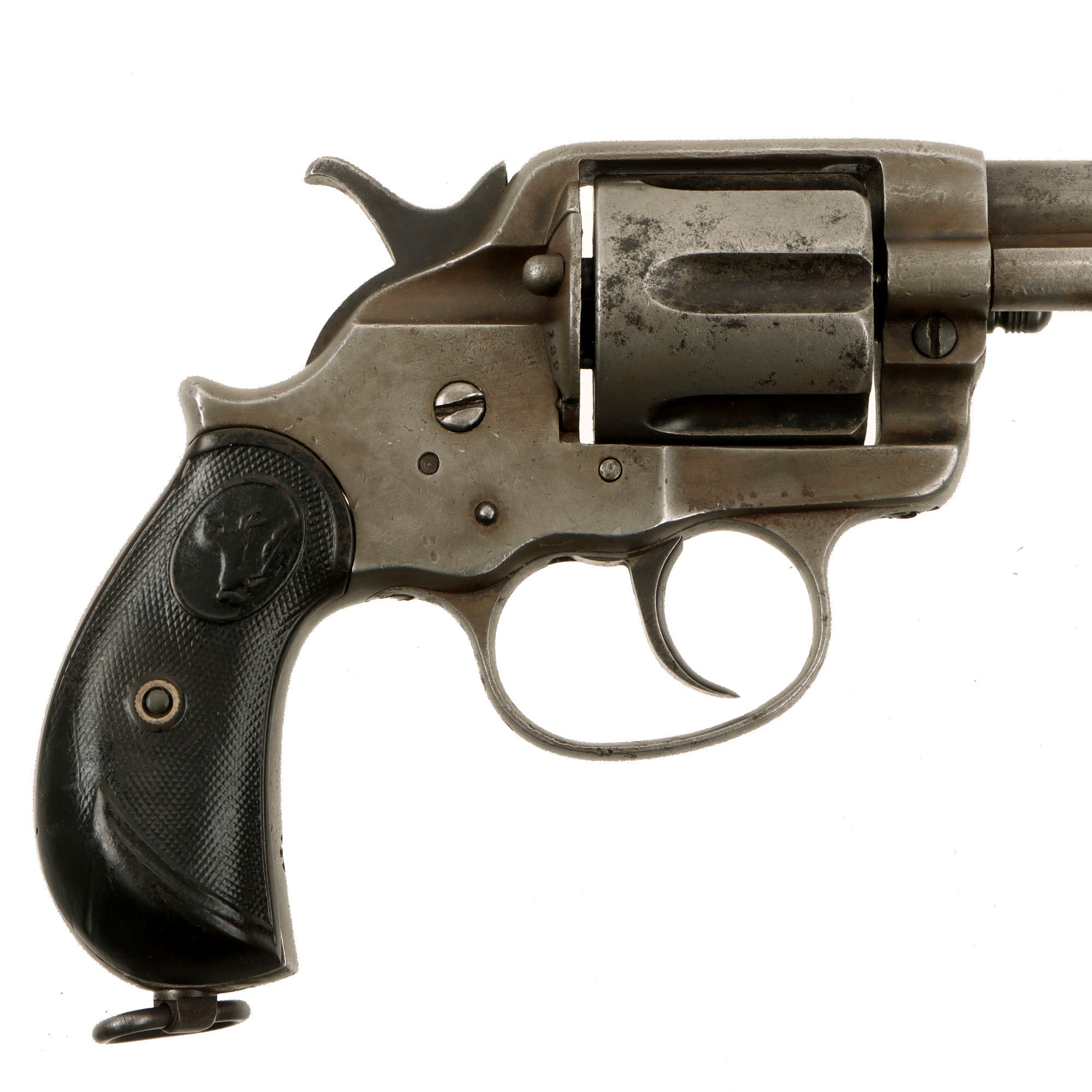

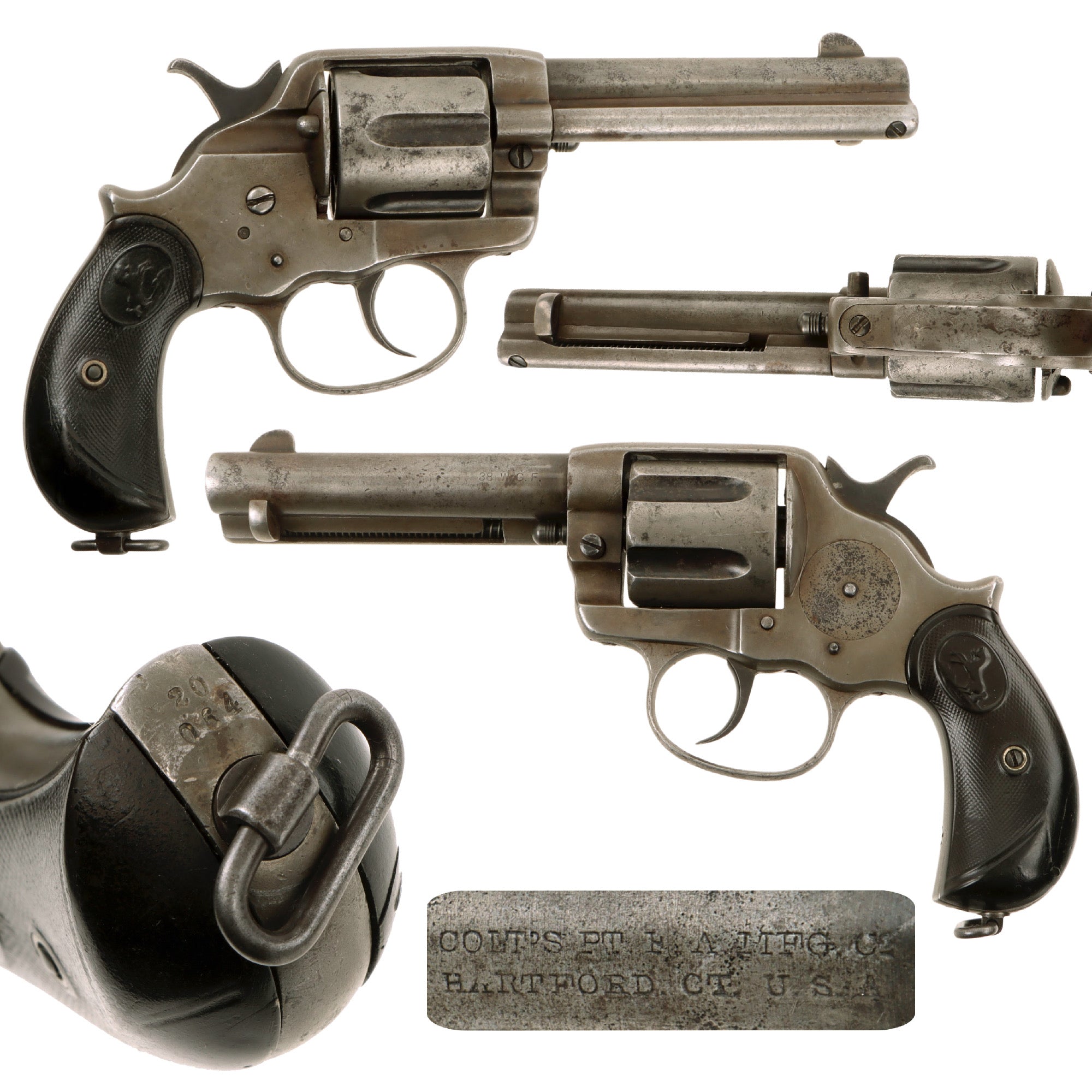

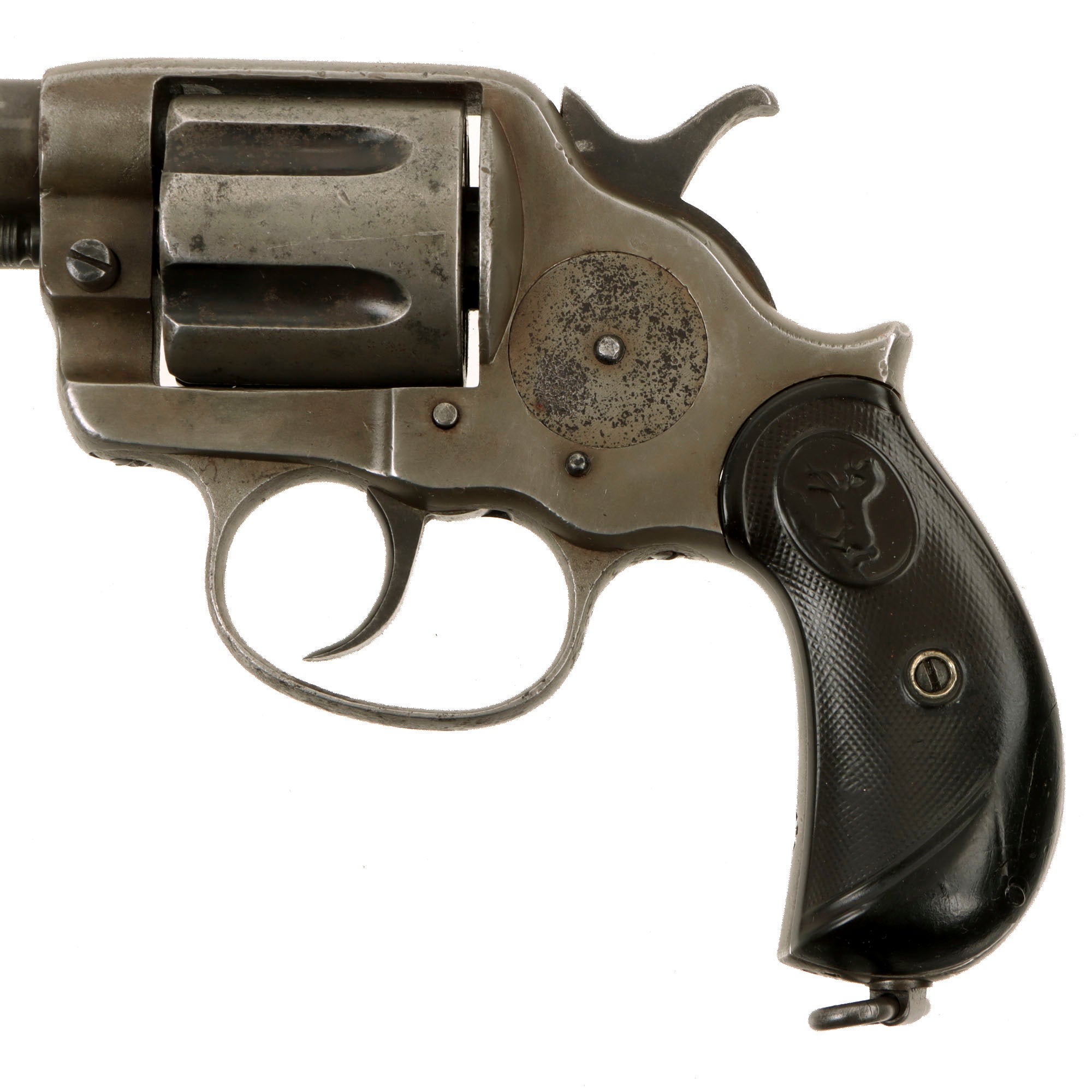

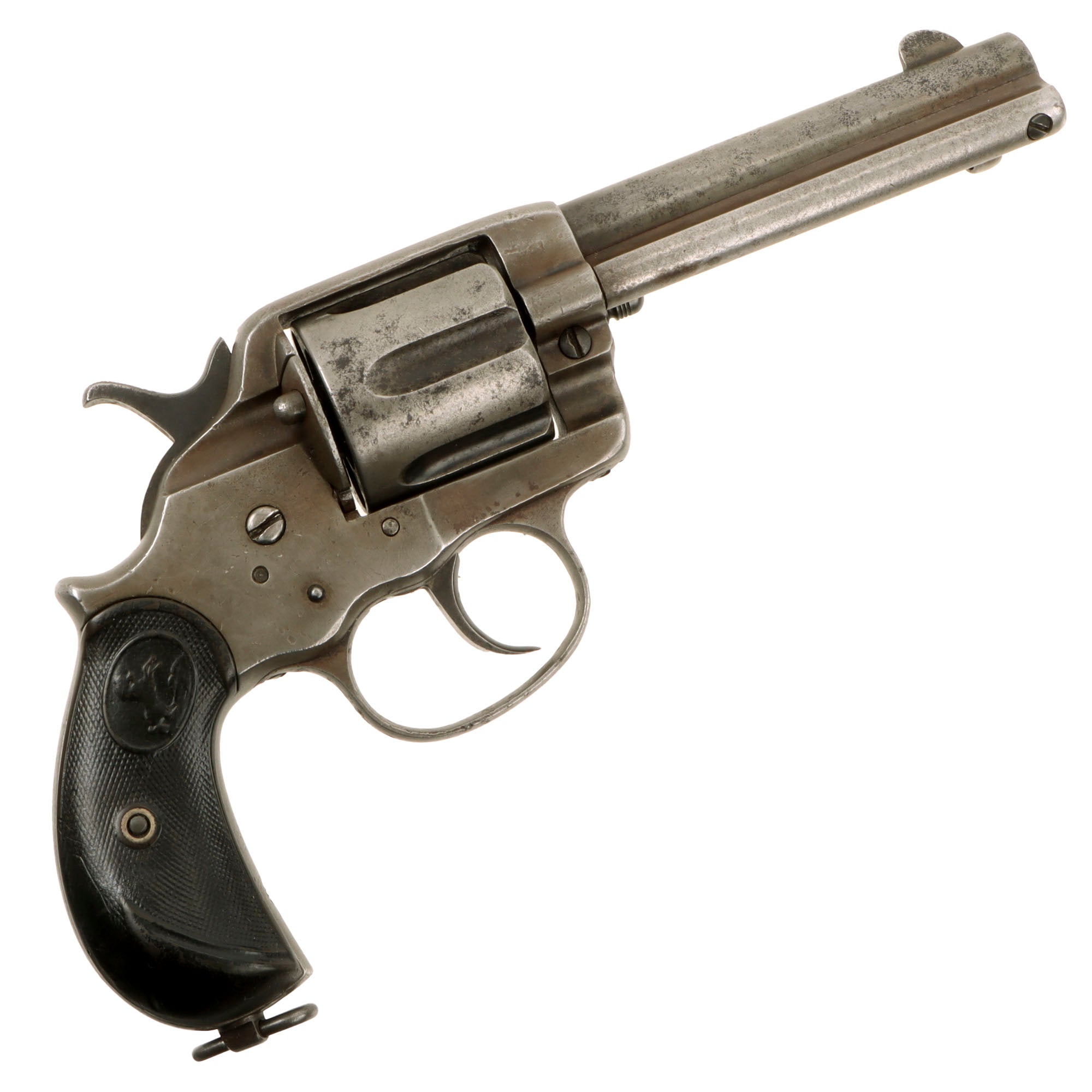

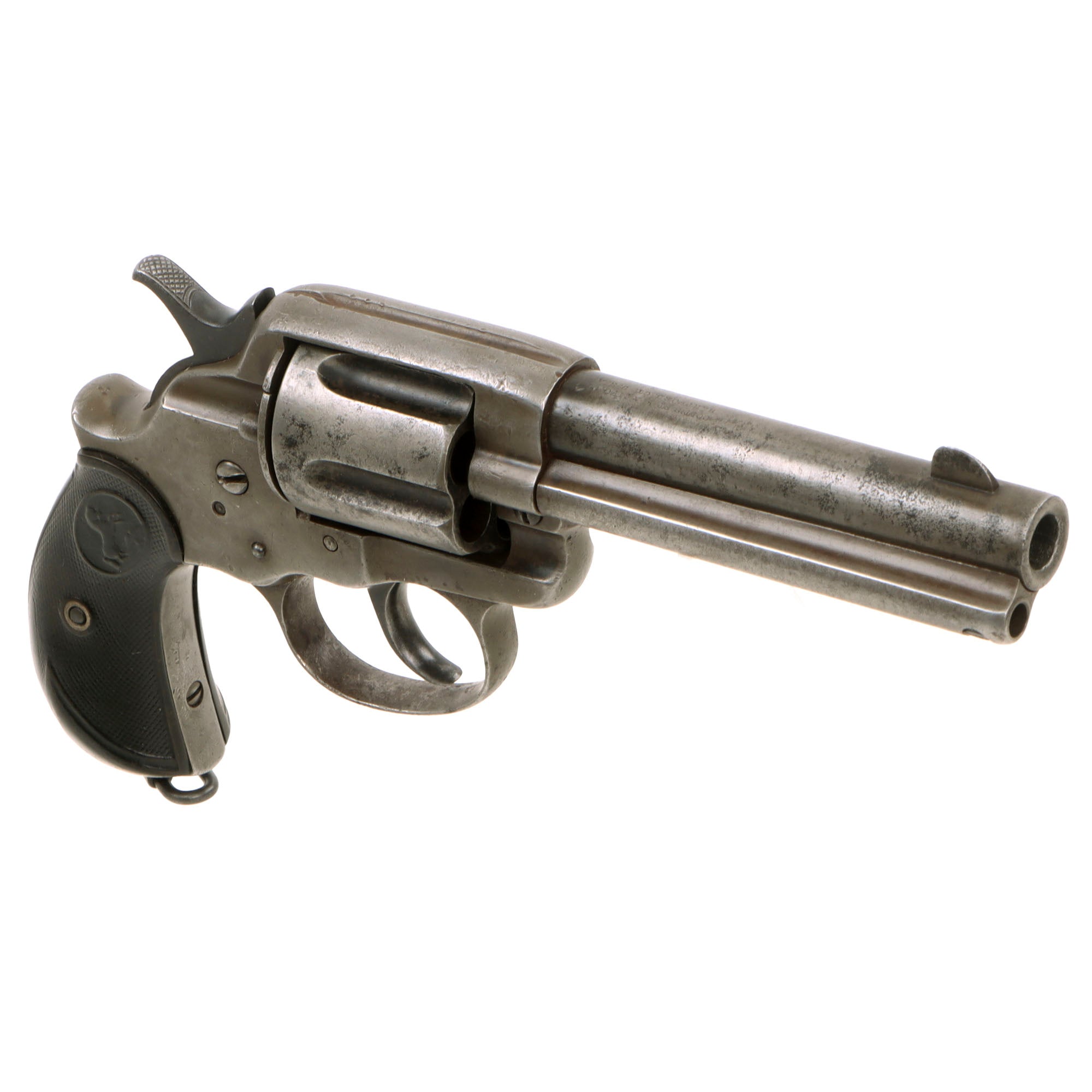

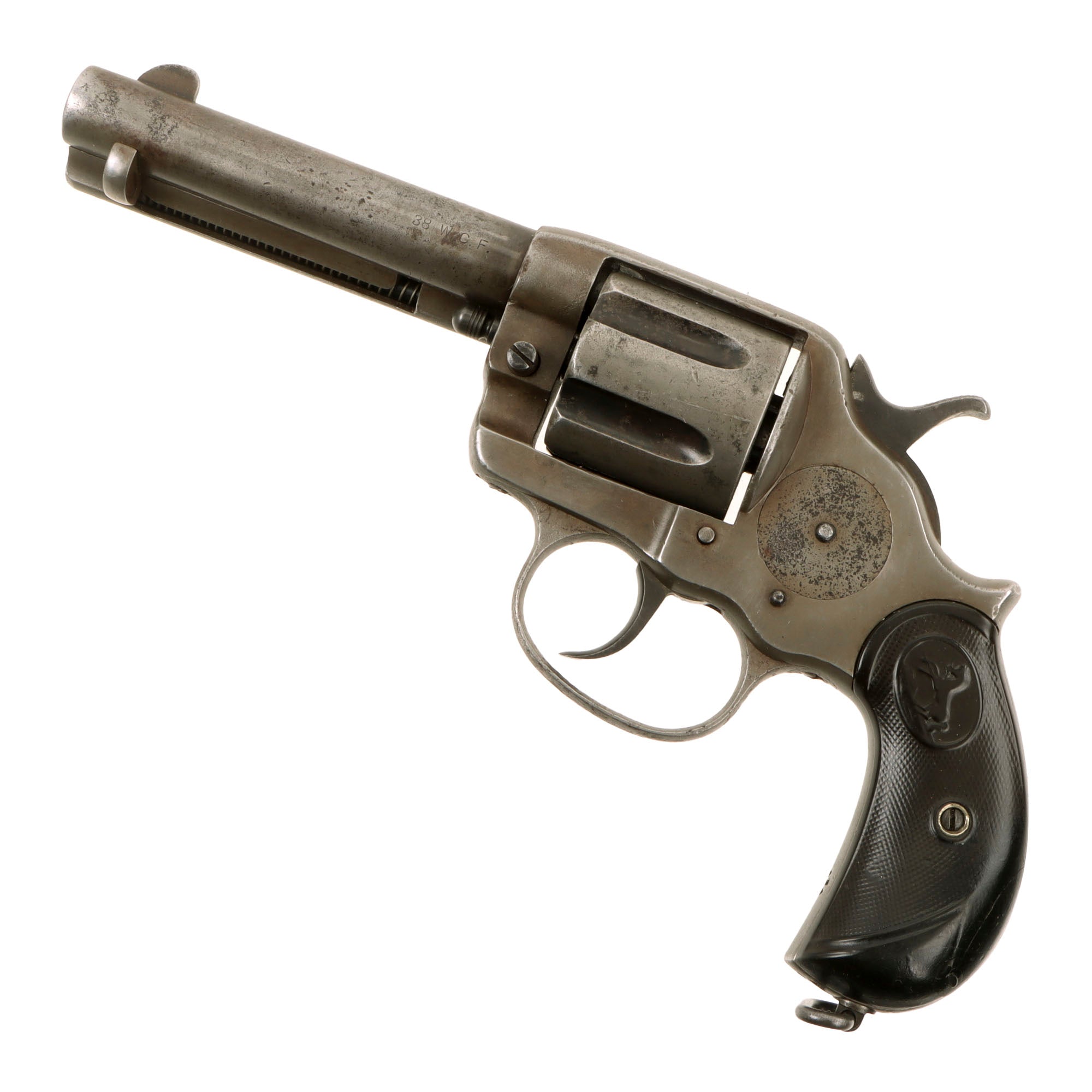

Original Item: Only One Available. The romance around Colt "Cowboy" Revolvers never ceases to amaze us. This is a nice "frontier used" example of the Model 1878 Double Action Revolver in .38-40 WCF, with a short 4 3/4" barrel. This model was manufactured by Colt's Manufacturing Company from 1878 to 1907, and is often referred to as the "Frontier" or the "Double Action Army" revolver. A total of 51,210 Model 1878 revolvers were manufactured from 1878 to 1907, including 4,600 for the US Ordnance Department. These are known as the "Philippine" or "Alaskan" models.

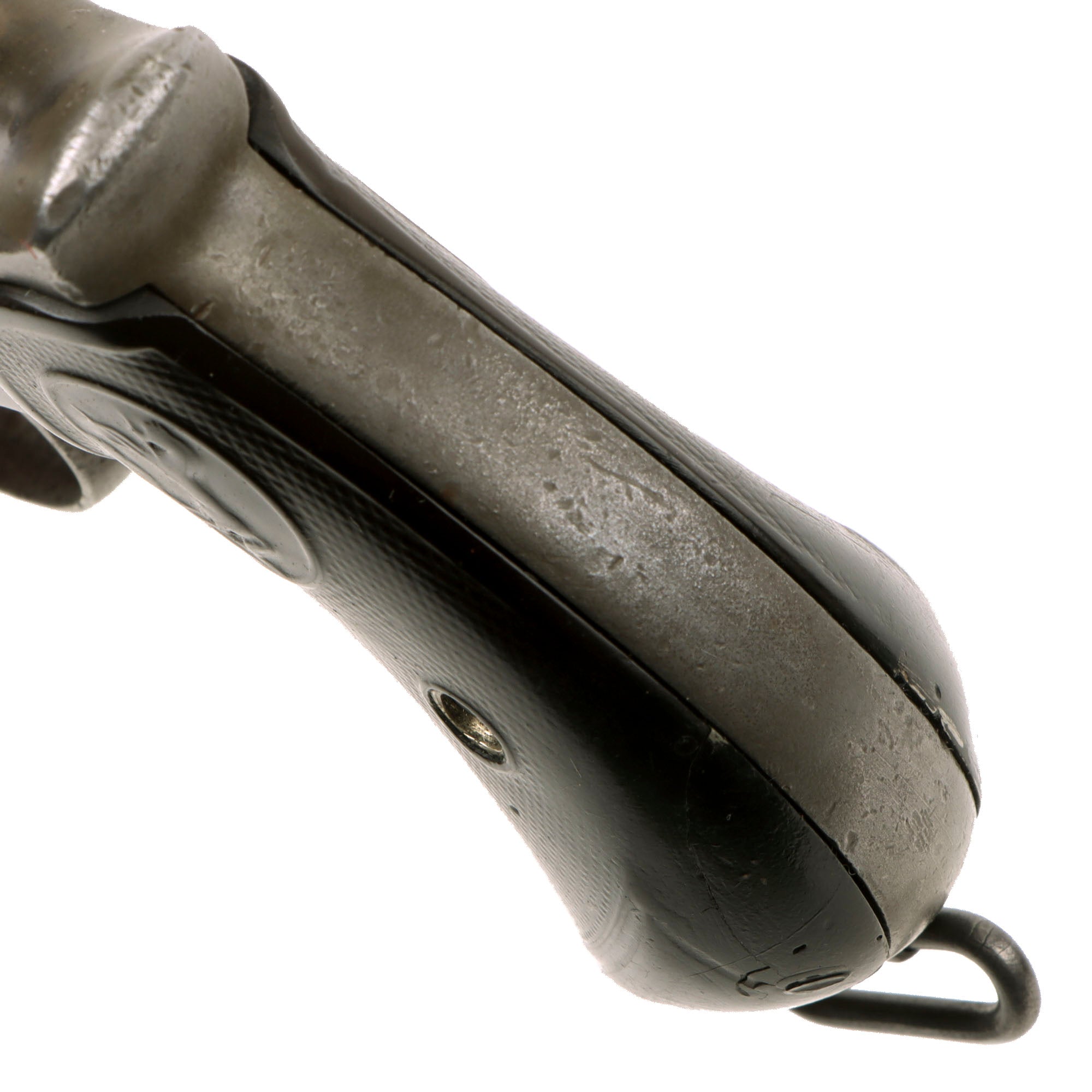

This revolver looks to have seen long use on the frontier, with the original finish worn to a lovely gray patina, with some areas of past peppering and light pitting, now cleaned away. In good working condition, this is still an old lady and be treated as such. The original Factory installed black hard rubber colt grips showing the Colt "Prancing Pony" logo appear to be in great condition, but show smoothness though handling wear, as well as some old repairs.

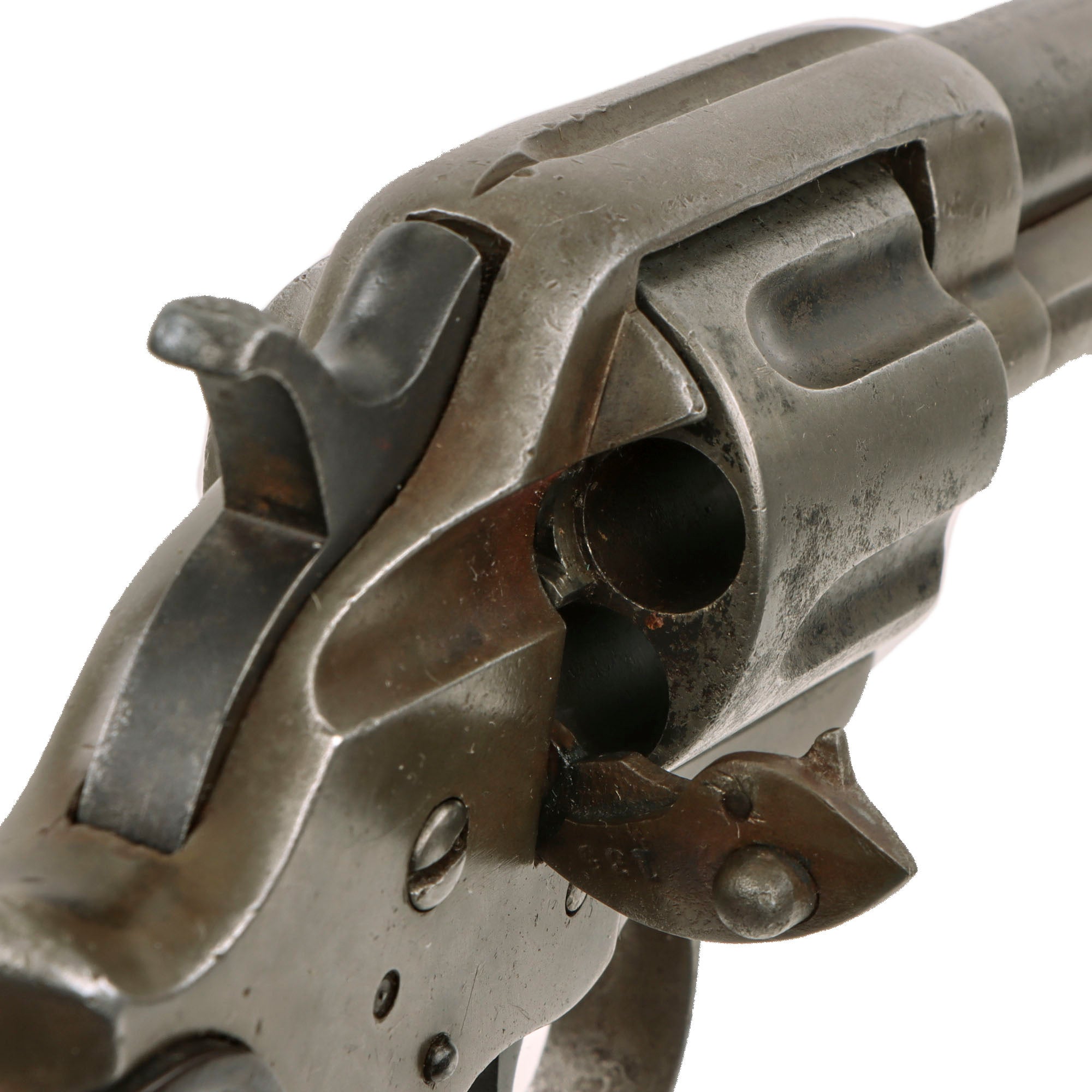

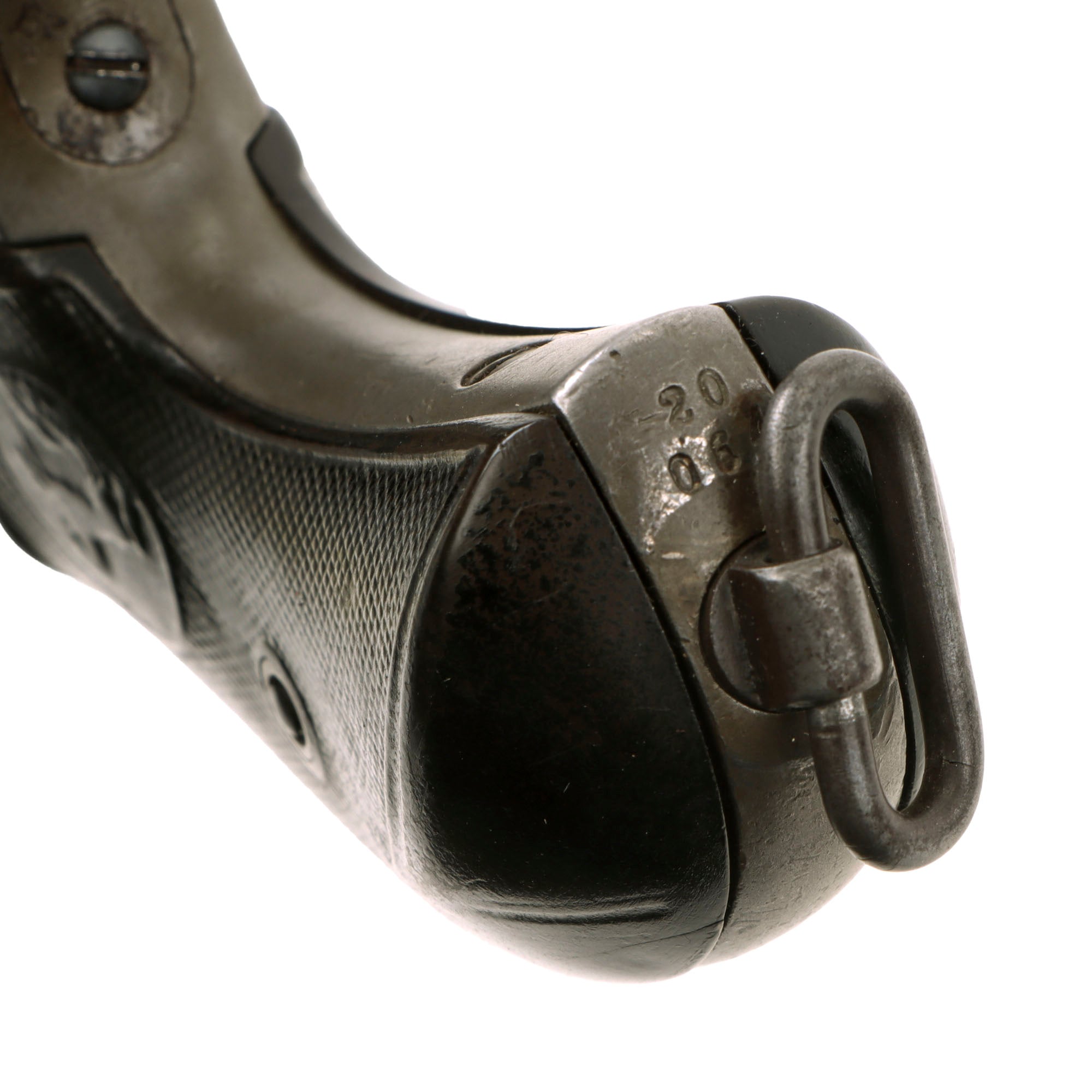

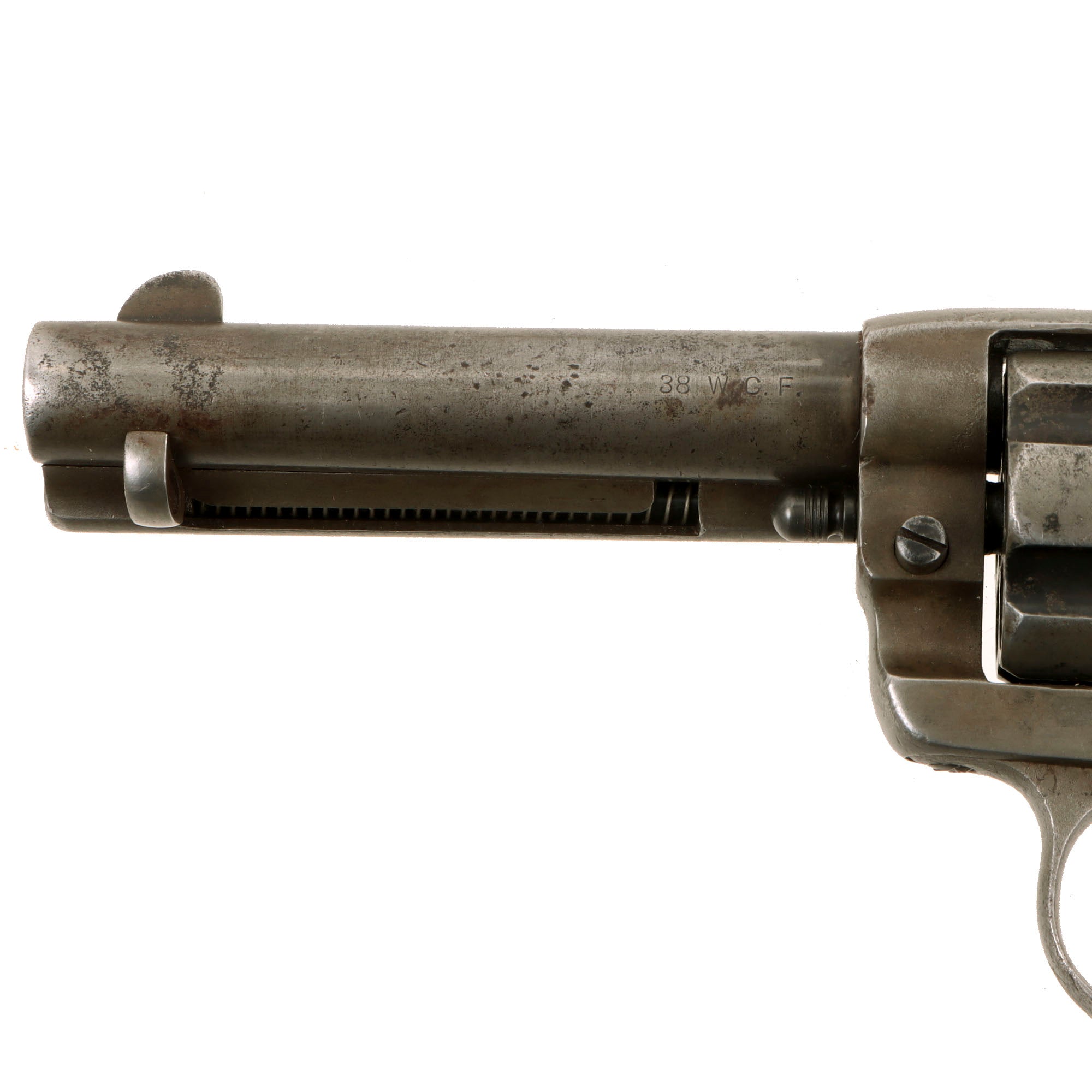

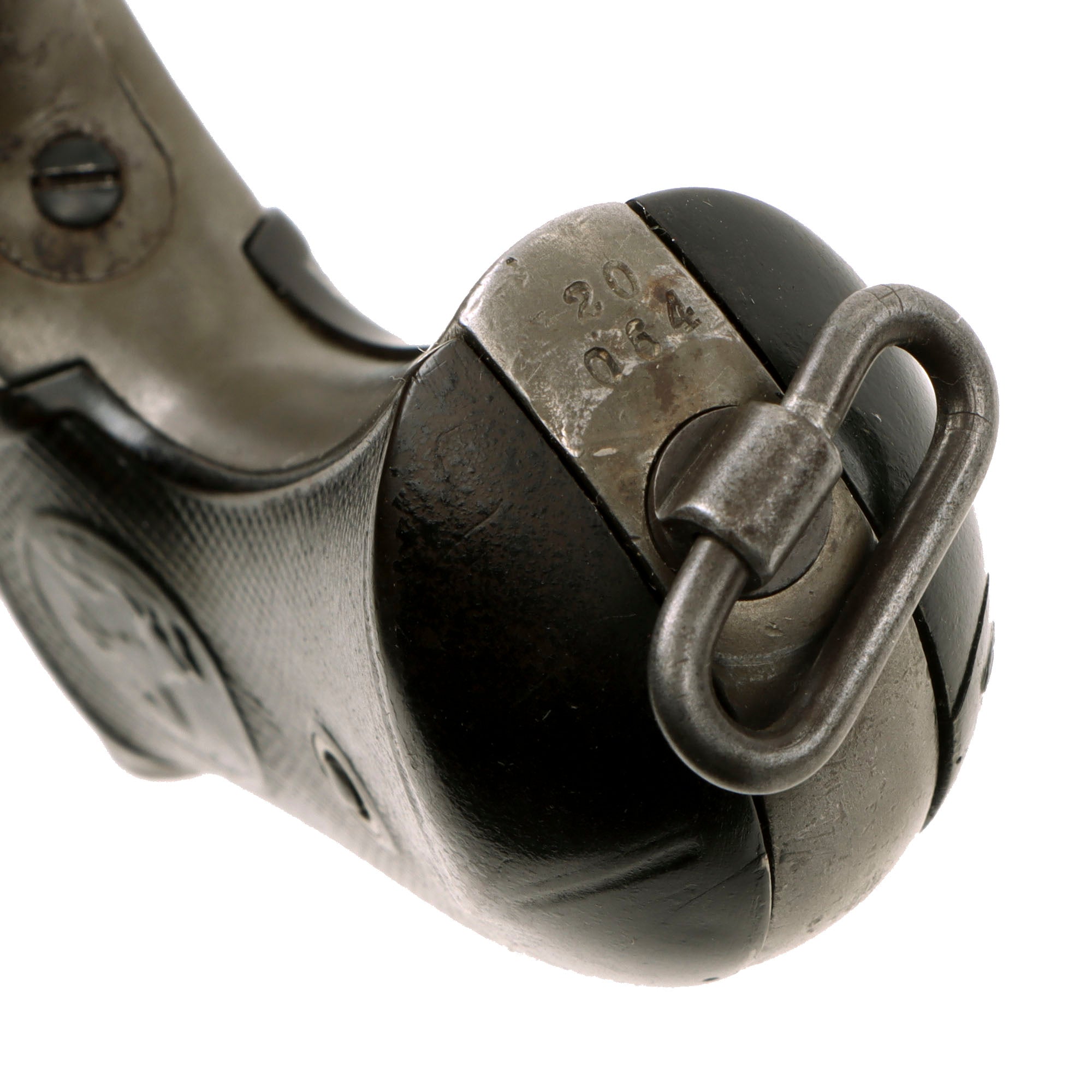

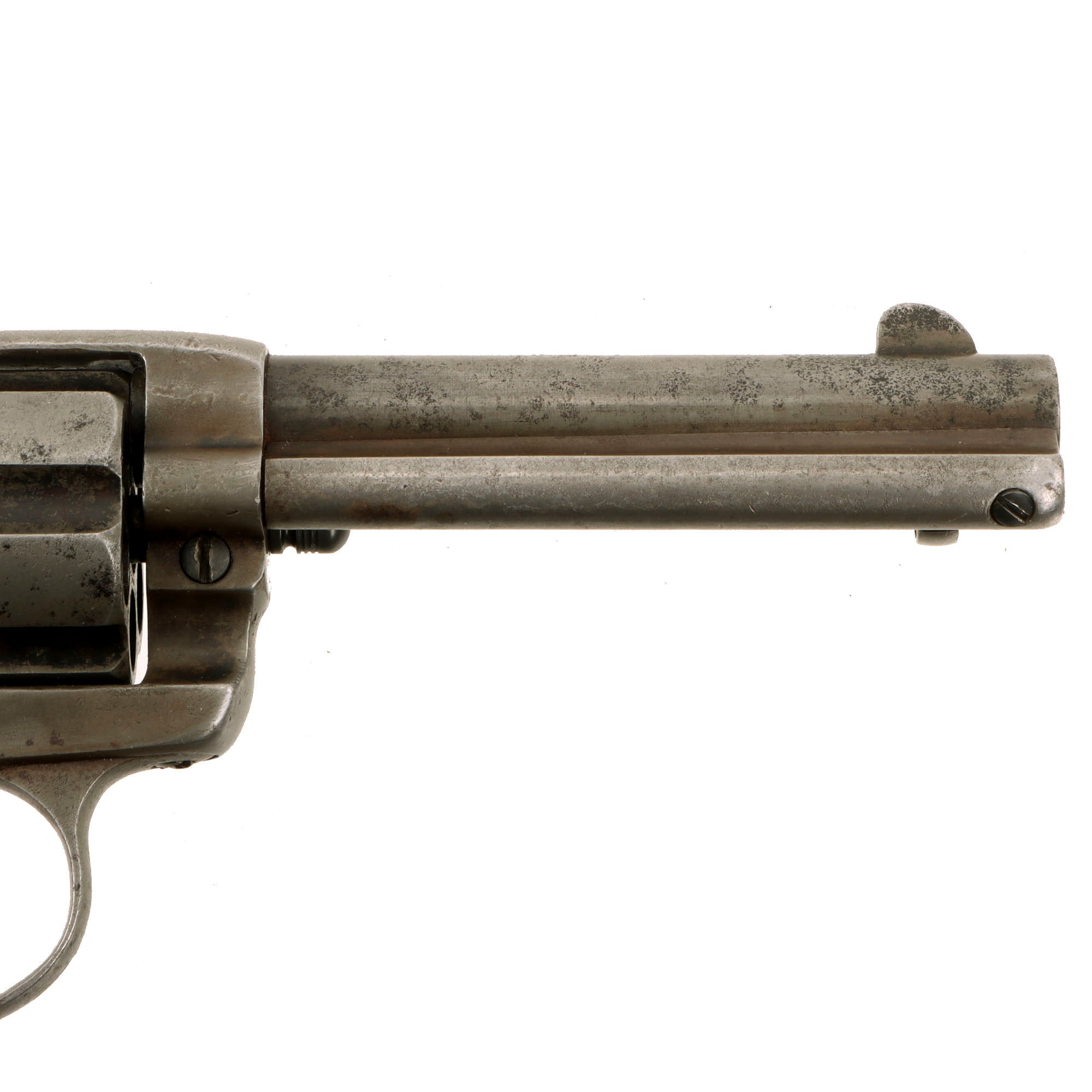

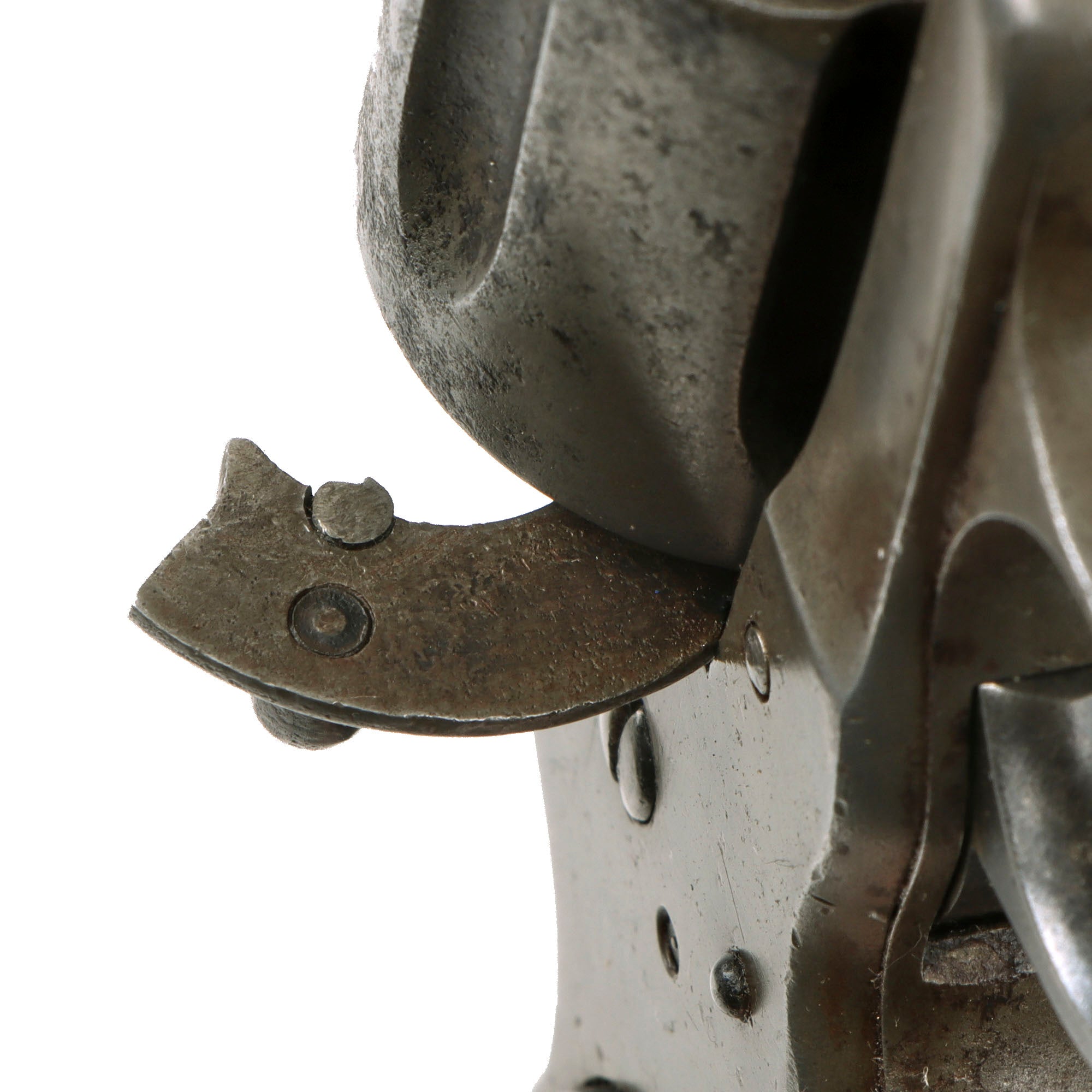

It is marked on the bottom of the grip with worn serial number 20064, indicating it was made in 1887. The back of the cylinder is worn, and we cannot see any serial number markings. There is also assembly number 135 stamped on the loading gate. It is in full working order and condition, showing a gorgeous worn look, sure to delight any "Old West" Americana collector. This example has a "gunfighter friendly" 4 3/4" inch barrel, which is still clearly marked on the side with 38 W.C.F., which indicates chambering for .38-40 Winchester Center Fire cartridges. This was a very popular cartridge for revolvers and rifles of the time, and this way the owner would only need bring one type of ammunition. While some may question why colt made guns chambered for a competitor's cartridge, having a repeating rifle and revolver that took the same ammunition was a big selling point.

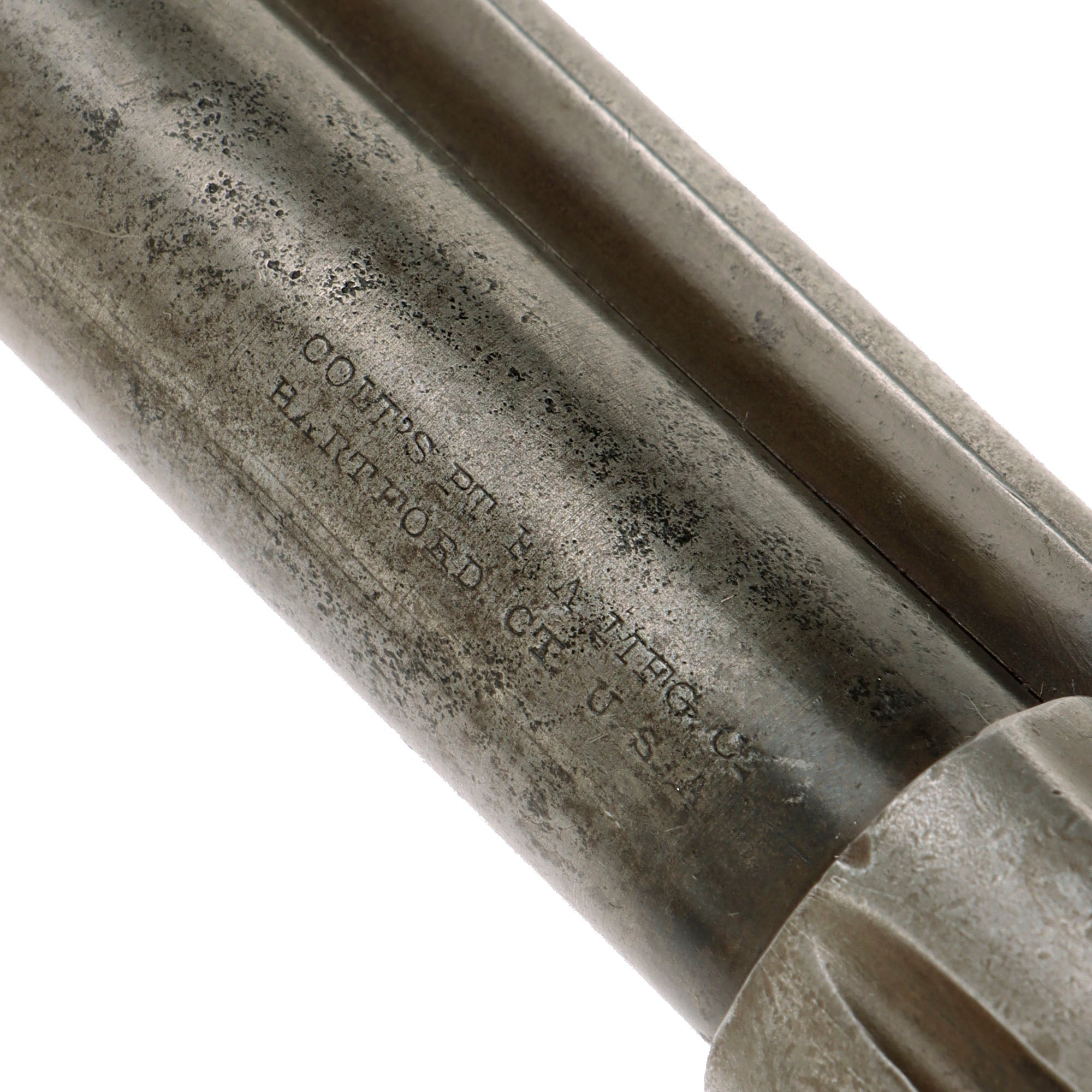

The barrel is also marked on the top with the Colt two line address marking, correct for the shorter length of barrel:

A fine example of an early design Colt Cartridge Revolver in .38-40 caliber, a Pre-1899 ANTIQUE made in 1887. It has a lovely worn patina, and the grips are well broken-in as well. Both do show some repairs at the back, and were painted black at one point probably to obscure this, or because the rubber had started to turn brown as it does due to age.

We tested the functionality in both double and single action, and it cycles well, without any of the usual finicky behavior we usually see. It does however have some overall wobble and slop due to wear, with the cylinder slightly over rotating when the trigger is pulled. The ejector works great, with no sticking. The bore is in very good condition, showing a mostly bright finish with clear lands and grooves. It definitely shows some wear, as well as some past fouling and oxidation, now removed.

A very nice "frontier used" example of an early design Colt Double Action Cartridge Revolver in the popular .38-40 caliber! An PRE-1899 ANTIQUE made in 1887, in lovely condition and ready to display!

Specifications:

Year of Manufacture: 1887
Caliber: .38-40 Winchester
Ammunition Type: Centerfire Cartridge
Barrel Length: 4 3/4 inches
Overall Length: 9 1/2 inches
Action: Double Action Army
Feed System: 6 Shot Revolver

More on the Colt M-1878 Double Action Revolver:

Samuel Colt experimented with double-action revolver systems, but he considered them to be unreliable. After Colt's patent expired in 1857, other manufacturers began producing double-action revolvers, but Colt's Manufacturing did not manufacture its own double-action revolver until 1877, twenty years after the patent had expired.

The M1878 was designed by William Mason, Colt's factory manager and Charles Brinckerhoff Richards, Superintendent of Engineering. It was similar in design to the Colt Model 1877. The Model 1878 had a larger frame, and is therefore sometimes referred to as the "large frame" double-action revolver, while the Model 1877 is likewise referred to as the "small frame" double-action revolver. The Model 1878 was considered a more robust and reliable design than the Model 1877.

The design of the Model 1878 was based on the Model 1877, which in turn was based heavily on the design of the earlier Colt Single Action Army revolver. The double-action revolver is not dramatically different in design than the single-action revolver. A strut is added to connect the trigger movement to the hammer. The top of the trigger slips beyond the strut so that the hammer will stay in full cock if it is pulled back manually.

The Model 1878 had a larger frame than the Model 1877, which allowed it to fire larger and more powerful cartridges, such as the .45 Colt and .44-40 and used the same barrel, ejector parts, and a very similar cylinder to the Single Action Army revolver. At one time, the factory modified Model 1878 cylinders for use in single-action revolvers in an attempt to use up spare parts.

IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to most US States and most U.S. territories.

These antique guns are not sold in "live" condition, and are not tested for the the ability to feed or load any type of cartridge. They are sold as collector's items or as "wall hangers" not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

Pre-1899 Manufacture, no licenses required, allowed to ship to most addresses within the United States.
