Item:
ON9649

Original U.S. Civil War Starr Arms Co. 1858 Double Action .44 Caliber Percussion Army Revolver - Matching Serial No 19758

Regular price $1,195.00

Splitit Learn More

Item Description

Original Item: A Starr revolver (Starr DA) is a double-action revolver that was used in the western theater of the American Civil War until the U.S. Ordnance Department persuaded the Starr Arms Co. to create a single-action variant after discontinuation of the Colt. The price paid by the U.S. government for the DA army revolver was $25 (equivalent to $475 in 2014 inflation dollars).

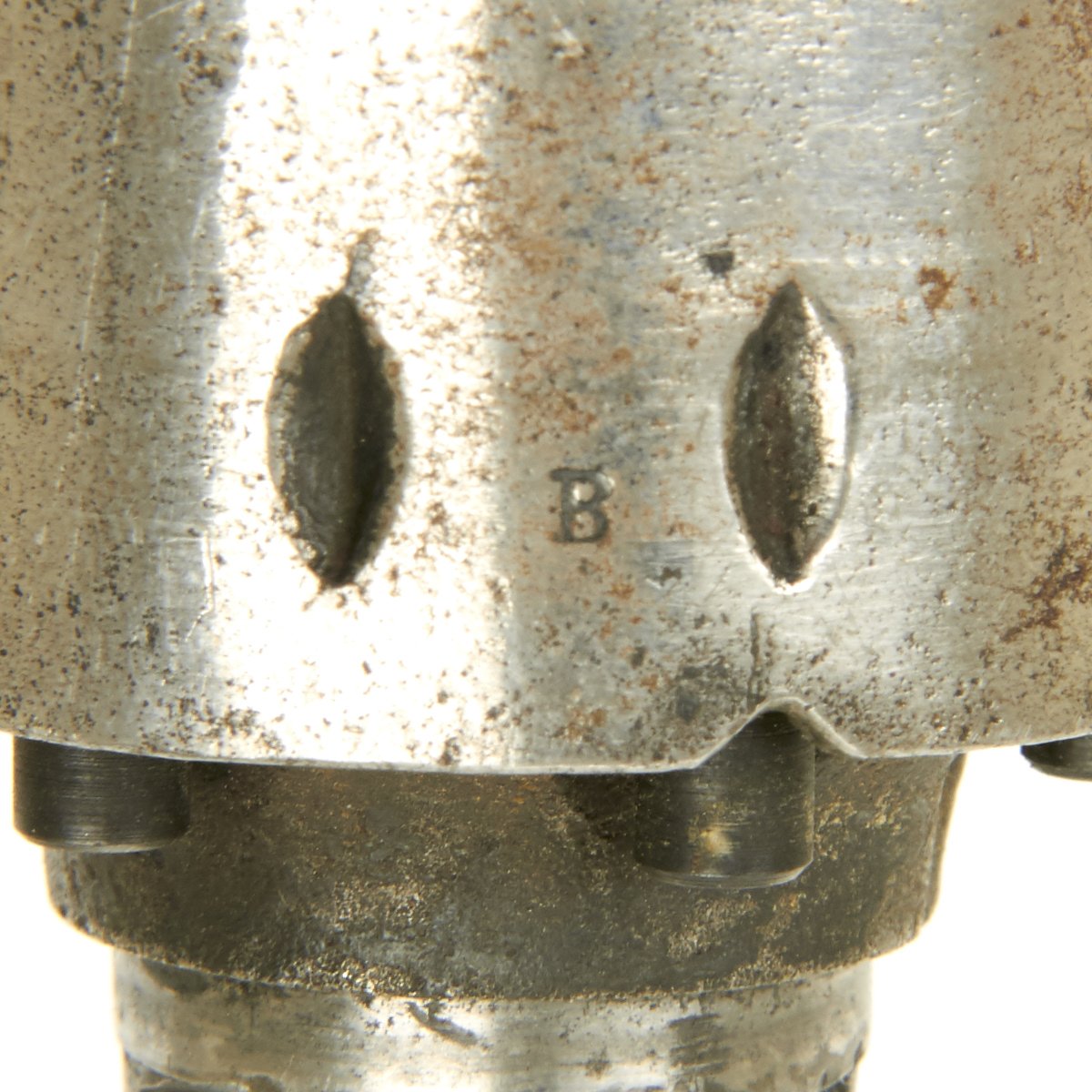

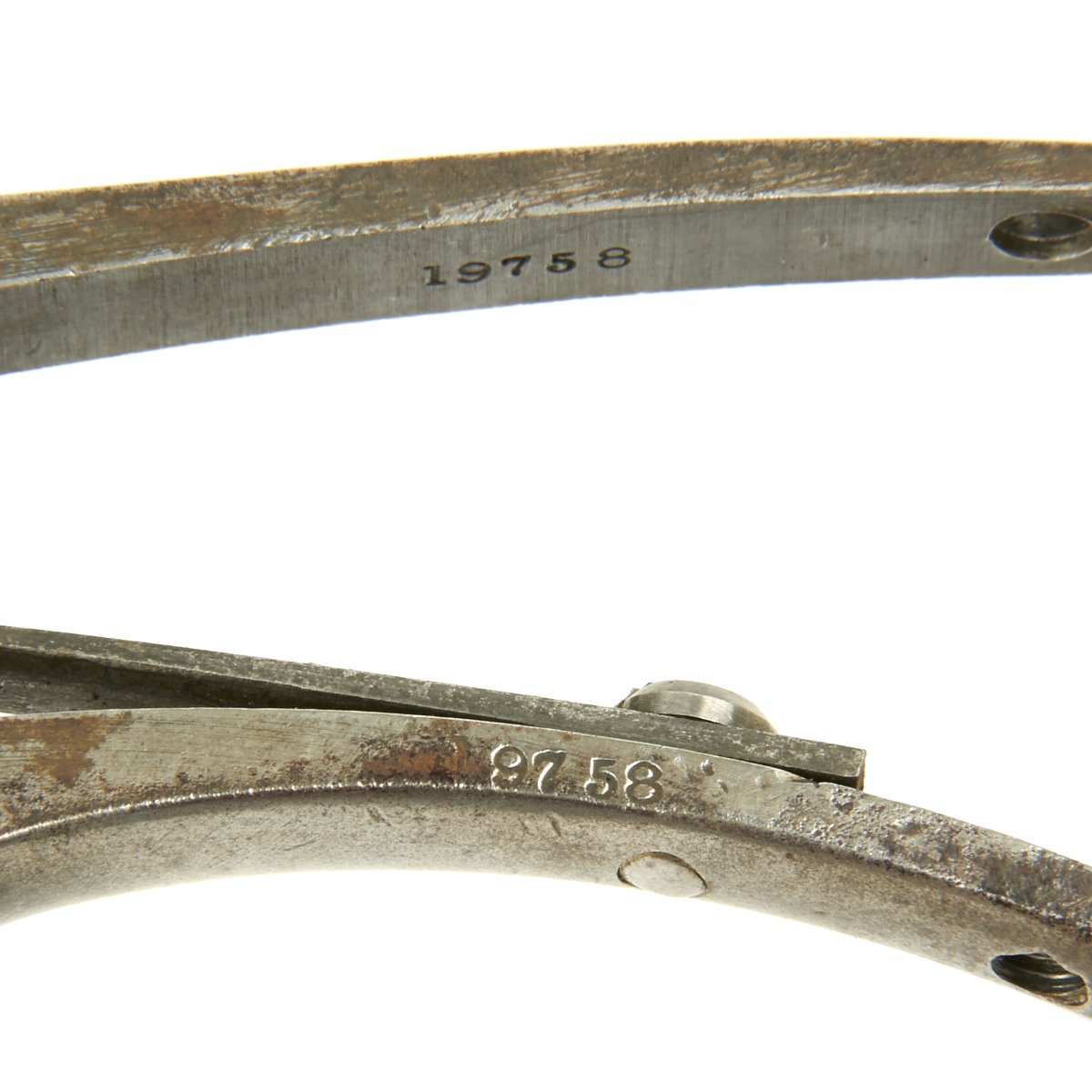

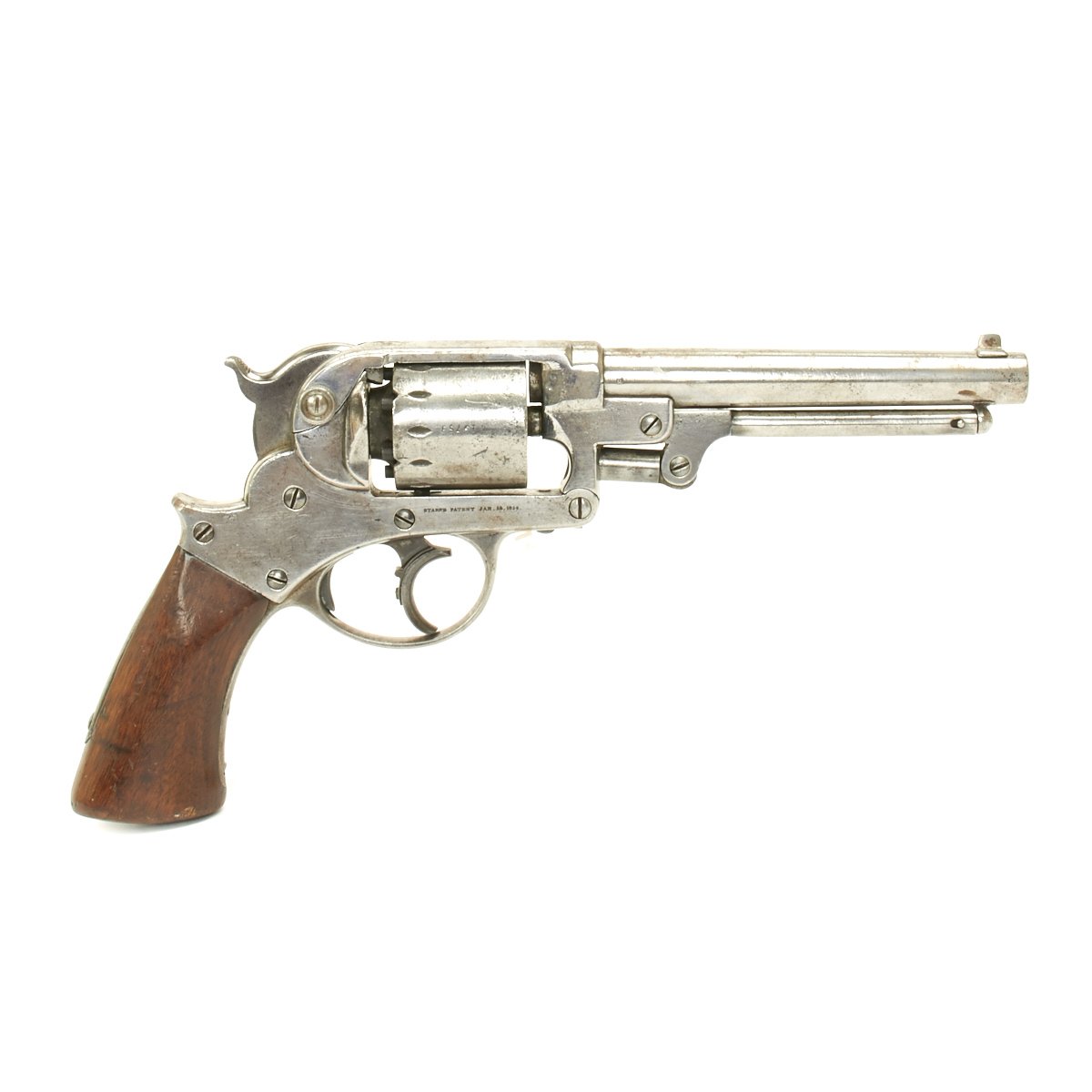

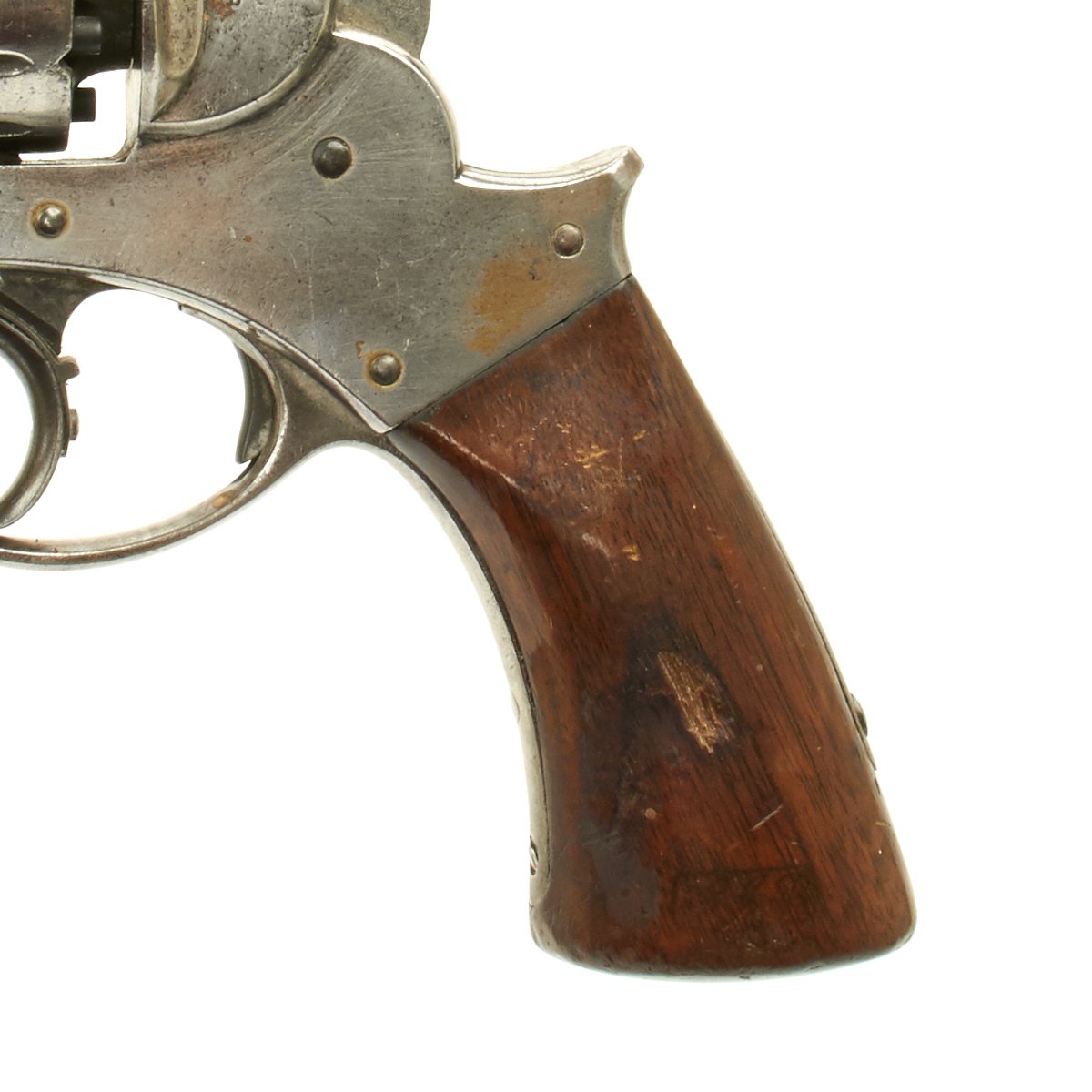

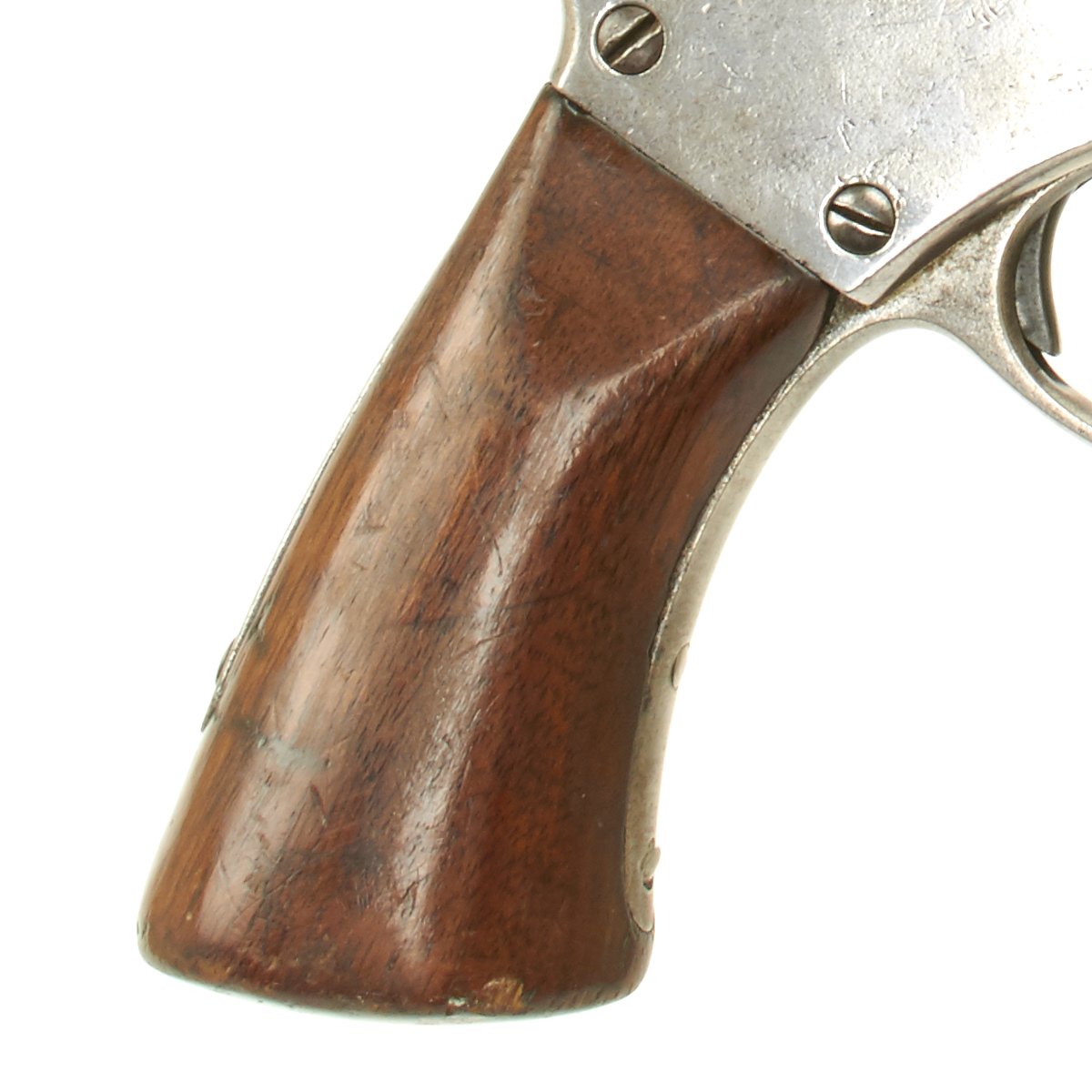

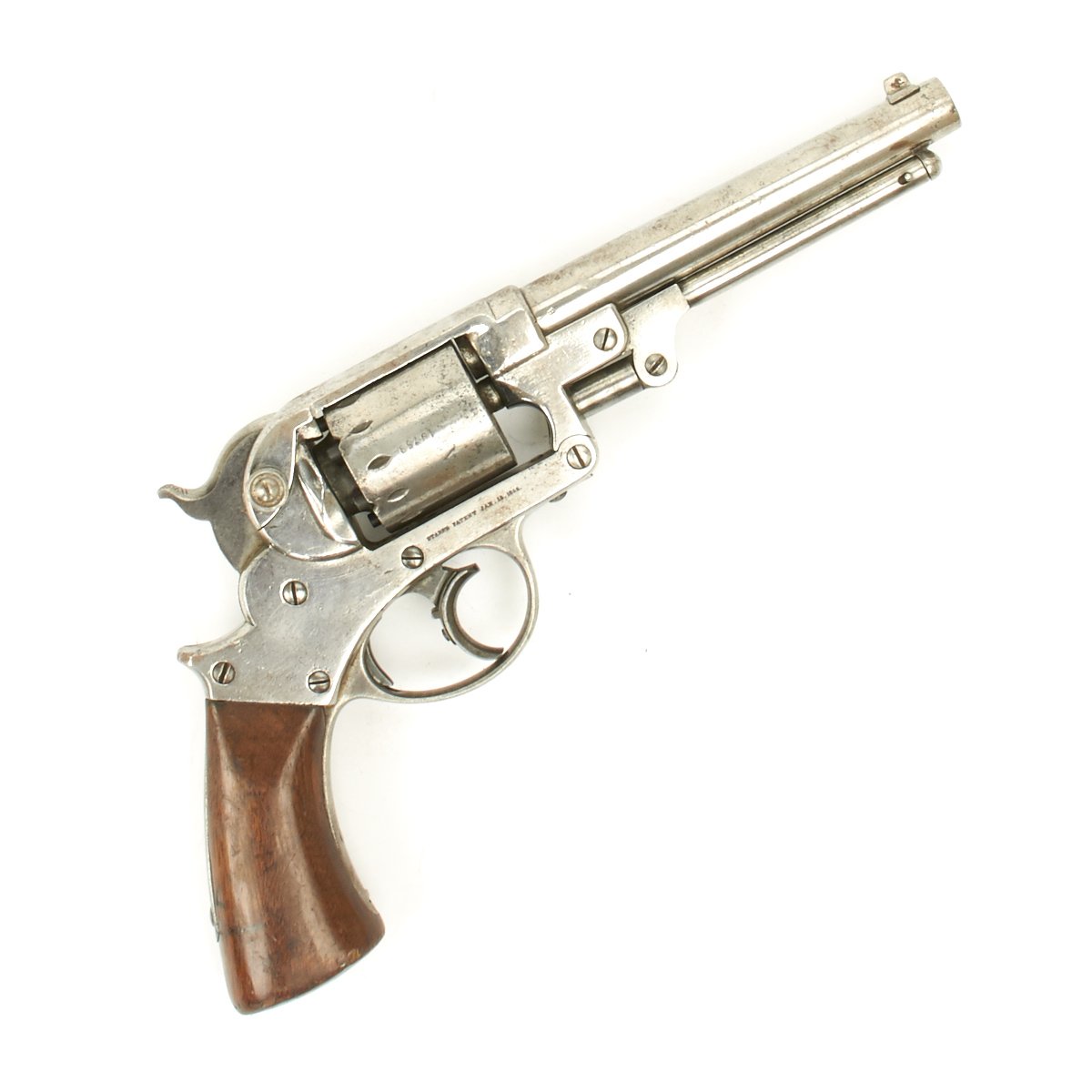

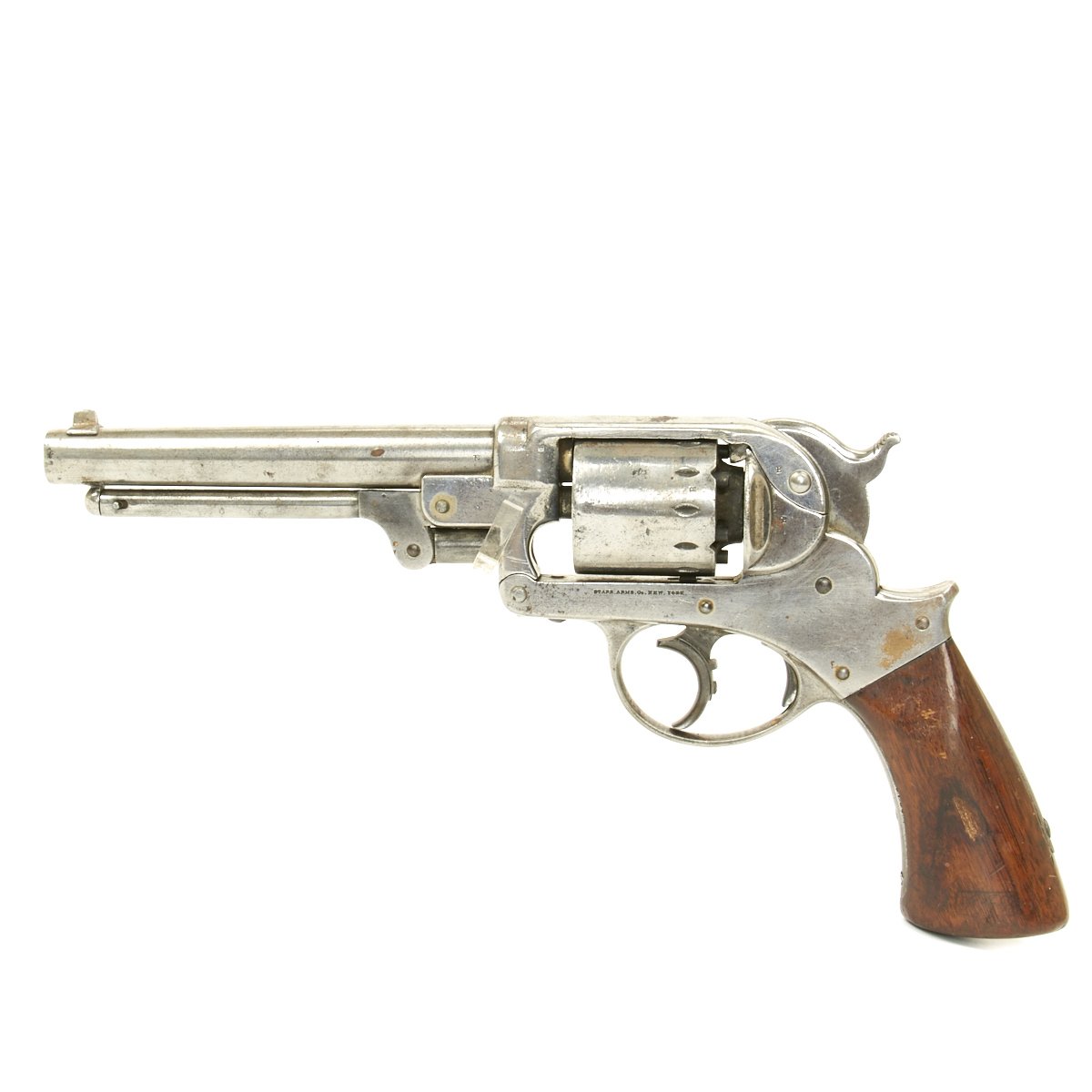

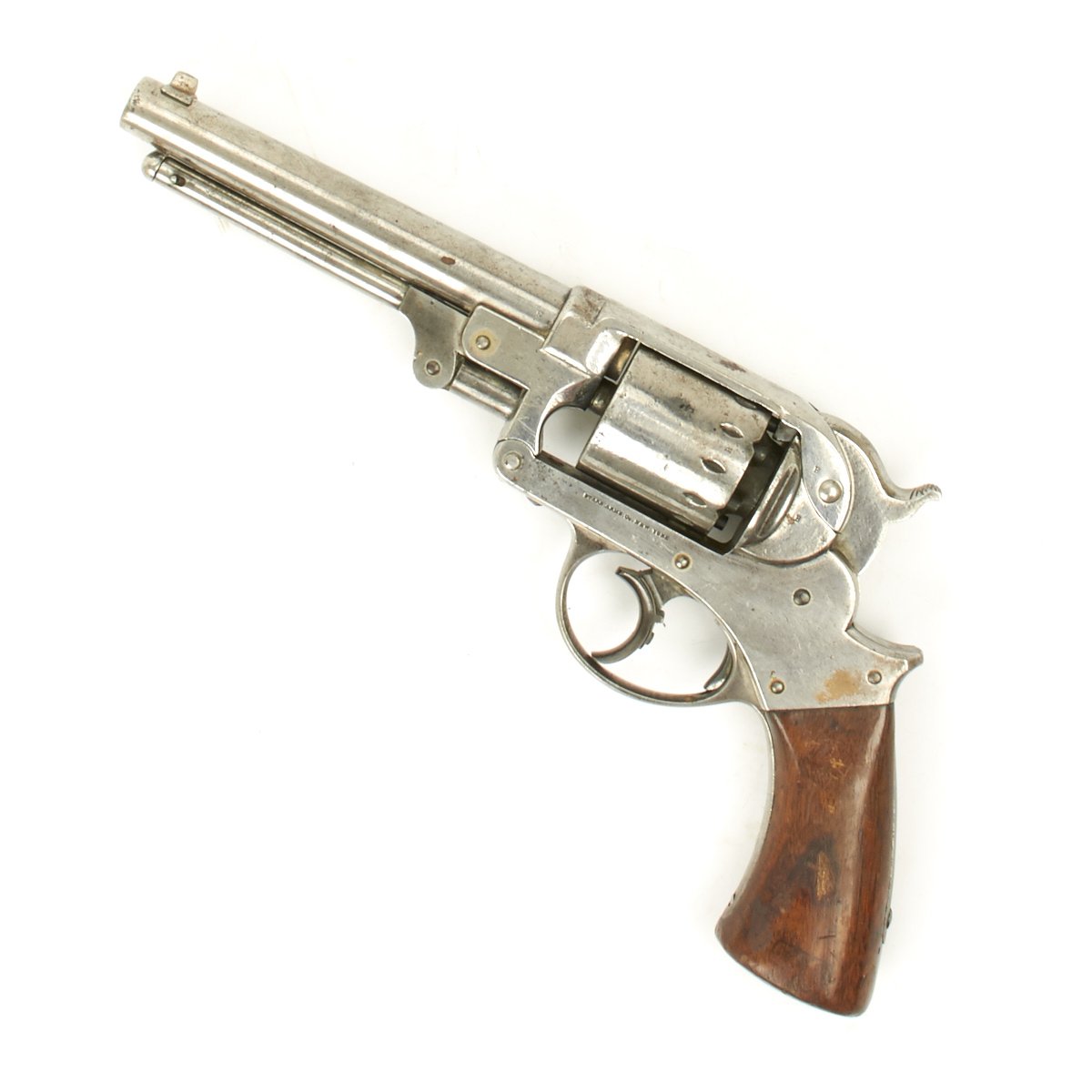

This .44 caliber, 6" barrel, serial number 19758. Serial number is matched on all parts of the gun, including the rear frame, barrel frame, grip, grip support, and cylinder. Example is fully functional in overall very good condition. The wood grips are solid, though refinished, and bear matched cartouche inspector stamps. No doubt this particular revolver was greatly loved by its Officer owner, as he had it nickel plated at some time preserving the revolver from deterioration by rust. Most of this finish remains, but the markings are still crisp, indicating it was plated early in its life.

Markings include-

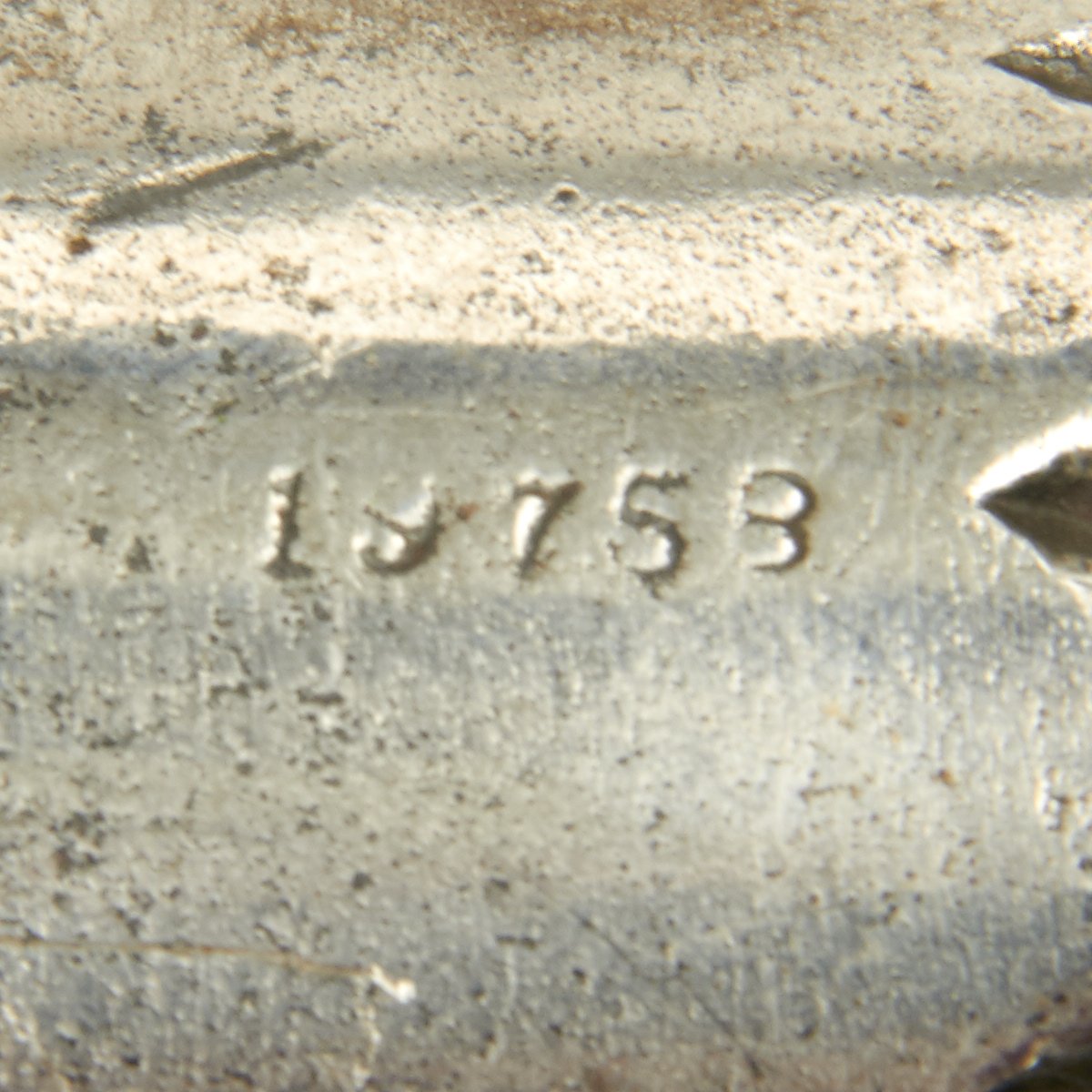

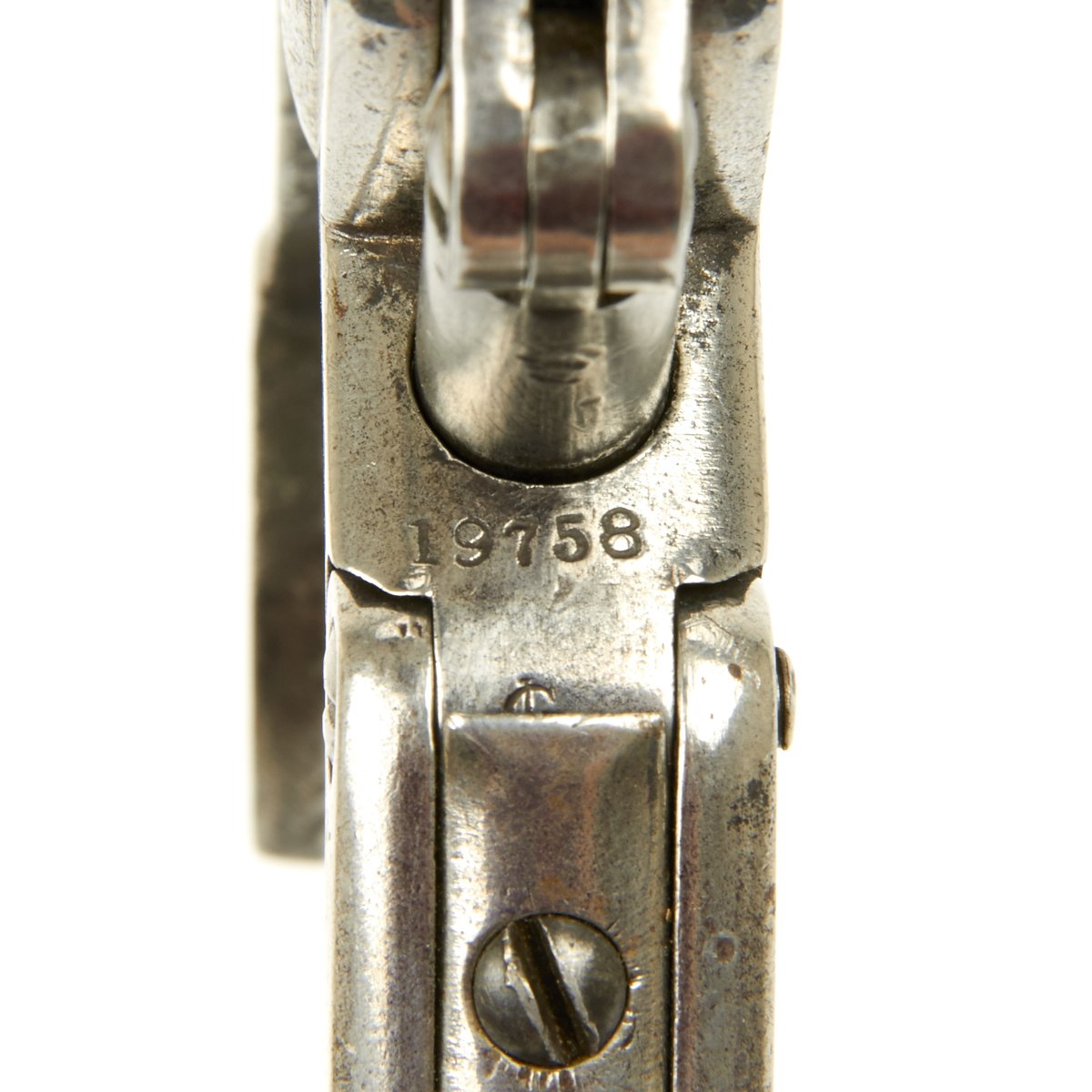

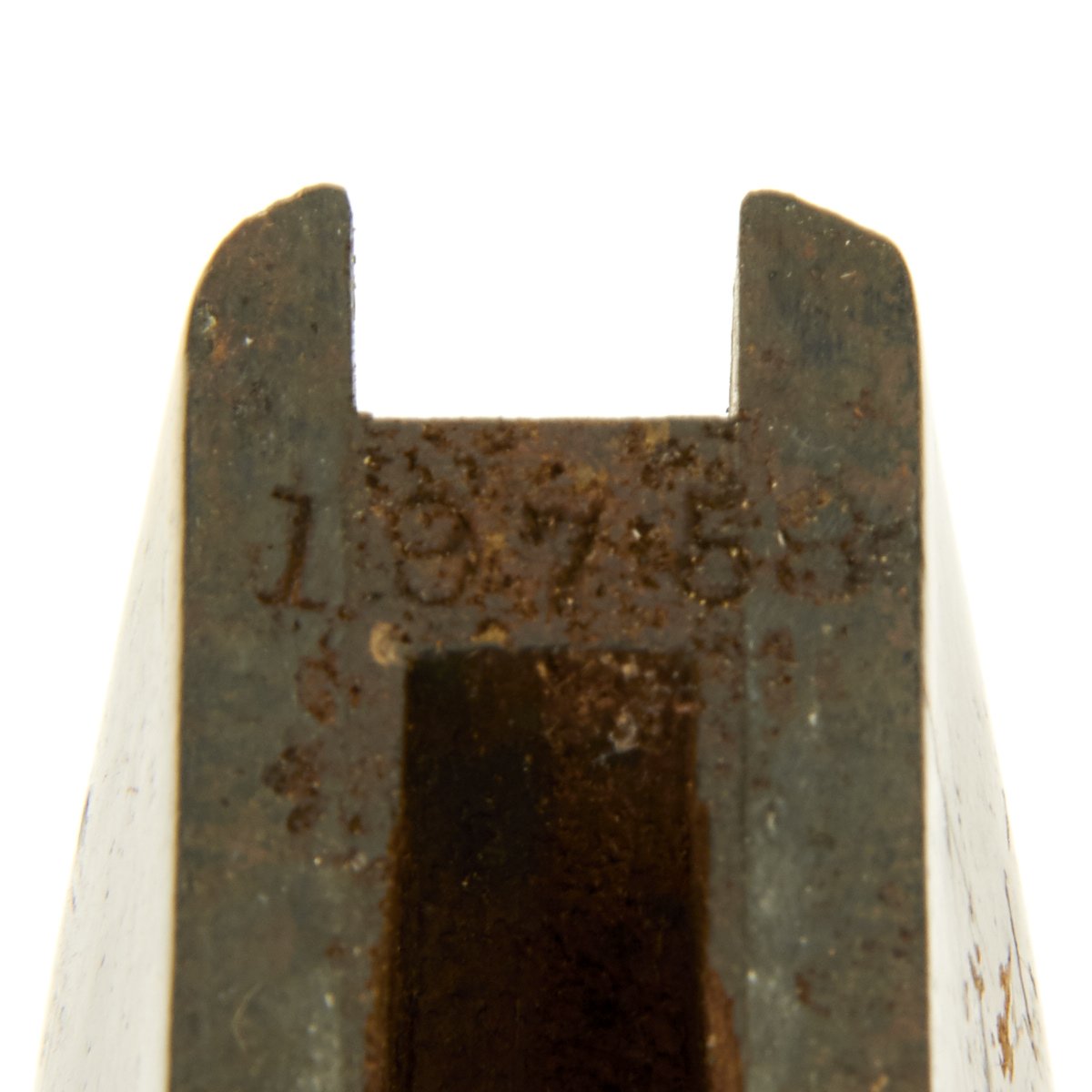

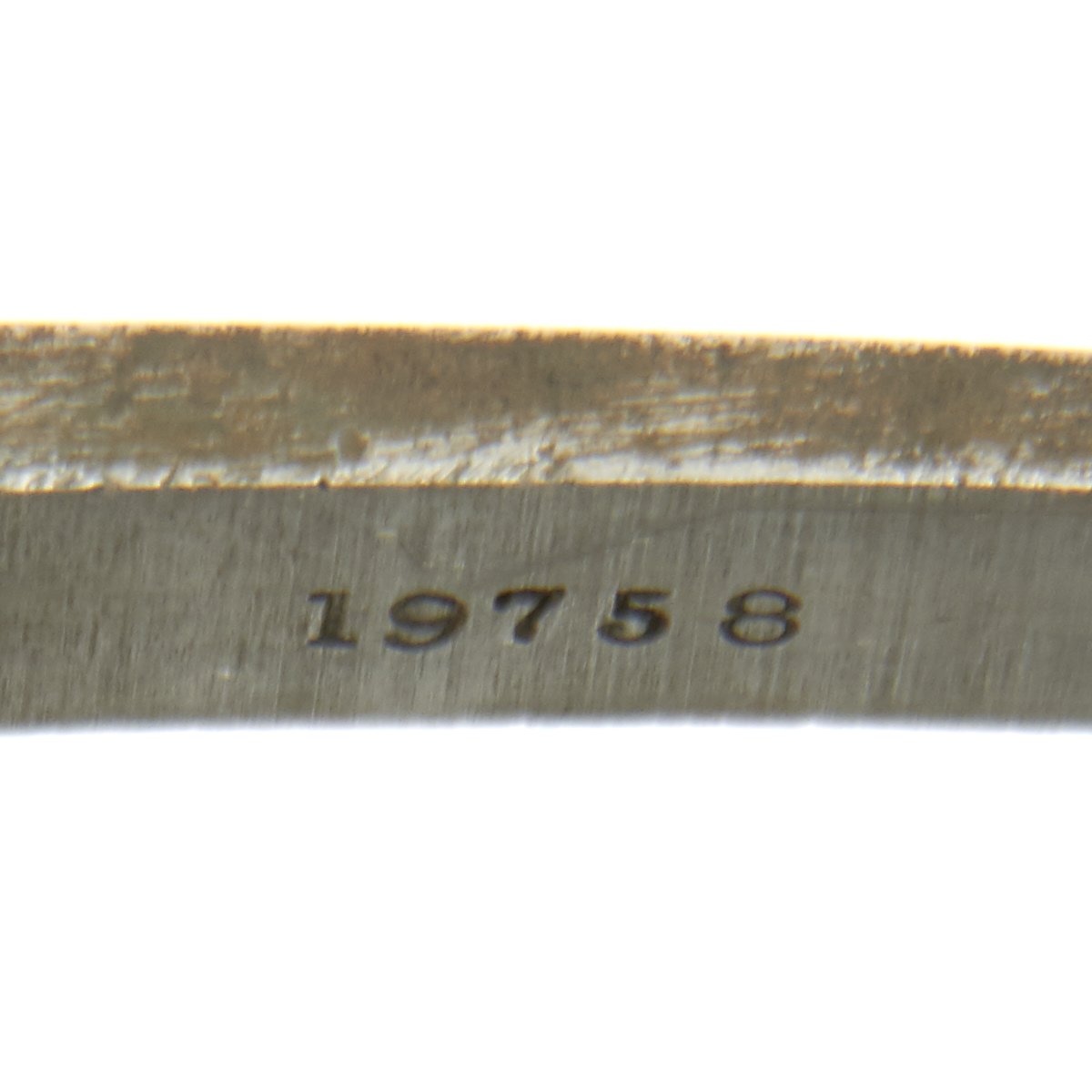

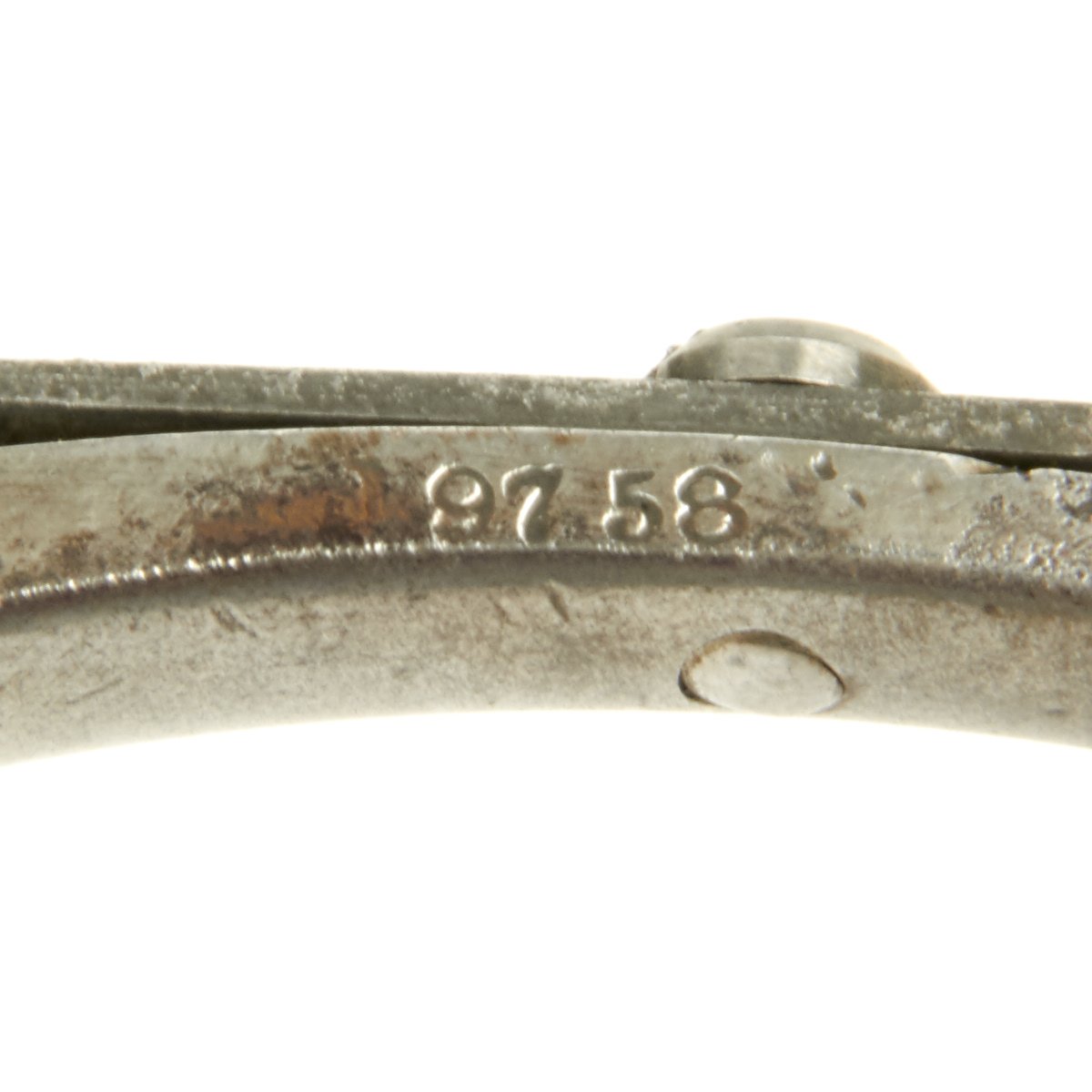

- Serial number 19758 found on both the frame and cylinder!

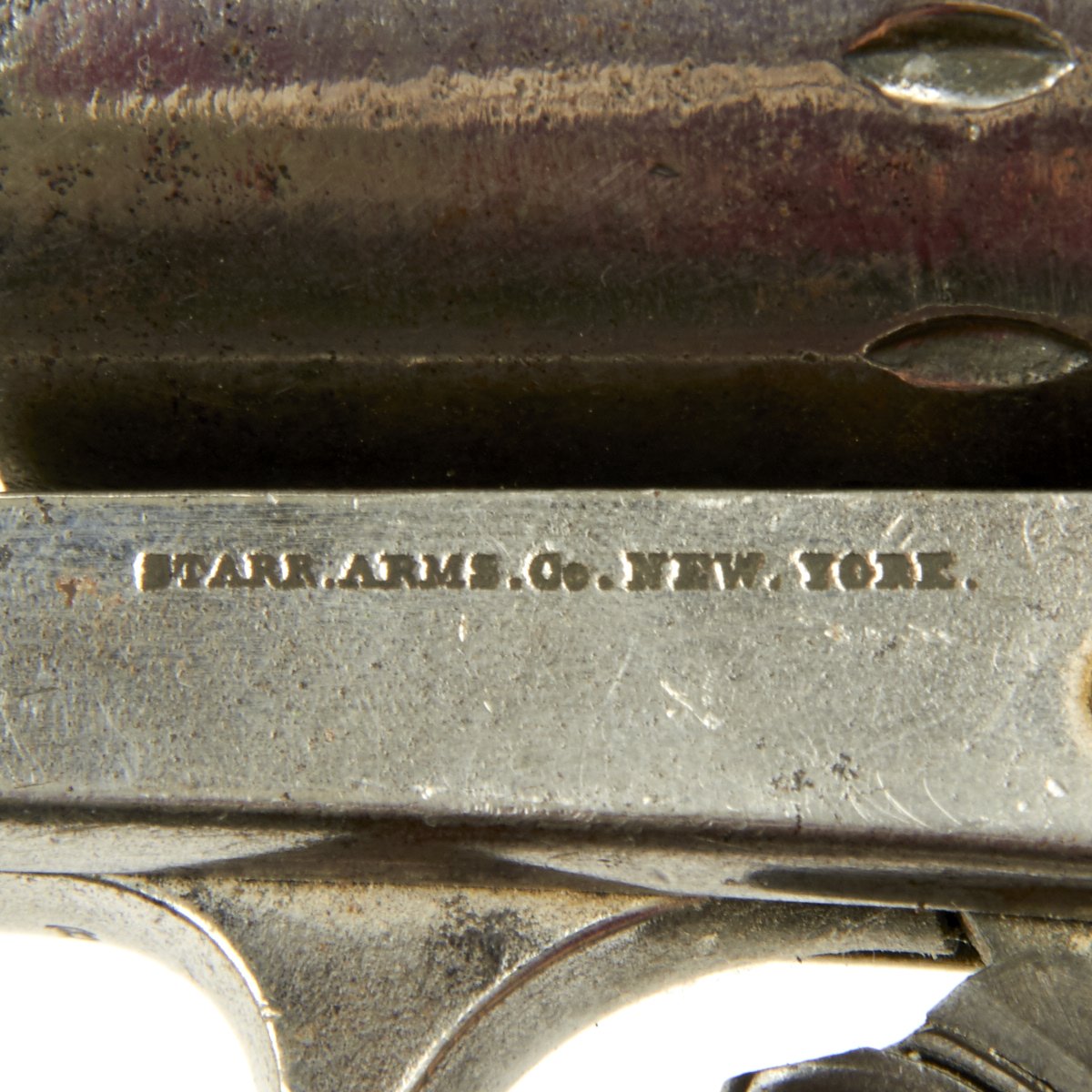

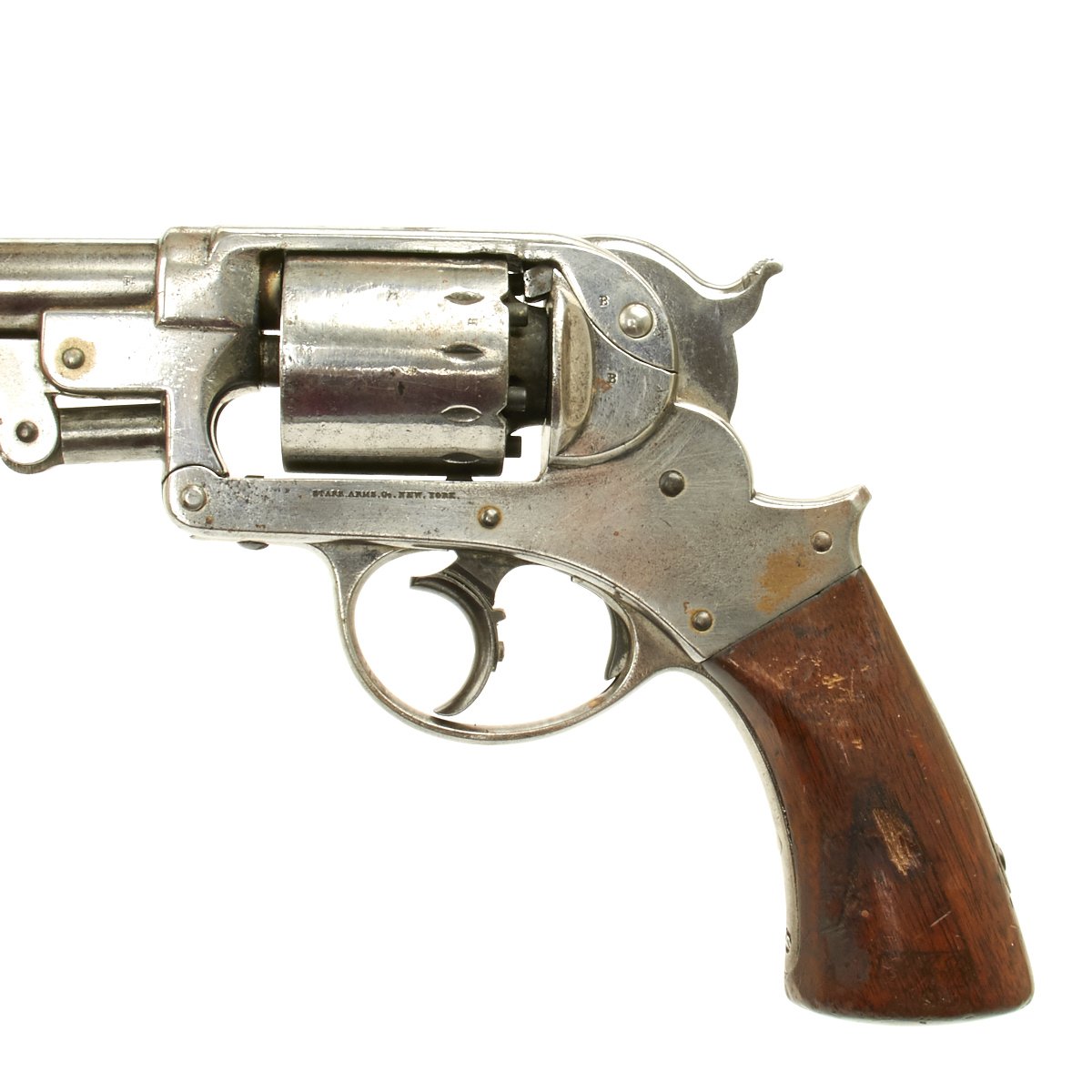

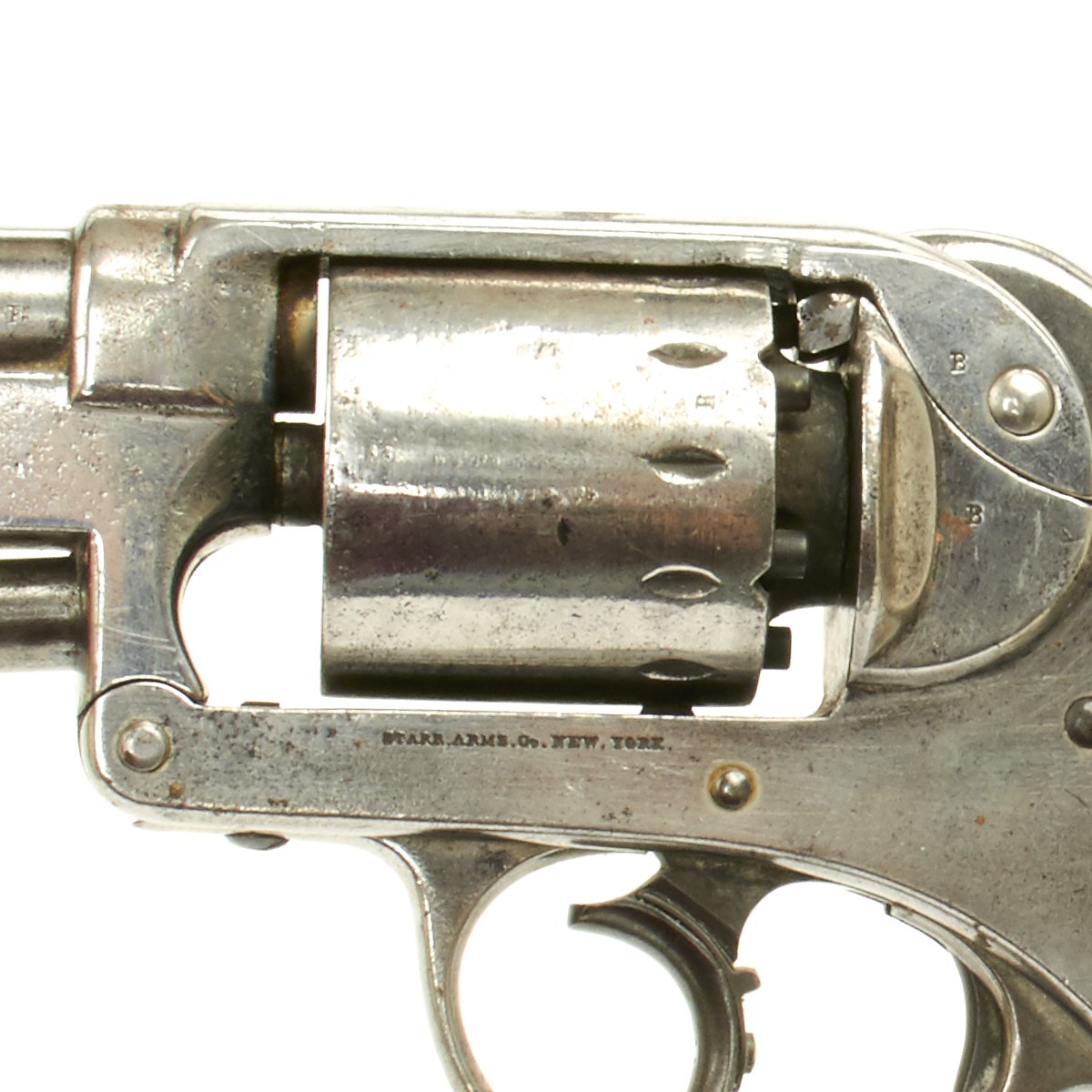

- STARR ARMS, Co. NEW YORK found on left side of frame.

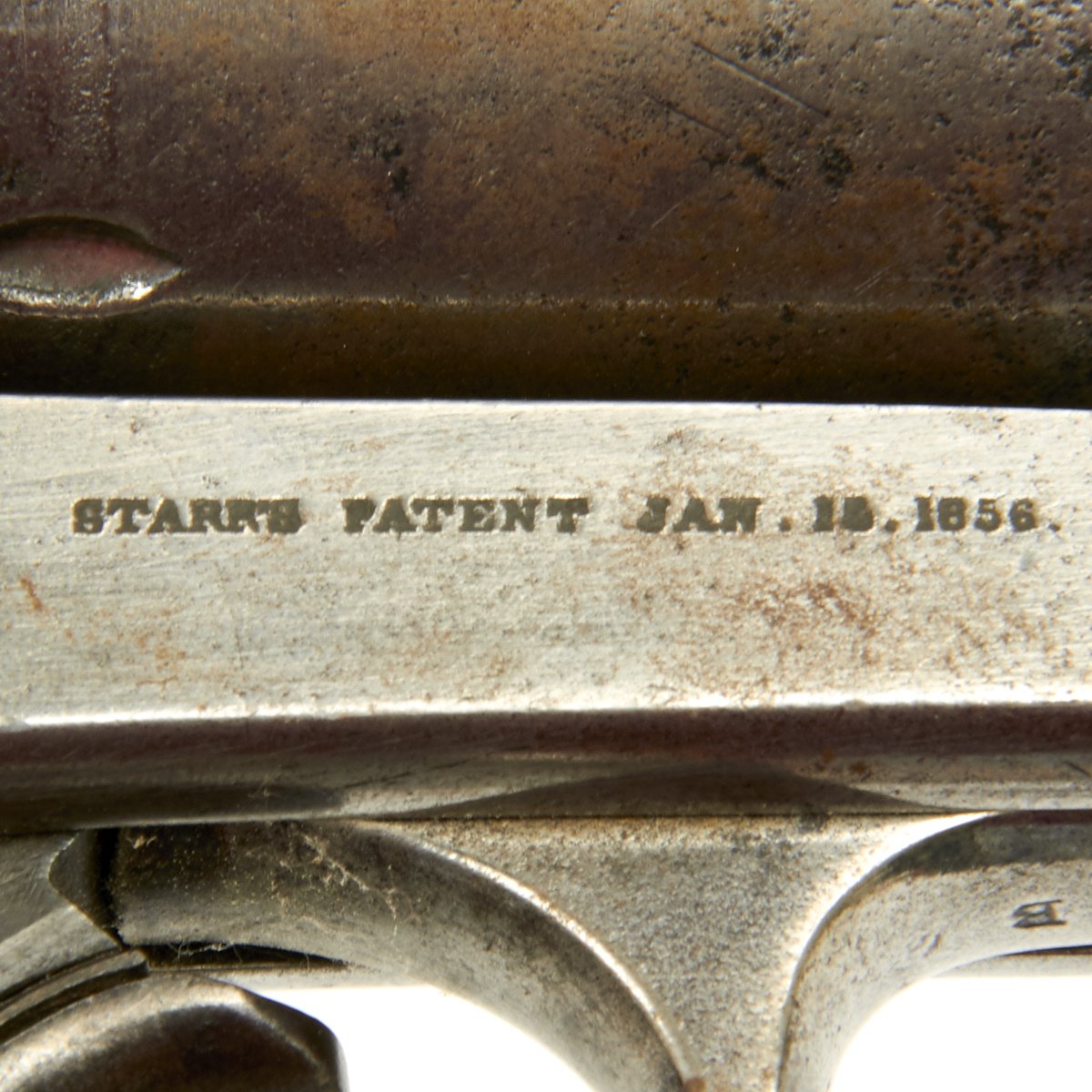

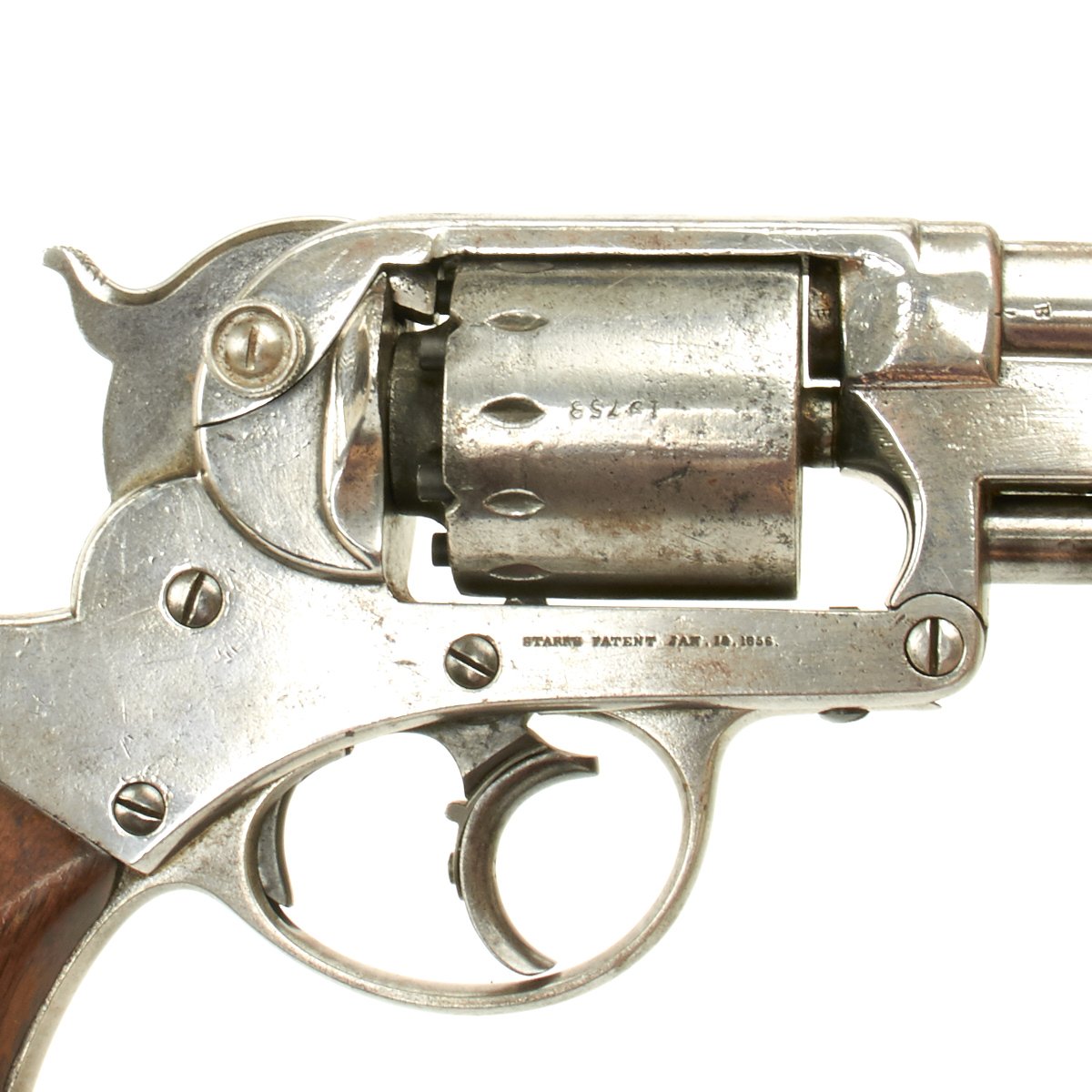

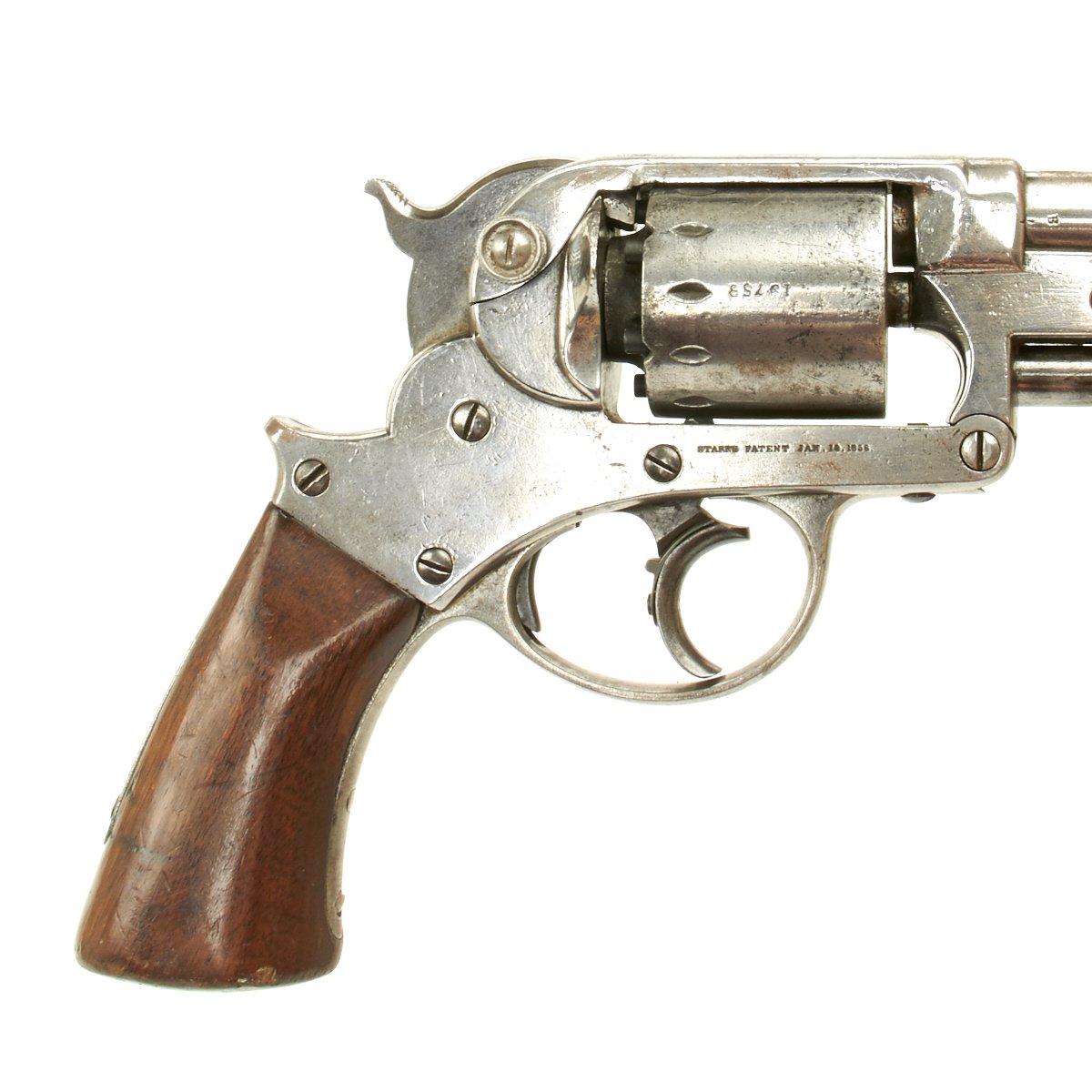

- STARR PATENT JAN 16, 1856 found on right side of frame.

Item Information:

Manufacture: 1862-1863

Caliber: 44 Percussion

Chambers: 6 Shot revolver.

Metal Condition: Good.

Wood Condition: Good.

Bore Condition: Clear lands and groves with light corrosion.

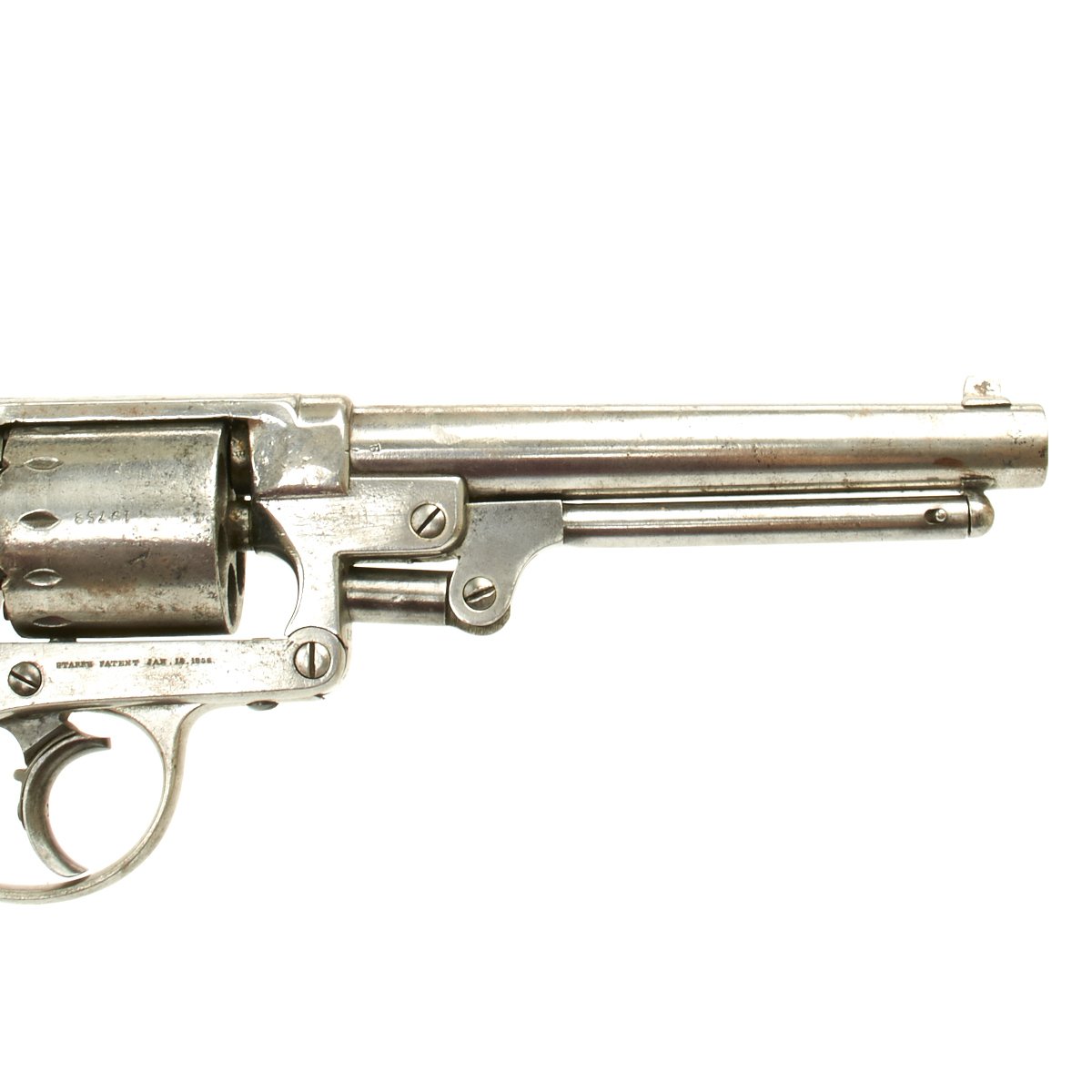

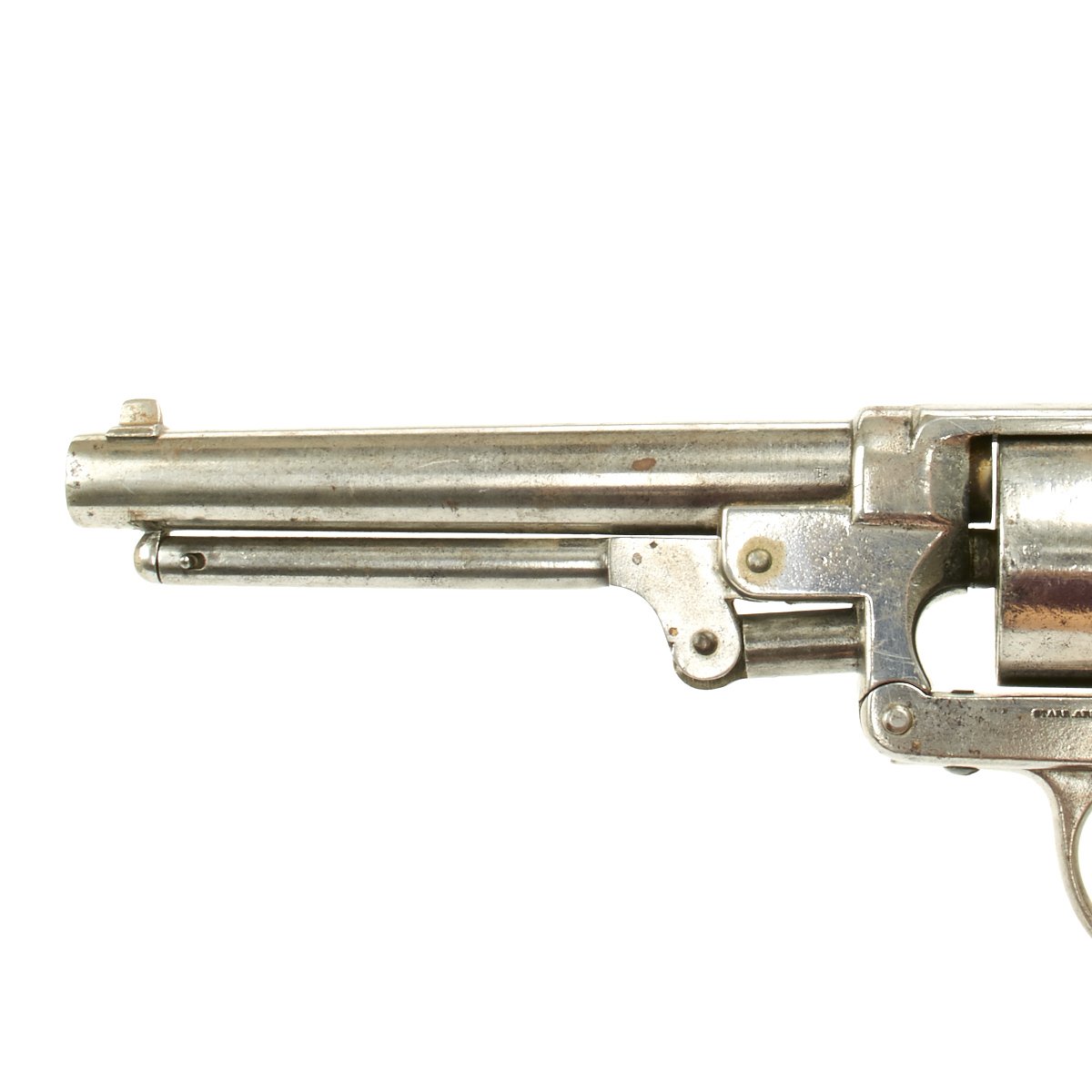

Barrel: 6 Inch round with sights.

Triggers: Single for single and double action.

Stock: Walnut.

Weight: 2 LBS 13 OZ.

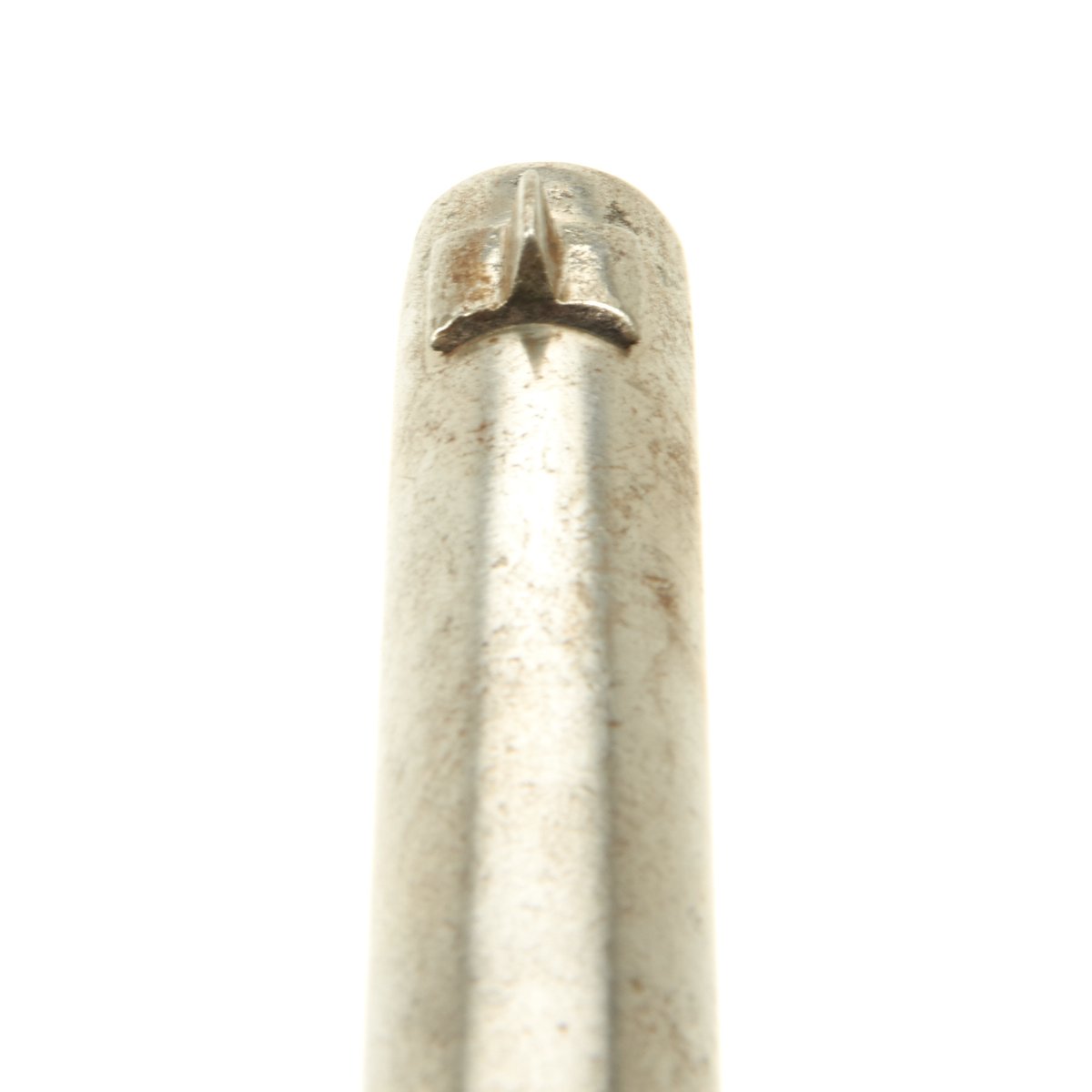

Sights: V notch hammer rear sight, Blade front



Generally there are three models of Starr revolvers:

1863 Single Action .44 Caliber Percussion Army Revolver (produced 1863-1864) [23000 produced]

1858 Double Action .36 Caliber Percussion Navy Revolver (produced 1859-1860) [3000 produced]

1858 Double Action .44 Caliber Percussion Army Revolver (produced 1862-1863) [~21454 produced]

History of the STARR ARMS COMPANY Revolver-

About 23,000 double-action Starr revolvers were manufactured in the late 1850s and early 1860s. Of these, most were purchased by the U.S. Army. Starr revolvers, in both single-and double-action models, represented over 12 percent of the sidearms issued to Union cavalry troops. Only Colt and Remington revolvers were more frequently encountered in the hands of Northern soldiers.

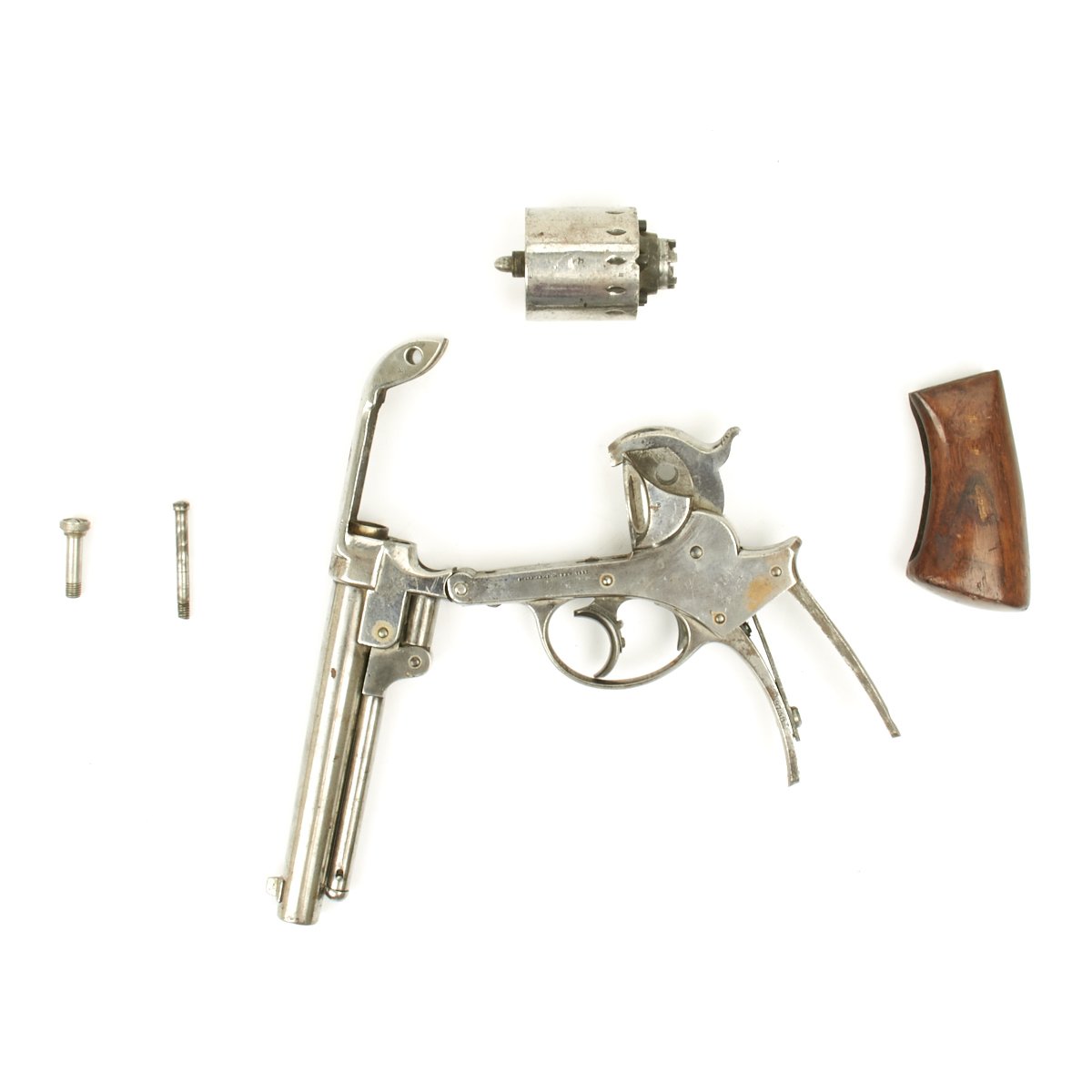

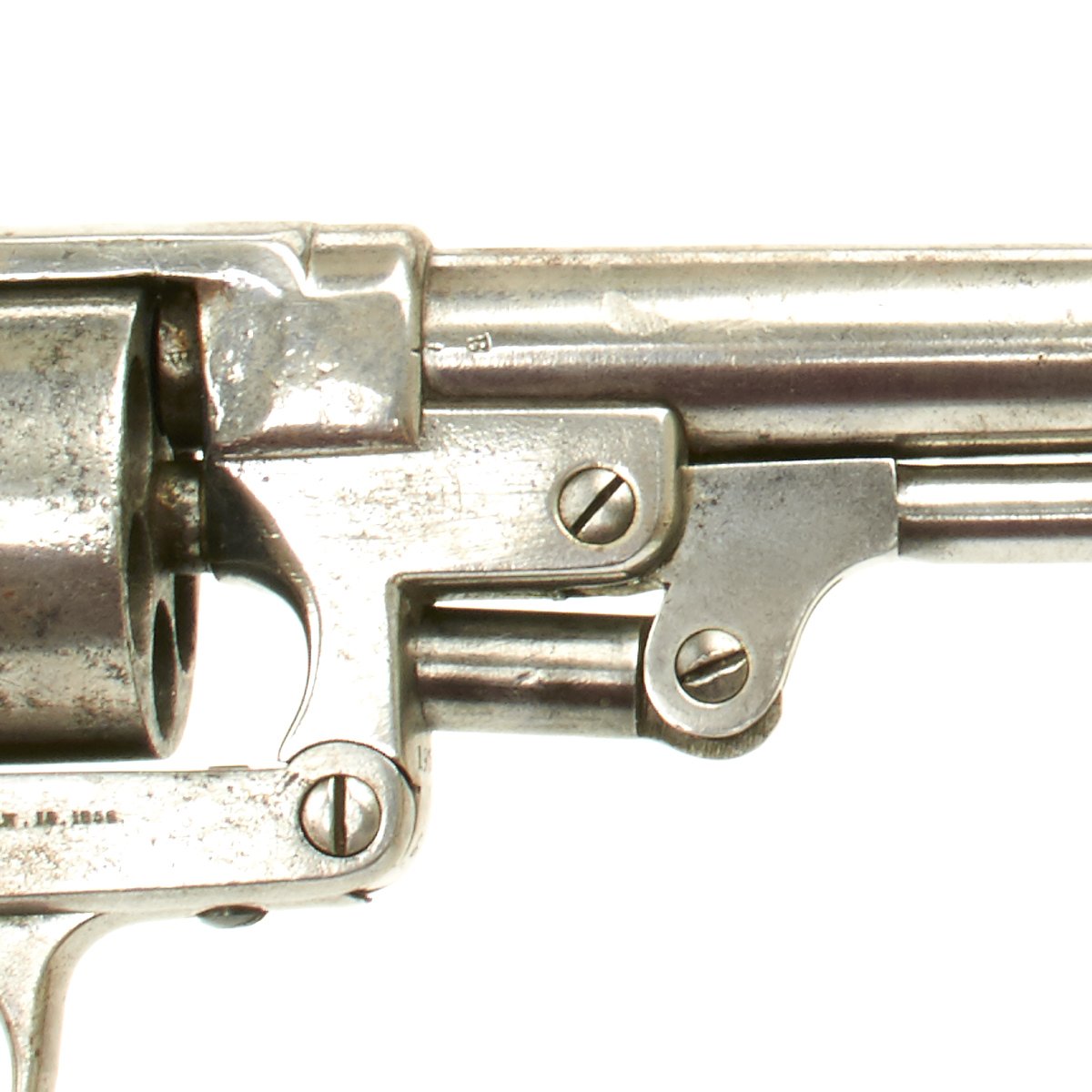

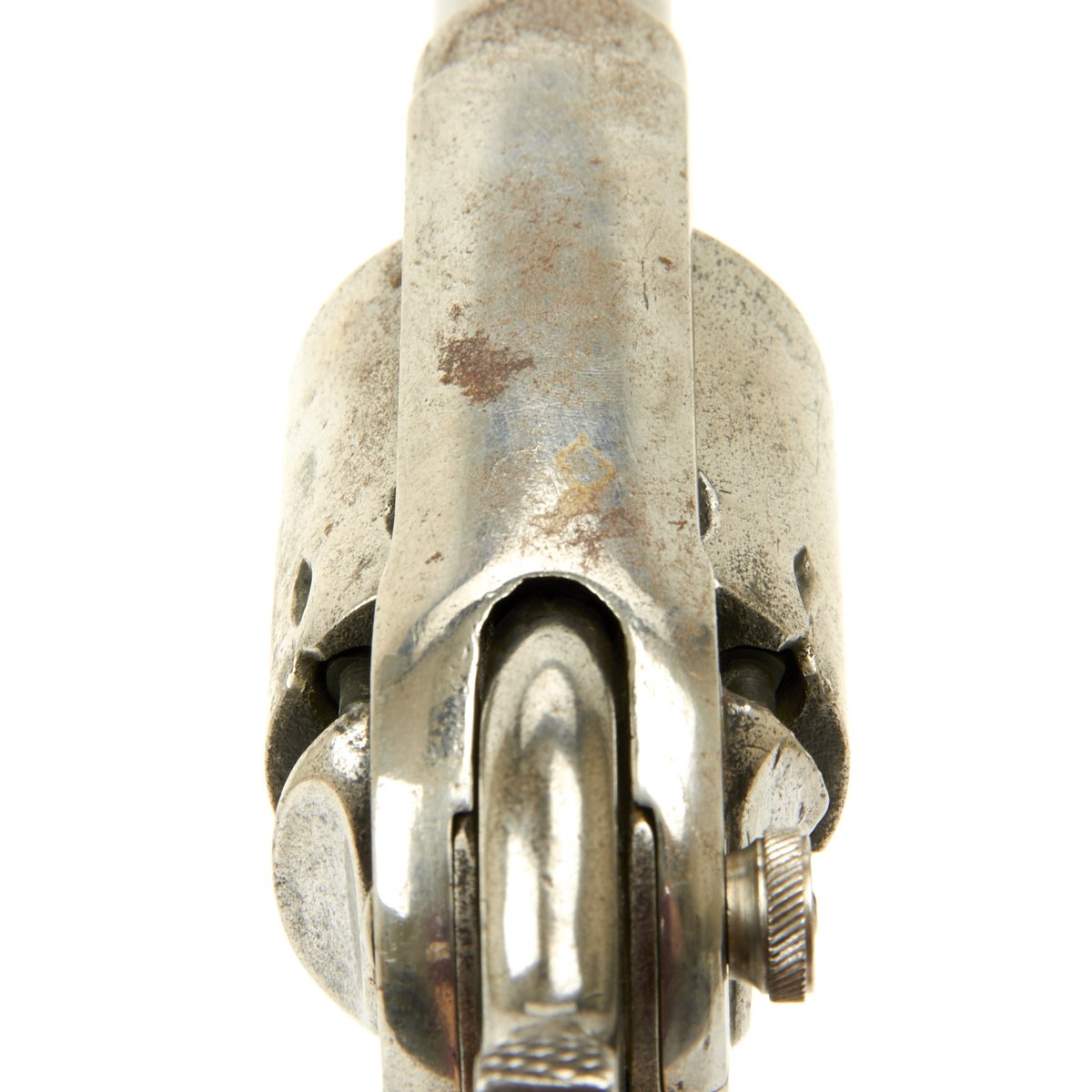

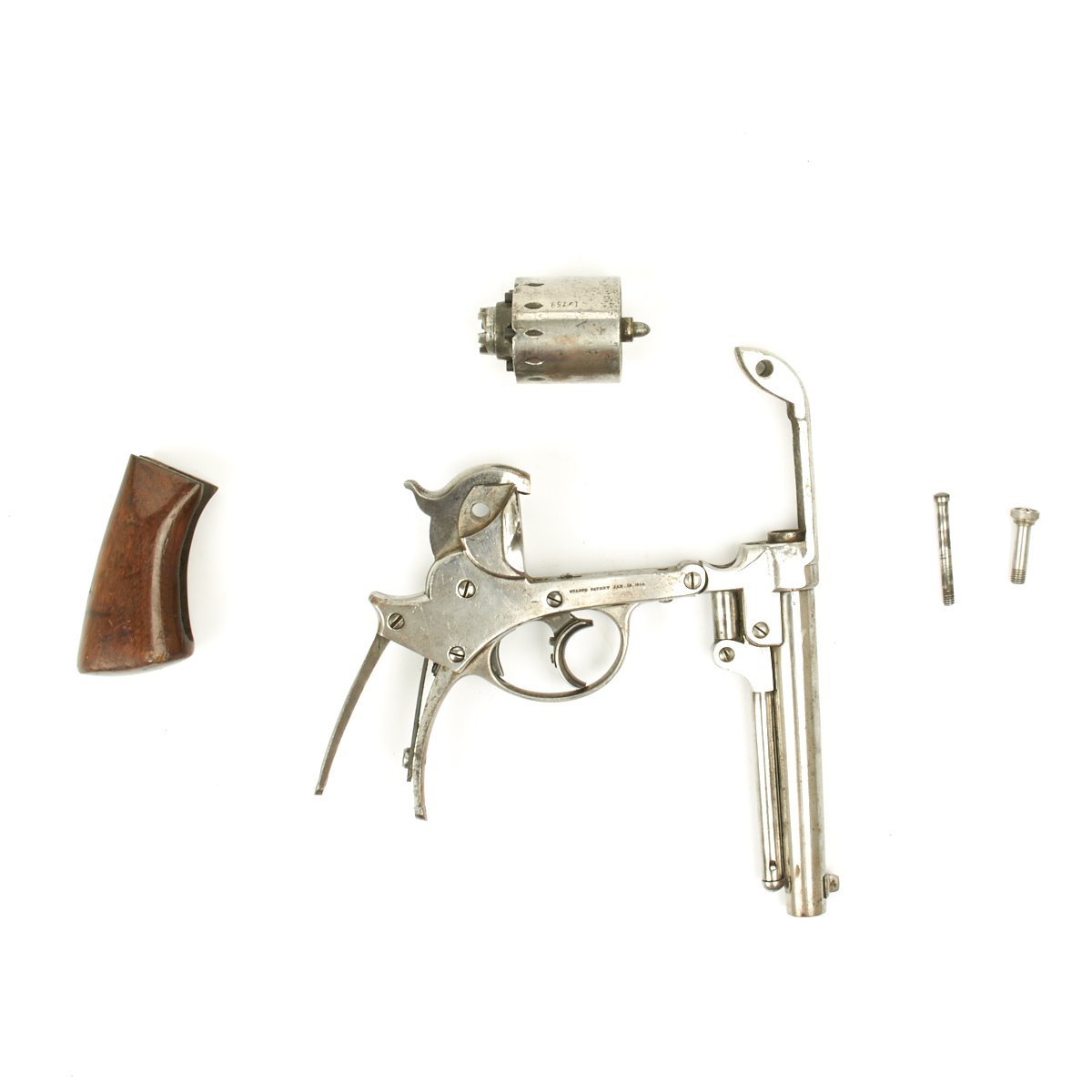

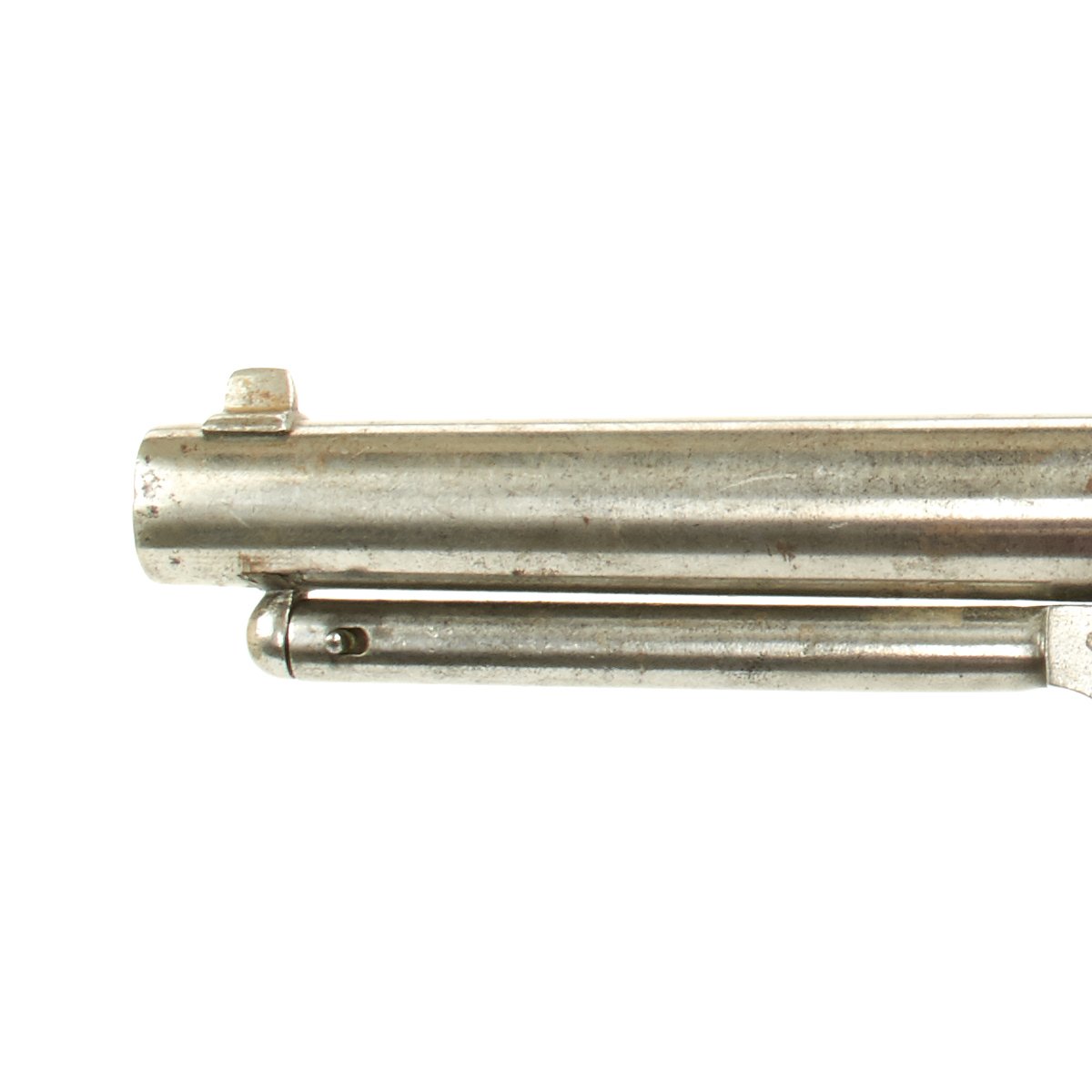

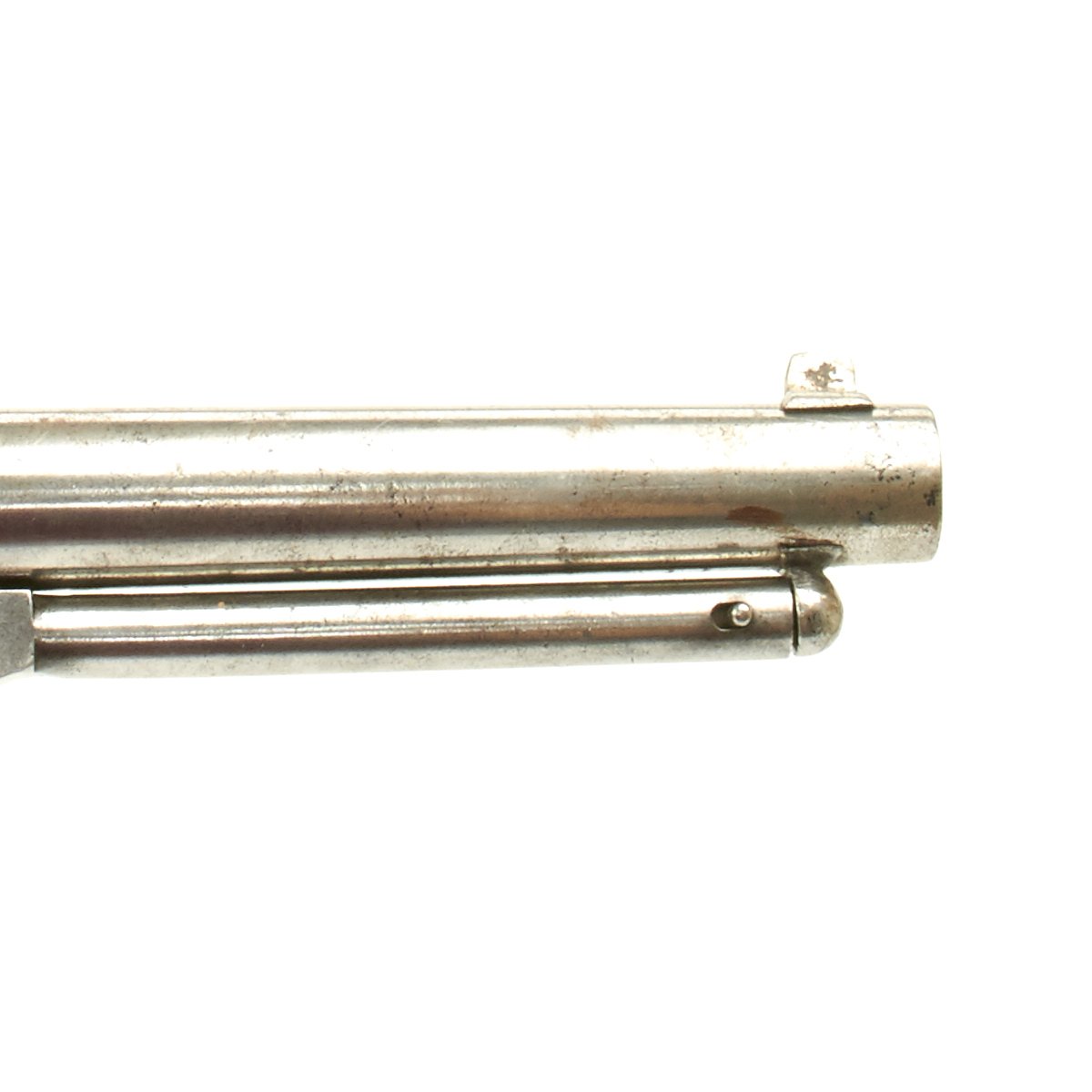

One of the earliest American double-action revolvers, this six-shot revolver has a six-inch round barrel rifled with six grooves. Over-all length is 11 5/8 inches, weight is two pounds 12 ounces, and the cylinder is 1 7/8 inches long. These revolvers have a steel blade front sight dovetailed into the barrel. A V-notch cut into the hammer lip serves as a rear sight. The Starr revolver is provided with a knurled screw on the right side of the frame which, when removed, allows the barrel to tip downwards on its hinged frame so that the cylinder can be removed.

Starr revolvers were invented by Eben Townsend Starr of New York City, grandson of Nathan Starr and son of Nathan Starr, Jr., famous U. S. swordmakers and riflemakers of Middletown, Connecticut. This model is marked on the right side of its frame "STARR'S PATENT JAN. 15, 1856.", and on the left side, "STARR. ARMS. Co. NEW YORK." The patent date refers to E. T. Starr's U. S. Patent 14,118 for a self-cocking percussion pepperbox. His U.S. Patent 30,843, December 4, 1860, was for his double-action revolver.

Starr firearms were made at Yonkers, Binghamton, and Morrisania, New York, from 1858 to 1867. The New York City address referred to the Starr Arms Company store and office at 267 Broadway. Starr double-action .44 caliber revolvers, with serial numbers from 1 to about 23,000, were manufactured first, and Starr single-action .44 caliber revolvers, with serial numbers from about 23,000 to about 54,000, last.

Please note: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these.

  • This product is not available for shipping in US state(s)
    New Jersey


    This product is available for international shipping.
  • Not eligible for payment with Paypal or Amazon
