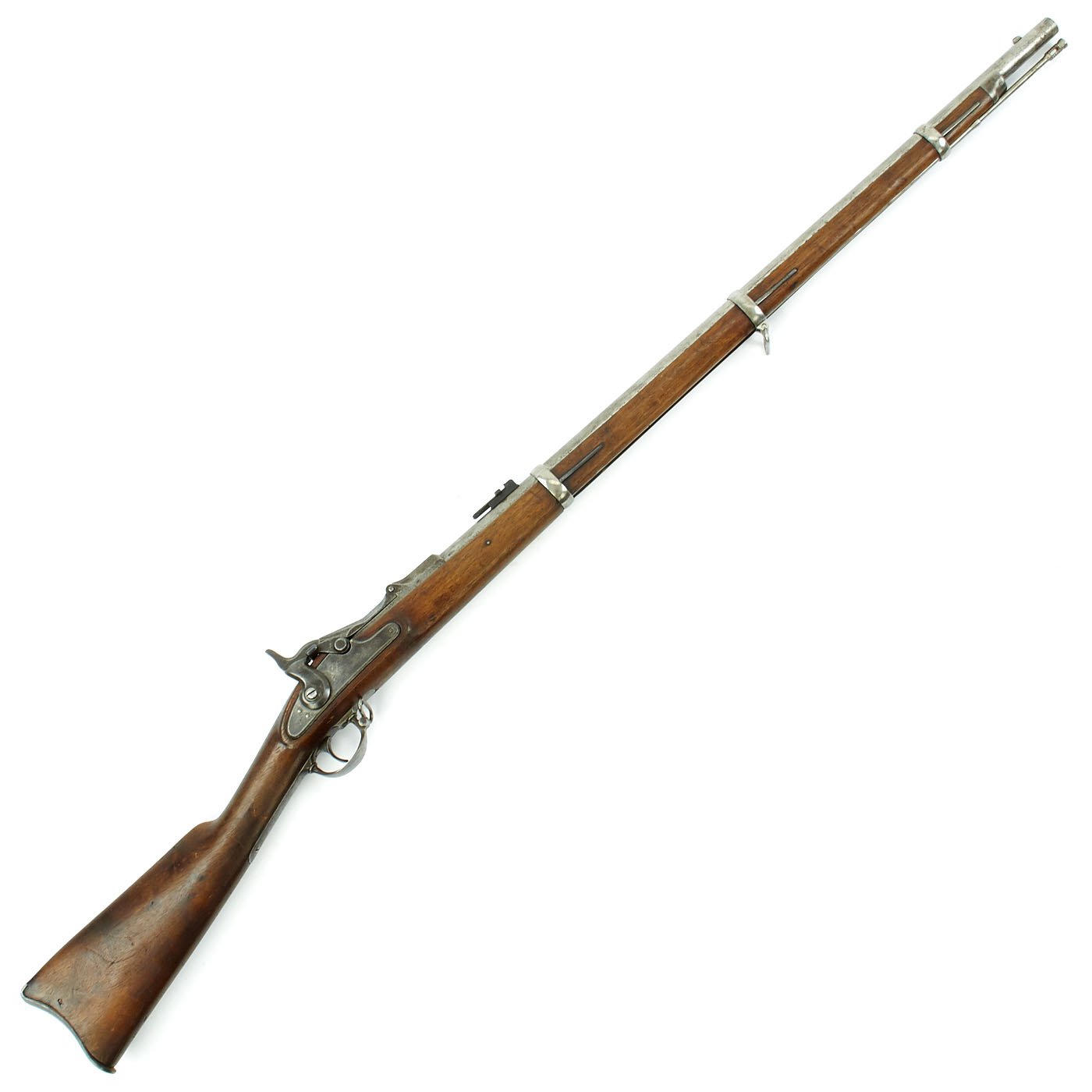

Original Item: Only One Available. This is really a Peach! This rifle started out as a Civil War Model 1861 Springfield Rifle Musket, dated 1864, made by SPRINGFIELD ARMORY, as indicated on the lock plate. There is also the "Spread Eagle" and U.S. marking, indicating military production. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The U.S. Civil war had confirmed the adage of NEED is the Mother of INVENTION. Muzzle Loading Muskets and Rifles were extensively used but new developments continually resulted in a "fresh" breach loading system being adopted on a trial basis. The Union had as many as NINETEEN different systems issued during the war and the ALLIN system was a version that was considered a determination was made to standardize.

The Trapdoor system seemed to be the one that satisfied most authorities so more trials were held, and the trapdoor was adopted. The government then looked for for cost effective ways to modernize their rifles, and one way was to convert muzzle loading Rifle muskets to a breech loaders, as seen throughout the world.

Originally, the trapdoor Springfields were created to convert Model 1863 Springfield rifled muskets to breech-loading rifles at a relatively low cost. This conversion consisted of replacing the percussion lock with the breech-loading trapdoor mechanism, and relining the barrels to convert them from .58 to .50 caliber. This proved problematic, because in the field, the lining tended to separate from the barrel.

To correct this problem, the Model 1868 used a new barrel instead of relining the original older barrel. The new barrel was slightly shorter, 32.5 inches, compared to the 36.5-inch barrel used on the Model 1866. The shorter barrel was affixed using only two barrel bands, instead of the three used on the Model 1866. Since it lacked the middle barrel band, the sling was affixed to the upper barrel band instead. The Model 1868 also differed from previous models in that it used a separate Allin type receiver with the barrel attached to it. The Model 1868 was also the first trapdoor conversion to use the cartridge extractor covered by U.S. Patent No. 68,009, issued August 27, 1867 to W.H. & G.W. Miller. The Model 1868 had an overall length of 51​7⁄8 inches.

Over 50,000 Model 1868 rifles were manufactured 1868-1870, chambered for the .50-70 450 cartridge. This model is unique in the 'trapdoor' series by being marked with the actual year of manufacture (1868, 1869, or 1870) on the breech-block

This model served as the stepping stone towards the definitive Model 1873 "Trapdoor Springfield" series of rifles in .45-70 caliber, which was adopted in 1873 as the standard military longarm of the United States armed forces for the next 20 years.

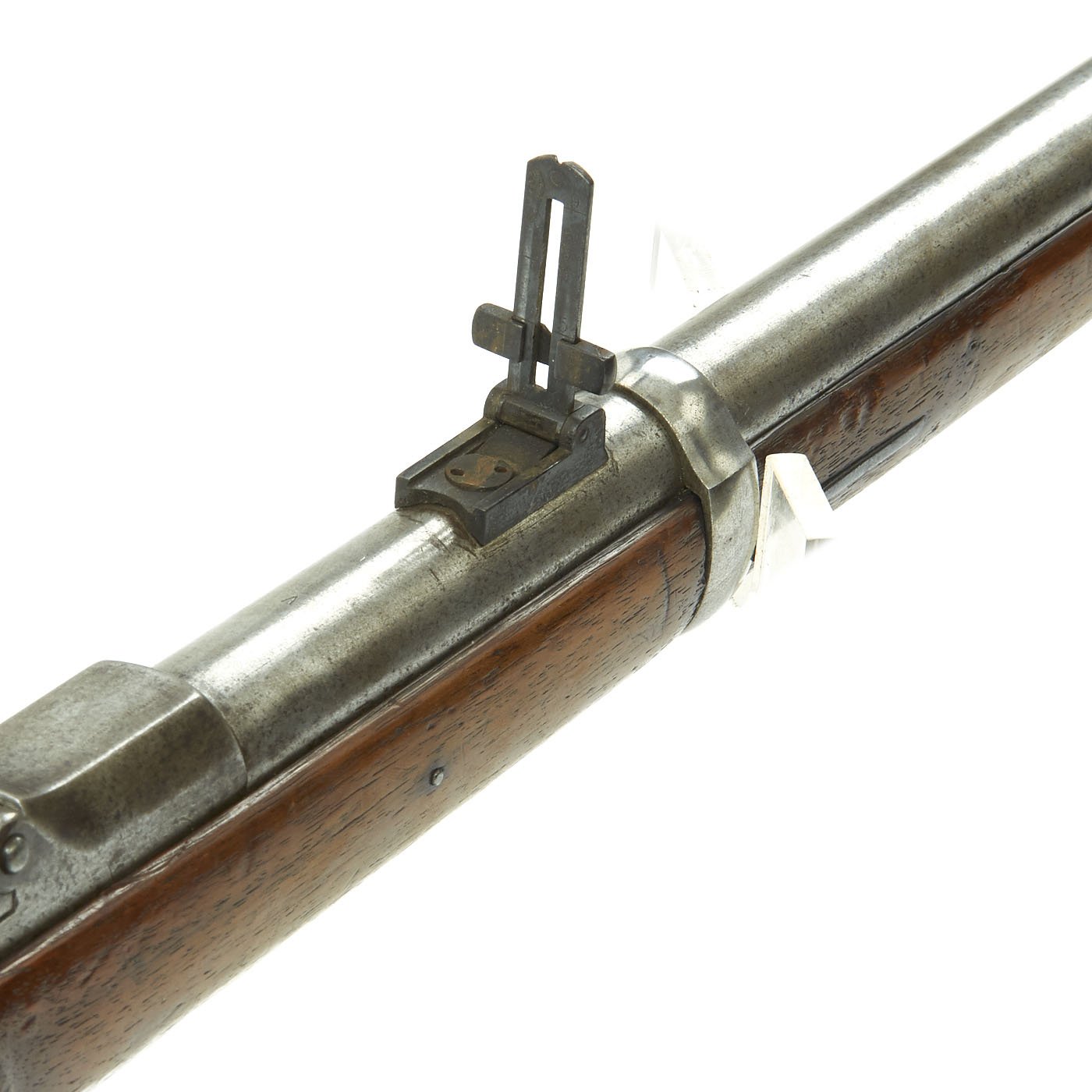

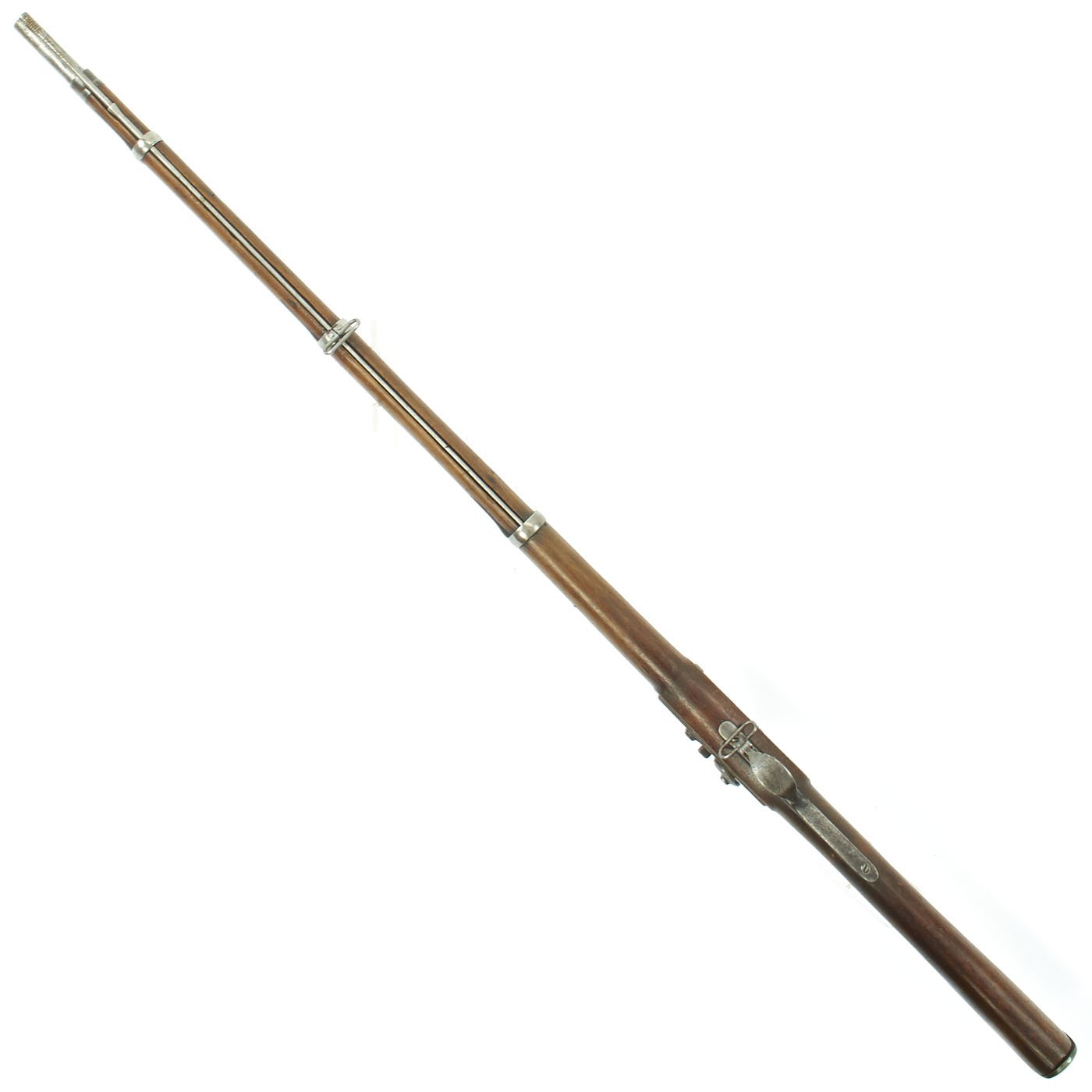

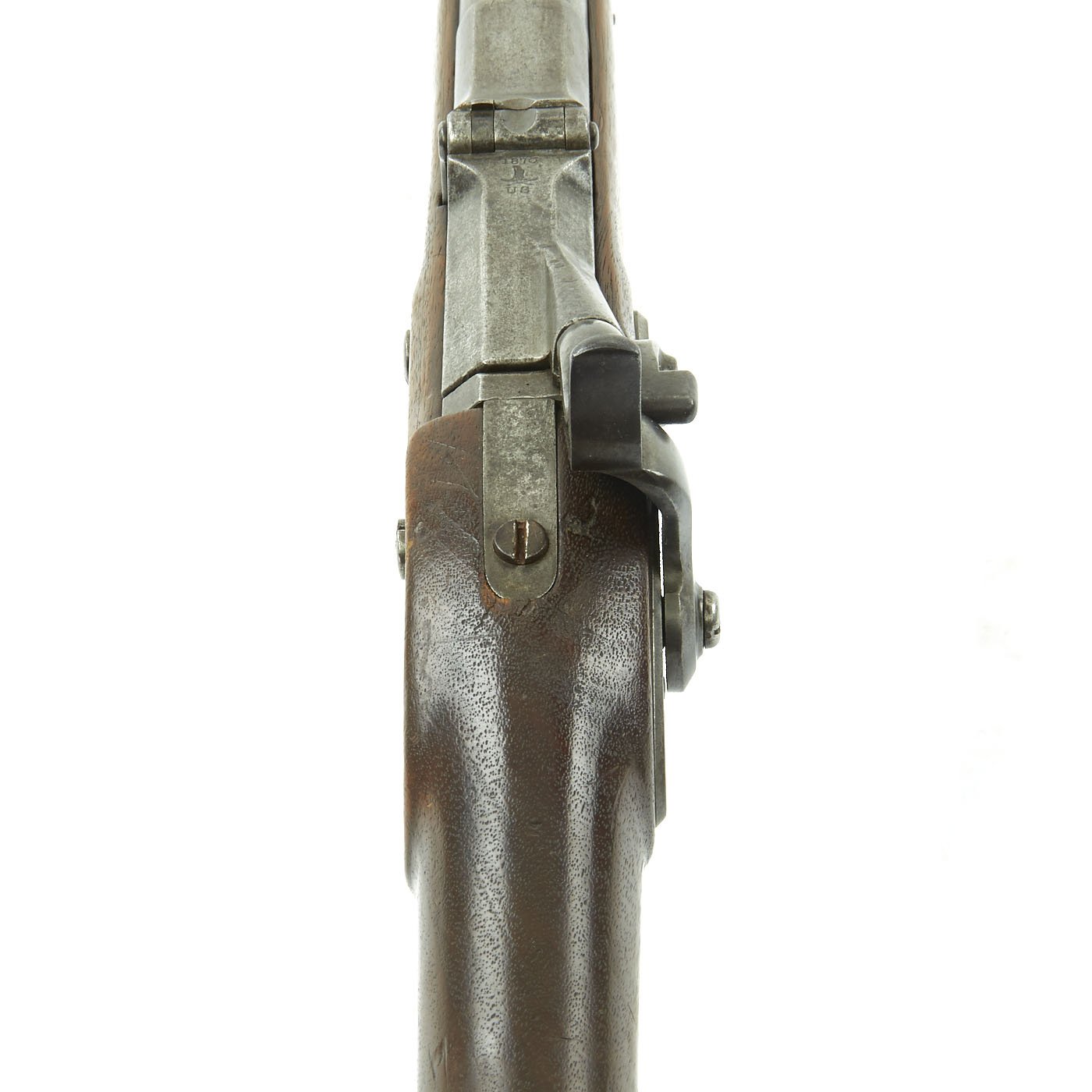

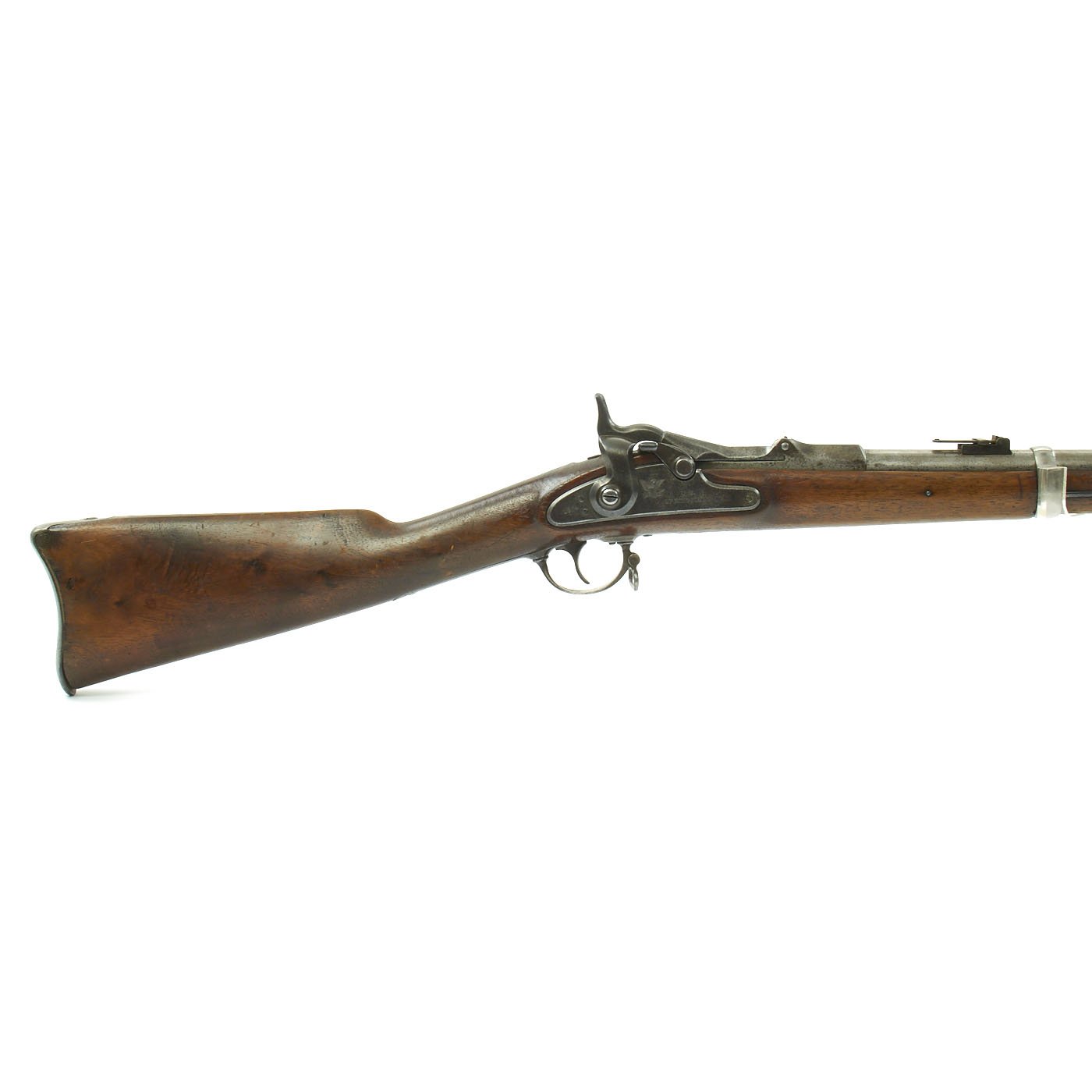

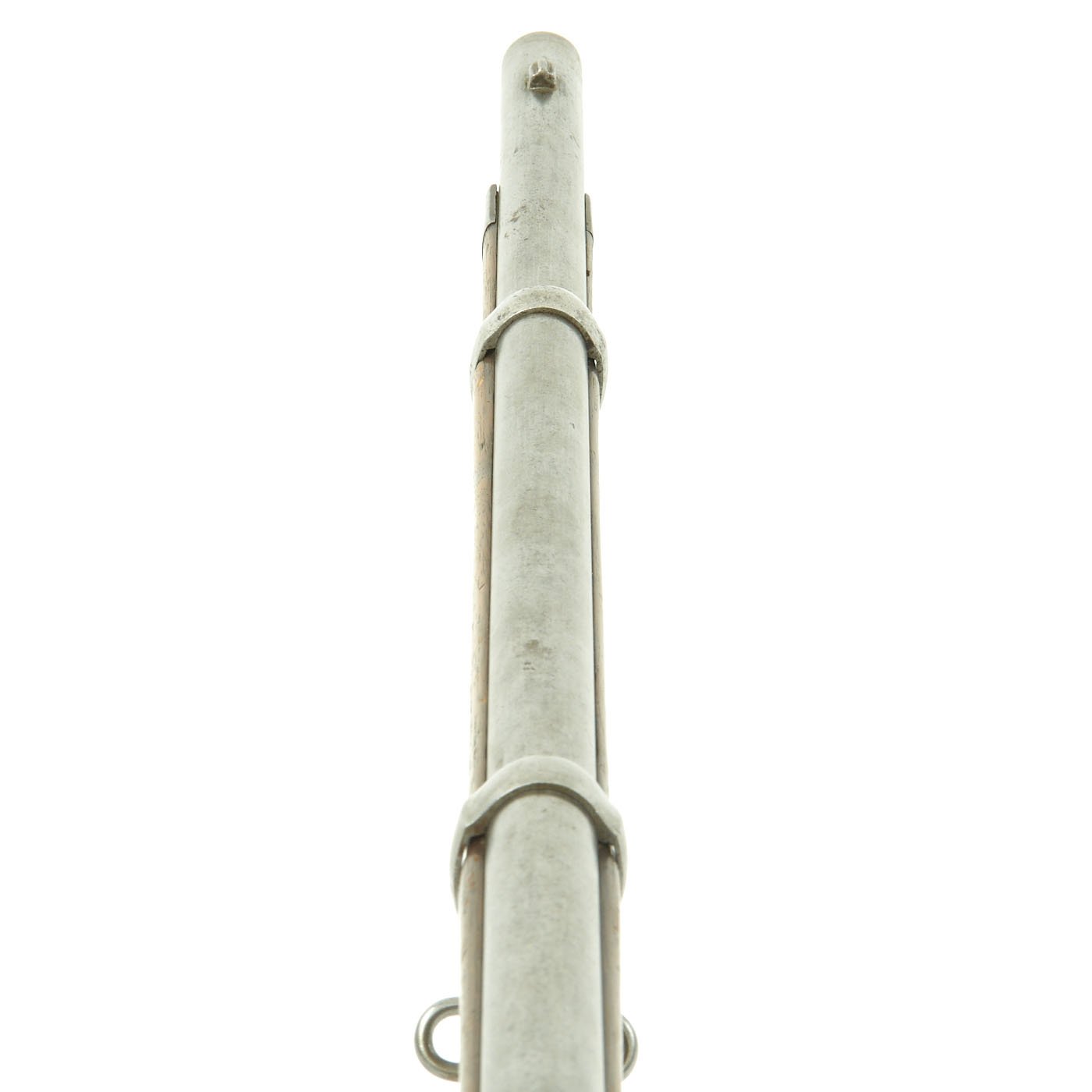

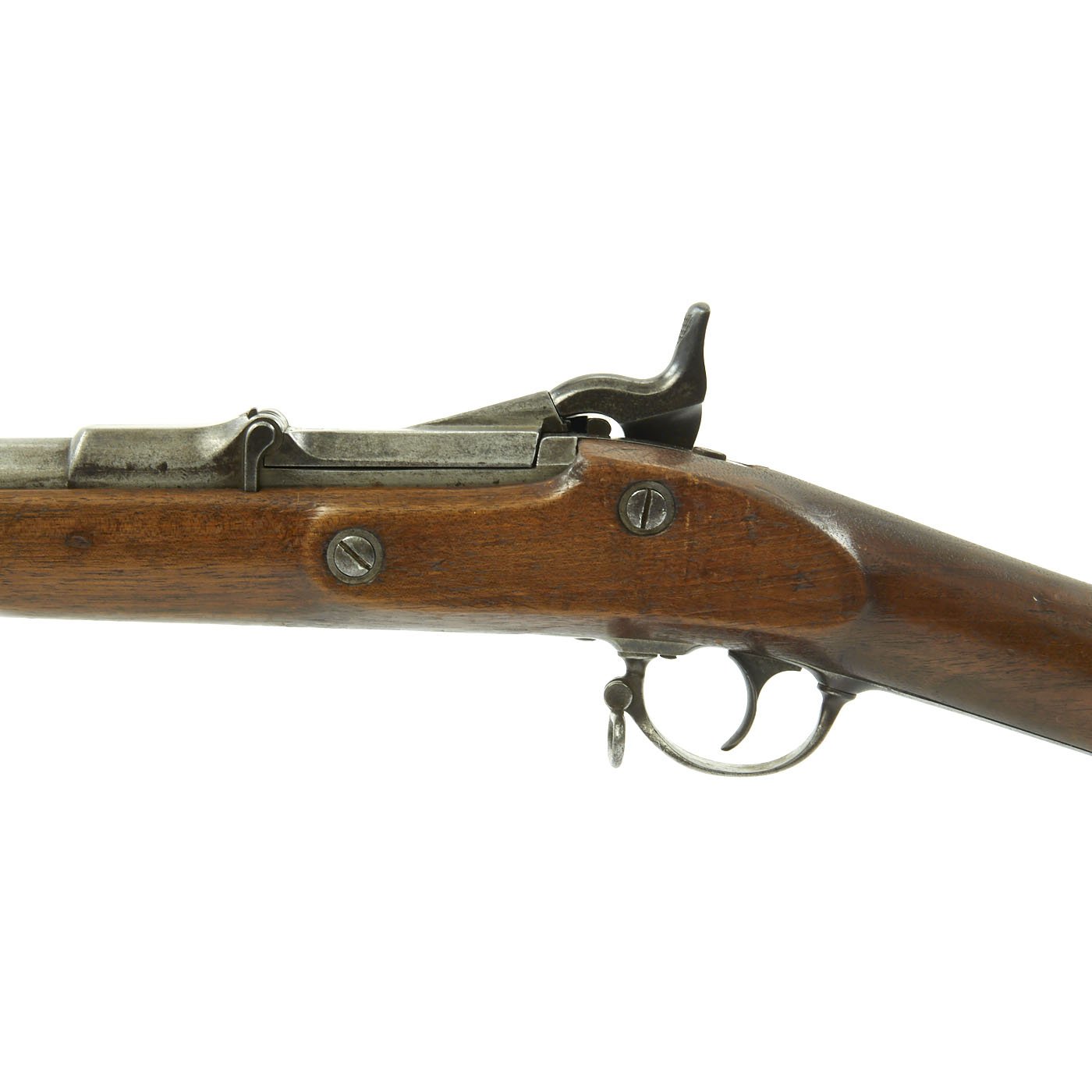

In fine condition, the lock is dated 1864 across the tail and has an EAGLE to the left of U.S. over SPRINGFIELD. The Breech Block is DATED 1870 with an Eagle head "Crossed Arrows" cartouche over U.S., indicating the year of conversion. The long receiver indicates that this is definitely a model 1868, and not a model 1870. Interestingly, there are no serial numbers stamped on the left side of the barrel and receiver. It's also notable that the sight is much farther forward than usually seen on any of the converted models. The stock also has THREE barrel bands, not the usual two seen on these rifles. This leads us to believe that it is not a new made stock, but in fact a model 1863 stock that was adjusted for the new receiver.  All three barrel bands have their correct "U" markings, so they are definitely genuine, and have their correct band springs.

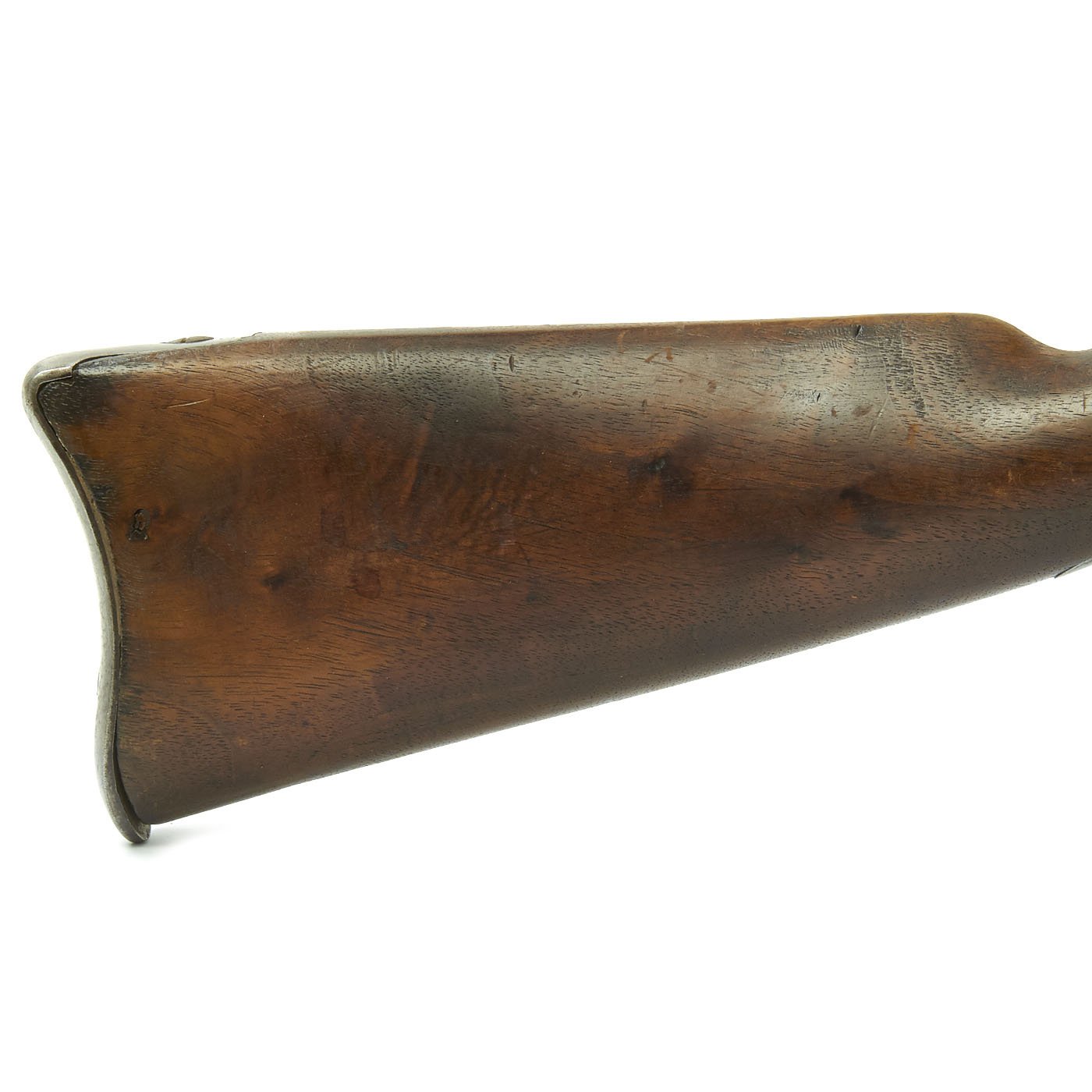

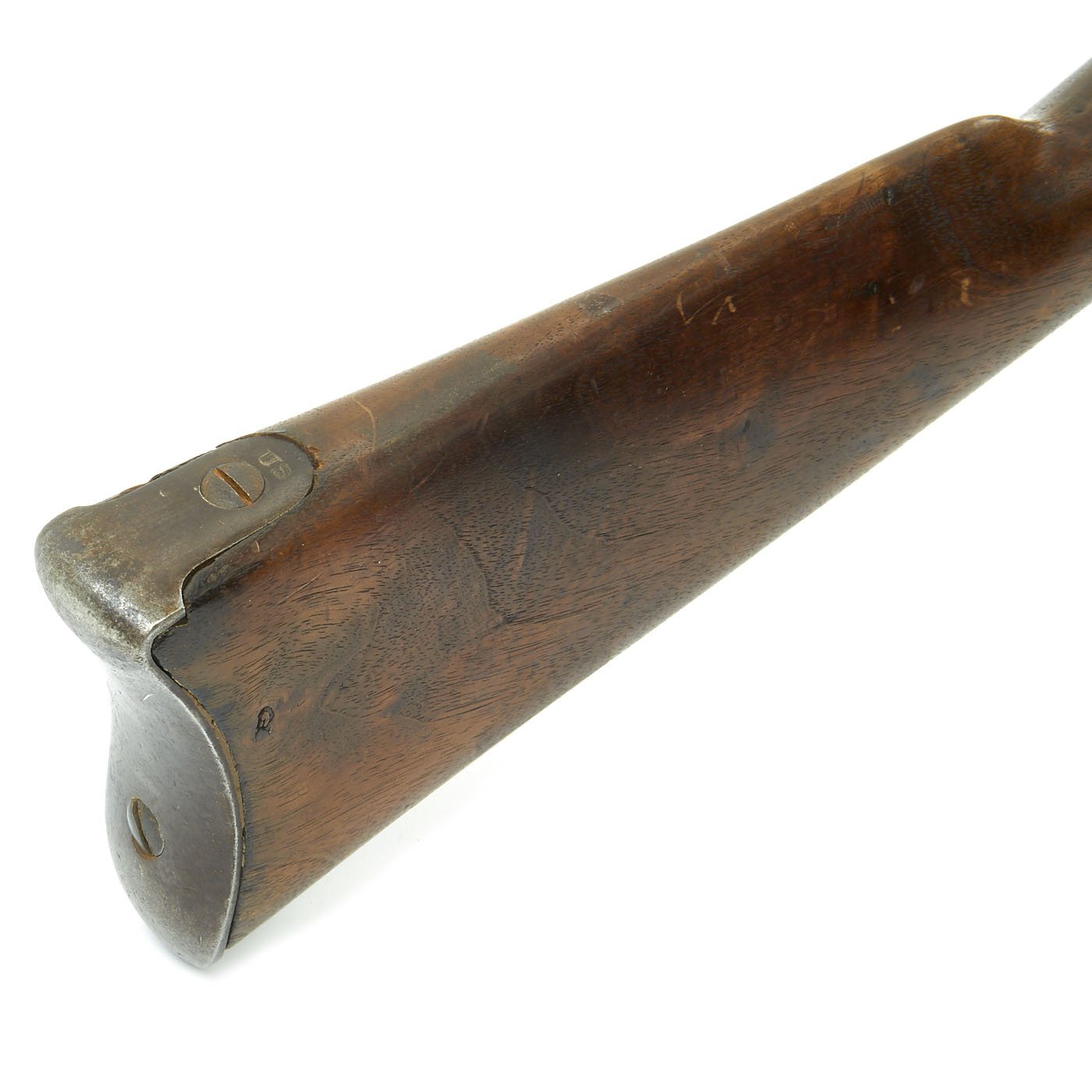

In very good condition this is a rare U.S. Military Rifle that led to the the legendary Model of 1873. Stock is in good condition with the expected dents and dings from age, as well as some gouges. The Metal components are in good condition, though they have an overall peppered look, with some surface corrosion overall. This is typical of a rifle stored for a long period of time. The bore is in excellent condition, with clear lands and grooves, and a bright finish.

There is an excellent work TRAPDOOR SPRINGFIELD by Waite and Ernst published in 1980 that covered this very subject from 1865 - 1893.  The very first Chapter is entitled "The ALLIN Breech-Loading System" which covers the  Model Trap door rifle we offer here. Barrel length is 32". See "THE .45-70 SPRINGFIELD" by Frasca and Hill, the definitive work, Page xii directly opposite the Introduction for excellent illustrations of these interim models, ours is shown.

An very interesting example of the M-1868 Converted rifle,  Cleaned and Ready to display and research!

Specifications-

Year of Manufacture: 1864 - Converted c.1870
Caliber: .50-70 government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 1/2 Inches
Overall Length: 52 Inches
Action type: Side Action Lock
Feed System: Trapdoor Breech Single Shot
