Original Item: Only One Available. The Springfield Model 1863 rifled musket is a .58 caliber rifled musket produced by the Springfield Armory between 1863 and 1865. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber). Several of these modifications were based upon Colt's contract model 1861, known as the "Colt special". 273,265 Type I variants were manufactured in 1863.

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight. A total of 255,040 of these were manufactured from 1864 to 1865.

By the end of the Civil War, muzzle-loading rifles and muskets were considered obsolete. In the years following the Civil War, many Model 1863 muskets were converted into breech-loading "Trapdoor Springfields". The breech-loading weapons increased the rate of fire from 3 to 4 rounds per minute to 8 to 10 rounds per minute. The Model 1863 could be converted to breech-loading for about $5, at a time when a new rifle would cost about $20. The conversion of Model 1863 rifles therefore represented a significant cost savings to the U.S. military.

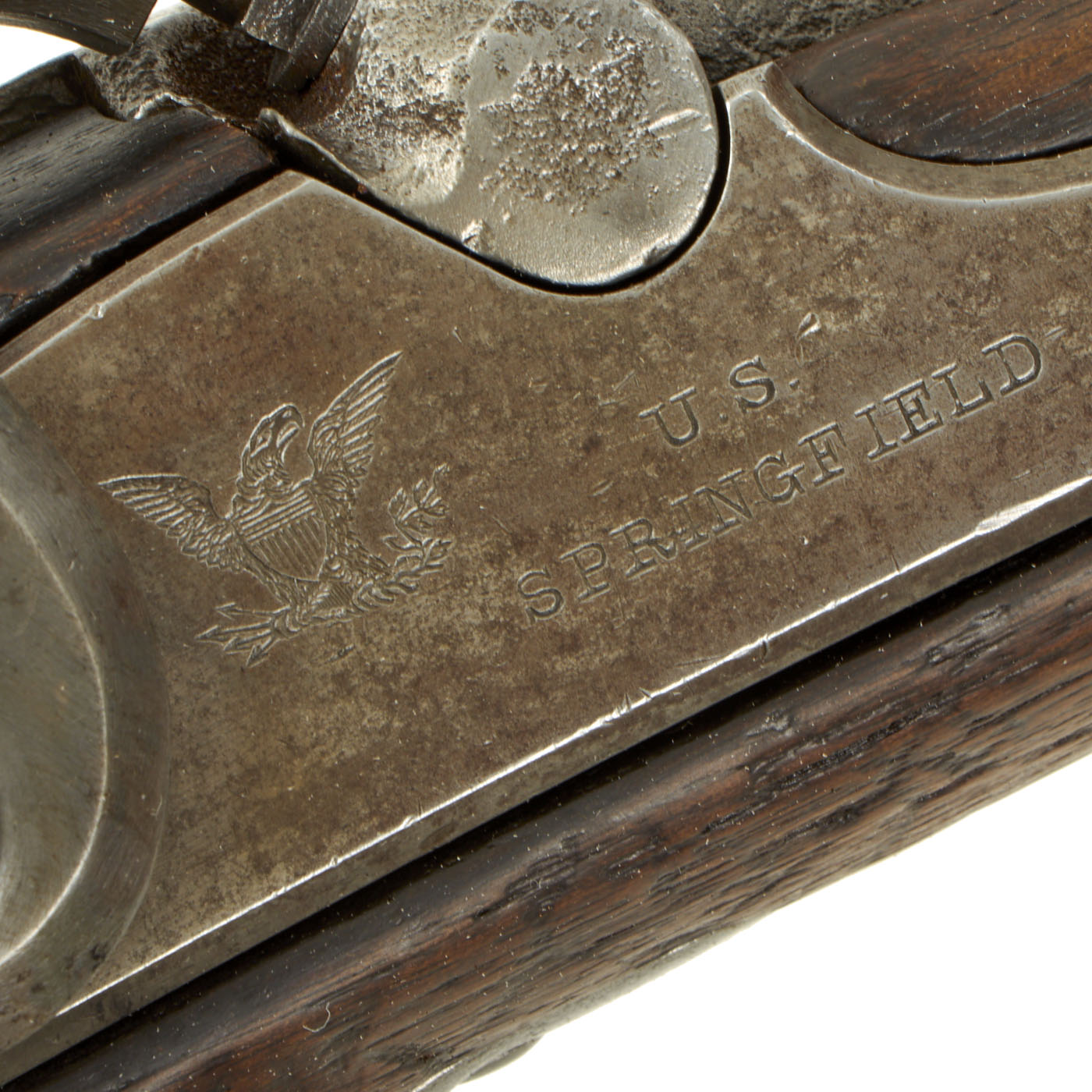

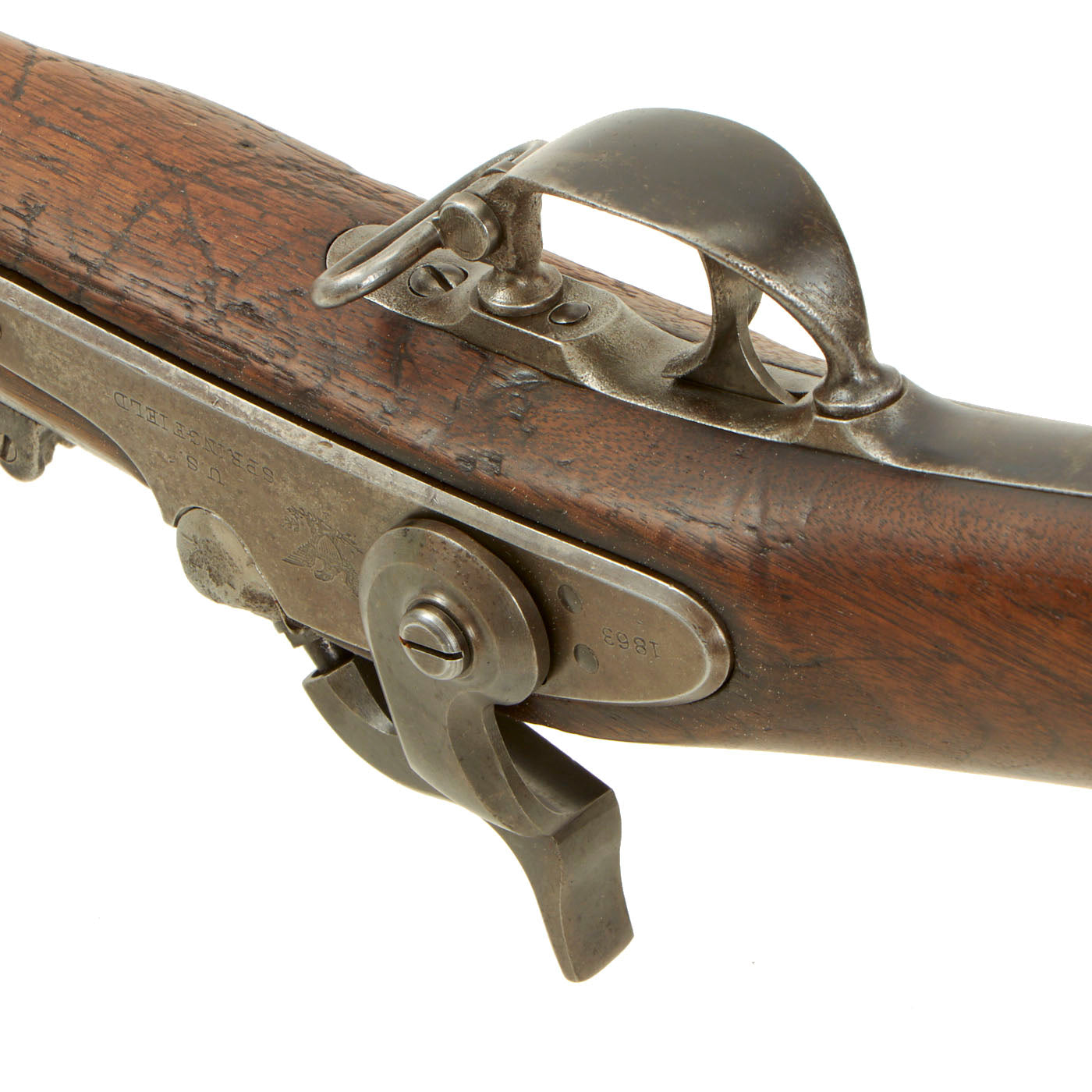

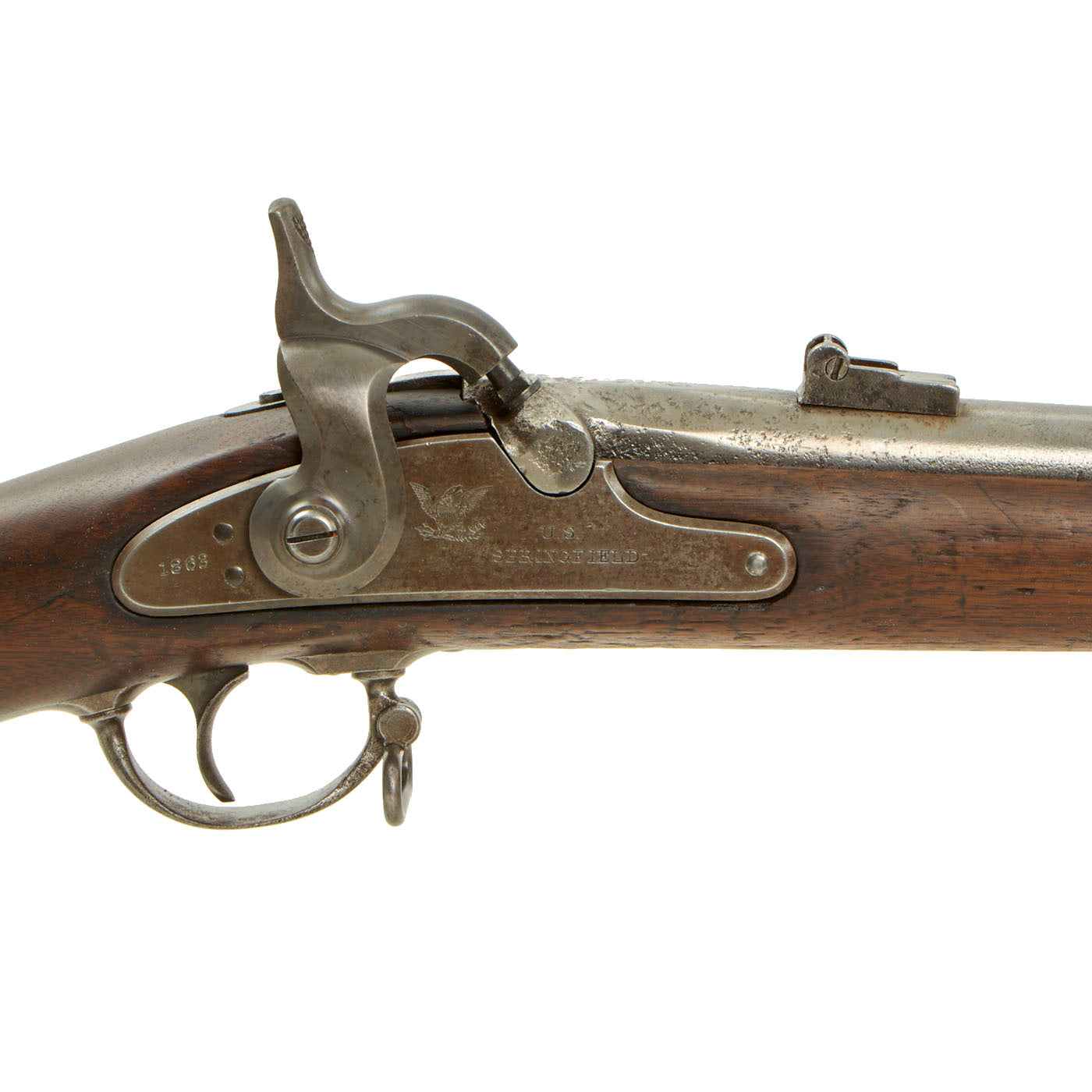

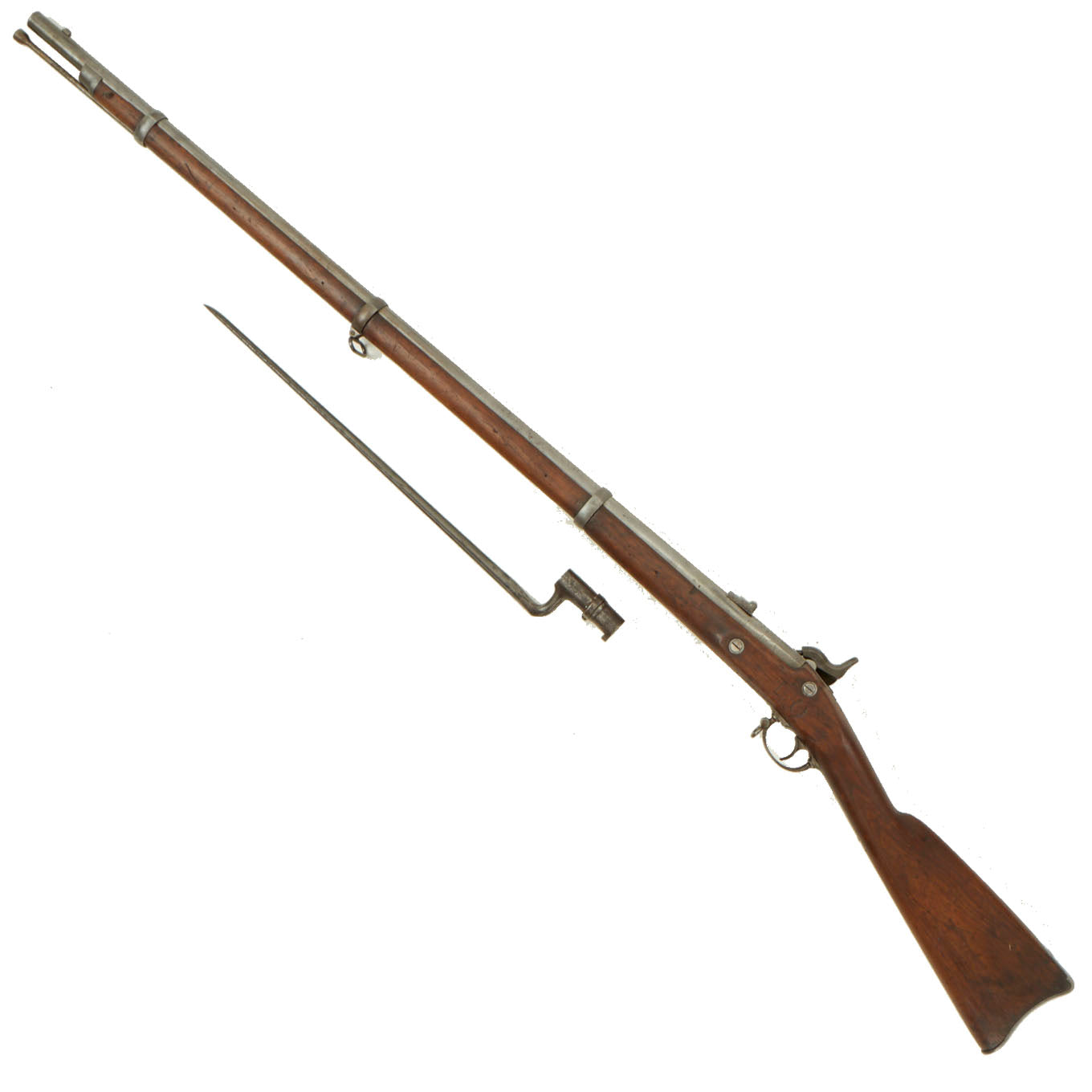

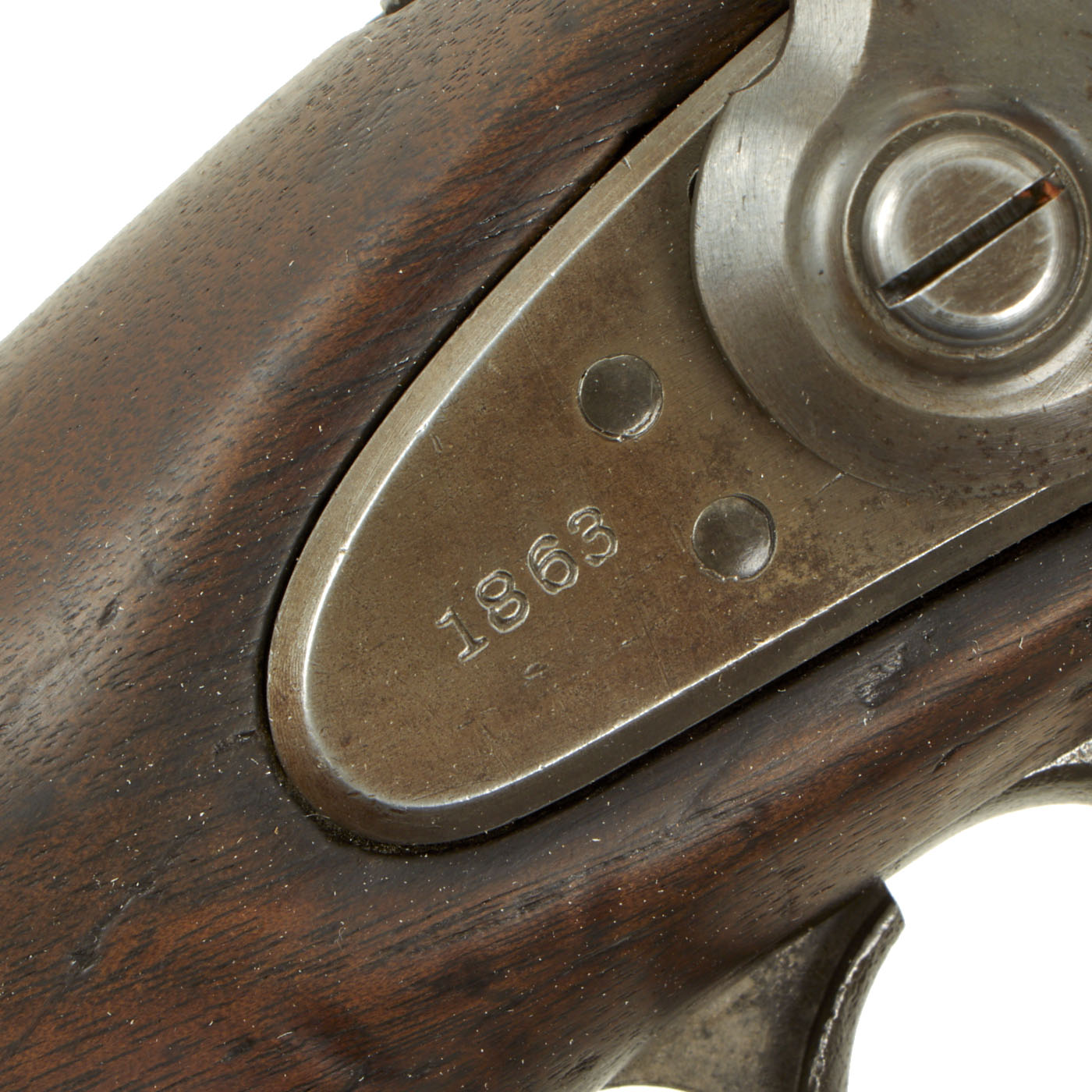

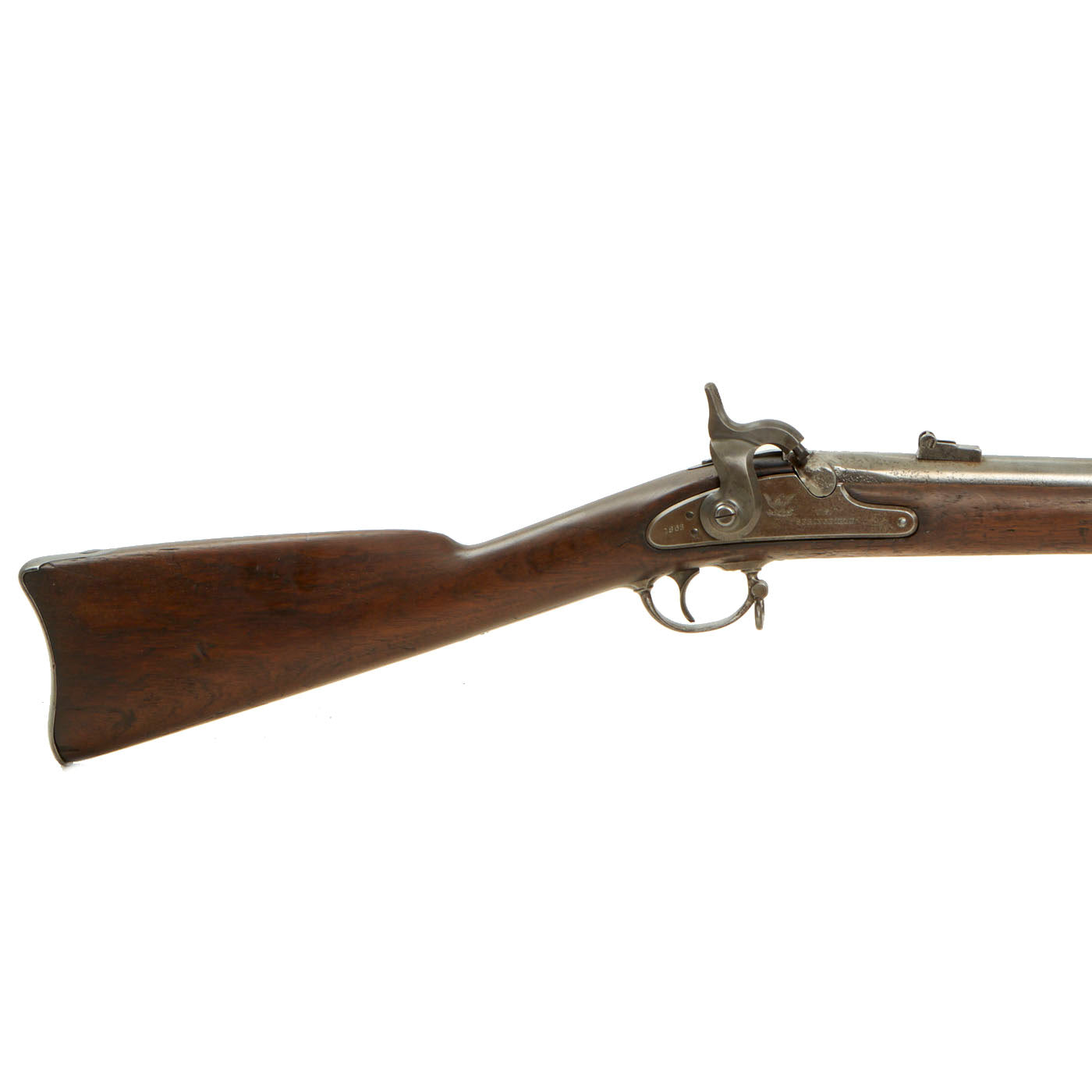

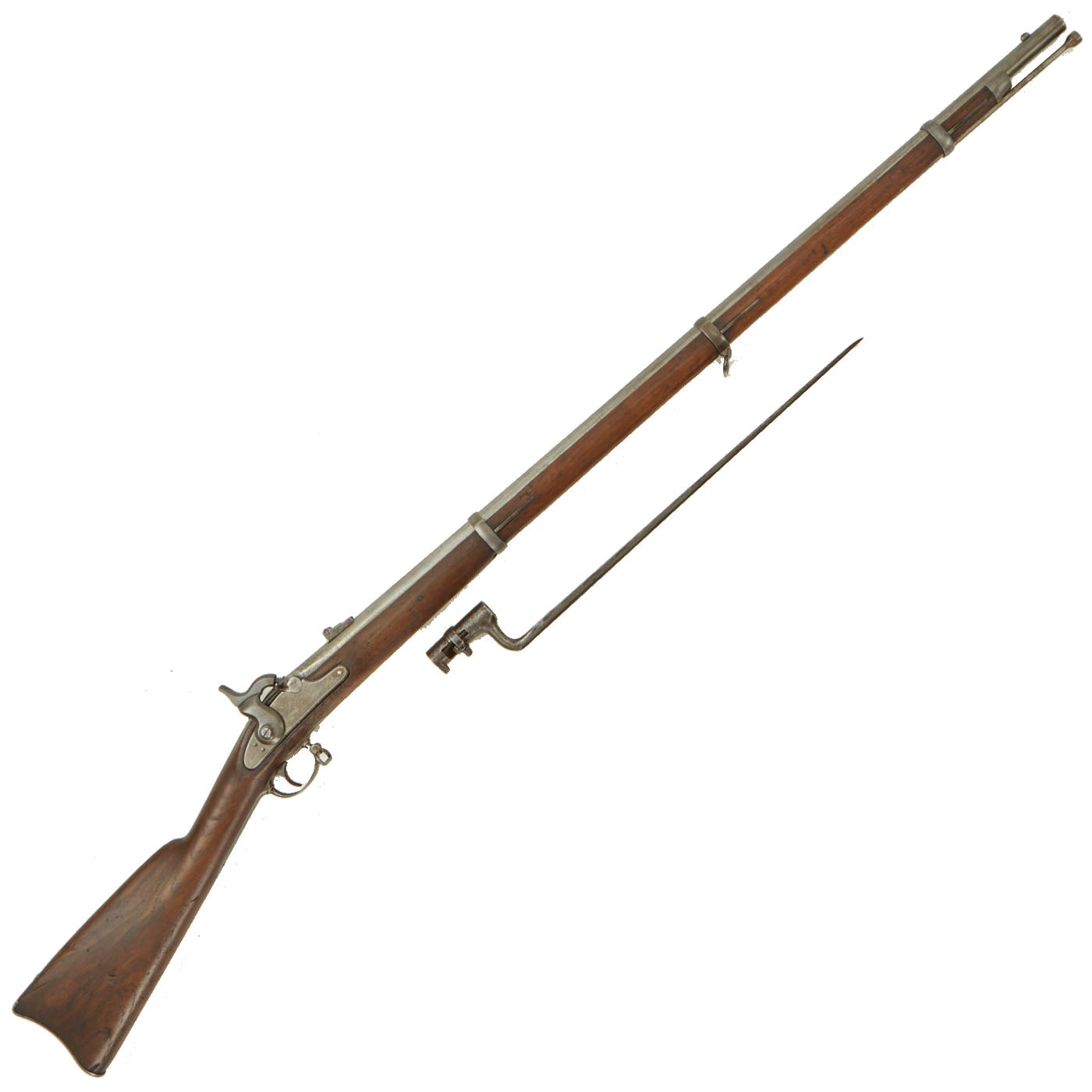

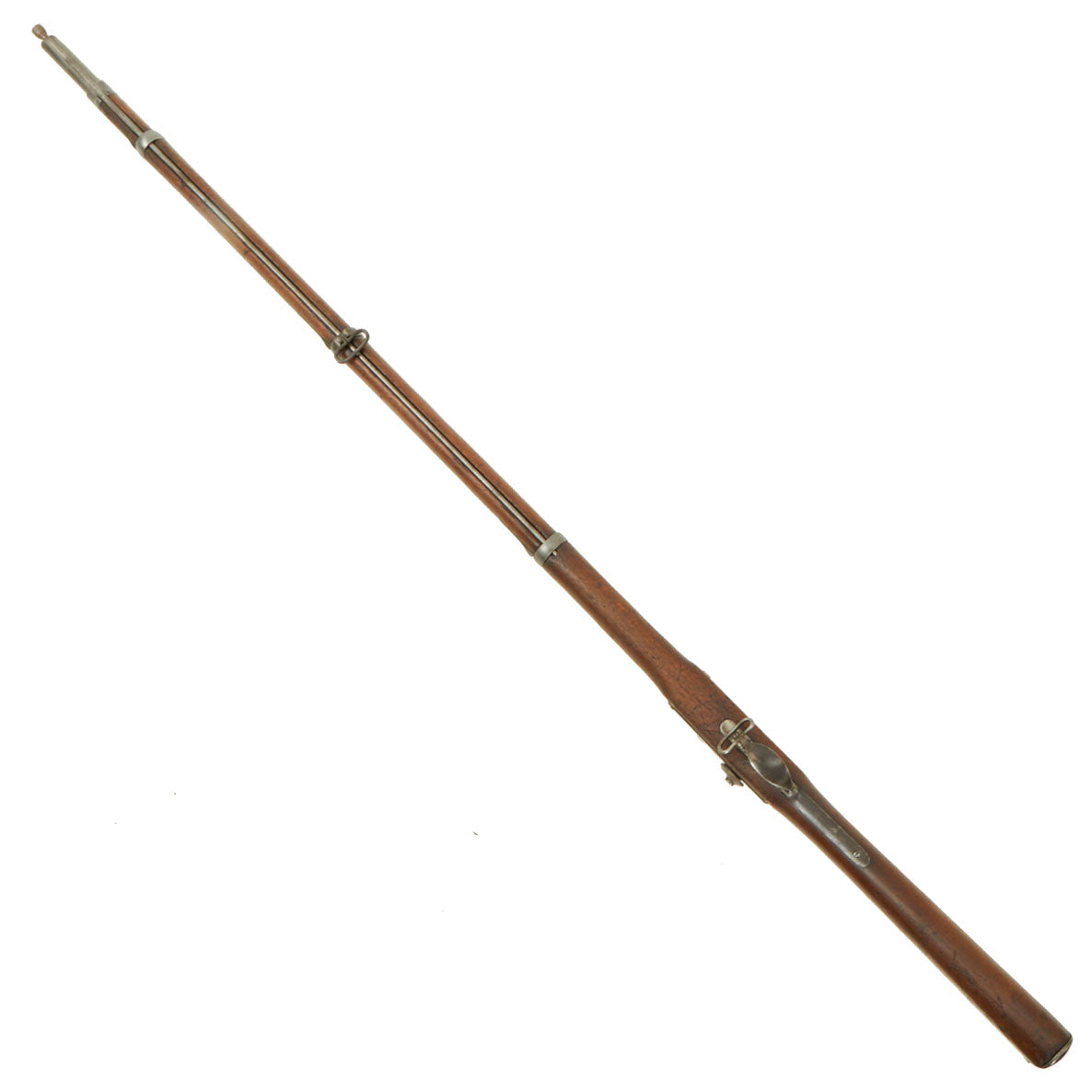

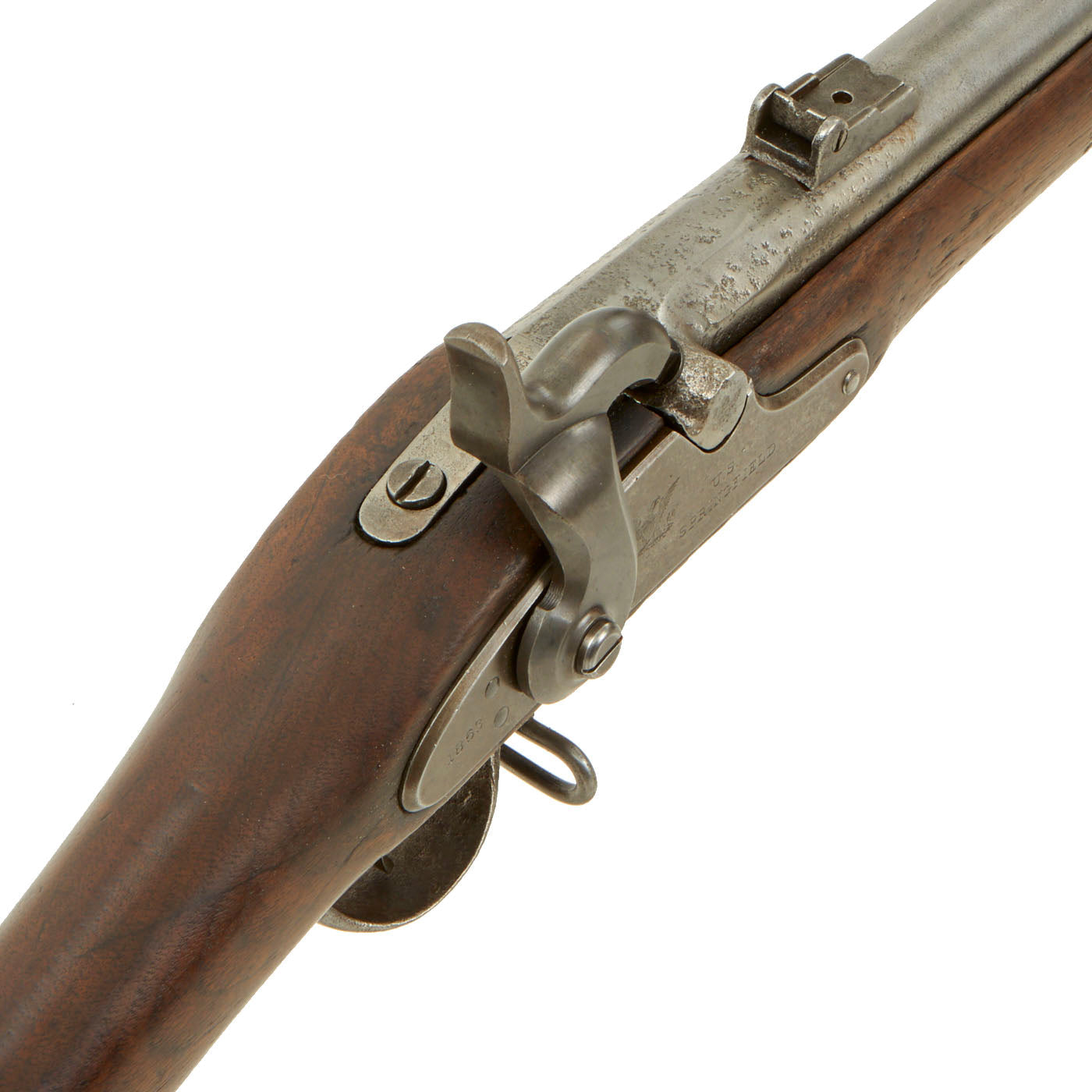

This type II 1863 however escaped conversion, and is presented for sale in the original Civil War era configuration, complete with an original bayonet! It is dated 1863 on the lock plate tail, and also has an Eagle stamped into the lock over U.S. / SPRINGFIELD, indicating production at Springfield Armory, in Springfield Massachusetts. Lock holds properly at half cock, firing at full cock. The lock markings are fully legible, and there is not any serious oxidation or powder burn present, just a lovely gray patina. The cap bolster still bears a Eagle stamping, though it is worn due to cleaning and powder burn. The bore still shows clear three groove rifling, with some overall fouling and oxidation, indicating that this musket did see service.

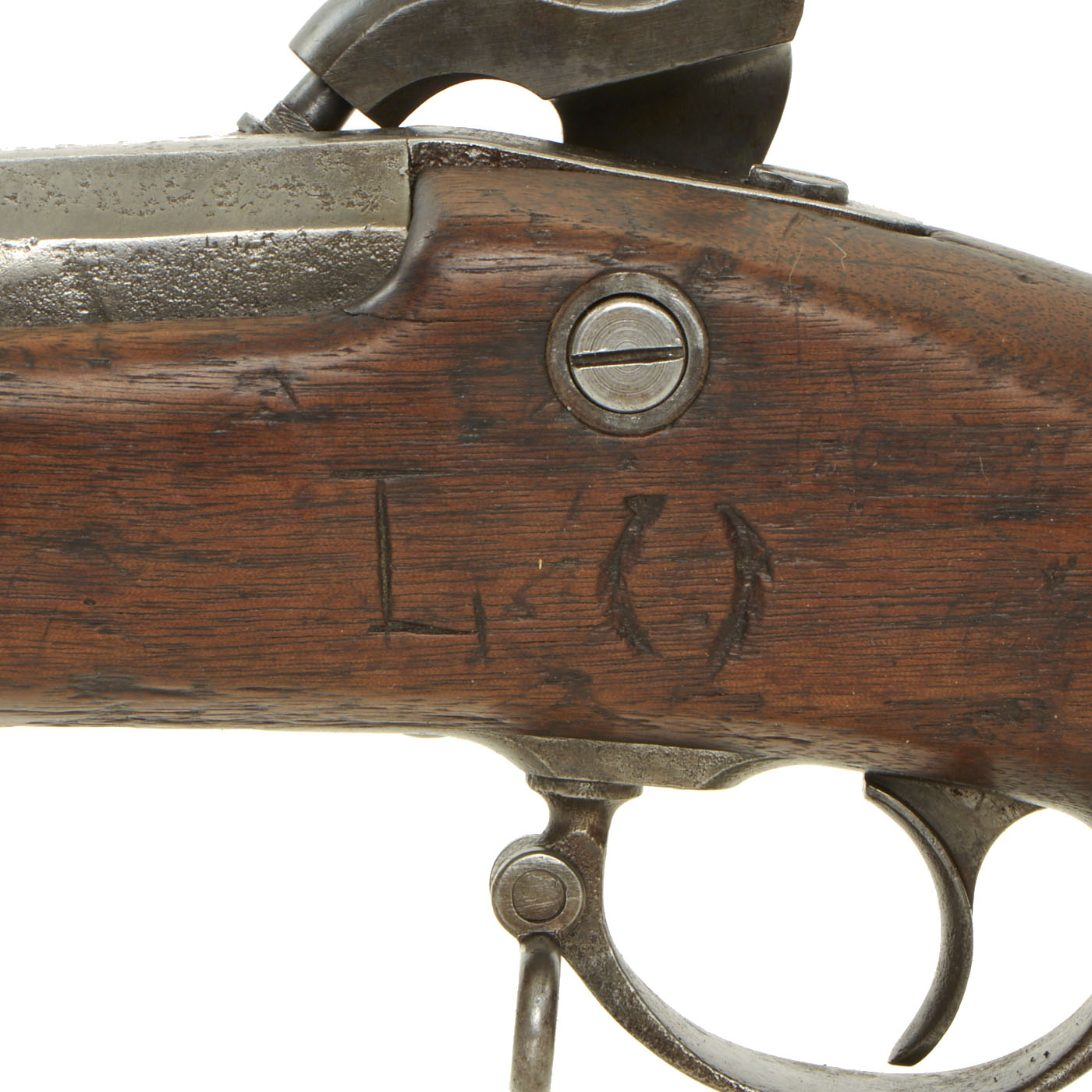

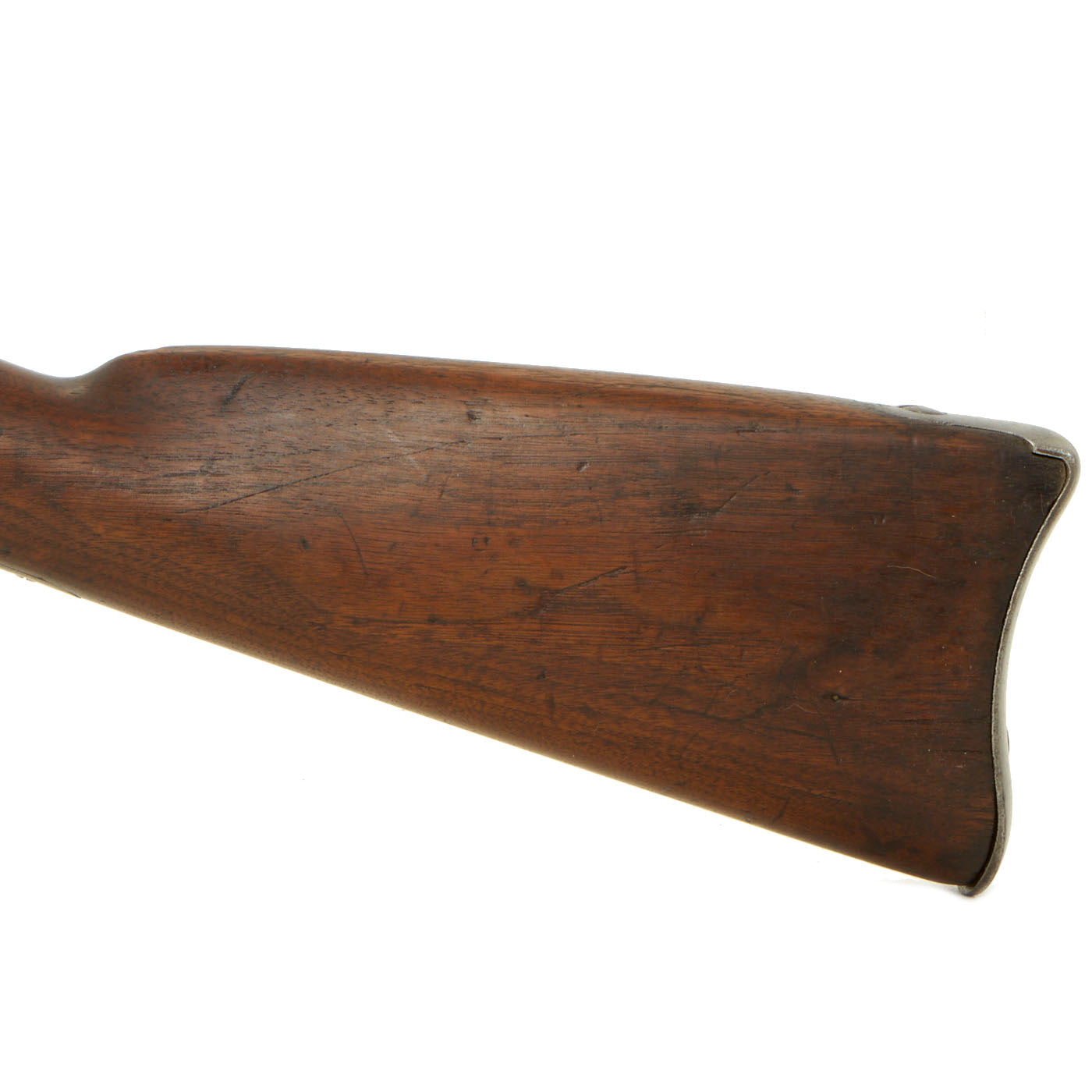

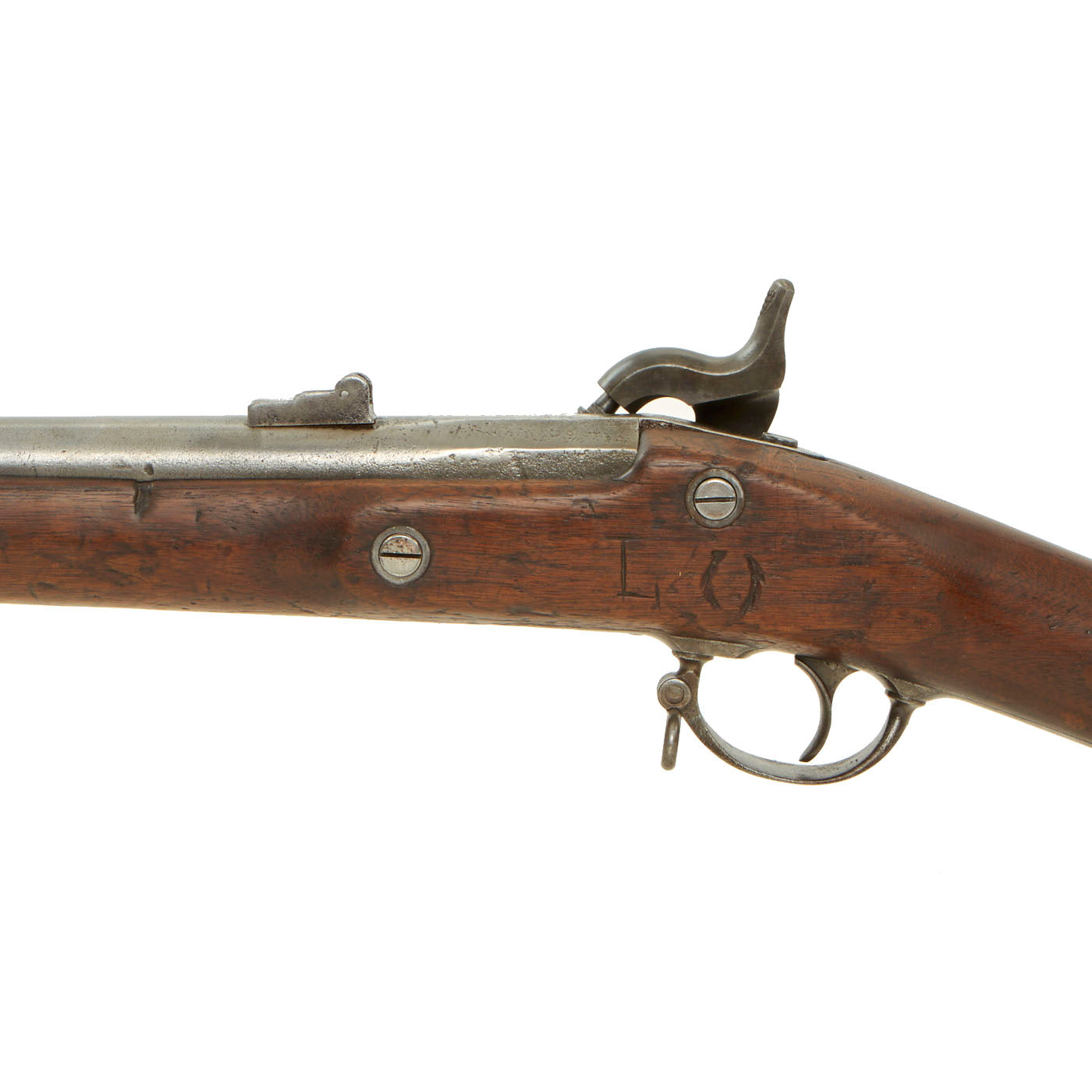

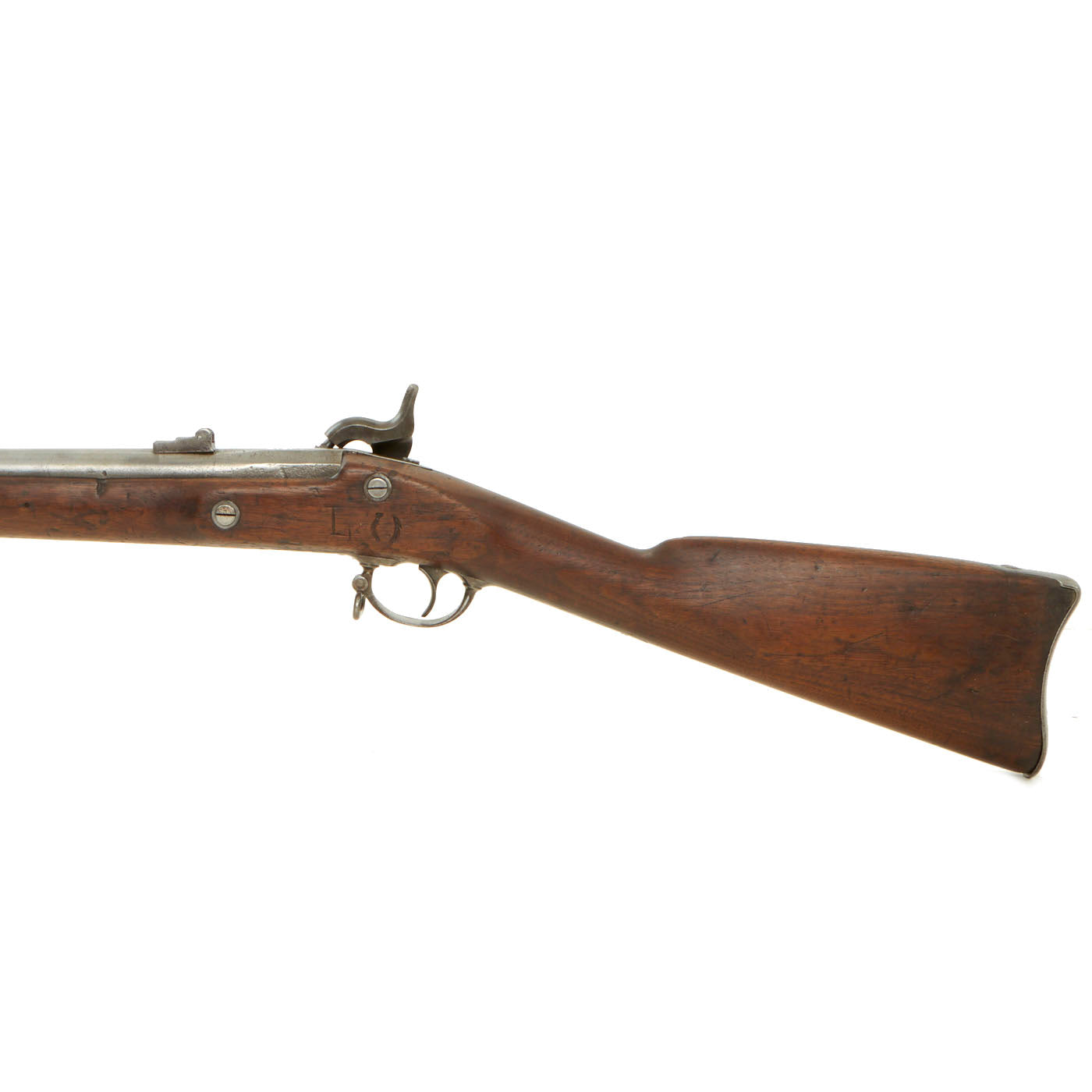

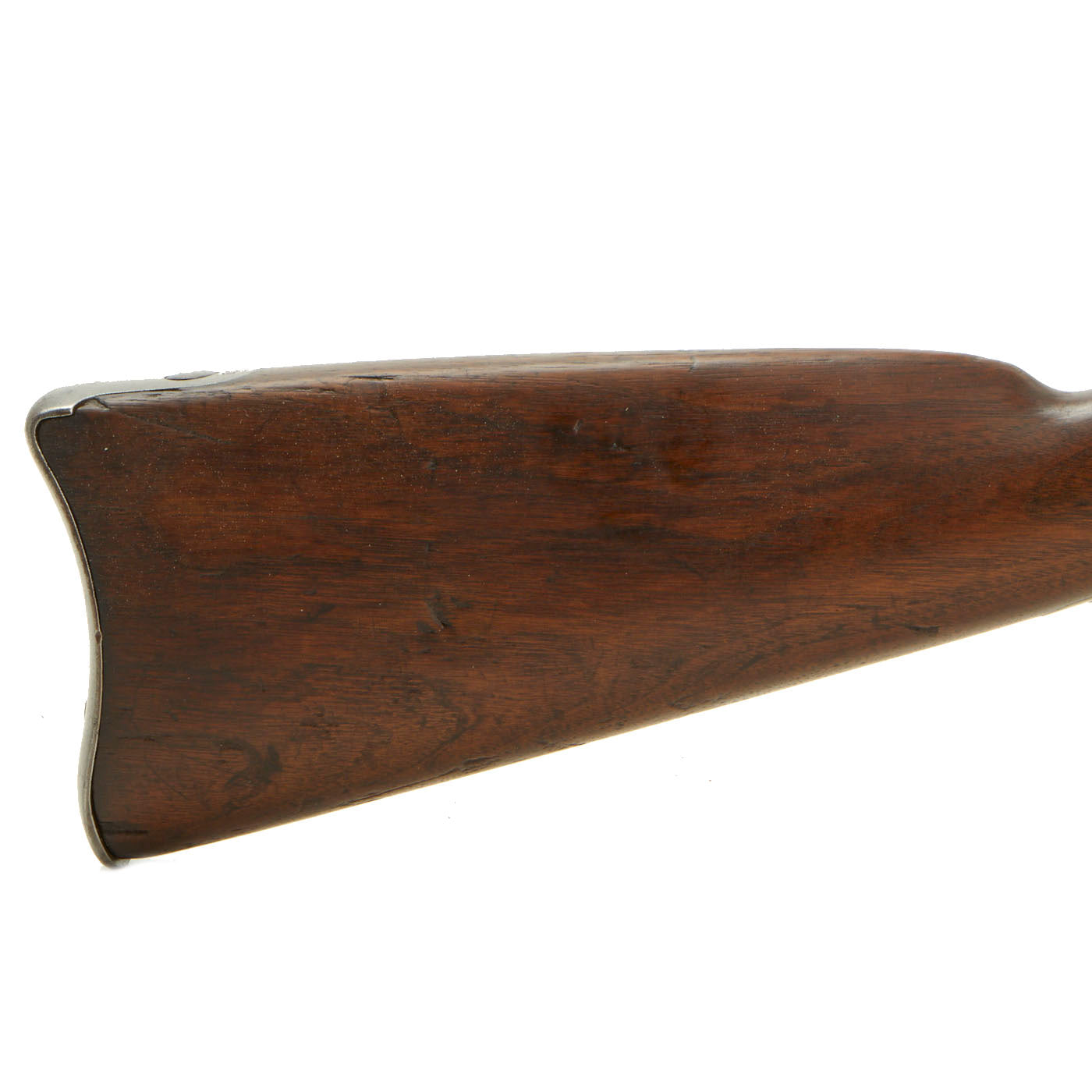

The one piece walnut stock still is in very good condition, with a lovely polished glow. There are some dents and dings, as well as some cracking and missing wood near the nose cap. The stoc also has some wear around the rear sight area from where the hand would grip the musket. There looks to be a repaired crack in the wrist area running back from the lock plate, expertly repaired long ago. The letters "L O" or "L U" were carved into the left side of the stock long ago.

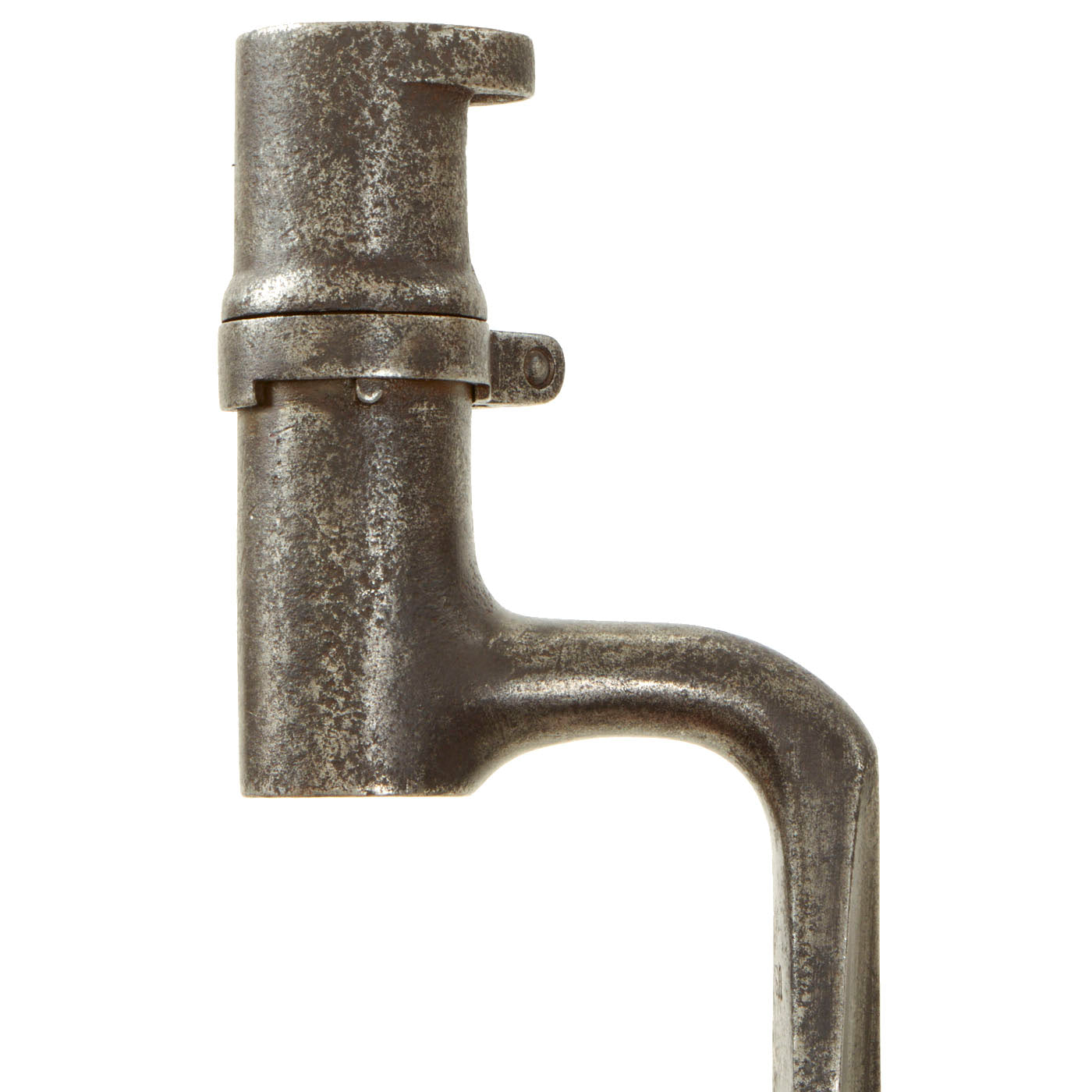

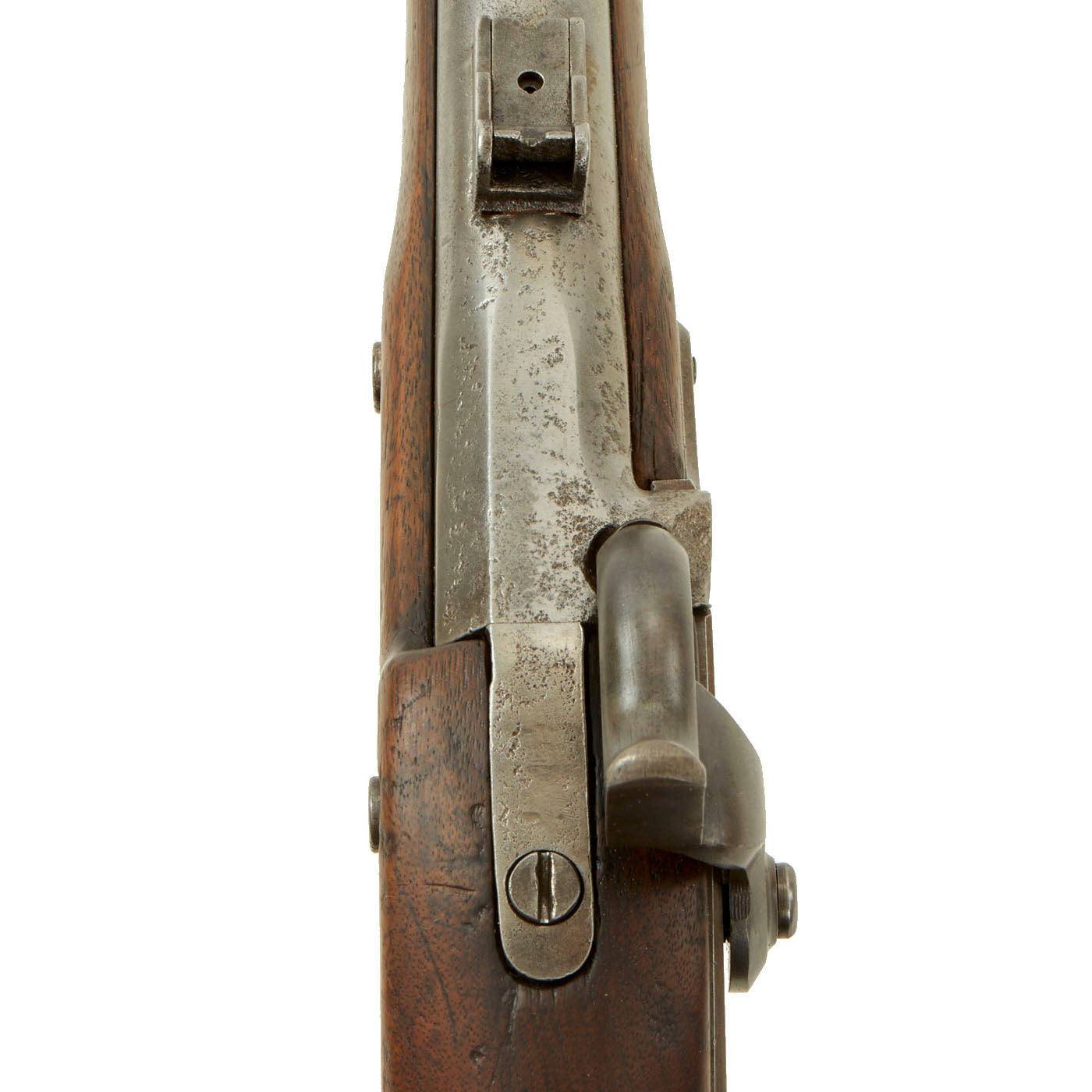

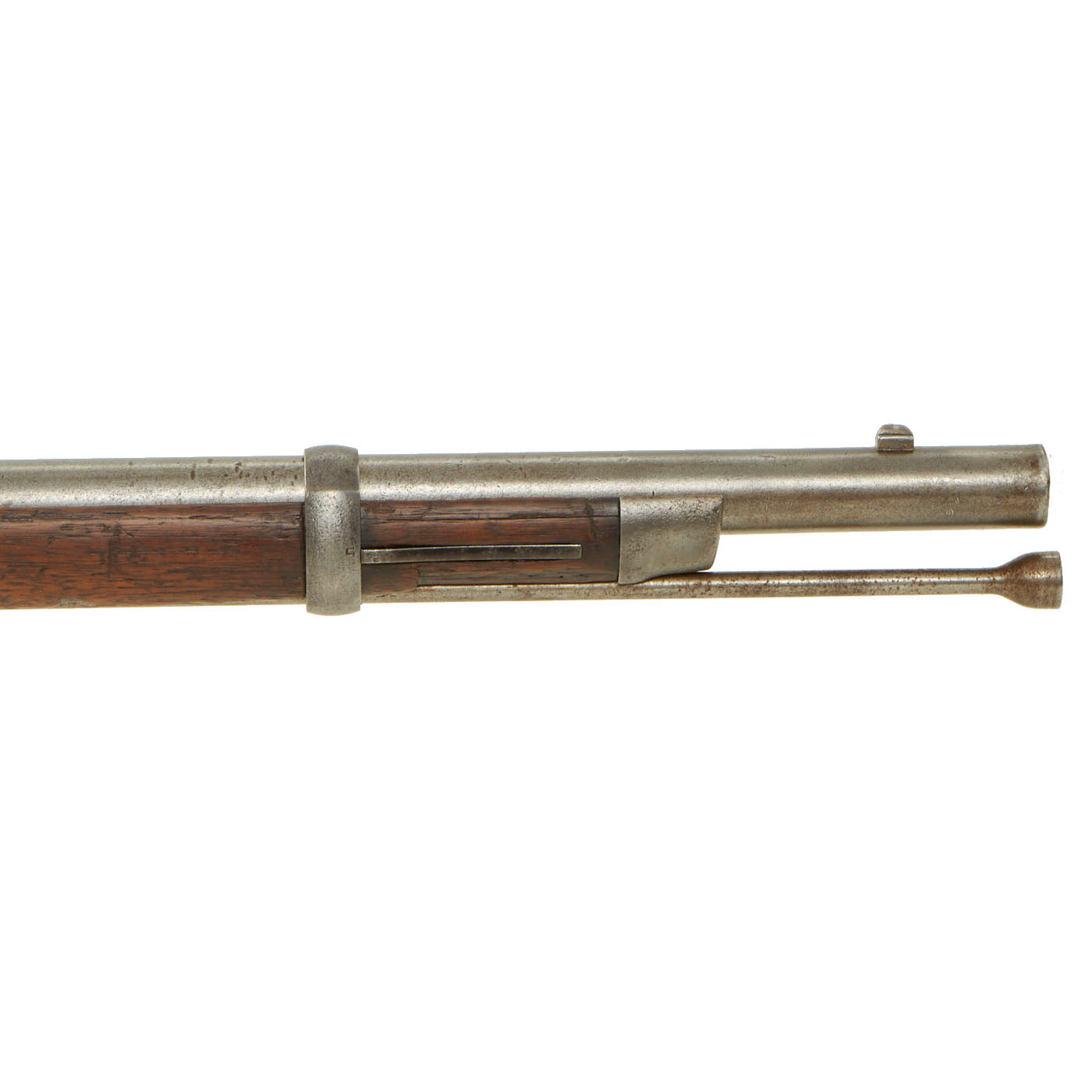

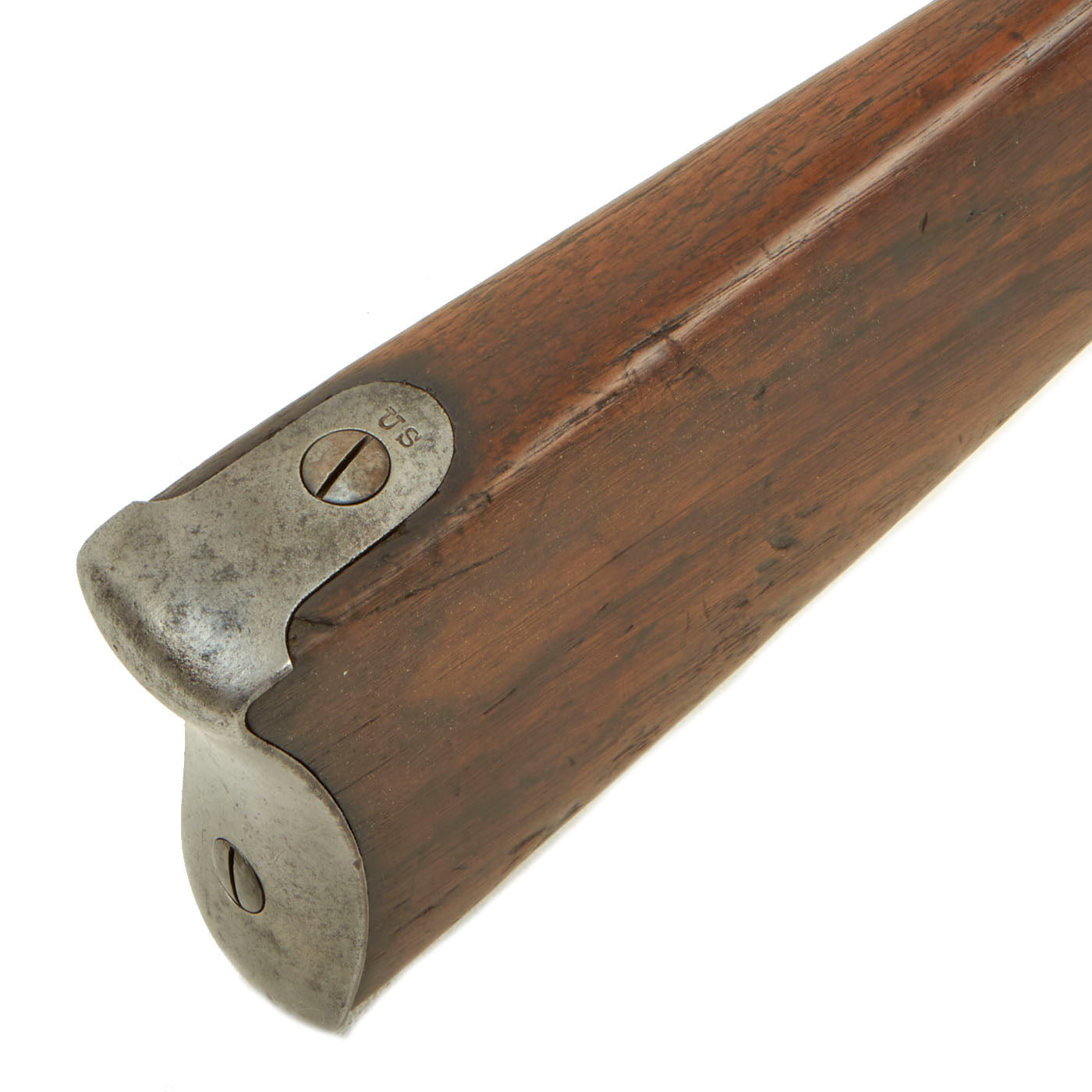

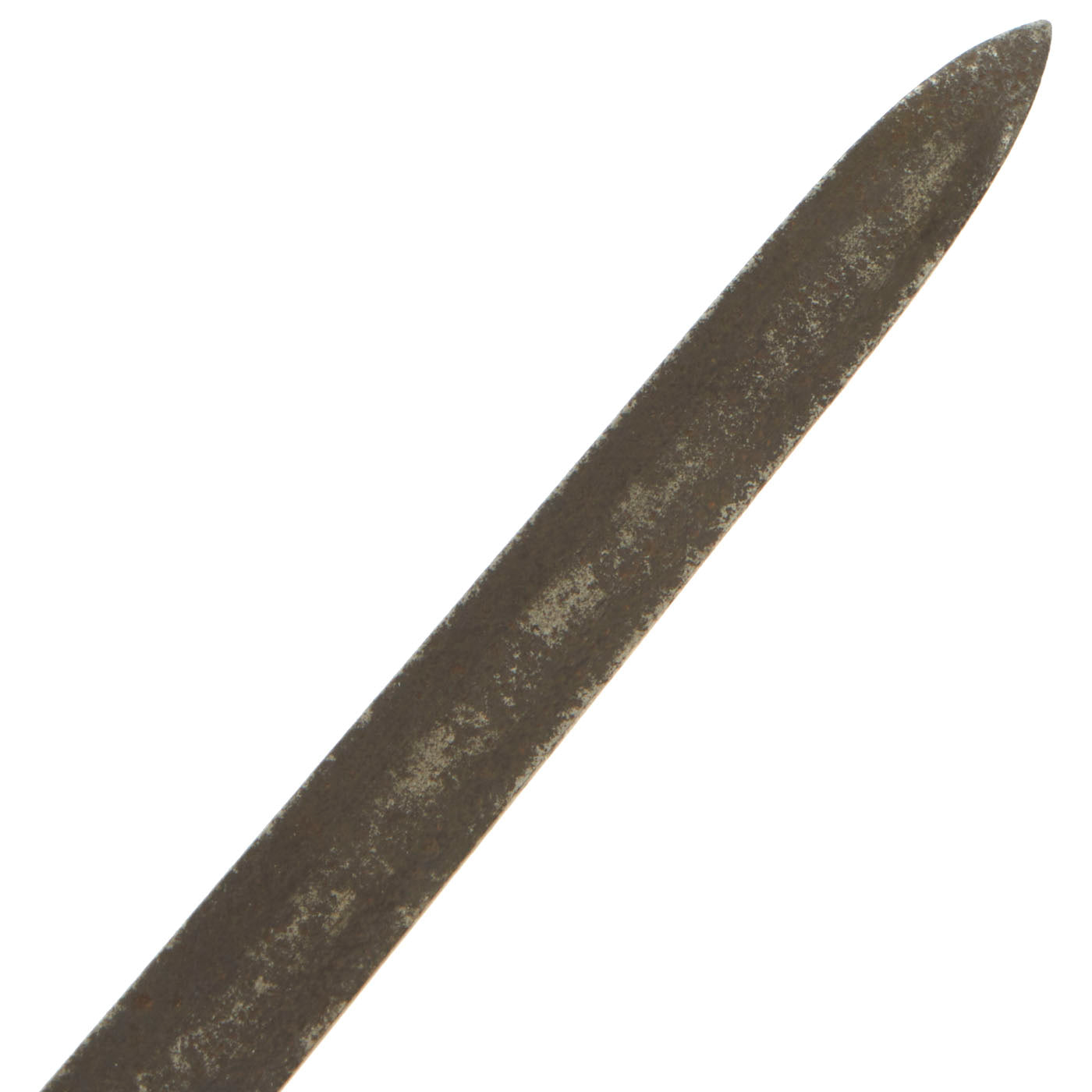

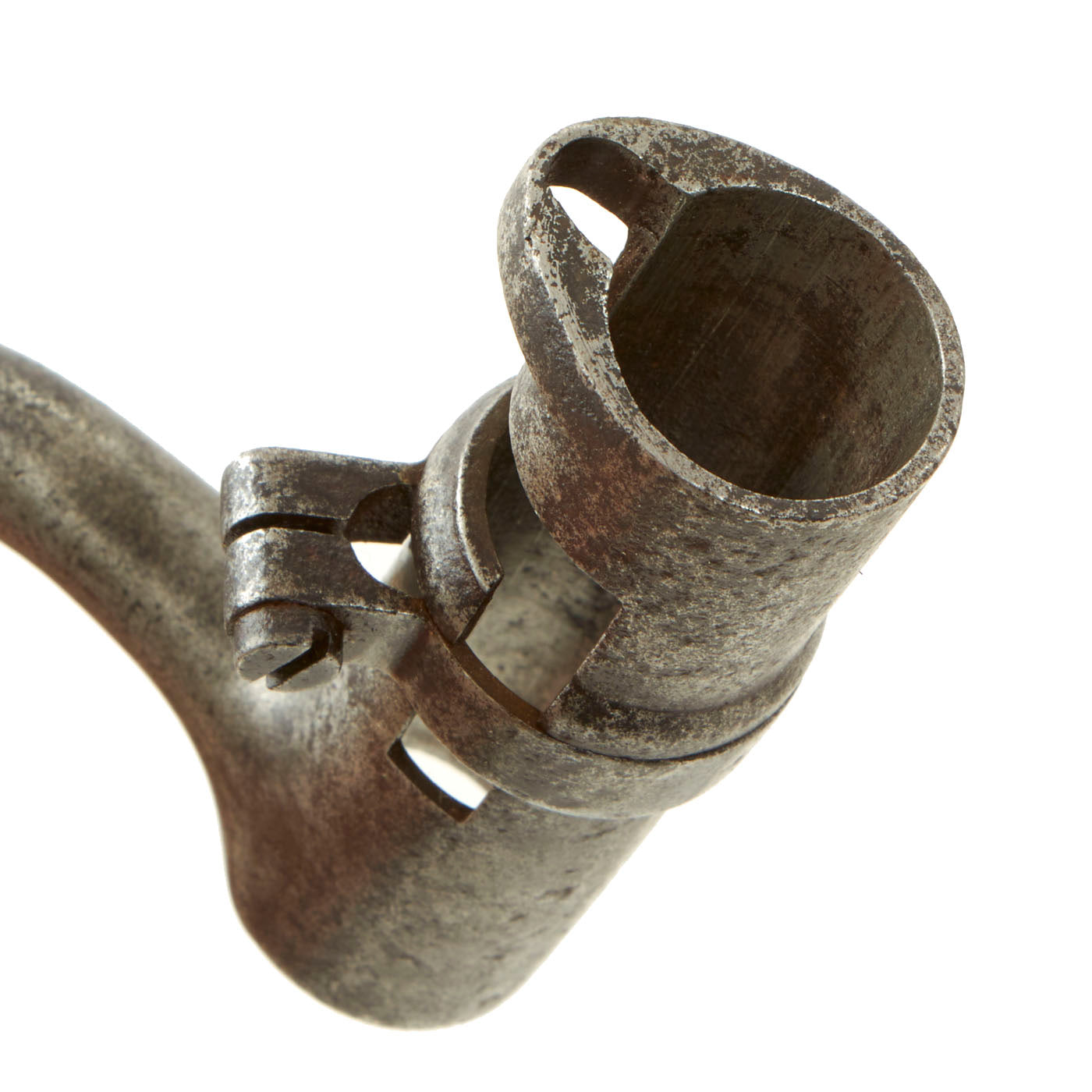

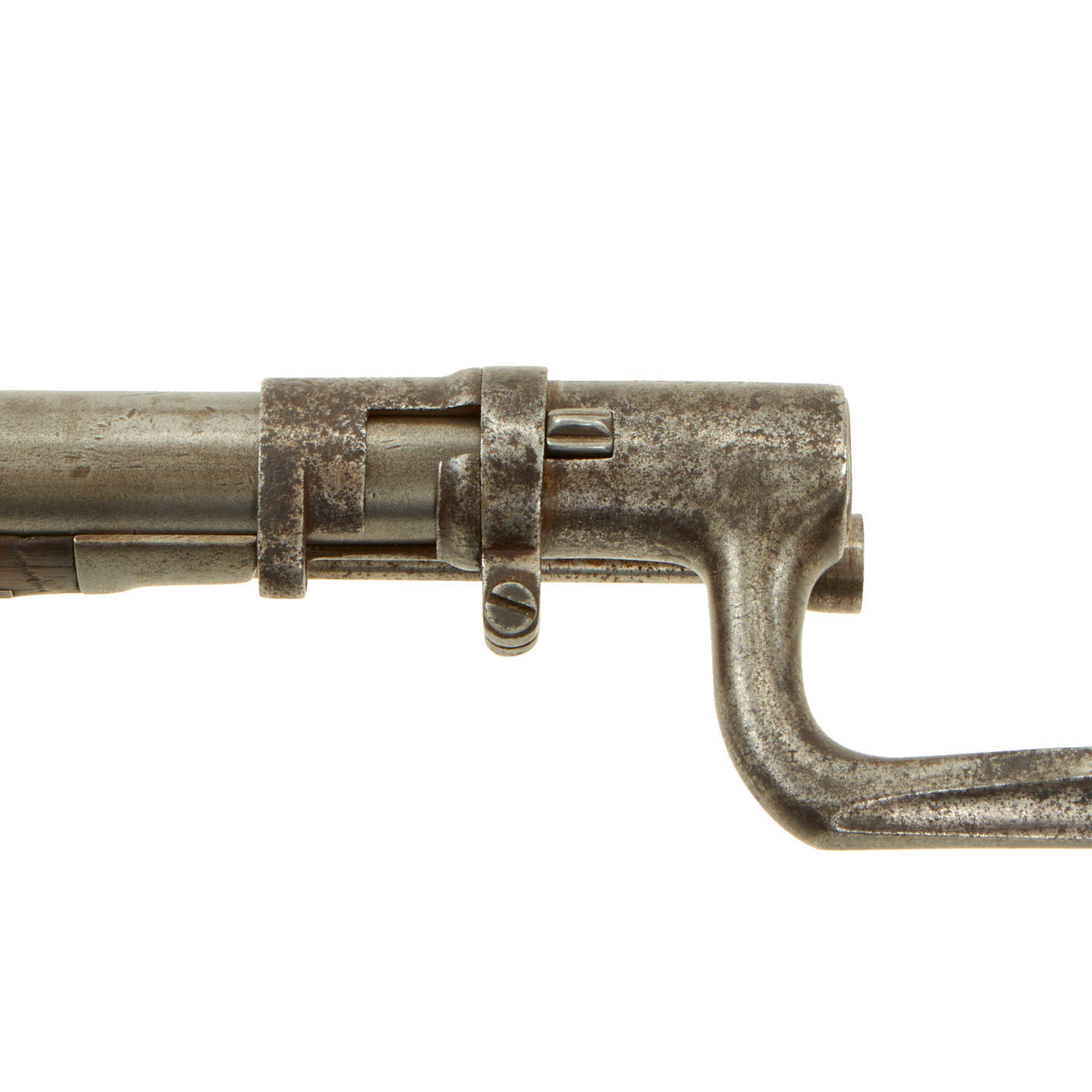

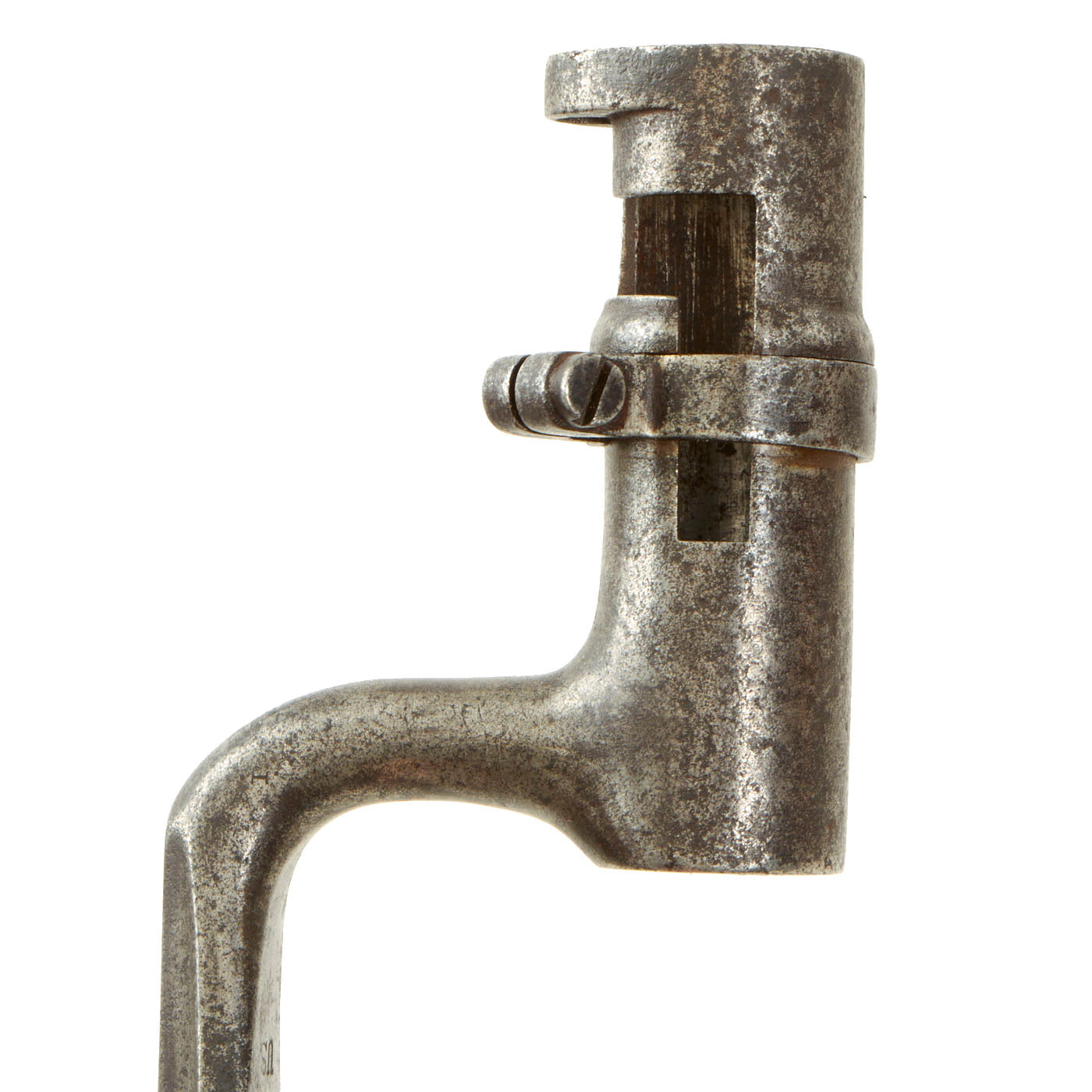

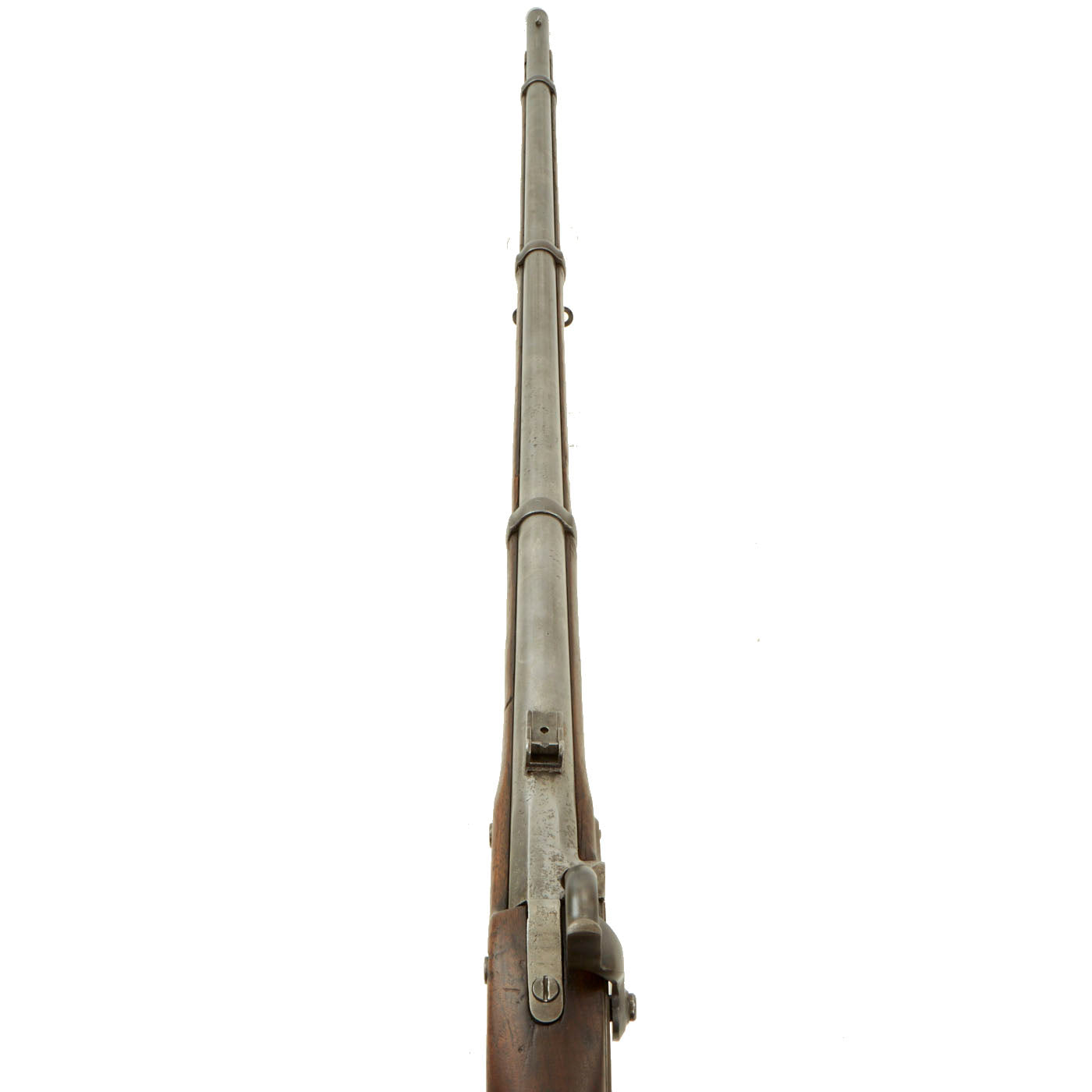

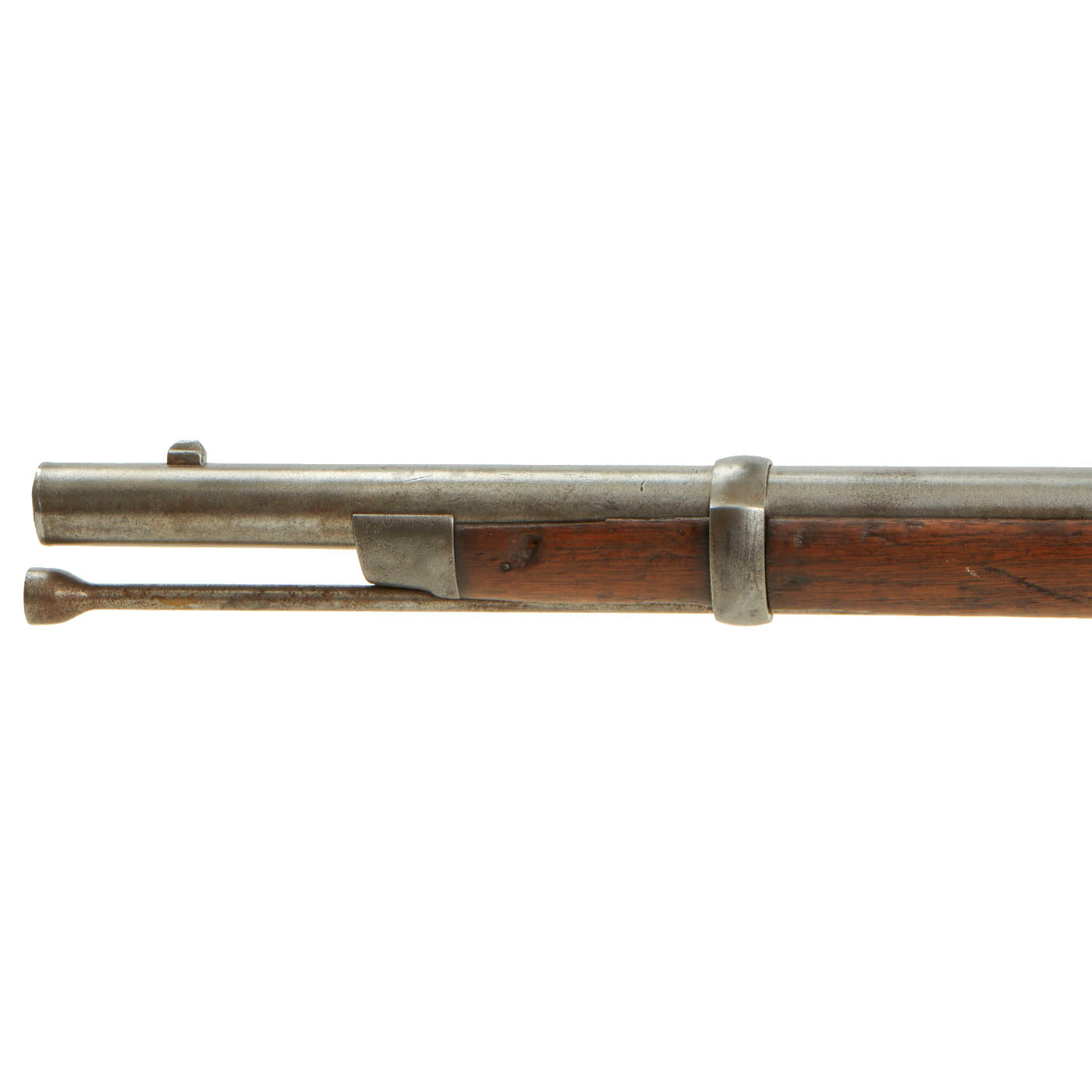

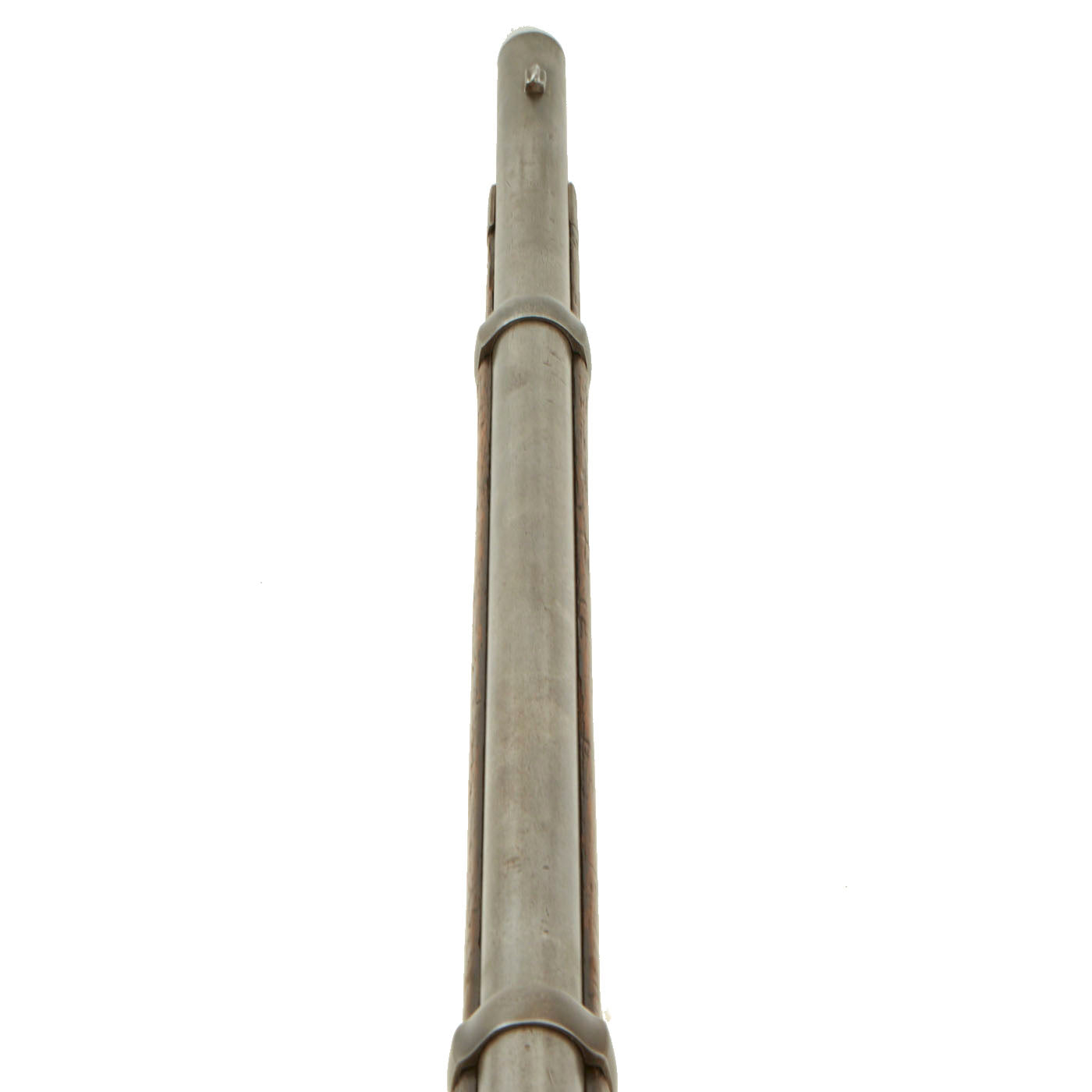

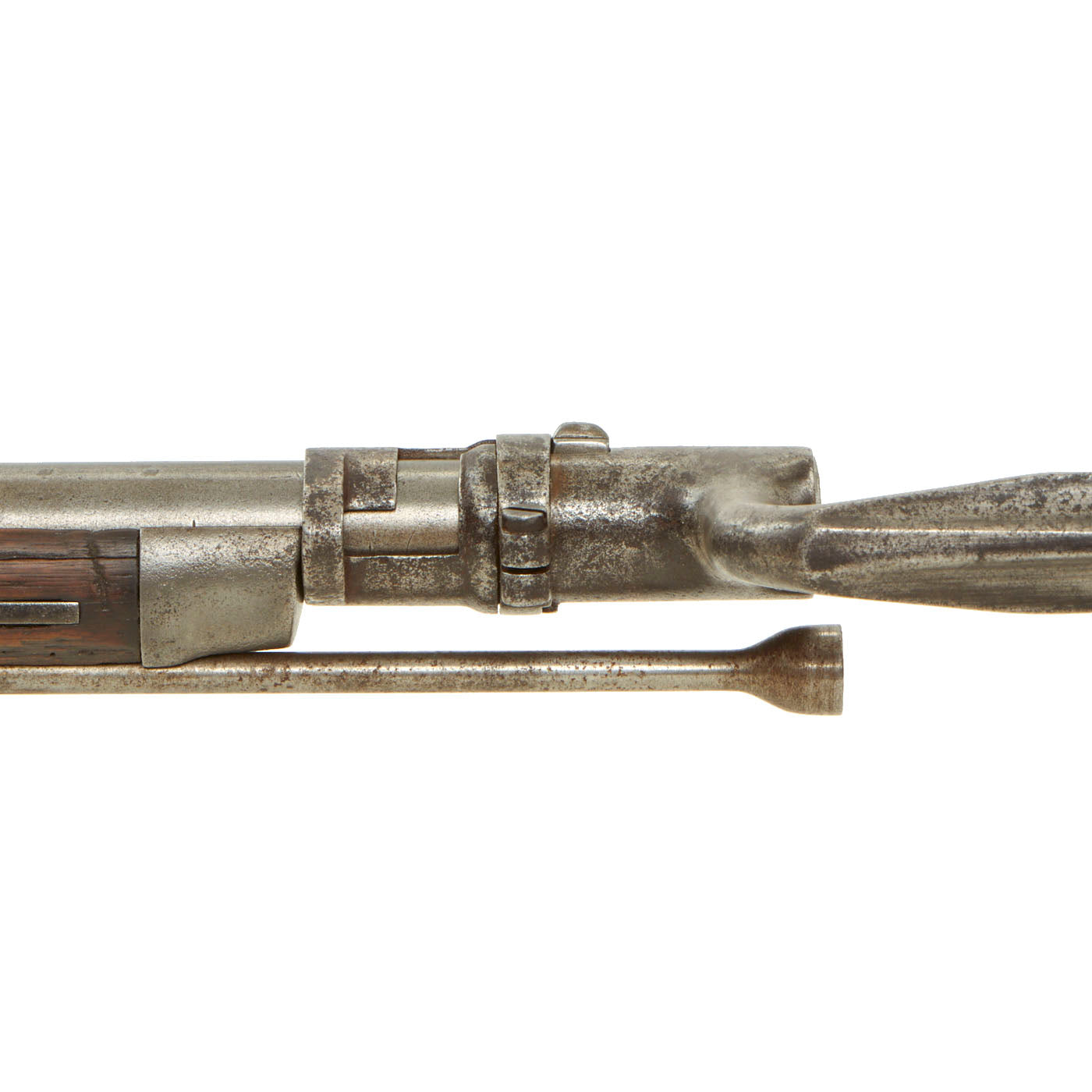

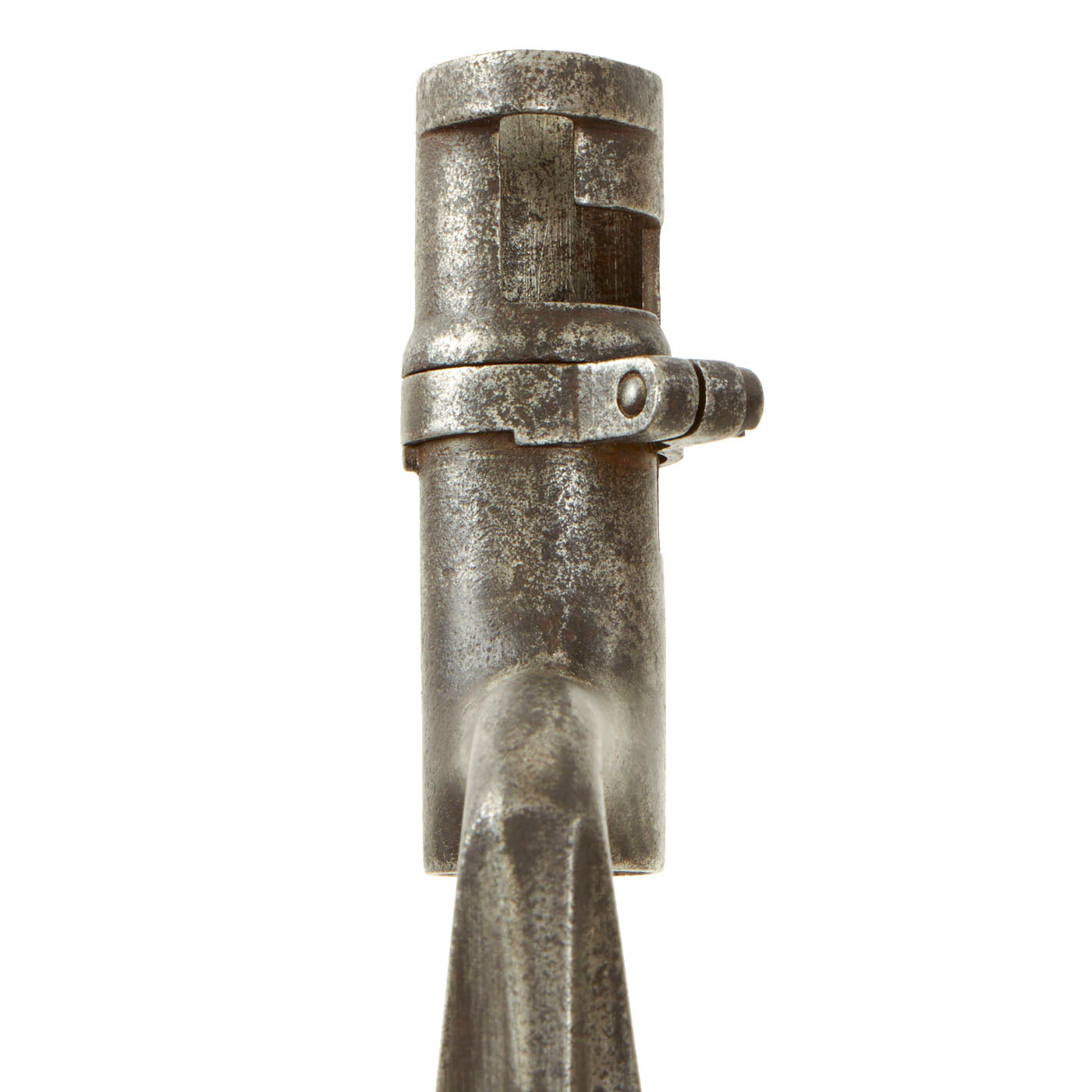

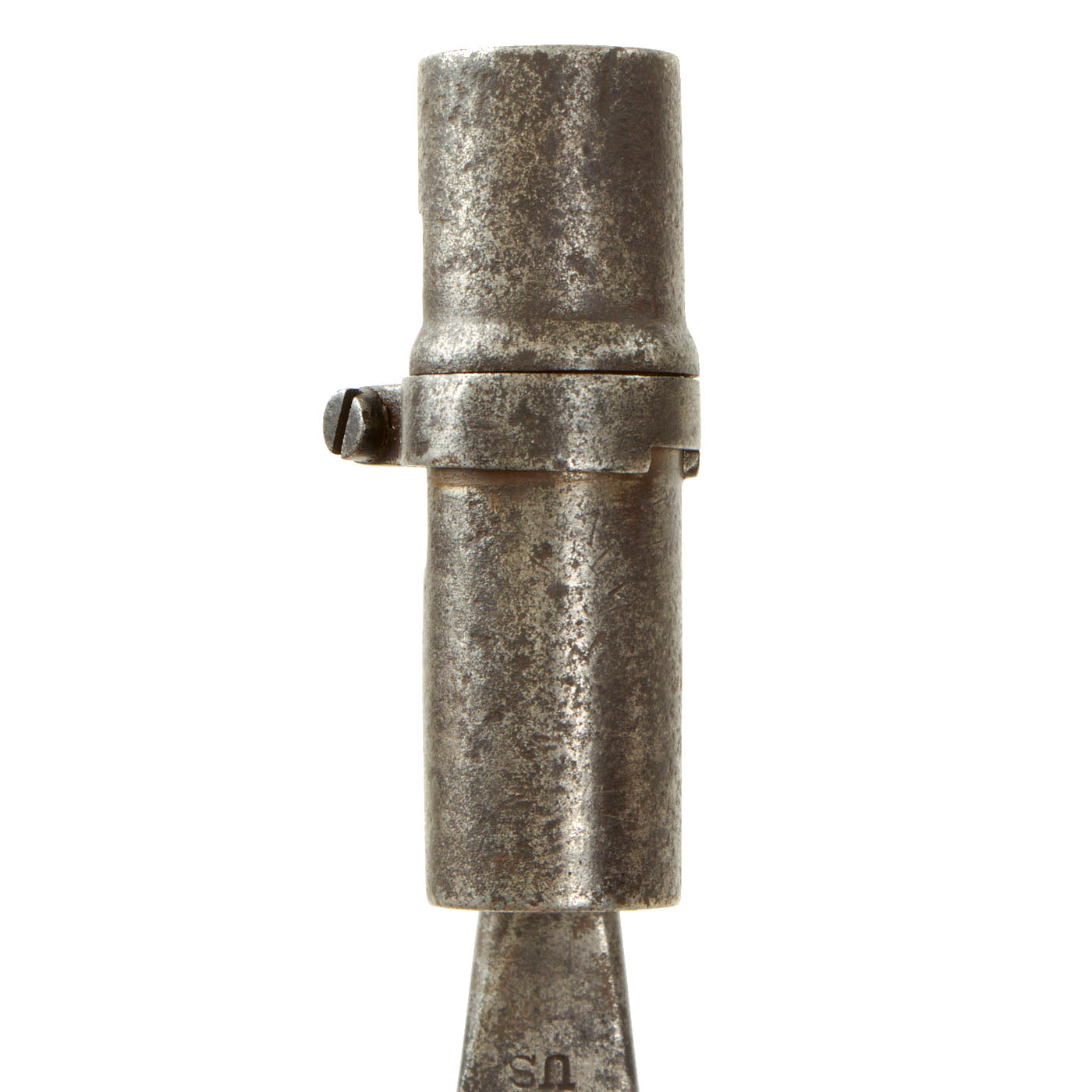

The barrel does have powder burn on the nocks form, now cleaned away, however this has also removed all of the markings in that area. This gun is fitted with the correct type II single leaf rear sight, and has the correct Type II solid bands retained by springs. The butt-plate is stamped U.S. as per regulation, and all barrel bands are U stamped. The ramrod looks to be an arsenal replacement, and both sling swivels are present. The included socket bayonet is also in good shape, with some light pitting and staining on the stained finish. We have left this intact to preserve the history and patina.

A very nice example, offered in nice condition recently acquired from an old collection, shows a bit of age but very presentable in any U.S. Civil War collection. Ready to display!

Specifications (Musket):-

Year of Manufacture: 1863
Caliber: .58"
Cartridge Type: Minie Ball and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded

Specifications (Bayonet):-

Blade Length: 18"
Socket Length: 3"
Blade Style: Triangular
Overall length: 21“

NOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these. International customers should always consult their country's antique gun laws prior to ordering.

IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.

These antique guns are not sold in "live" condition, and are not tested for the the ability to feed or load any type of cartridge. They are sold as collector's items or as "wall hangers" not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services. International customers should always consult their country's antique gun laws prior to ordering.
