Original Item: Only One Available. The Springfield Model 1863 rifled musket is a .58 caliber rifled musket produced by the Springfield Armory between 1863 and 1865. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber). Several of these modifications were based upon Colt's contract model 1861, known as the "Colt special". 273,265 Type I variants were manufactured in 1863.

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight. A total of 255,040 of these were manufactured from 1864 to 1865.

By the end of the Civil War, muzzle-loading rifles and muskets were considered obsolete. In the years following the Civil War, many Model 1863 muskets were converted into breech-loading "Trapdoor Springfields". The breech-loading weapons increased the rate of fire from 3 to 4 rounds per minute to 8 to 10 rounds per minute. The Model 1863 could be converted to breech-loading for about $5, at a time when a new rifle would cost about $20. The conversion of Model 1863 rifles therefore represented a significant cost savings to the U.S. military.

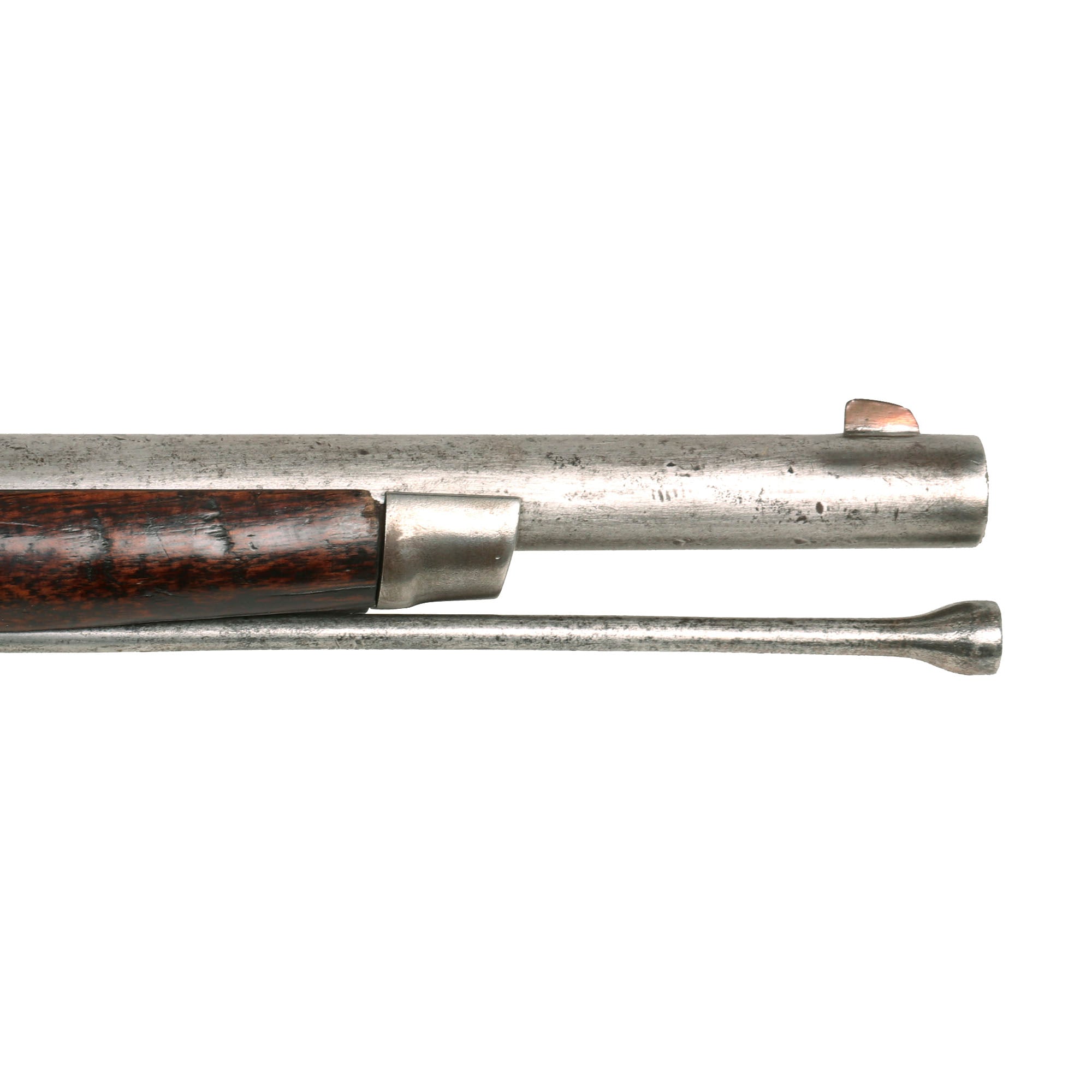

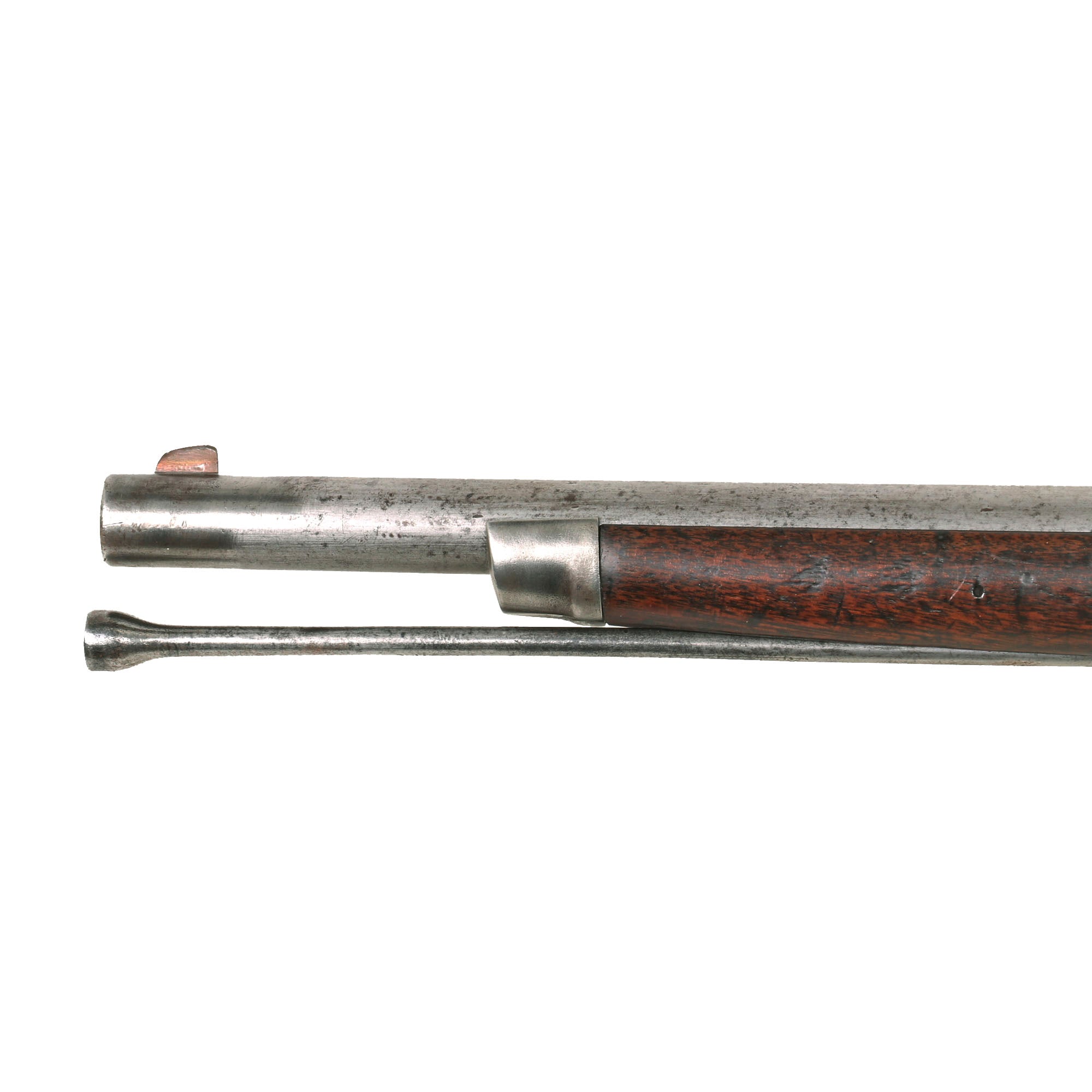

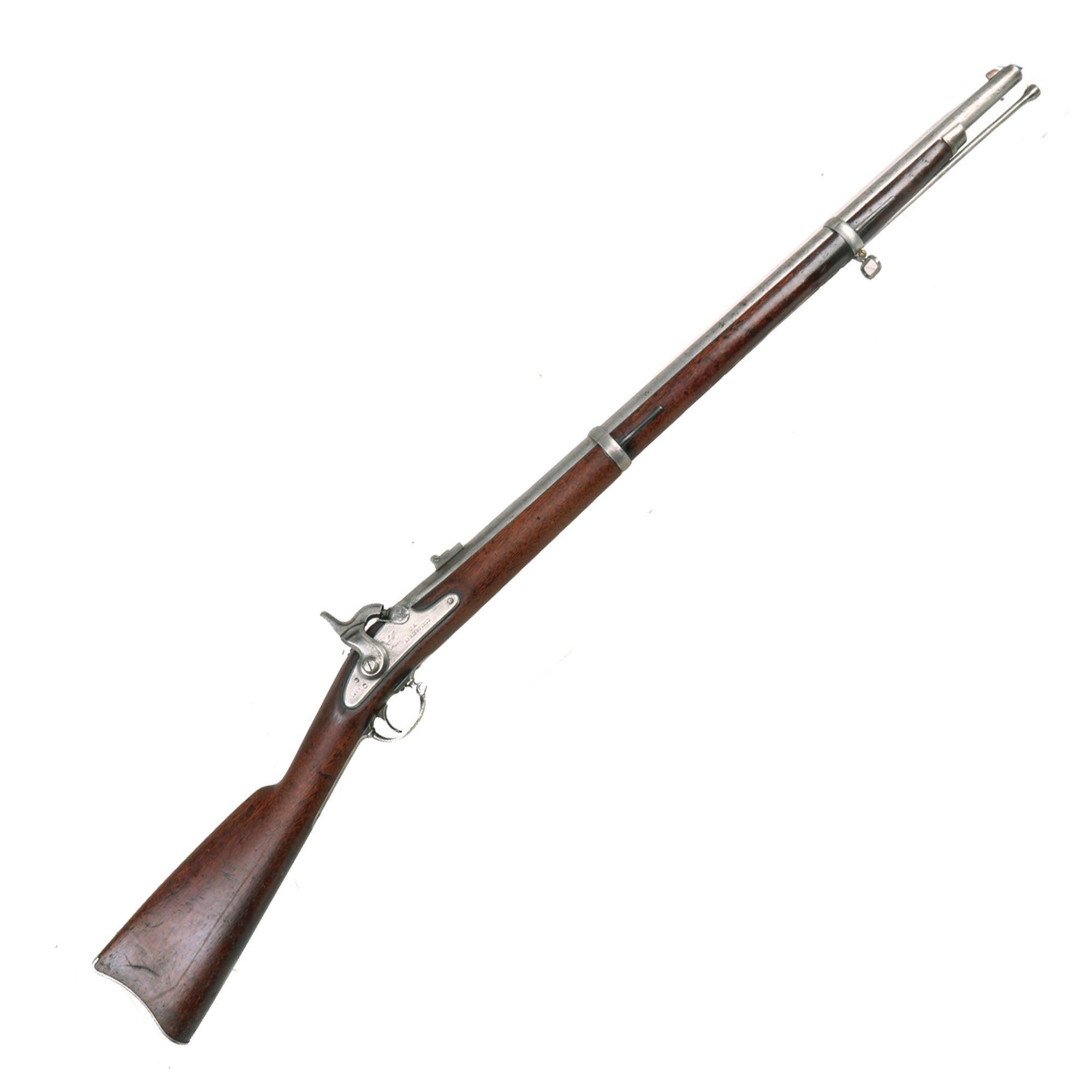

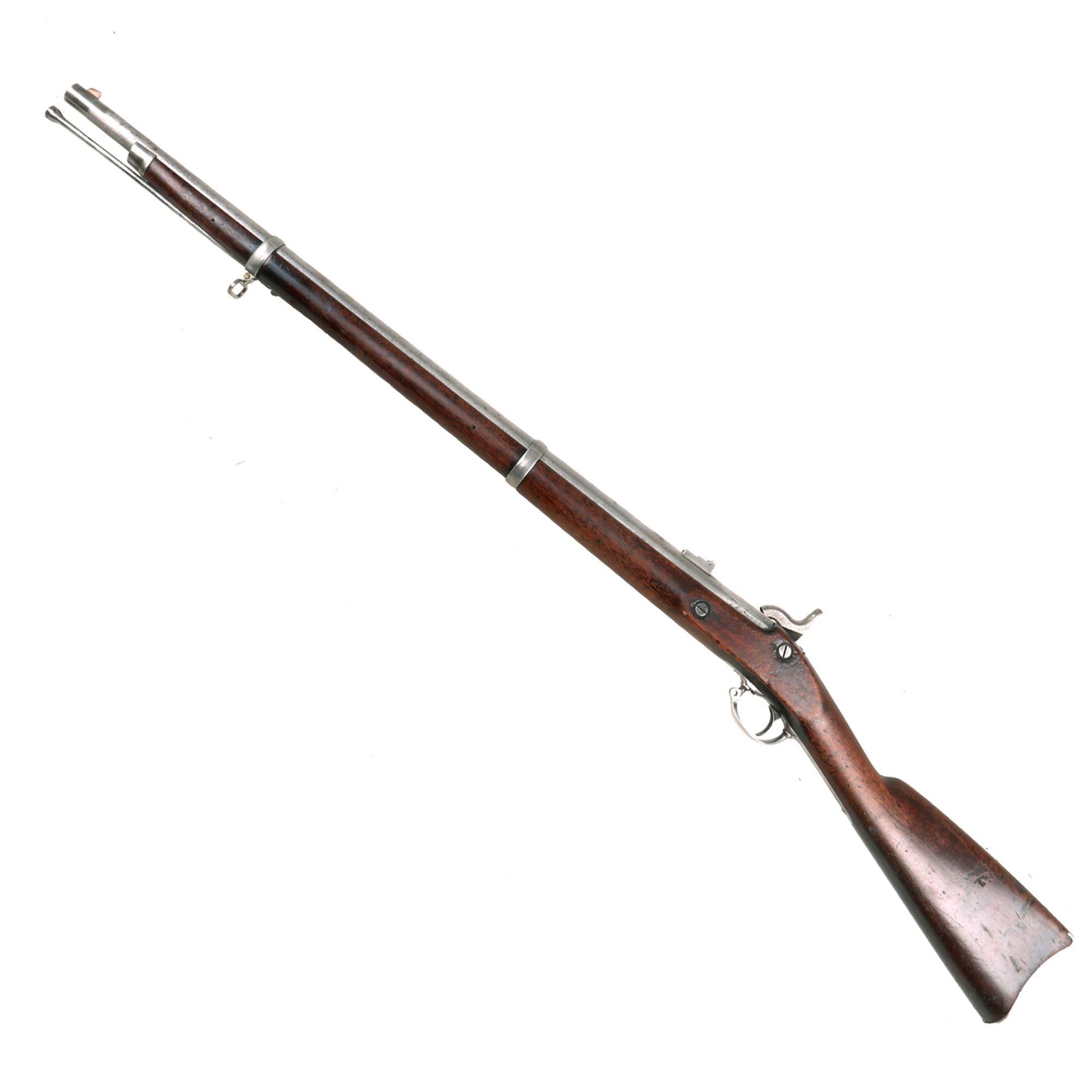

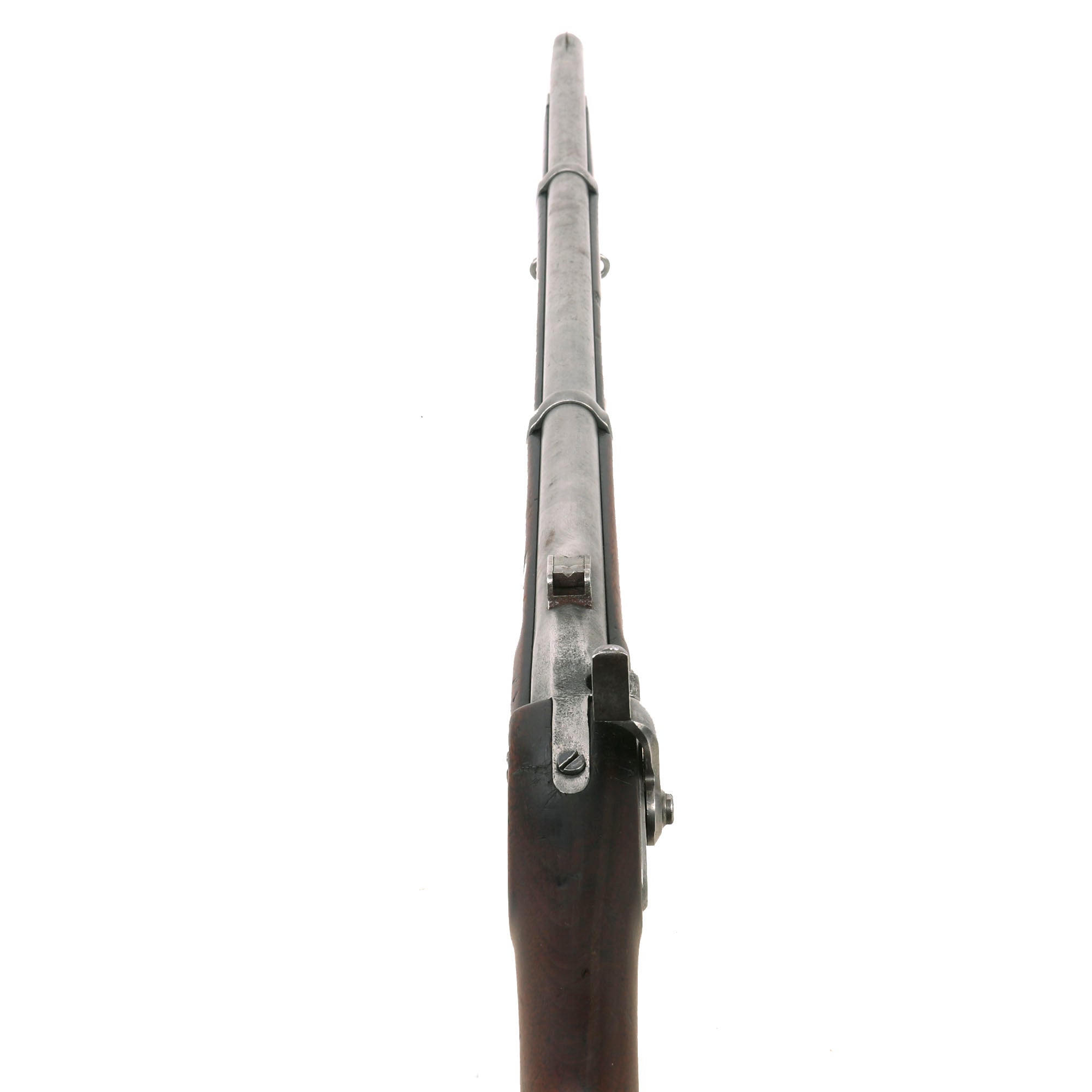

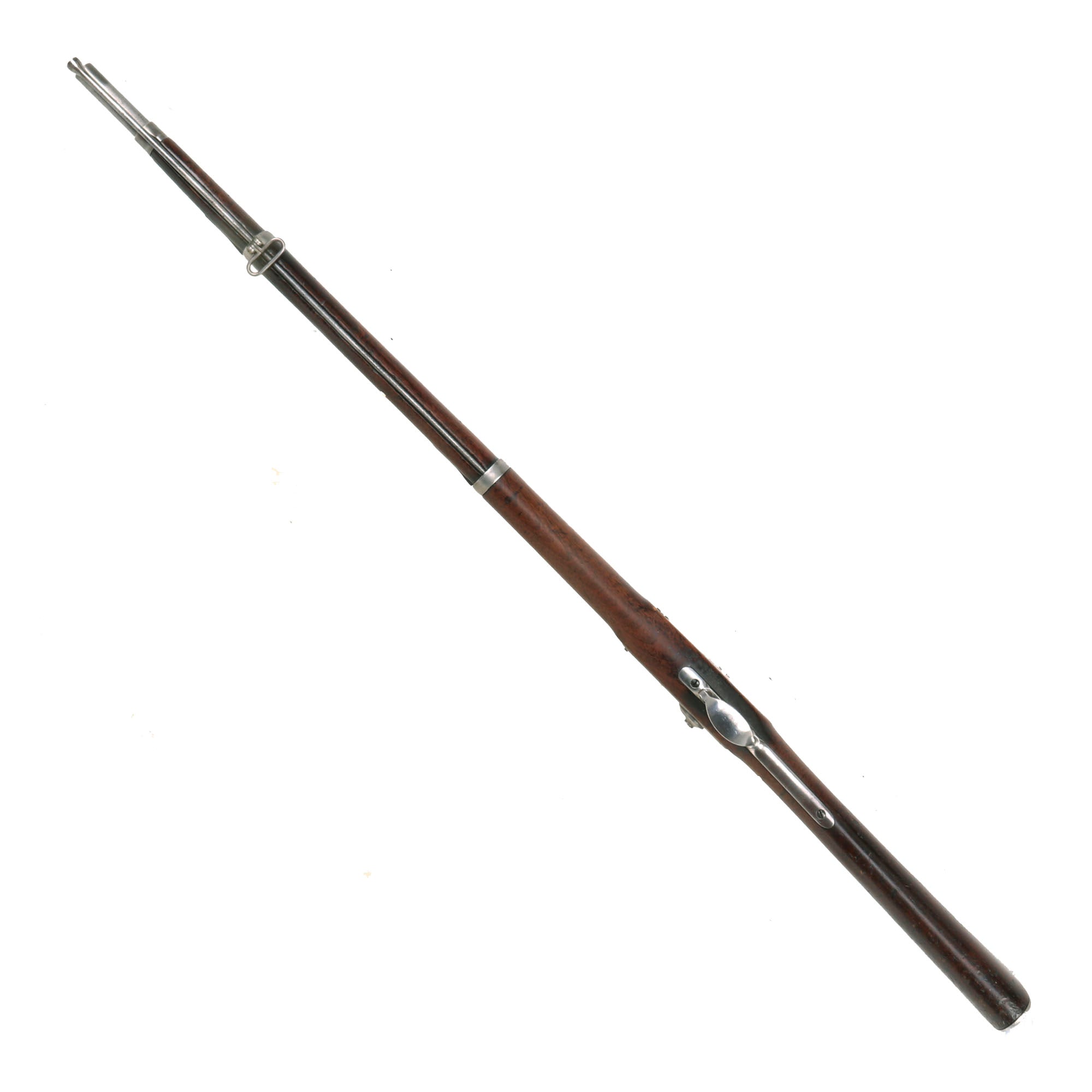

This type II 1863 however escaped conversion, and is still mostly in the original Civil War era configuration. It was however at some point shortened by 9 inches, and now only has two barrel bands instead of the original three. These short muskets were intended for use by pioneer and artillery troops, where a shorter weapon was much easier to work with. Not designed to fit a bayonet, a copper blade sight was added to the muzzle, however it retains the original two leaf rear sight.

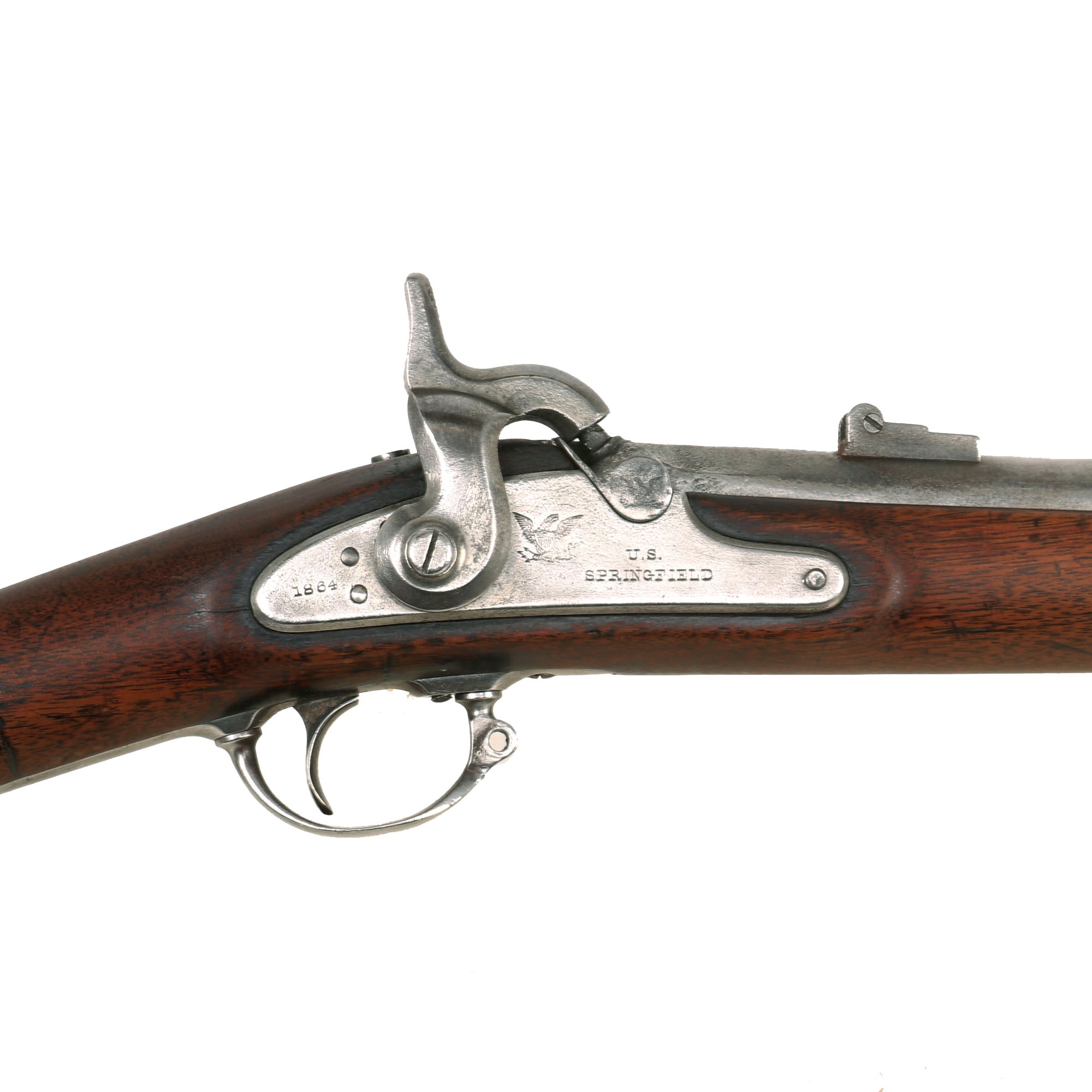

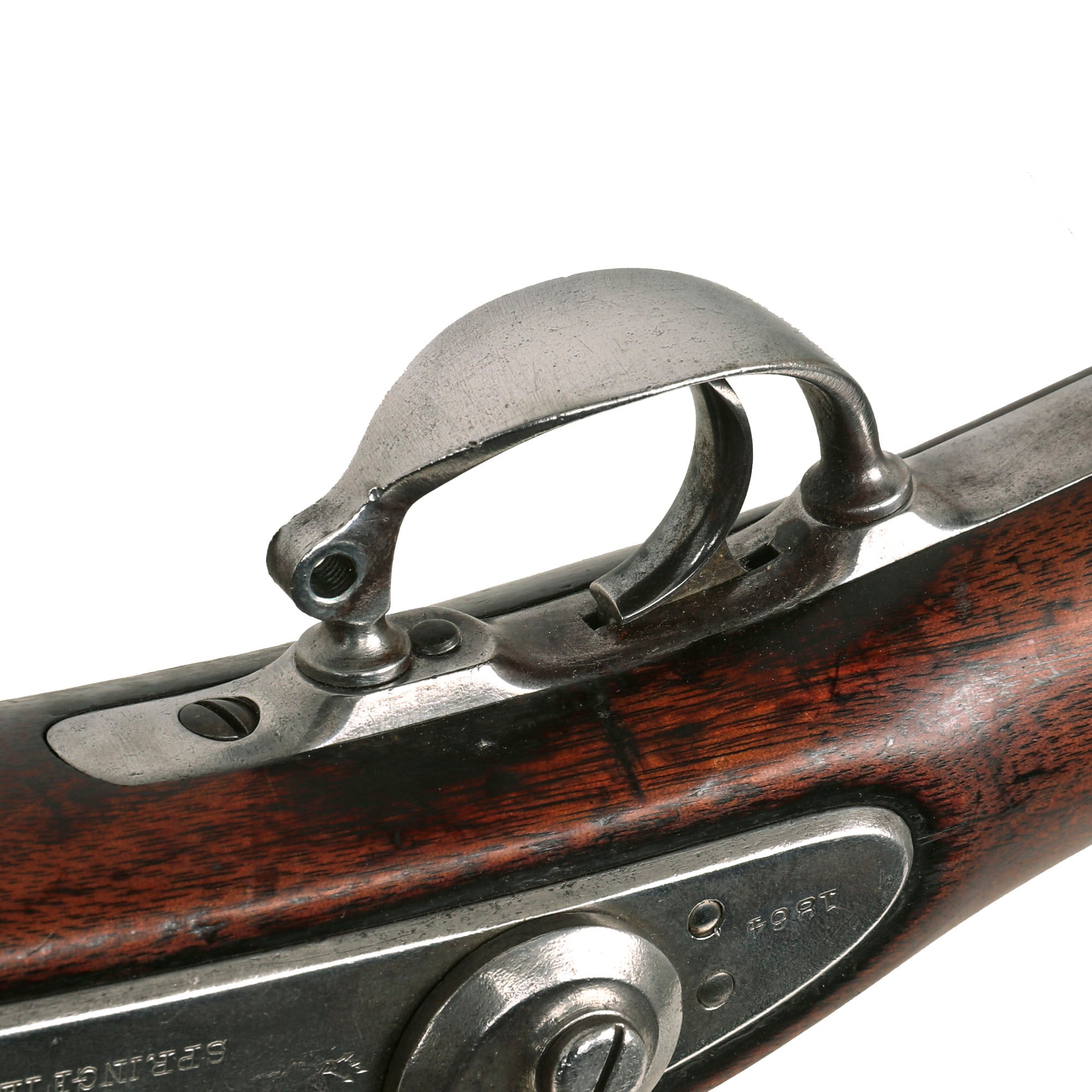

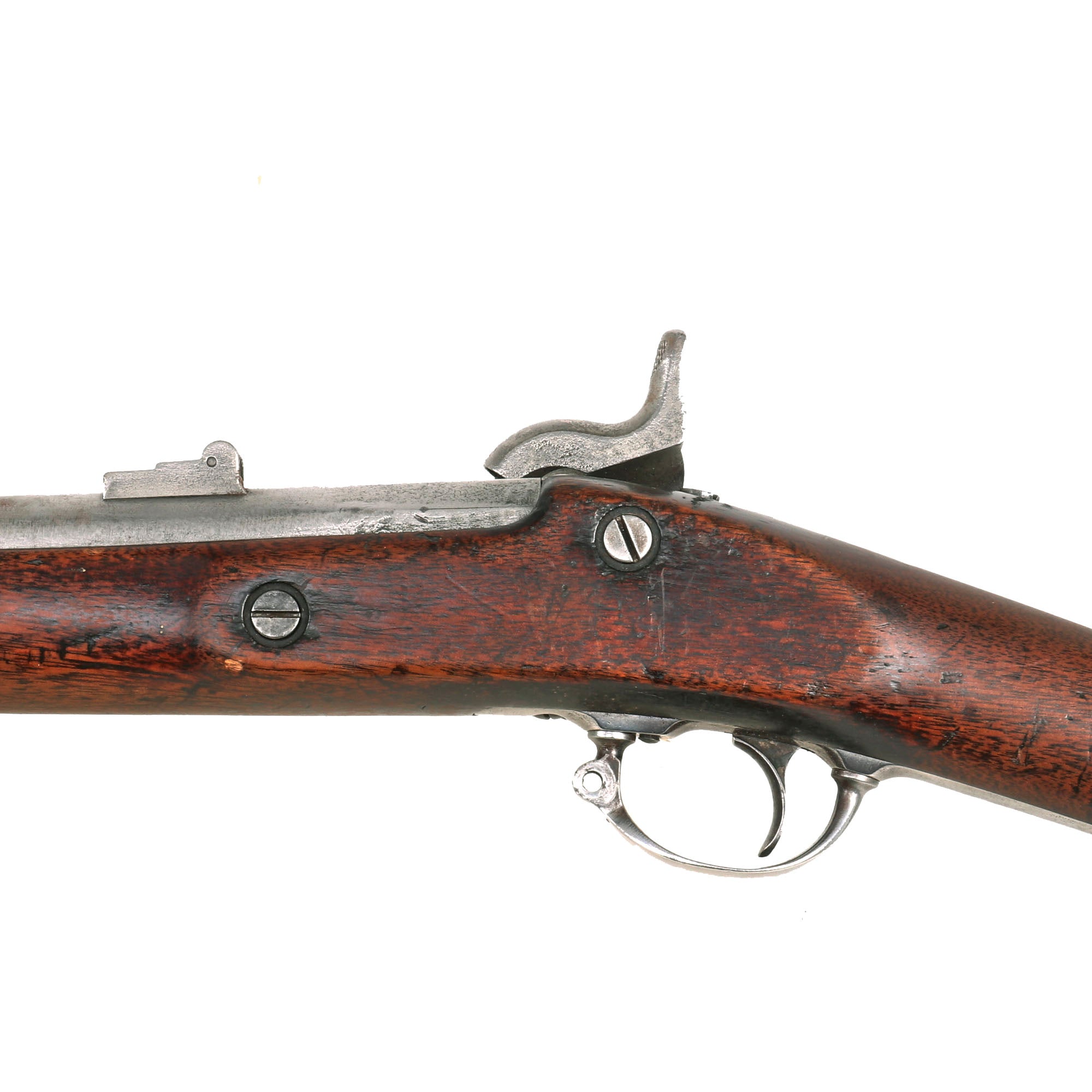

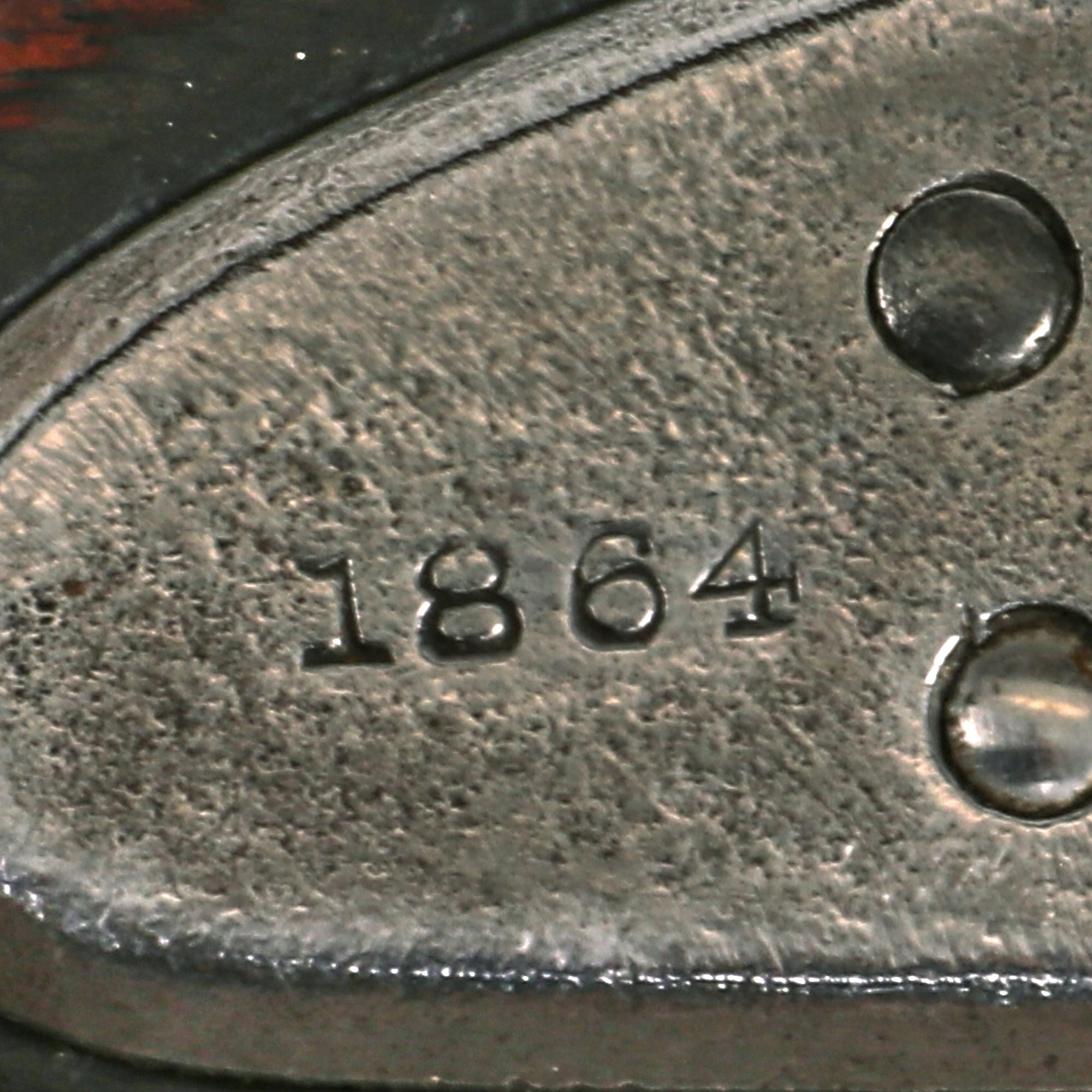

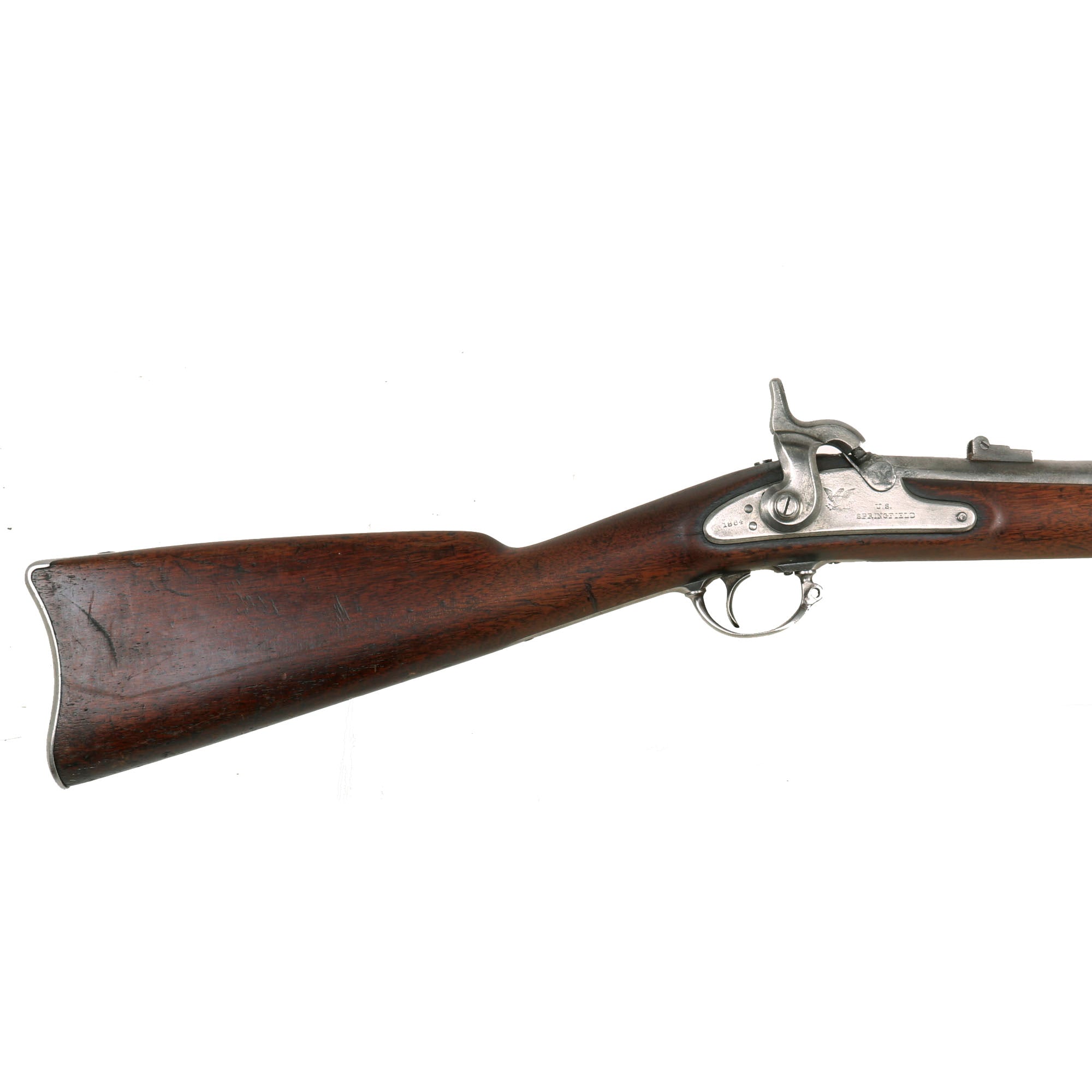

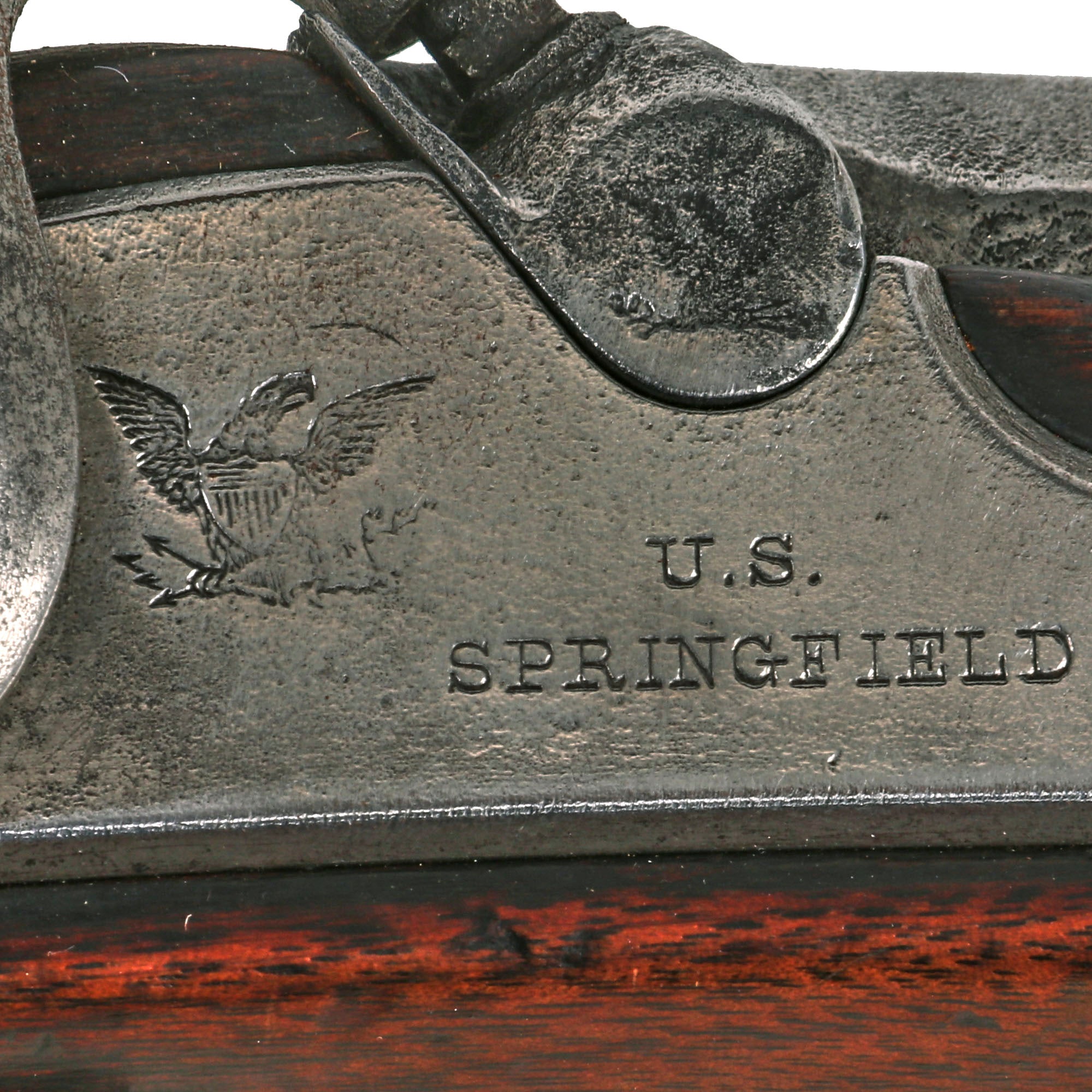

The rifle is dated 1864 on the lock plate tail, and also has a clear Federal Eagle stamped into the lock to the left of U.S. / SPRINGFIELD, indicating production at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. The lock markings are fully legible, though there is definitely a bit of wear from from past oxidation and cleaning. It still holds properly at half cock, firing at full cock. The cap bolster still has original Eagle stamping, however it is partly completely worn away due to cleaning and powder burn.

The left side of the barrel nocks form still has VERY faint original V / P / Eagle's Head arsenal proofs, however the date and other markings are now work away. We checked the bore, and it is in very good condition, with the original three groove rifling still clear. The finish is mostly bright, with some areas of light fouling and oxidation.

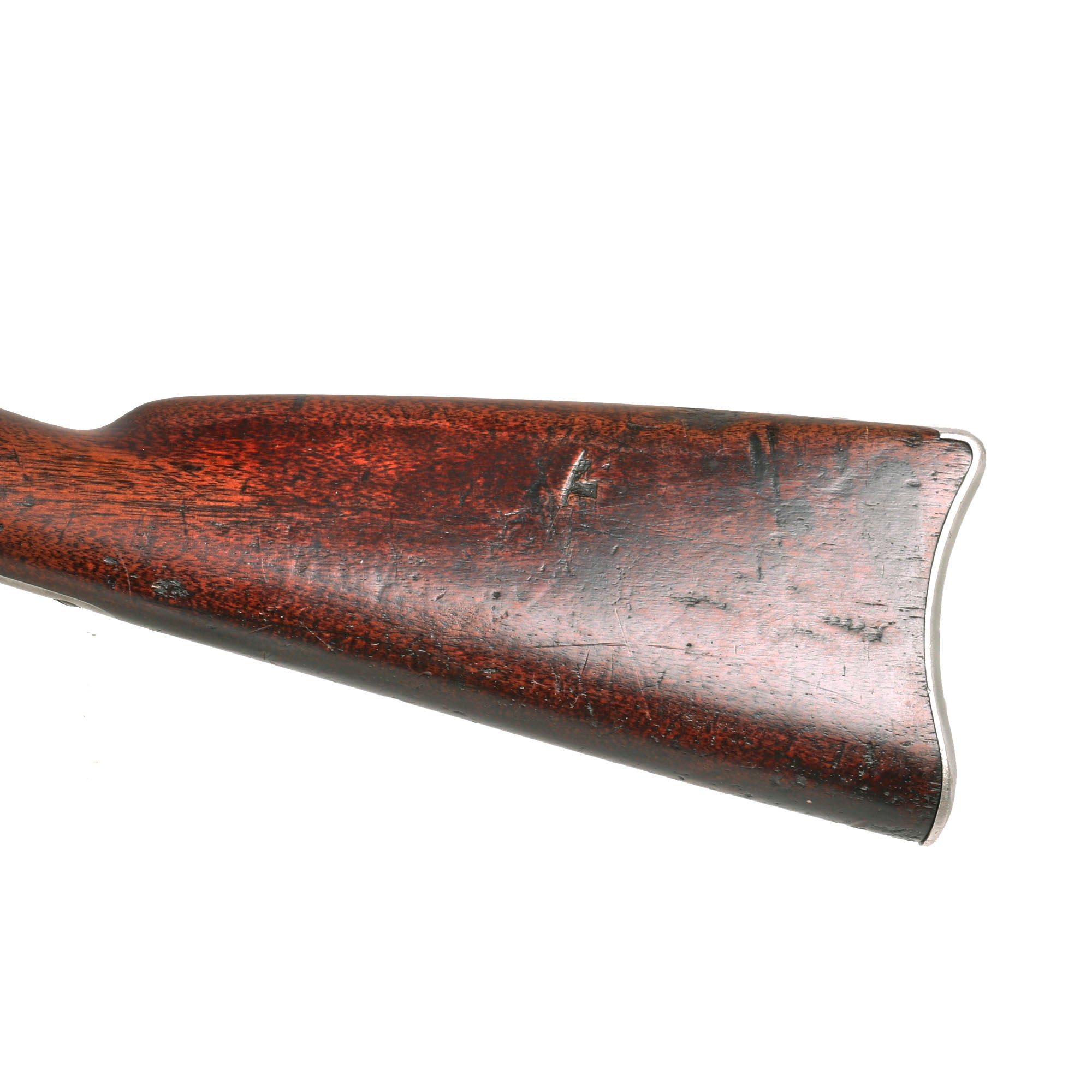

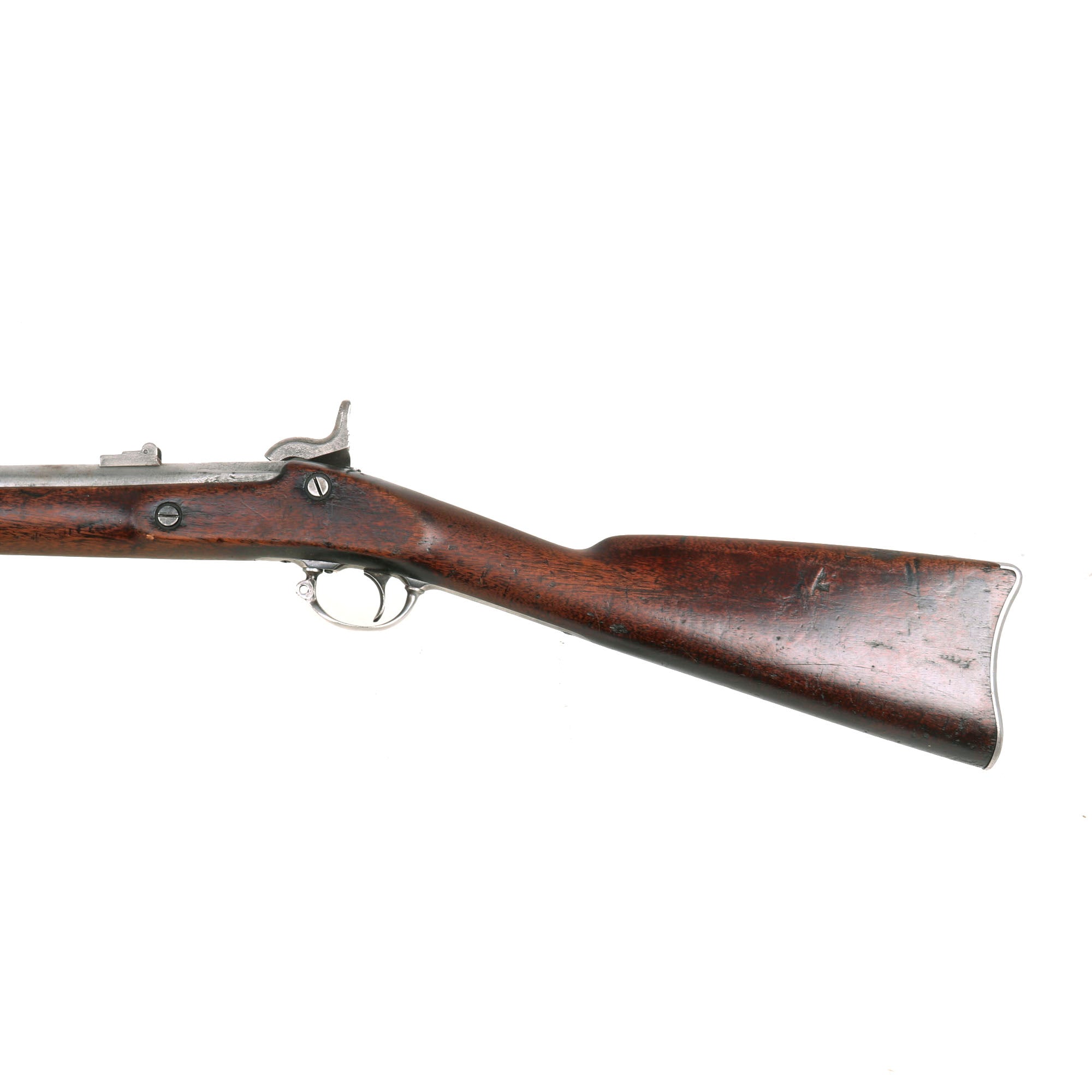

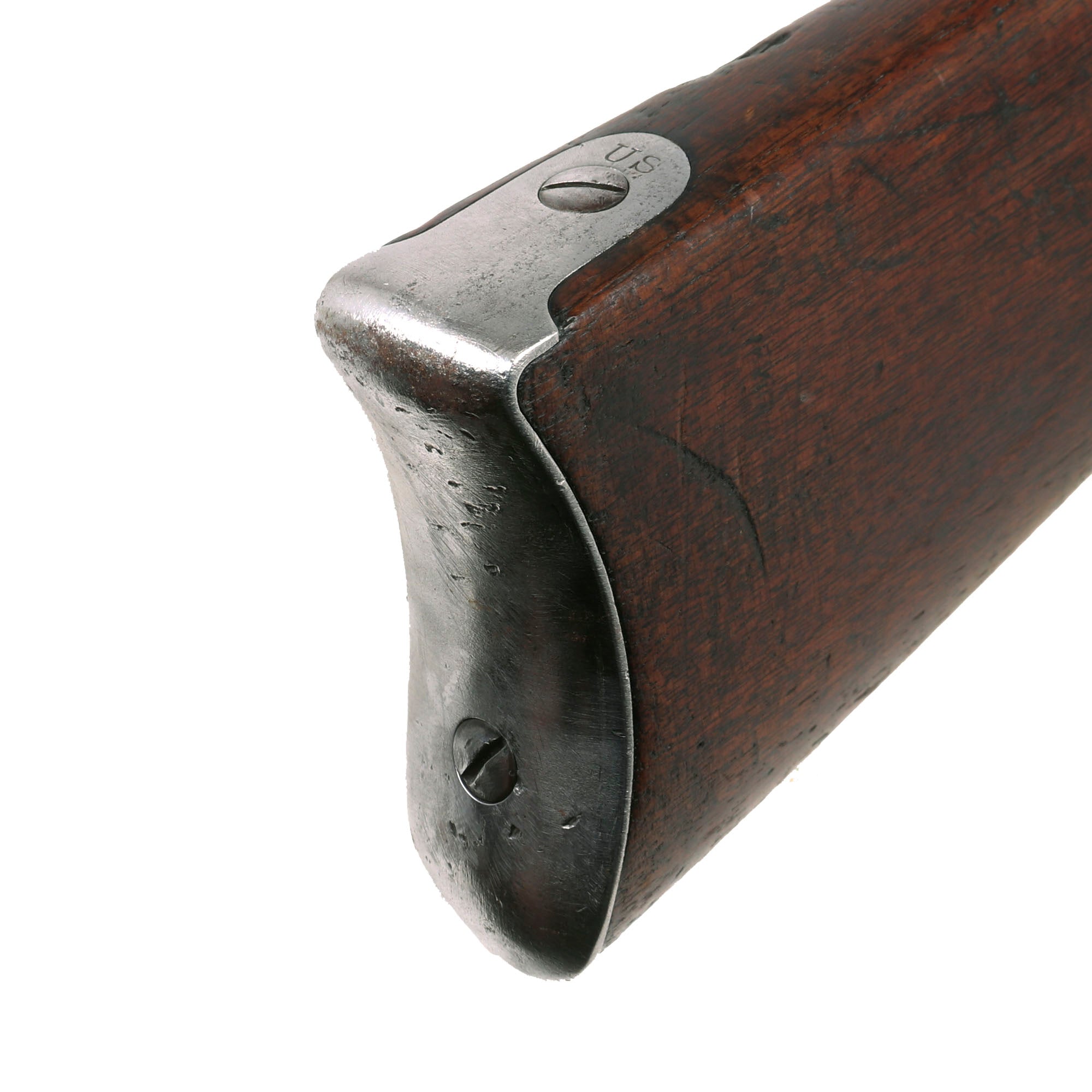

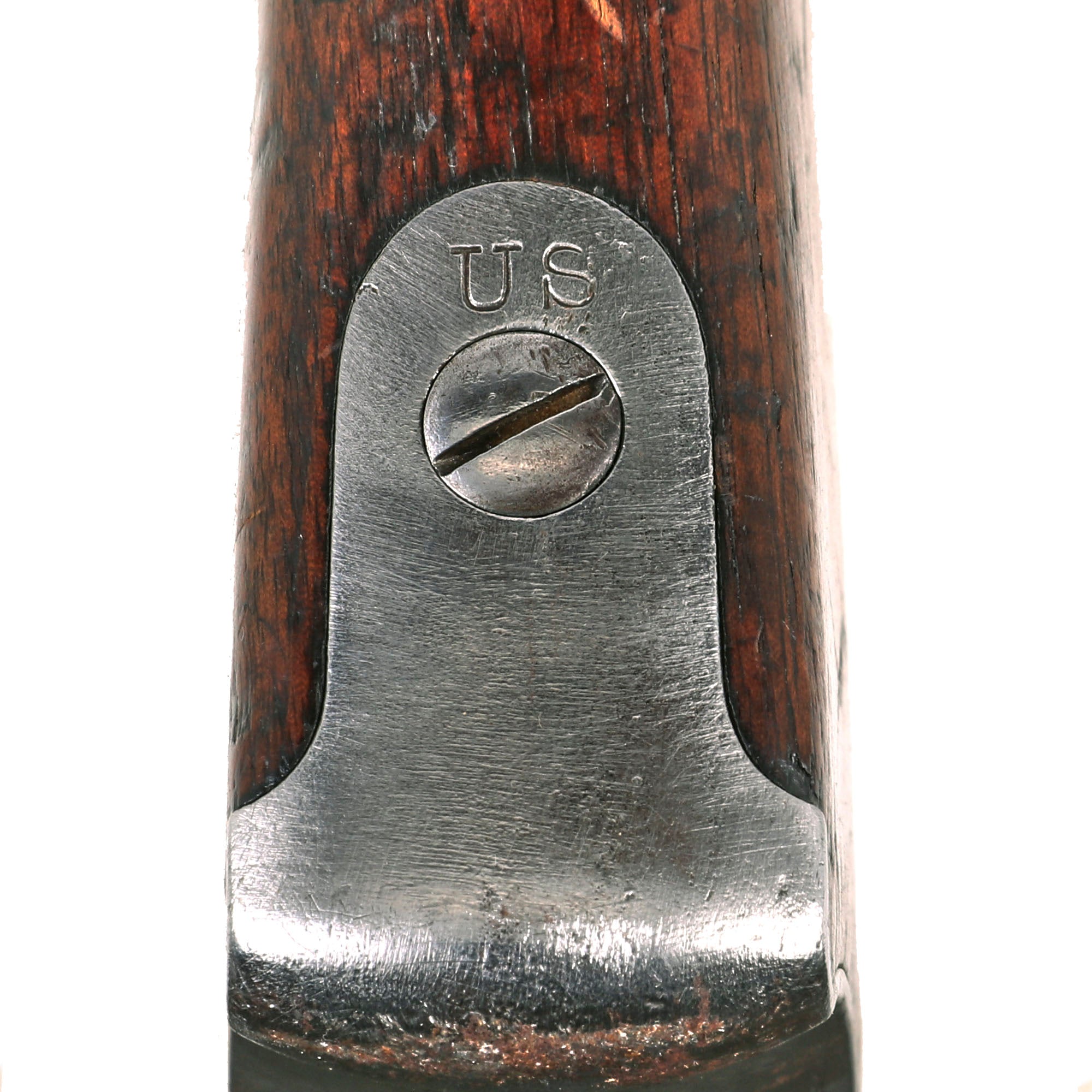

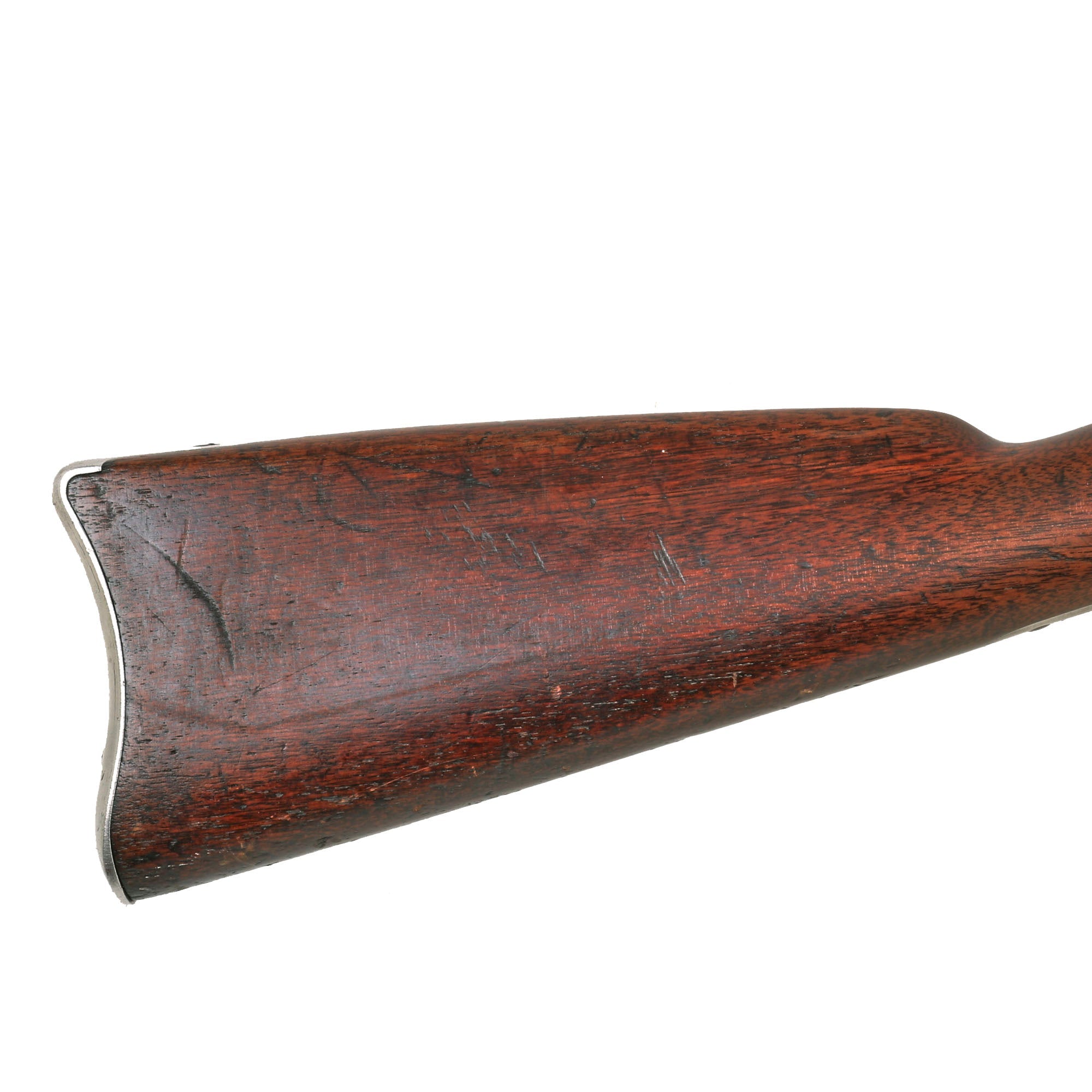

The one piece walnut stock still is in very good condition, with a lovely polished glow. There are dents and dings, but nothing out of line with the usual wear from service. It does look to have been worn down a bit over the years, so any stock cartouches are gone. This gun is fitted with the correct Type II solid bands retained by springs. The butt-plate is stamped U.S. as per regulation, and all barrel bands are U stamped. The ramrod is present, cut down to the correct length, and the upper sling swivel is present, while the lower is missing.

A very nice example, offered in nice condition recently acquired from an old collection, shows a bit of age but very presentable in any U.S. Civil War collection. Ready to display!

Specifications (Musket):-

Year of Manufacture: 1864 - Cut Down Later
Caliber: .58"
Cartridge Type: Minié Ball and Powder
Barrel Length: 31 Inches
Overall Length: 47 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
