Original item: One of a Kind. Over the years, IMA has purchased many collections and groups of antique guns, in which case we need to take all of them, as we did in Nepal. While these collections were generally full of guns that relatively good condition, they also had some that were less complete and unfortunately would take more restoration time than we were able to give them. We kept them in storage, possibly for future products, but have now decided to offer these "As Found" antique firearms to our customers as restoration projects. These are all original and as we received them, except for cleaning the dirt and grime off the exterior.

Please note that these are still real antique guns, and are being sold in "As is" condition at a significant discount from what they would sell at if we were to fully restore them. We will do our best to photograph and describe them and know that our customers will know exactly what they are getting. Some of these, such as this example, look to have possibly been project or parts guns, and are missing a significant amount of parts. These are being sold in "Grade 2" condition, and on these ALL SALES ARE FINAL.

The Springfield Model 1863 rifled musket is a .58 caliber rifled musket produced by the Springfield Armory between 1863 and 1865. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber). Several of these modifications were based upon Colt's contract model 1861, known as the "Colt special". 273,265 Type I variants were manufactured in 1863.

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight. A total of 255,040 of these were manufactured from 1864 to 1865.

By the end of the Civil War, muzzle-loading rifles and muskets were considered obsolete. In the years following the Civil War, many Model 1863 muskets were converted into breech-loading "Trapdoor Springfields". The breech-loading weapons increased the rate of fire from 3 to 4 rounds per minute to 8 to 10 rounds per minute. The Model 1863 could be converted to breech-loading for about $5, at a time when a new rifle would cost about $20. The conversion of Model 1863 rifles therefore represented a significant cost savings to the U.S. military.

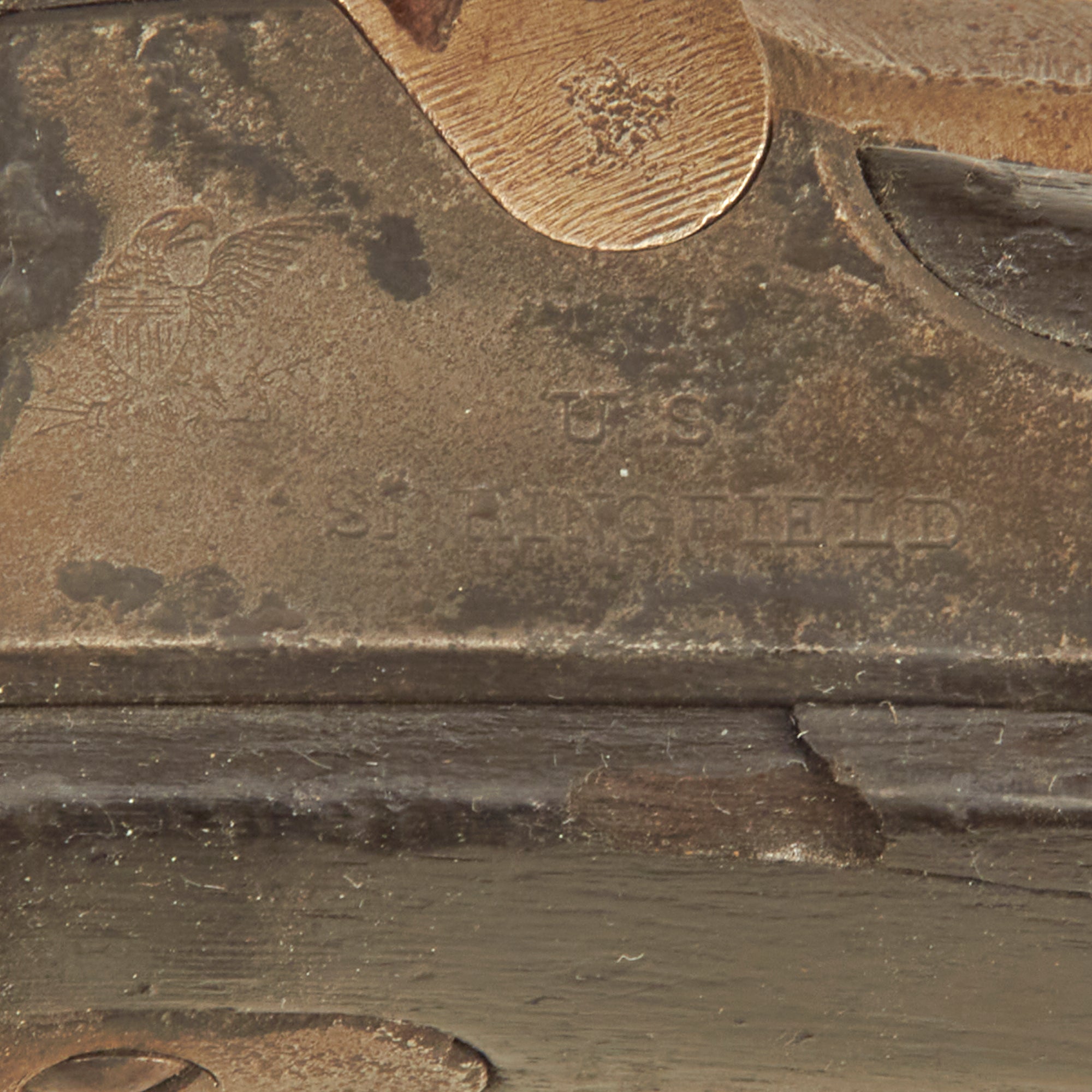

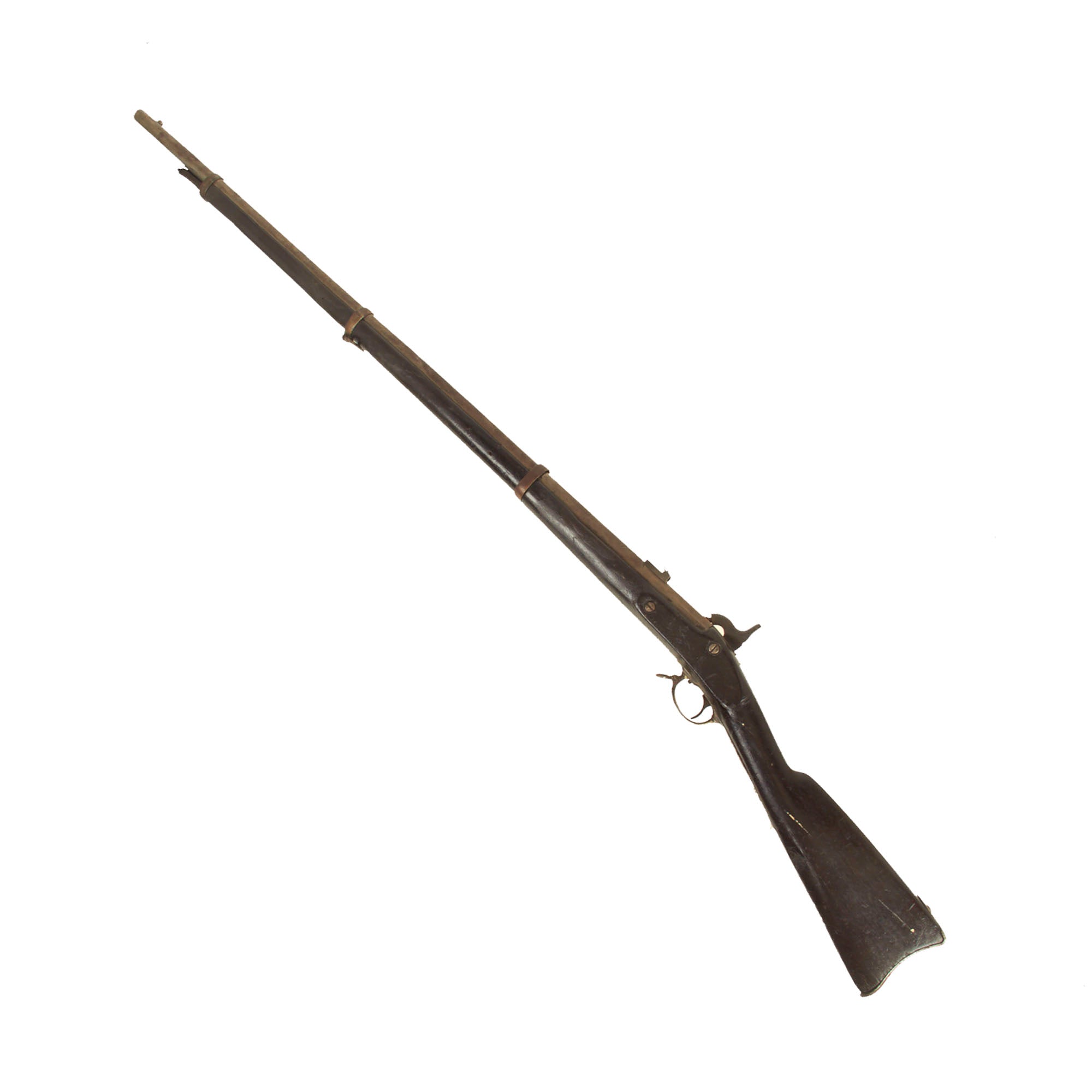

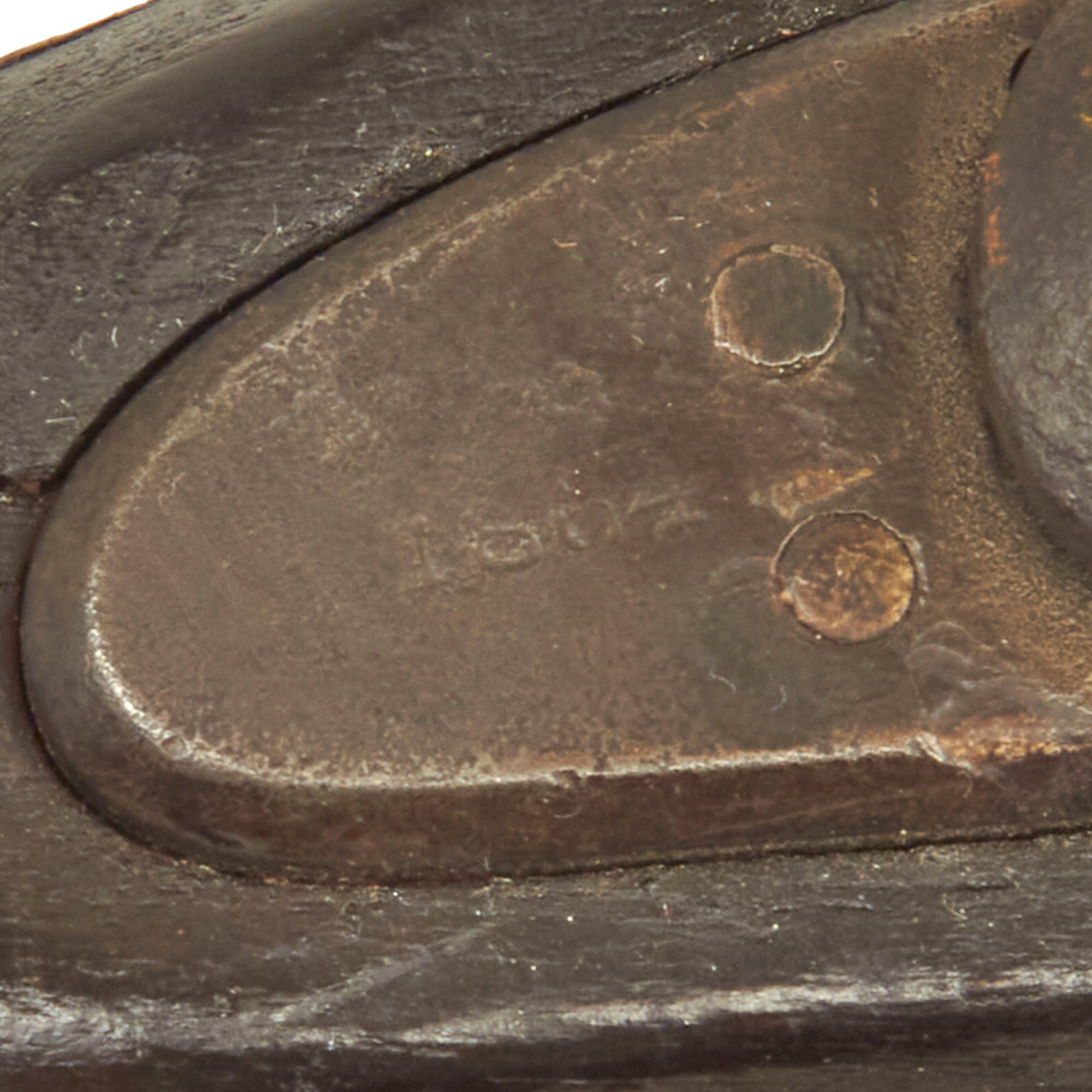

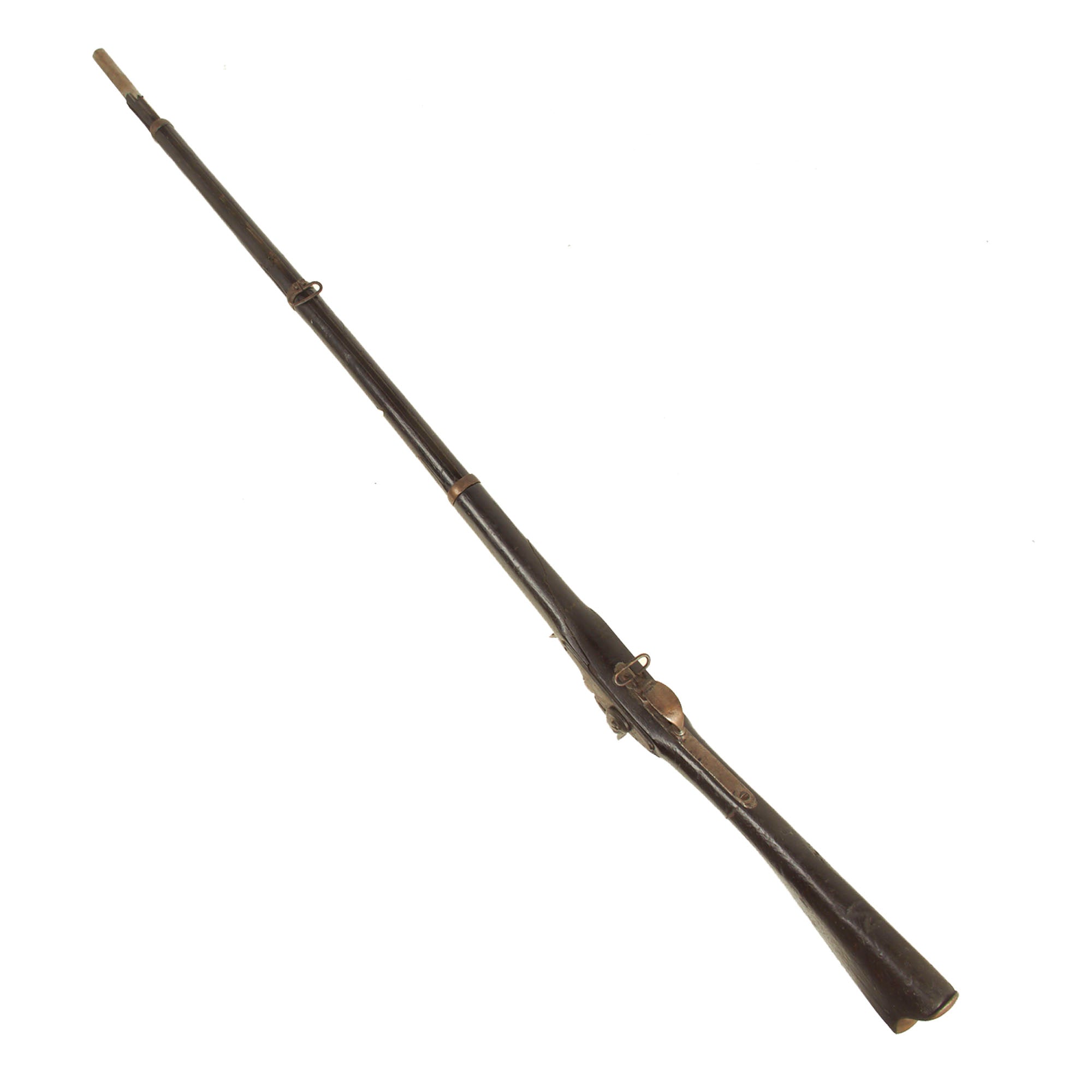

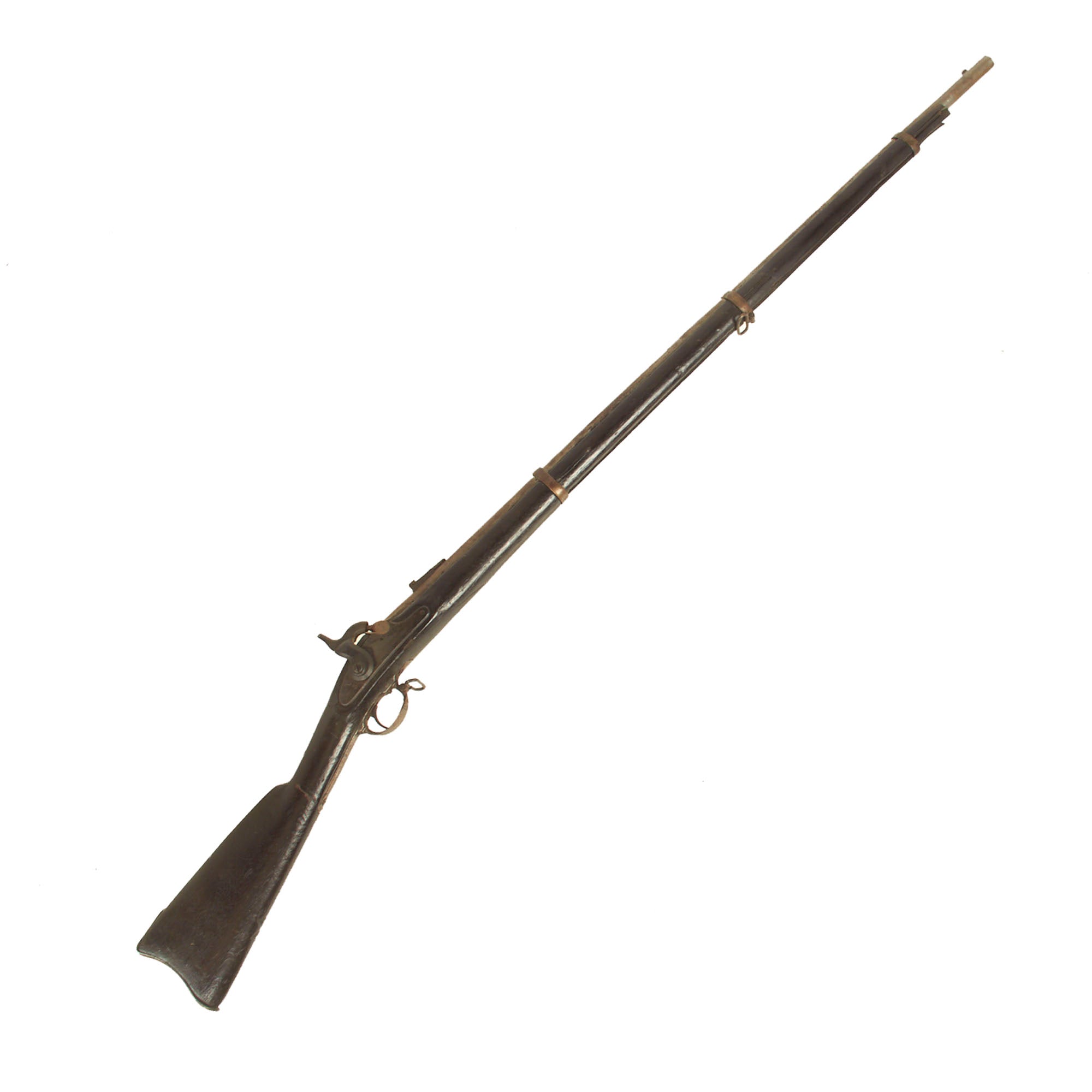

This type II 1863 however escaped conversion, and is presented for sale in the original Civil War era configuration, though it has definitely seen better days and is in "relic" condition. It is dated 1864 on the lock plate tail, and also has an Eagle stamped into the lock over U.S. / SPRINGFIELD, indicating production at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

Condition Notes:
- Overall condition shows light corrosion to all exterior metal surfaces.

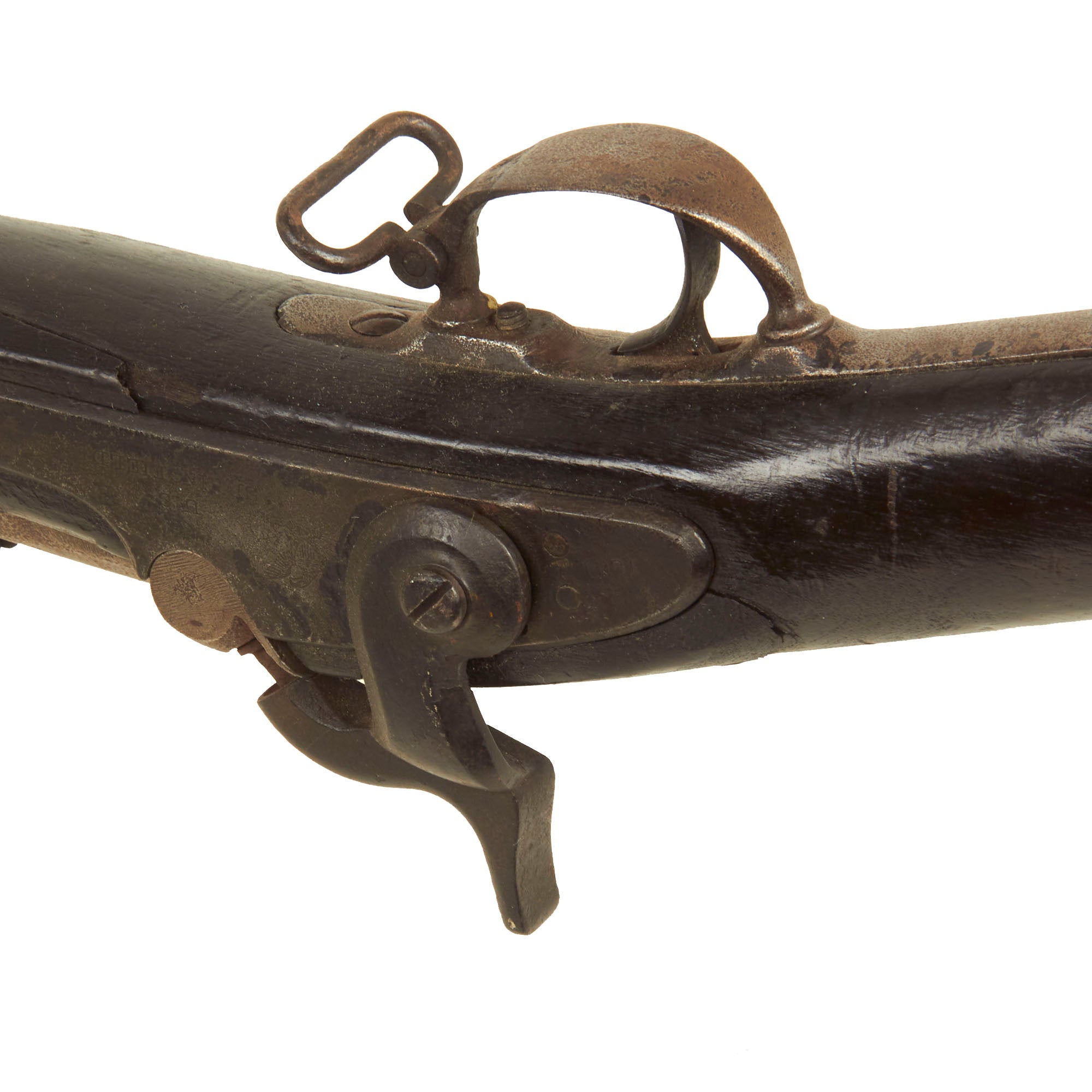

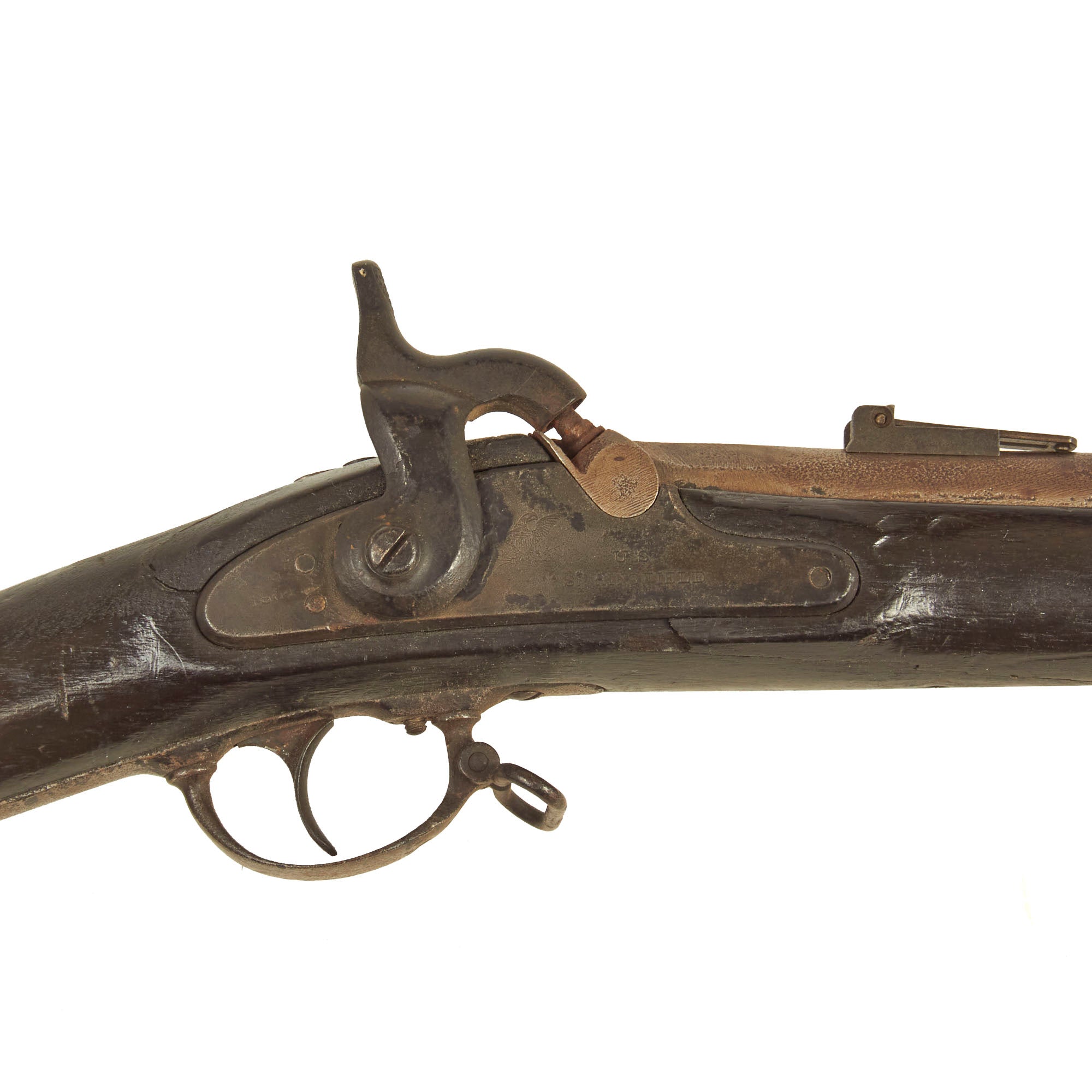

- Lock is fully functional, holding at half cock and releasing at full.

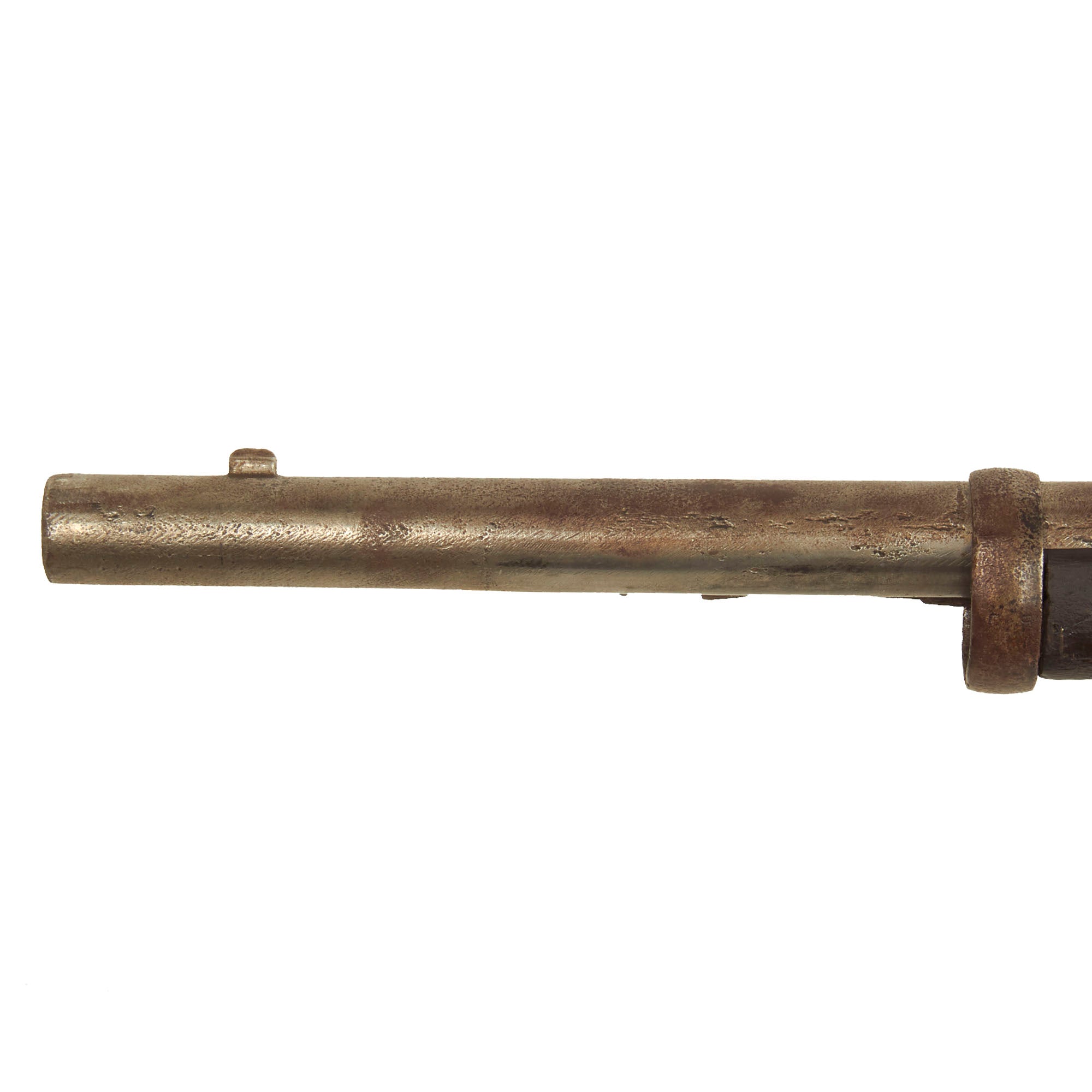

- Bore shows rifling near the muzzle, but the rest is extremely dirty like a stovepipe.

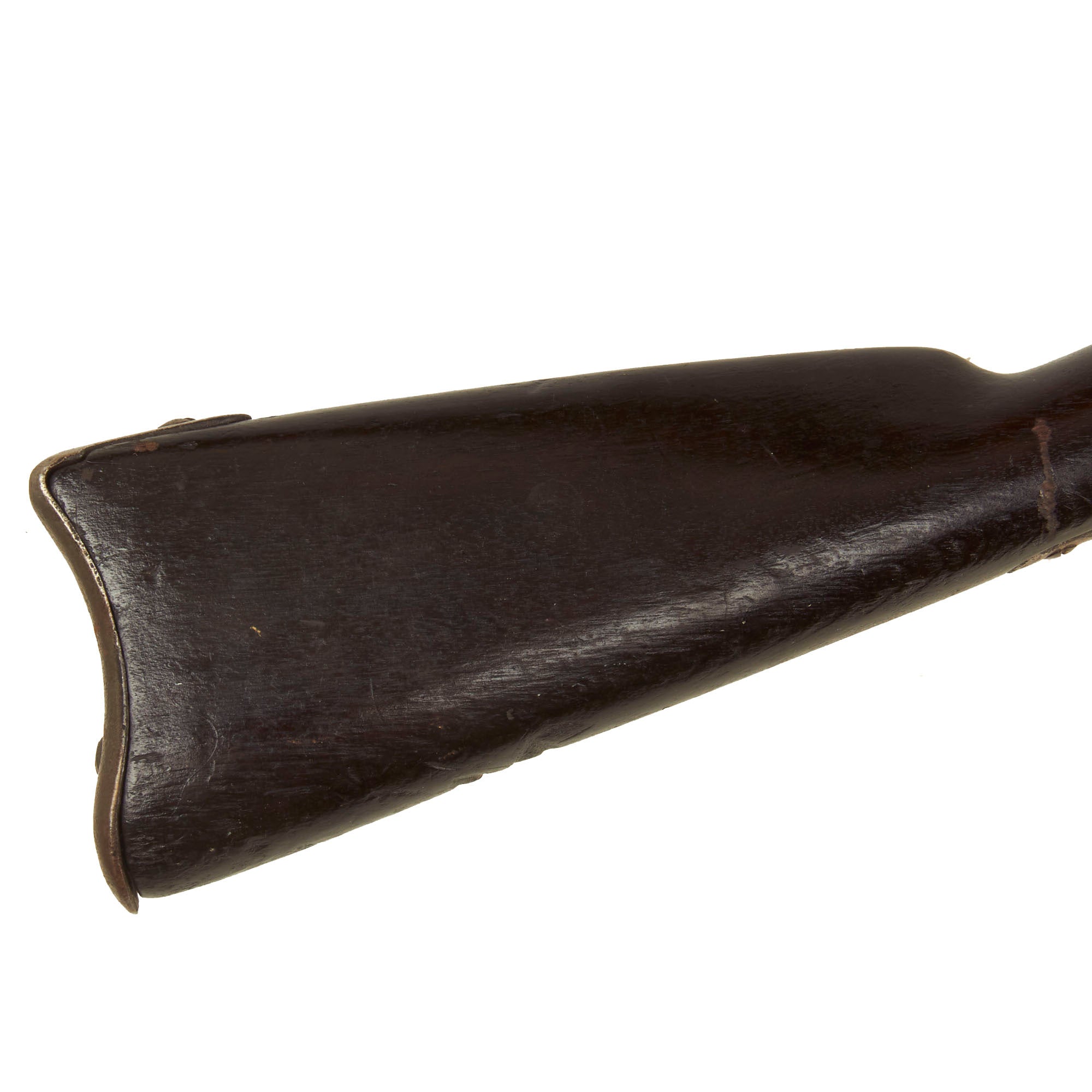

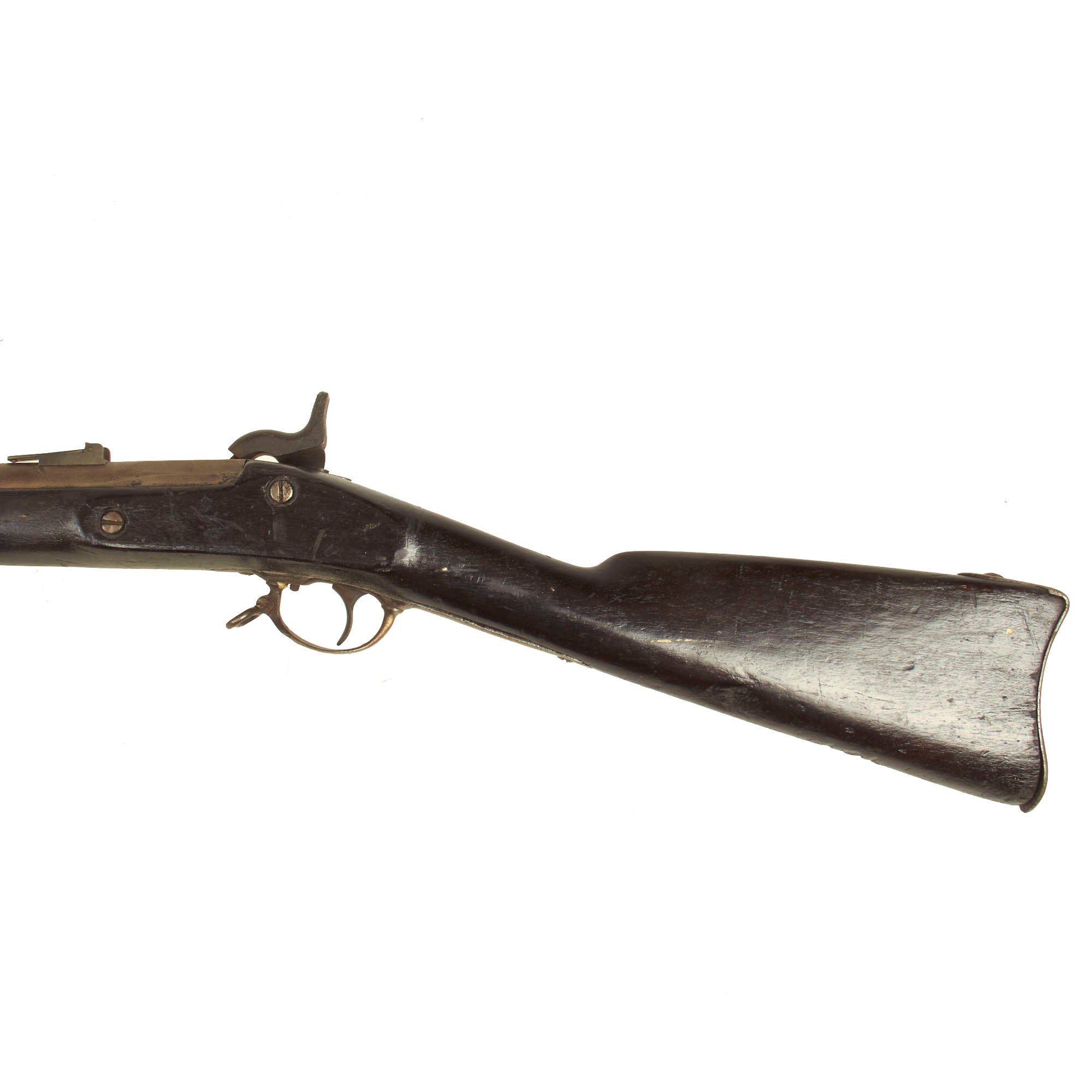

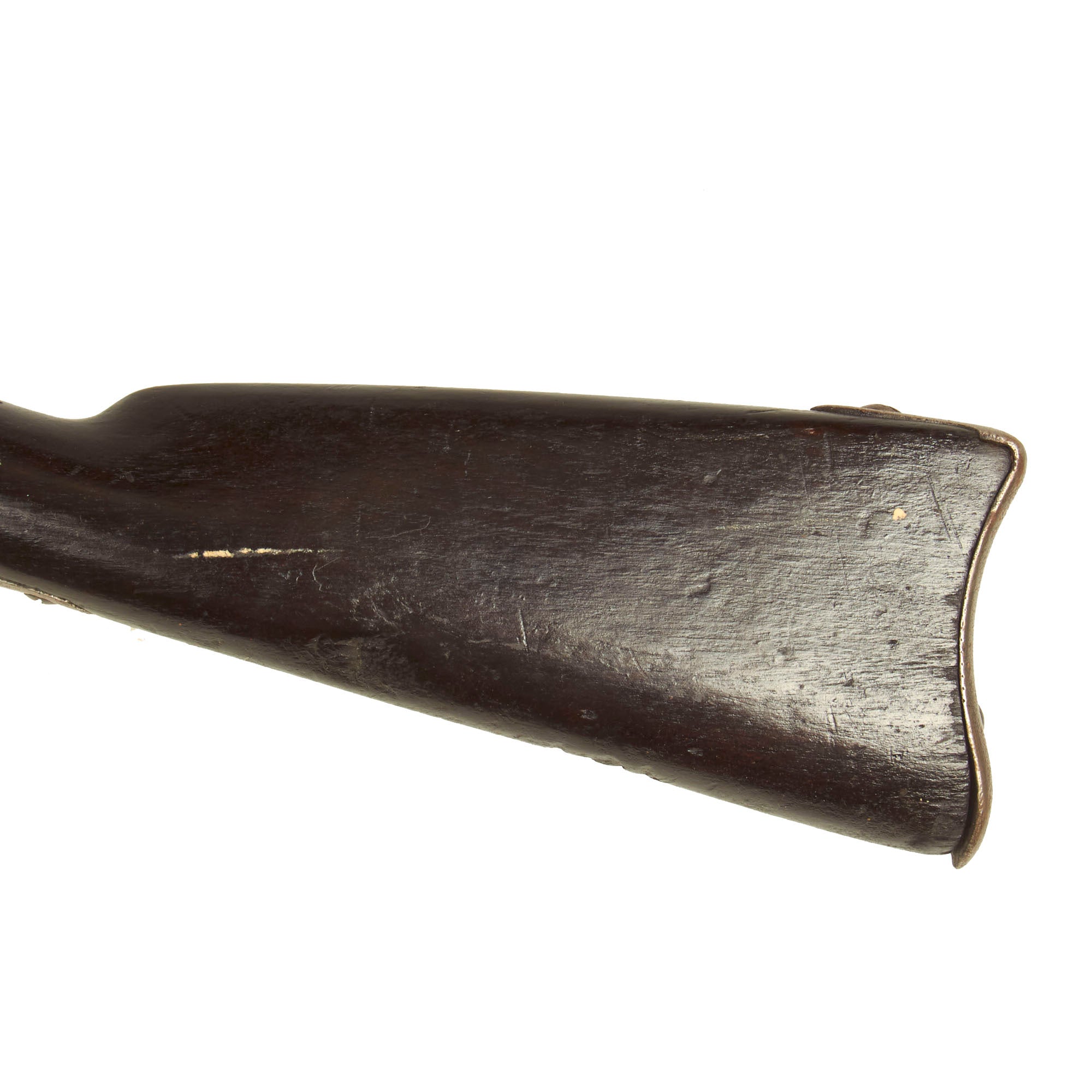

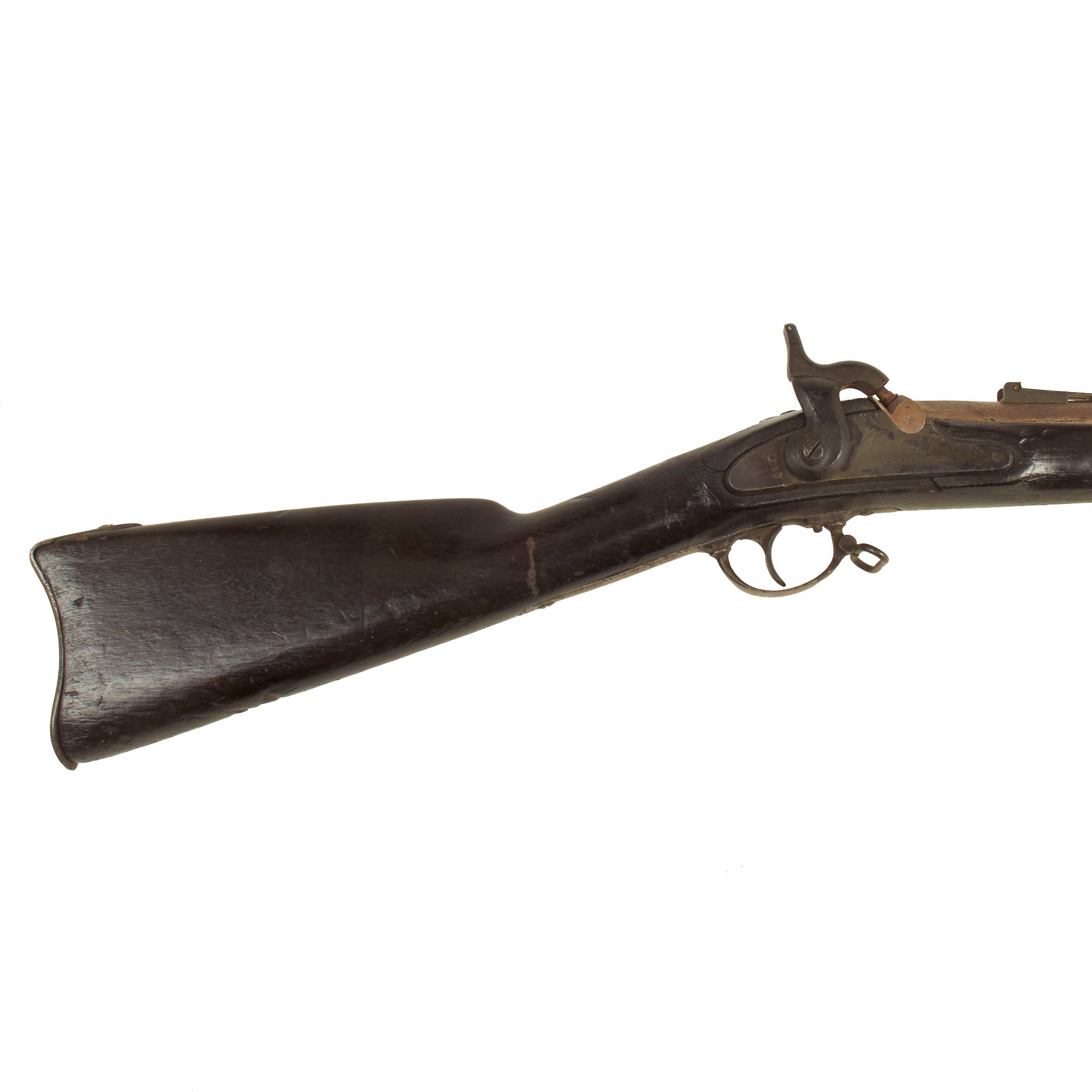

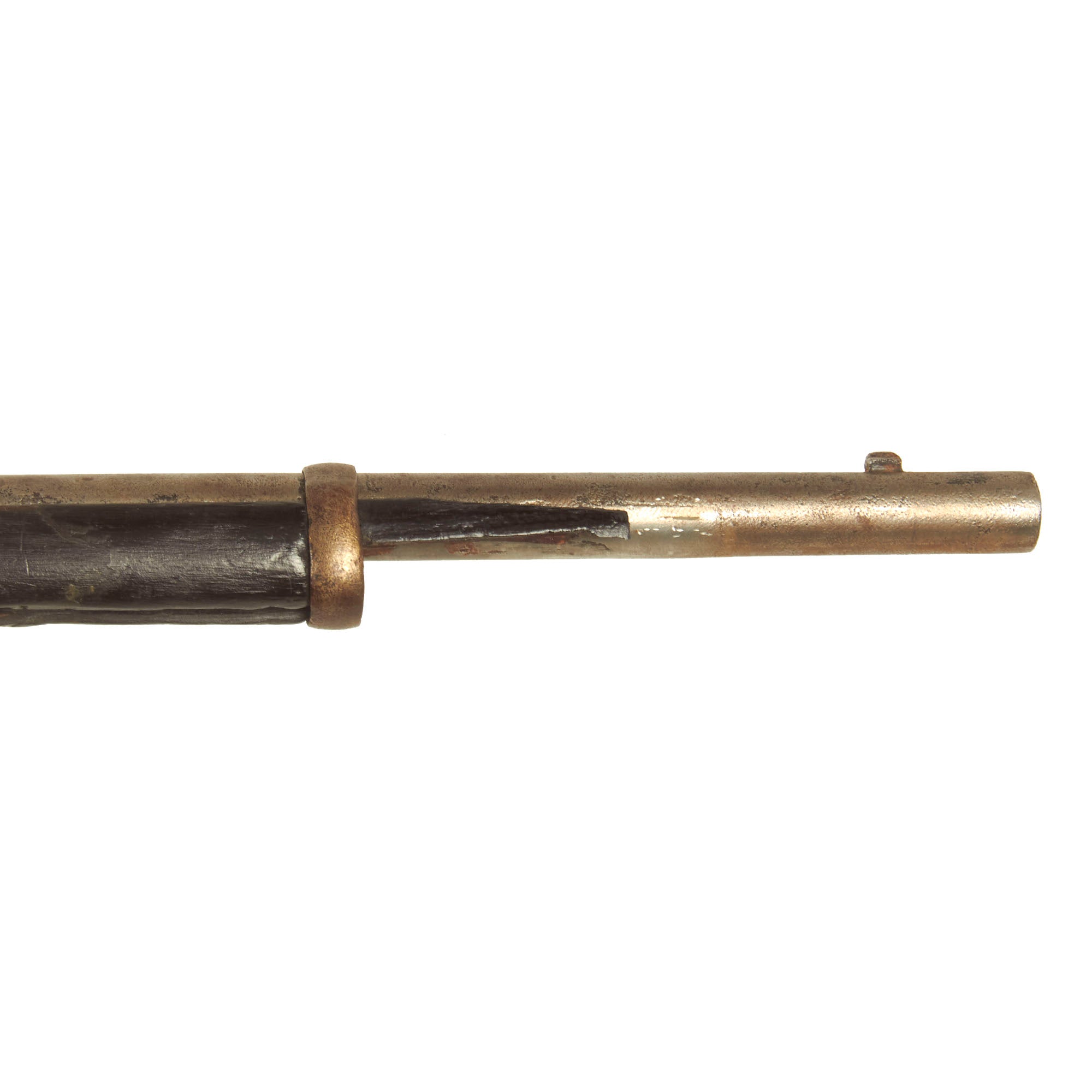

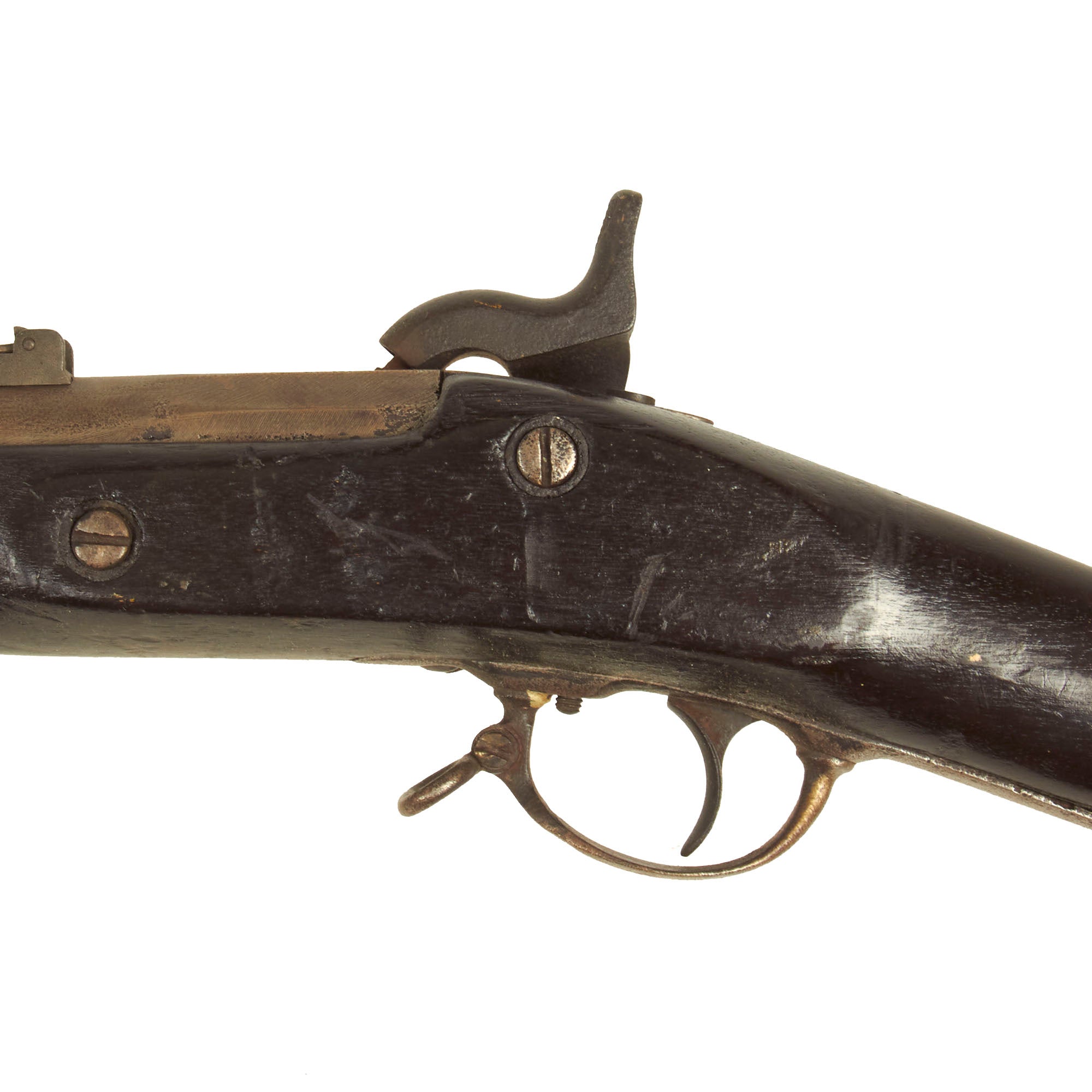

- Stock is heavily damaged, missing wood above the upper barrel band, and also is cracked through in front of the lock, with other repairs visible.

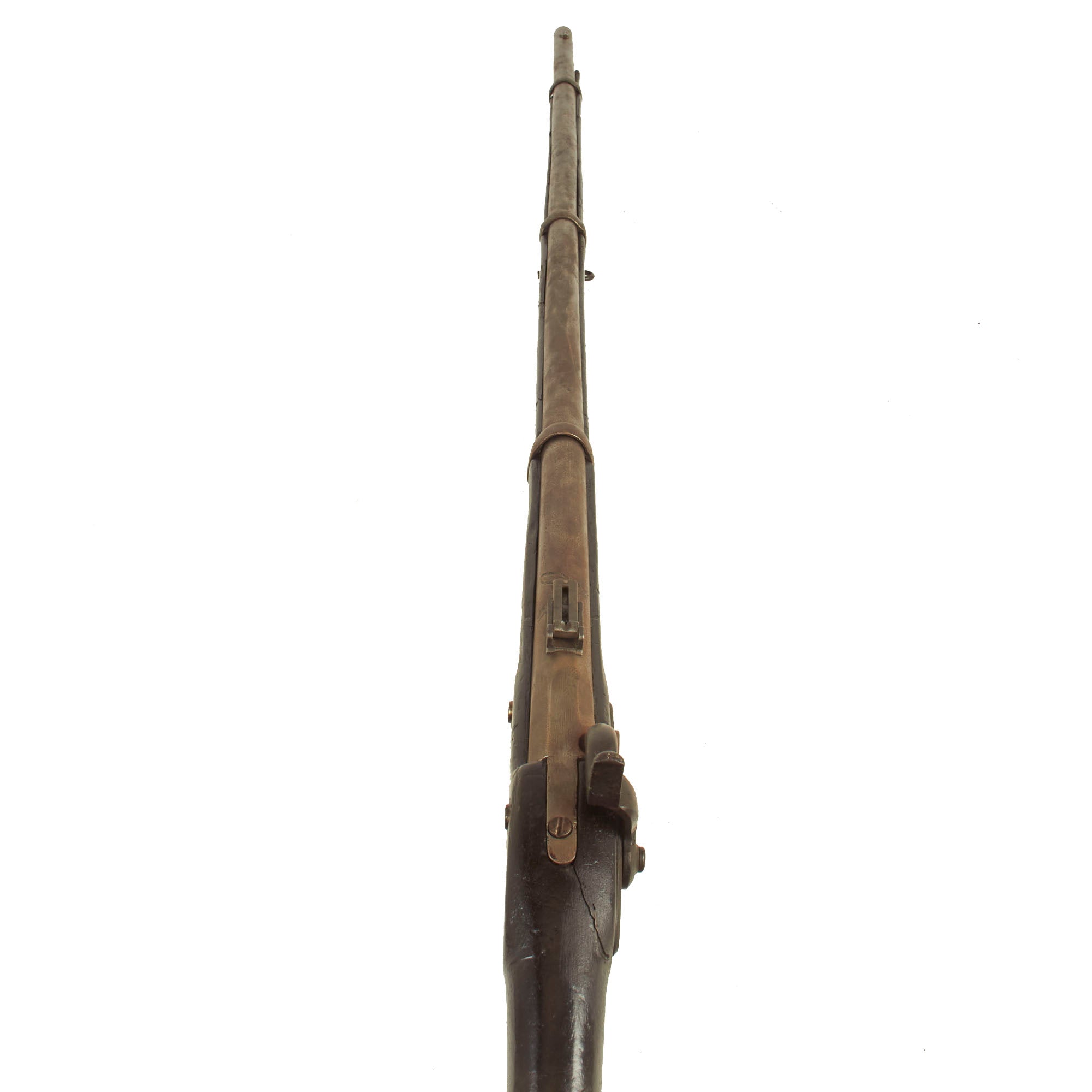

- Rear sight has been replaced with an incomplete incorrect example.

If you were looking for a nice project, this could be it! Please make sure to look at all the pictures before purchasing, as ALL SALES ARE FINAL.

Specifications (Musket):-

Year of Manufacture: 1864
Caliber: .58"
Cartridge Type: Minie Ball and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
