Original Item: Only One Available. The Springfield Model 1863 rifled musket is a .58 caliber rifled musket produced by the Springfield Armory between 1863 and 1865. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber). Several of these modifications were based upon Colt's contract model 1861, known as the "Colt special". 273,265 Type I variants were manufactured in 1863.

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight. A total of 255,040 of these were manufactured from 1864 to 1865.

By the end of the Civil War, muzzle-loading rifles and muskets were considered obsolete. In the years following the Civil War, many Model 1863 muskets were converted into breech-loading "Trapdoor Springfields". The breech-loading weapons increased the rate of fire from 3 to 4 rounds per minute to 8 to 10 rounds per minute. The Model 1863 could be converted to breech-loading for about $5, at a time when a new rifle would cost about $20. The conversion of Model 1863 rifles therefore represented a significant cost savings to the U.S. military.

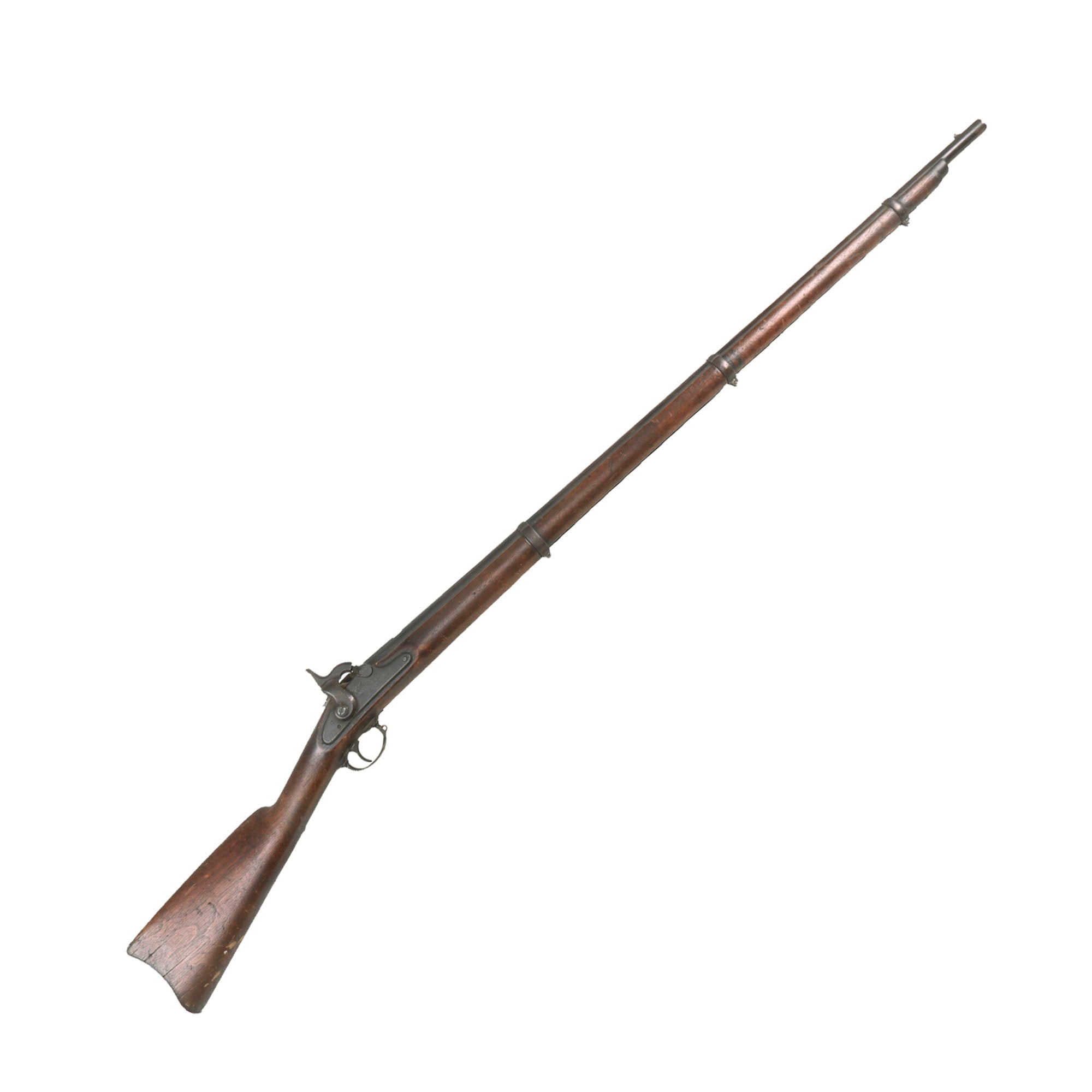

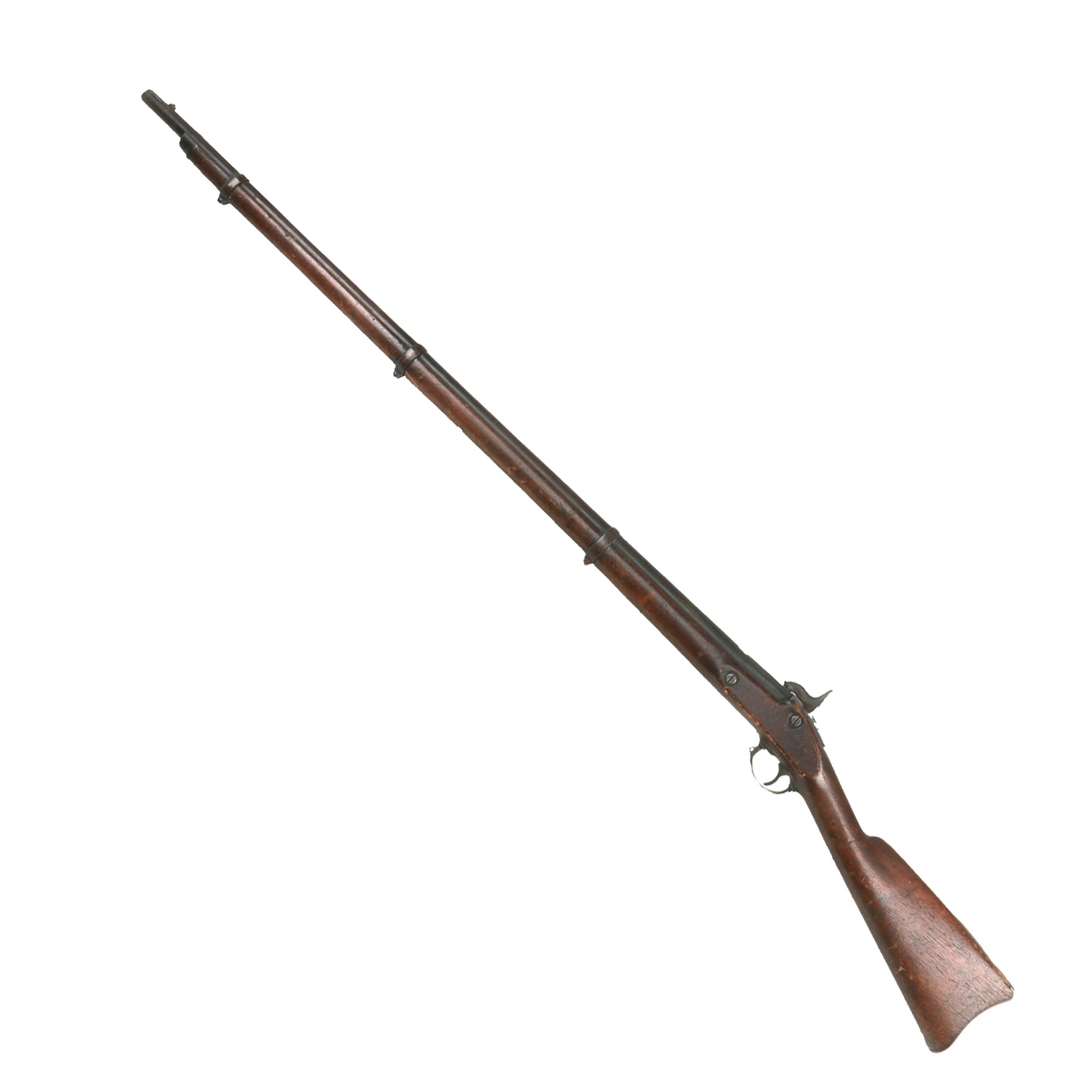

This lovely patinated Type I 1863 however escaped conversion, and is presented for sale in the original percussion configuration, however it definitely has been modified somewhat, apparently into a fowling piece. The rear sight was removed, and the barrel was bored out to about 0.63", and 18 bore. It also, amazingly, looks to have a bulge in the barrel just below the upper barrel band. There is a ring inside the barrel, so something definitely got stuck in there, but is now removed. We are not sure which is more amazing: that someone bulged a muzzle loader, or that someone was able to clean it out afterwards!

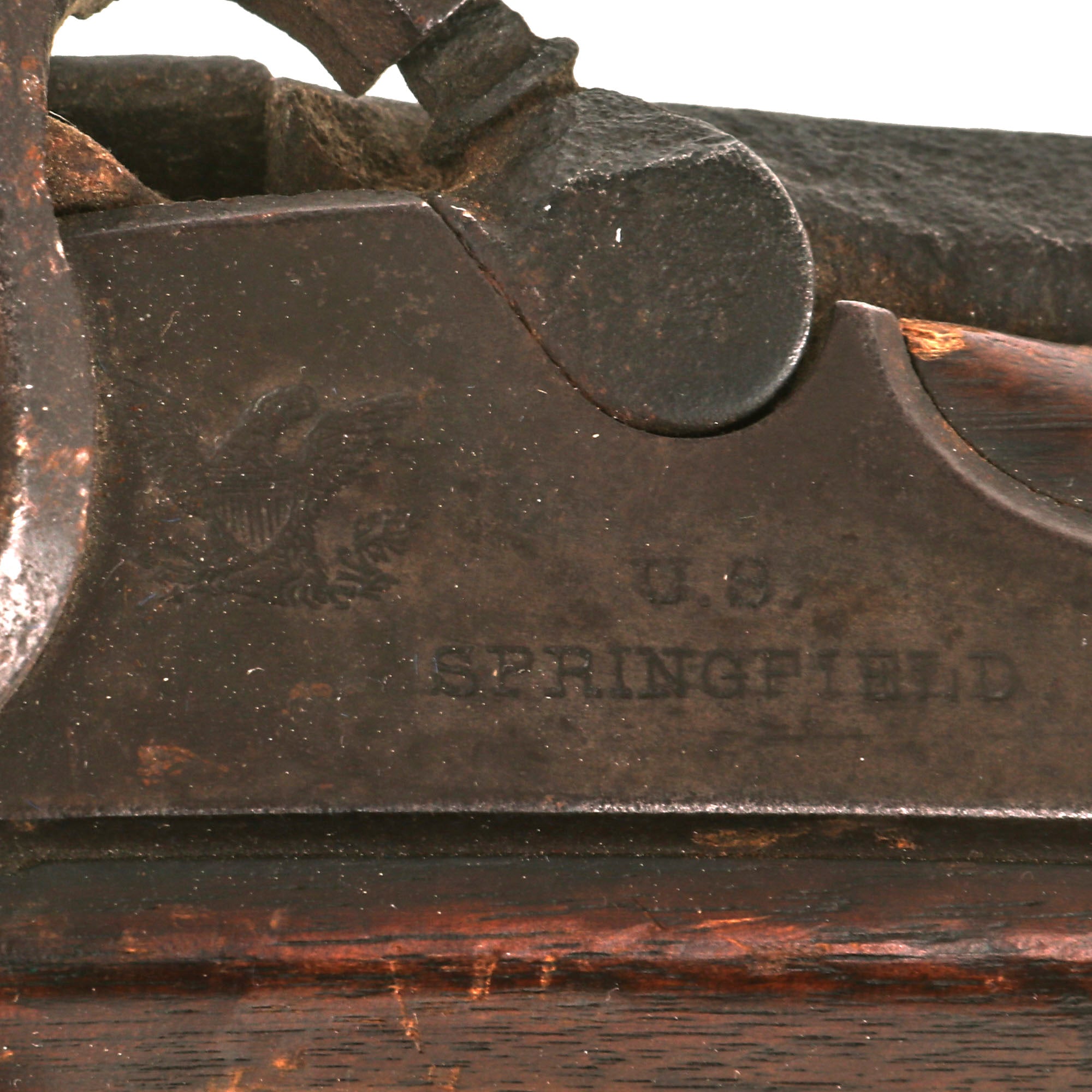

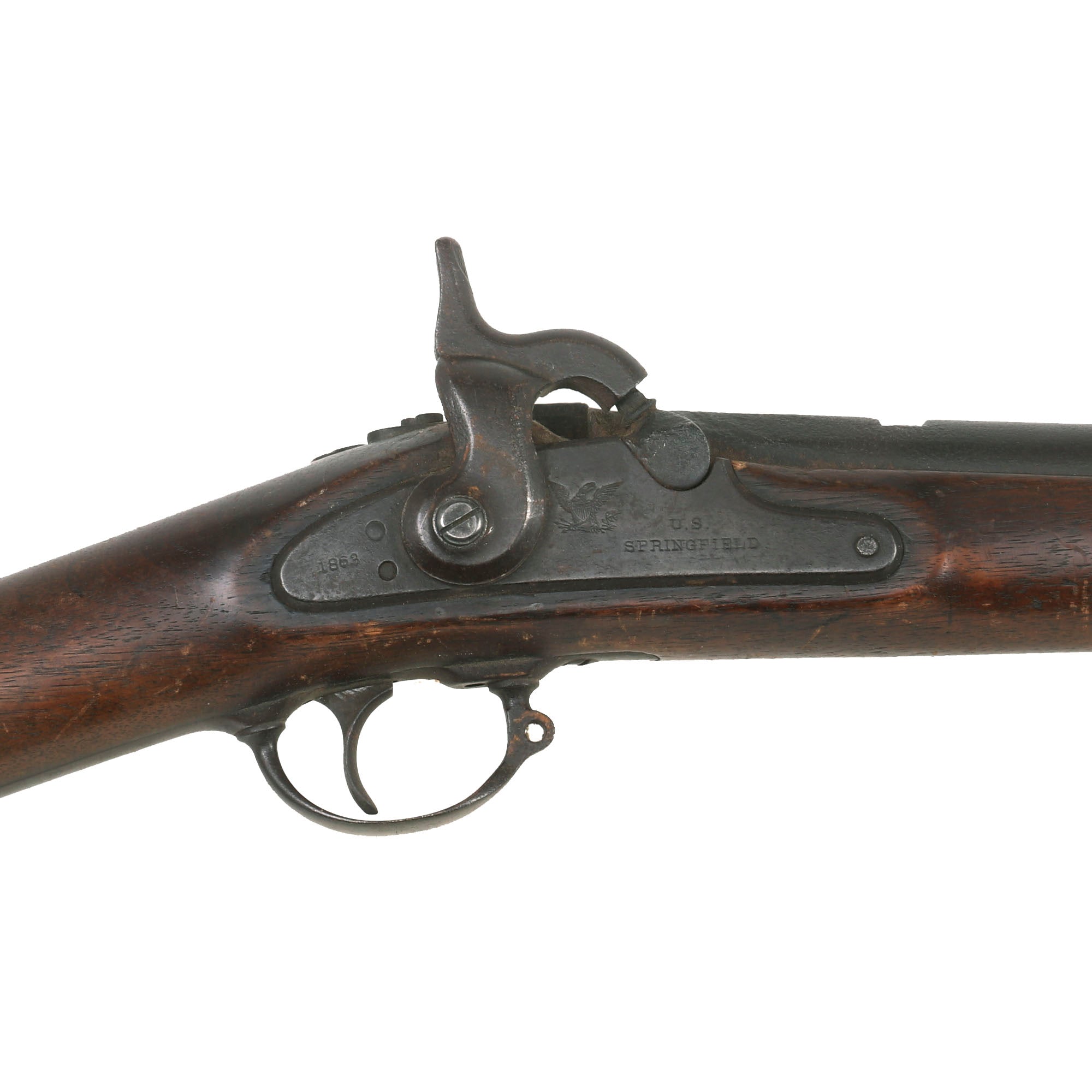

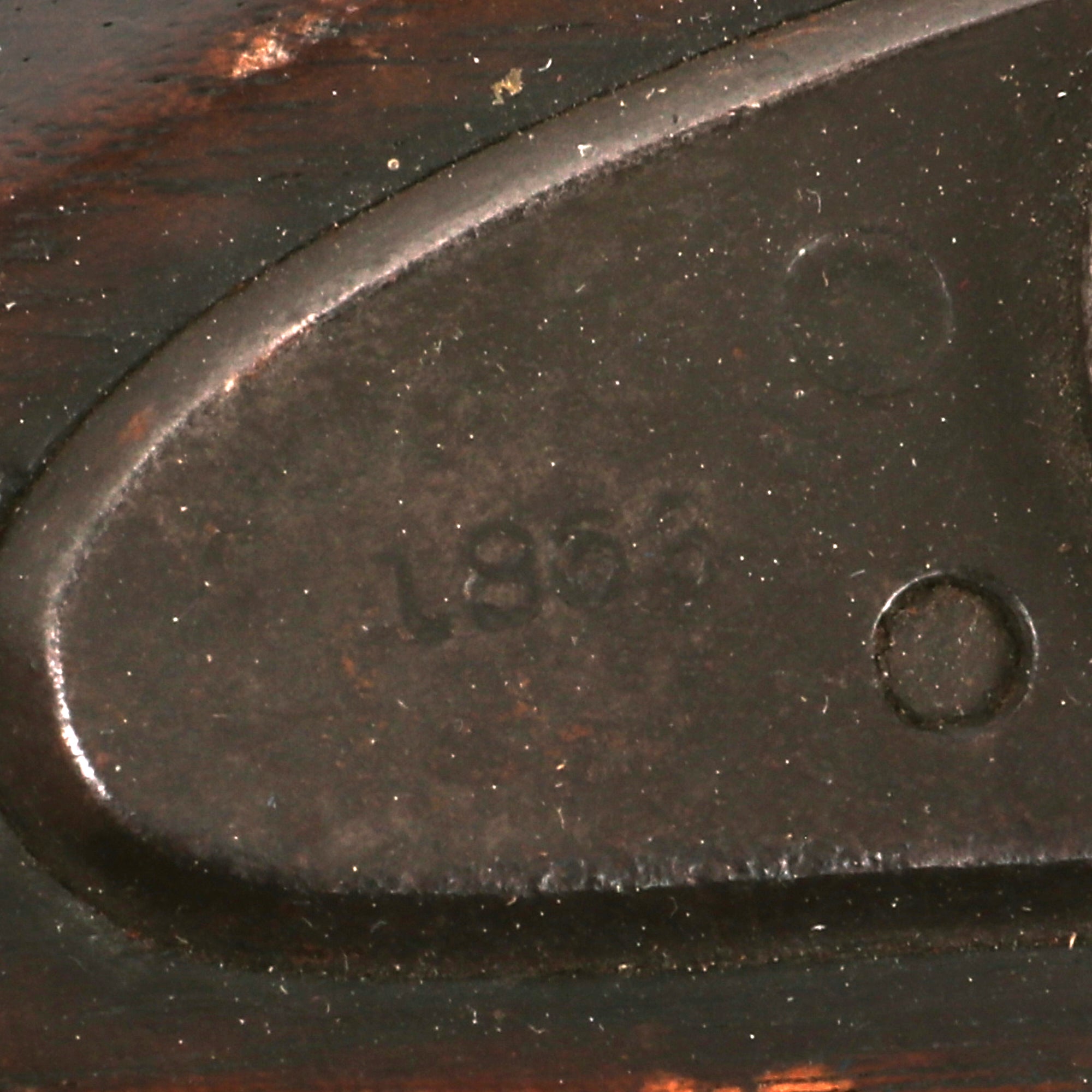

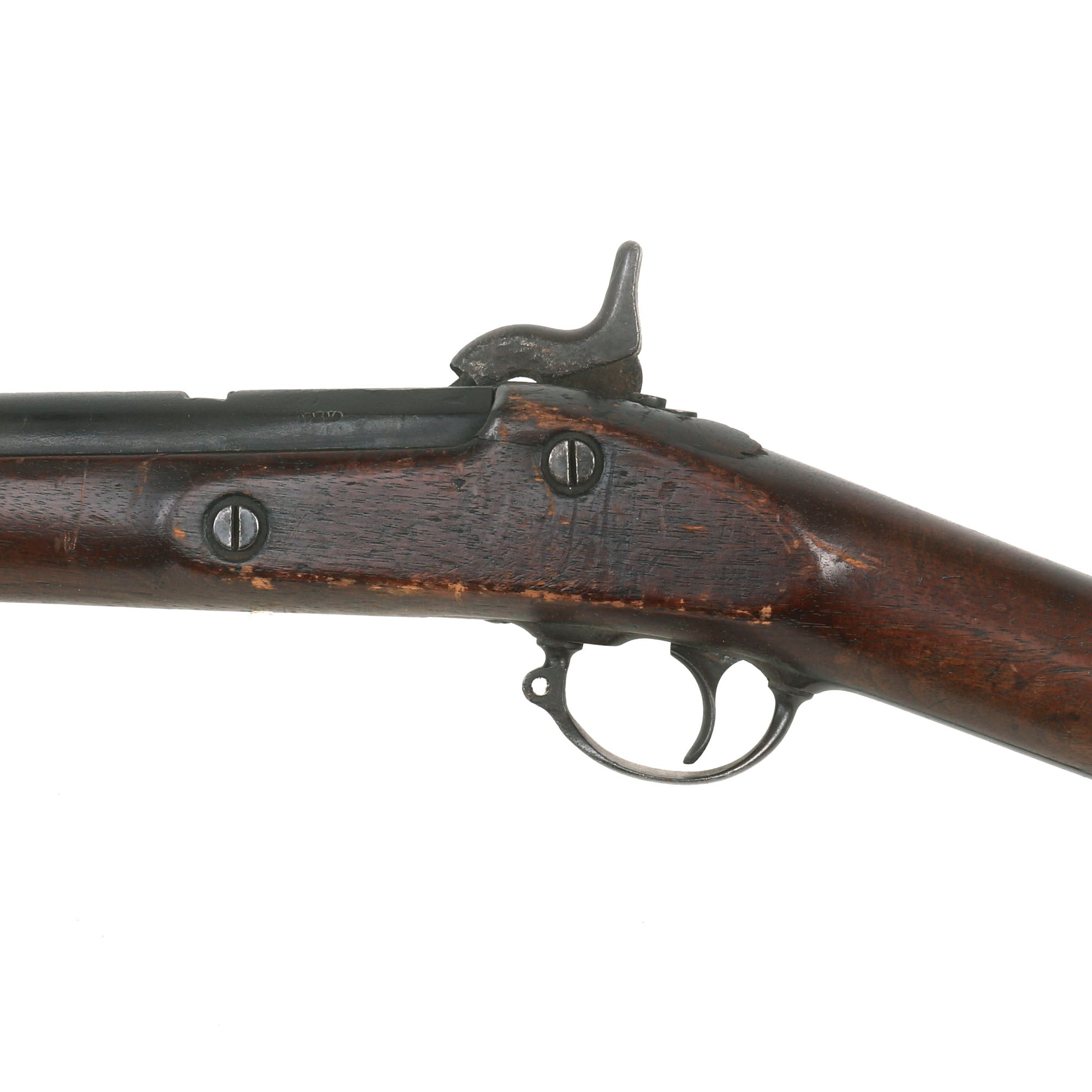

The rifle is dated 1863 on the lock plate tail, and also has a clear Federal Eagle stamped into the lock to the left of U.S. / SPRINGFIELD, indicating production at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. There has been powder burn and cleaning around the breech area, which has removed the original date on the barrel, and the eagle stamping on the cap bolster is also pretty much gone, with only traces visible, with other markings worn away. There is also a good amount of physical wear on the right side of the barrel tang, which has pushed it a bit to the left, bending the tang screw and cracking the stock on the left. This is definitely a gun that has some interesting stories to tell!

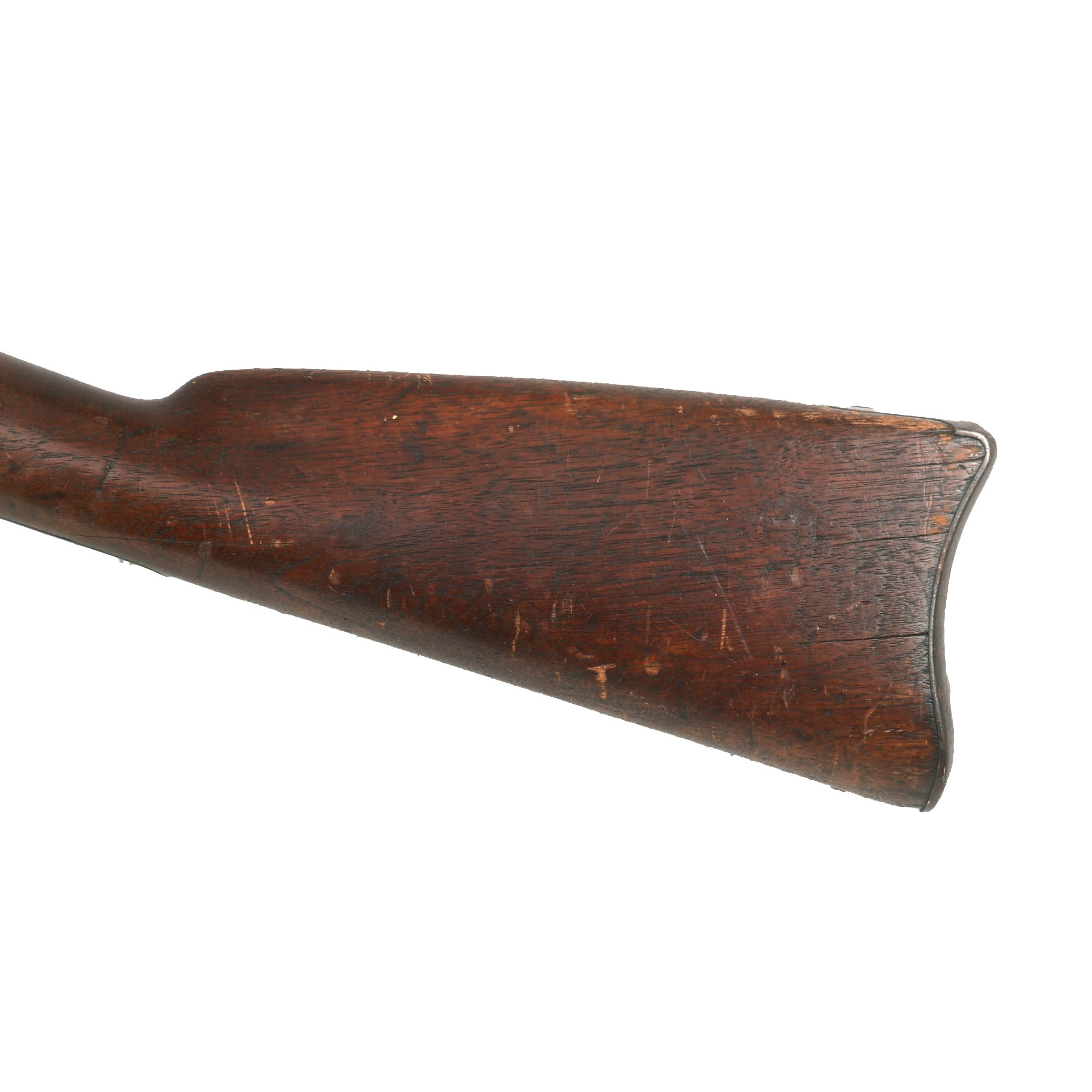

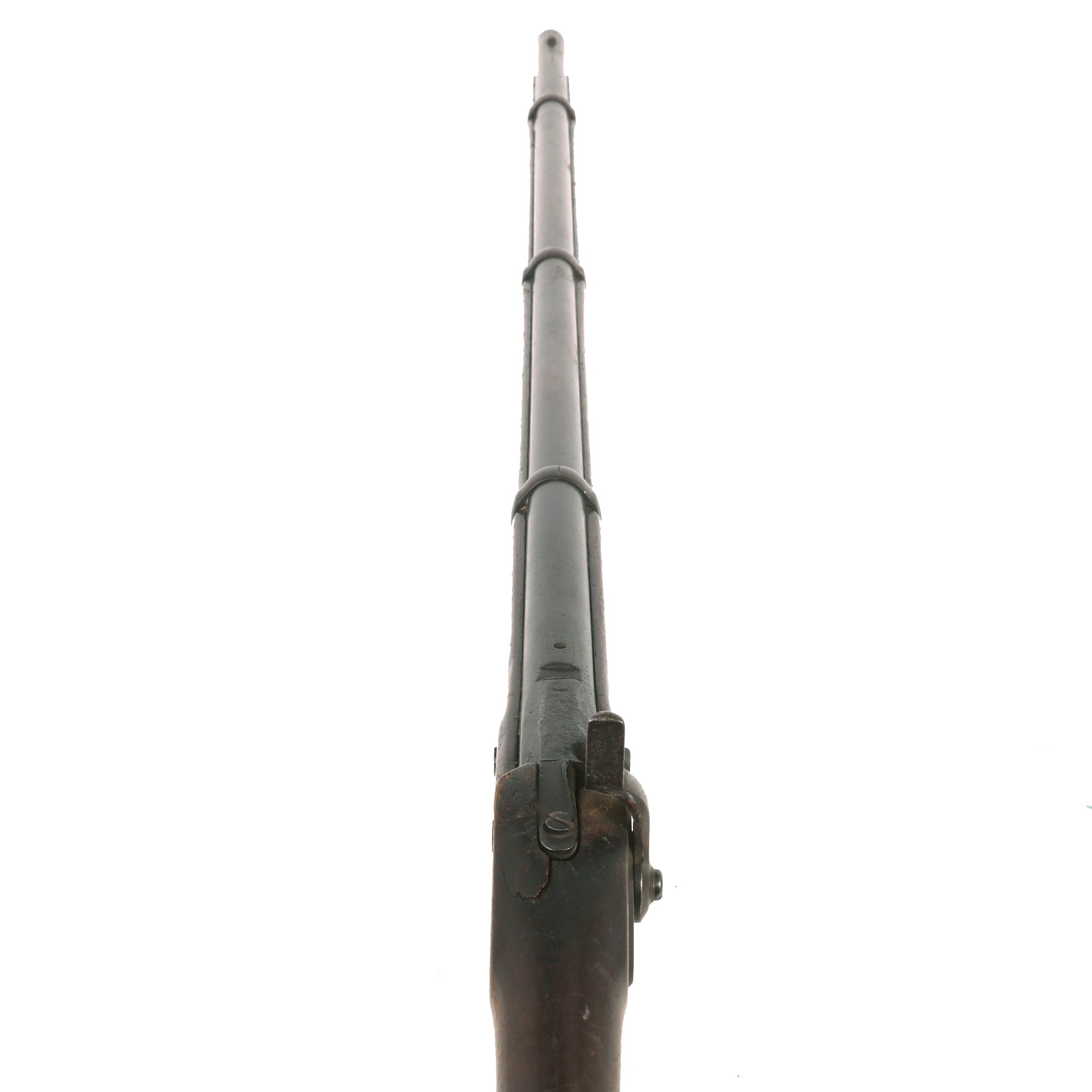

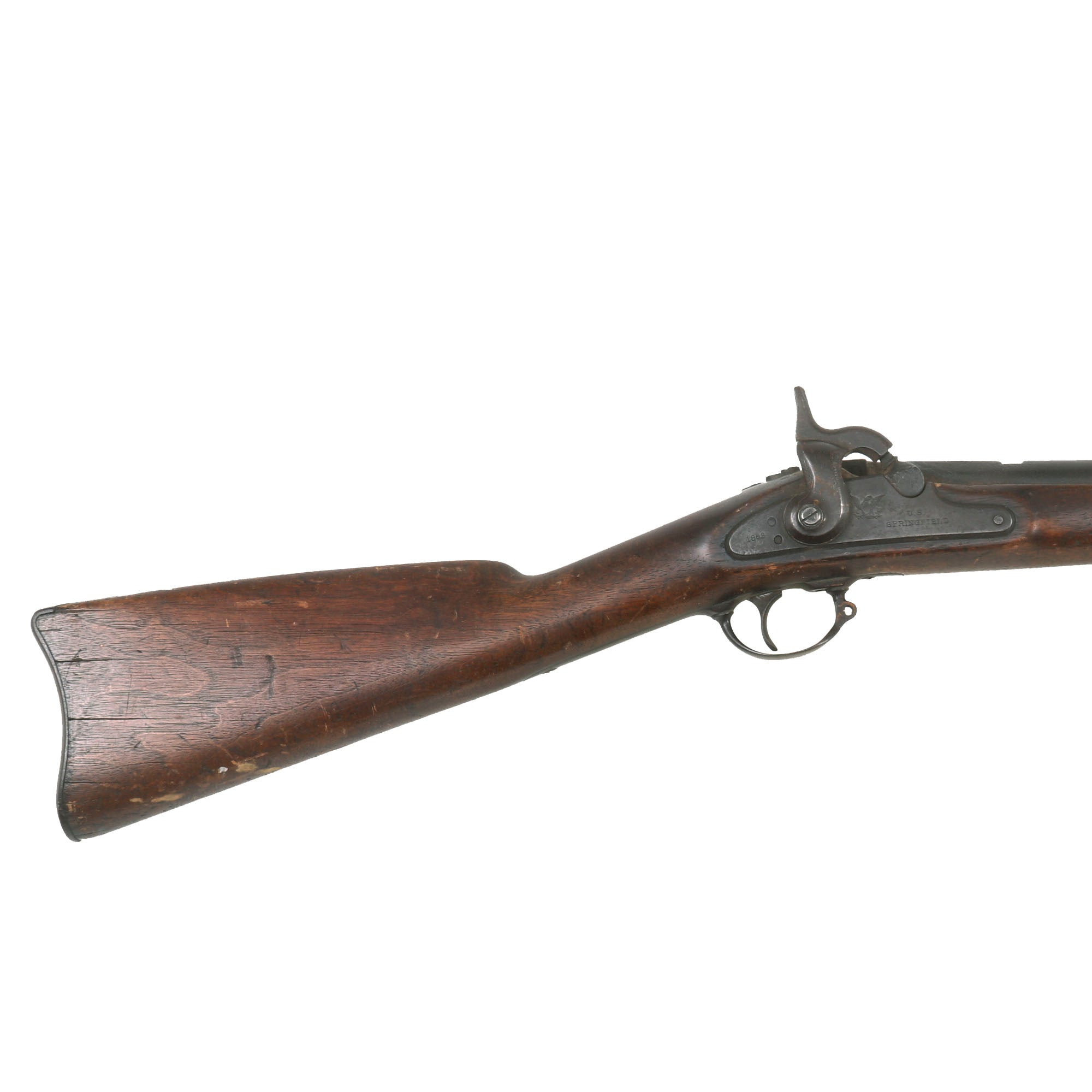

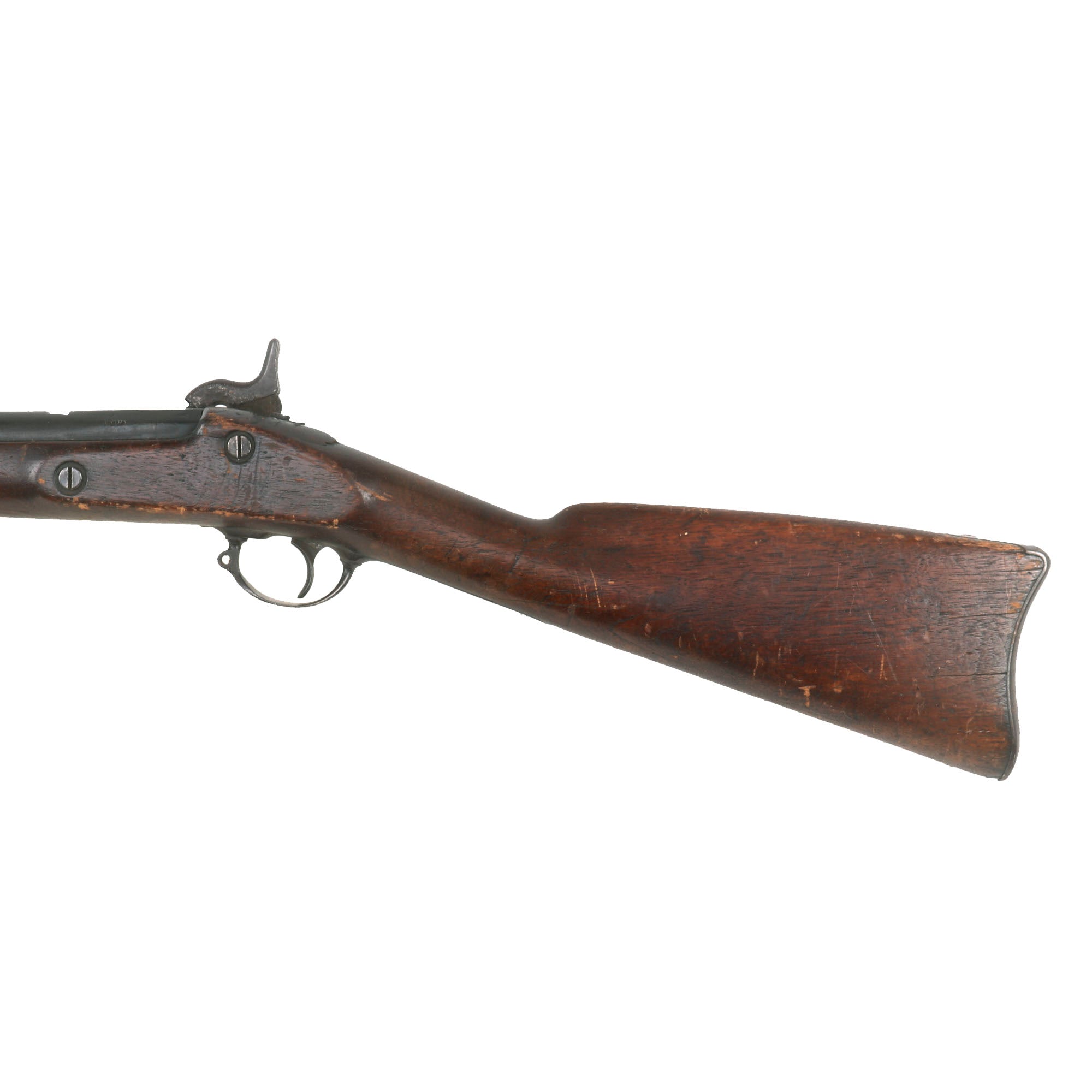

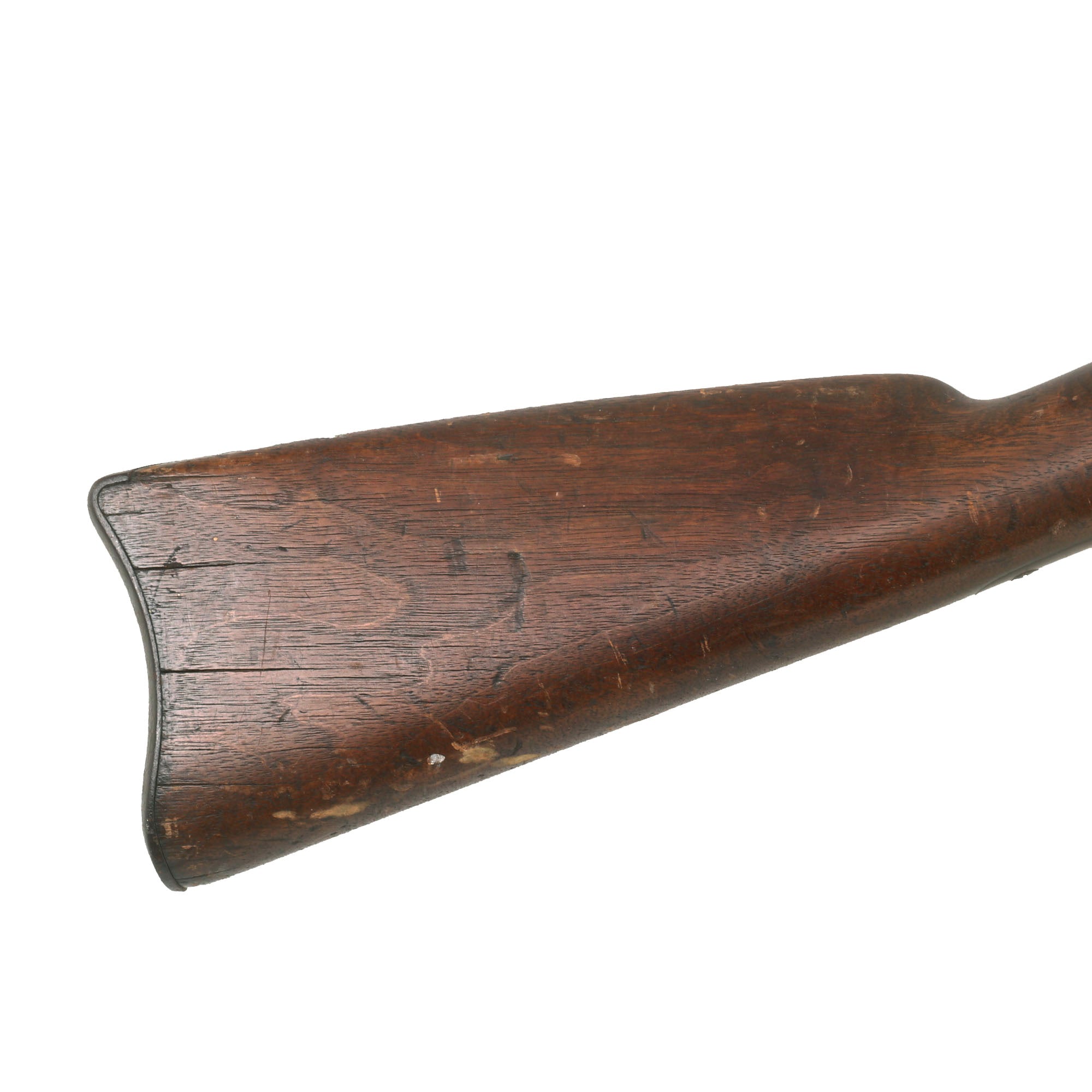

The metalwork overall shows a peppery oxidized patina, showing long exposure light moisture, which is present overall. In place of the leaf sight on the rear, a small groove was added to the top of the lower barrel band. The stock shows a lovely patina, with cracks and other damage consistent with long use. There are no stock cartouches present, expected due to the amount of cleaning and use it must have seen.

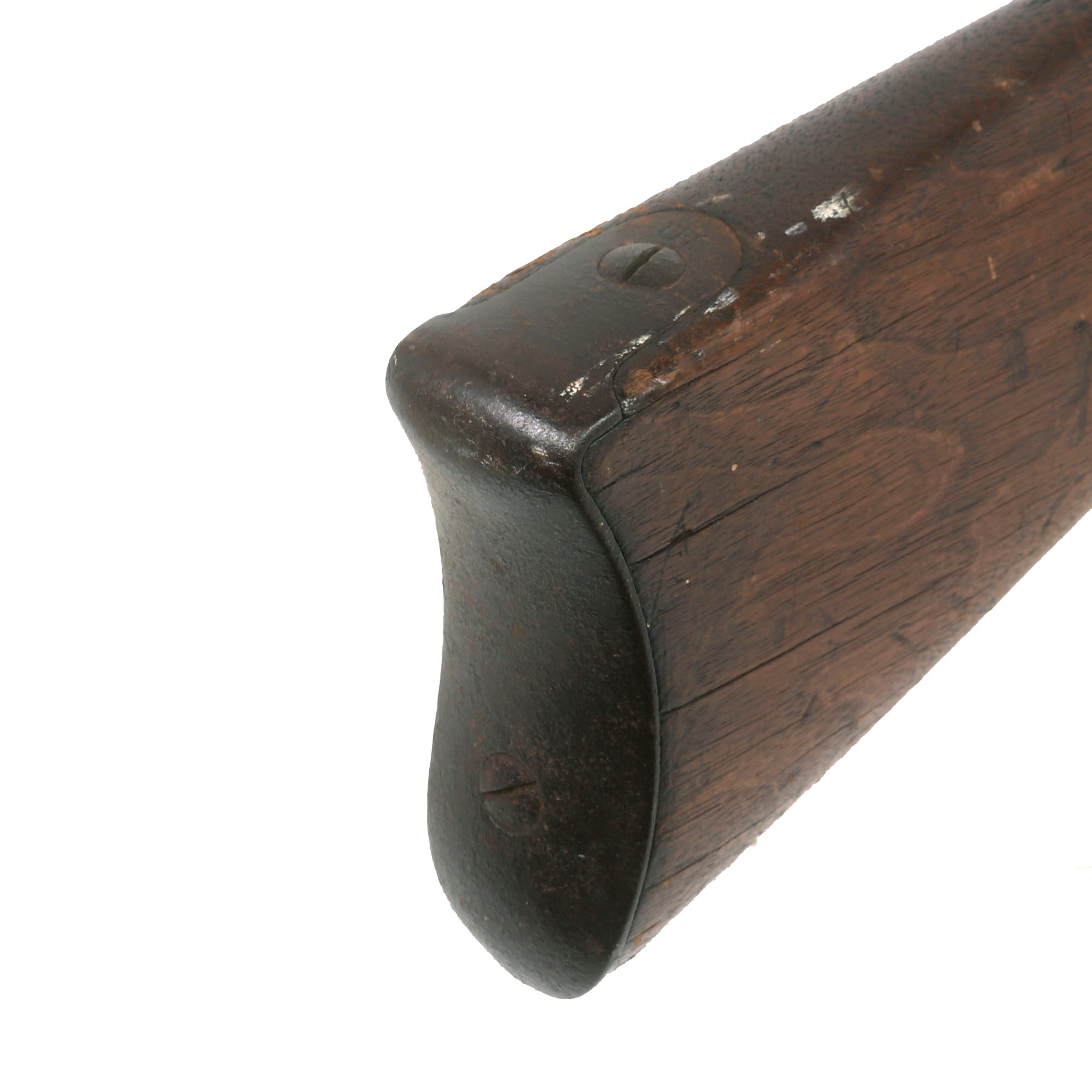

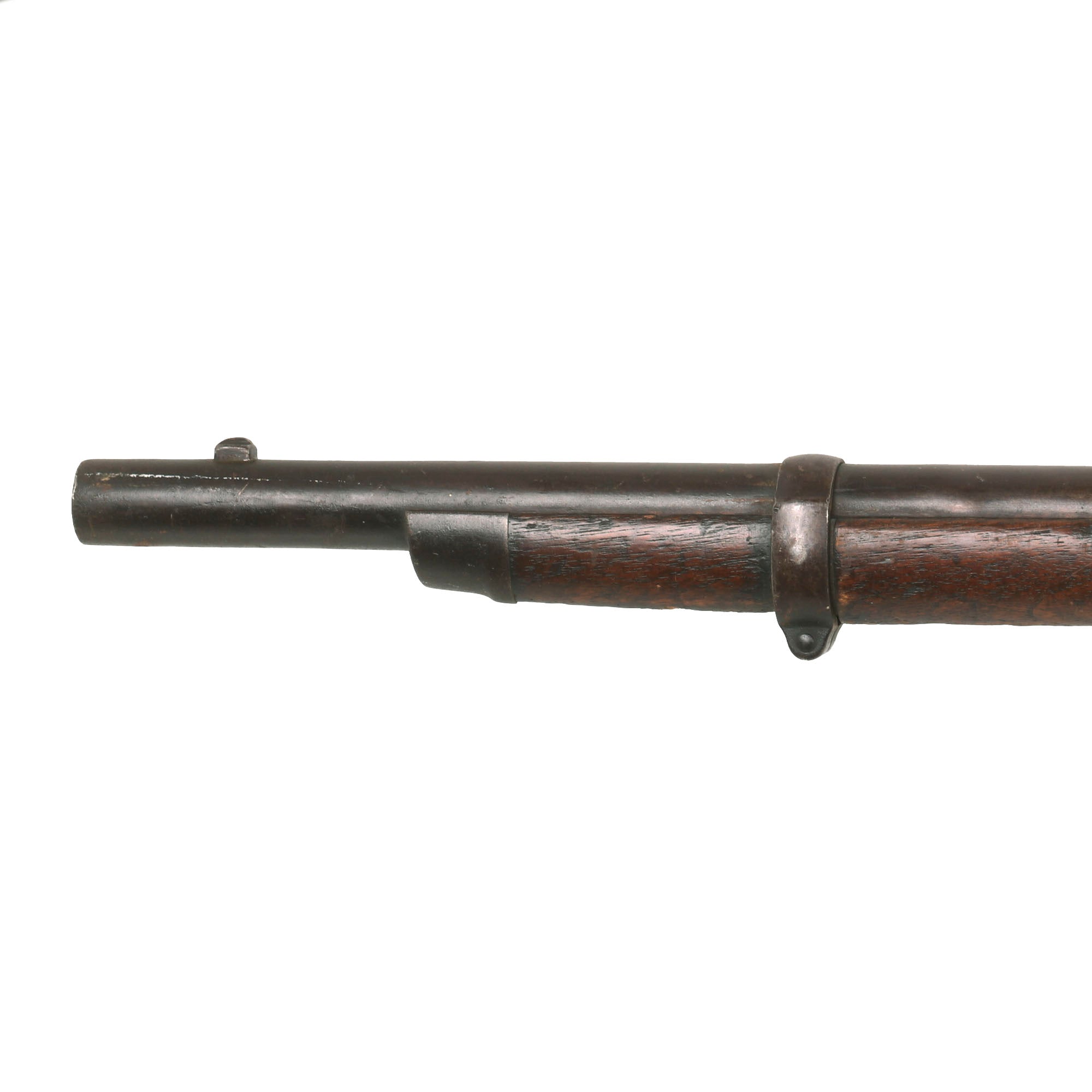

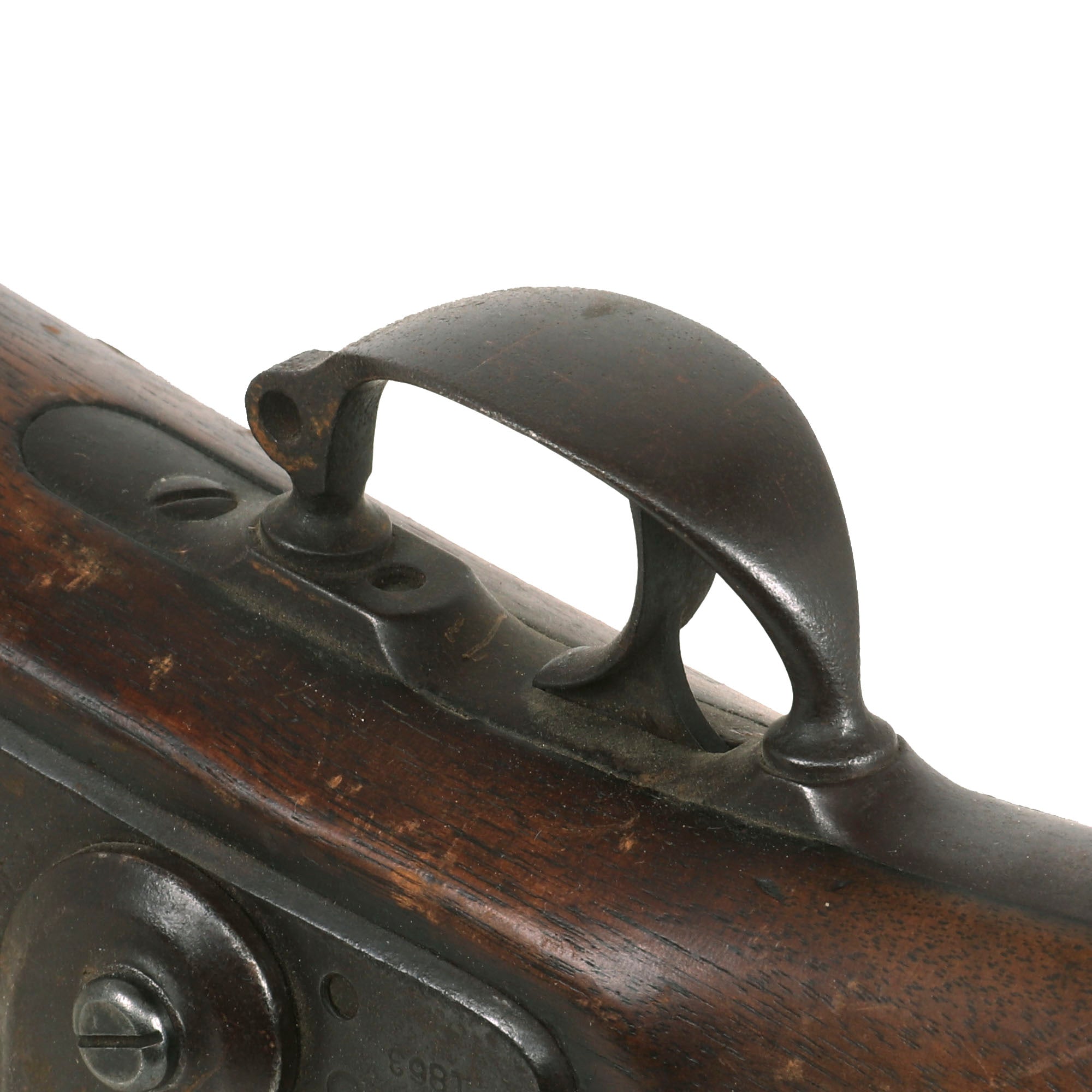

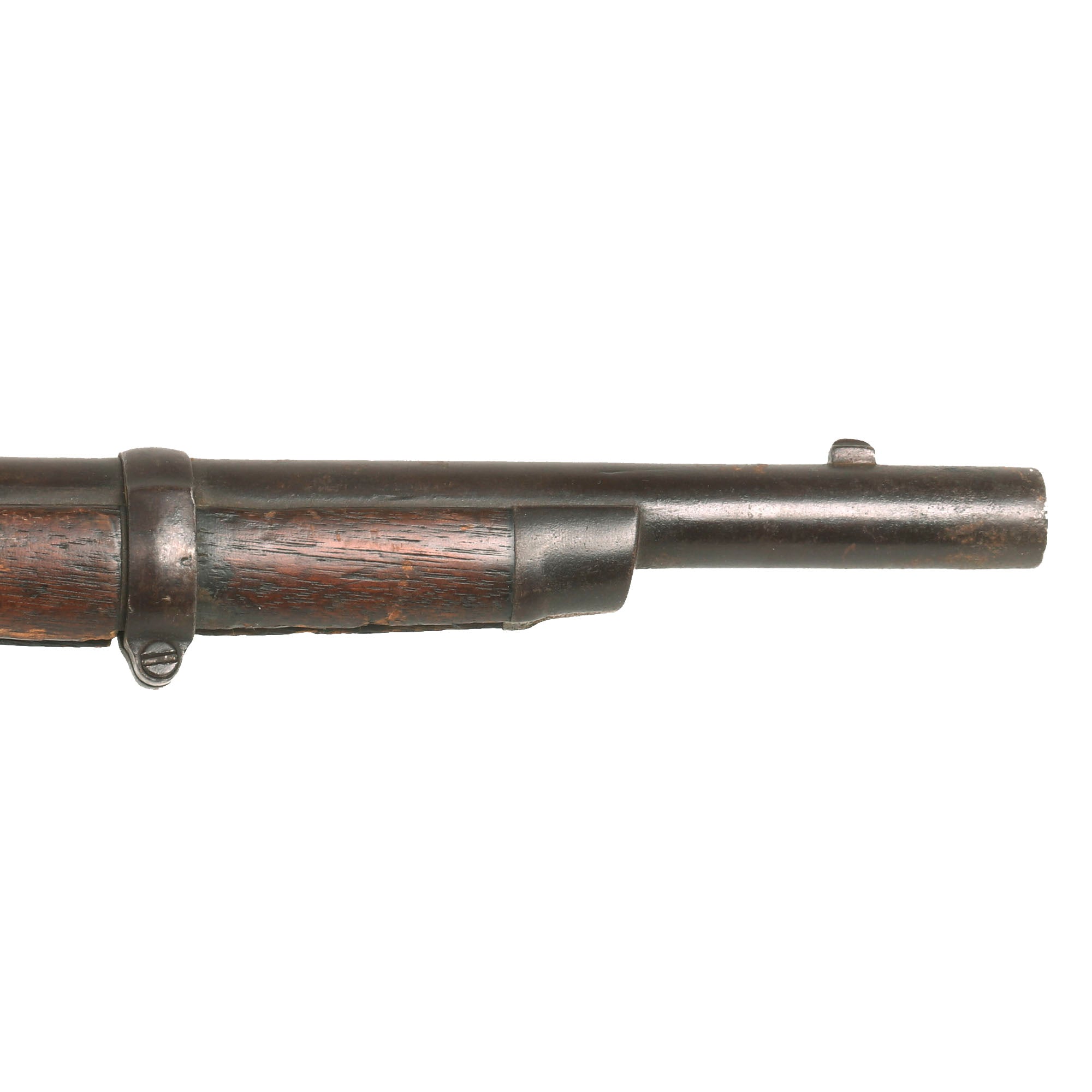

The gun retains all three of the correct Type I screw retained bands, all of which are still faintly U marked, though the upper sling swivel has broken off. The butt-plate is stamped U.S. as per regulation, however the lower sling swivel is missing as well, and there is no ramrod present. Amazingly, the lock still functions correctly, holding at half cock and firing at full.

A very nice well-patinated example, which like many Civil War arms looks to have seen extensive use afterwards, most likely on the frontier. Ready to hang on the wall and display!

Specifications (Musket):-

Year of Manufacture: 1863
Caliber: .63"
Cartridge Type: Ball / Shot and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
