Original Item: Only One Available. The Springfield Model 1863 rifled musket is a .58 caliber rifled musket produced by the Springfield Armory between 1863 and 1865. The Model 1863 was a minor improvement over the Springfield Model 1861. As such, it is sometimes classified as just a variant of the Model 1861. The Model 1861, with all of its variants, was the most commonly used longarm in the American Civil War, with over 700,000 manufactured. The Model 1863 also has the distinction of being the last muzzle-loading longarm produced by the Springfield Armory.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber). Several of these modifications were based upon Colt's contract model 1861, known as the "Colt special". 273,265 Type I variants were manufactured in 1863.

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight. A total of 255,040 of these were manufactured from 1864 to 1865.

By the end of the Civil War, muzzle-loading rifles and muskets were considered obsolete. In the years following the Civil War, many Model 1863 muskets were converted into breech-loading "Trapdoor Springfields". The breech-loading weapons increased the rate of fire from 3 to 4 rounds per minute to 8 to 10 rounds per minute. The Model 1863 could be converted to breech-loading for about $5, at a time when a new rifle would cost about $20. The conversion of Model 1863 rifles therefore represented a significant cost savings to the U.S. military.

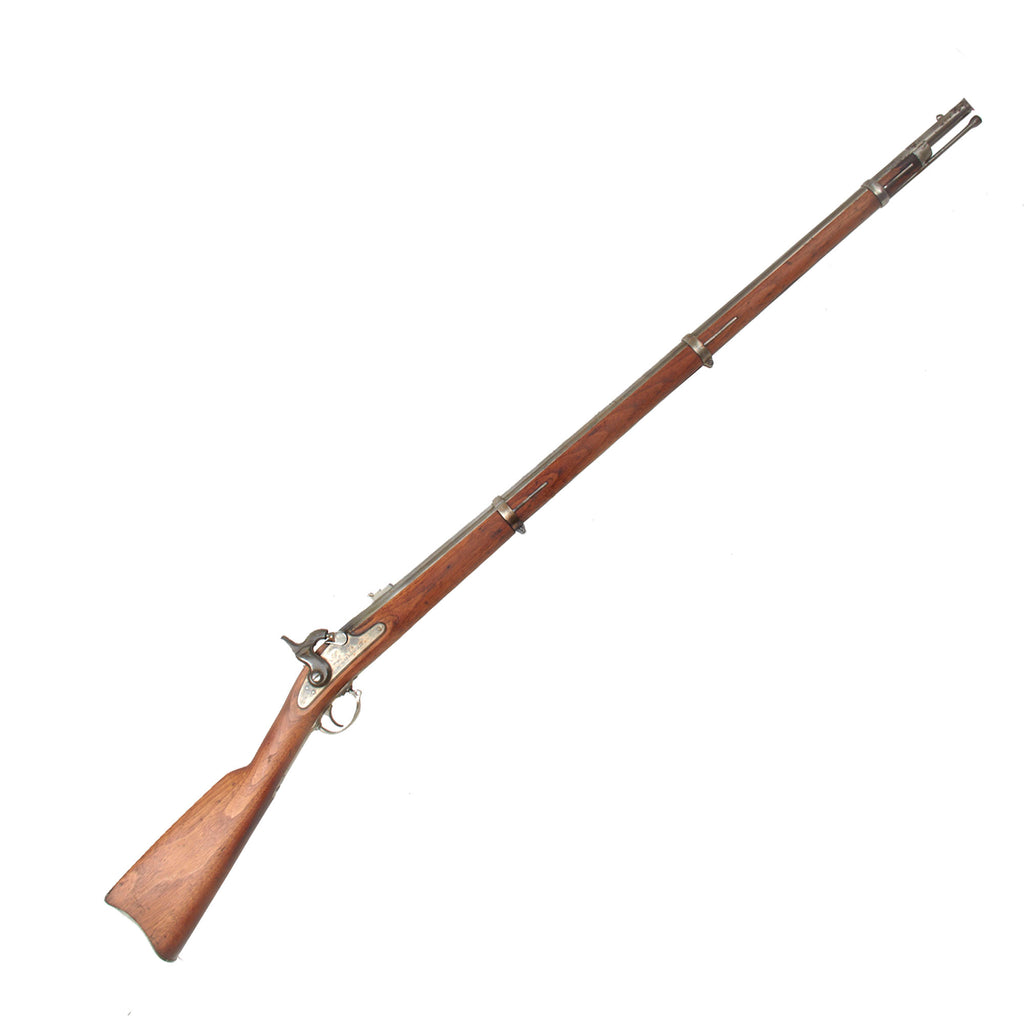

This very nice Transitional Type 1863 however escaped conversion, and is presented for sale in the original Civil War era configuration. It has the three leaf rear sight and clamping bands of a Type I, however it has the band springs of a Type II, which is why we are calling it transitional. It is dated 1864 on the lock plate tail, and also has an Eagle stamped into the lock to the left of U.S. / SPRINGFIELD, indicating production at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. The markings are still easily legible, though they are a bit worn, and the lock plate overall shows signs of cleaning to remove past oxidation. It is still fully functional, holding at half cock and firing at full, and the main spring is strong. The cap bolster Eagle marking is completely worn away from cleaning, and there is definitely powder burn around the nipple cone, indicating that it did see a good amount of use while in service.

The barrel stills shows faint (Eagle's Head) proof on the left facet of the breech, however the date and other proofs have been worn away. We also checked the left side of the stock, and there are unfortunately no longer any inspection cartouches visible at all. The rifle overall looks to have been cleaned and serviced over the years, which has worn down the exterior surface overall. We checked the bore, and we can still clearly see the three-groove rifling, however there is also overall fouling and past oxidation. There is also dirt inside the bore as well as the rust, so this definitely looks to have been a musket that saw a lot of use during the war.

The one piece walnut stock is in lovely condition with a great light red-brown walnut color. It looks to have been reconditioned at some point, and has a lovely light oil finish now. It does not show any major denting or other wear, though there is some cracking around the lock screws and also around the barrel tang, very common places to see these. This gun still has the original rear sight, which is the correct three leaf type for the Type I muskets, having a 100 yard standard notch, with 300 and 500 yard flip up leaves. The 500 yard leaf however has broken off at the pivot, and now is in place by "force of habit". The "barleycorn" front sight is in good shape, still firmly attached to the barrel. All barrel bands are U stamped, and the butt plate tang is correctly US stamped. The hardware is relatively solid, however both sling swivels were removed at some point. The ramrod is the tulip type without an enlarged shank, correct for the model 1863, however the threads at the end are very worn down.

A very nice example, offered in lovely condition and still in the original percussion configuration. This would find a welcome home in any U.S. Civil War collection. Ready for display!

Specifications-

Year of Manufacture: 1864
Caliber: .58"
Cartridge Type: Minié Ball and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
