Item:
ONSV3510

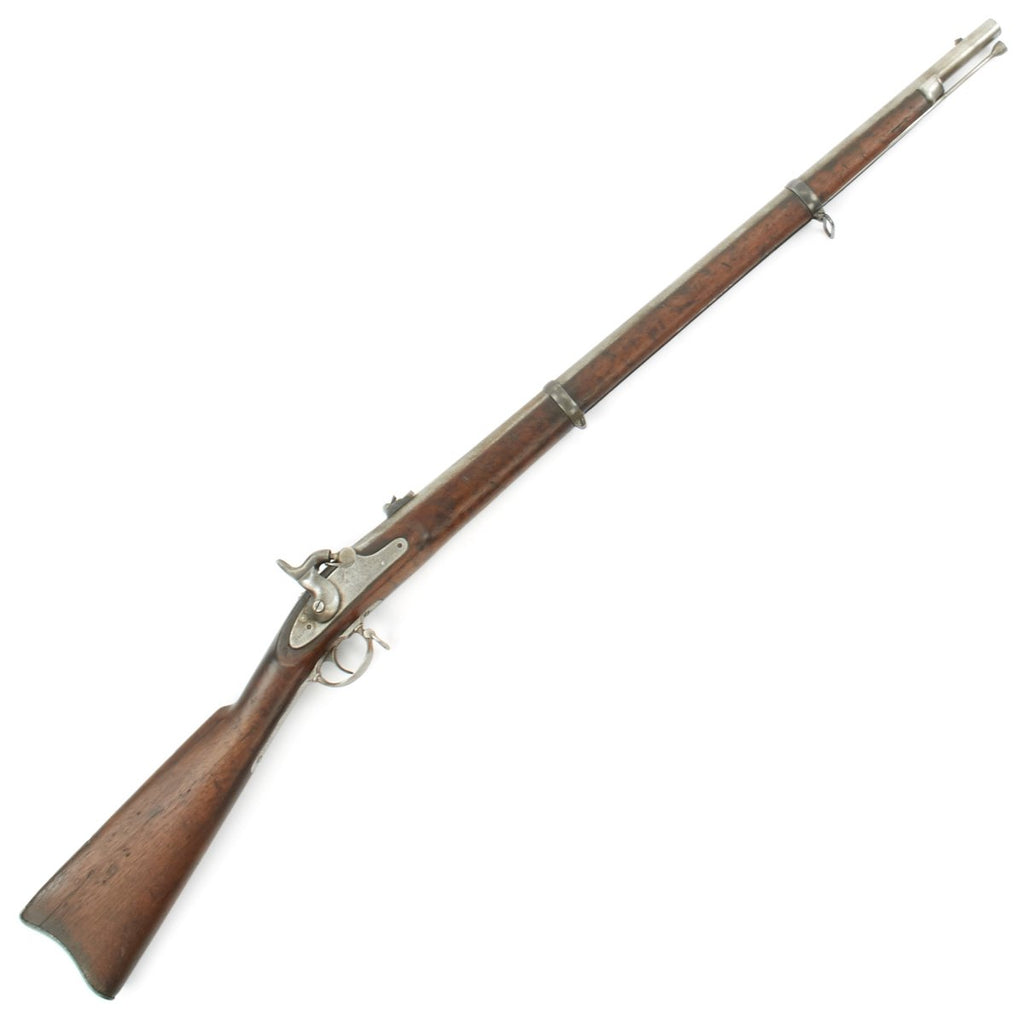

Original U.S. Civil War Springfield Model 1861 Short Rifled Musket by L.G. & Y. of Windsor, VT - Dated 1862

Item Description

Original Item: Only One Available. The Springfield Model 1861 was a Minié-type rifled musket shoulder-arm used by the United States Army and Marine Corps during the American Civil War. Commonly referred to as the "Springfield" (after its original place of production, Springfield, Massachusetts), it was the most widely used U.S. Army weapon during the Civil War, favored for its range, accuracy, and reliability.

The barrel was 40 inches long, firing a .58 caliber Minié ball, and the total weight was approximately 9 pounds. The Springfield had an effective range of 200 to 300 yards, and used percussion caps to fire (rather than the flintlocks of the 18th century, the last U.S. flintlock musket was the Model 1840). Trained troops were able to fire at a rate of three aimed shots per minute while maintaining accuracy up to 500 yards, though firing distances in the war were often much shorter. The most notable difference between the Model 1861 and the earlier Model 1855 was the elimination of the Maynard tape primer for the Model 1861 (the Maynard primer, a self-feeding primer system, was unreliable in damp weather, and the priming mechanism was expensive and time-consuming to produce). Further, unlike the Model 1855, the Model 1861 was never produced in a two-banded "short rifle" configuration.

The Springfield was aimed using flip-up leaf sights. The sight had two leaves, one for 300 yards and the other for 500 yards, and with both leaves down, the sight was set for a range of 100 yards. By contrast, the British Pattern 1853 Enfield, favored by the Confederates, utilized a ladder-sight system with 100 yard increments, using steps from 100 to 400 yards and a flip up ladder for ranges beyond 500 yards. While the Enfield's sights did allow finer range settings, the Springfield's simple leaves were more rugged and were less expensive to produce. The Enfield's sights extended to 900 yards (and further, on later models), compared to the 500 yard maximum range of the Springfield's sights. Realistically, though, hitting anything beyond 600 yards with either weapon was mostly a matter of luck. While the sight designs were very different, the two weapons were otherwise very similar, and had very similar effective ranges.

The Springfield Rifle cost $20 each at the Springfield Armory, where they were officially made. Overwhelmed by the demand, the armory opened its weapons patterns up to twenty private contractors, including Lamson, Goodnow and Yale of Windsor, Vermont. The company was started in 1855 by E. G. Lamson, A. F. Goodnow and B. B. Yale joined together, and purchased the bankrupt Robbins and Lawrence Armory in Windsor, Vermont, to make guns. The Lamson, Goodnow & Yale Company of Windsor, Vermont and Shelburne Falls, Massachusetts, received two contracts from the federal government for a special Colt model 1861, .54 caliber rifle musket, like this one. The company delivered nearly 2,000 guns per month from September 24, 1862, to December 10, 1864, for a total of 50,000 arms during the Civil War. This makes them relatively rare compared to other contractors.

The Model 1861 was relatively scarce in the early years of the Civil War (many troops were still using Model 1842 smoothbored muskets and Model 1816/1822 muskets converted to percussion cap primers, both in .69 caliber). It is unlikely that any of these were available for use in the First Battle of Bull Run. However, over time, more and more regiments began receiving Model 1861 rifled muskets, though this upgrade appeared somewhat quicker in the Eastern Theater of Operations. Over 1,000,000 Model 1861 rifles were produced, with the Springfield Armory increasing its production during the war by contracting out to twenty other firms in the Union. The number of Model 1861 muskets produced by the Springfield Armory was 265,129 between January 1, 1861 and December 31, 1863. According to United States Muskets, Rifles and Carbines by Arcadi Gluckman Colonel Infantry, United States Army, published 1949.

After the war ended, many model 1861 and 1863 rifled muskets were modified to a breech loading actions with new metallic cartridges. With these modifications, the basic 1861 evolved into the Springfield Model 1873 which served the US until being replaced in the 1890s by modern breech loading rifles chambered for new smokeless powder rounds that were far superior to the Model 1873.

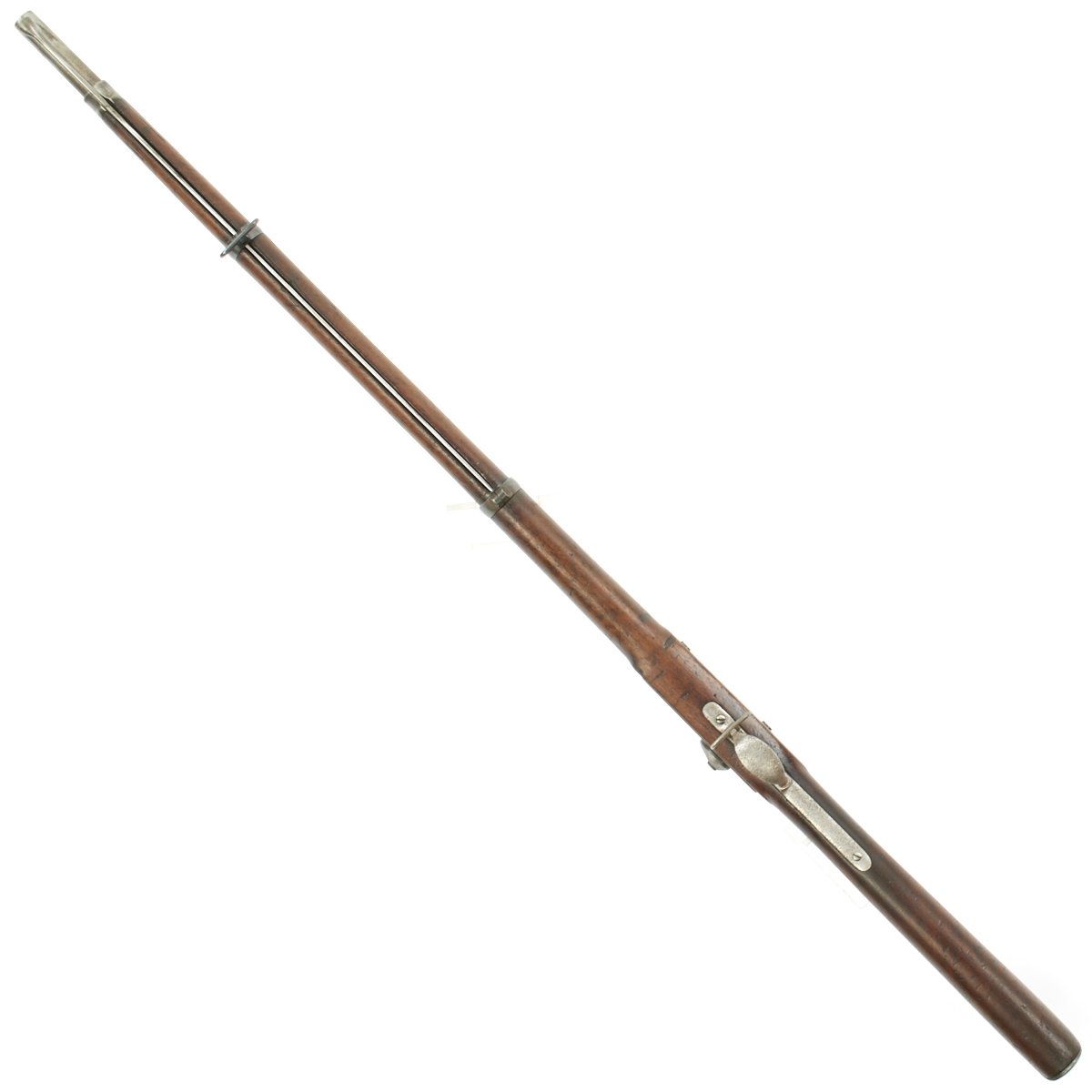

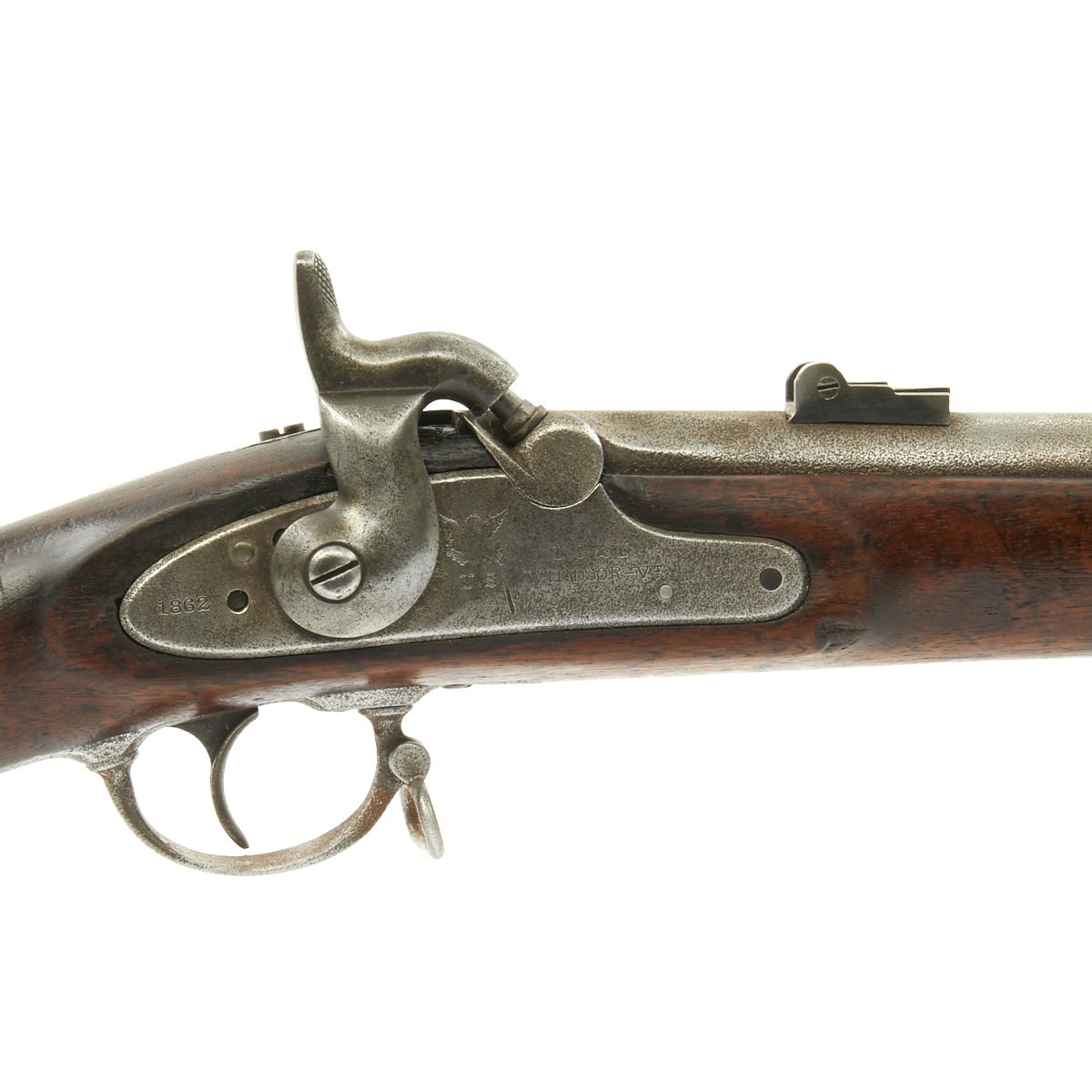

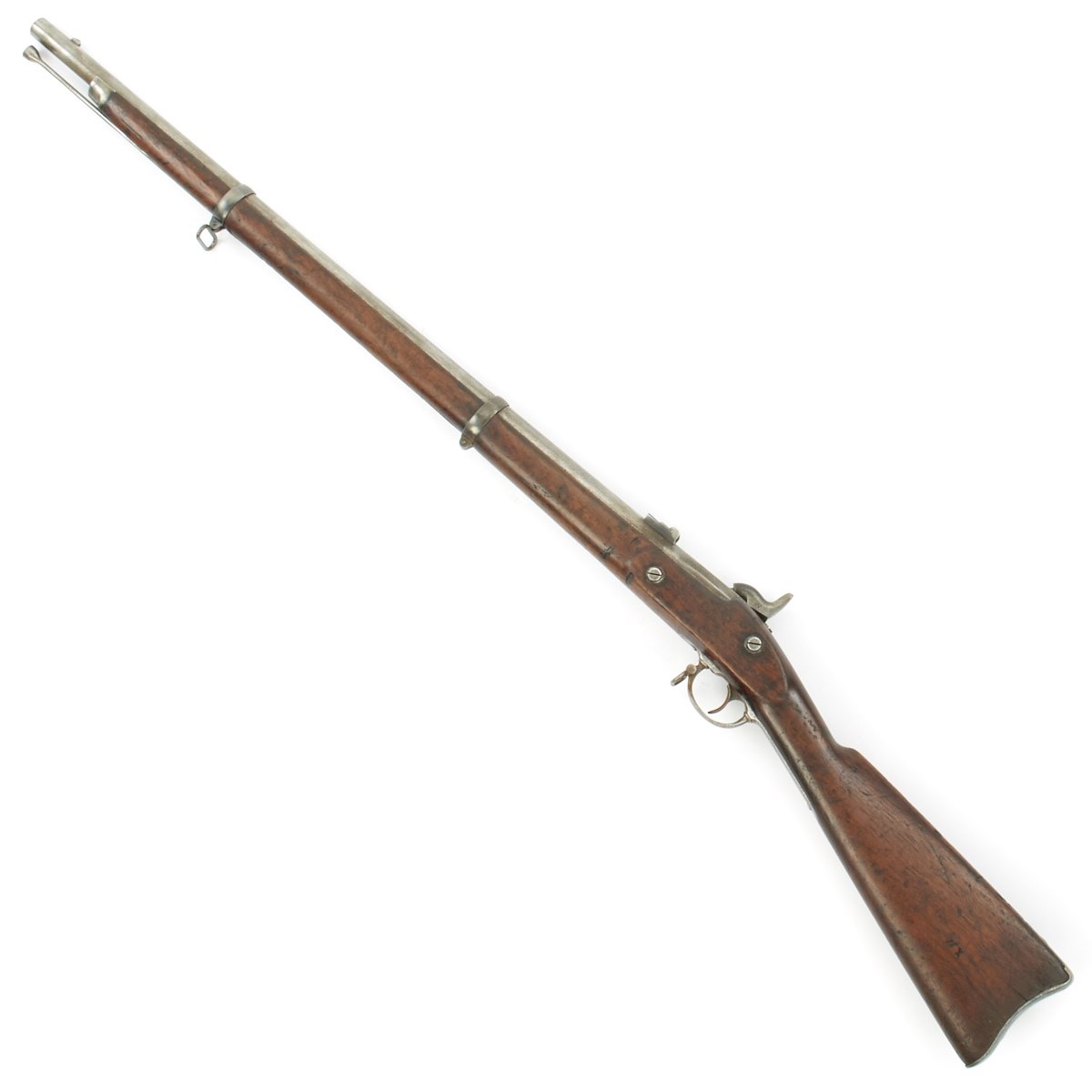

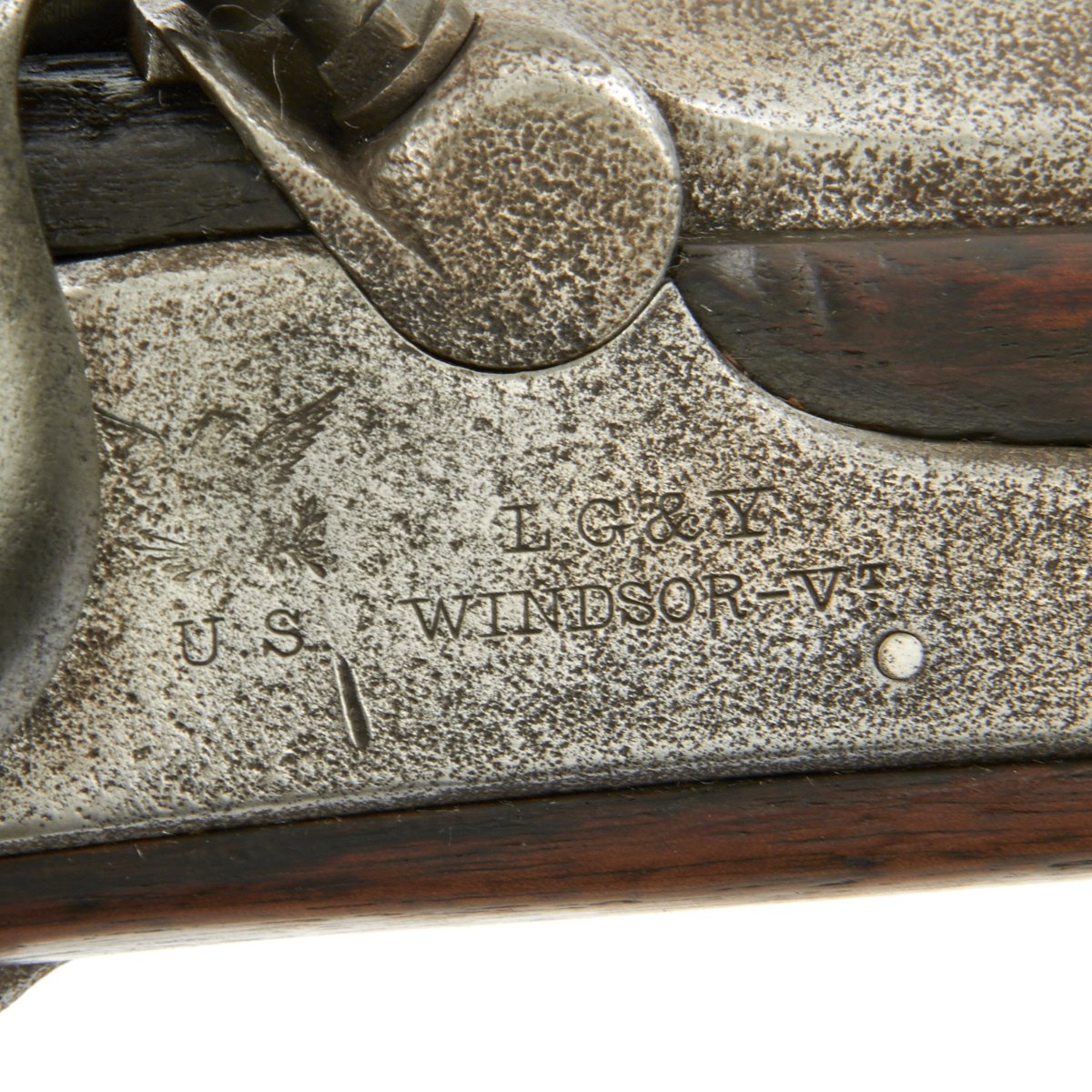

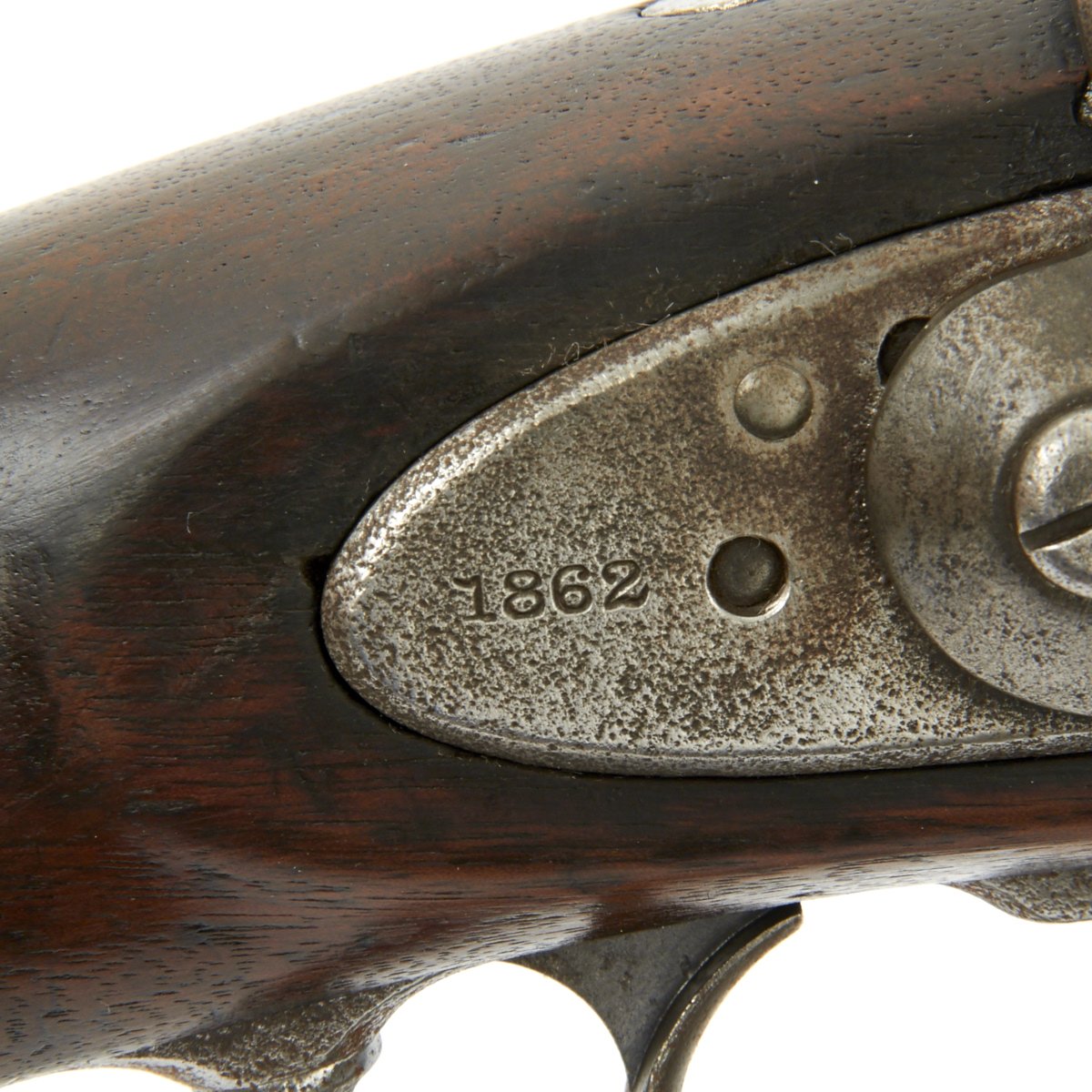

This example however was not converted, and is still in the original configuration, though it has been shortened by 8 inches. We do not know whether it was originally made this way, or shortened post war. It is dated 1862 on the lock plate tail, and also has an Eagle stamped into the lock in the middle of U.S., which is next to L.G. & Y. / WINDSOR - Vt.. The markings on the lock are mostly clear and overall the lock plate is in good condition, with light peppering. There are also some faint proof markgs on the barrel breech, though they cannot be read.

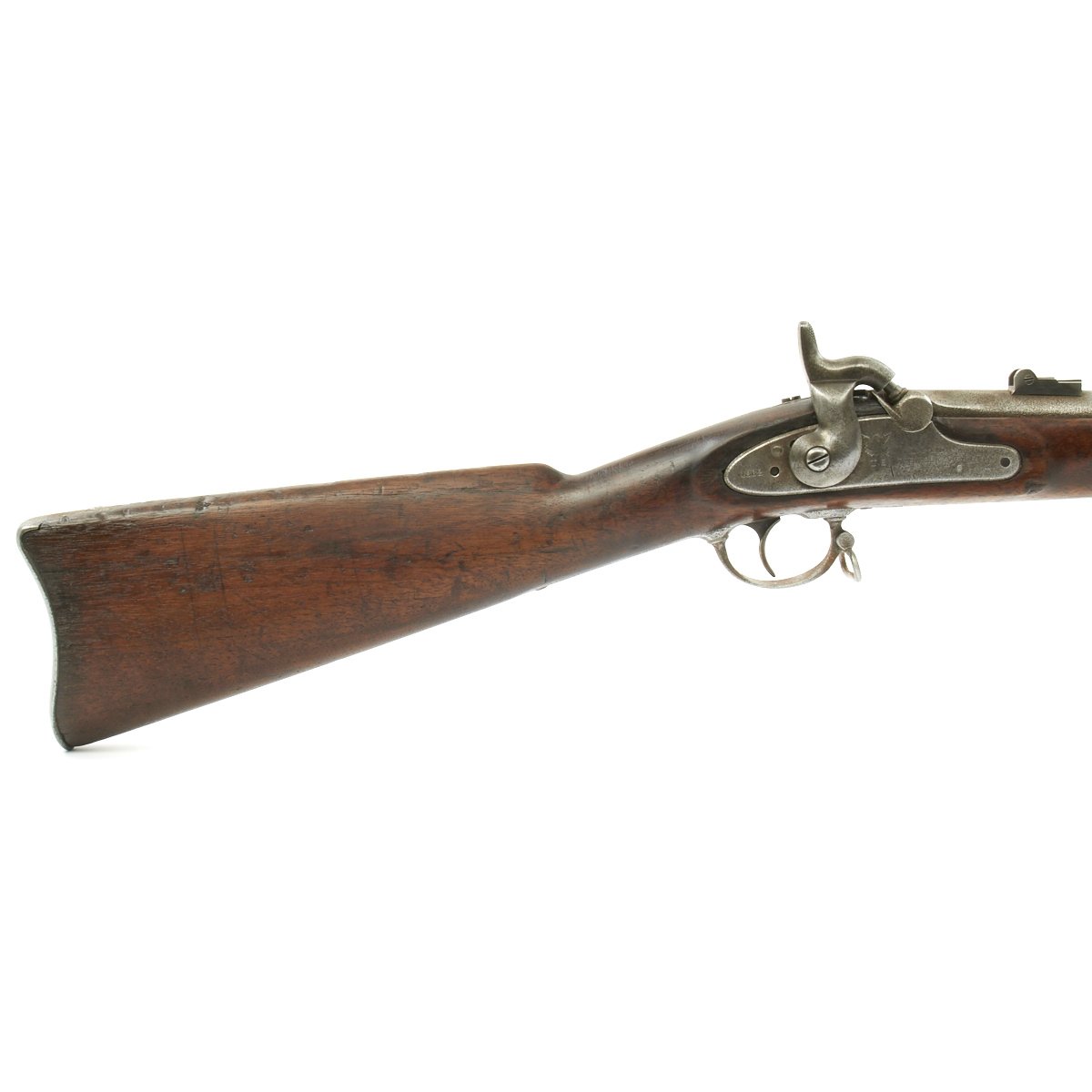

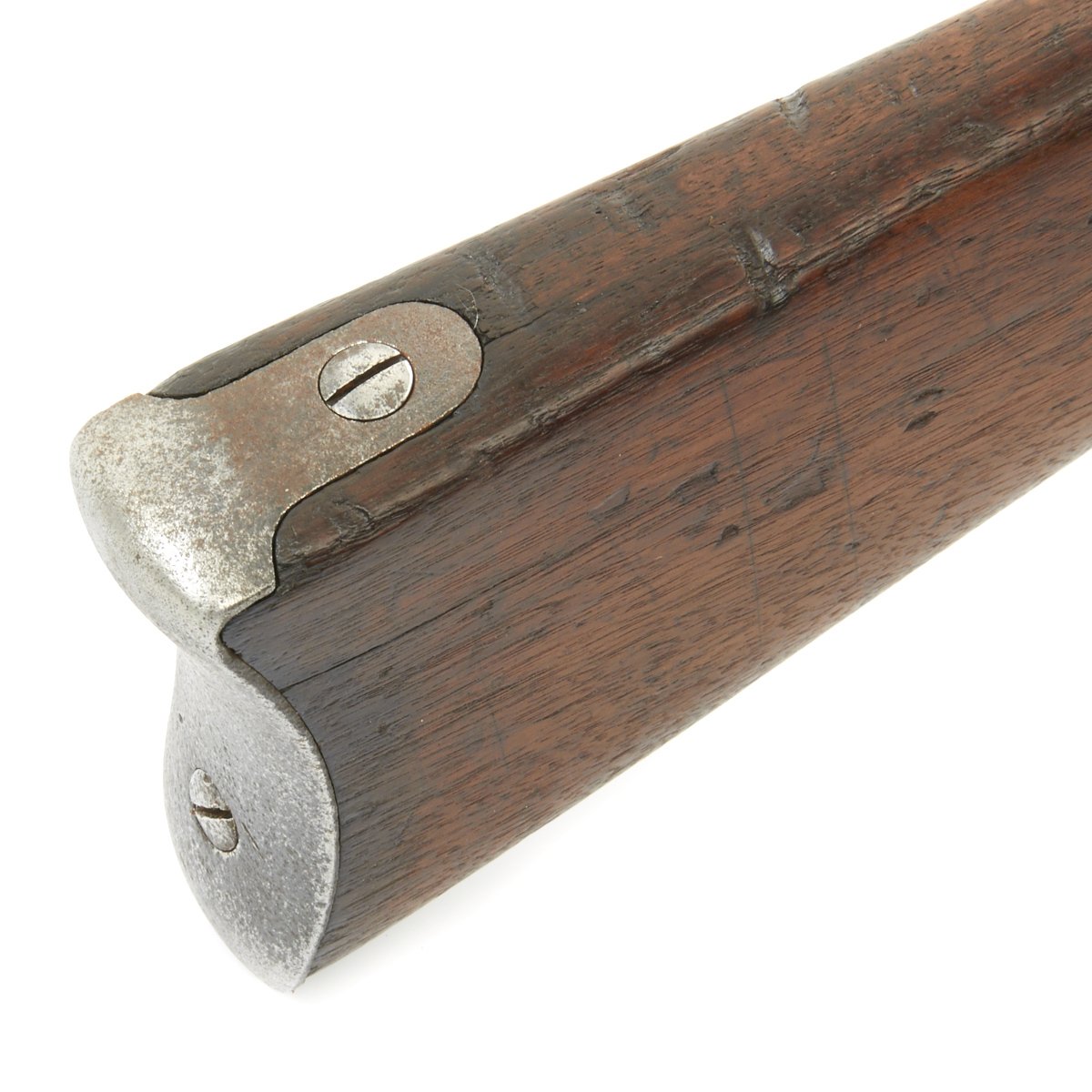

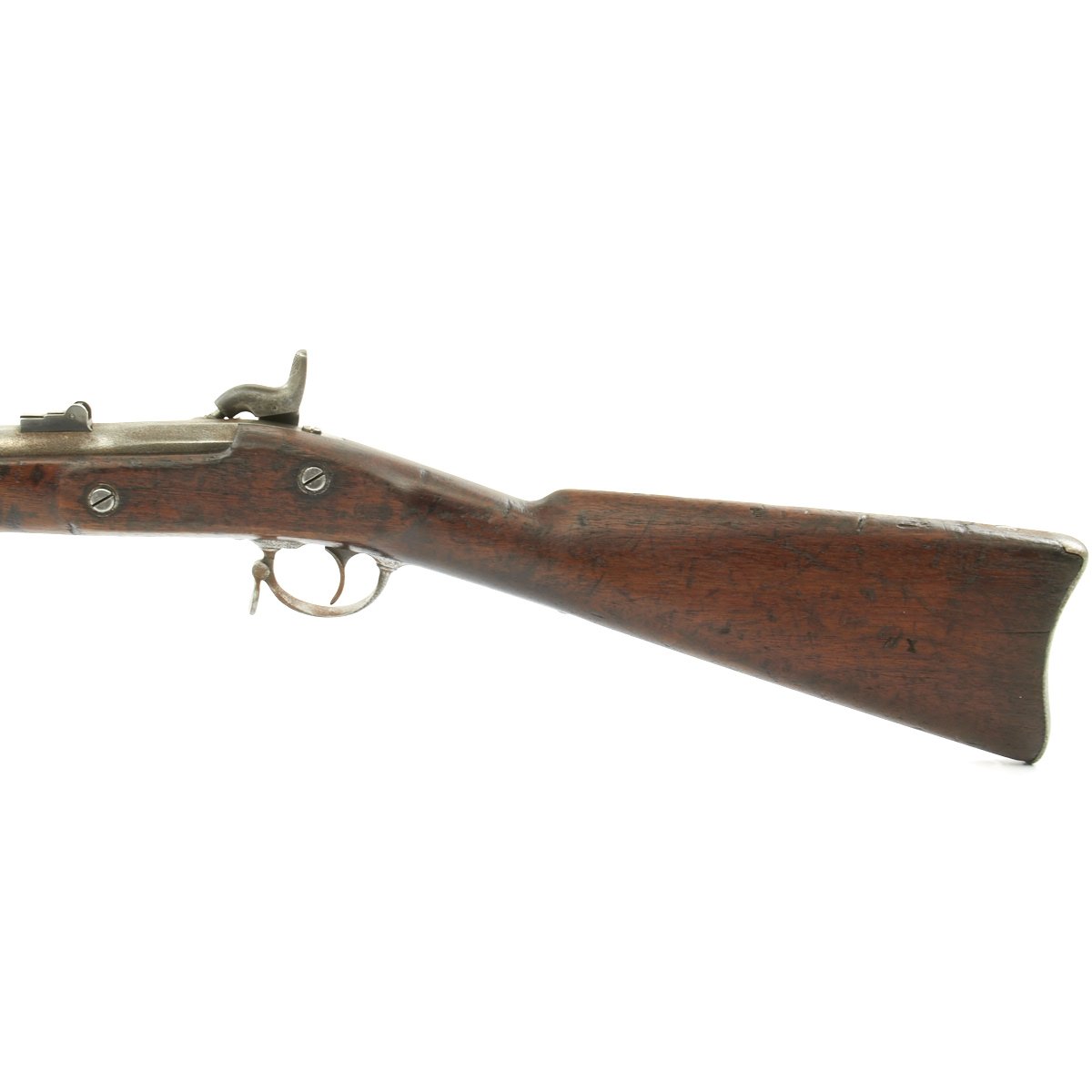

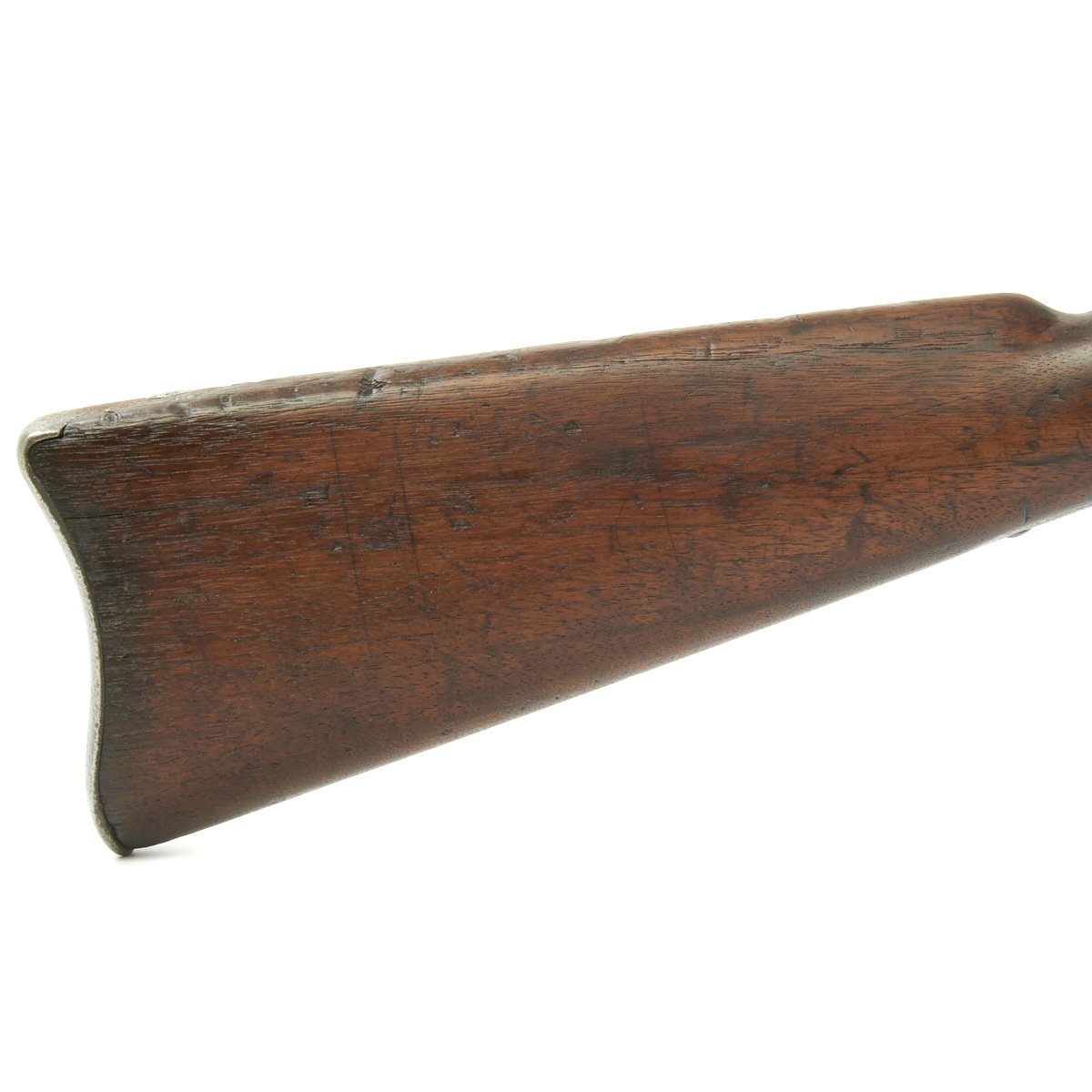

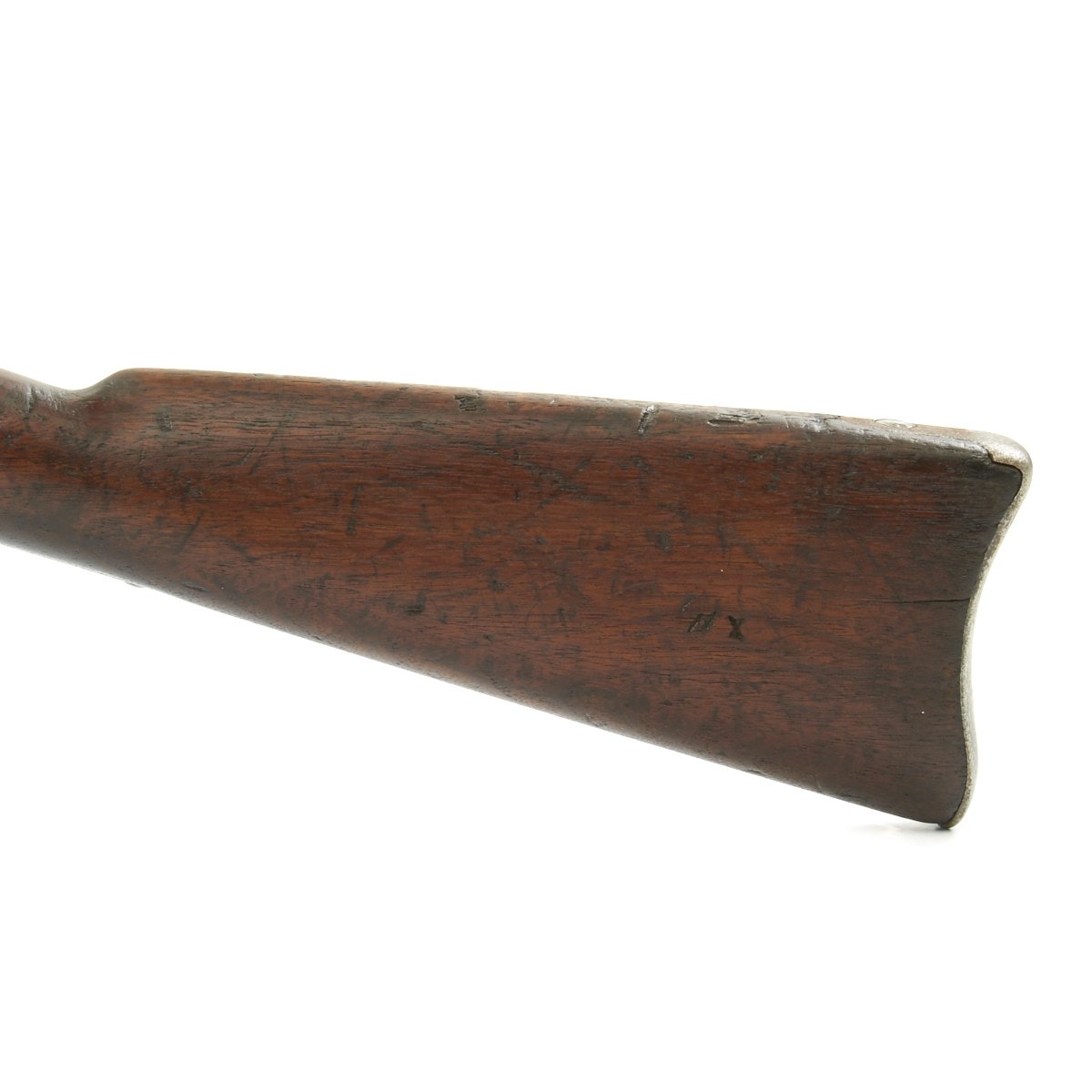

The one piece walnut stock has a beautiful dark brown color, and does not have any repairs that we can see. It does not appear to have been sanded much, so the original inspector's cartouche is visible. It has a faint O.W.A. stamp, for Orville W. Ainsworth.

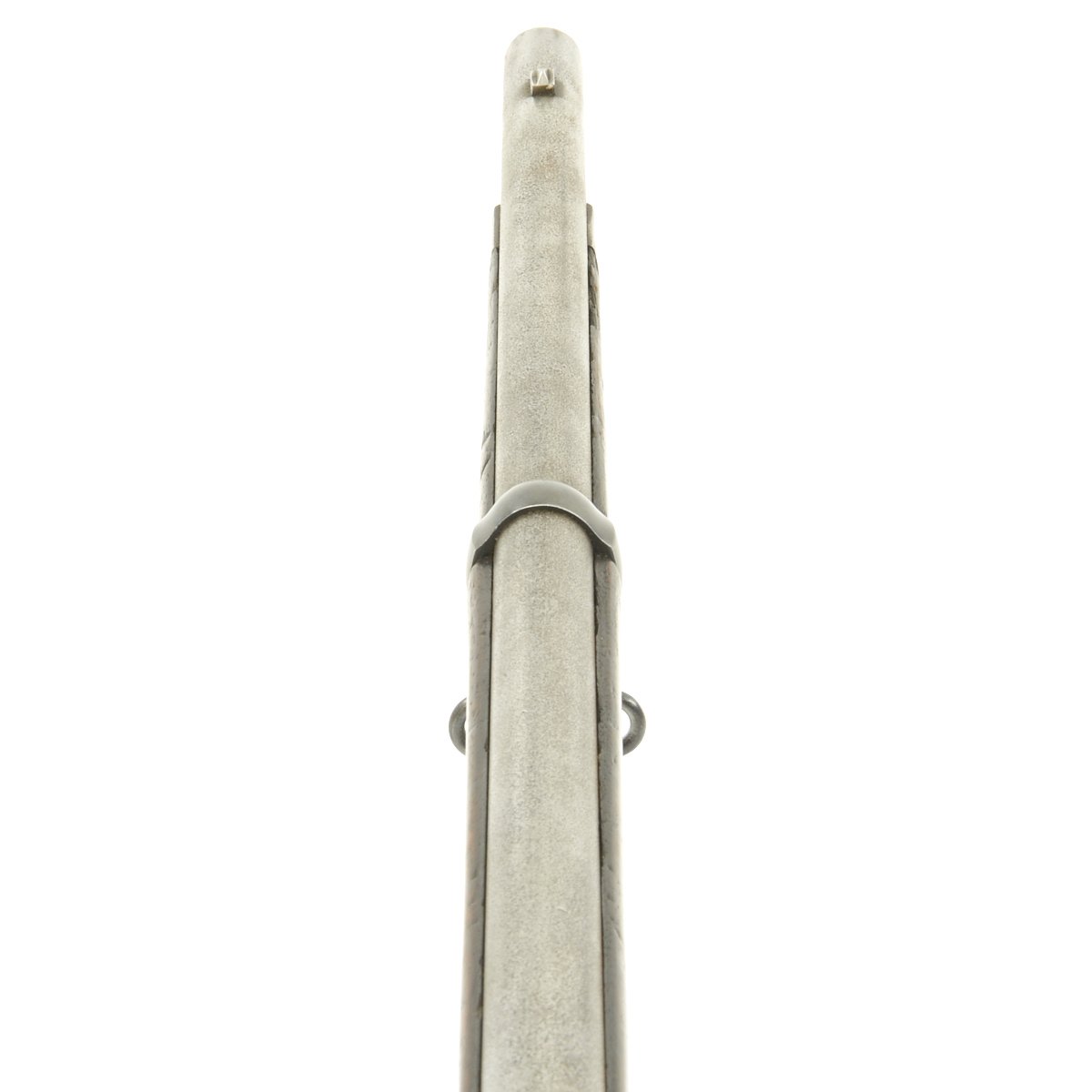

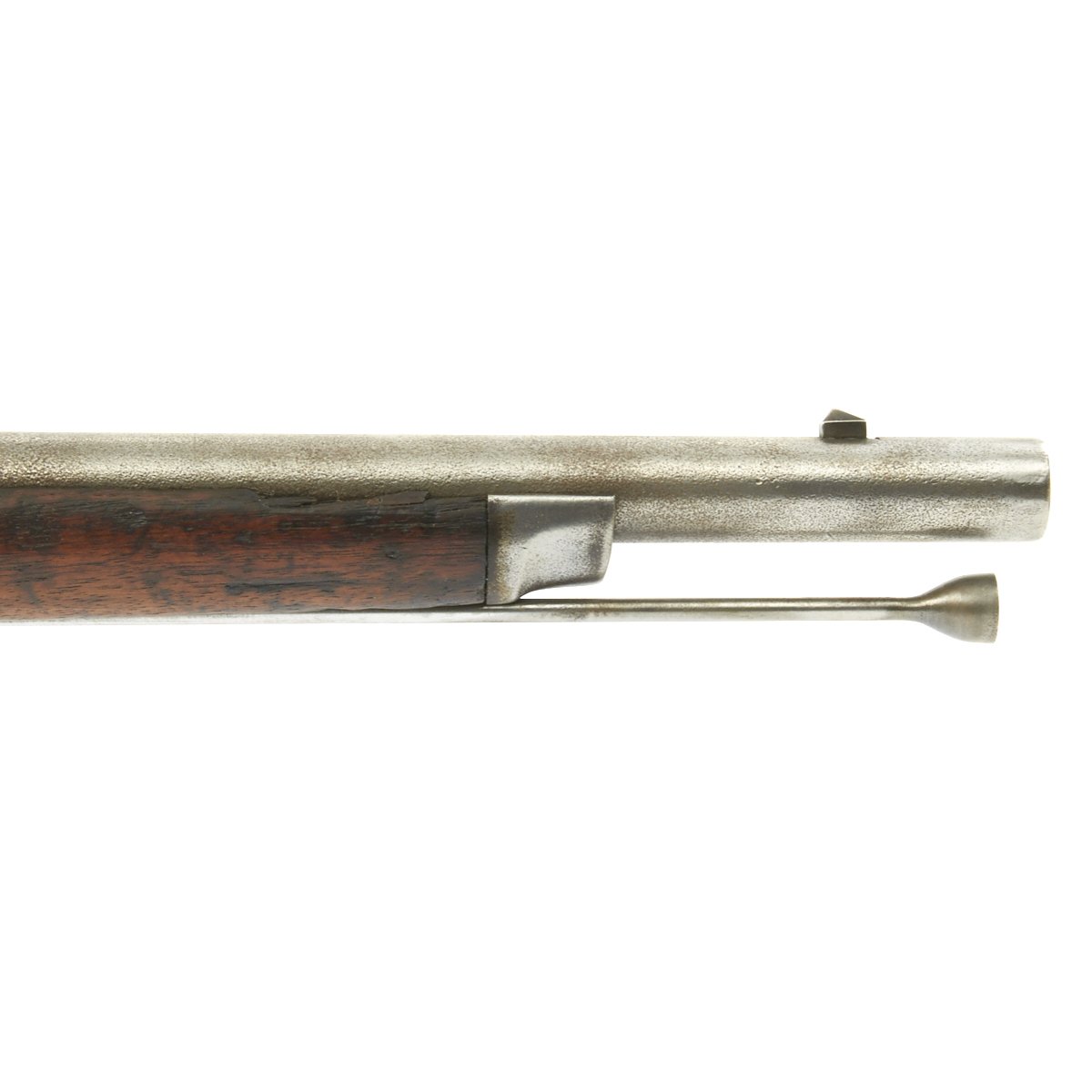

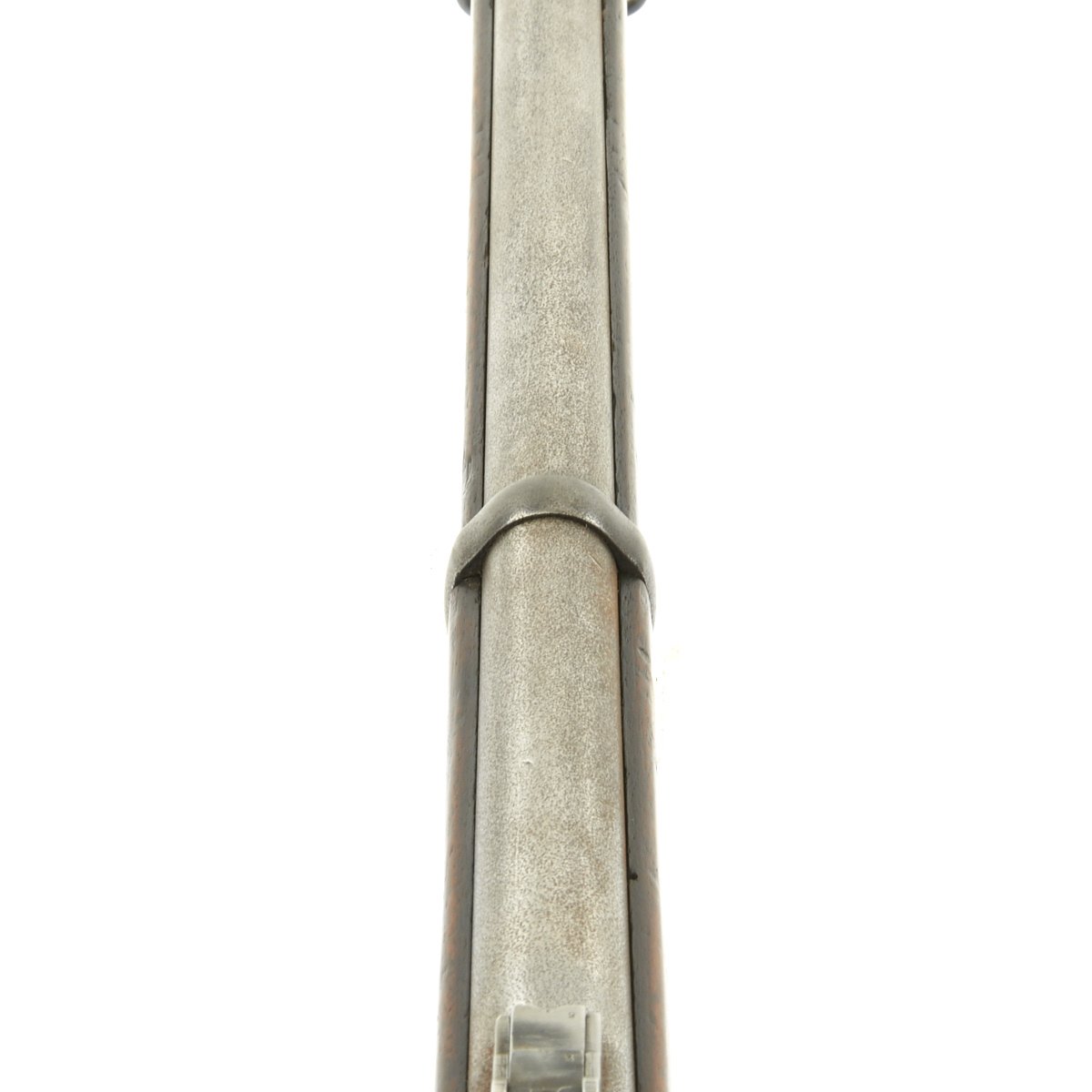

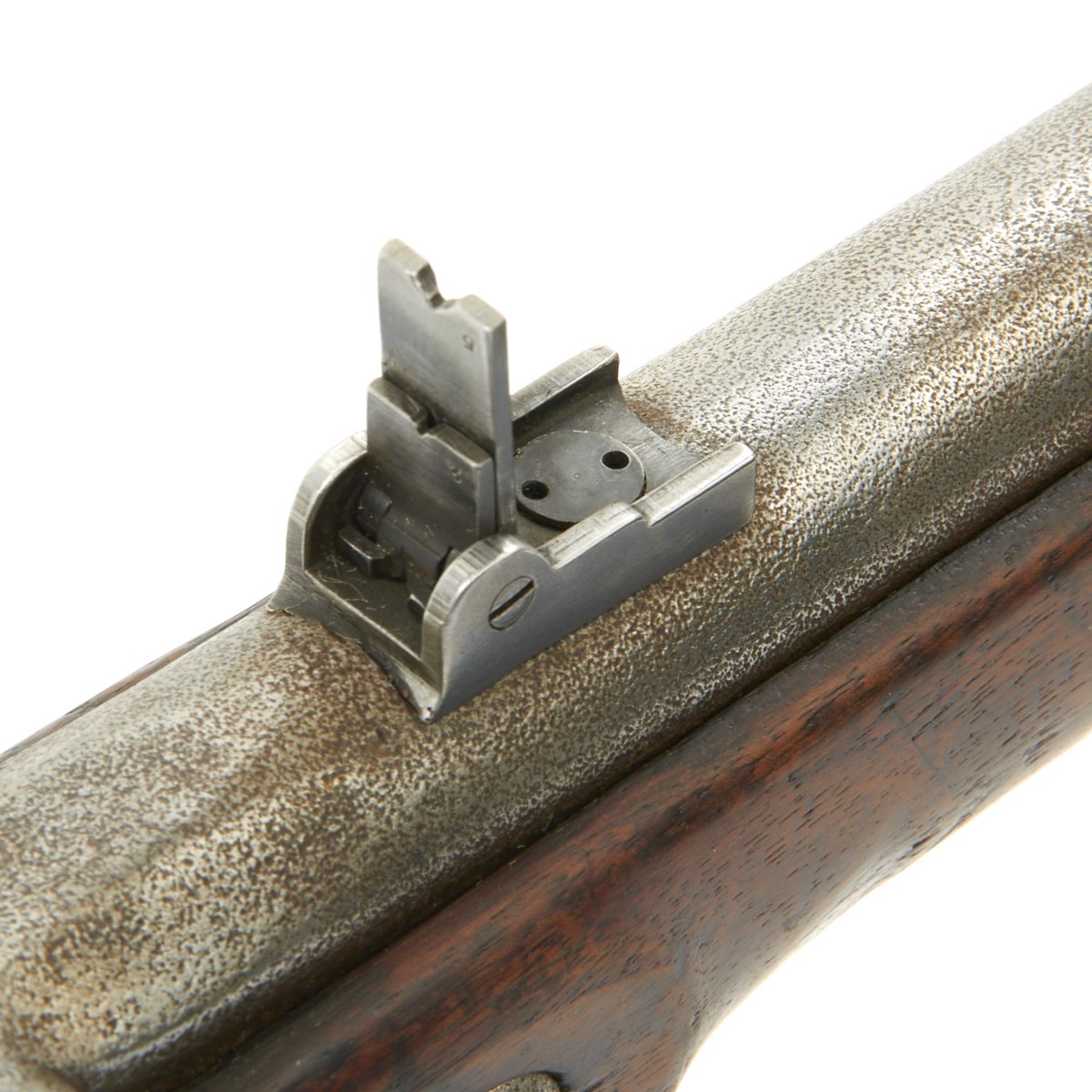

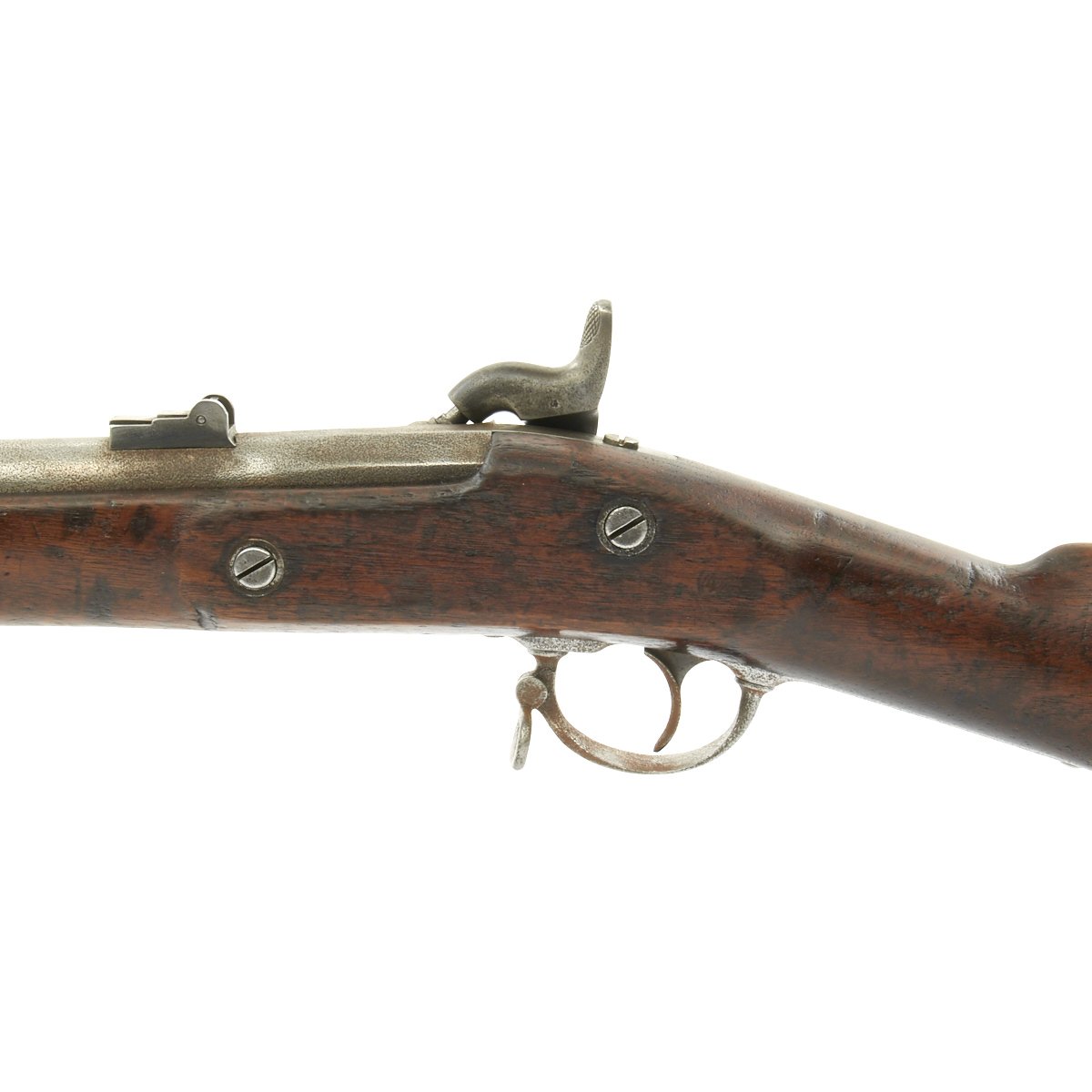

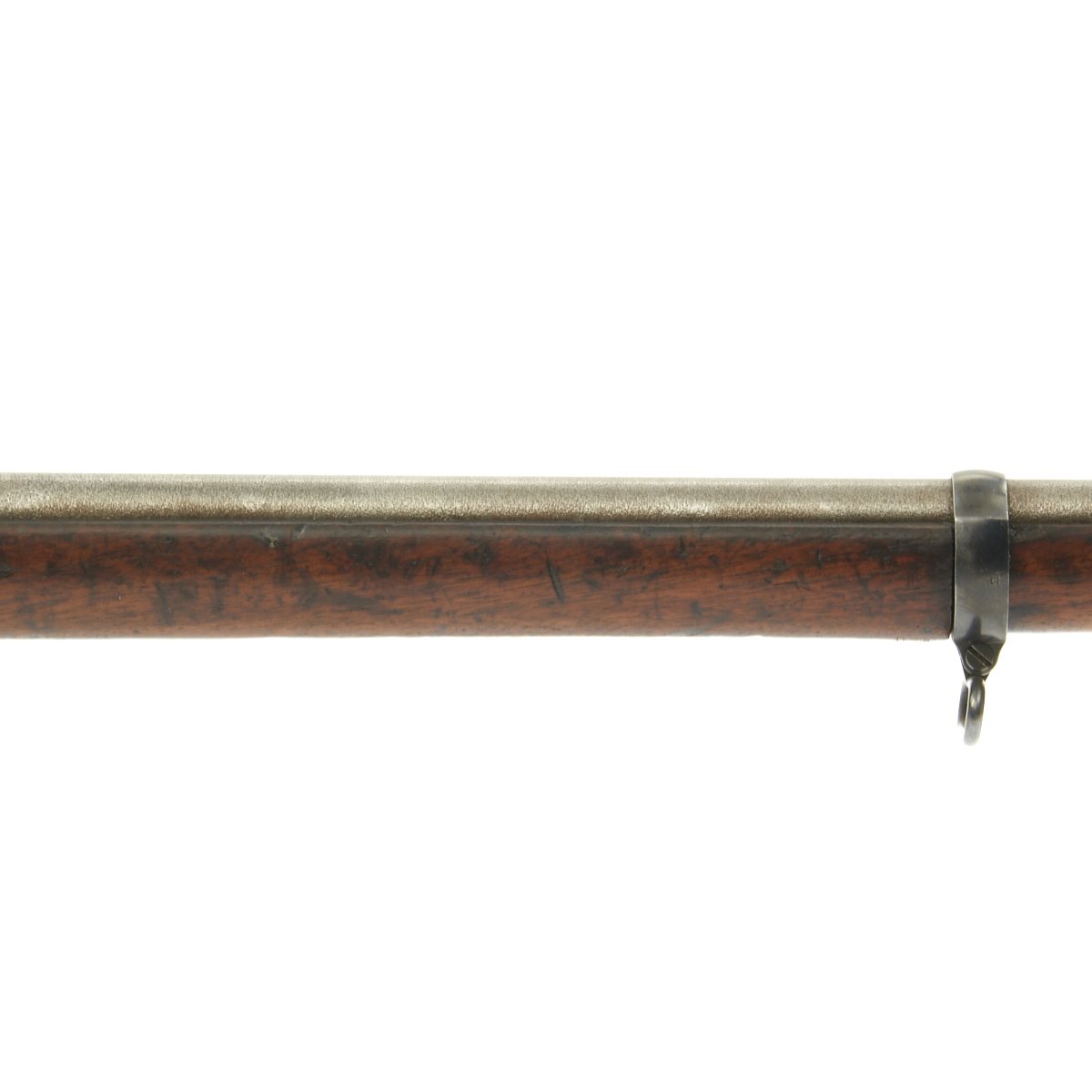

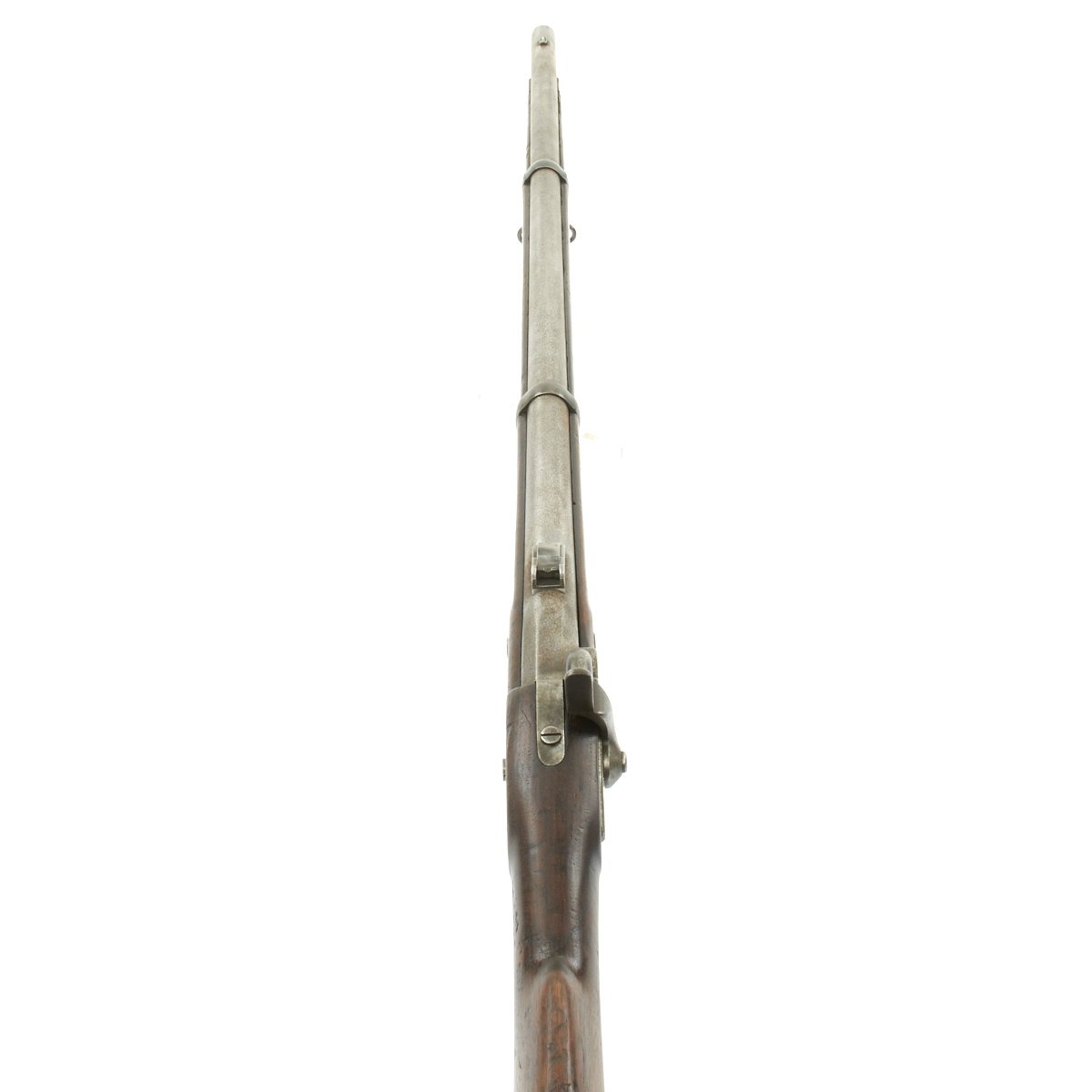

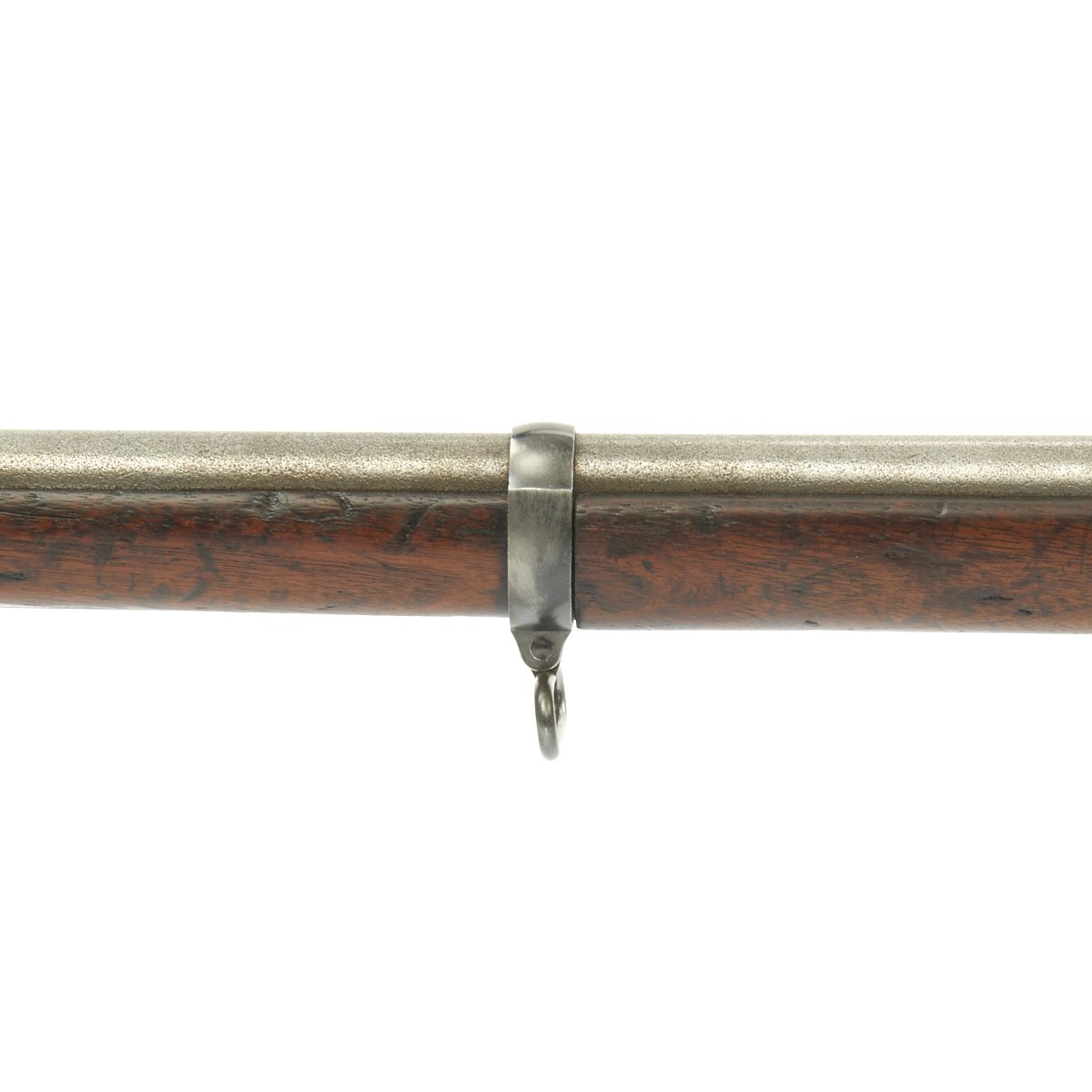

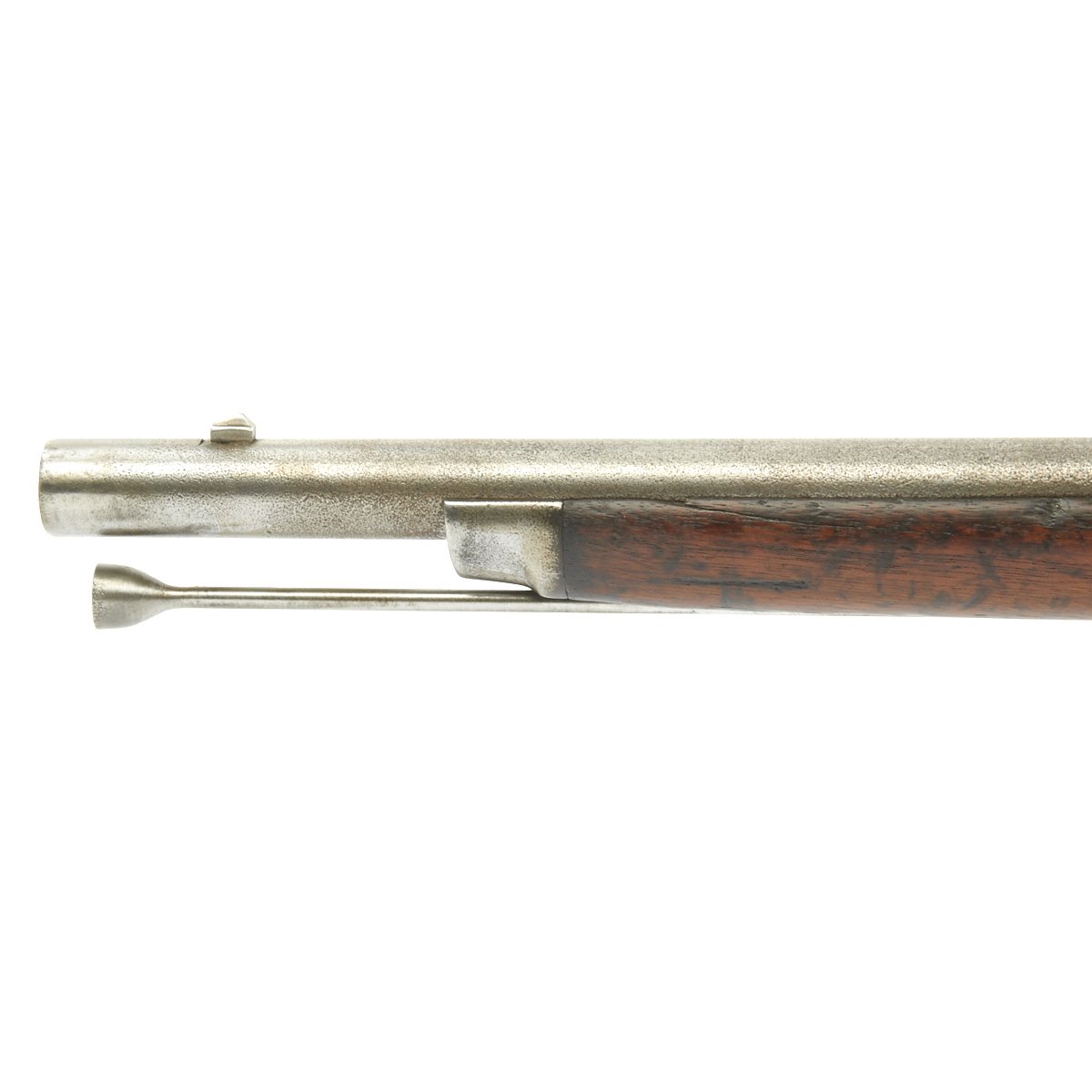

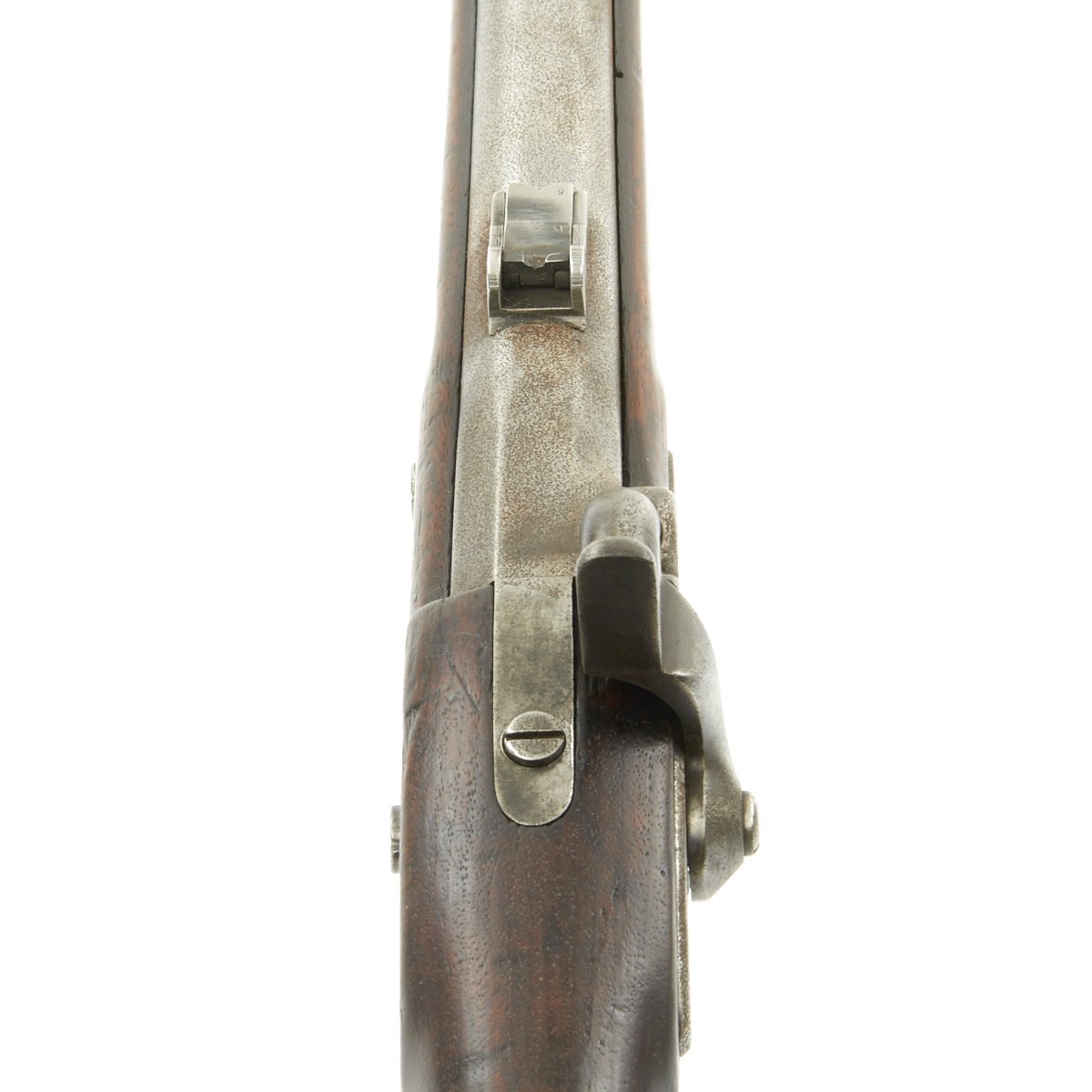

The metalwork overall shows peppering from past pitting, but it has been fully cleaned and restored go put it in its best light. The bore shows the three groove rifling with clear lands and grooves, but with light corrosion overall. The cap nipple is original, but worn, and there is definitely powder burn around the nipple affecting the barrel and stock. The lock functions correctly, holding at half cock. This gun has a correct two leaf sight, and both barrel bands still have their U markings. The ramrod is the correct and original tulip type.

This is a great chance to pick up an excellent Civil War Contract shorte Rifled musket by a rare maker, fully cleaned and ready to display!

Specifications-

Year of Manufacture: 1862
Caliber: .58"
Cartridge Type: Minie Ball and Powder
Barrel Length: 32 Inches

Overall Length: 48 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
