Original Item: Only One Available. The Springfield Model 1861 was a Minié-type rifled musket shoulder-arm used by the United States Army and Marine Corps during the American Civil War. Commonly referred to as the "Springfield" (after its original place of production, Springfield, Massachusetts), it was the most widely used U.S. Army weapon during the Civil War, favored for its range, accuracy, and reliability.

The barrel was 40 inches long, firing a .58 caliber Minié ball, and the total weight was approximately 9 pounds. The Springfield had an effective range of 200 to 300 yards, and used percussion caps to fire (rather than the flintlocks of the 18th century, the last U.S. flintlock musket was the Model 1840). Trained troops were able to fire at a rate of three aimed shots per minute while maintaining accuracy up to 500 yards, though firing distances in the war were often much shorter. The most notable difference between the Model 1861 and the earlier Model 1855 was the elimination of the Maynard tape primer for the Model 1861 (the Maynard primer, a self-feeding primer system, was unreliable in damp weather, and the priming mechanism was expensive and time-consuming to produce). Further, unlike the Model 1855, the Model 1861 was never produced in a two-banded "short rifle" configuration.

The Springfield was aimed using flip-up leaf sights. The sight had two leaves, one for 300 yards and the other for 500 yards, and with both leaves down, the sight was set for a range of 100 yards. By contrast, the British Pattern 1853 Enfield, favored by the Confederates, utilized a ladder-sight system with 100 yard increments, using steps from 100 to 400 yards and a flip up ladder for ranges beyond 500 yards. While the Enfield's sights did allow finer range settings, the Springfield's simple leaves were more rugged and were less expensive to produce. The Enfield's sights extended to 900 yards (and further, on later models), compared to the 500 yard maximum range of the Springfield's sights. Realistically, though, hitting anything beyond 600 yards with either weapon was mostly a matter of luck. While the sight designs were very different, the two weapons were otherwise very similar, and had very similar effective ranges.

The Springfield Rifle cost $20 each at the Springfield Armory, where they were officially made. Overwhelmed by the demand, the armory opened its weapons patterns to twenty private contractors, including Welch, Brown and Company of Norfolk, Connecticut. This company produced some 18,000 long arms under U.S. government contract circa 1862-63. These were marked simply with U.S. over NORFOLK on the lock plate, and also would have a stock maker cartouche on the left side of the stock between the lock screws. Usually this would be W. WELCH over NORFOLK CT, however some have been seen with MOWERY made stocks.

The Model 1861 was relatively scarce in the early years of the Civil War (many troops were still using Model 1842 smoothbored muskets and Model 1816/1822 muskets converted to percussion cap primers, both in .69 caliber). It is unlikely that any of these were available for use in the First Battle of Bull Run. However, over time, more and more regiments began receiving Model 1861 rifled muskets, though this upgrade appeared somewhat quicker in the Eastern Theater of Operations. Over 1,000,000 Model 1861 rifles were produced, with the Springfield Armory increasing its production during the war by contracting out to twenty other firms in the Union. The number of Model 1861 muskets produced by the Springfield Armory was 265,129 between January 1, 1861 and December 31, 1863. According to United States Muskets, Rifles and Carbines by Arcadi Gluckman Colonel Infantry, United States Army, published 1949.

After the war ended, many model 1861 and 1863 rifled muskets were modified to breech loading actions with new metallic cartridges. With these modifications, the basic 1861 evolved into the Springfield Model 1873 which served the US until being replaced in the 1890s by modern breech loading rifles chambered for new smokeless powder rounds that were far superior to the Model 1873.

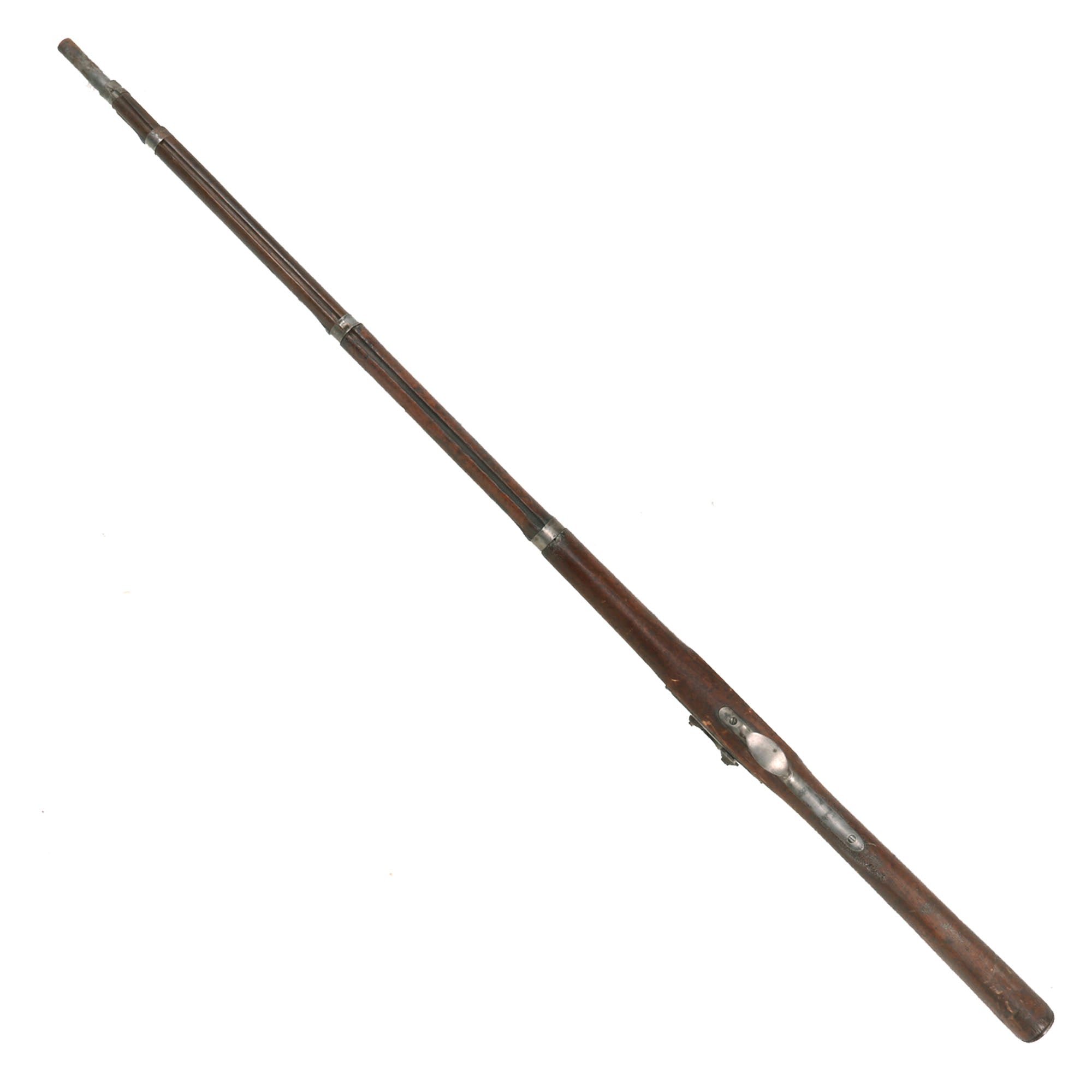

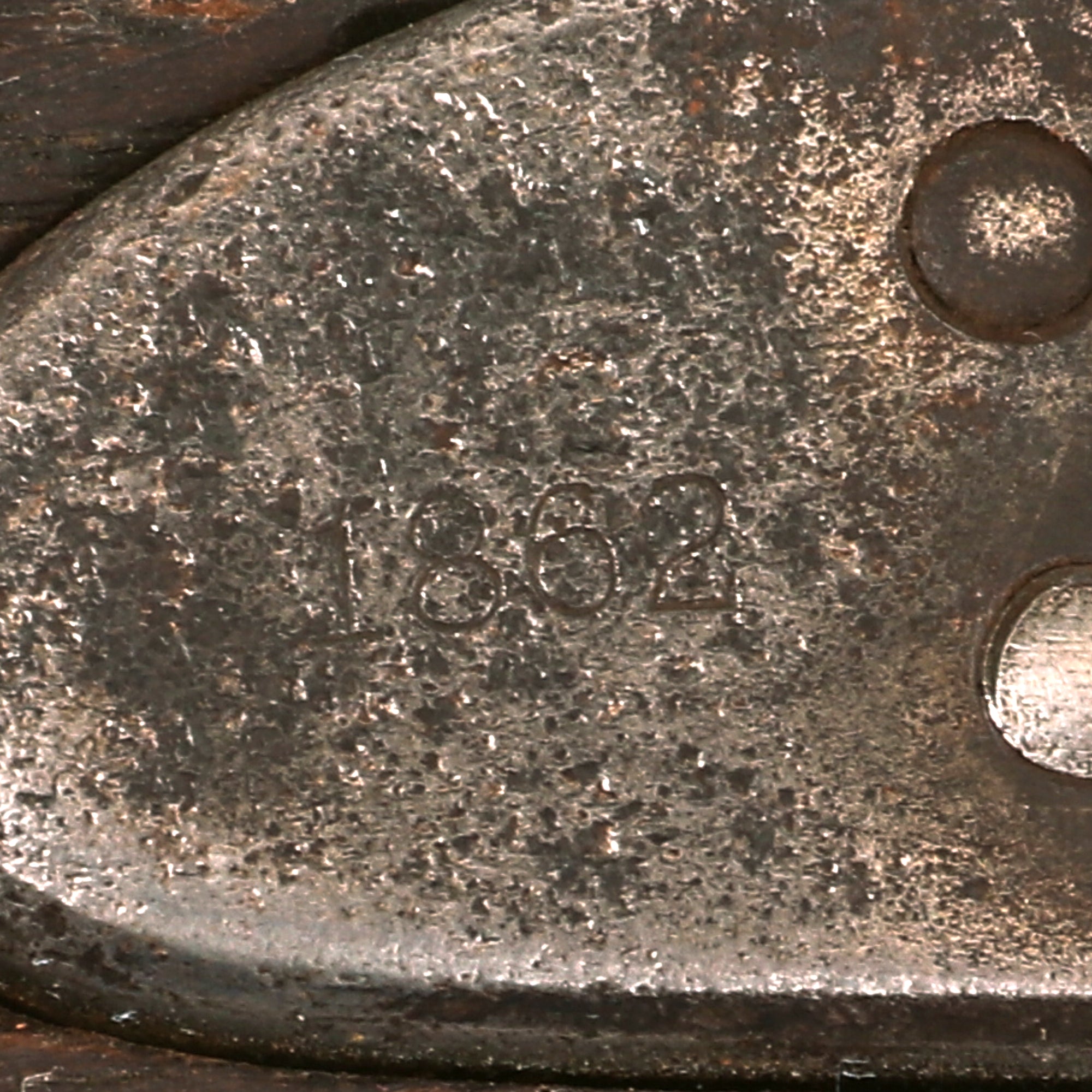

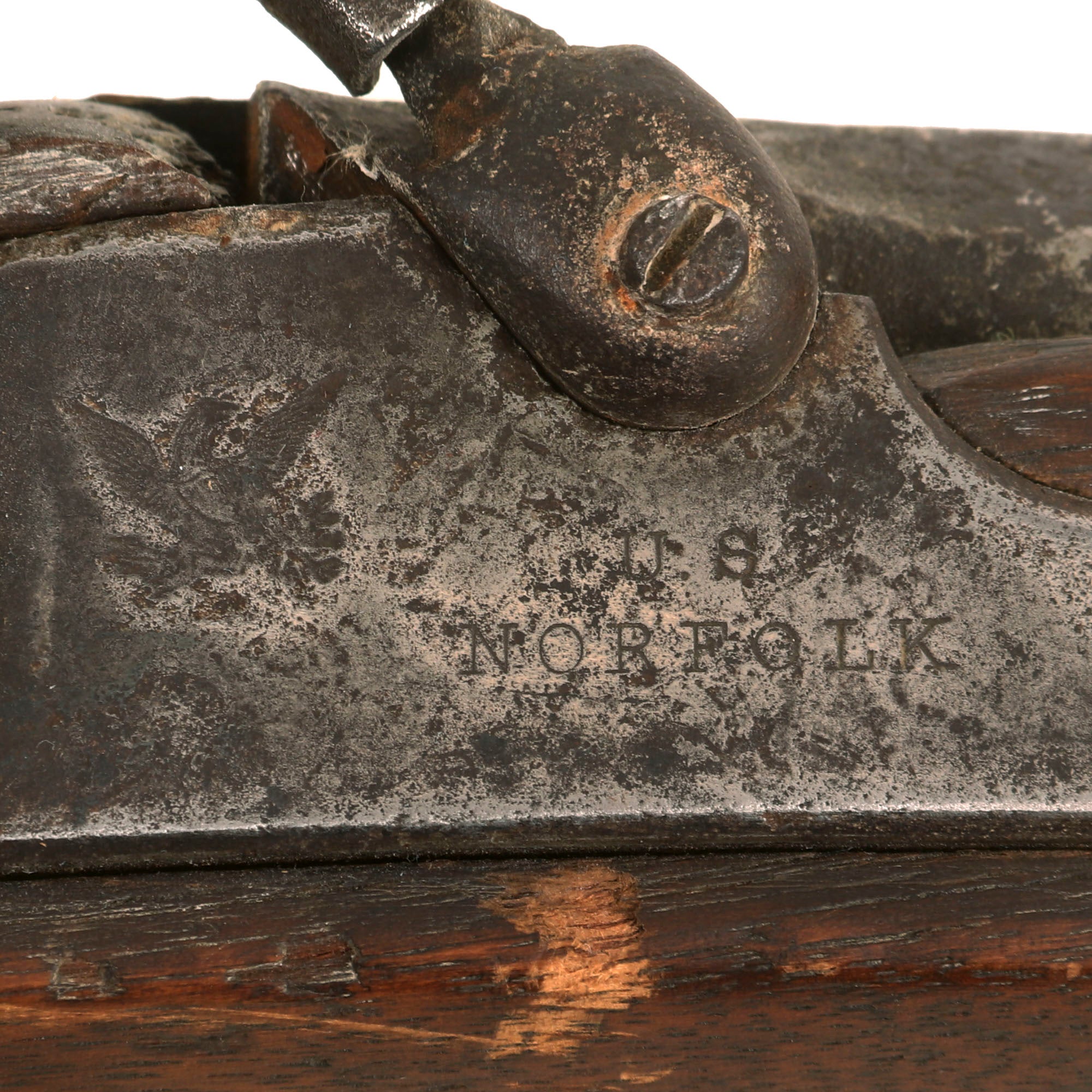

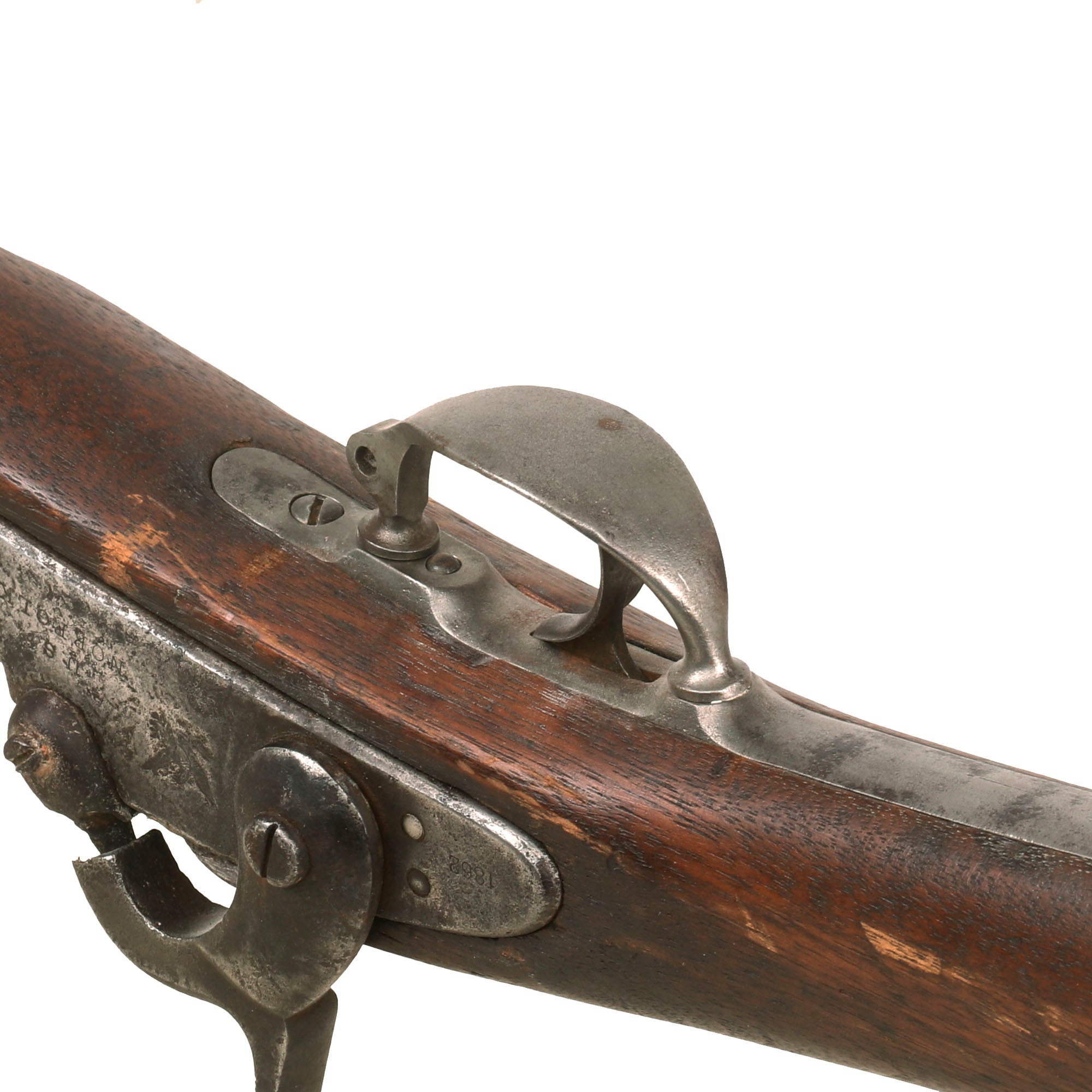

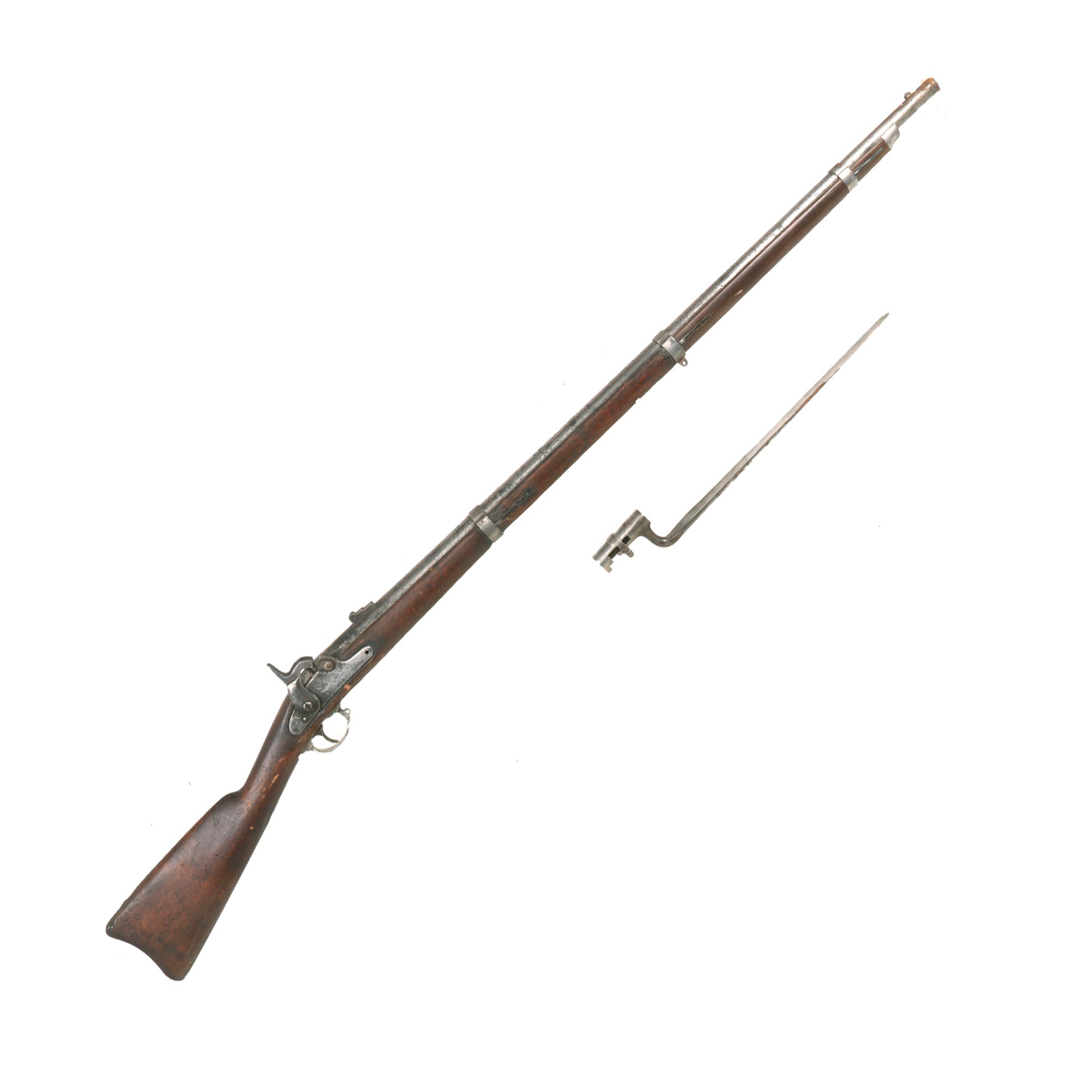

This example however was not converted, and is still in the original configuration. It is dated 1862 on the lock plate tail, and also has an Eagle stamped into the lock to the left of U.S / NORFOLK. The markings on the lock are still clear, and there is only light oxidation present on the lock plate. The barrel nocks form still shows the proof marks V / P / Eagle's Head, which are very faint due to heavy powder burn. There is also still a "ghost" of the original "W. WELCH" in an arc over "NORFOLK CT" on the left side of the stocvk, but it can only be seen in the right light.

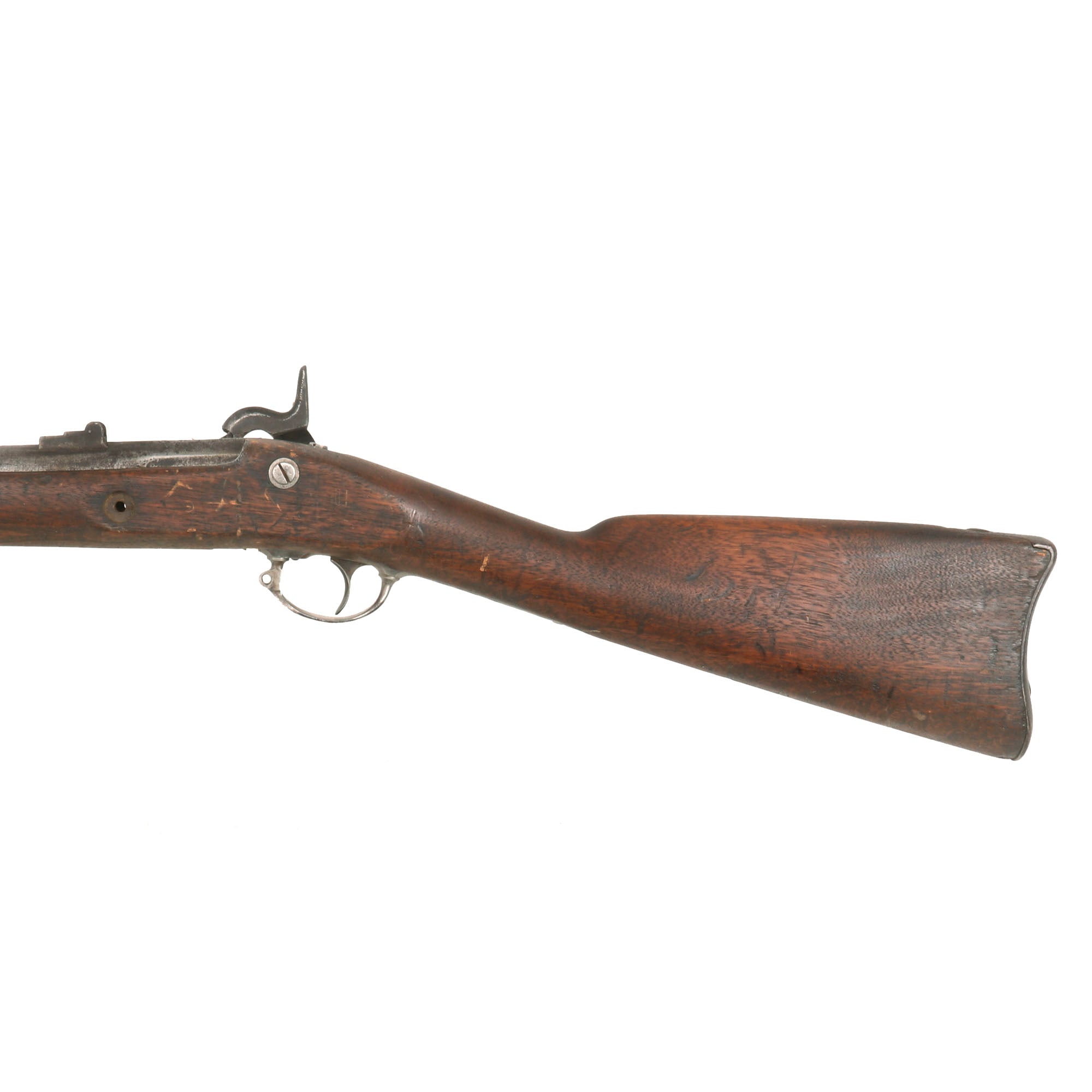

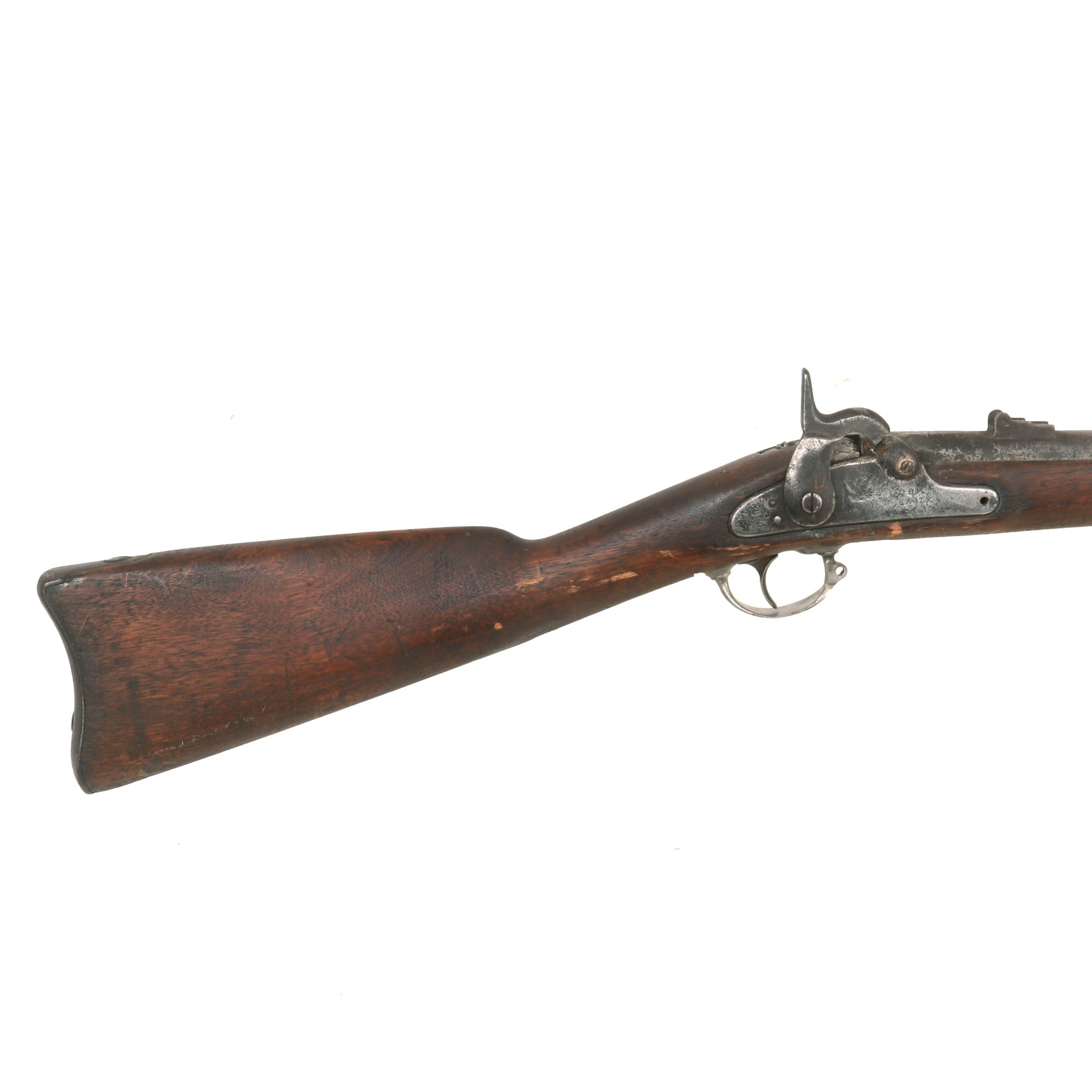

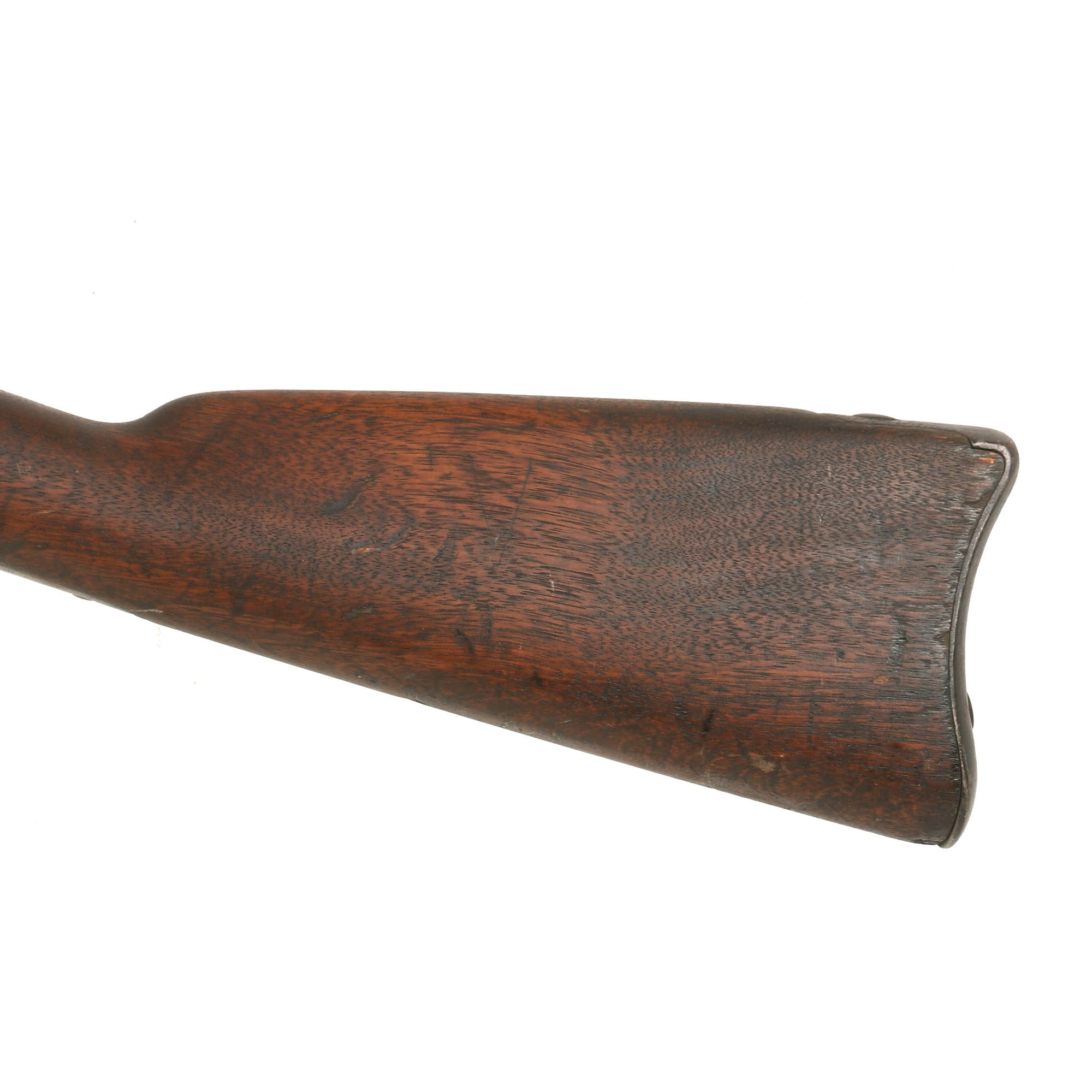

The stock on this example is in fair condition, with a great deal of wear from years of storage. There is some loss to the wood near the barrel nocks form due to extensive powder burn, meaning this rifle saw a phenomenal amount of service. There is a small crack behind the tang, and there are a heavy amount of scuffs and nicks to the stock.

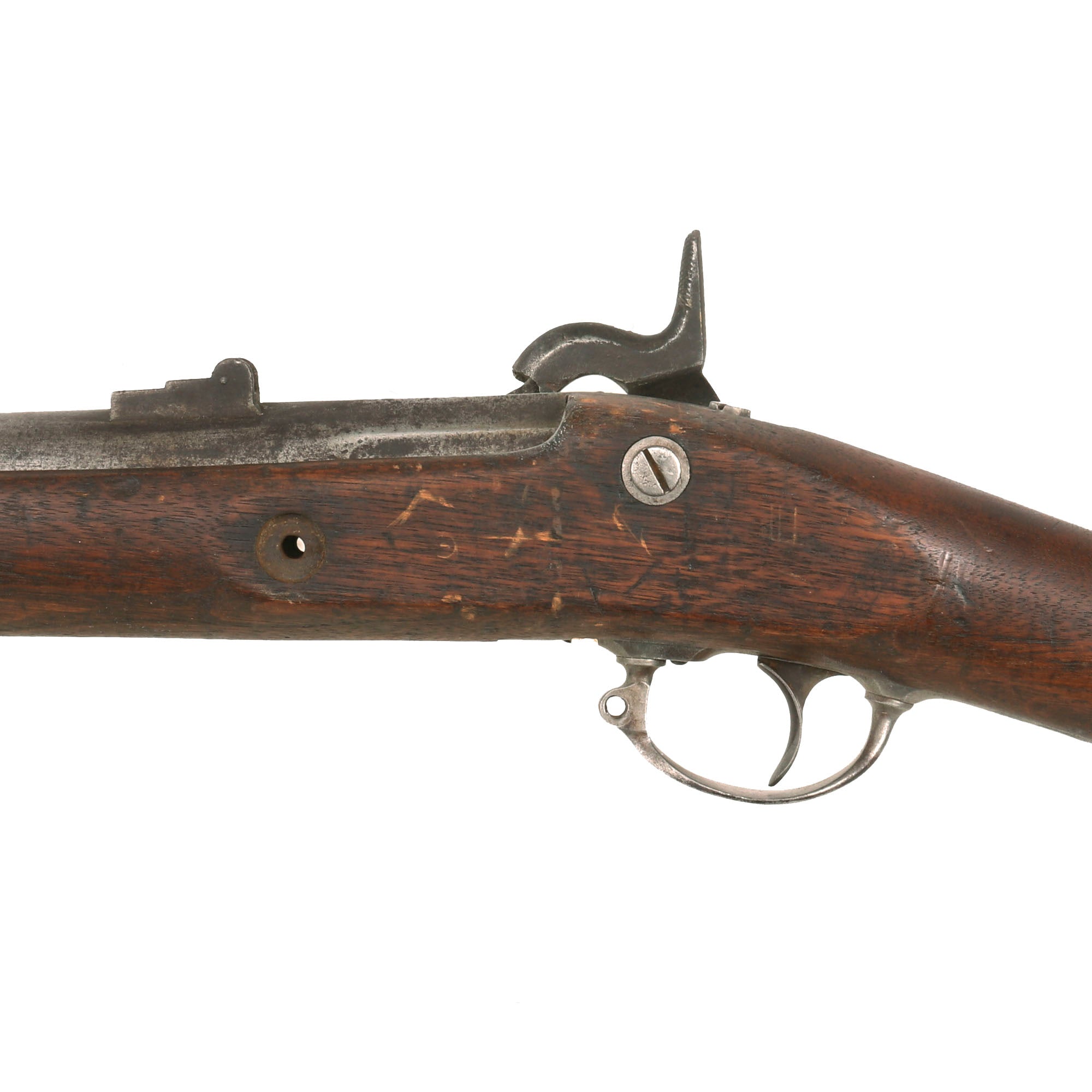

The metalwork has very heavy pitting across the lock and barrel. There also definitely is powder burn near the cap bolster, which is mainly on the bolster itself and the top of the barrel. There is a screw missing on the right side of the lock. The bore on this example is very heavily fouled and has a fair amount of dirt still caked on the interior. The lands and grooves are still visible, but they are faint. It definitely looks to not have been cleaned after the last time it was used, which was probably well over a century ago.

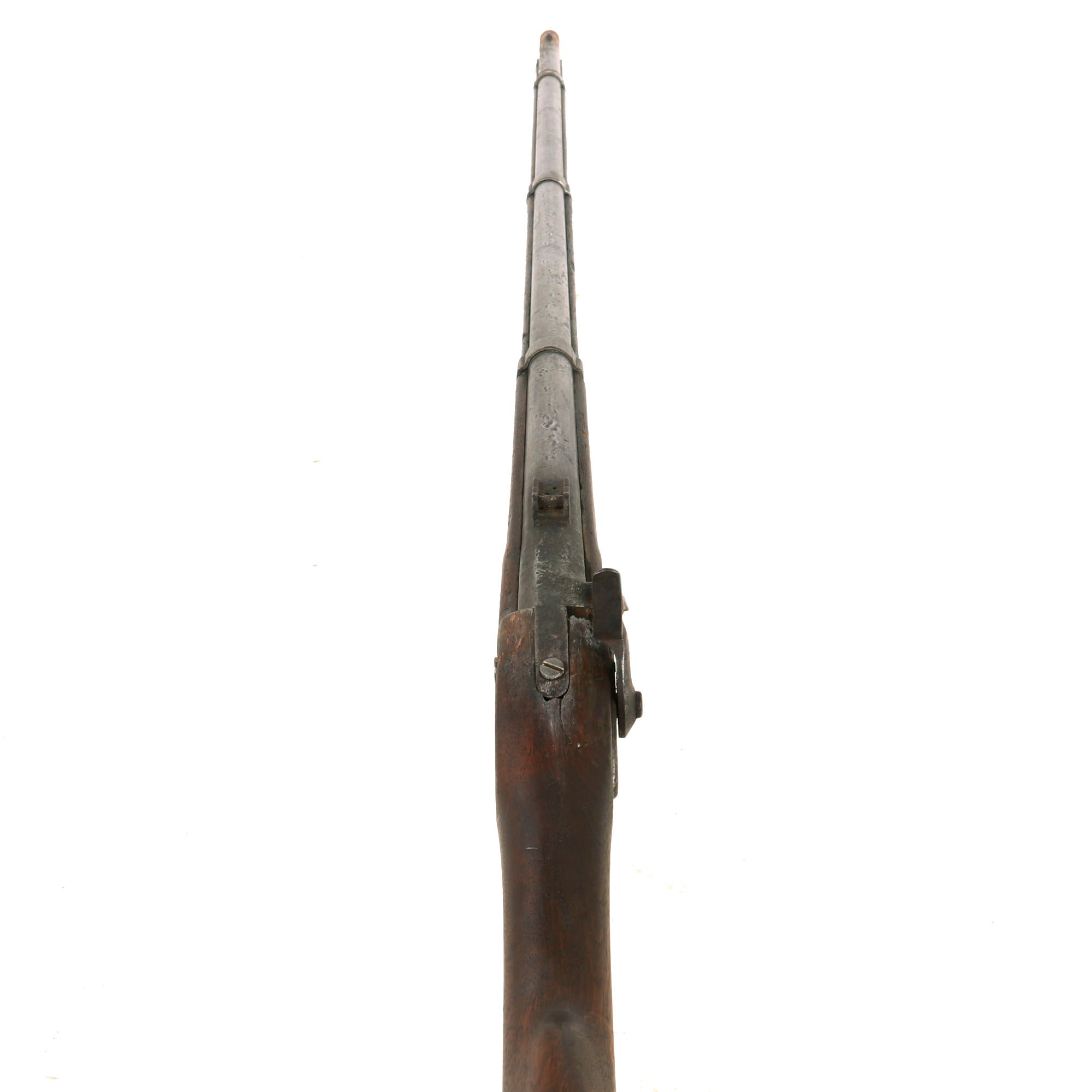

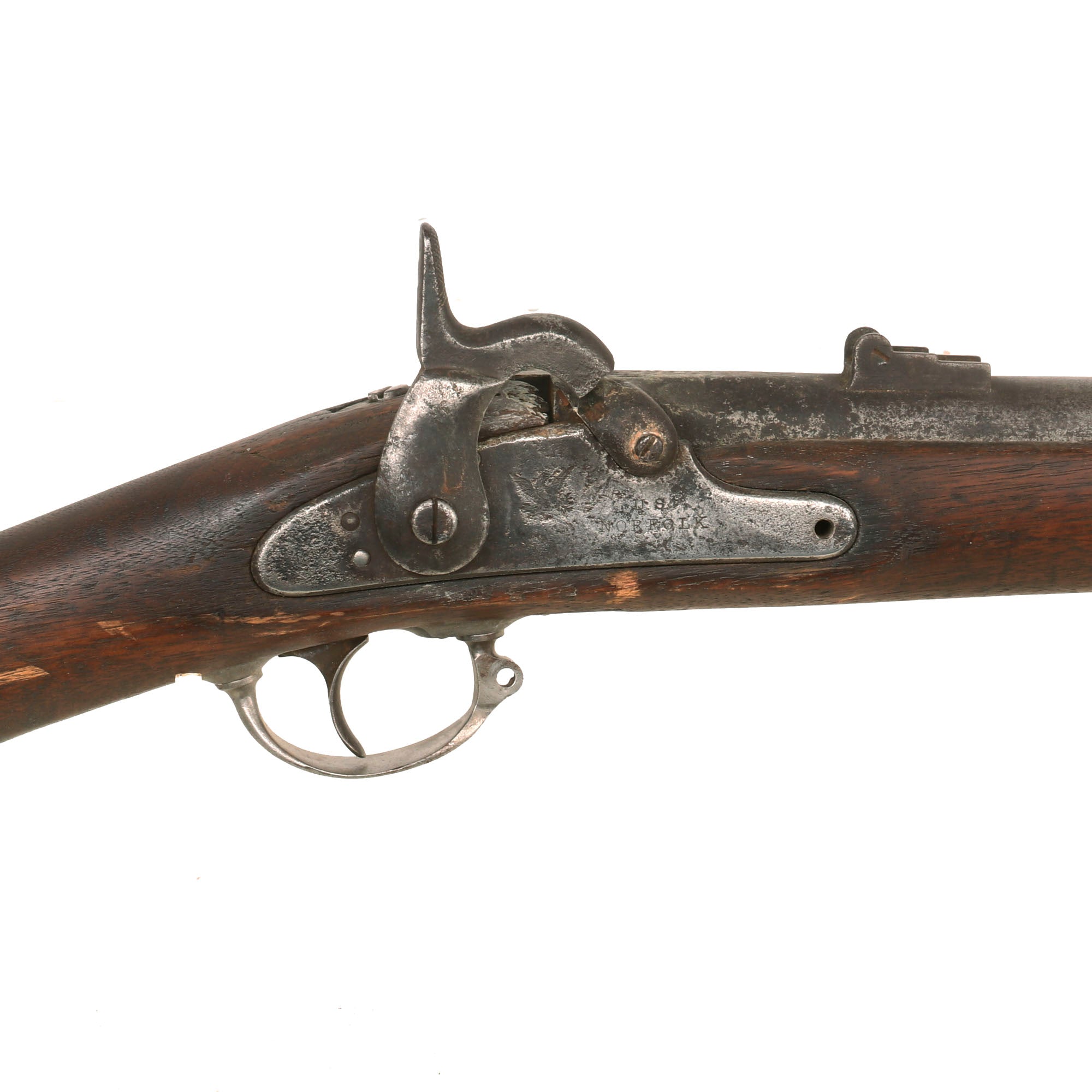

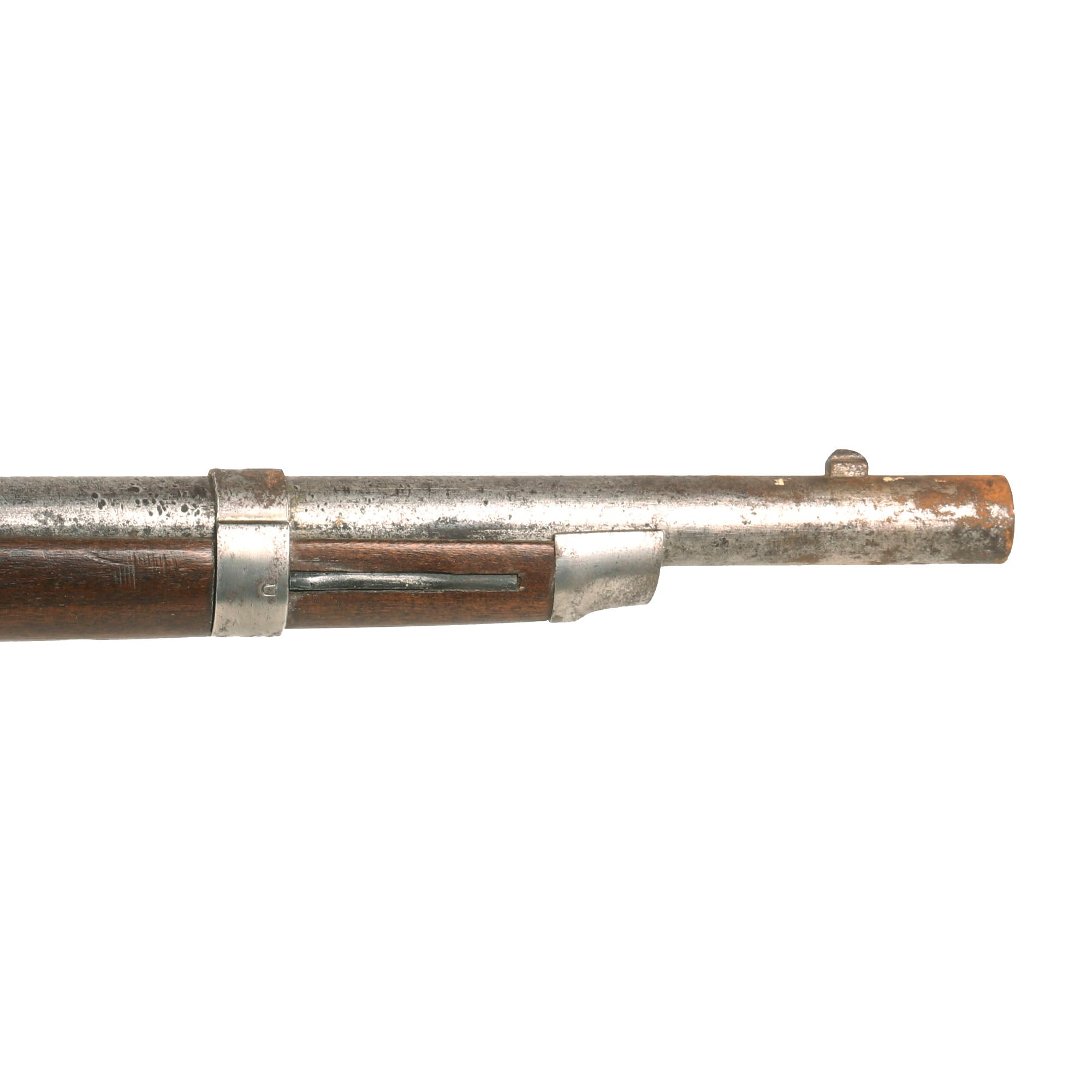

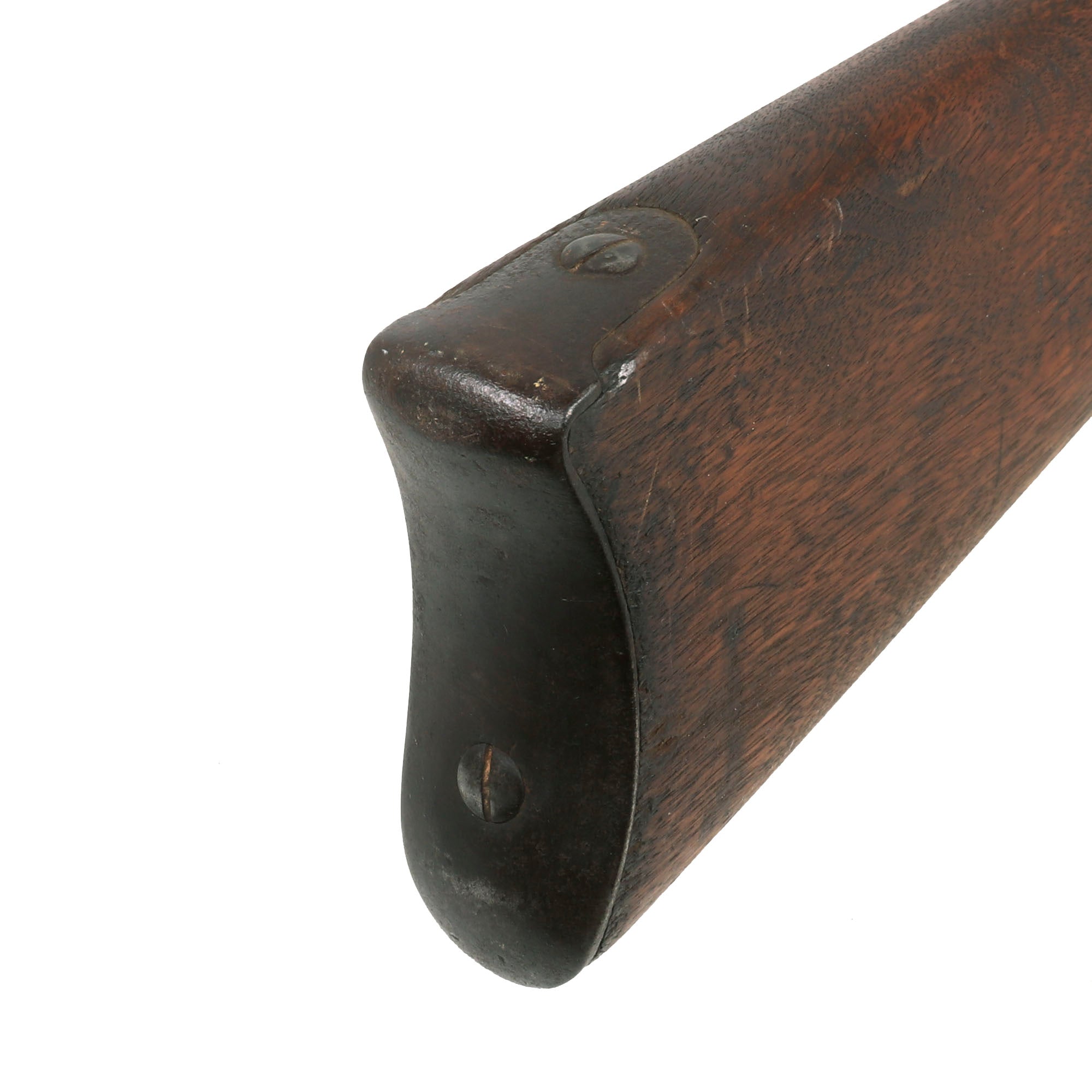

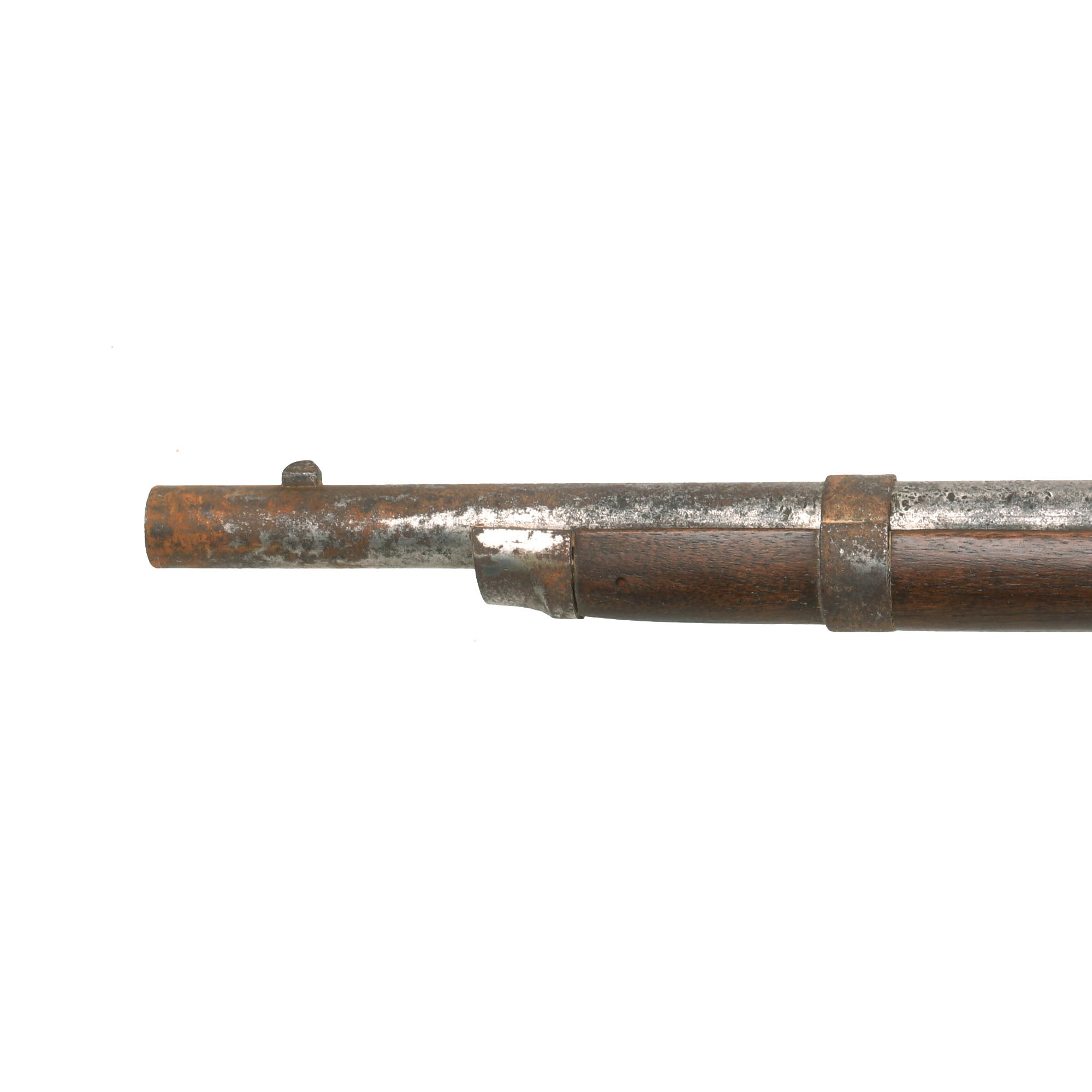

The lock is fully functional, holding at half cock and firing at full. The original three leaf rear sight is missing, with just the base for it still present. All three barrel bands still have their U markings, with a U.S. on the butt plate tang. The rifle is missing the ramrod and is missing both sling swivels.

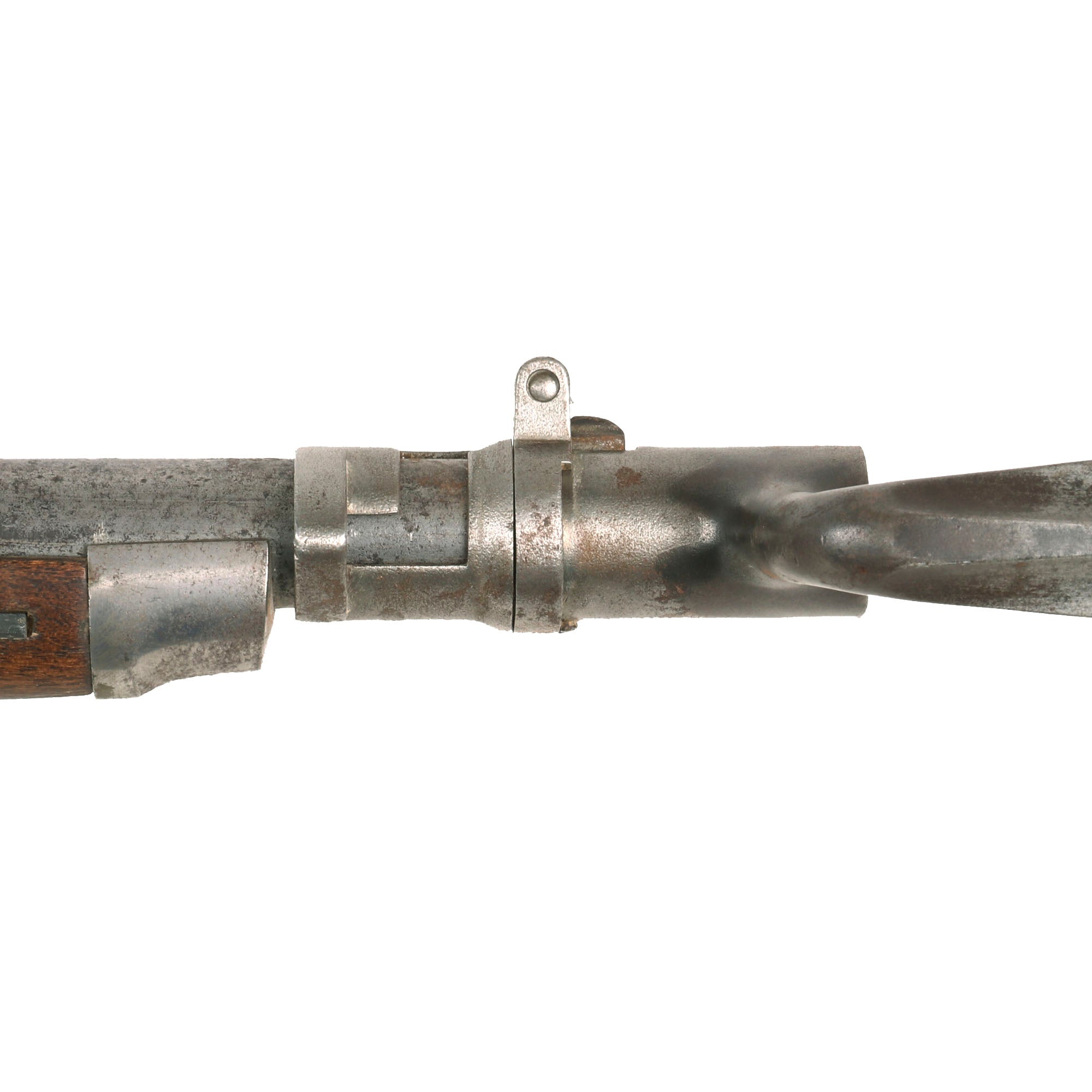

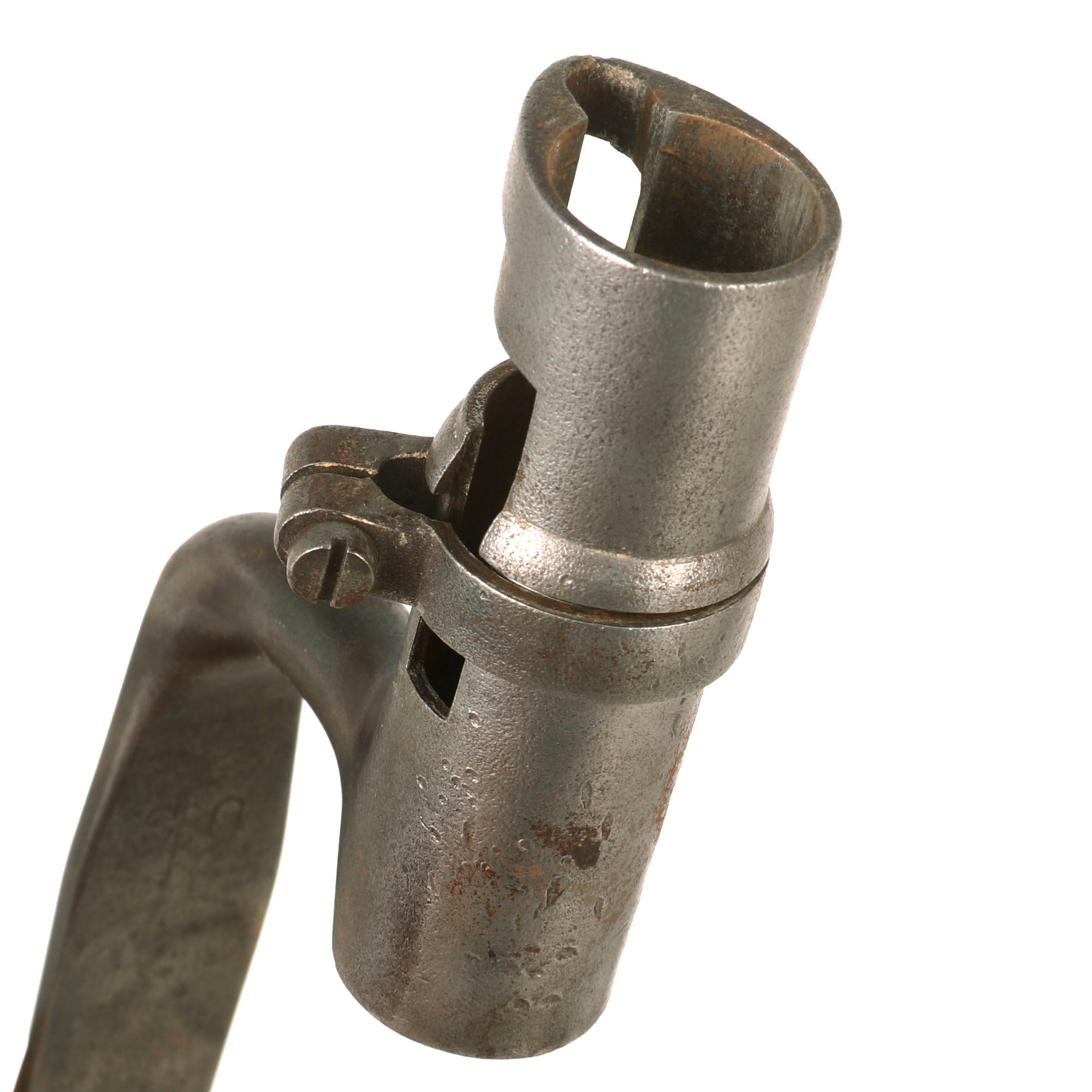

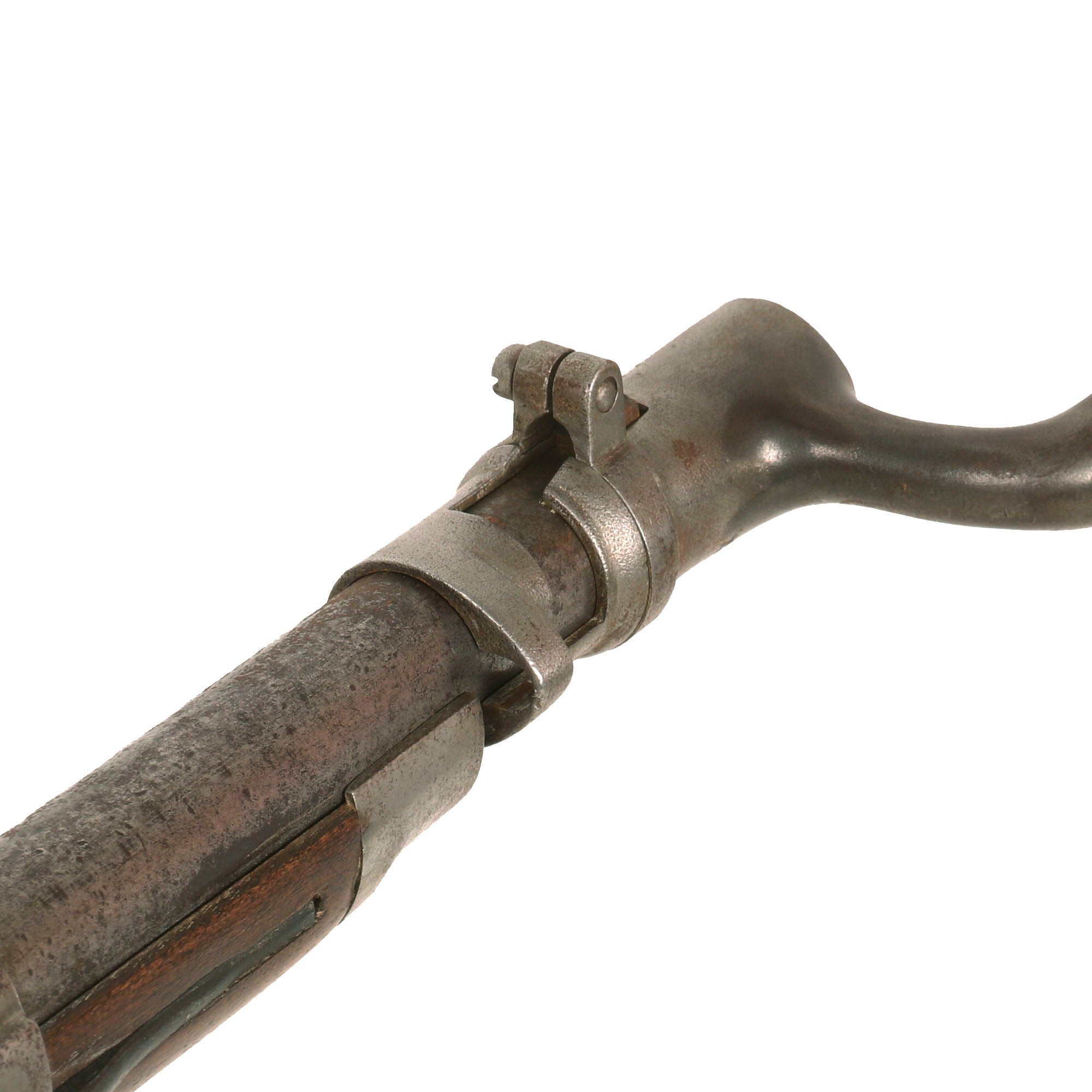

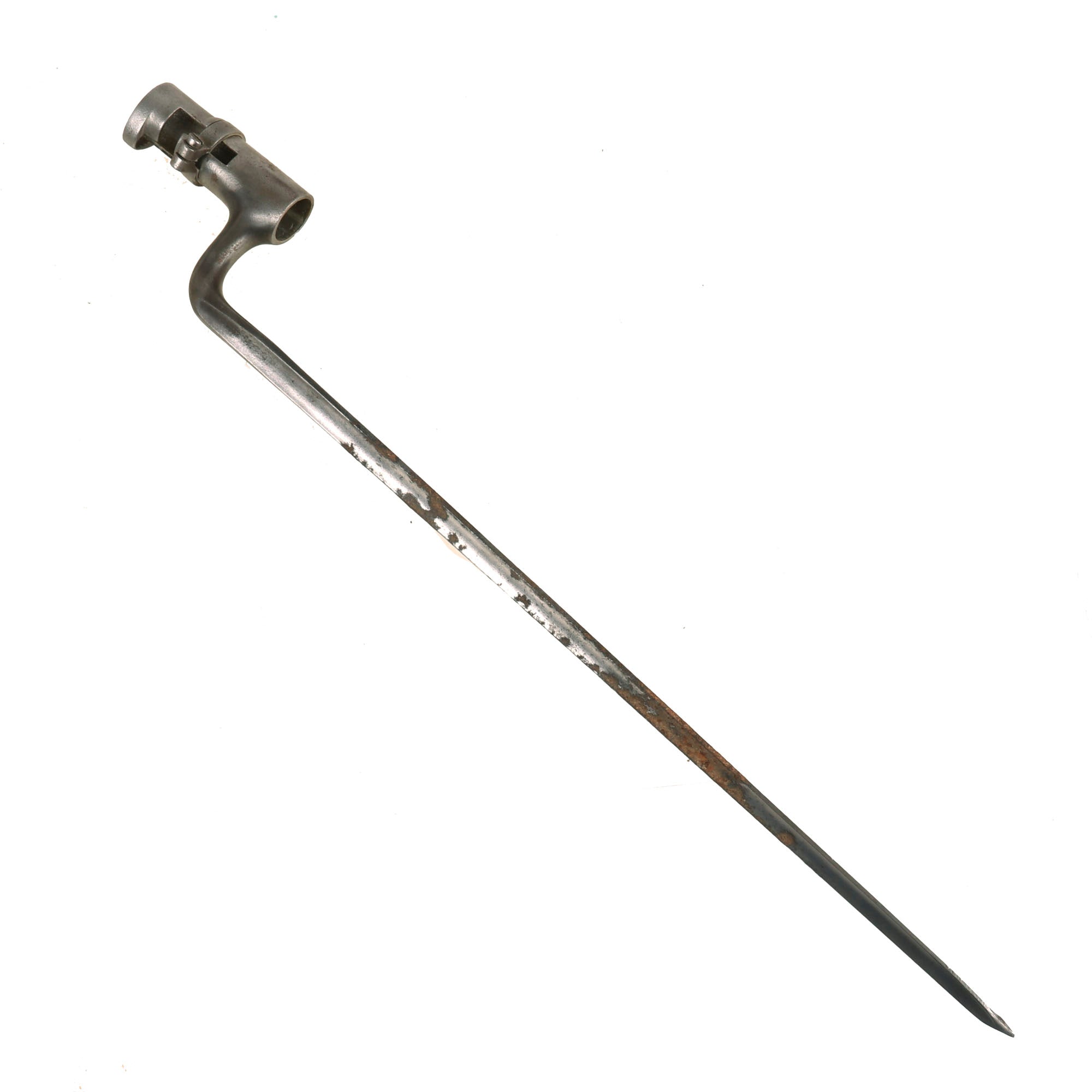

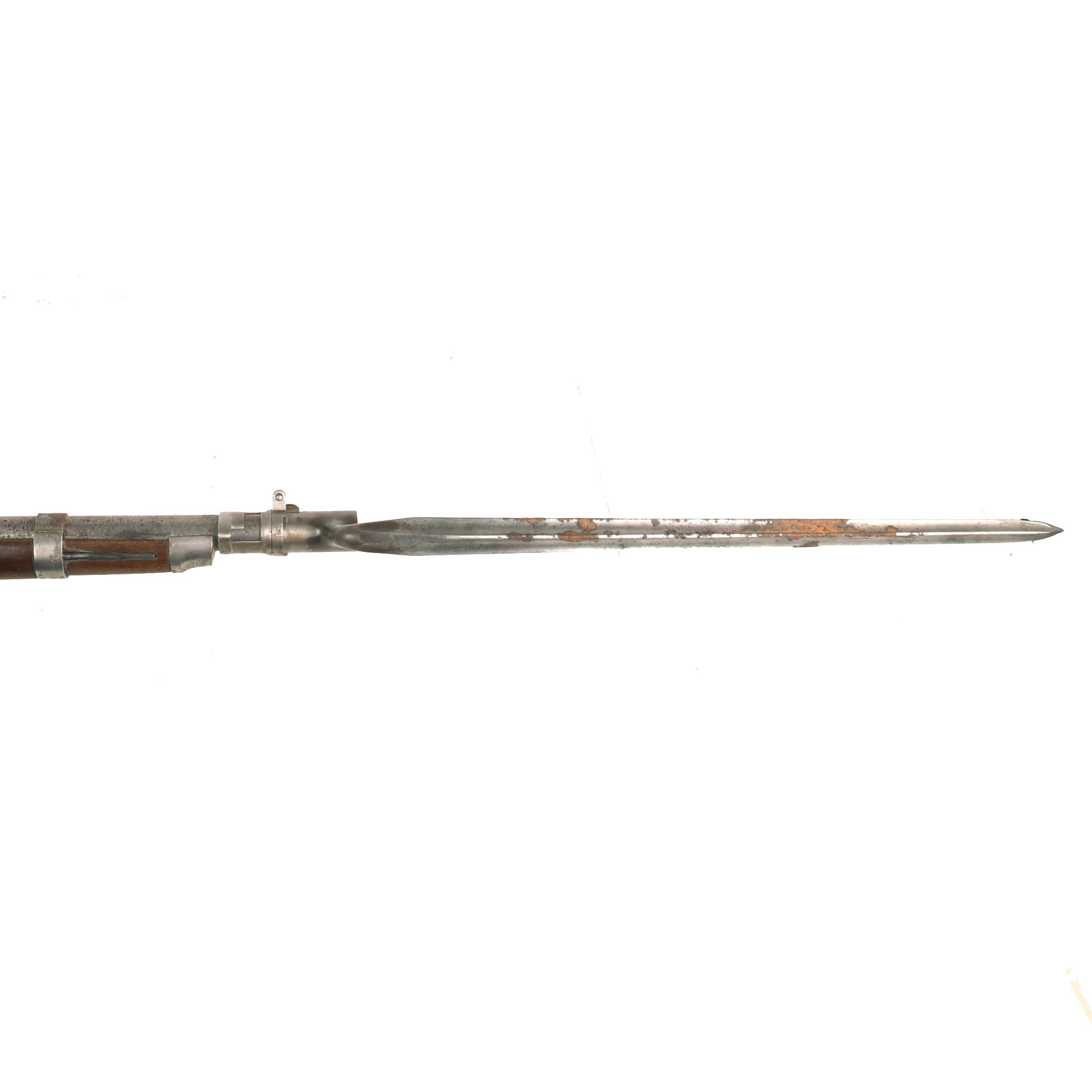

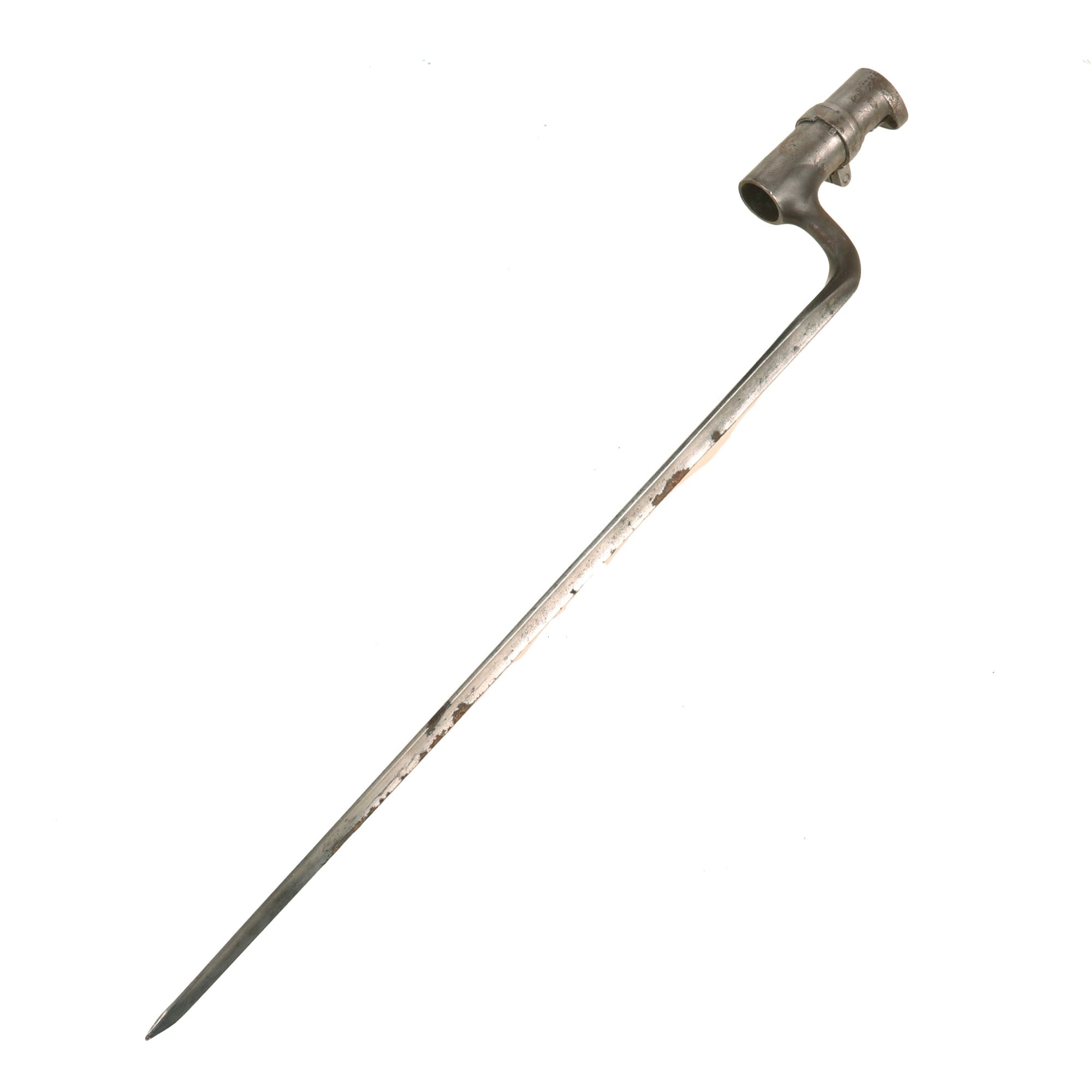

The bayonet on this example is in fair shape with heavy oxidation on the blade, but the U.S. stamp is still present.

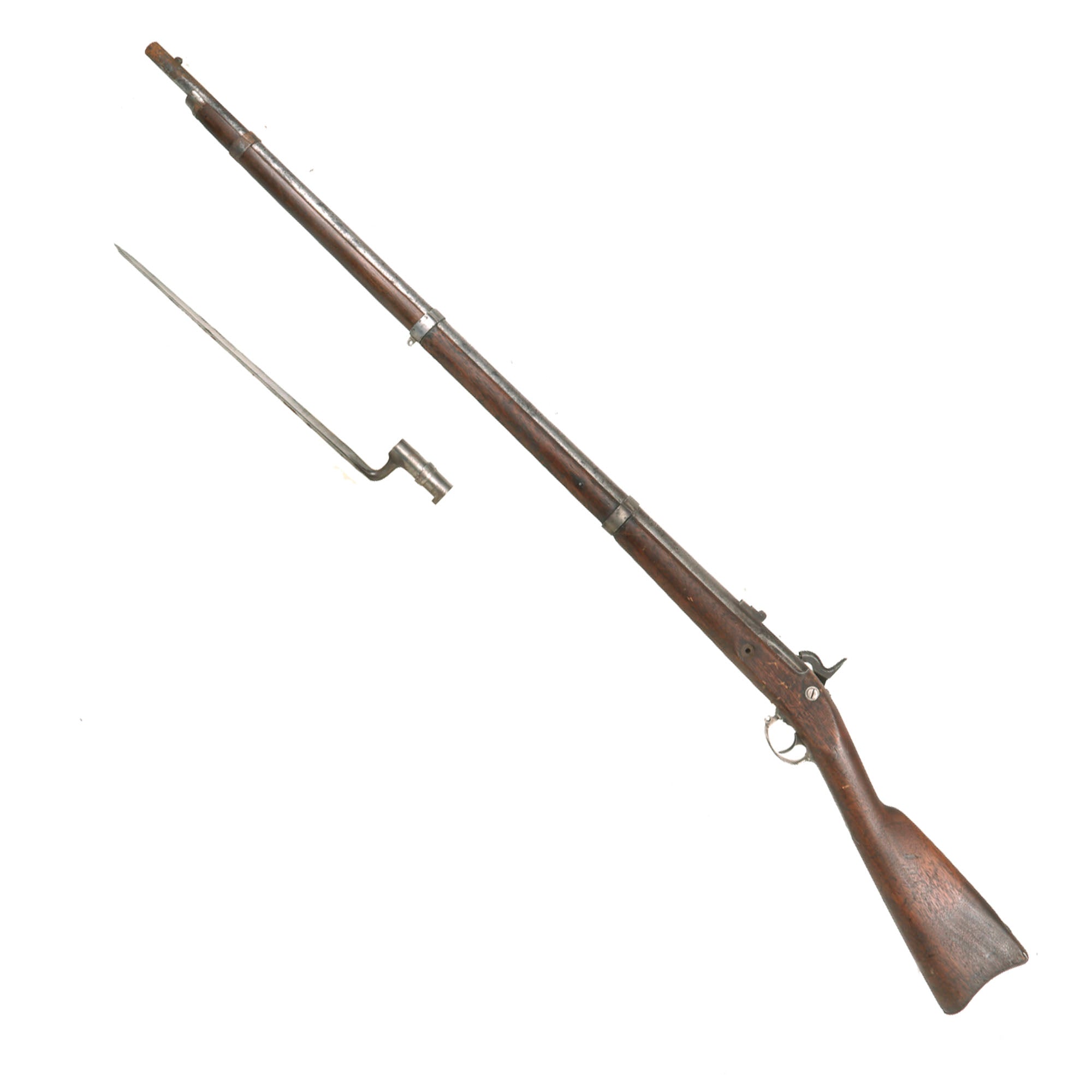

This is a great chance to pick up an as-found honestly used example of a Civil War Rifled Musket with an original bayonet. Ready to restore or display!

Specifications (musket):-

Year of Manufacture: 1862
Caliber: .58"
Cartridge Type: Minié Ball and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded

Specifications (Bayonet):-

Blade Length: 15½"
Blade Style: Triangular
Socket Length: 3"
Overall length: 18⅜”
