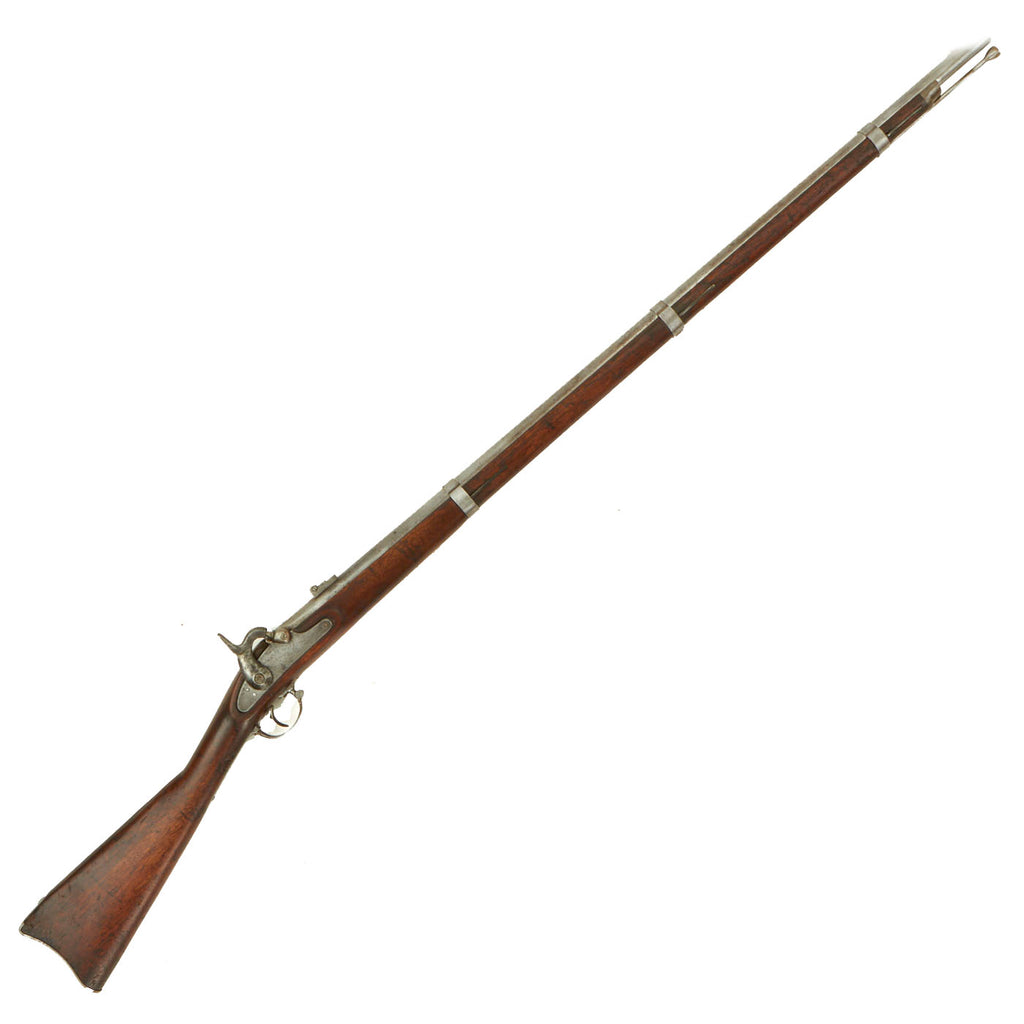

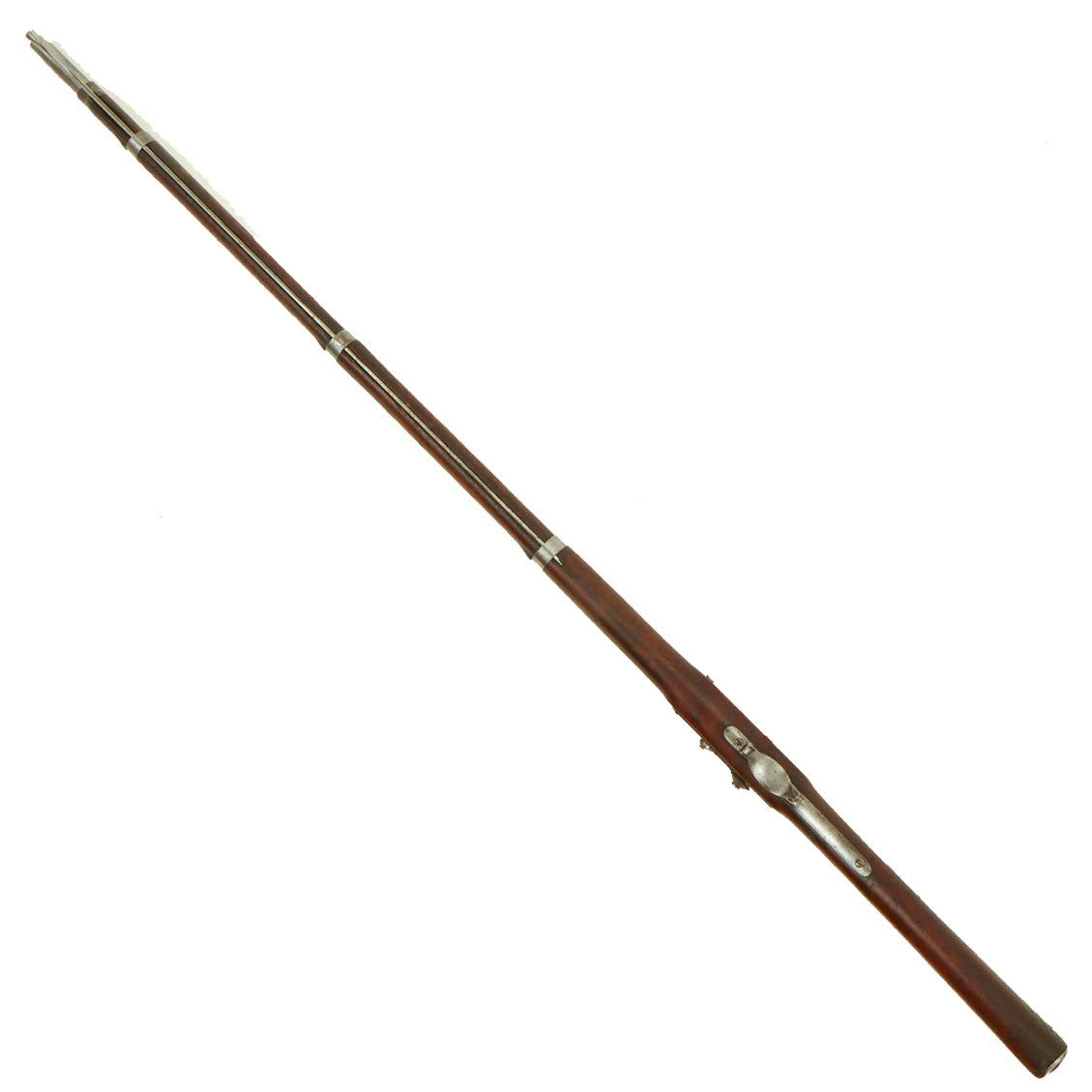

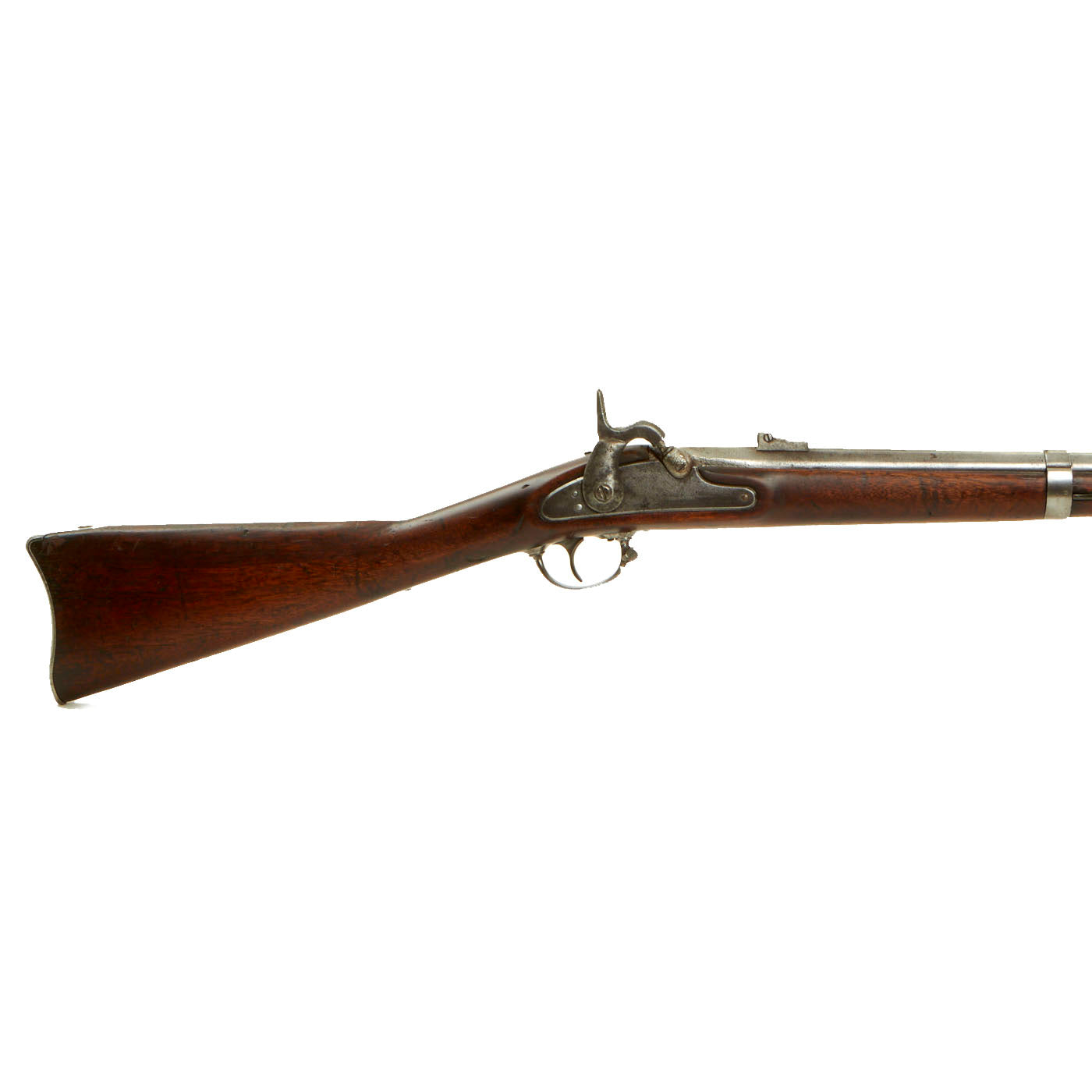

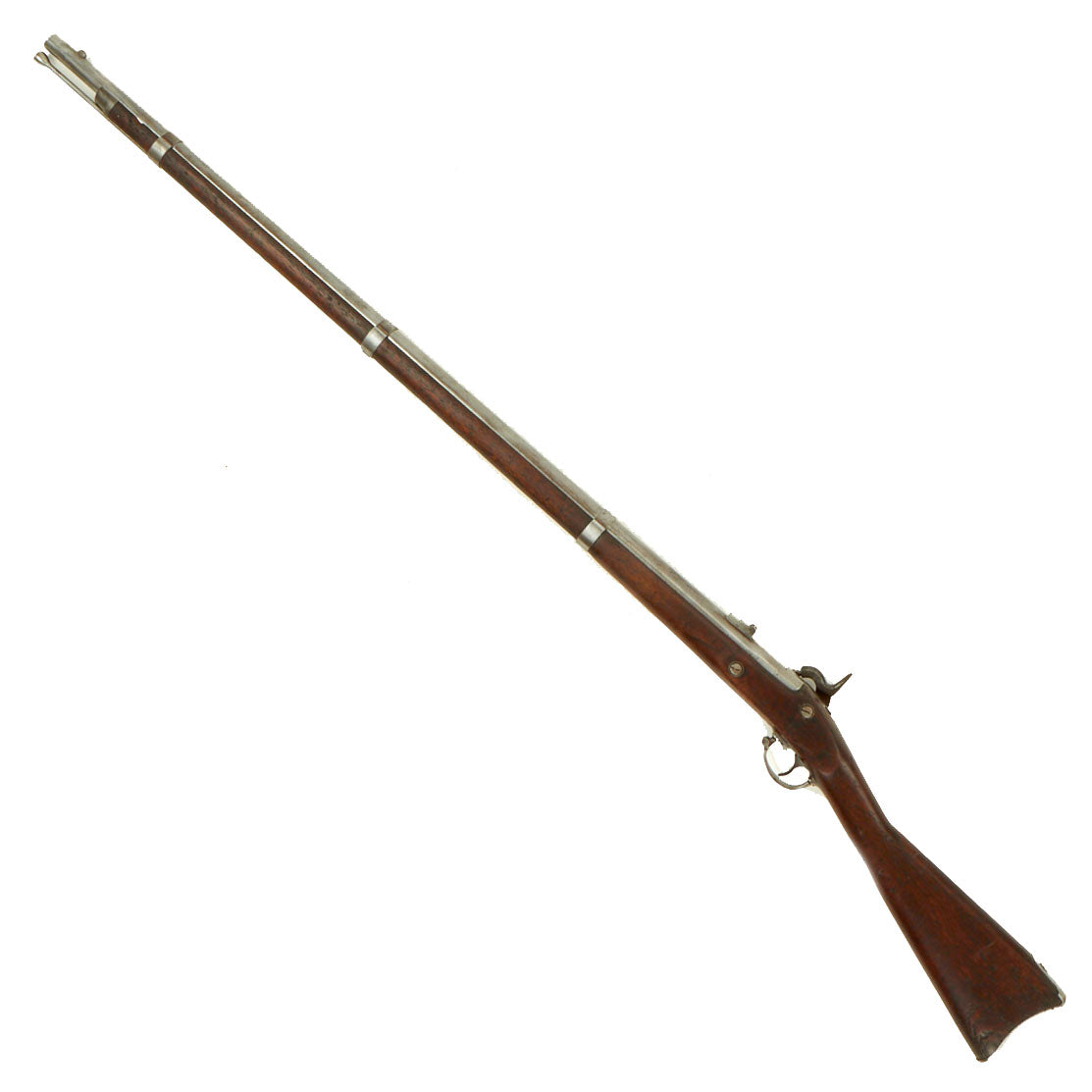

Original U.S. Civil War Springfield Model 1861 Contract Rifled Musket by William Mason - Dated 1863
Original Item: Only One Available. The Springfield Model 1861 was a Minié-type rifled musket shoulder-arm used by the United States Army and Marine Corps during the American Civil War. Commonly referred to as the "Springfield" (after its original place of production, Springfield, Massachusetts), it was the most widely used U.S. Army weapon during the Civil War, favored for its range, accuracy, and reliability.
The barrel was 40 inches long, firing a .58 caliber Minié ball, and the total weight was approximately 9 pounds. The Springfield had an effective range of 200 to 300 yards, and used percussion caps to fire (rather than the flintlocks of the 18th century, the last U.S. flintlock musket was the Model 1840). Trained troops were able to fire at a rate of three aimed shots per minute while maintaining accuracy up to 500 yards, though firing distances in the war were often much shorter. The most notable difference between the Model 1861 and the earlier Model 1855 was the elimination of the Maynard tape primer for the Model 1861 (the Maynard primer, a self-feeding primer system, was unreliable in damp weather, and the priming mechanism was expensive and time-consuming to produce). Further, unlike the Model 1855, the Model 1861 was never produced in a two-banded "short rifle" configuration.
The Springfield was aimed using flip-up leaf sights. The sight had two leaves, one for 300 yards and the other for 500 yards, and with both leaves down, the sight was set for a range of 100 yards. By contrast, the British Pattern 1853 Enfield, favored by the Confederates, utilized a ladder-sight system with 100 yard increments, using steps from 100 to 400 yards and a flip up ladder for ranges beyond 500 yards. While the Enfield's sights did allow finer range settings, the Springfield's simple leaves were more rugged and were less expensive to produce. The Enfield's sights extended to 900 yards (and further, on later models), compared to the 500 yard maximum range of the Springfield's sights. Realistically, though, hitting anything beyond 600 yards with either weapon was mostly a matter of luck. While the sight designs were very different, the two weapons were otherwise very similar, and had very similar effective ranges.
The Springfield Rifle cost $20 each at the Springfield Armory, where they were officially made. Overwhelmed by the demand, the armory opened its weapons patterns up to twenty private contractors, including the William Mason Company of Taunton, Massachusetts. The firm produced some 30,000 weapons for the army during the Civil War.
The Model 1861 was relatively scarce in the early years of the Civil War (many troops were still using Model 1842 smoothbored muskets and Model 1816/1822 muskets converted to percussion cap primers, both in .69 caliber). It is unlikely that any of these were available for use in the First Battle of Bull Run. However, over time, more and more regiments began receiving Model 1861 rifled muskets, though this upgrade appeared somewhat quicker in the Eastern Theater of Operations. Over 1,000,000 Model 1861 rifles were produced, with the Springfield Armory increasing its production during the war by contracting out to twenty other firms in the Union. The number of Model 1861 muskets produced by the Springfield Armory was 265,129 between January 1, 1861 and December 31, 1863. According to United States Muskets, Rifles and Carbines by Arcadi Gluckman Colonel Infantry, United States Army, published 1949.
After the war ended, many model 1861 and 1863 rifled muskets were modified to a breech loading actions with new metallic cartridges. With these modifications, the basic 1861 evolved into the Springfield Model 1873 which served the US until being replaced in the 1890s by modern breech loading rifles chambered for new smokeless powder rounds that were far superior to the Model 1873.

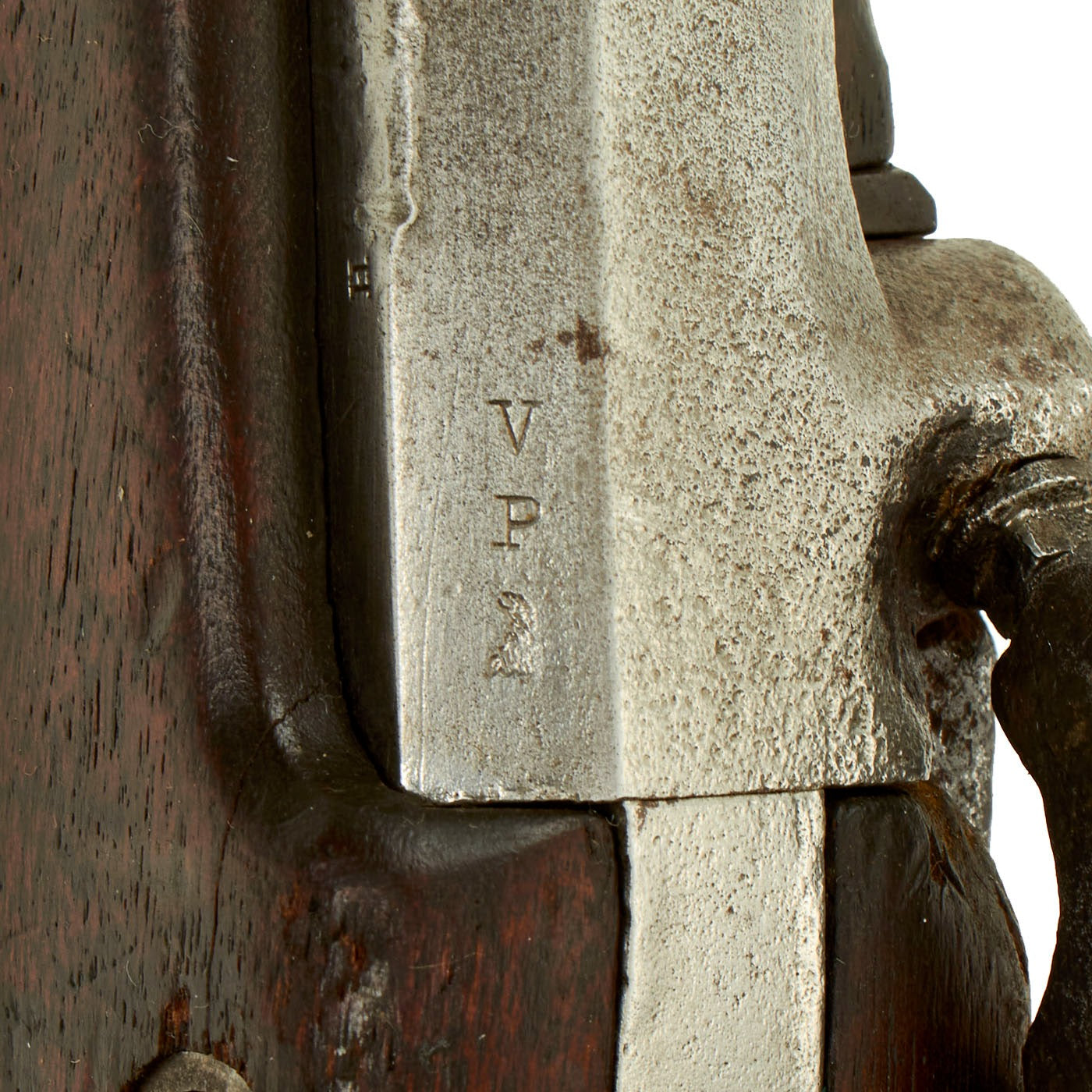

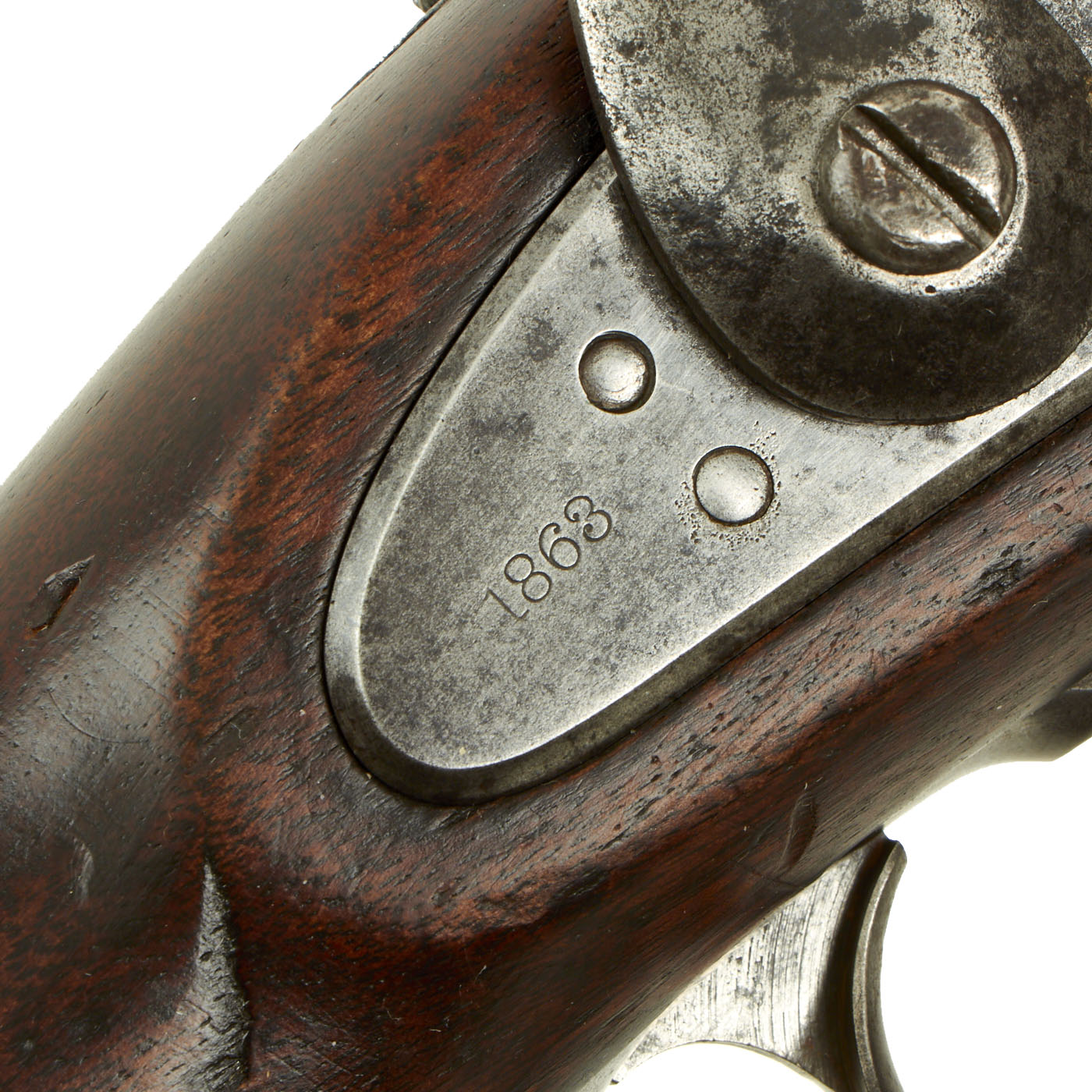

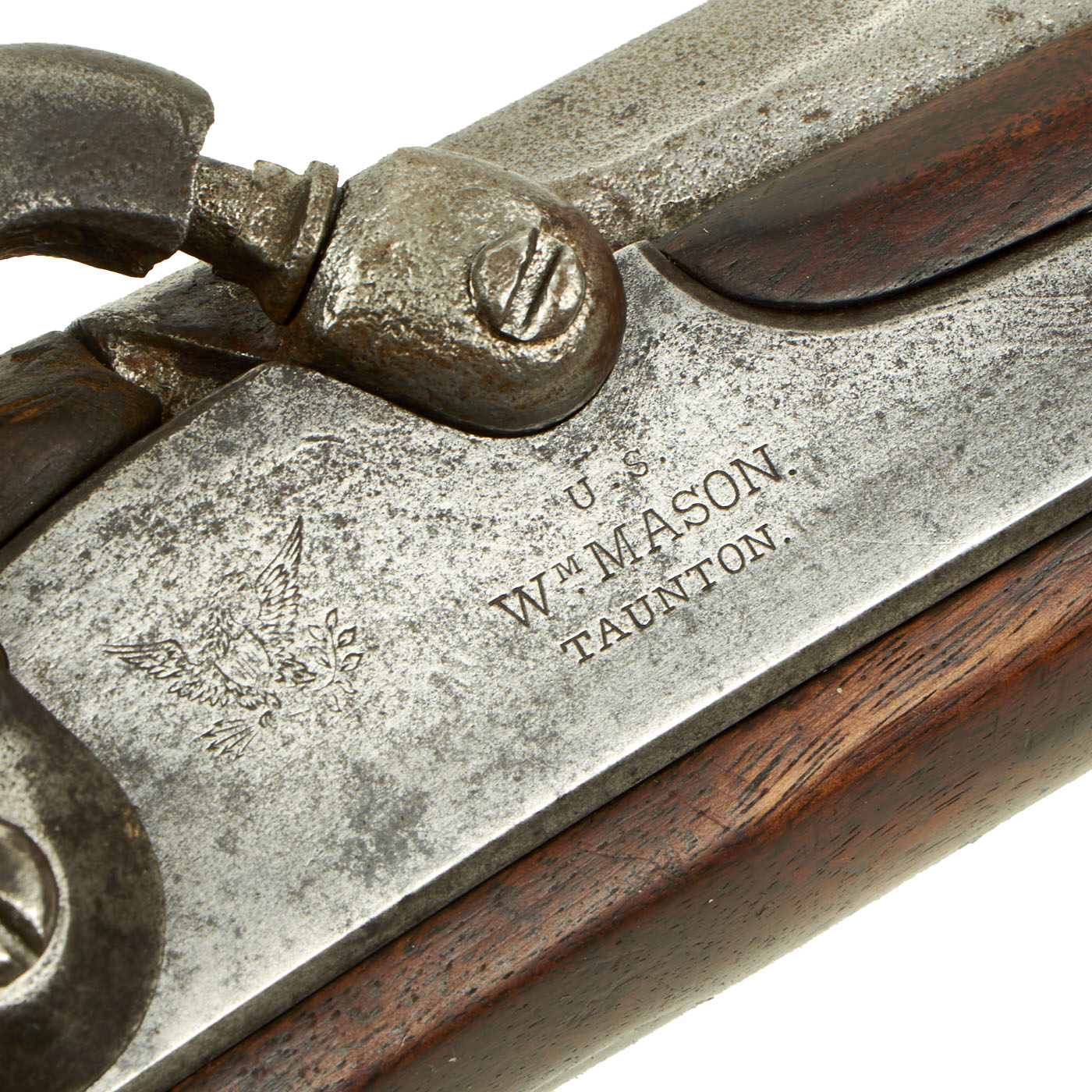

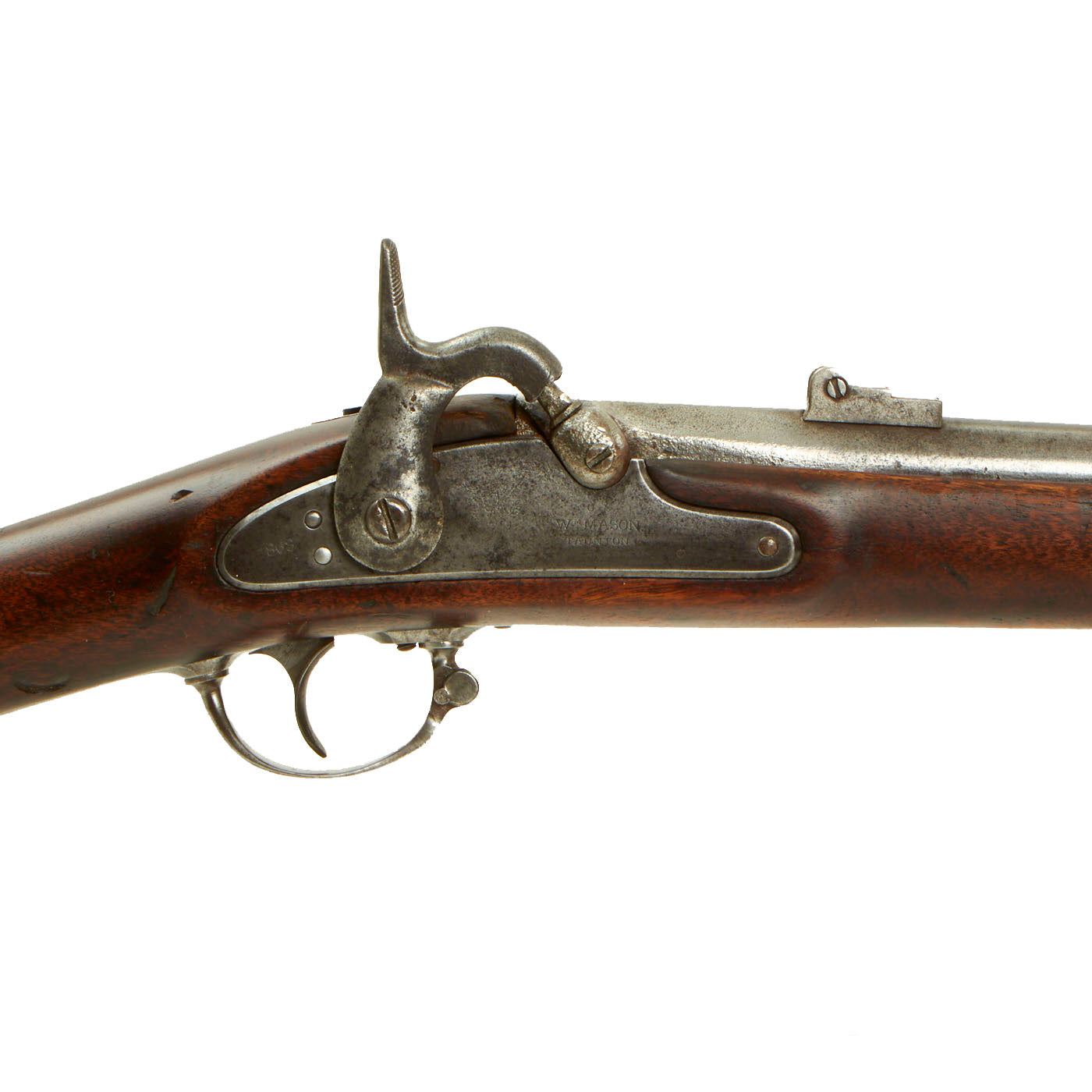

This example however was not converted, and is still in the original configuration. It is dated 1863 on the lock plate tail, and also has an Eagle stamped into the lock under the hammer, and to the right of that U.S. / Wm. MASON. / TAUNTON.. The markings on the lock are clear and overall the lock plate is in very good condition, especially considering the age. The nocks form shows the correct V over P over Eagle's Head proofs, though the date on the top has been worn away due to powder burn.

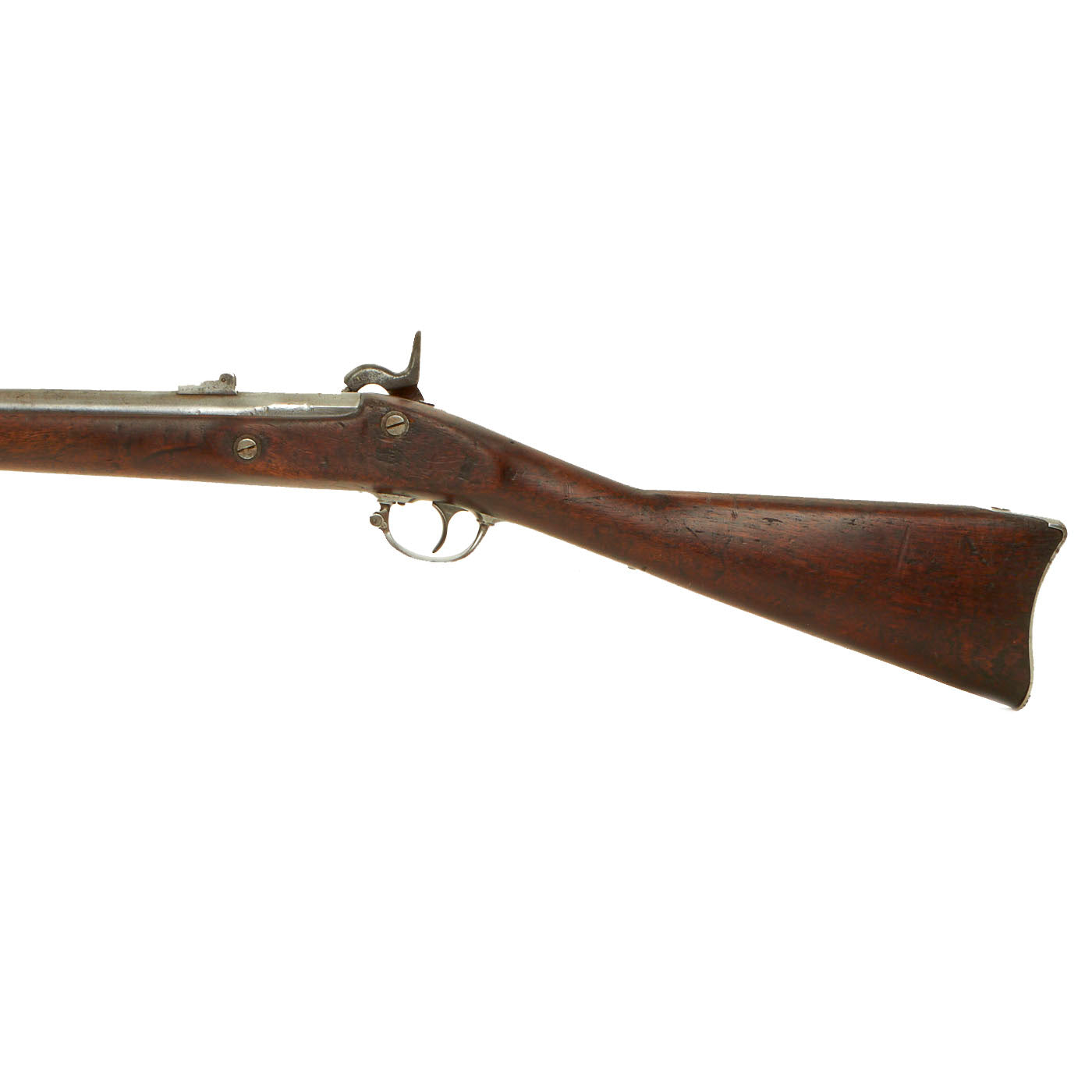

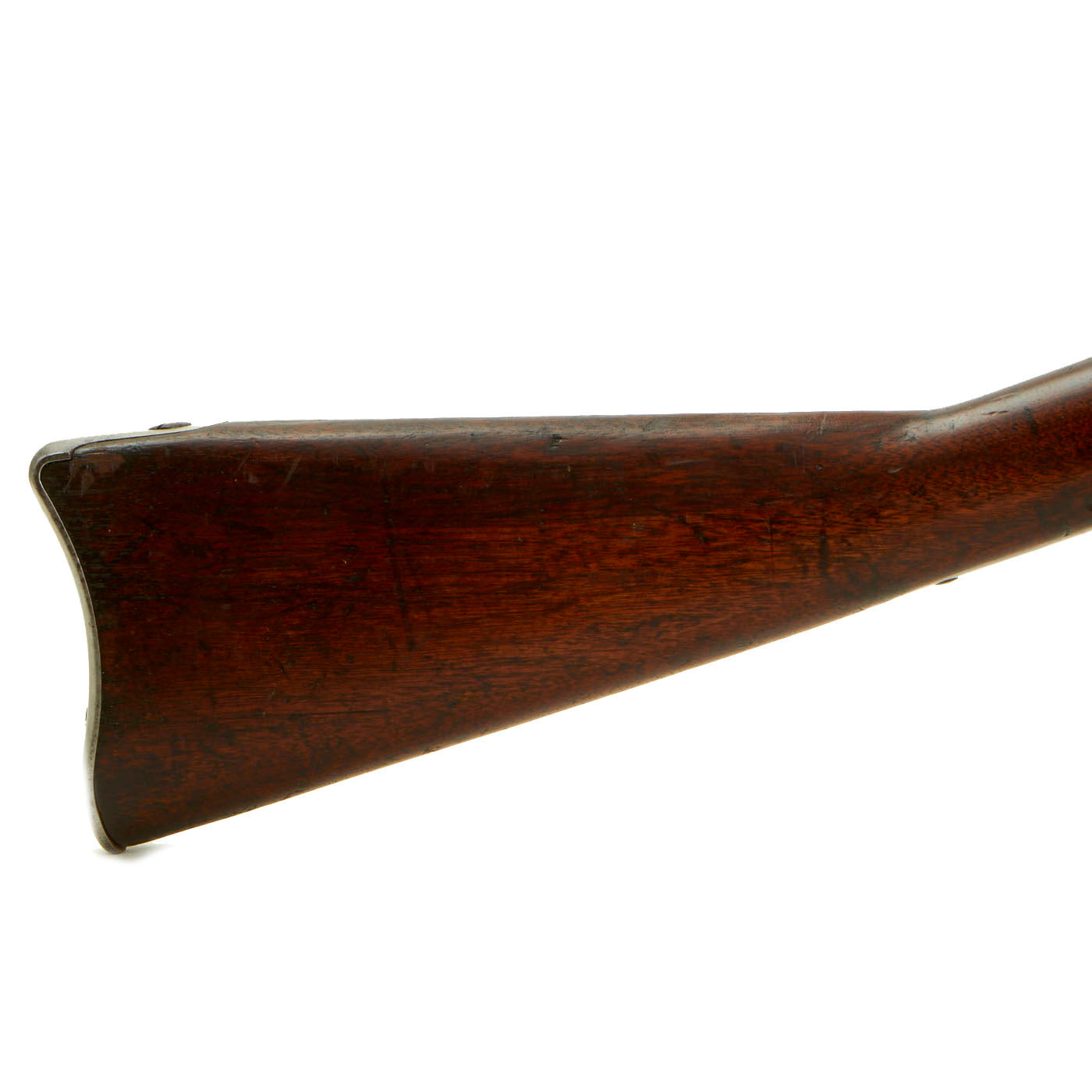

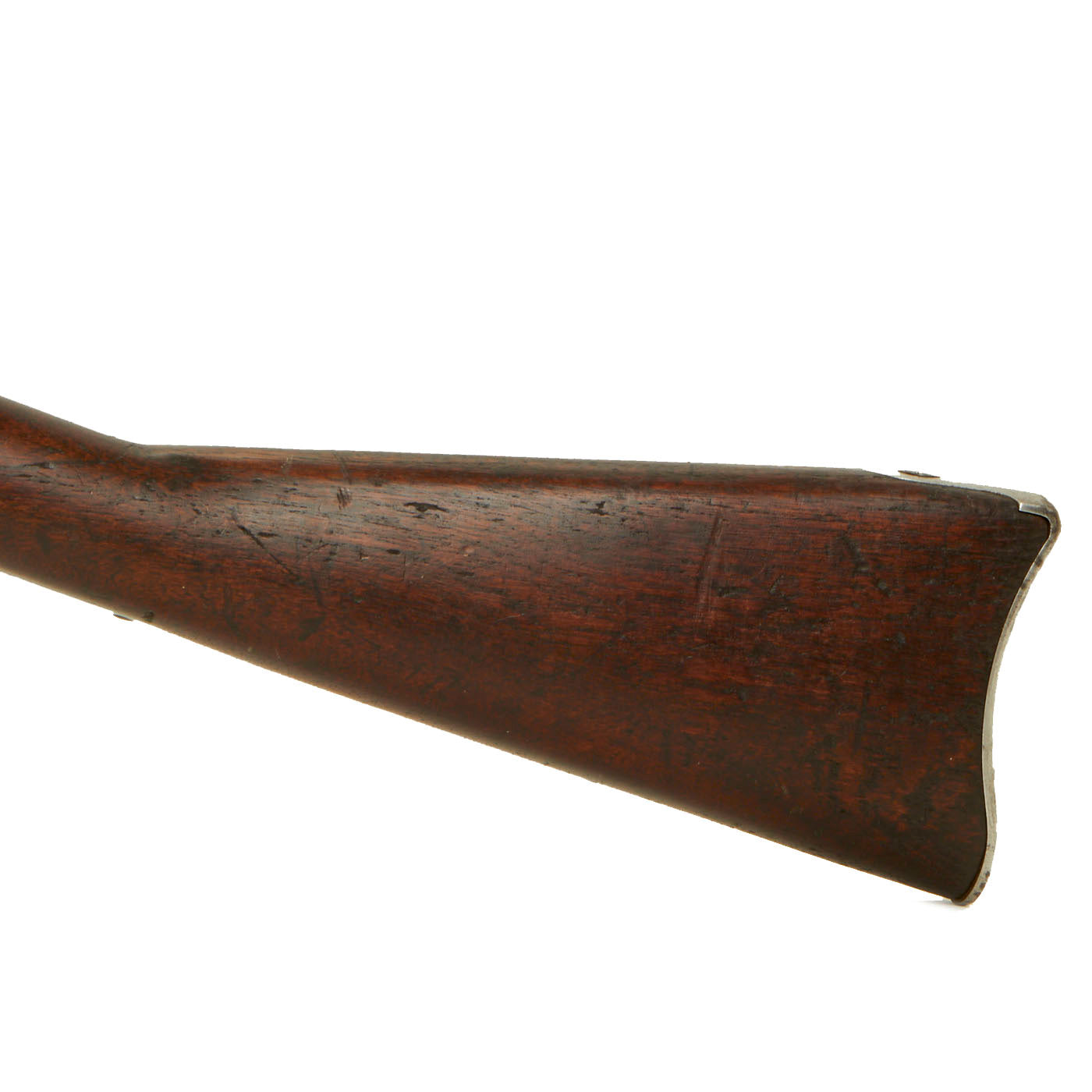

The one piece walnut stock is in very good condition, showing the expected dents and other wear due to service and age. It has a very nice walnut brown color, and really looks like it has "been there". There are no major structural issues or repairs, just a bit of splitting near the butt stock along the grain.

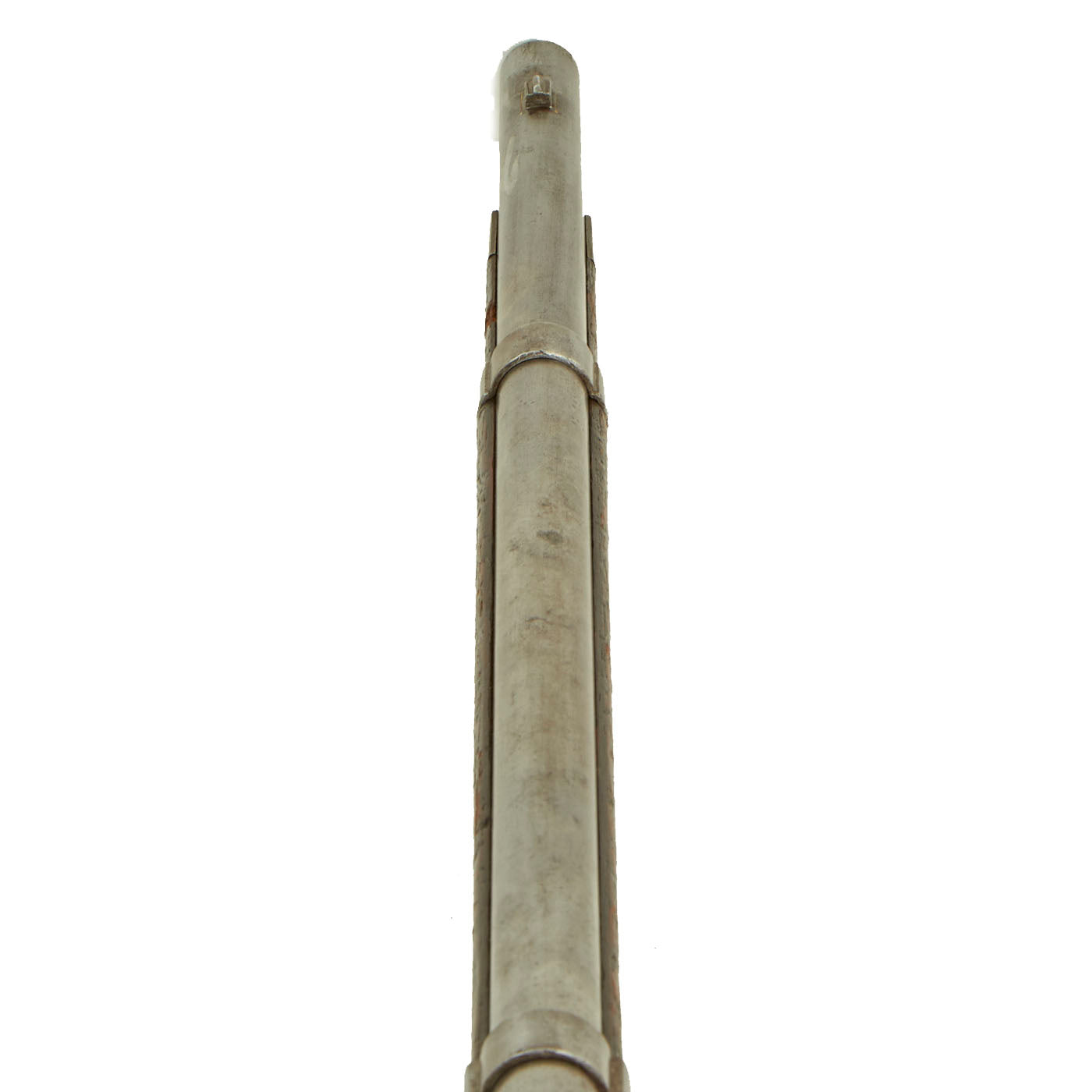

The metalwork overall shows only peppering in areas, and has been fully cleaned and restored go put it in its best light. The bore is clear, however the original rifling is not visible anymore due to wear and oxidation. There is powder burn around the cap nipple cone on the barrel and the cleanout on the bolster is unfortunately frozen.

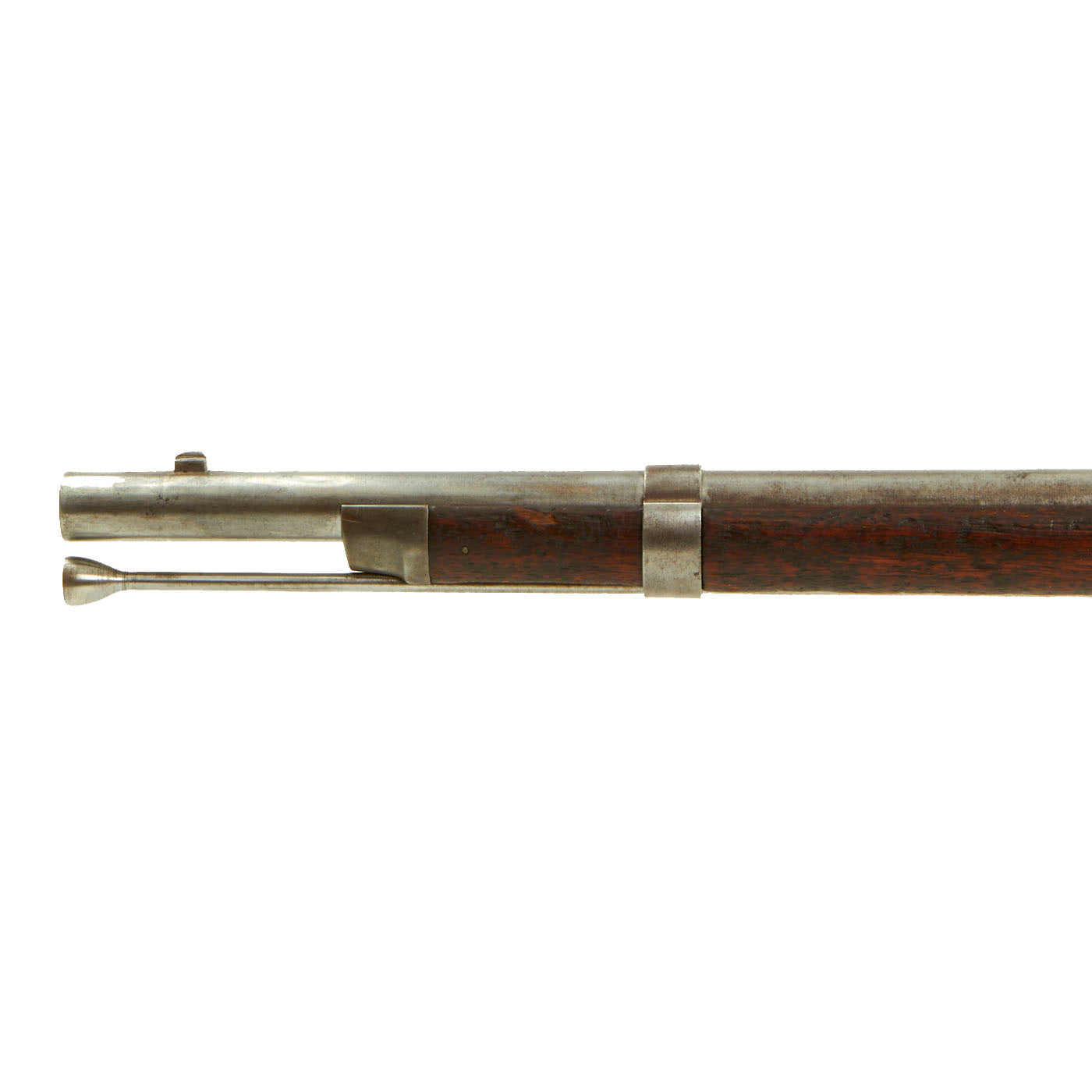

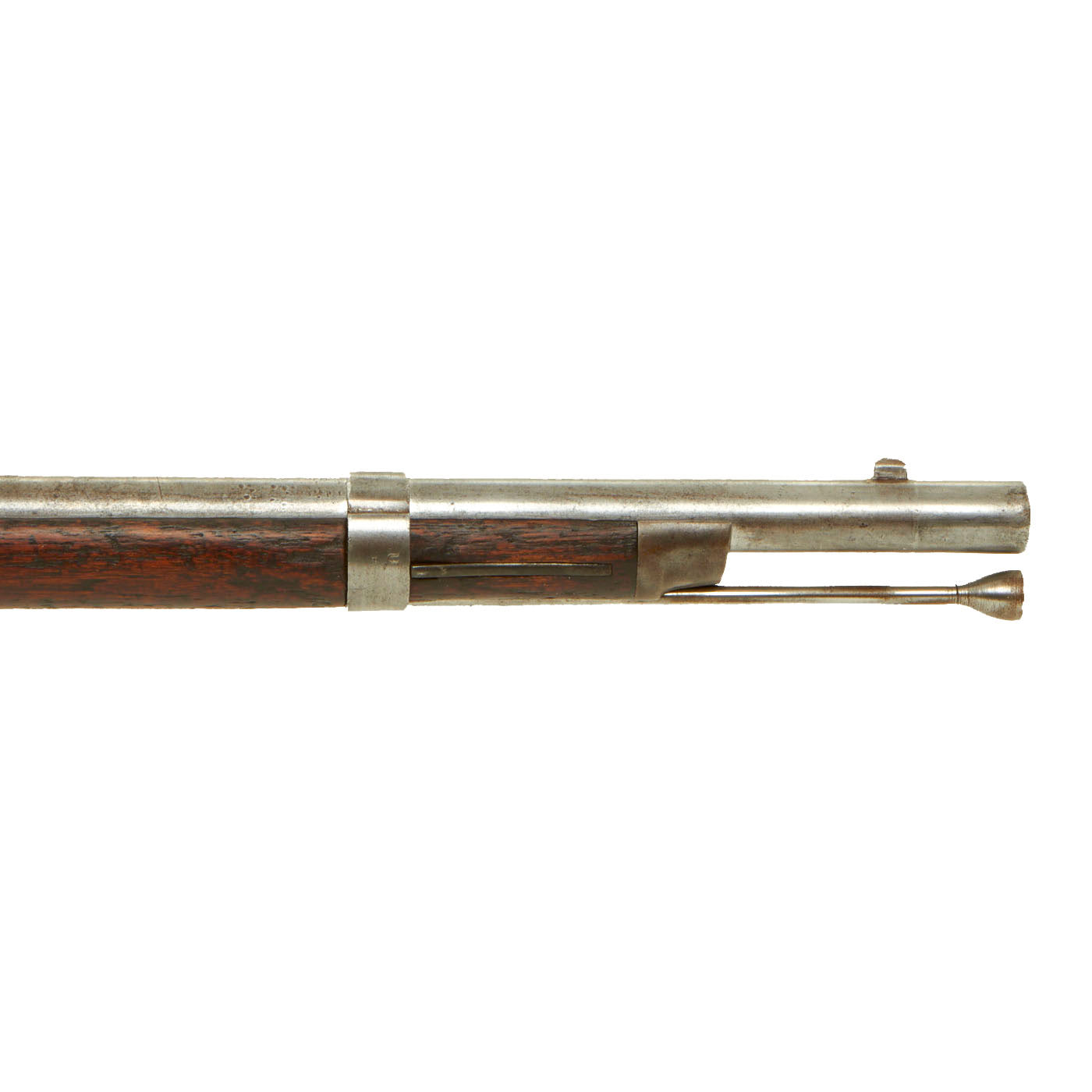

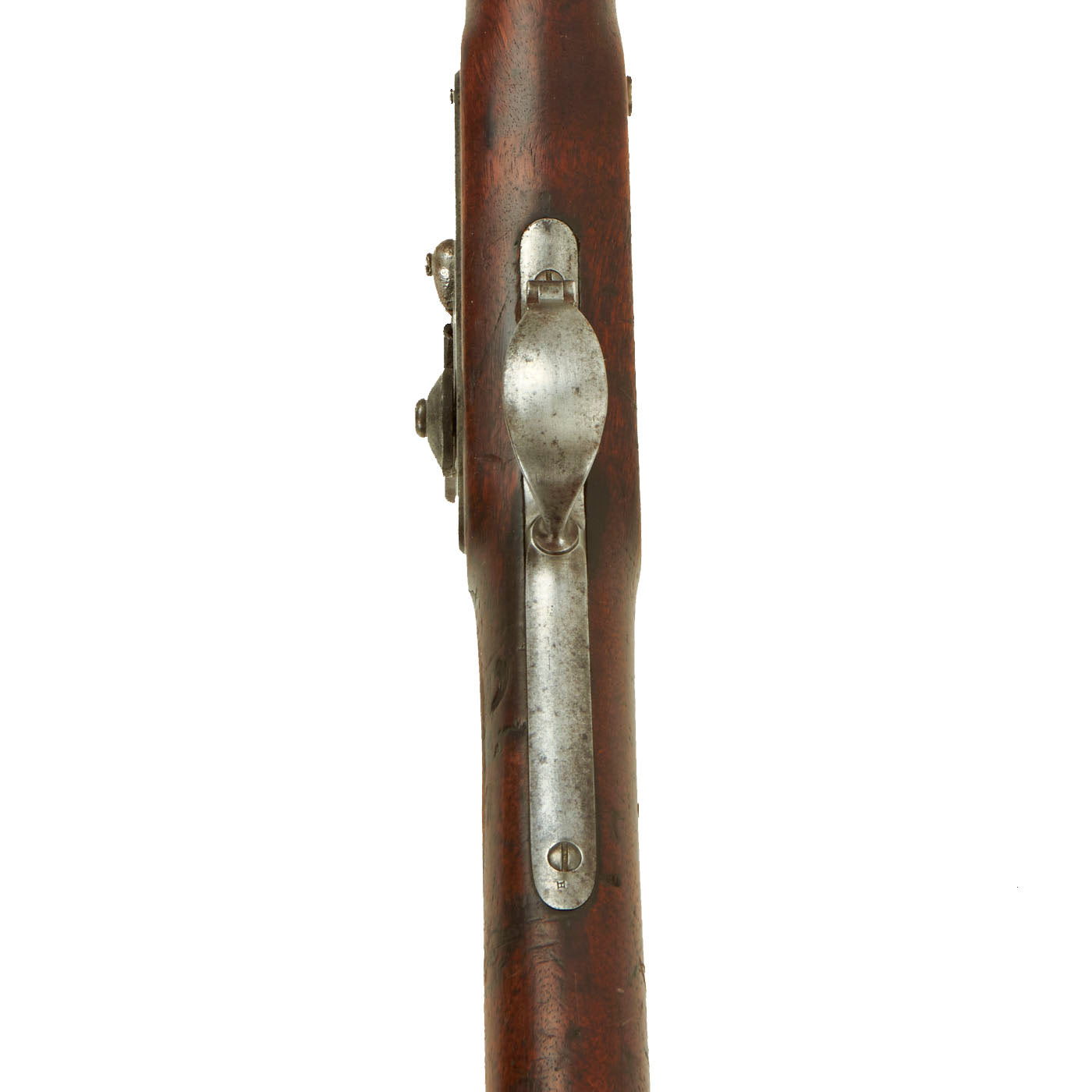

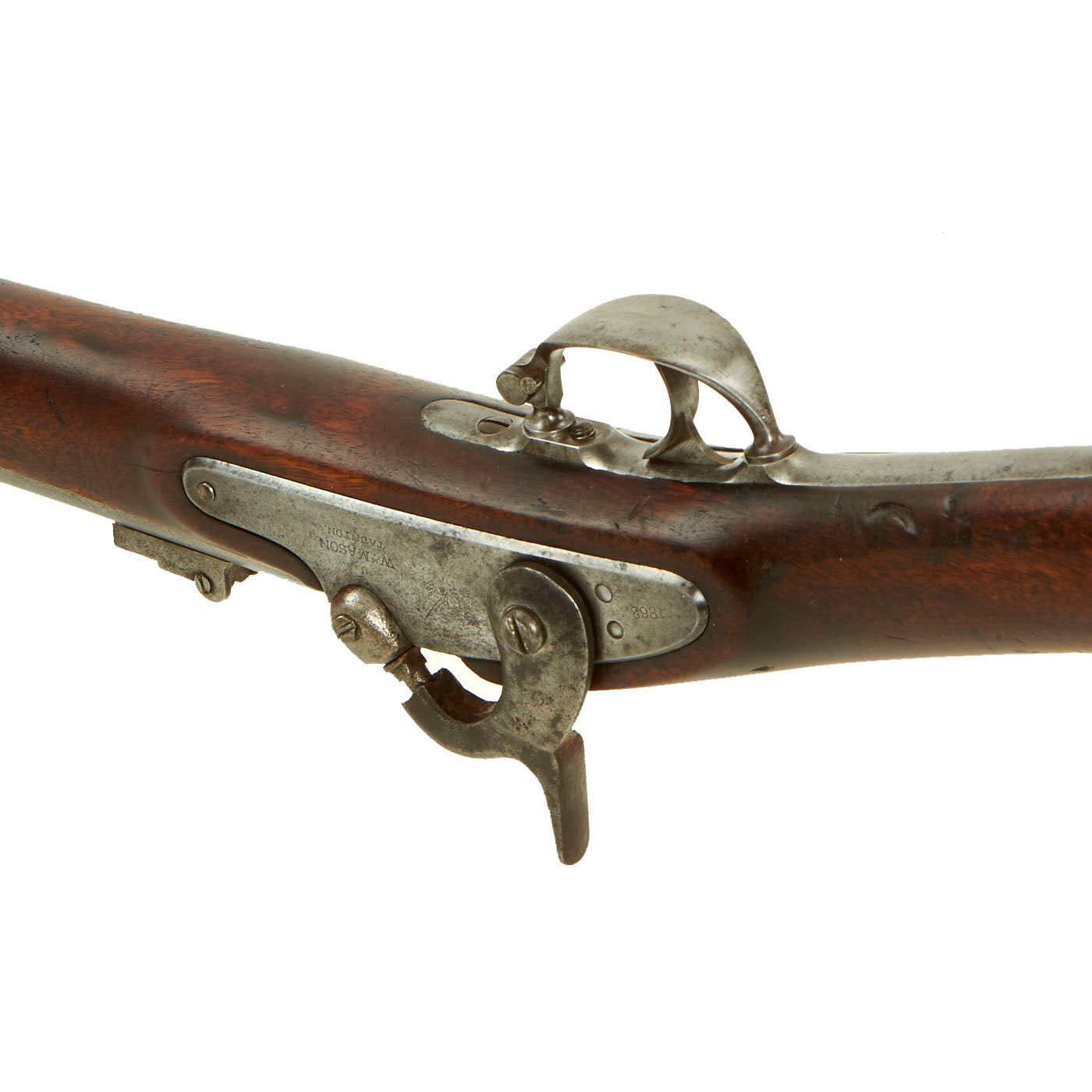

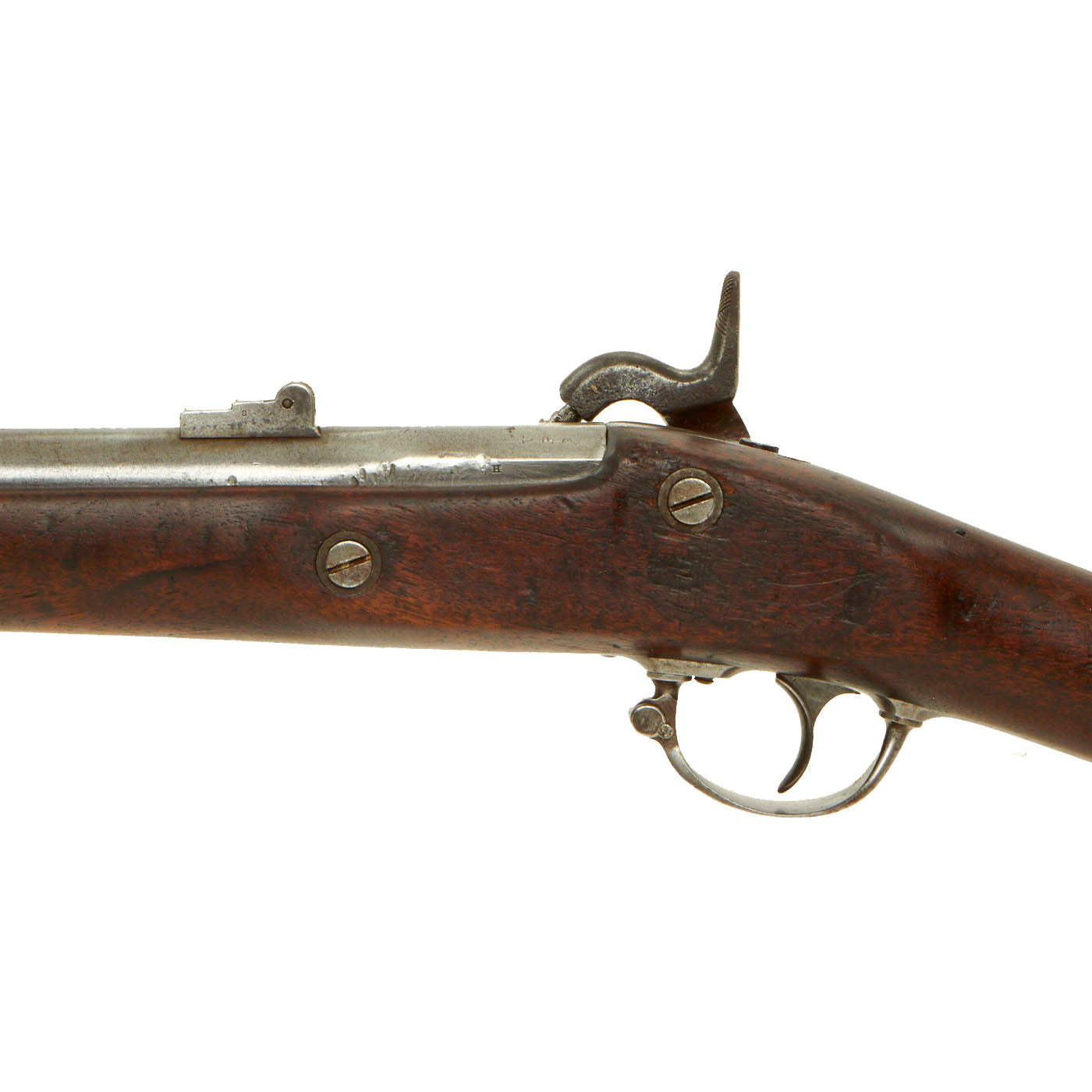

The lock functions, however the tumbler is worn, and it does not hold at half cock, even sometimes firing without touching the trigger. The three leaf rear sight is still fully intact and functional. The upper and lower bands still have their U markings, with a U.S. on the butt plate tang. The ramrod is the correct tulip type, with intact end threads. Both sling swivels are unfortunately missing, with the lower broken off the trigger guard, and the upper having been completely ground away down to the barren band.
This is a great chance to pick up a very Civil War Contract Rifled musket with a long service history by a rare maker. Fully cleaned and ready to display!
Year of Manufacture: 1863
Cartridge Type: Minie Ball and Powder
Barrel Length: 40 Inches
Overall Length: 56 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
