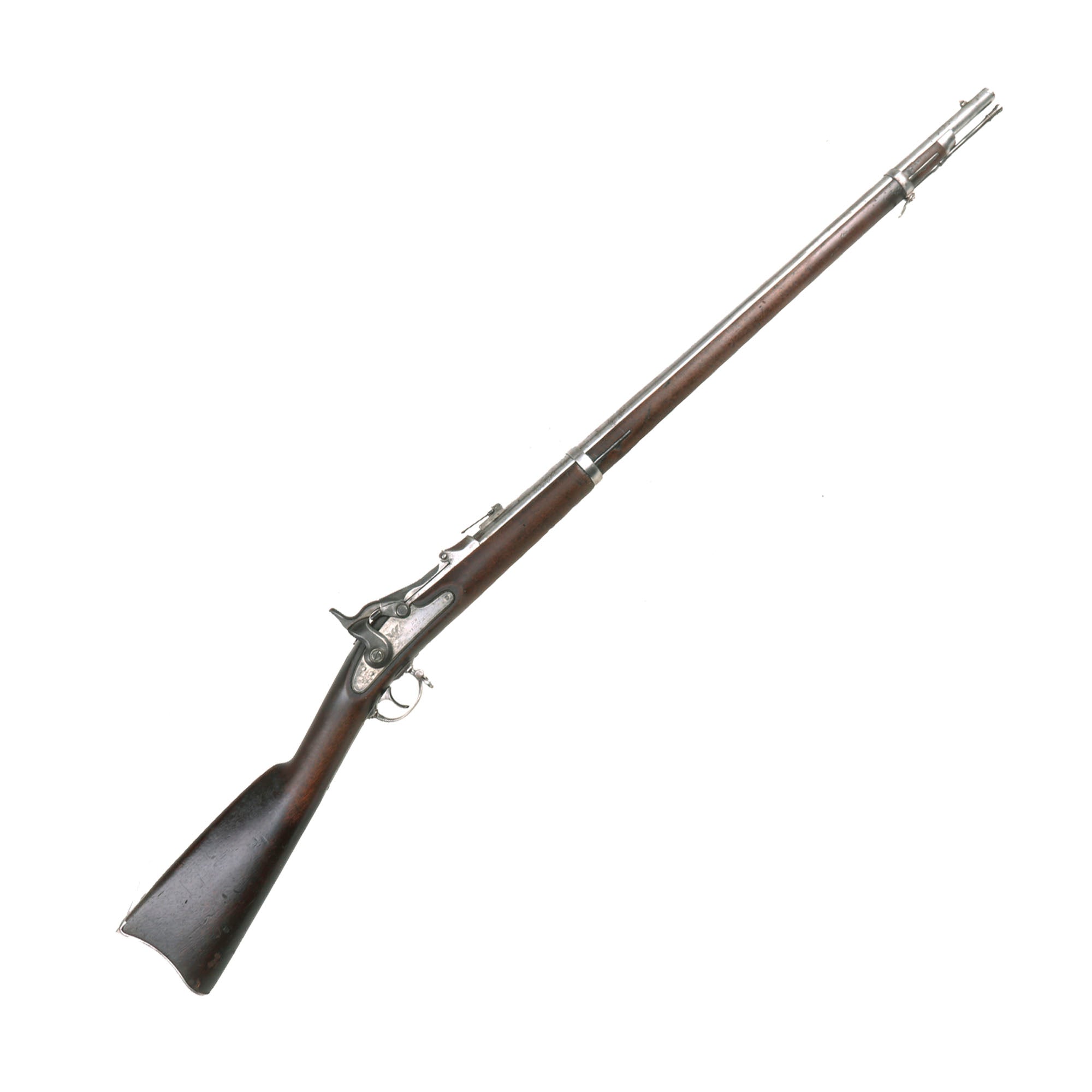

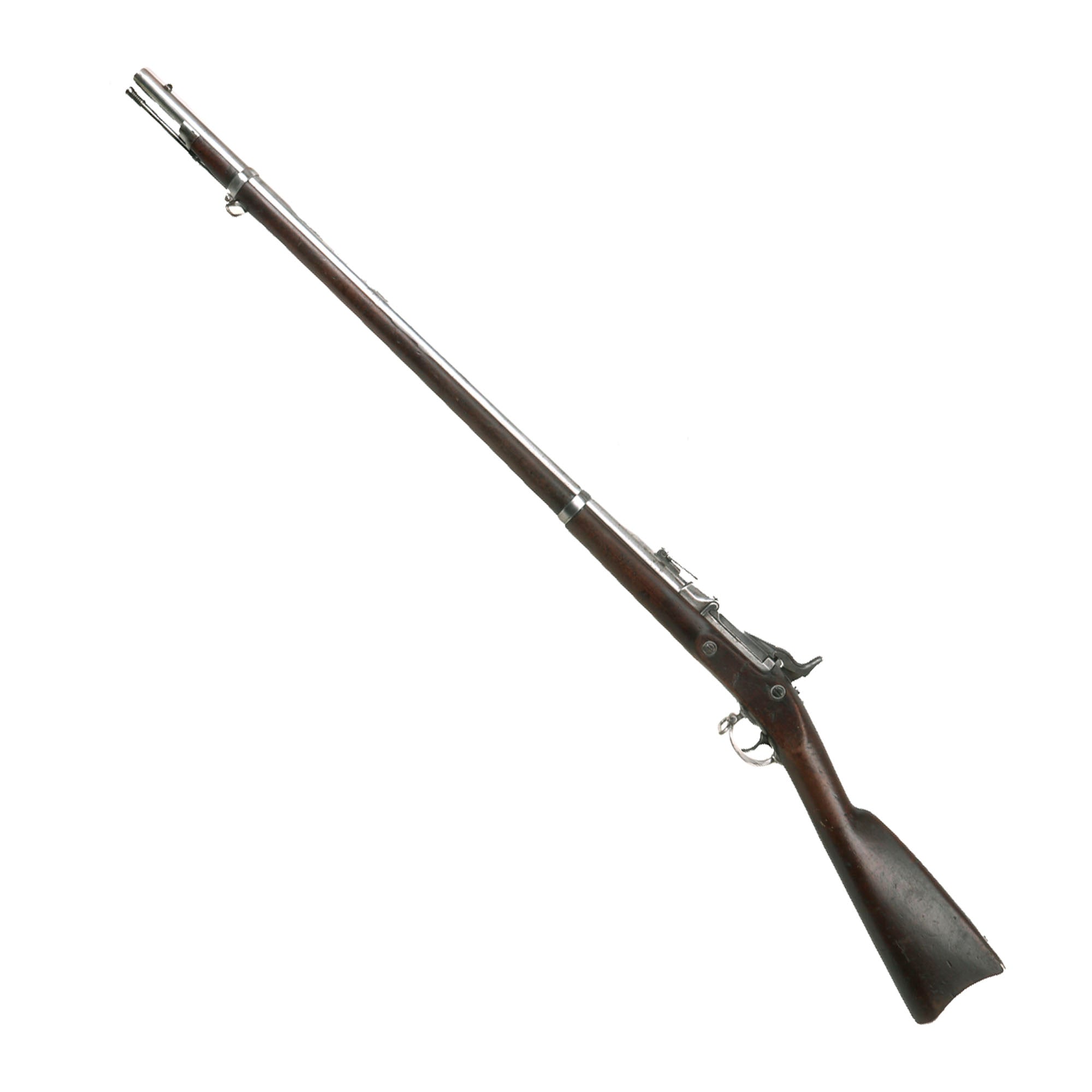

Original Item: One Only. This is something we don't see everyday! This rifle started out as a Civil War Springfield Rifle Musket, dated 1863, made by SPRINGFIELD ARMORY, as indicated on the lock plate. There is also the "Spread Eagle" over U.S. marking, indicating military production. This particular rifle looks to have been made as a Model 1863 Type II, as it has the solid barrel bands and band springs of the Type II. Definitely an interesting example! Around 700,000 of all Model 1863 types were produced from 1863 until the end of the Civil War in 1865.
The U.S. Civil war had confirmed the adage of NEED is the Mother of INVENTION. Muzzle Loading Muskets and Rifles were extensively used but new developments continually resulted in a "fresh" breach loading system being adopted on a trial basis. The Union had as many as NINETEEN different systems issued during the war and the ALLIN system was a version that was considered a determination was made to standardize.
The Trapdoor system seemed to be the one that satisfied most authorities so more trials were held, and the trapdoor was adopted. The government then looked for for cost effective ways to modernize their rifles, and one way was to convert muzzle loading Rifle muskets to a breech loaders, as seen throughout the world.
Originally, the trapdoor Springfields were created to convert Model 1863 Springfield rifled muskets to breech-loading rifles at a relatively low cost. This conversion consisted of replacing the percussion lock with the breech-loading trapdoor mechanism, and relining the barrels to convert them from .58 to .50 caliber. This proved problematic, because in the field, the lining tended to separate from the barrel.
To correct this problem, the Model 1868 used a new barrel instead of relining the original older barrel. The new barrel was slightly shorter, 32.5 inches, compared to the 36.5-inch barrel used on the Model 1866. The shorter barrel was affixed using only two barrel bands, instead of the three used on the Model 1866. Since it lacked the middle barrel band, the sling was affixed to the upper barrel band instead. The Model 1868 also differed from previous models in that it used a separate Allin type receiver with the barrel attached to it. The Model 1868 was also the first trapdoor conversion to use the cartridge extractor covered by U.S. Patent No. 68,009, issued August 27, 1867 to W.H. & G.W. Miller. The Model 1868 had an overall length of 51 7/8 inches.
Over 50,000 Model 1868 rifles were manufactured, chambered for the .50-70 450 cartridge. The model 1868 was then further refined, producing the model 1870, which had some incremental improvements. There were two versions of the Springfield model 1870, which differed slightly from each other. The first version was produced in 1870 and 1871. The rear sight was improved, and the receiver was shortened to create the model 1870 receiver. The rear sight on the first model 1870 was almost against the receiver. 1,000 of these rifles were manufactured.

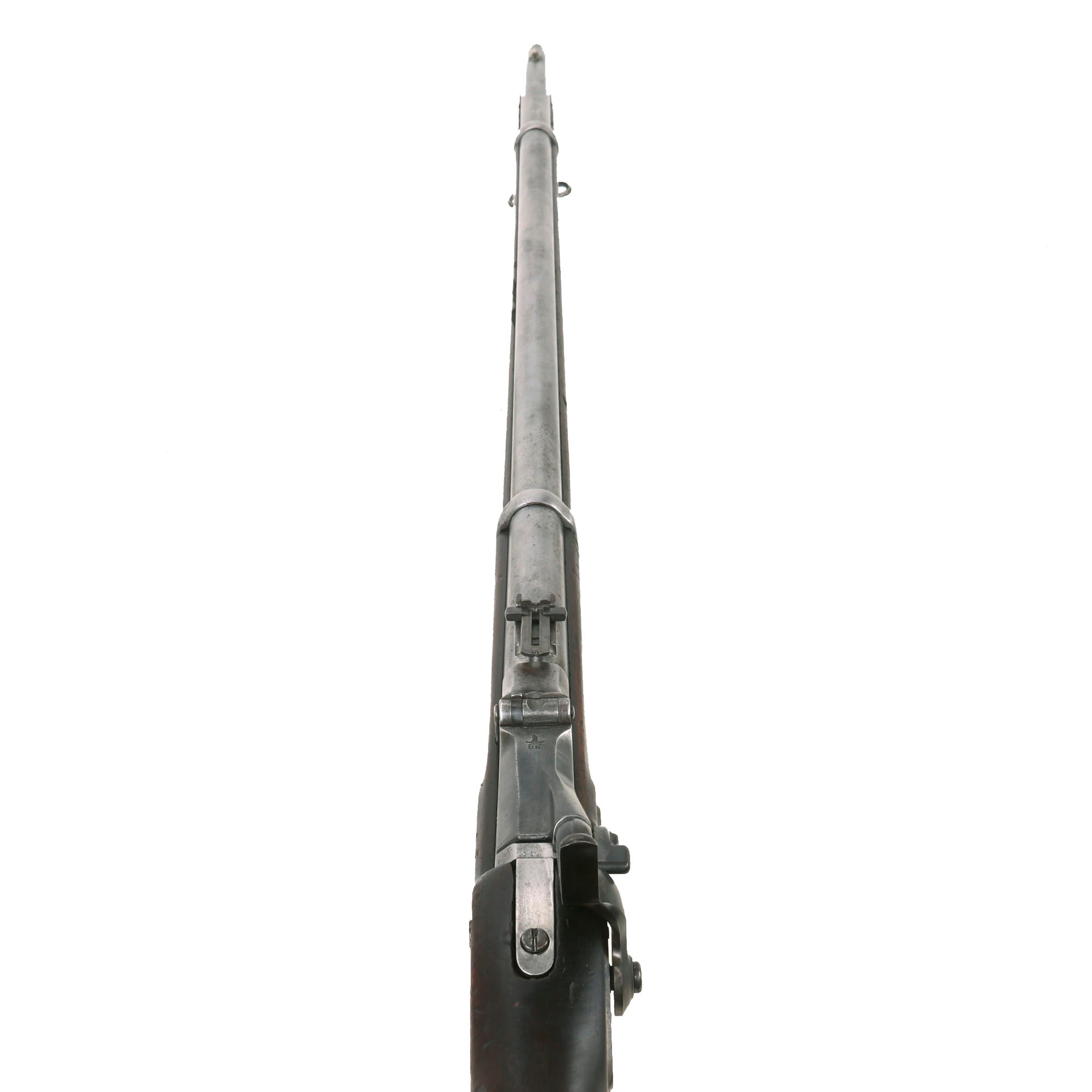

The second version, which we have here, was produced in 1872 and 1873. In this version the rear sight was moved up so that it was about half an inch away from the receiver. The second version model 1870s also had a long high arch on the underside of the breech block, which differed from the first version which had a shorter arch identical to the Model 1868. It also had a "double shouldered" cleaning rod, with wider sections on either side of the locking tab. 10,000 of the second version were manufactured.
This model served as the basis for the definitive Model 1873 "Trapdoor Springfield" series of rifles in .45-70 caliber, which was adopted in 1873 as the standard military longarm of the United States armed forces for the next 20 years. There is an excellent work TRAPDOOR SPRINGFIELD by Waite and Ernst published in 1980 that covered this very subject from 1865 - 1893. The very first Chapter is entitled "The ALLIN Breech-Loading System" which covers the Model Trap door rifle we offer here. The conversion made inventive use of the existing parts of the barrel, such as the cap lock bolster being turned into part of the breech lock system.

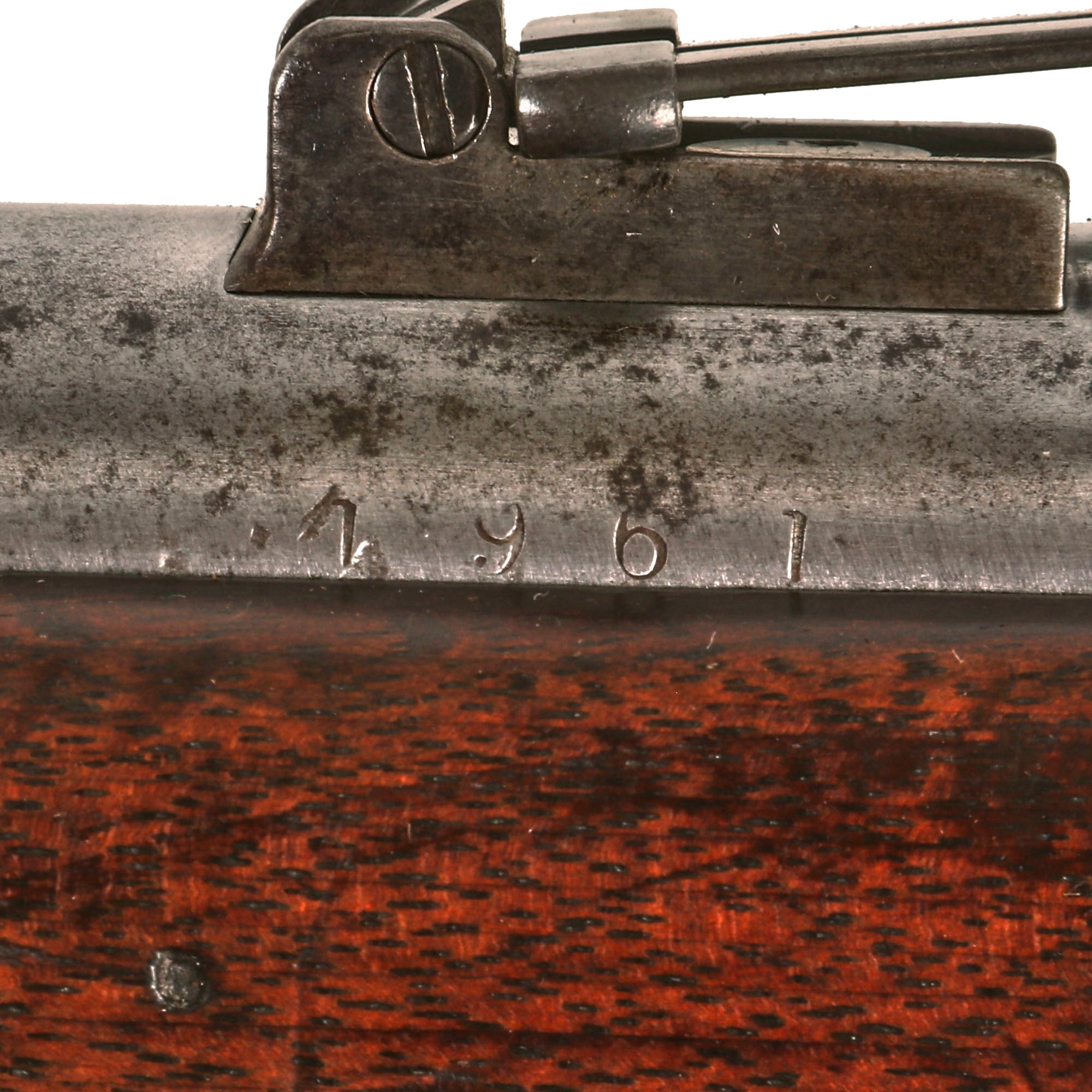

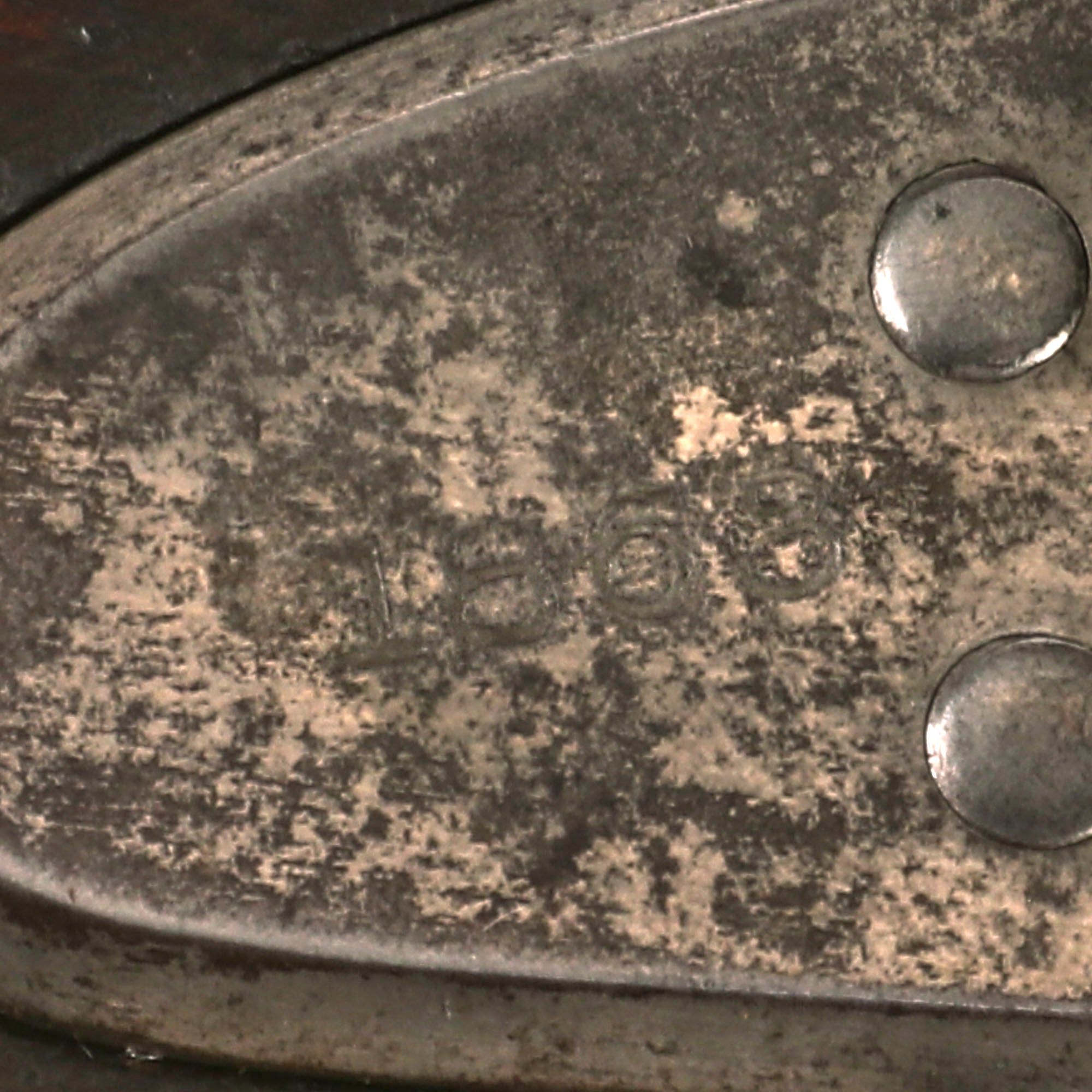

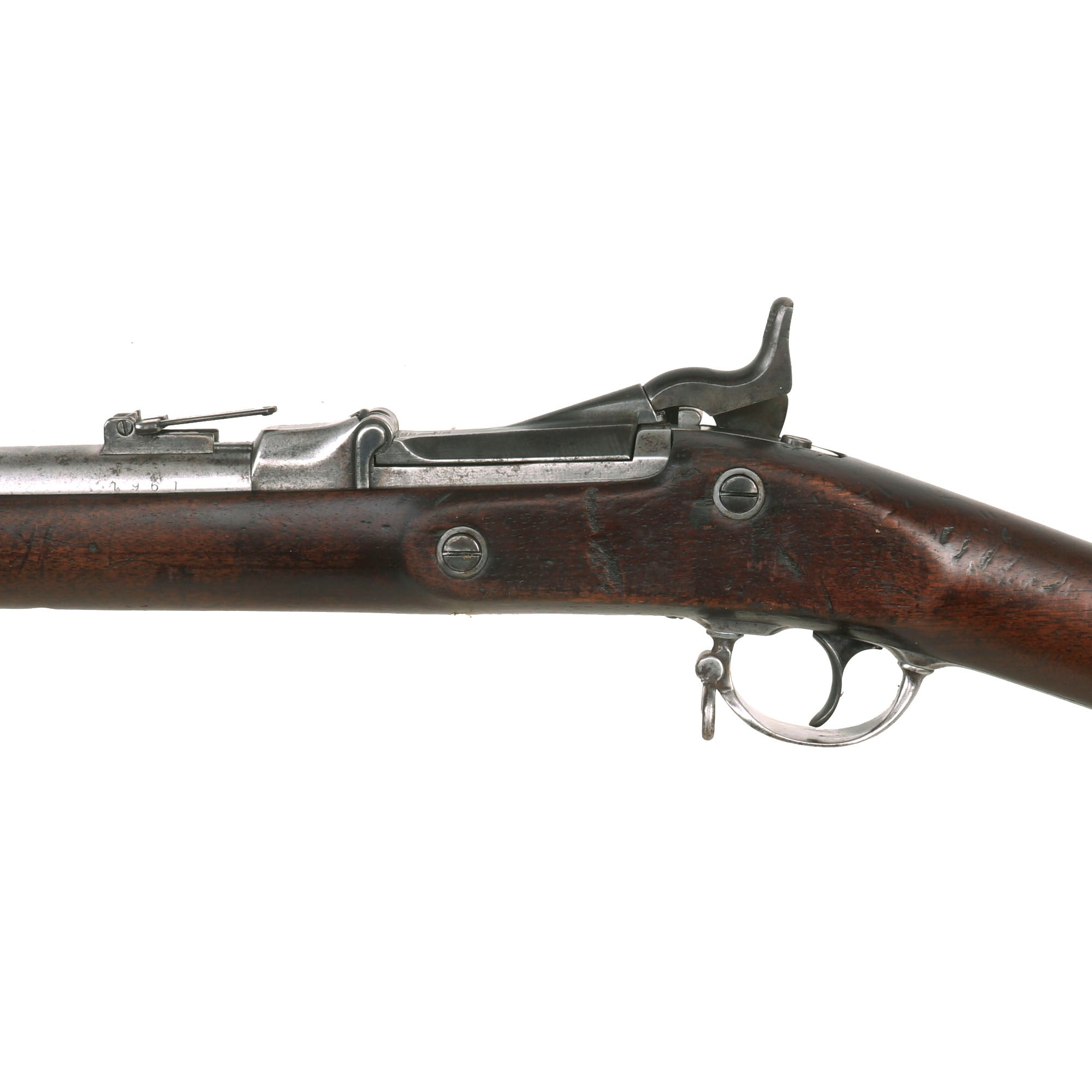

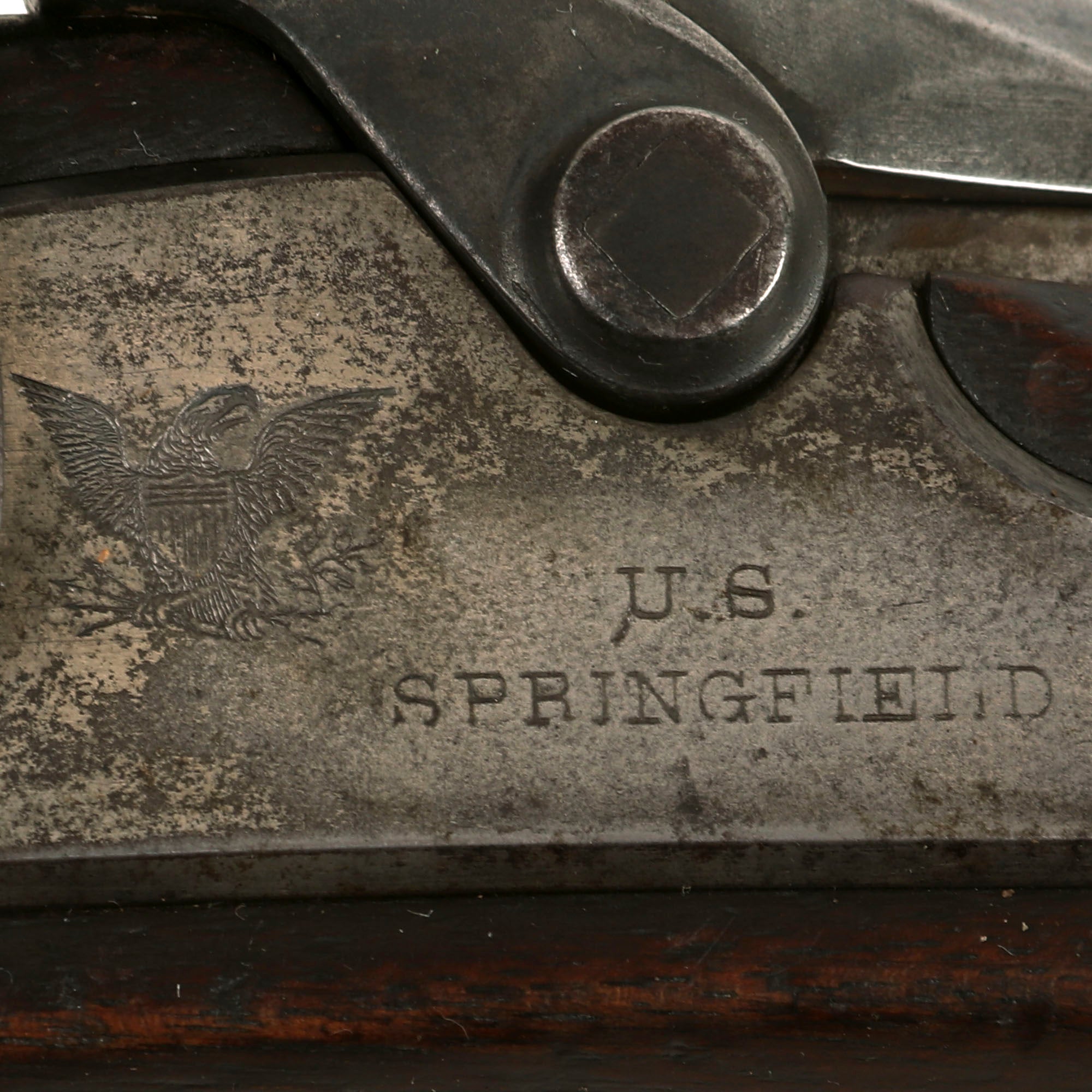

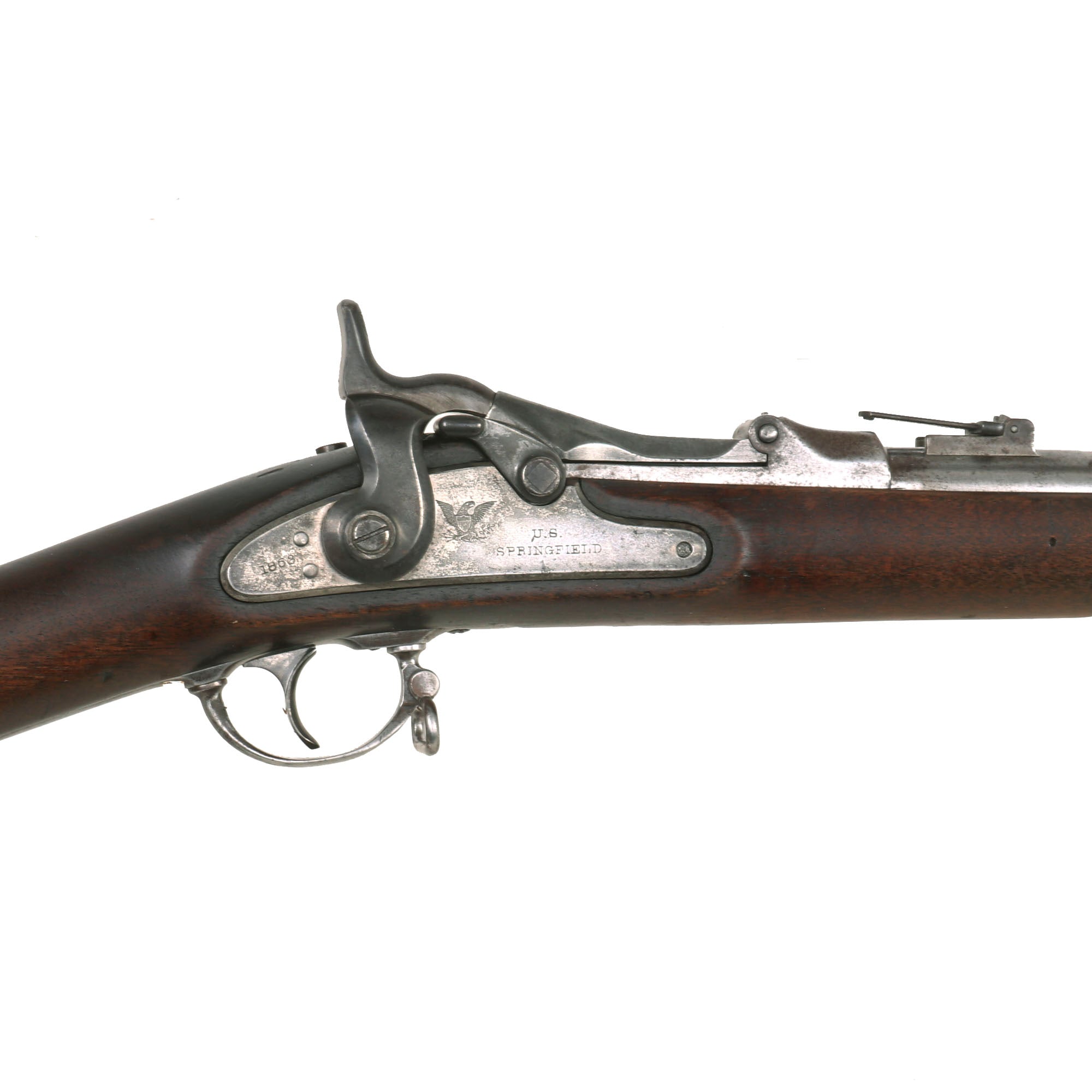

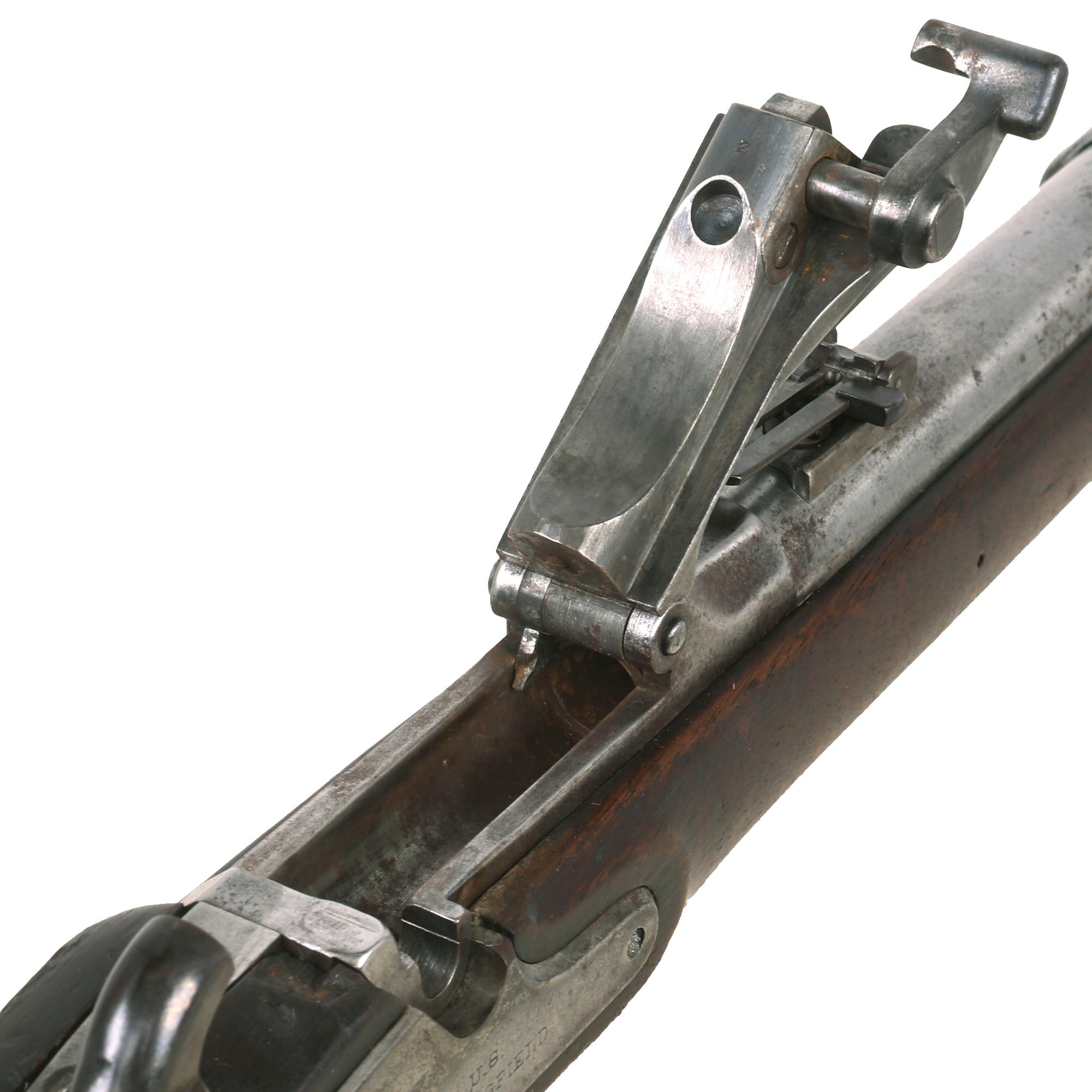

In fine polished condition, the lock is dated 1863 across the tail and has an EAGLE over U.S. over SPRINGFIELD, indicating original manufacture at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. The Breech Block is marked with MODEL / 1870 / Eagle's Head / Crossed Arrows / U.S., the correct marking for the 2nd version of the breech block. It has the correct long high arch on the underside, and an intact ejector, which we have not tested with actual brass. There is also a 1961 marking on the left side of the barrel under the sight, but we do not know if this is a serial number, or just a rack marking.

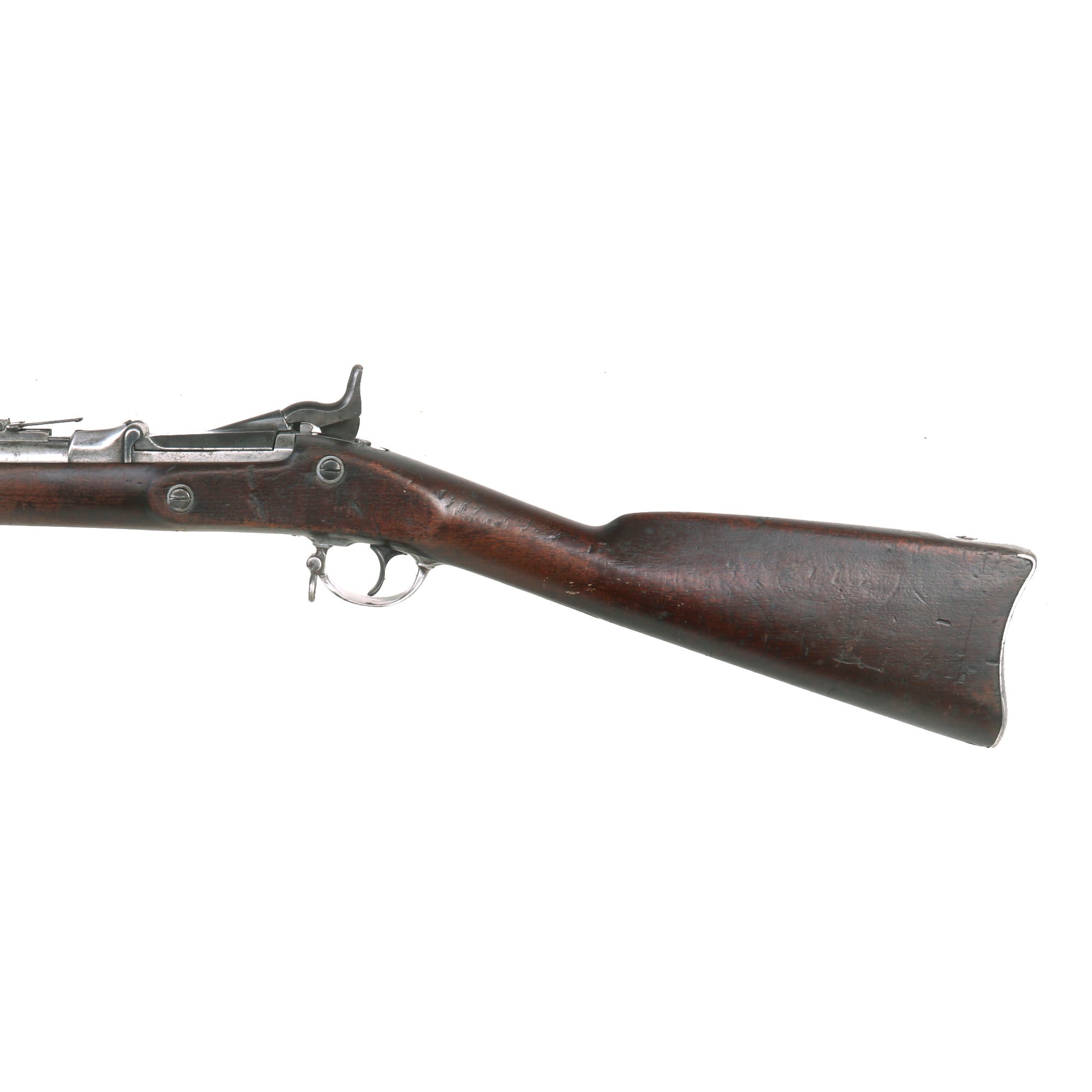

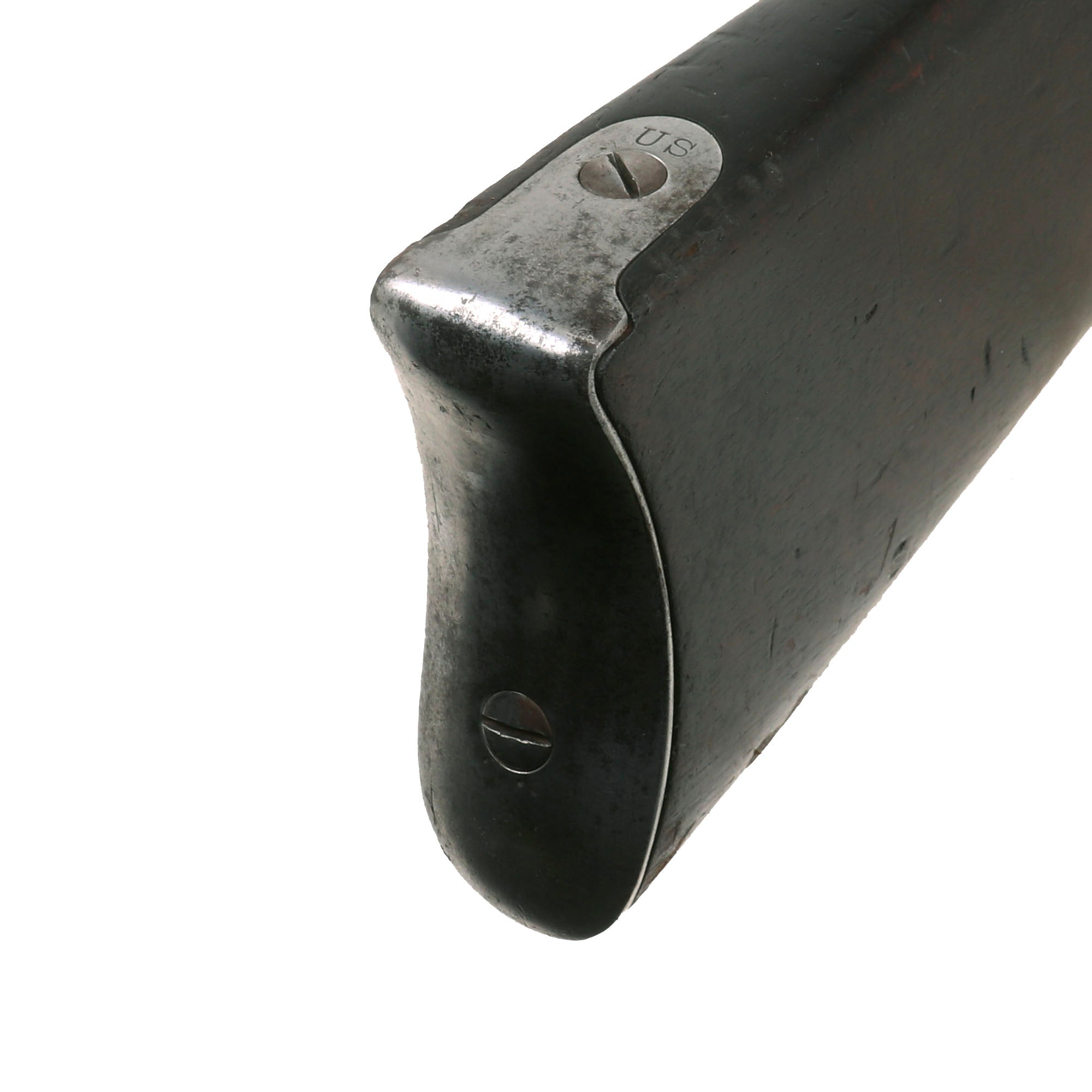

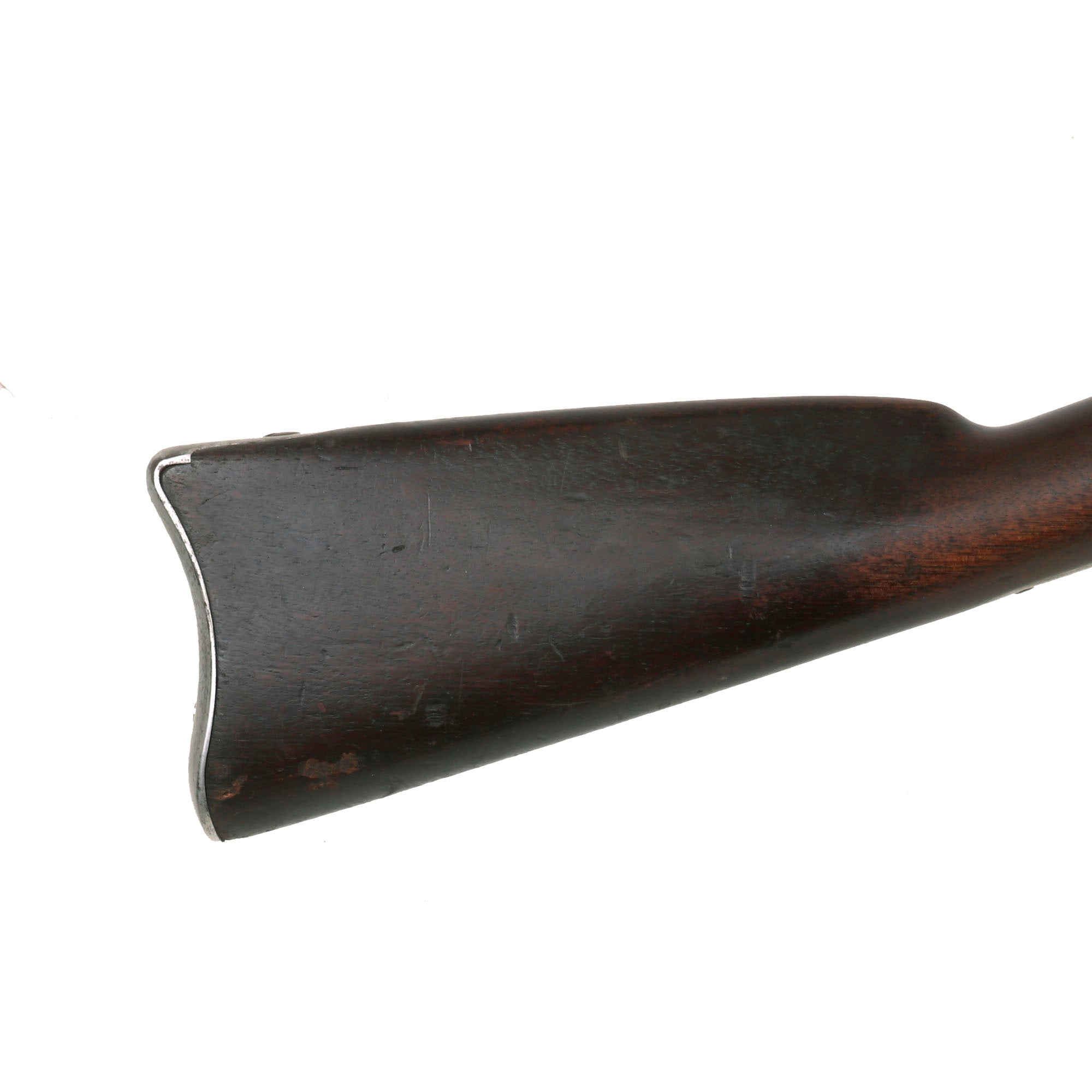

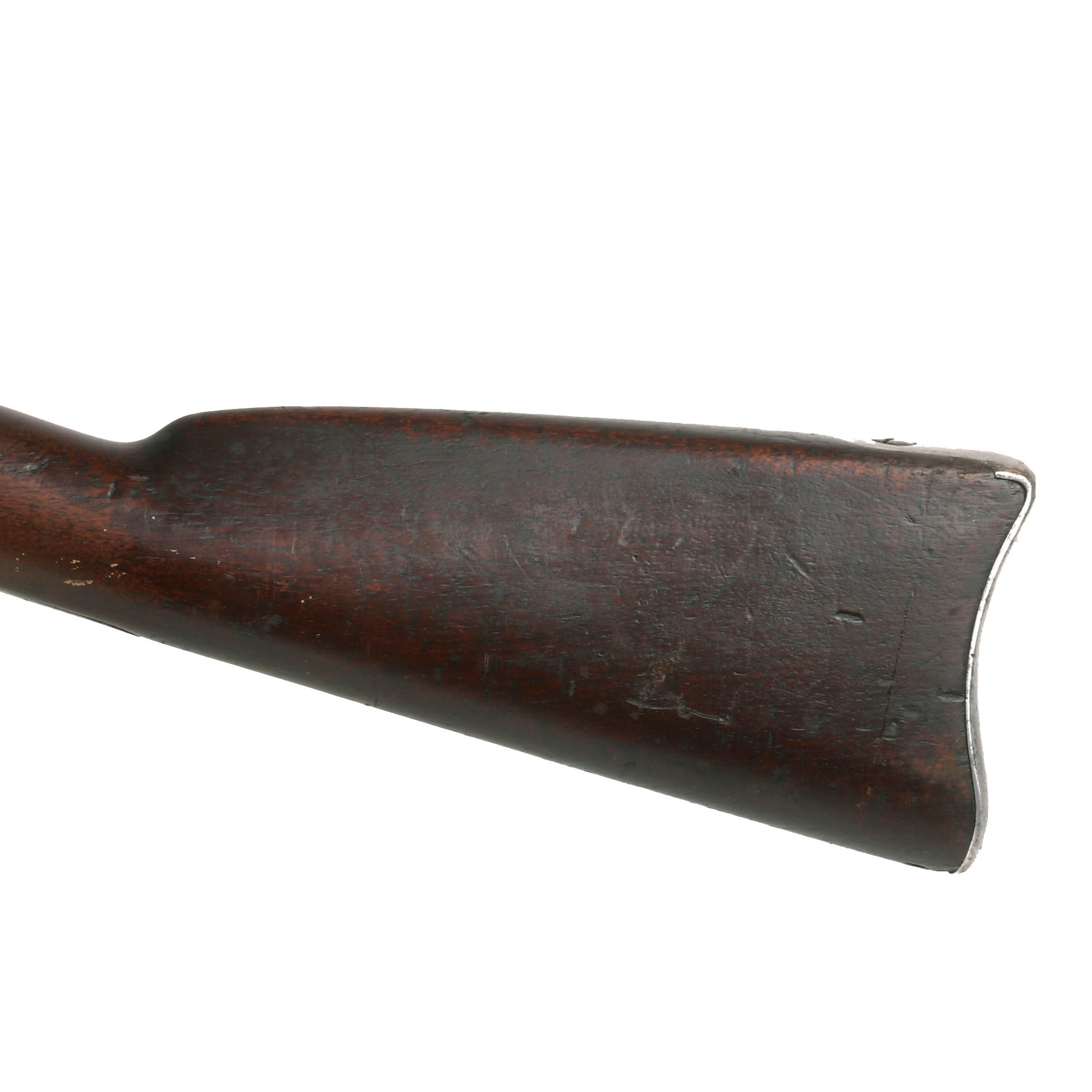

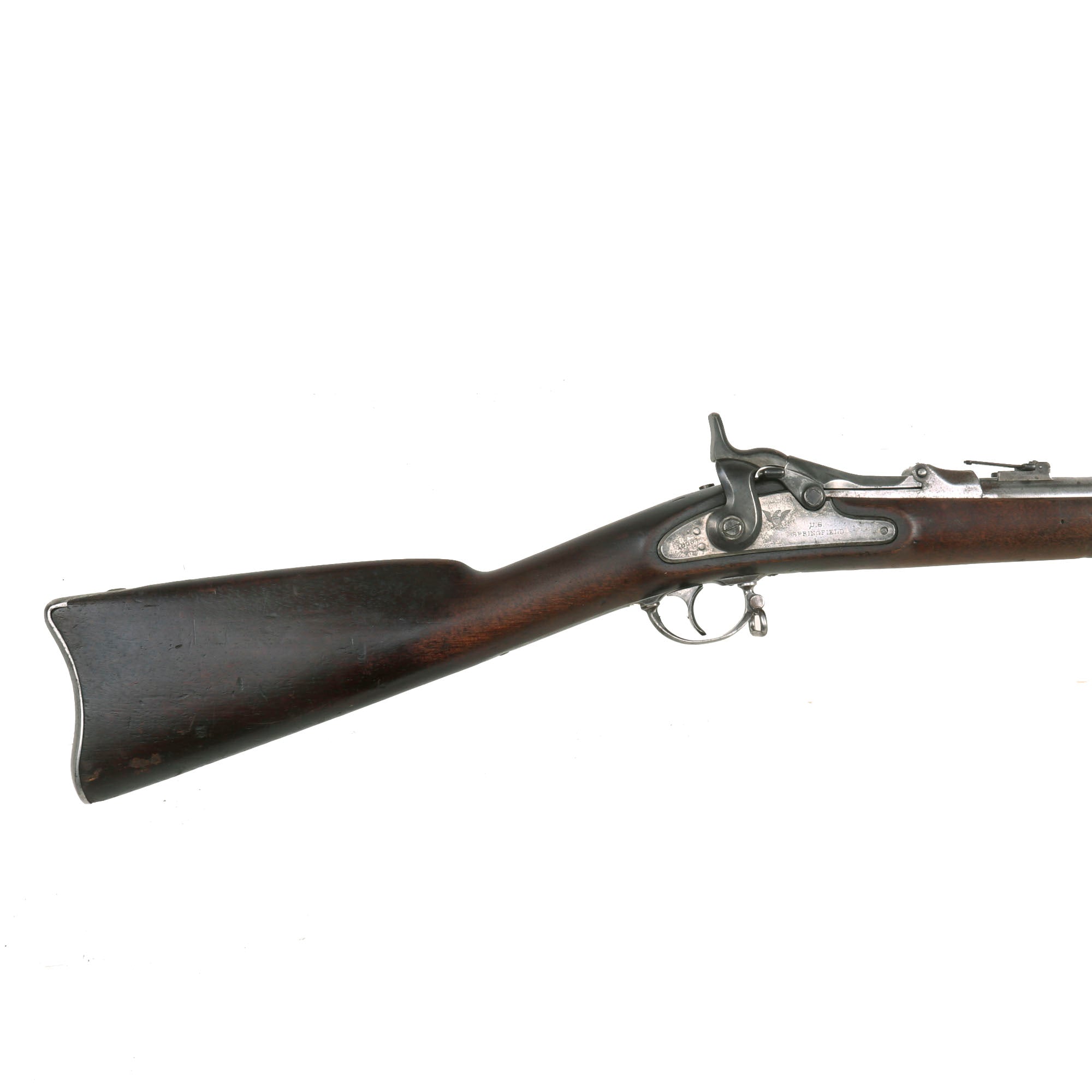

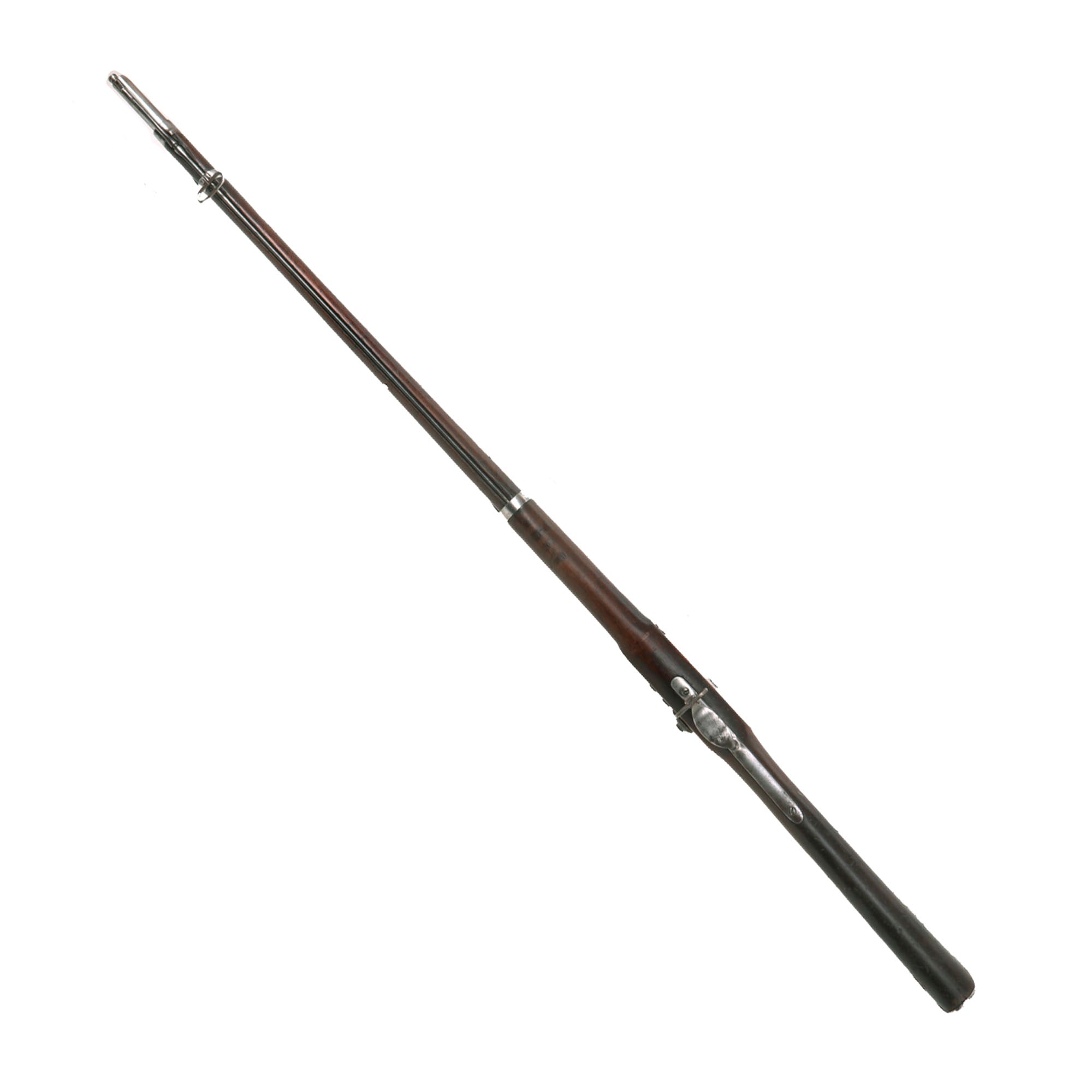

In lovely service used condition, this is a rare U.S. Military Rifle that led to the the legendary Model of 1873. The stock is in good condition with the expected dents and dings from age, as well as some gouges. It shows overall wear, and unfortunately any stock inspection cartouches it had on the left side have been worn away. There are some "finger groves" worn under the fore stock area, and some missing wood along the fore stock wood line. The Metal components are also in very good condition, showing a bright polished steel patina overall, with some areas of staining and peppering, as expected on a rifle of this age. It does not show any signs of a restoration, just repeated cleaning over its many years of age.

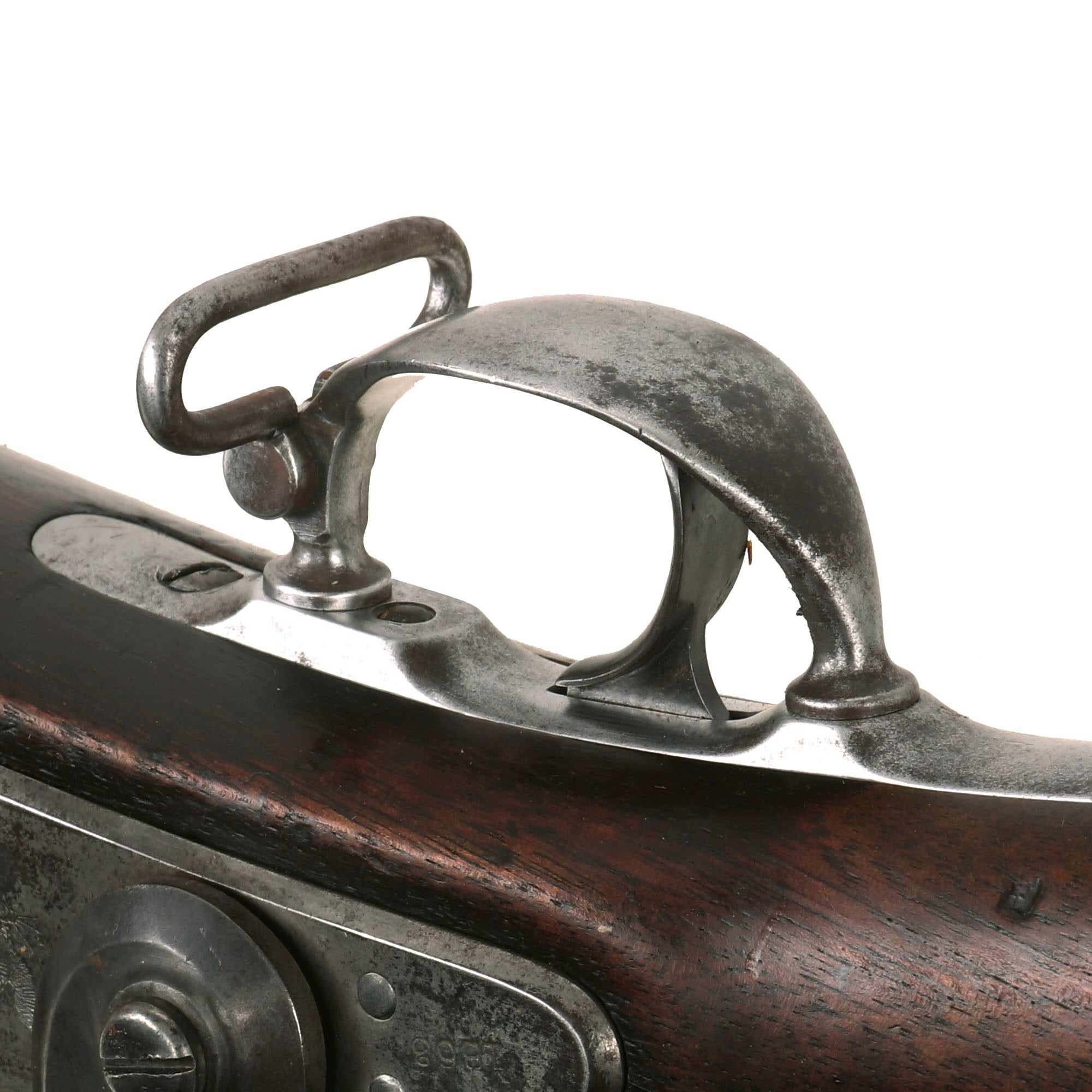

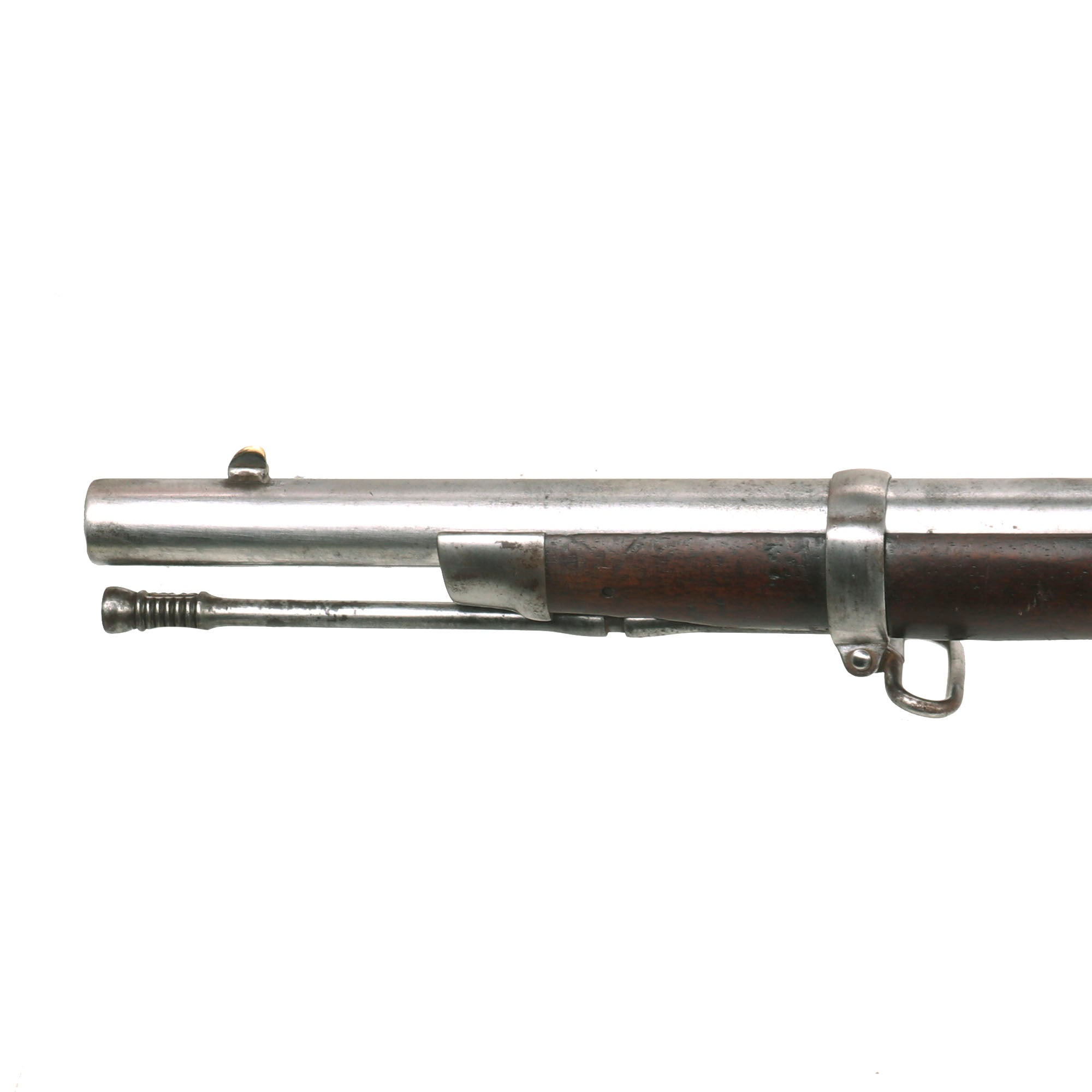

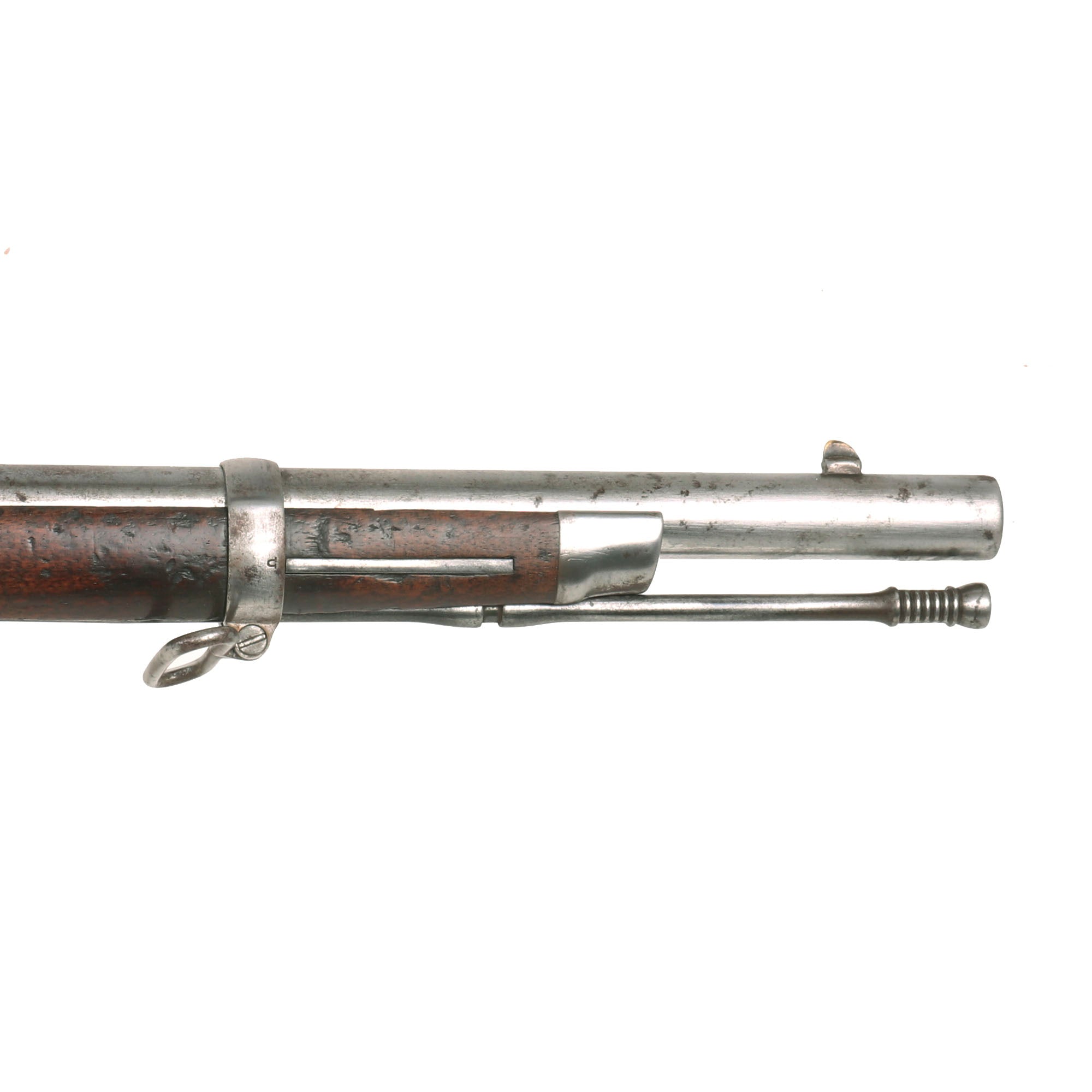

The bore is in very good condition, with strong lands and grooves and a mostly bright finish on the three groove rifling. There is some light fouling and wear from service, as to be expected, but no major oxidation or damage. The rear sight is still intact and fully functional, and both sling swivels are present, though the trigger guard swivel is quite stiff. The correct double shouldered cleaning rod still in place.
An very nice example of the M-1870 Converted rifle, Fully Cleaned and showing a lovely patina of age. Ready to research and display!
Specifications-
Year of Manufacture: 1863 - Converted c.1872-1873
Caliber: .50-70 government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 1/2 Inches
Overall Length: 52 Inches
Action type: Side Action Lock
Feed System: Trapdoor Breech Single Shot
