Original U.S. Civil War Springfield M-1822 Musket Converted to Percussion - Marked PHILA 1825

Regular price $1,195.00

Item Description

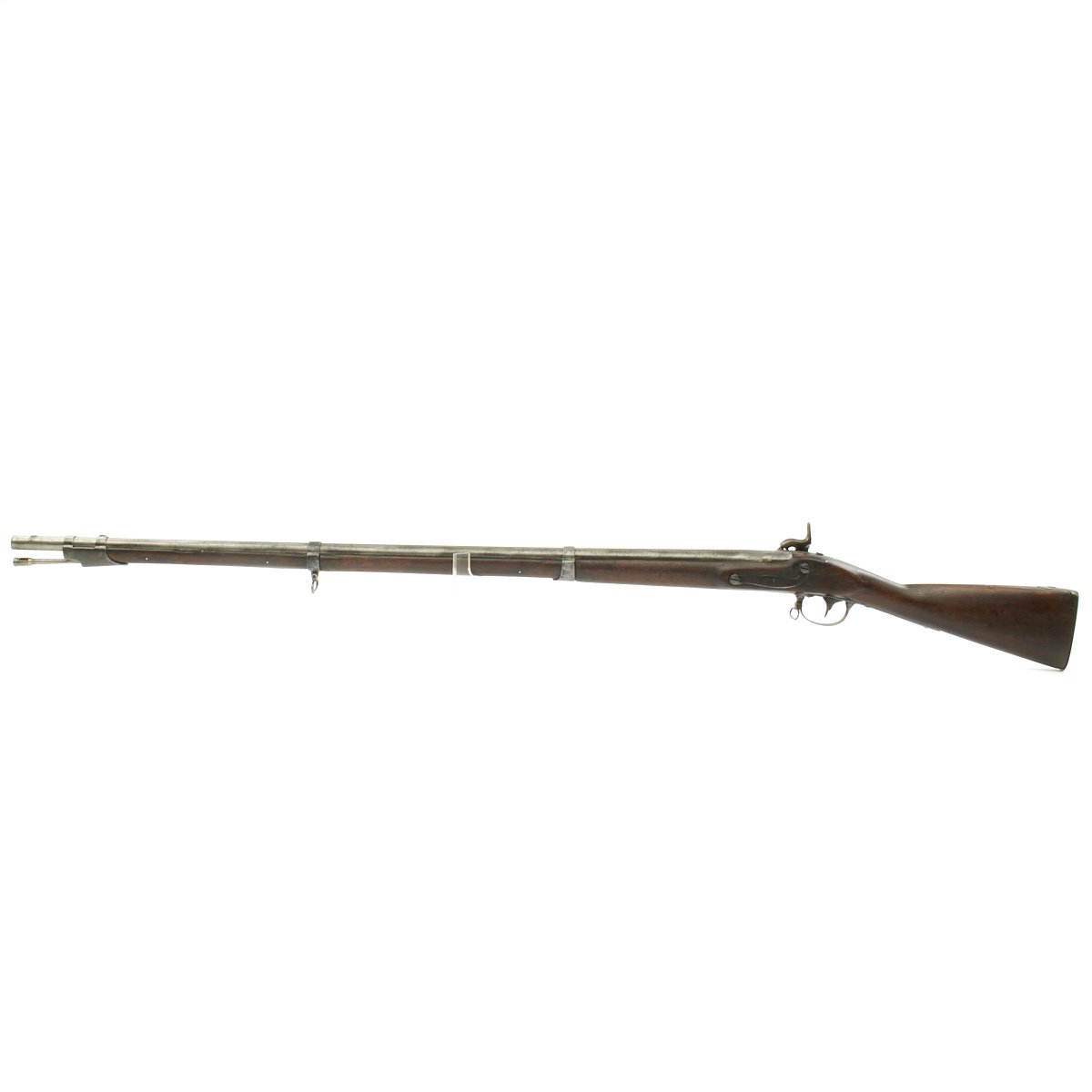

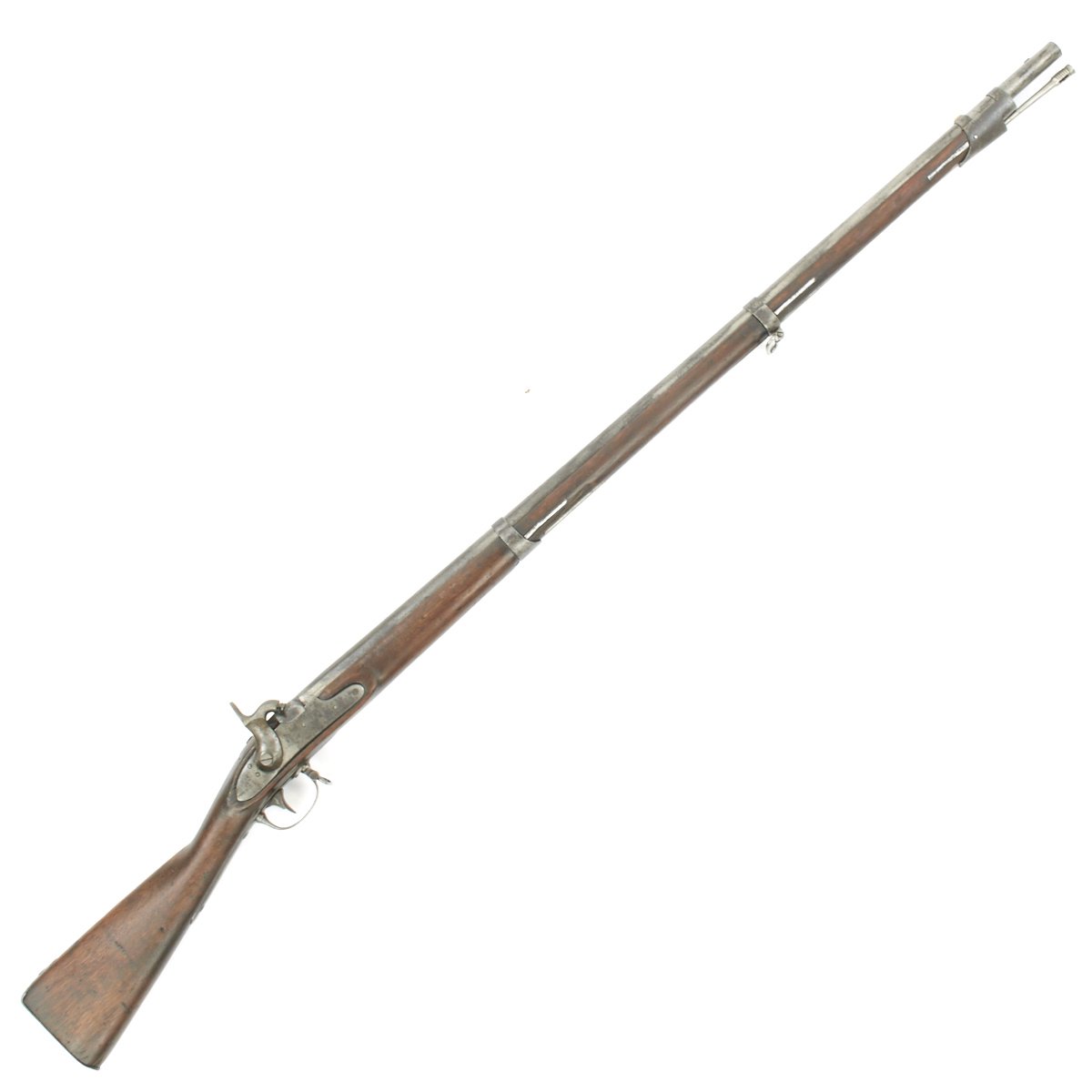

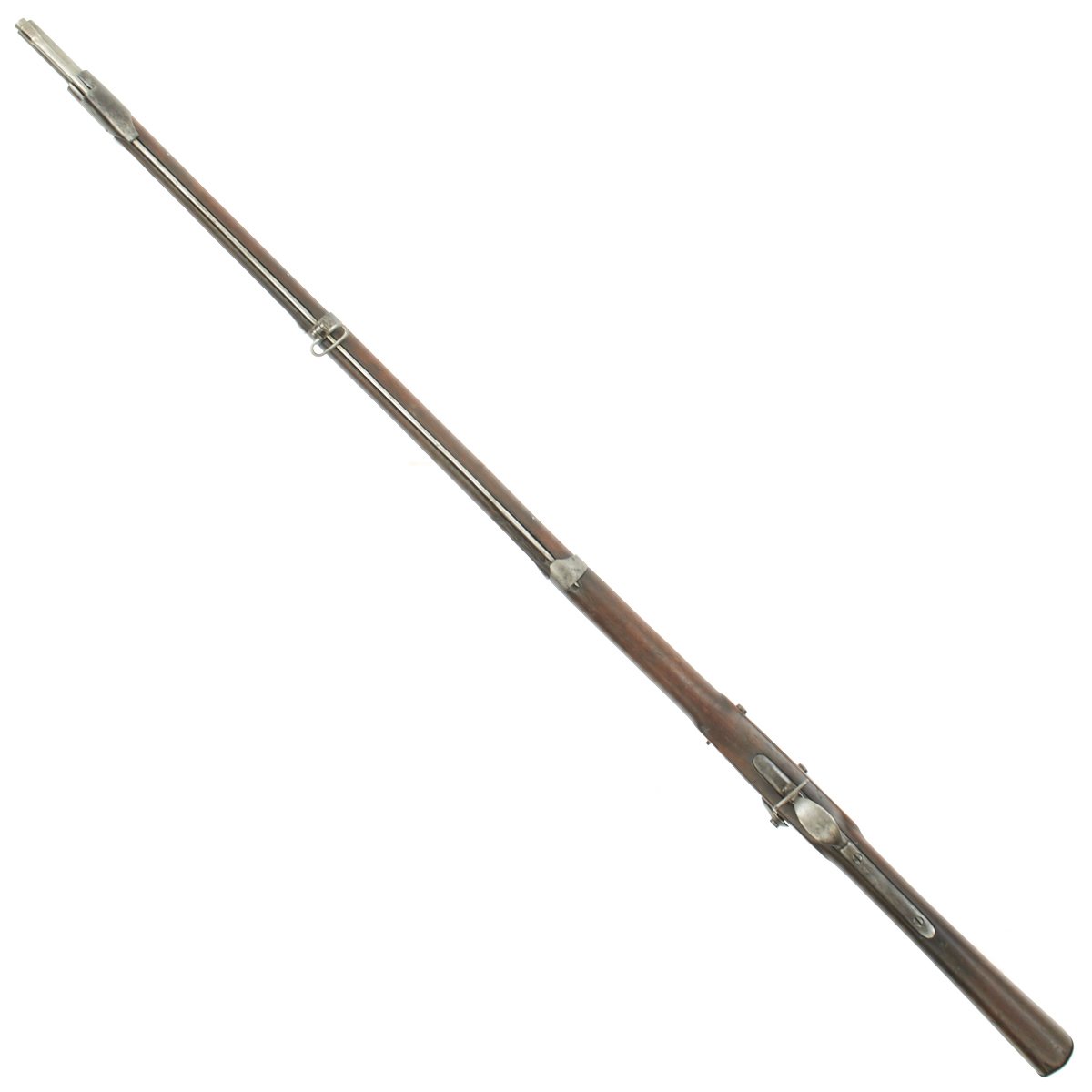

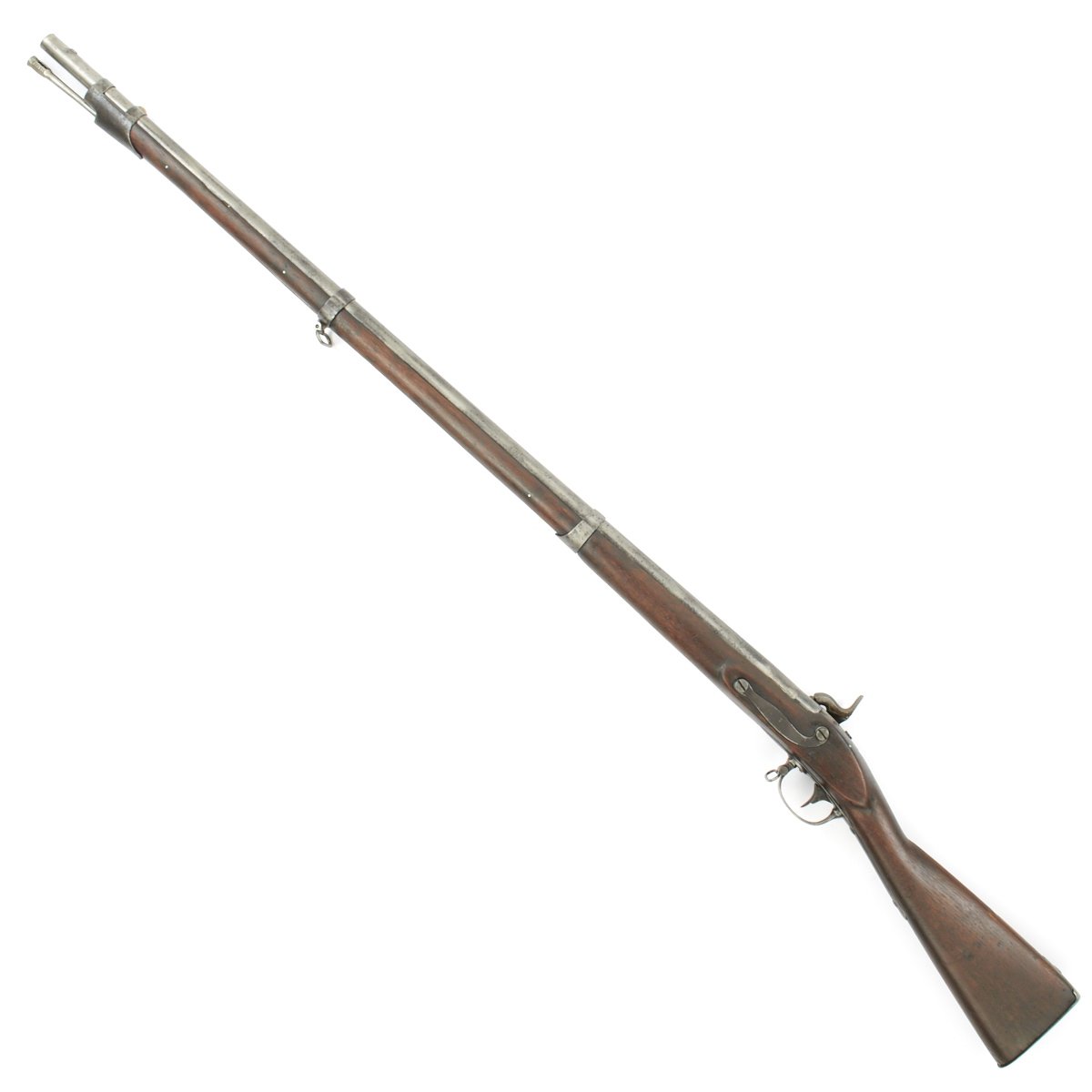

Original item: One Only. The US Springfield Arsenal Model 1822 Musket was a .69 caliber musket manufactured and used in the United States during the 19th Century. It is a continuation of the Model 1816 line of muskets but is generally referred to as its own model number rather than just a variant of the Model 1816. All of these muskets were 58 inches long, with a barrel around 42 inches in length.

The outbreak of the Civil War in the United States created a large need for percussion muskets, as the number of modern firearms currently on hand was far short of what was needed. To fill this need, updating older design firearms was both faster and more cost effective, so many Model 1816 family muskets still in service were updated to percussion rifles. Also, many muskets converted to percussion in the 1840s-1850s were pressed back into service.

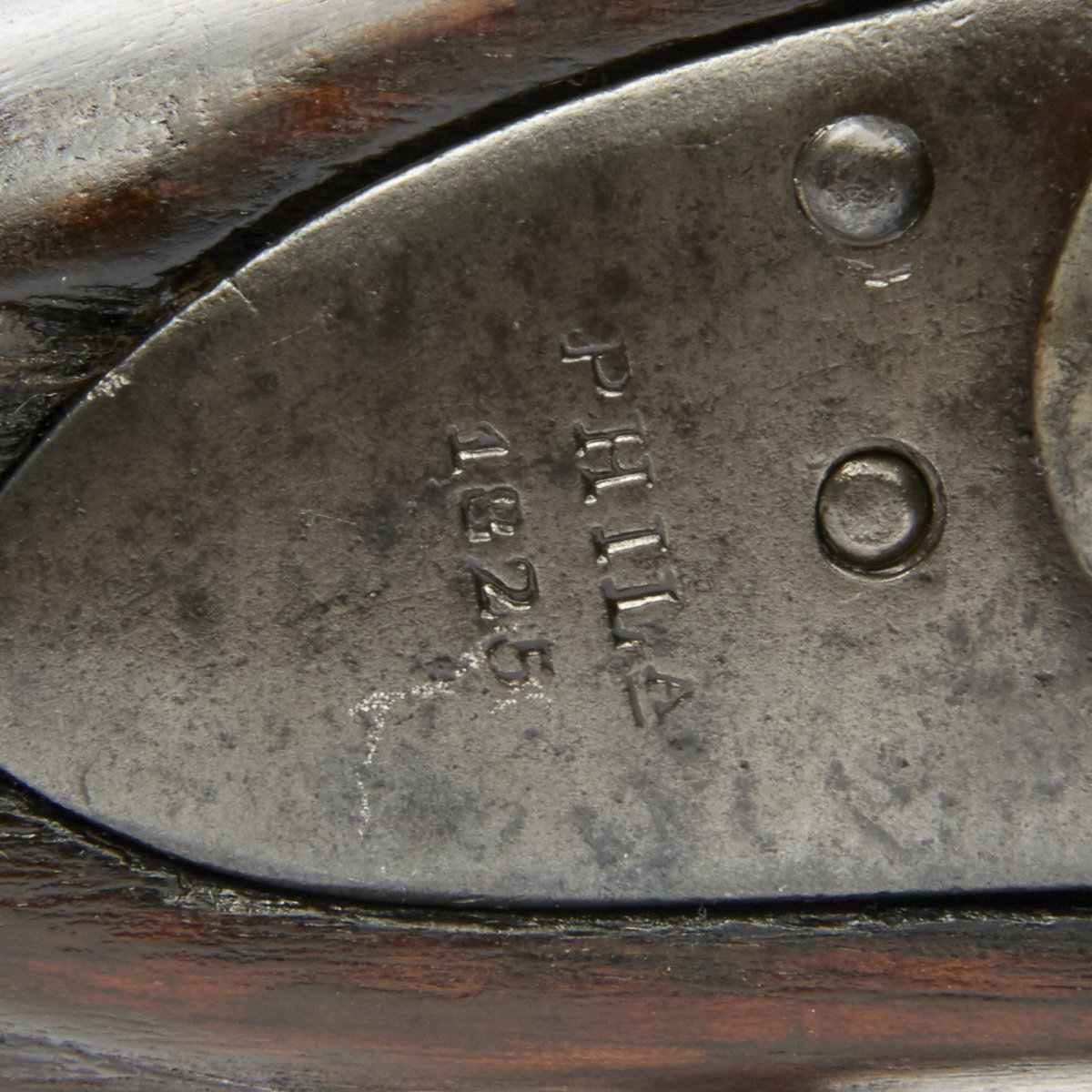

This example was originally manufactured In Philadelphia in 1825, as indicated by markings on the tail of the lock plate tail:

PHILA
1825

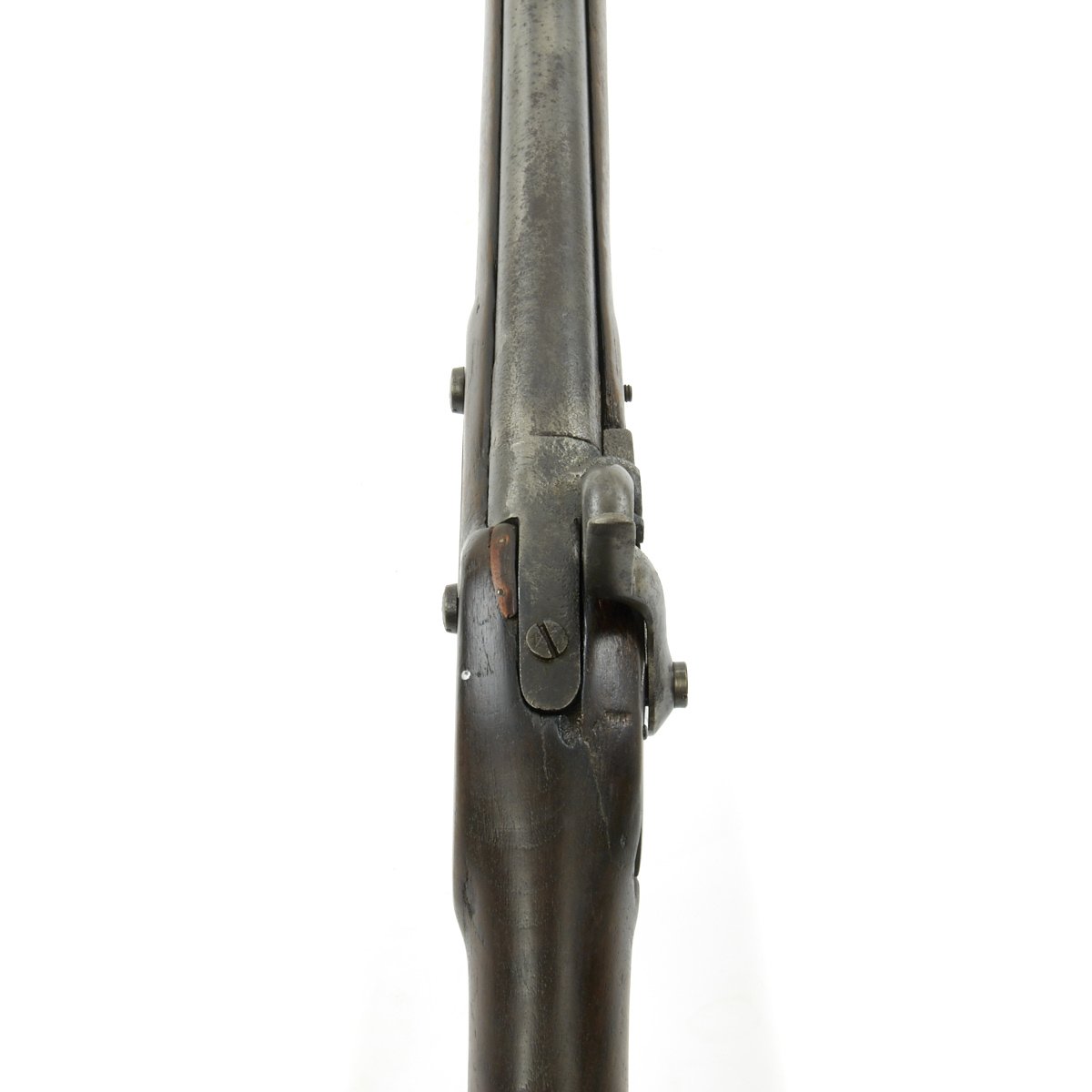

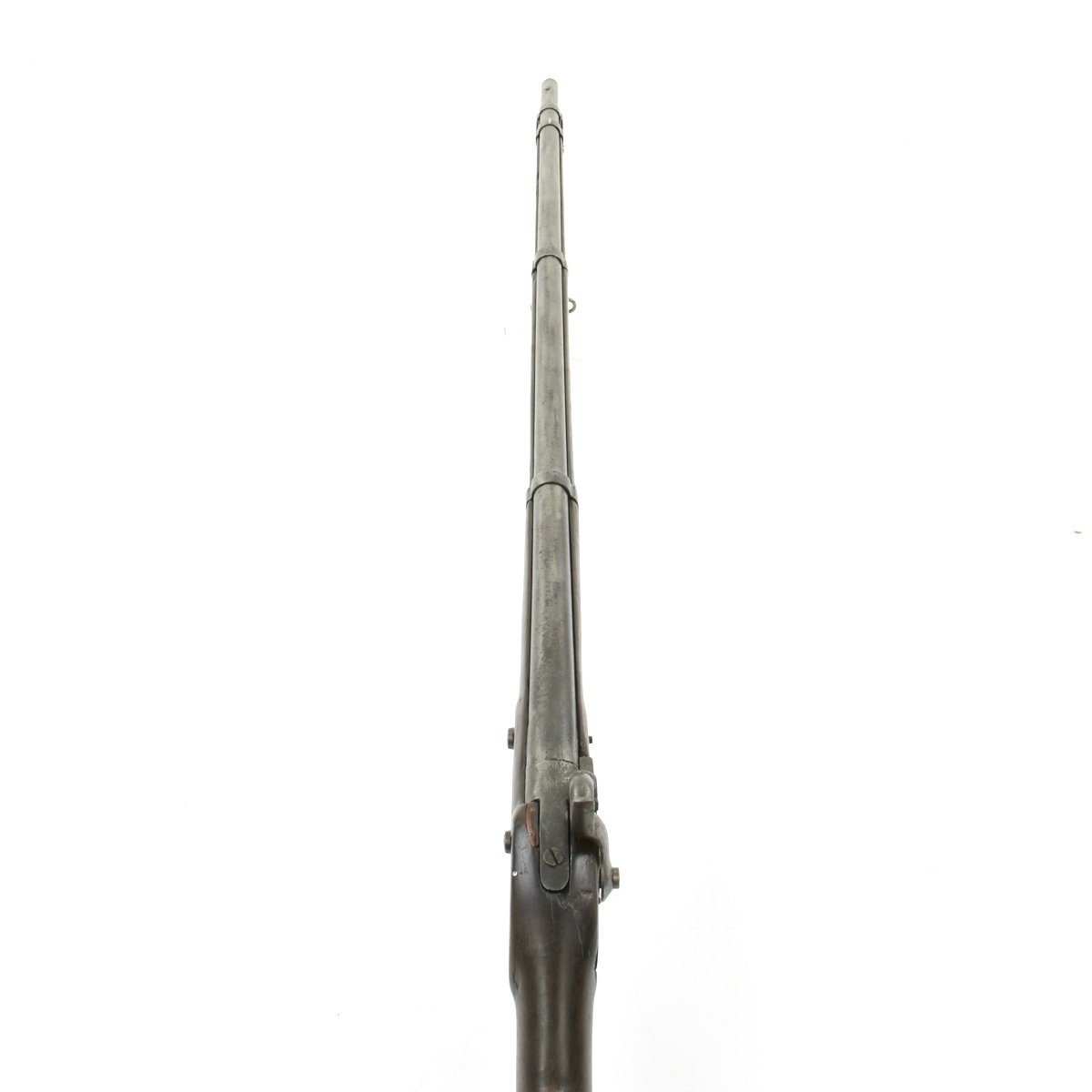

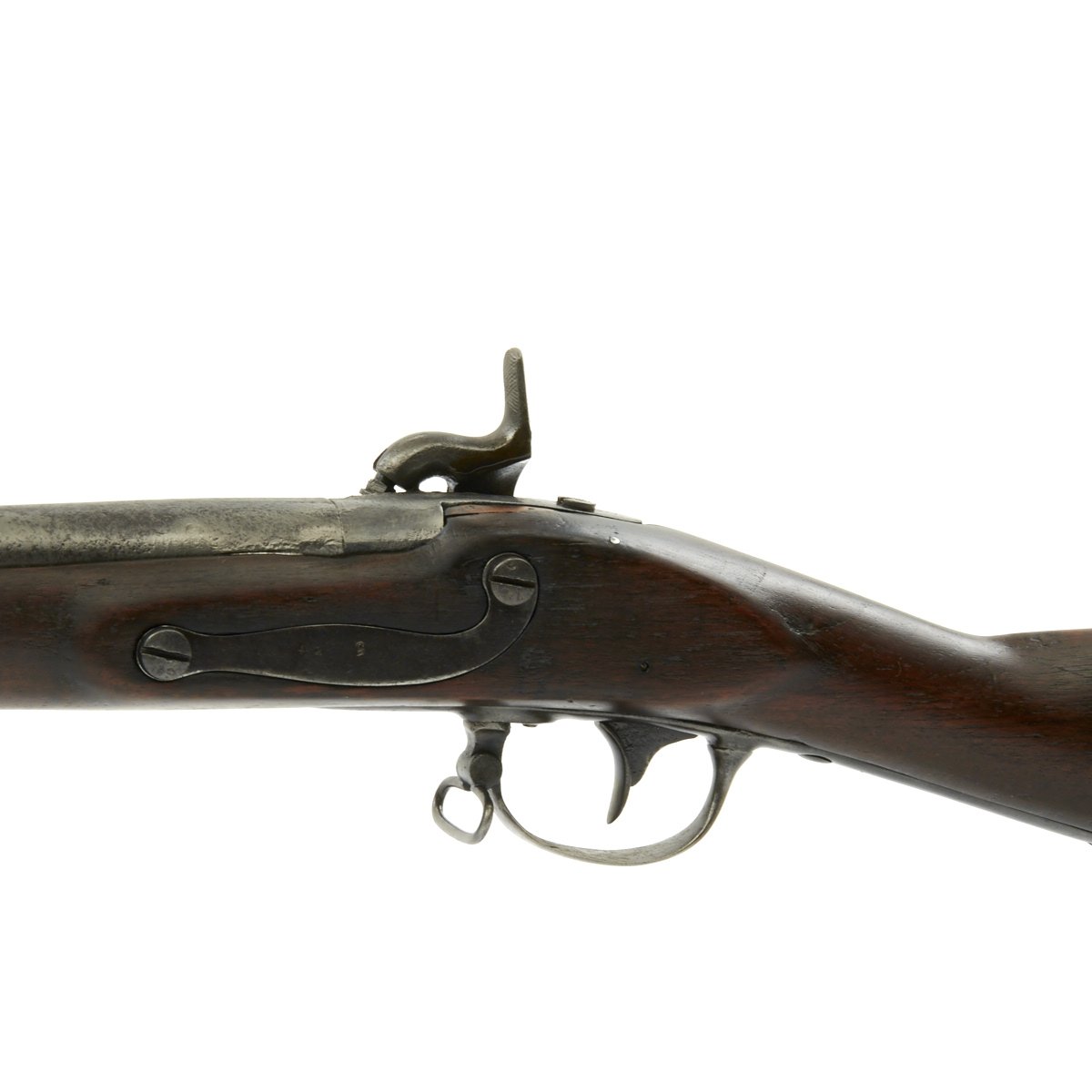

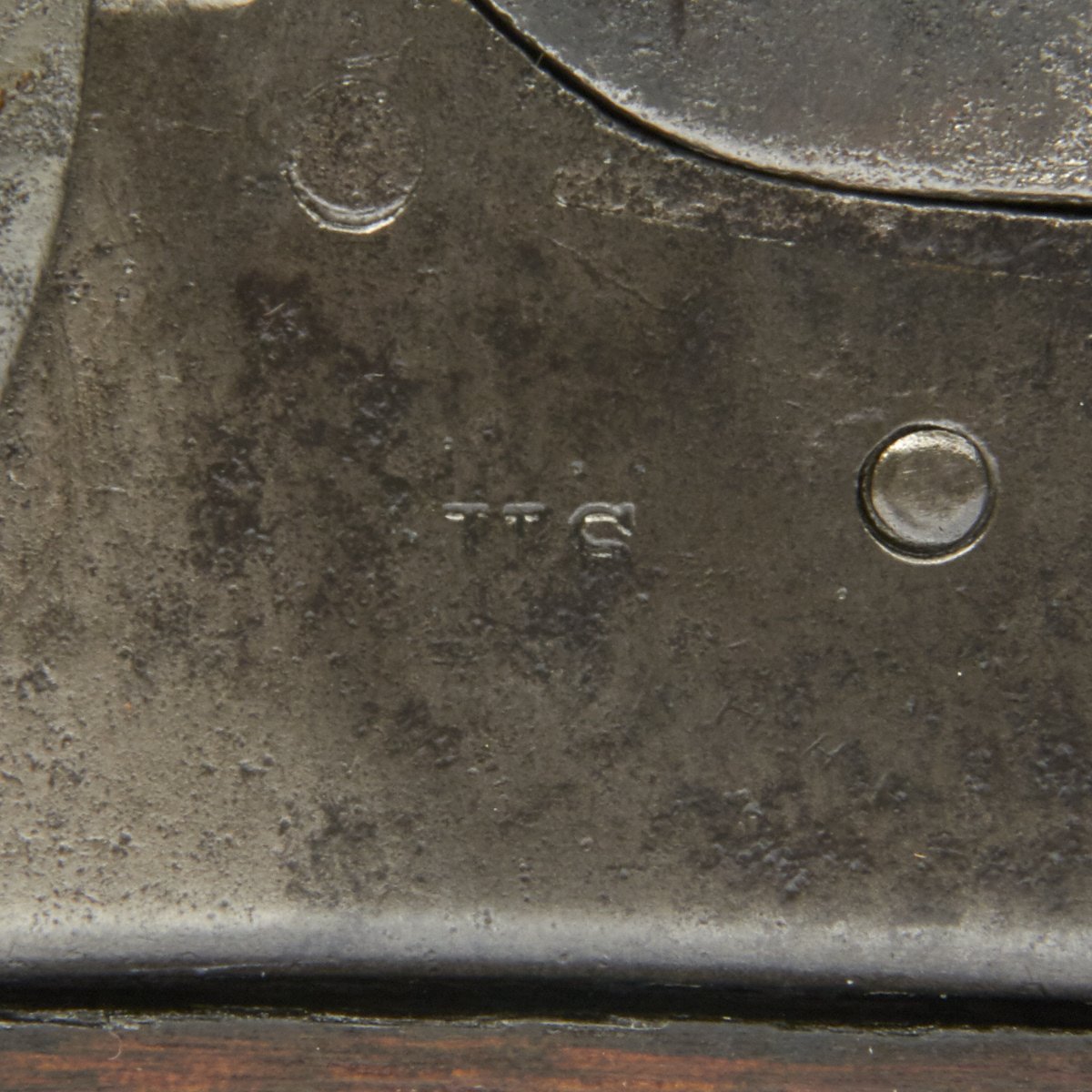

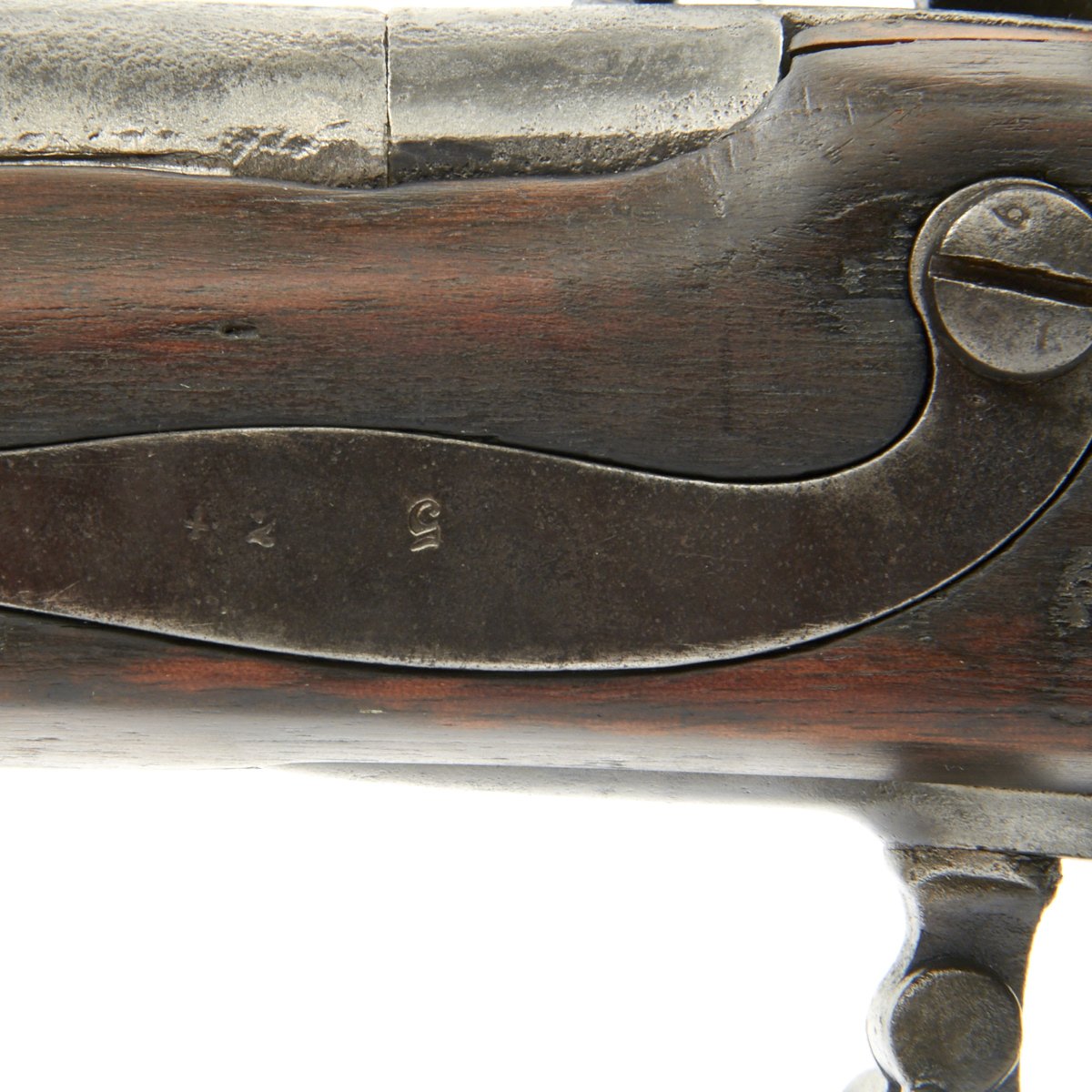

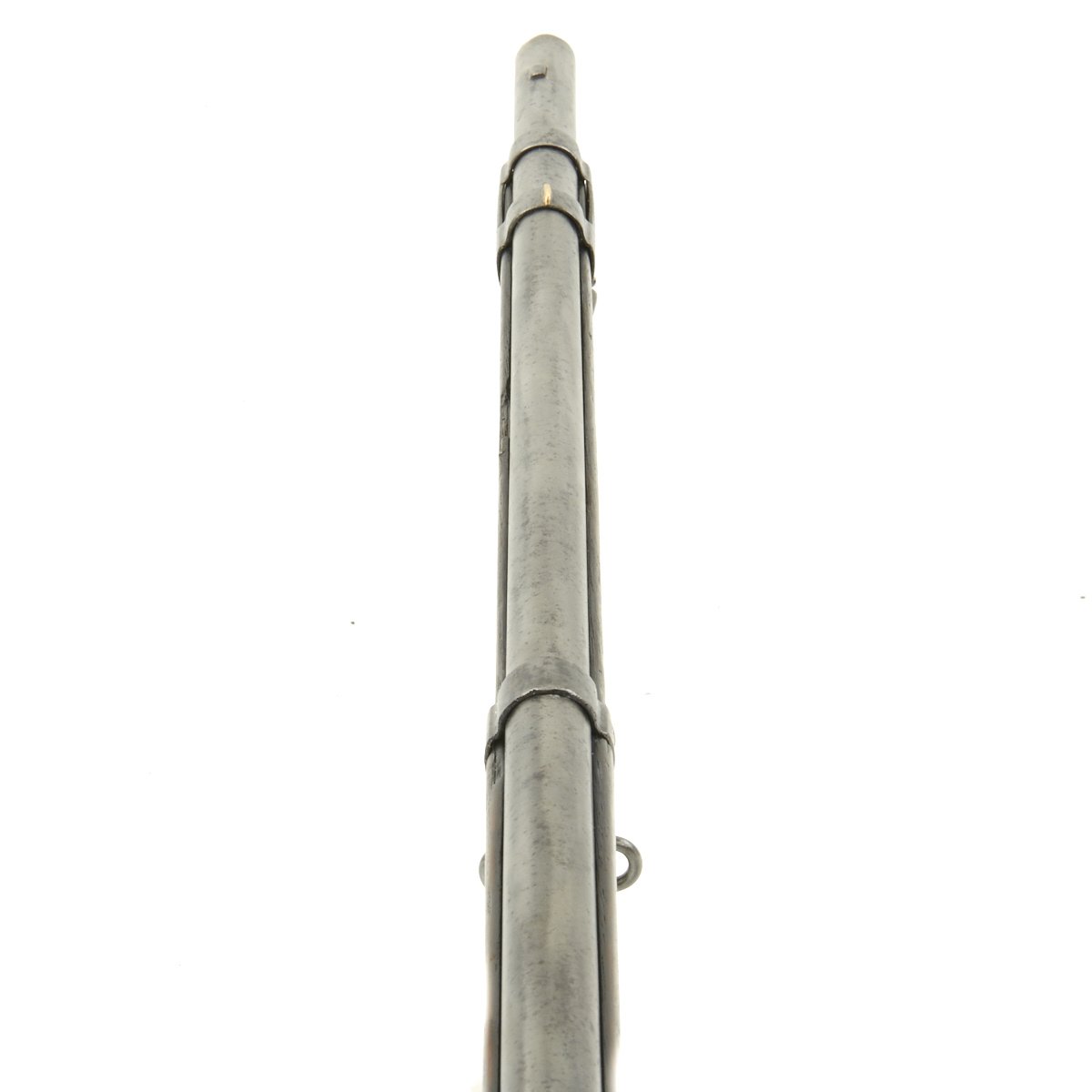

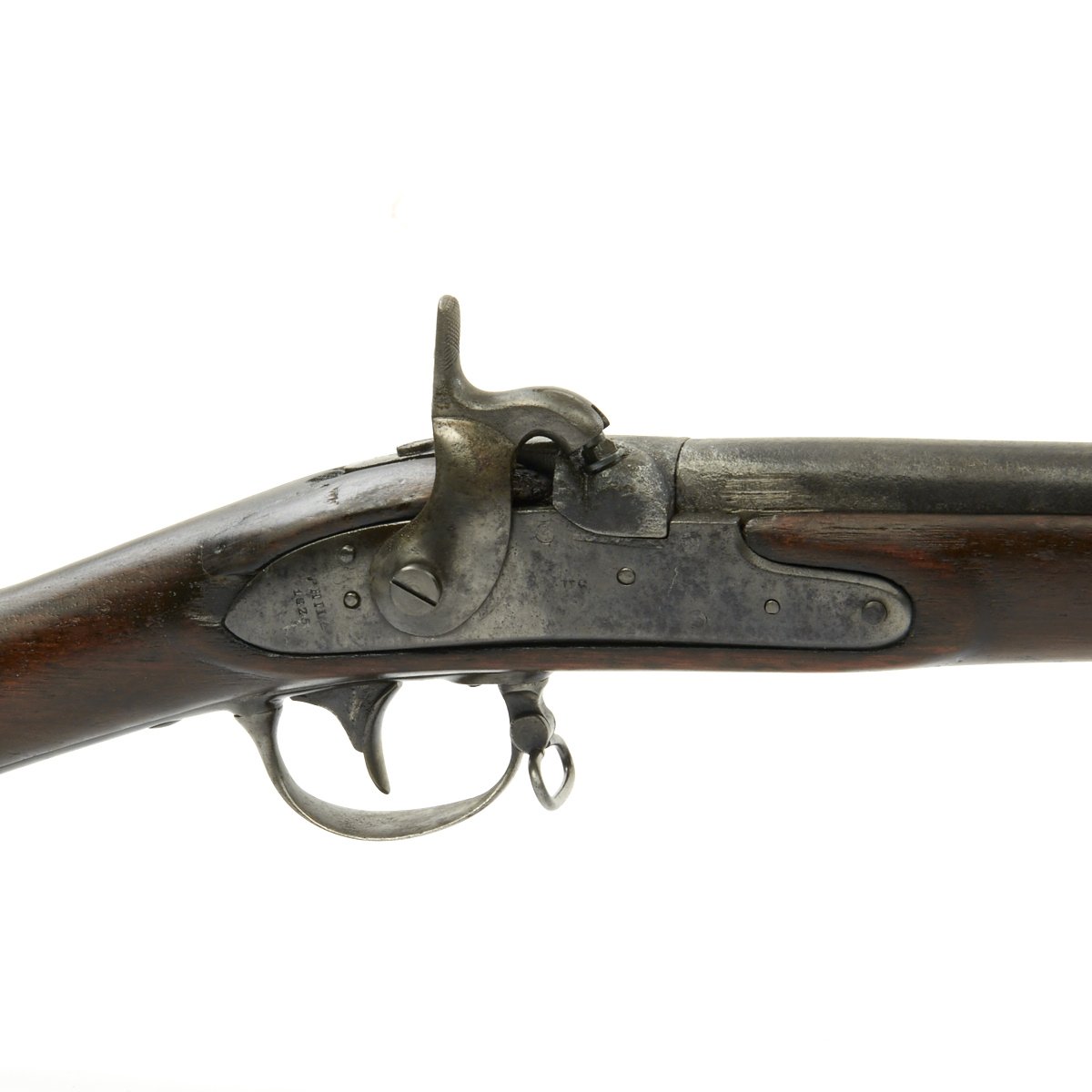

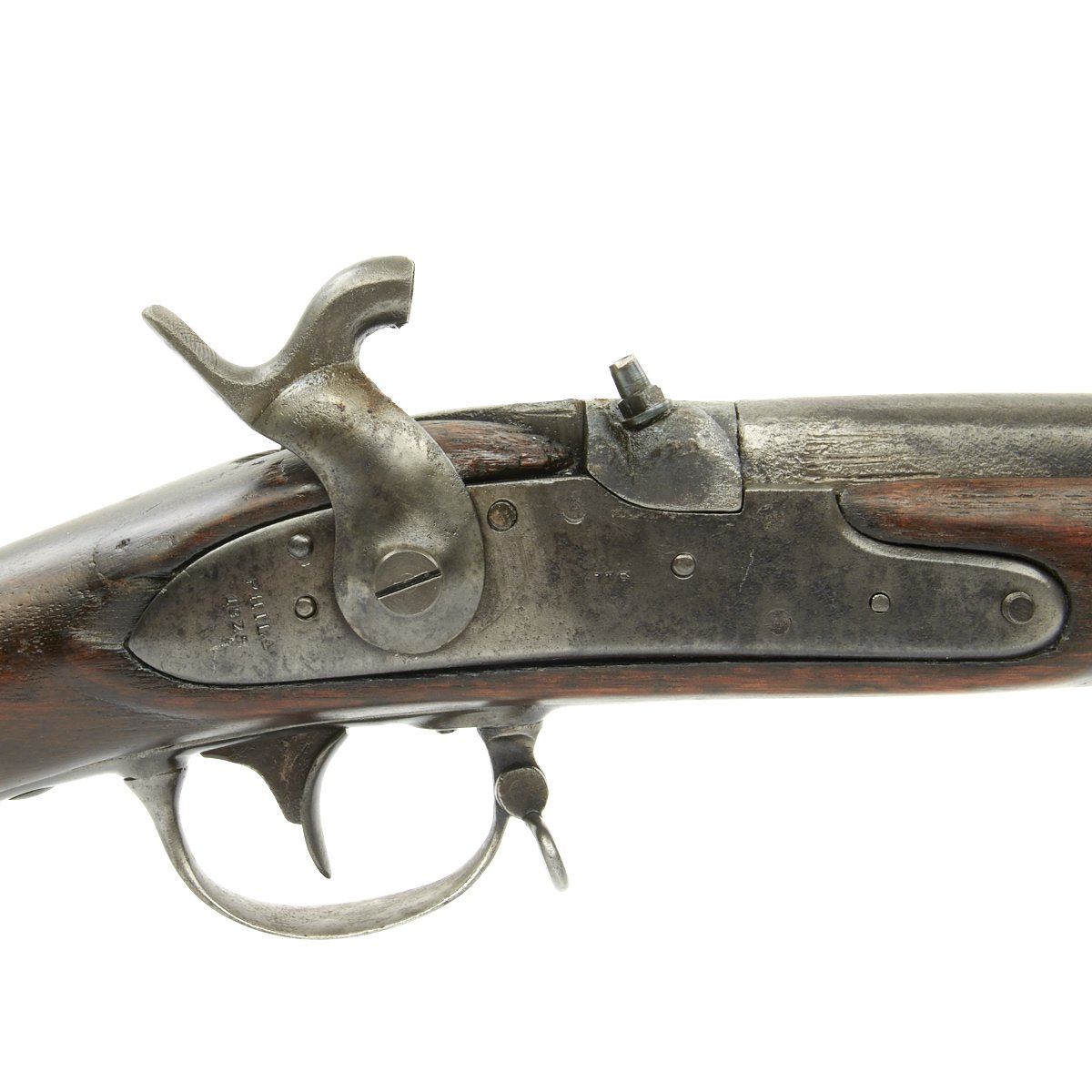

There is also U.S. on the lock plate in front of the hammer, however the eagle usually above it has worn off. Also due to powder burn, the markings on the barrel and barrel tang have been completely obliterated. This was the type of conversion that removed the end of the barrel, replacing it with a new plug and built-in bolster, so the original brass pan was completely removed from the lock plate. The musket's mounts are all of iron, and there are some areas of light corrosion and pitting.

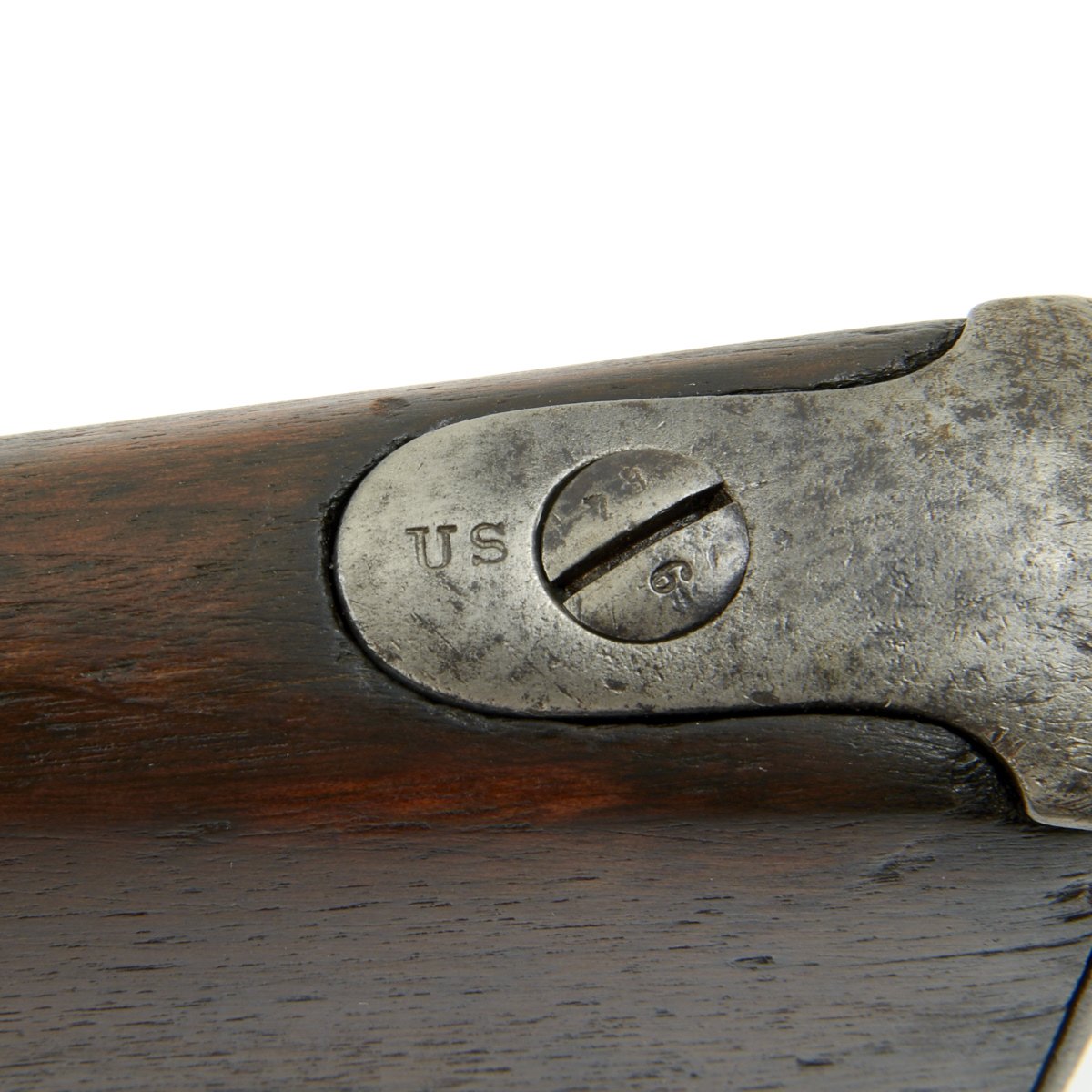

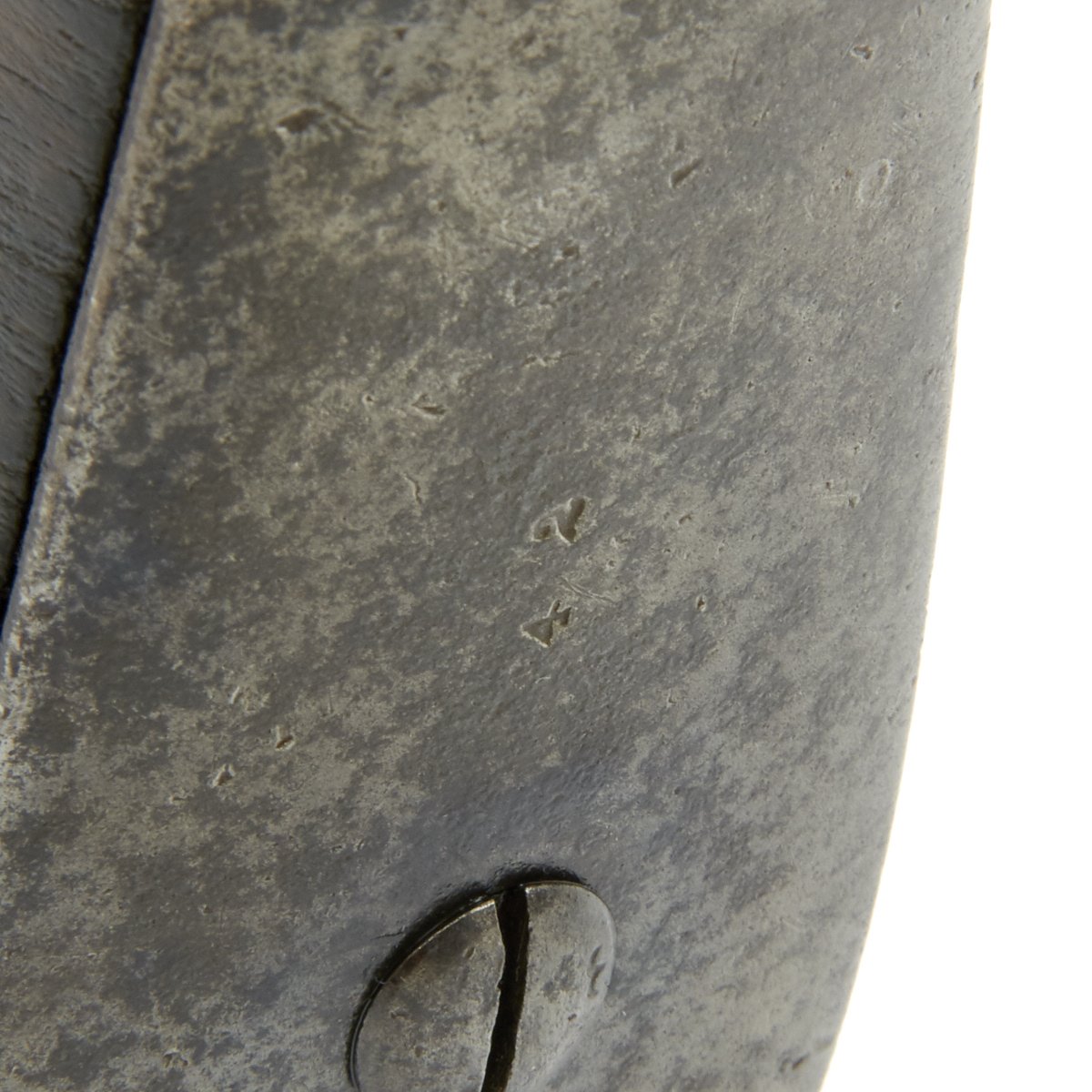

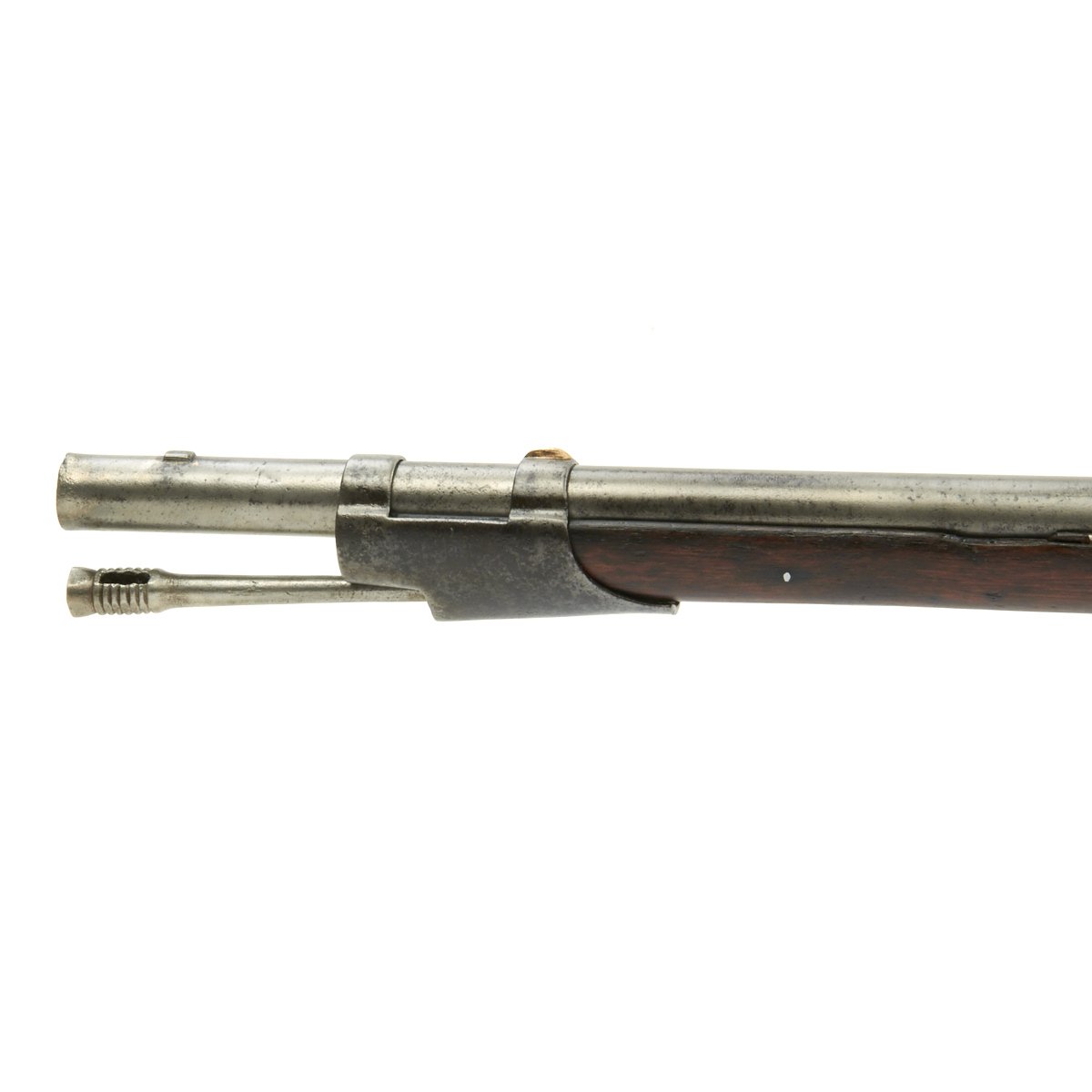

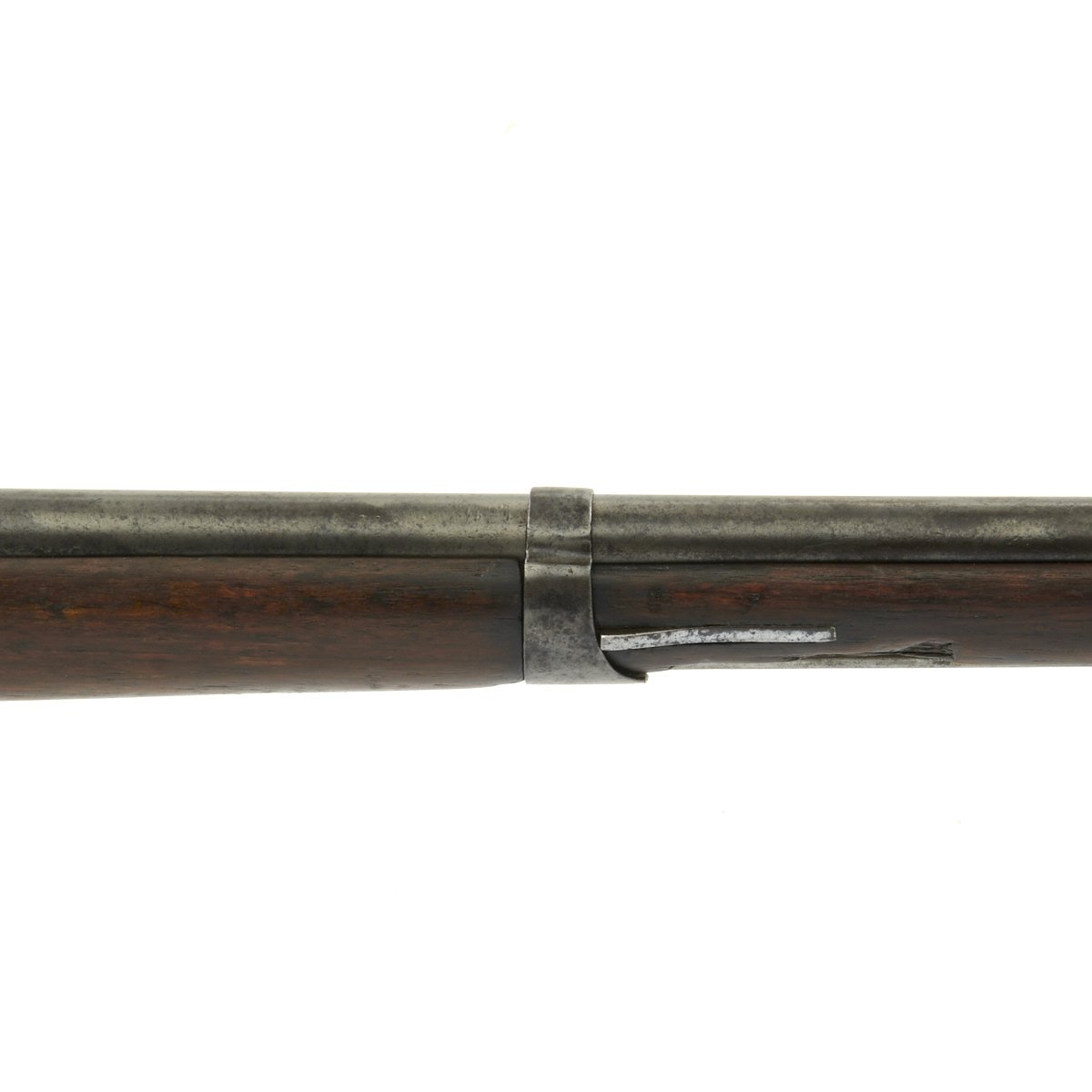

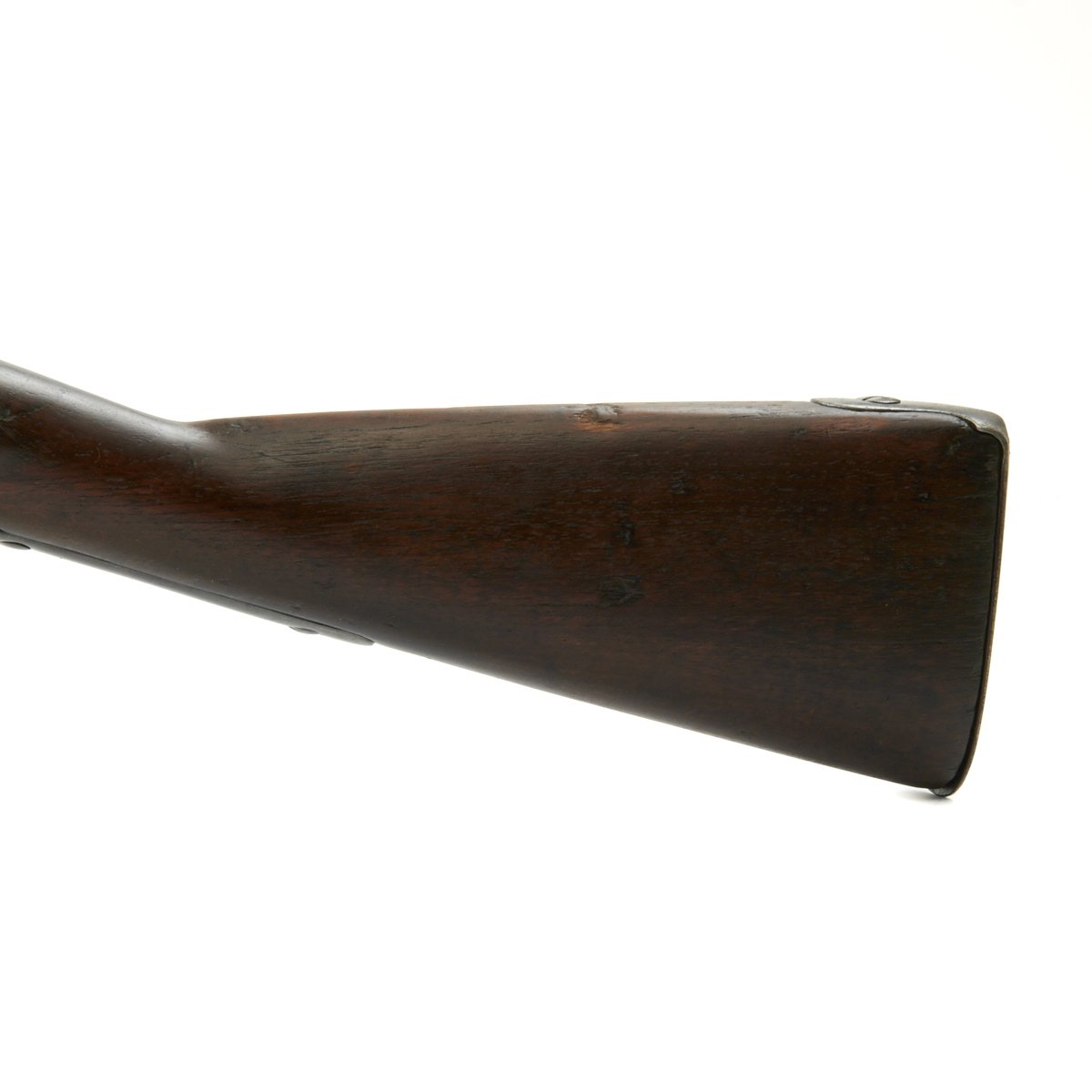

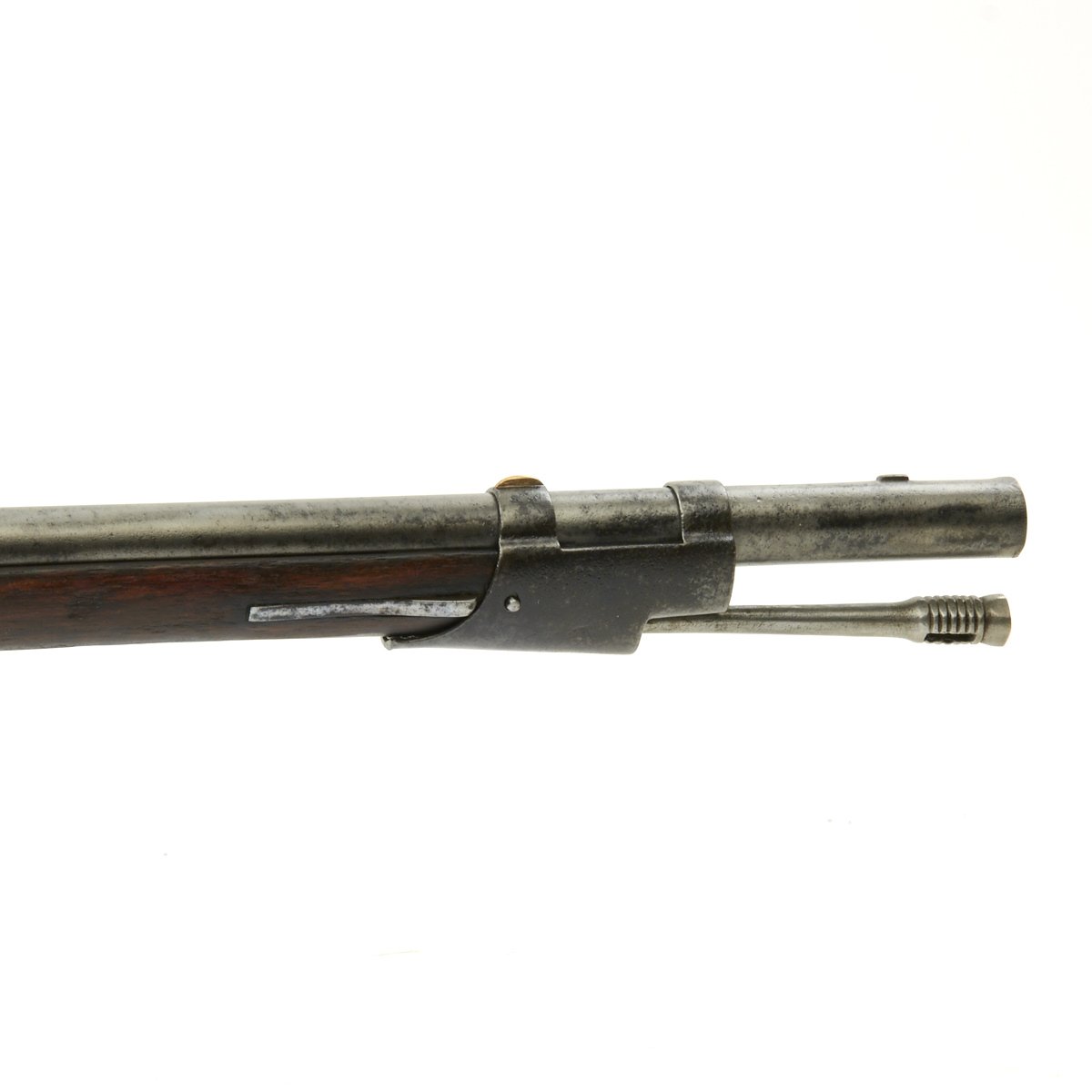

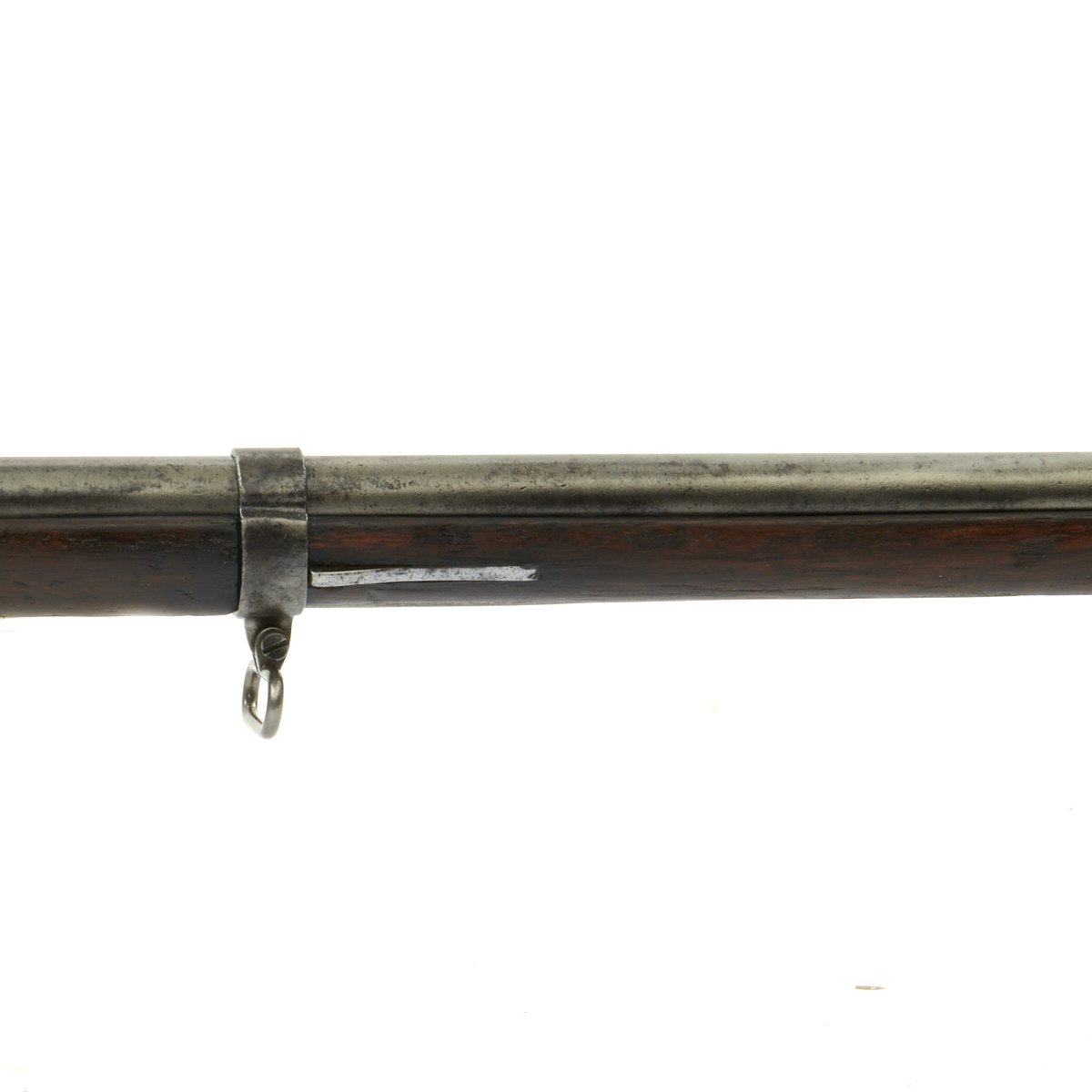

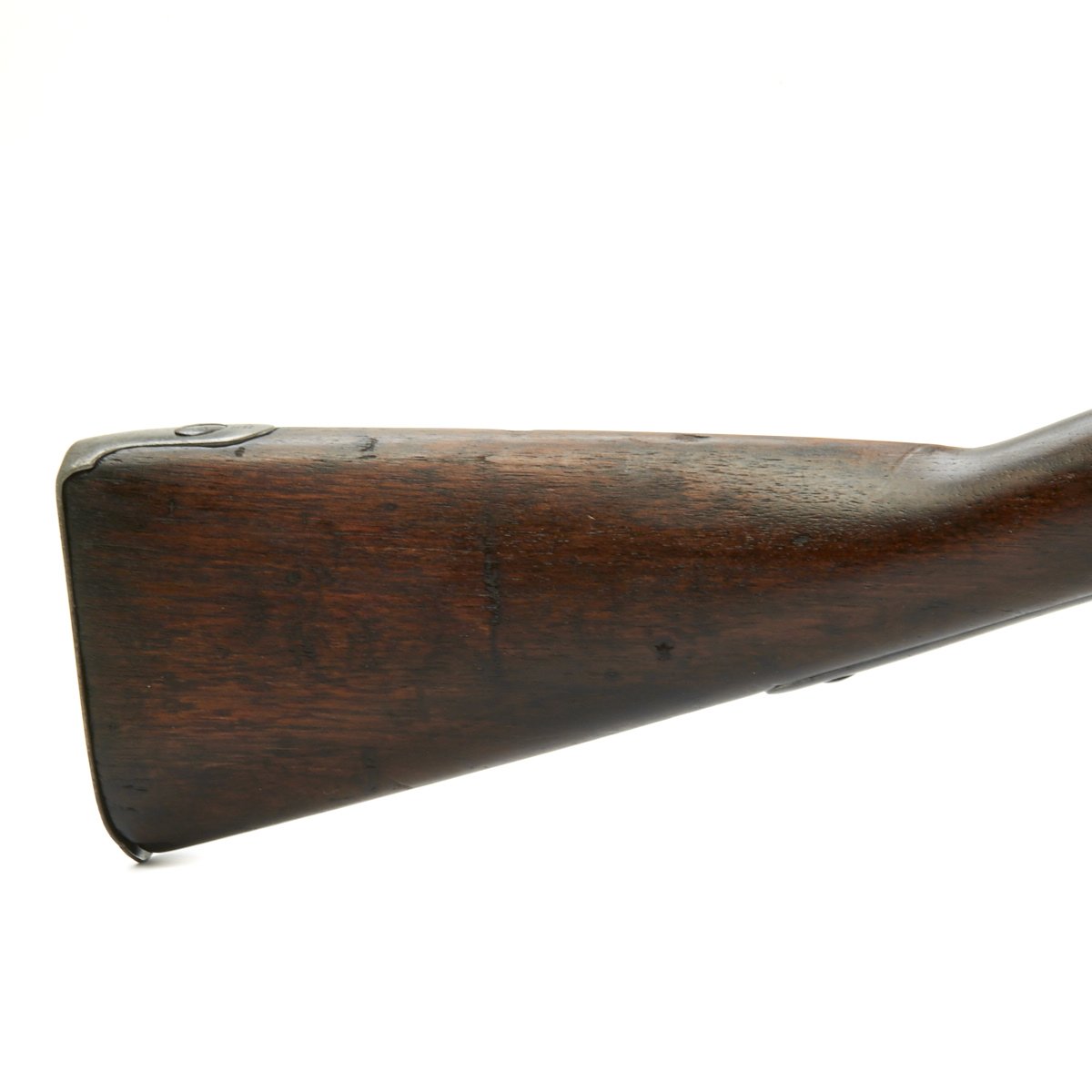

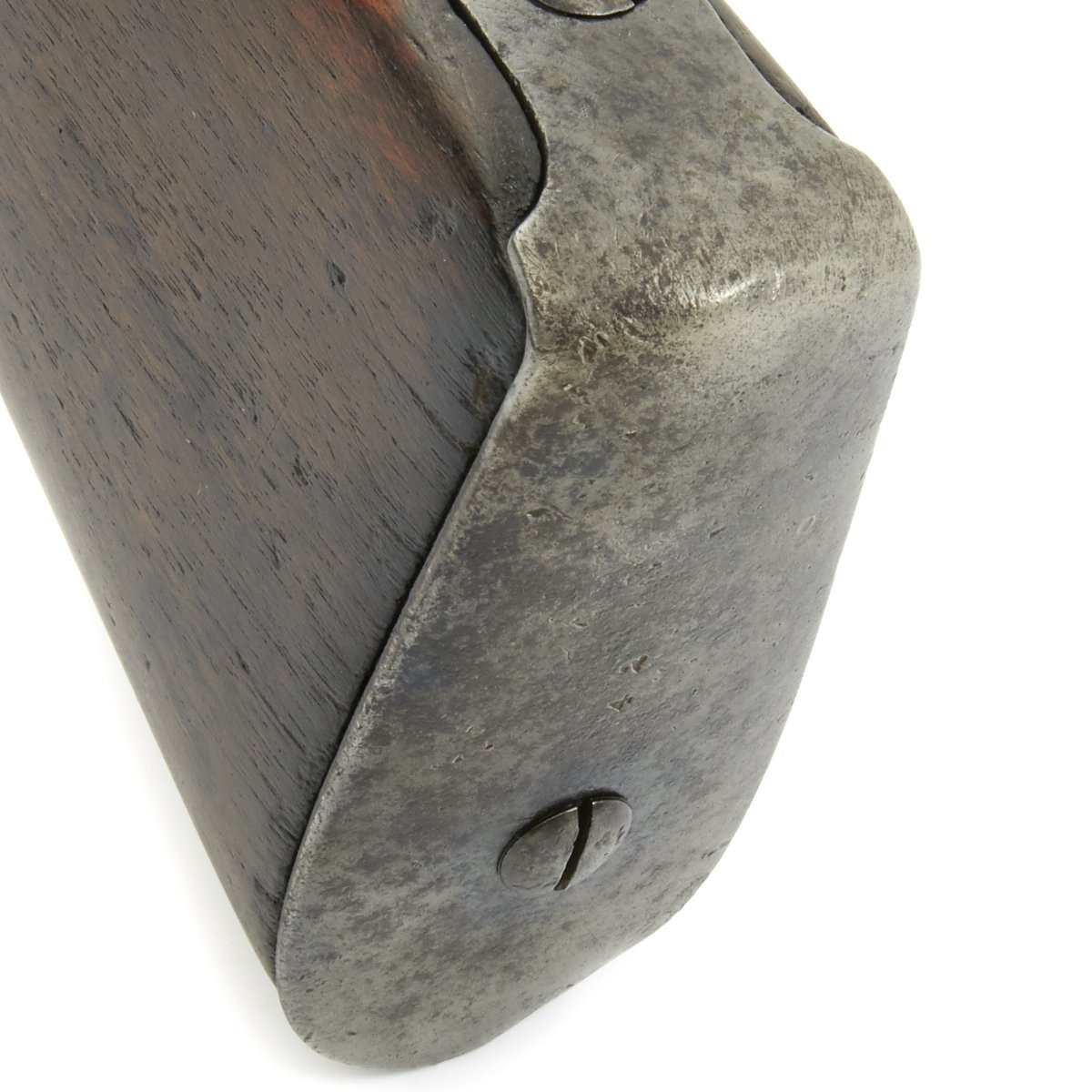

The iron butt plate is U.S. stamped, as standard, and has an aged patina. Original cleaning rod is still intact, and in good shape. The stock is in good condition, though there are missing chunks around the lock and hammer, as well as by the lower barrel band near the cleaning rod channel. This was definitely a musket that saw significant use after percussion conversion.

In working condition this should not be fired, only displayed.

History of the Model 1822 Musket:

The War of 1812 had revealed many weaknesses in American muskets. The Model 1812 Musket was created in an attempt to improve both the design and manufacture of the musket. The Model 1816 made further improvements, and replaced the Model 1812. The Model 1812 had borrowed heavily from the design of the French Charleville model 1777 musket, and this design was retained for the Model 1816. The Model 1816 had a 42 inch long .69 caliber smoothbore barrel, similar to the Model 1812, but had a longer lock plate, a shorter trigger guard, and a longer bayonet than the Model 1812. The Model 1816 also had a more straight lined stock. The overall length of the weapon was 58 inches.

The Model 1816 musket was originally produced at the Harpers Ferry and Springfield Arsenals between 1816 and 1844. Around 675,000 were made, more than any other flintlock in U.S. history.

The Model 1816 was originally produced as a flintlock musket. Like many flintlock muskets, many of these were later converted to percussion cap, as the percussion cap system was much more reliable and weather resistant.

This model of Springfield musket was used by Texans during the Texas Revolution and by the US Army and militia during the Mexican-American War. During this conflict, the flintlock version of the Model 1816 was preferred by U.S. regular forces, due to percussion cap supply concerns.

It was also used during the early years of the American Civil War until around 1862.

Many improvements to the Model 1816 were made, producing the Model 1822, Model 1835, Model 1840, and Model 1842. U.S. Ordnance Department referred to these as different models, but in other U.S. government documents they are referred to as a continuation of the Model 1816. Modern histories are similarly inconsistent in the nomenclature of these weapons.

Specifications-

Year of Manufacture: 1825 - converted 1840s-50s
Caliber: .69"
Cartridge Type: Ball and Powder
Barrel Length: 42 Inches

Overall Length: 58 Inches
Action type: Side Action Percussion Lock
Feed System: Muzzle Loading
