Original Item: Only One Available. The Volcanic Repeating Arms Company was an American company formed in 1855 by partners Horace Smith and Daniel B. Wesson to develop Walter Hunt's "Rocket Ball" ammunition and" lever action" mechanism. Volcanic made an improved version of the Rocket Ball ammunition, and a carbine and pistol version of the lever action gun to fire it. Unfortunately, due to financial issues, the Volcanic Repeating Arms Company was short-lived. The "Rocket Ball" cartridges were also highly problematic, being grossly underpowered due to their design.

However, the descendants of the company lineage, Winchester Repeating Arms Company and Smith & Wesson, both became major firearms manufactures, changing the entire landscape of the U.S. firearms industry. Winchester took the original Volcanic designs, and by using rimfire and later centerfire ammunition, was able to "Win the West" with their model 1866 and 1873 repeating rifles.

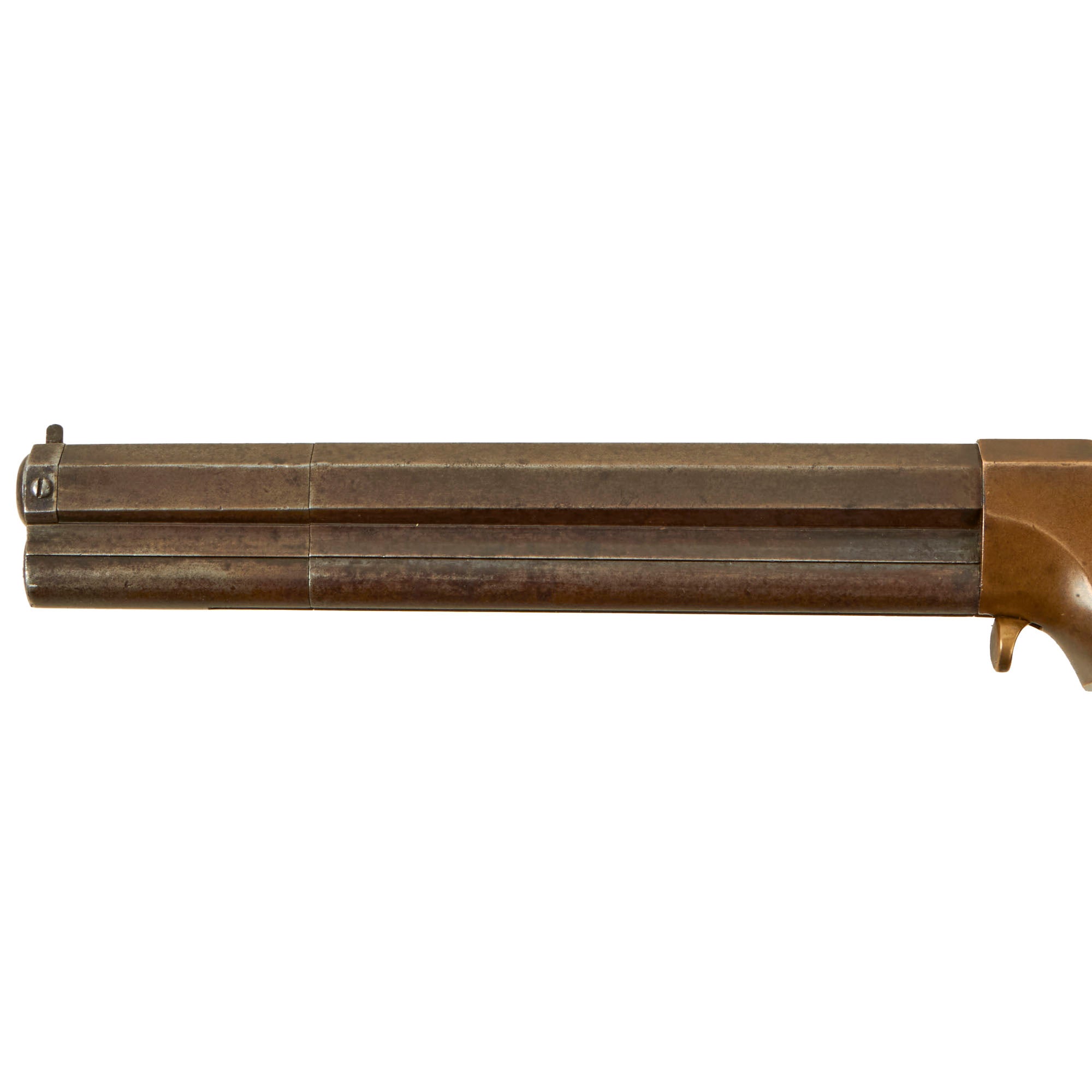

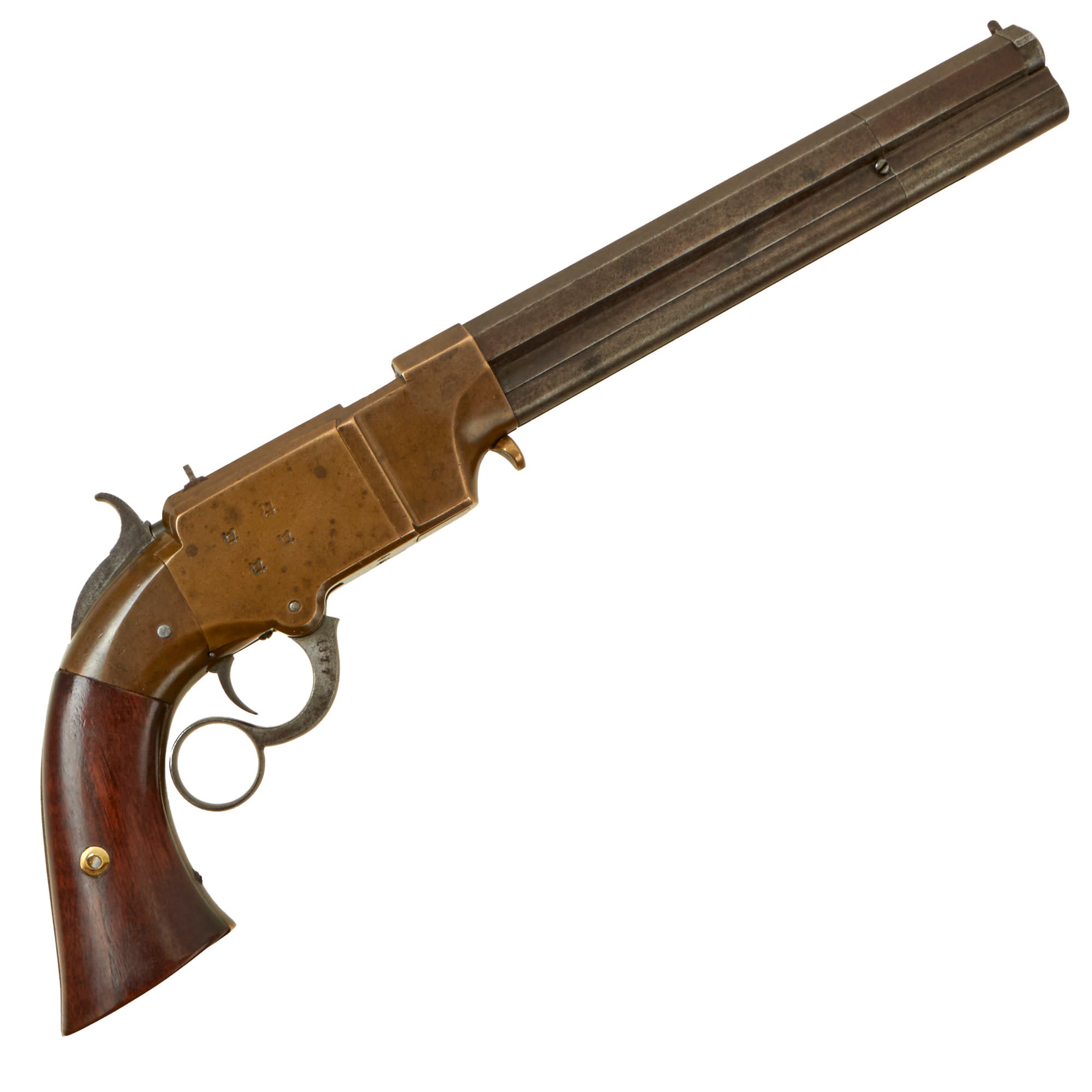

This is a great example of the Volcanic Repeating Arms Co. .41cal repeating pistol, mad utilizing the larger No. 2 Frame. With an 8 inch long barrel, pistols in this configuration were marketed as the "No. 2 Navy Holster Pistol", while those with the 6 inch barrel were marketed as the "No. 2 Navy Belt Pistol" The pistols were produced in .31 (No. 1 Frame) and .41 (No. 2 Frame) caliber, and even had some .41cal "Naval Carbines" with detachable shoulder stocks. The rifles were all .41cal, and available in a variety of barrel lengths. As with the later Henry and Model 1866 Winchester repeating rifles/carbines, the Volcanic pistols and rifles featured very attractive "Volcanic Brass" frames, later called "Gunmetal" by Winchester. This metal would not rust, and was much easier to work with than steel.

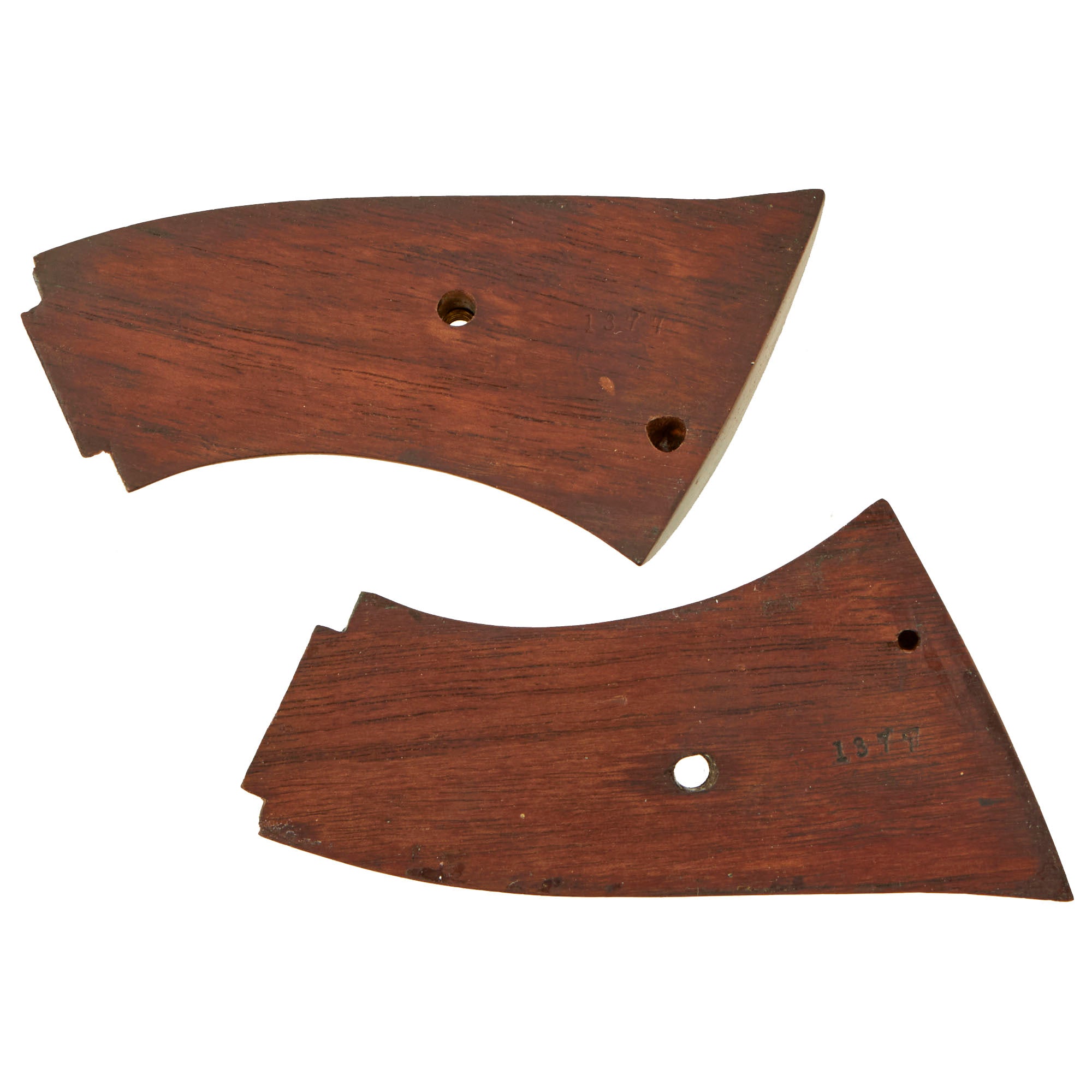

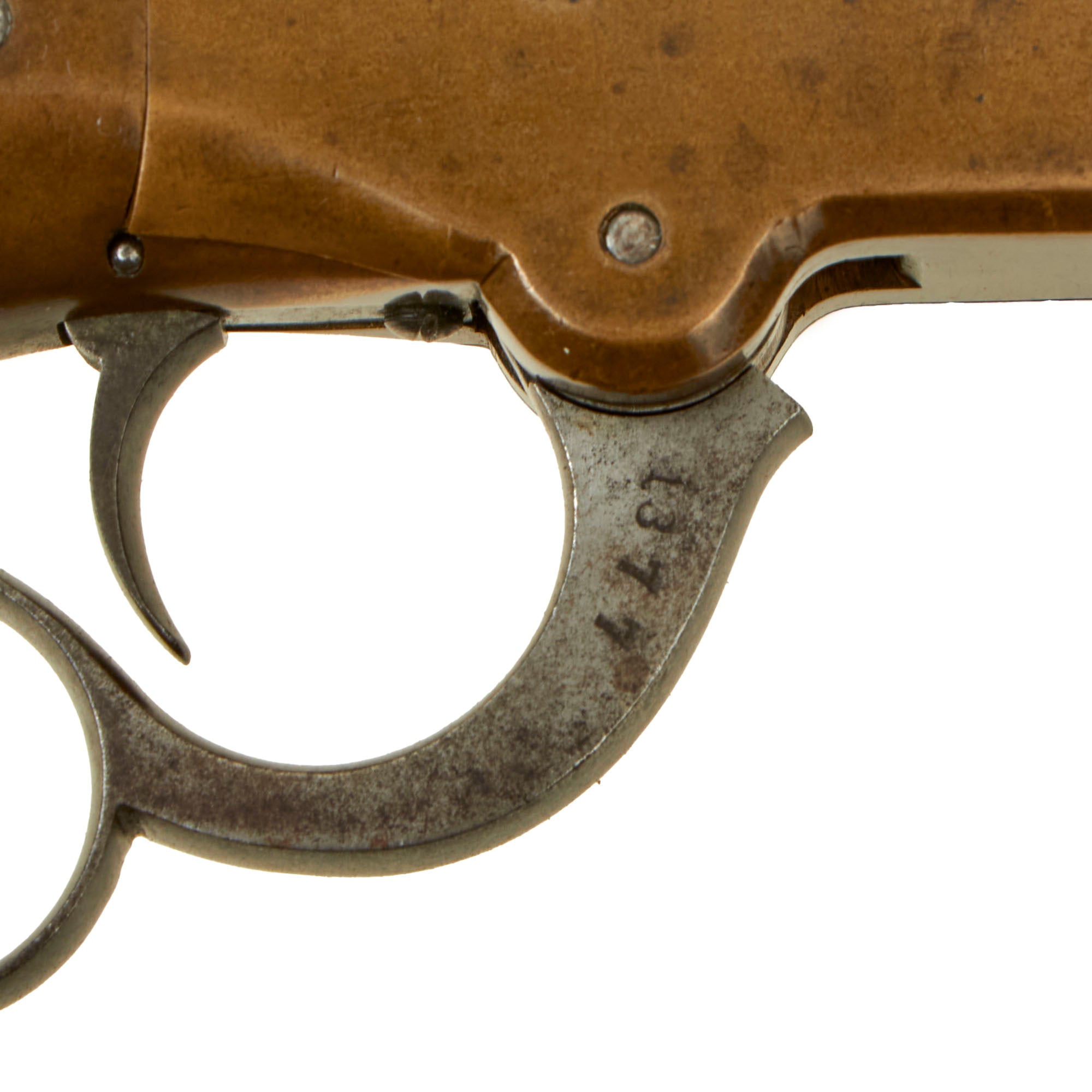

The pistol is marked with serial number 1377 on the bottom of the grip frame under the wood grips and on the right side of the operating lever. The insides of both grips are also stamped 1377, so these are the original grips that came with the pistol. As far as we can tell, no parts have been swapped out on this revolver, and with such low production, it is unlikely parts were even available. That makes this a very nice "ALL MATCHING" example, and it's a great one!

Dating production of "Volcanic" arms is always a bit tricky, as production moved from Norwich to New Haven after the Volcanic Repeating Arms Company was forced into insolvency by Oliver Winchester, one of the investors. All parts and tooling were moved to the new factory, and many parts had already been manufactured. However the serial number sequence was kept intact, with all guns being marked sequentially, regardless of the type they were. We believe this example was made in approximately 1856-57, as it has the Volcanic company marking, but also the New Haven address.

The top of the barrel still bears the original address marking clearly:-

THE VOLCANIC
REPEATING ARMS CO.
      PATENT    NEW HAVEN CONN.    FEB. 14.1854.

Research indicates that Volcanic used five separate dies for the markings on their guns, so the order and content of the address markings varied widely. In almost every case, such as this one, the lines are not quite correctly aligned, and the depth of the markings varies as well. You can see from this that the 5 dies used read "THE VOLCANIC", "REPEATING ARMS CO., "PATENT", "NEW HAVEN CONN." and "FEB. 14. 1854.". With only about 3000 firearms produced, they probably never had a need to make a more complete set.

Of interest is that the right side of the action is stamped with four "Square and Compass" proof markings, the symbol used by Freemason organizations. We assume that the pistol was marked owned by a Masonic group, or possibly presented to a member. Unfortunately there is not much out there on why a gun would have been marked with these stamps.

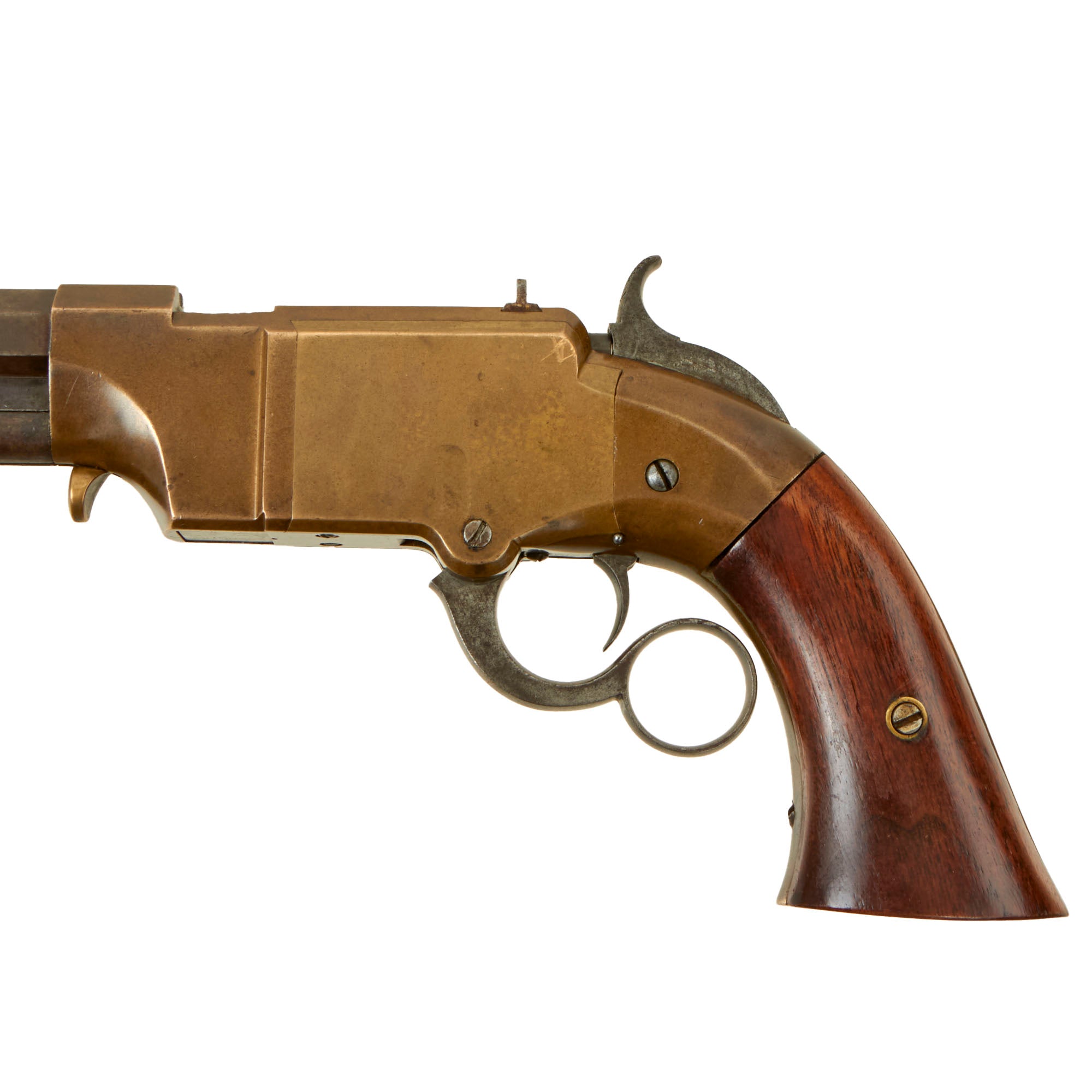

Overall the pistol is in fantastic condition, with a nice worn plum brown patina on the steel components with little sign of oxidation or peppering. The "gunmetal" portions of the gun have the fantastic yellow patina that has made the Winchester "Yellow Boy" M1866 such a collectible gun. There is no sign of refinishing or major oxidation, just over a century of careful cleaning. The original grips are also in good shape, with a lovely color, looking to have been possibly refinished at some point in the past

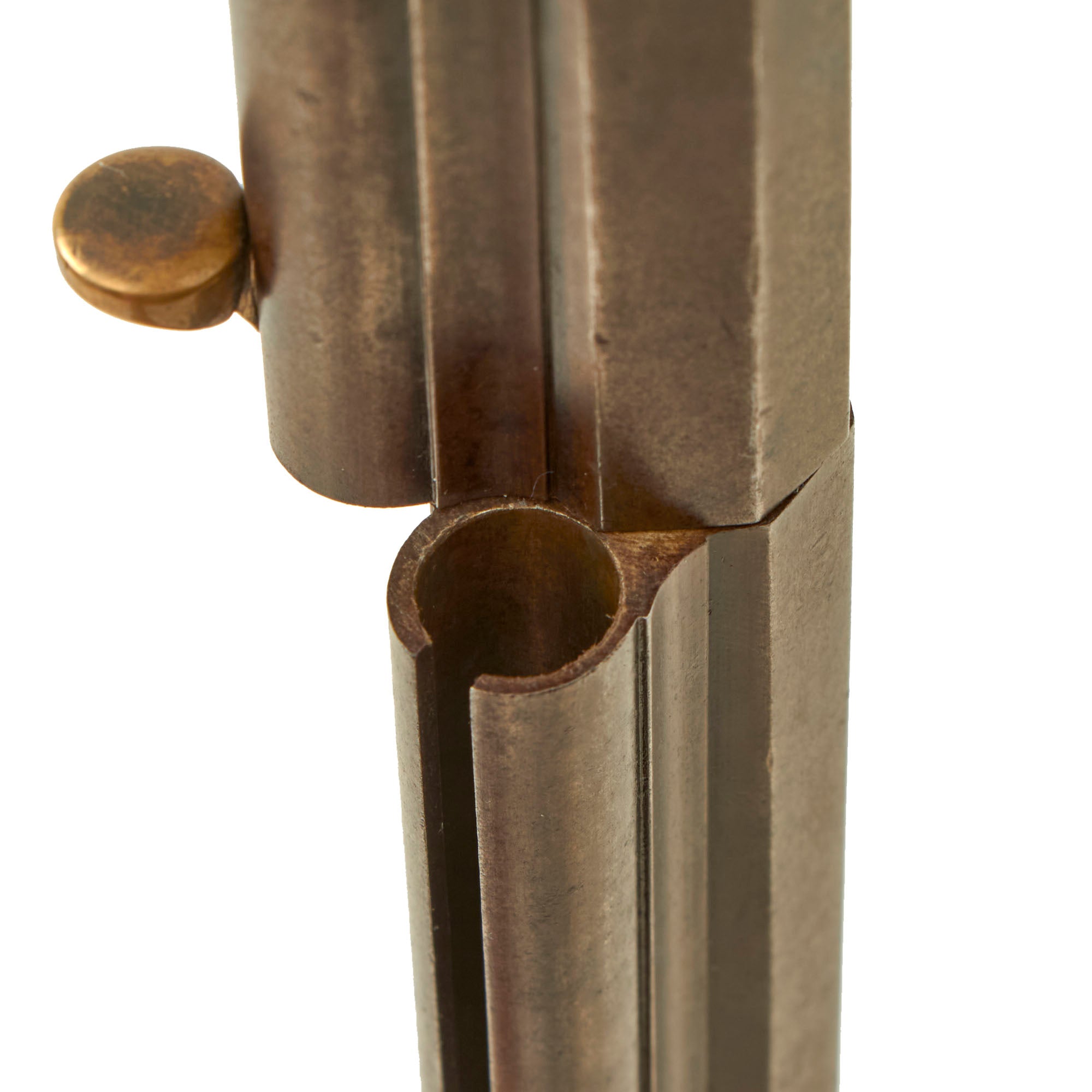

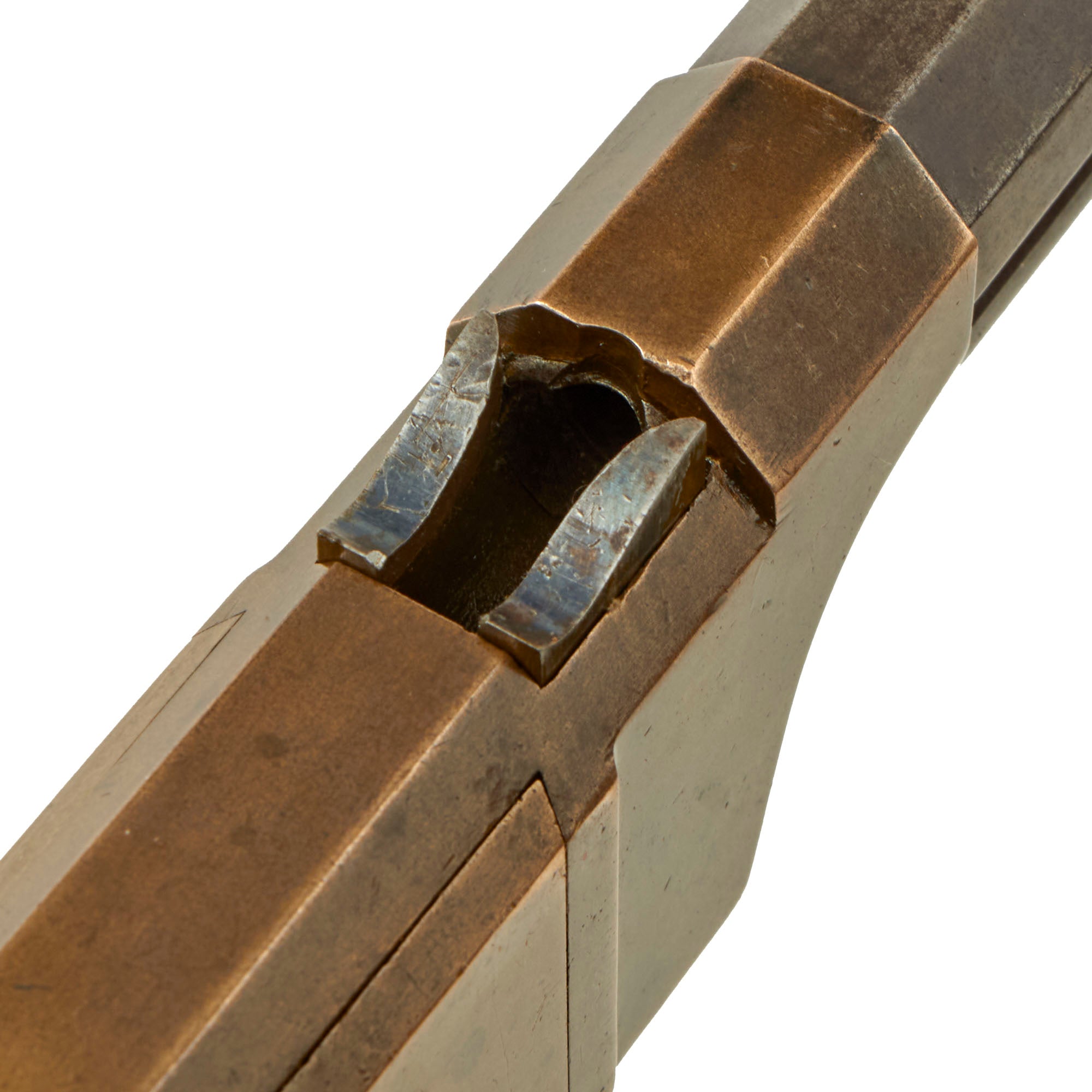

The pistol has a crisp tight action, which cycles smoothly without any hang ups. The mainspring is strong, so it can take some effort to cock, but the action is tight and does not look to have seen any major amount of use. The bore is in excellent condition, showing a bright finish with crisp lands and grooves, and little sign of actual use. We can even still see the cutting marks in the grooves. There is just a bit of oxidation in a few areas, which looks to be more from age than use. The front of the pistol can have the magazine follower pushed forward easily so that the muzzle swivels to right side, allowing the magazine to be reloaded.

These are extremely hard to find, especially in this very good condition, now is your chance! A massively important stepping stone in the evolution of American firearms, ready to add to your collection and display!

Specifications:-
Year of Manufacture: circa 1857
Caliber: .41cal
Ammunition Type: "Rocket Ball" cartridge
Barrel Length: 8 inches
Overall Length: 15 inches
Action: Lever action Repeater
Feed System: 10 Round Tube Magazine

More on the History of "Volcanic" Repeating Firearms
The original 1848 Volcanic Repeating Rifle design by Hunt was revolutionary, introducing an early iteration of the lever action repeating mechanism and the tubular magazine still common today. However, Hunt's design was far from perfect, and only a couple of prototypes were developed; the only one known is currently in the Firearms Museum in Cody, Wyoming. Lewis Jennings patented an improved version of Hunt's design in 1849, and versions of the Jenning's patent design were built by Robbins & Lawrence Co. (under the direction of shop foreman Benjamin Tyler Henry) and sold by C. P. Dixon. Horace Smith was also hired by Courtlandt Palmer to improve the Jennings Rifle, patenting the Smith-Jennings in 1851. It is estimated that fewer than 2000 of these two models were made until 1852, when financial troubles ceased production.

In 1854, partners Horace Smith and Daniel B. Wesson joined with Courtlandt Palmer, the businessman who had purchased the Jennings and Smith-Jennings patent rights, and further improved on the operating mechanism, developing the Smith & Wesson Lever pistol, and a new Volcanic cartridge. Production was in the shop of Horace Smith in Norwich, Connecticut. The new cartridge improved upon the Hunt Rocket Ball with the addition of a primer. Originally using the name "Smith & Wesson Company", the name was changed to "Volcanic Repeating Arms Company" in 1855, with the addition of new investors, one of which was Oliver Winchester. The Volcanic Repeating Arms Company obtained all rights for the Volcanic designs (both rifle and pistol versions were in production by this time) as well as the ammunition, from the Smith & Wesson Company. Wesson remained as plant manager for 8 months before rejoining Smith to found the "Smith & Wesson Revolver Company" upon obtaining the licensing of the Rollin White rear loading cylinder patent.

Winchester forced the insolvency of the Volcanic Arms Company in late 1856, took over ownership and moved the plant to New Haven, Connecticut, where it was reorganized as the New Haven Arms Company in April 1857. B. Tyler Henry was hired as plant superintendent when Robbins & Lawrence suffered financial difficulties and Henry left their employ. While continuing to make the Volcanic rifle and pistol, Henry began to experiment with the new rimfire ammunition, and modified the Volcanic lever action design to use it. The result was the Henry rifle. By 1866, the company once again reorganized, this time as the Winchester Repeating Arms company, and the name of Winchester became synonymous with lever action rifles.
