Original U.S. Civil War Maynard Second Model Percussion Saddle Ring Cavalry Carbine in .50 Caliber - Serial 7487

Item Description

Original Item: Only One Available. The Maynard Carbine was one of a multitude of weapons produced during the U.S. Civil War to meet the demand for usable firearms. As originally designed, the carbine was one of many "capping breech loaders", which would use some type of cartridge without any integral primer cap. In the case of the Maynard, it used a metallic cartridge with the powder and bullet already installed. There was a small hole in the center of the base, which would be ignited by a standard percussion cap fitted to a nipple, or by a tape primer system ignited by a firing pin. After the outbreak of the Civil War, a simplified Second Model was introduced and put into production in 1863, which did away with the Maynard tape primer, and used percussion caps only.

The cartridge, which had a wide rim permitting swift extraction, was reloadable up to 100 times. This proved to be a significant feature for the Confederate troops equipped with it. Another significant feature was that the use of a metallic cartridge prevented gas escape at the breech, a serious concern for many of the early externally primed breechloaders. This design also made it very easy to convert to a centerfire cartridge, however this example is still in the original configuration.

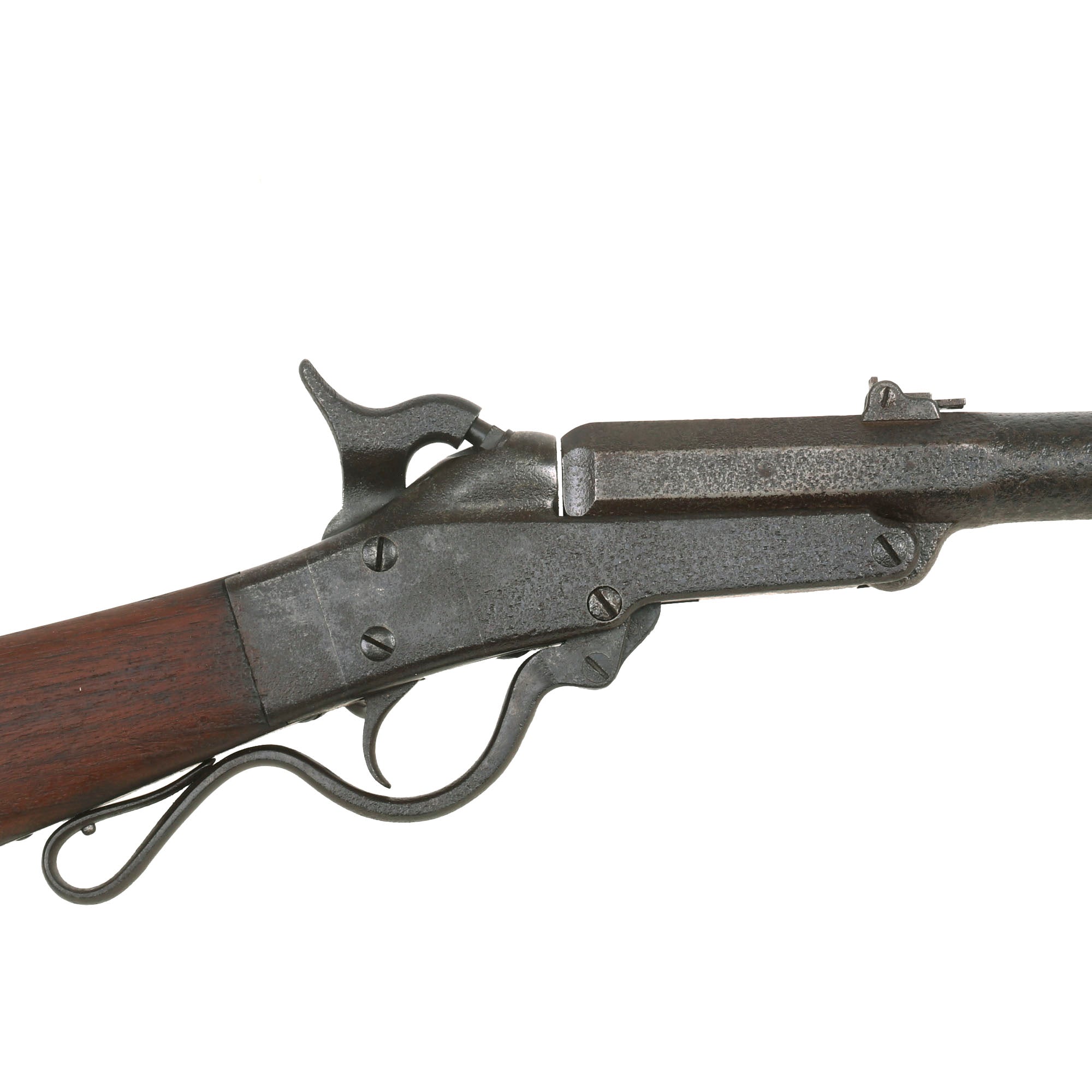

This carbine looks to have seen long use in the field, which has resulted in oxidation peppering and scaling on the right side, which unfortunately has removed the original markings on this side. It would have originally read:

MANUFACTURED BY
MASS. ARMS CO
CHICOPEE FALLS.

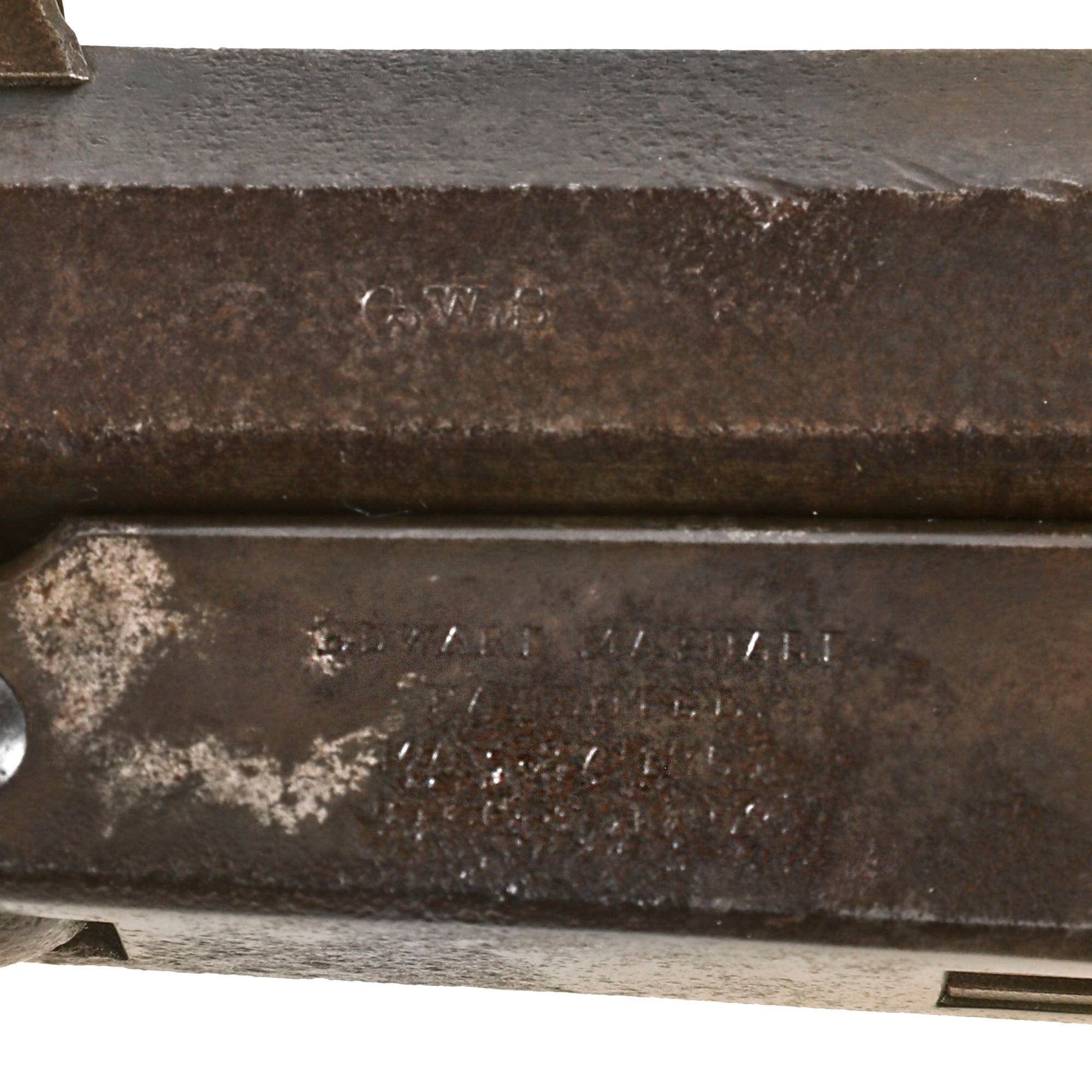

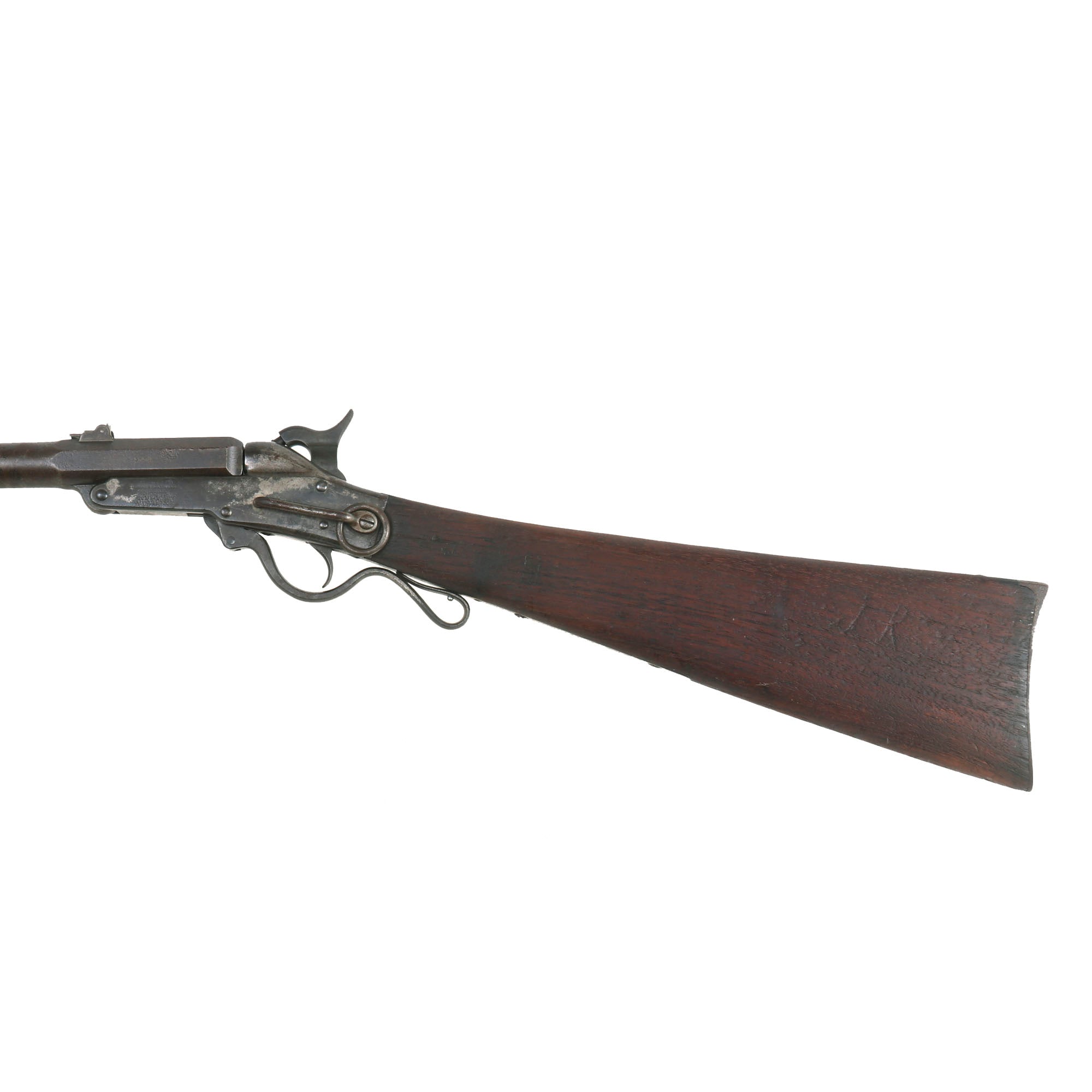

The left side shows much less oxidation, however the bottom too lines are illegible due to peppering:

EDWARD MAYNARD.
PATENTEE.
MAY 27. 1851
DEC 6. 1859

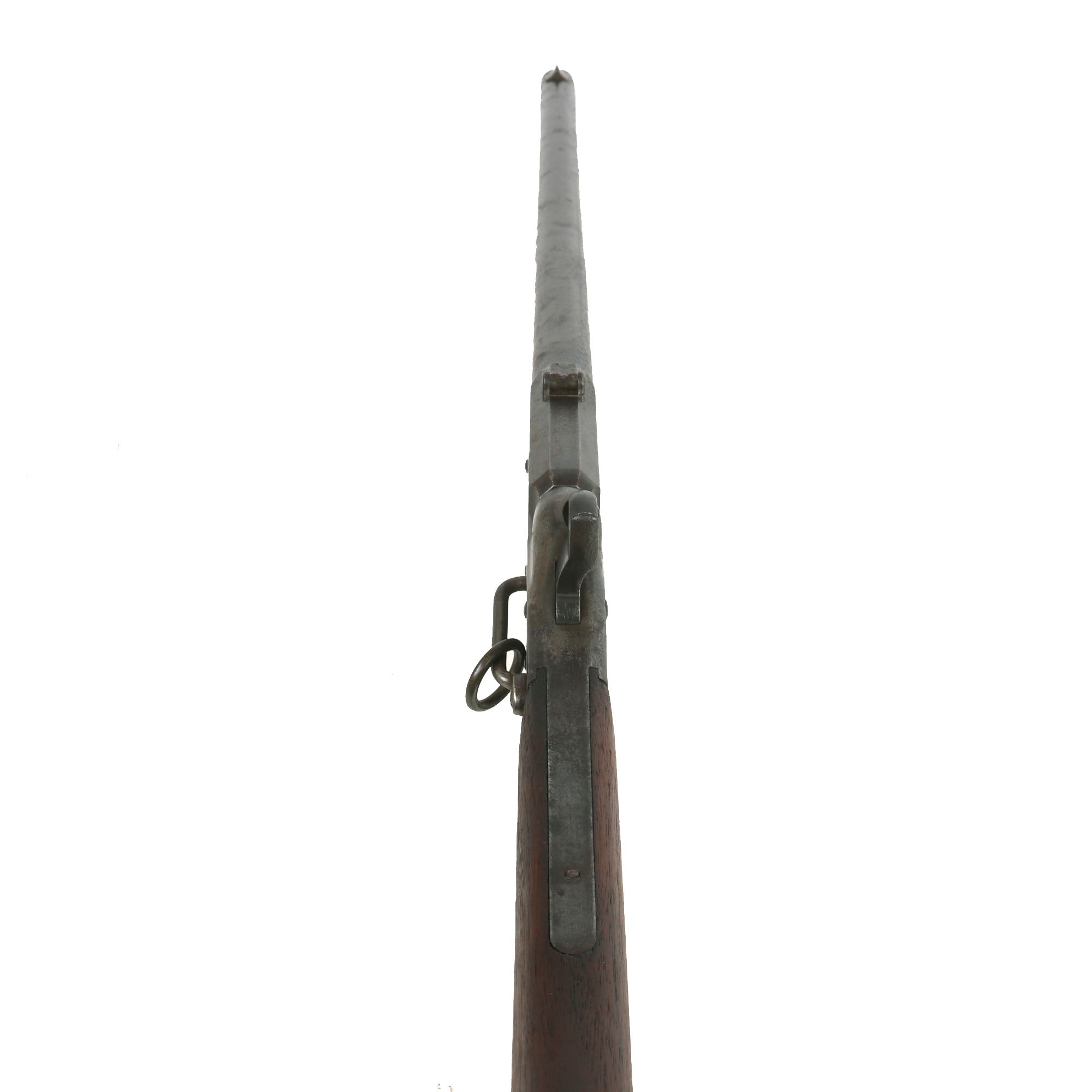

The weapon still retains its original saddle ring, fitted for use with cavalry. This facilitated one-hand operation, a key requirement of any cavalry weapon. It also allowed the weapon to hang from a body sling, so both hands could be used to control the mount. The carbine is still in the original percussion configuration, so it escaped the cartridge conversion that many of these carbines went through. It also still has the original serial number 7487 marked clearly on the lower butt stock strap, indicating production in late 1864. Records indicate that the first shipment of 1040 2nd model carbines was accepted in June 1864, and continued rapidly throughout the contract. The left side of the barrel is marked with a G.W.S. ordnance sub-inspector marking, for George W. Sherman. There are also two faded cartouches on the left side of the butt stock, which we unfortunately cannot read.

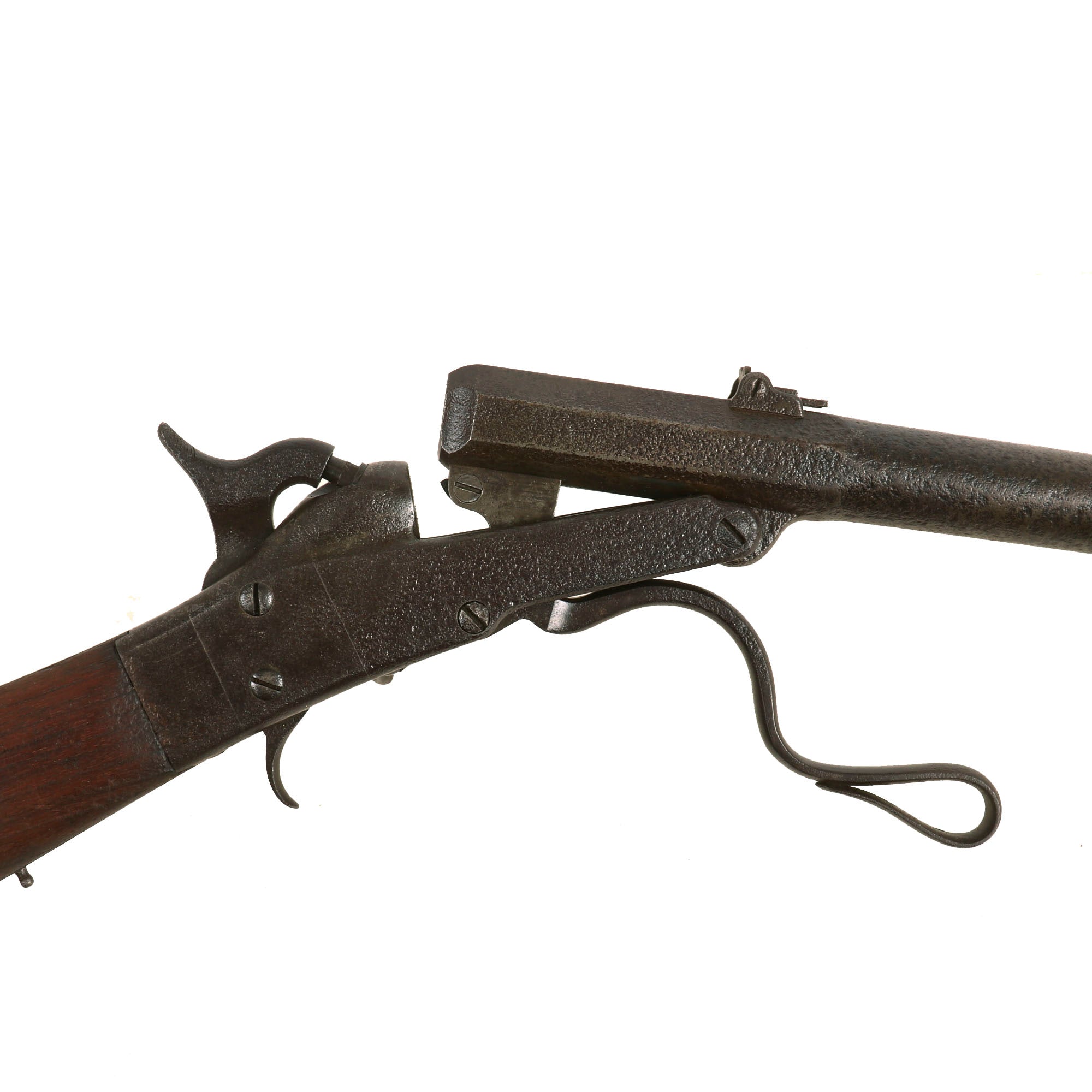

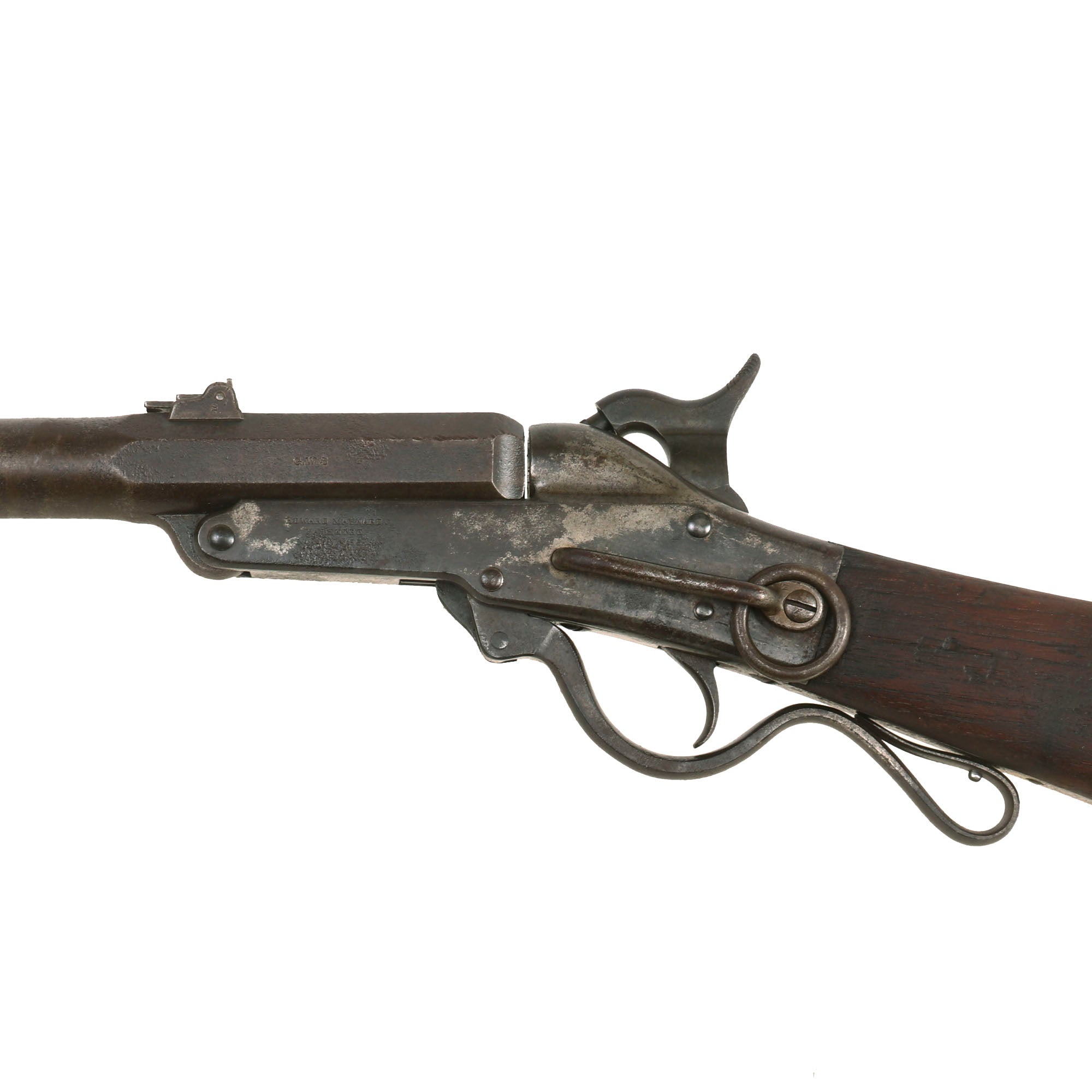

Condition of this example is good, showing that it was exposed to the elements for a significant period of time, possibly having rested on the right side on a surface for a long period of time, possibly in a saddle holster or something similar. This side has none of the original finish present, and it shows an oxidized peppered and scaled patina. The left side is a lot smoother, showing a mottled gray patina, and still has some trades of the case hardening on the receiver. The action breaks open correctly, and the hammer holds correctly at half cock, firing at full.

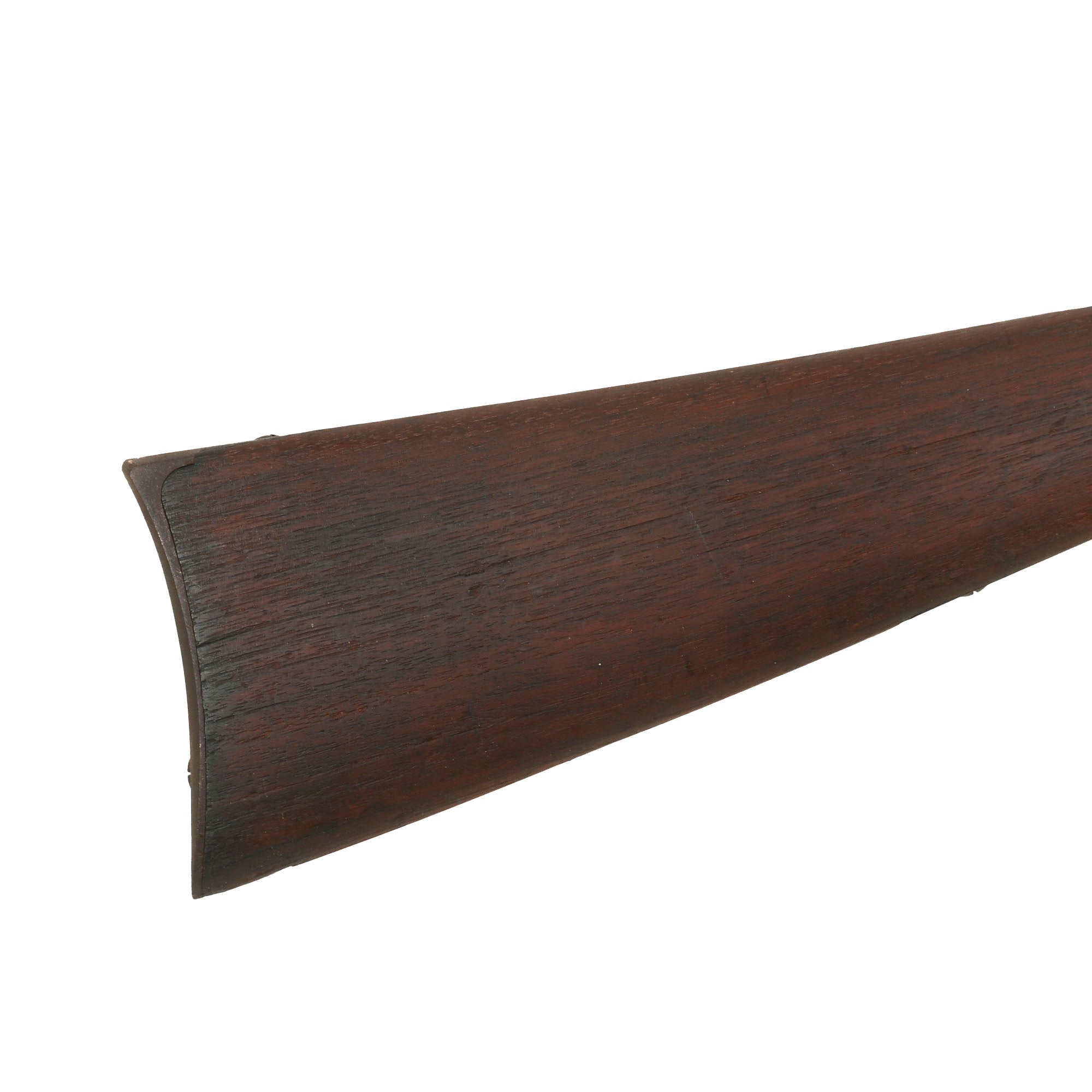

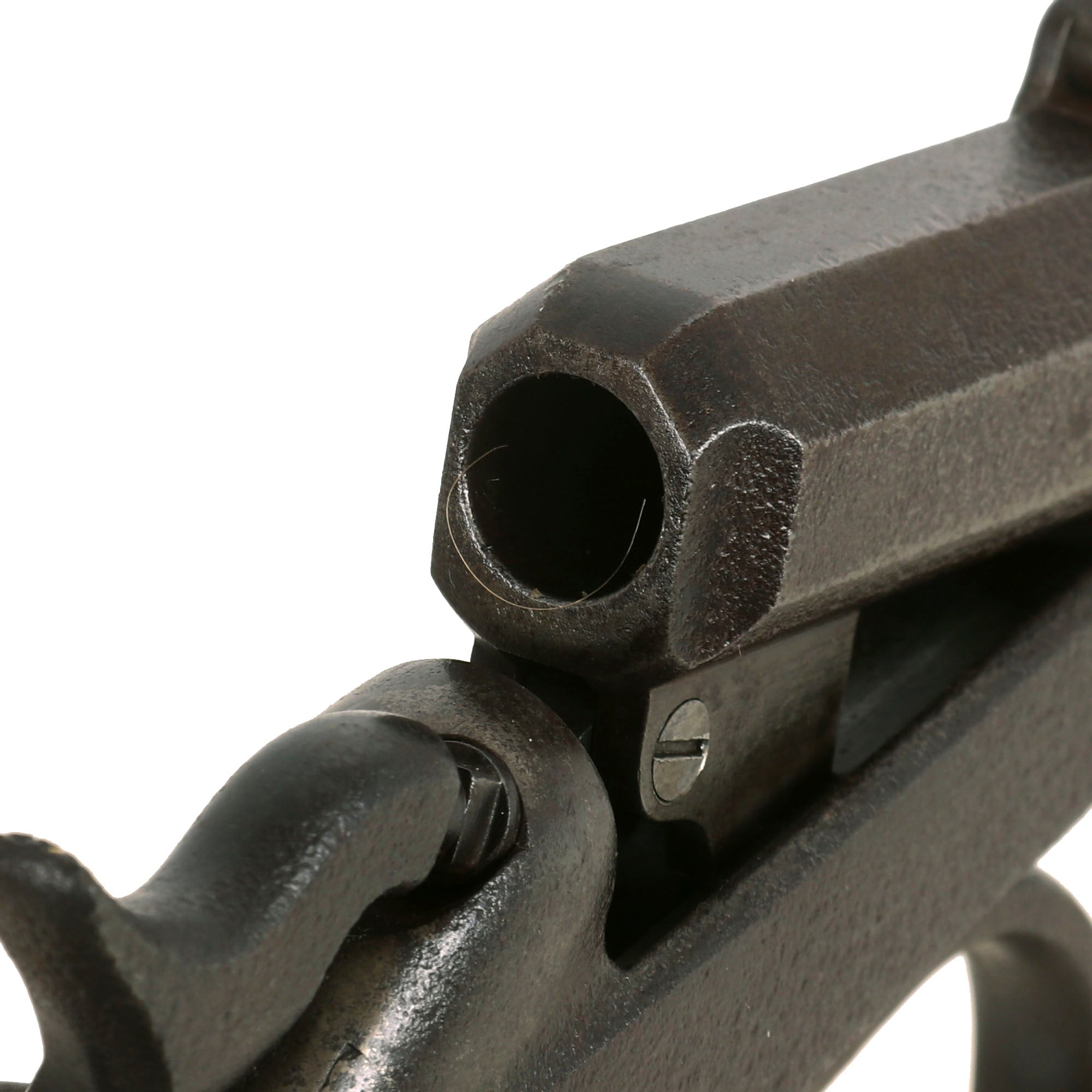

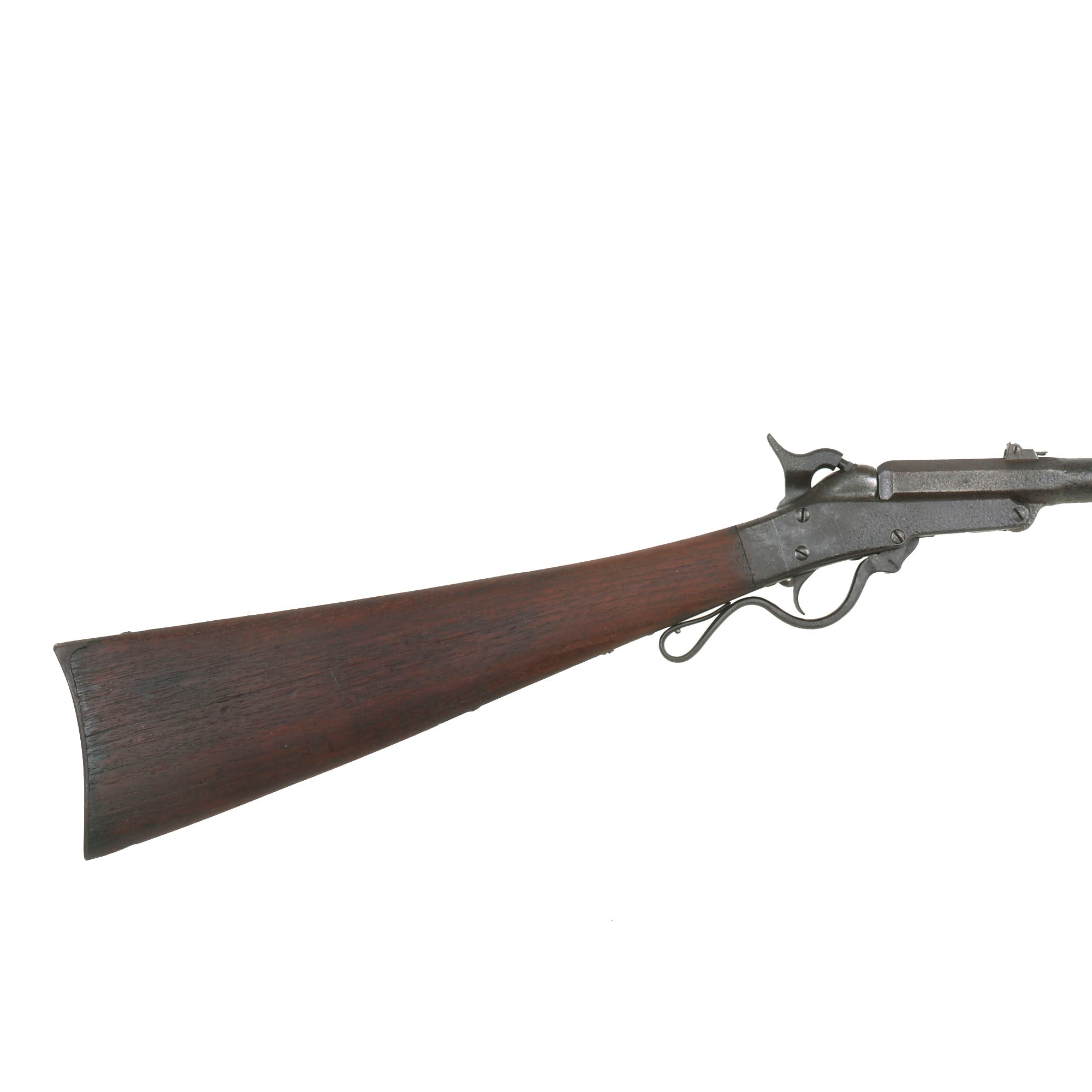

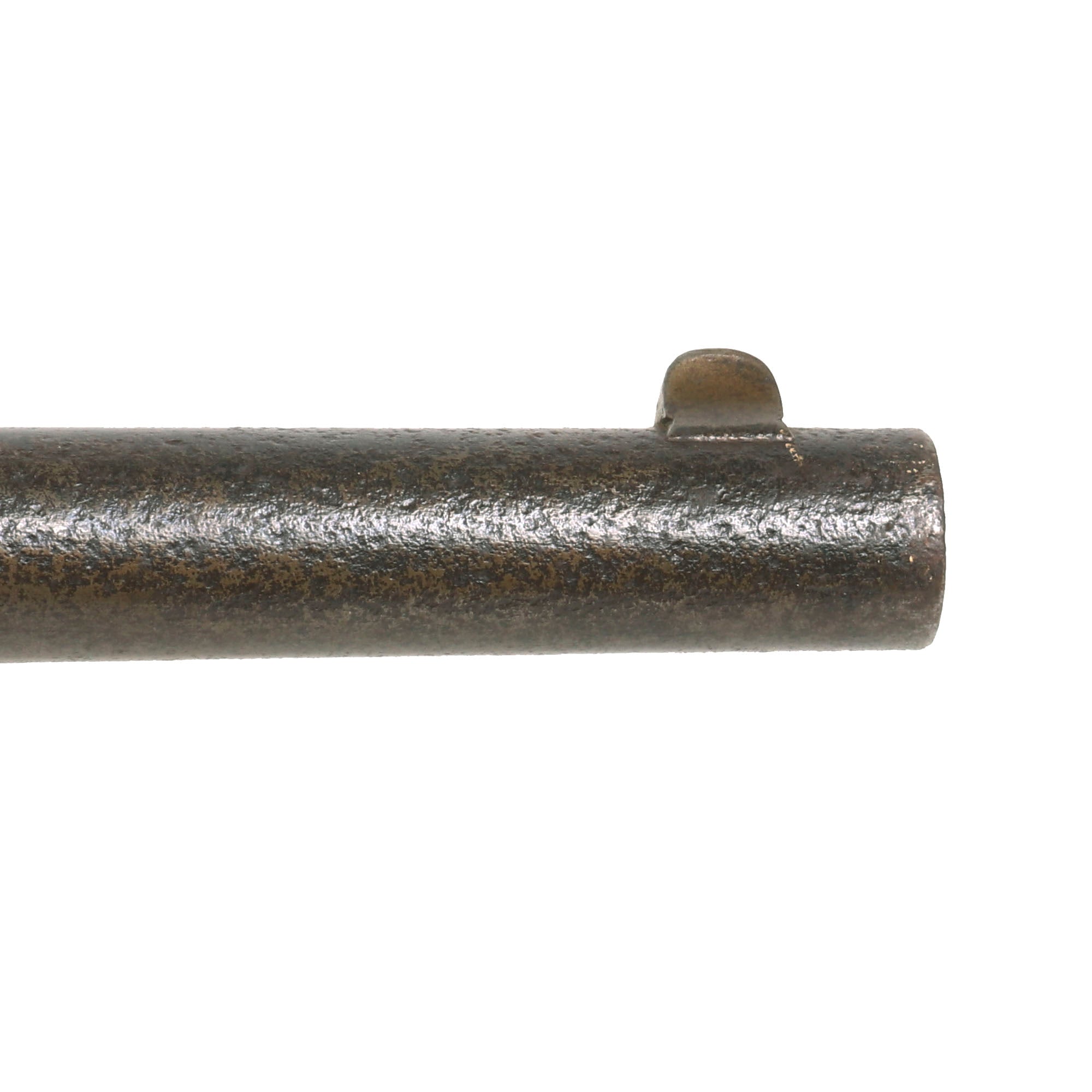

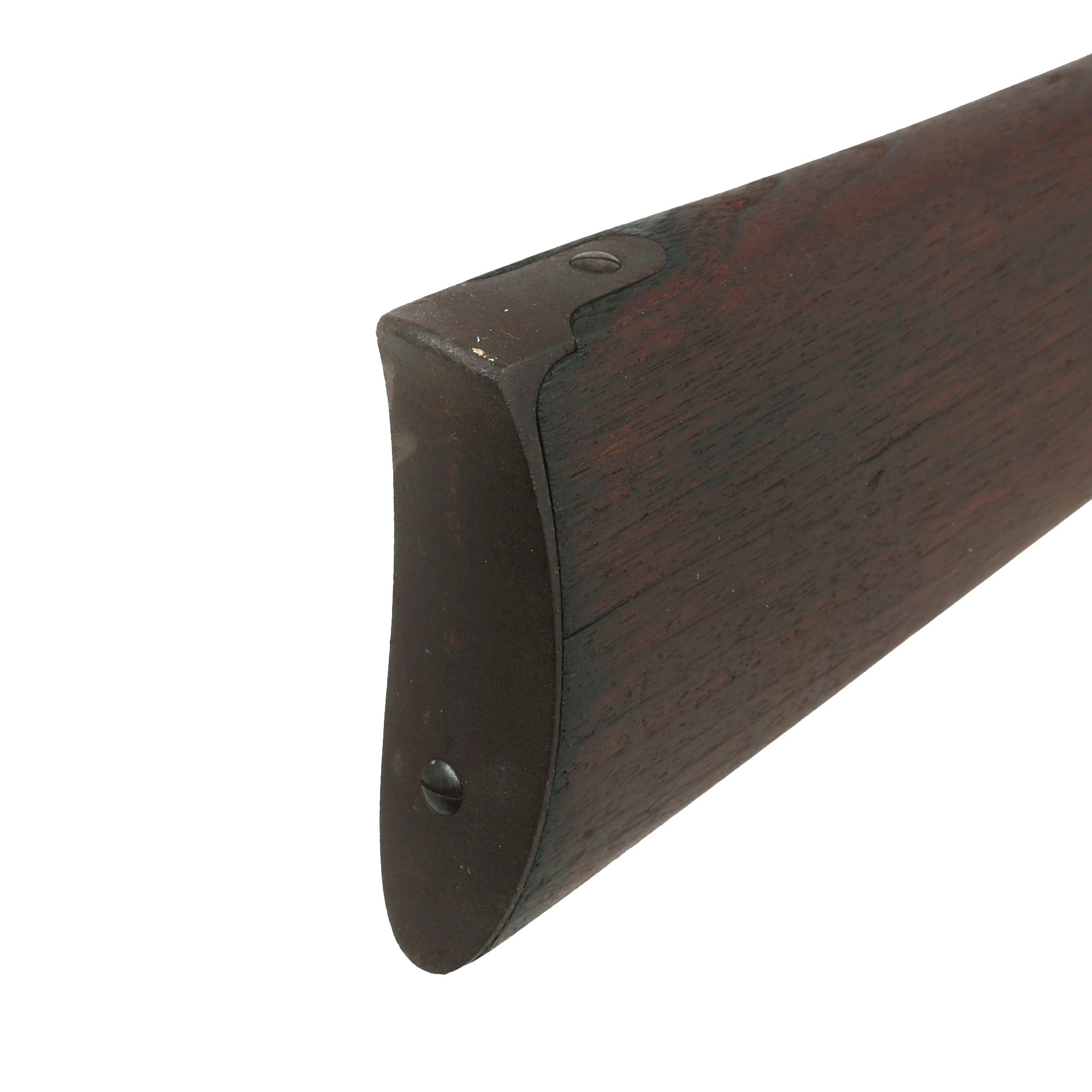

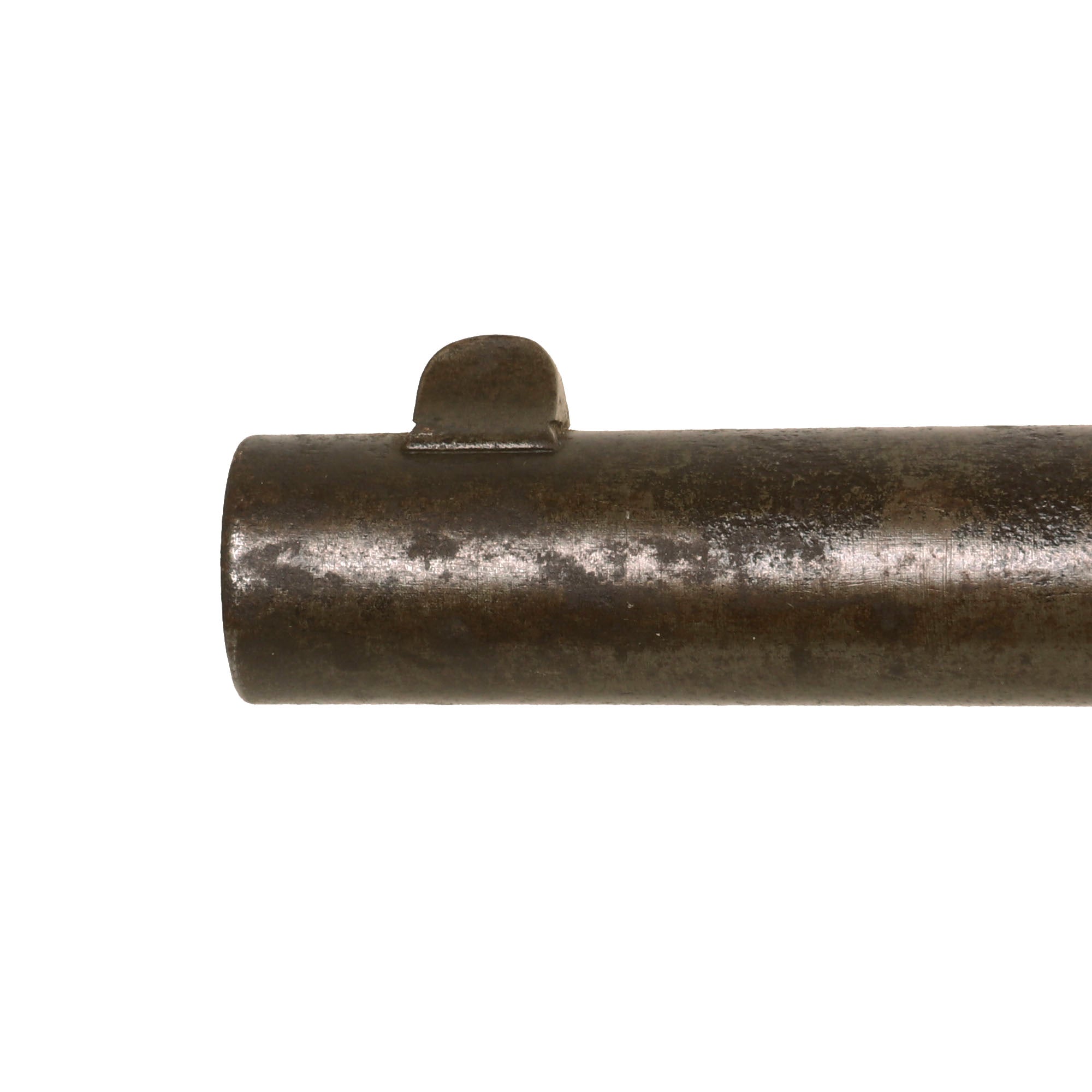

In contrast to the exterior, the bore is actually in very good condition, showing a bright finish with clear lands and grooves. The three grooves of the rifling are easily visible, and there is only a short area at the muzzle where the bore is gray from surface staining. The barrel has the correct three leaf rear sight, with the "pinched' front sight still intact as well. The butt stock is in very good condition, showing the expected wear from use and weathering. The butt plate definitely has some surface oxidation present.

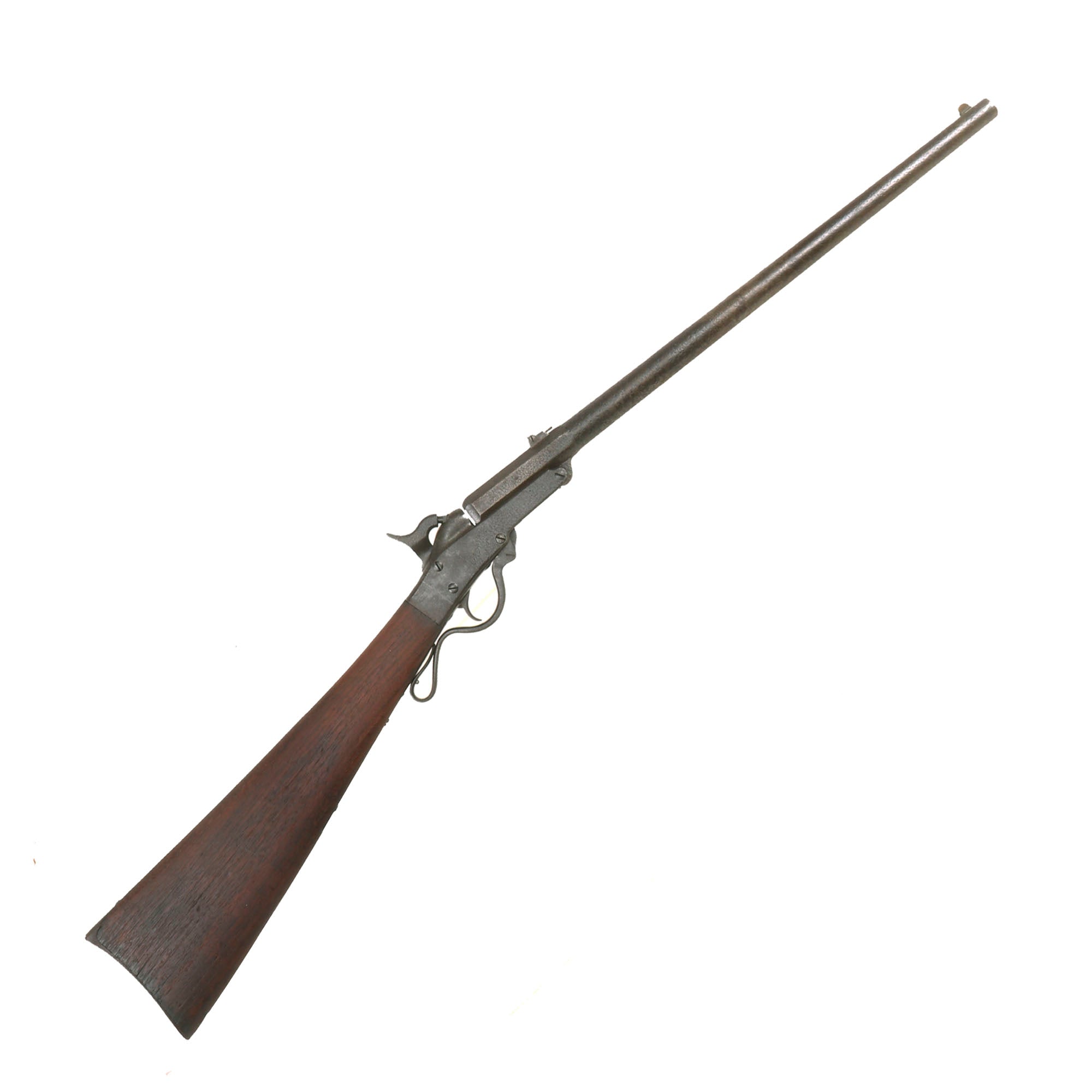

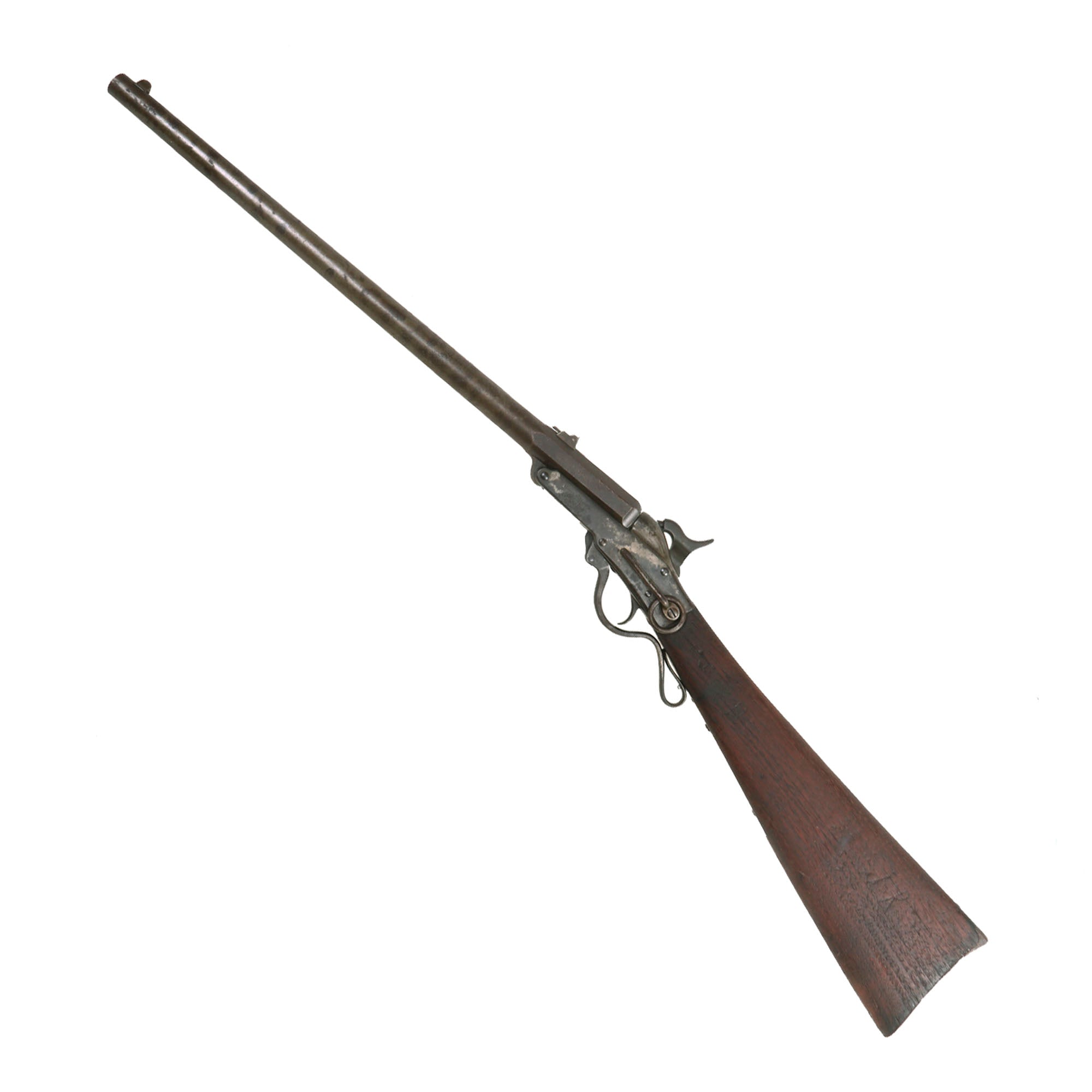

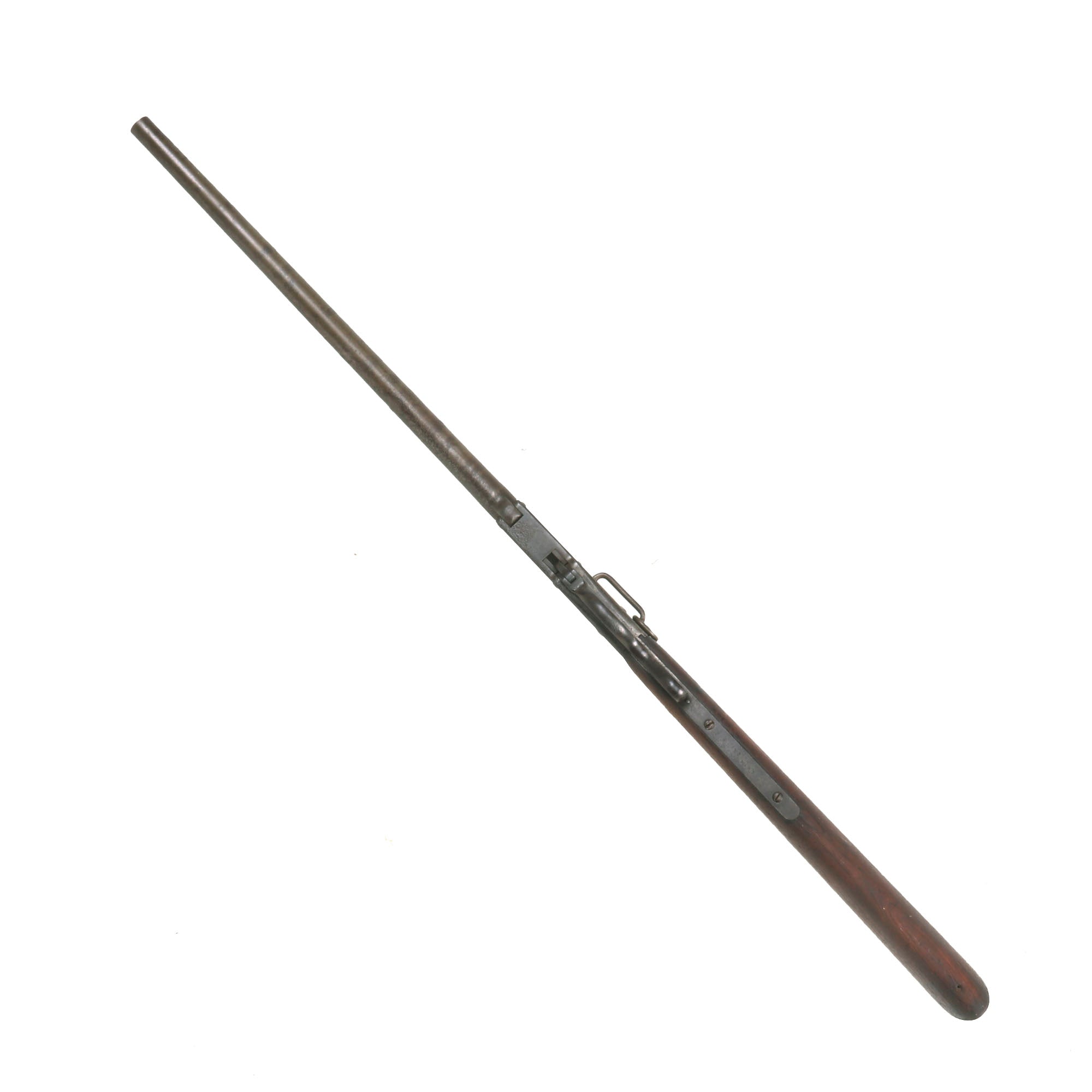

Overall length is 36 3/4 inches, making this a great little carbine, perfect for hanging on the wall as part of any civil war collection. A very nice patinated example of this carbine, still in the original percussion configuration. Ready to display!

Specifications-

Year of Manufacture: late 1864
Caliber: .50-caliber
Ammunition Type: Percussion Ignited Cartridge with cap
Barrel Length: 20 Inches
Overall Length: 36 3/4 Inches

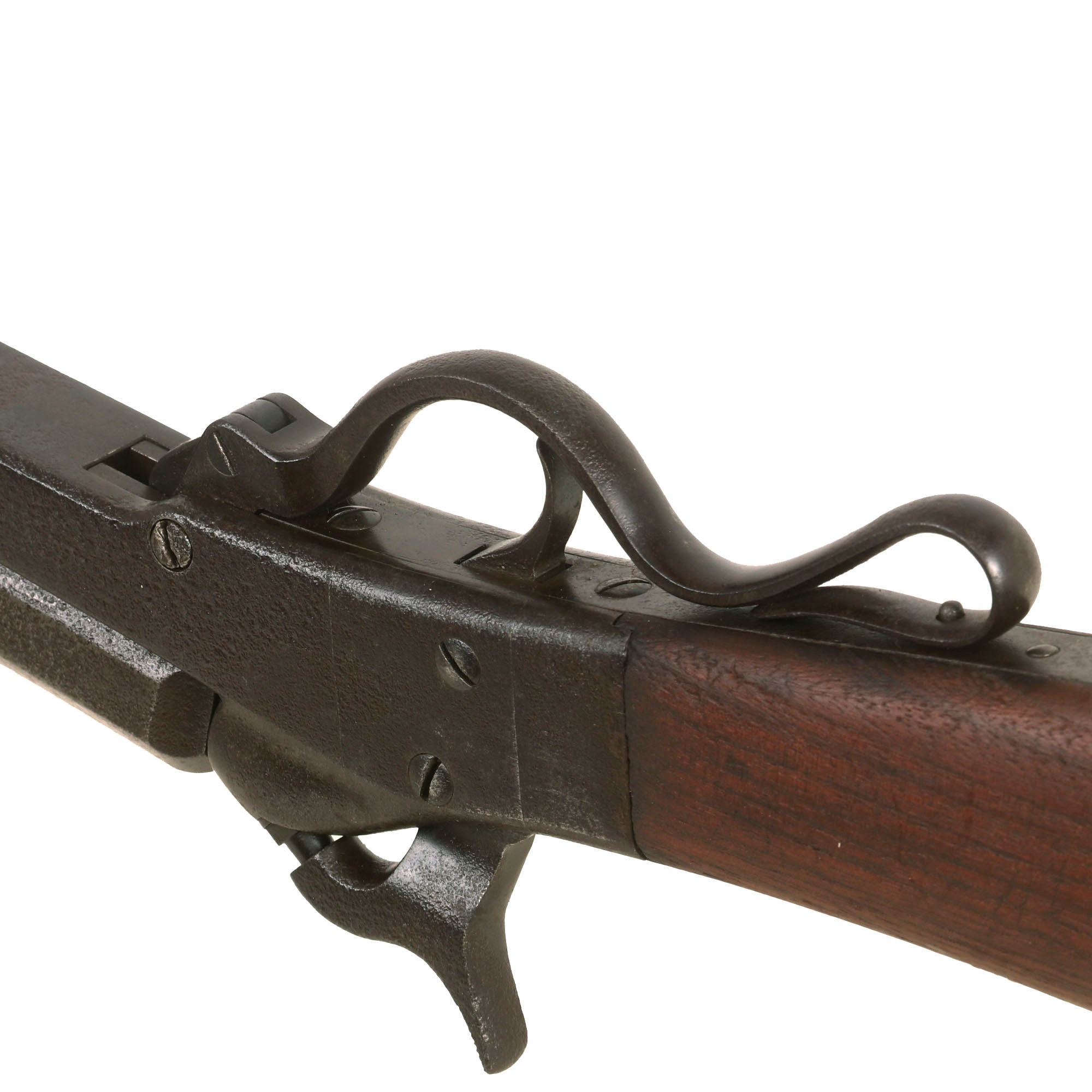

Action: Top Break with Back Action Percussion Lock.
Feed System: Single Shot

More on the Maynard Carbine:
More than 20,000 Maynard Second Model Carbines were produced between 1863 and 1865 to arm Federal cavalry units. Unlike the First Model Maynard, the Second Model was produced exclusively in .50 caliber. In addition, the Maynard tape primer system, patchbox, and tang sight common to the First Model were omitted, and the profile of the buttstock differs between these two variants.

This percussion carbine was patented by Edward Maynard of Washington, D.C., December 6, 1859, and manufactured by the Massachusetts Arms Company of Chicopee Falls, Massachusetts. Introduced into United States service in the late 1850s, it was put into mass production in 1861 and performed well in the hands of Federal troops. It has a 20-inch barrel and measures 36 7/8 inches in overall length, and has no forestock. The barrel tips for loading when the trigger guard lever is lowered. Percussion caps were required to fire a perforated .50 caliber brass cartridge that required hand extraction. Early versions included the Maynard tape primer system, but wartime exigencies forced its elimination. Both barrel and buttplate were blued, and the receiver of this arm was casehardened. Some were tinned for Navy use.

Dr. Edward Maynard (1813-1891) was both a brilliant dentist and a gifted inventor. Born in Madison, New York, Maynard entered the United States Military Academy at West Point, but was later forced to resign due to poor health. Prior to the Mexican War, Maynard invented a mechanical priming system for use with percussion arms which was intended to replace the copper primers that had been used almost since the invention of this ignition system.

The Maynard Tape Primer consisted of a thin shellacked paper tape which contained fulminate of mercury "packets" imbedded in its surface. When the hammer was cocked, a single primer would automatically advance over the ignition cone, or "nipple," thus eliminating the need to prime the arm as a separate step in the loading process. This system was incorporated into the U.S. Model 1855 rifle-musket, rifle, and pistol-carbine, and many older longarms were modified to employ the Maynard system as well. Tape primers were later abandoned due to their unsuitability for use in combat.

Perhaps Maynard's most significant firearms invention was his tip-up single-shot metallic-cartridge breech loading rifle, which he patented in 1851. Early models employed the Maynard primer system, but by 1865, this ignition system was replaced by a conventional percussion cone. The Maynard First Model Carbine was adopted by the U.S. Army in 1856, which sparked the formation of the Maynard Arms Corporation during the following year. The Massachusetts Arms Company of Chicopee Falls, Massachusetts, later undertook the manufacture the Maynard rifles and carbines. Approximately 5,000 First Model Carbines were produced in 1858-59 in .35 and .50 caliber. The larger-bore models saw service with Union troops in New Mexico, and some state troops and U.S. Marines were armed with these early in the Civil War. Several Southern states including Florida, Georgia, Mississippi, Louisiana, and South Carolina purchased Maynards from factory inventories prior to the outbreak of war, and contracts were given for production of additional arms.

All told, these orders accounted for nearly half of the total production for the First Model Carbine. In addition to prewar purchases, the Confederacy also acquired Maynards through the capture of Federal armories located in southern states. The Maynard Second Model Carbine was produced between 1864 and 1865, with more than 20,000 produced to arm Federal cavalry units. Unlike the First Model Maynard, the Second Model was produced exclusively in .50 caliber. In addition, the Maynard tape primer system, patchbox, and tang sight common to the First Model were omitted, and the profile of the buttstock differs between these two variants.

The Massachusetts Arms Company continued to produce Maynard rifles until 1890. These arms set a standard in both target and hunting activities in the United States. They proved to be extremely accurate, were well-fitted, and featured lapped barrels and interchangeable parts made of the best materials. Maynard rifles were available in a variety of grades ranging from an inexpensive gallery model to fancy-grade versions featuring adjustable long-range rear sights, engraving, and checkered pistol-grip stocks and forends, and in several models which ranged in caliber from .22 to .50. This proved to be a selling point, and customers were advised that, "You need not have several guns since you can buy interchangeable barrels for your Maynard action."

In 1873, the addition of a special accessory made it possible to quickly convert these arms to chamber a thick-based Maynard center-fire cartridge that could be extracted with the fingers. This marked an early successful transition between these two ignition systems. Model 1882 Maynard rifles featured an improved centrally-mounted hammer with integral firing pin, and chambered a rimmed-case center-fire Boxer-primed cartridge similar to those still in use today. The Massachusetts Arms Company failed during the 1890s, due in part to the firm's inability or unwillingness to convert to newer mass-production methods, as well as to the rising popularity of the repeating rifle. The firm's assets were purchased by the Stevens Arms & Tool Company, also located in Chicopee Falls.

After leaving West Point, Maynard served a brief apprenticeship in dentistry, establishing a practice in Washington, D. C. circa 1833. He proved to be a brilliant dental scientist, and helped bring dentistry from "the deplorable depths of quackery" to a science dedicated to the betterment of mankind. In eight short years he moved to a major position of prominence in the field of dentistry. By 1841, at age 28, he was one of the first recipients of the honorary degree of Doctor of Dental Surgery from Baltimore College. Maynard was also awarded an honorary degree of Doctor of Medicine from Western Medical College. Maynard's contemporaries sometimes referred to him as the blacksmith dentist because he spent so much time at the forge making better dental tools, including drills and other surgical instruments.

A leading teacher, Dr. Maynard developed a number of ways to improve dental education. He was appointed Chairman of Theory and Practice at the Baltimore Dental College and held a similar position at the National University in Washington D.C. In these positions, Maynard insisted on aptitude testing which included not only academic aptitude but also the motor skills necessary in the field of dentistry. As a teaching aid, he produced a set of clear dentures complete with cavities to demonstrate to students the internal appearance of dental fillings.

Dr. Maynard was extremely gifted in his ability to calm and gain the confidence of his patients. Extremely concerned about pain, he sought and found ways to reduce suffering during dental surgery. Russia's Tsar Nicholas I was so impressed with Maynard's work on the royal root canal that he offered him the job of Imperial Dentist, a position of nobility which carried the rank of major in the Russian Army, to induce him to stay in St. Petersburg. Maynard declined but did accept a large ring with 60 diamonds as a token of the Tsar's appreciation. He also charged the Tsar a very heathy fee.

He also served as dentist for several presidents, ambassadors and many congressman and senators. Dr. Maynard died in Washington on May 4, 1891.
