Original Item: Only One Available. Over the years, IMA has purchased many collections and groups of antique guns, in which case we need to take all of them, as we did in Nepal. While these collections were generally full of guns that relatively good condition, they also had some that were less complete and unfortunately would take more restoration time than we were able to give them. We kept them in storage, possibly for future products, but have now decided to offer these "As Found" antique firearms to our customers as restoration projects. These are all original and as we received them, except for cleaning the dirt and grime off the exterior.

Please note that these are still real antique guns, and are being sold in "As is" condition at a significant discount from what they would sell at if we were to fully restore them. We will do our best to photograph and describe them and know that our customers will know exactly what they are getting. If they arrive and you find that they are not to your liking, they can be returned, however please be aware that there will most likely be restocking fees assessed.

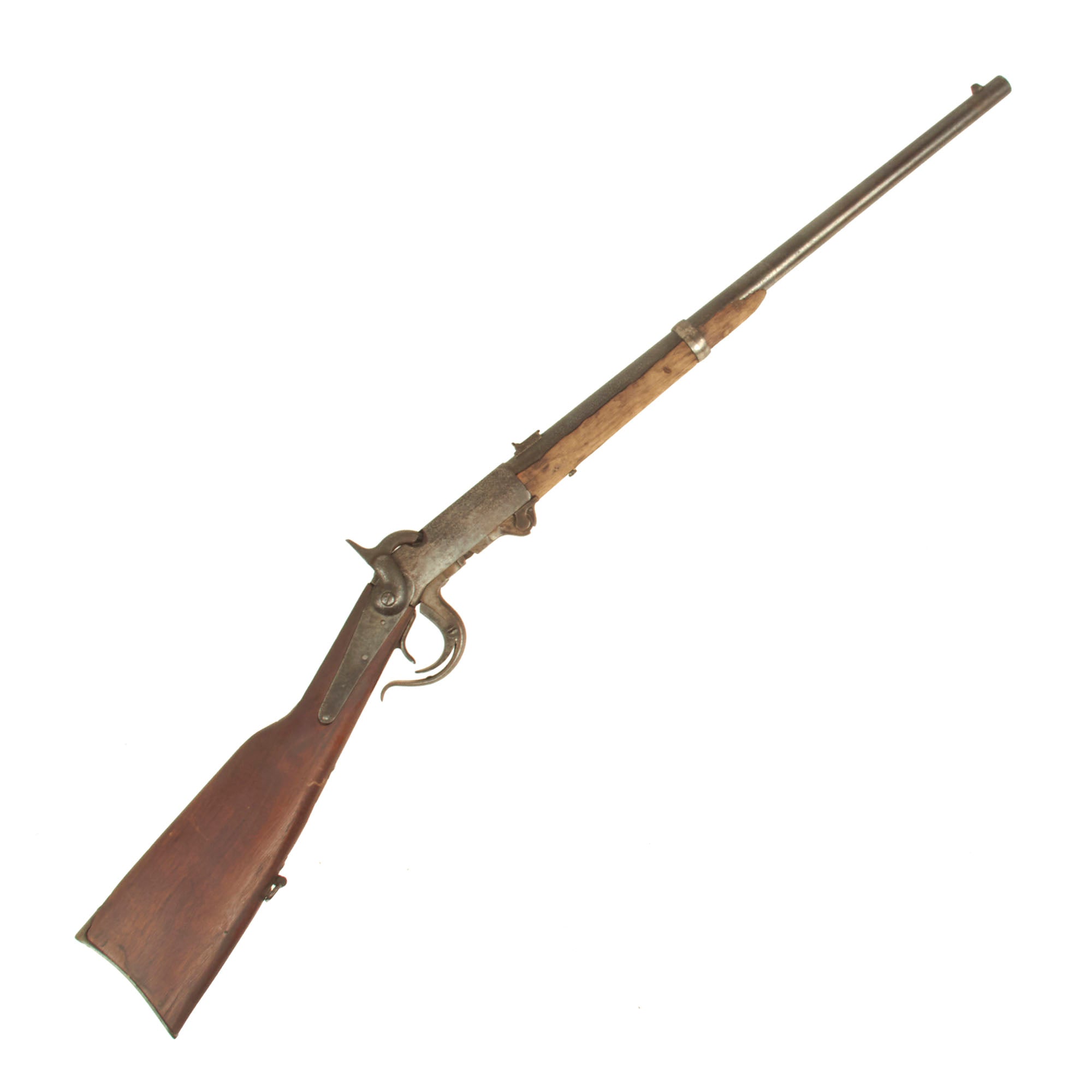

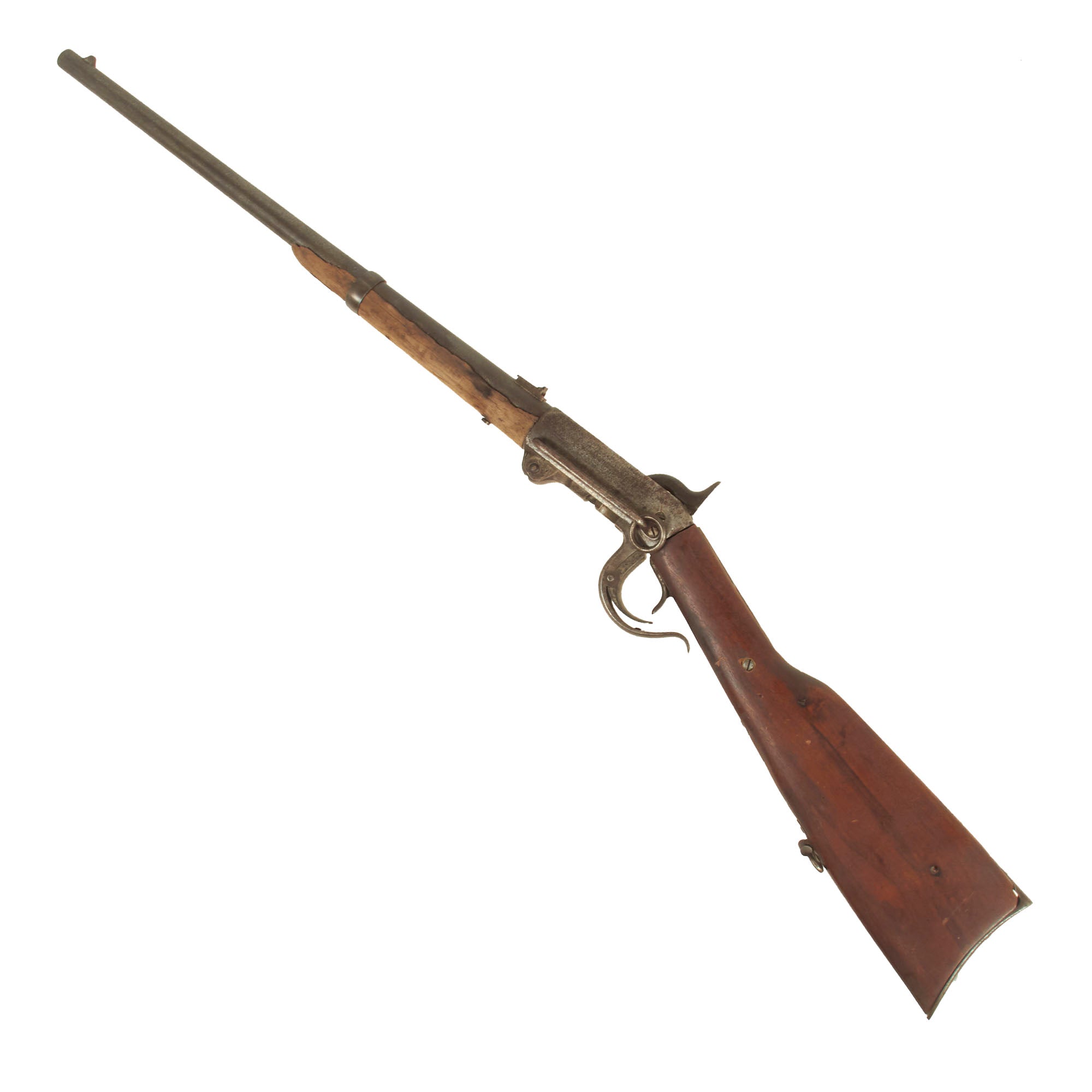

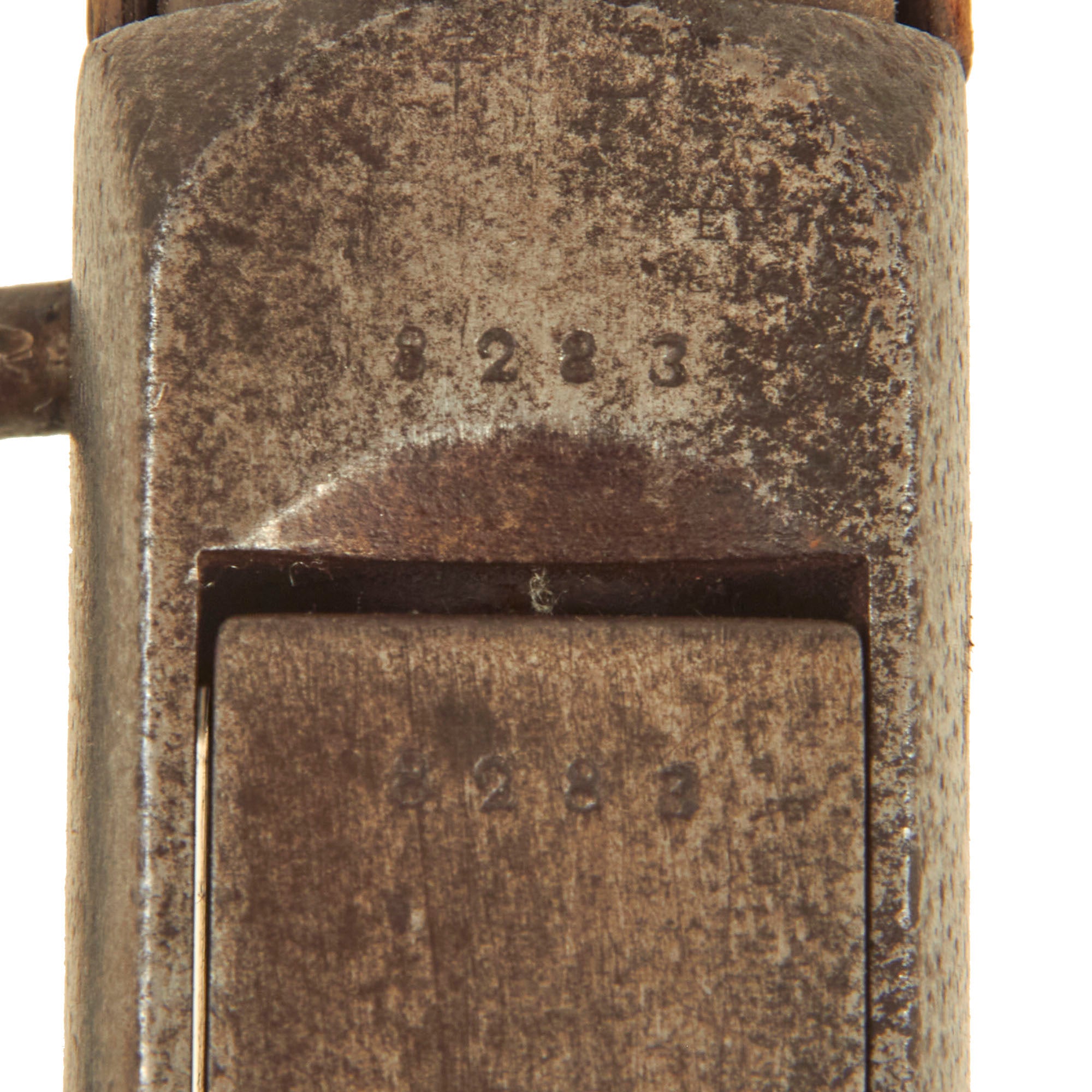

This Burnside Cavalry Carbine in .54 caliber is offered in "As found" condition, having only been given a light wipe down before photography. It is marked on the frame, breech block, loading lever, and on the underside of the barrel under the fore stock with serial number 8283, which is about a fourth of the way through of wartime production, probably made in late 1863. We checked the Springfield Research Services records, but were not able to find any possible shipments this may have been a part of.

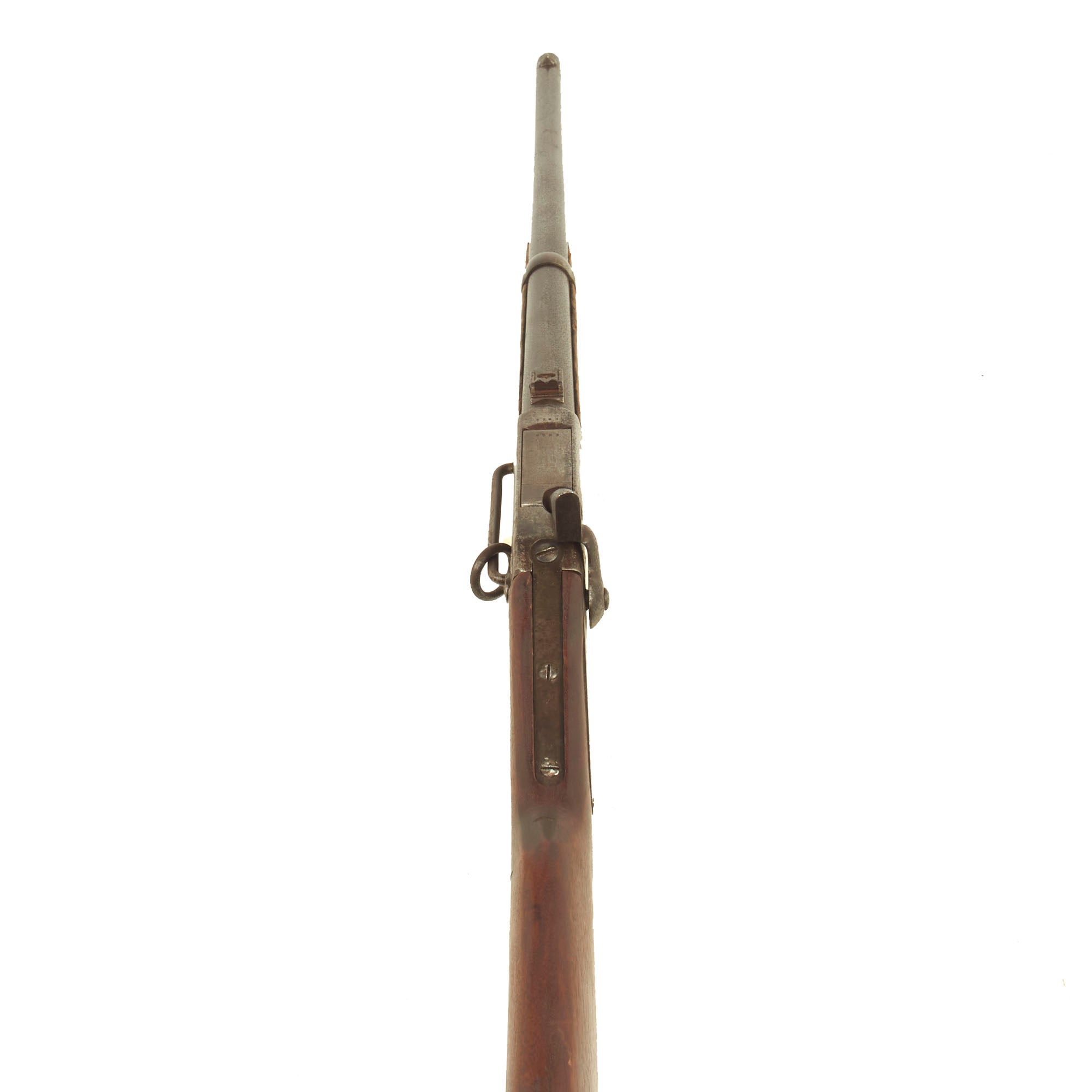

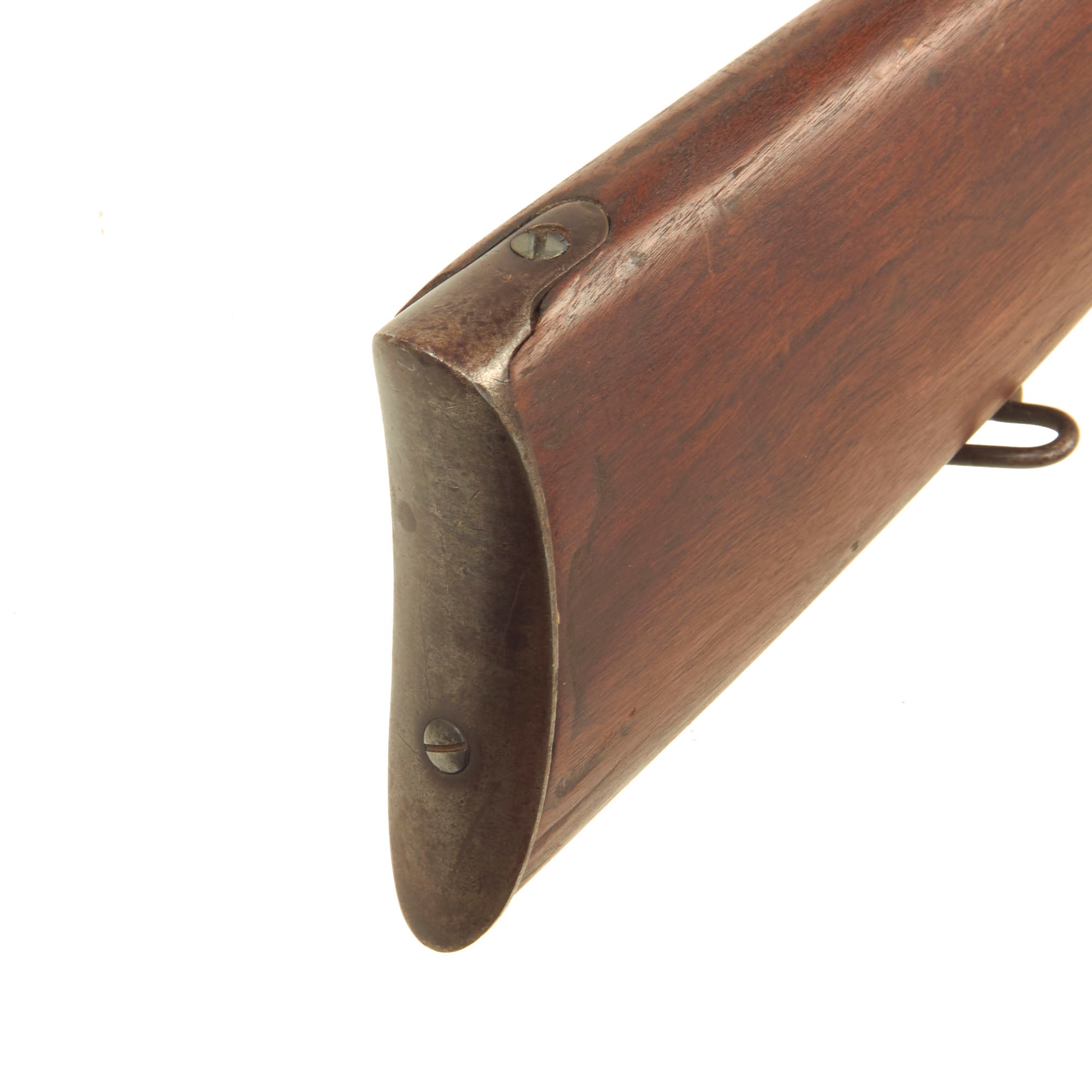

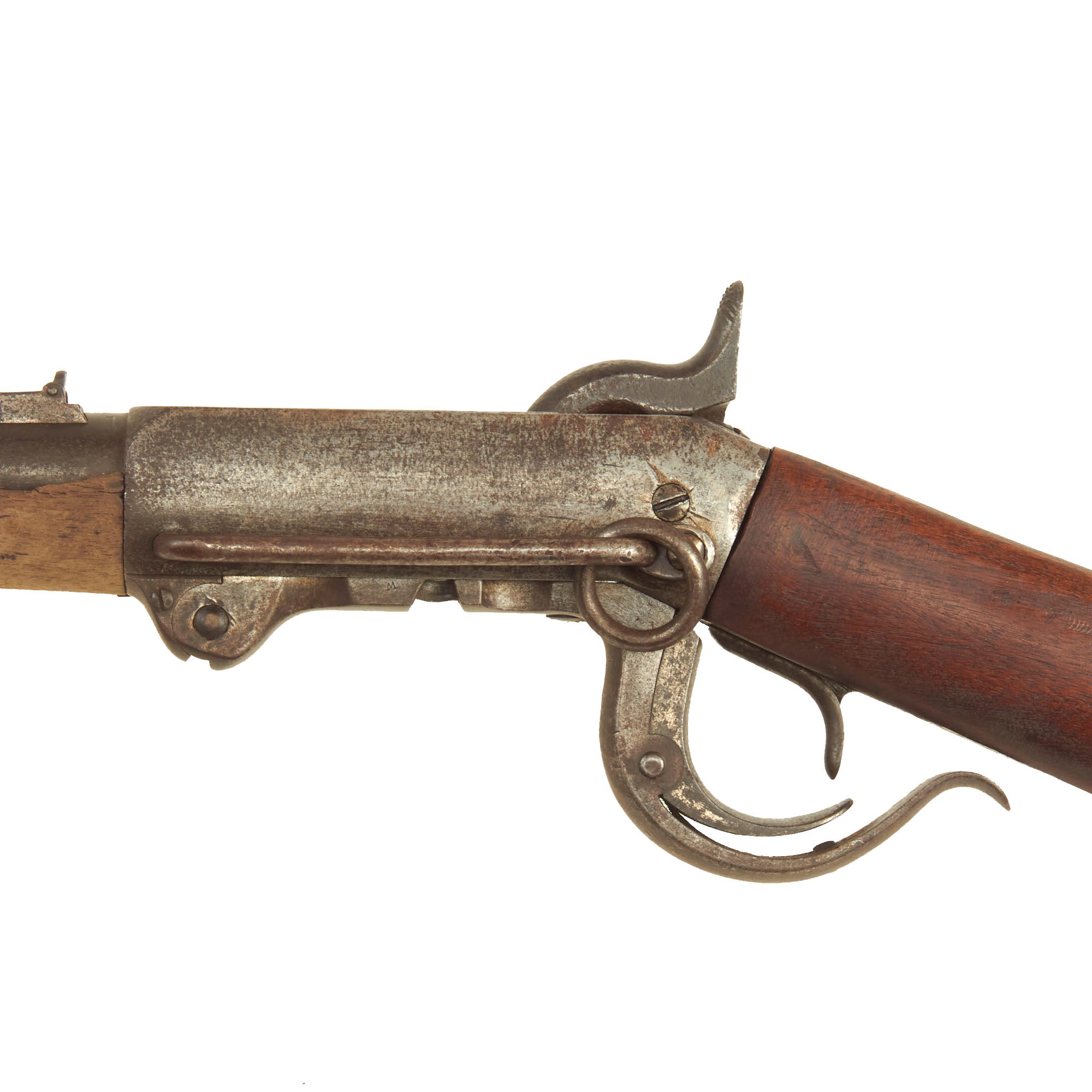

This example, known as the "Fourth Model" or model of 1863, definitely saw extensive use while in service. However it still retains the saddle ring bar with one ring, as well as the sling swivel on the bottom of the butt stock.

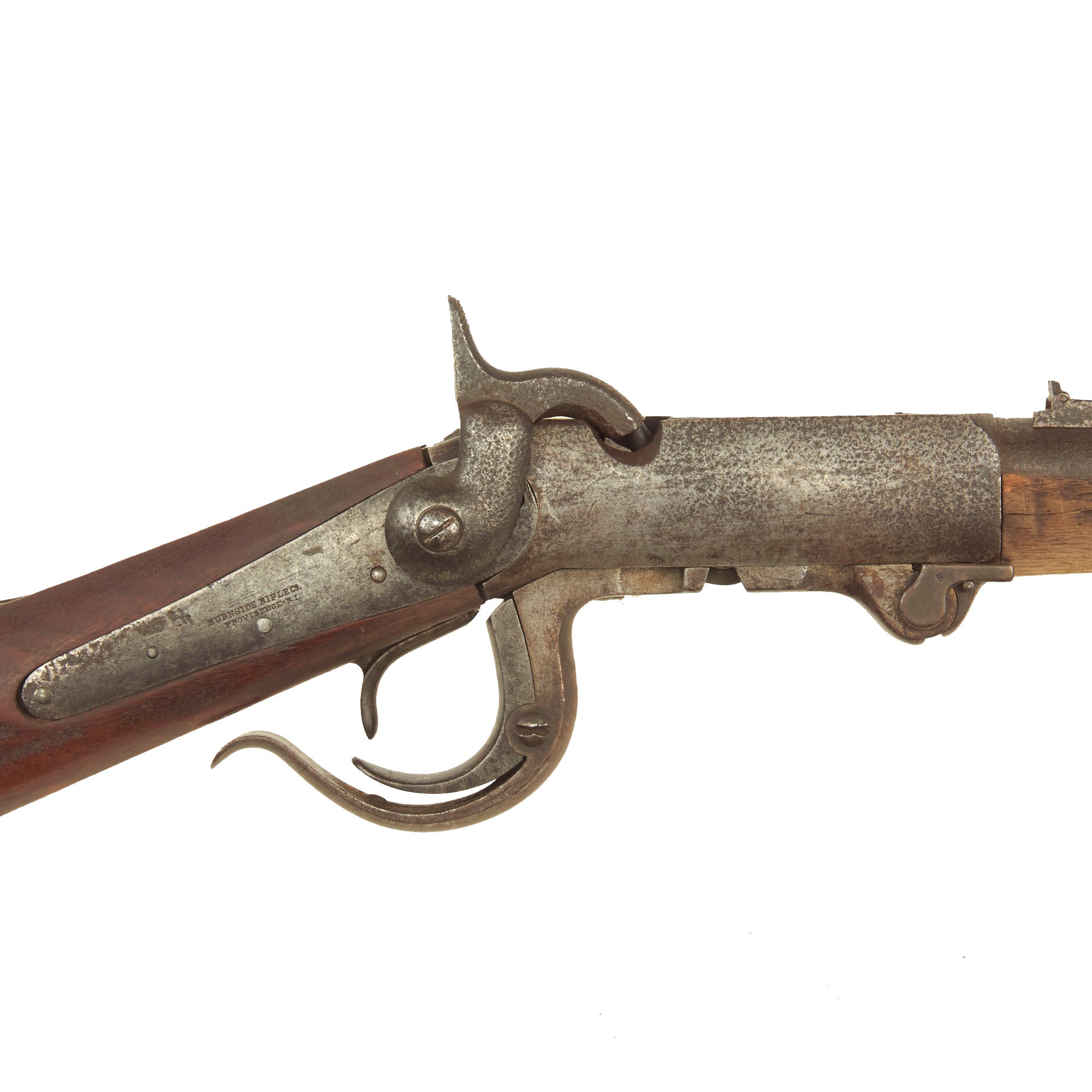

Wear has removed the original markings on the frame and on the top of the barrel, however the marking on the lock plate is still fully legible, a rarity:

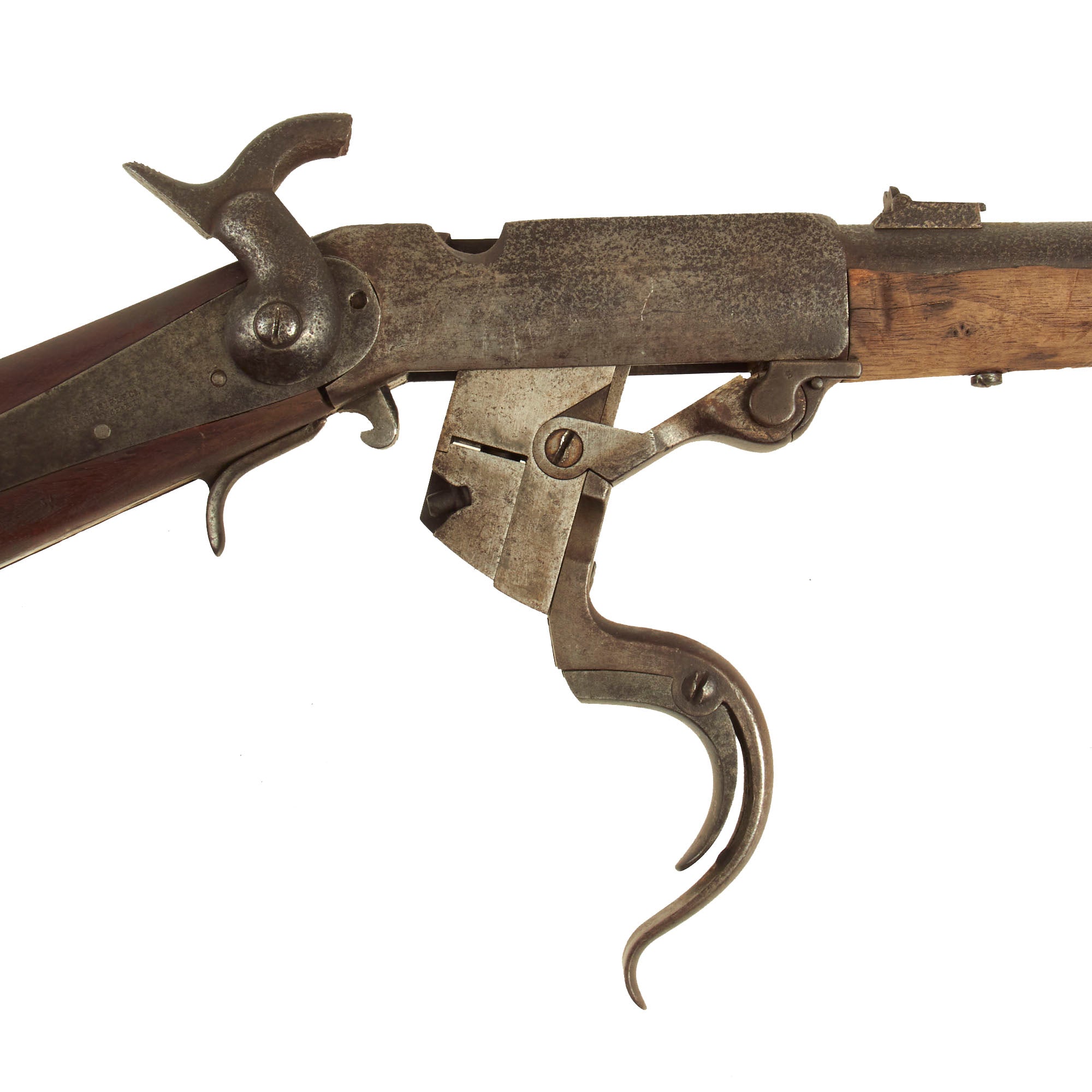

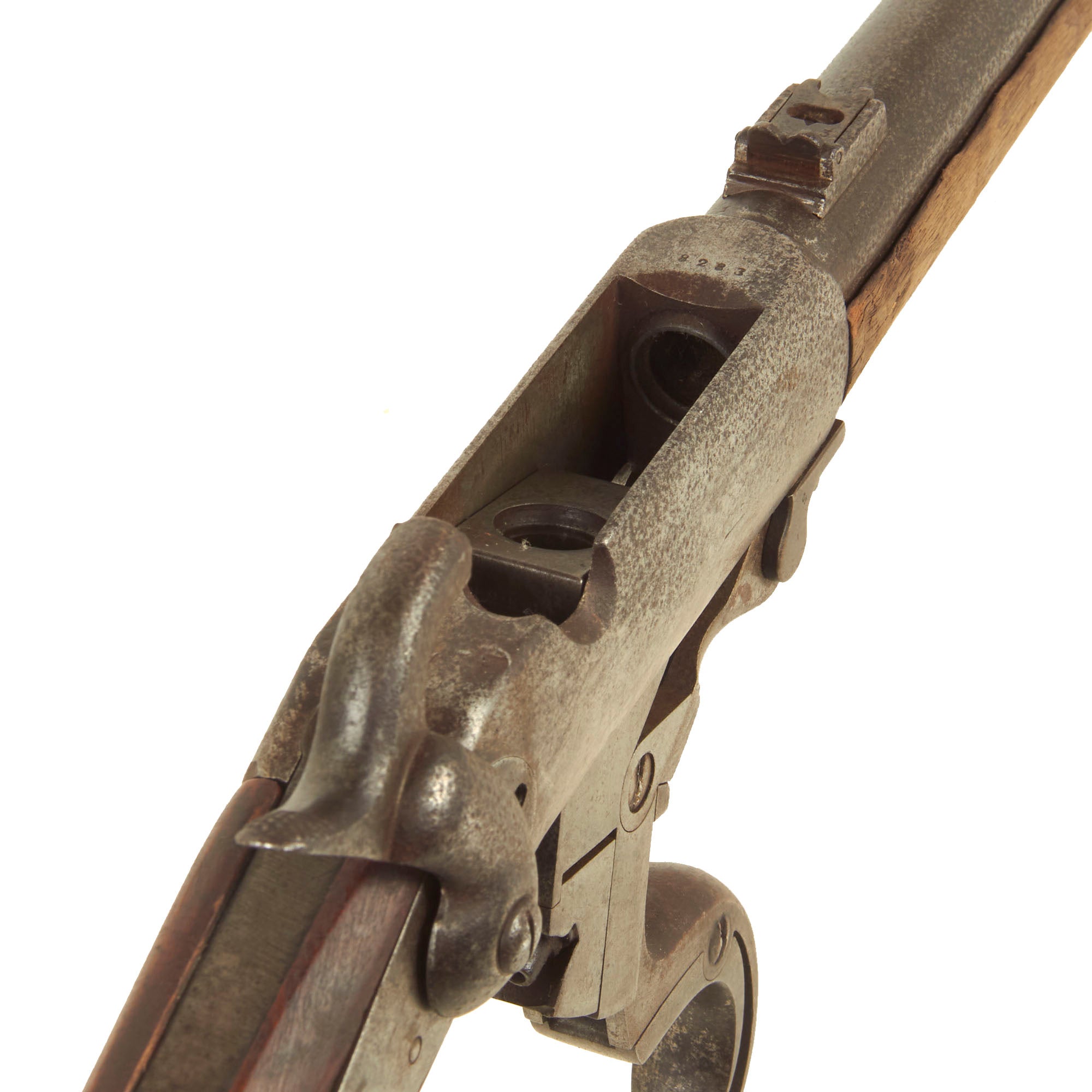

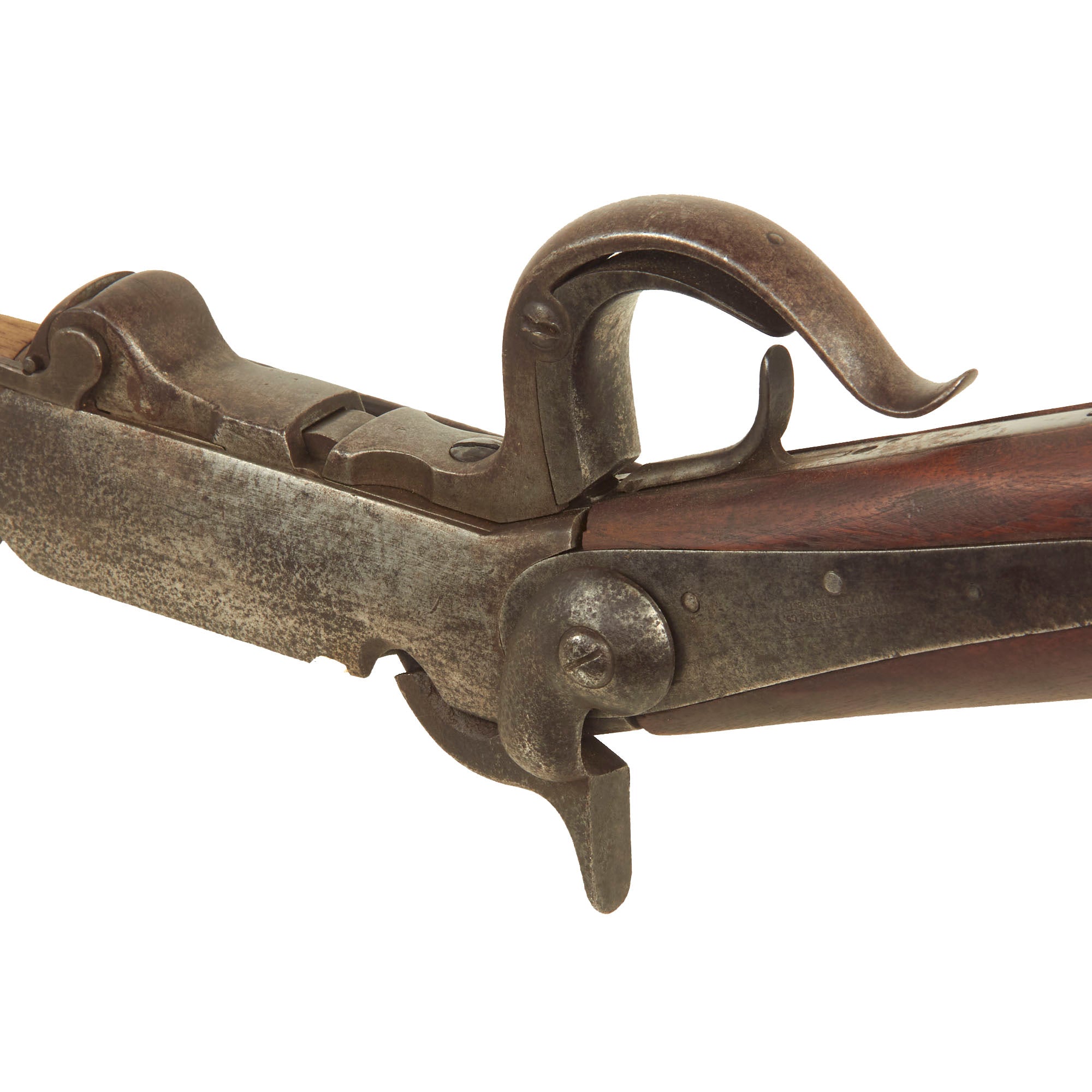

The action cycles correctly, with a functional lock and tight mechanics. As this is a fourth model, the action does not have a "guide screw" on the right hand side, so the action can be hard to keep in the "loading position". The pivot pin is fully intact, and can easily be removed by depressing the spring loaded button underneath.

Condition Notes:
- Overall condition shows significant age and oxidation on the metalwork. Some areas of metalwork show pit rusting and past cleaning.

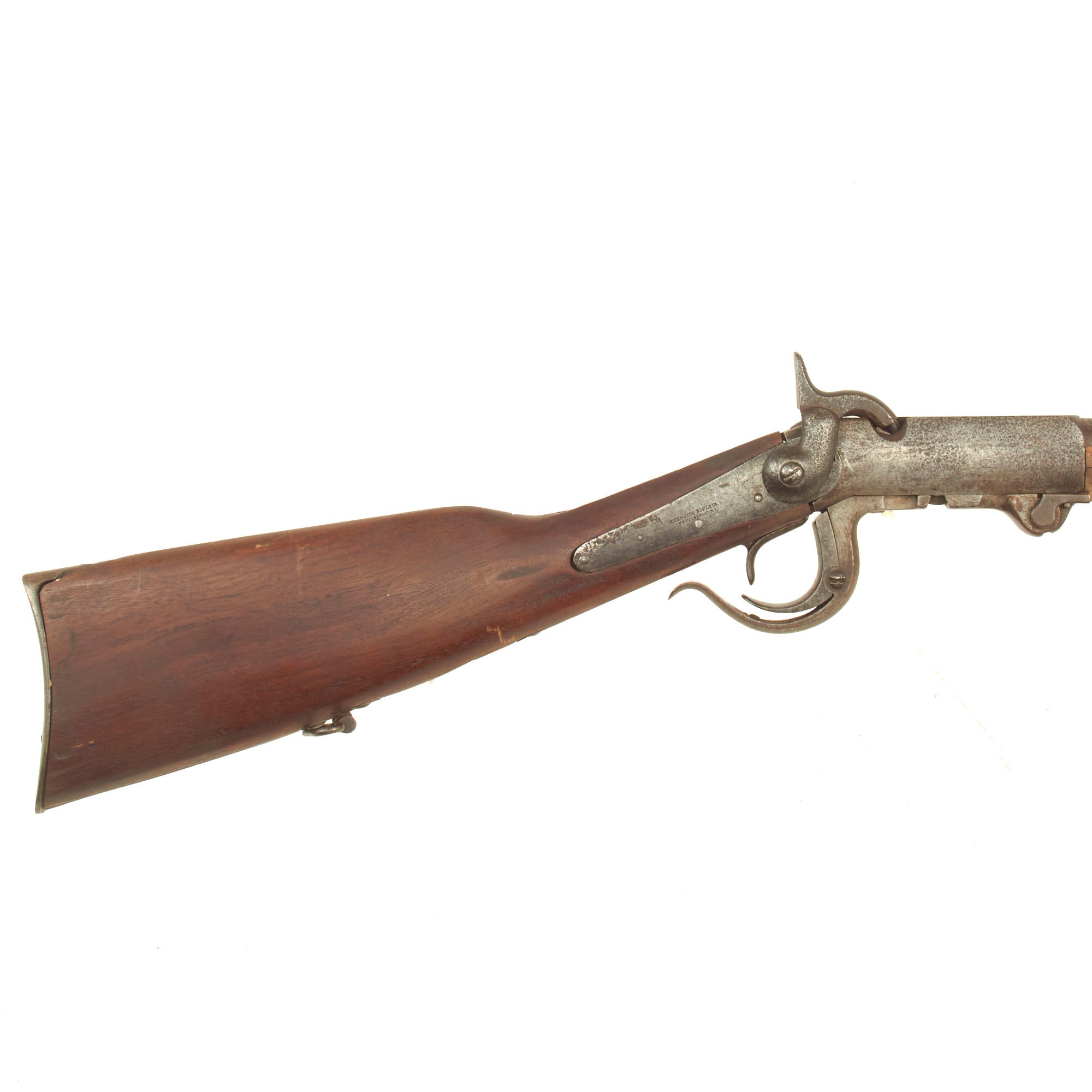

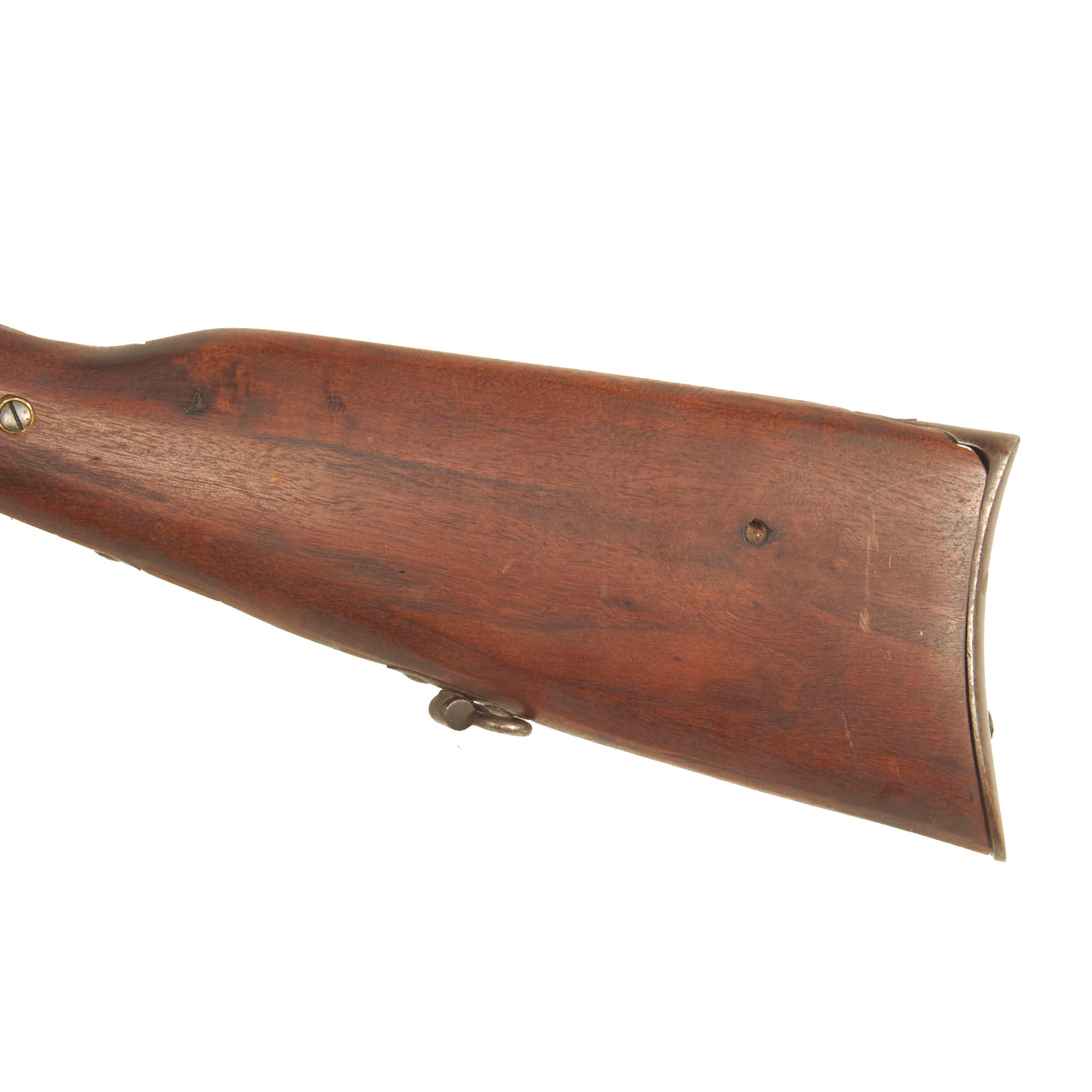

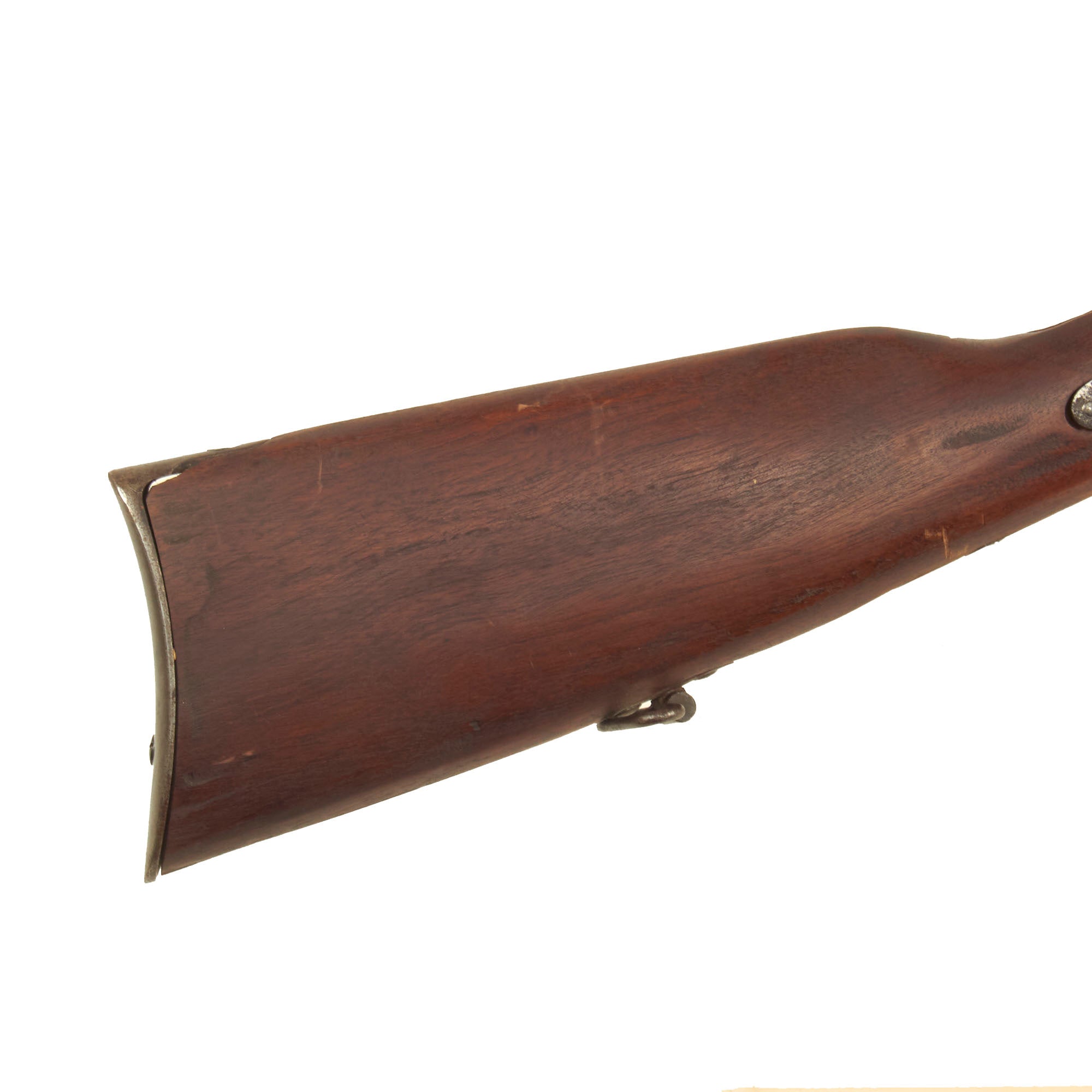

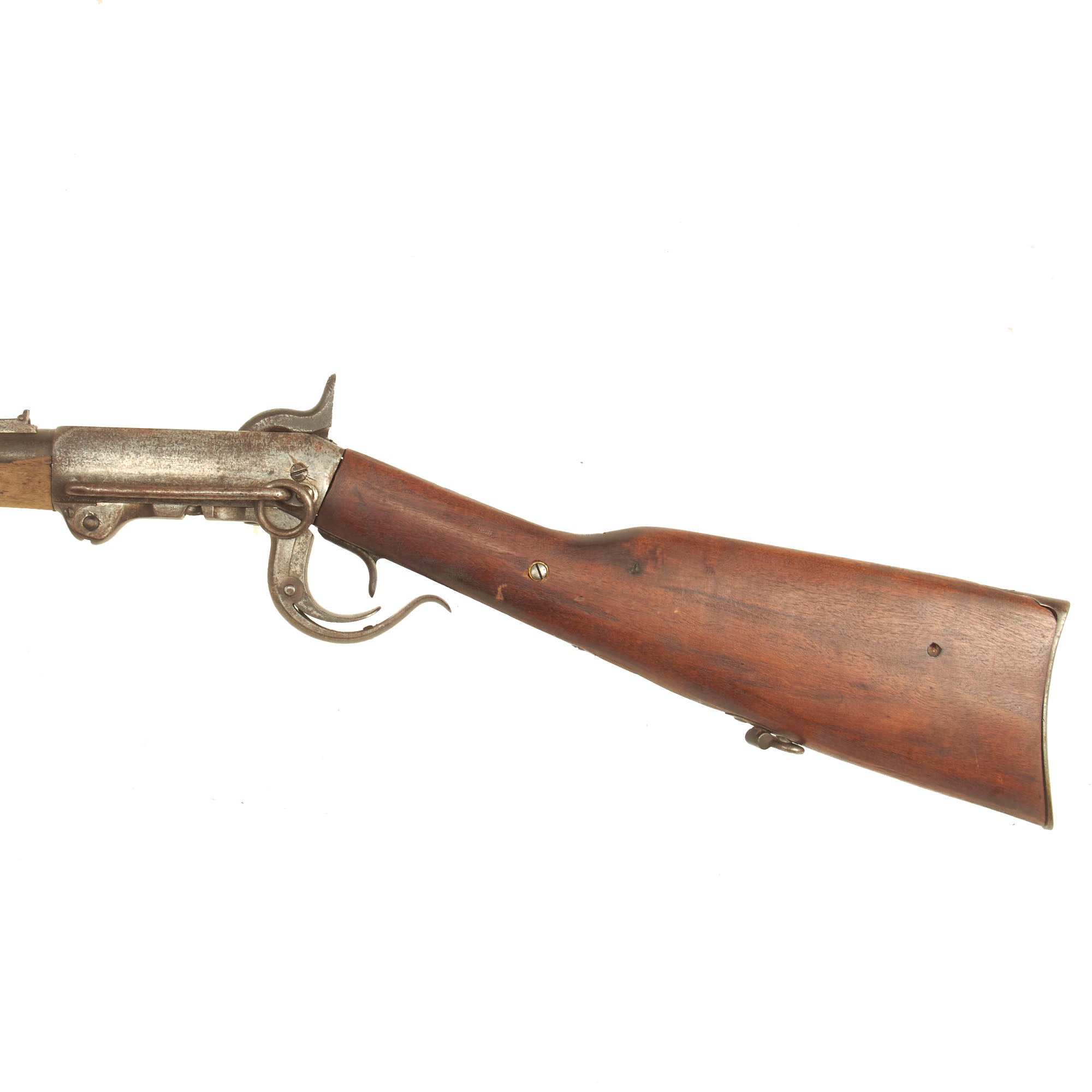

- Front stock is in very poor condition, looking to have suffered water damage. Rear stock has been complete replaced.
- Action is functional and cycles well. Lock functions correctly.

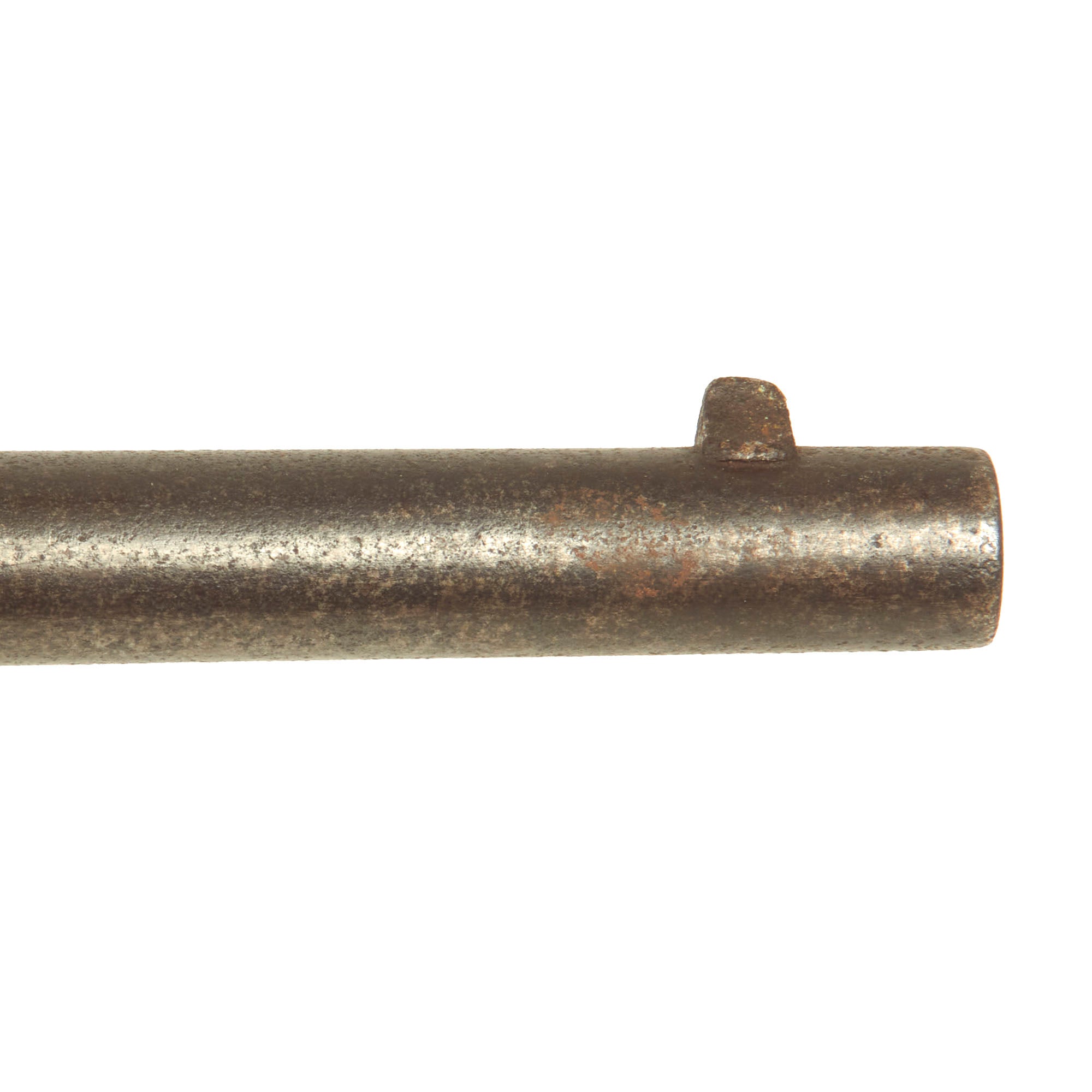

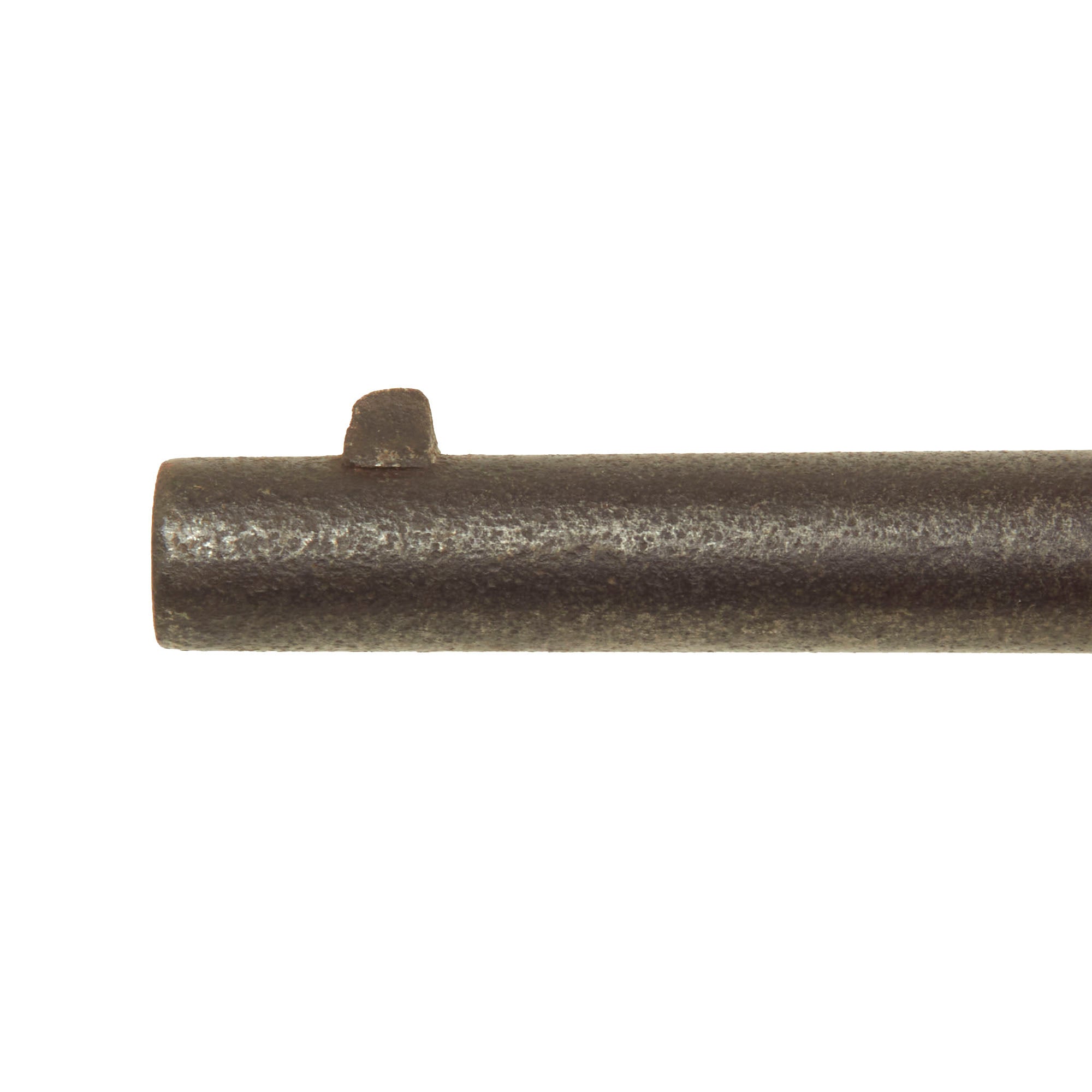

- Bore still shows rifling but also extensive fouling and oxidation from improper storage. Finish is overall dark.

A very interesting "As Found" condition example of a FOURTH Model Burnside Carbine, one of the few that we have had over the years, as we almost always have Fifth Models. This could definitely turn into a great restoration project, or possibly parts for yours!

Please make sure to look at all the high resolution (2000x2000) pictures before purchasing.

Specifications-

Year of Manufacture: c.1863
Caliber: .54"
Cartridge Type: Copper Casing or Tapered Foil Cartridge with Cap
Barrel Length: 21 Inches
Overall Length: 39 Inches
Action type: Side Action Lock
Feed System: Breech Loading Falling Hinged Block

History of the Burnside Carbine

The Burnside, one of the best carbines of the Civil War, was designed by one of its worst generals. Actually, Maj. Gen. Ambrose Everett Burnside had sold the interest in his breechloader well before the war started, so he was unencumbered with the need to further its development or, sadly, to reap the proceeds that would have resulted from its success as the conflict’s third most widely produced Federal carbine, after the Sharps and Spencer.

Burnside’s invention employed a rotating block, released by a loading lever that was activated by a hinged, clamping catch. It chambered a unique .54-cal. cone-shaped brass cartridge with a thick, rounded belt (there were also some earlier, coiled cases, sans belt) at its mouth and a small hole in the base that allowed ignition from a separate percussion cap. The round was loaded, base down, into the chamber. Next, the lever was closed and the block locked in place with the belt halfway between the chamber and barrel, providing an excellent seal.

After the carbine was fired, the lever was again lowered and the spent case easily removed from the block with one’s fingers. If extraction became difficult, it was possible to pull it out with the base of the next cartridge. After the soldier got the hang of it, a Burnside could easily be fired in excess of a dozen rounds a minute.

The Burnside Carbine (there were rifles, too) went through a considerable evolutionary process and provides a fertile area for the collector. About 300 First Models were produced by the Bristol Firearm Co. in Bristol, R.I., a manufacturer founded by Burnside himself. It was a .54 caliber with an overall length of 40 inches. First Models had no fore-stock and incorporated a unique side lever, which operated a tape primer and also locked the breech block in the open position. The carbine’s frame was case-hardened, and the barrel was blued.

Second Models did away with the side lever and tape primer, though they still had no fore-stock. Premier Second Models were made by the Bristol Firearm Co., though later ones were produced by the reorganized Burnside Rifle Co., in Providence, R.I. The Third Model, fitted with a fore-stock, was introduced in 1861 at the request of the U.S. Ordnance Dept.

A Fourth, and final, variant appeared toward the end of the Civil War. It had a double pivoting breech block to make the gun easier to open and close. Later on, a second type of Fourth Model (sometimes called “Fifth Model”) appeared with a screw in the right side of the action to prevent the block from dropping out of the action, thus speeding up loading. These guns will be seen with both blued and case-hardened frames. Markings on most Fourth Models are, “BURNSIDE’S PATENT/MODEL OF 1864,” though there are some examples with the earlier 1856 date. Also, deliveries of this model started in 1863, even though they had the 1864 markings.

Because they were made in large quantities and appeared toward the end of the Civil War, Fourth/Fifth Model Burnside Carbines are the least valuable of the various versions. Not too steep a price for one of the most important cavalry arms of one of America’s most important conflicts.
