Original U.S. Civil War Fifth Model Burnside Carbine - Serial Number 18174 has a rating of 5.0 stars based on 1 reviews.
ASK A QUESTION
Item:
ON9724

Original U.S. Civil War Fifth Model Burnside Carbine - Serial Number 18174

Regular price $1,495.00

Item Description

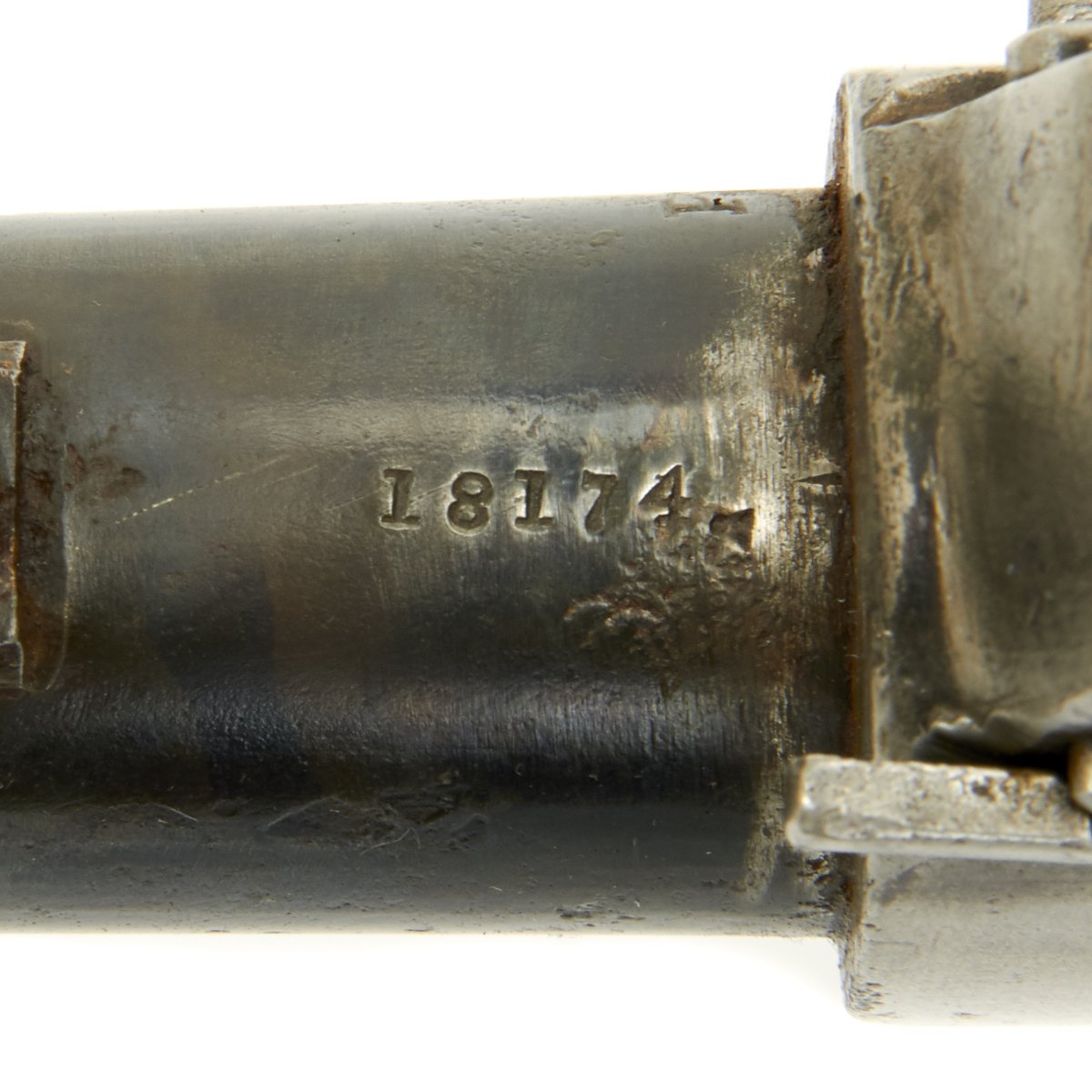

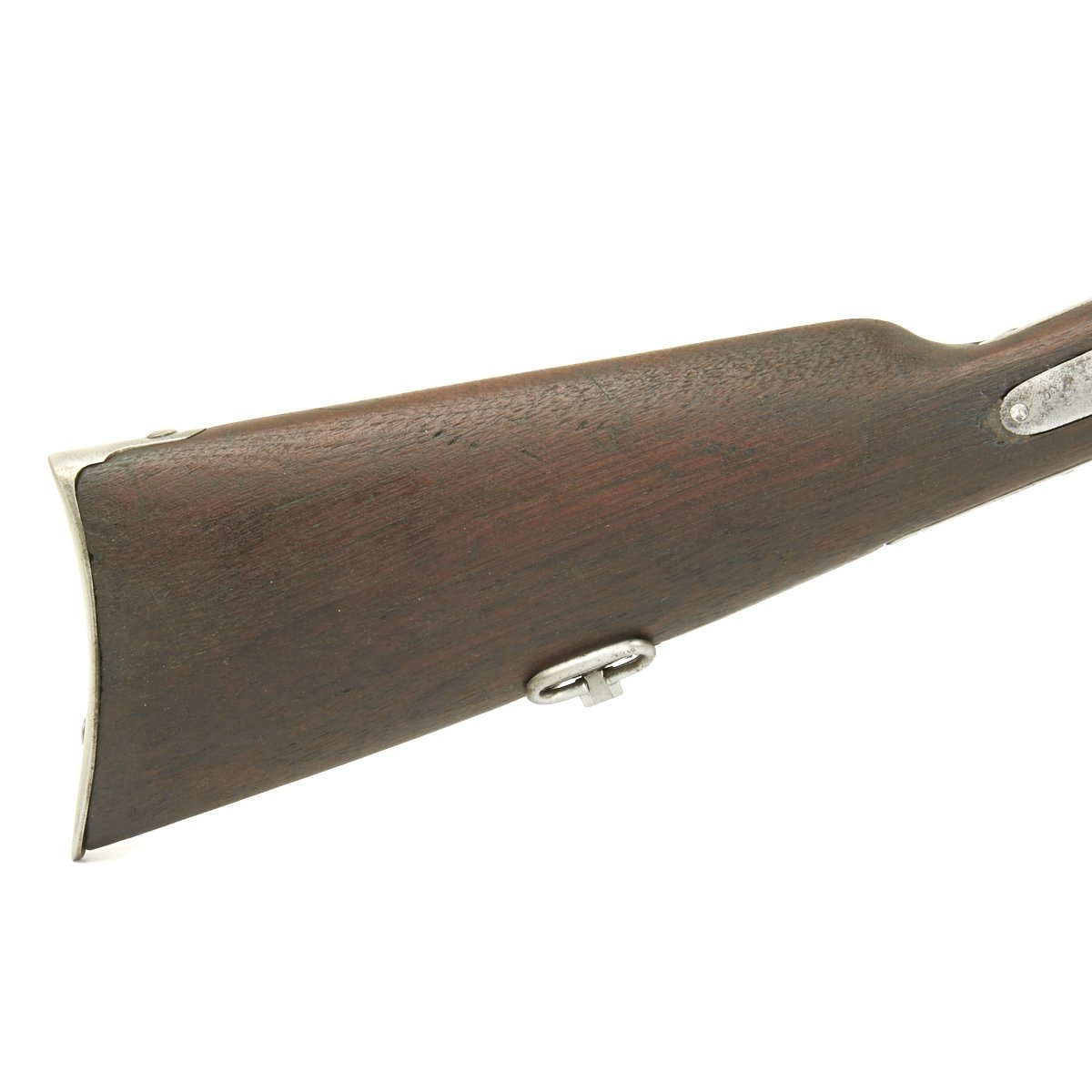

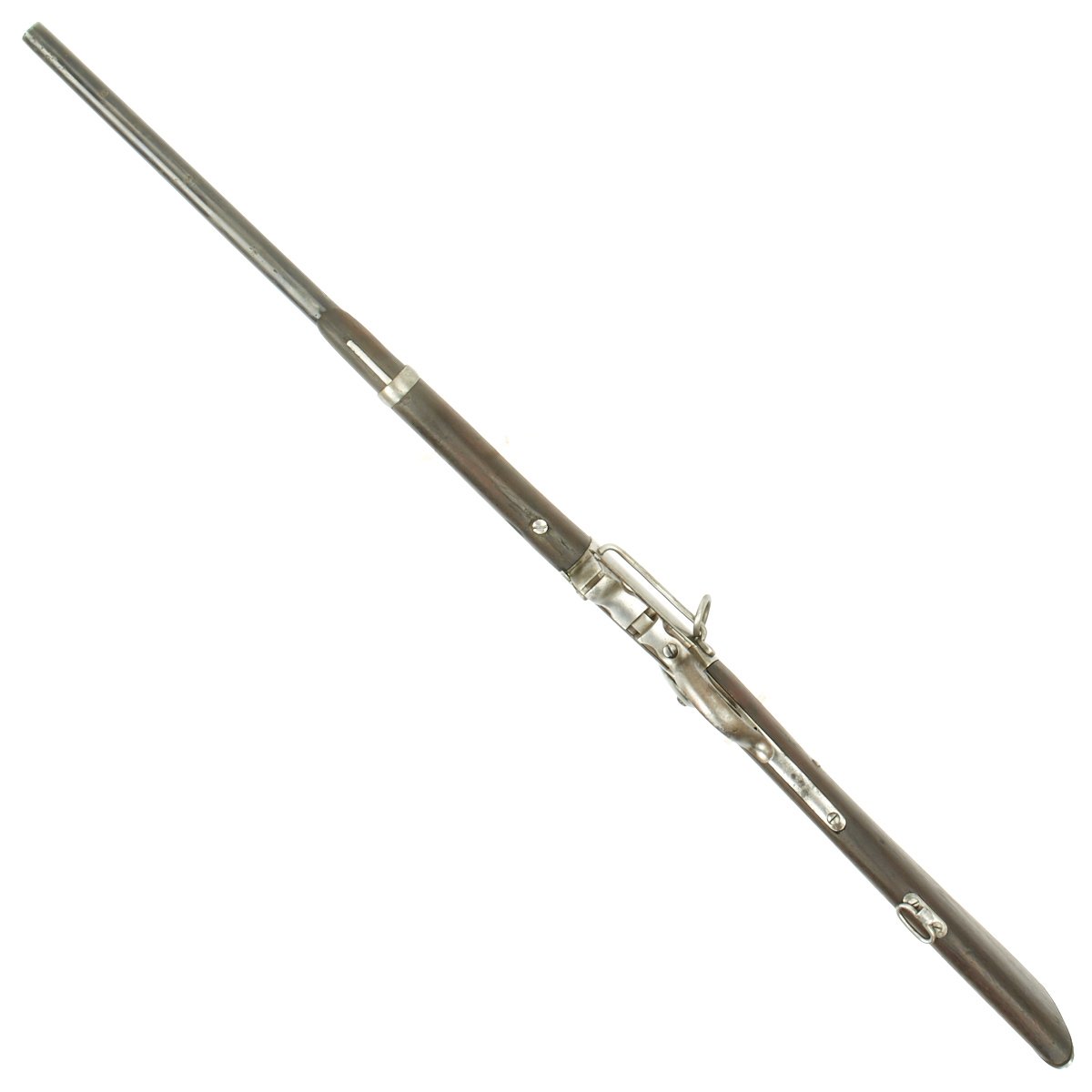

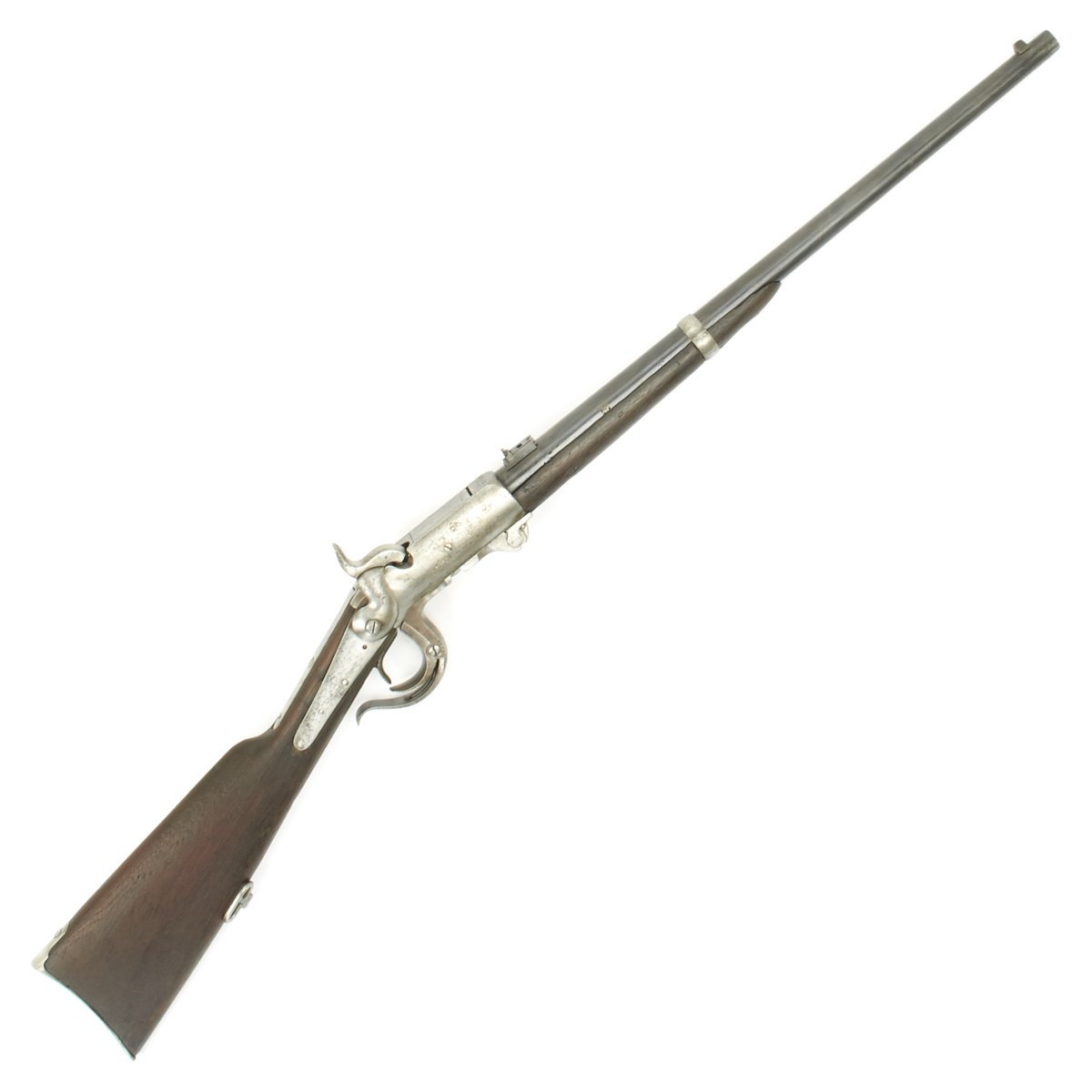

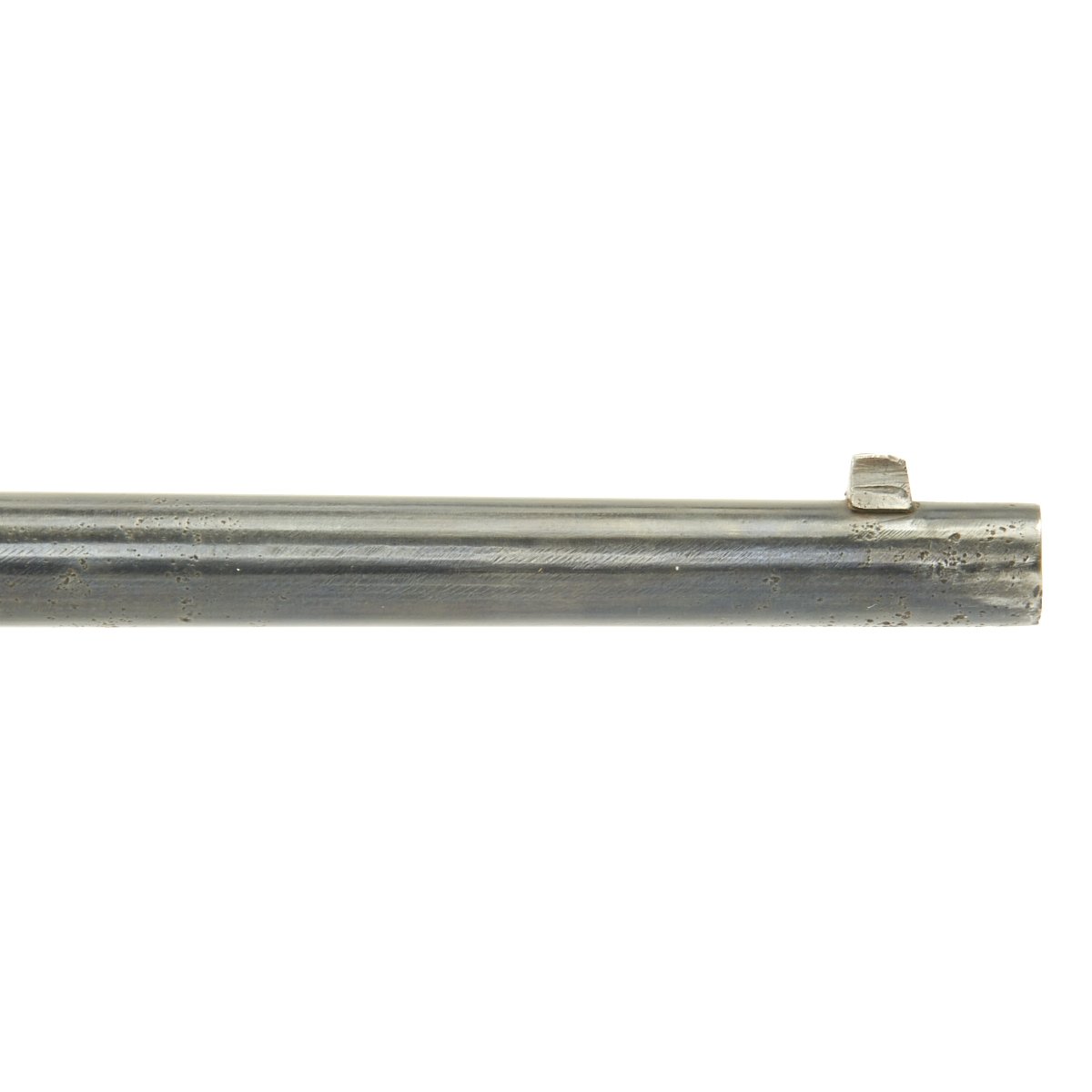

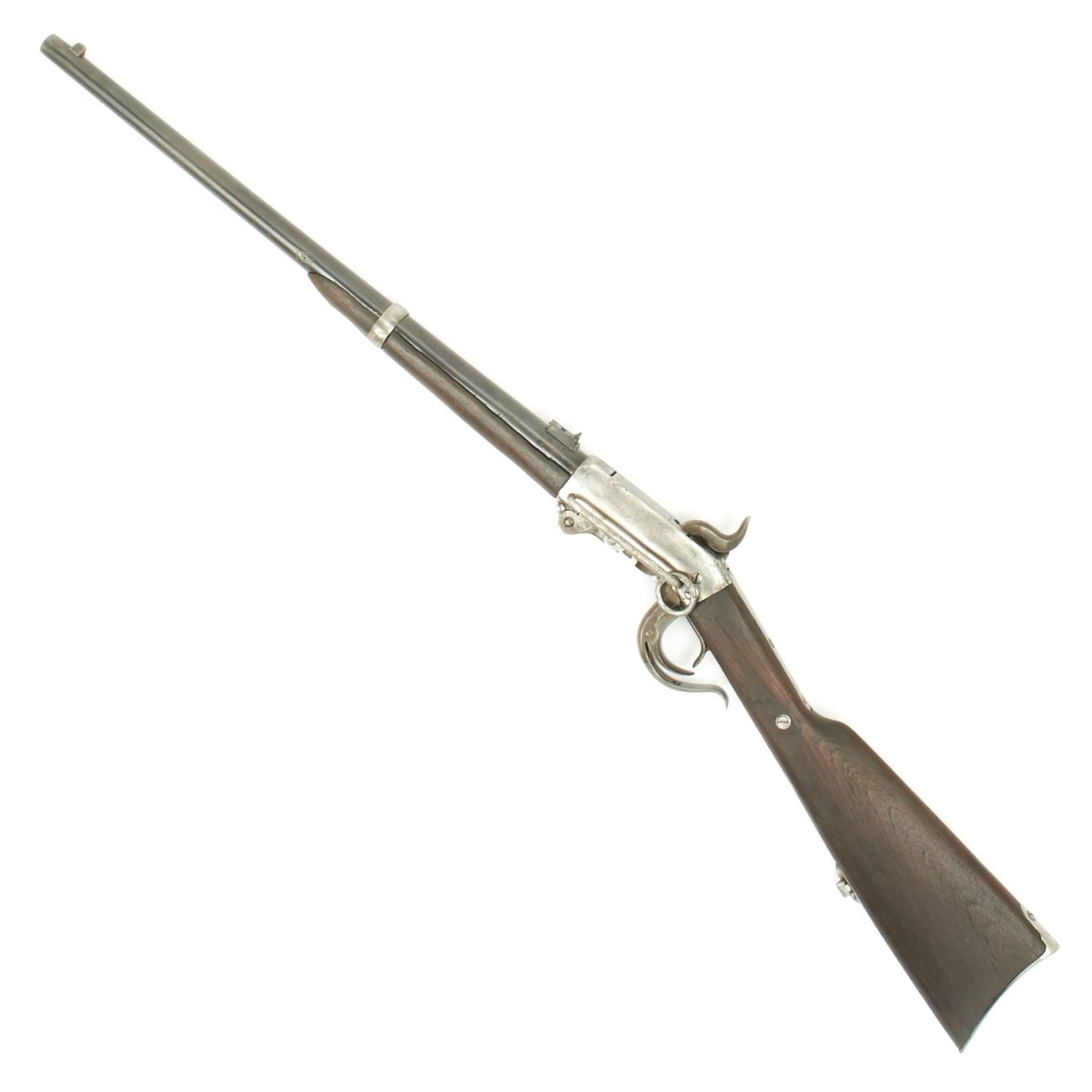

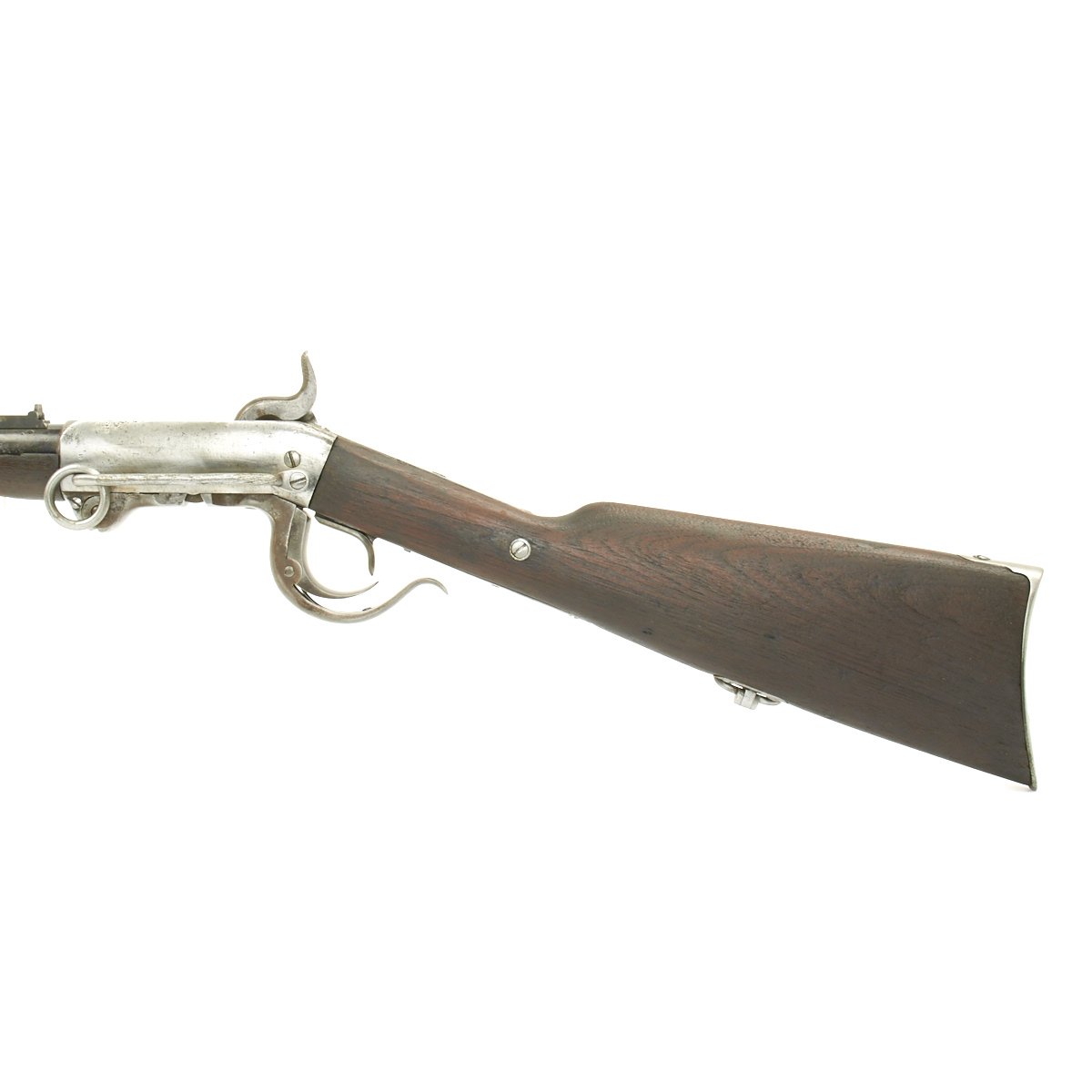

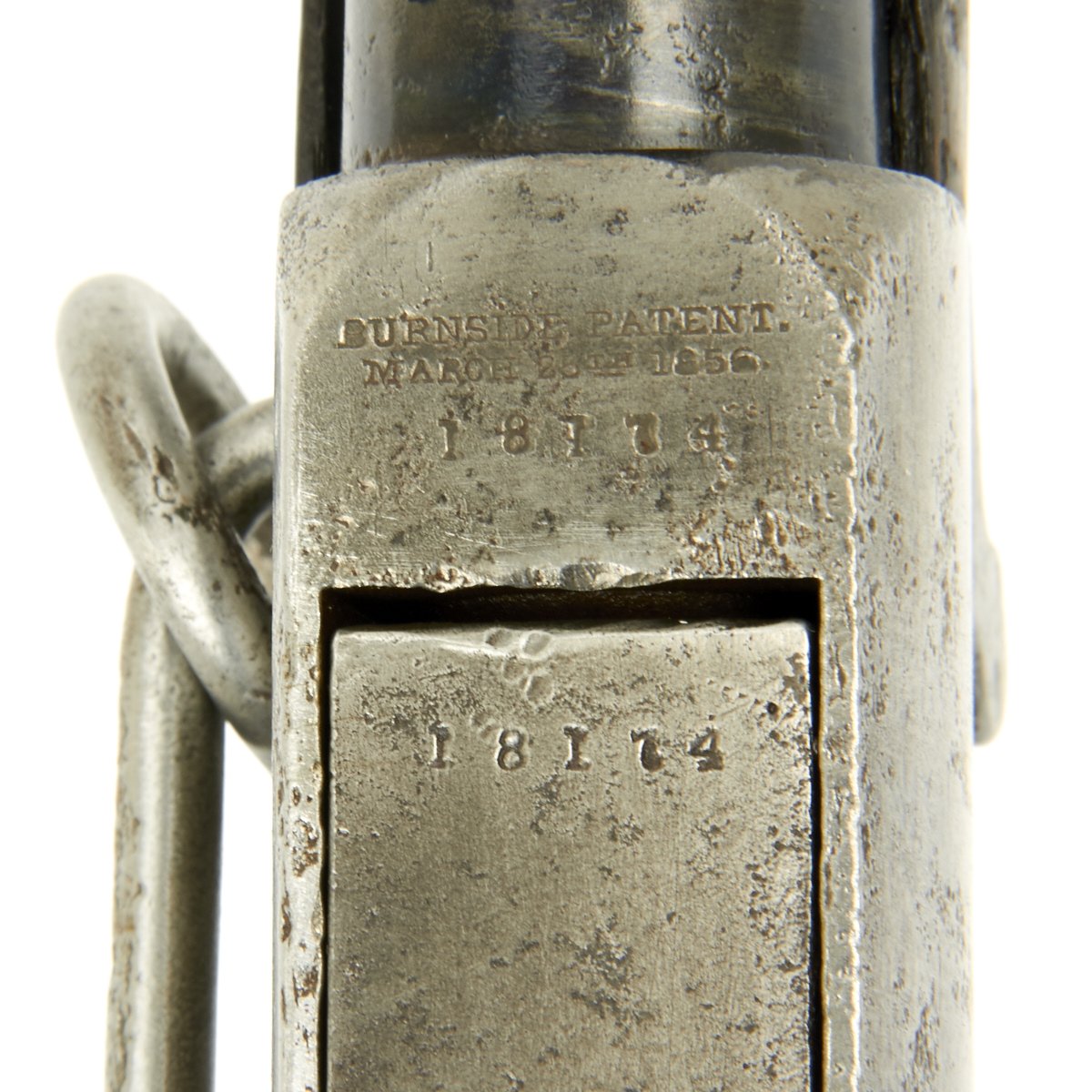

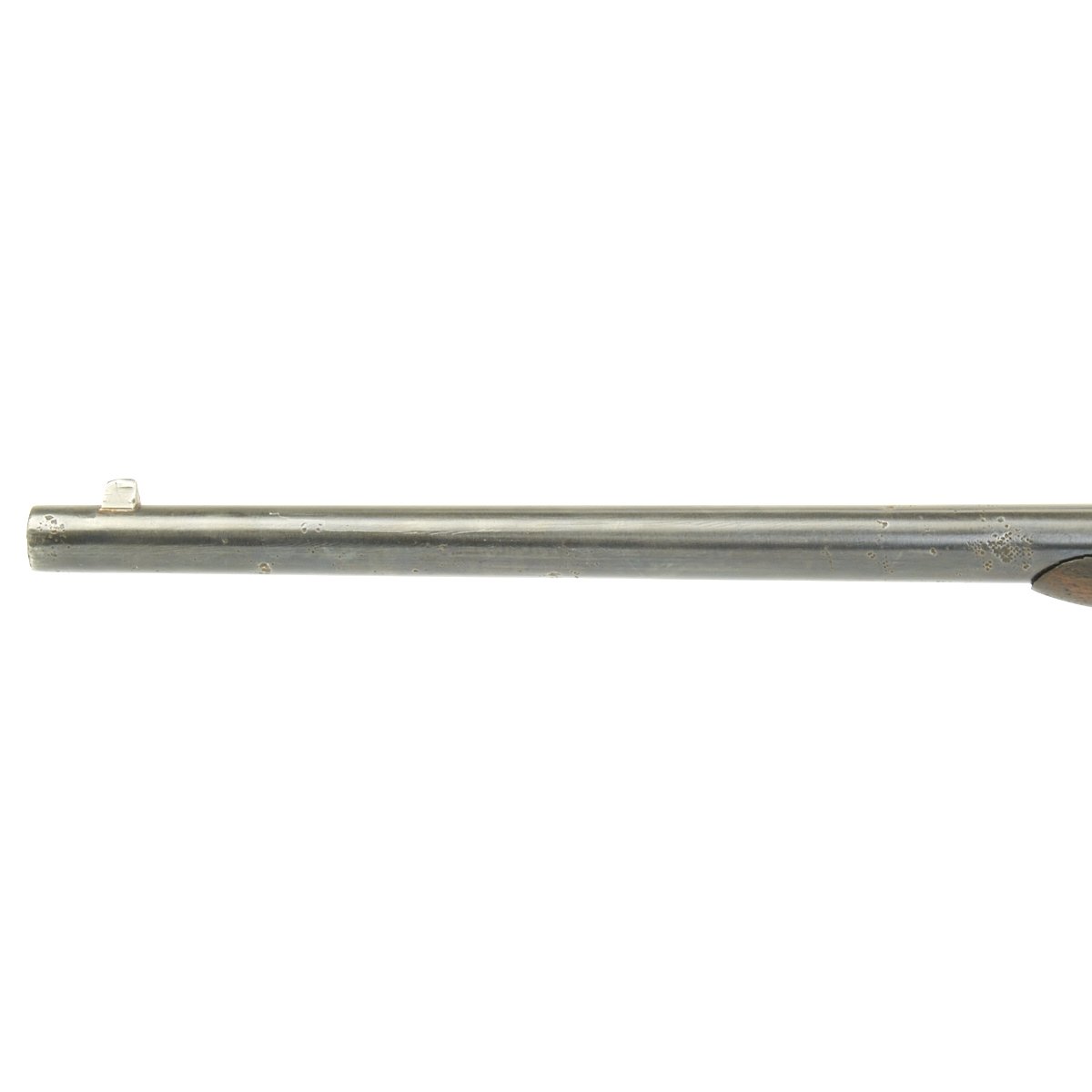

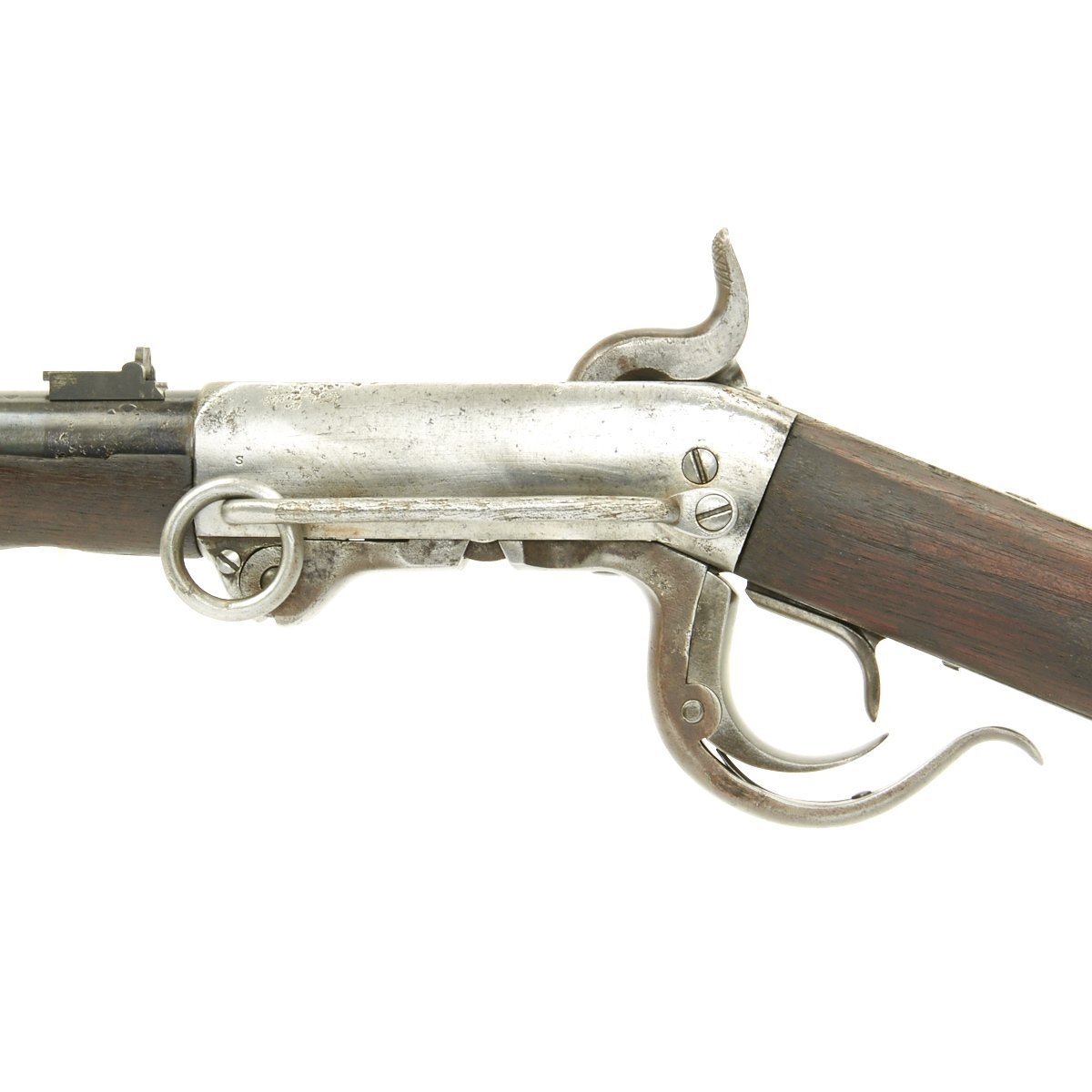

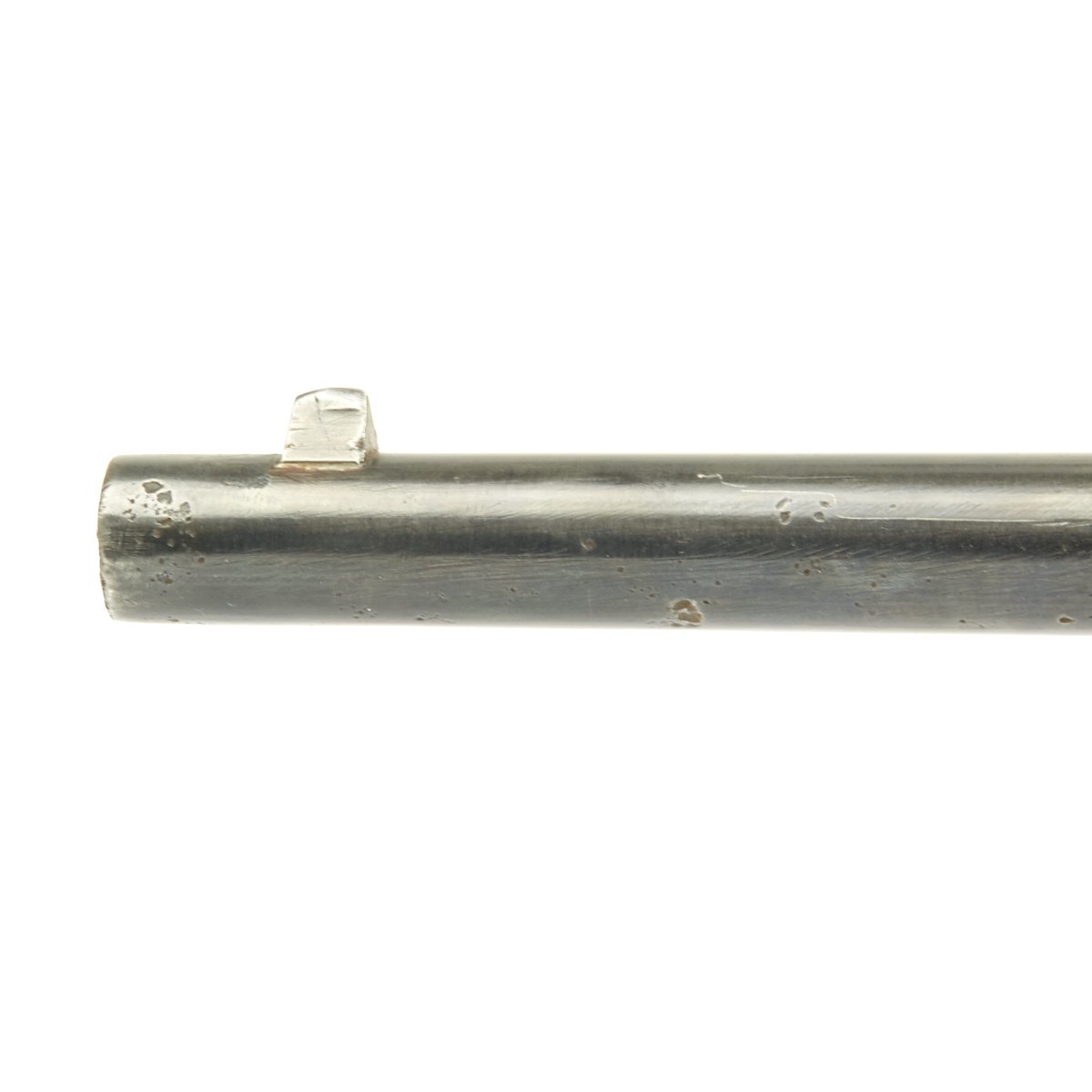

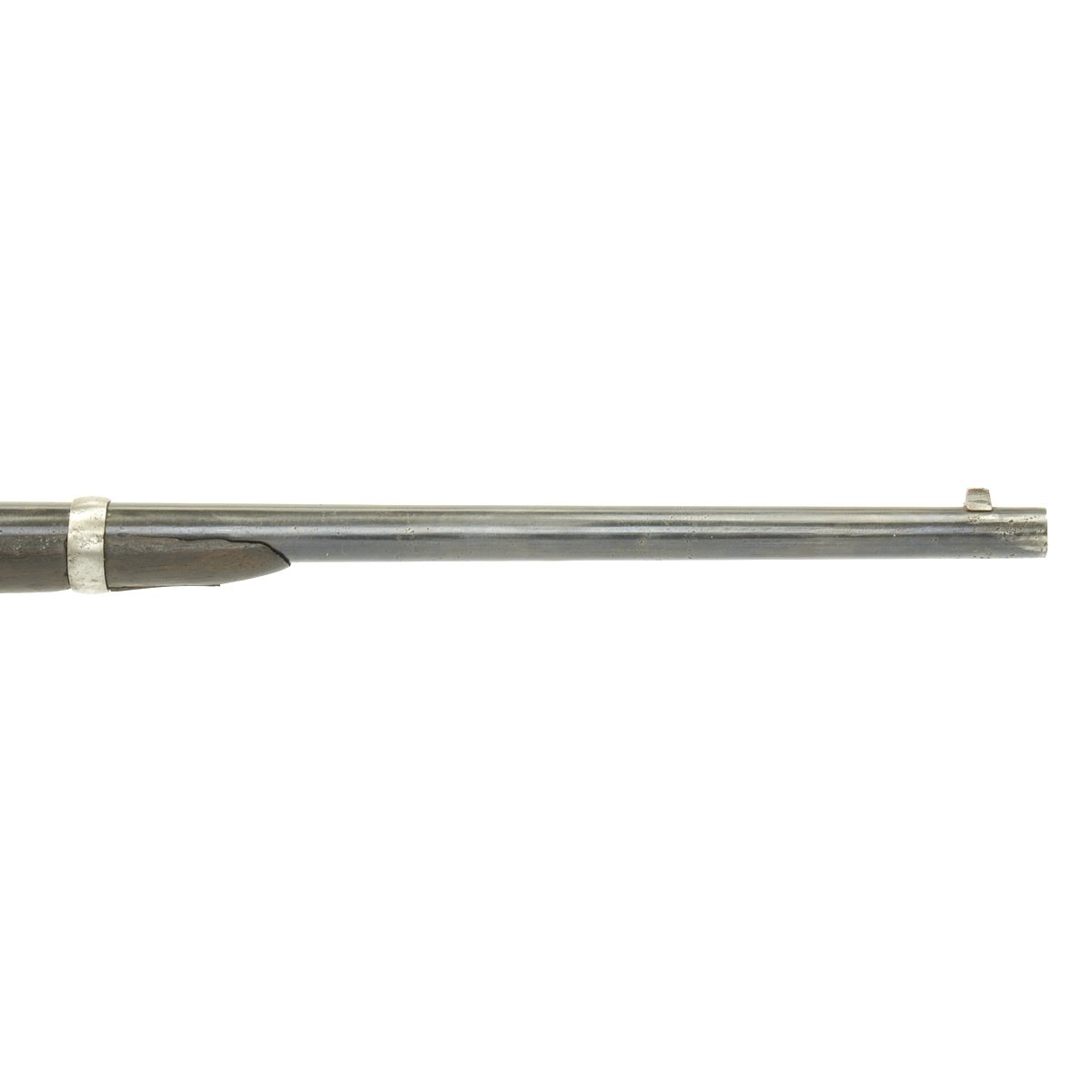

Original Item: Only One Available. This Burnside Cavalry serial # 18174 in .54 caliber is offered in very good collectible condition. This example, known as the fifth model, has a patent date of 1856 and retains some of the original blue on the barrel, with a clean wood stock and comes complete with saddle ring. The top of the frame is marked:

BURNSIDE PATENT.
MARCH 25TH 1856

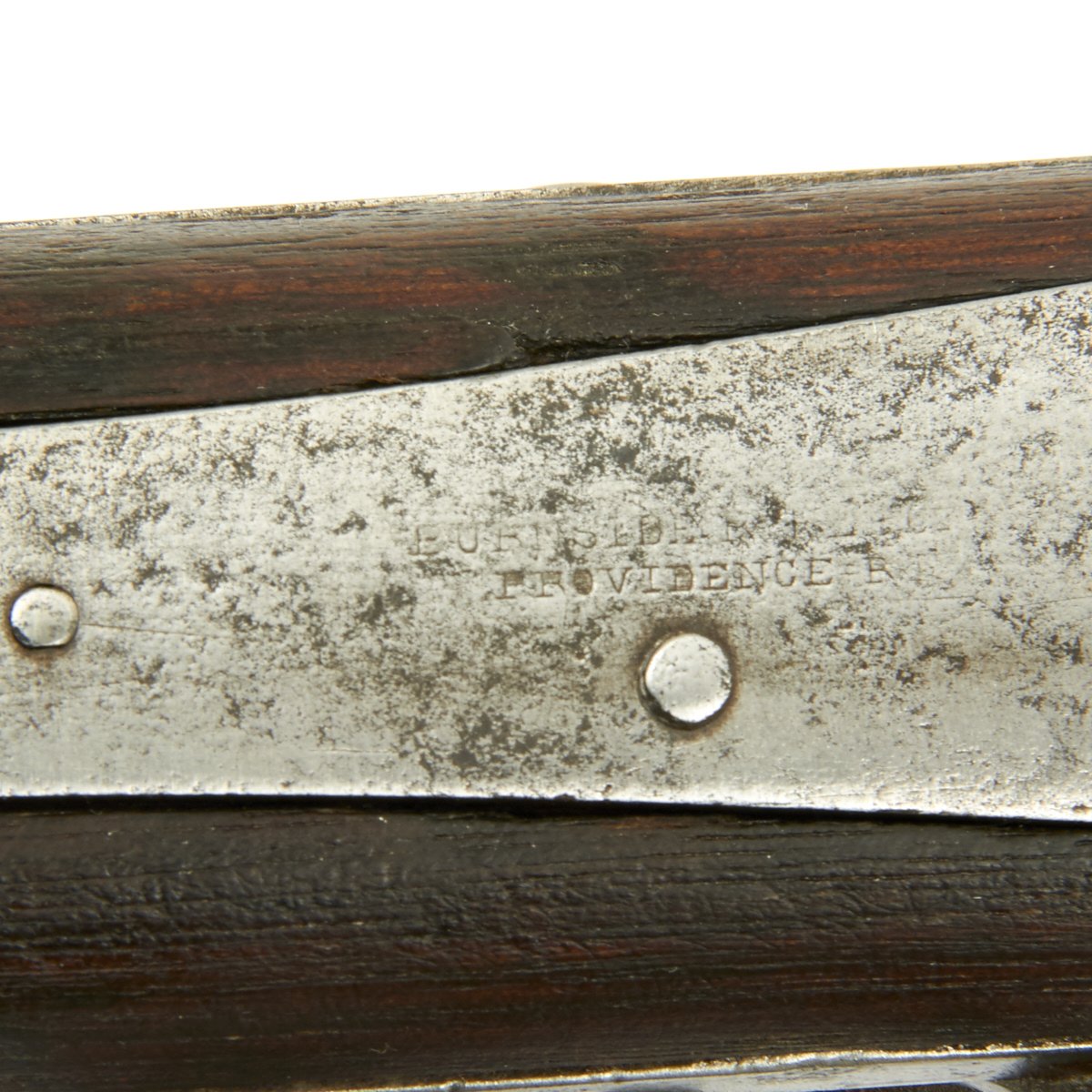

The marking on the lock plate is partially worn off, but originally would have read:

BURNSIDE RIFLE CO
PROVIDENCE R.I.



The Burnside, one of the best carbines of the Civil War, was designed by one of its worst generals. Actually, Maj. Gen. Ambrose Everett Burnside had sold the interest in his breechloader well before the war started, so he was unencumbered with the need to further its development or, sadly, to reap the proceeds that would have resulted from its success as the conflict’s third most widely produced Federal carbine, after the Sharps and Spencer.

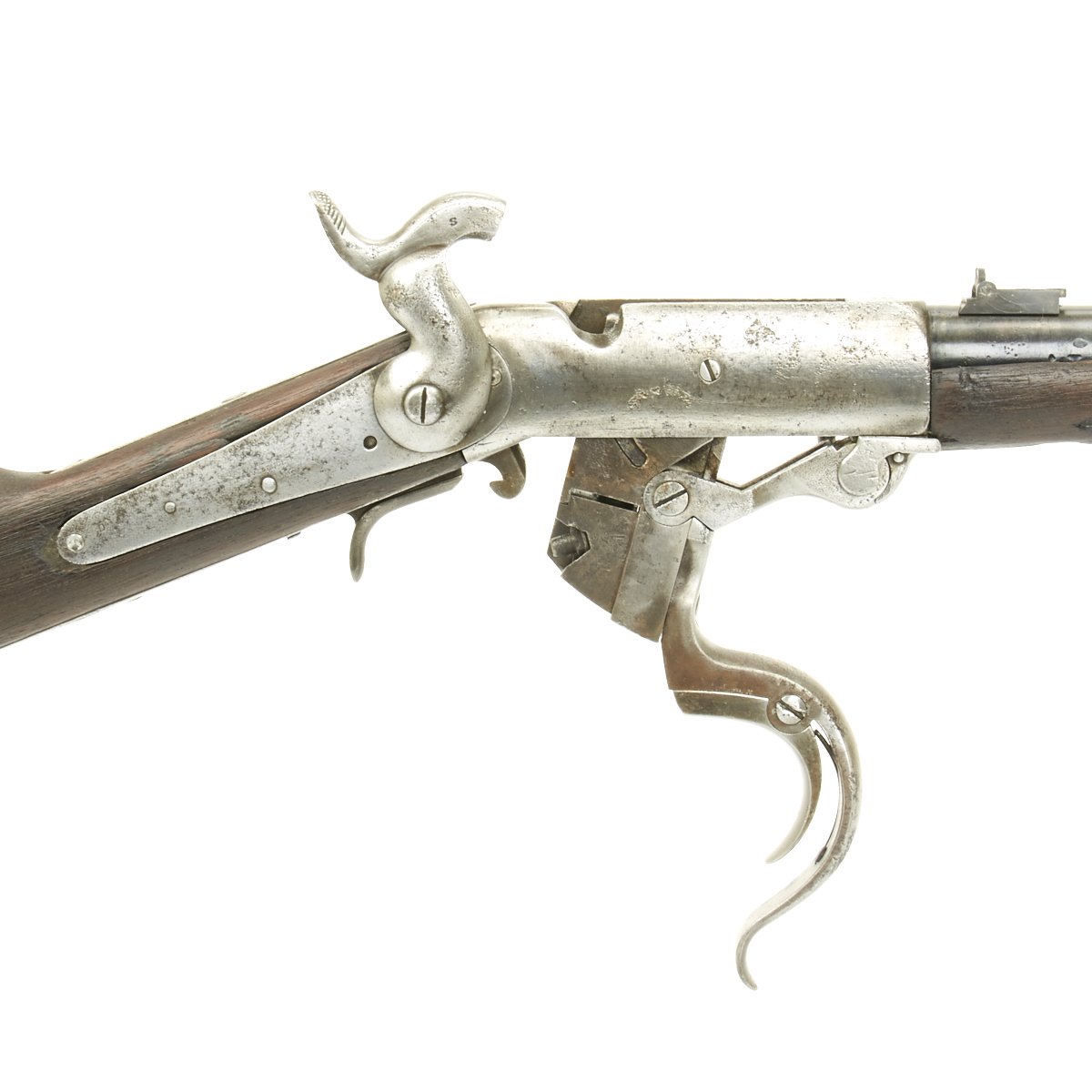

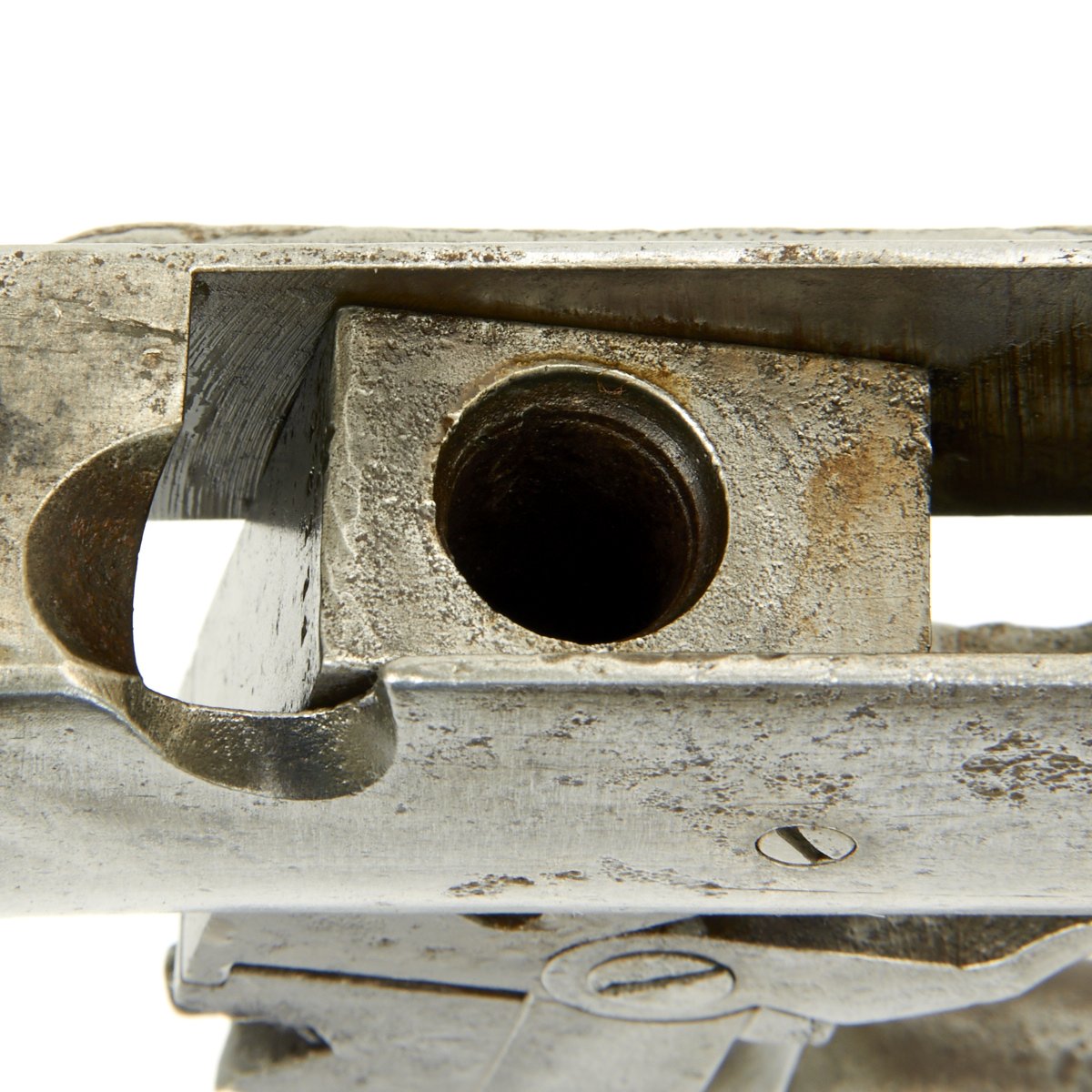

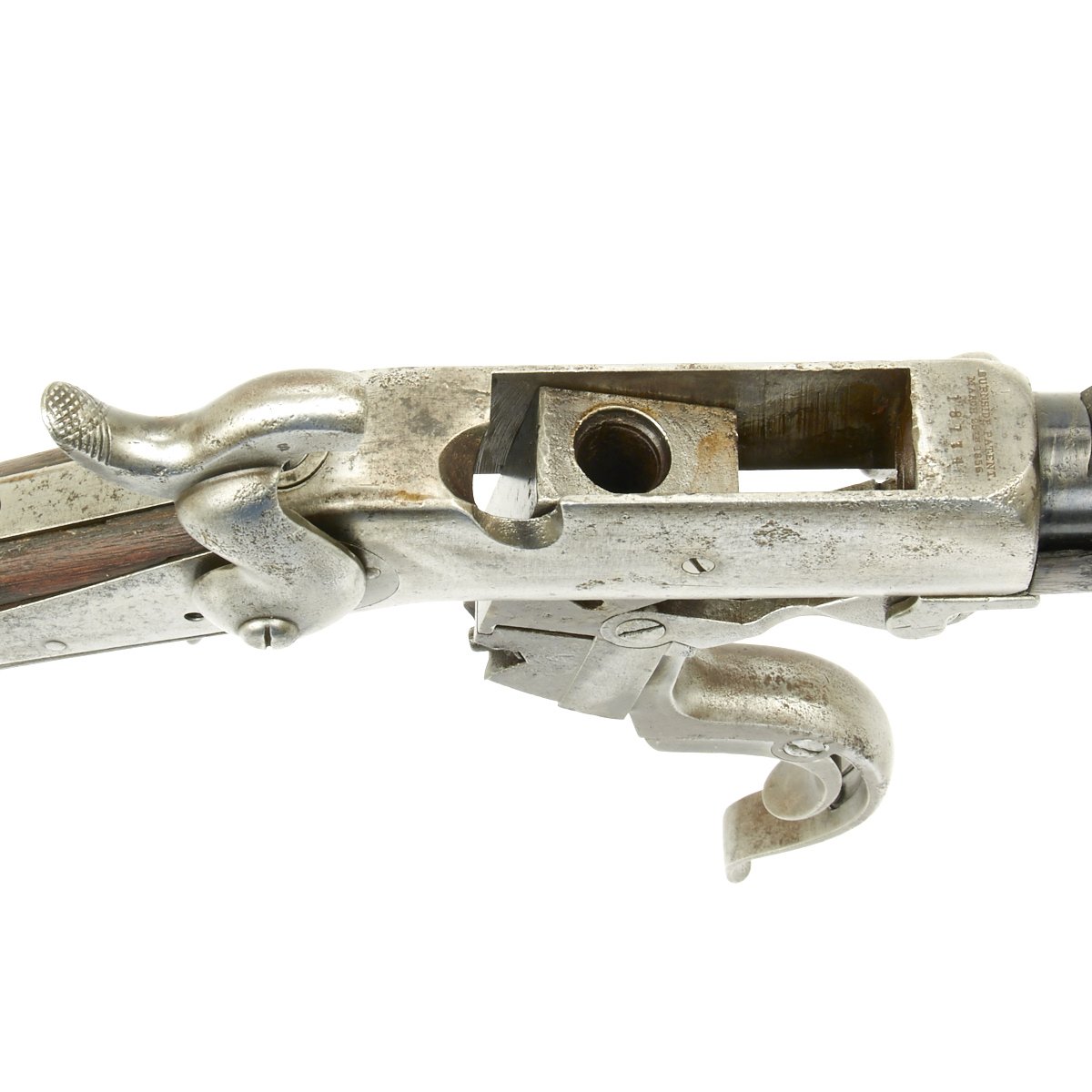

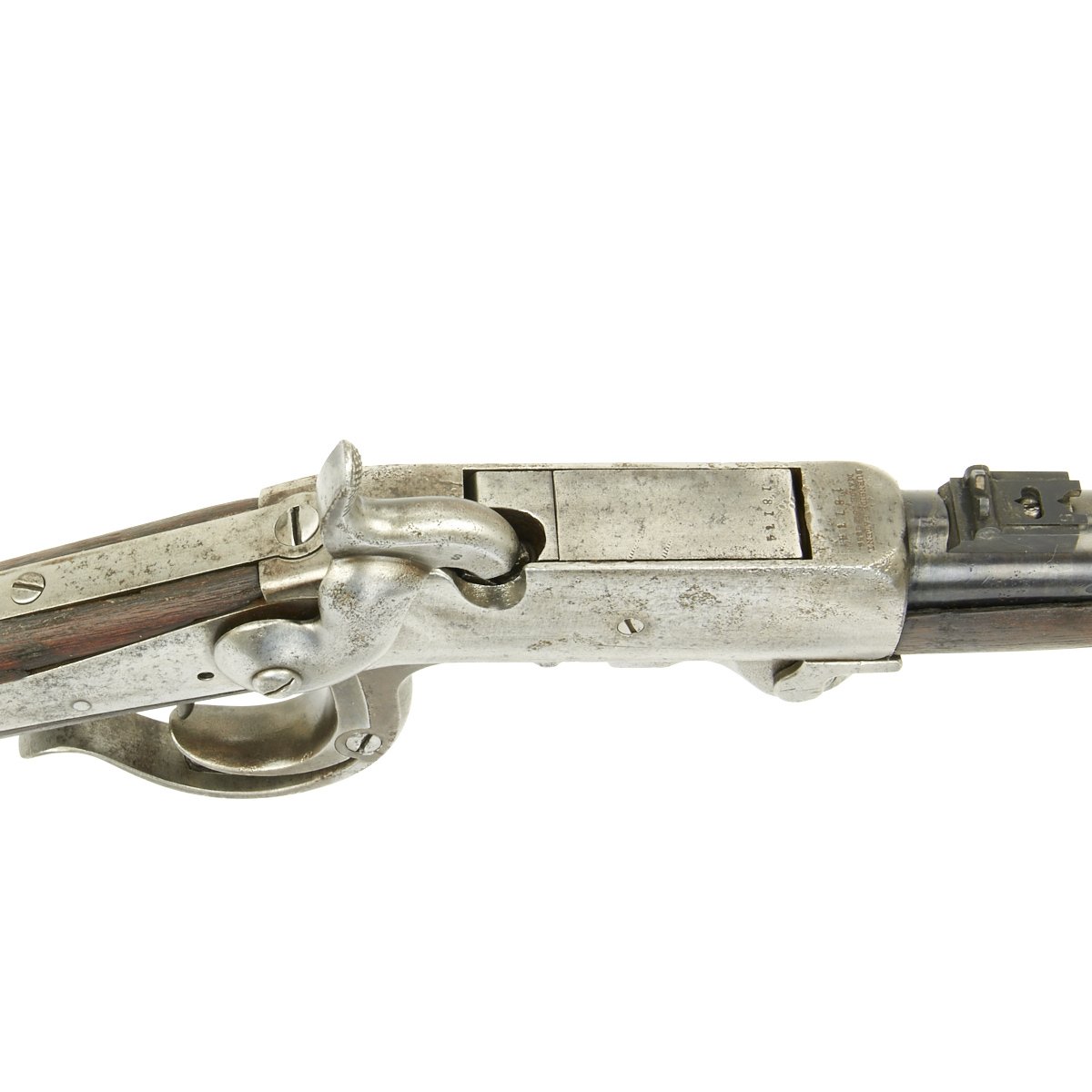

Burnside’s invention employed a rotating block, released by a loading lever that was activated by a hinged, clamping catch. It chambered a unique .54-cal. cone-shaped brass cartridge with a thick, rounded belt (there were also some earlier, coiled cases, sans belt) at its mouth and a small hole in the base that allowed ignition from a separate percussion cap. The round was loaded, base down, into the chamber. Next, the lever was closed and the block locked in place with the belt halfway between the chamber and barrel, providing an excellent seal.

After the carbine was fired, the lever was again lowered and the spent case easily removed from the block with one’s fingers. If extraction became difficult, it was possible to pull it out with the base of the next cartridge. After the soldier got the hang of it, a Burnside could easily be fired in excess of a dozen rounds a minute.

The Burnside Carbine (there were rifles, too) went through a considerable evolutionary process and provides a fertile area for the collector. About 300 First Models were produced by the Bristol Firearm Co. in Bristol, R.I., a manufacturer founded by Burnside himself. It was a .54 caliber with an overall length of 40 inches. First Models had no fore-stock and incorporated a unique side lever, which operated a tape primer and also locked the breech block in the open position. The carbine’s frame was case-hardened, and the barrel was blued.

Second Models did away with the side lever and tape primer, though they still had no fore-stock. Premier Second Models were made by the Bristol Firearm Co., though later ones were produced by the reorganized Burnside Rifle Co., in Providence, R.I. The Third Model, fitted with a fore-stock, was introduced in 1861 at the request of the U.S. Ordnance Dept.

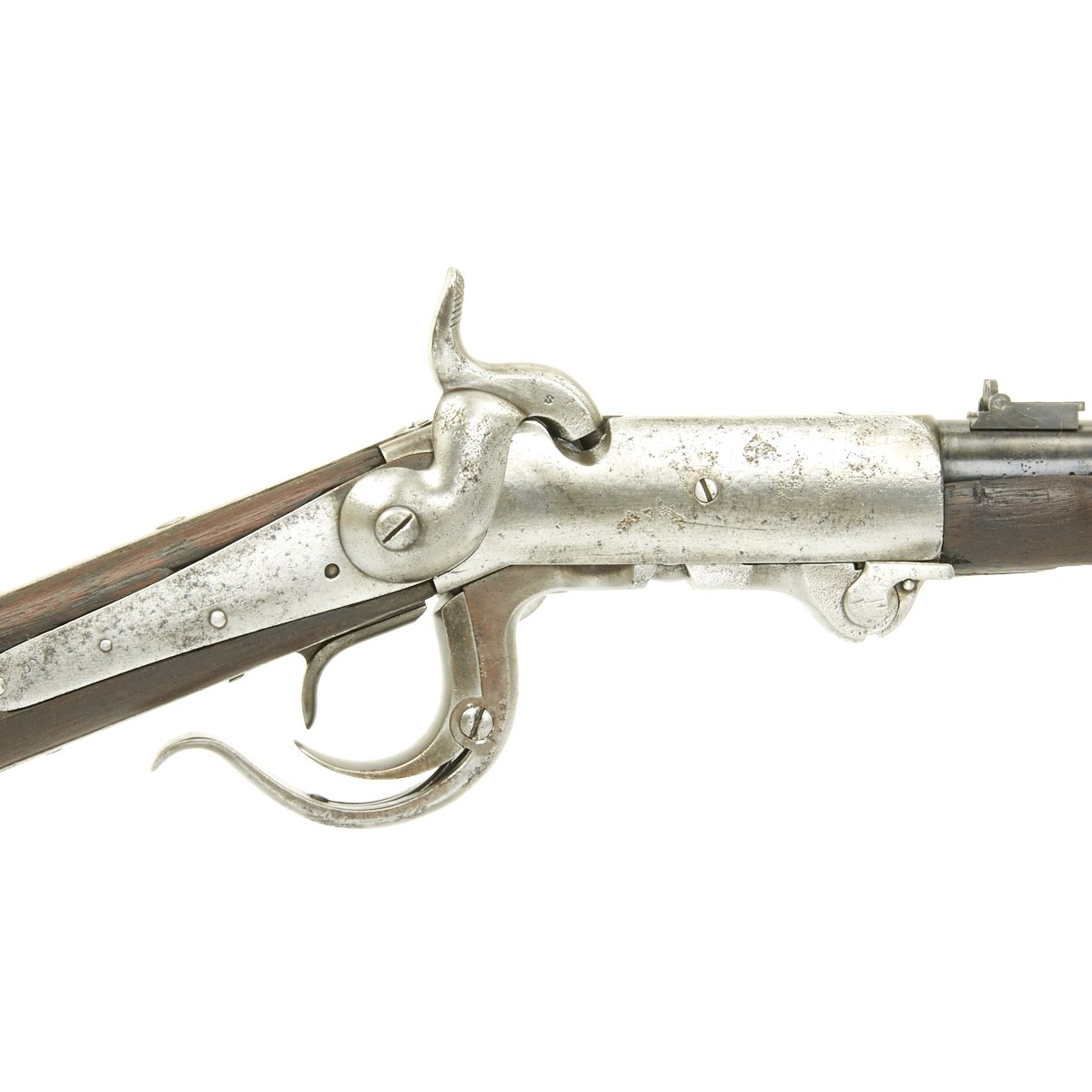

A Fourth, and final, variant appeared toward the end of the Civil War. It had a double pivoting breech block to make the gun easier to open and close. Later on, a second type of Fourth Model (sometimes called “Fifth Model”) appeared with a screw in the right side of the action to prevent the block from dropping out of the action, thus speeding up loading. These guns will be seen with both blued and case-hardened frames. Markings on most Fourth Models are, “BURNSIDE’S PATENT/MODEL OF 1864,” though there are some examples such as this one with the earlier 1856 date.

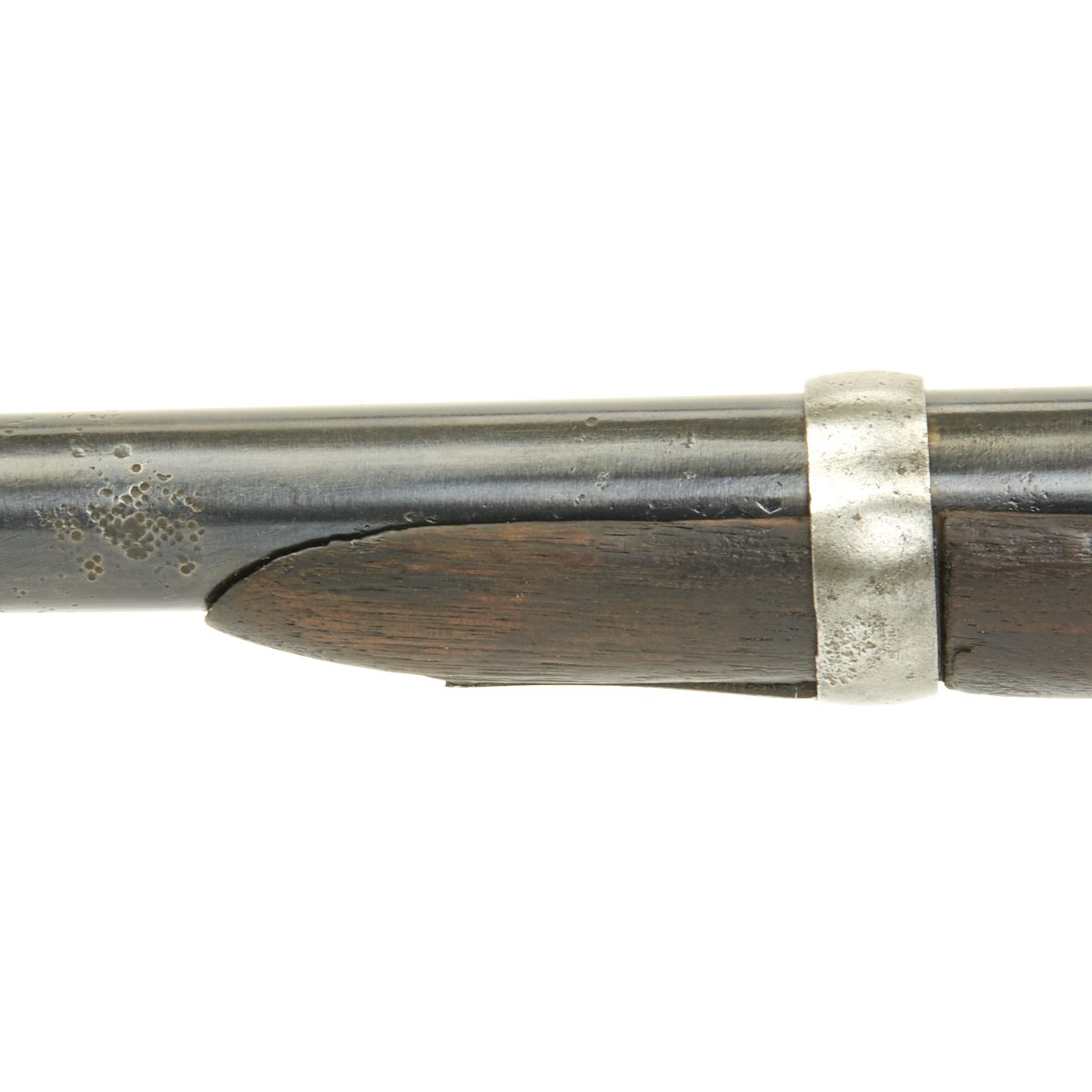

The Fourth (or “Fifth,” if you will) Model seen here does have the 1856 stamping, and this marking, though interesting, does not really add that much to the value of the piece. Condition is NRA good, the bore is very good with clear lands and grooves and a bright finish, and the gun exhibits some traces of case-hardening on the frame, though repeated cleaning has removed most of the finish on the action. Because they were made in large quantities and appeared toward the end of the Civil War, Fourth Model Burnside Carbines are the least valuable of the various versions. Not too steep a price for one of the most important cavalry arms of one of America’s most important conflicts.

NOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these.

Shipping Restrictions

    This product is not available for shipping in US state(s)
    New Jersey


    This product is available for international shipping.

Legal Information

  • IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to posses, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.

    These antique guns are not sold in live condition. They are sold as collector’s items or as wall hangers. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.

    Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services.

Payment Options

    Not eligible for payment with Paypal or Amazon
