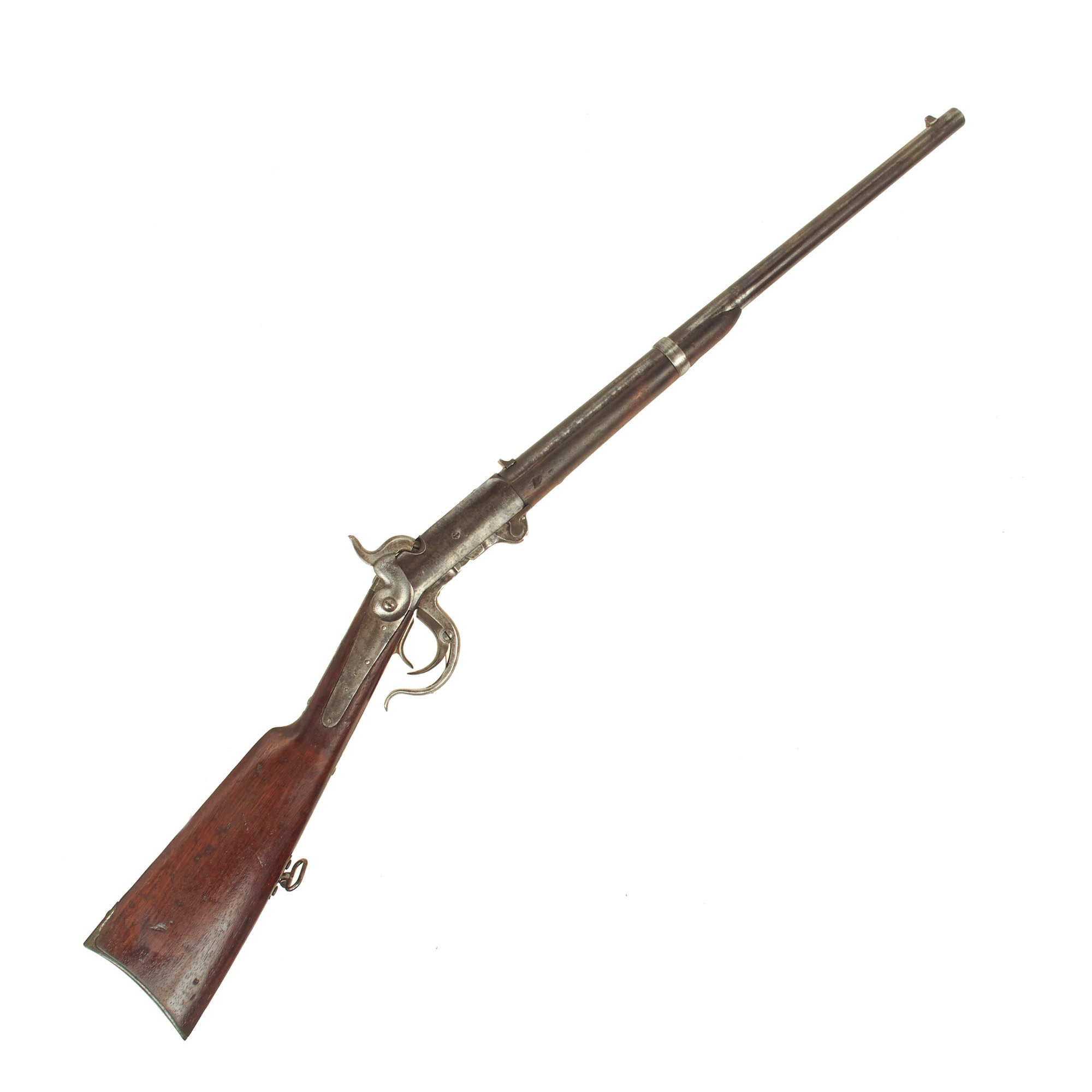

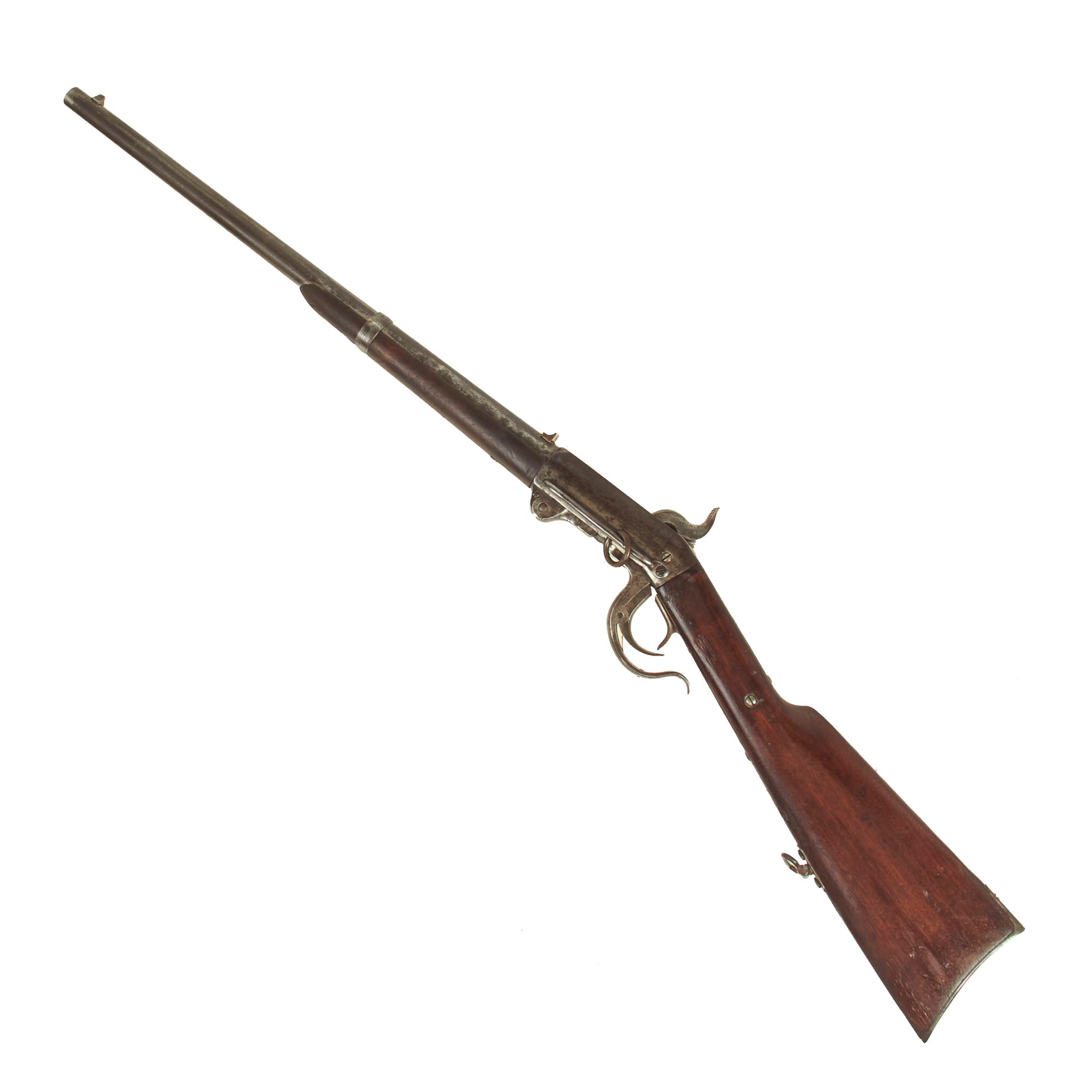

Original Item: Only One Available. This Burnside Cavalry Carbine in .54 caliber is offered in very nice condition, with a great "salty" service worn look! It is marked on the frame, breech block, loading lever, and under the barrel with serial number 24214, which is about halfway through of wartime production. Springfield Research records indicate serial numbers in this range were being delivered in 1863 and 1864, however there are no blocks of serial numbers we can find that would indicate which unit it was sent to.

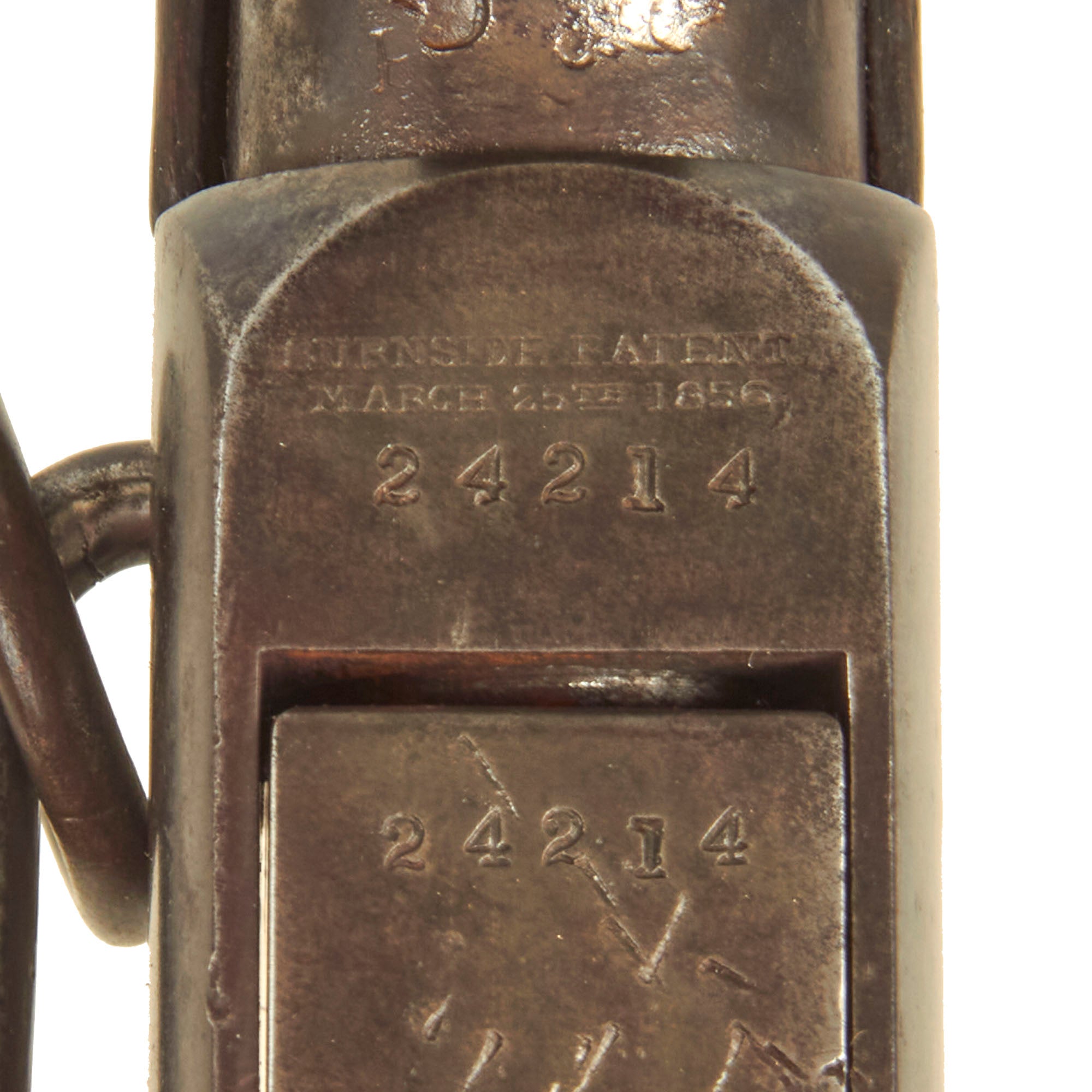

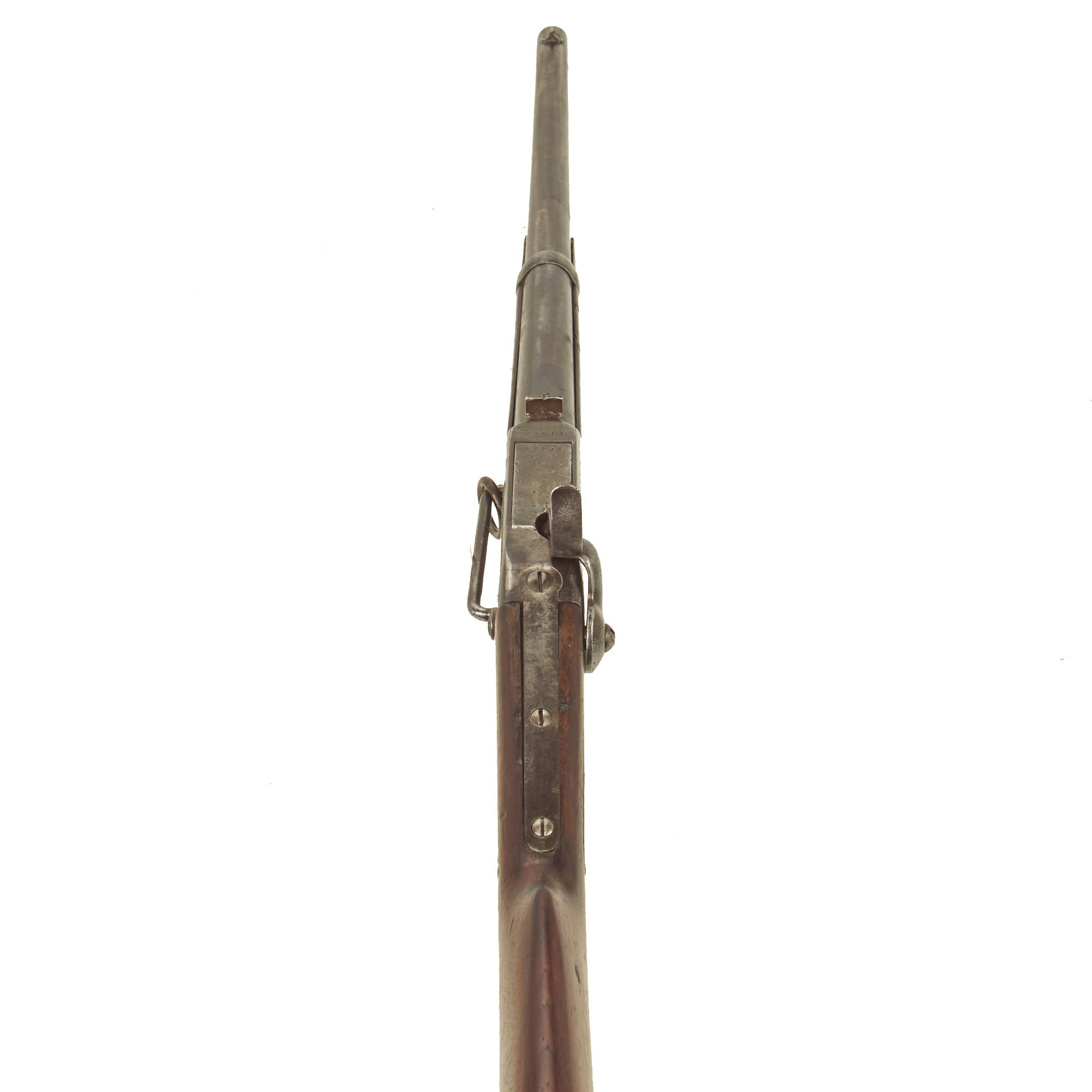

This example, known as the "Fifth Model" or model of 1864, is in very good service used condition, with very nice "broken in" wood stocks and an intact saddle ring, with the butt stock having been refinished. Much of the wear seems to be from handling and subsequent cleaning of the exterior. The Burnside was one of several "capping breech loader" designs utilized by the Union Army during the war. The top of the frame is correctly marked:

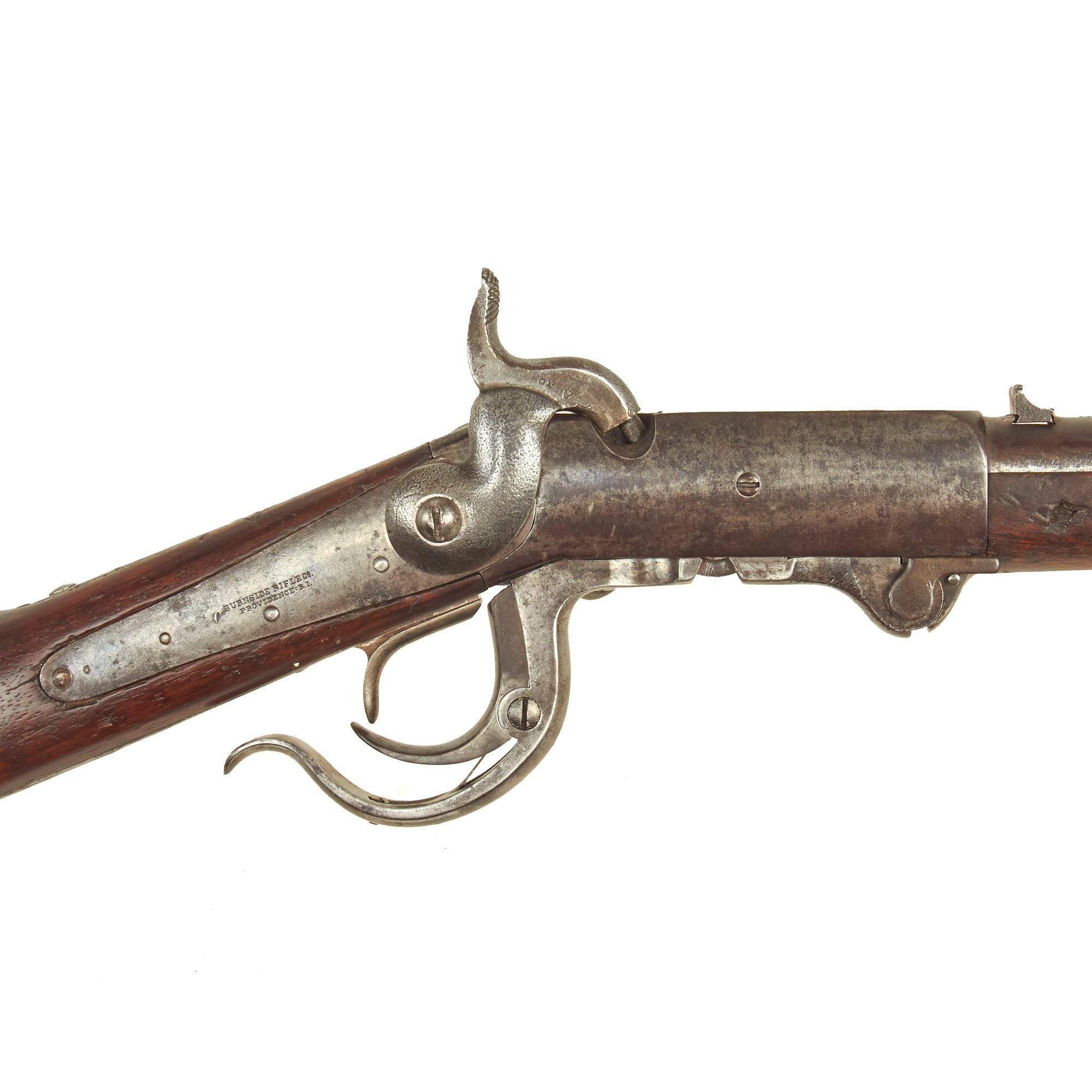

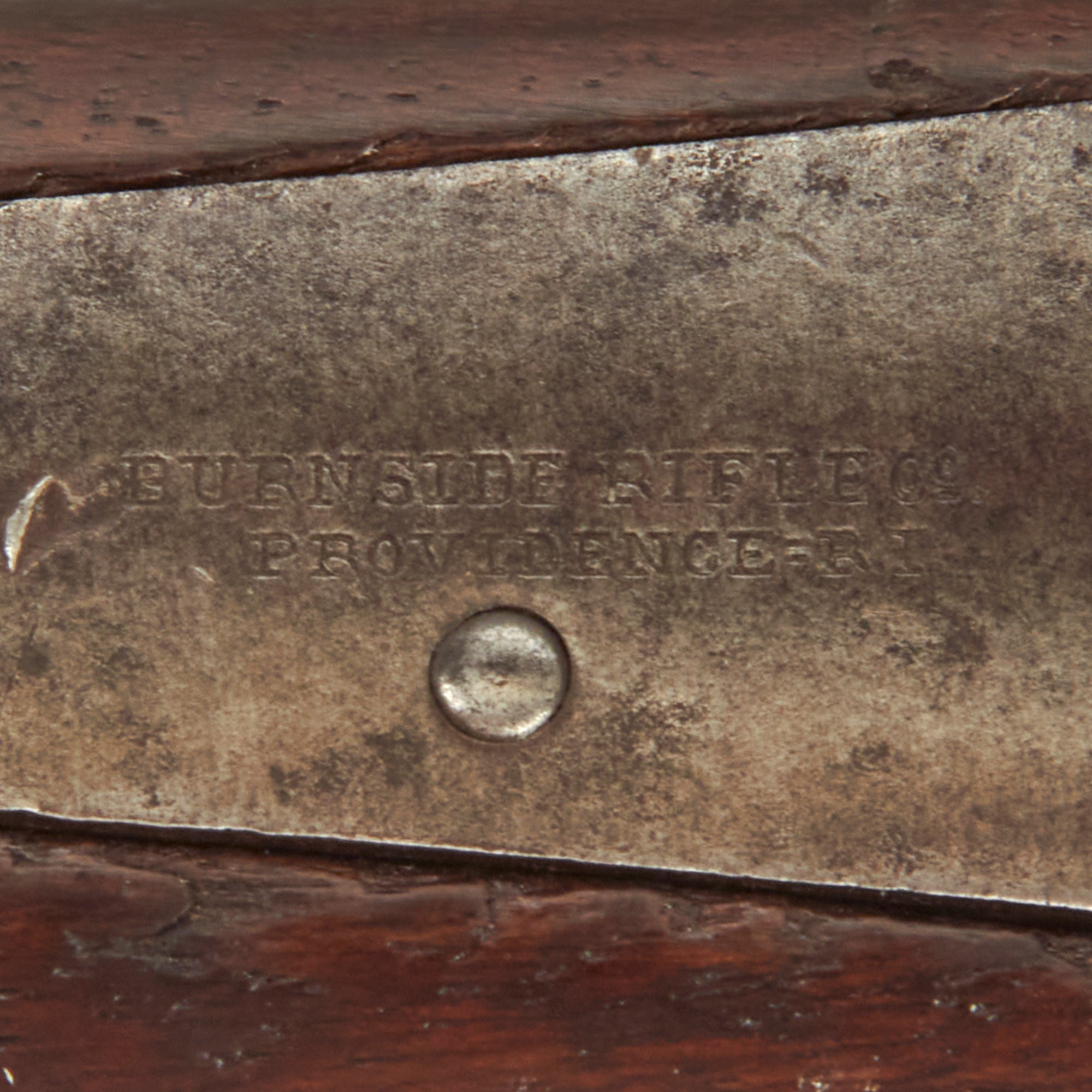

The marking on the lock plate is still clear:

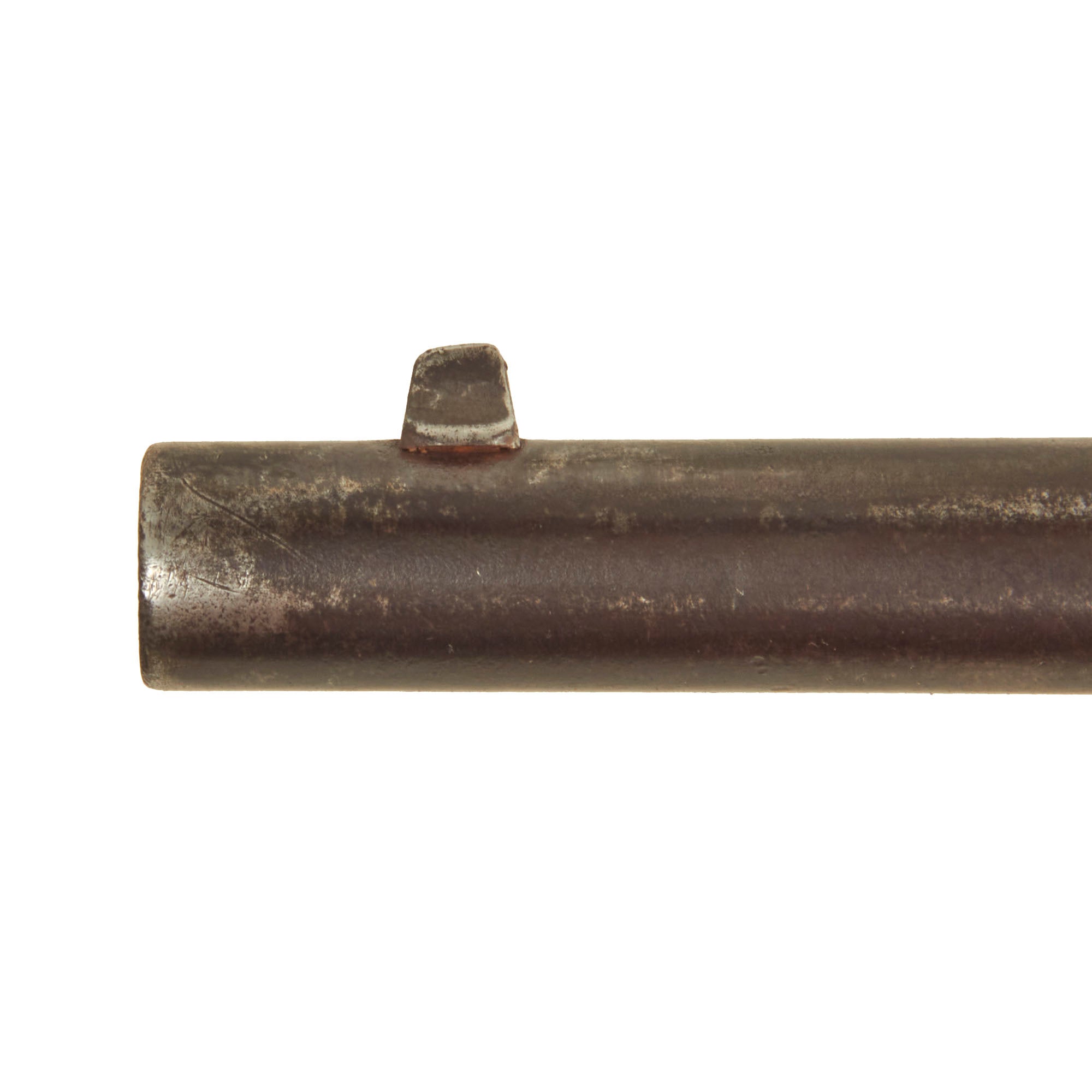

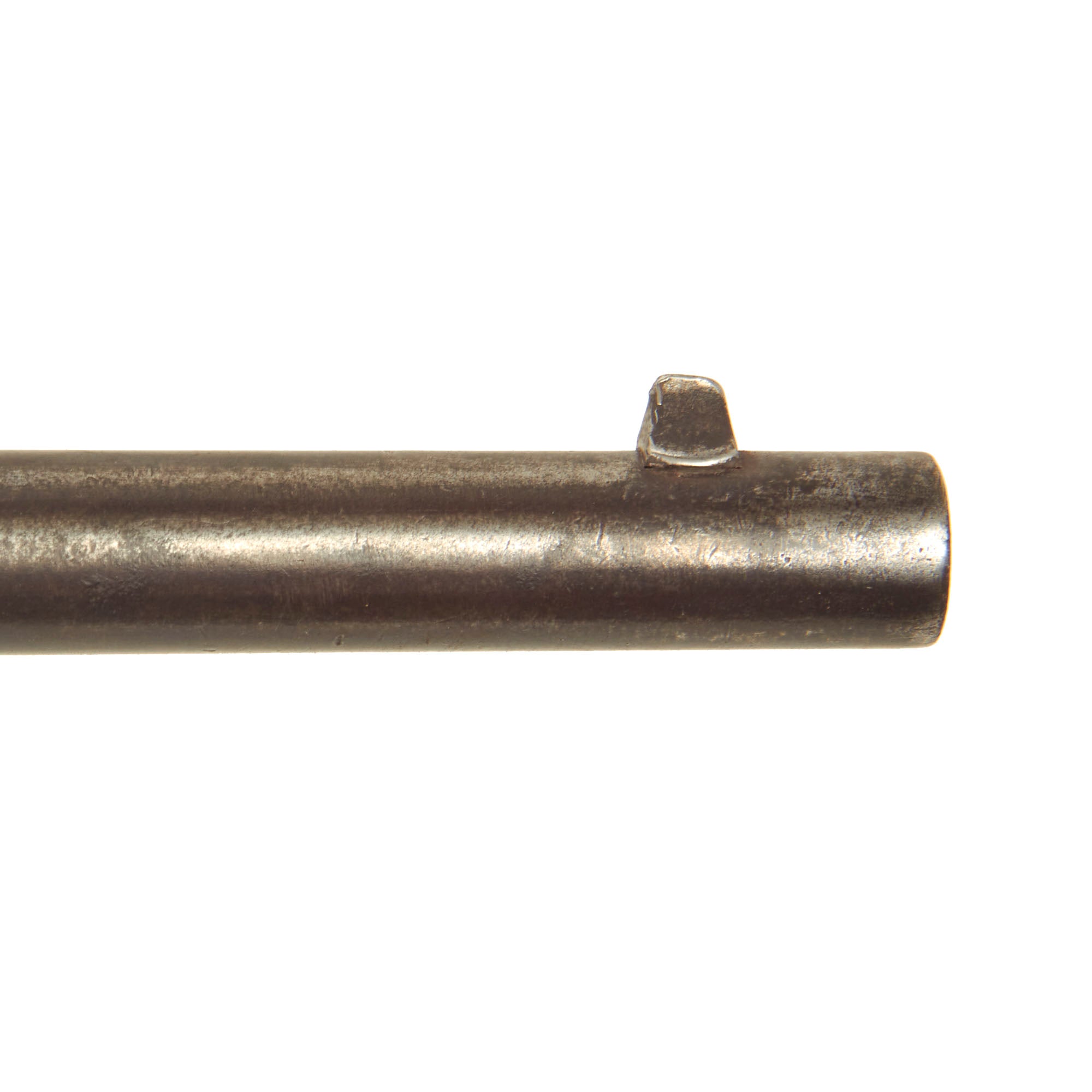

The CAST-STEEL 18[64] marking in front of the sight is present but mis-struck as they usually were, so the marking is only partially legible. The metalwork shows an overall peppered gray patina, caused by light surface oxidation and subsequent cleaning. There is no sign of any major rust on the exterior.

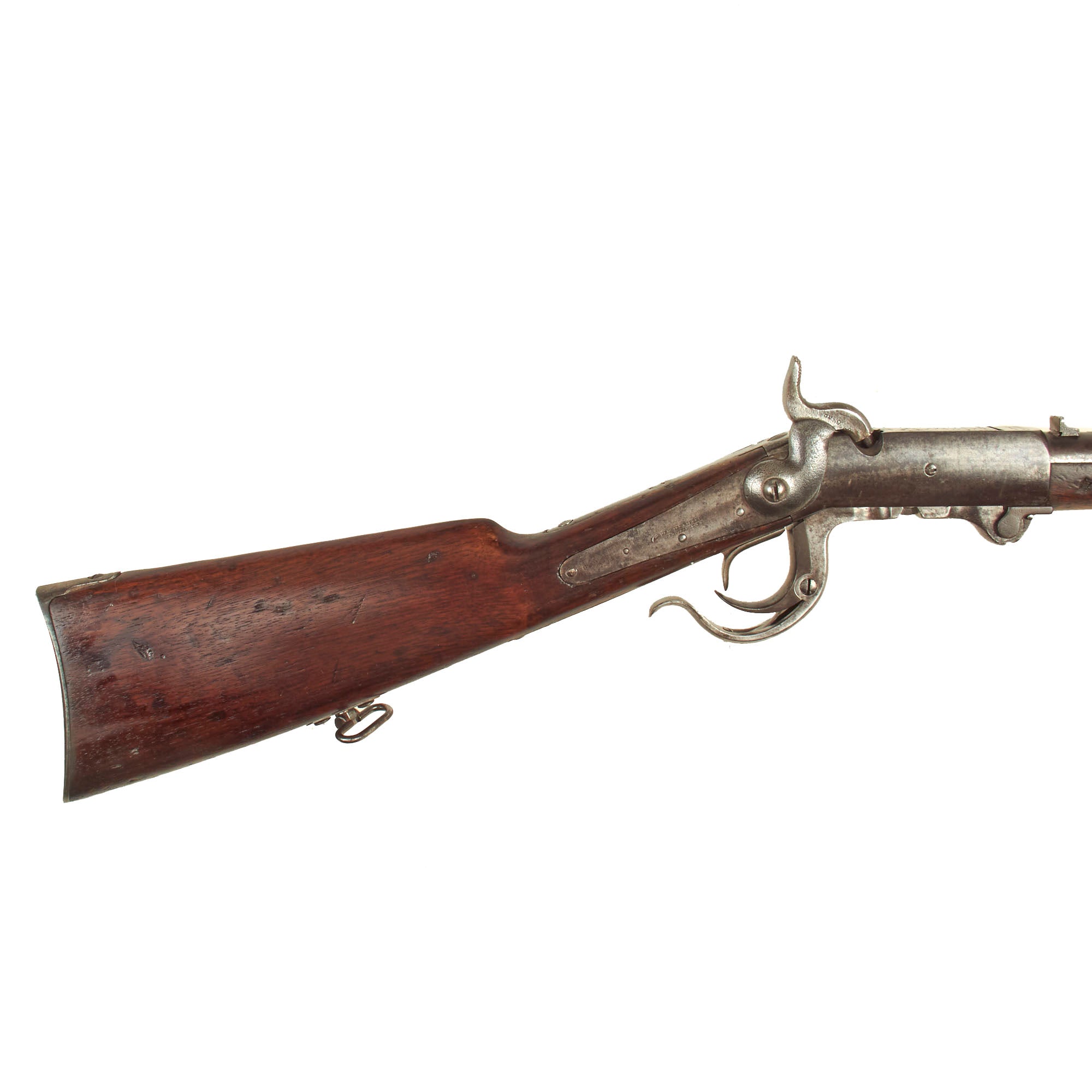

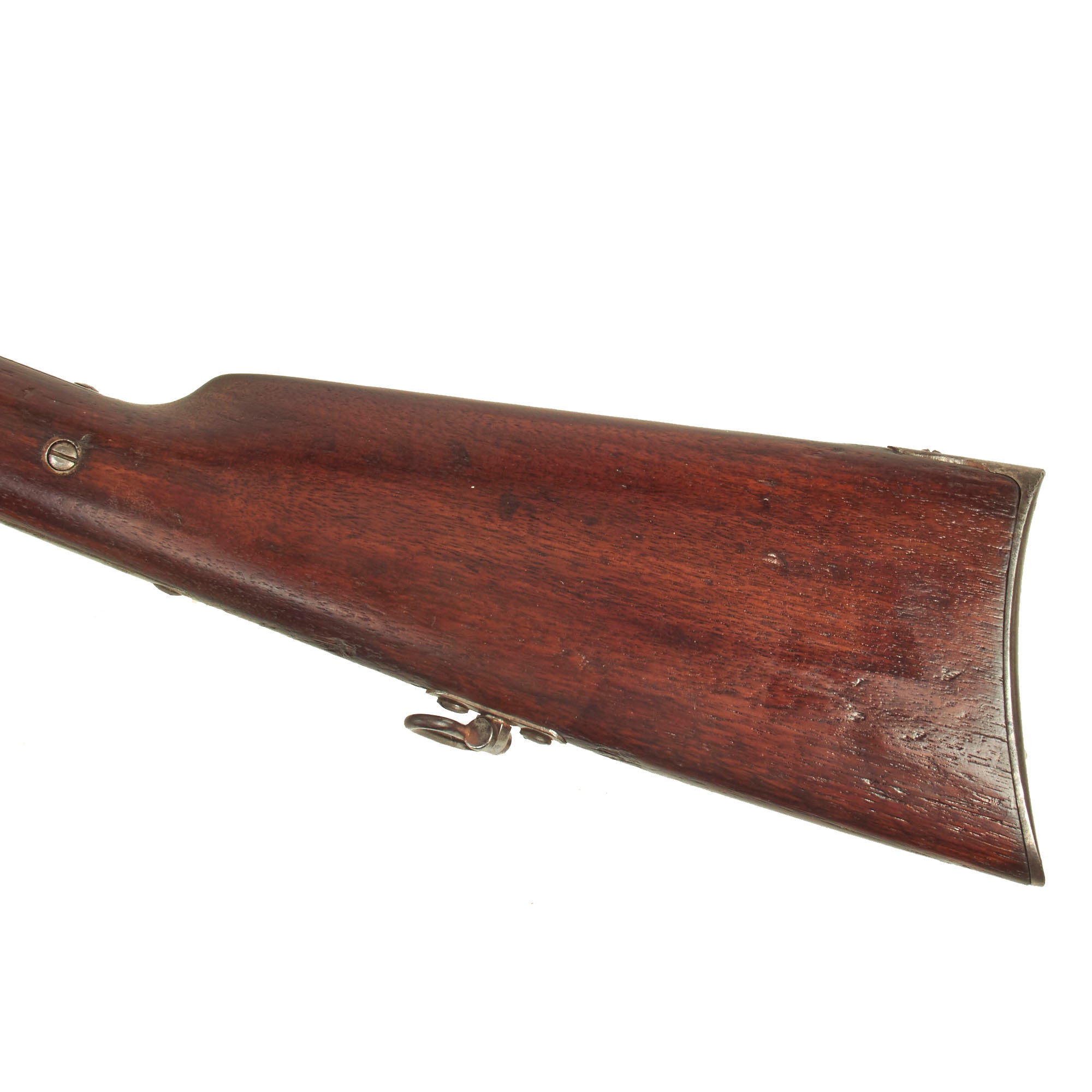

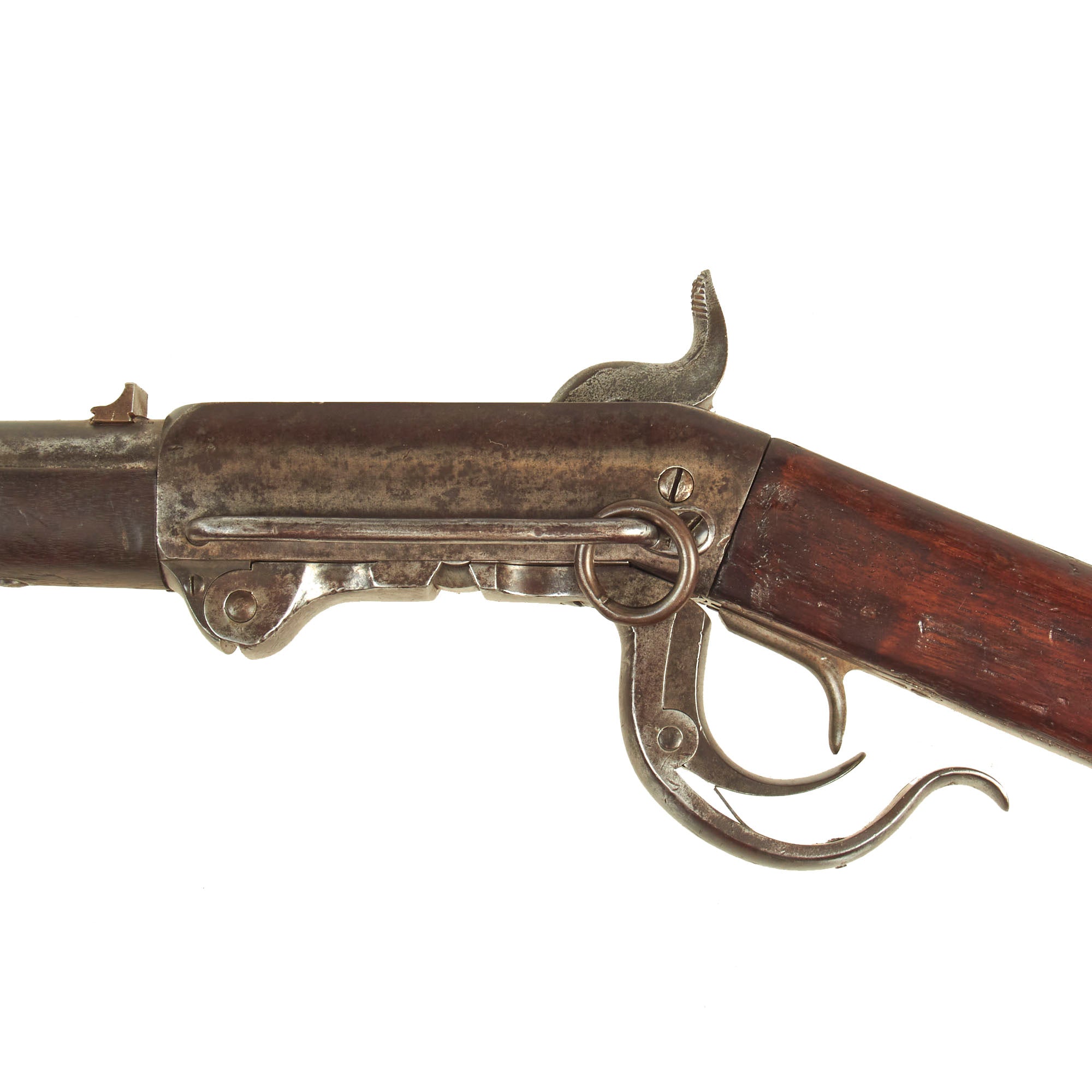

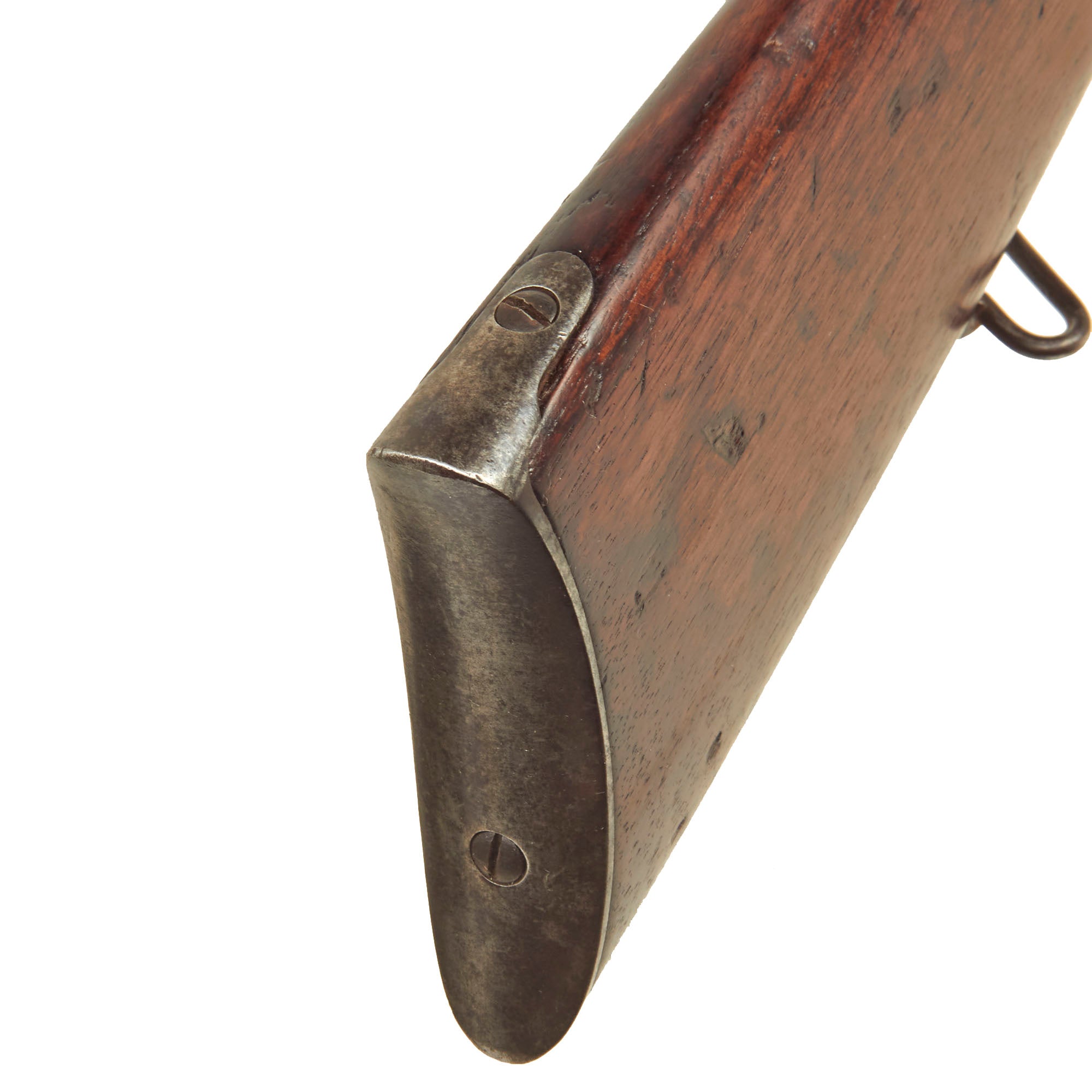

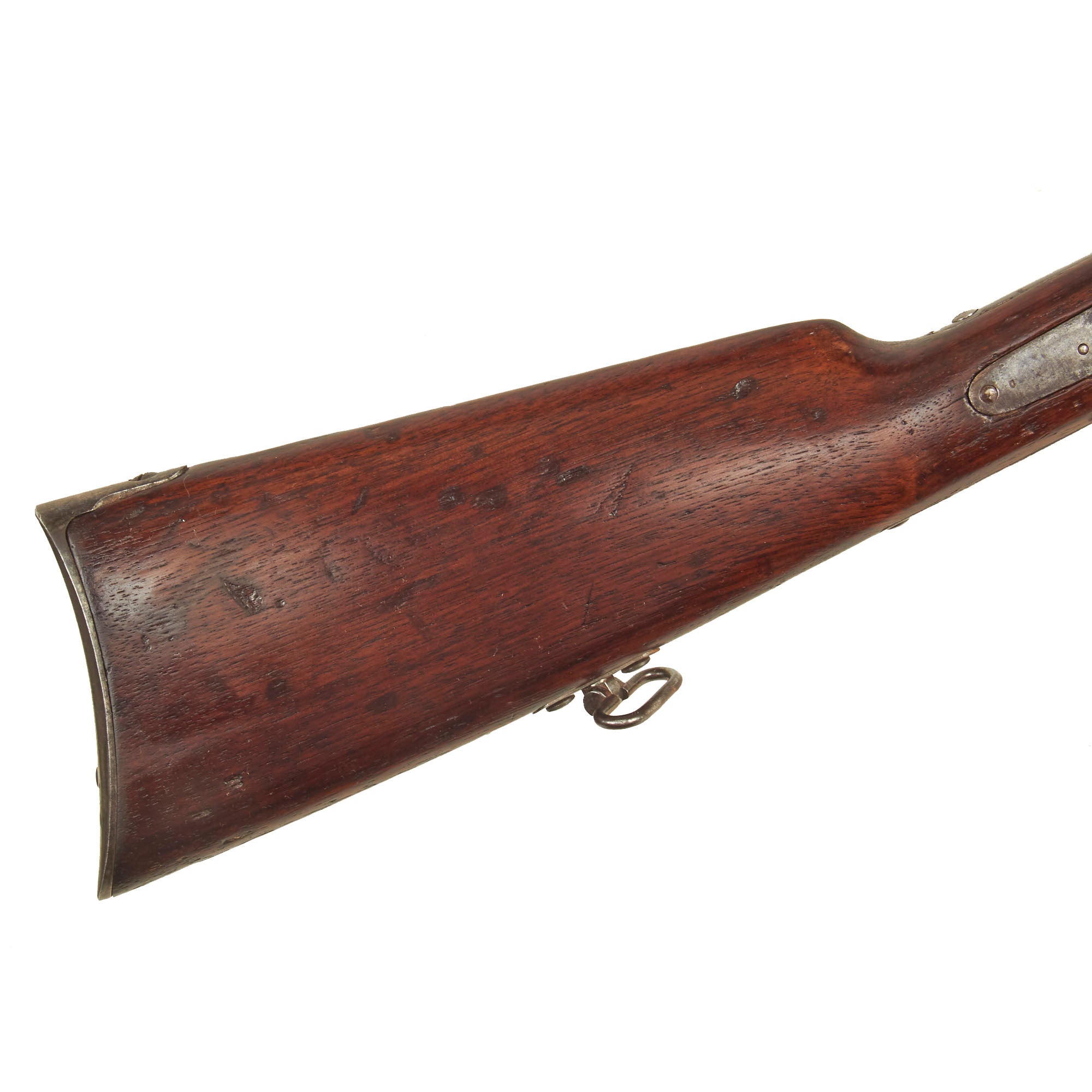

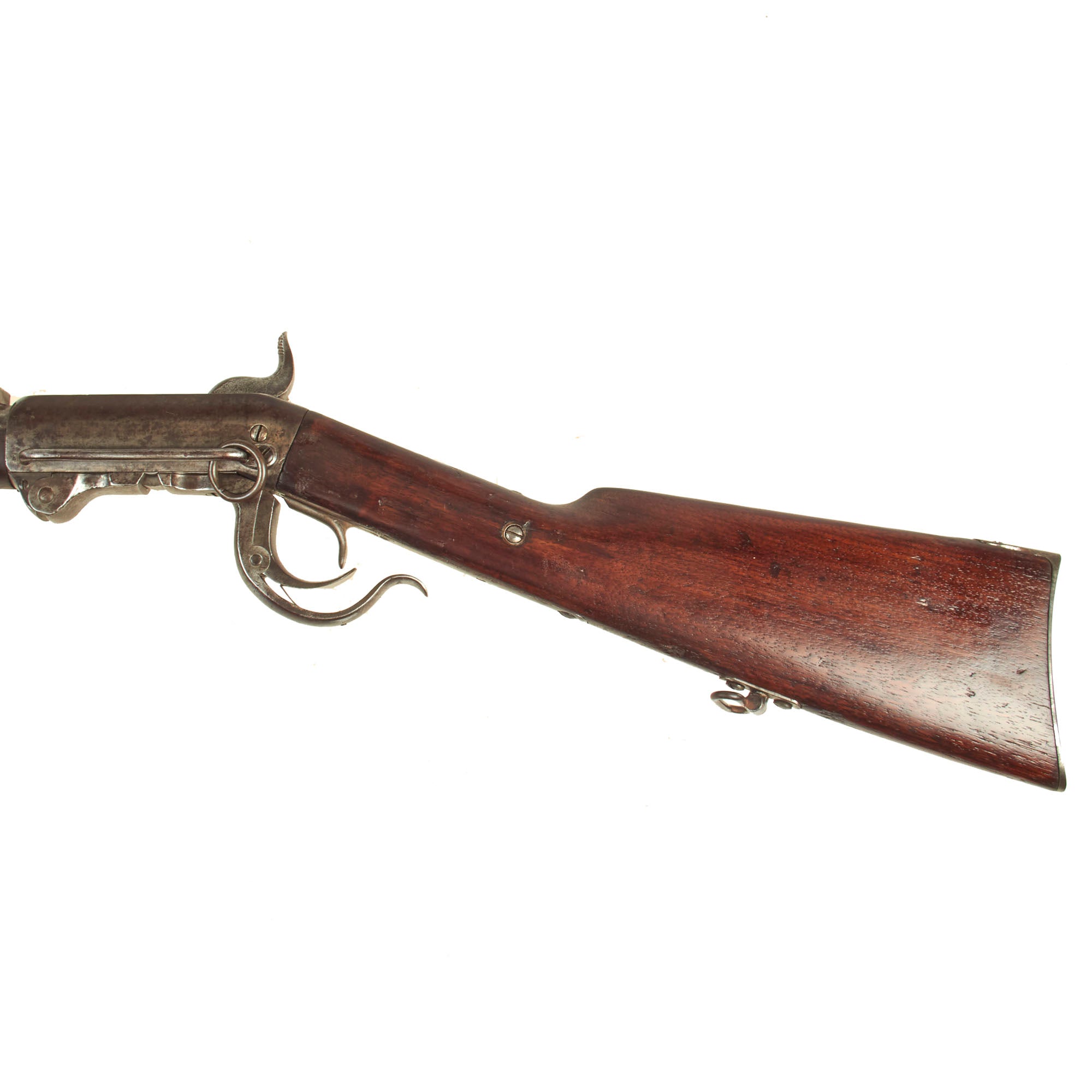

The stocks show wear and tear consistent with service during a war. There are dents and dings as well as some small chunks missing, especially on the woodline of the fore stock. There are however no major cracks or other catastrophic damage, so this looks to have survived the war just fine. The butt stock had varnish applied at some point, which is well retained. The saddle bar and ring are in good shape, with no bents or cracks visible. There is also still the original rear sling swivel present on the bottom of the butt stock. The rear sight was replaced at some point with a simple notch sight set into a dovetail.

The bore is in very good condition, with a bright finish that shows the 5 groove rifling well over much of the interior surface. There is only minor wear to the lands, and some light surface oxidation on the interior, which is localized to the area near the muzzle. The action cycles correctly, with a fully functional lock and tight mechanics. The small "guide screw" on the right side of the frame that allows the breech block more easily stay in place for reloading is still present on this example as well. The saddle bar and ring are in good shape, with no bents or cracks visible.

A very good example of a Fifth Model Burnside Carbine, ready to display!

Specifications-

Year of Manufacture: c.1864
Caliber: .54"
Cartridge Type: Copper Casing or Tapered Foil Cartridge with Cap
Barrel Length: 21 Inches
Overall Length: 39 Inches
Action type: Side Action Lock
Feed System: Breech Loading Falling Hinged Block

History of the Burnside Carbine

The Burnside, one of the best carbines of the Civil War, was designed by one of its worst generals. Actually, Maj. Gen. Ambrose Everett Burnside had sold the interest in his breechloader well before the war started, so he was unencumbered with the need to further its development or, sadly, to reap the proceeds that would have resulted from its success as the conflict’s third most widely produced Federal carbine, after the Sharps and Spencer.

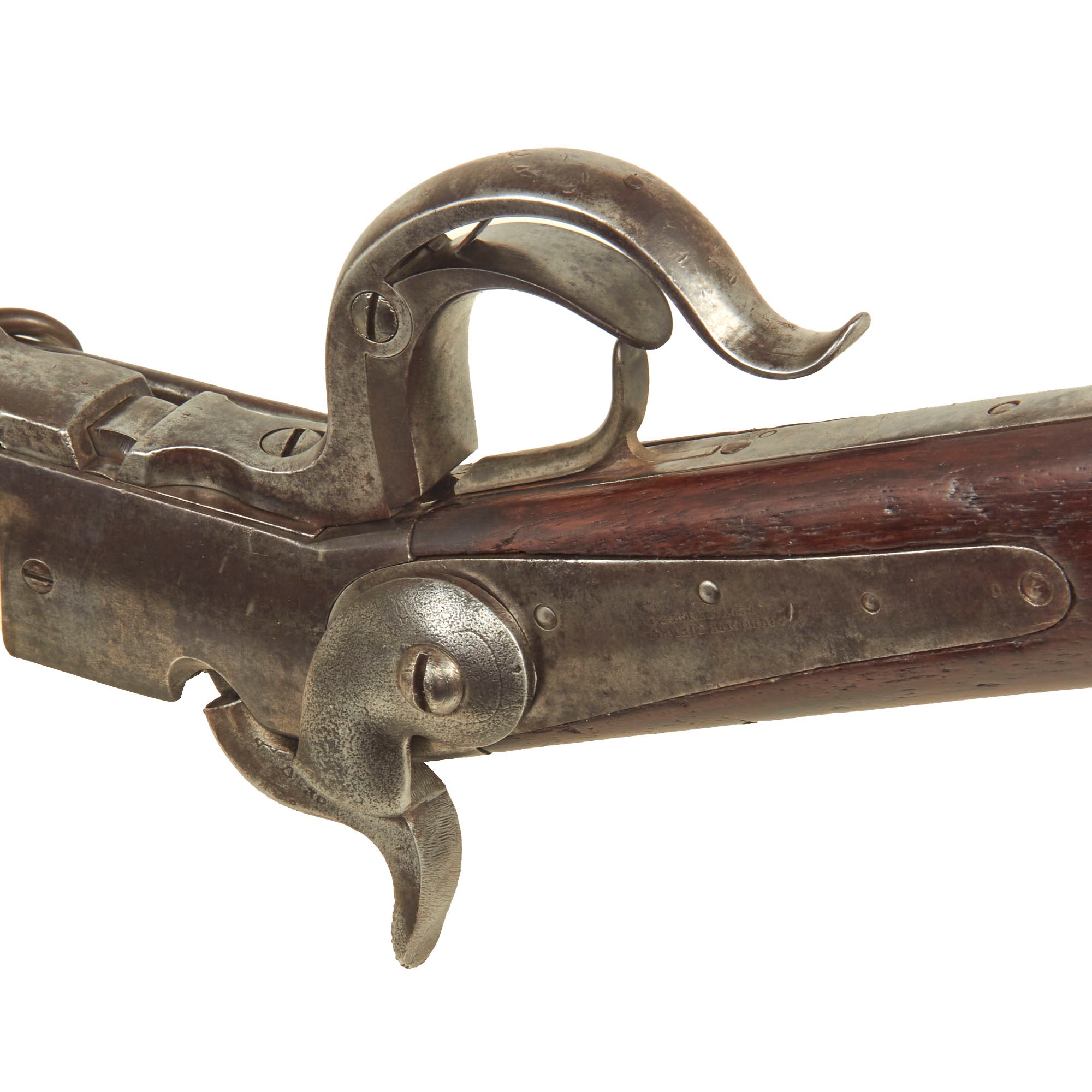

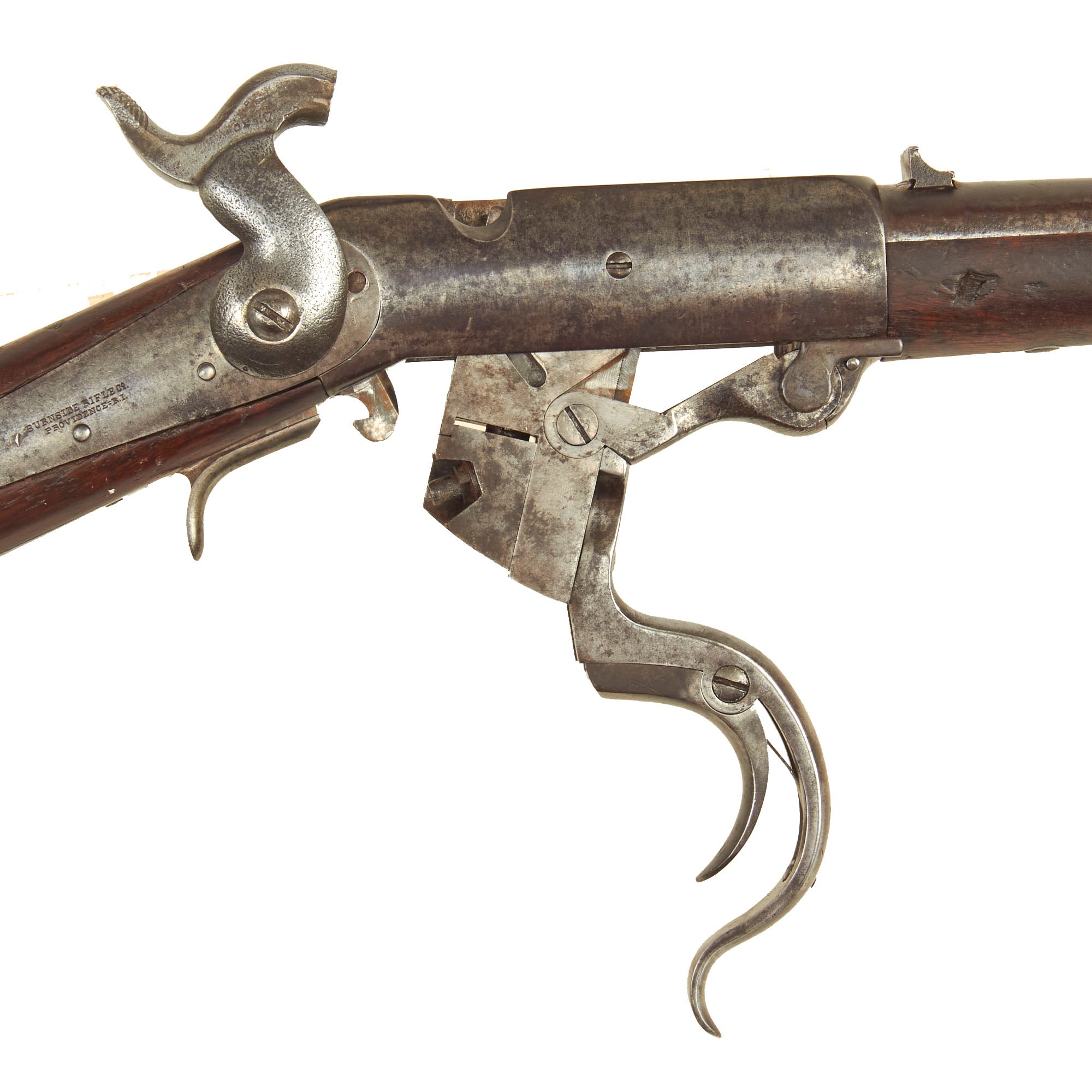

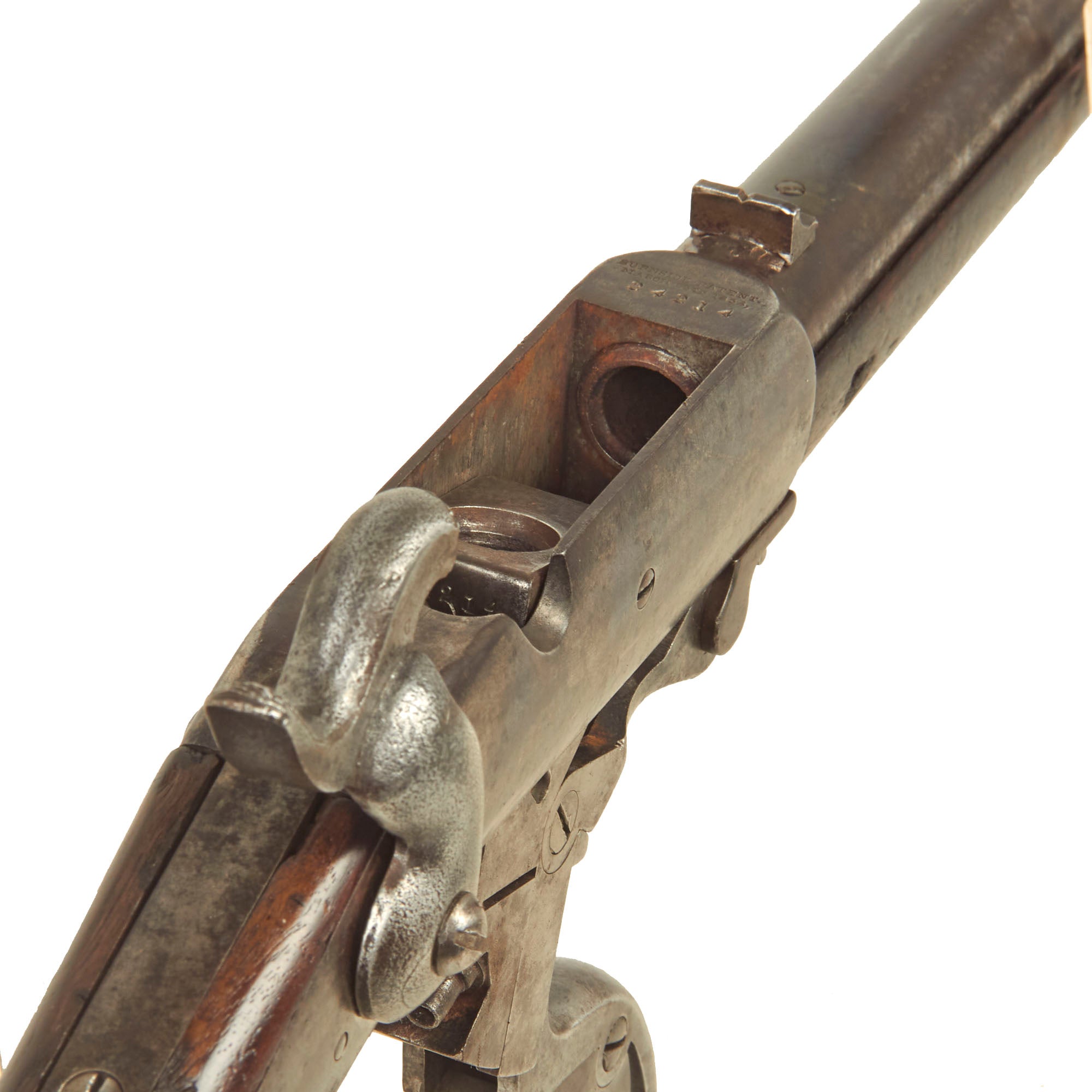

Burnside’s invention employed a rotating block, released by a loading lever that was activated by a hinged, clamping catch. It chambered a unique .54-cal. cone-shaped brass cartridge with a thick, rounded belt (there were also some earlier, coiled cases, sans belt) at its mouth and a small hole in the base that allowed ignition from a separate percussion cap. The round was loaded, base down, into the chamber. Next, the lever was closed and the block locked in place with the belt halfway between the chamber and barrel, providing an excellent seal.

After the carbine was fired, the lever was again lowered and the spent case easily removed from the block with one’s fingers. If extraction became difficult, it was possible to pull it out with the base of the next cartridge. After the soldier got the hang of it, a Burnside could easily be fired in excess of a dozen rounds a minute.

The Burnside Carbine (there were rifles, too) went through a considerable evolutionary process and provides a fertile area for the collector. About 300 First Models were produced by the Bristol Firearm Co. in Bristol, R.I., a manufacturer founded by Burnside himself. It was a .54 caliber with an overall length of 40 inches. First Models had no fore-stock and incorporated a unique side lever, which operated a tape primer and also locked the breech block in the open position. The carbine’s frame was case-hardened, and the barrel was blued.

Second Models did away with the side lever and tape primer, though they still had no fore-stock. Premier Second Models were made by the Bristol Firearm Co., though later ones were produced by the reorganized Burnside Rifle Co., in Providence, R.I. The Third Model, fitted with a fore-stock, was introduced in 1861 at the request of the U.S. Ordnance Dept.

A Fourth, and final, variant appeared toward the end of the Civil War. It had a double pivoting breech block to make the gun easier to open and close. Later on, a second type of Fourth Model (sometimes called “Fifth Model”) appeared with a screw in the right side of the action to prevent the block from dropping out of the action, thus speeding up loading. These guns will be seen with both blued and case-hardened frames. Markings on most Fourth Models are, “BURNSIDE’S PATENT/MODEL OF 1864,” though there are some examples with the earlier 1856 date. Also, deliveries of this model started in 1863, even though they had the 1864 markings.

Because they were made in large quantities and appeared toward the end of the Civil War, Fourth/Fifth Model Burnside Carbines are the least valuable of the various versions. Not too steep a price for one of the most important cavalry arms of one of America’s most important conflicts.
