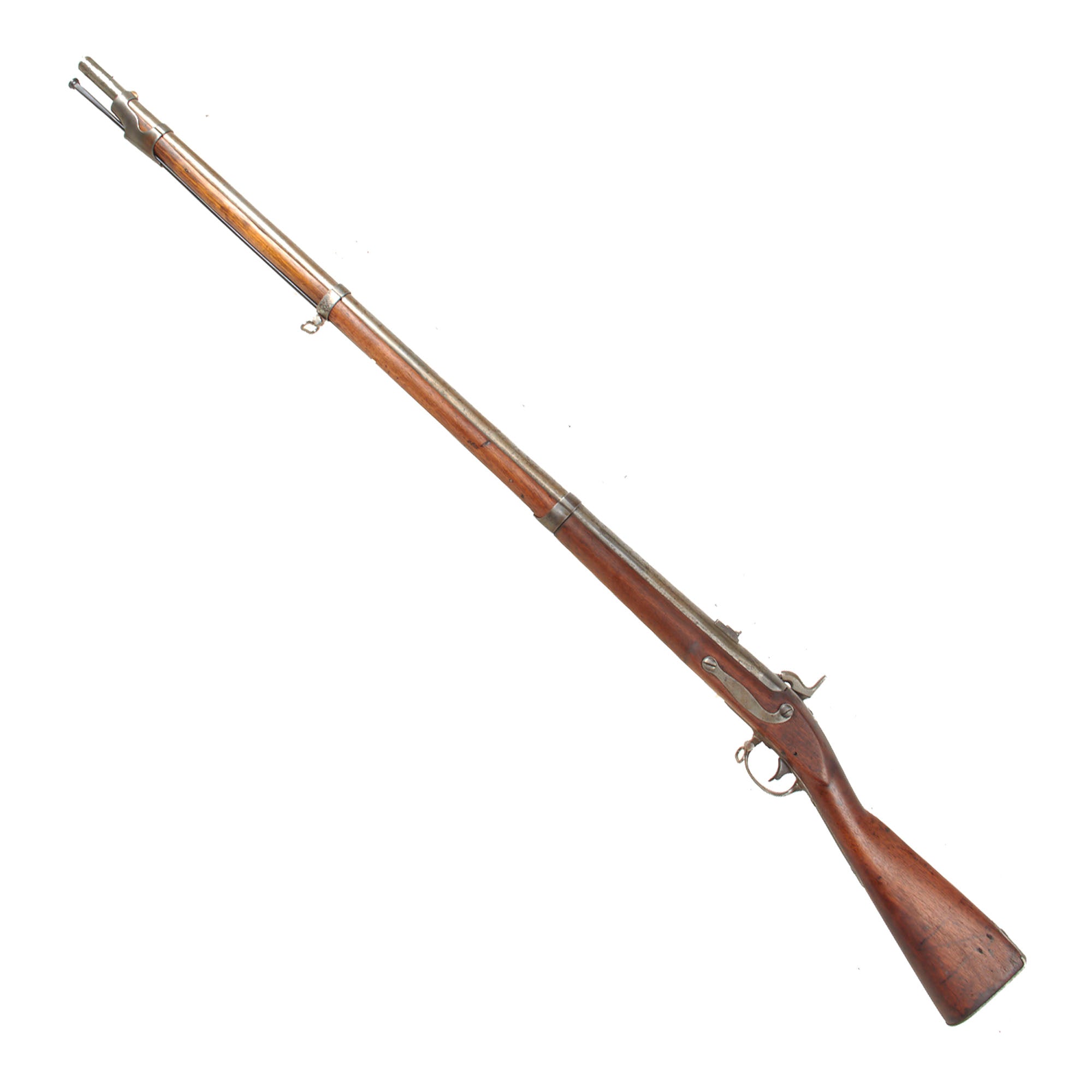

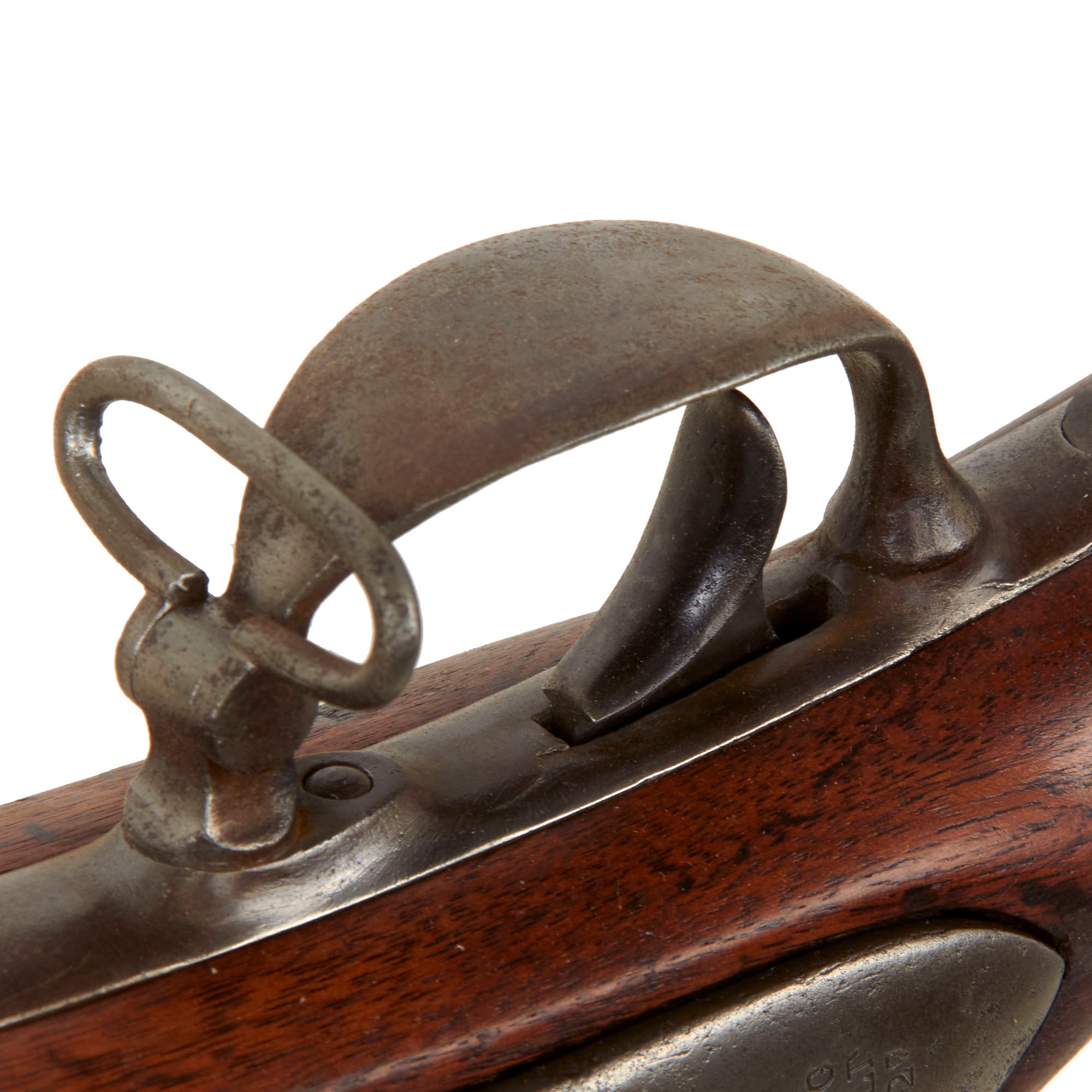

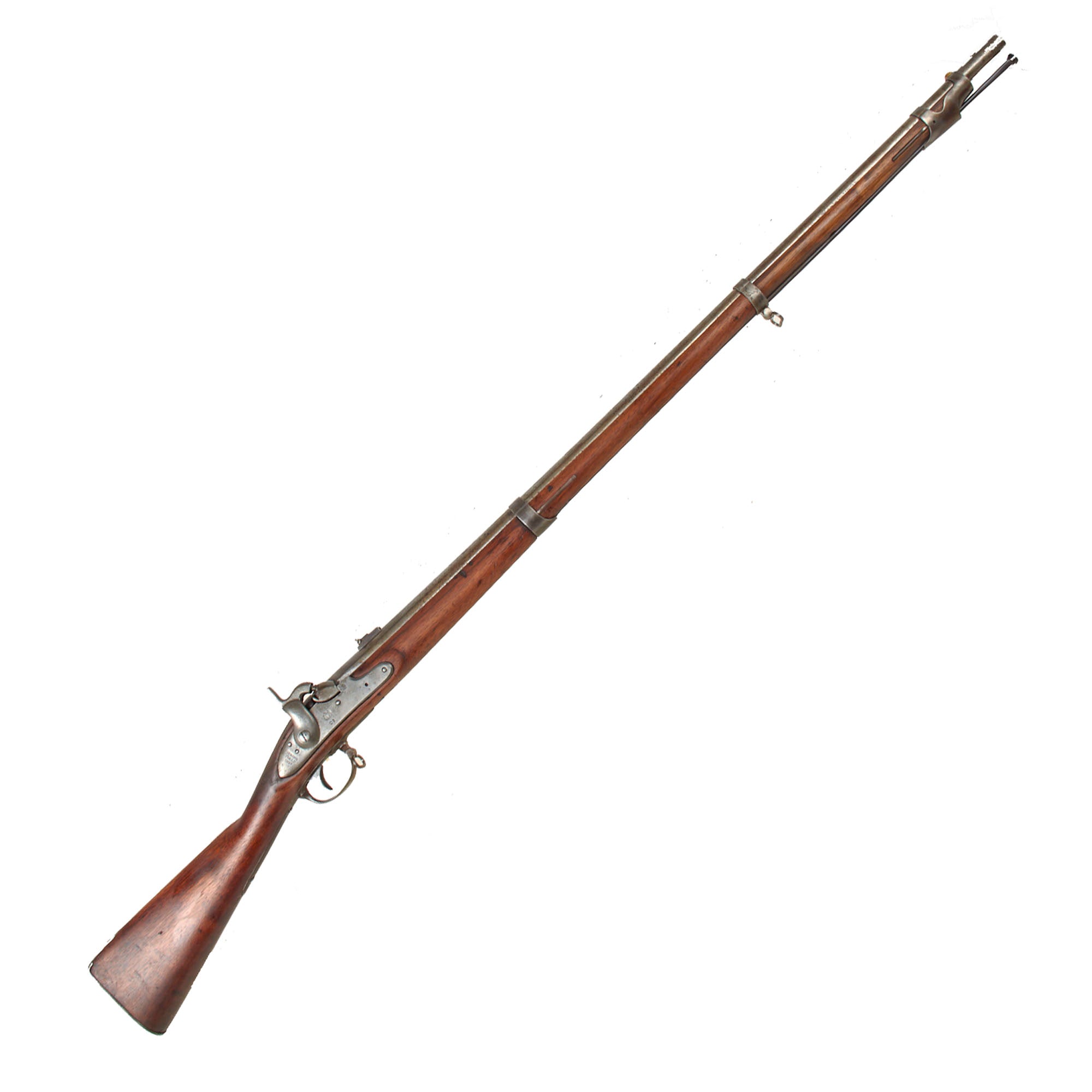

Original item: One Only. The U.S. Model 1822 Musket was a .69 caliber smoothbore flintlock, with a 42-inch barrel and an overall length of 58 inches. It replaced the previous model 1816 musket, and often is viewed as a further development of that design. One of the most noticeable differences in the Model 1822 is the attachment of the lower sling swivel. The forward part of the trigger bow was provided with an enlargement which was drilled to receive the sling swivel rivet. Previously, the sling swivel had been affixed to a stud in front of the trigger bow.

The Model 1822 was produced by the Springfield Armory, Harpers Ferry Armory, and numerous other contractors. It was eventually replaced by the Springfield Model 1835, which is also considered by many to be a continuation of the Model 1816. These were sometimes referred to as "Whitney Flintlocks" due to the large number made in New Haven, Connecticut by Eli Whitney.

In the 1850s, many of the Flintlock Muskets in Arsenal were converted to Percussion, which was a much more reliable and water-resistant ignition system. This involved all variants of the Model of the 1816, which helped to standardize the types of ammunition carried by the soldiers in the field. This example looks to have been returned to a state or federal arsenal some point, and had the lock converted to a percussion lock, and the breech of the barrel removed, with a breech plug with a built in cap bolster installed. This is very similar to the conversions done just before the start of the Civil War by companies such as Henry E. Leman of Lancaster PA, Hewes and Phillips of Newark, NJ, and others.

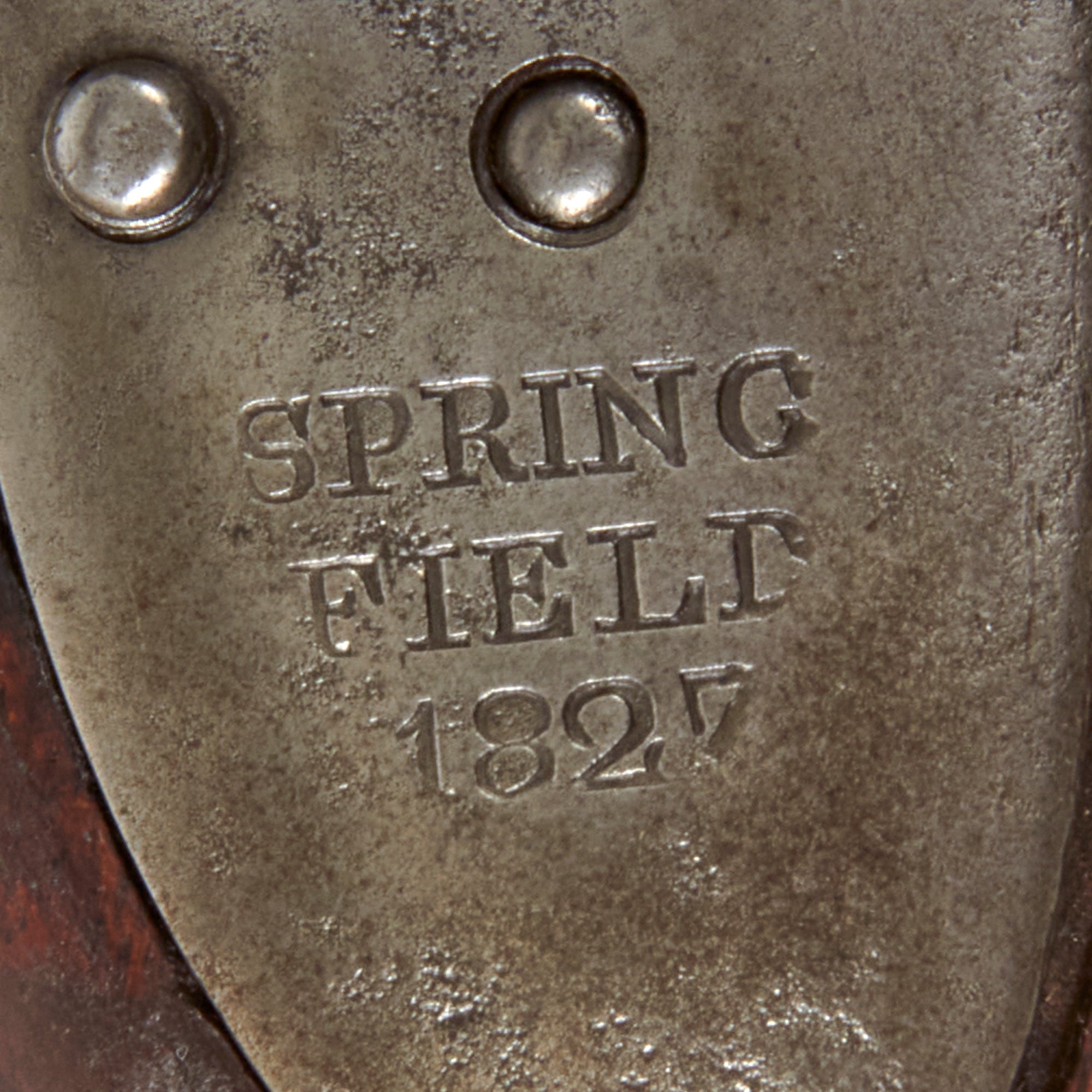

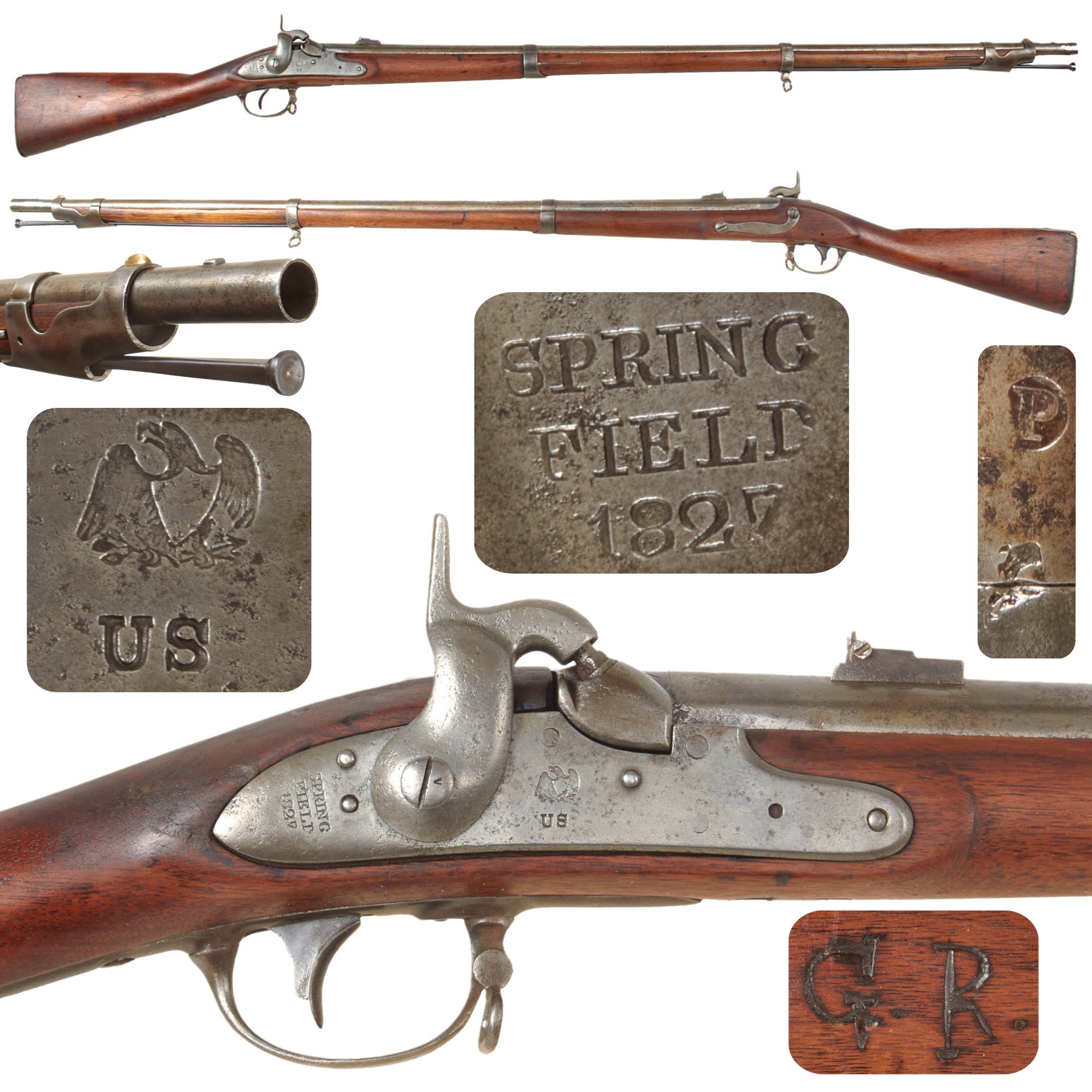

This type does not have a cleanout for the added breech, and we were not able to see any markings present on it. The bolster fits into the brass flash pan inlet in the lock plate, and the musket was originally manufactured at the United States Armory and Arsenal at Springfield itself in 1827, as indicated by markings on the tail of the lock plate:

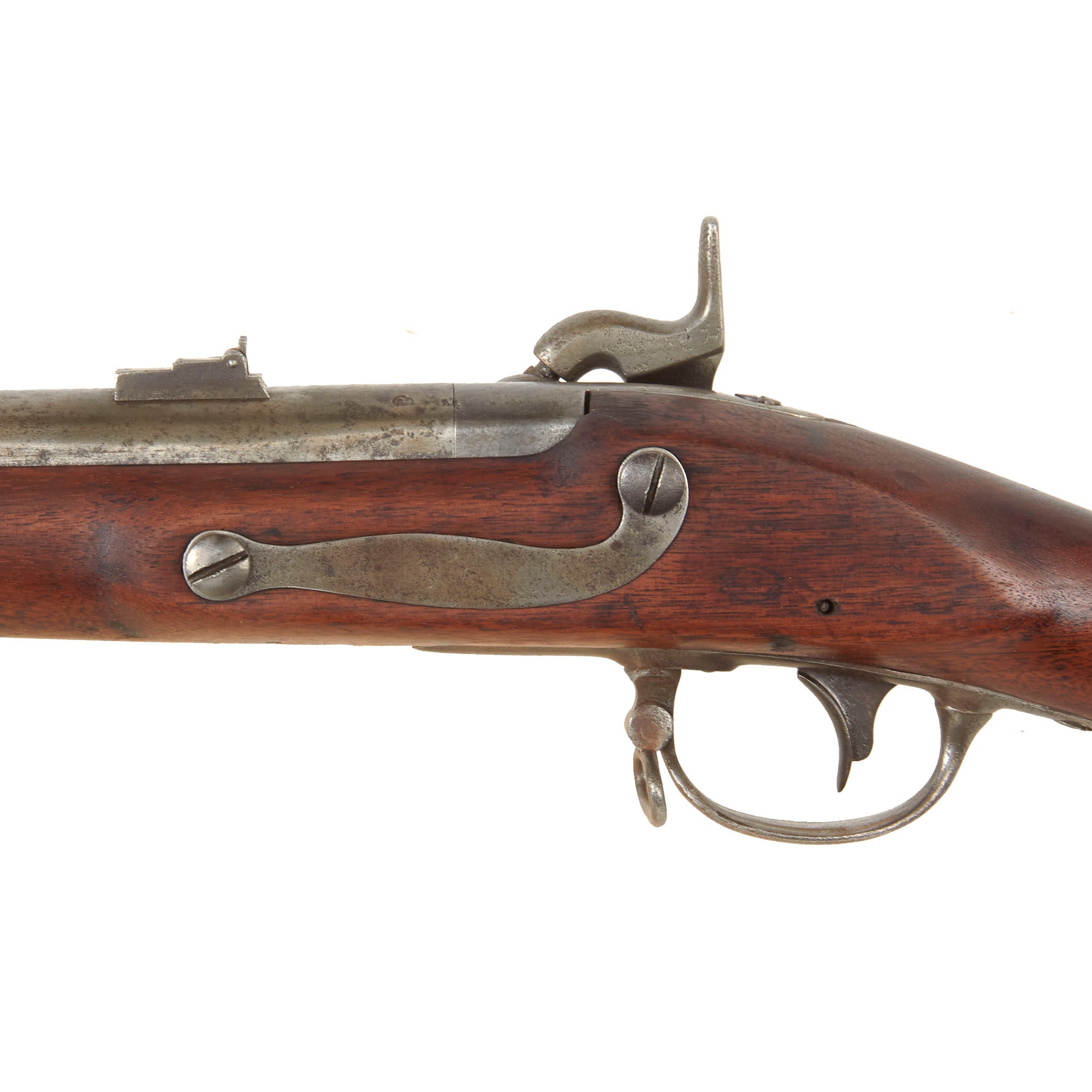

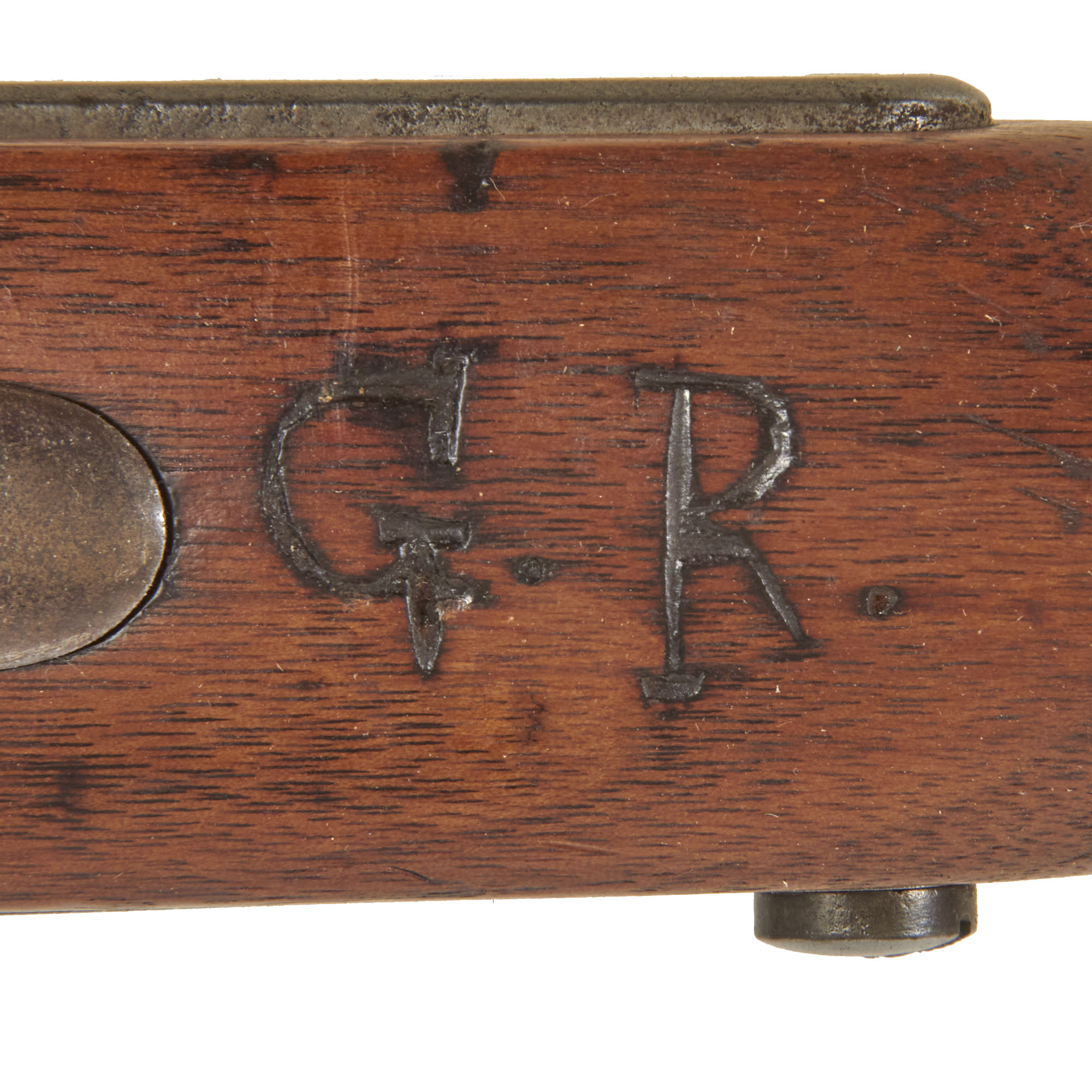

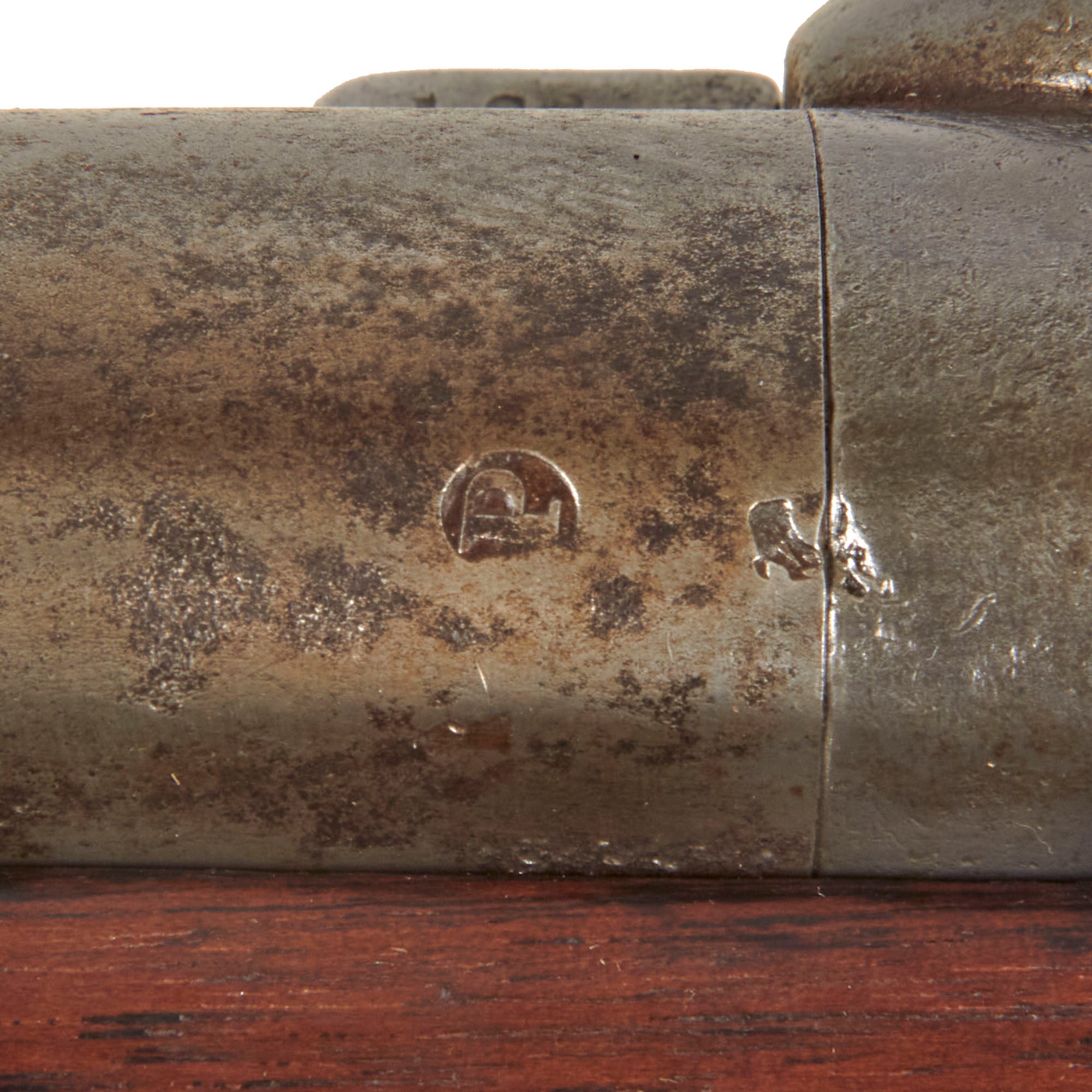

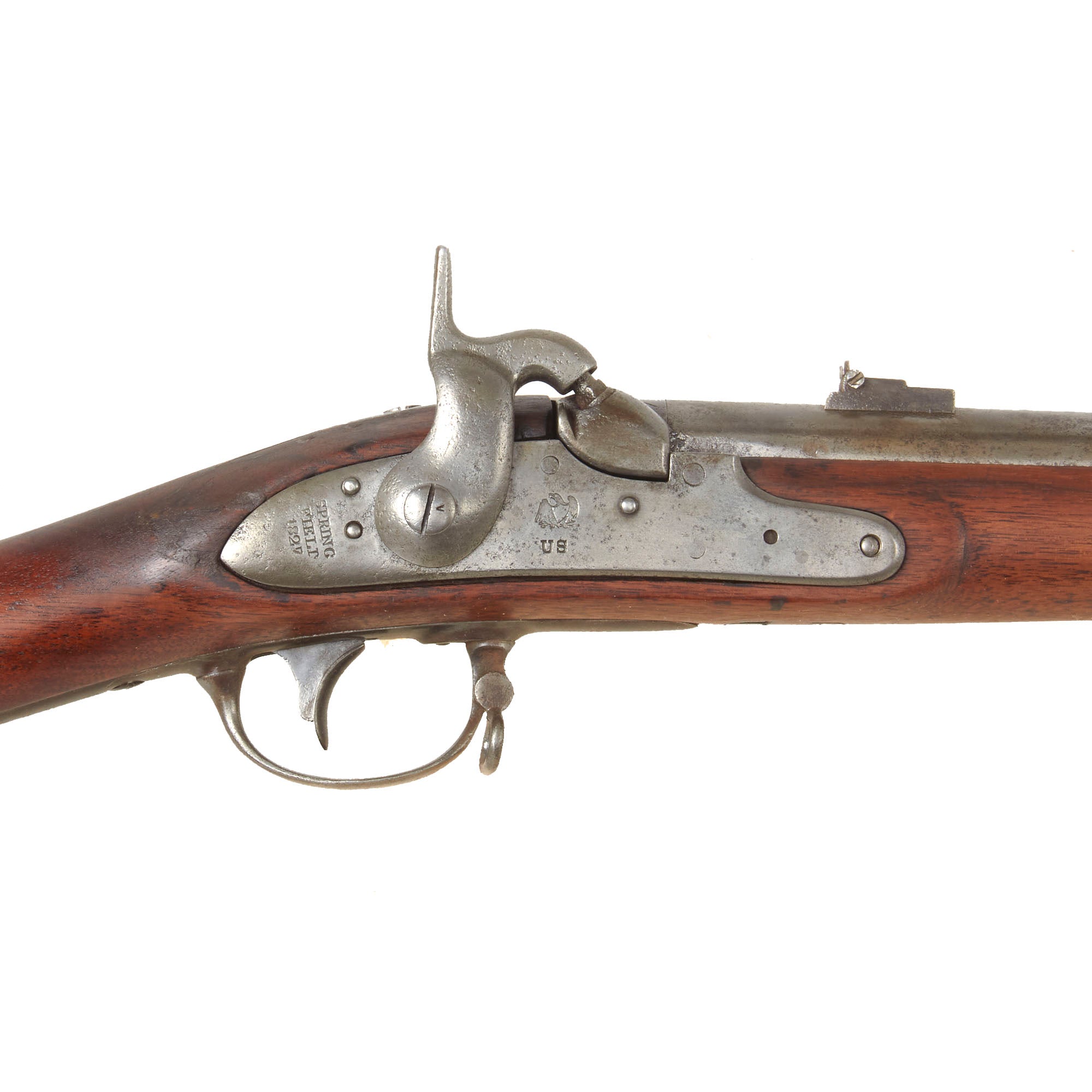

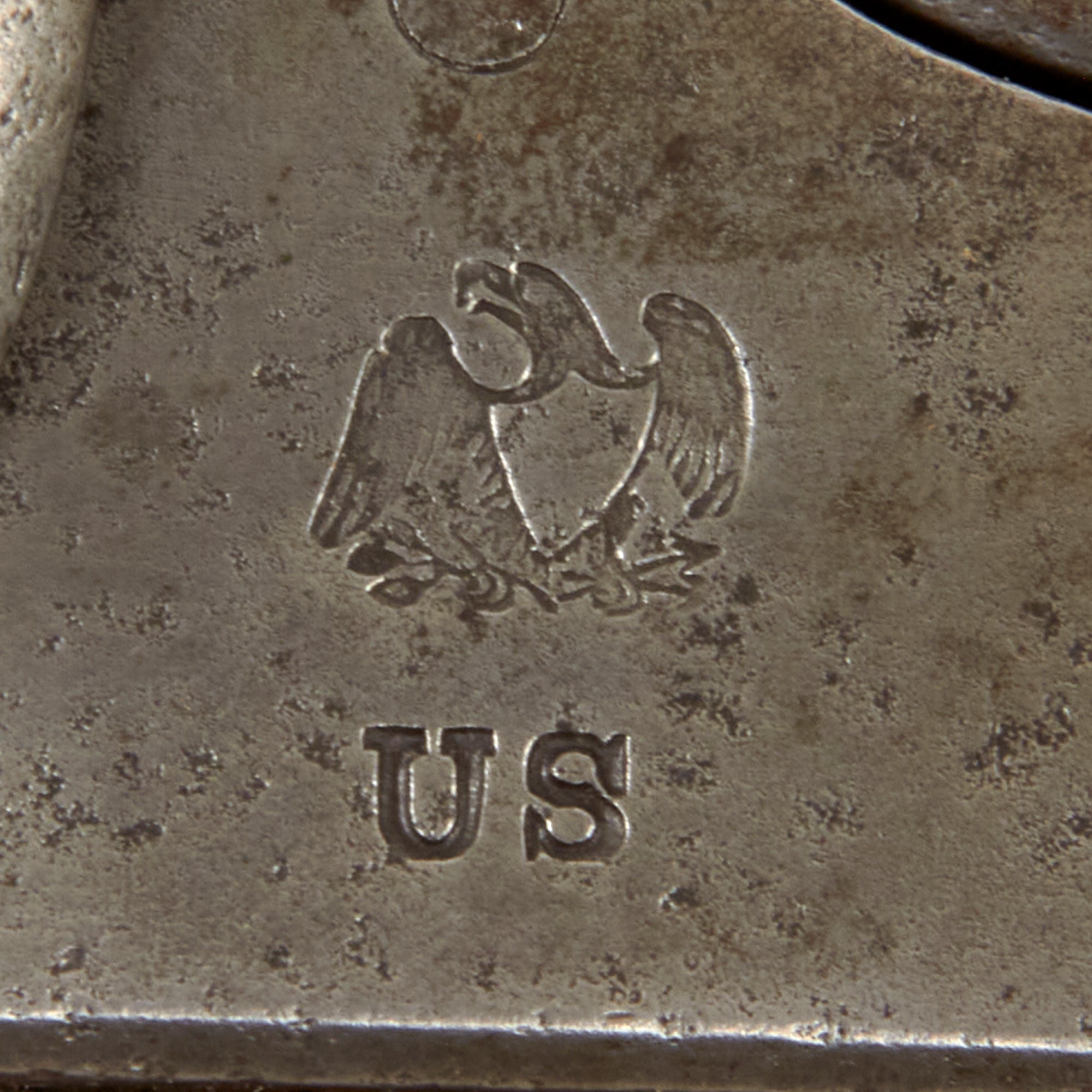

There is also a clear Federal Eagle over U.S. on the lock plate in front of the hammer, which is crisp on the very good condition lock plate, which shows just a bit of past peppering. The 42" smooth bore barrel is marked with a P in a circle with just the very top of an Eagle's Head, the correct proof marks for this era, with the end removed by the replaced breech. There is also a faint oval cartouche on the left side of the stock, along with some other markings we cannot quite make out. There is some past powder burn by the breech area, but not an excessive amount, and the cap nipple cone is original, showing past oxidation. There is a Springfield style three leaf sight that was added, however it is rust frozen.

This example is in very good condition, having been fully cleaned and restored by our expert antique gunsmiths. The metalwork shows a lovely mottled patina, with some areas of past peppered oxidation. The lock is fully functional, and holds correctly at half-cock, firing at full cock. We checked the bore, and it is clear and bright, so it definitely looks to have been cleaned after the last time it was used.

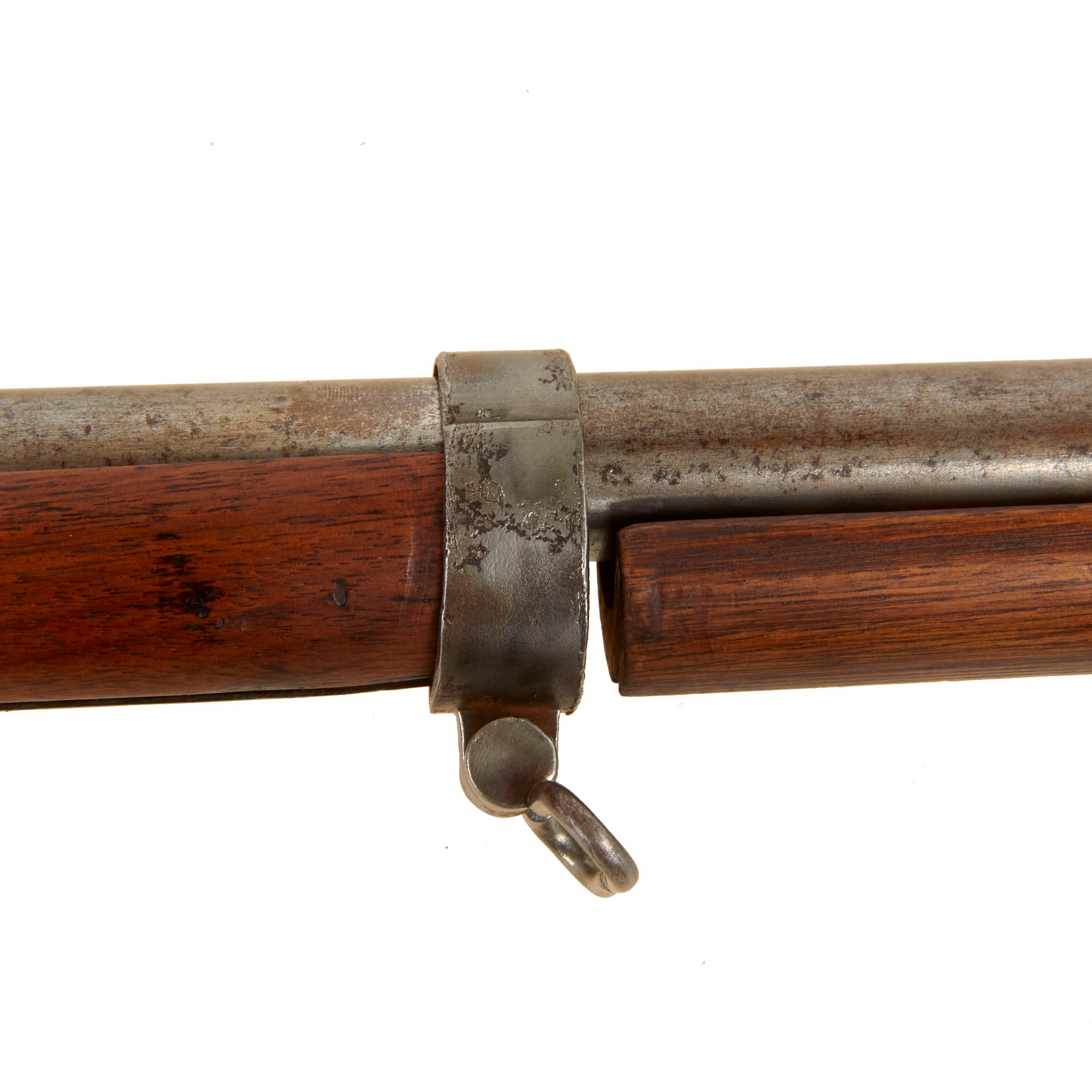

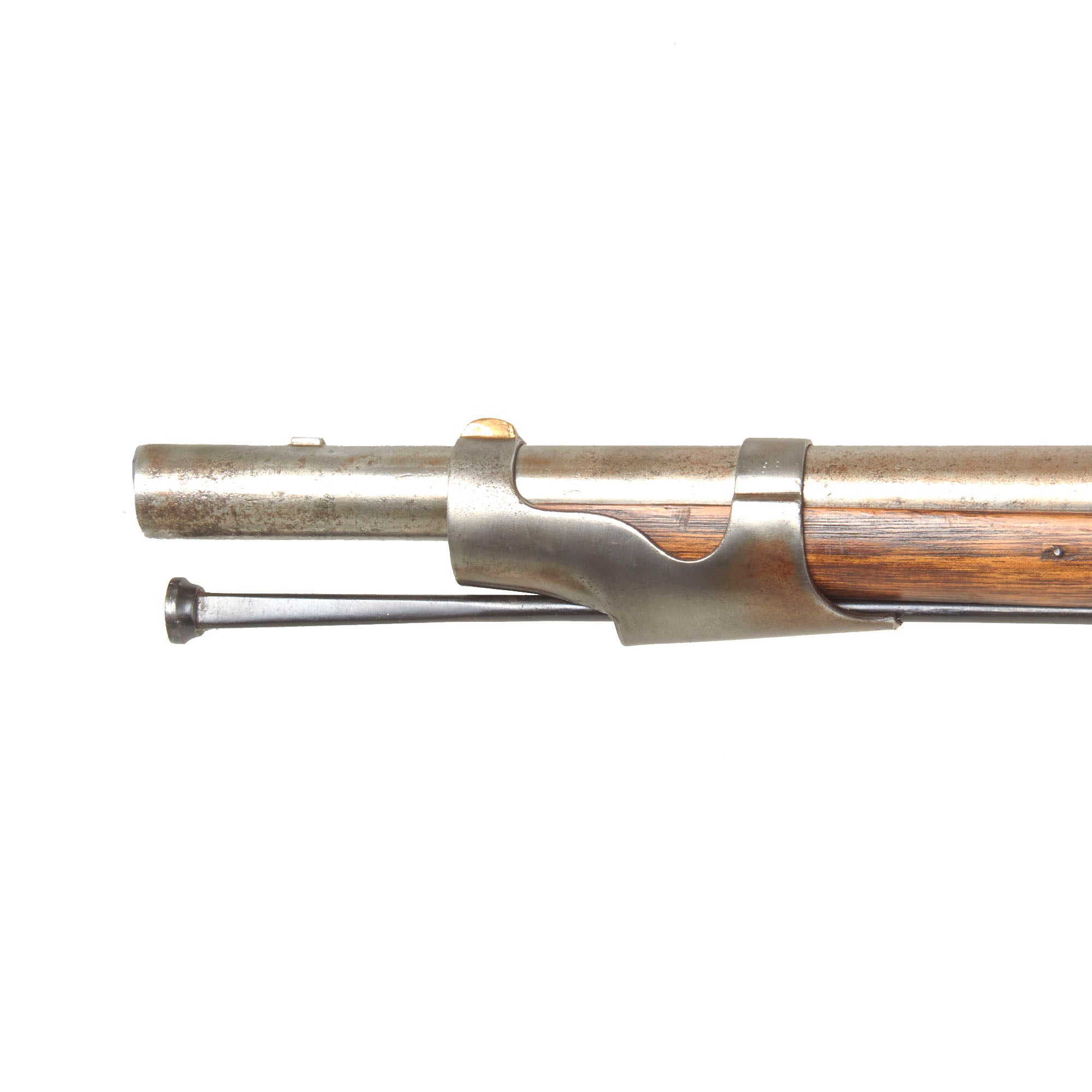

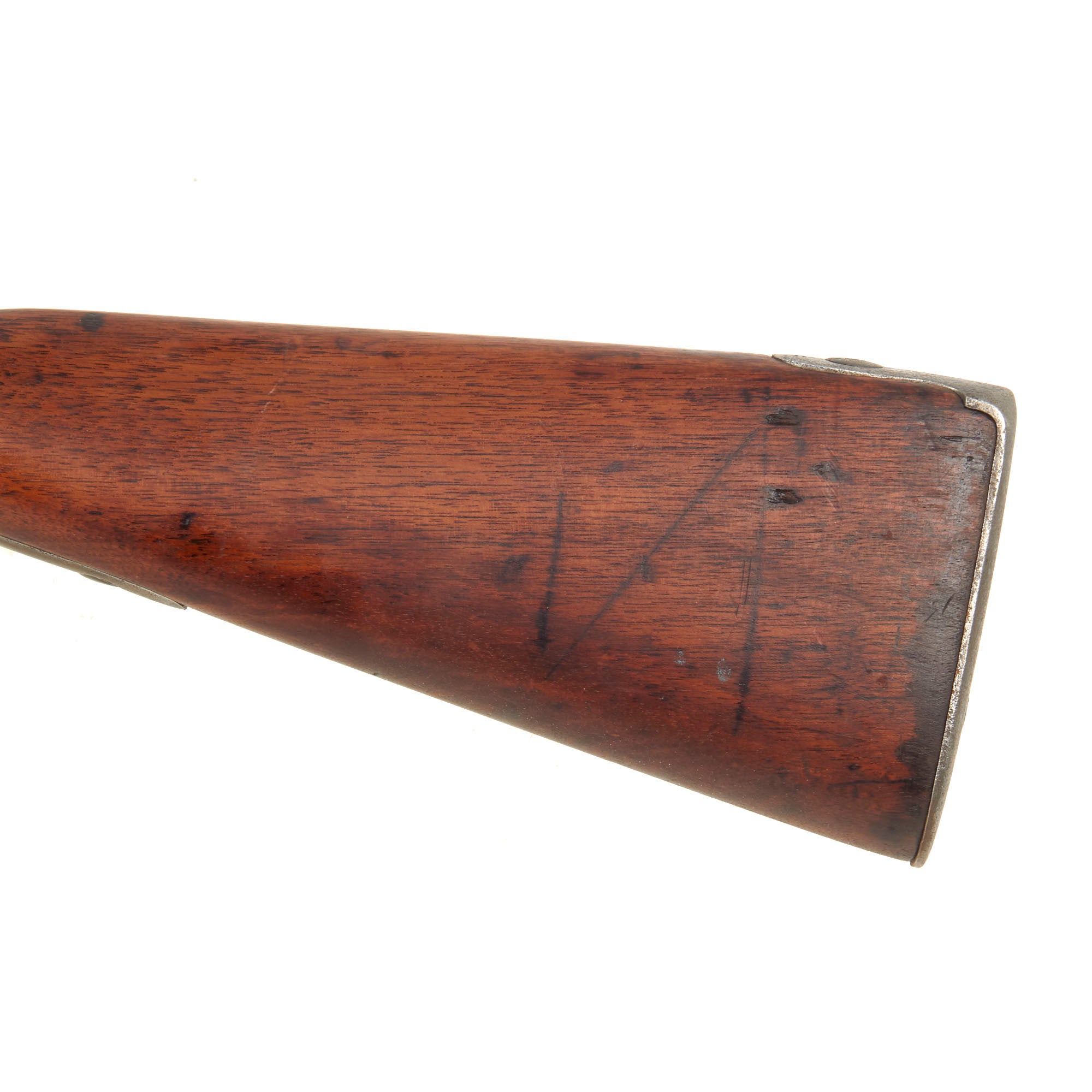

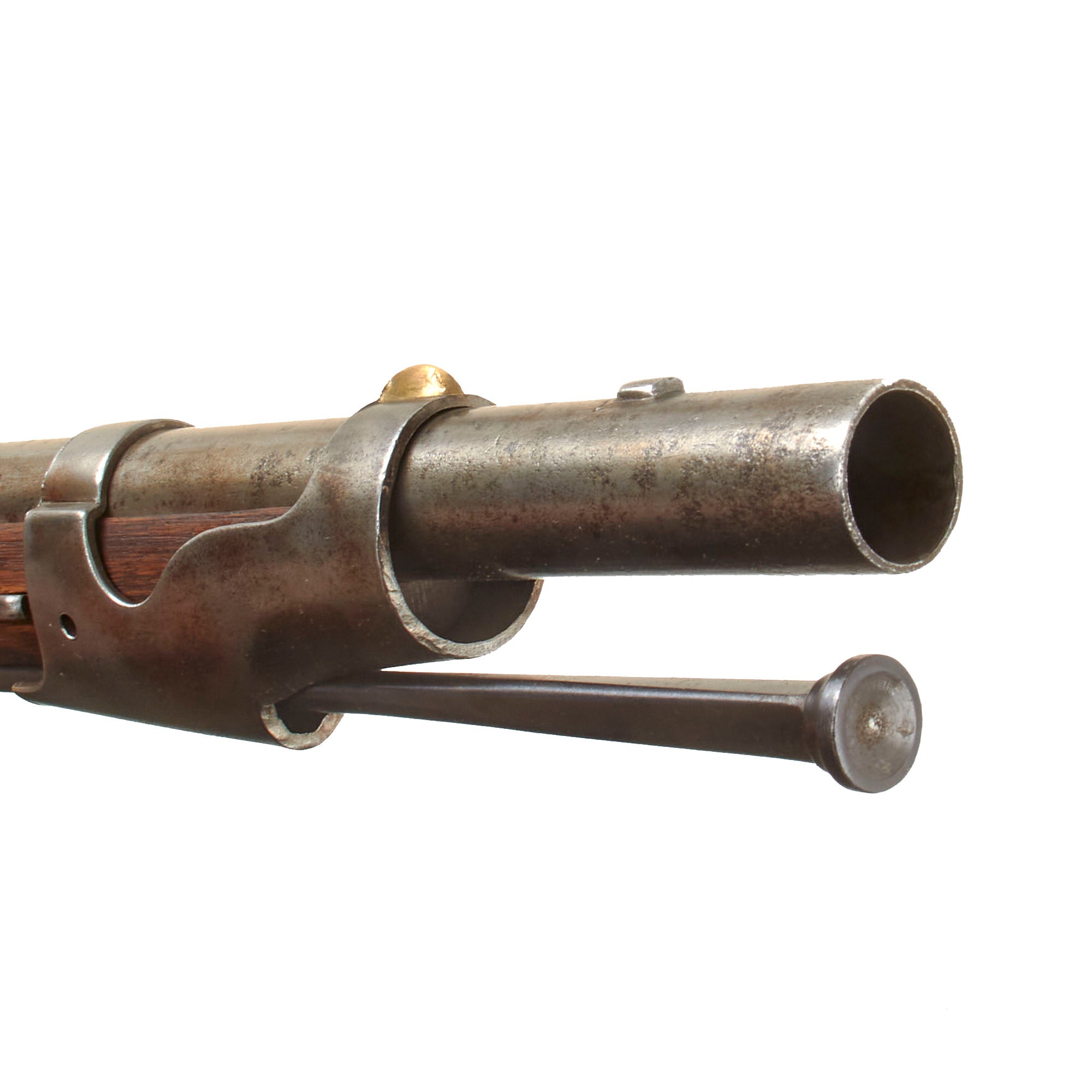

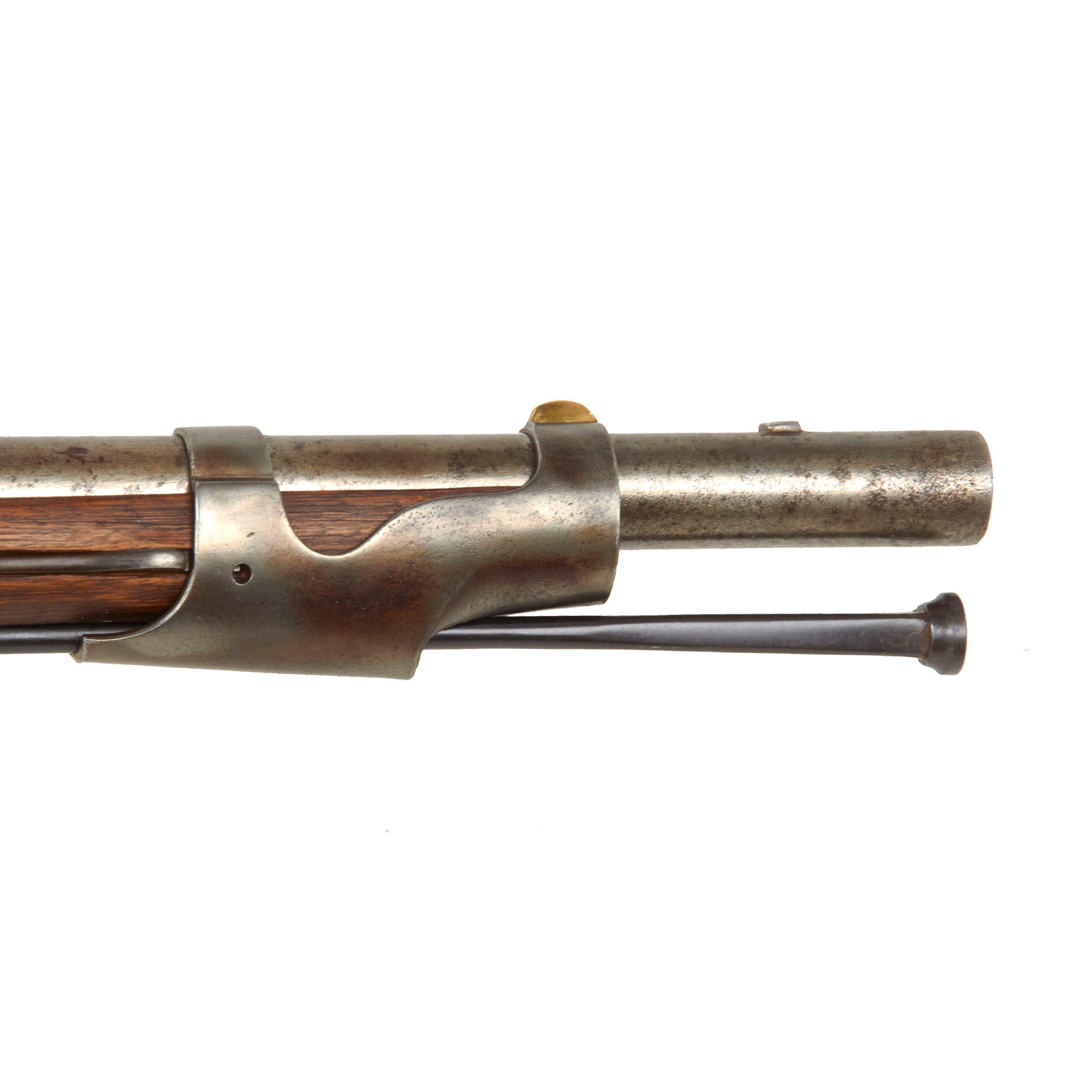

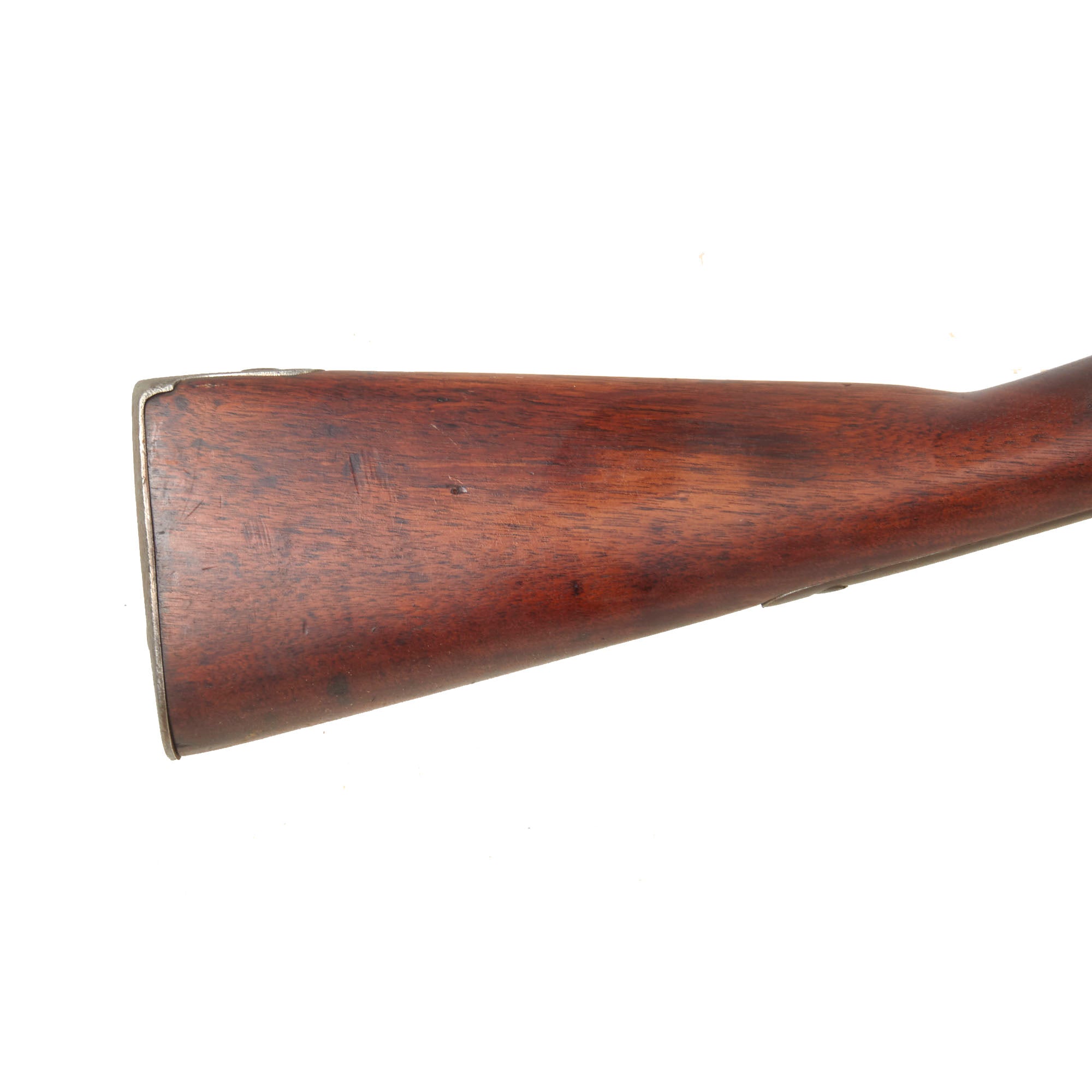

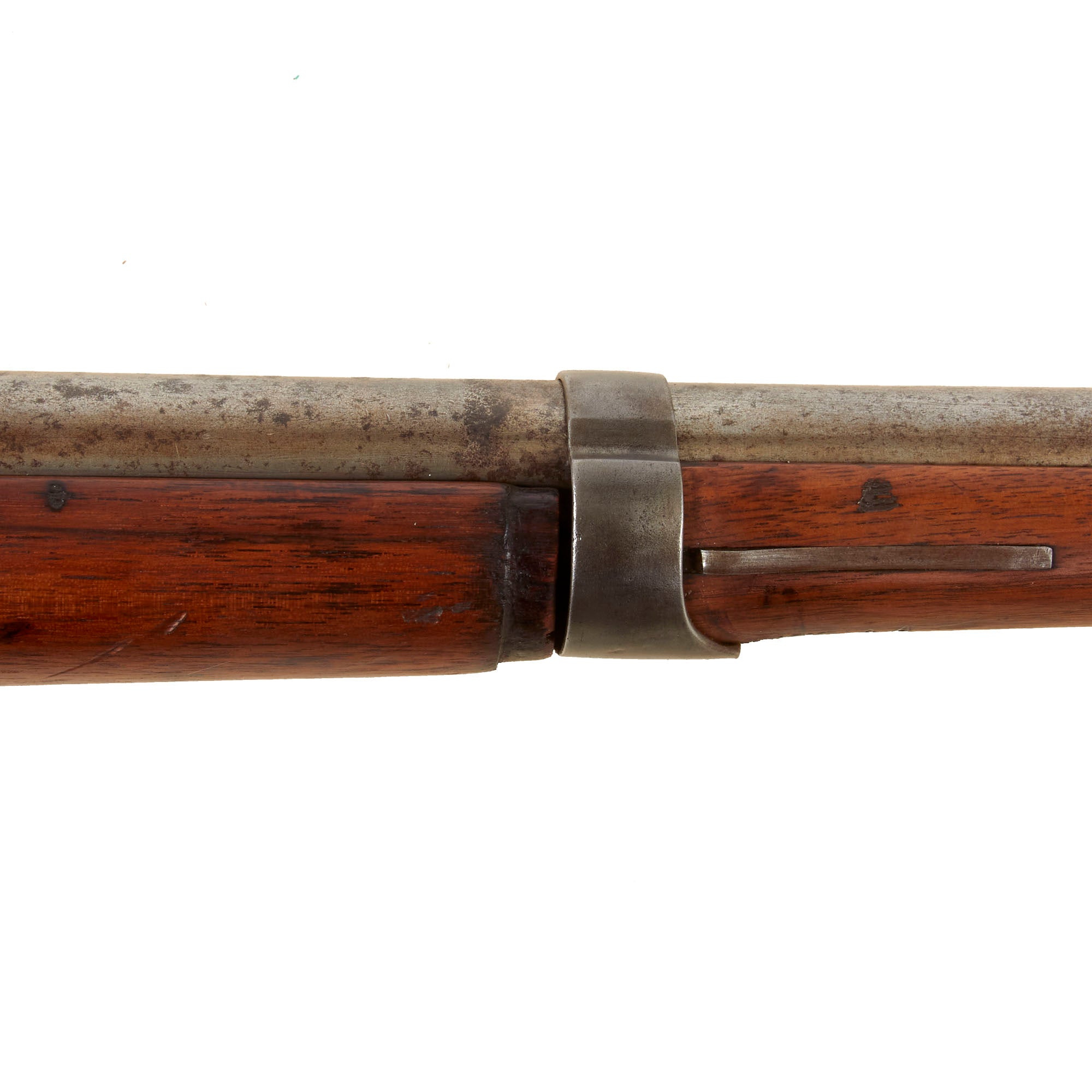

The stock is in good shape, however it is in three pieces, so it looks like it was put together from several different Springfield type muskets. There are cuts under both of the barrel bands, and there is no band spring to hold the middle band in place. There is a replacement cleaning rod in place, which serves also to help stabilize the pieces of the stock, which are not glued or otherwise affixed to one another. Both sling swivels are present and move correctly.

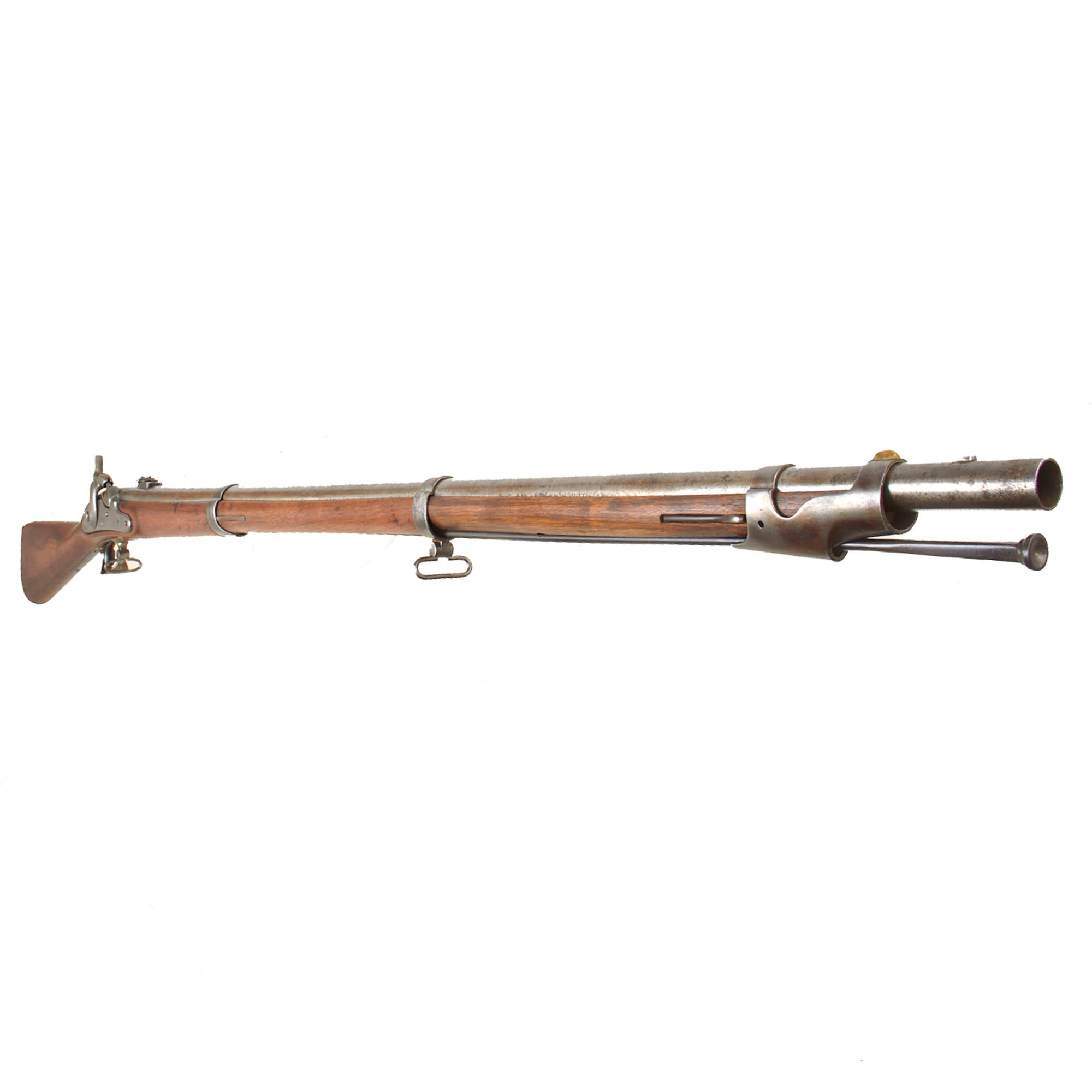

A interesting example of an early stage in the evolution of the U.S. Musket, which saw further service by being converted to percussion, and then probably suffered damage to the fore stock, which was replaced for display. Ready to add to your collection!

Specifications-

Year of Manufacture: 1827
Caliber: .69"
Cartridge Type: Ball and Powder
Barrel Length: 42 Inches
Overall Length: 57 1/2 Inches
Action type: Side Action Percussion Lock
Feed System: Muzzle Loading

History of the Model 1822 Musket:

The War of 1812 had revealed many weaknesses in American muskets. The Model 1812 Musket was created in an attempt to improve both the design and manufacture of the musket. The Model 1816 made further improvements, and replaced the Model 1812. The Model 1812 had borrowed heavily from the design of the French Charleville model 1777 musket, and this design was retained for the Model 1816. The Model 1816 had a 42 inch long .69 caliber smoothbore barrel, similar to the Model 1812, but had a longer lock plate, a shorter trigger guard, and a longer bayonet than the Model 1812. The Model 1816 also had a more straight lined stock. The overall length of the weapon was 58 inches.

The Model 1816 musket was originally produced at the Harpers Ferry and Springfield Arsenals between 1816 and 1844. Around 675,000 were made, more than any other flintlock in U.S. history.

The Model 1816 was originally produced as a flintlock musket. Like many flintlock muskets, many of these were later converted to percussion cap, as the percussion cap system was much more reliable and weather resistant.

This model of Springfield musket was used by Texans during the Texas Revolution and by the US Army and militia during the Mexican-American War. During this conflict, the flintlock version of the Model 1816 was preferred by U.S. regular forces, due to percussion cap supply concerns.

It was also used during the early years of the American Civil War until around 1862.

Many improvements to the Model 1816 were made, producing the Model 1822, Model 1835, Model 1840, and Model 1842. U.S. Ordnance Department referred to these as different models, but in other U.S. government documents they are referred to as a continuation of the Model 1816. Modern histories are similarly inconsistent in the nomenclature of these weapons.
