Original Item: Only One Available. Starting life between 1863 and 1873 this is a very rare unconverted Merwin & Bray CUP-FIRE brass frame revolver. Similar to the "Teat-Fire" design, it was one of several ways developed to produce a brass cartridge revolver that would not infringe on the Patents of Rollin White. Licensed and vigorously protected by SMITH & WESSON, this patent covered the use of a bored through revolver cylinder loaded through the rear with a cartridge. Even though these had already been in use in Europe, there was no U.S. Patent, which White exploited with his patent, which also utilized a box magazine to load the cylinder, and was in reality a totally unworkable design.

To infringe on the patent, the cylinder needed to be fully bored through, however, so Plant developed the the CUP FIRE system. This has the chambers reduced in size at the rear, with a lip around the edge. This meant that the system required loading from the front of the cylinder, in reverse so to speak. The cartridges used had a cup shaped base, which gave the system it's name, and were interesting in that the cartridge entirely surrounded the bullet as well. When cycled the firing pin goes into holes in the rear of the cylinder, and sets of the primer in the cupped base of the cartridges.

Plant Mfg. Co began making Cup Fire revolvers based on the Merwin & Bray patents in 1863, manufacturing an "Army" model in .42" Cupfire, which was relatively small in size, but packed much more of a punch than the .32 Smith & Wesson pocket revolvers of the time. They also however manufactured revolvers in the smaller .28" and .30" cupfire sizes. This lovely brass framed revolver has bore measuring about .28, which is actually the correct size for a .30" cupfire gun, as the actual bullets for the two smaller sizes were .26" and .28", respectively.

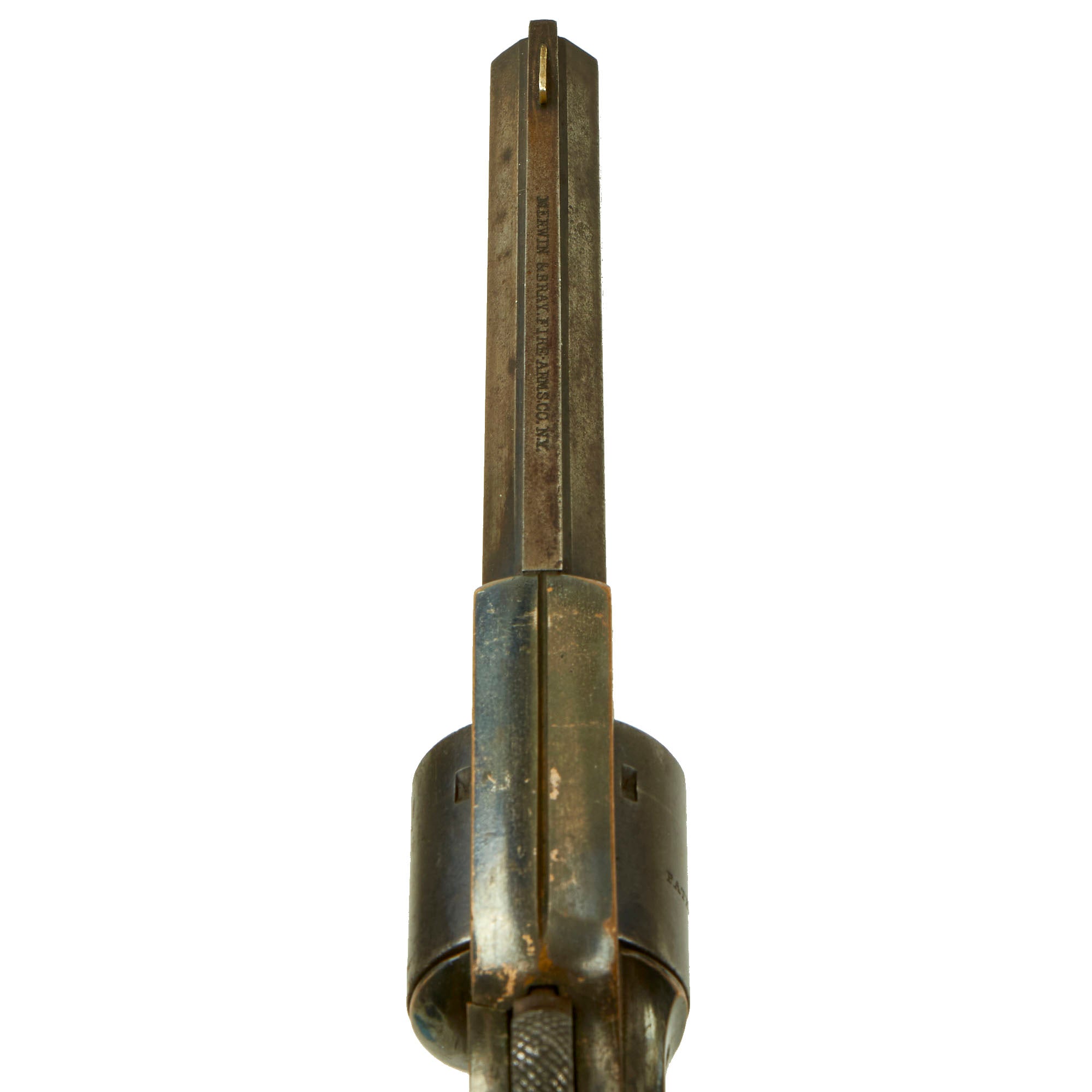

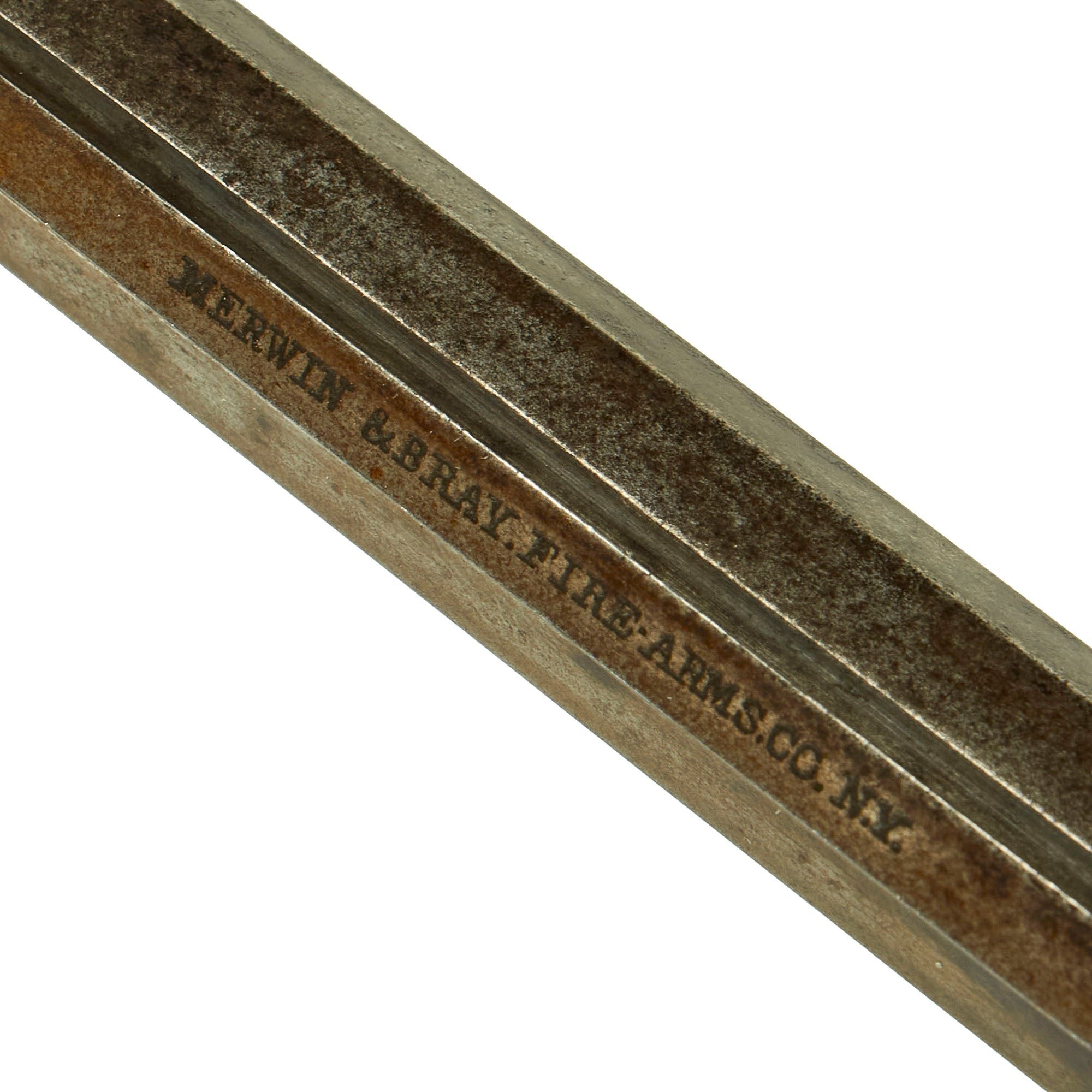

The top of the barrel still shows the correct Merwin & Bray address marking:

MERWIN & BRAY. FIRE-ARMS CO. N.Y.

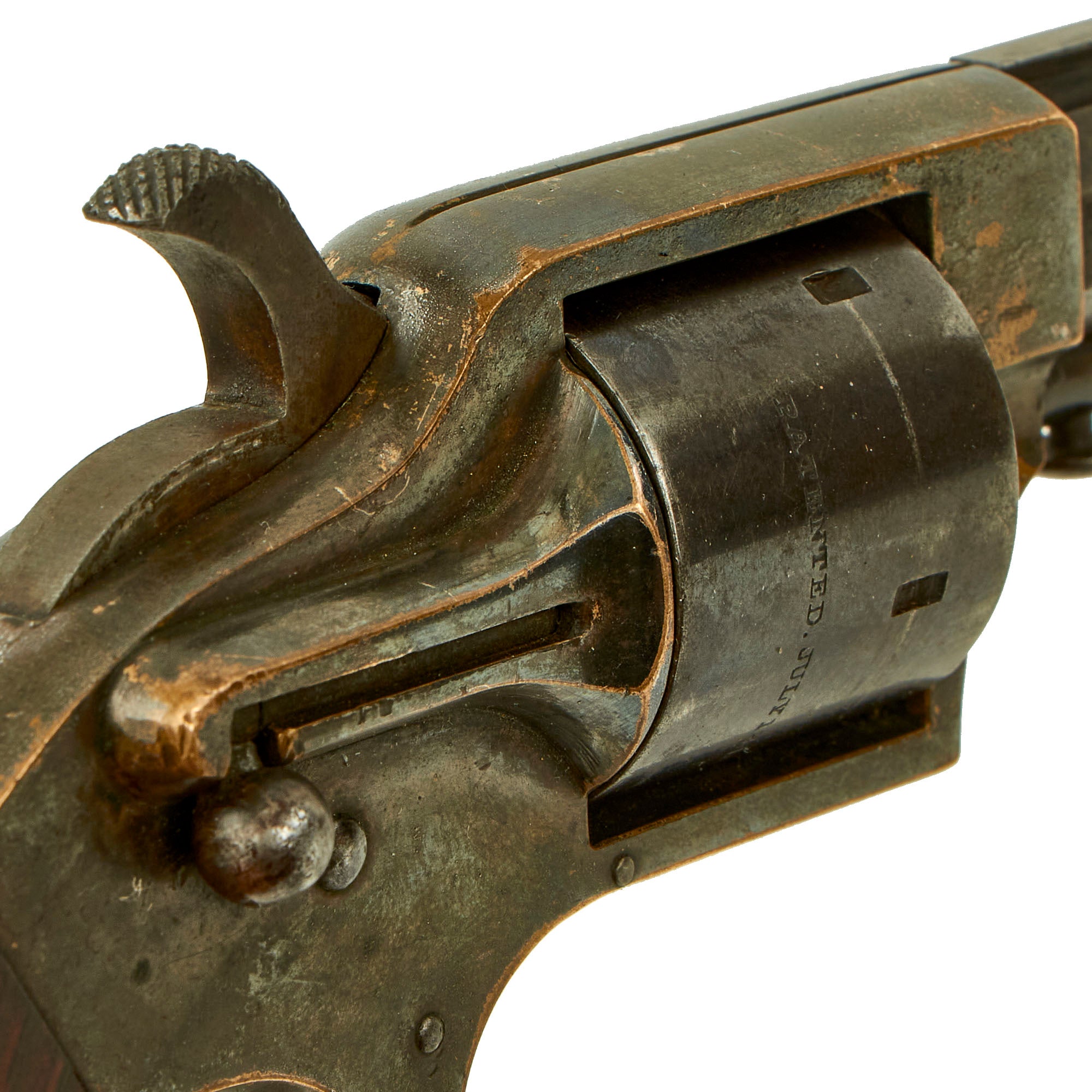

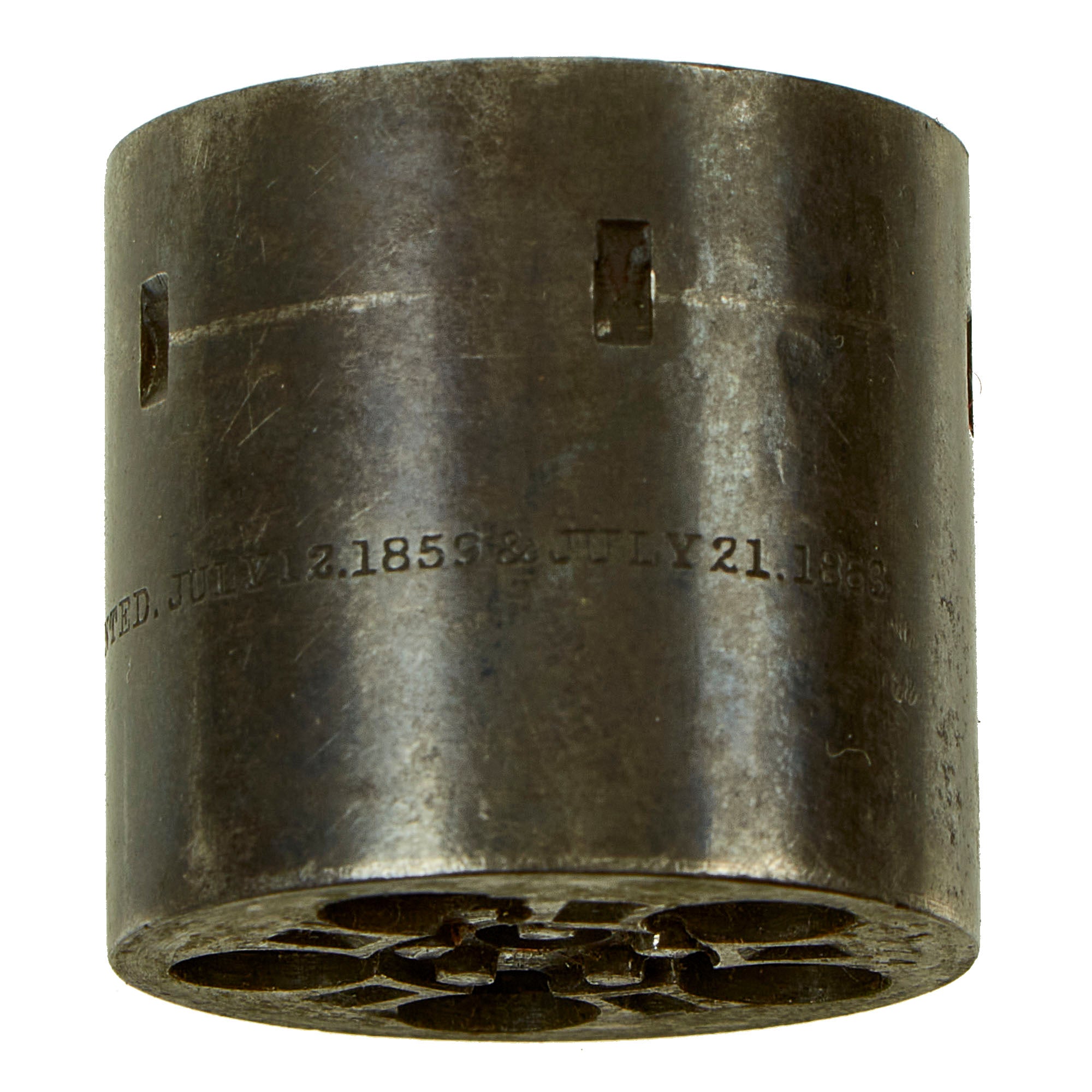

As an added treat, the revolver still has a fully legible patent marking going around the cylinder:

PATENTED JULY 12 1859. & JULY 21 1863.

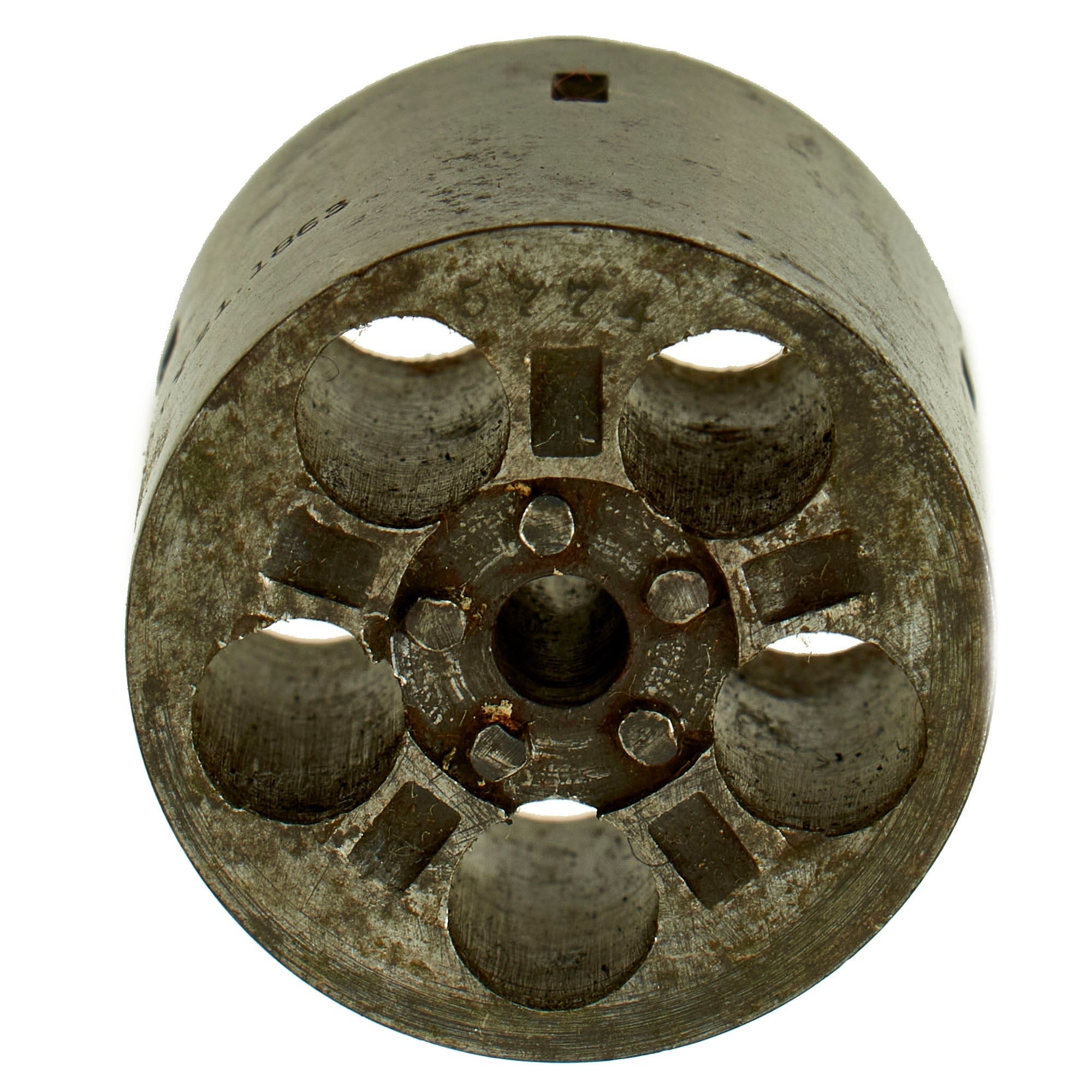

The bottom of the grip frame is marked with serial number 5774, which is also stamped on the bottom of the barrel, the rear of the cylinder (small), and on the inside of BOTH grip scales. The only unmatched item is the cylinder arbor pin, which is marked with serial number 5665, which makes this a very nice "Mostly Matching" example.

Revolver cycles beautifully, with good indexing and a firm cylinder lockup. It has a functional half-cock loading position, and a crisp dry fire. The ejector rod moves forward and springs back correctly as well. The bore is in very good condition, with a mostly bright finish and clear lands and grooves. Just a few specks of oxidation, with little sign of use. The revolver cylinder axis pin still pulls out towards the front correctly so that the cylinder can be removed for cleaning.

Overall condition of the revolver is just lovely, with a fantastic patina of age. The barrel and steel components still have some of the original blued finish, with the rest faded to a grayish patina. The brass still has much of the original plating, which looks to have been "blacked" when originally made. The rosewood grip scales look great, with no cracks or major damage, and still retaining much of the original "piano varnish" finish.

A rare revolver seldom seen today, especially in the original "Cup Fire" configuration! Most of these that we have seen were later updated to take standard cartridges in the "Old West". In very nice condition and ready to display!

Specifications:-

Year of Manufacture: circa 1863-1873
Caliber: .30"
Ammunition Type: "Cupfire" cartridge.
Barrel Length: 3 1/2 inches
Overall Length: 8 5/8 inches
Action: Single Action
Feed System: 5 Shot Revolver
