Original Items: Only One Set Available. During the U.S. Civil War, there were a multitude of different arms in service, as both sides rushed to fill the need for small arms. This was a logistical nightmare, as all of these different types of ammunition needed to be sourced, however this also ended up being a dream for collectors digging around old battlefields, as the possibilities for research were great.

During the American Civil War, an assortment of small arms found their way onto the battlefield. Though the muzzleloader percussion cap rifled musket was the most numerous weapon, being standard issue for the Union and Confederate armies, many other firearms, ranging from the single-shot breech-loading Sharps and Burnside rifles to the Spencer and the Henry rifles - two of the world's first repeating rifles - were issued by the hundreds of thousands, mostly by the Union. The Civil War brought many advances in firearms technology, most notably the widespread use of rifled barrels.

The impact that rifles had on combat in the Civil War is a subject of debate among historians. According to the traditional interpretation, the widespread employment of rifled firearms had a transformative effect which commanders failed to consider, resulting in terrible casualties from the continued use of outdated tactics. More recent scholarship has questioned this interpretation, arguing the impact was minimal and required no radical change in how armies fought. This debate is part of a larger discussion on whether the American Civil War is an early example of modern warfare or has more in common with Napoleonic warfare.

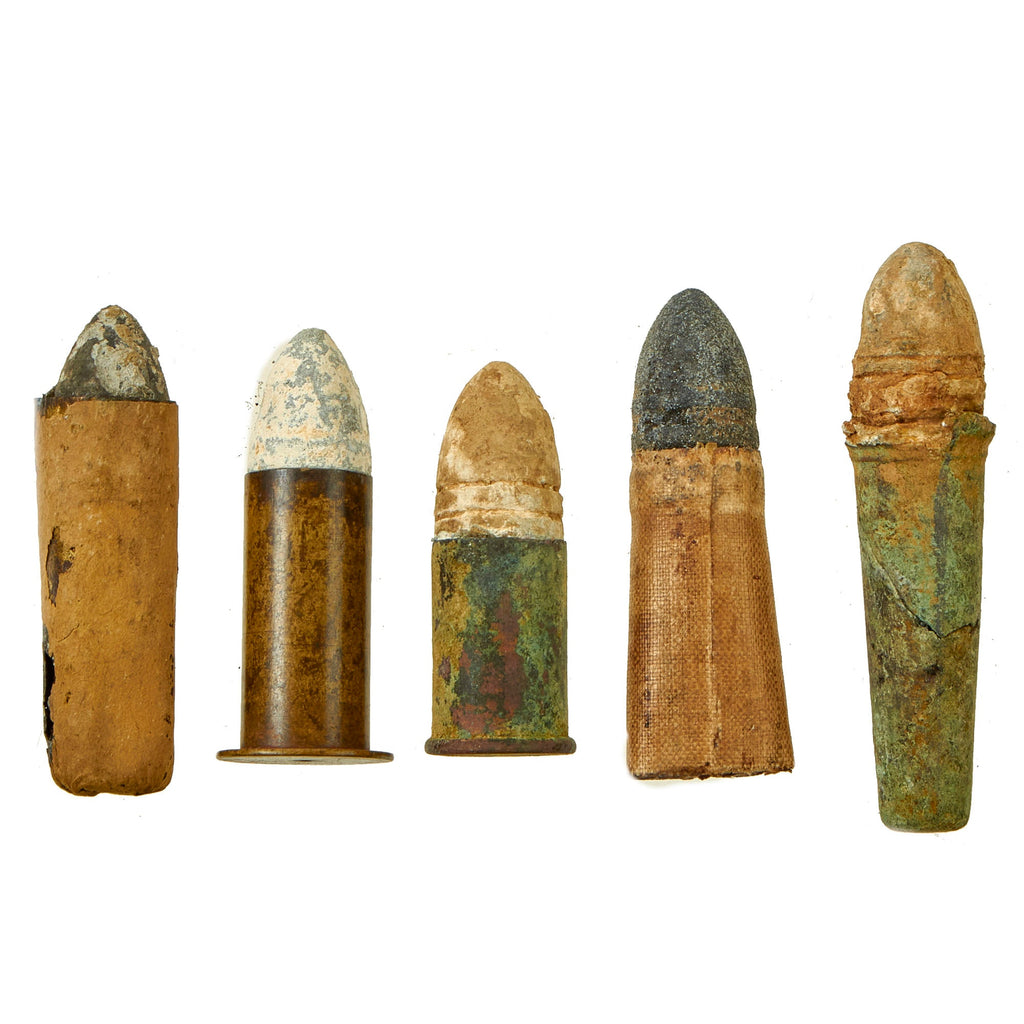

The Cartridges In This Lot:

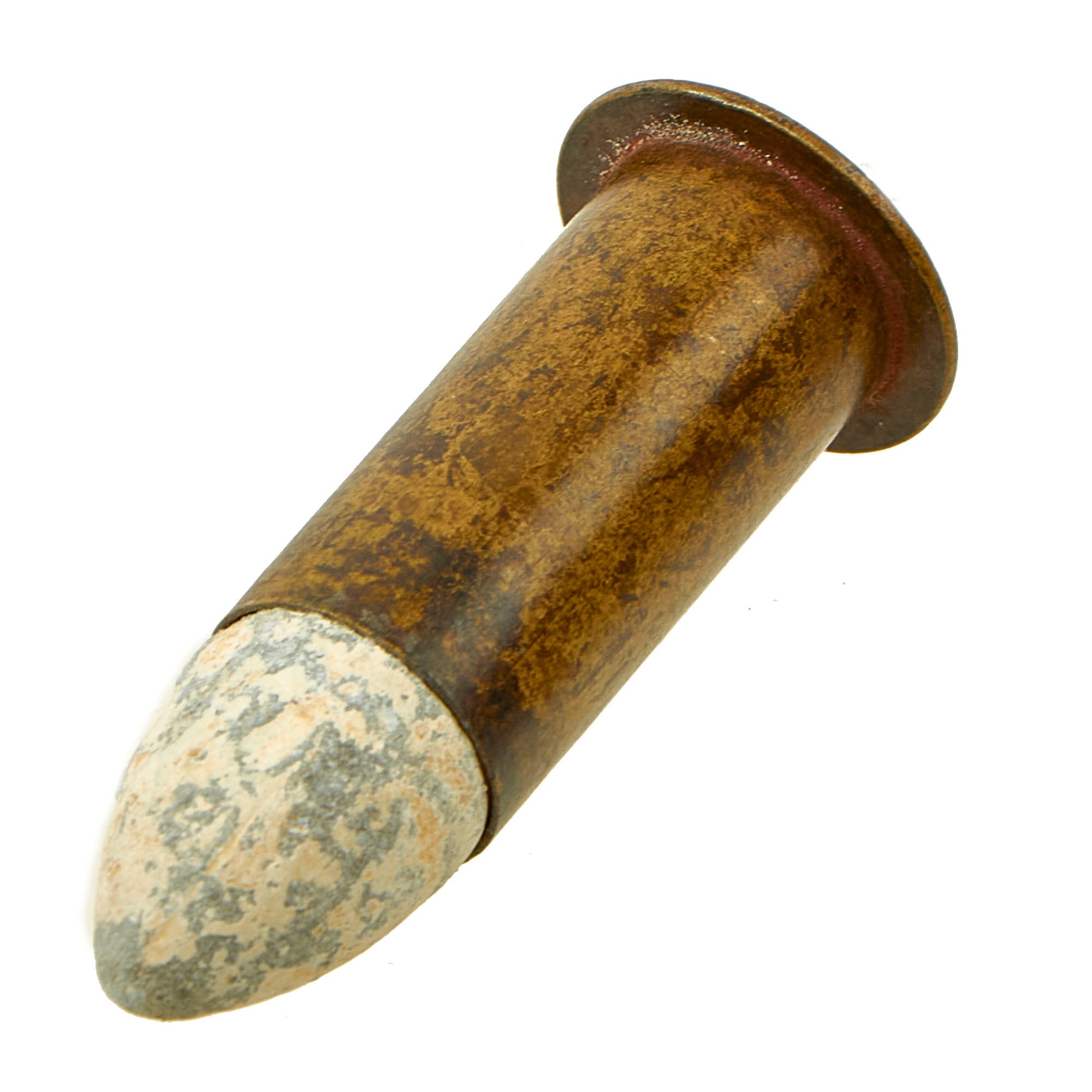

- .56-56 Spencer: The .56-56 Spencer was an American black powder rifle cartridge. Designed for the Spencer rifle and carbine, patented 6 March 1860, it was employed by cavalry during the American Civil War, first appearing at Sharpsburg in rifle form. No Spencer carbines were on issue at the Battle of Gettysburg, though two units under Custer had the rifles. The .56-56 was loaded with a slug of 350–360 gr (22.7–23.3 g) over 42–45 gr (2.7–2.9 g) of black powder. It was loaded by a variety of companies, and was also used in the Ballard and Joslyn carbines. It is a short-ranged cartridge, ineffective on anything larger than deer. Commercially loaded ammunition continued to be available into the 1920s and 1930s.

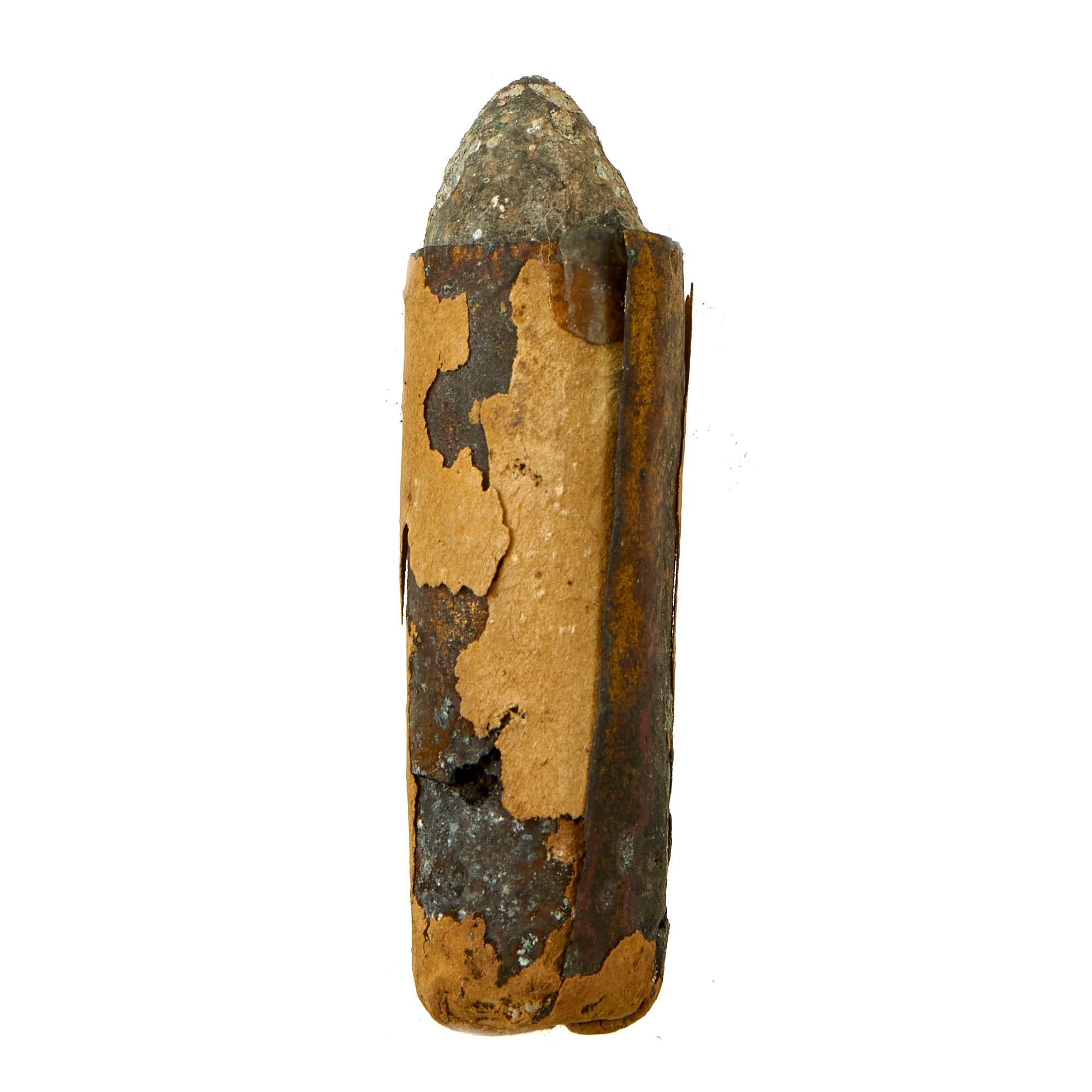

- Gallager Carbine: The Gallager carbine is an American black powder breechloading rifle produced in the American Civil War.

The weapon was designed by Mahlon J. Gallager, who licensed the design to Richardson and Overman of Philadelphia for production. On 31 August 1861 the first weapons were sold to the Army.

The Gallager was loaded from the rear with brass cases, which contained the projectile and the propellant. Covered by a disc made of greased felt, the projectile was inserted in the barrel after it was tilted up by a lever, followed by the case, and (like the concurrent muzzleloaders, such as the Springfield) were ignited by percussion cap, which was placed on the bolt face. The brass cases had a paper patch in the base, to prevent powder seepage and still allow the cap to fire the round. The weapon was 0.525 in (13.3 mm) caliber with a 22 in (56 cm) barrel. The rifle was strongly made, but unpopular with troops. Frequently, the cases stuck due to expansion of the front part and had to be laboriously removed.

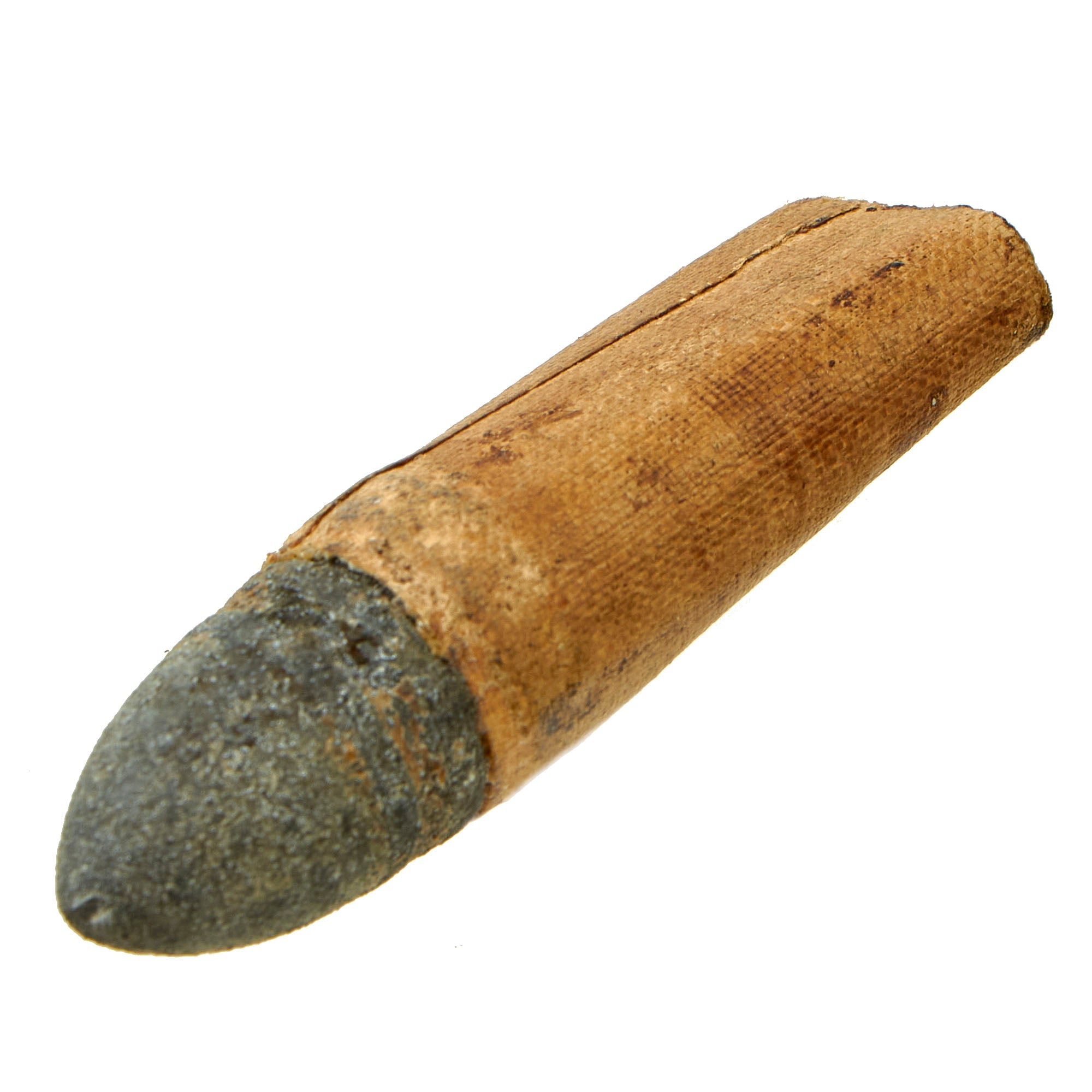

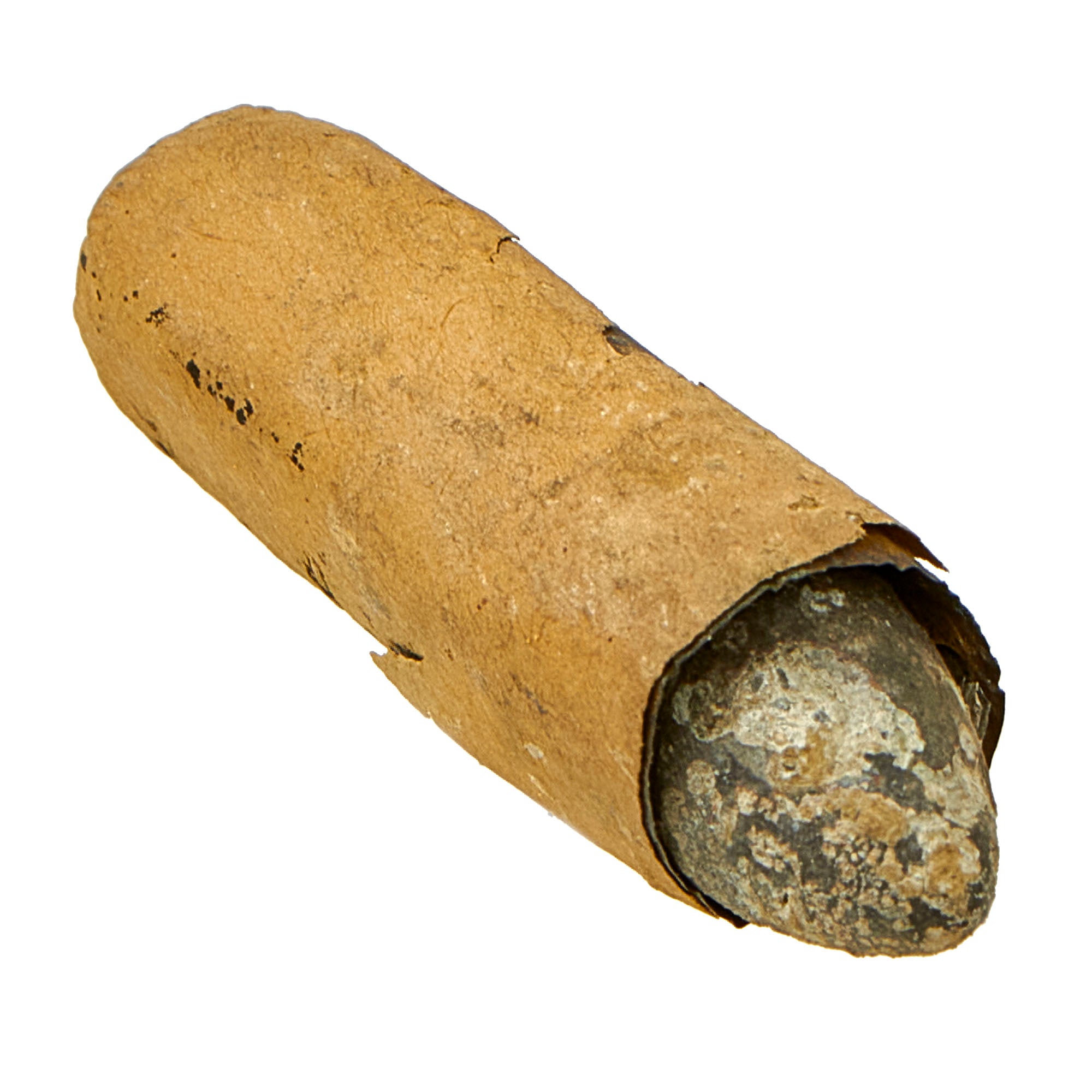

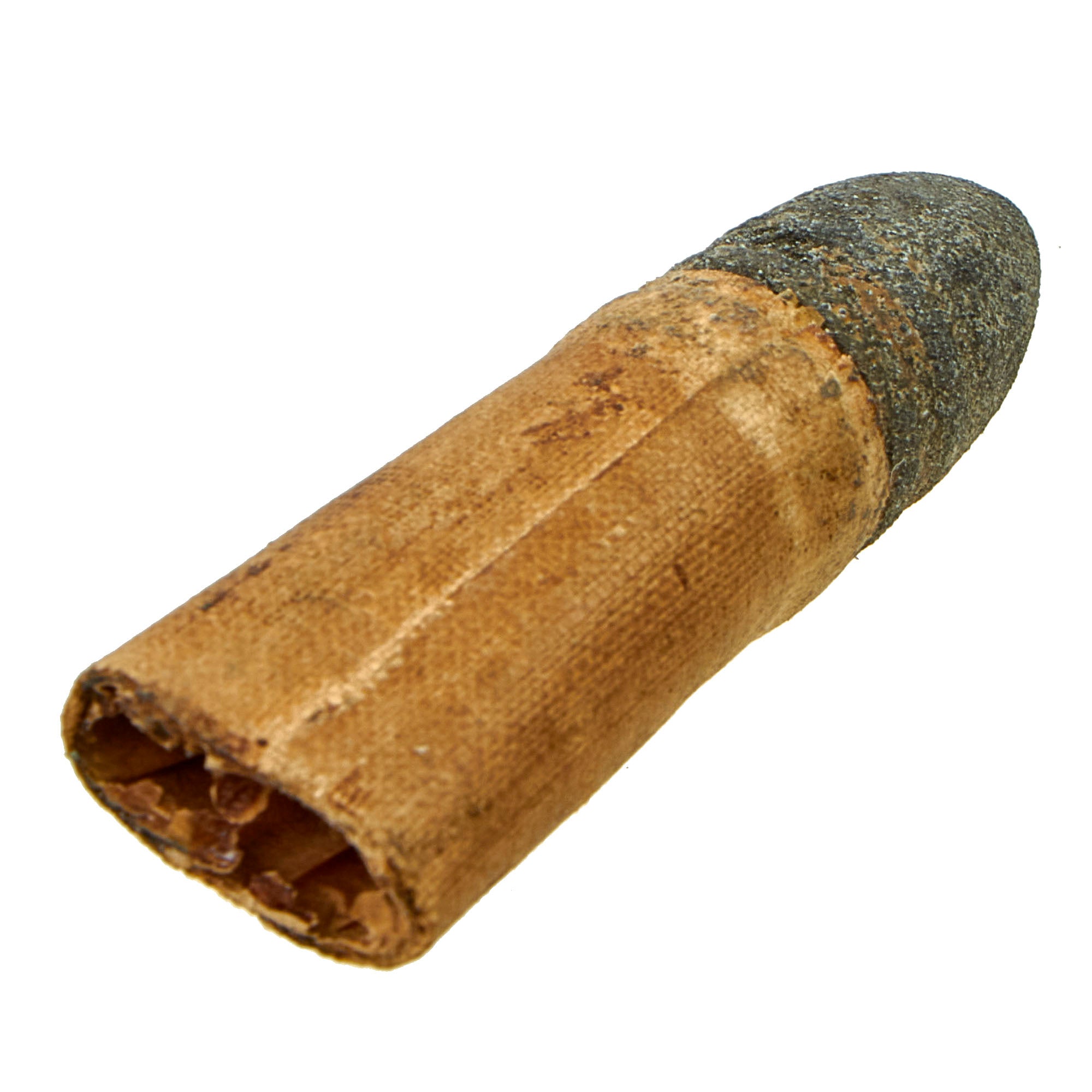

- Sharps Carbine: The carbine version was very popular with the cavalry of both the Union and Confederate armies and was issued in much larger numbers than other carbines of the war and was top in production in front of the Spencer or Burnside carbine. The falling-block action lent itself to conversion to the new metallic cartridges developed in the late 1860s, and many of these converted carbines in .50-70 Government were used during the Indian Wars in the decades immediately following the Civil War.

Some Civil War–issue carbines have an unusual feature: a hand-cranked grinder in the stock. Although long thought to be a coffee mill, experimentation with some of the few survivors suggests the grinder is ill-suited for coffee. The modern consensus is that its true purpose was for grinding corn or wheat or, more appropriately, for grinding charcoal needed in the production of black powder.

Unlike the Sharps rifle, the carbine was very popular, and almost 90,000 were produced. By 1863, it was the most common weapon carried by Union cavalry regiments, although in 1864 many were replaced by seven-shot Spencer carbines. Some Sharps clones were produced by the Confederates in Richmond. Quality was generally poorer, and they normally used brass fittings instead of iron.

Alfred Waud painting showing men of the 1st Maine Cavalry with Sharps carbines during the Battle of Middleburg. The kneeling man fires at the enemy, as the man standing behind him is feeding a new cartridge into the chamber.

The British purchased 1,000 Model 1852 carbines in 1855 which were later used in the Indian Rebellion of 1857.

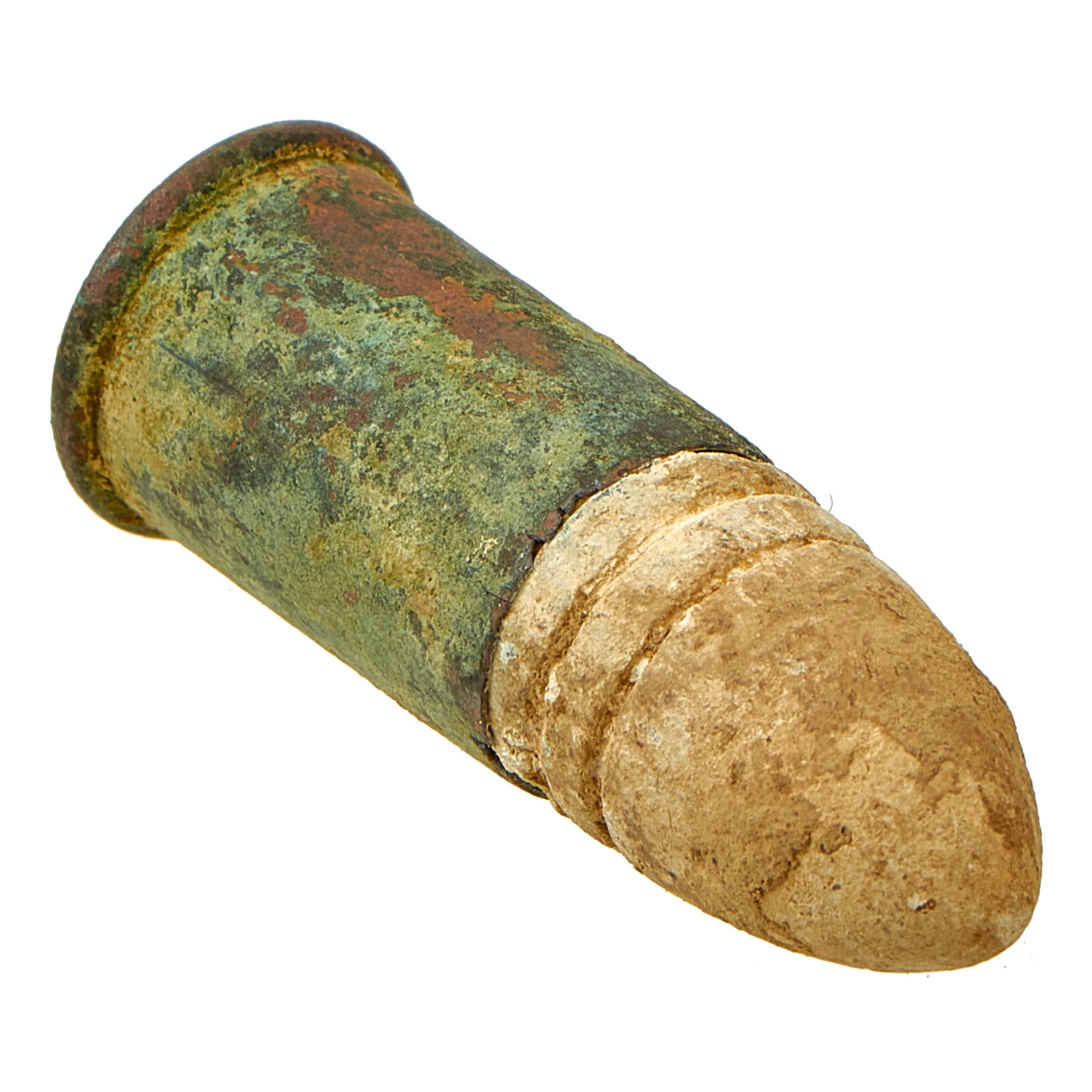

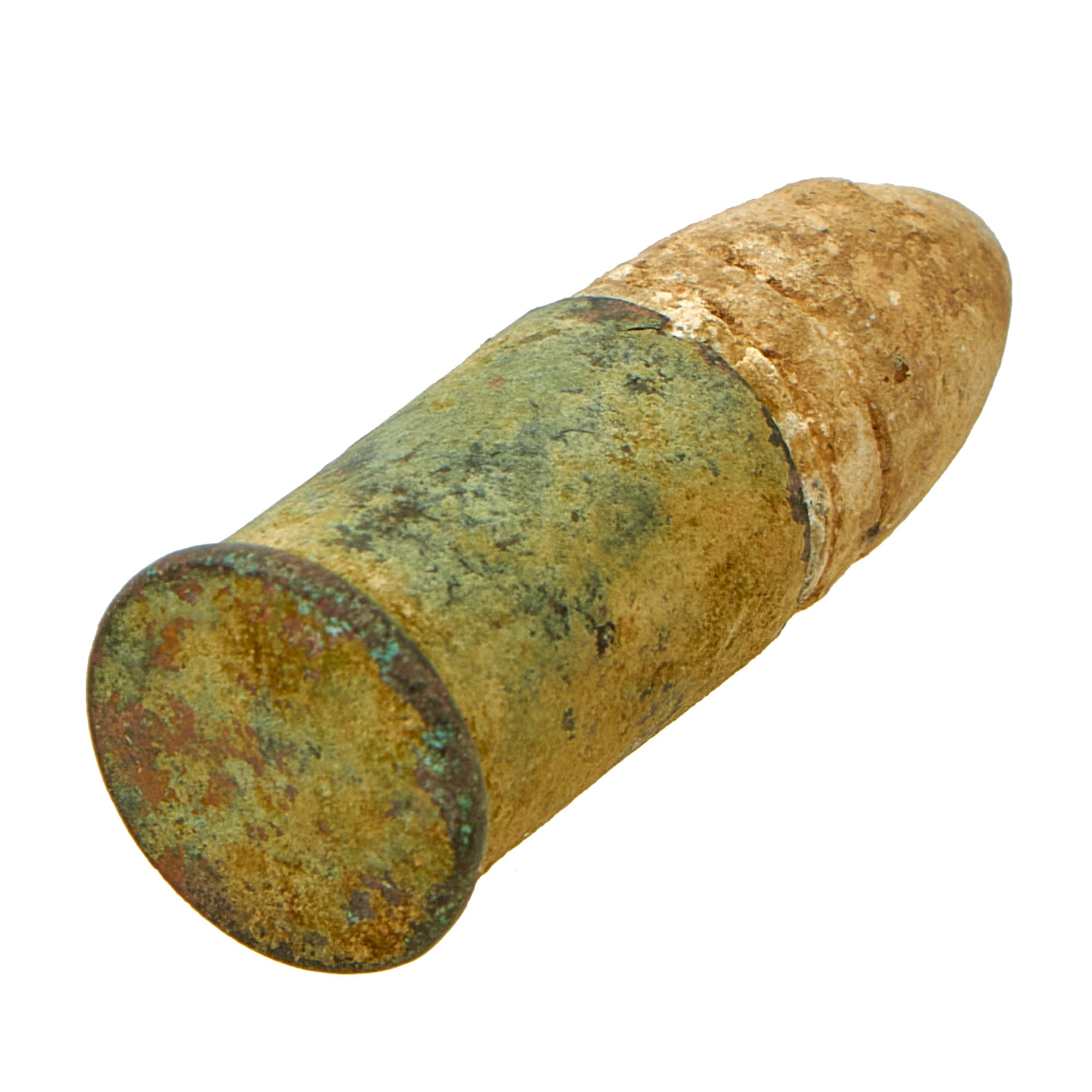

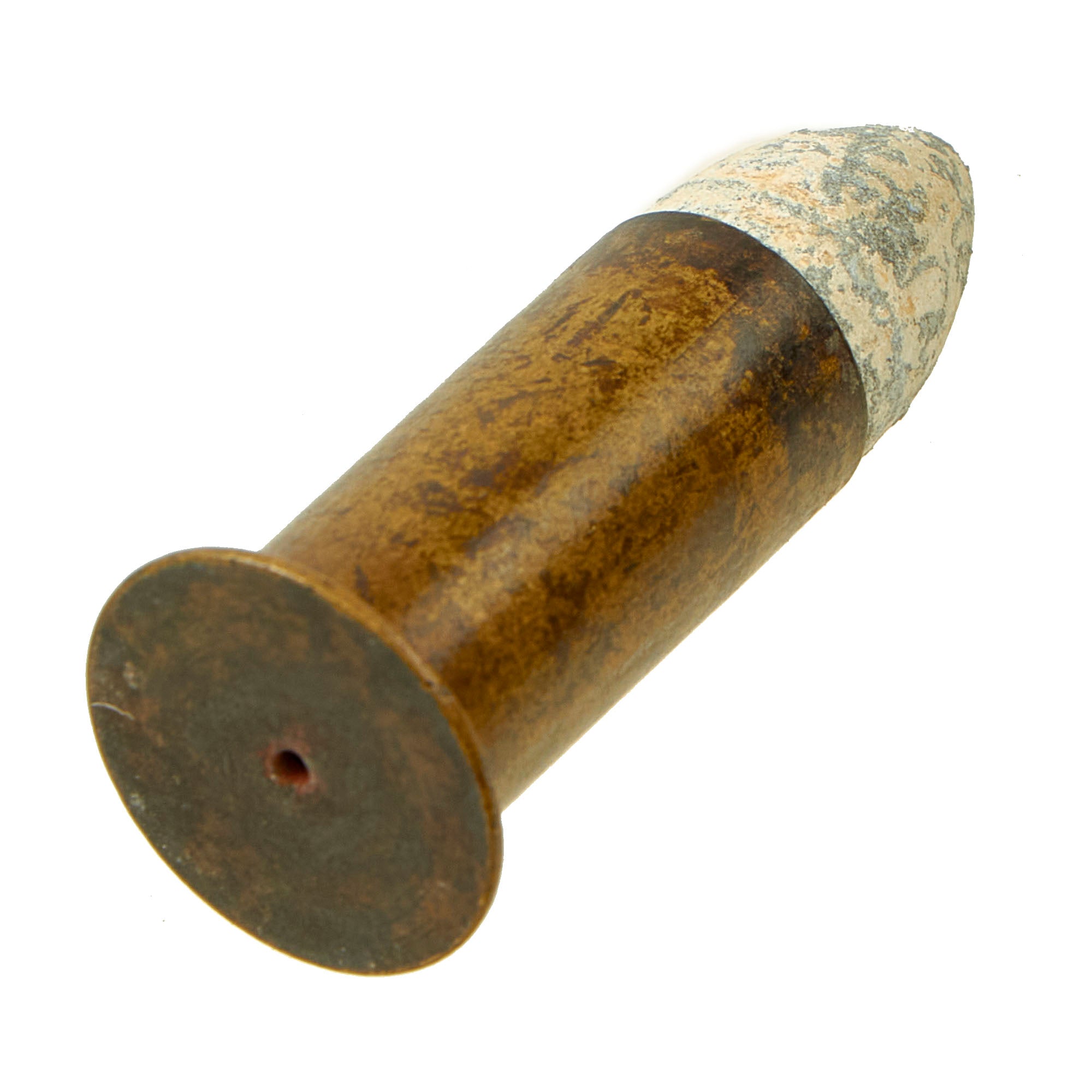

- Maynard Carbine: The Maynard carbine was a breech-loaded carbine used by cavalry in the American Civil War. The First Model was manufactured between 1858 and 1859. About 5,000 were made. In United States service it was distributed to the 9th Pennsylvania and 1st Wisconsin cavalry regiments, United States Marines aboard the USS Saratoga and the United States Revenue Cutter Service. About 3,000 Maynard carbines were in Confederate hands during the war; 5,000 in .35 caliber were purchased by Florida, 650 in .50 by Georgia, and 325 in .50 and 300 in .35 by Mississippi. Around 800 were purchased by militias in South Carolina and Louisiana. The Second Model or Model 1863 was manufactured between 1863 and 1865. Over 20,000 were made. This model lacked the tape primer and stock patch box, and was used by the 9th and 11th Indiana cavalry regiments and 11th Regiment Tennessee Volunteer Cavalry, among others. The Maynard had a good reputation for long-range accuracy, and Confederate sharpshooters made extensive use of it, especially during the Siege of Charleston.

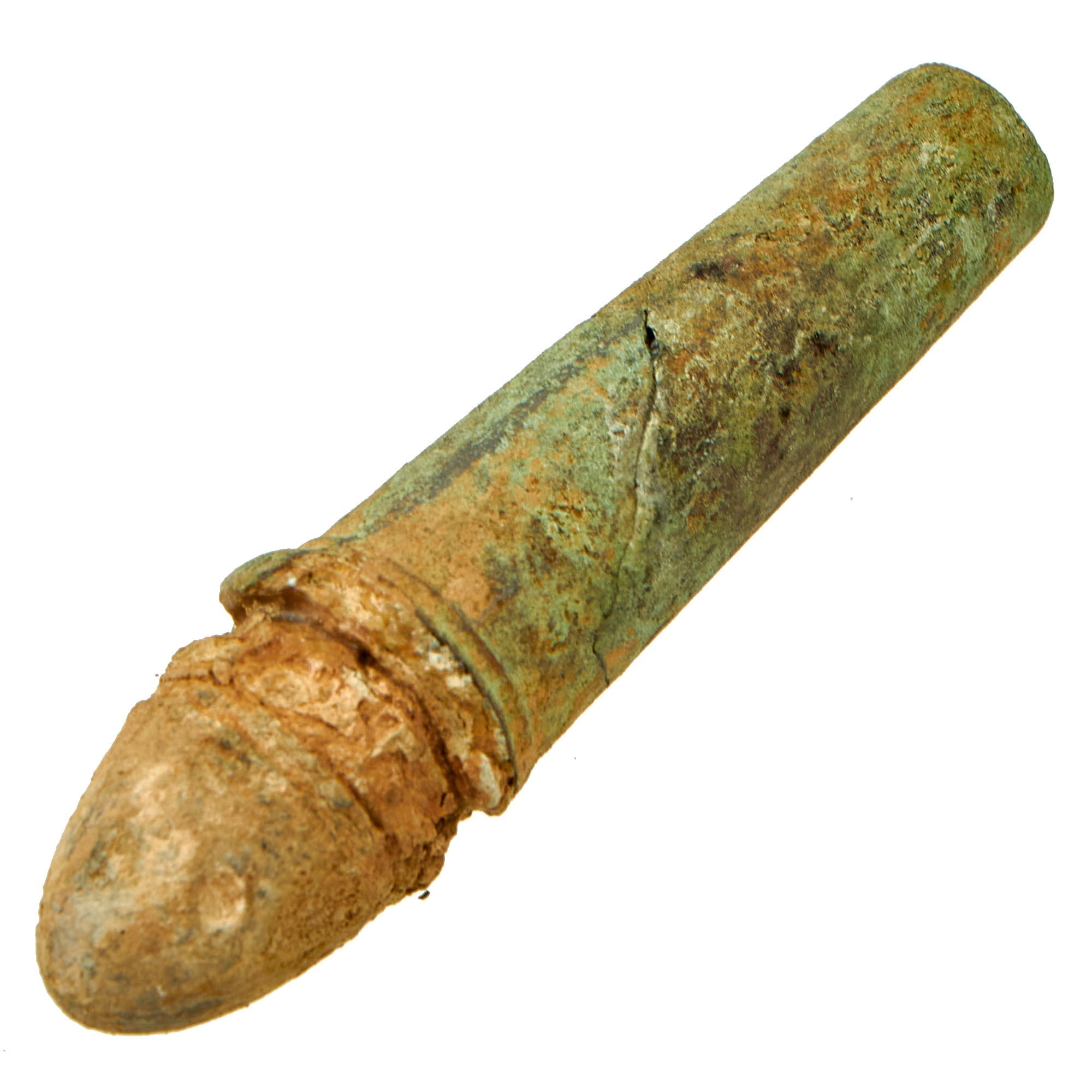

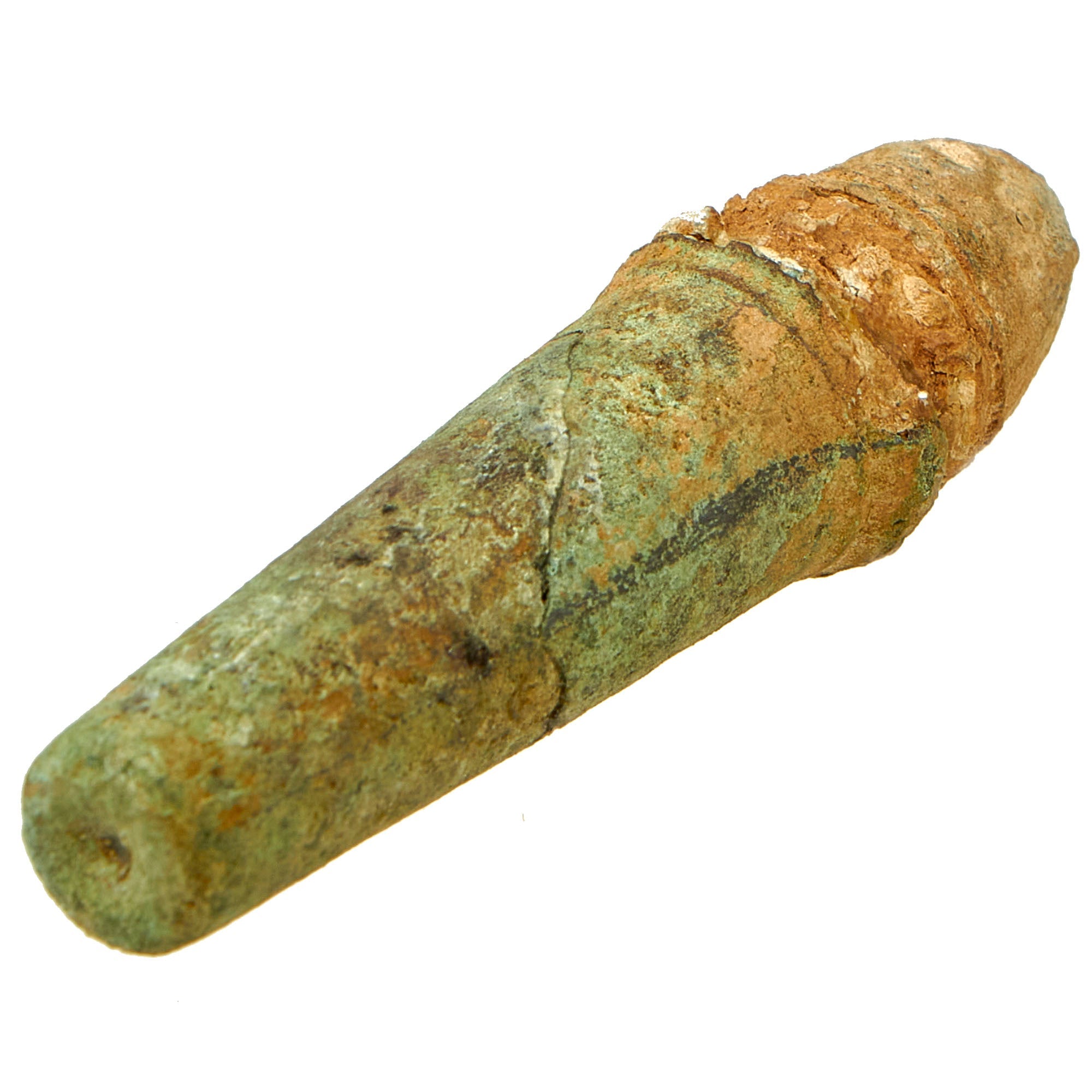

- Burnside Carbine: The Burnside carbine was a breech-loading carbine that saw widespread use during the American Civil War. The carbine was designed and patented by Gov. and General Ambrose Burnside, who resigned his commission in the U.S. Army to devote himself full-time to working on the weapon. The carbine used a special brass cartridge which was also invented by Burnside. This cartridge contained a bullet and powder, but no primer. Pressing the weapon's two trigger guards opened the breech block and allowed the user to insert a cartridge.

When the trigger was pulled, the hammer struck a separate percussion cap and caused a spark; a hole in the base of the cartridge exposed the black powder to this spark. The unique, conical cartridge sealed the joint between the barrel and the breech. Most other breech-loading weapons of the day tended to leak hot gas when fired, but Burnside's design eliminated this problem.

This is a lovely set of Civil War carbine cartridge relics, they come more than ready for display.

These are being sold as display collectible items ONLY. We cannot guarantee functionality and do not recommend that they be used.
